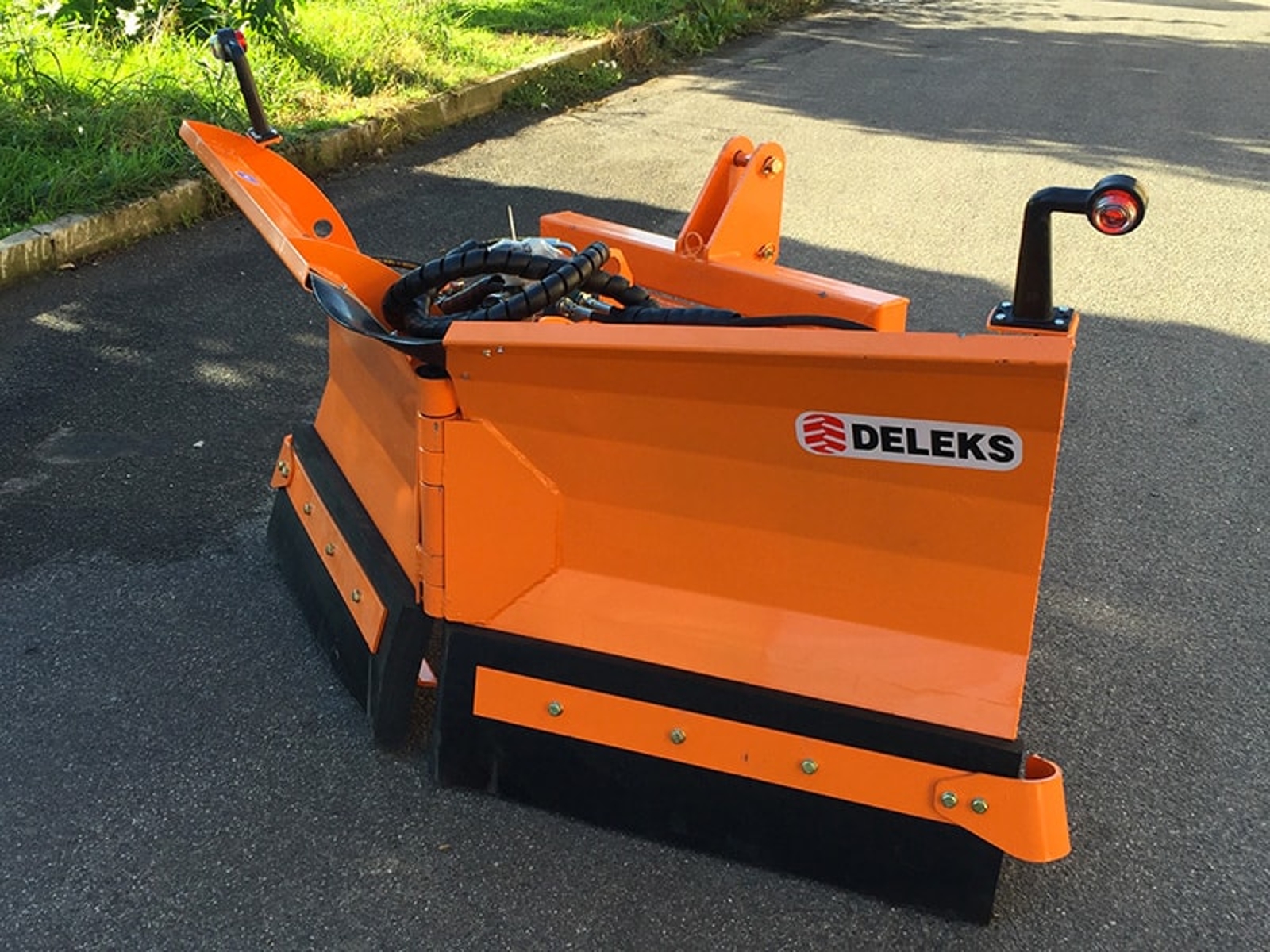

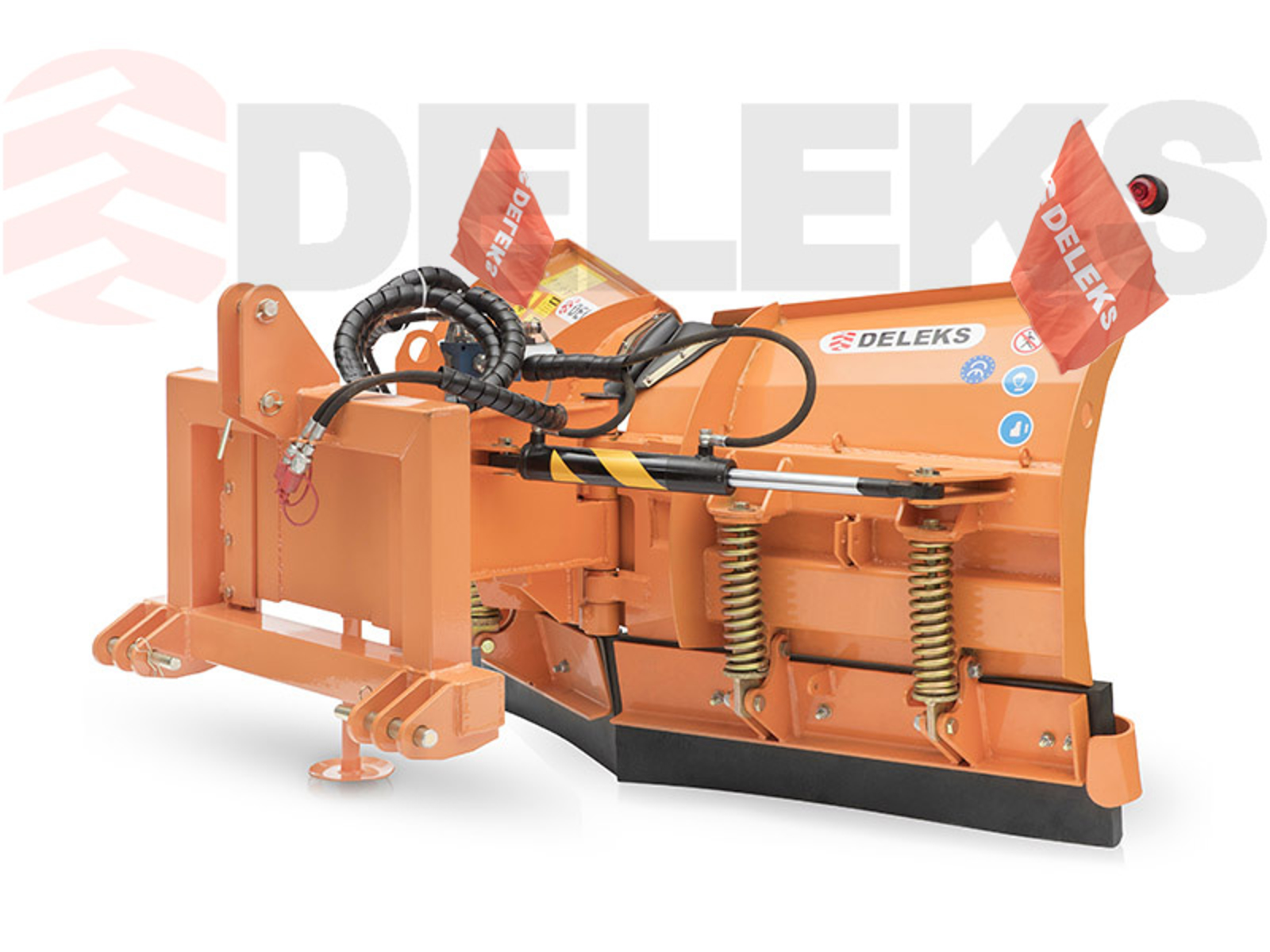

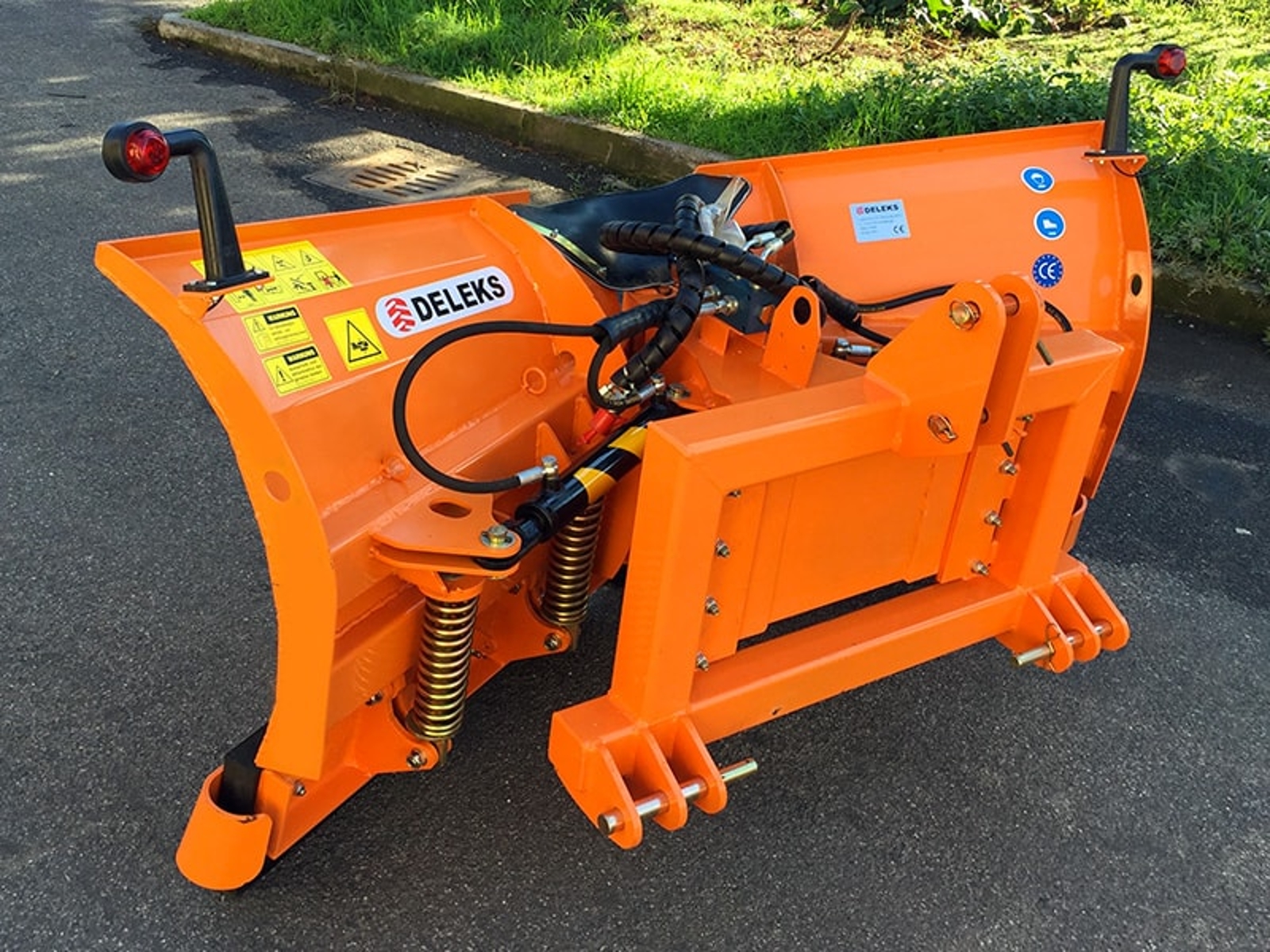

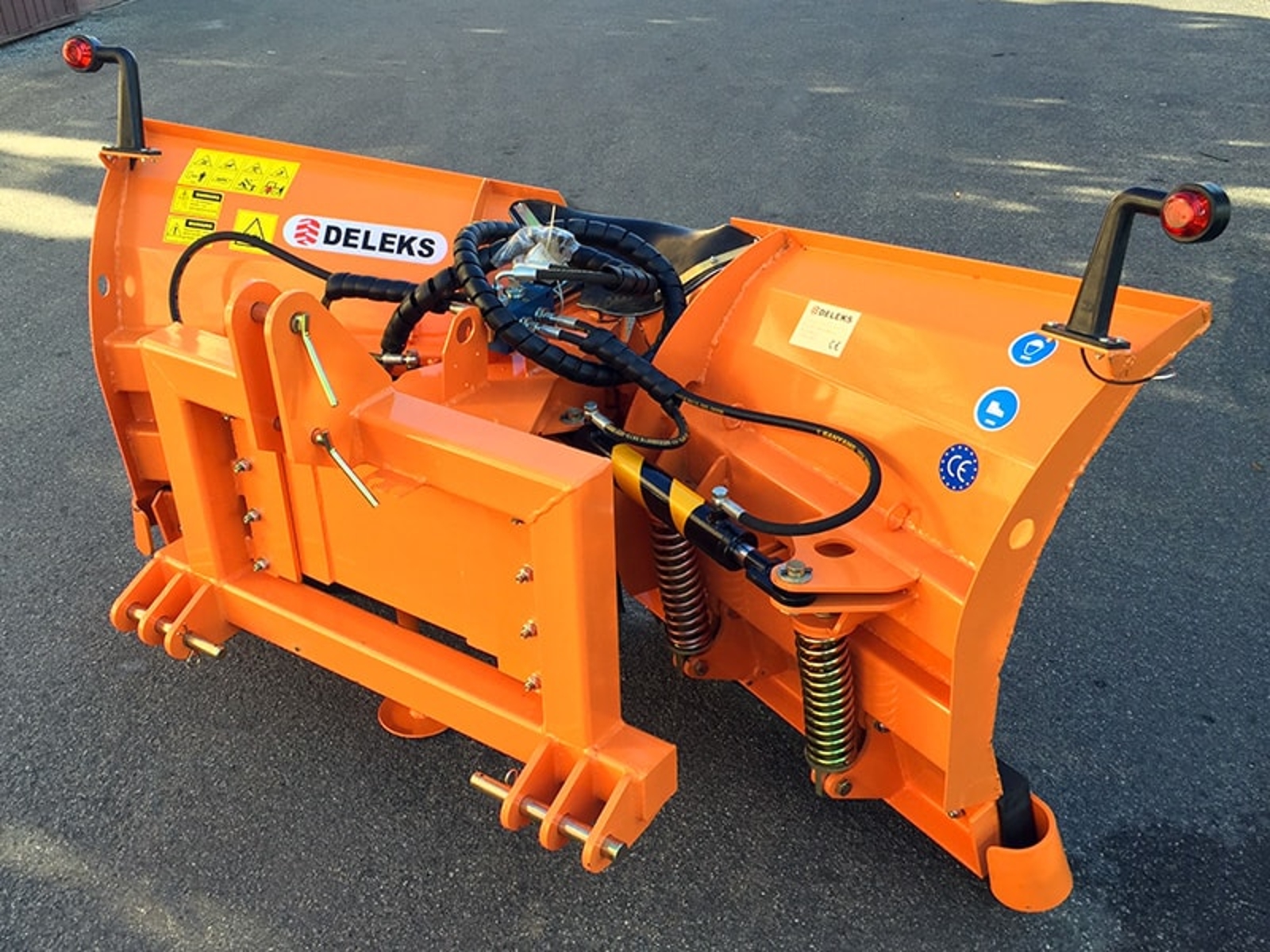

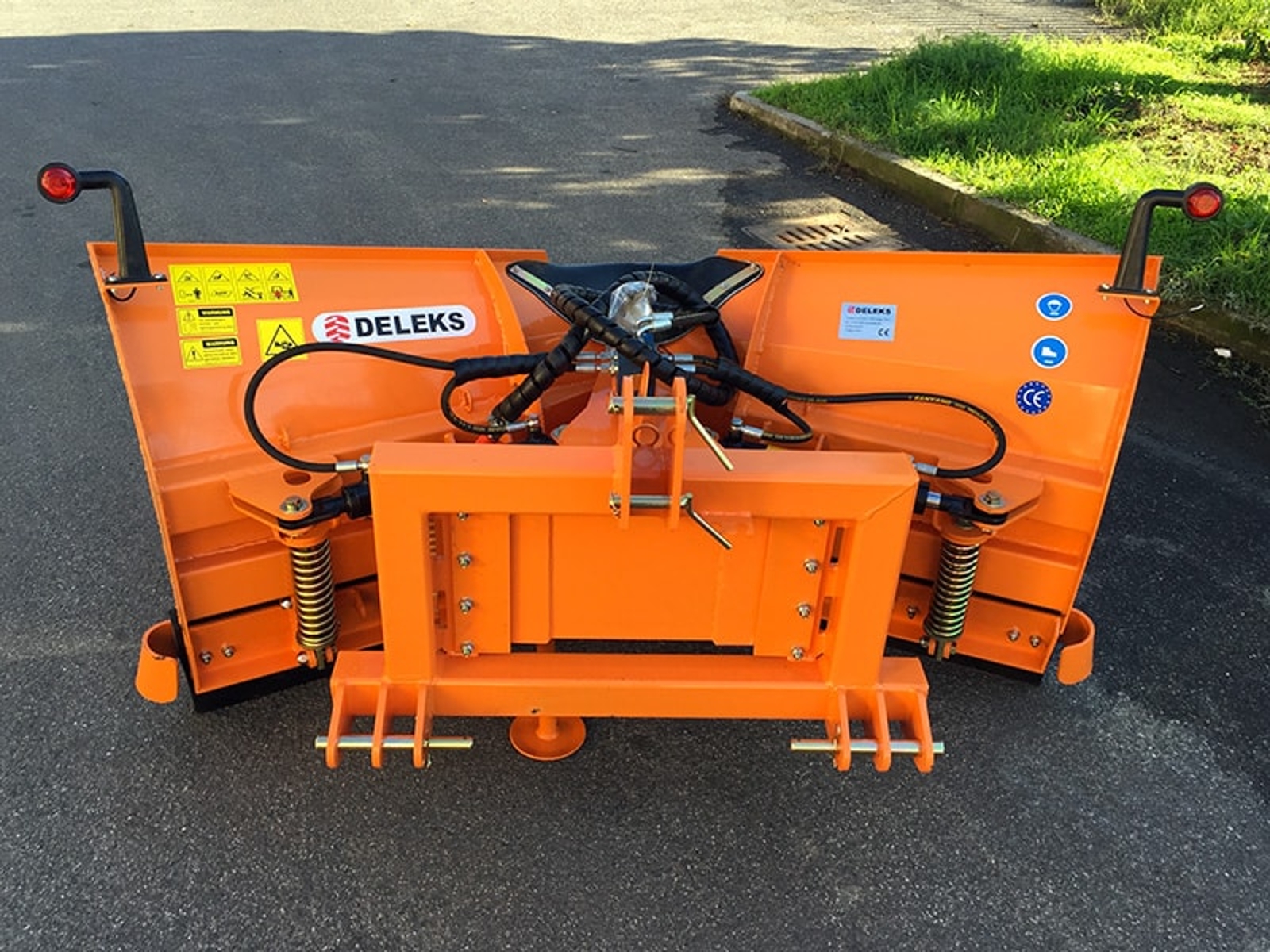

Snowplow with 3 point linkage for tractor, LNV-200-C

Available
Code LNV200CG
EAN 8053470231483
View all details.
D
H
M
S
-399,60 2.799,00VAT incl.
TOTAL
2.399,40VAT incl.
Free shipping

DETAILS

Snowplough 200cm - DELEKS® - Snowblade for tractor - 3 point linkage - Rubber blades - Homologated for road use.


OVERVIEW

The LNV-200-C has been designed for 35-70 hp tractors, e.g. Mistral Landini, Kubota L, Goldoni Star, John Deere, or reversible tractors like Ferrari Chrome, Antonio Carraro TTR 4400, BCS Invictus, Pasquali Siena, Valpadana.

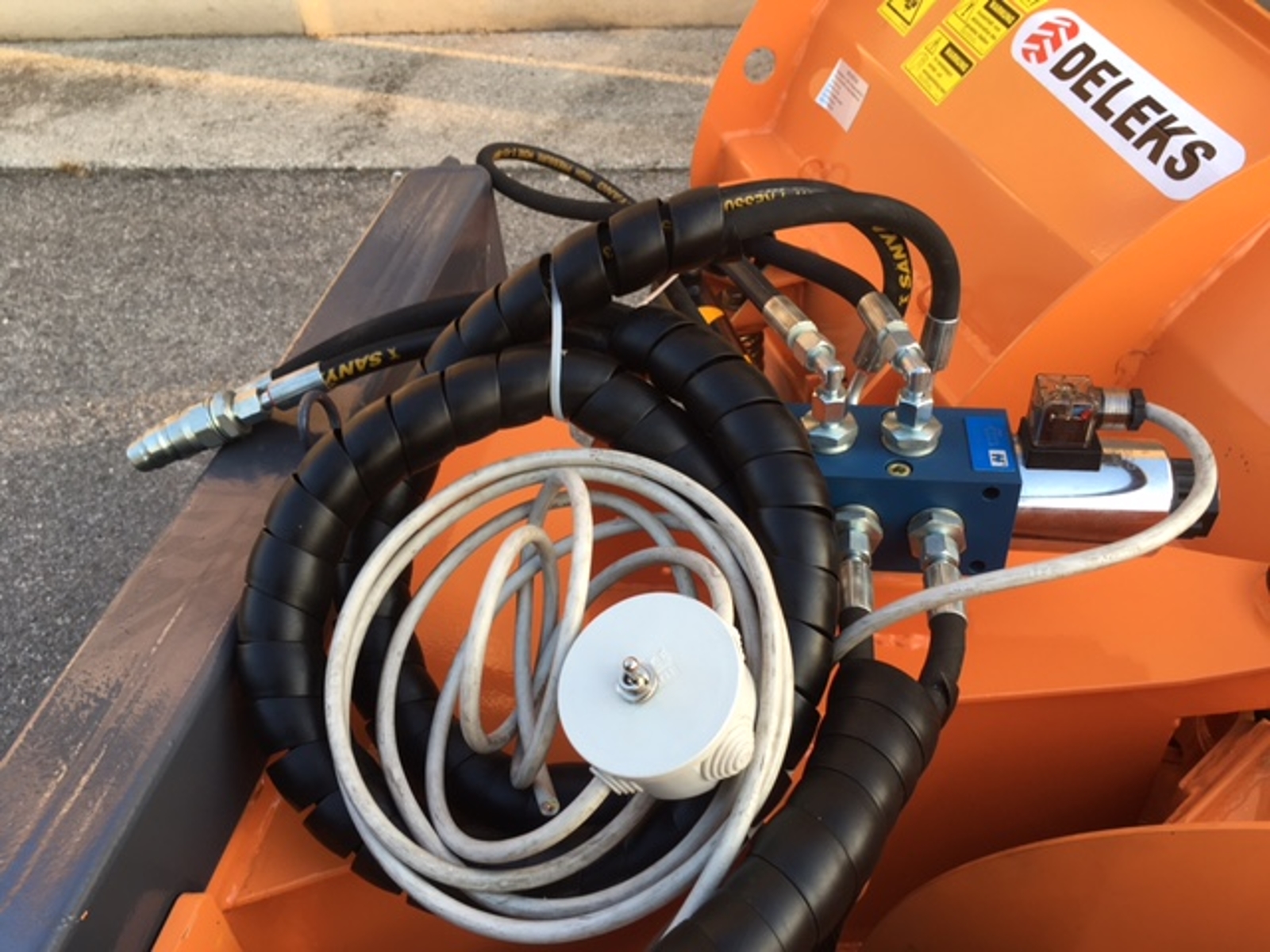

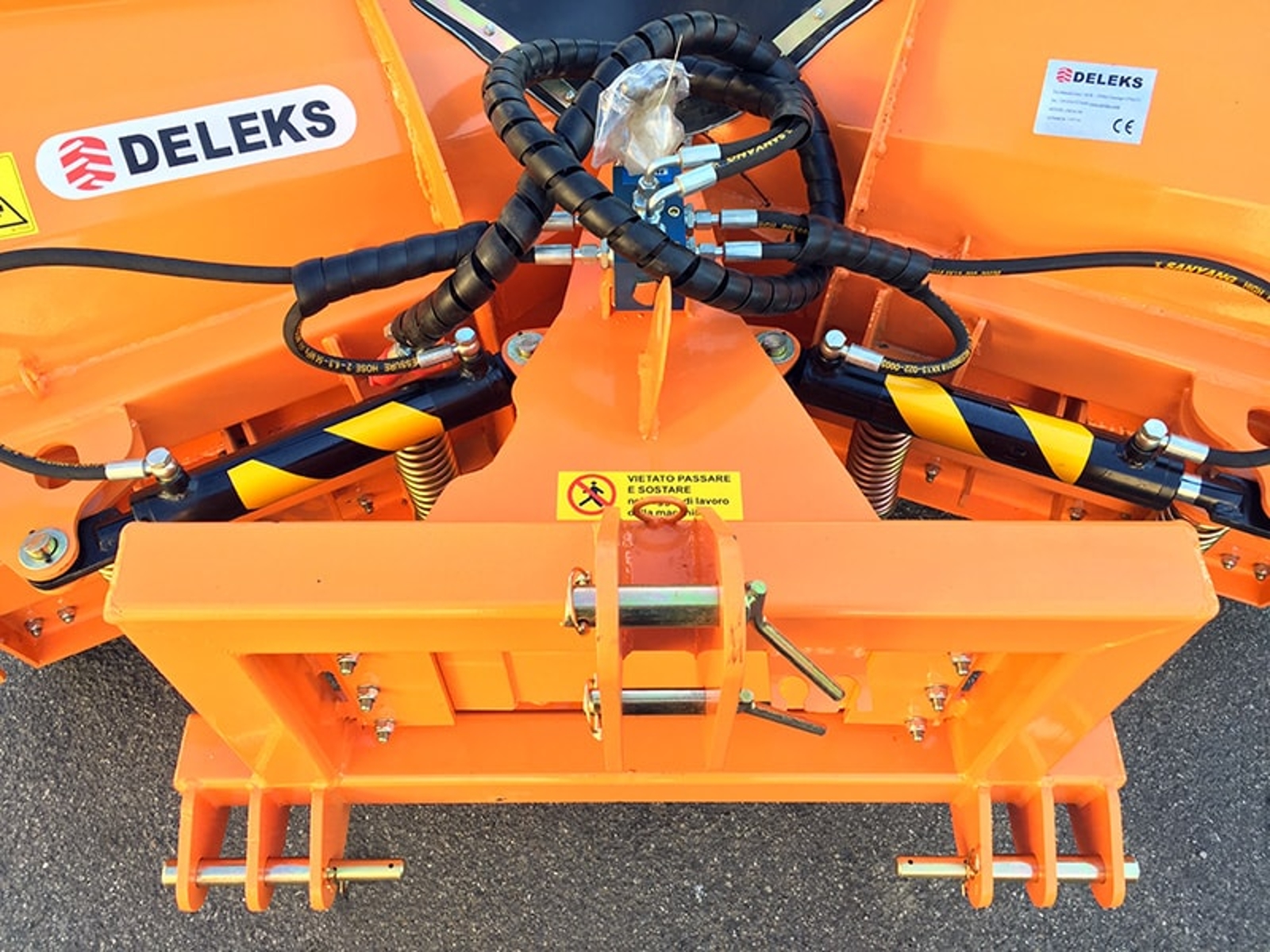

Angling of the plow is done hydraulically using two pistons, a 6-way solenoid valve and two hydraulic pipes (2.0m).

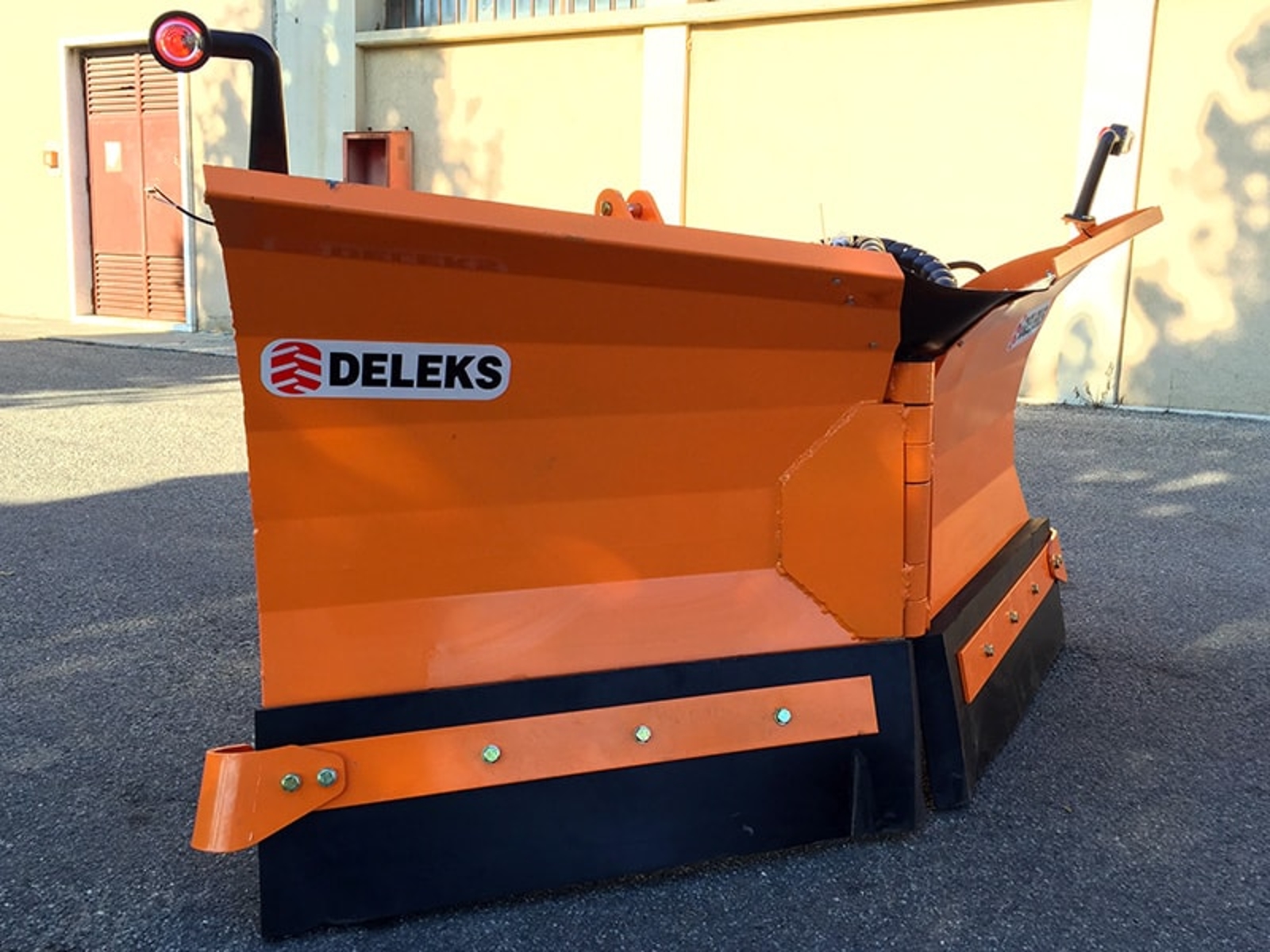

The plow has a replaceable rubber blade, spring swivel mount which makes the plow resistant to impact of obstacles. Supplied with marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.



BENEFITS AND FEATURES

Hydraulically controlled plowshares allow for four different working positions (open, closed, left and right).

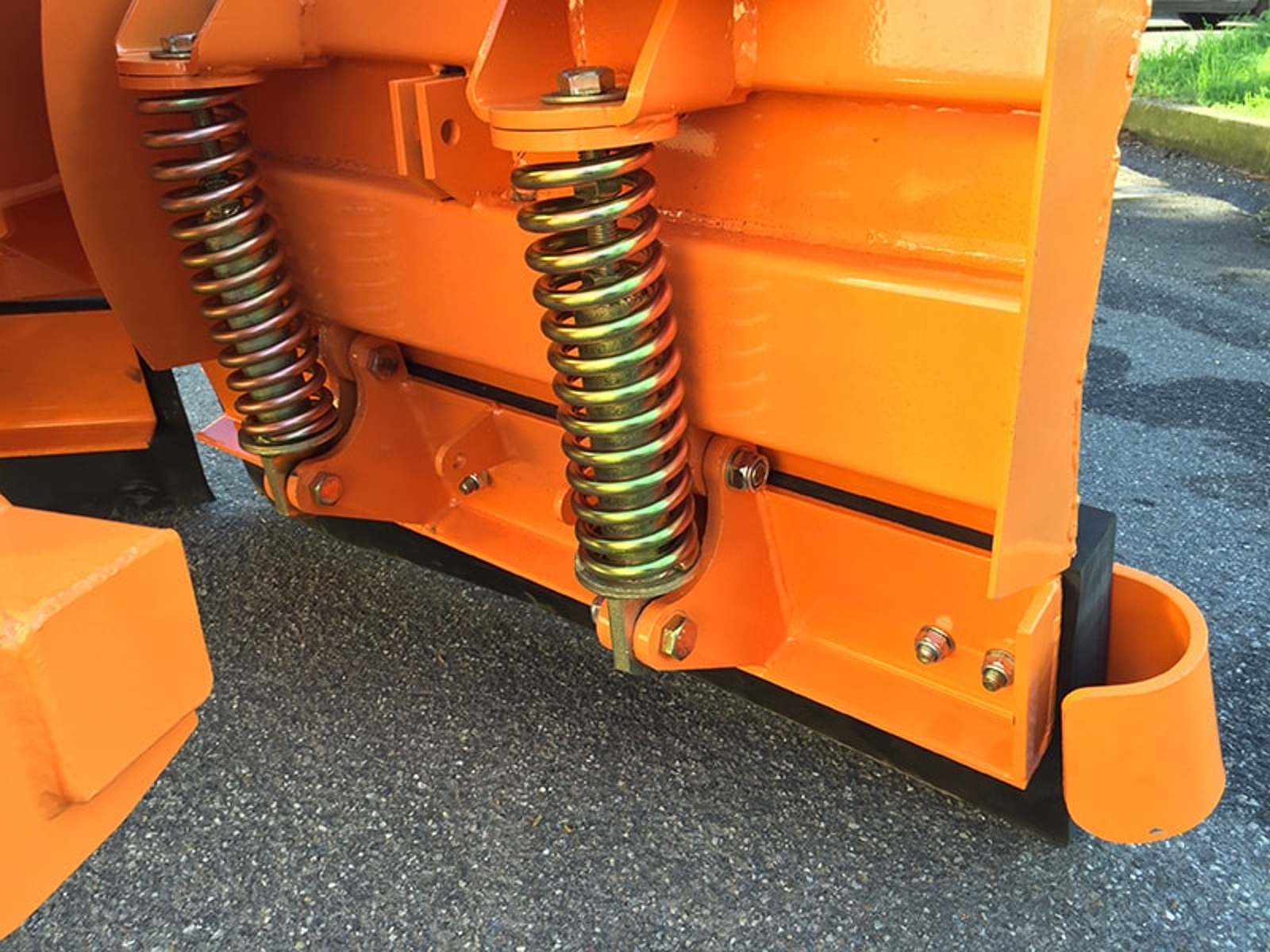

Anti-shock system with 4 shock absorbing springs to overcome obstacles safety.

2 independent plowing elements.

Lateral oscillation system which allows a perfect adherence to the road surface.

Extremely easy installation and usage.

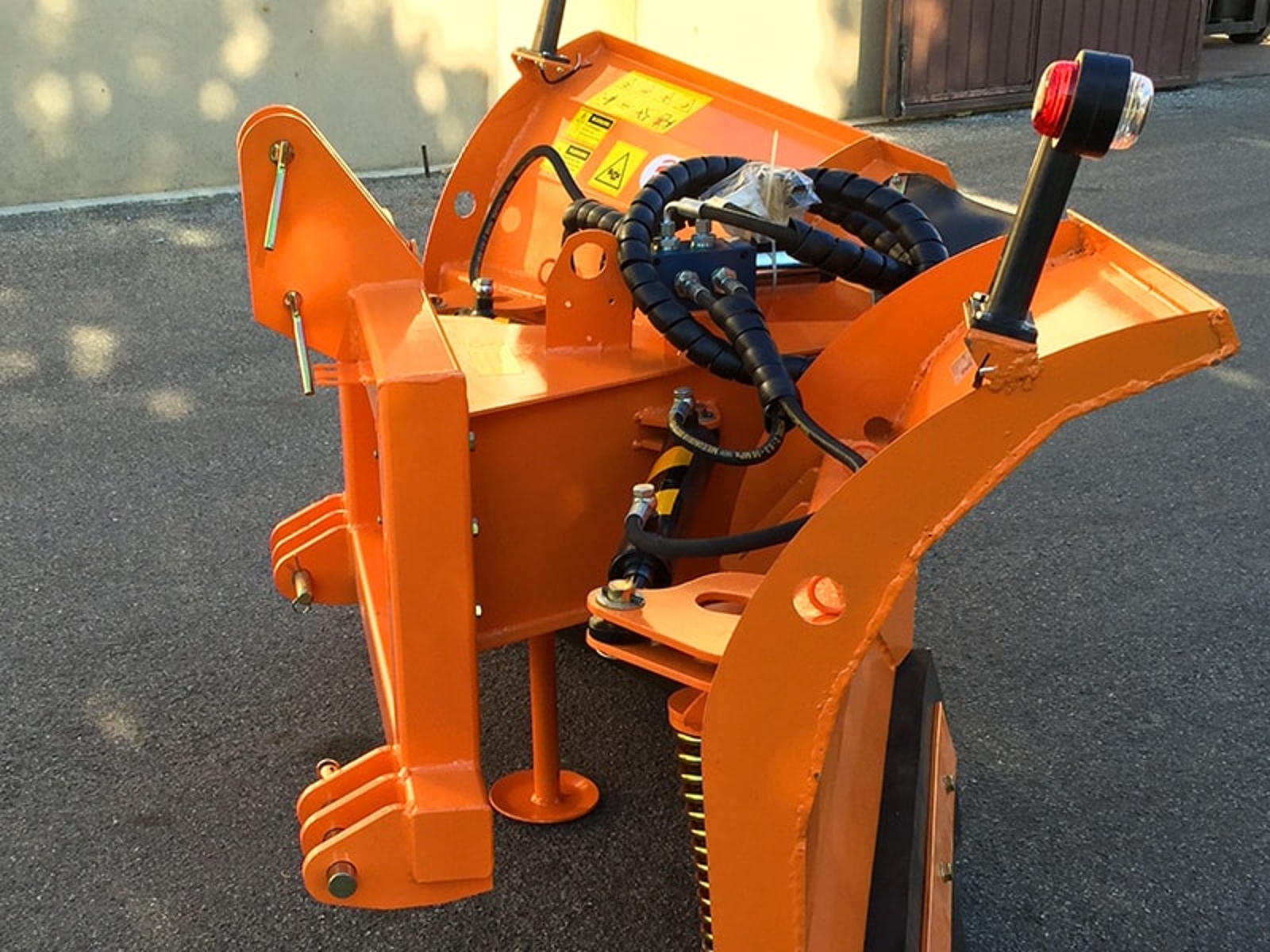

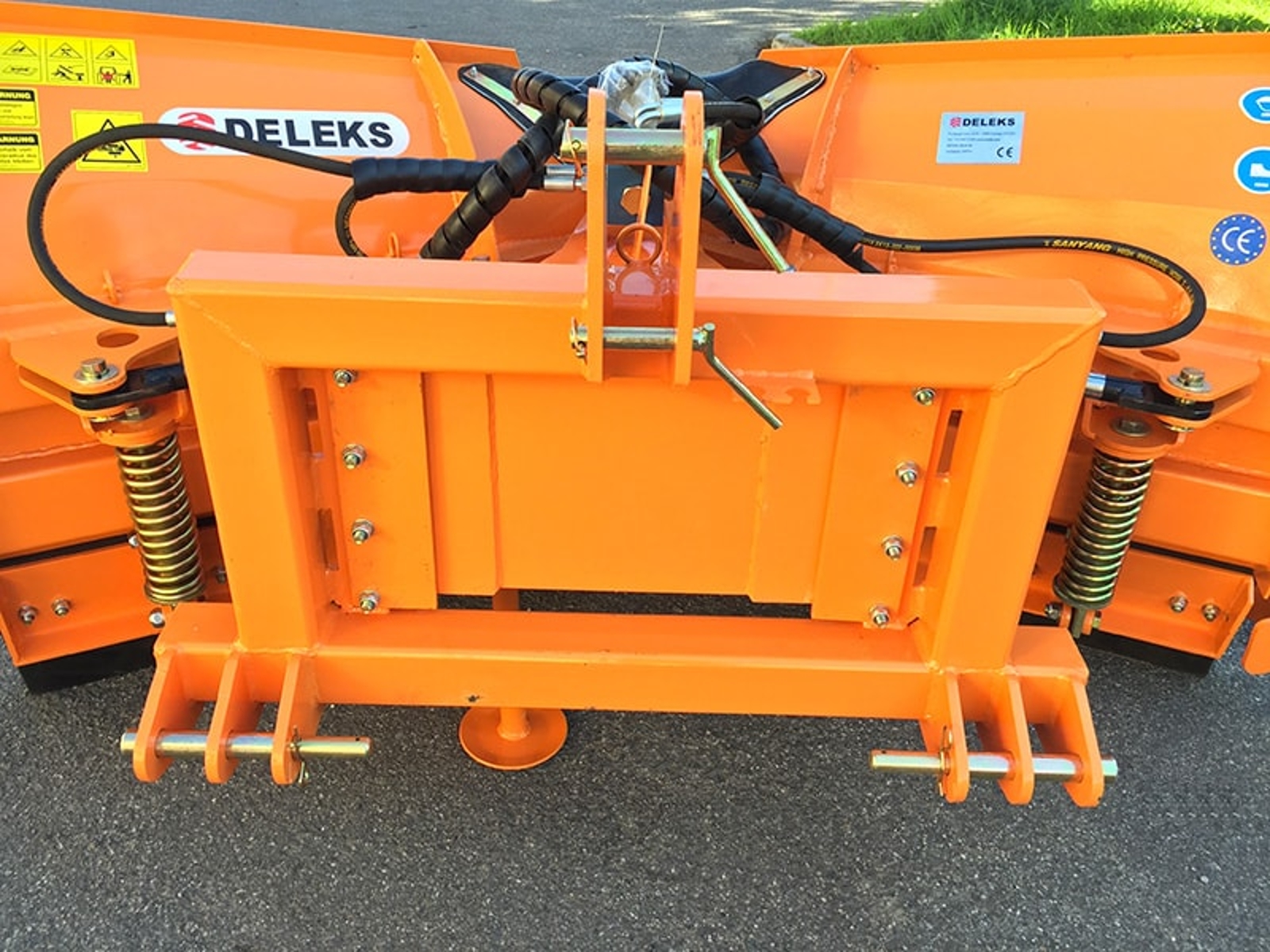

The 3-point hitch is removable and replaceable with EURO or Skid steer attachment.

Perfect adherence to the road surface and homologated for road use.

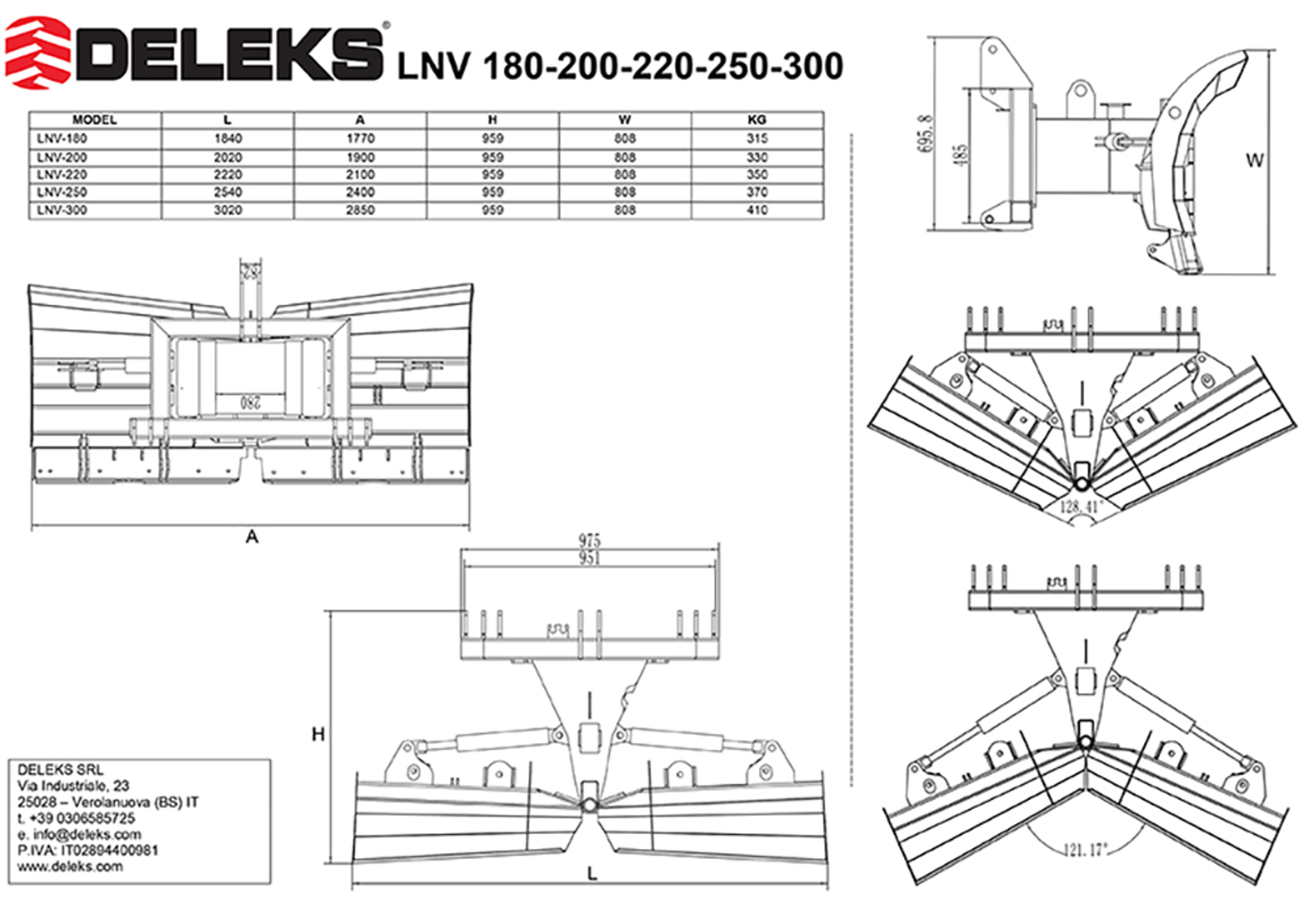

CHARACTERISTICS

Characteristic Units metric Units US
Weight 330.0 kg 727.5 lb
Overall height 1020.0 mm 3.35 ft
Tractor Power Range 35 - 70 Hp 35 - 70 Hp
Overall Length 870.0 mm 2.85 ft
Spacing between the 2 lower points 635.0 - 970.0 mm 25.0 - 38.20 in
Distance between the 2 lower points and ground 180.0 mm 7.08 in
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface 3 Point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm) 3 Point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm)
Angling (left/right) 30° 30°
Float +/- 6° +/- 6°
Blade Height 920.0 mm 3.00 ft
Side edge thickness 5.0 mm 0.20 in
Shock absorbers 4 4
Cutting Edge Rubber Rubber
Cutting Edge Height 265.0 mm 10.43 in
Cutting Edge Thickness 50.0 mm 1.97 in
Trip Edge Quantity 2 2
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights
Removable Skid Shoes x x
Working width (angled) 1900.0 mm 6.23 ft
Hydraulic Hoses 2 x 2000.0 mm / connections 1.2" AGRI, WP 400 bar 2 x 6.56 ft / connections 1.2" AGRI, WP 400 bar
Overall width 2020.0 mm 6.62 ft
Main frame thickness 4.0 mm + reinforces 0.15 in + reinforces
Hydraulic cylinder/s ø 60.0/30.0 mm 2.36/1.18 in
Packing sizes 2050.0*1000.0*800.0 mm 6.73*3.28*2.62 ft
