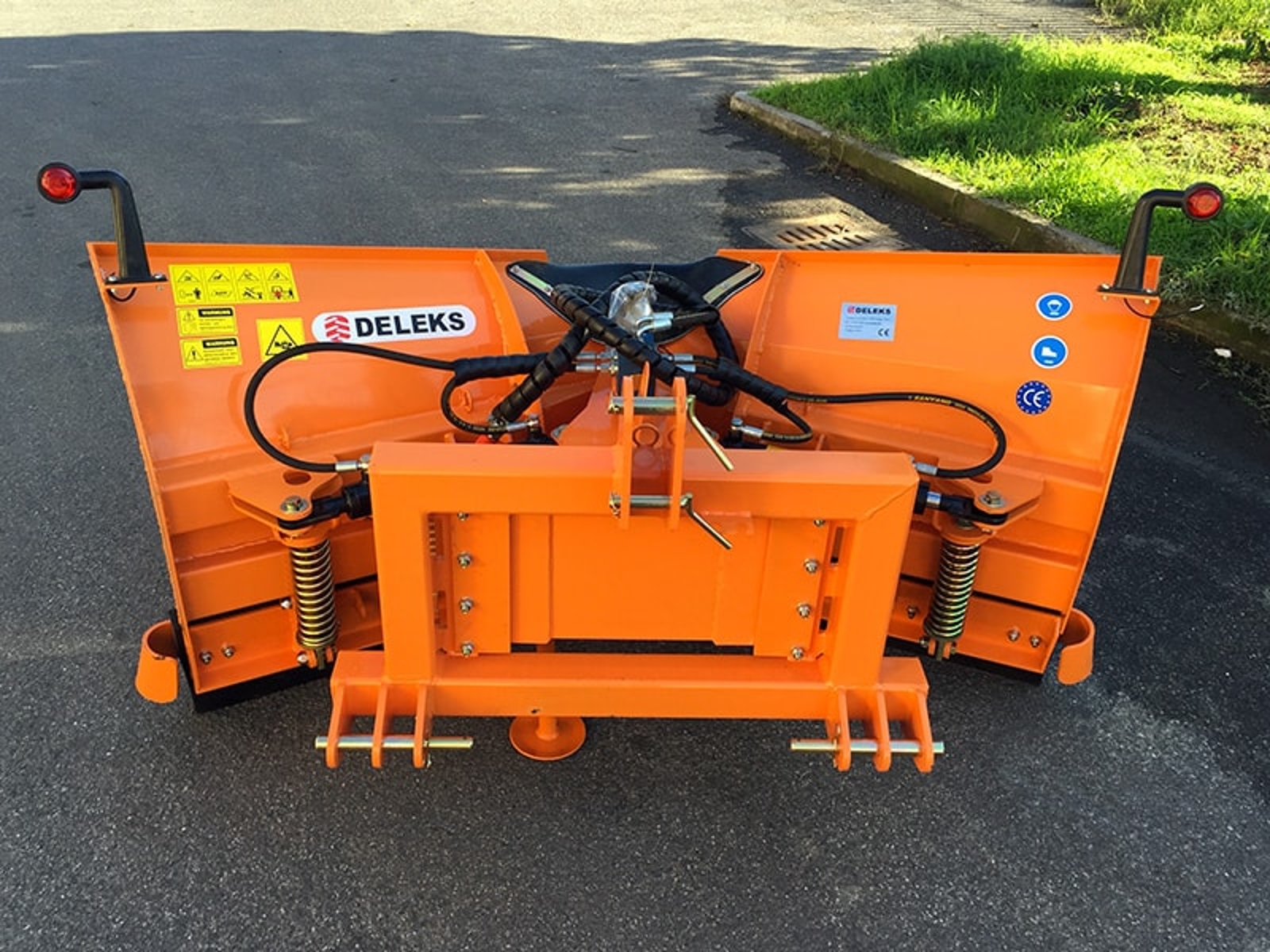

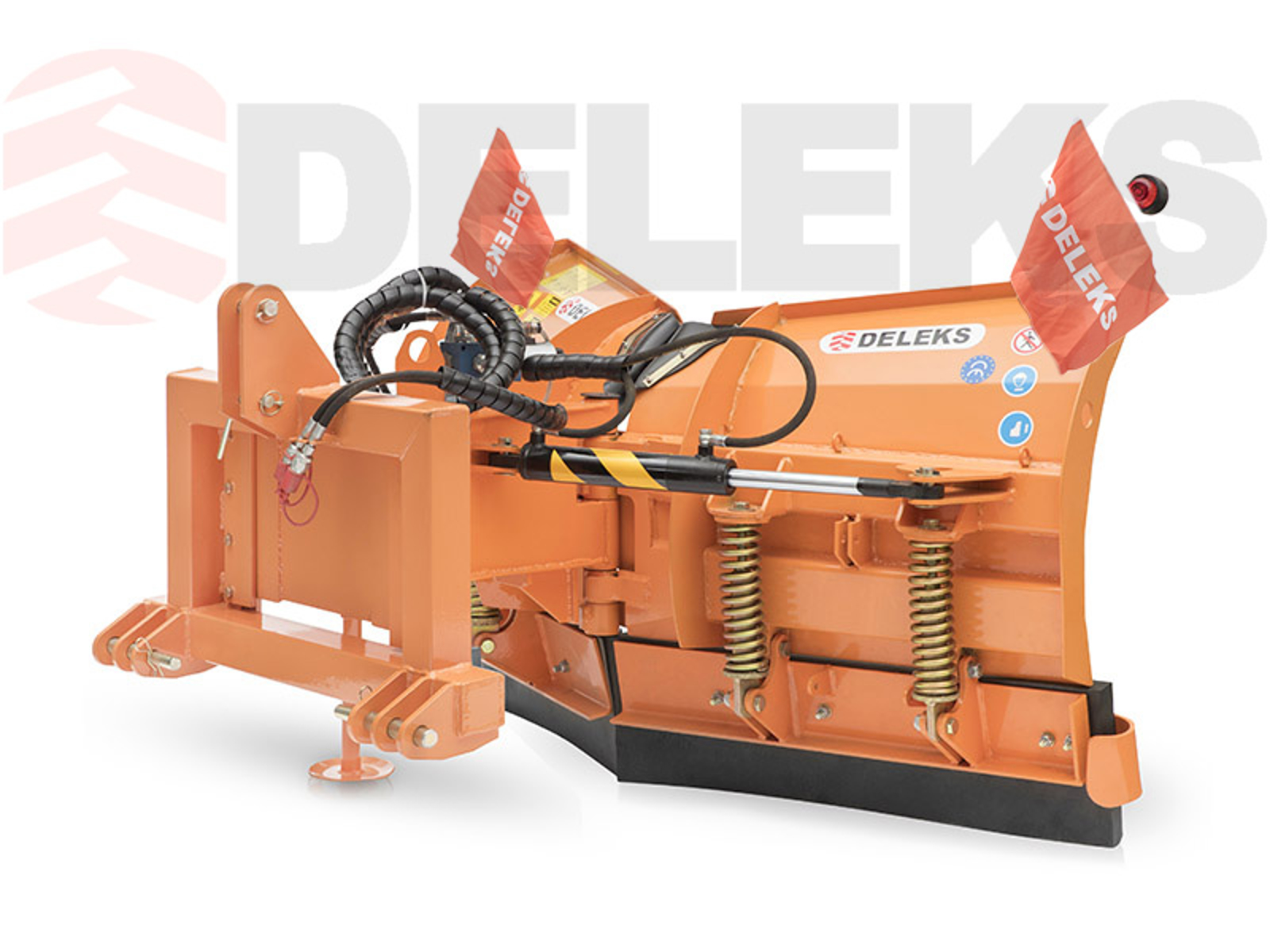

Snowplow with 3 point linkage for tractor, LNV-250-C
DETAILS
Snowplough 250cm - DELEKS® - Snowblade for tractor - 3 point linkage - Rubber blades - Homologated for road use.
OVERVIEW
The LNV-250-C has been designed for 50-90 hp tractors, e.g. Mistral Landini, Kubota L, Goldoni, John Deere, or reversible tractors like Ferrari, Antonio Carraro, BCS, Pasquali, Valpadana.

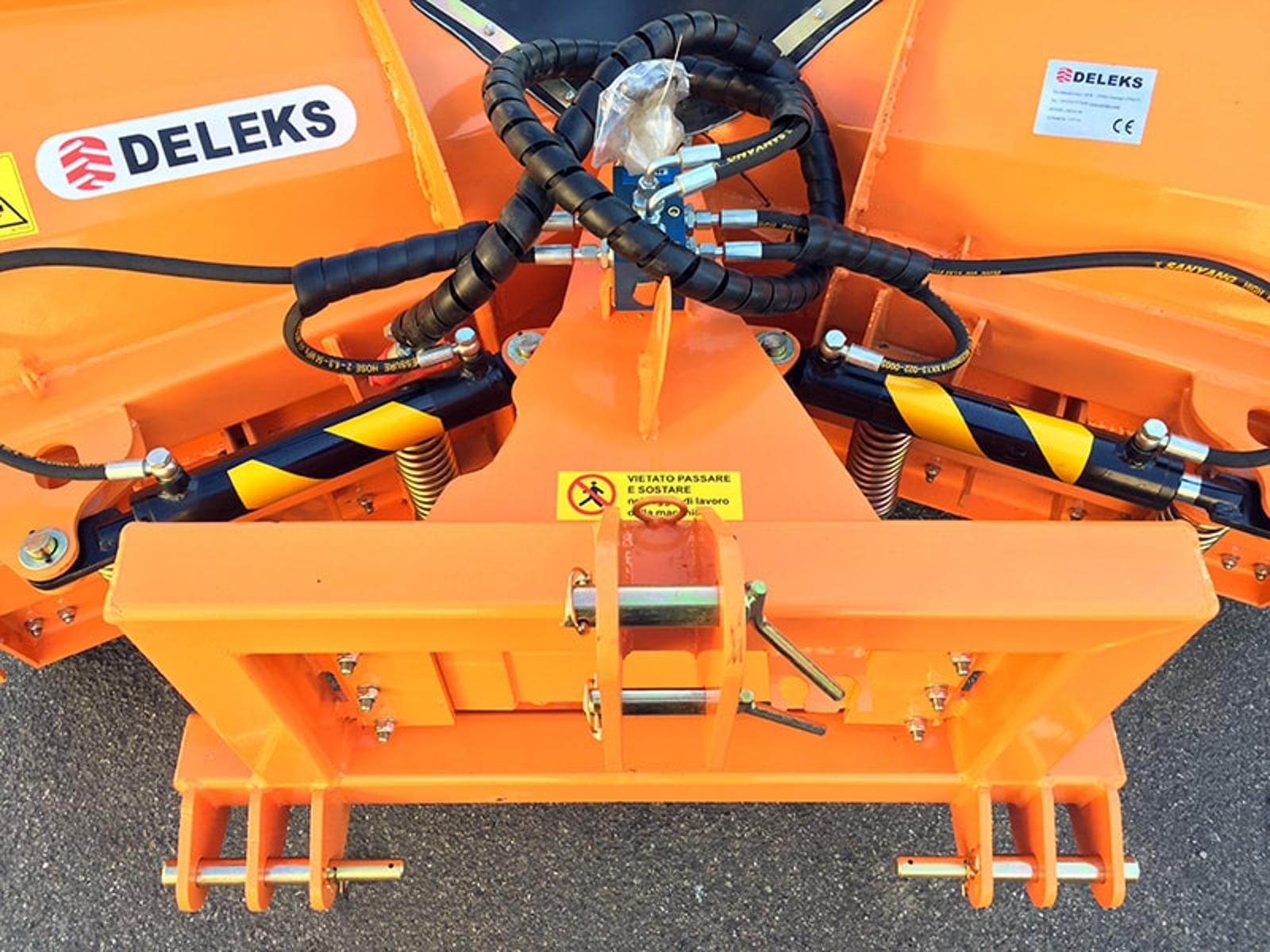

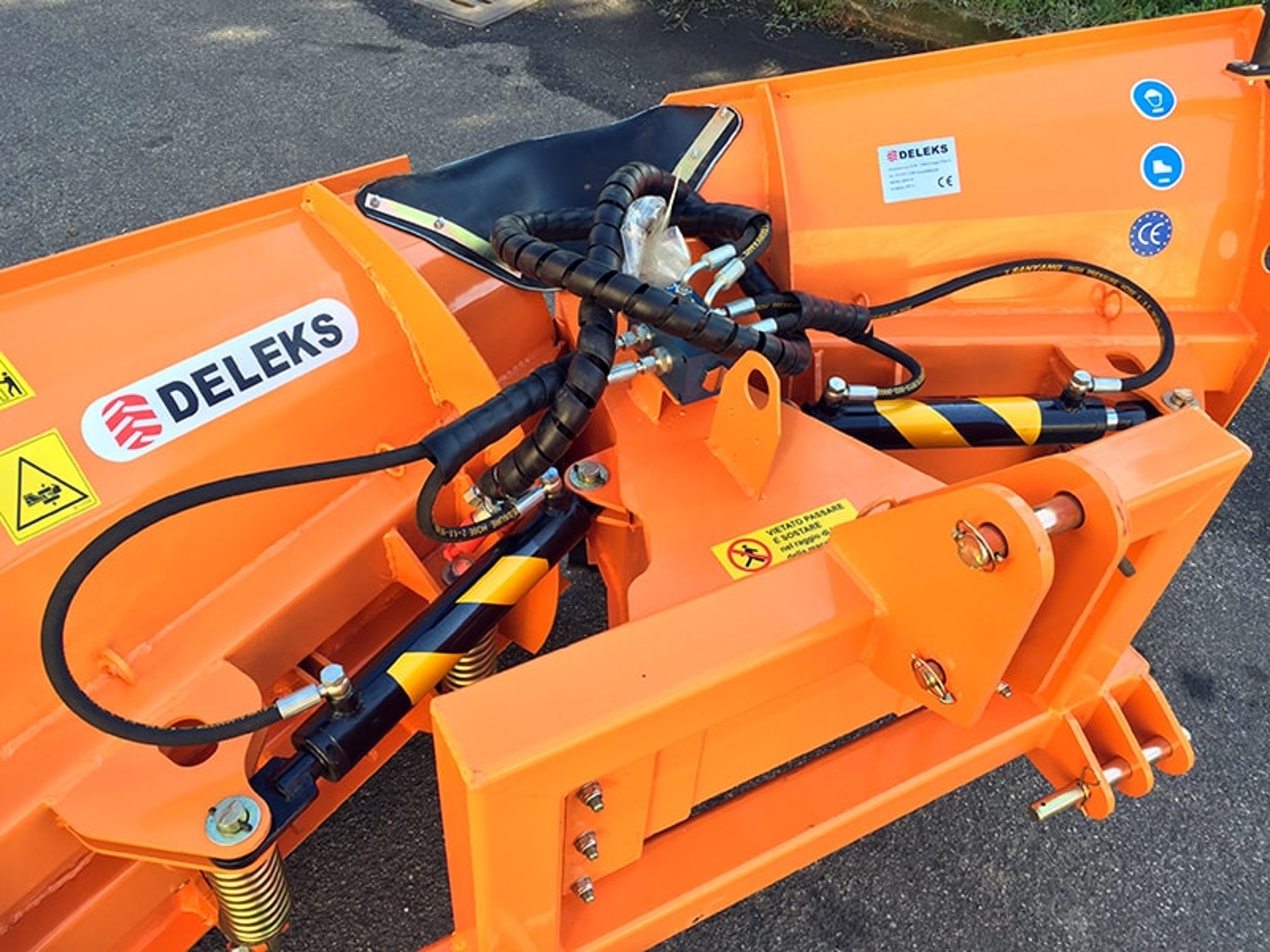

Angling of the plow is done hydraulically using two pistons, a 6-way solenoid valve and two hydraulic pipes (2.0m).
The plow has a replaceable rubber blade, spring swivel mount which makes the plow resistant to impact of obstacles. Supplied with marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES
Hydraulically controlled plowshares allow for four different working positions (open, closed, left and right).
Anti-shock system with 4 shock absorbing springs to overcome obstacles safety.
2 independent plowing elements.
Lateral oscillation system which allows a perfect adherence to the road surface.
Extremely easy installation and usage.

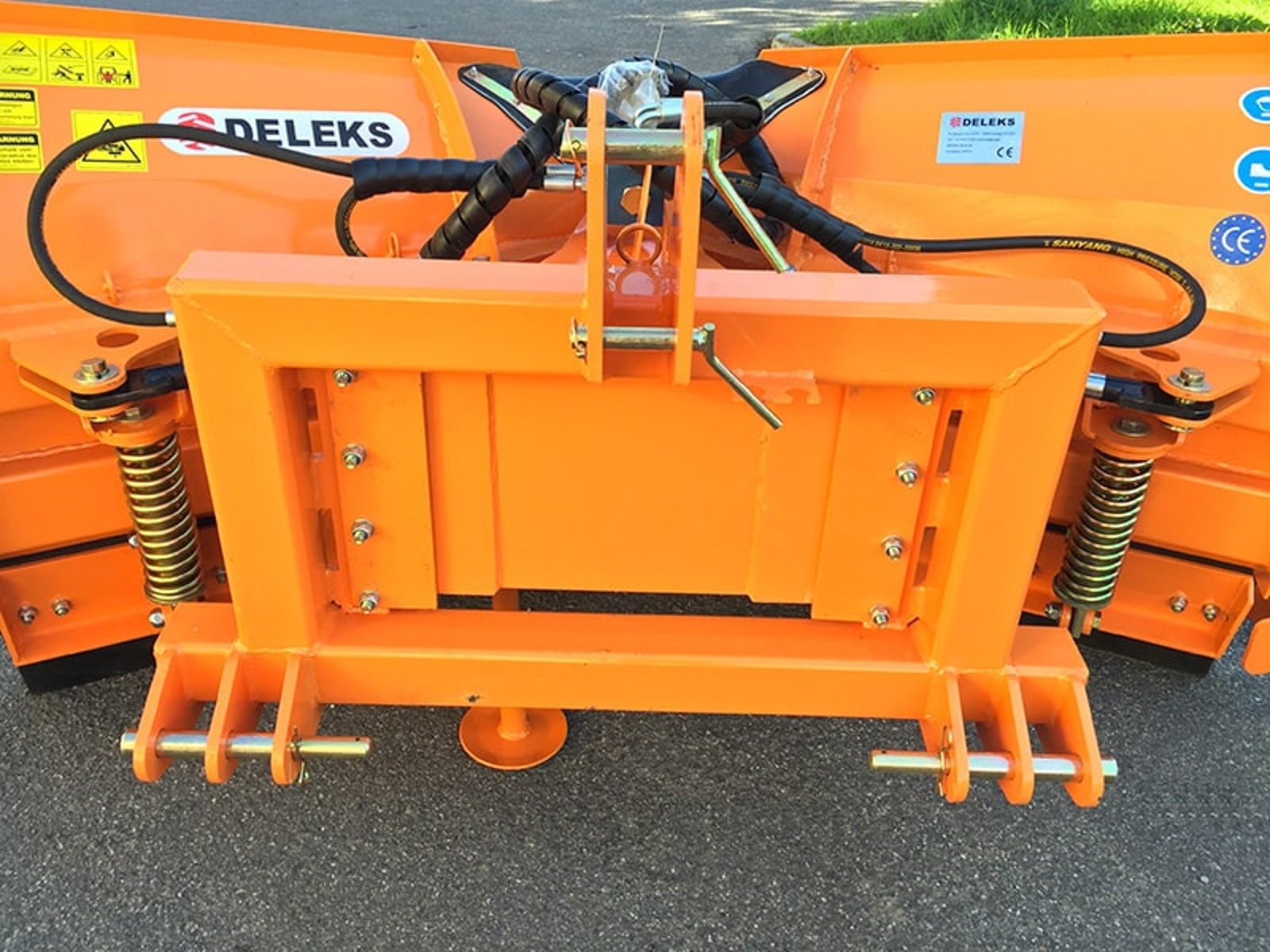

The 3-point hitch is removable and replaceable with EURO or Skid steer attachment.
Perfect adherence to the road surface and homologated for road use.
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 370.0 kg | 815.50 lb |
| Overall height | 1020.0 mm | 3.35 ft |
| Tractor Power Range | 50 - 90 Hp | 50 - 90 Hp |
| Overall Length | 870.0 mm | 2.85 ft |
| Spacing between the 2 lower points | 635.0 - 970.0 mm | 25.0 - 38.20 in |
| Distance between the 2 lower points and ground | 180.0 mm | 7.08 in |
| Min./Max. Relief Pressure | 110 - 150 bar | 110 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min | 18 - 22 l/min |
| Interface | 3 Point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm) | 3 Point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm) |
| Angling (left/right) | 30° | 30° |
| Float | +/- 6° | +/- 6° |
| Blade Height | 920.0 mm | 3.00 ft |
| Side edge thickness | 5.0 mm | 0.20 in |
| Shock absorbers | 6 | 6 |
| Cutting Edge | Rubber | Rubber |
| Cutting Edge Height | 265.0 mm | 10.43 in |
| Cutting Edge Thickness | 50.0 mm | 1.97 in |
| Trip Edge Quantity | 2 | 2 |
| Distance betweens the bolts of the Trip Edge | 200.0 mm | 7.87 in |
| Lights | √ | √ |
| Removable Skid Shoes | x | x |
| Working width (angled) | 2400.0 mm | 7.87 ft |
| Hydraulic Hoses | 2 x 2000.0 mm / connections 1.2" AGRI, WP 400 bar | 2 x 6.56 ft / connections 1.2" AGRI, WP 400 bar |
| Overall width | 2540.0 mm | 8.33 ft |
| Main frame thickness | 4.0 mm + reinforces | 0.15 in + reinforces |
| Hydraulic cylinder/s ø | 60.0/30.0 mm | 2.36/1.18 in |
| Packing sizes | 2550.0*1000.0*800.0 mm | 8.37*3.28*2.62 ft |
