DETAILS
Hay bale forks DELEKS® for tractors like Kubota - Load capacity 700kg.
OVERVIEW
The DK-3 bale fork spears are extremely heavy duty, manufactured from high tensile solid steel for easy lifting and inserting into a hay bale. Ideal for Japanese tractors Kubota, Kioti, Iseki, Pasquali, Yanmar, Solis, Mahindra, and narrow tractors like New Holland Boomer 25, John Deere, Pasquali, Ferrari etc. Universal 3 point linkage Cat. 1. EC Declaration of Conformity, 2 Year warranty.
SPECIFICATION
This Hay bale mover is designed for hard centre bales.
One 49 inch hay bale spears.
Bale spear diameter is 1-3/4 inch.
2 Short stabilizer spears length is 15 inch.
Diameter of small stabilizer spear 1-1/4 inch.
Weight limit is 1550 lb.
For Tractor 3-Pt. Hitch Only.
This 3 point hay bale mover includes as follows:
One High Tensile 49 inch Long Replaceable Square Tapered Spear.
Two Replaceable Stabilizer Spikes.
Two Cat-1 Lift Arm Pins.
One Hitch Top Link Pin.

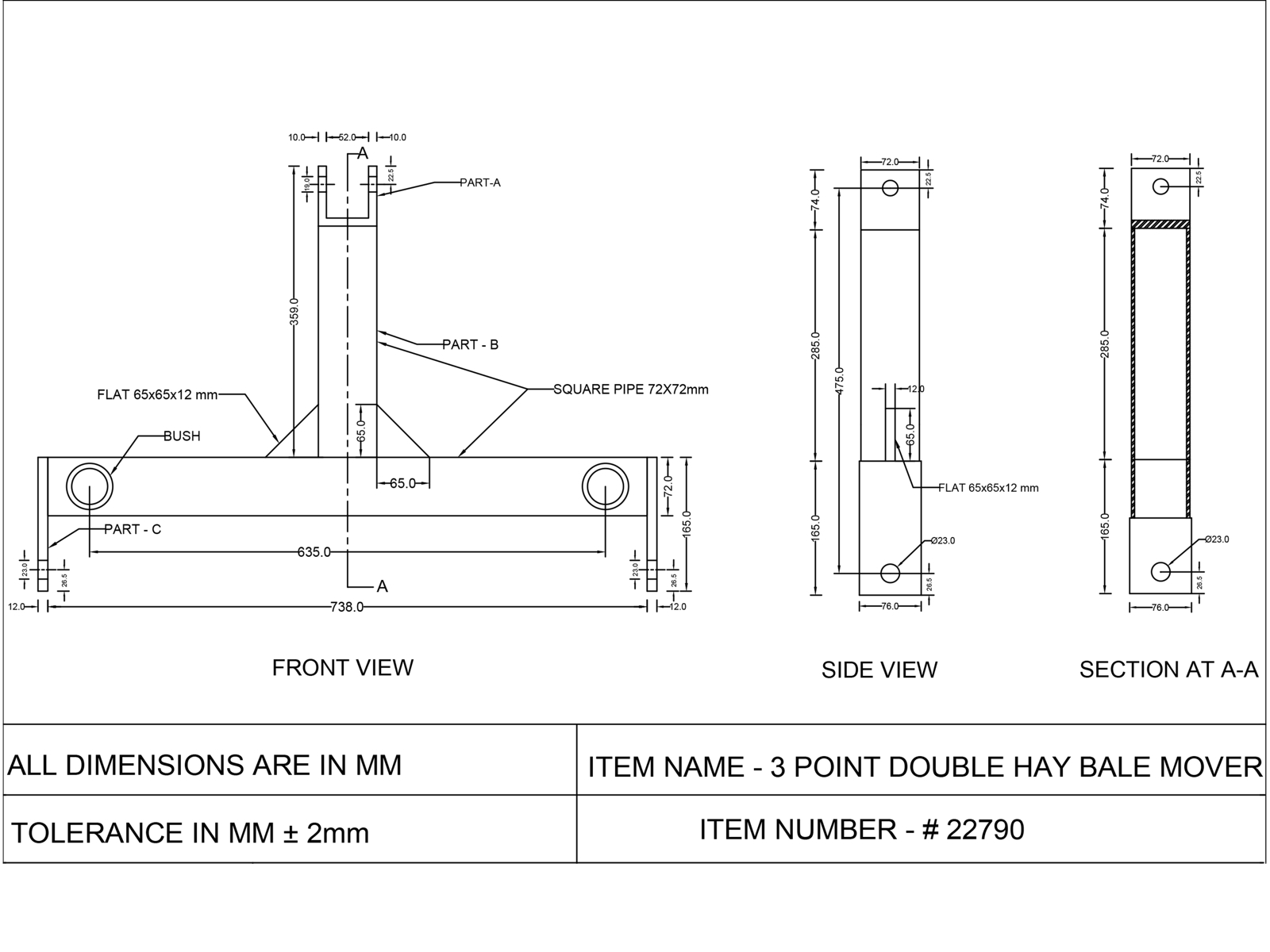

CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Overall width | 840.0 mm | 2.76 ft |
| Weight | 34.0 kg | 74.50 lb |
| Overall height | 540.0 mm | 21.26 in |
| Tractor Power Range | 12 - 60 Hp | 12 - 60 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) | Cat. 1 (ø 19.0-22.0mm) |
| Load capacity | 700.0 kg | 1544.0 lb |
| 3 point linkage Thickness | 10.0 mm | 0.40 in |
| Spacing between the 2 lower points | 640.0 / 860.0 mm | 25.20 / 33.85 in |
| Usable Fork Tine Length | 350.0 / 1200.0 mm | 13.78 / 47.25 in |
| Fork Tine Length | 385.0 / 1250.0 mm | 15.15 / 49.20 in |
| Fork Tine Weight | 12.2 / 2.1 kg | 27.0 / 4.63 lb |
| Fork Tine Spacing (min-max) | 650.0 mm | 25.60 in |
| Positions of the forks | Fixed | Fixed |
| Distance between the 2 lower points and ground | 20.0 mm | 0.78 in |
| Overall Length (open and closed) | 1250.0 mm (open) | 49.20 in (only open) |
| Fork Tine Diameter | 32.0 / 45.0 mm | 1.26 / 1.77 in |
| Packing sizes | 1250*20*20 + 85*40*10 mm | 49.2*0.8*0.8 + 3.35*1.6*0.4 in |
