Log grapple with rotator for mini diggers and forest cranes DK-10 + GR-10


298 reviews

Not available Notify me
Code DK10R
EAN 8053470230158
View all details.


930,00VAT incl.
Free shipping

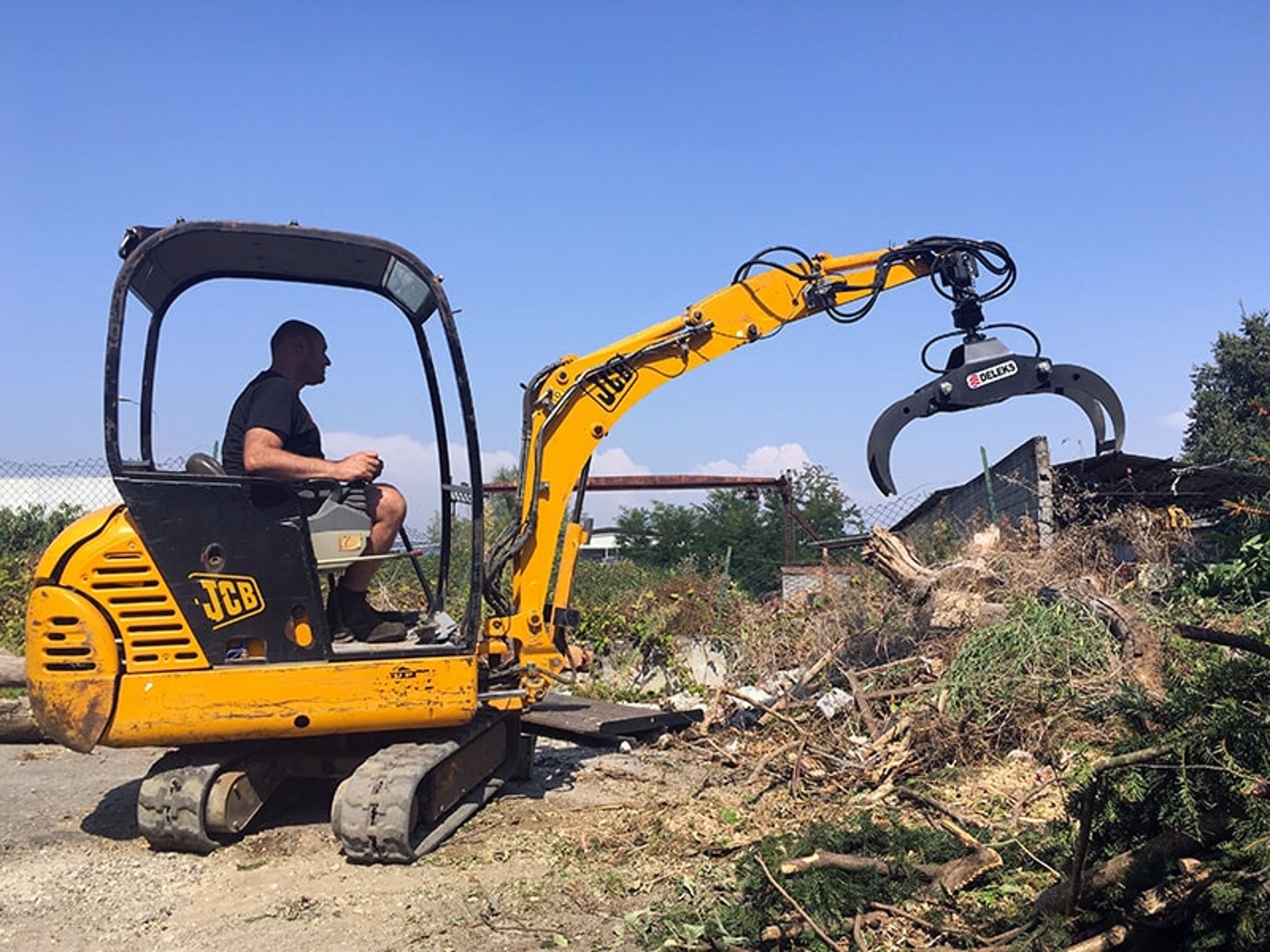

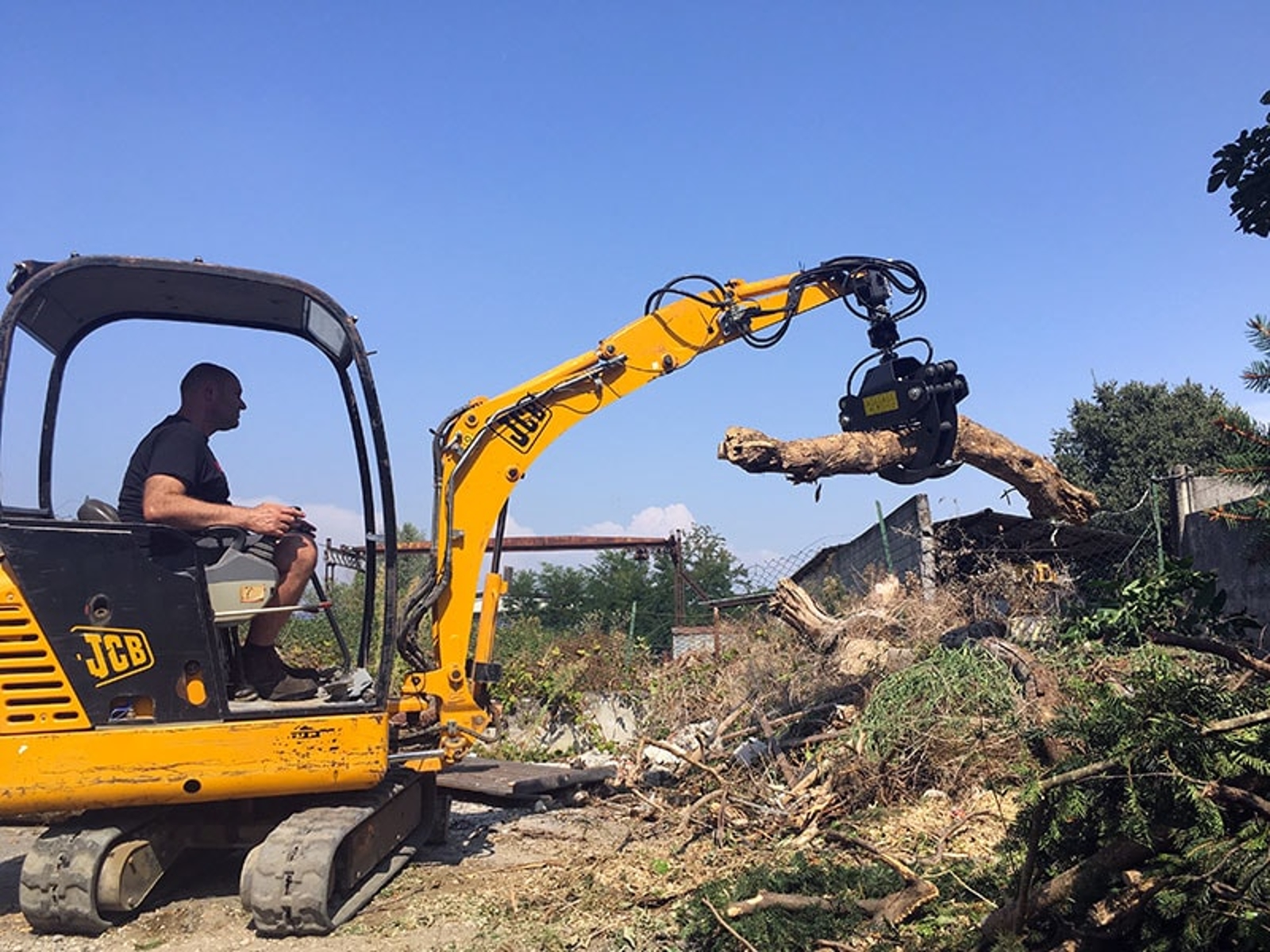

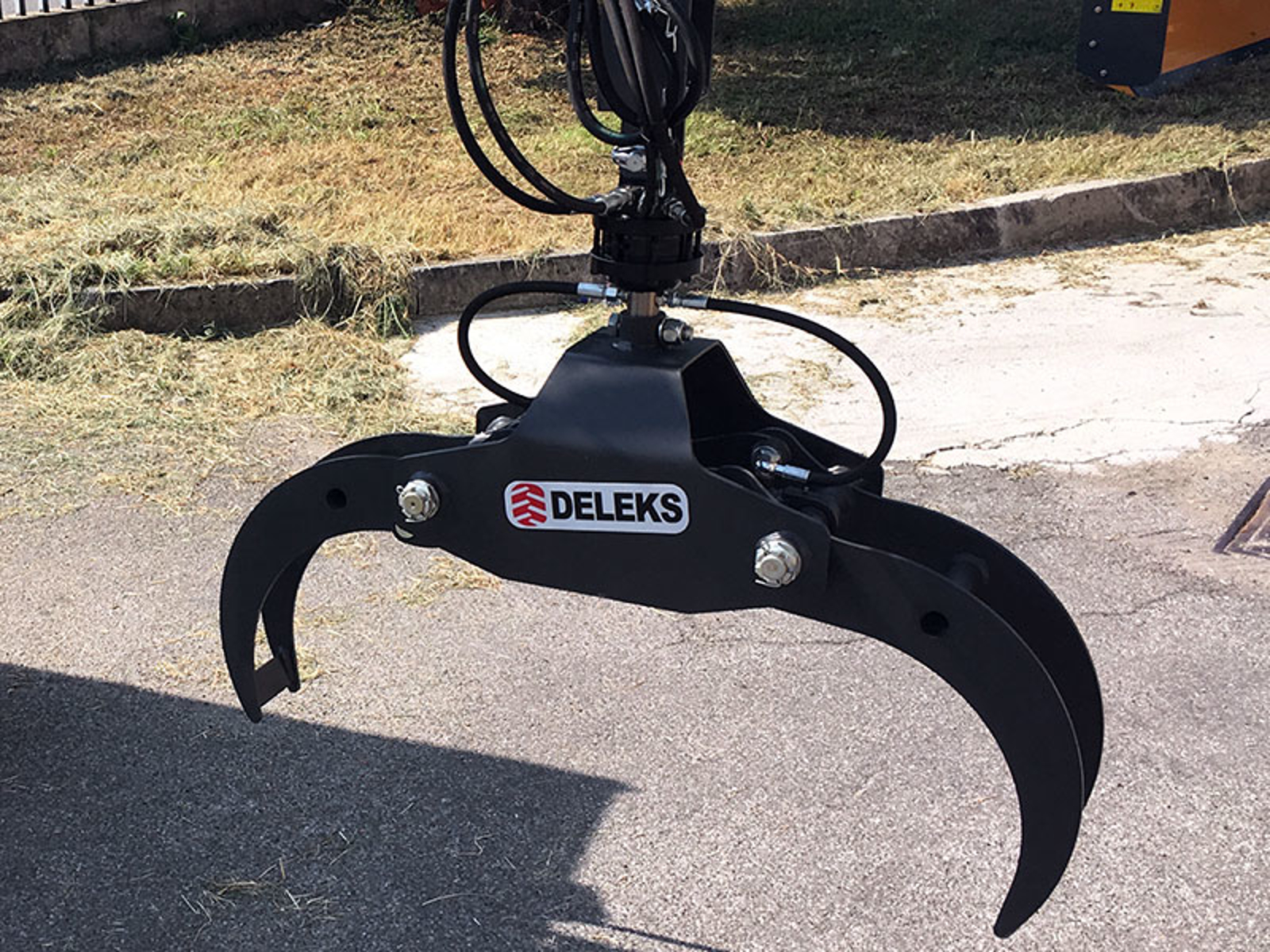

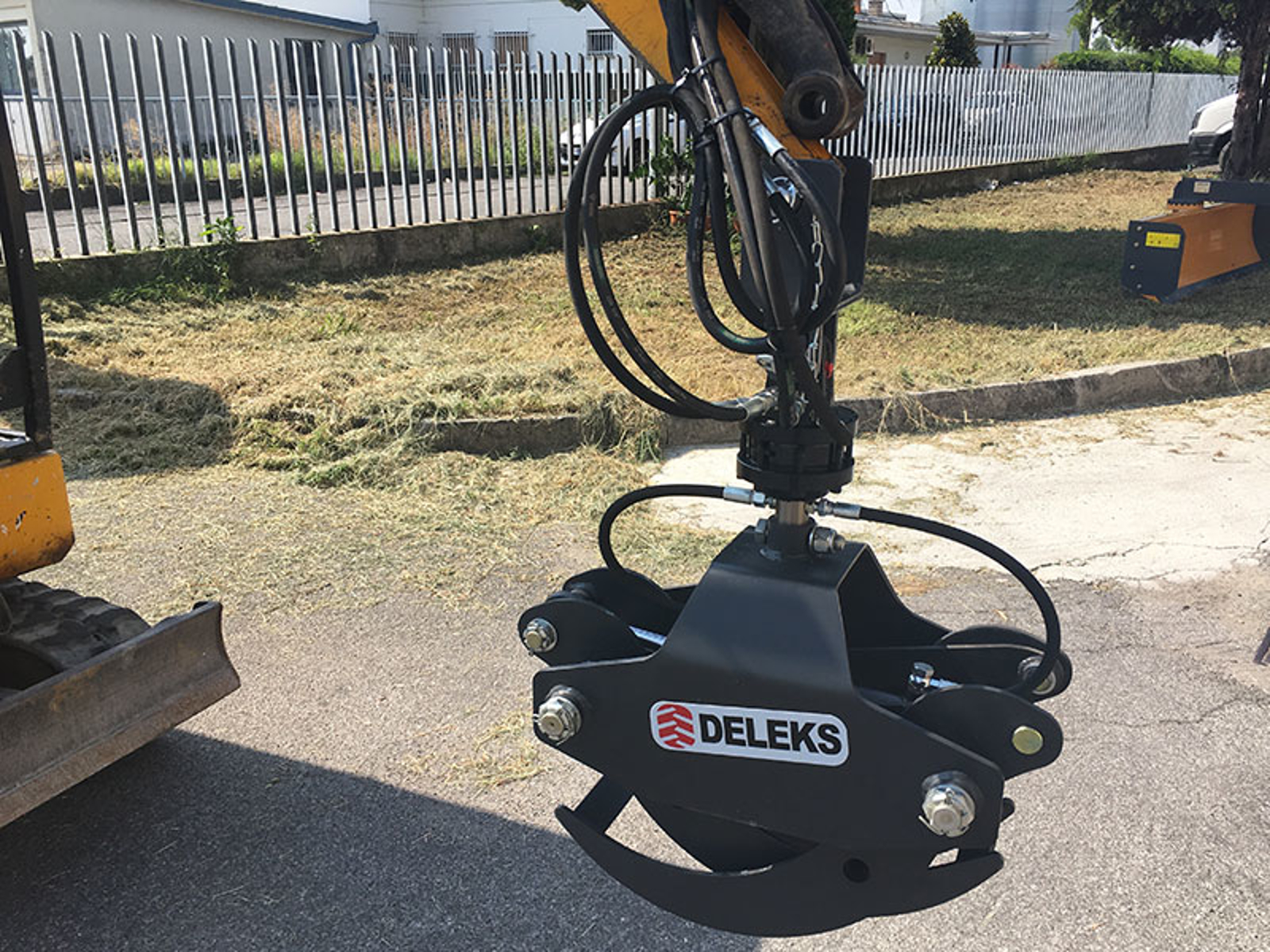

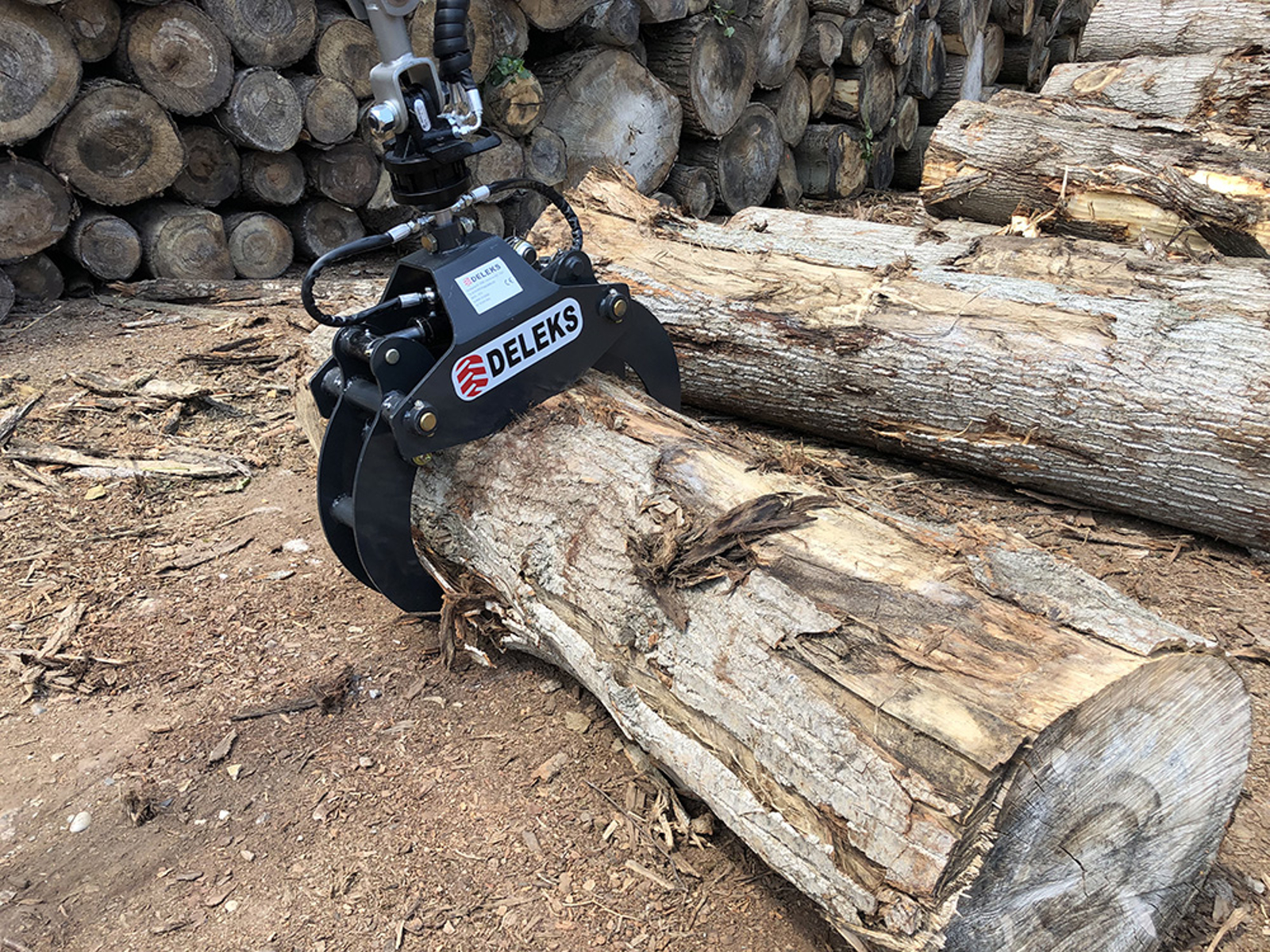

Field test
Field test
Field test
Field test

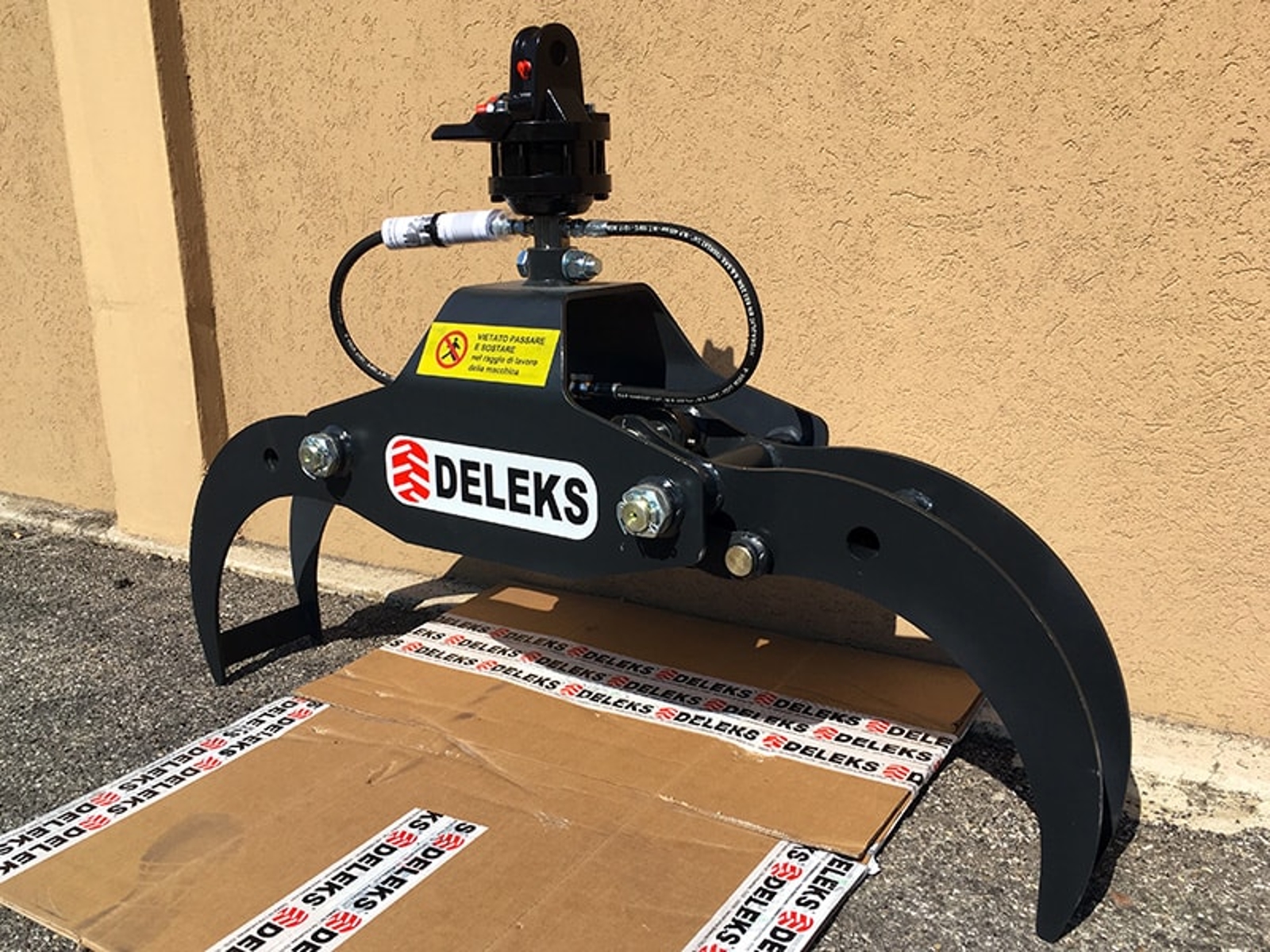

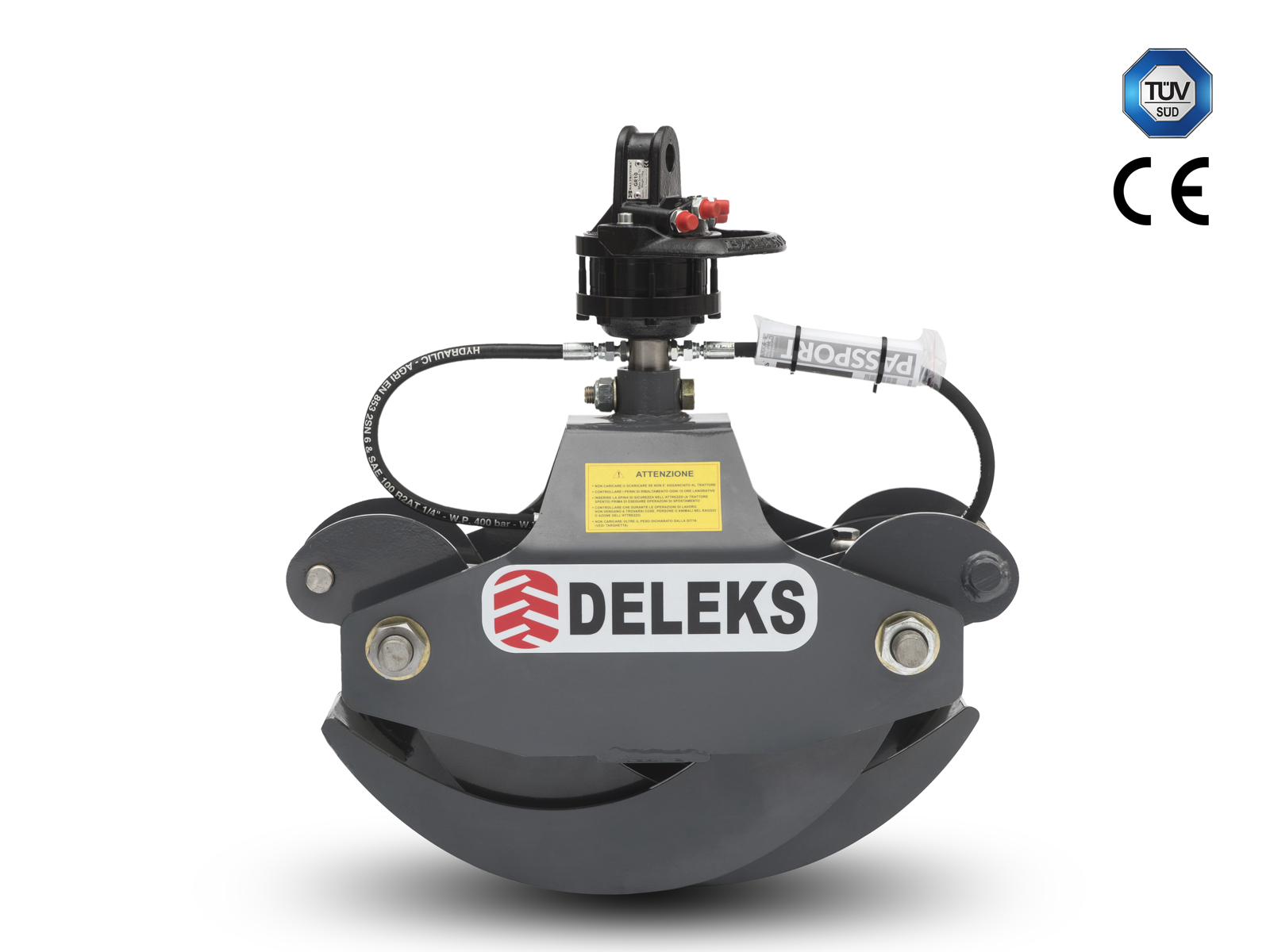

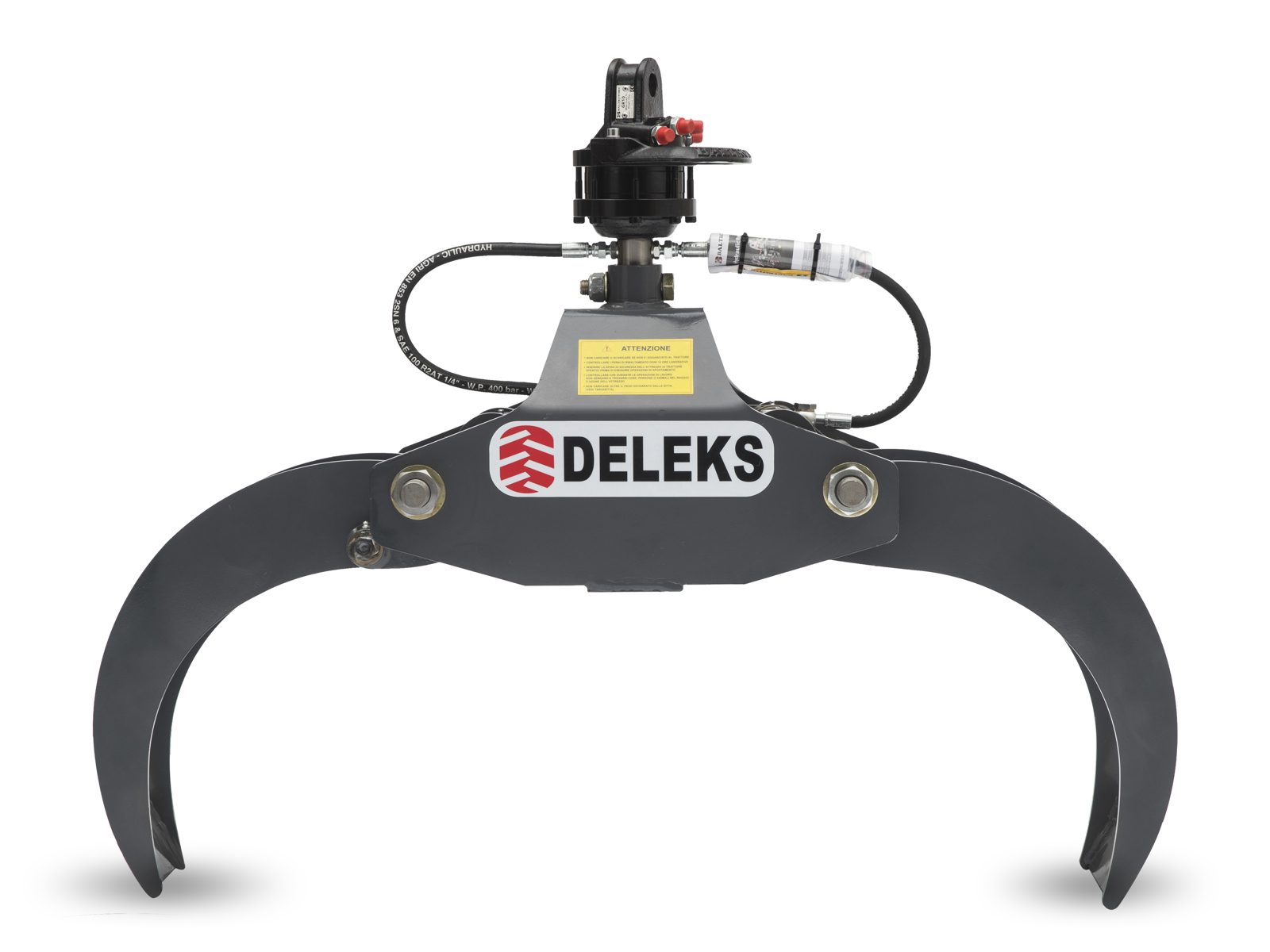

Log Grapple for Mini Diggers and Forest Cranes 1.5 – 2.5 Ton DELEKS® DK-10 + Lombarda Ingranaggi Rotator.


Perfect for carrying logs and timber around your farm or park. Maximum load 400.0 kg. Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi.

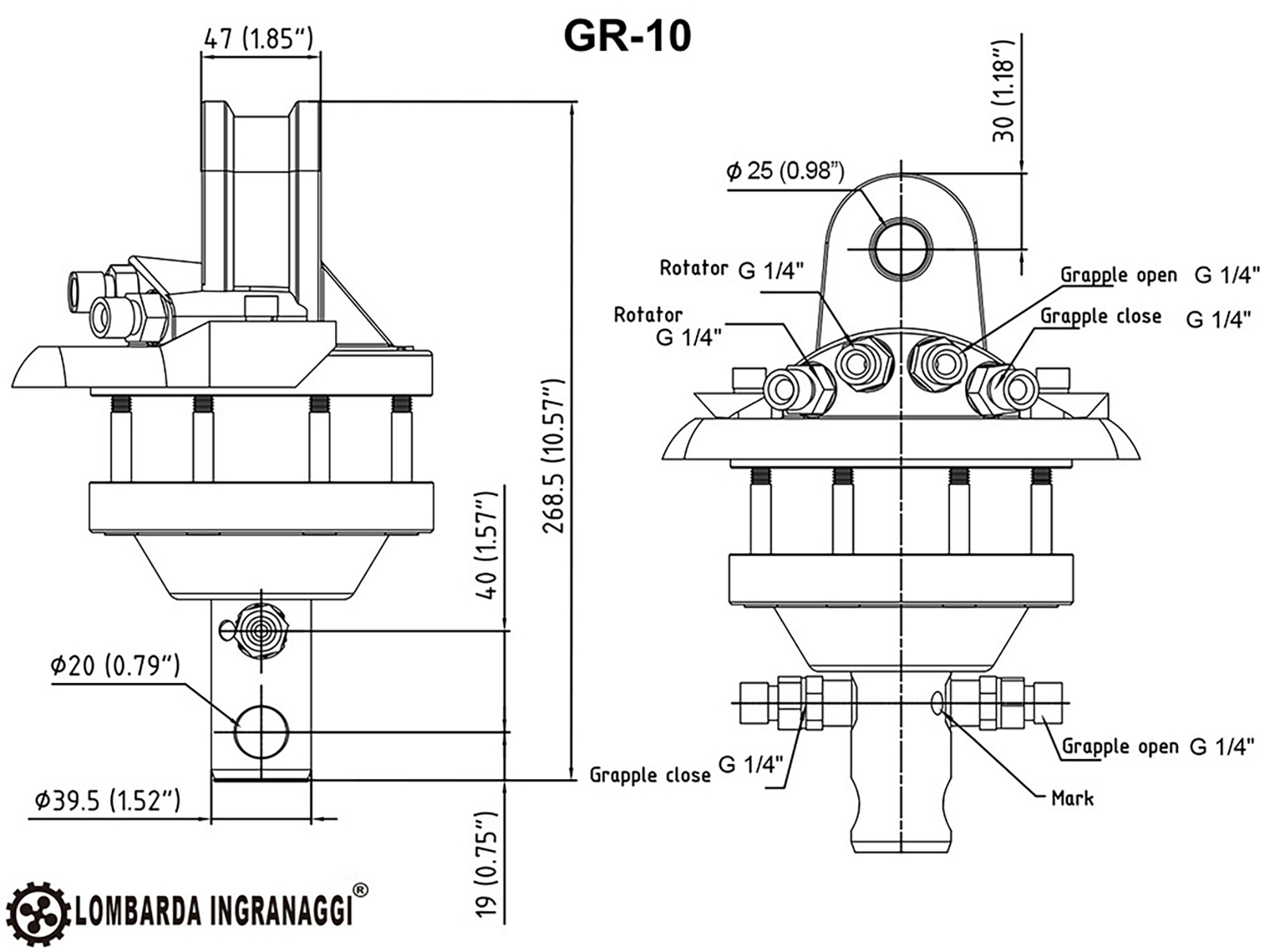

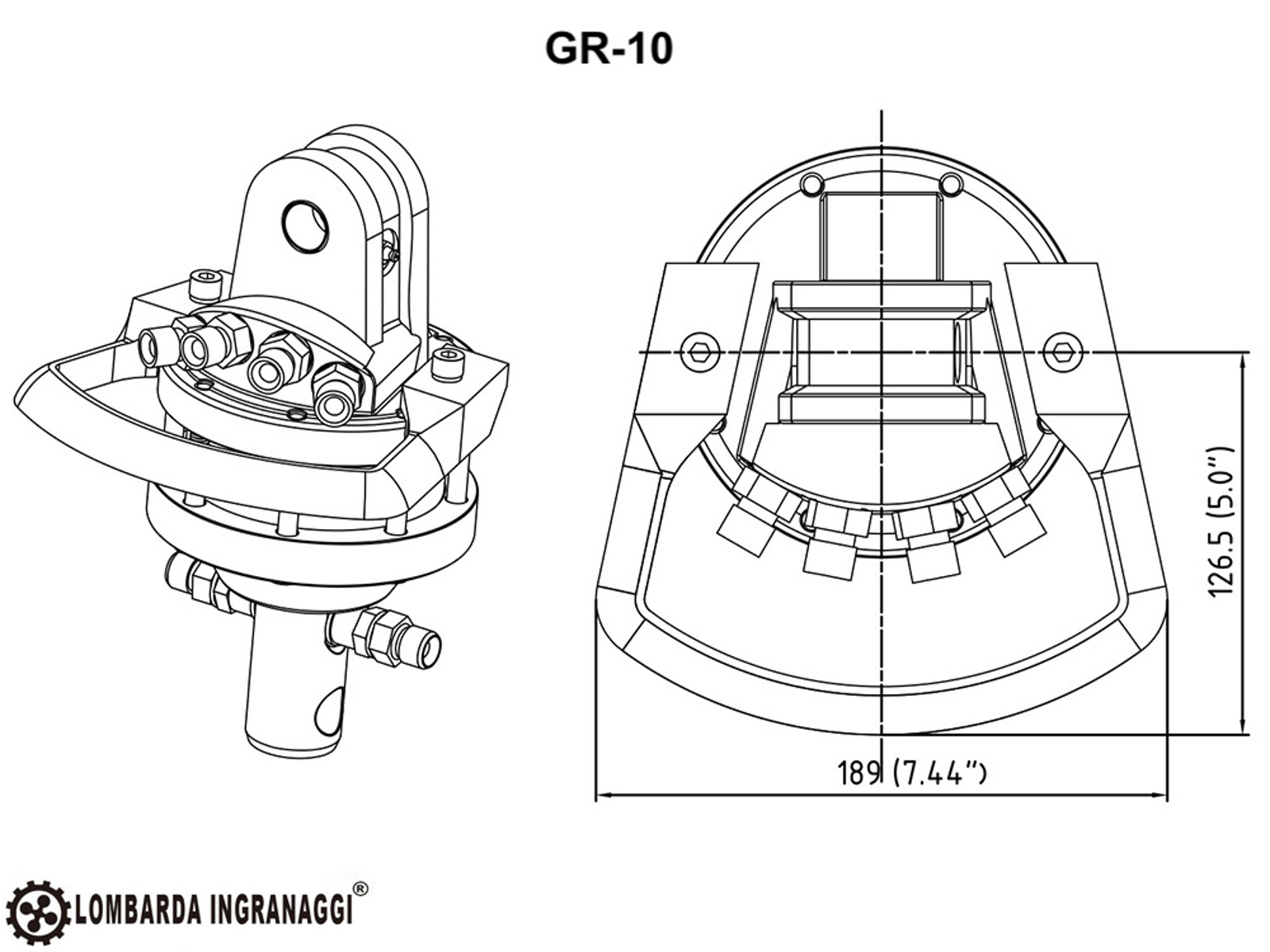

Rotator: Lombarda Ingranaggi's GR10 rotators are powerful, reliable and robust. They are engineered to perform in heavy duty work environments with maximal efficiency and minimal unscheduled downtime as they have a loading capacity 1000kg. Grapple needs 4 hydraulic outlets to function or additionally, Deleks reduction valve can be supplied to reduce the amount of outlets needed to two. EC Conformity, 2 Year Warranty.



360º continuous rotation.

Thanks to the DK10's unique design it grips timber, boulders or debris tightly.

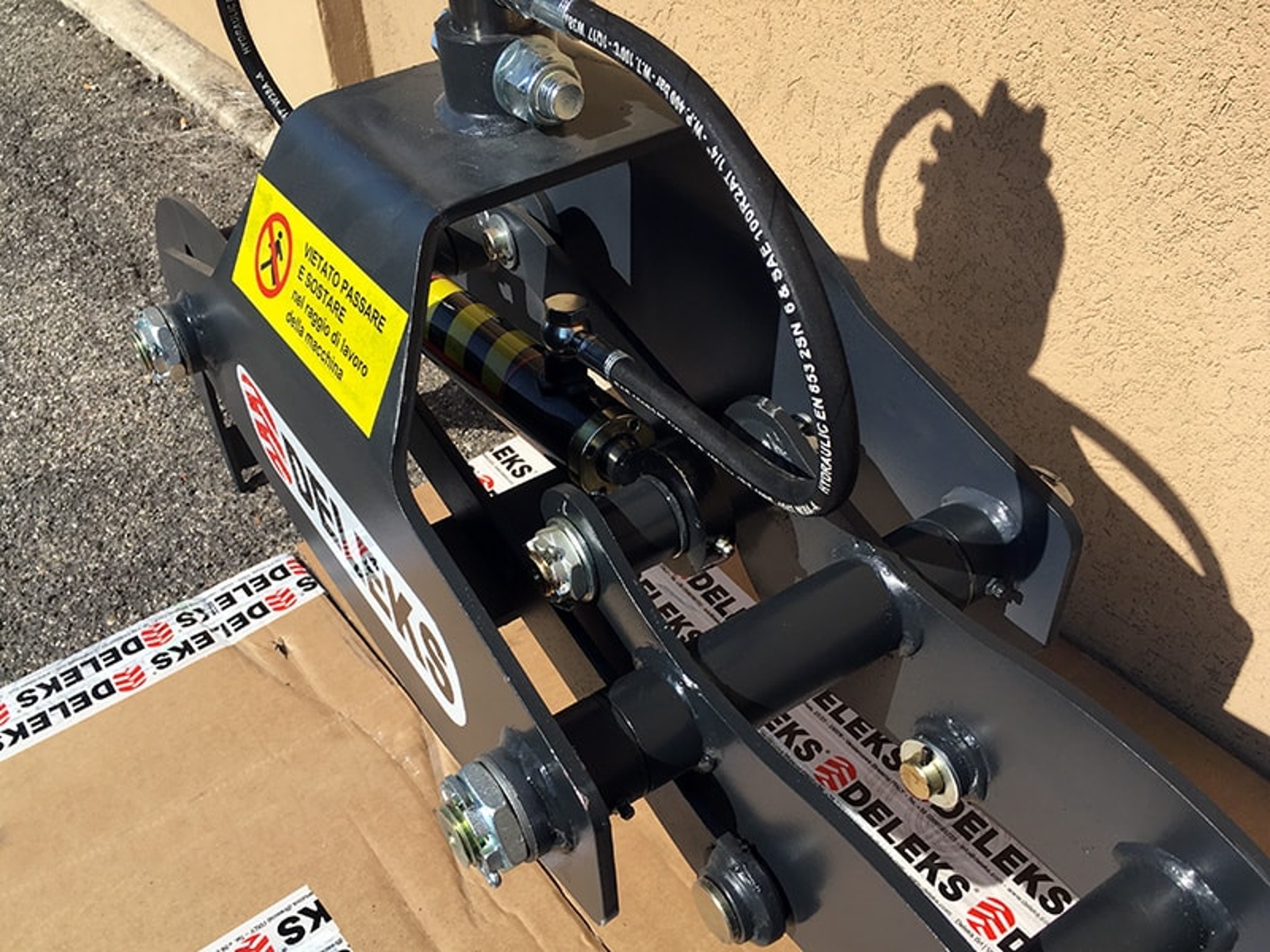

High tensile strength, reinforced grapple tines.

Optional: Kit Solenoid "4 pipes into 2" for mini excavators:

With this kit you can use the two pipes connected to the bucket cylinder to power four-way required by the clamp rotor (rotating - opening and closing).

In order to function the valve must be connected i with a simple wire to a power source 12 volts, it is possible for example to connect to the horn and then use the key on the lever to select rotation or opening.

The kit includes 6-way diverter Rexroth made in Italy.


Characteristic Units metric Units US
Weight 63.0 kg 140.0 lb
Load capacity 400.0 kg 880.0 lb
Main hood thickness 8.0 mm 0.31 in
Min./Max. Relief Pressure 80 - 120 bar 80 - 120 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min

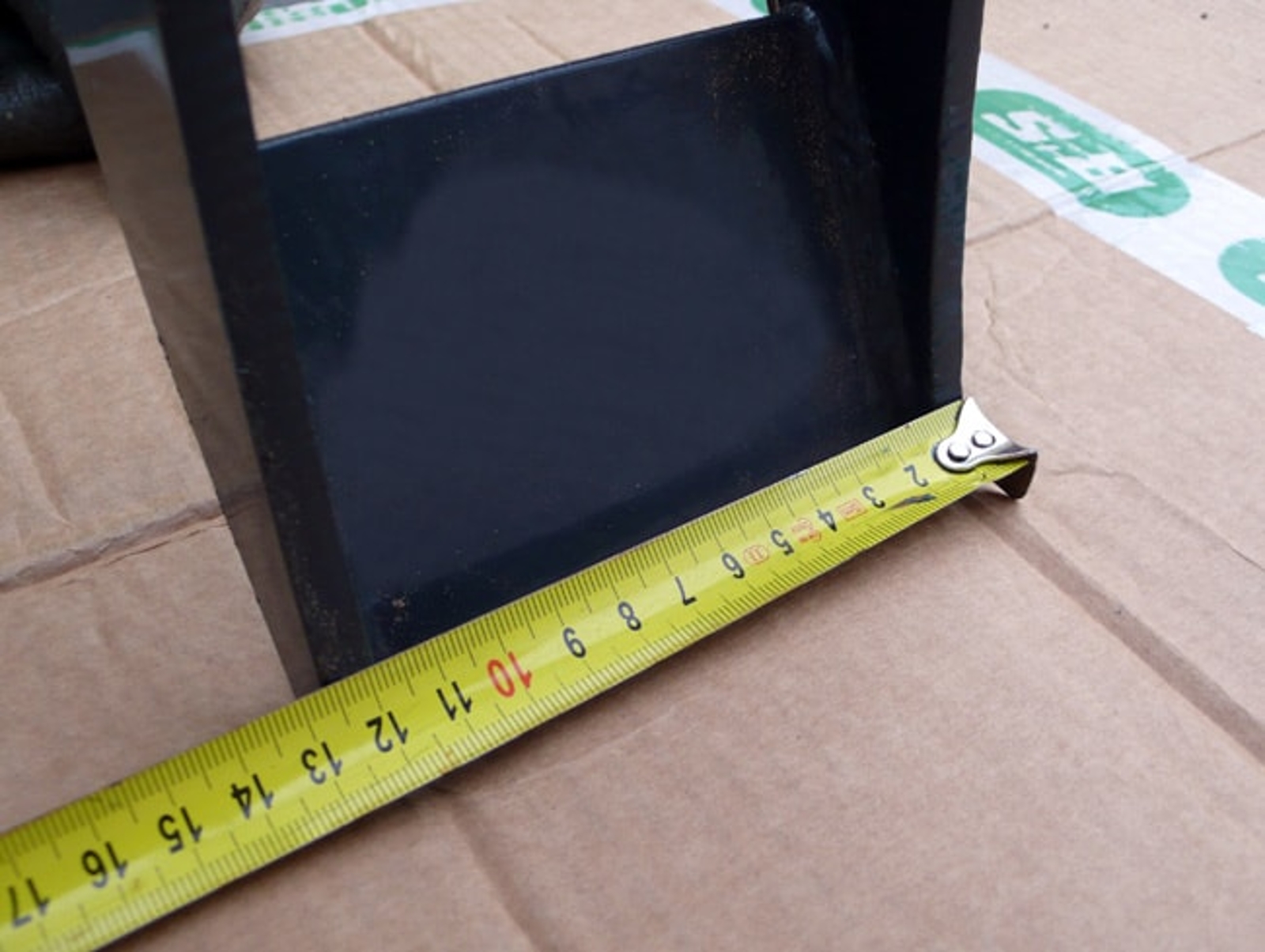

Other sizes See pictures See pictures
Hydraulic Hoses 400 bar pressure 400 bar pressure
Max Opening 1015.0 mm 3.35 ft
Height, grapple open 885.0 mm 34.85 in
Height, grapple closed 720.0 mm 28.35 in
Width, grapple open 1150.0 mm 3.77 ft
Width, grapple closed 660.0 mm 2.17 ft
Overall depth 350.0 mm 1.15 ft
Minimum diameter of the log 50.0 mm 1.97 in

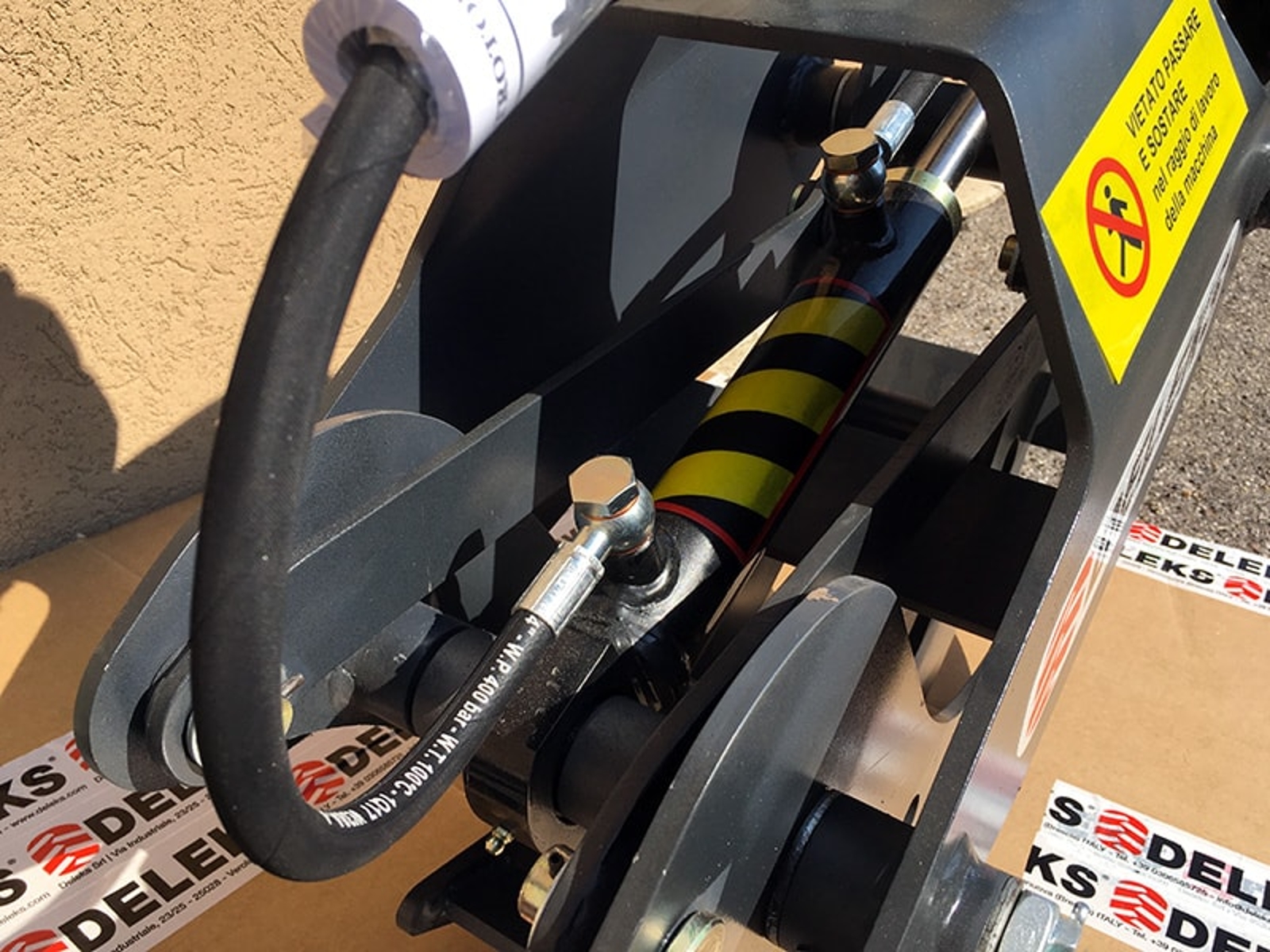

Hydraulic cilinder diameter 50.0 - 25.0 mm 1.97 - 0.98 in
Max Pressure 200 Bar 200 Bar
Rotator Lombarda Ingranaggi GR-10 (1,0 ton) Lombarda Ingranaggi GR-10 (1,0 ton)
Compact Excavators Range 1.5 - 2.5 ton 1.5 - 2.5 ton
Packing sizes 600.0*800.0*450.0 mm 1.97*2.62*1.47 ft


6 ways flow diverter
BOSCH 6 ways flow diverter
229,90VAT incl.

250 - 310 bar

25 l/min

12 V

fork attachment for gr10
70,30VAT incl.
