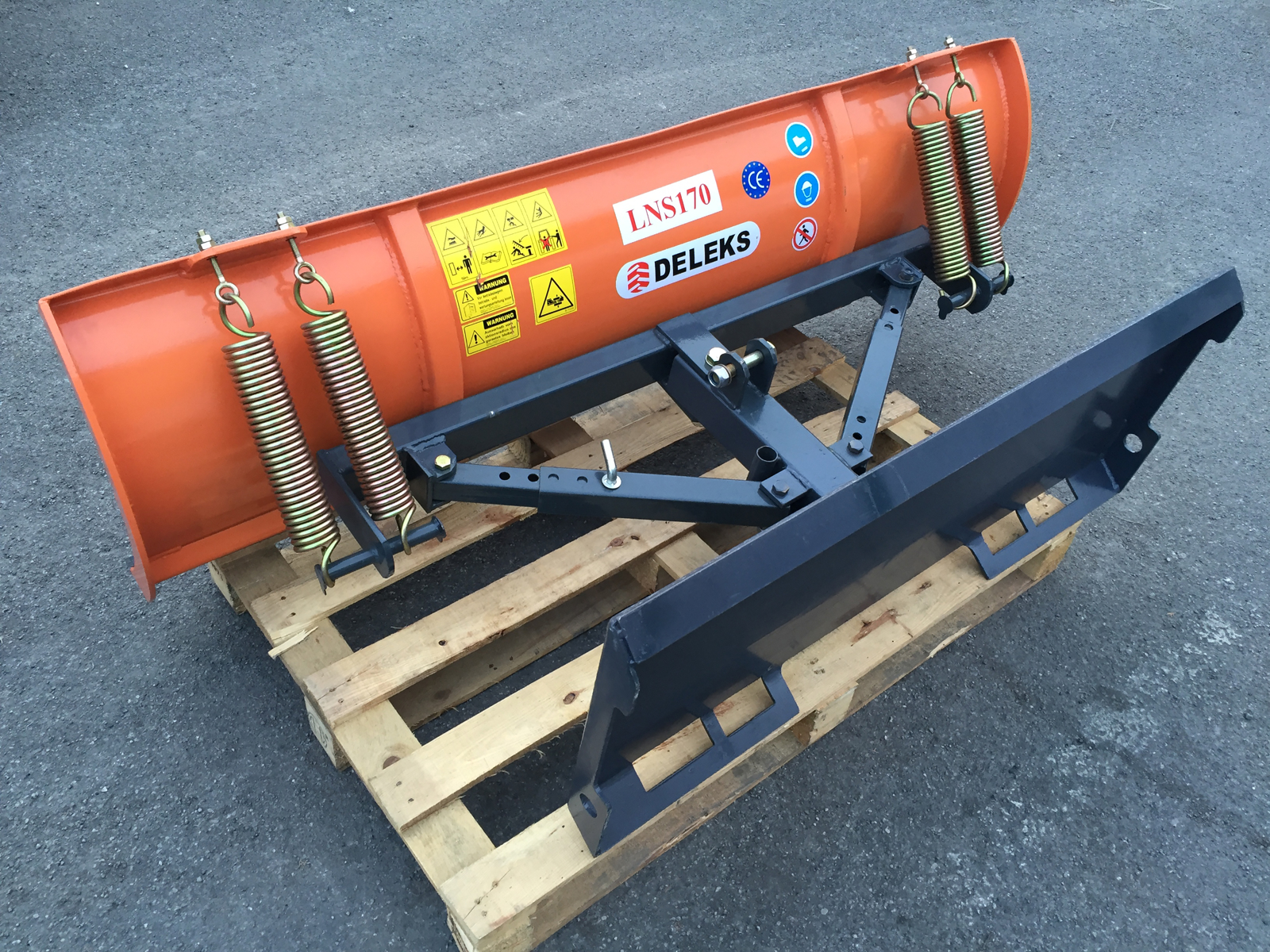

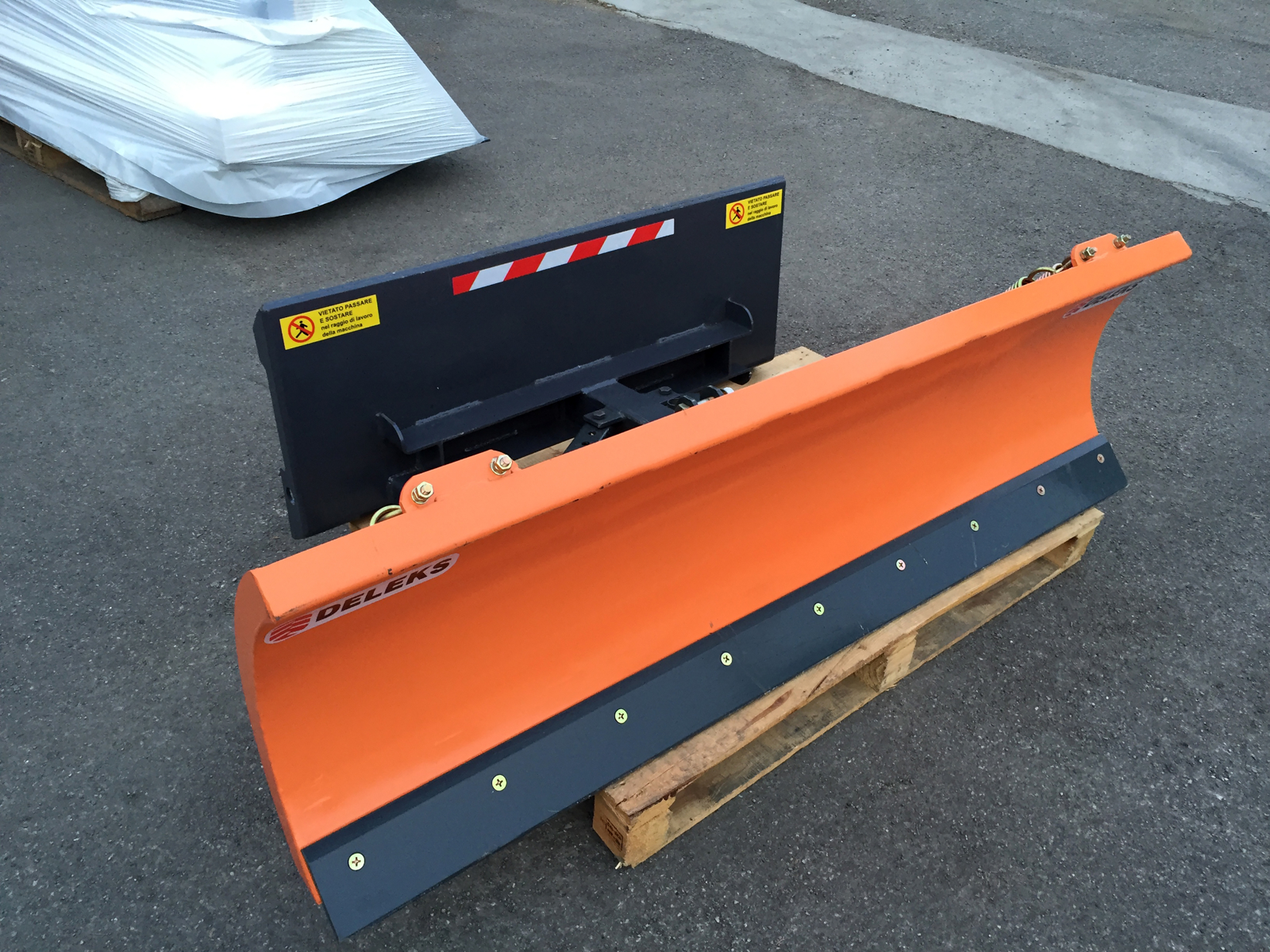

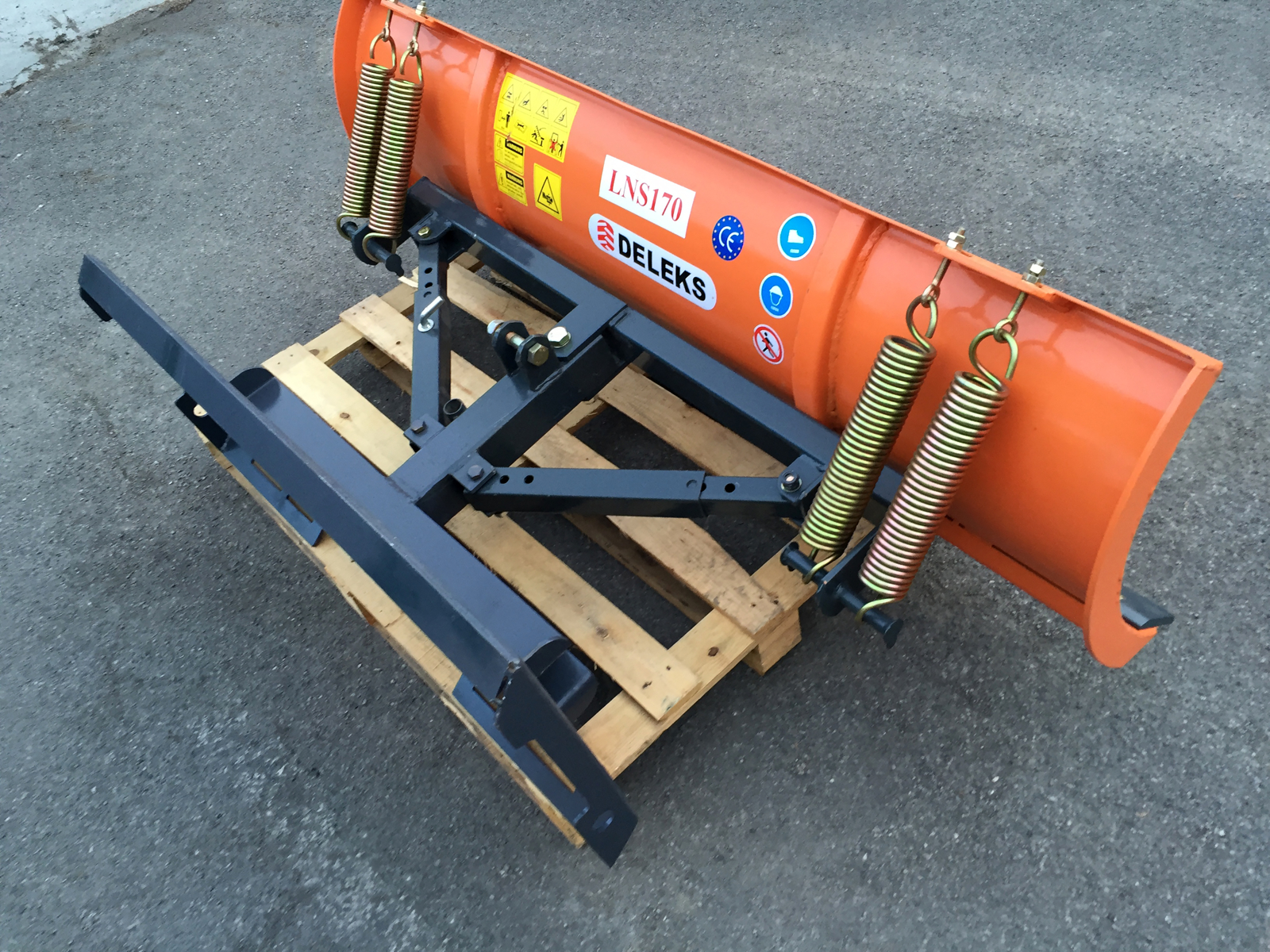

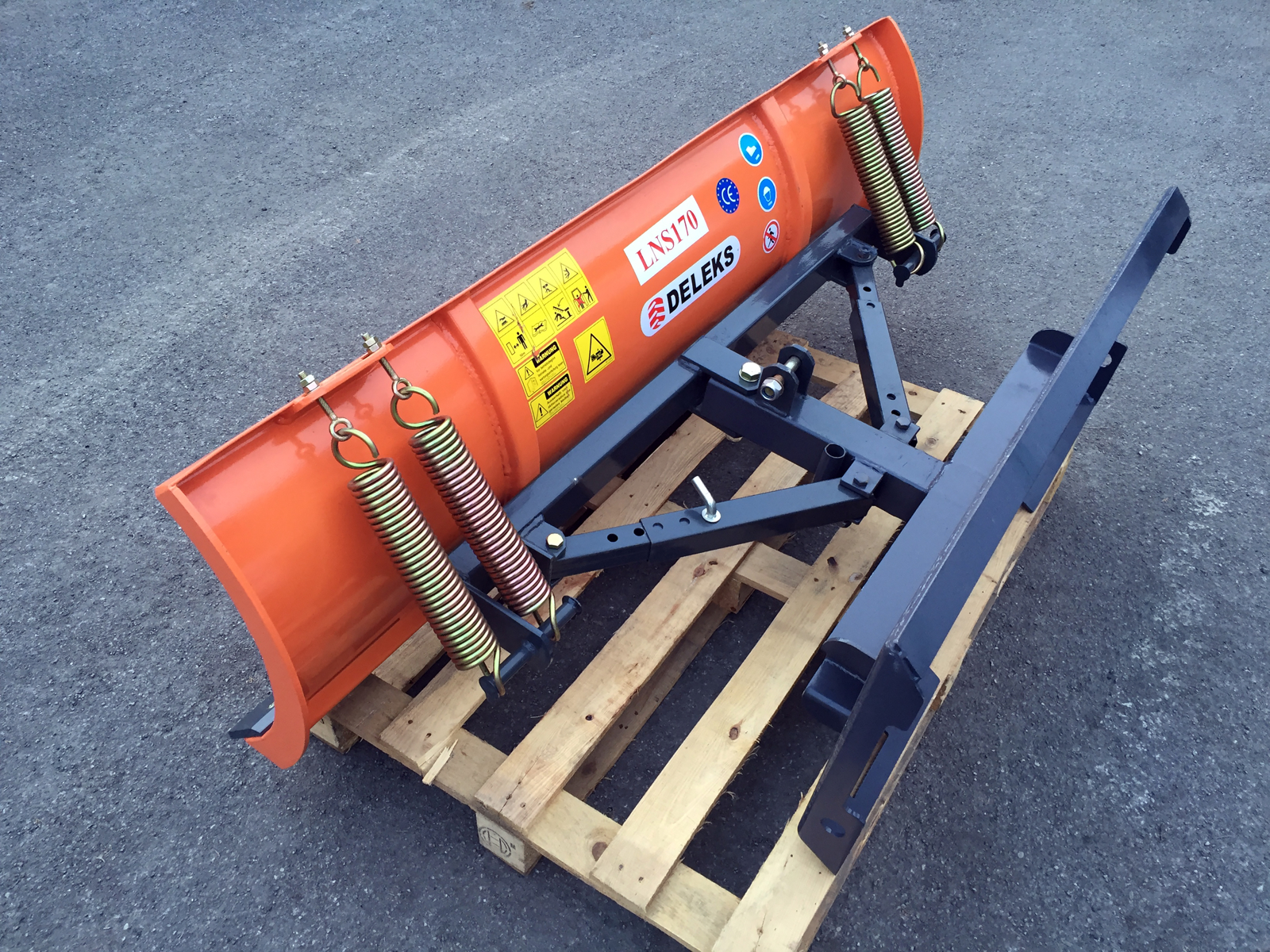

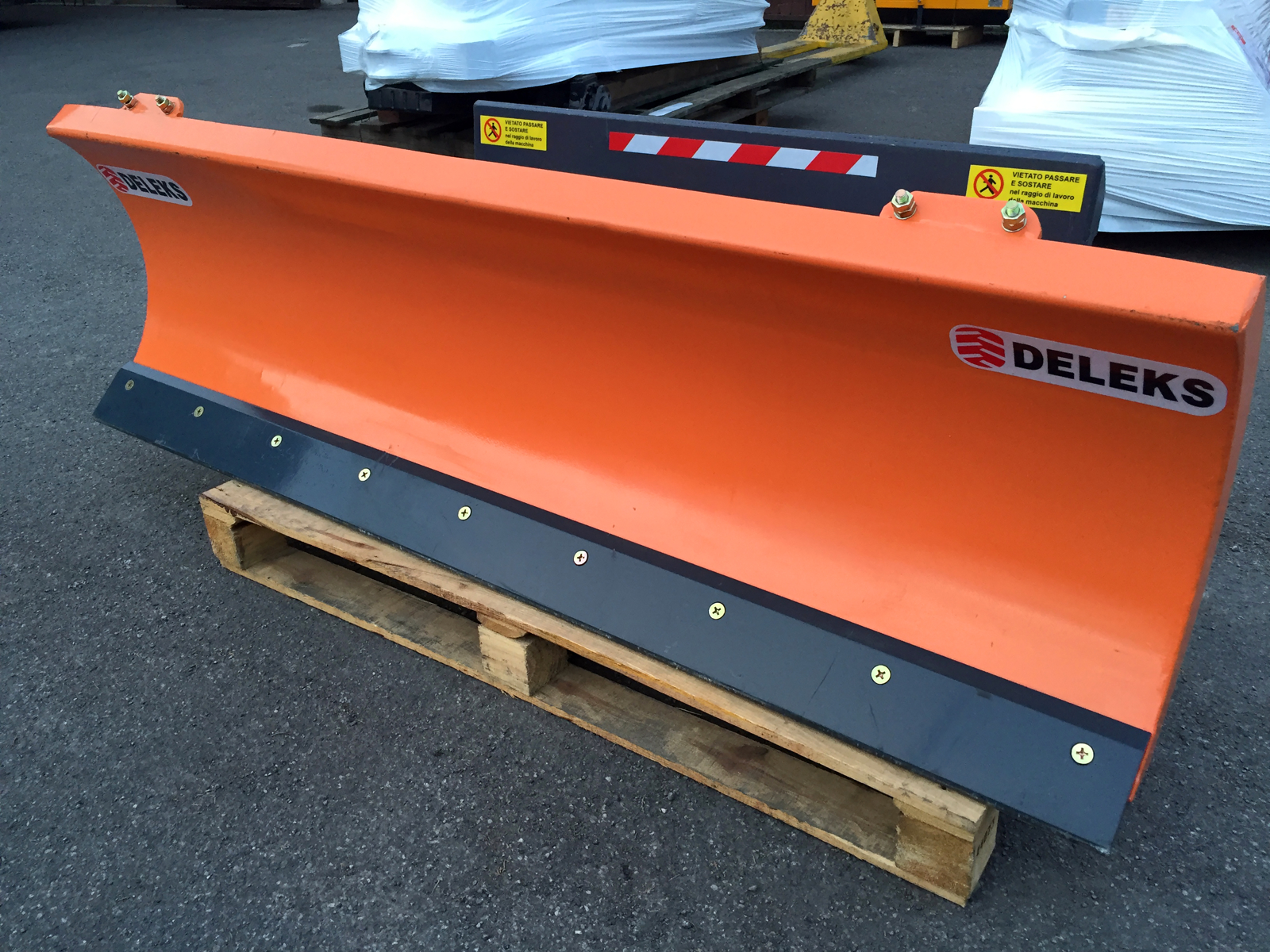

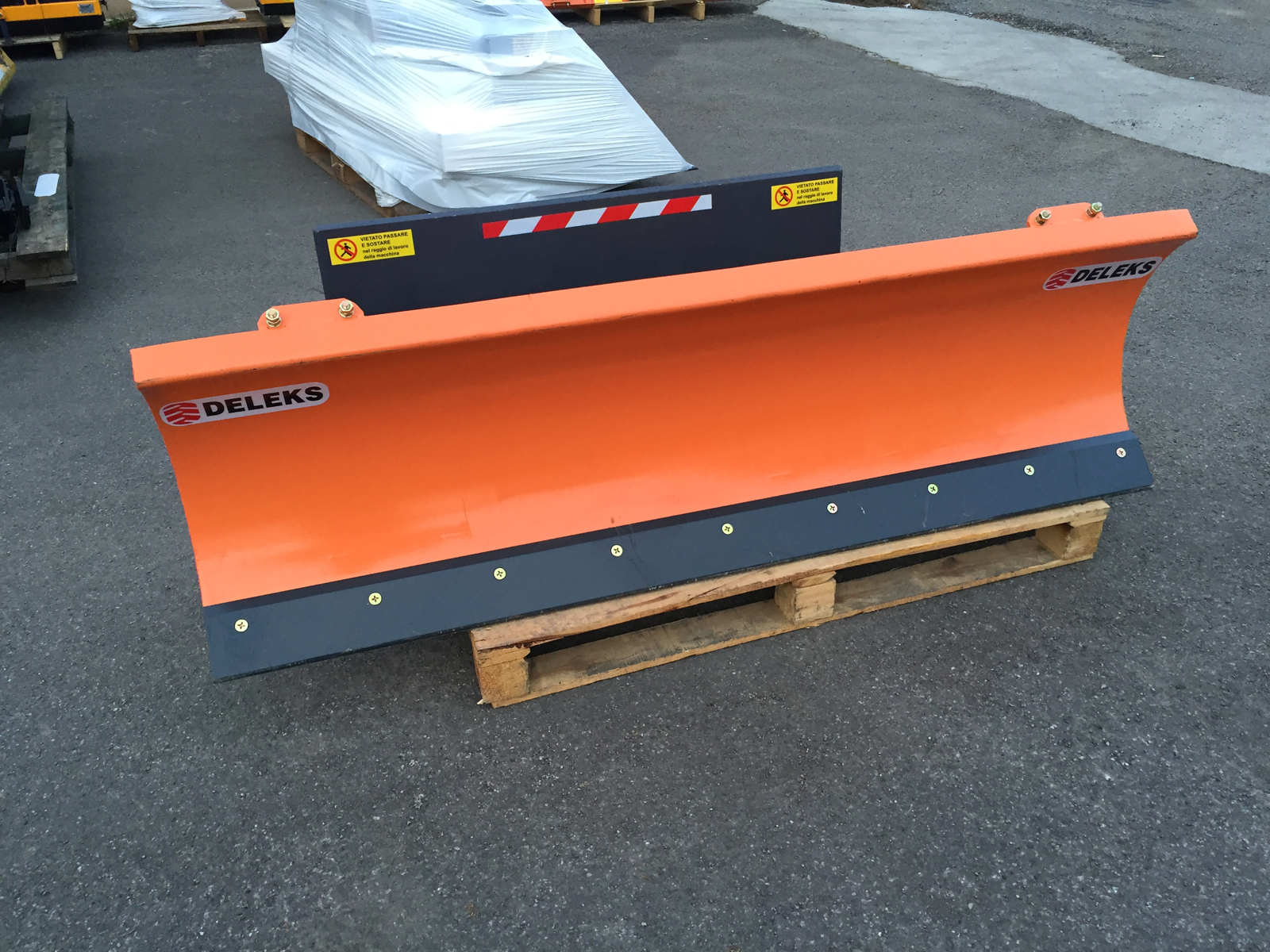

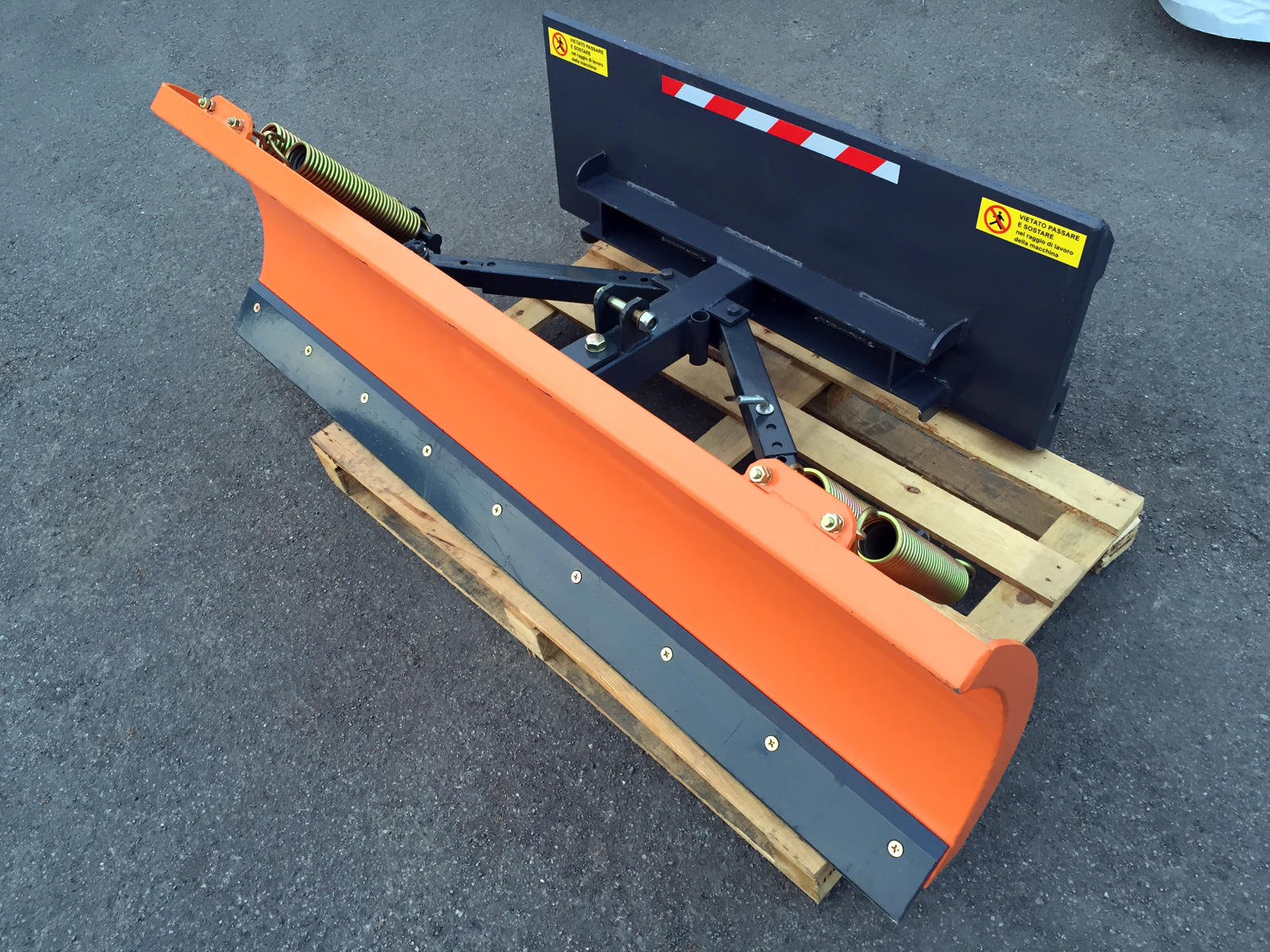

Light snow plow for skid steer loaders, LNS-170-M

Available
Code LNS170M
EAN 8053470231650
View all details.
D
H
M
S
-203,30 1.430,00VAT incl.
TOTAL
1.226,70VAT incl.
Free shipping

DETAILS

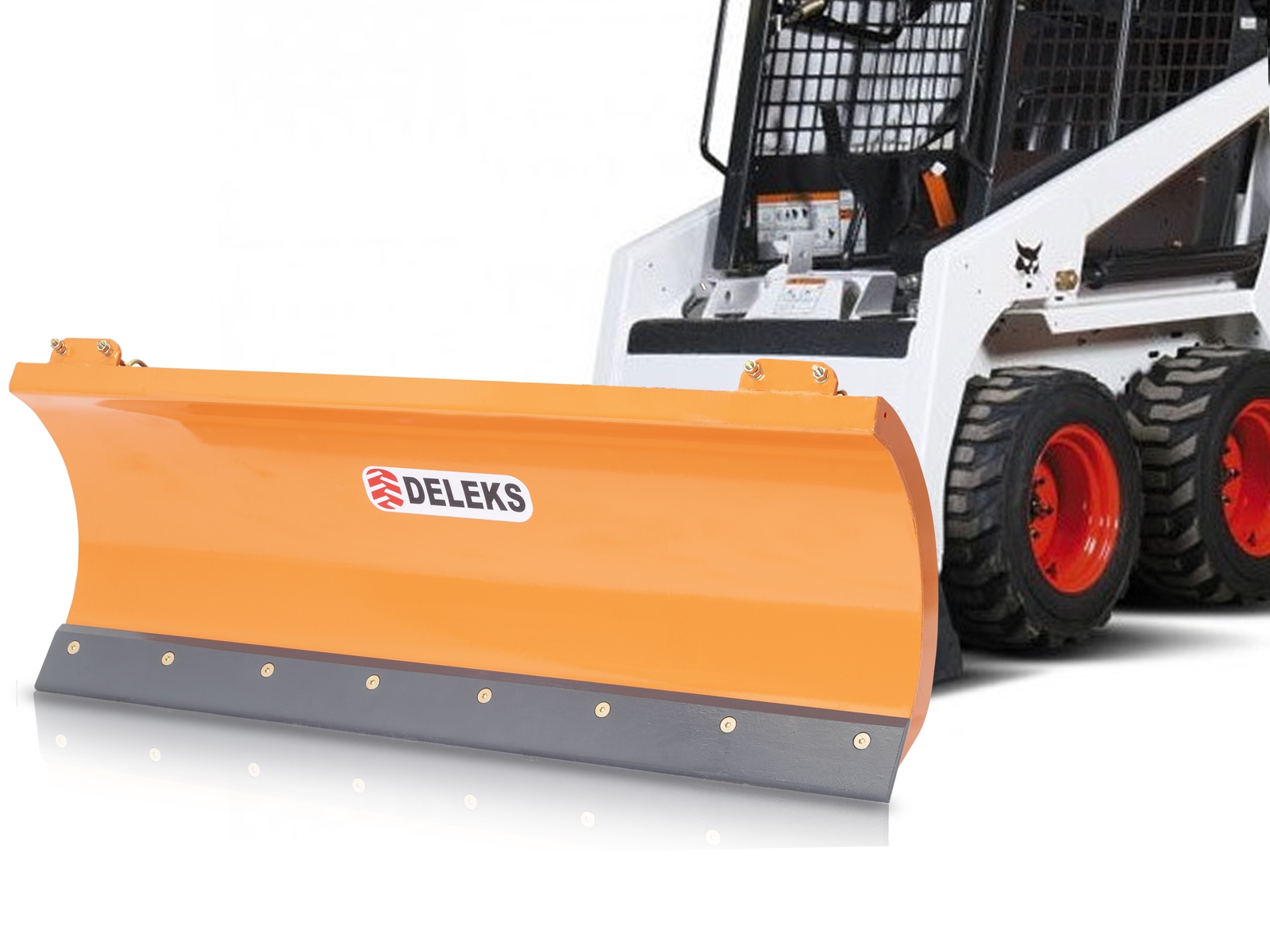

Light snow plow 170cm for up to 1.8 ton skid steer loaders - DELEKS® - Homologated for road use.


OVERVIEW

DELEKS® lightweight, agile snowplow for skid steer loaders up to 18q.li. Compatible with all common brands e.g Bobcat, JCB, Caterpillar, Case, etc. Conforms to the EC Machinery Directive. 2 years guarantee.



BENEFITS AND FEATURES

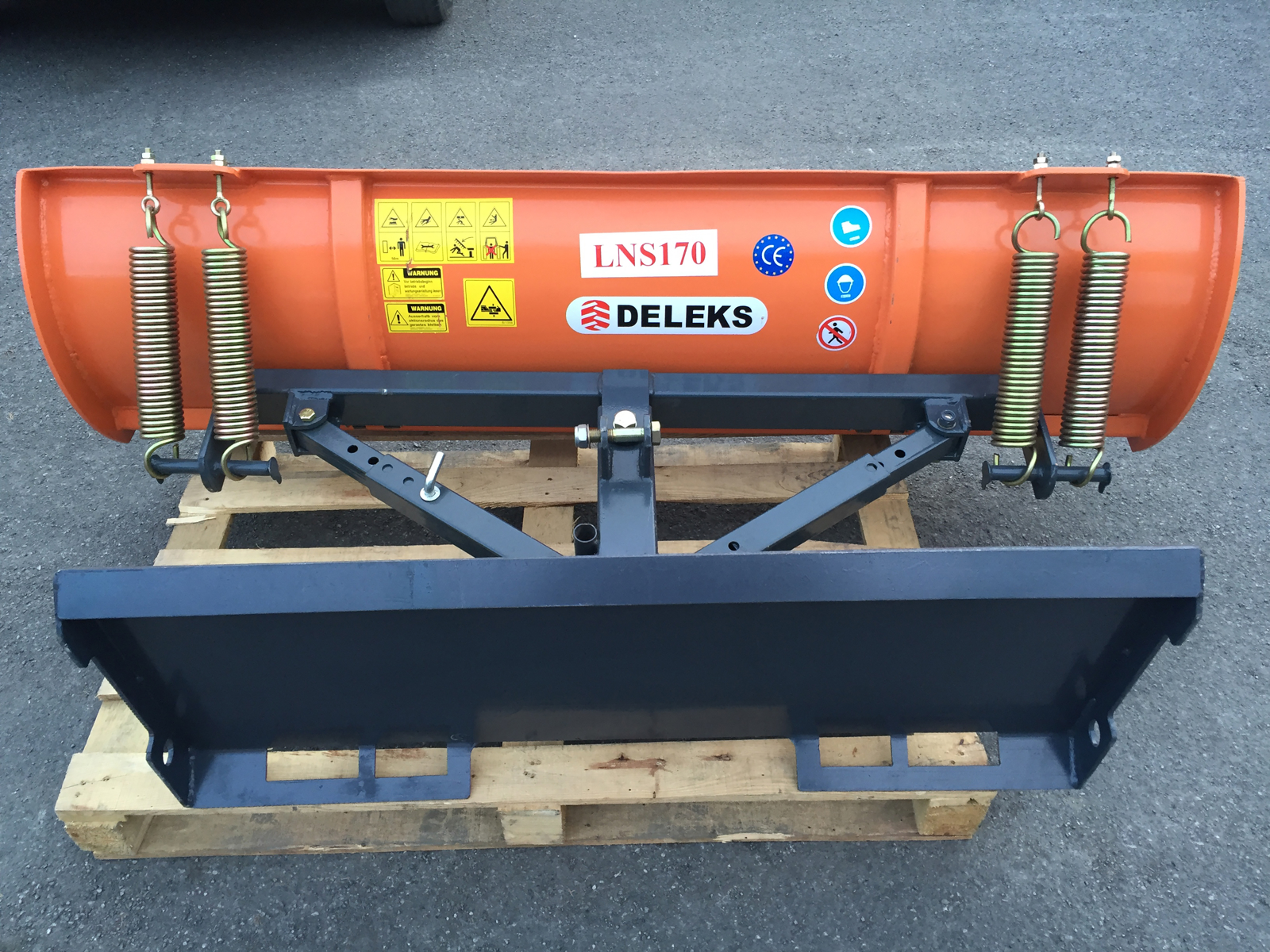

Anti-shock system with 4 shock absorbing springs to operate in maximum safety.

Extreme ease of assembly and use.

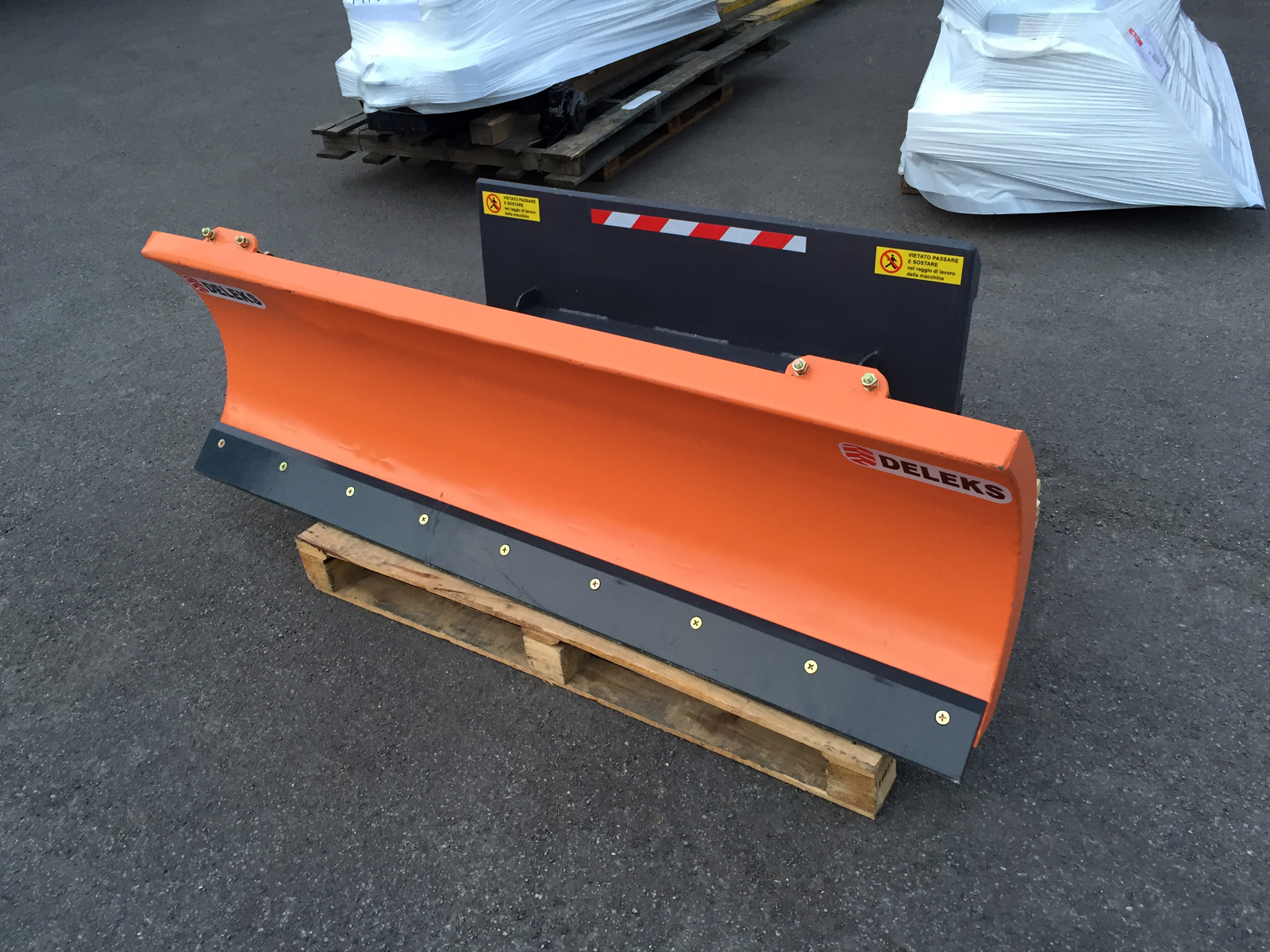

Sharp replaceable steel blade. On request we customize the plow with a softer rubber blade.

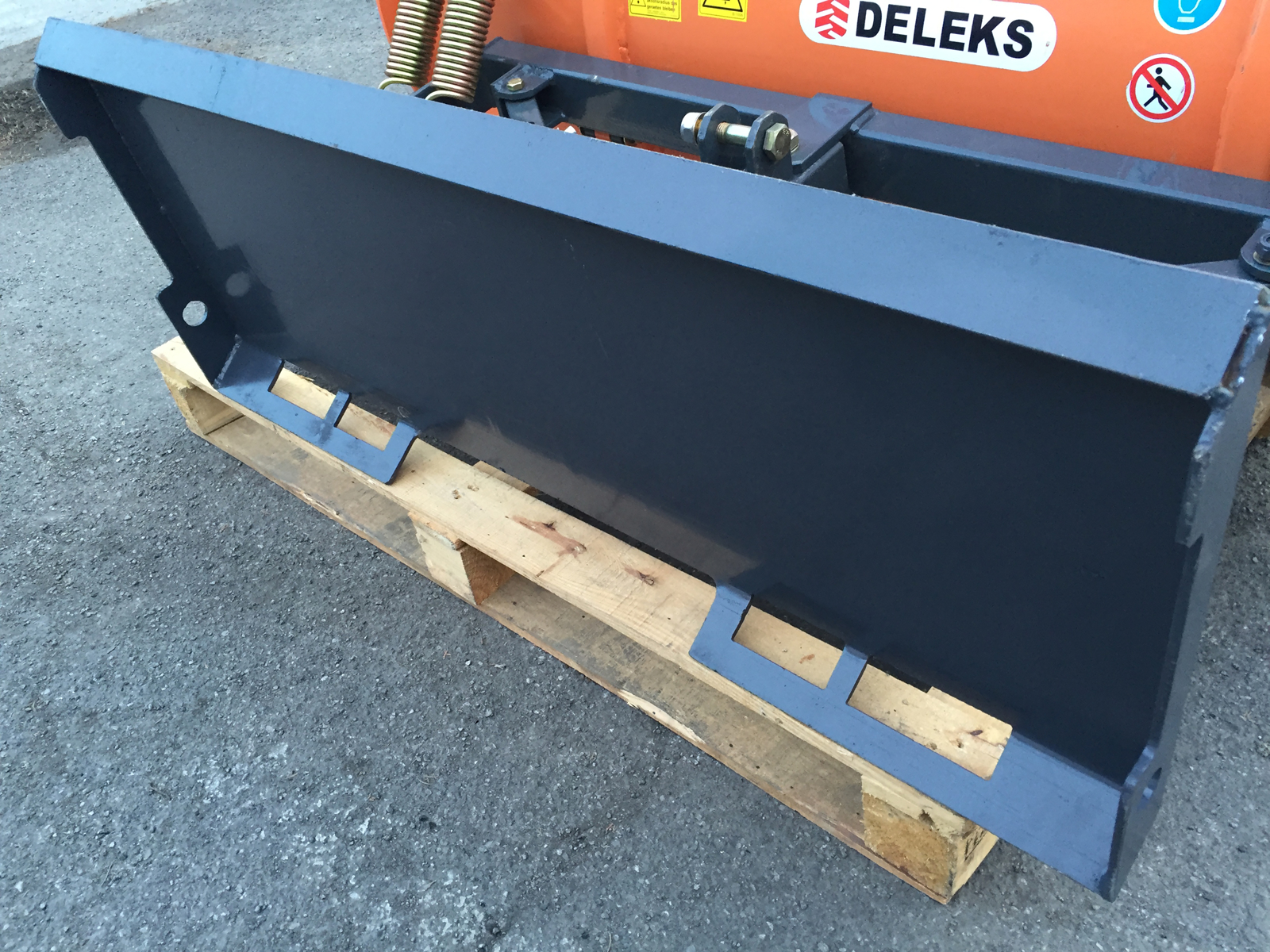

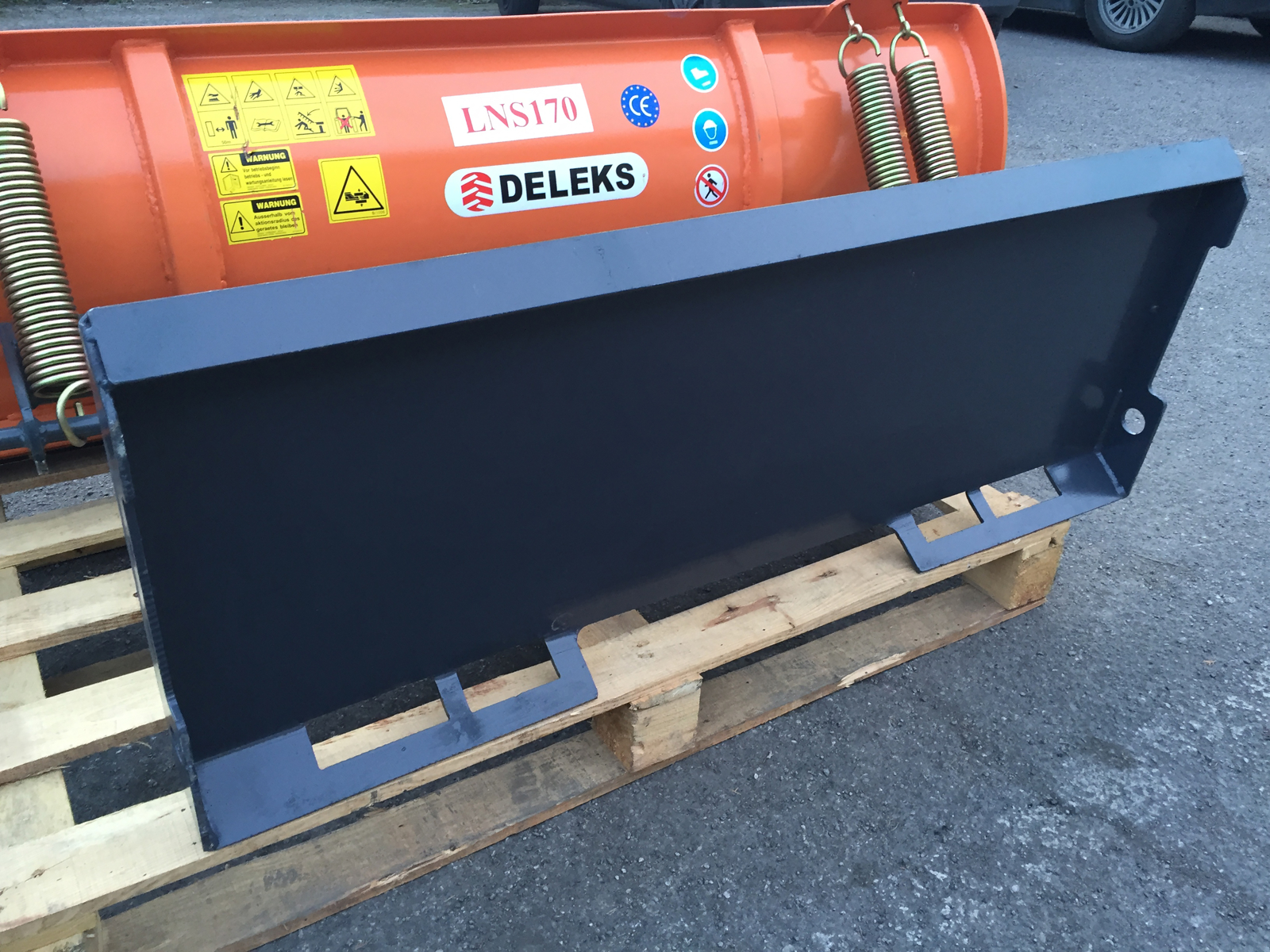

The fitting plate is removable and replaceable meaning it can be used on tractors or other attachments.

Homologated for road use.



CHARACTERISTICS

Characteristic Units metric Units US
Weight 143.0 kg 315.0 lb
Overall height 525.0 mm 1.72 ft
Overall Length 760.0 mm 2.50 ft
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface Universal for Skid Steer Loaders Universal for Skid Steer Loaders
Angling (left/right) 28° 28°
Float +/- 2° +/- 2°
Blade Height 525.0 mm 1.72 ft
Side edge thickness 8.0 mm 0.31 in
Shock absorbers 4 4
Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 120.0 mm 4.72 in
Cutting Edge Thickness 14.0 mm 0.55 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights x x
Removable Skid Shoes x x

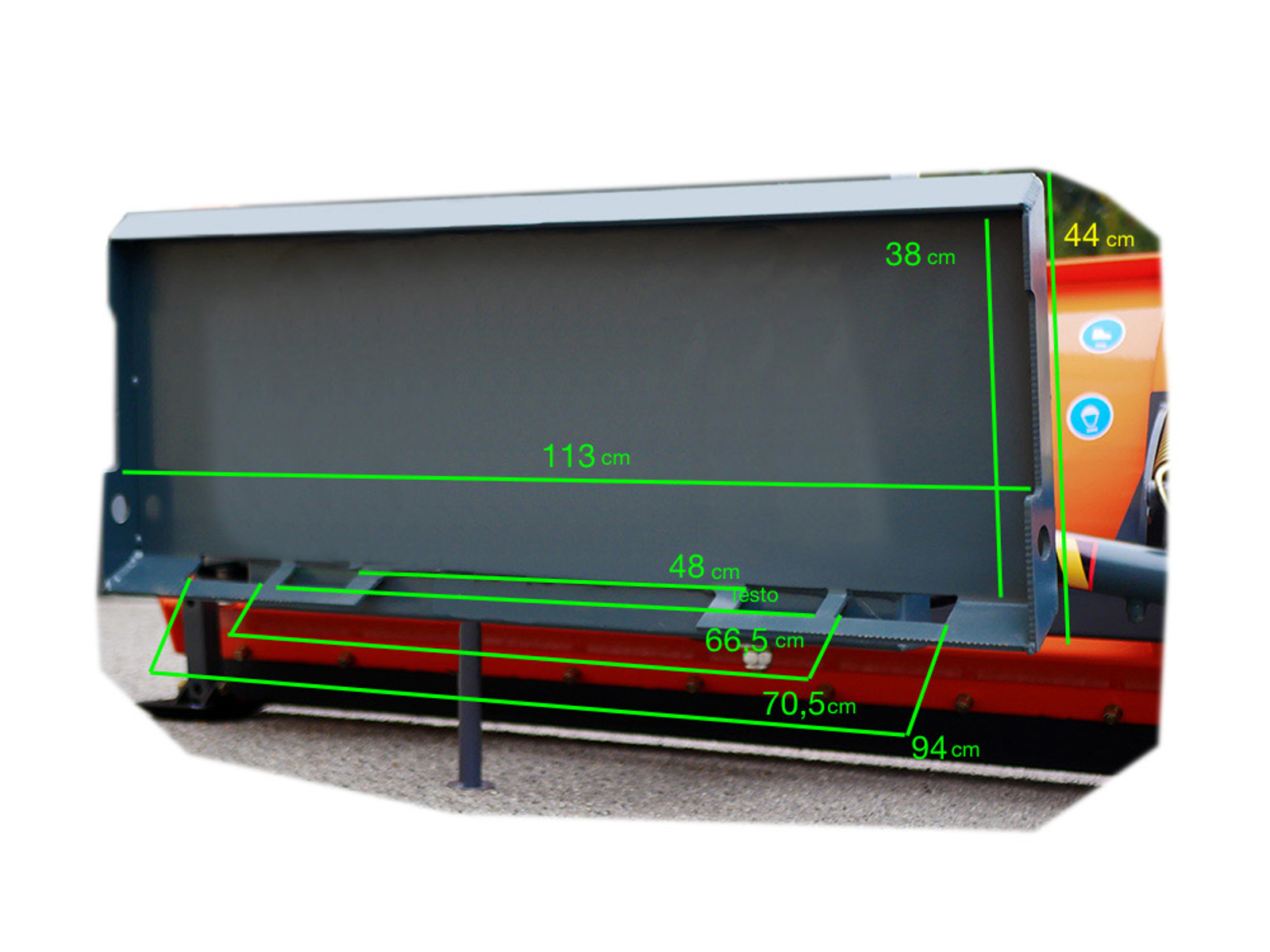

Universal attachment sizes See pictures See pictures
Working width (angled) 1520.0 mm 5.00 ft
Suitable on Skid Steer L. 1.8 t max Skid Steer L. 1.8 t max
Hydraulic Hoses (Optional) 2 x 1500.0 mm / WP 400 bar (Optional) 2 x 4.92 ft/ WP 400 bar
Overall width 1716.0 mm 5.63 ft
Main frame thickness 4.0 mm 0.15 in
Hydraulic cylinder/s ø (Optional) 50.0 / 25.0 mm (optional) 1.96 / 1.0 in
Packing sizes 1716.0*800.0*800.0 mm 5.63*2.62*2.62 ft

Optional

2 springs snowblade ln lns lnk
2 springs snowblade LN-LNS-LNK
90,00VAT incl.
Available

LN-LNS-LNK

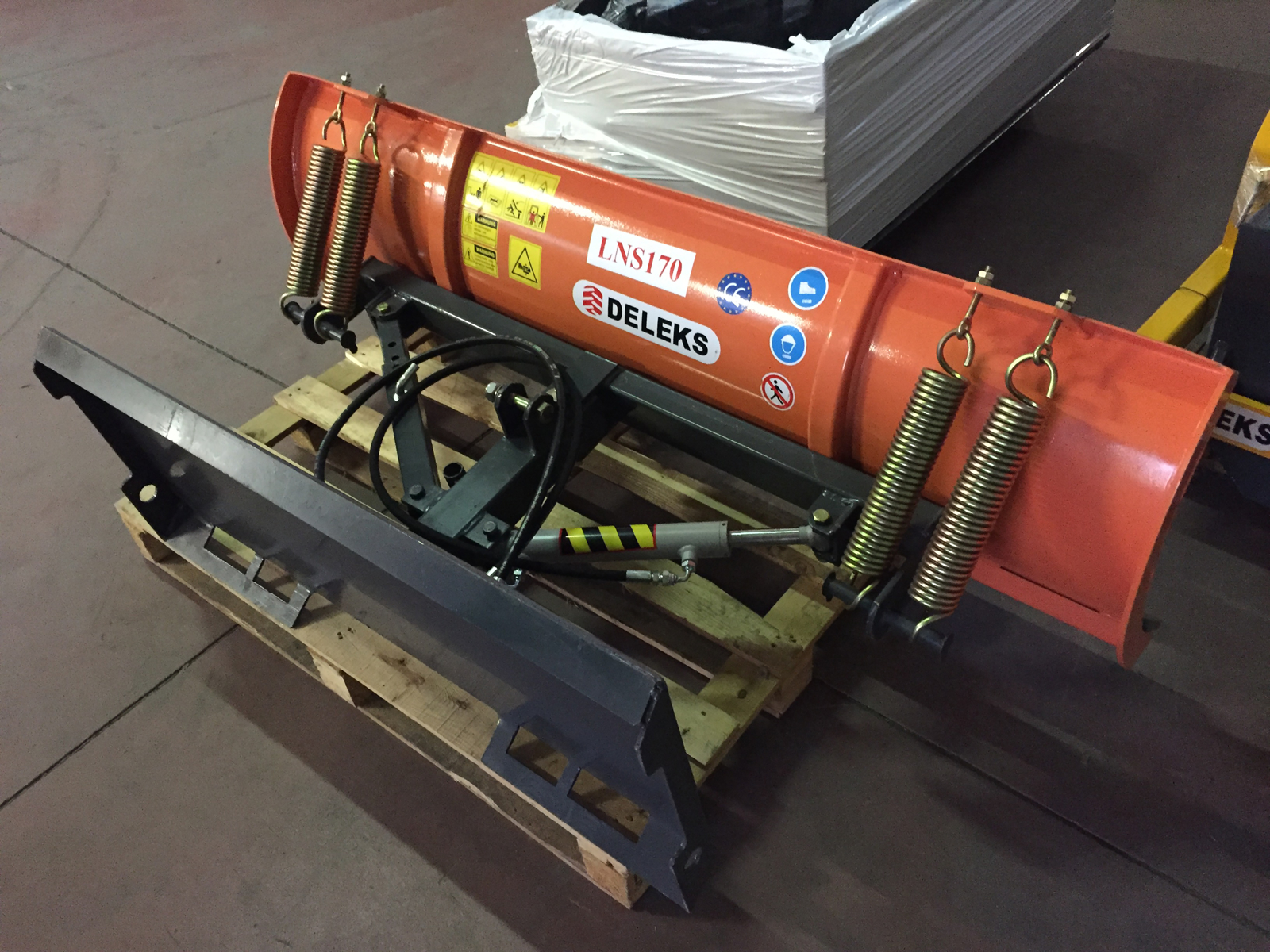

hydr orientation lns c lns m

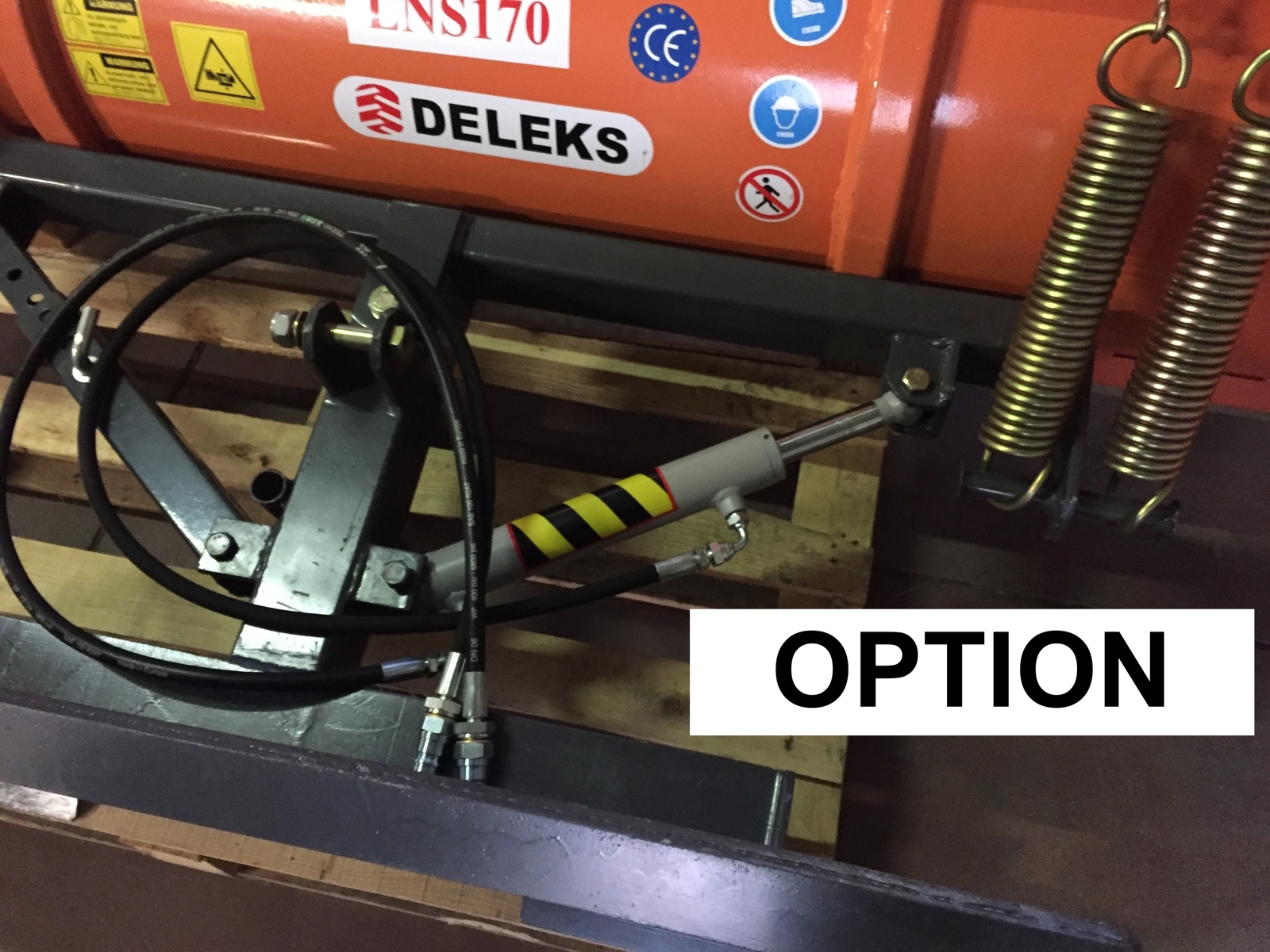

Hydr. orientation LNS-C, LNS-M
144,00VAT incl.
Available

LNS-C, LNS-M

spare rubber blade 170 cm
Spare rubber blade 170 cm
167,00VAT incl.
Available

DL-170, LNS-170

spare steel blade 170 cm
Spare steel blade 170 cm
167,00VAT incl.
Available

DL-170, LNS-170
