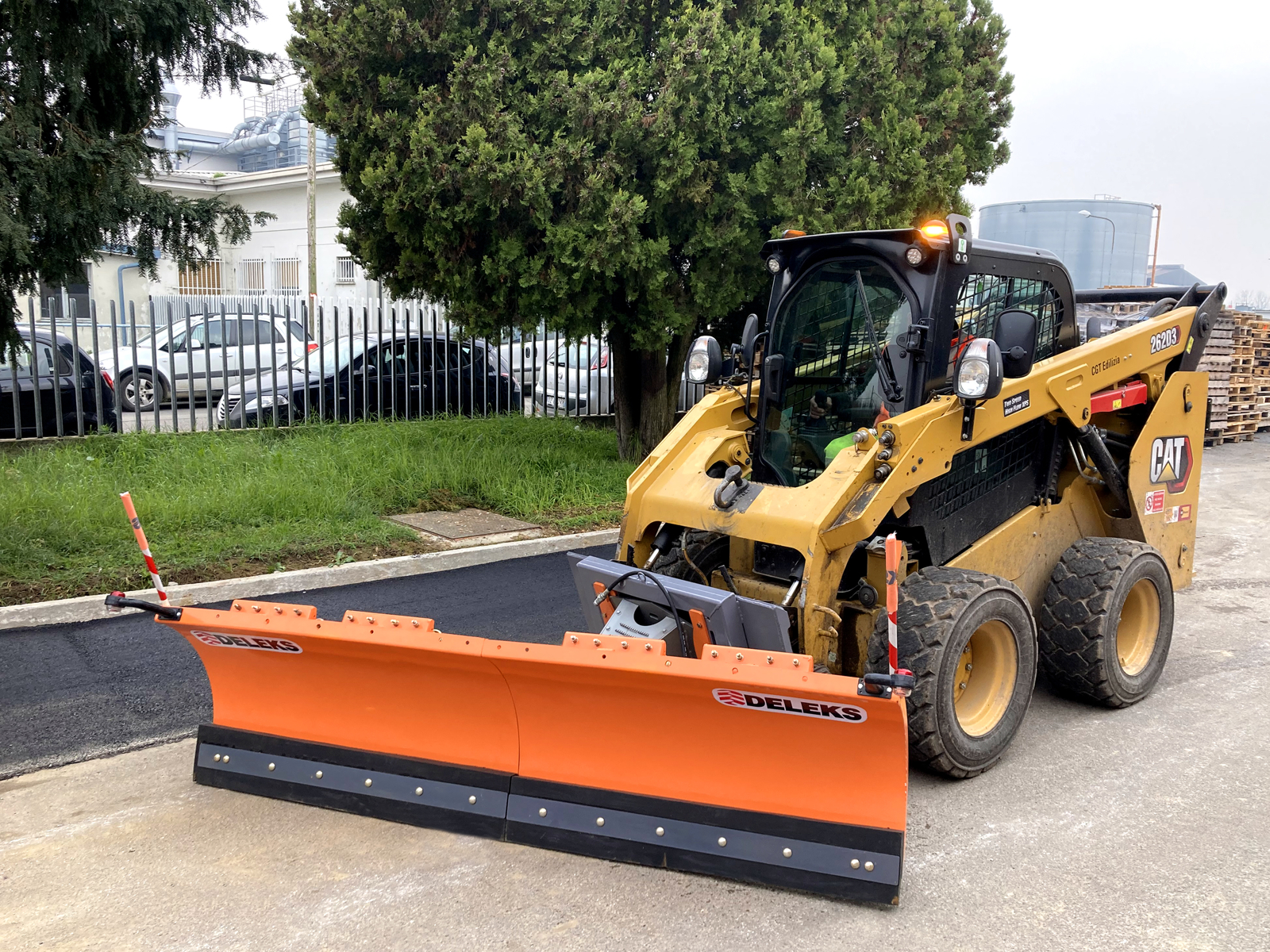

Snow plow for up to 3.0 ton skid steer loaders, LN-250-M

Available
Code LN250M
EAN 8053470231704
View all details.
D
H
M
S
-458,00 3.203,00VAT incl.
TOTAL
2.745,00VAT incl.
Free shipping

DETAILS

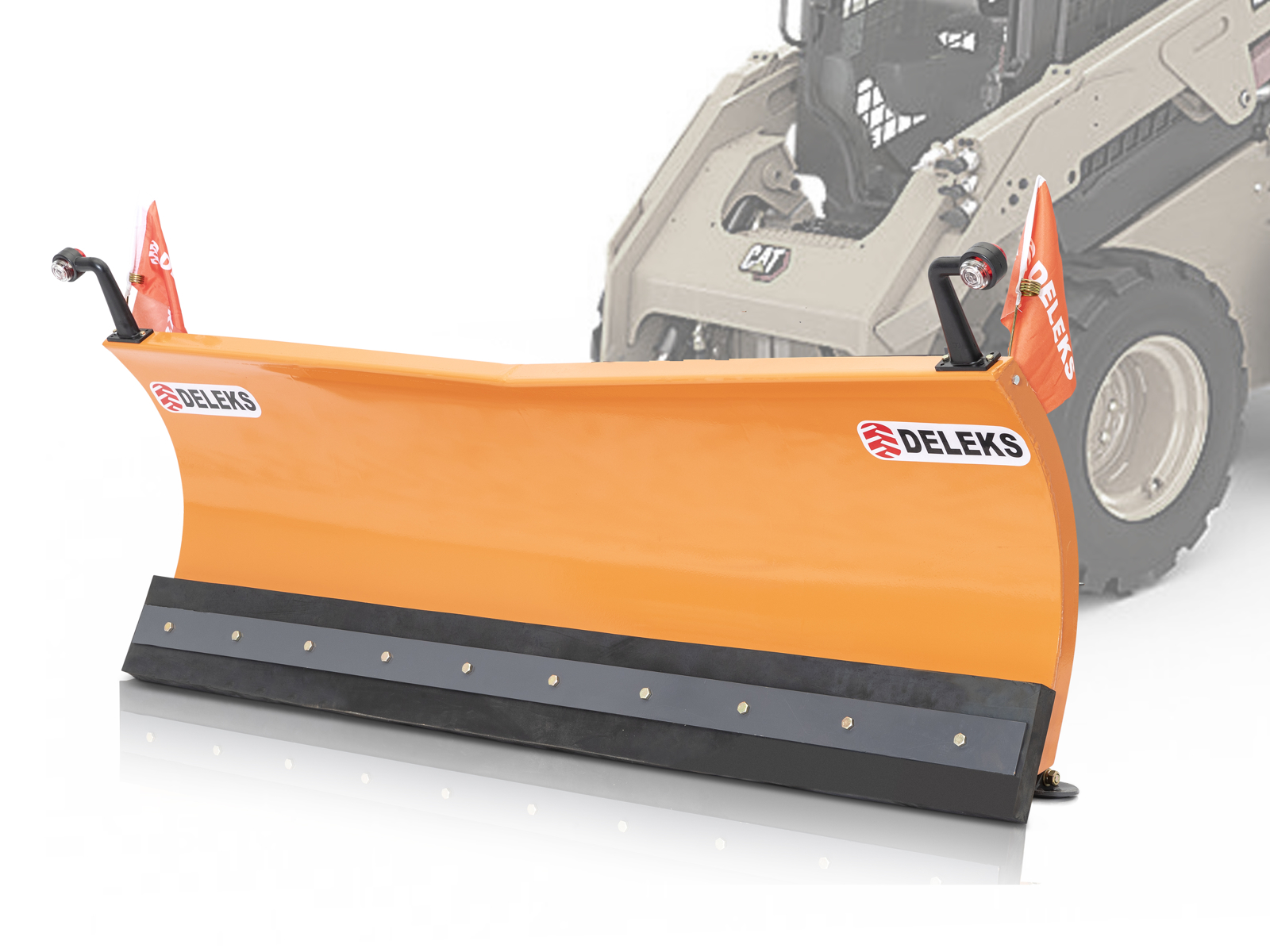

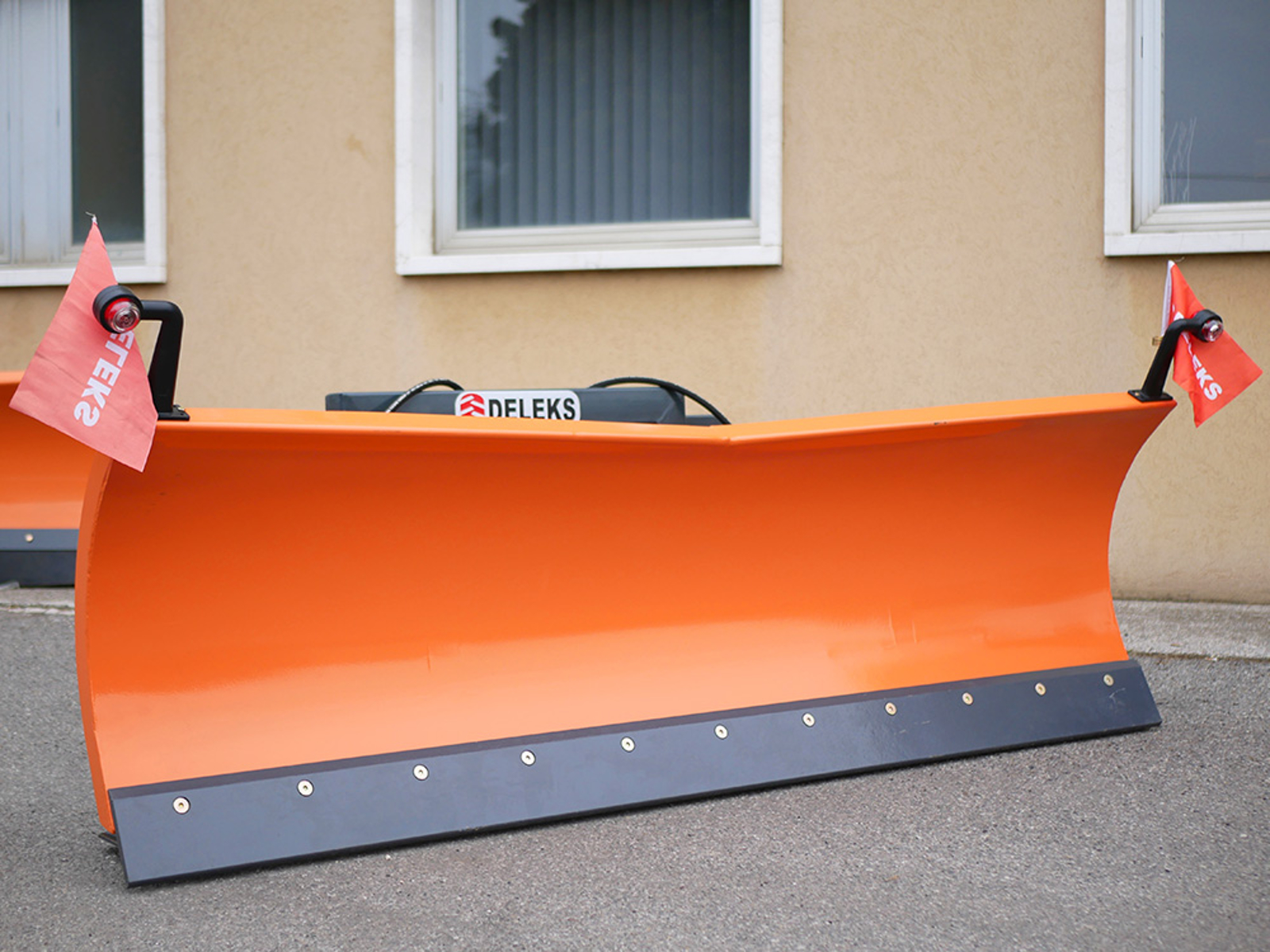

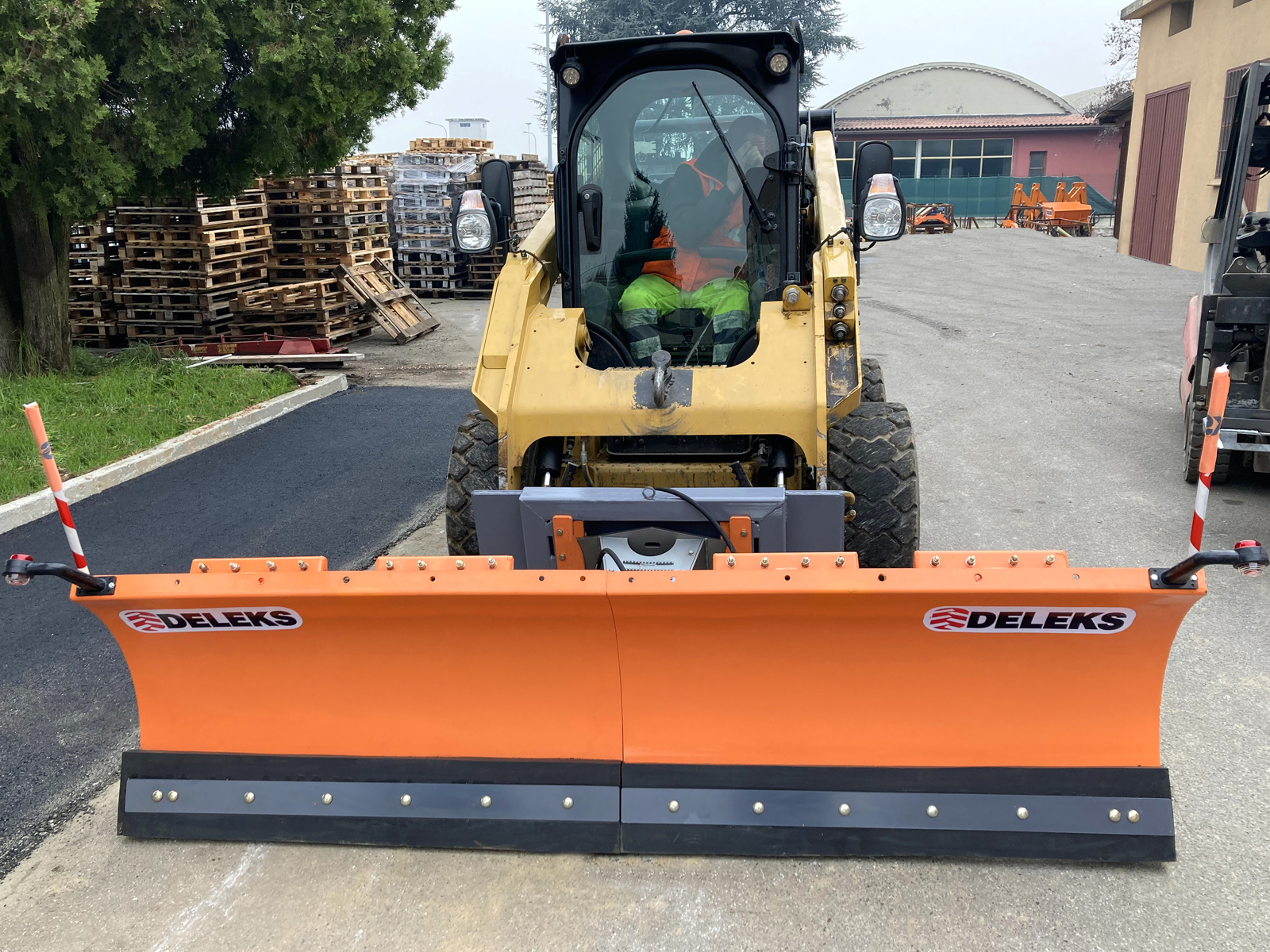

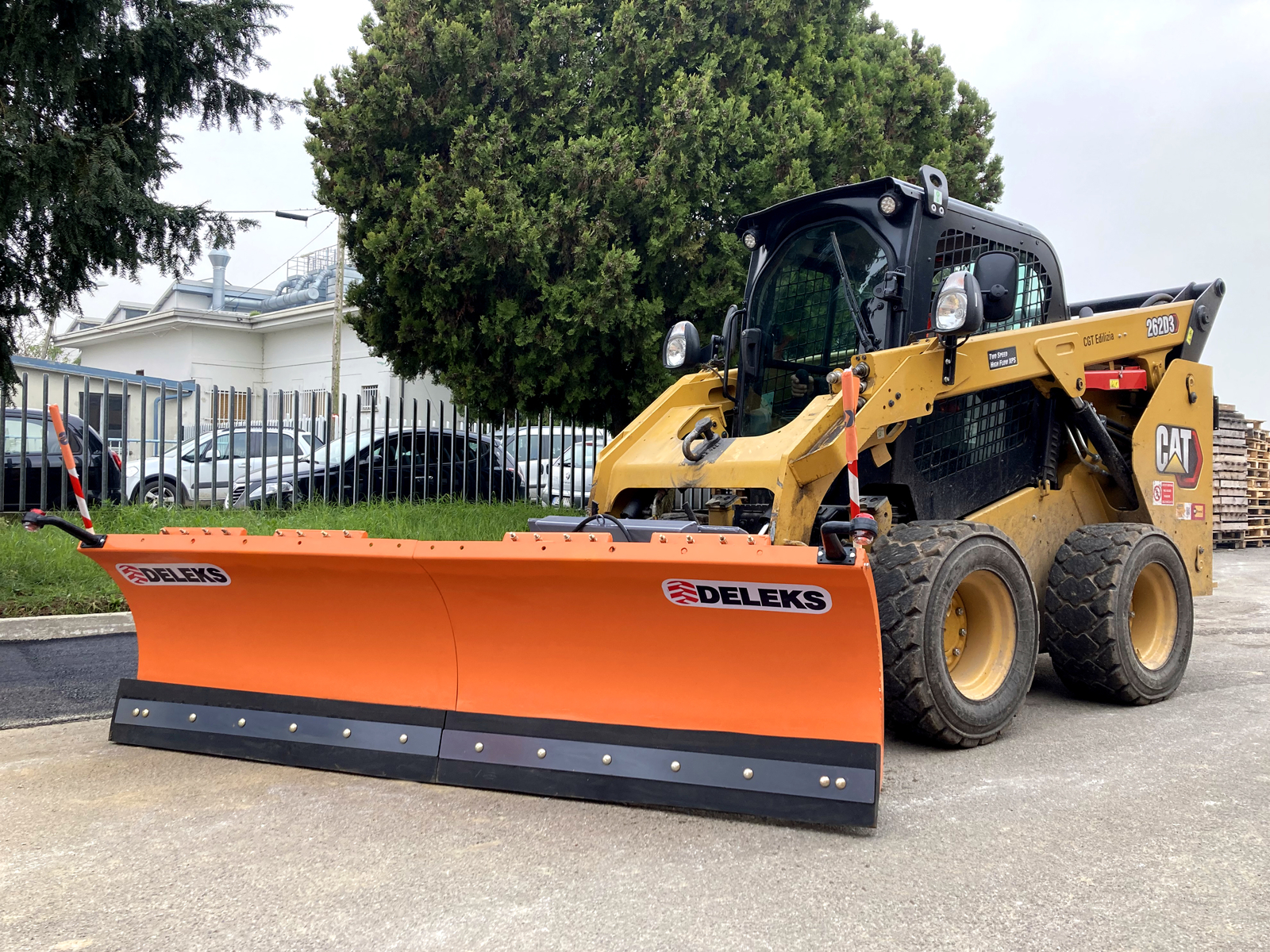

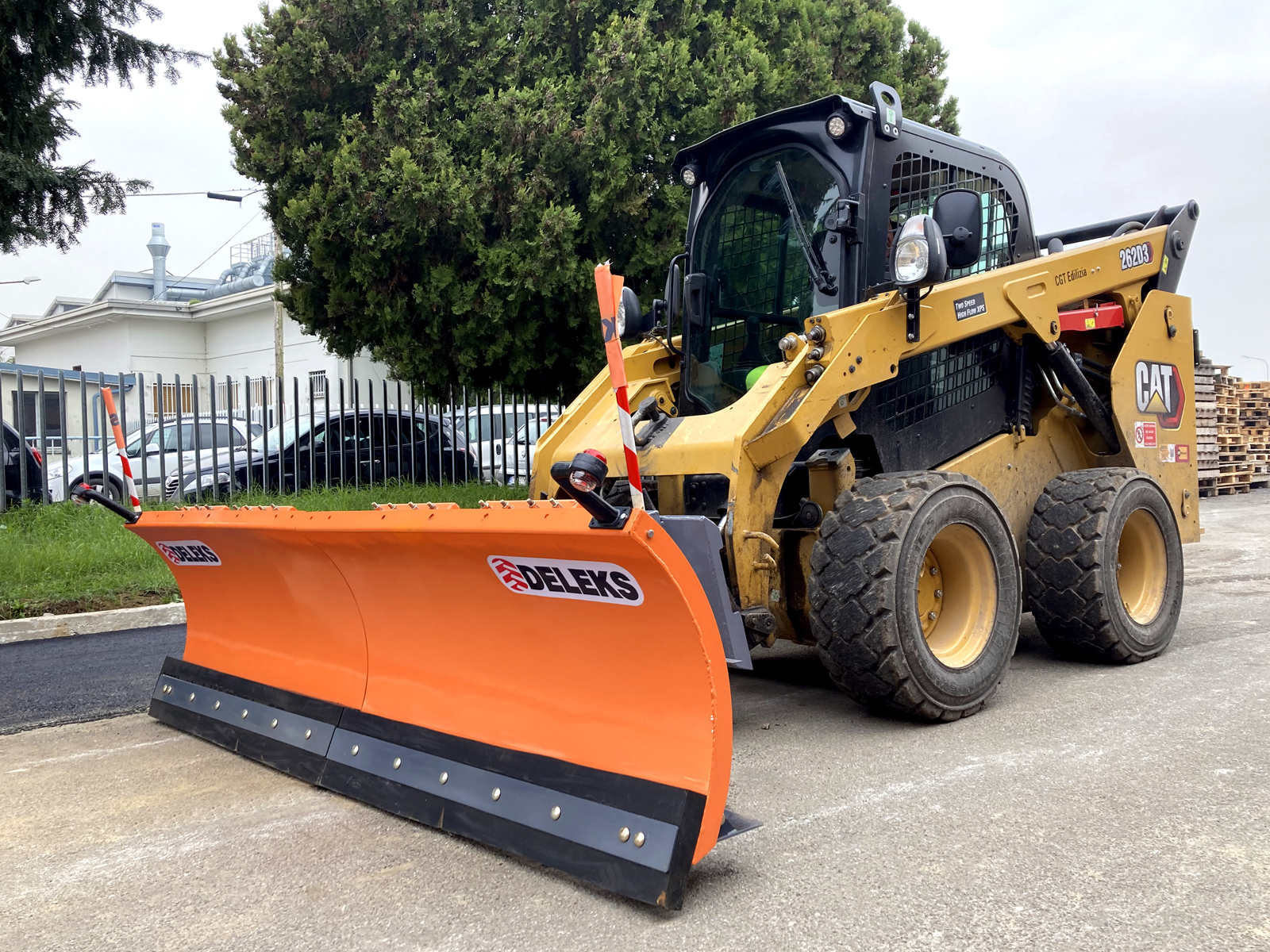

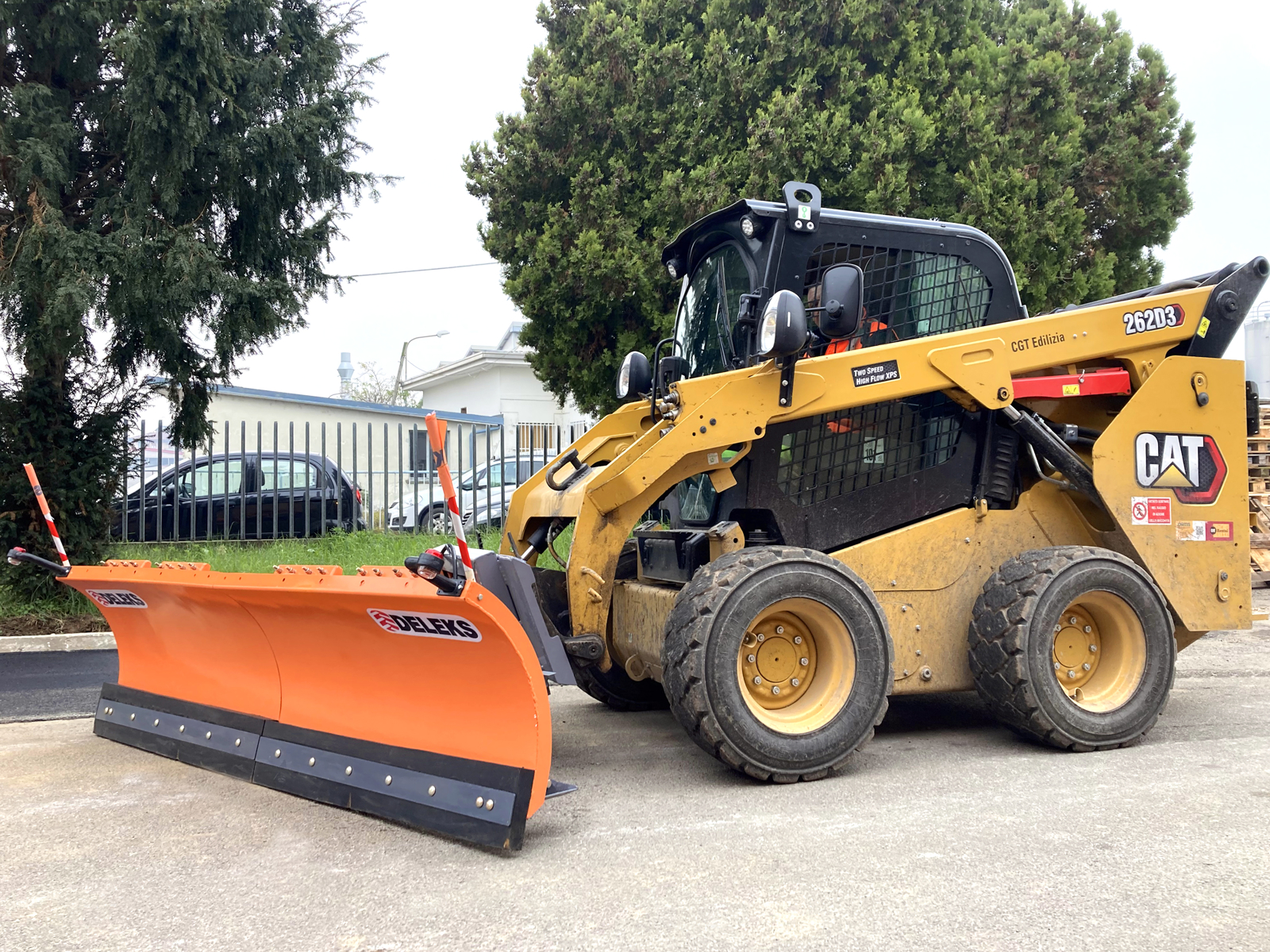

LN-250-M Snow plow for up to 3.0 ton skid steer loaders - DELEKS® - 250cm - The Universal attachment for Skid steer loaders.


OVERVIEW

Strong and durable snowplow for skid steer loaders up to 3.0ton. Compatible with all common brands e.g. Bobcat, JCB, Caterpillar, Case, etc. Angling of the plow is done hydraulically. We supply 1.5m pipes that connect to the tractor. Supplied with skid shoes and marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.



BENEFITS AND FEATURES

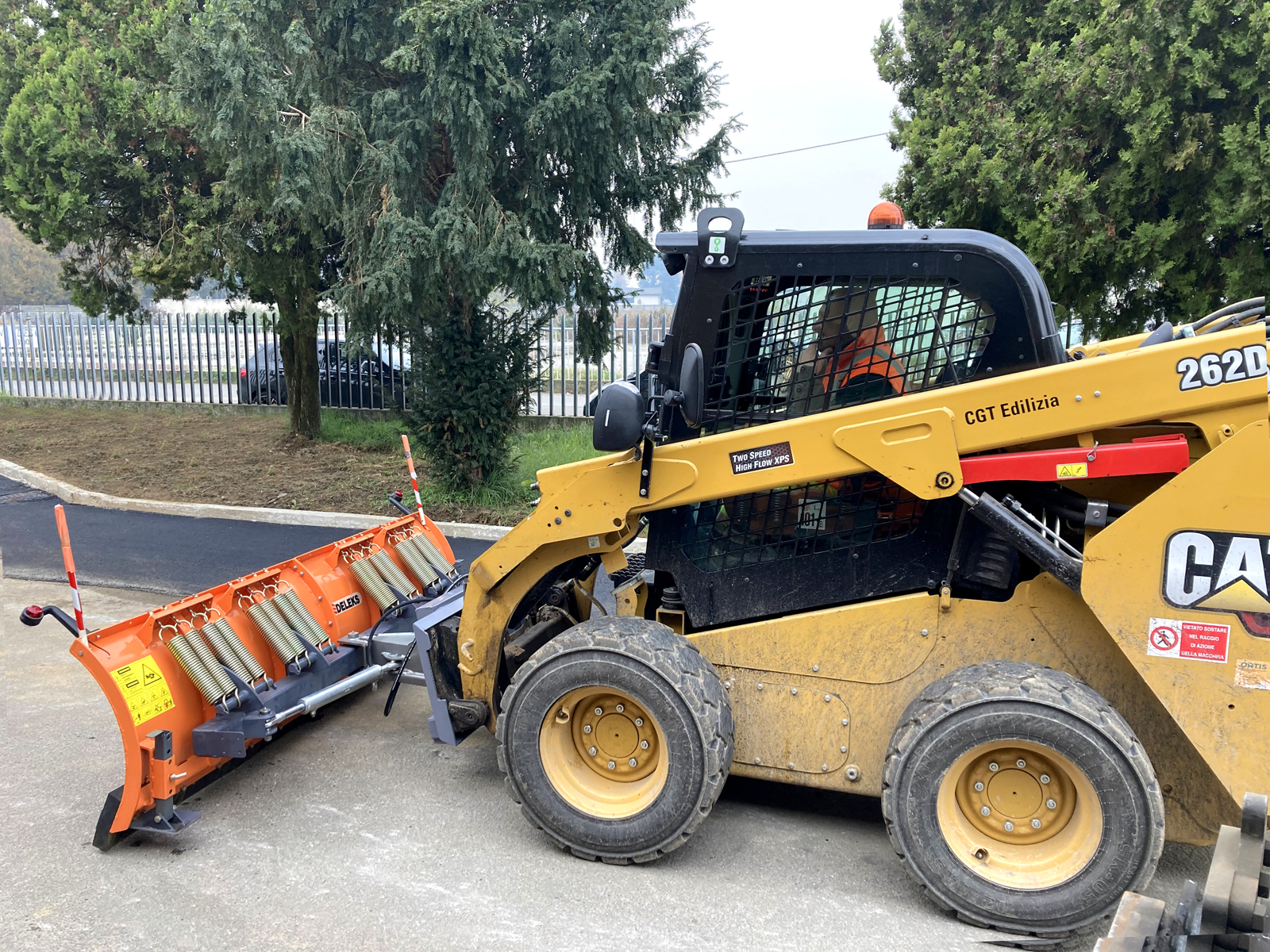

Shockproof system with 8 shock absorbing springs to operate in maximum safety.

Hydraulic system consists of two pistons Made in Italy.

Perfect adherence to the road surface and homologated for road use.

Extreme ease of assembly and use.

Adjustable torque slides, make work easier, reducing the pressure on the cutting edge, especially on rough surfaces such as gravel parking lots.

The Universal attachment for Skid steer loaders is removable and replaceable with 3-point hitch, or EURO attachment for tractor front-end loaders.


Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual



CHARACTERISTICS

Characteristic Units metric Units US
Weight 350.0 kg 772.0 lb
Overall height 700.0 mm 2.30 ft
Overall Length 950.0 mm 3.11 ft
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface Universal for Skid Steer Loaders Universal for Skid Steer Loaders
Angling (left/right) 27° 27°
Float +/- 6° +/- 6°
Blade Height 700.0 mm 2.30 ft
Side edge thickness 8.0 mm 0.32 in
Shock absorbers 8 8

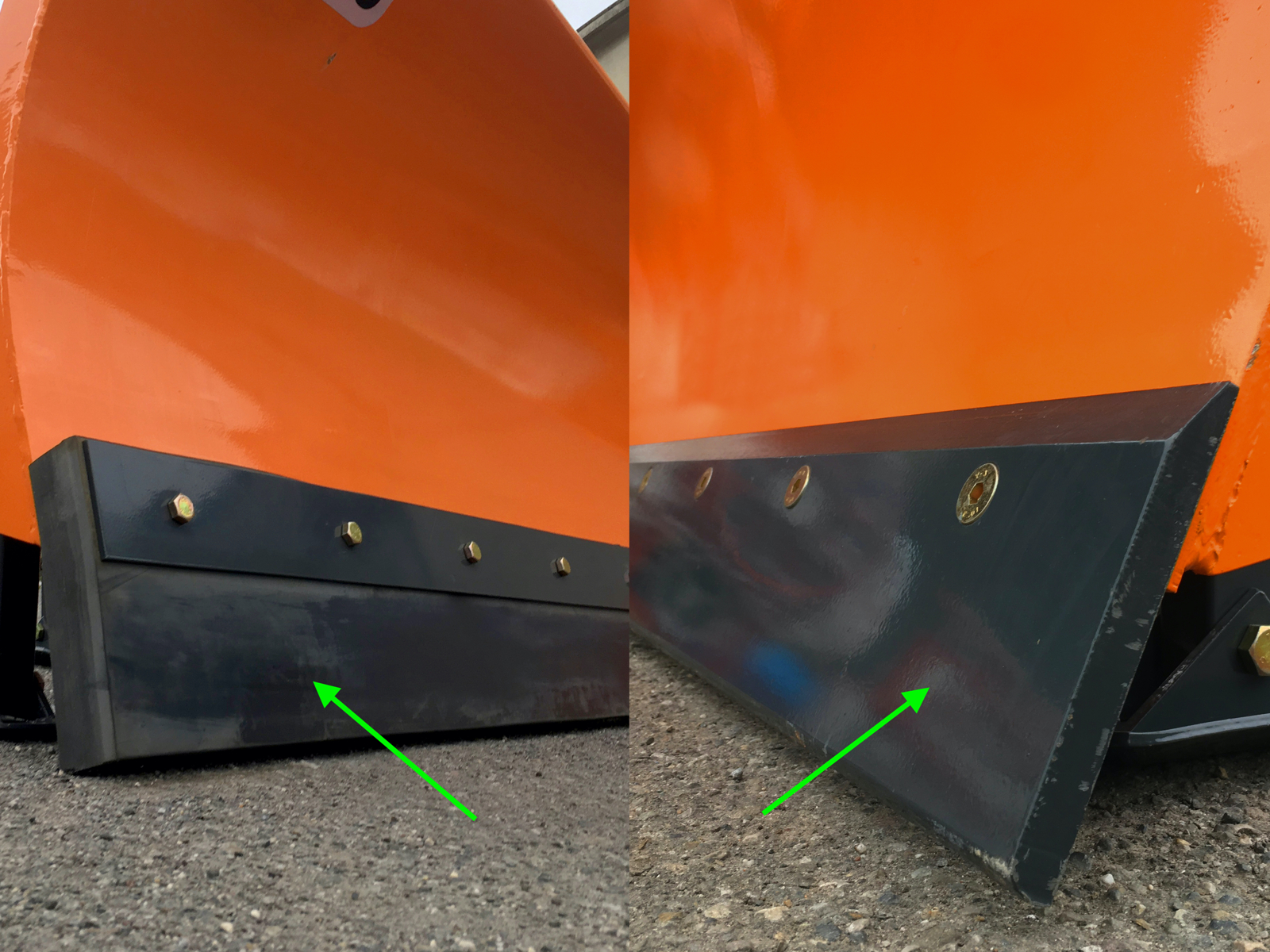

Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 150.0 mm 5.90 in
Cutting Edge Thickness 16.0 mm 0.63 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights
Removable Skid Shoes

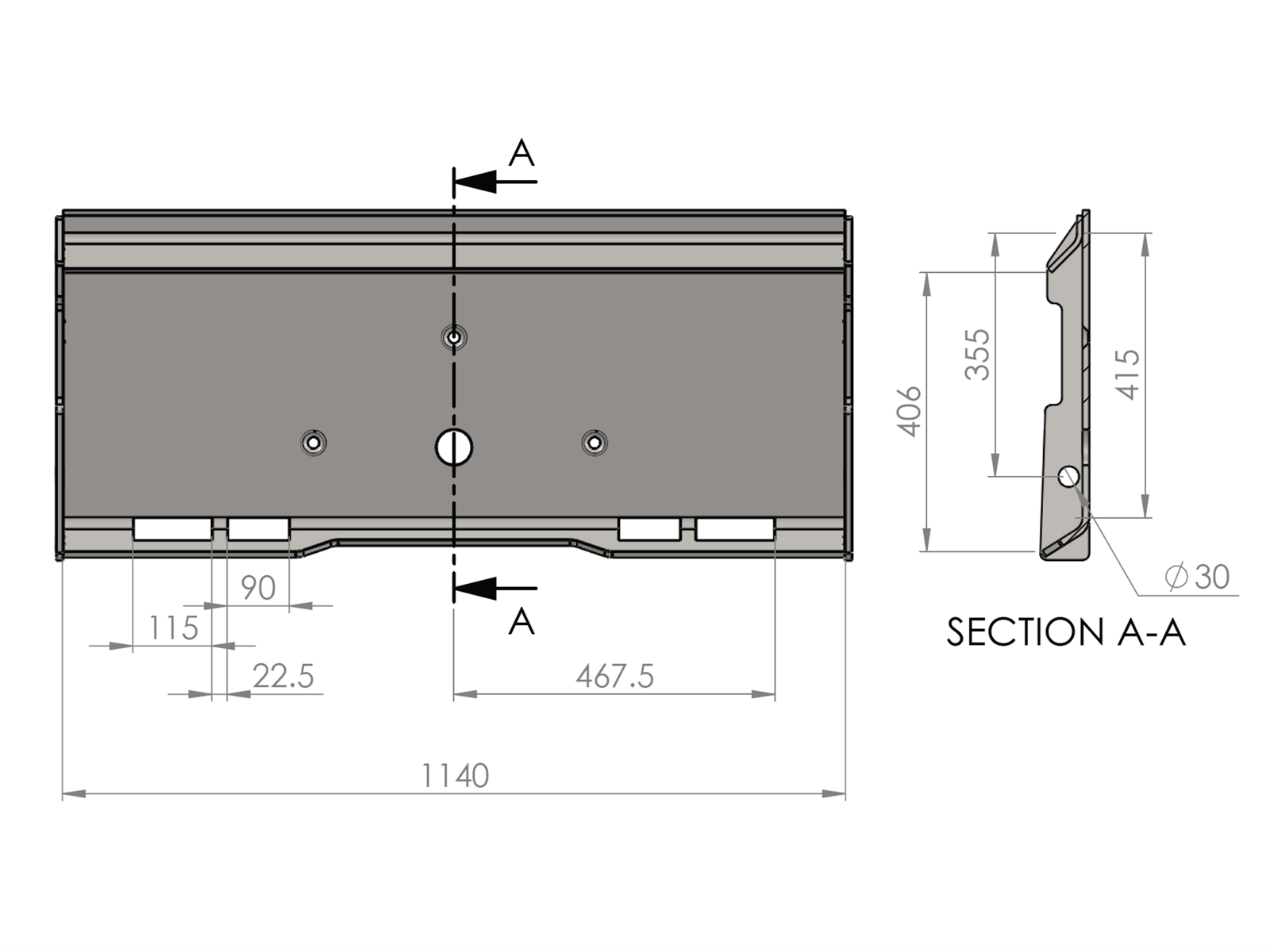

Universal attachment sizes See pictures See pictures
Working width (angled) 2231.0 mm 7.32 ft
Suitable on Skid Steer L. 3.0 t max Skid Steer L. 3.0 t max
Hydraulic Hoses 2 x 1500.0 mm / WP 400 bar 2 x 4.92 ft/ WP 400 bar
Overall width 2505.0 mm 8.22 ft
Main frame thickness 5.0 mm 0.2 in
Hydraulic cylinder/s ø 60.0/30.0 mm 2.36/1.18 in
Packing sizes 2505.0*800.0*830.0 mm 8.22*2.62*2.95 ft

Optional

2 hydr pipes 4 00m fast connection set
2 Hydr. pipes 4,00m + Fast connection Set
153,00VAT incl.
Available

4,00m - Quick Release Coupling 1/2"

Fast connection set.

2 springs snowblade ln lns lnk
2 springs snowblade LN-LNS-LNK
90,00VAT incl.
Available

LN-LNS-LNK

couple marker lights ln
Couple marker lights LN
50,00VAT incl.
Available

LN 175/250

spare rubber blade 250 cm
Spare rubber blade 250 cm
284,00VAT incl.
Available

LN-250

spare skid shoe ln 200 250
Spare skid shoe LN-200-250
72,00VAT incl.
Not available Notify me

LN-200/250

spare steel blade 250 cm
Spare steel blade 250 cm
284,00VAT incl.
Available

LN-250
