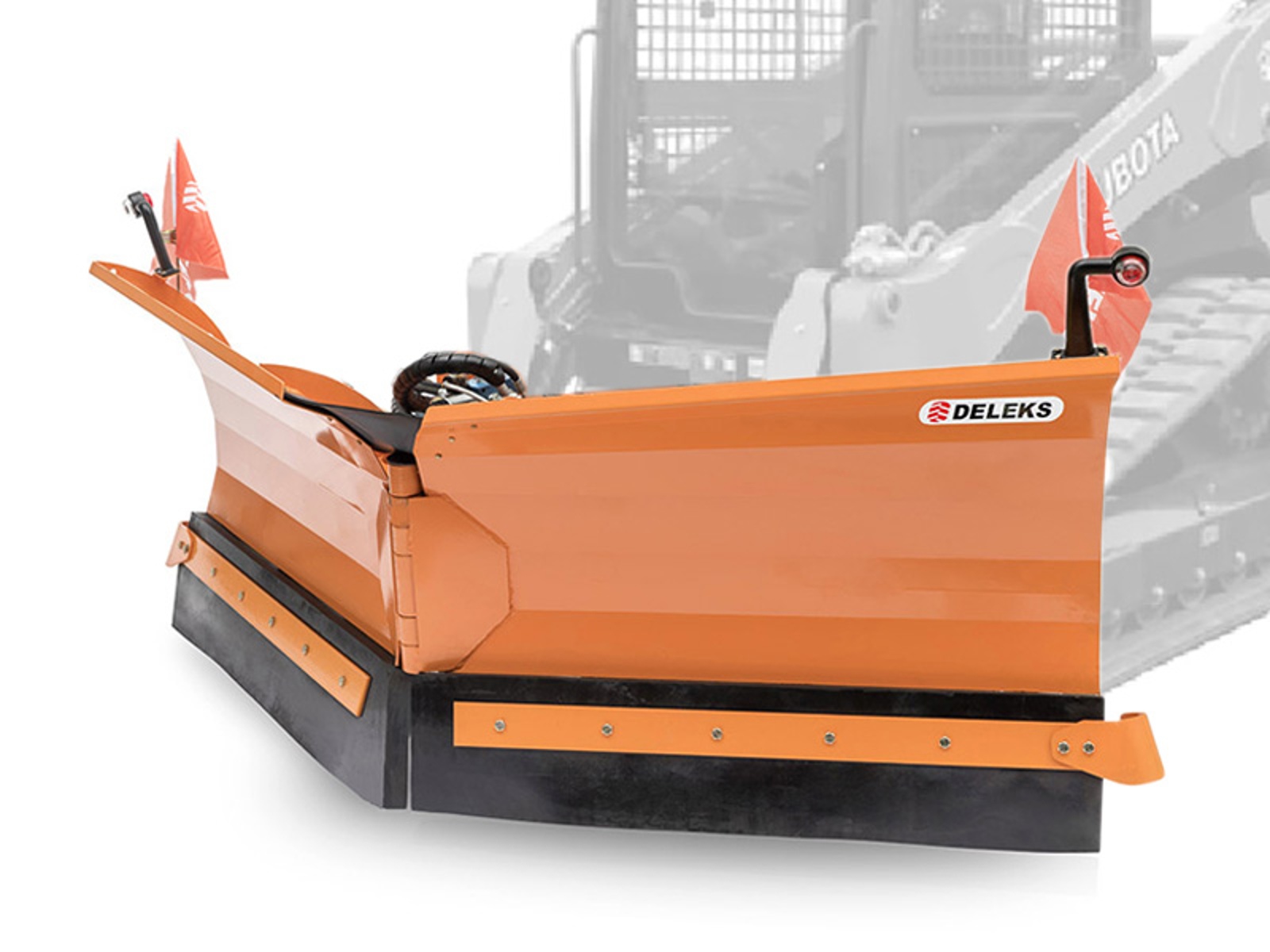

Snow plow, Snowblade 200cm/370kg for up to 3.0 ton Skid steer loaders - DELEKS® - 2 independent plowing elements - Hydraulically controlled plowshares.
LNV-200-MG Strong and durable ‘V’ snowplow for skid steer loaders up to 3.0 ton. Compatible with all common brands e.g. Bobcat, JCB, Caterpillar, Case, etc.
Angling of the plow is done hydraulically using two pistons, a 6-way solenoid valve and two hydraulic pipes (2.0m).
The plow has a replaceable rubber blade, spring swivel mount which makes the plow resistant to impact of obstacles. Supplied with marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES
Hydraulically controlled plowshares allow for four different working positions (open, closed, left and right).
Anti-shock system with 4 shock absorbing springs to overcome obstacles safety.
2 independent plowing elements.
Lateral oscillation system which allows a perfect adherence to the road surface.
Extremely easy installation and usage.

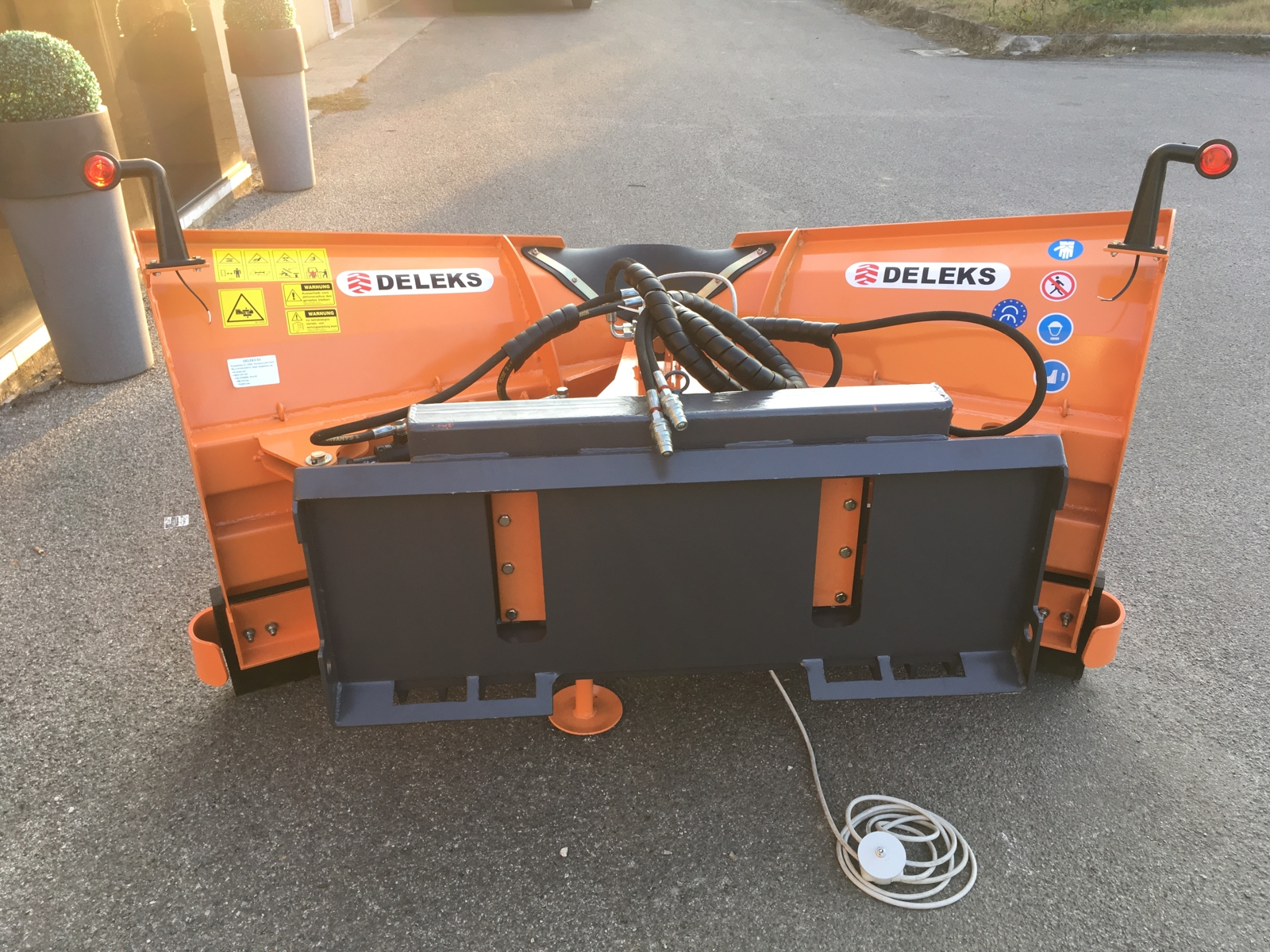

The Skid steer attachment is removable and replaceable with a 3-point hitch or EURO attachment.
Perfect adherence to the road surface and homologated for road use.
|Characteristic||Units metric||Units US|
|Weight||370.0 kg||815.70 lb|
|Overall height||1020.0 mm||3.35 ft|
|Overall Length||870.0 mm||2.85 ft|
|Min./Max. Relief Pressure||110 - 150 bar||110 - 150 bar|
|Min./Max. Flow||18 - 22 l/min||18 - 22 l/min|
|Interface||Universal for Skid Steer Loaders||Universal for Skid Steer Loaders|
|Float||+/- 6°||+/- 6°|
|Blade Height||920.0 mm||3.00 ft|
|Side edge thickness||5.0 mm||0.20 in|
|Cutting Edge Height||265.0 mm||10.43 in|
|Cutting Edge Thickness||50.0 mm||1.97 in|
|Trip Edge Quantity||2||2|
|Distance betweens the bolts of the Trip Edge||200.0 mm||7.87 in|
|Removable Skid Shoes||x||x|
|Universal attachment sizes||See pictures||See pictures|
|Working width (angled)||1900.0 mm||6.23 ft|
|Suitable on||Skid Steer L. 3.0 t max||Skid Steer L. 3.0 t max|
|Hydraulic Hoses||2 x 2000.0 mm / WP 400 BAR||2 x 6.56 ft / WP 400 bar|
|Overall width||2020.0 mm||6.60 ft|
|Main frame thickness||4.0 mm + reinforces||0.15 in + reinforces|
|Hydraulic cylinder/s ø||60.0/30.0 mm||2.36/1.18 in|
|Packing sizes||2050.0*1000.0*800.0 mm||6.73*3.28*2.62 ft|
