Snowplough for telehandlers Merlo, SSH-04-3.0-MERLO
DETAILS
Snowplow, Snowblade DELEKS® for telehandlers MERLO - 300cm / 510kg.
OVERVIEW

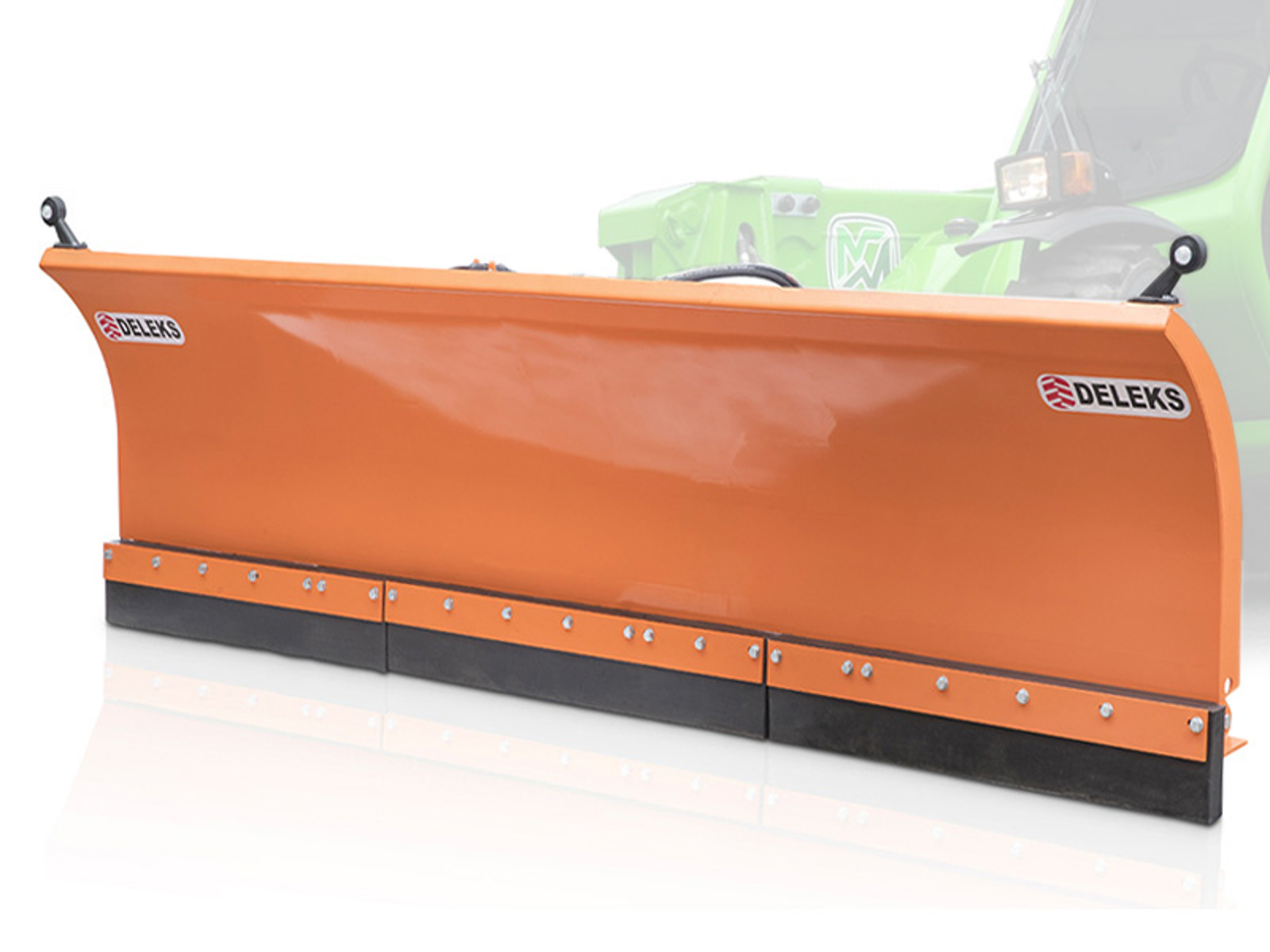

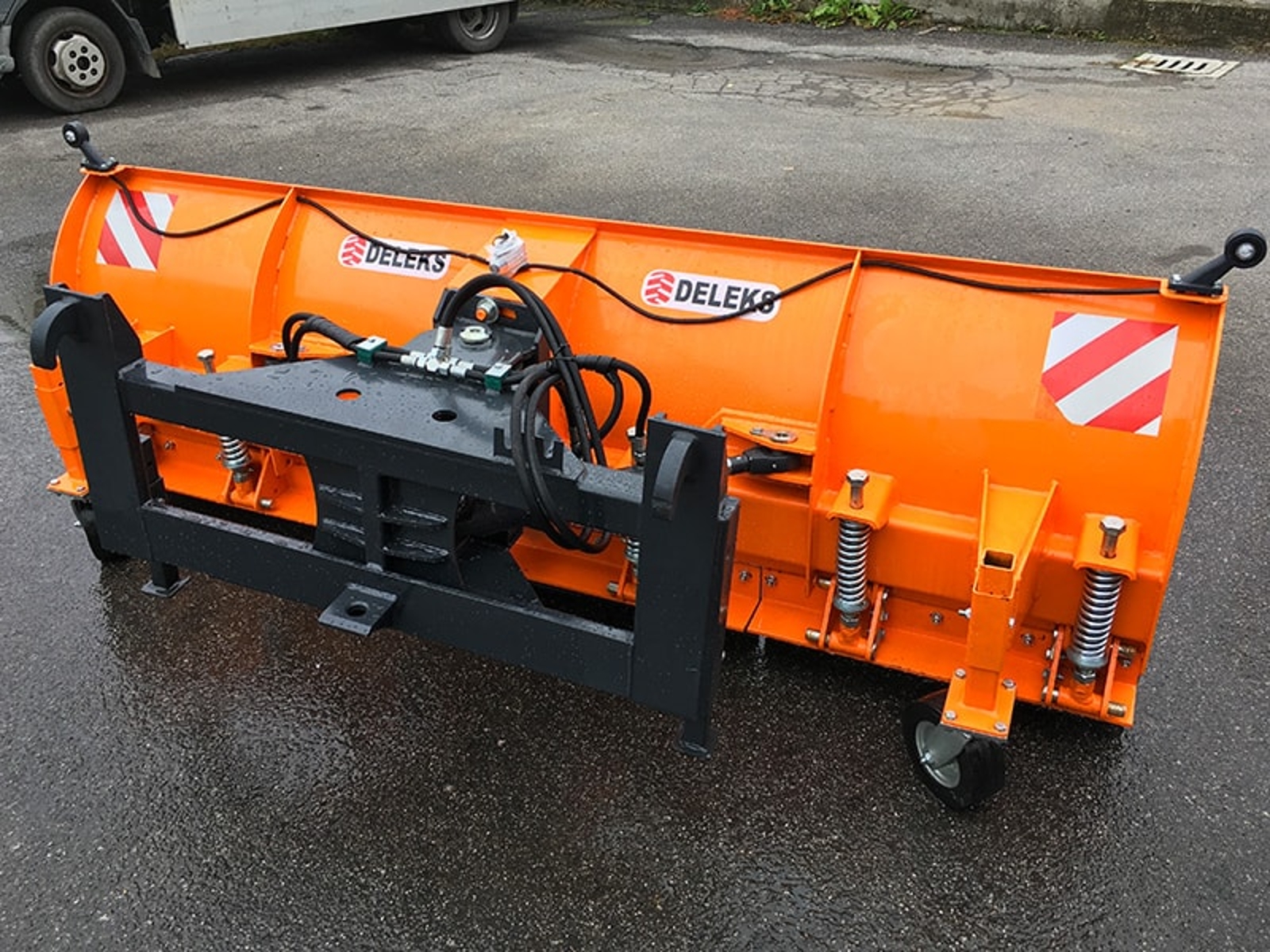

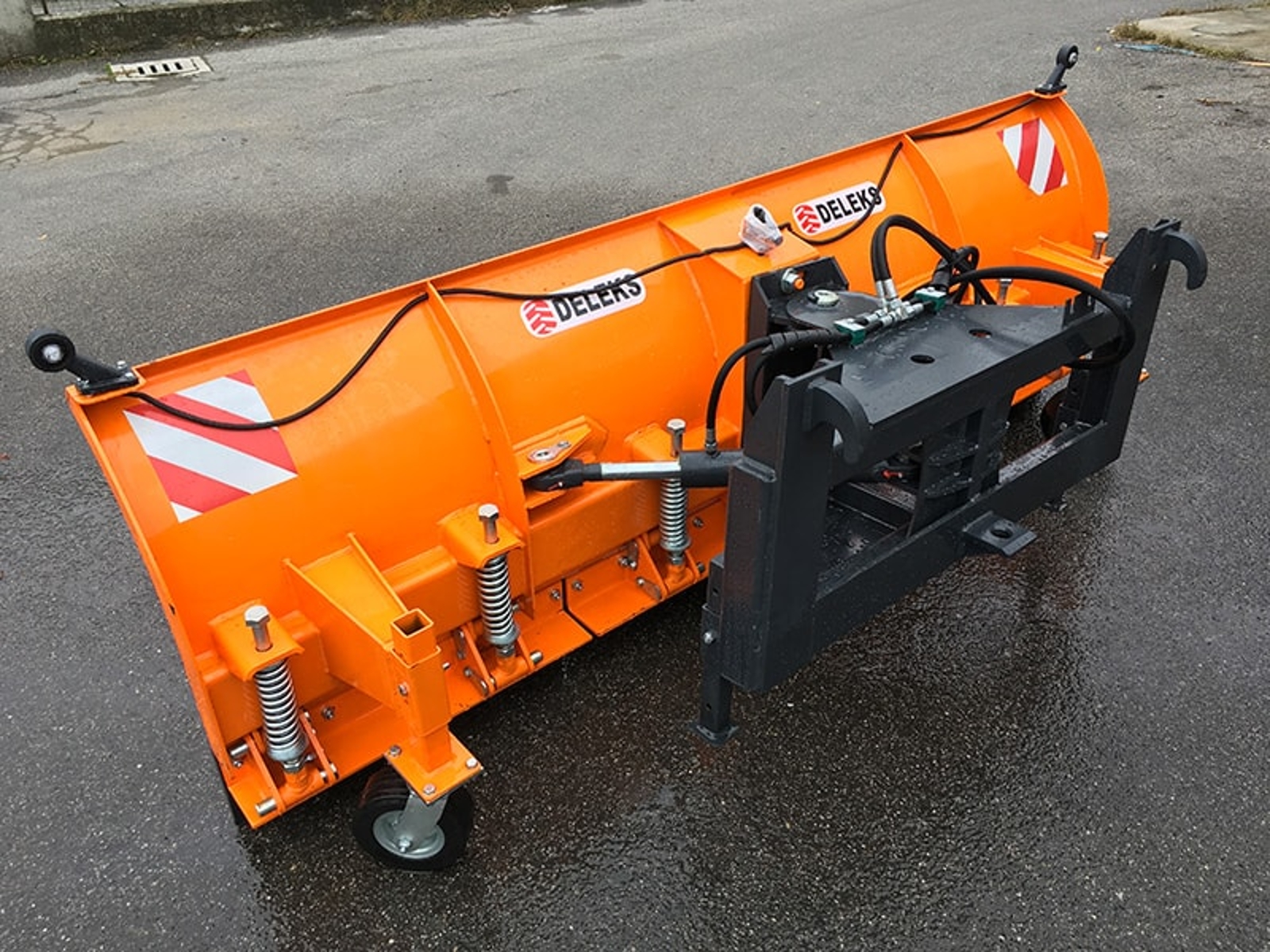

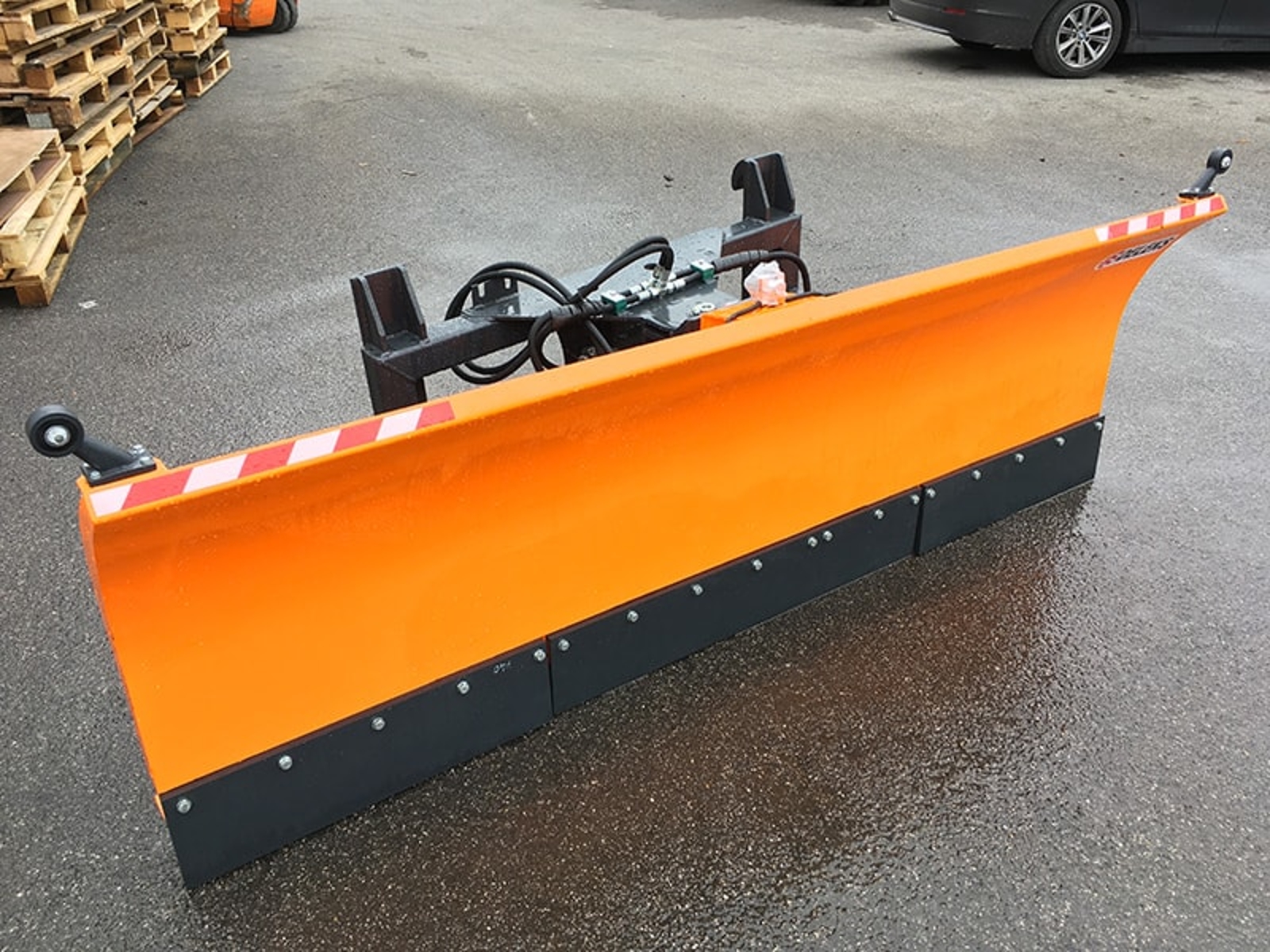

SSH-04 3.0-MERLO Heavy-duty snowplow has been designed for Telehandler MERLO.

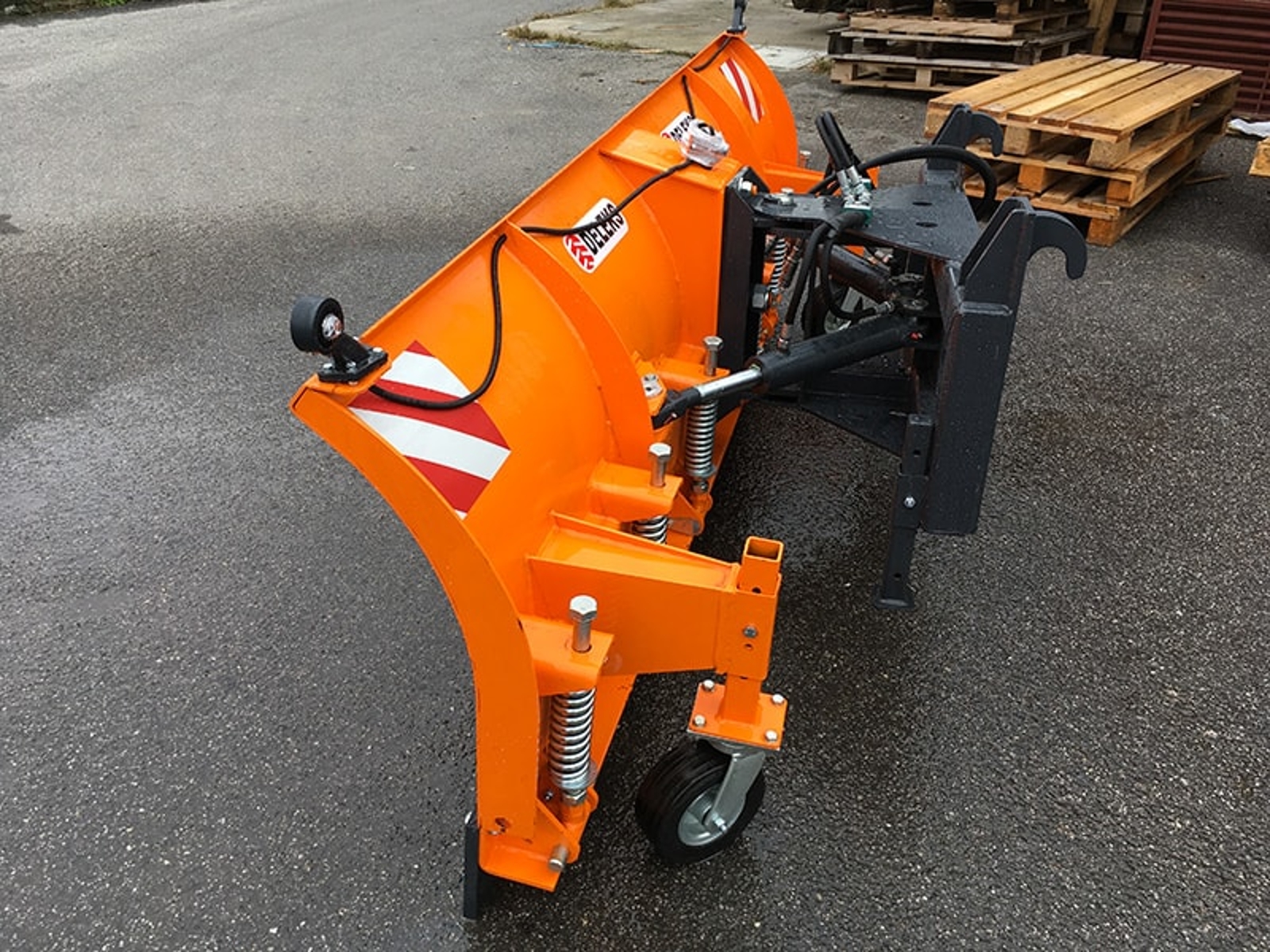

Angling of the plow is done hydraulically using two hydraulic cylinders and two hydraulic pipes 1.6m in length. Conforms to the EC Machinery Directive. 2 years Warranty.
BENEFITS AND FEATURES

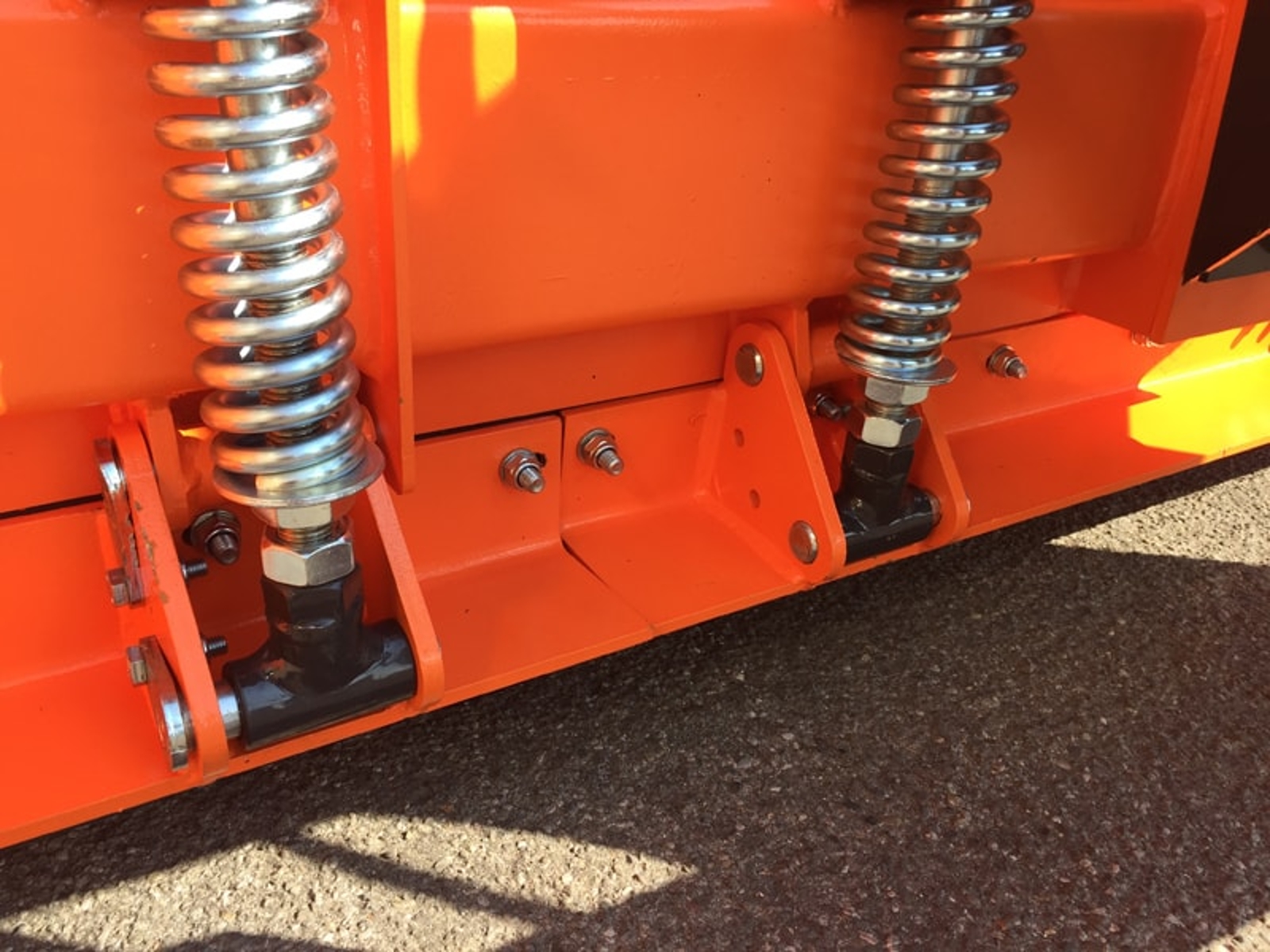

Shockproof system with 6 shock absorbing springs to operate in maximum safety.

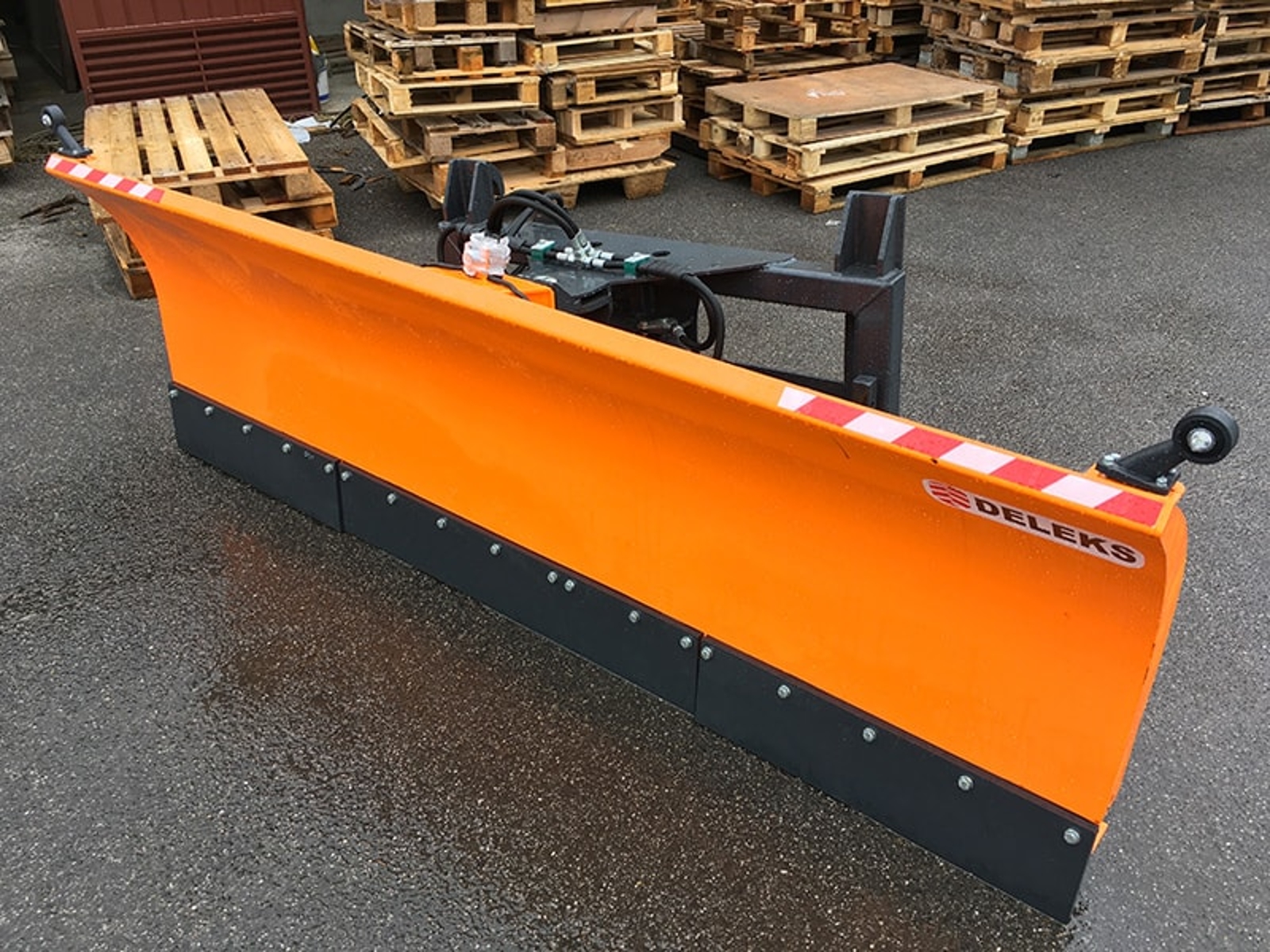

3 independent steel or rubber scraping elements.
Extreme ease of assembly and use.

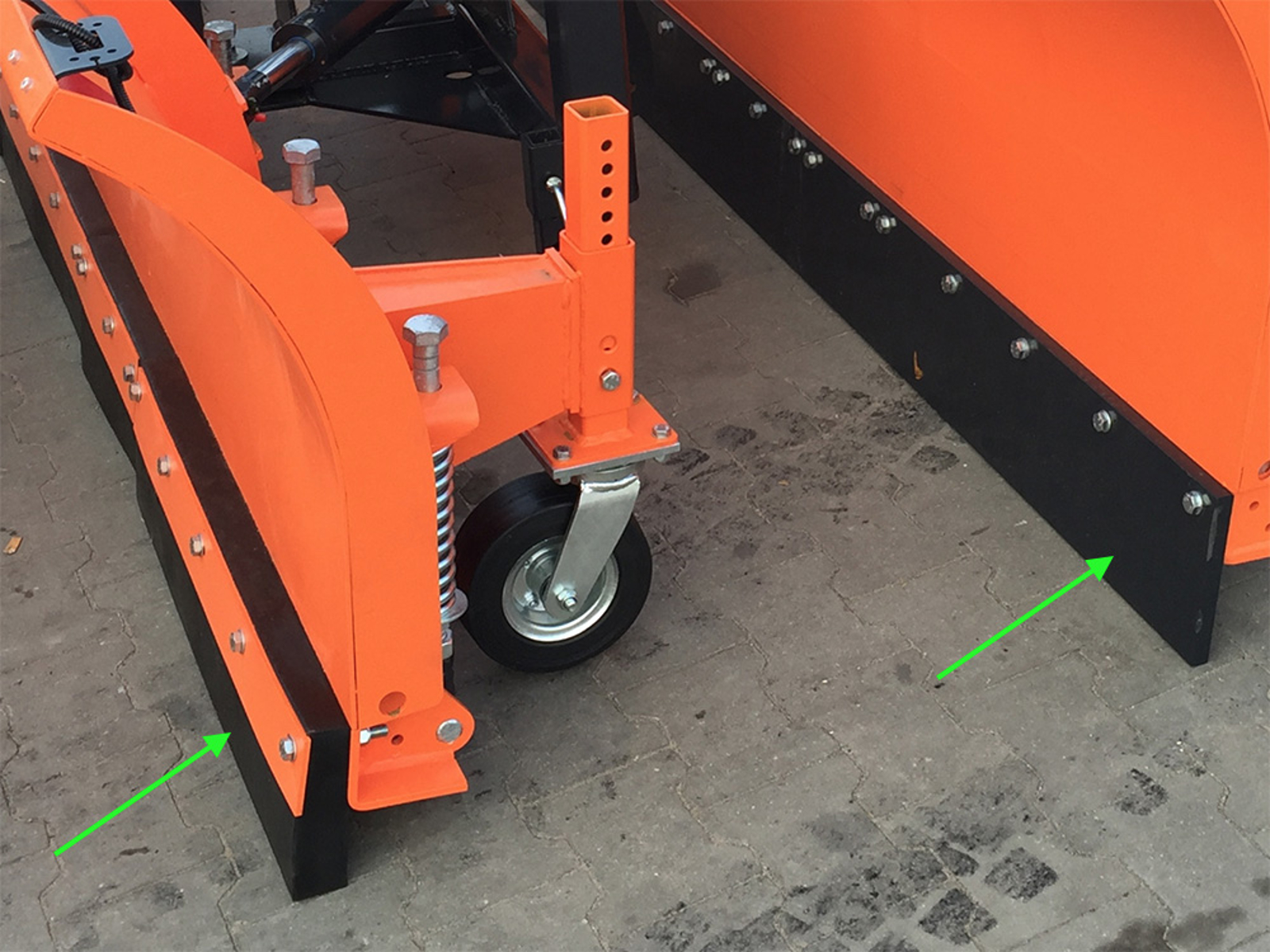

Side wheels allow the blade height to be adjusted to maintain a constant plowing depth.

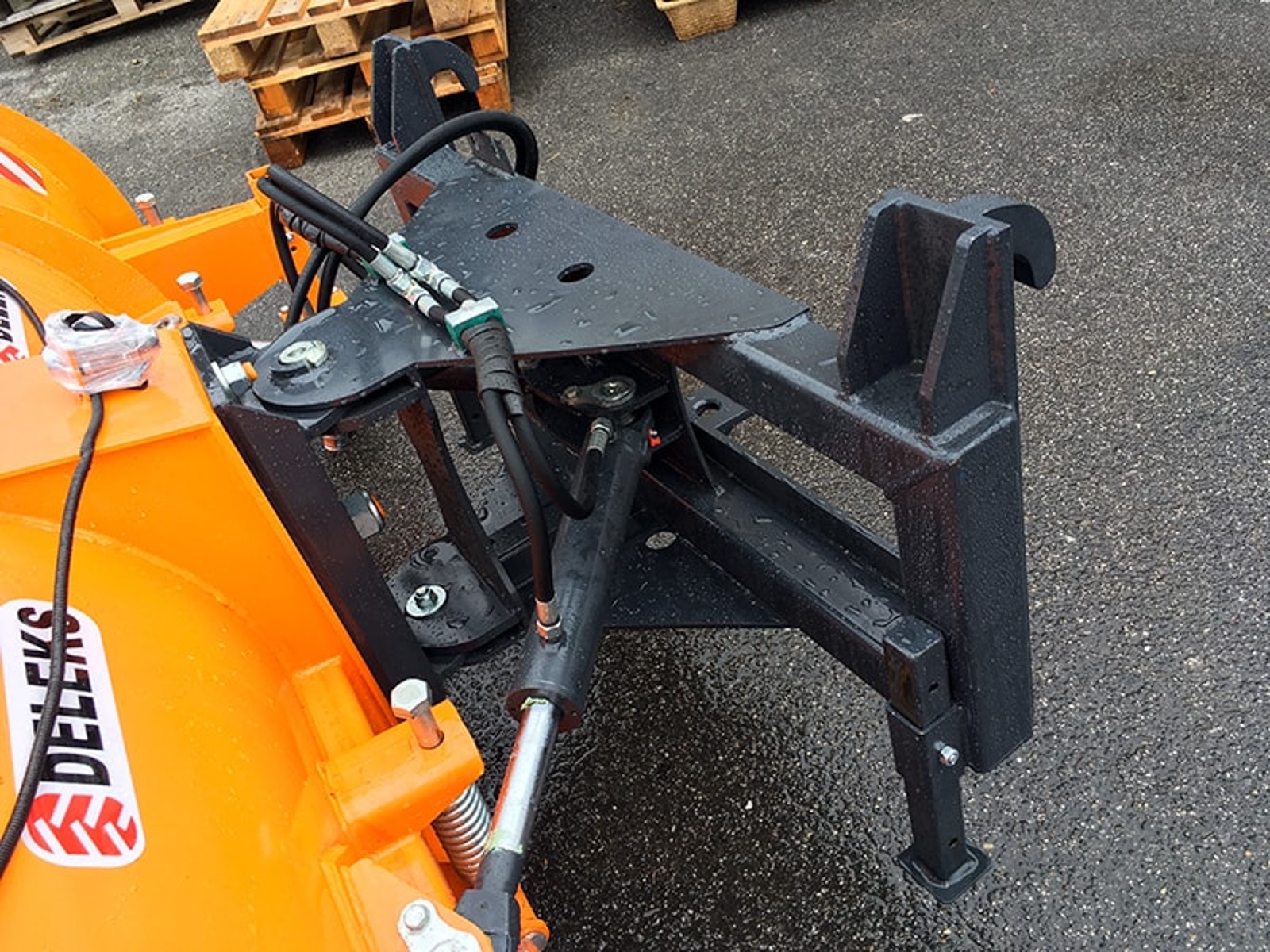

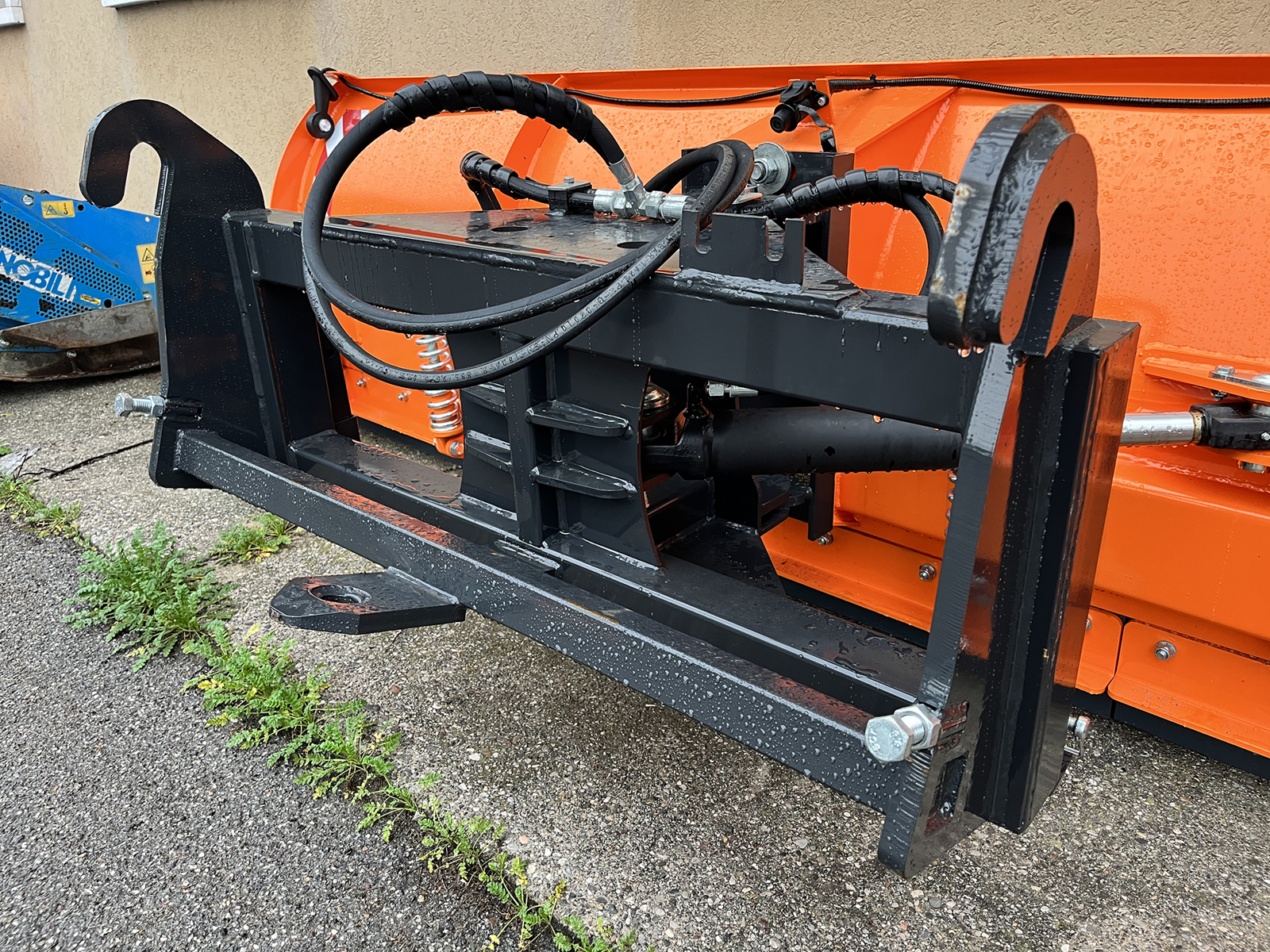

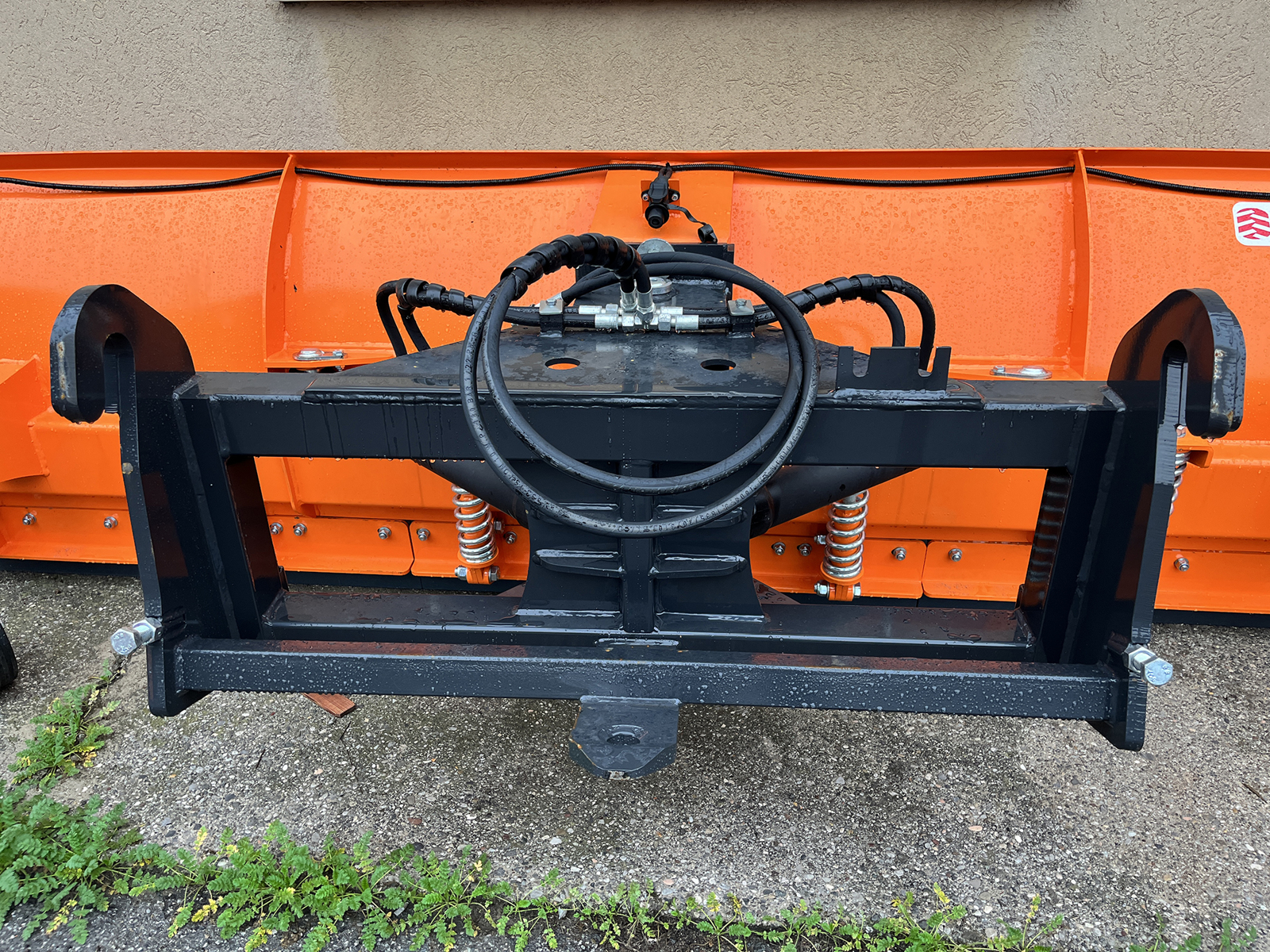

The MERLO linkage is removable and replaceable with 3-point hitch, or other Telescopic loaders linkage e.g. MANITOU, JCB, or Flat plate for after-sale customization.
Perfect adherence to the road surface and homologated for road use.
CHARACTERISTICS
Characteristic | Units metric | Units US |
---|---|---|
Weight | 500.0 kg | 1125.0 lb |
Overall height | 880.0 mm | 2.90 ft |
Overall Length | 900.0 mm | 2.95 ft |

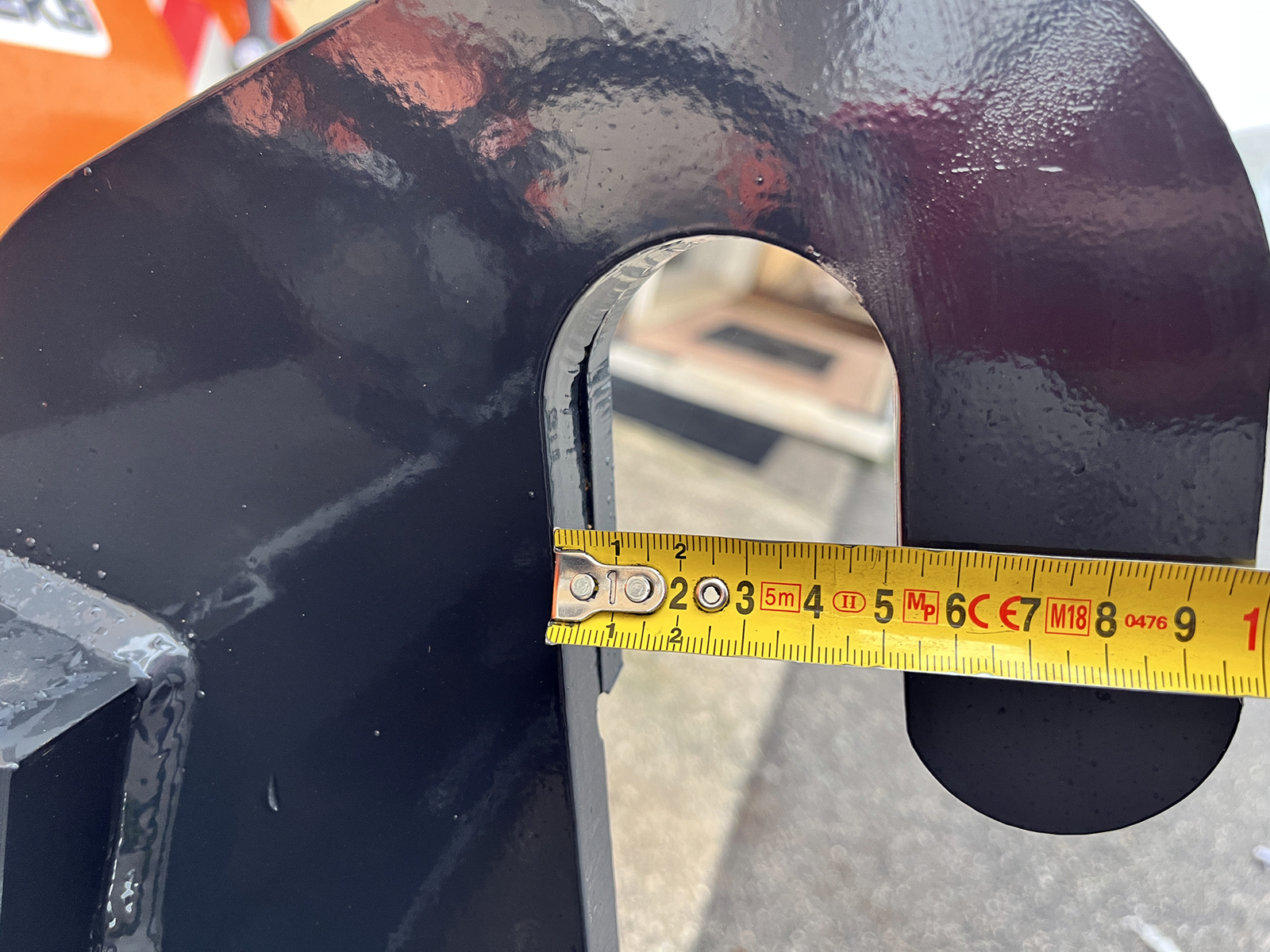

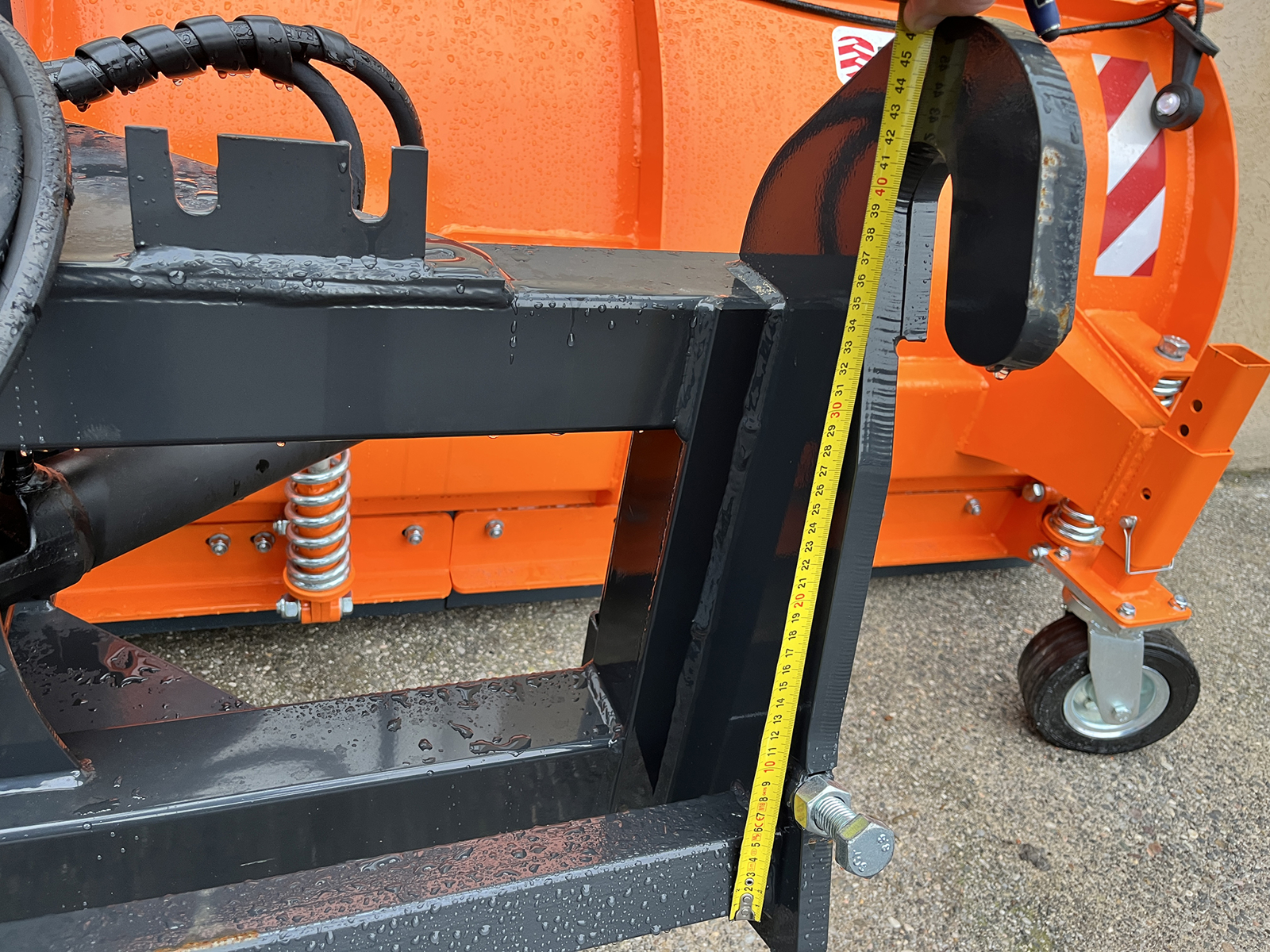

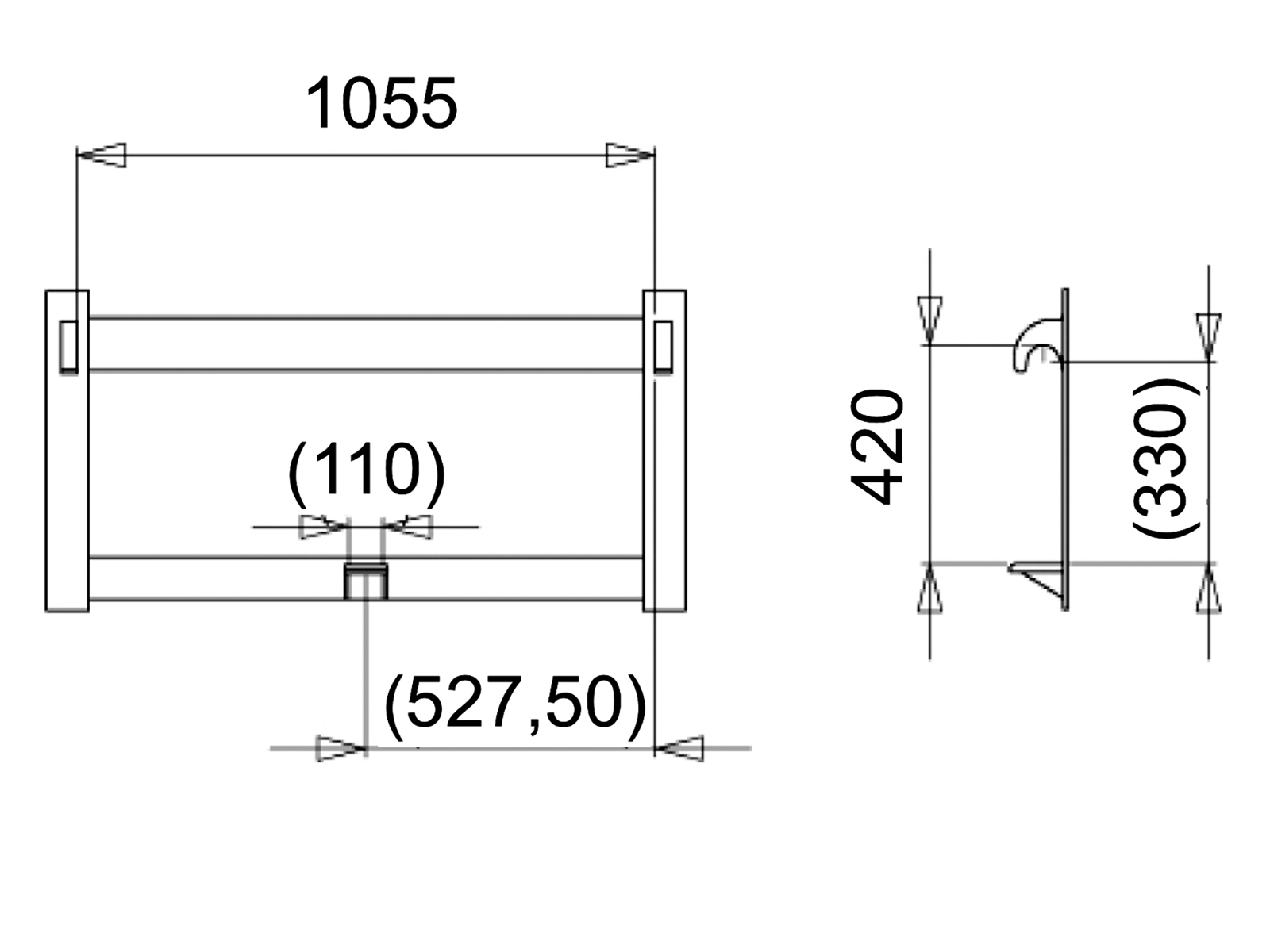

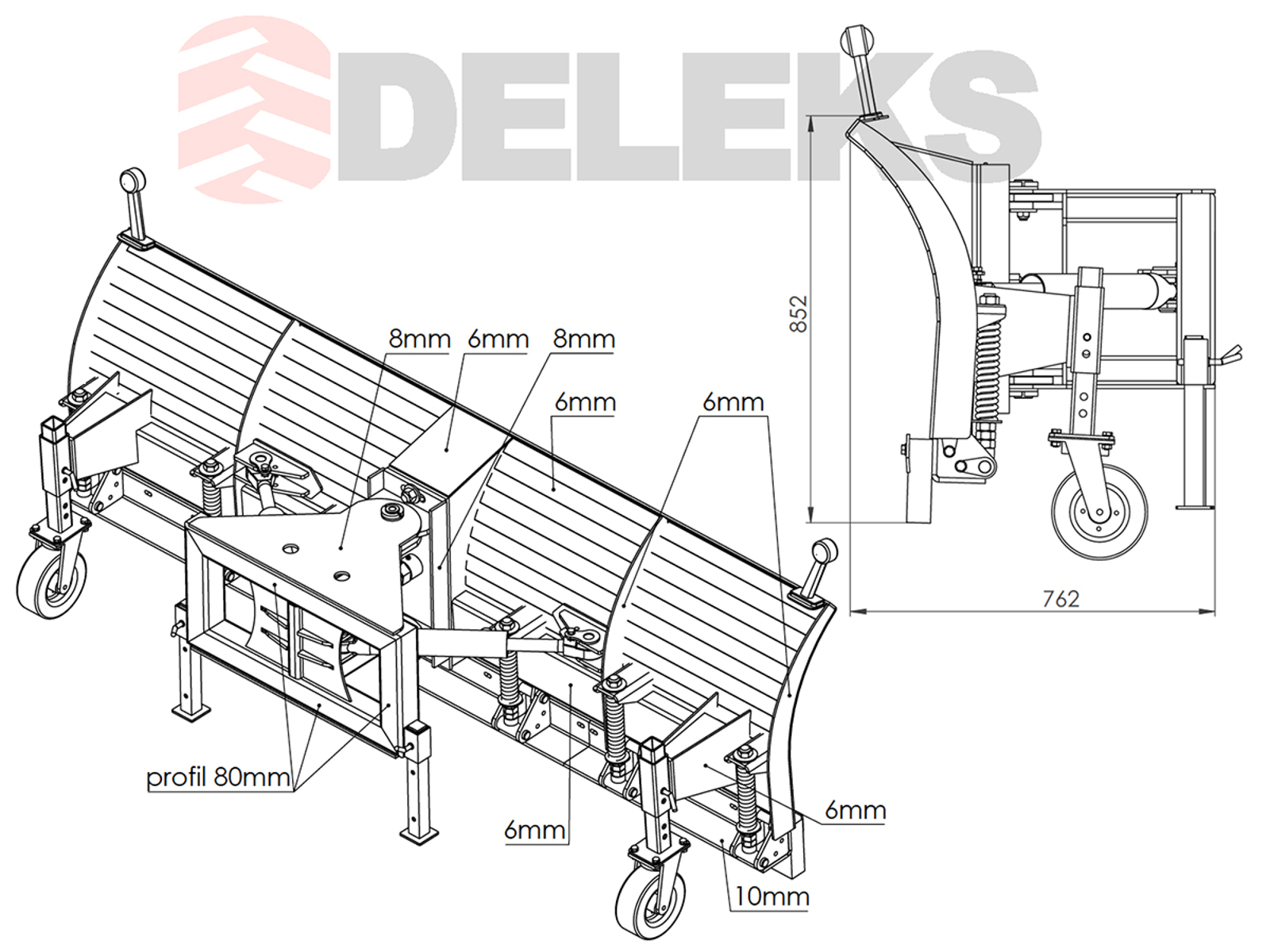

Attachment sizes | See pictures | See pictures |
Min./Max. Relief Pressure | 110 - 150 bar | 110 - 150 bar |
Min./Max. Flow | 18 - 22 l/min | 18 - 22 l/min |
Interface | MERLO | MERLO |
Angling (left/right) | 25° | 25° |
Float | */- 4° | */- 4° |
Blade Height | 880.0 mm | 2.90 ft |
Side edge thickness | 7.0 mm | 0.28 in |
Shock absorbers | 6 | 6 |
Cutting Edge | Steel or Rubber | Steel or Rubber |
Cutting Edge Height | 200.0mm / 180.0mm | 7.87 in / 7.08 in |
Cutting Edge Thickness | 20.0mm / 55.0mm | 0.79 in / 2.16 in |
Trip Edge Quantity | 3 | 3 |
Distance betweens the bolts of the Trip Edge | 175.0 mm | 6.90 in |

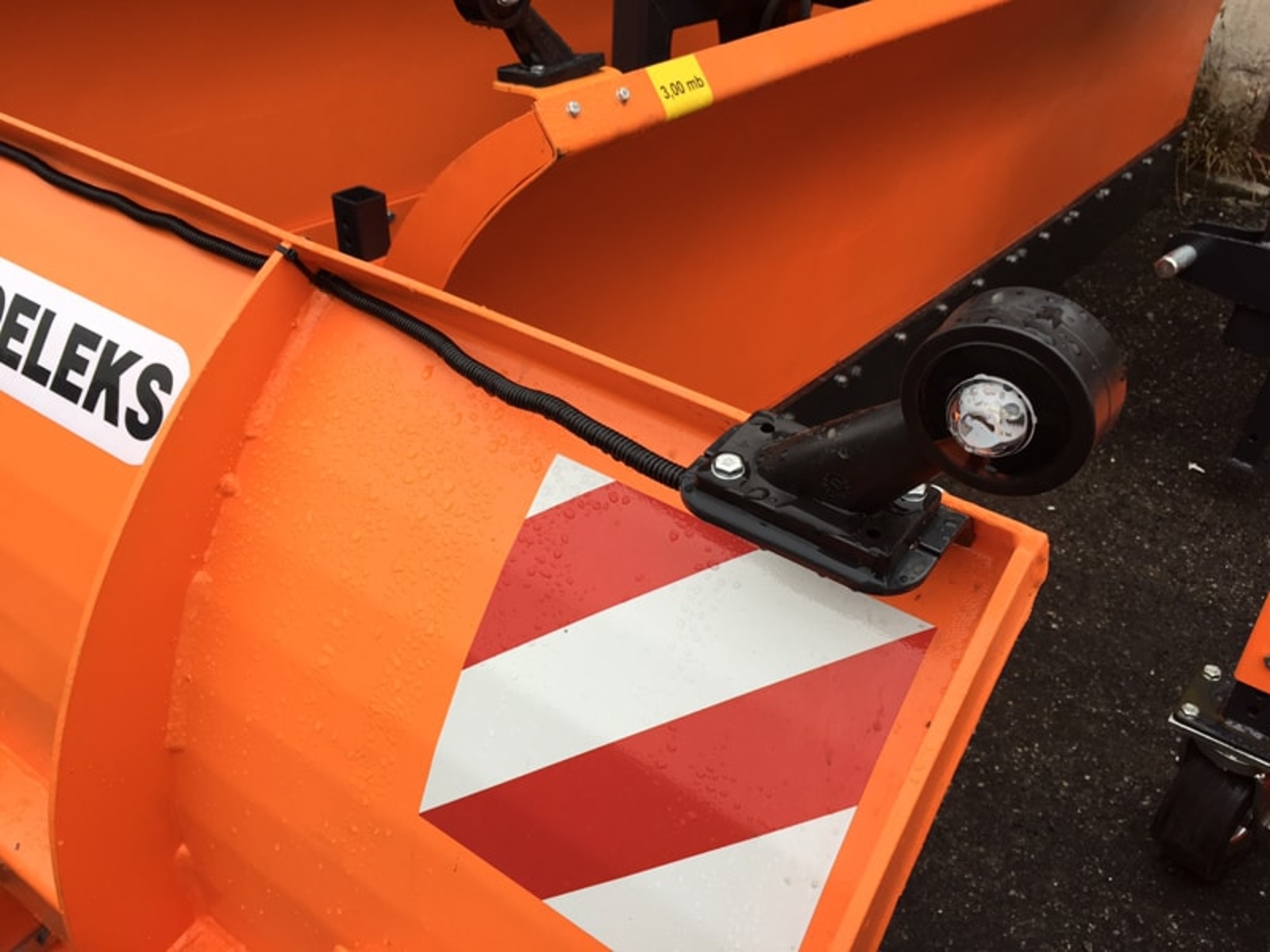

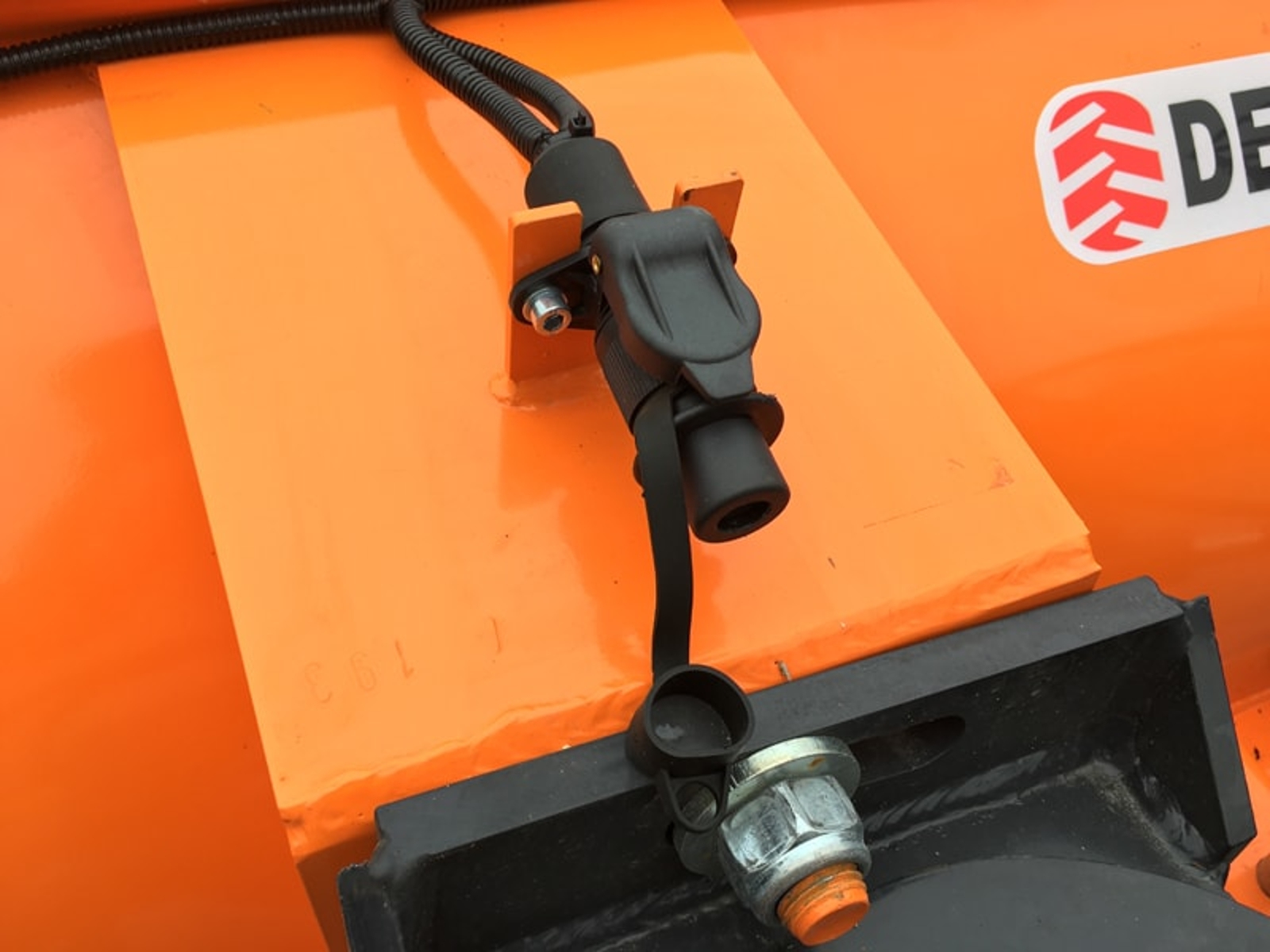

Lights | √ | √ |
Removable Skid Shoes | Wheels | Wheels |
Working width (angled) | 2600.0 mm | 8.53 ft |
Suitable on | MERLO | MERLO |
Hydraulic Hoses | 2 x 1600.0 mm / connections 1.2" AGRI, WP 400 bar | 2 x 5.25 ft / connections 1.2" AGRI, WP 400 bar |
Overall width | 3000.0 mm | 9.84 ft |
Main frame thickness | 4.0 mm | 0.15 in |
Hydraulic cylinder/s ø | 73.0/36.0 mm | 2.87/1.41 in |
Packing sizes | 3000*1000*1000 mm | 9.84*3.28*3.28 ft |
