Double Plough for tractors like Carraro DDP-30

4.5

192 reviews

Not available Notify me
Code DDP30
EAN 8053470230066
View all details.
TOTAL
743,00VAT incl.
Free shipping

VIDEO
DELEKS® DDP-30: Unpacking by Alberto
DELEKS® DDP-30: Unpacking by Alberto

DETAILS

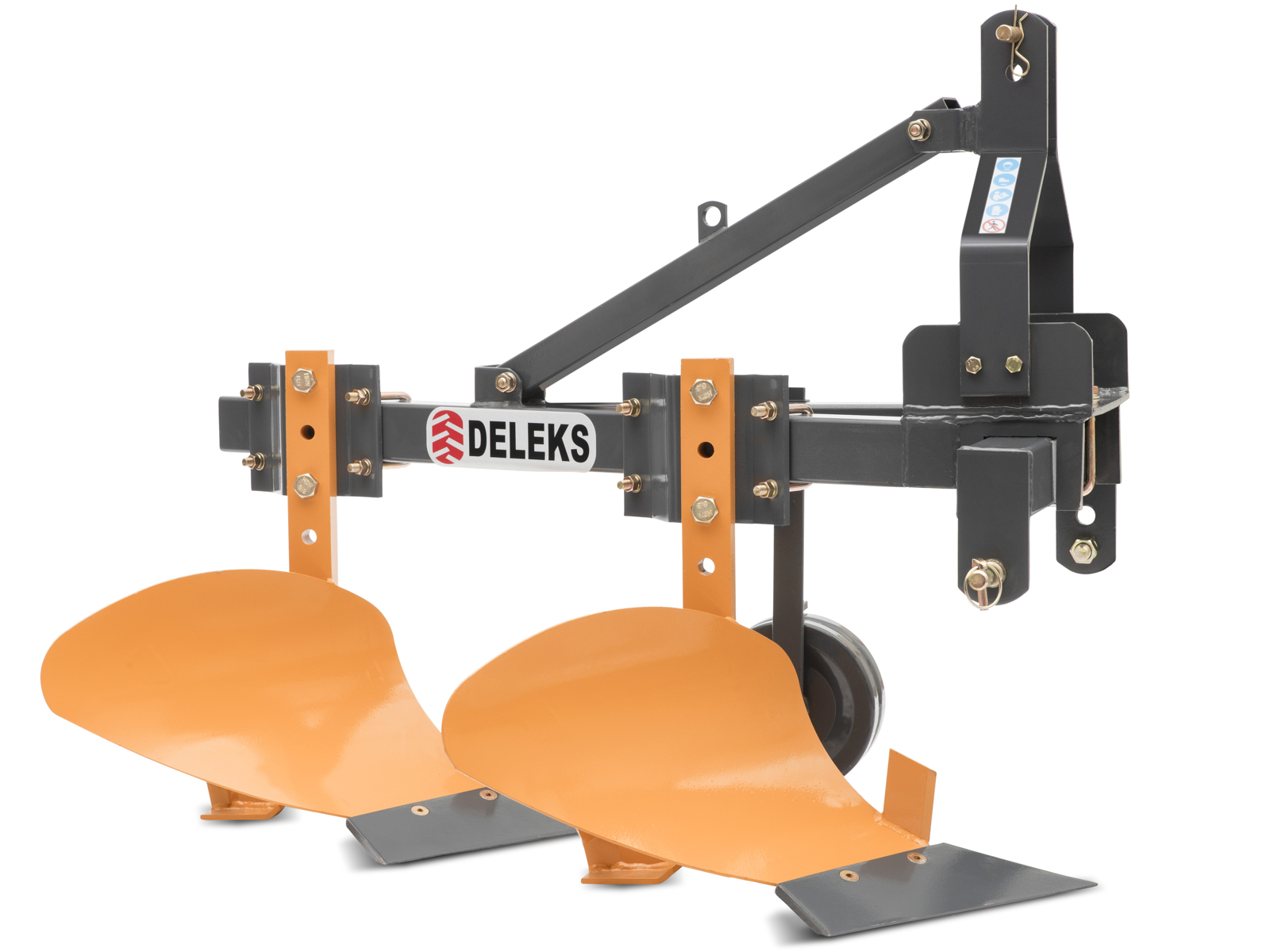

Double Plough For 25-40HP compact Tractors John Deere, and Japanese tractors | DELEKS® DDP-30


APPLICATION

DELEKS® double plough is designed to save you time and fuel due to it's two treated steel blades. Ideal for 25-40HP Japanese tractors Kubota, Kioti, Iseki, and compact tractors John Deere and New Holland. Universal 3 point linkage Cat. 1. EC Declaration of Conformity.



BENEFITS & FEATURES

Doubles the ploughing capacity to save time and fuel.

Additional welded frame strengthening parts on the arm to reinforce stress points.

The plough's tilt and depth can be adjusted easily.

Detachable and replaceable blades.

Gauge wheel that allows you to adjust depth and maximize usage.


CHARACTERISTICS

Characteristic Units metric Units US
Overall width 850.0 mm 2.79 ft
Weight 116.0 kg 256.0 lb
Overall height 1030.0 mm 3.38 ft
Tractor Power Range 25 - 40 Hp 25 - 40 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Spacing between the 2 lower points 590.0 - 850.0 mm 23.23 - 33.47 in
Overall length 1290.0 mm 4.23 ft
Number of Furrow 2 2
Furrow diagonal 850.0 mm 2.78 ft
Width of cut 310.0 mm 12.20 in
Other sizes See pictures See pictures
Effective Displacement 340.0 mm 13.39 in
Thickness of the arm 60.0*80.0 mm 2.36*3.15 in
Cutting Edge Lenght 400.0 mm 15.75 in
Cutting Edge Thickness 12.0 mm 0.47 in
3 point Linkage tube sizes 80.0*80.0 mm 3.15*3.15 in
Depth adjustment Wheel sizes ø 25.0 * 10.0 mm ø 1.0 * 0.40 in
Working Depth Range 160.0 - 250.0 mm 6.30 - 8.66 in
Packing sizes 1200.0*800.0*500.0 mm 3.93*2.62*1.64 ft

Optional

2 spare blades ddp 30
2 Spare blades DDP-30
120,00VAT incl.
Available

DDP-30

spare pins cat 1 b
Spare pins cat. 1-B
53,00VAT incl.
Available

ø 19.0/22.0 mm
