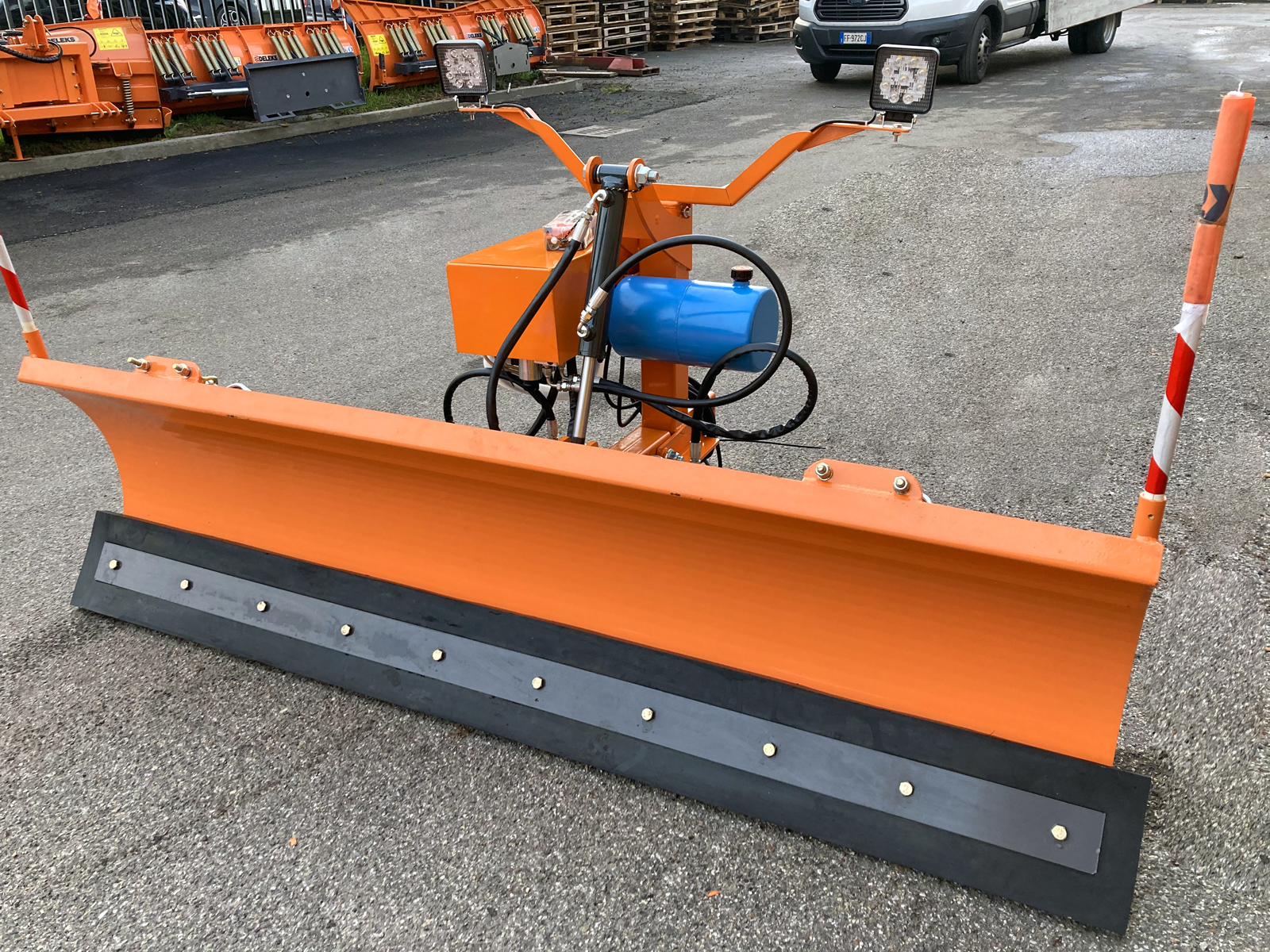

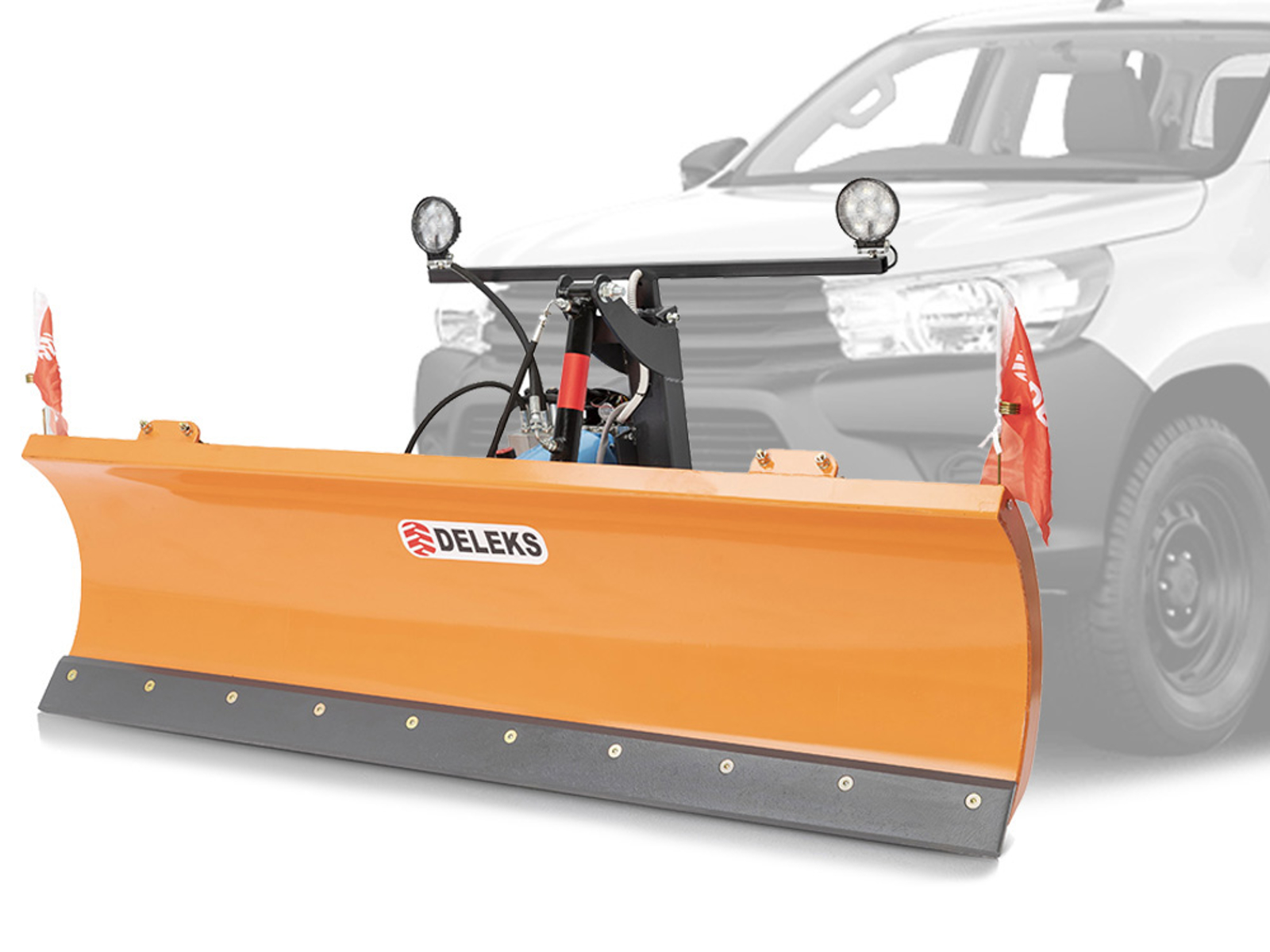

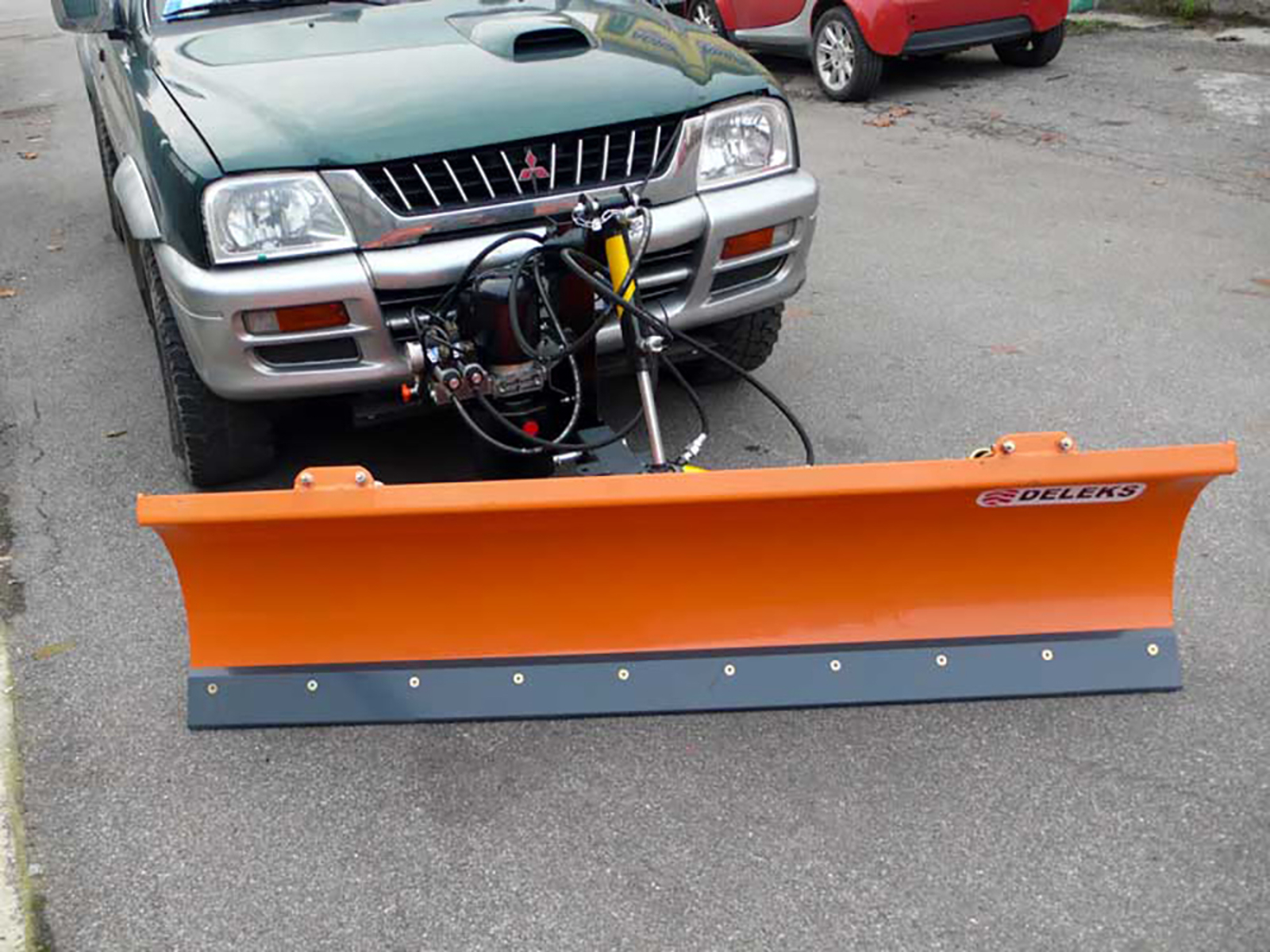

Snowblade for off-road vehicles, LNS-170-J

Available
Code LNS170J
EAN 8053470231841
View all details.
TOTAL
2.326,00VAT incl.
Free shipping

VIDEO

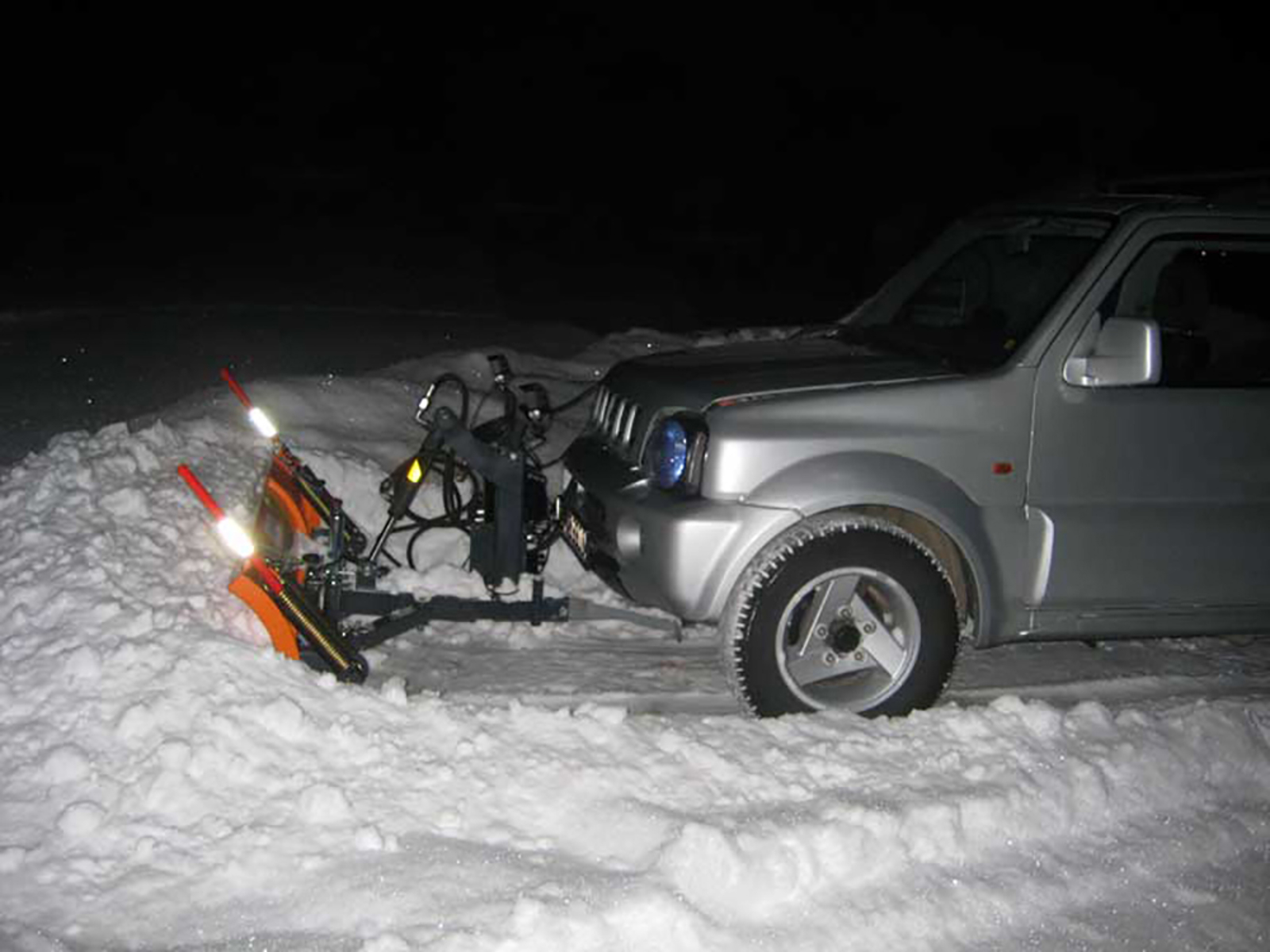

Field test
Field test

DETAILS

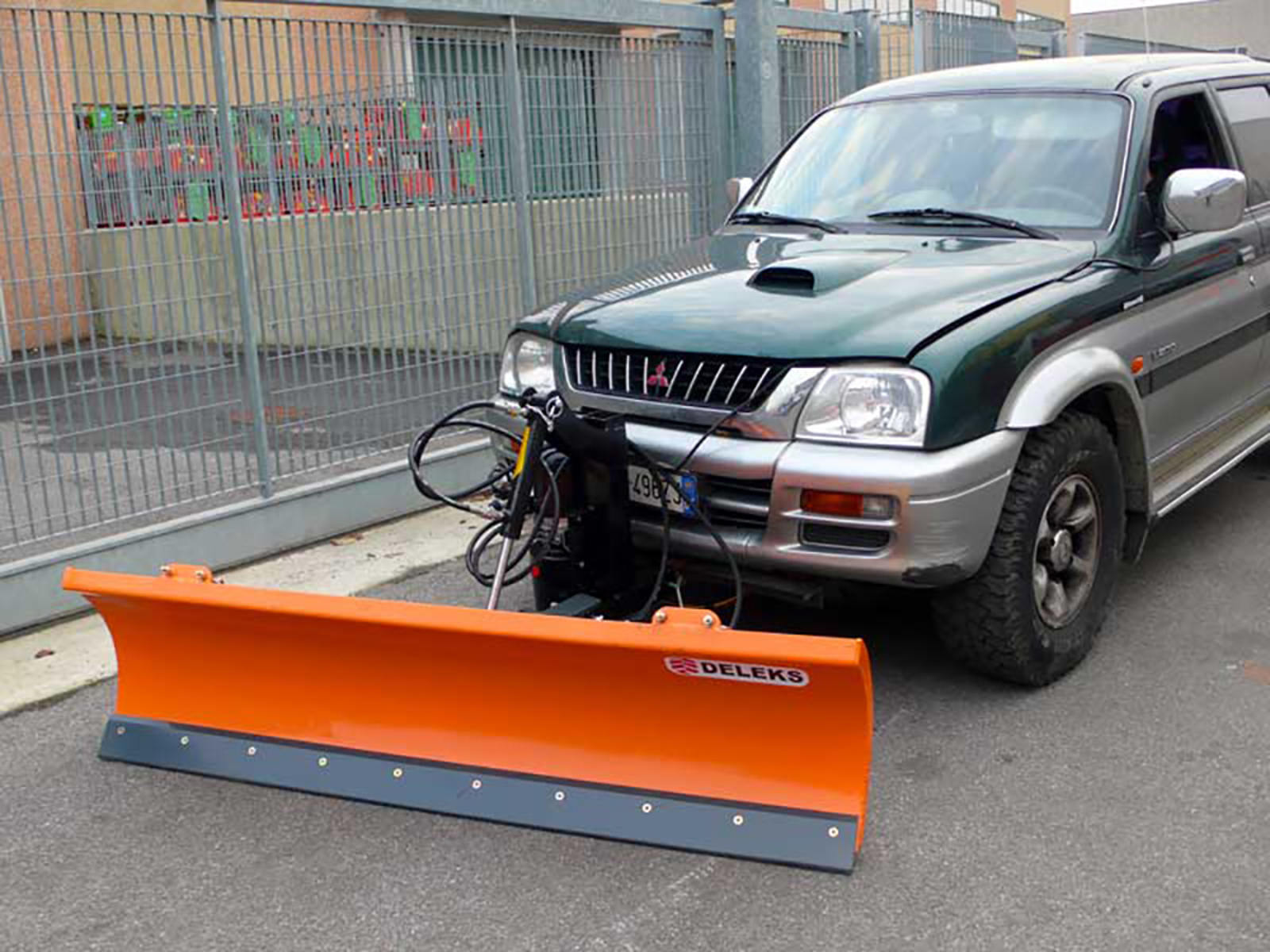

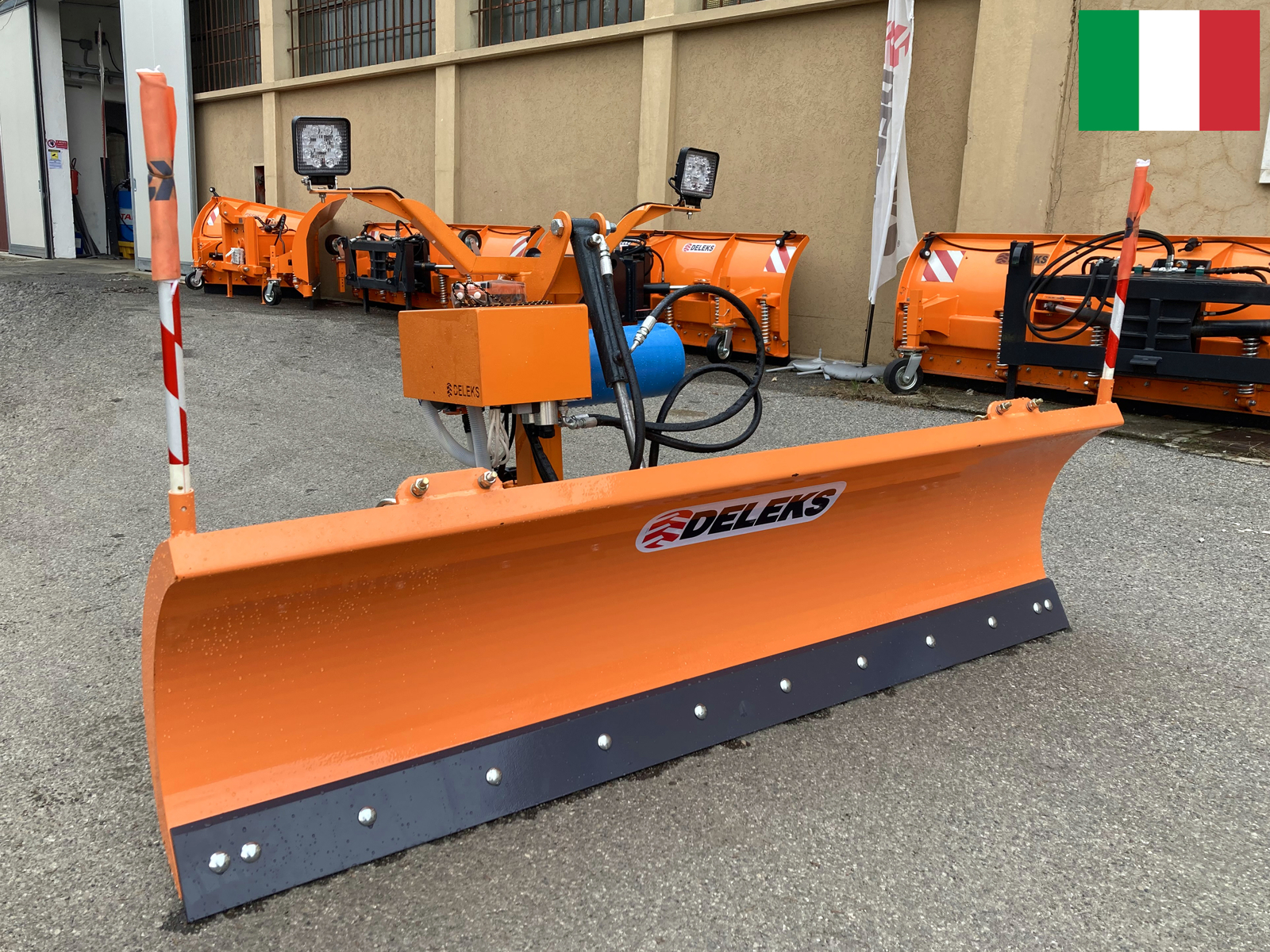

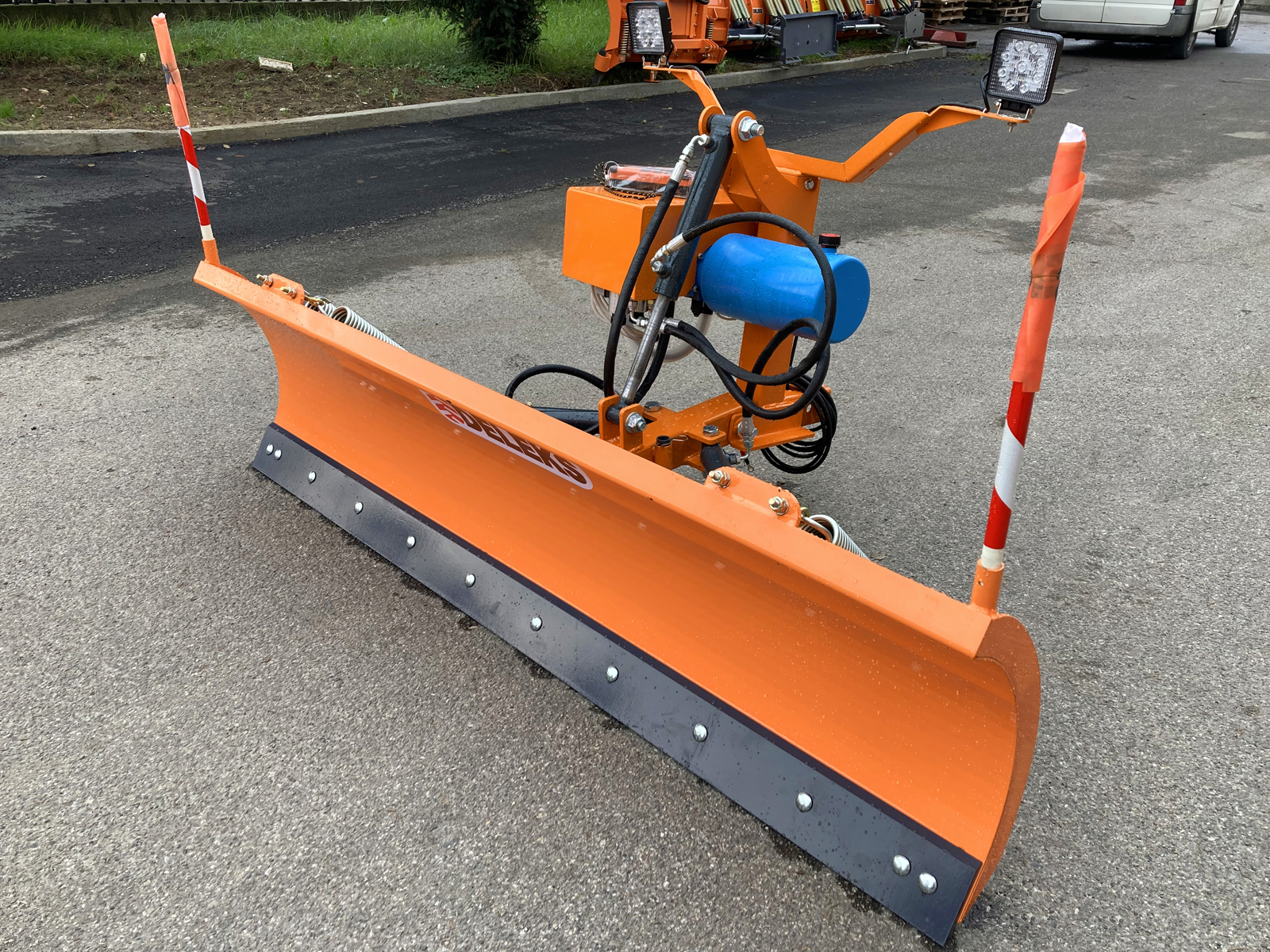

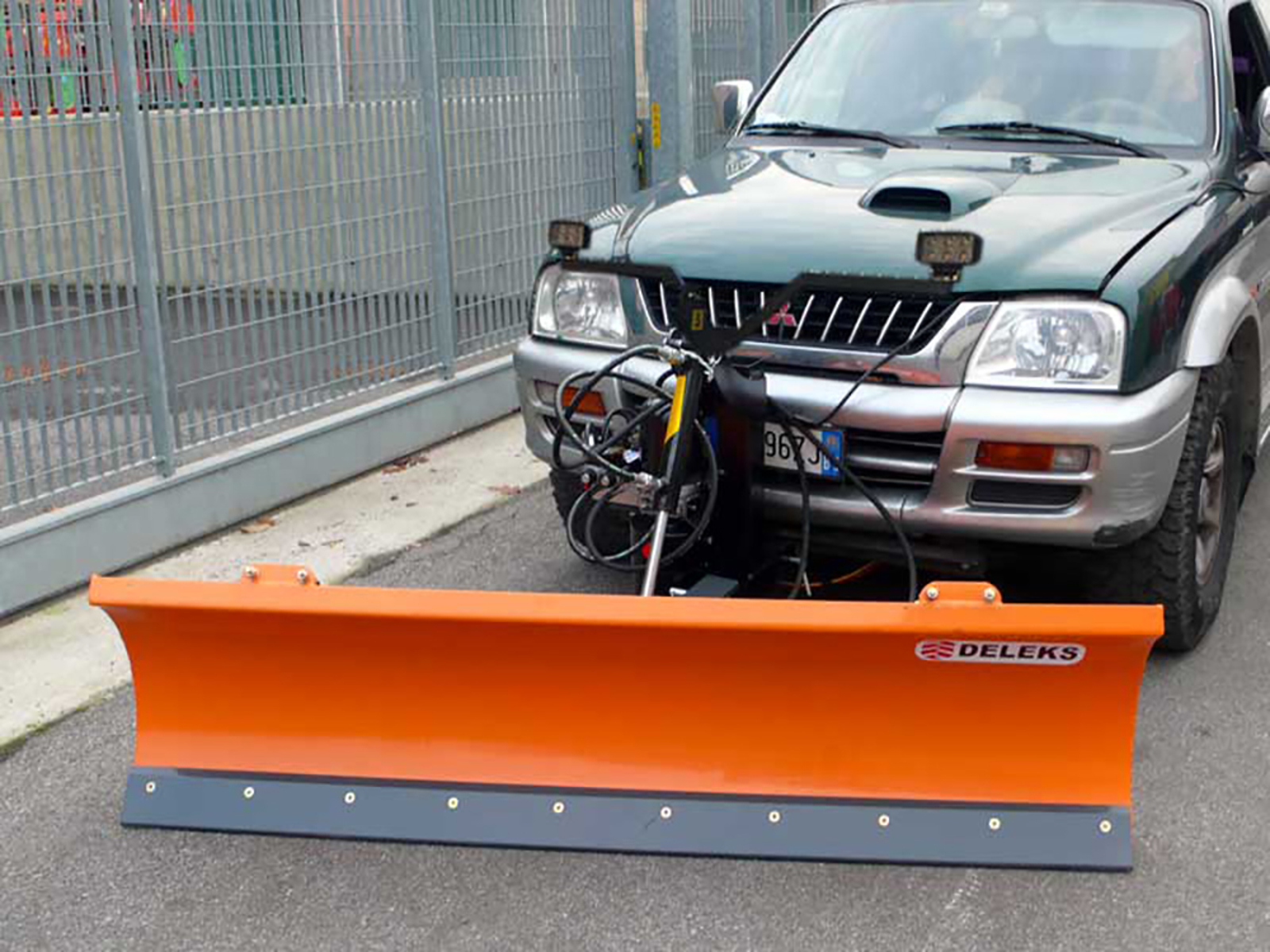

Snowplow 170cm for Jeeps, Pick-ups, off-road vehicle, snowplough - DELEKS® - Homologated for road use.


OVERVIEW

LNS 170-J snowplows are purpose-built and homologated for road use. Compatible with all 4x4 car brands such as Mitsubishi, Land Rover, Toyota, Fiat, Nissan, Ford, Isuzu, etc.

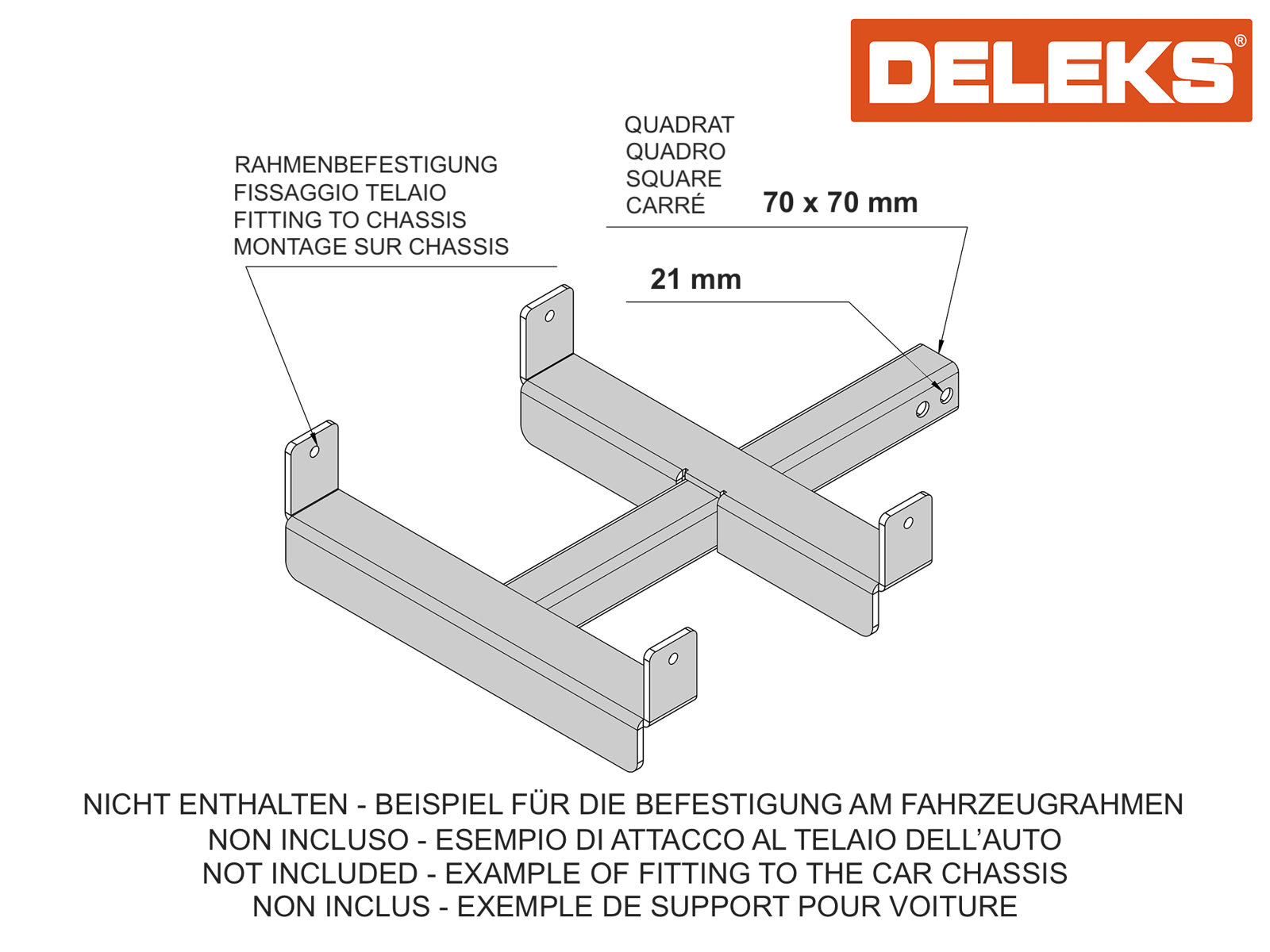

Before the assembly it is necessary to install a counter-frame under the engine of the vehicle (not supplied with Plow). Supplied with a replaceable steel blade. On request we can supply it with a much softer rubber blade.

Vehicle Requirements: 4WD, minimum 60 Amp Alternator, minimum 70 Amp battery, winter tires, power steering. Conforms to the EC Machinery Directive. 2 years guarantee.


BENEFITS AND FEATURES

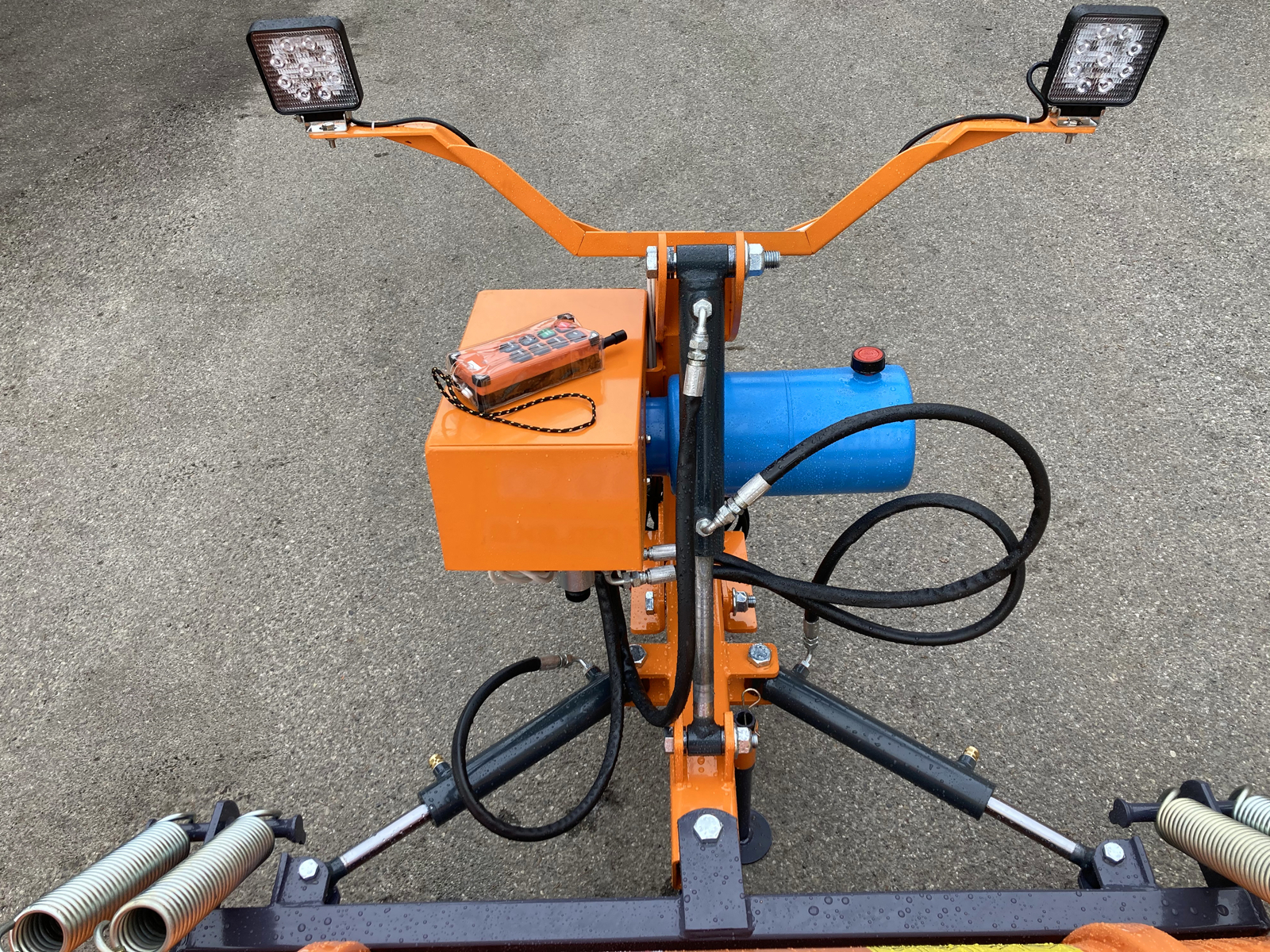

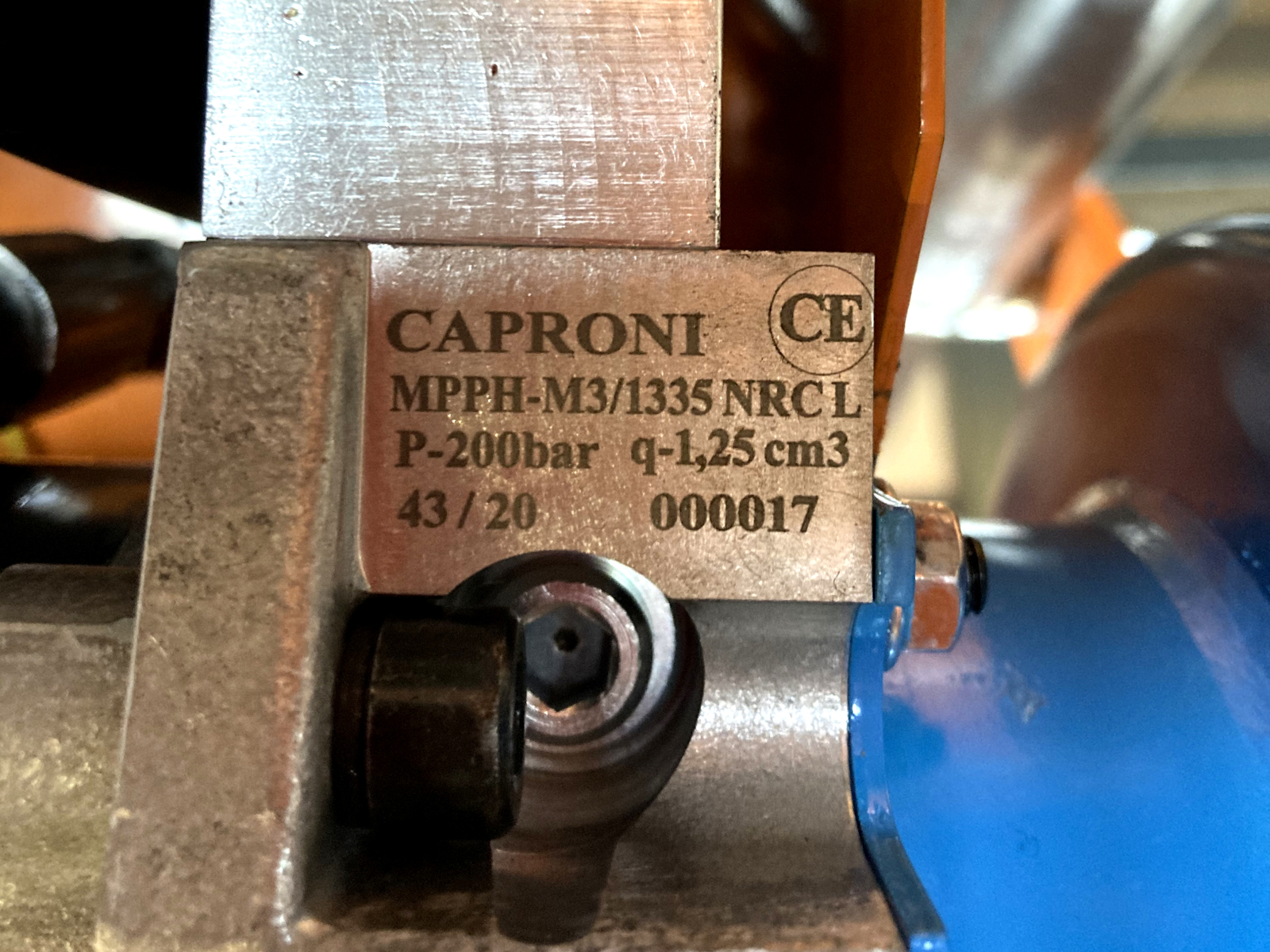

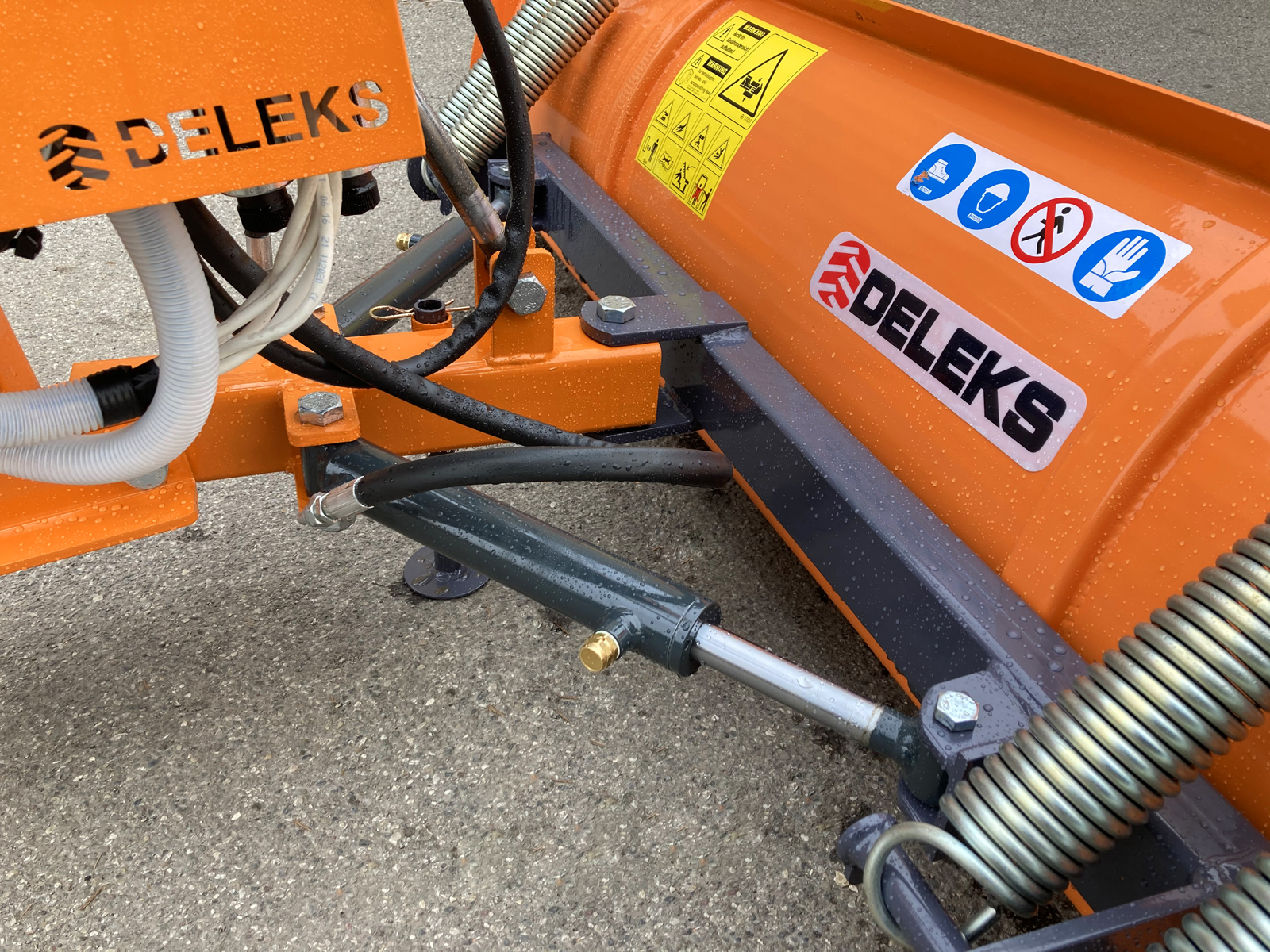

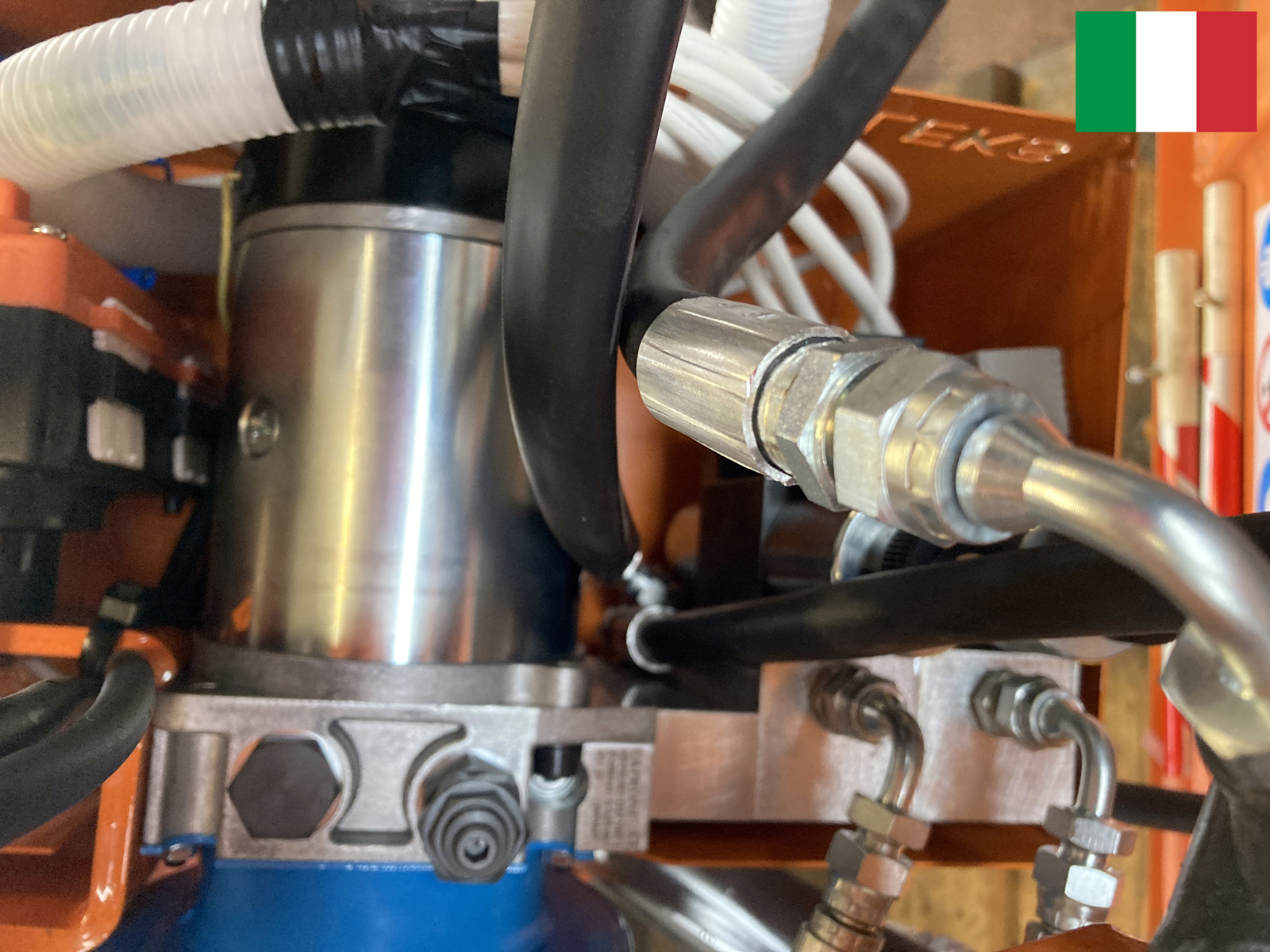

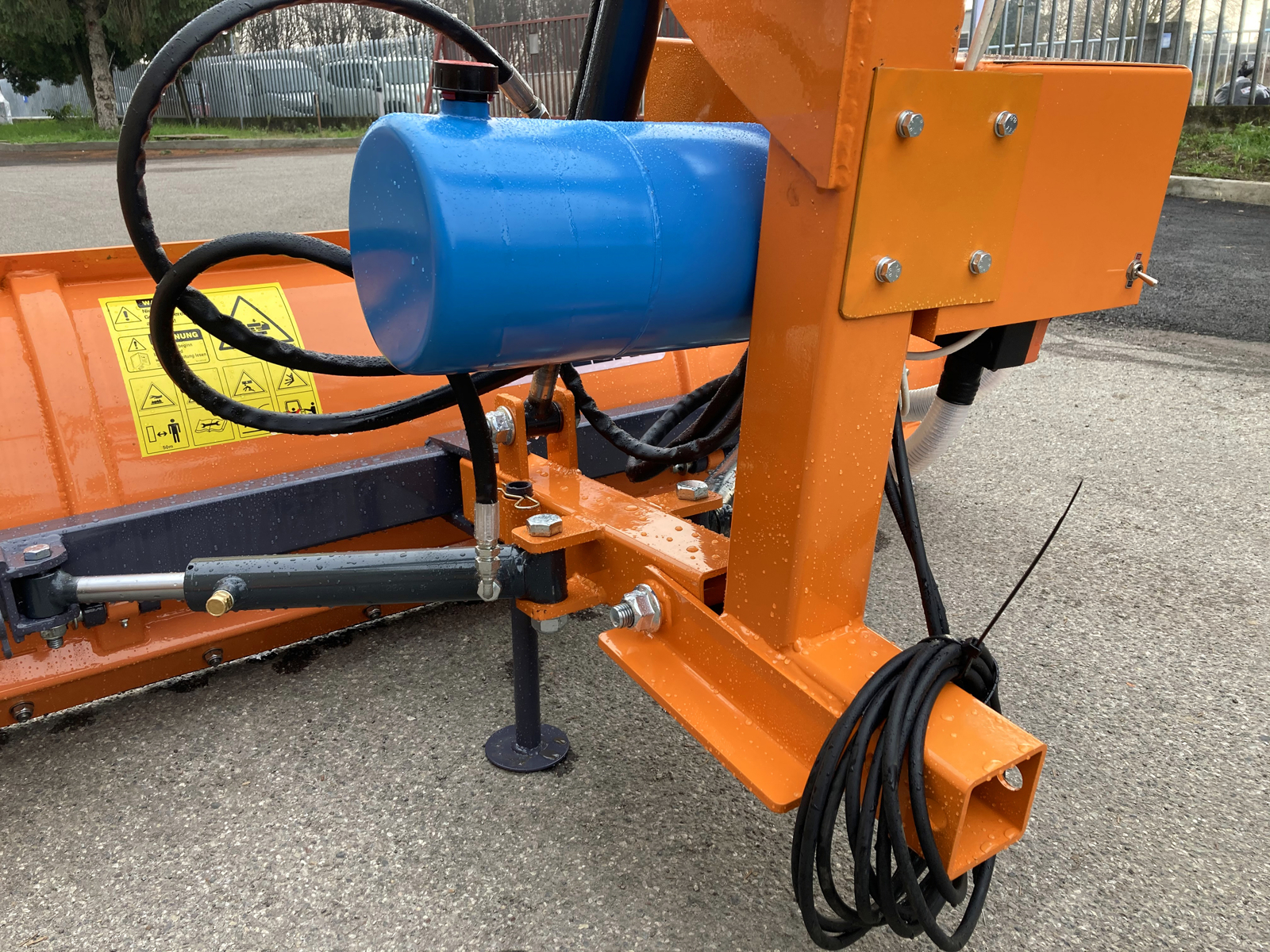

12 volt hydraulic power pack, with oil tank, solenoid valves 2, 2 cylinders for lifting and guidance

Anti-shock system with 4 shock absorbers to operate in maximum safety.

Extremely easy to assemble and use.

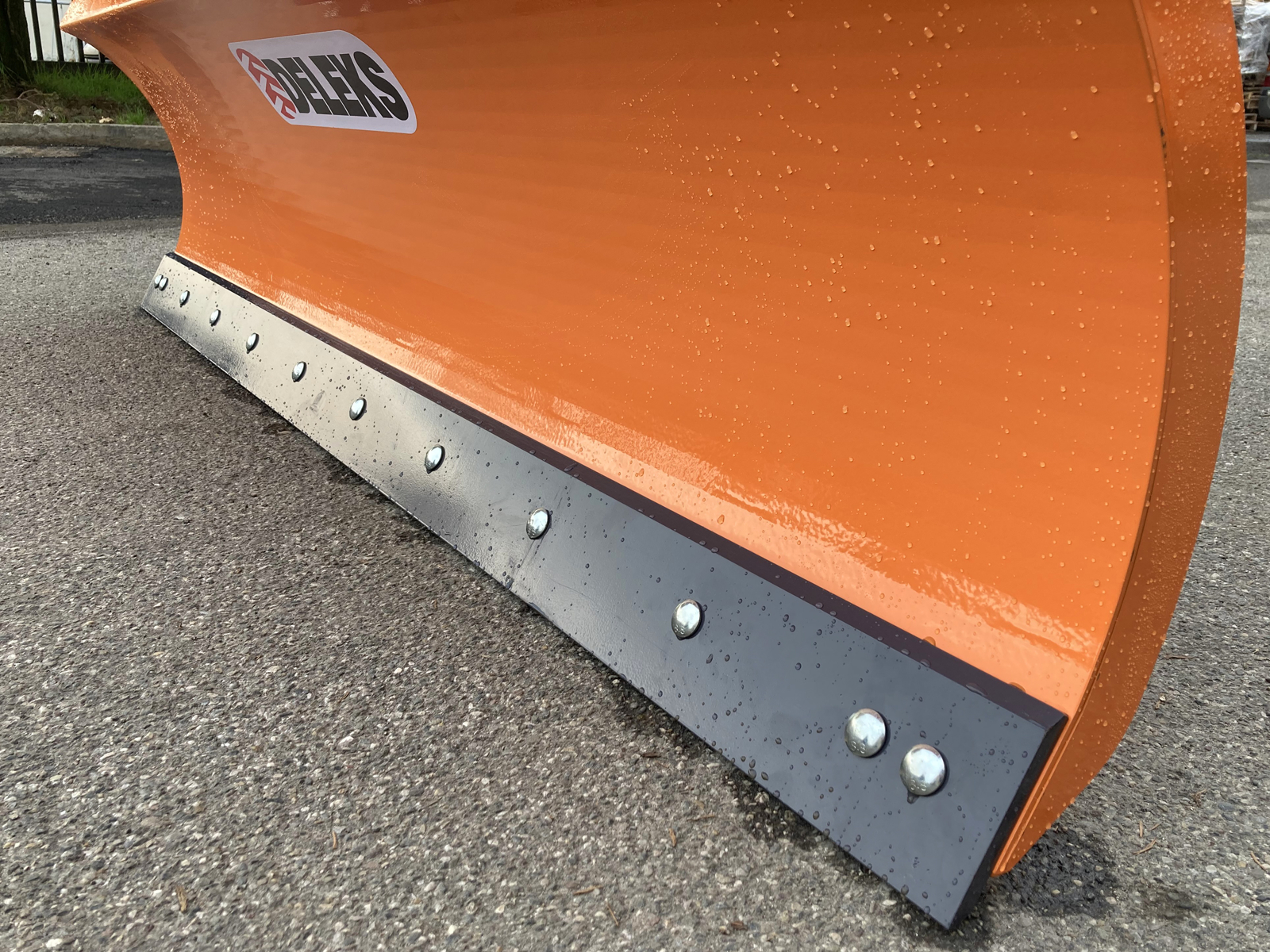

Sharp replaceable steel-blade. On request we can supply it with a softer rubber cutting.

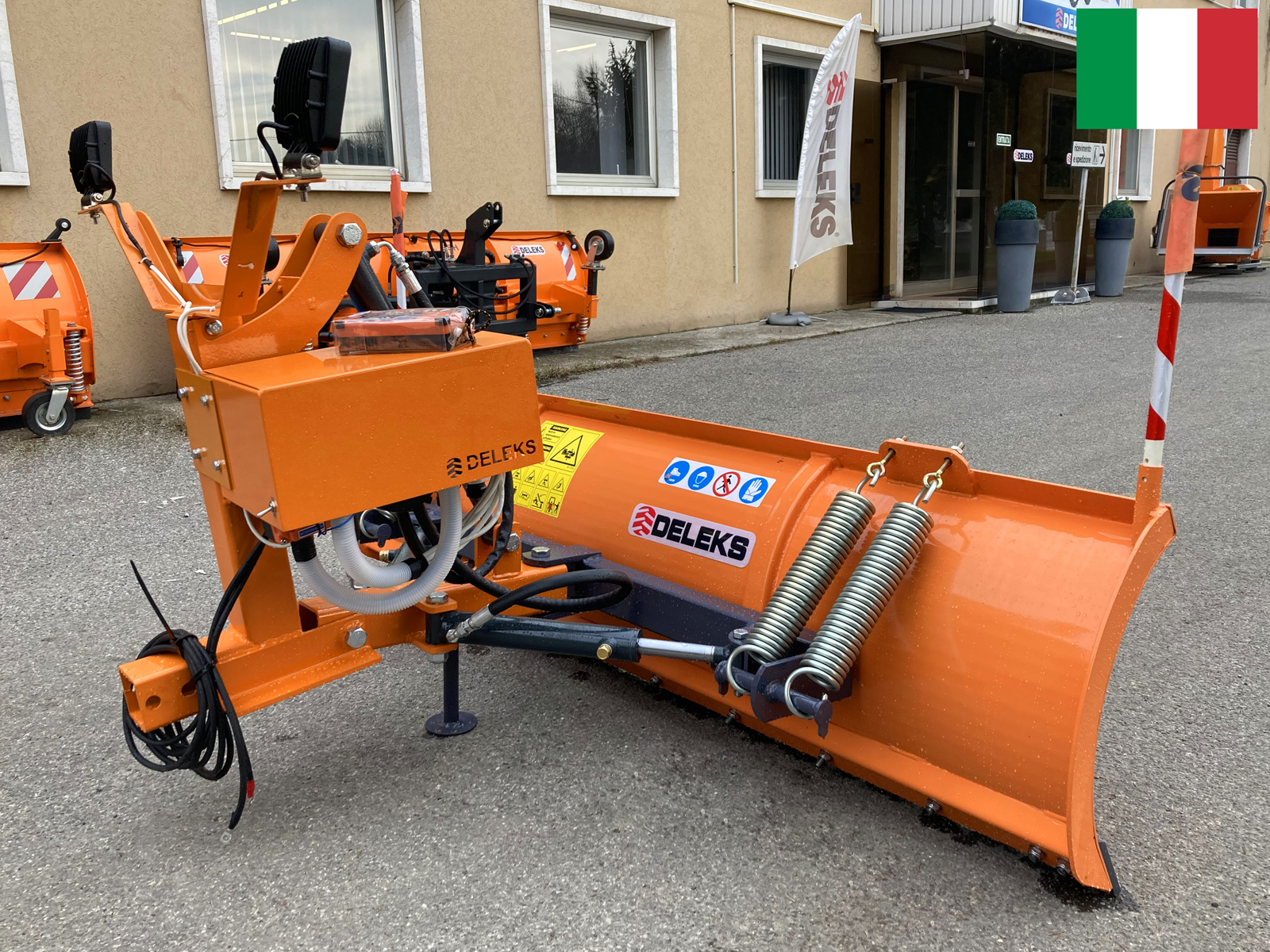

Parking leg.

The attachment plate is removable and replaceable with a 3 point hitch or skid steer linkagae.

Homologated for road use.


CHARACTERISTICS

Characteristic Units metric Units US
Weight 146.0 kg 322.0 lb
Overall height 1080.0 mm 3.54 ft
Overall Length 760.0 mm 2.50 ft
Angling (left/right) 28° 28°
Float +/- 2° +/- 2°
Blade Height 525.0 mm 1.72 ft
Side edge thickness 8.0 mm 0.31 in
Shock absorbers 4 4
Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 120.0 mm 4.72 in
Cutting Edge Thickness 14.0 mm 0.55 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights

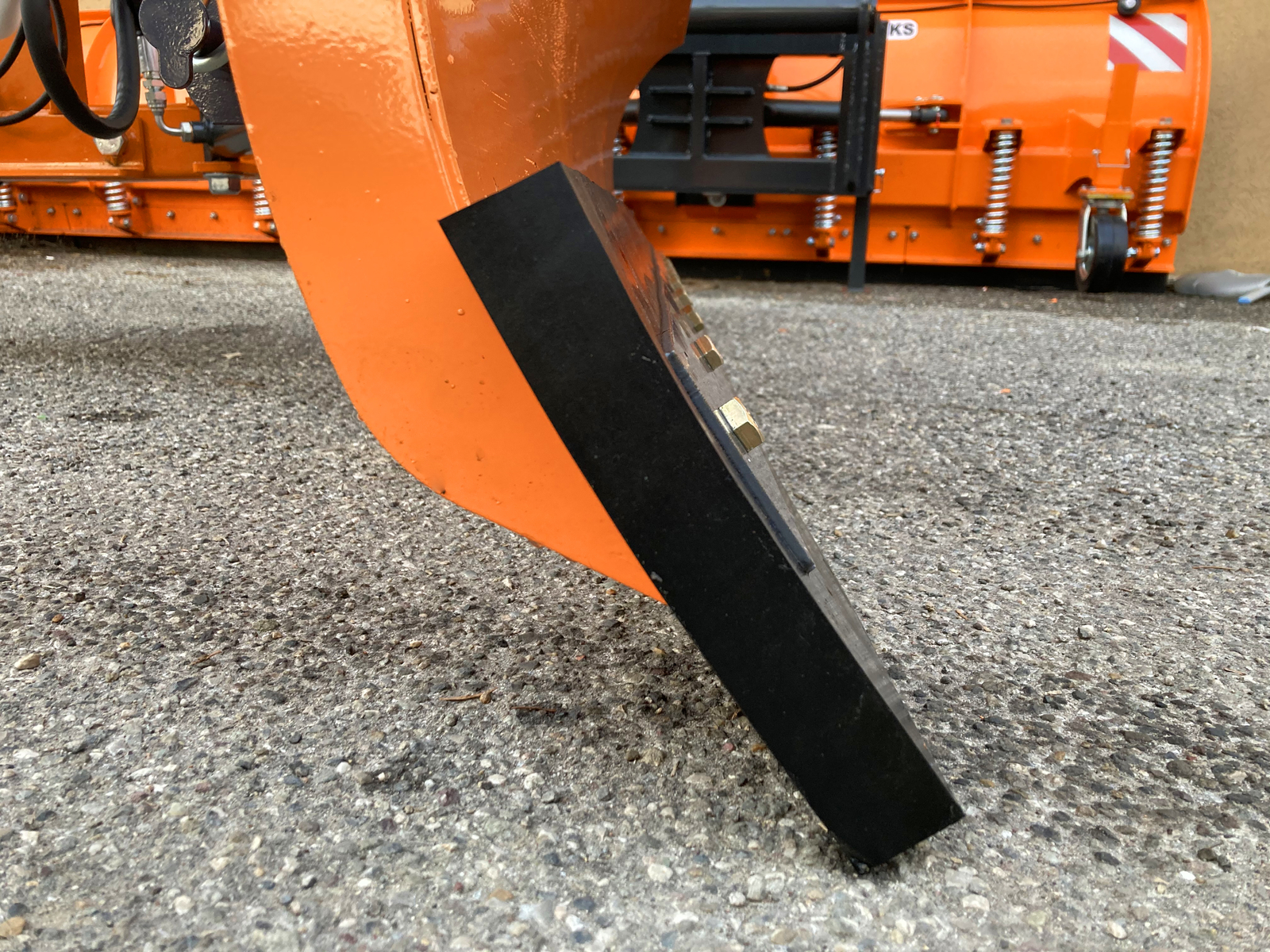

Removable Skid Shoes x x
Universal attachment sizes See pictures See pictures
Working width (angled) 1520.0 mm 5.00 ft
Suitable on JEEP, PICK-UP, VAN, SUV JEEP, PICK-UP, VAN, SUV
Interface Universal Attachment Universal Attachment
Overall width 1716.0 mm 5.63 ft
Main frame thickness 4.0 mm 0.15 in
Hydraulic cylinder/s ø 50.0 / 25.0 mm 1.96 / 1.0 in
Packing sizes 1716.0*800.0*800.0 mm 5.63*2.62*2.62 ft
