Snowblade for off-road vehicles, LNS-190-J
EAN 8053470231858
See more details
2 YEARS WARANTY
30 DAYS FOR RETURN
5-10 DAYS OF SHIPPING
SECURE PAYMENT
DETAILS

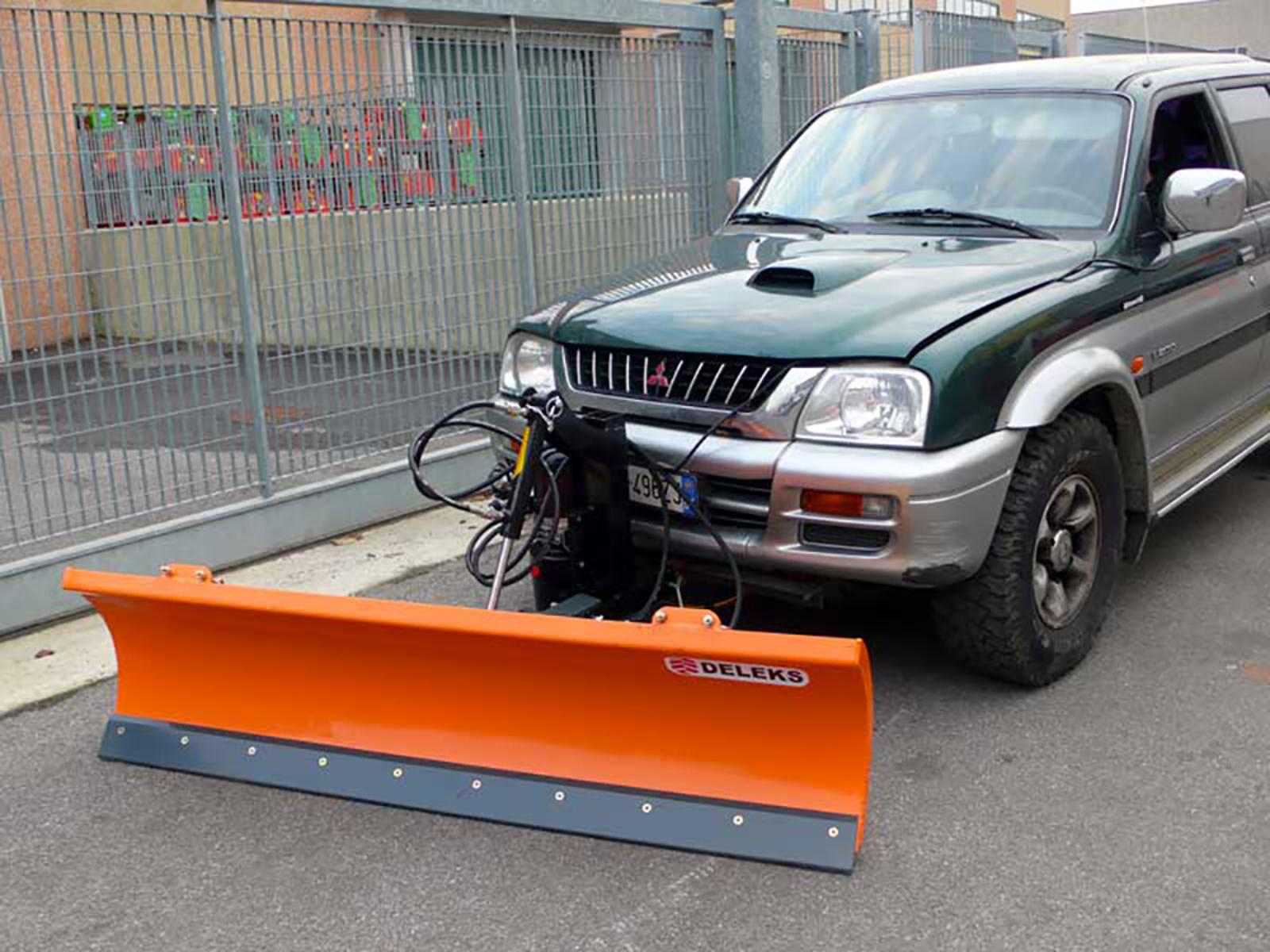

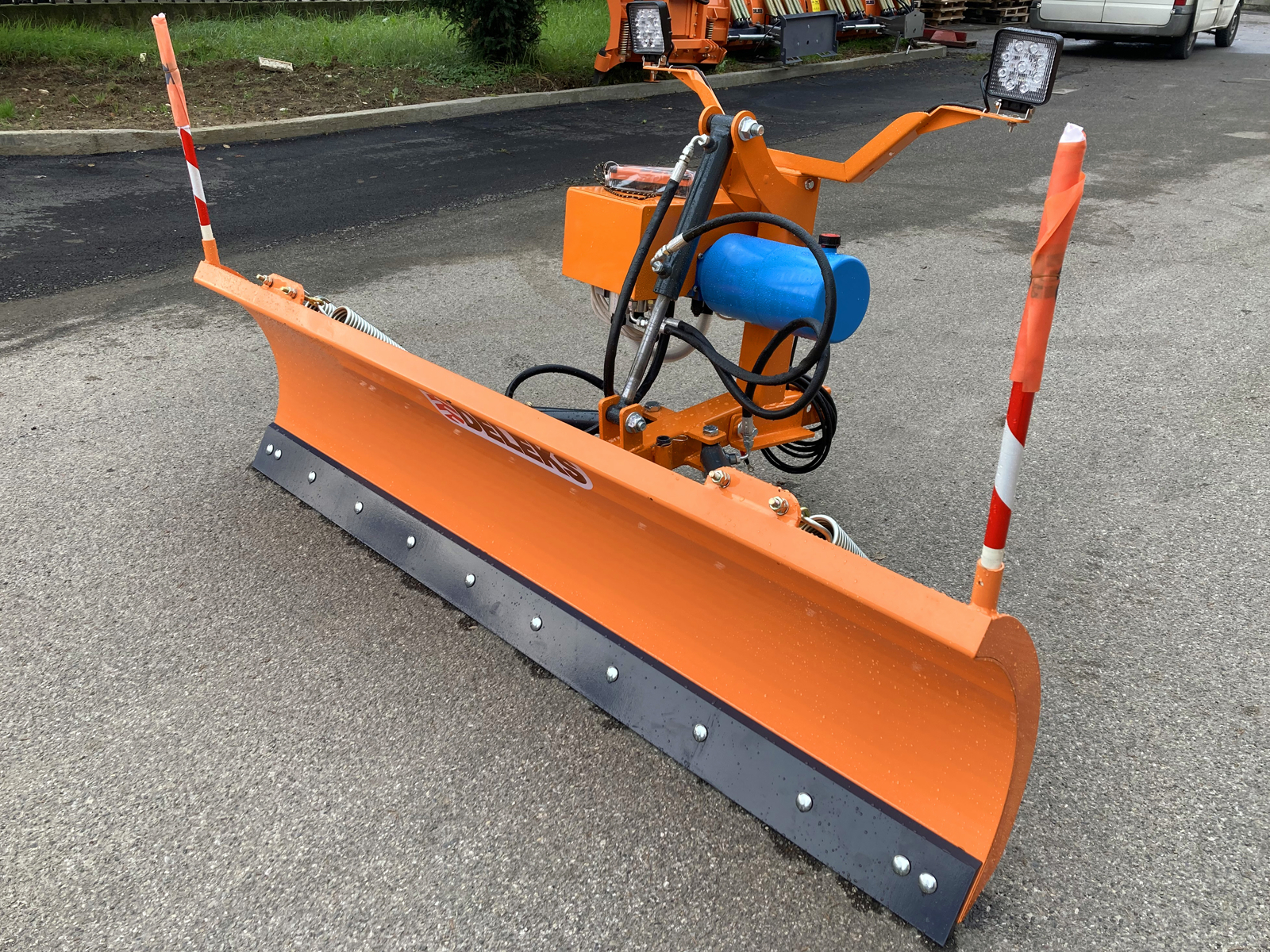

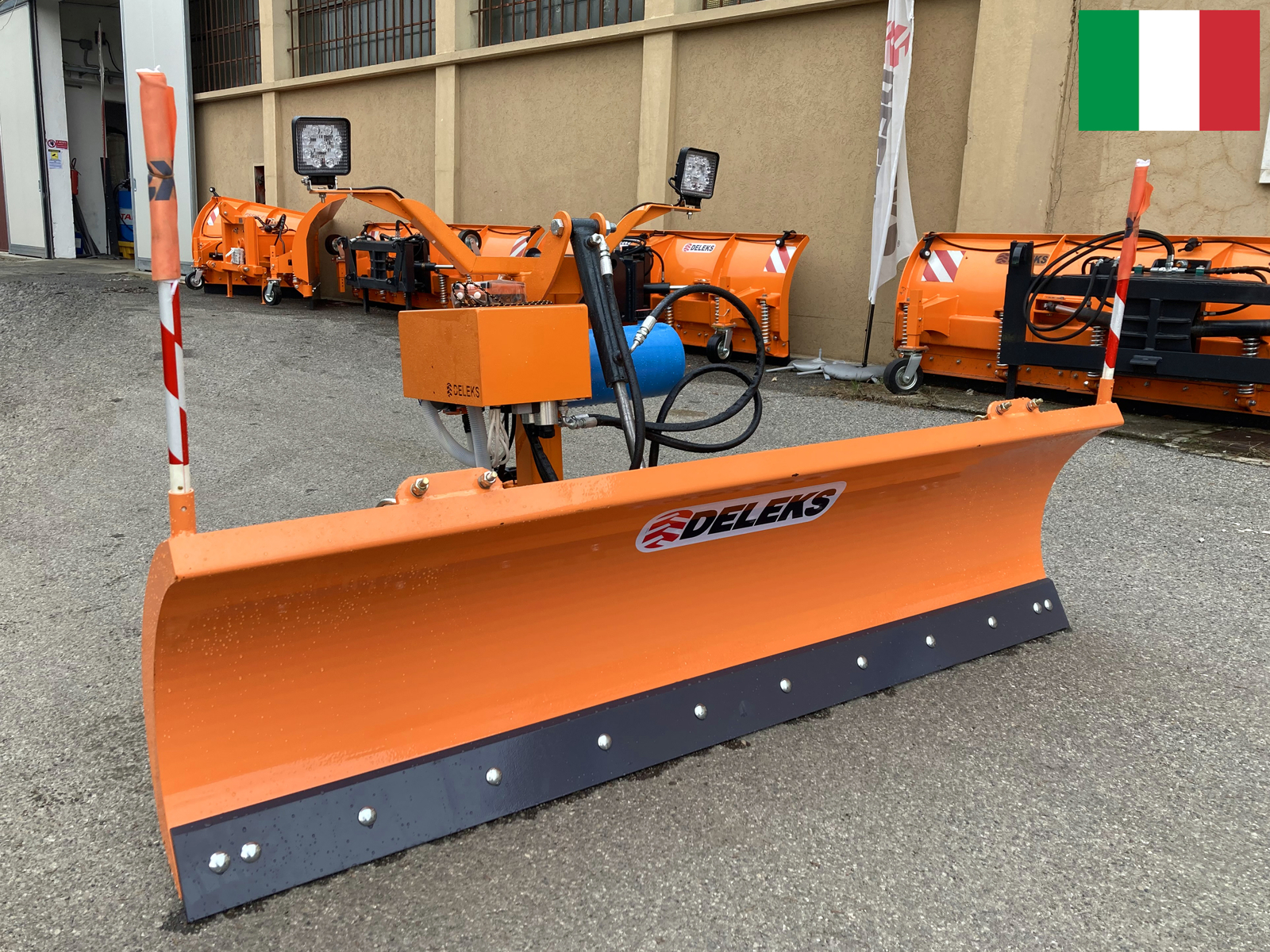

Snowplow 190cm for Jeeps, Pick-ups, off-road vehicle, snowplough - DELEKS® - Homologated for road use.
OVERVIEW

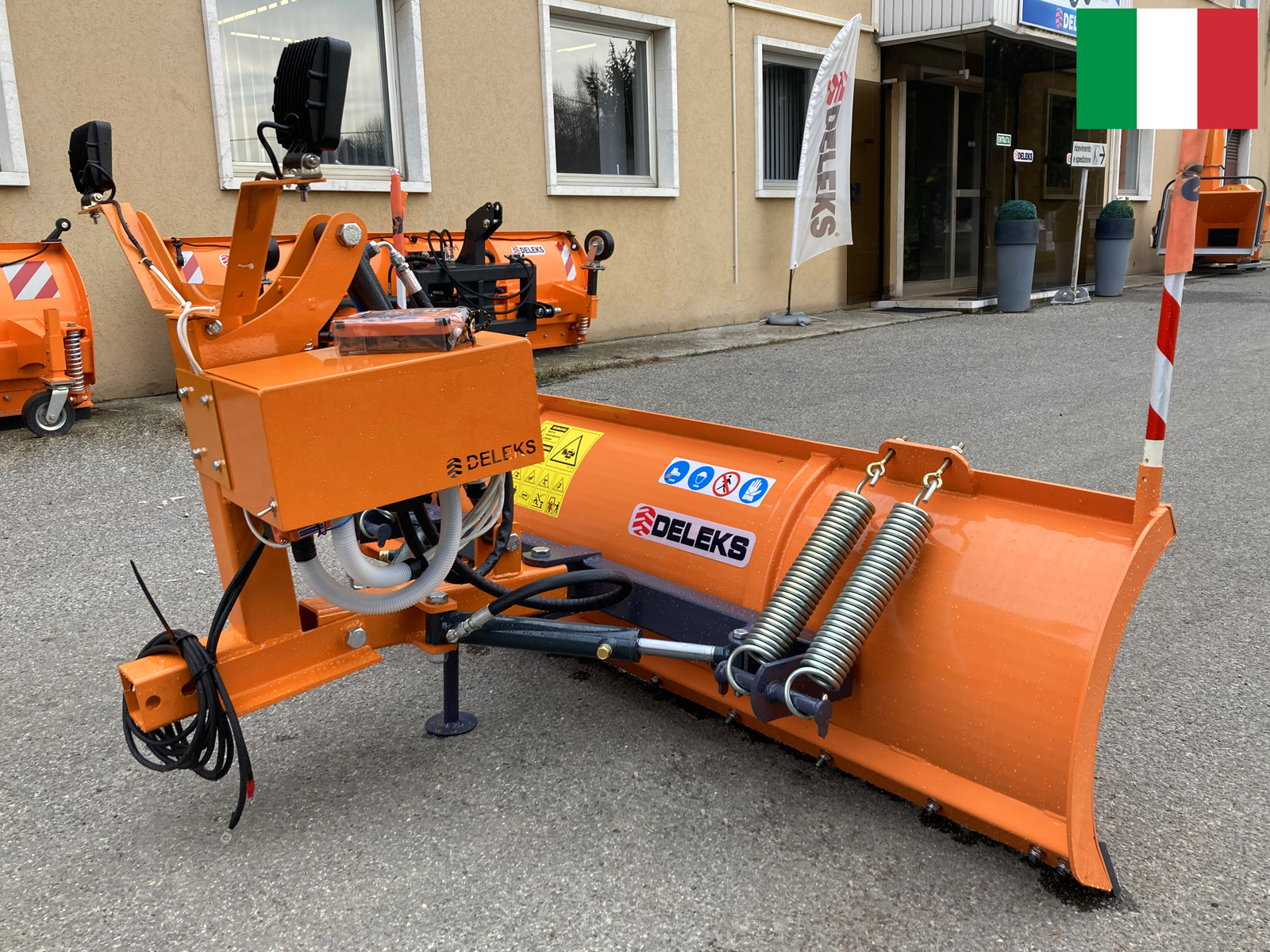

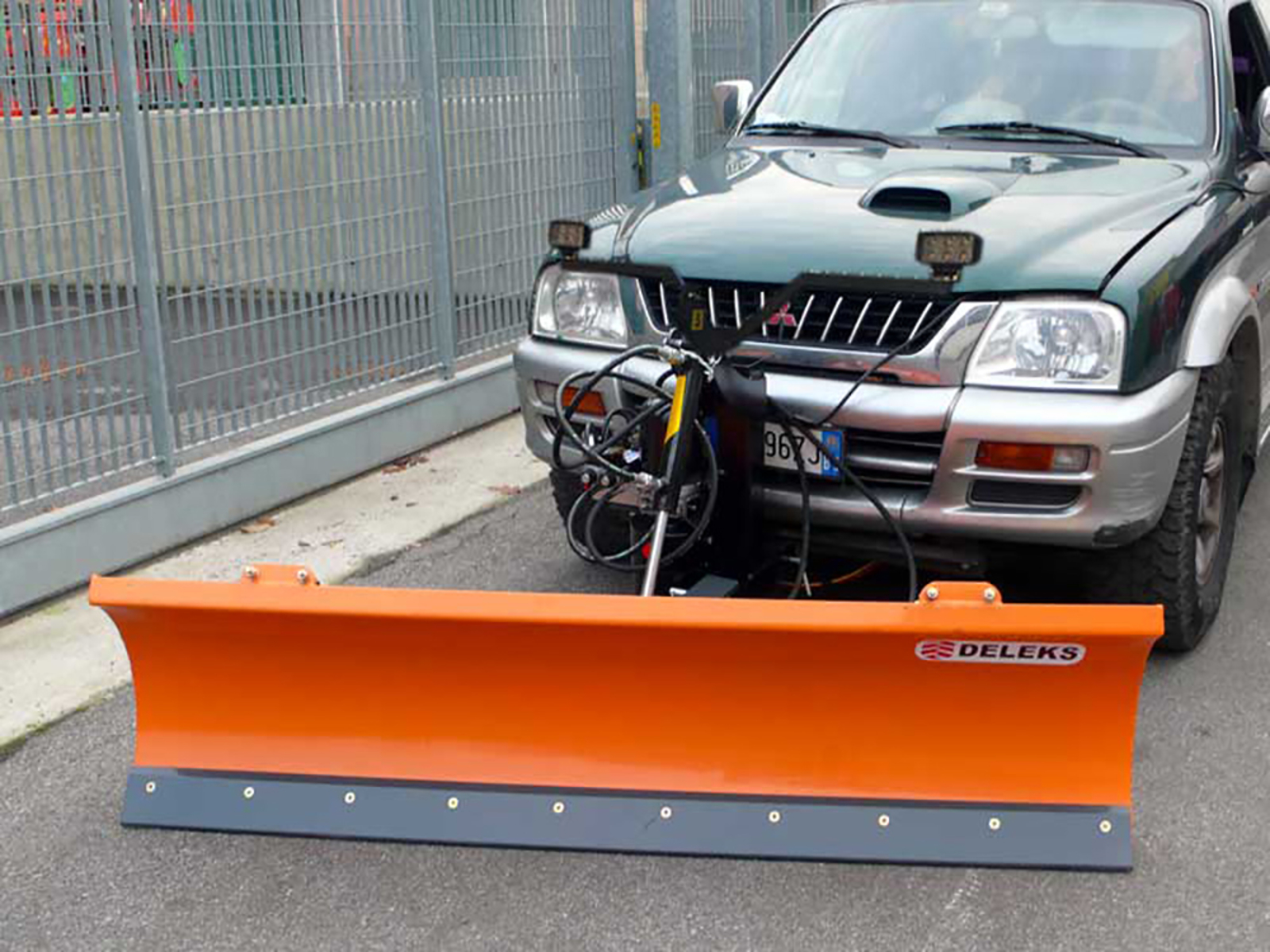

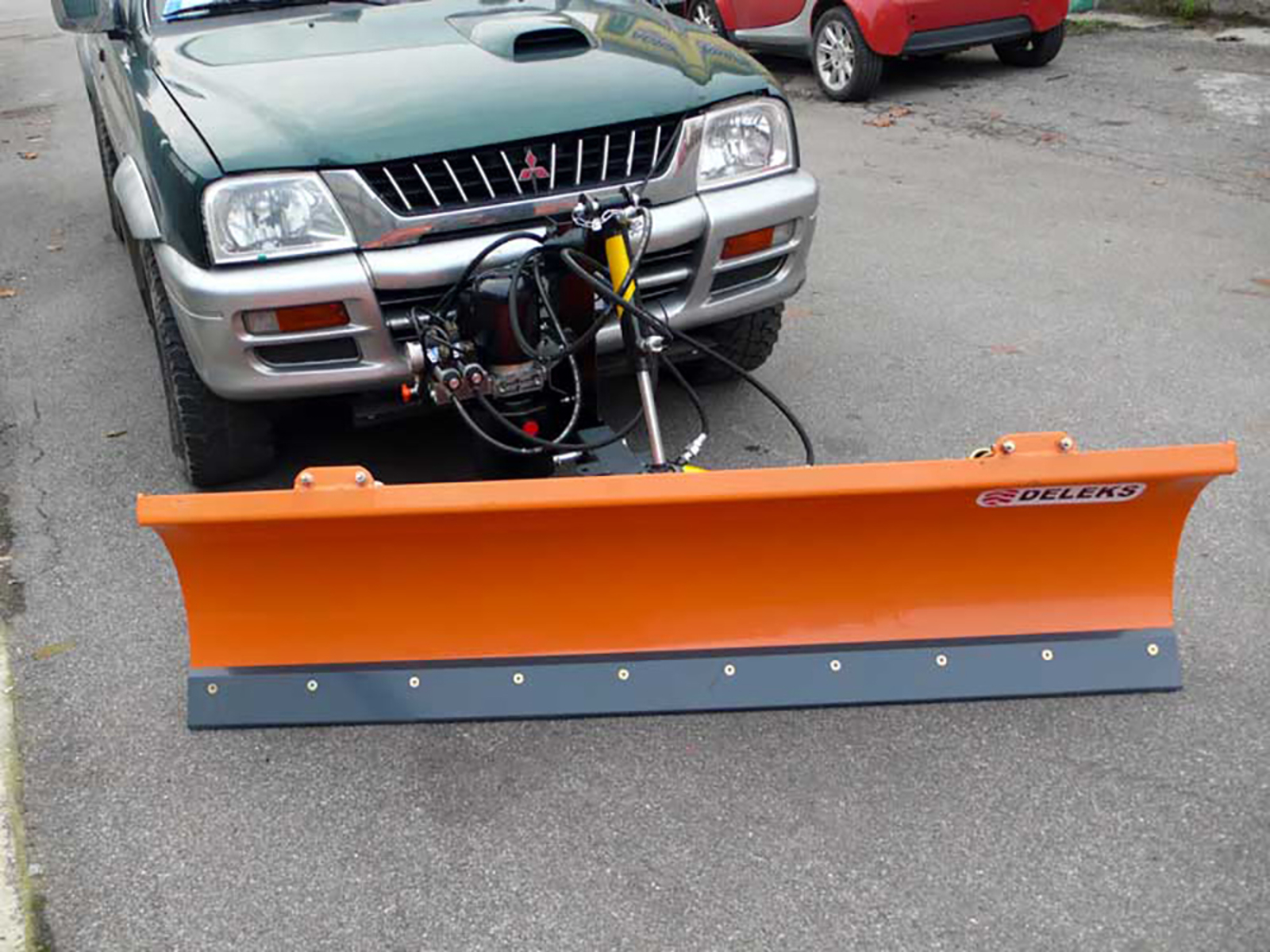

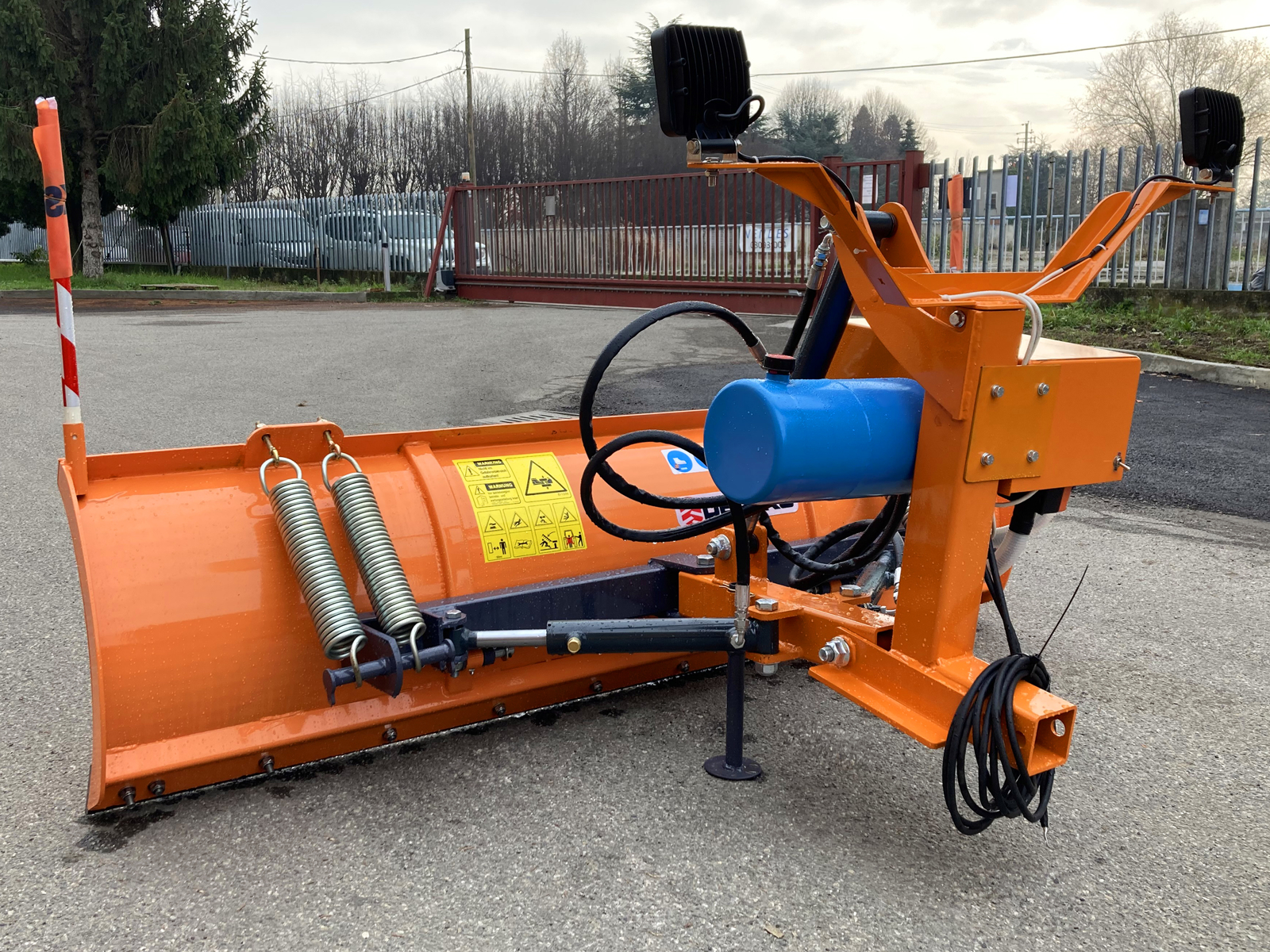

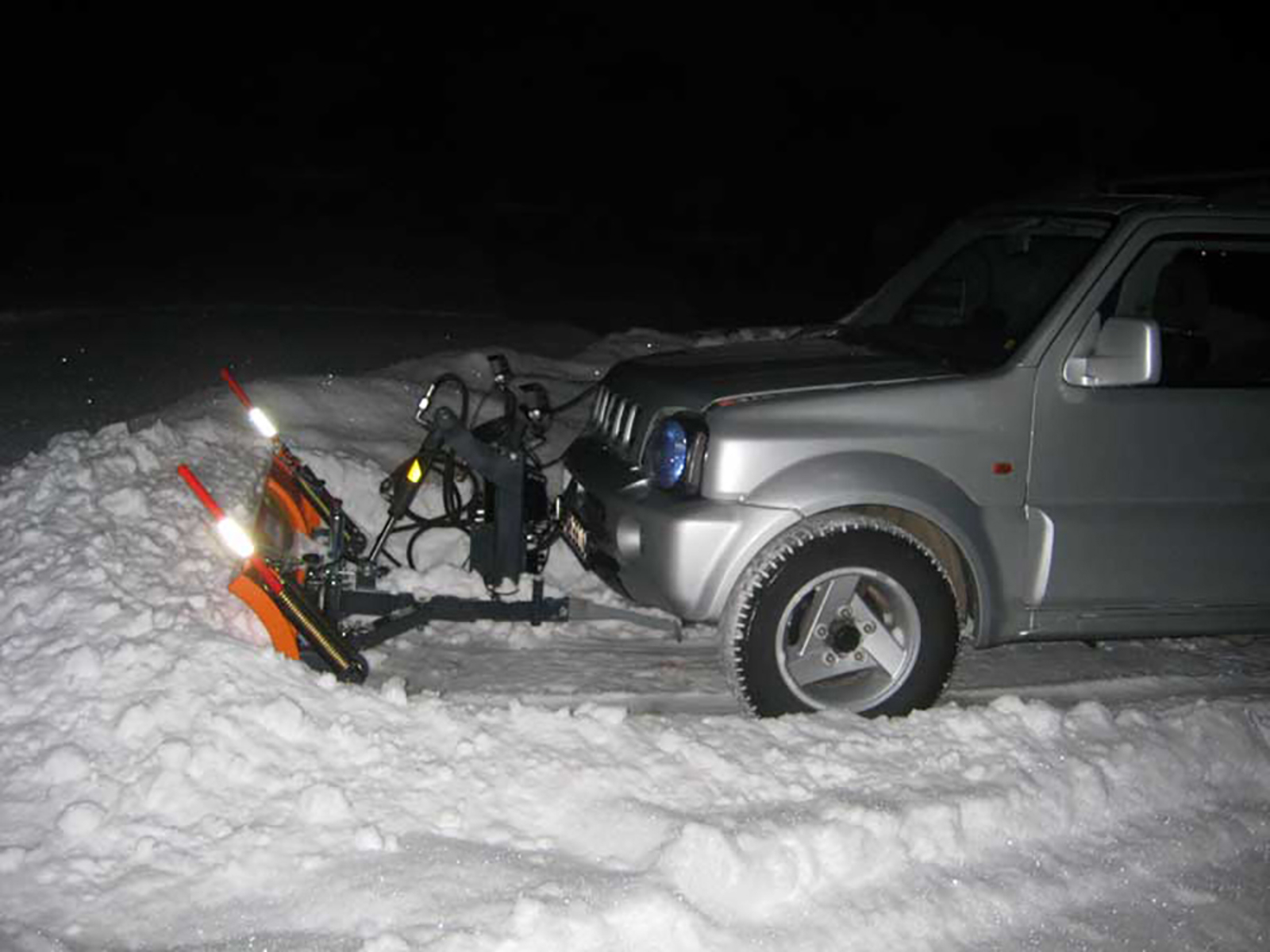

LNS 190-J snowplows are purpose-built and homologated for road use. Compatible with all 4x4 car brands such as Mitsubishi, Land Rover, Toyota, Fiat, Nissan, Ford, Isuzu, etc.

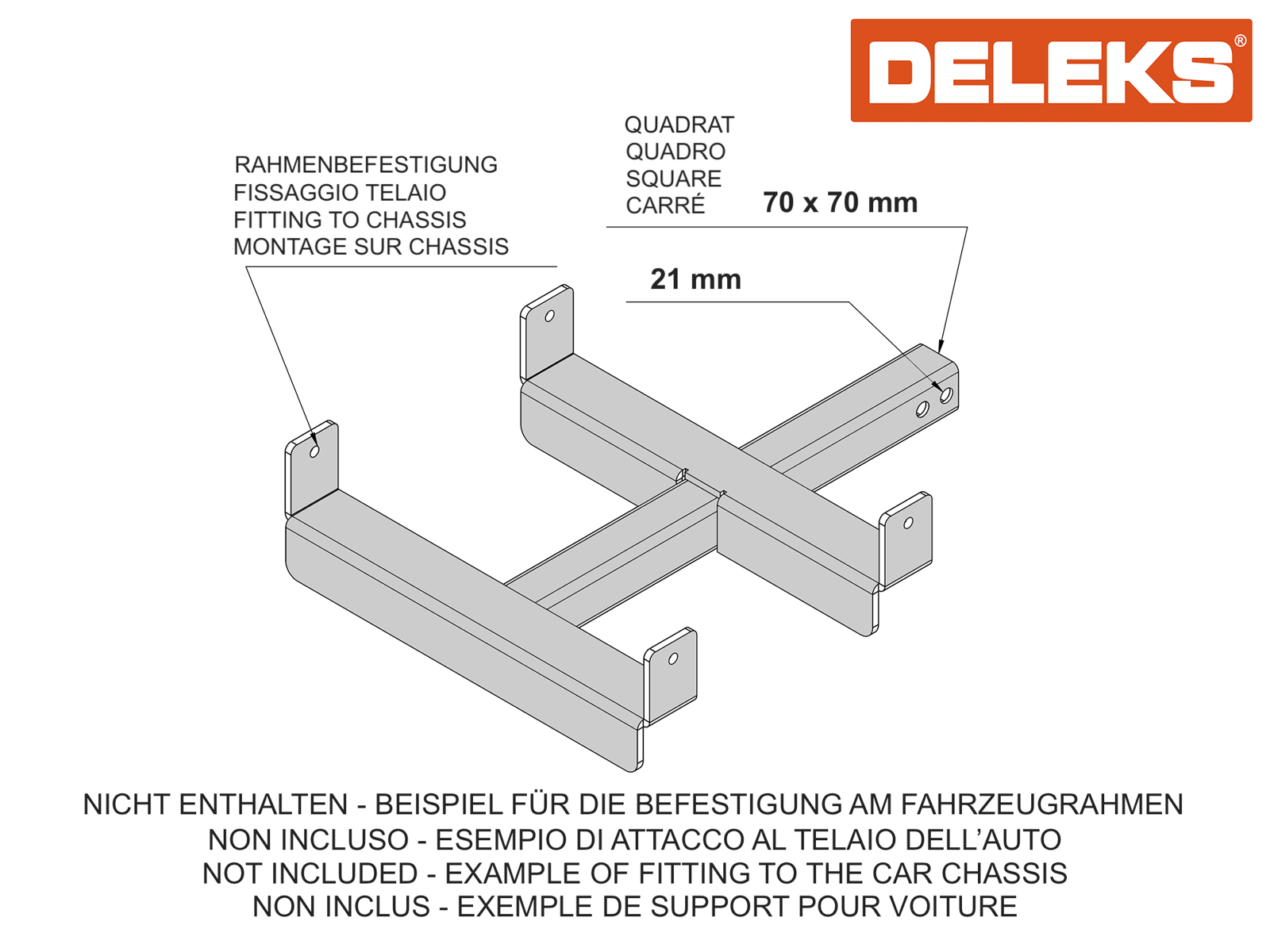

Before the assembly it is necessary to install a counter-frame under the engine of the vehicle (not supplied with Plow). Supplied with a replaceable steel blade. On request we can supply it with a much softer rubber blade.
Vehicle Requirements: 4WD, minimum 60 Amp Alternator, minimum 70 Amp battery, winter tires, power steering. Conforms to the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES

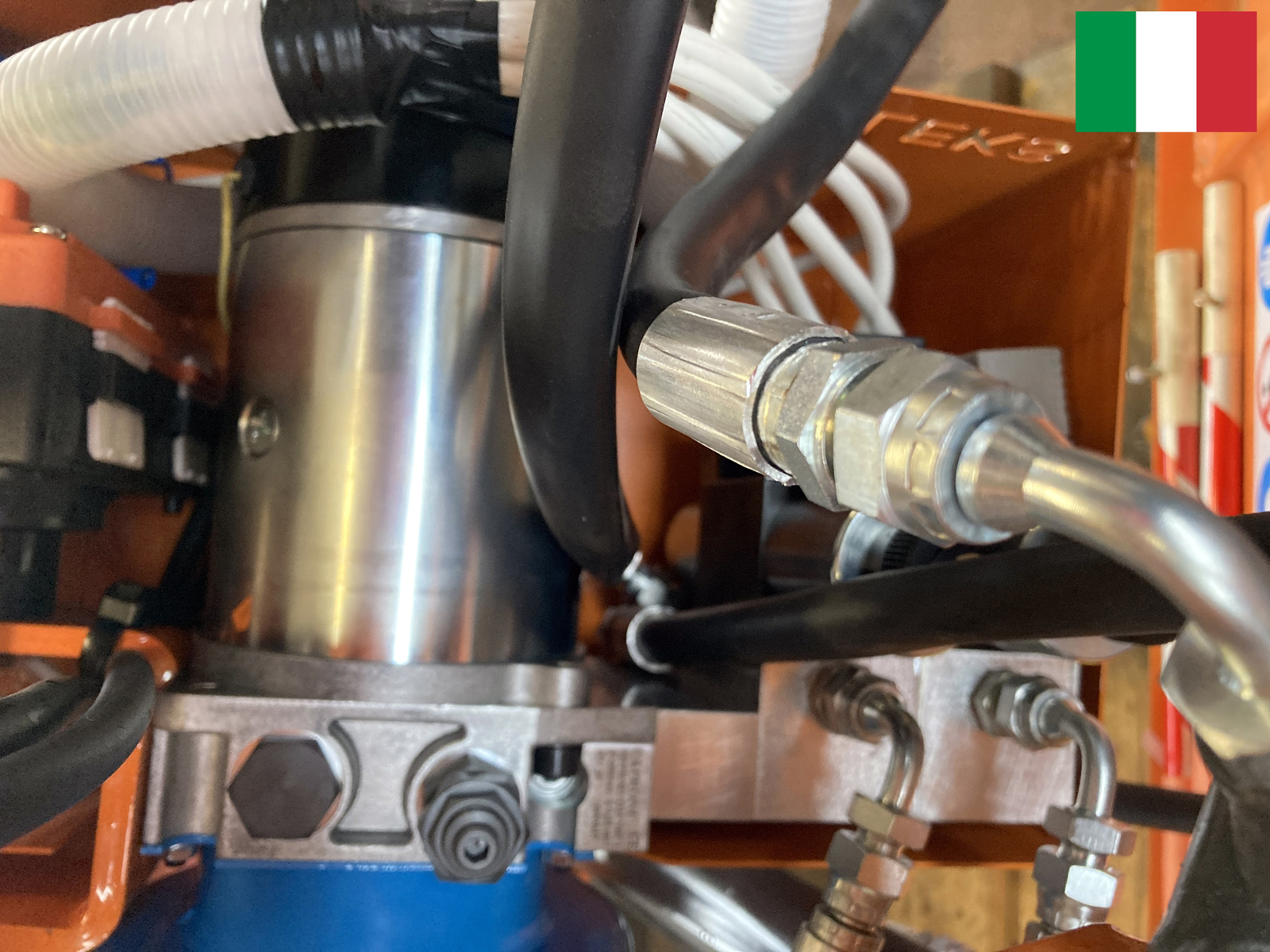

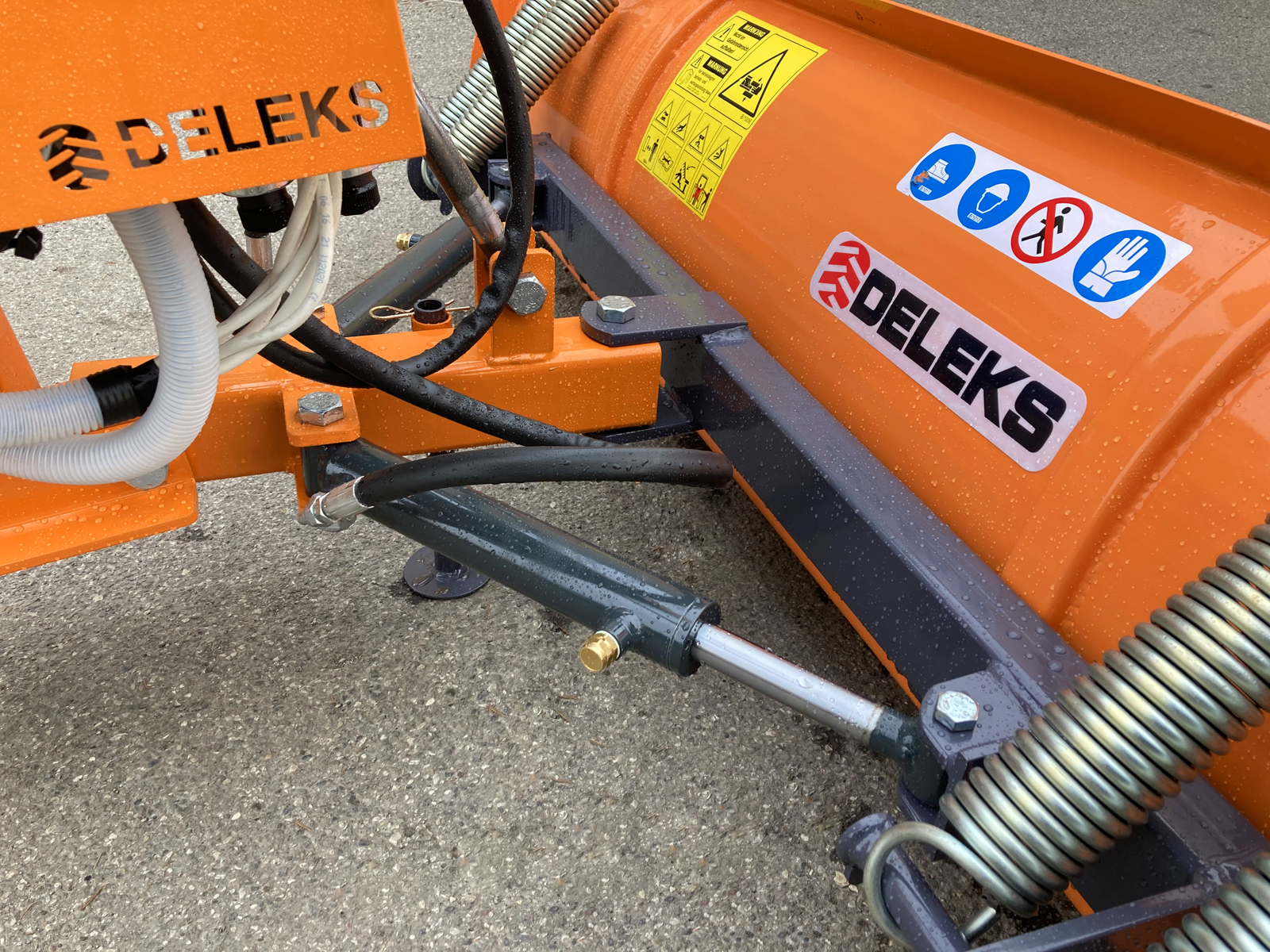

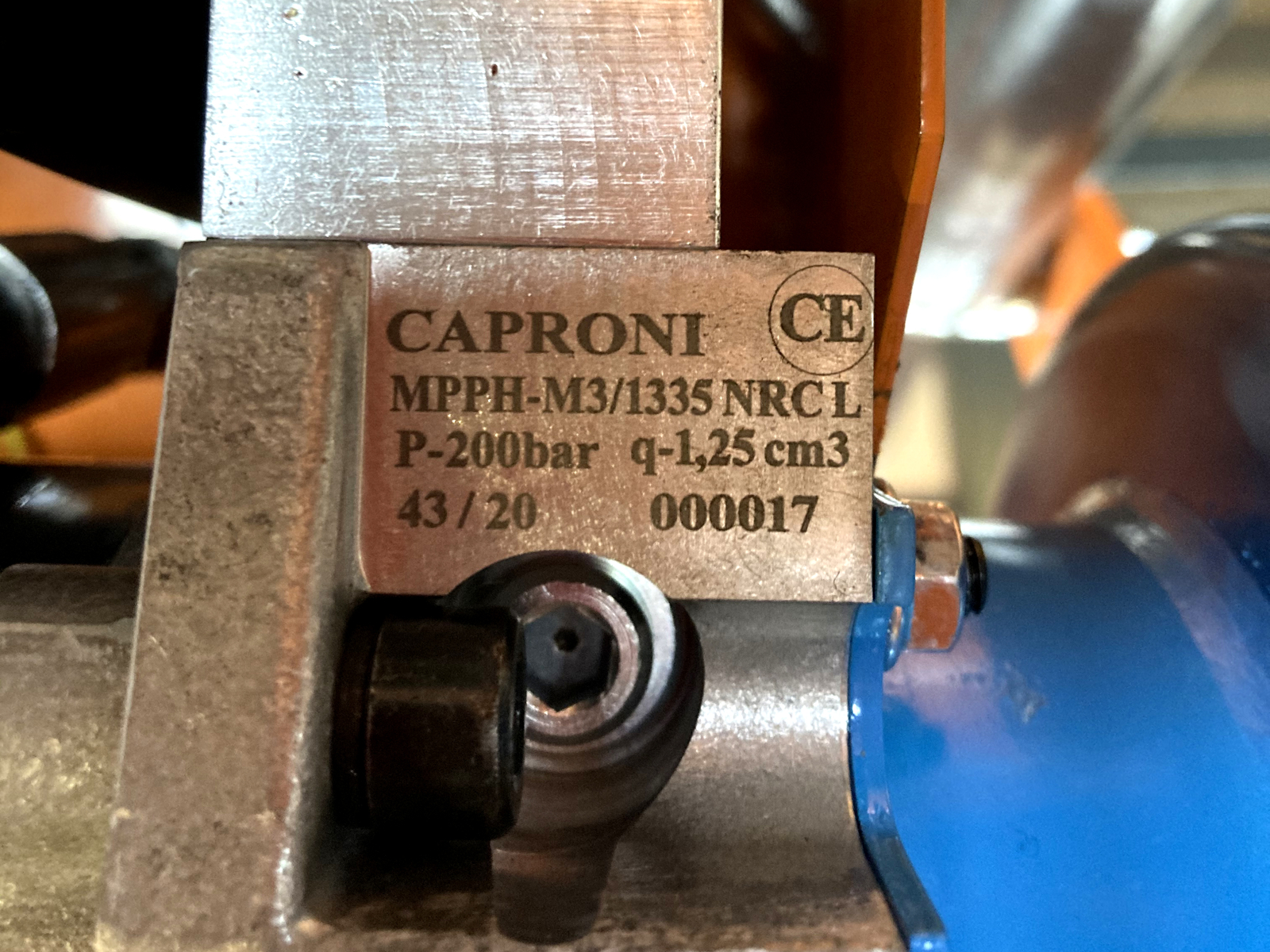

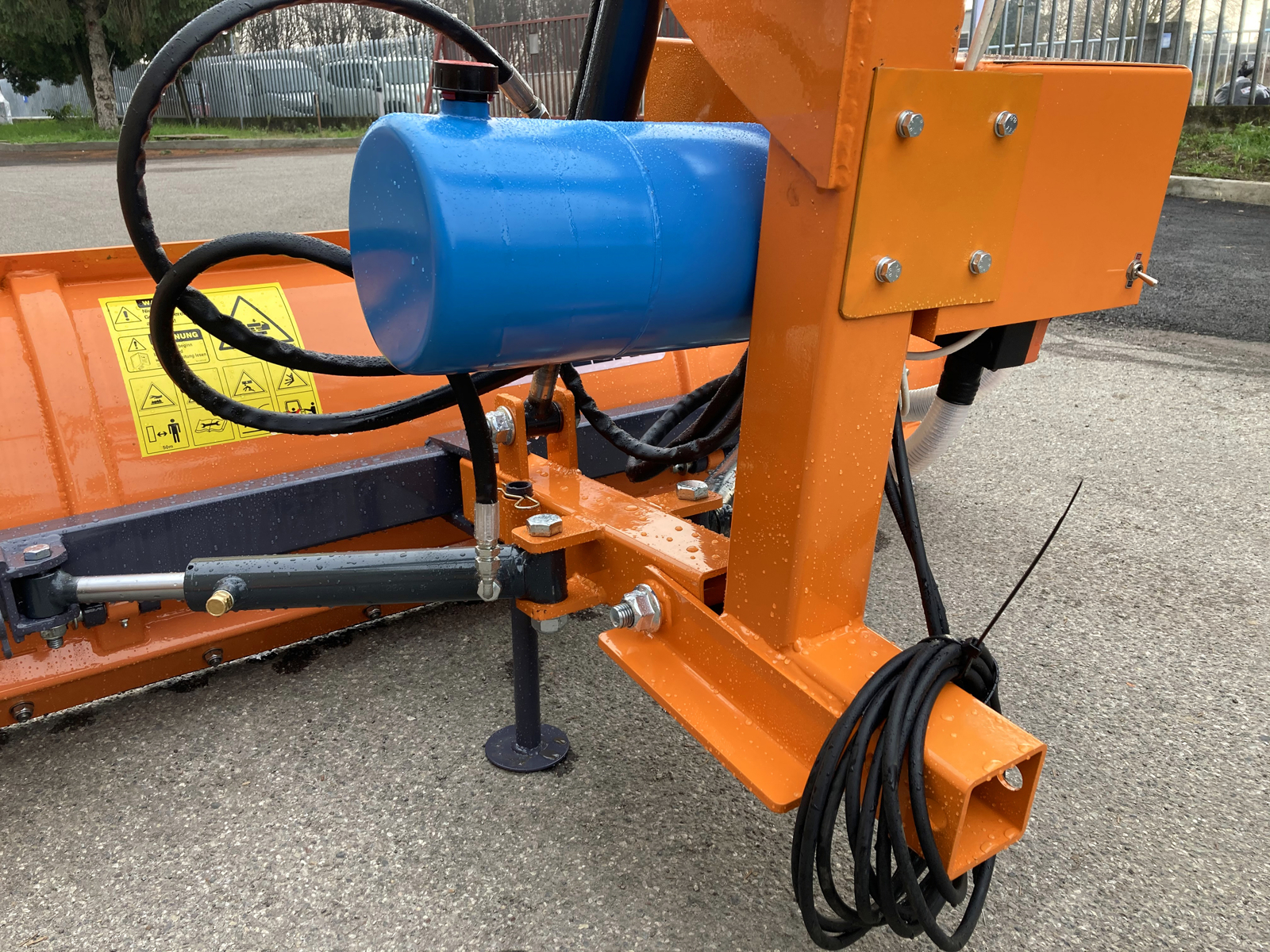

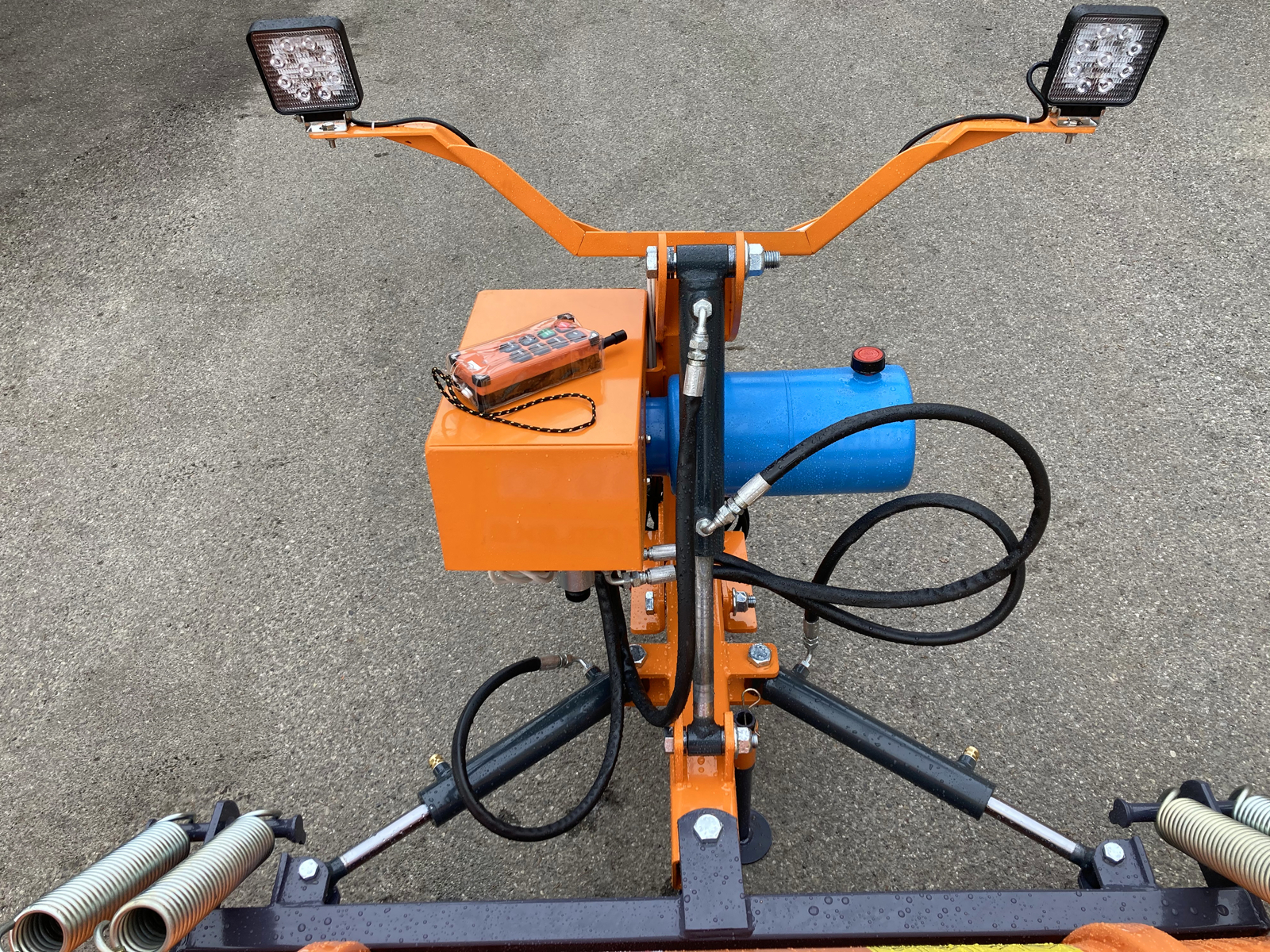

12 volt hydraulic power pack, with oil tank, solenoid valves 2, 2 cylinders for lifting and guidance

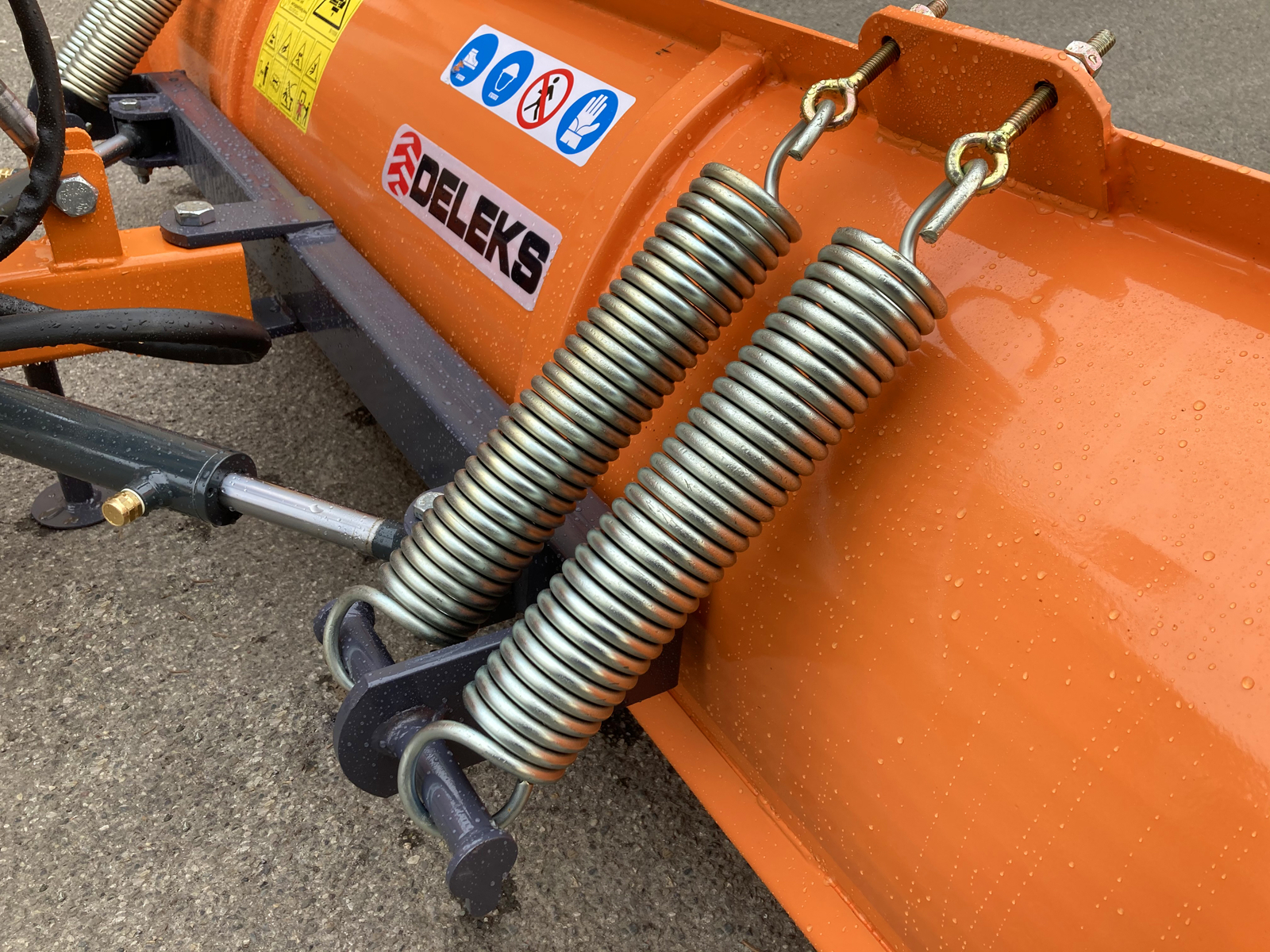

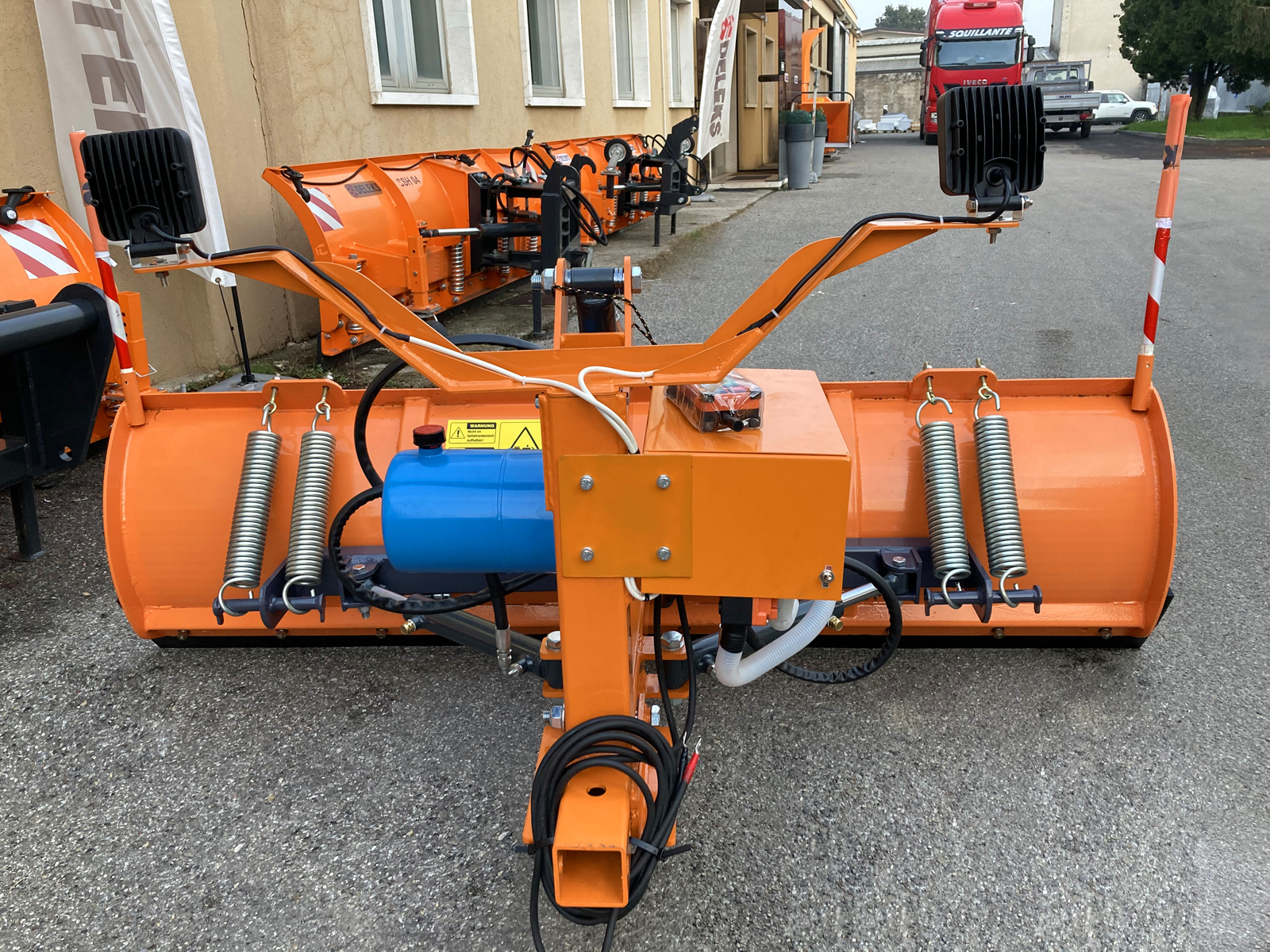

Anti-shock system with 4 shock absorbers to operate in maximum safety.
Extremely easy to assemble and use.

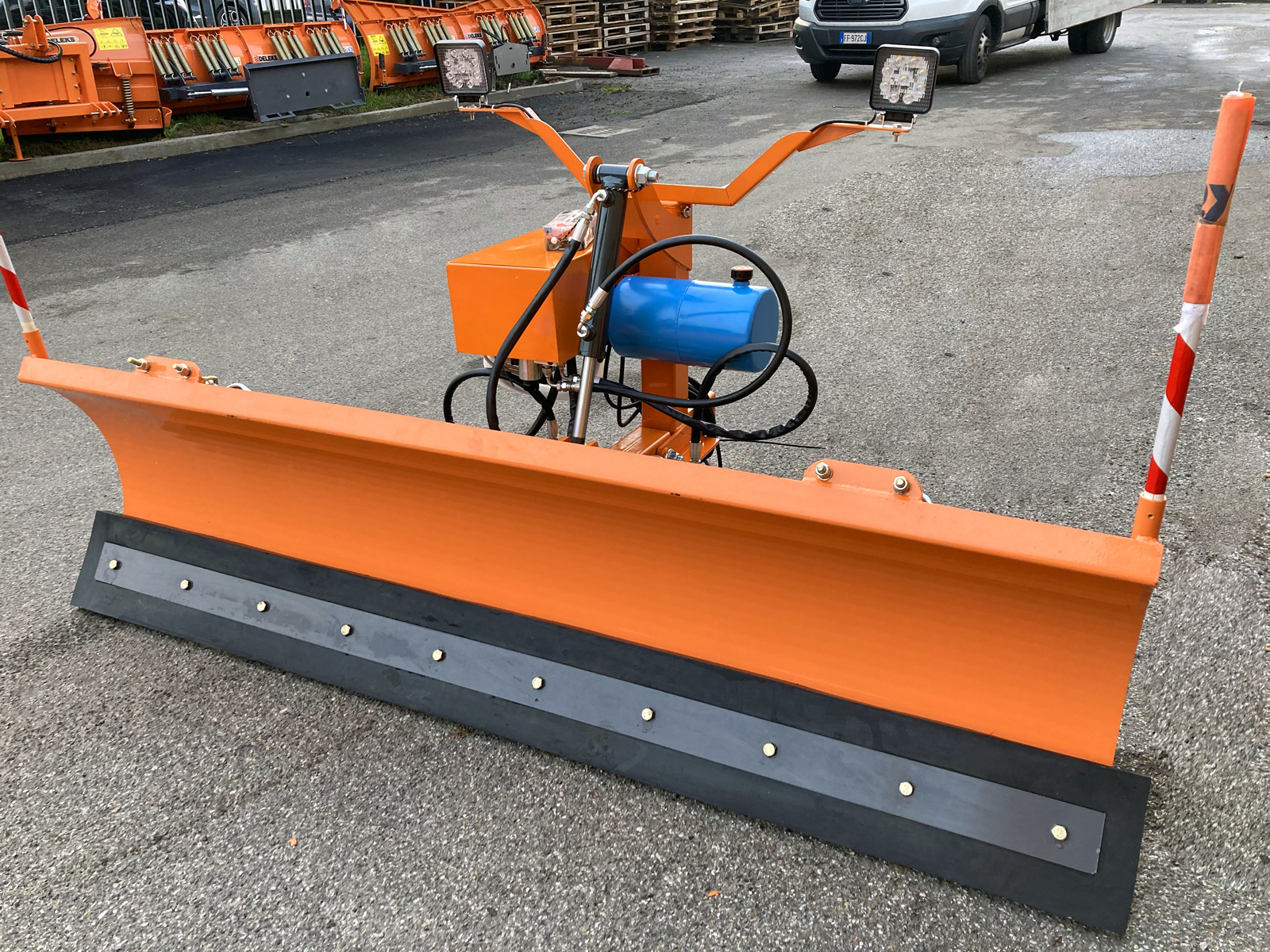

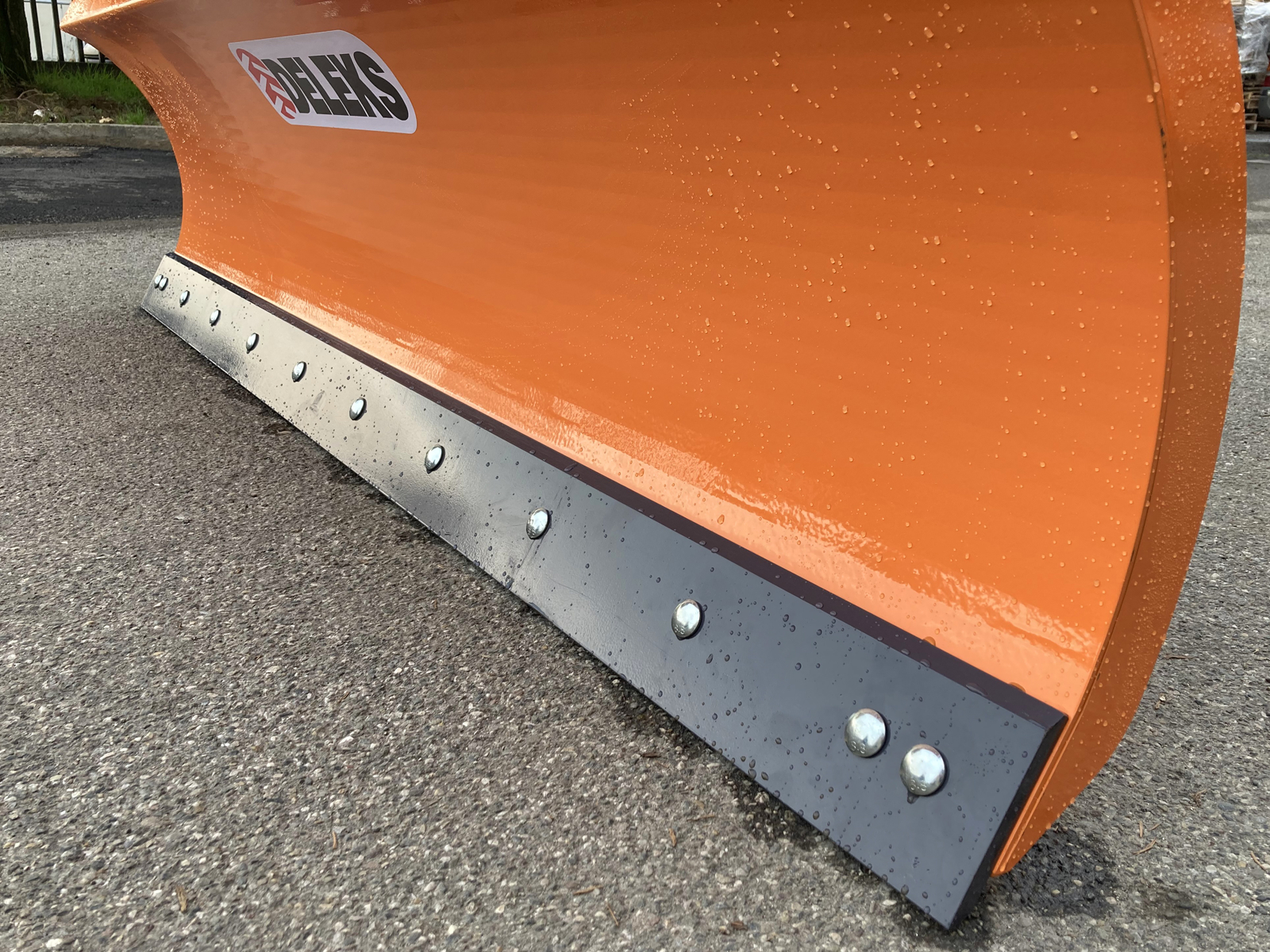

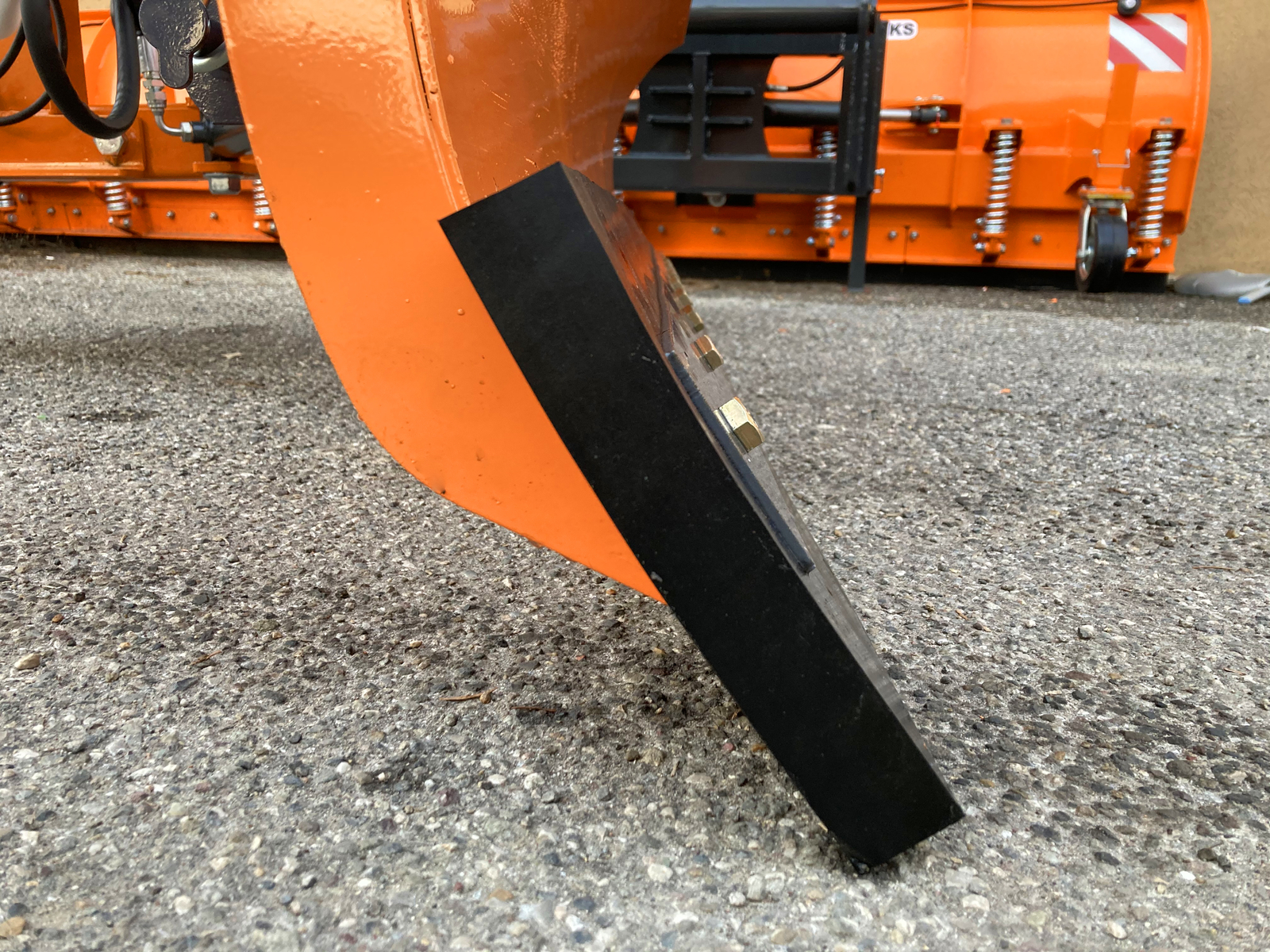

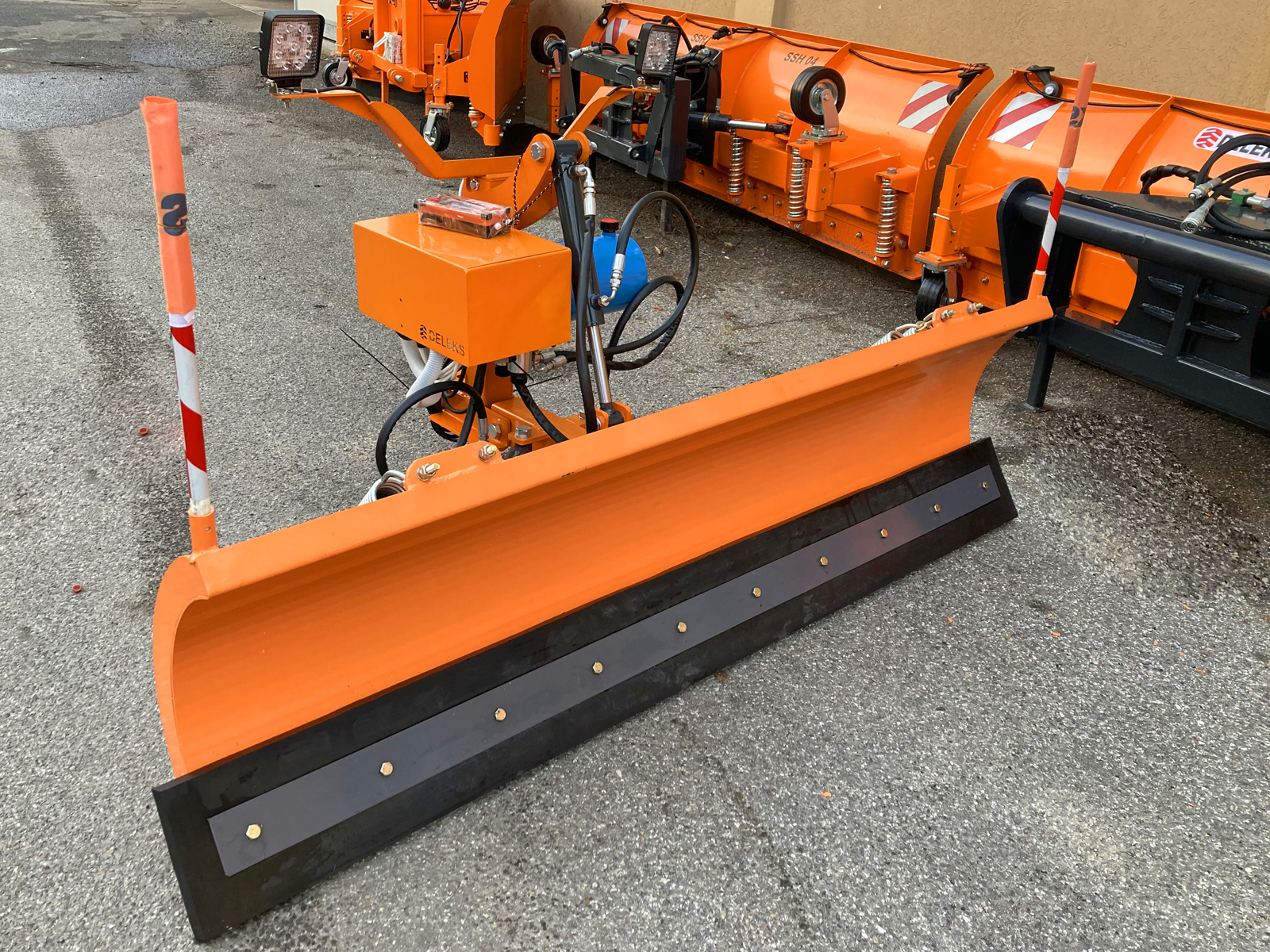

Sharp replaceable steel-blade. On request we can supply it with a softer rubber cutting.
Parking leg.
The attachment plate is removable and replaceable with a 3 point hitch or skid steer linkagae.
Homologated for road use.
VIDEO
CARACTERISTICS
| Caracteristic | Units metric | Units US |
|---|---|---|
| Weight | 160.0 kg | 353.0 lb |
| Overall height | 1080.0 mm | 3.54 ft |
| Overall Length | 760.0 mm | 2.50 ft |
| Angling (left/right) | 28° | 28° |
| Float | +/- 2° | +/- 2° |
| Blade Height | 525.0 mm | 1.72 ft |
| Side edge thickness | 8.0 mm | 0.31 in |
| Shock absorbers | 4 | 4 |
| Cutting Edge | Steel or Rubber | Steel or Rubber |
| Cutting Edge Height | 120.0 mm | 4.72 in |
| Cutting Edge Thickness | 14.0 mm | 0.55 in |
| Trip Edge Quantity | 1 | 1 |
| Distance betweens the bolts of the Trip Edge | 200.0 mm | 7.87 in |
| Lights | √ | √ |
| Removable Skid Shoes | x | x |

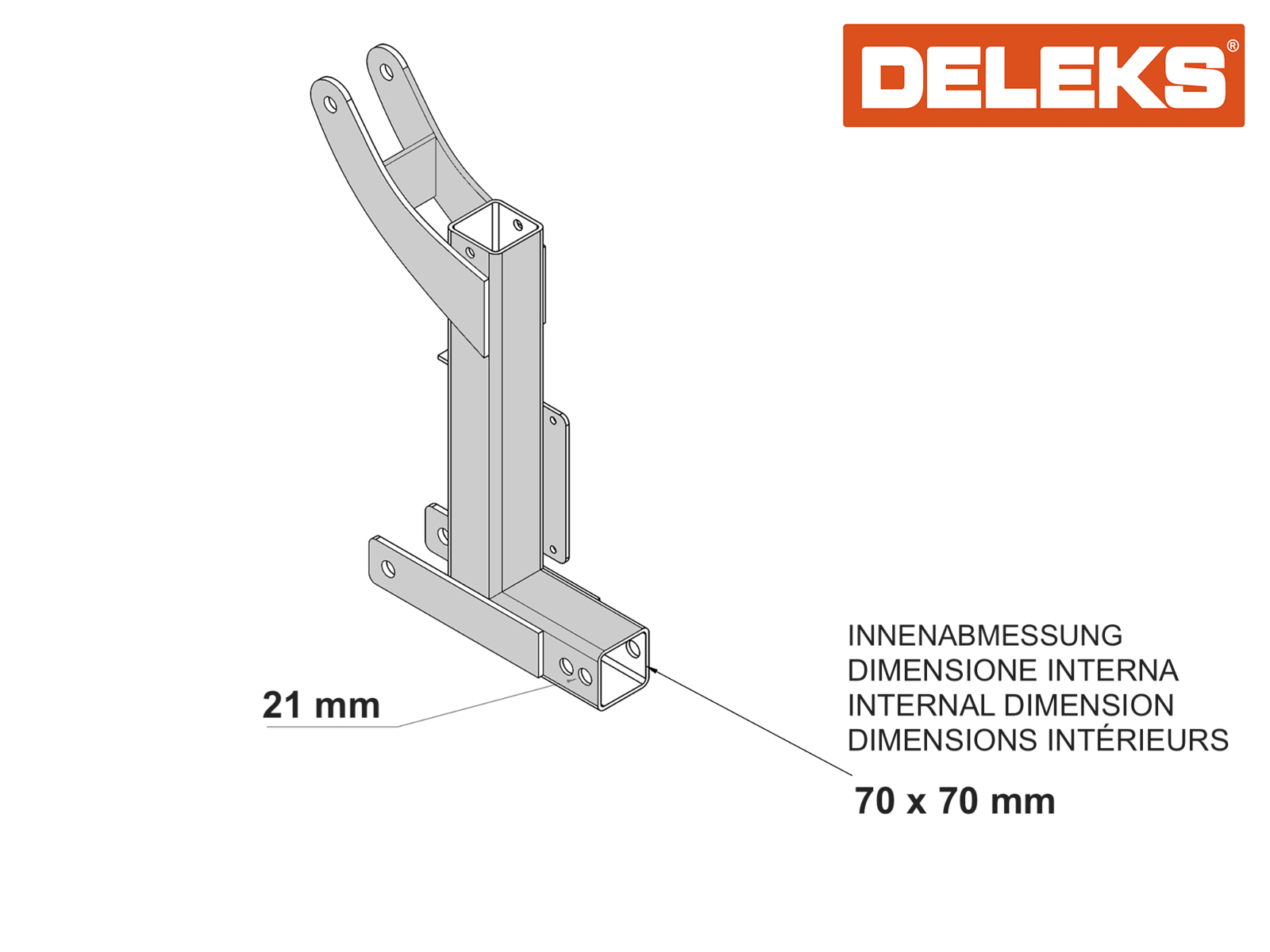

| Universal attachment sizes | See pictures | See pictures |
| Working width (angled) | 1705.0 mm | 5.60 ft |
| Suitable on | JEEP, PICK-UP, VAN, SUV | JEEP, PICK-UP, VAN, SUV |
| Interface | Universal Attachment | Universal Attachment |
| Overall width | 1916.0 mm | 6.28 ft |
| Main frame thickness | 4.0 mm | 0.15 in |
| Hydraulic cylinder/s ø | 50.0 / 25.0 mm | 1.96 / 1.0 in |
| Packing sizes | 1916.0*800.0*800.0 mm | 6.28*2.62*2.62 ft |
