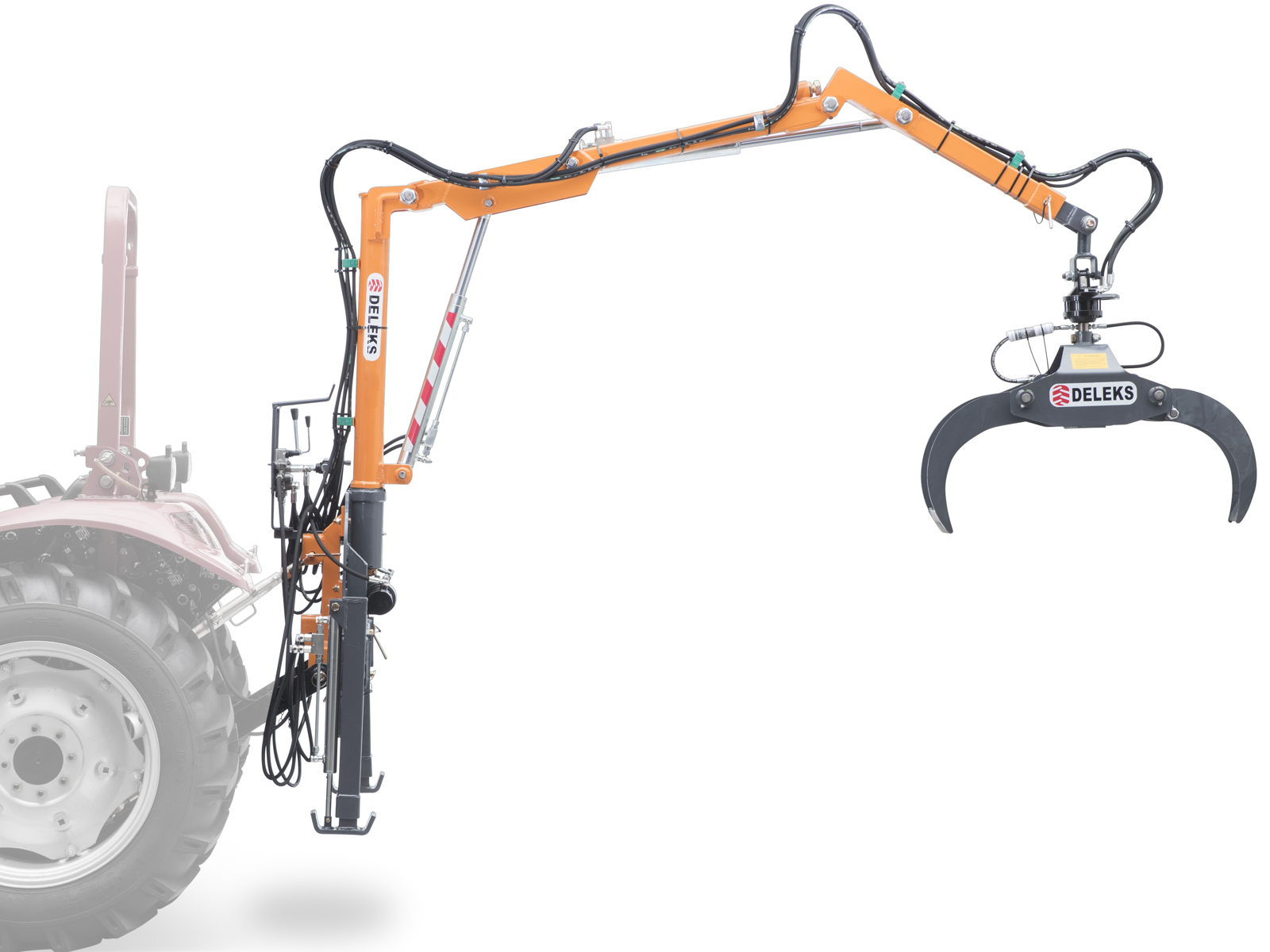

Hydraulic forestry crane with log grapple for tractor CRAB-3000

4.5

192 reviews

Available
Code CRAB3000
EAN 8053470230202
View all details.
TOTAL
4.509,00VAT incl.
Free shipping

VIDEO

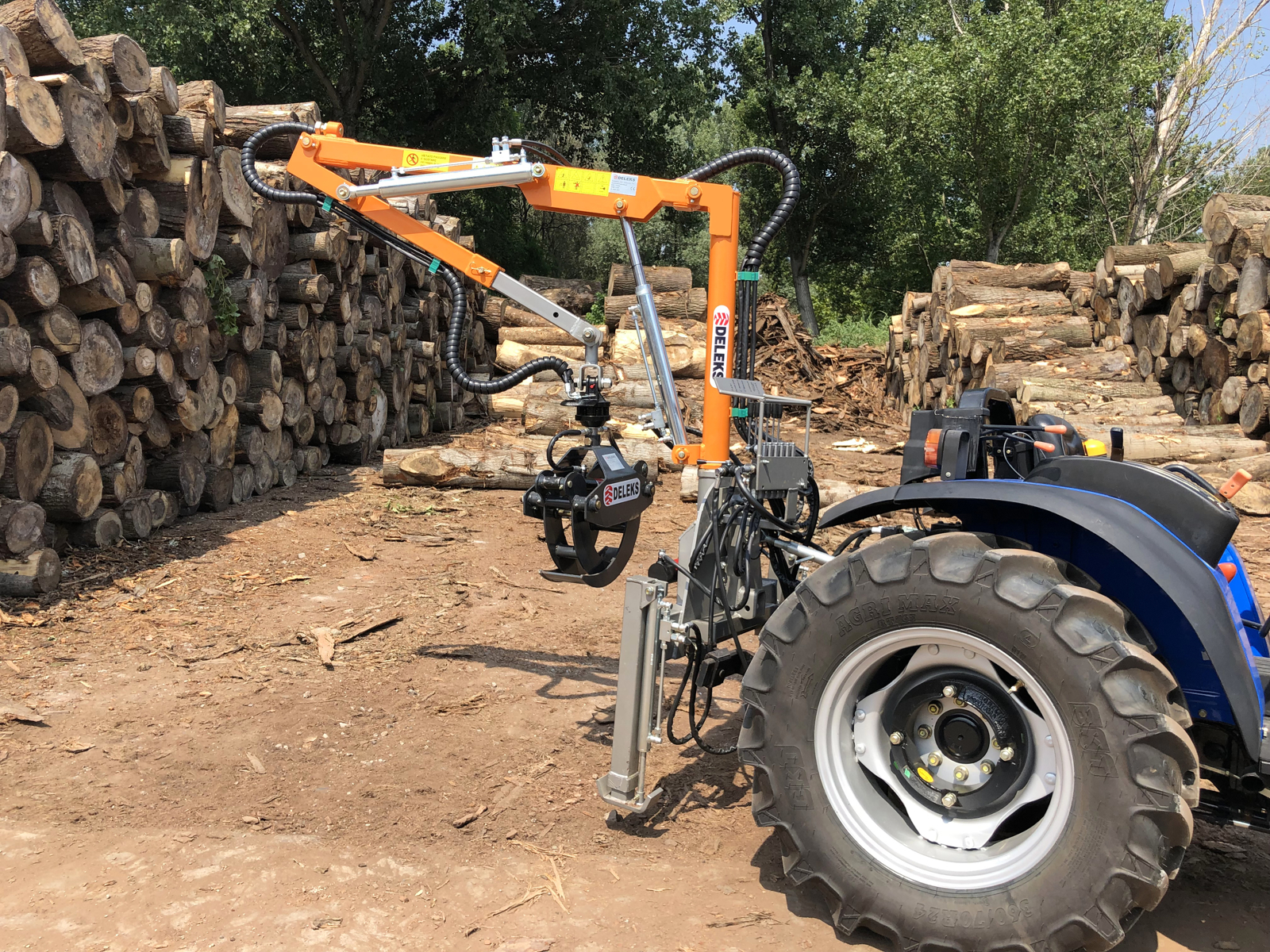

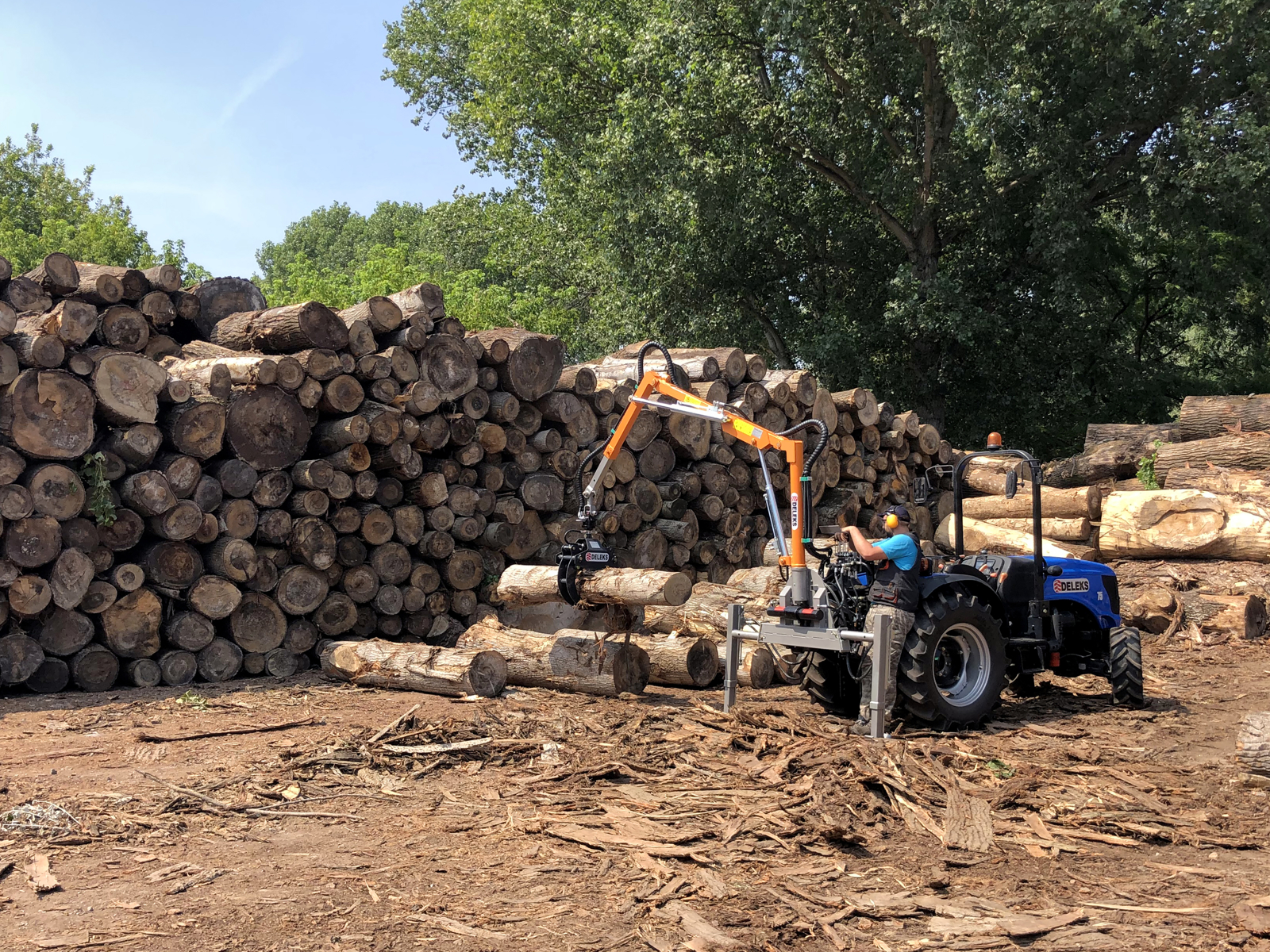

Field test
Field test

DETAILS

Tractor mounted timber crane, forestry crane - DELEKS®- Hydraulic parts MADE IN ITALY - DK10 Log Grapple with GR10 Rotor Lombarda Ingranaggi®


OVERVIEW

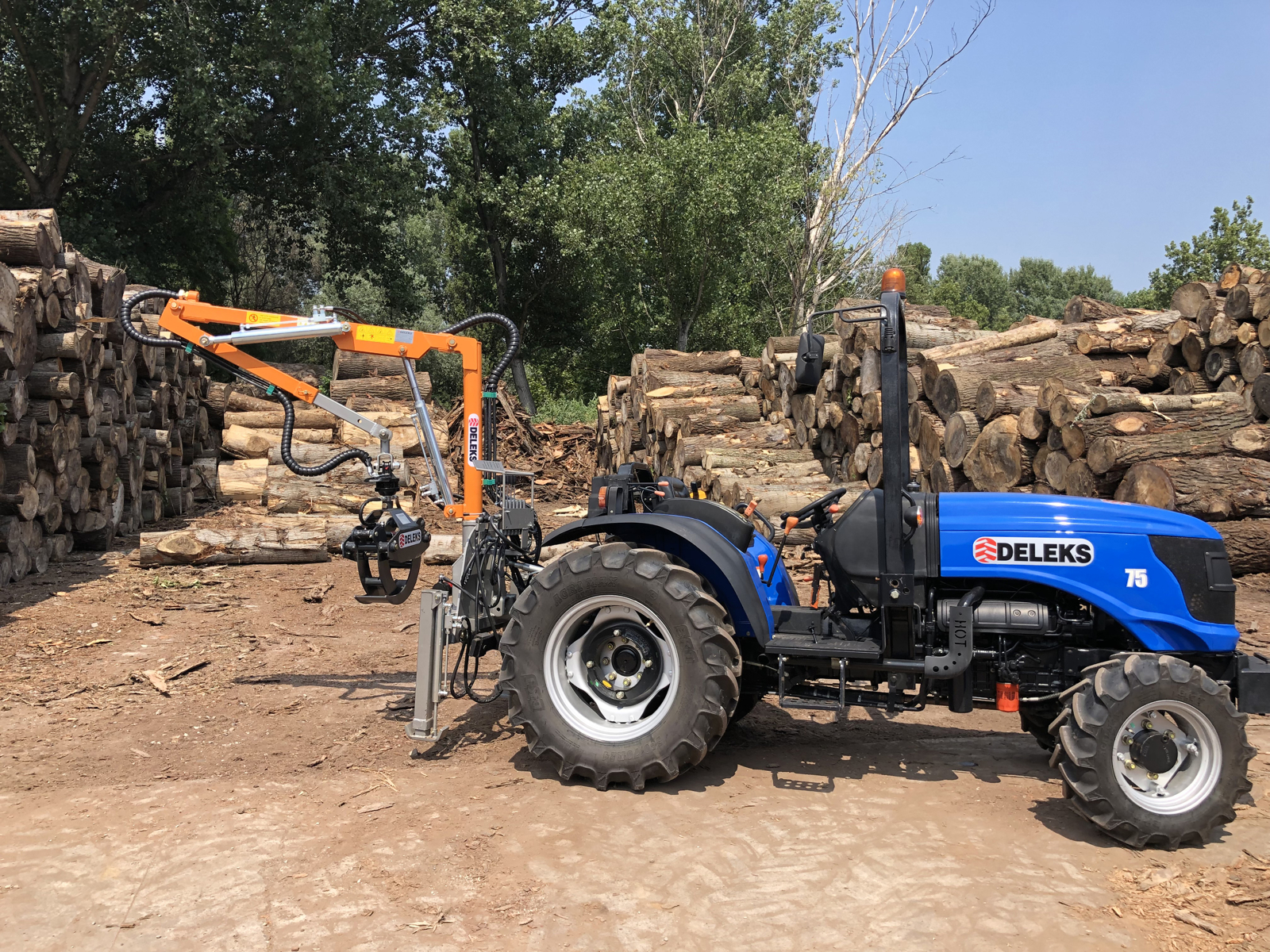

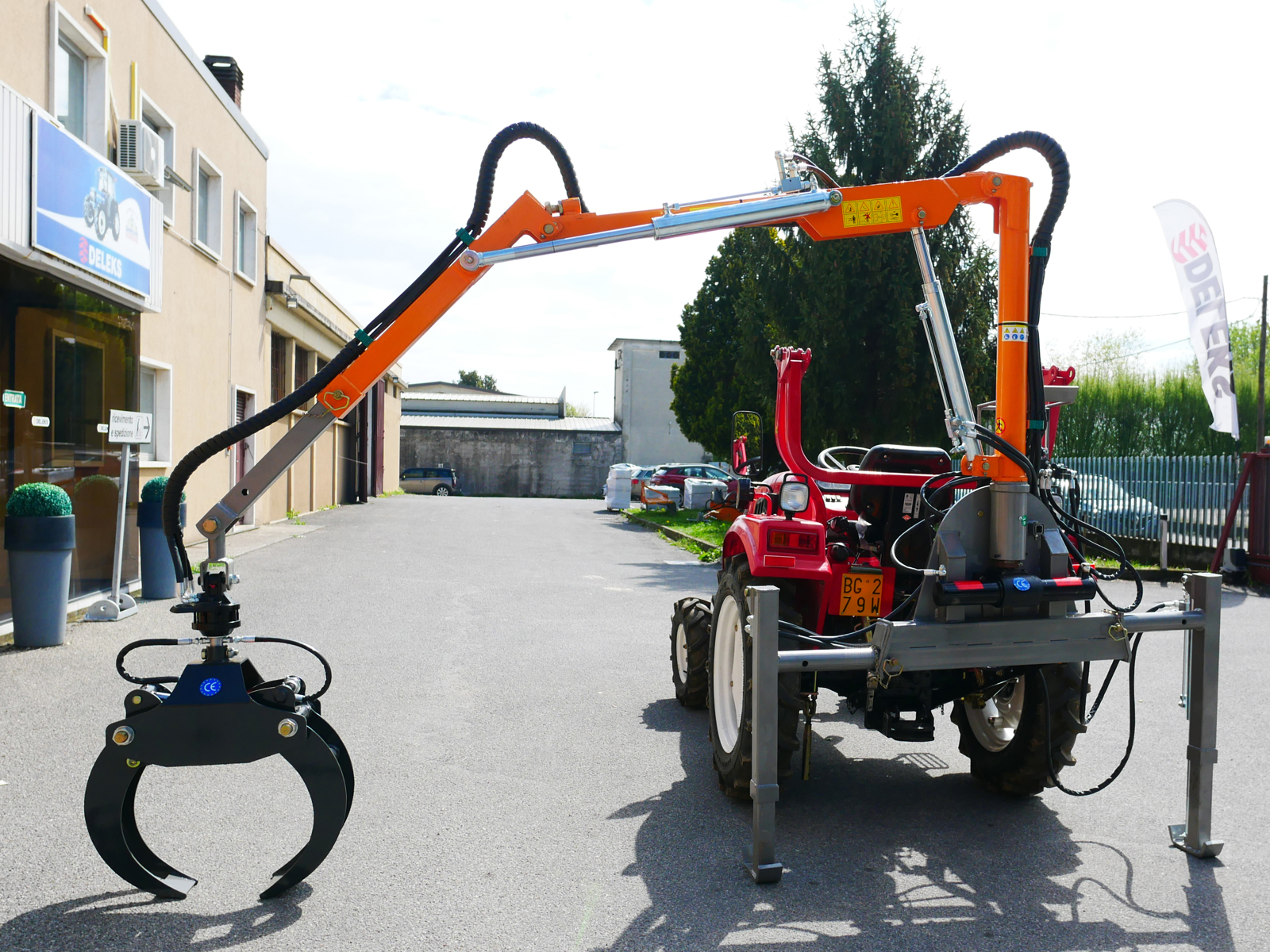

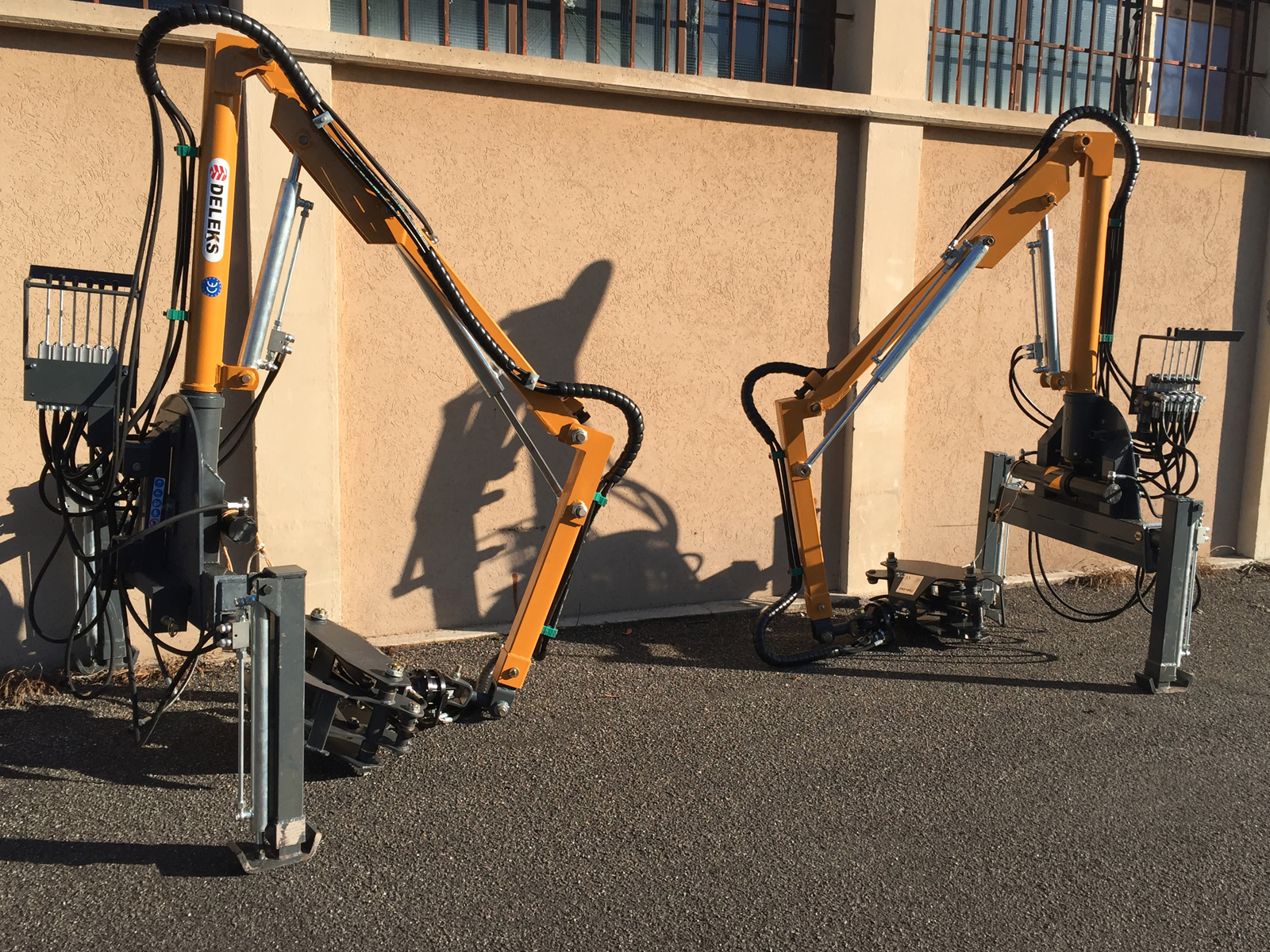

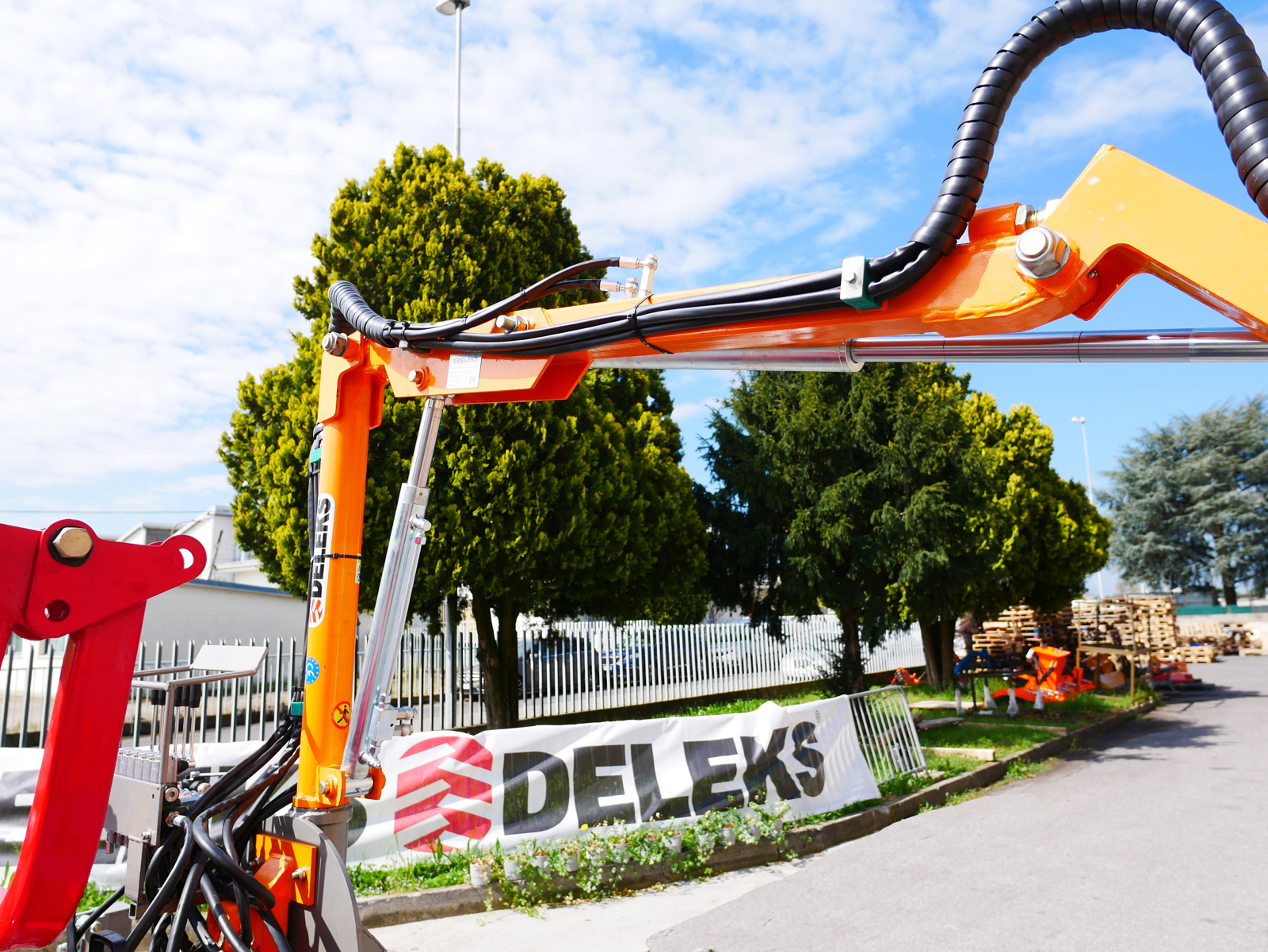

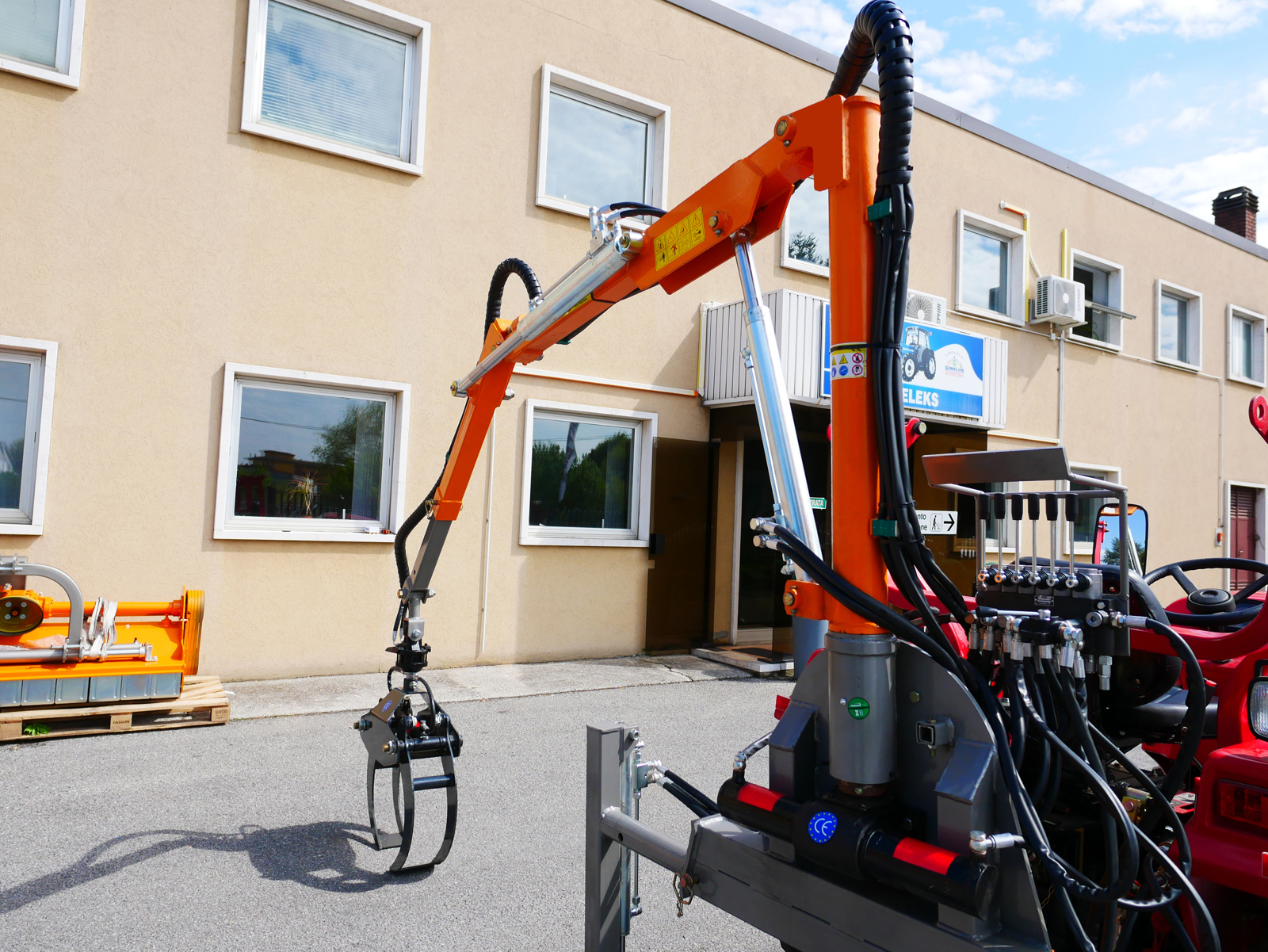

The CRAB-3000 Light timber crane was designed for functionality, service-friendliness, 270° rotation, quick mounting and dismounting. For timber transport, small agriculture or forestry, collection of waste and loading/unloading of logs.

For tractors min. 30 HP e.g. New Holland T4, T5, John Deere 4-5 Series, McCormick X-F Series, Landini Mistral, Deutz-Fahr, Lamborghini Ego 55, Same Solaris, Kubota M, FIAT, Ford. EC Conformity, 2 Year Warranty.



BENEFITS & FEATURES

CRAB-3000 is composed with high quality components to obtain maximum manoeuvrability. Its arm provides instantaneous and smooth movement to allow for precise lifting and placing.

Hydraulic parts MADE IN ITALY.

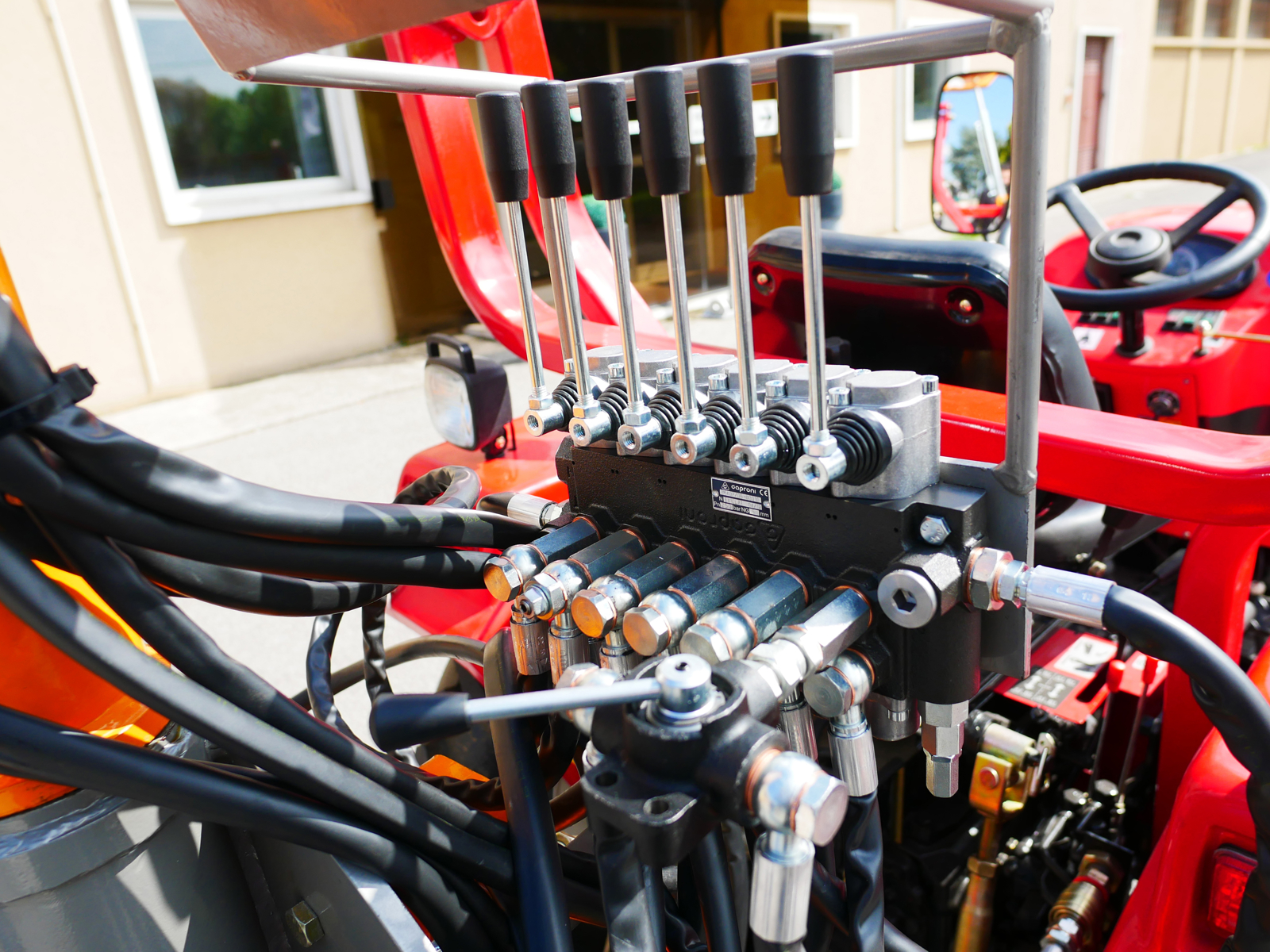

SCV levers CAPRONI.

Flow control valves and block for a simple and precise control on the clamp - (MADE IN ITALY).

Gear box for rotation by 270°.

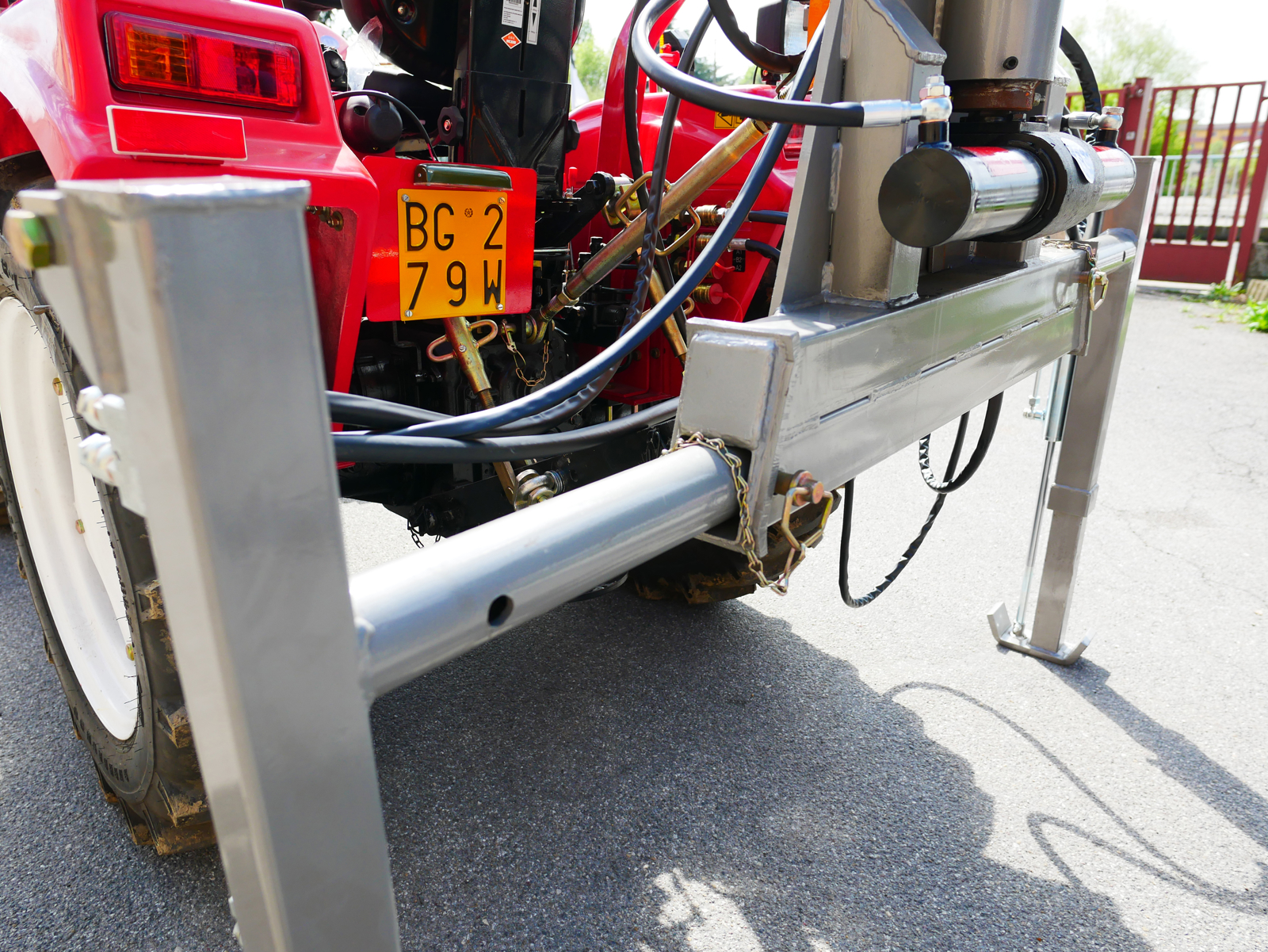

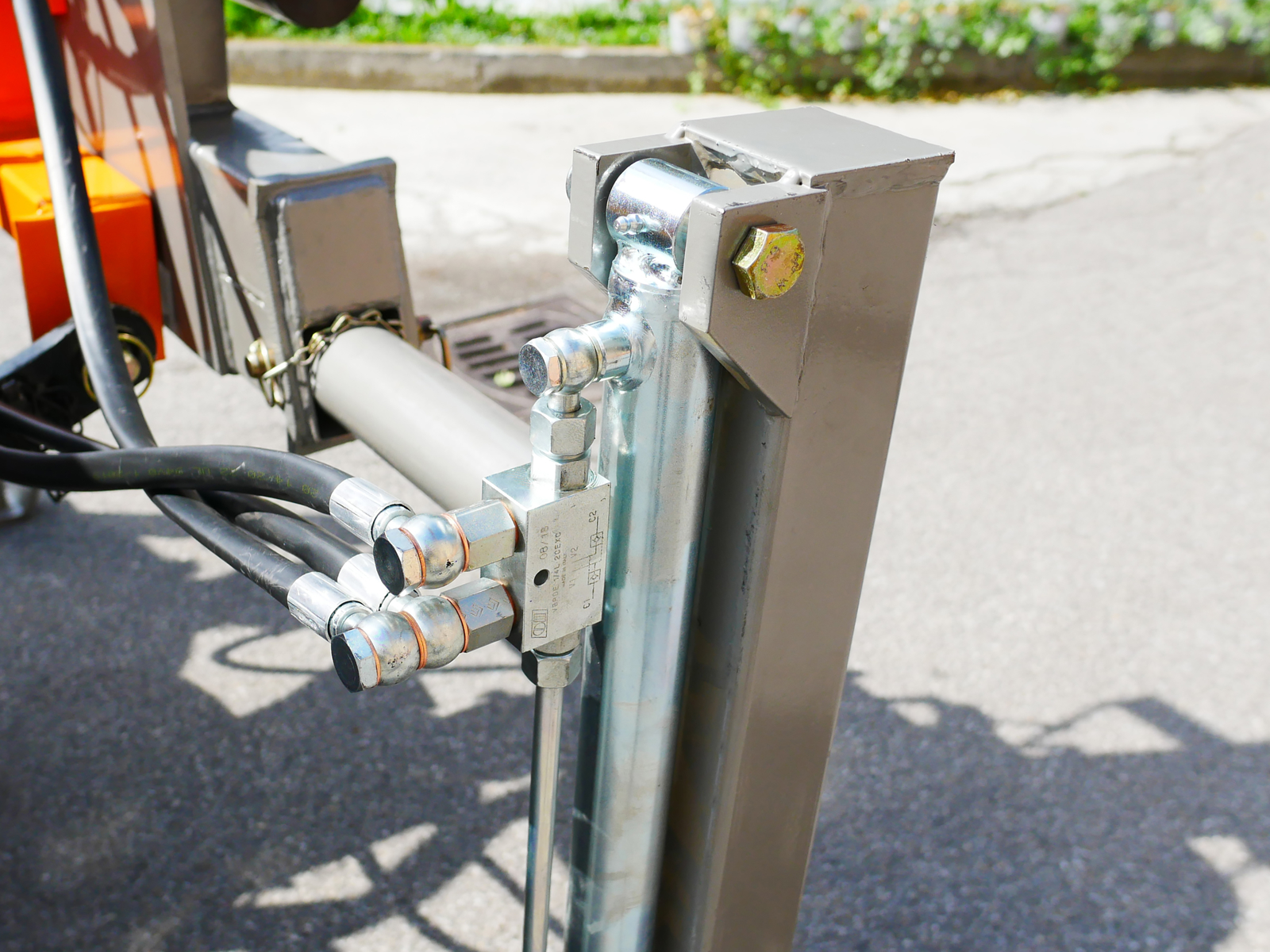

Wide stabilizers which ensure the necessary stability during operation.

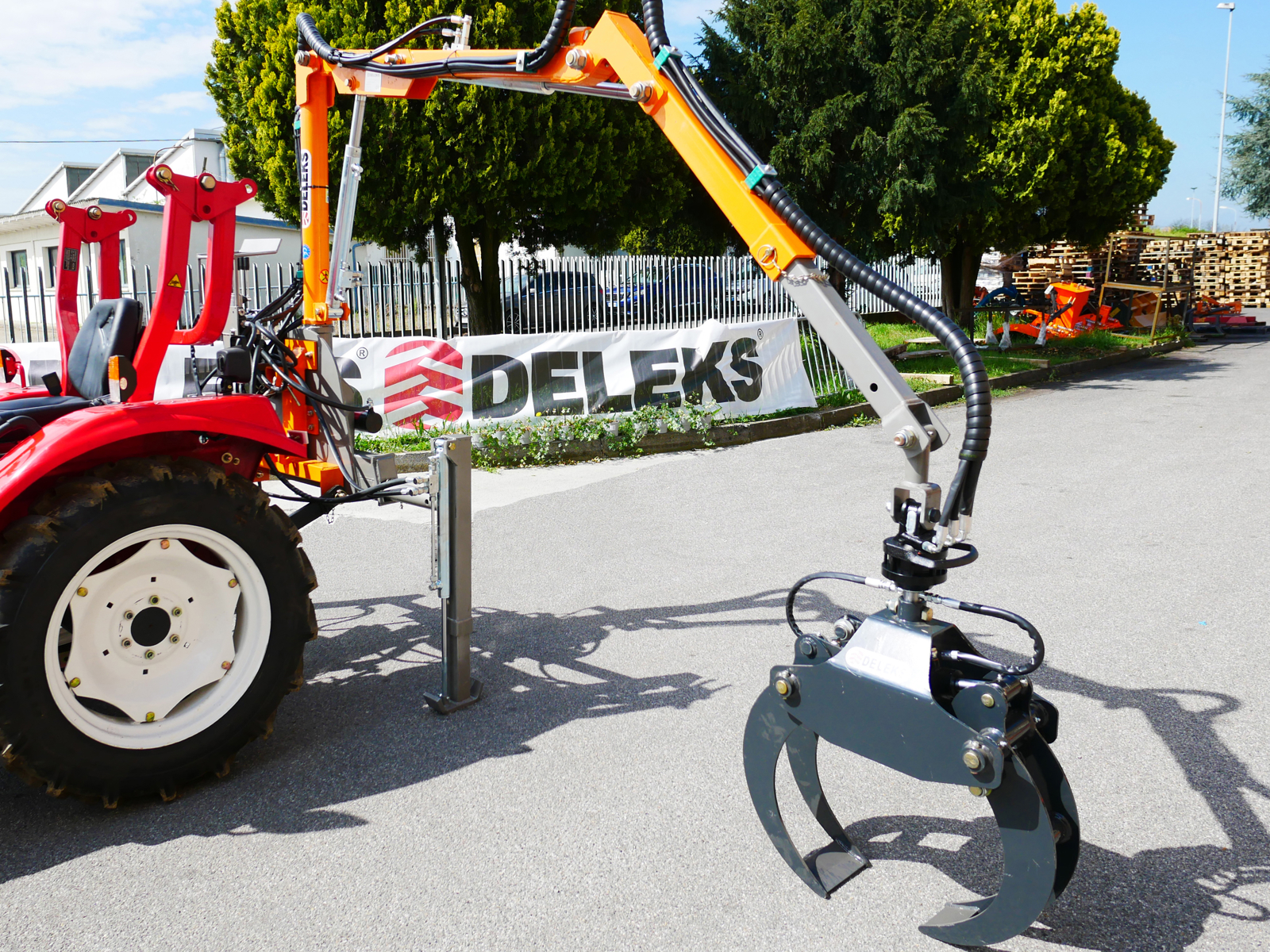

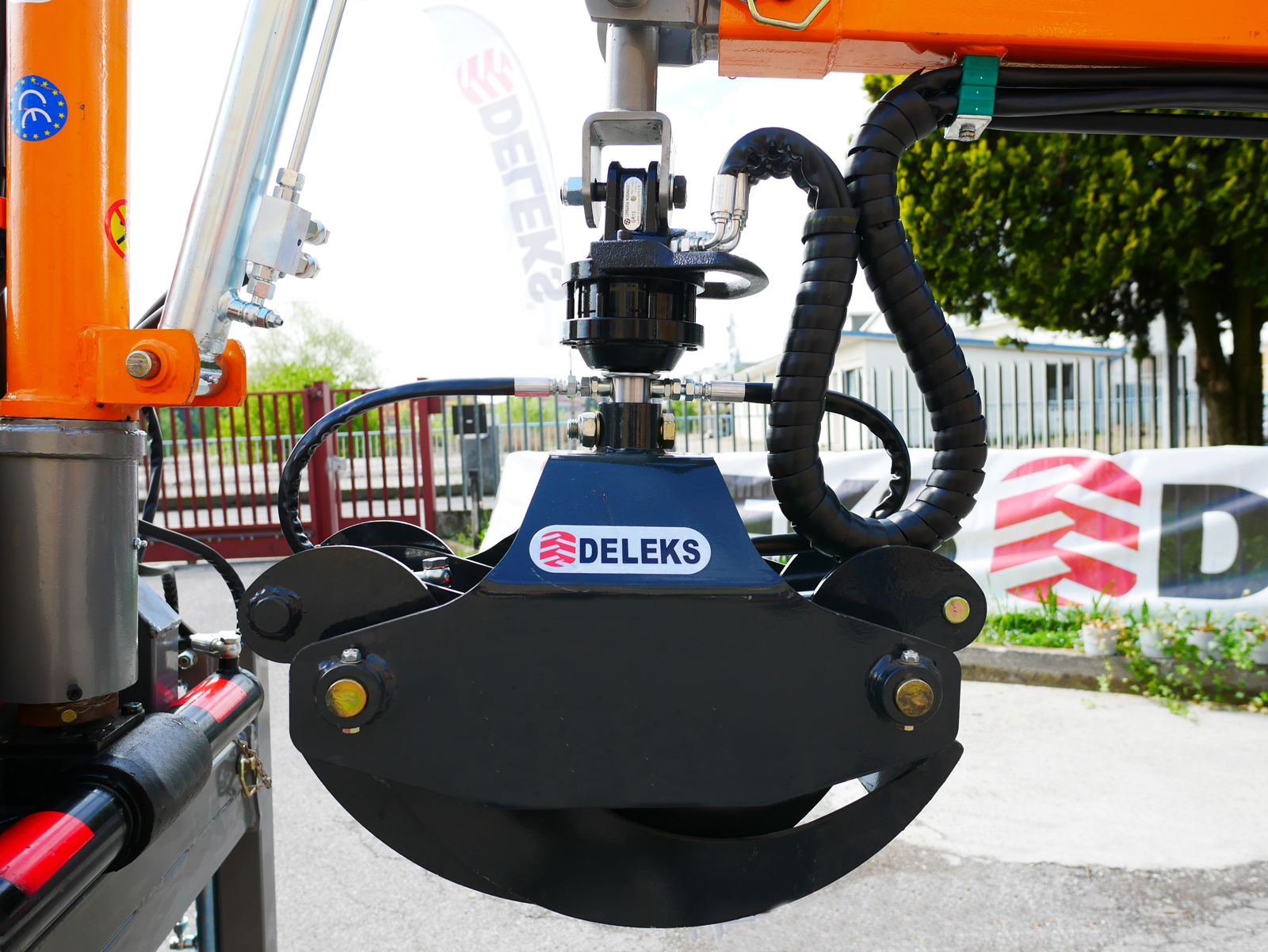

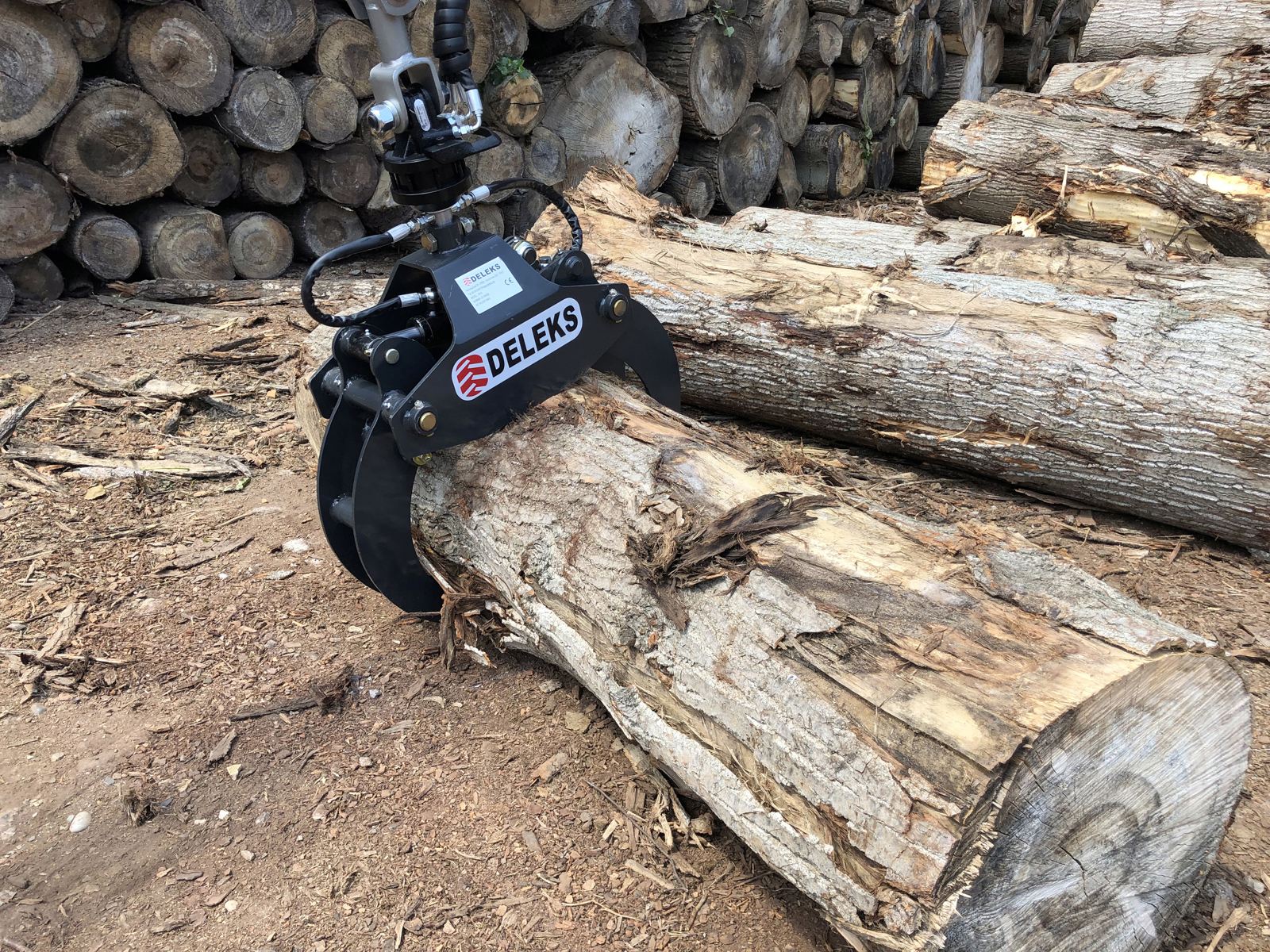

DK10 Log Grapple with GR10 Rotor Lombarda Ingranaggi® 1.0 Ton.



CHARACTERISTICS

Characteristic Units metric Units US
Weight 390.0 kg 860.0 lb
3 point linkage Cat. 1 (ø19.0mm - 22.0mm) Cat. 1 (ø19.0mm - 22.0mm)
Load capacity 250.0 kg 550.0 lb
Spacing between the 2 lower points 550.0-640.0 mm 21.65 - 25.20 in

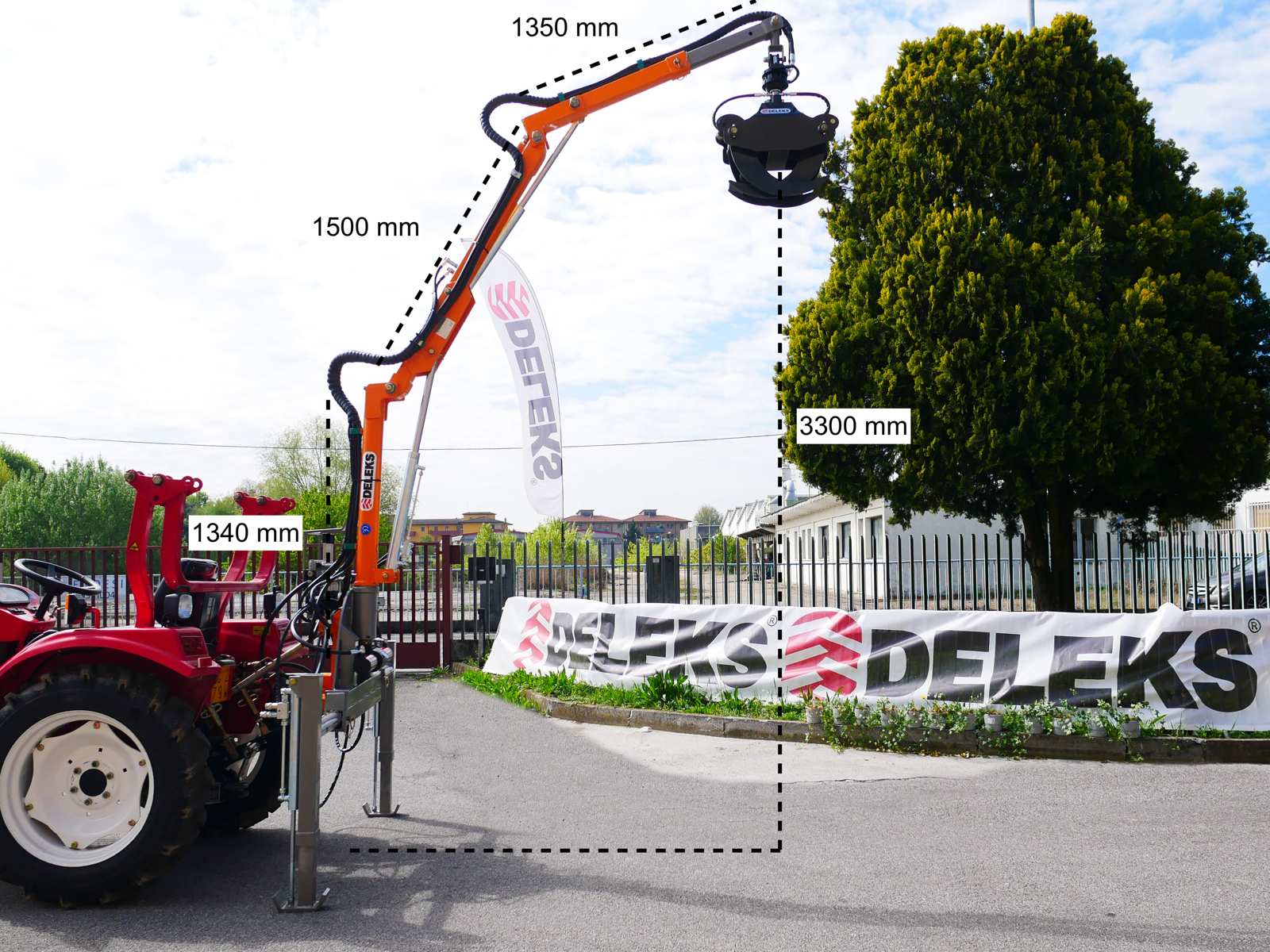

Max height lift 3300.0 mm 10.83 ft
Min./Max. Relief Pressure 90 - 150 bar 90 - 150 bar
Min./Max. Flow 30 - 40 l/min 30 - 40 l/min
Other sizes See pictures See pictures
Hydraulic Hoses WP-400 bar WP-400 bar
Telescopic boom length 9.85 ft
Lungimea brațului telescopic 3000.0 mm
Slewing Angle 270° 270°

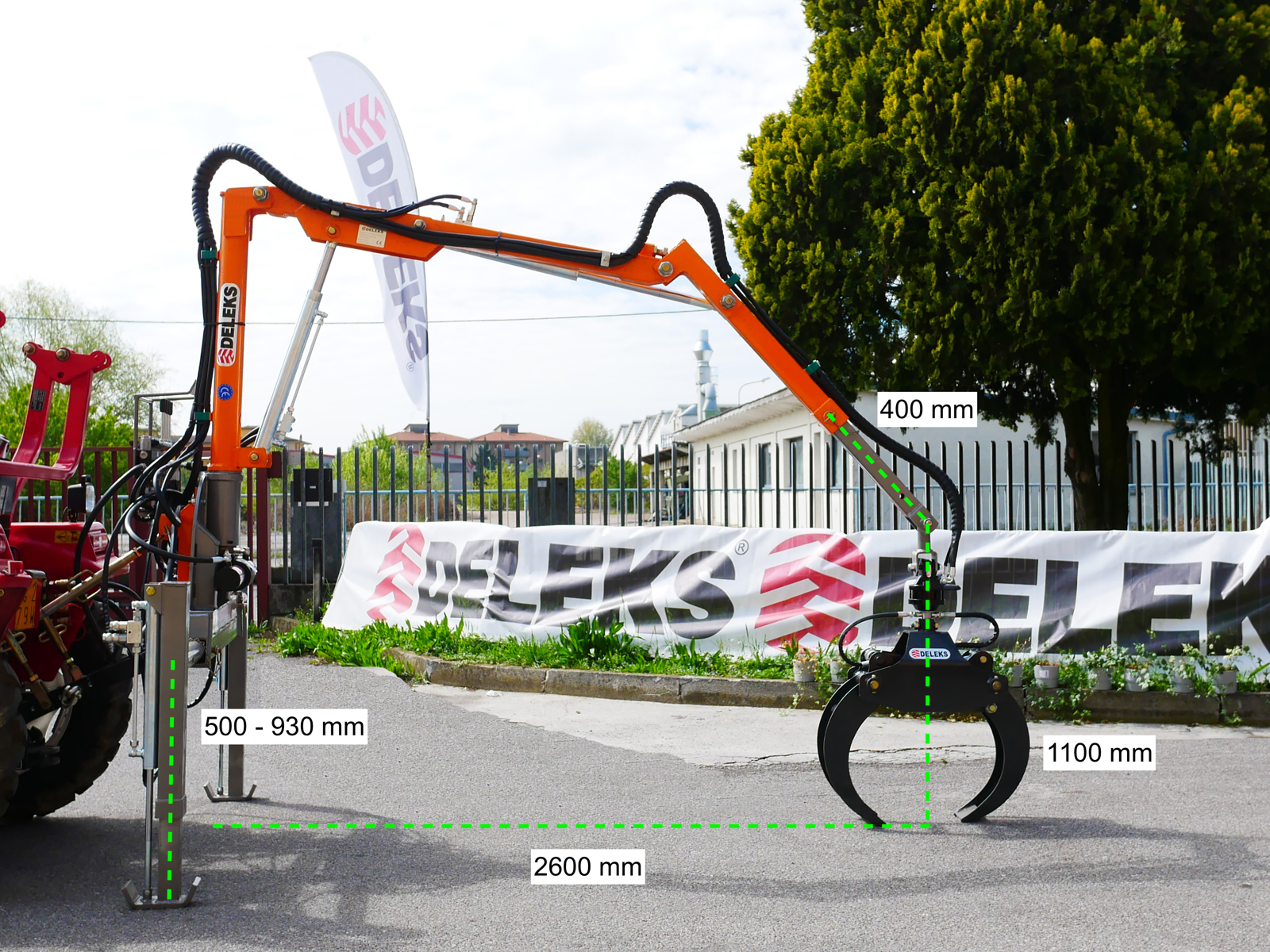

Maximum reach 2700.0 mm 8.86 ft

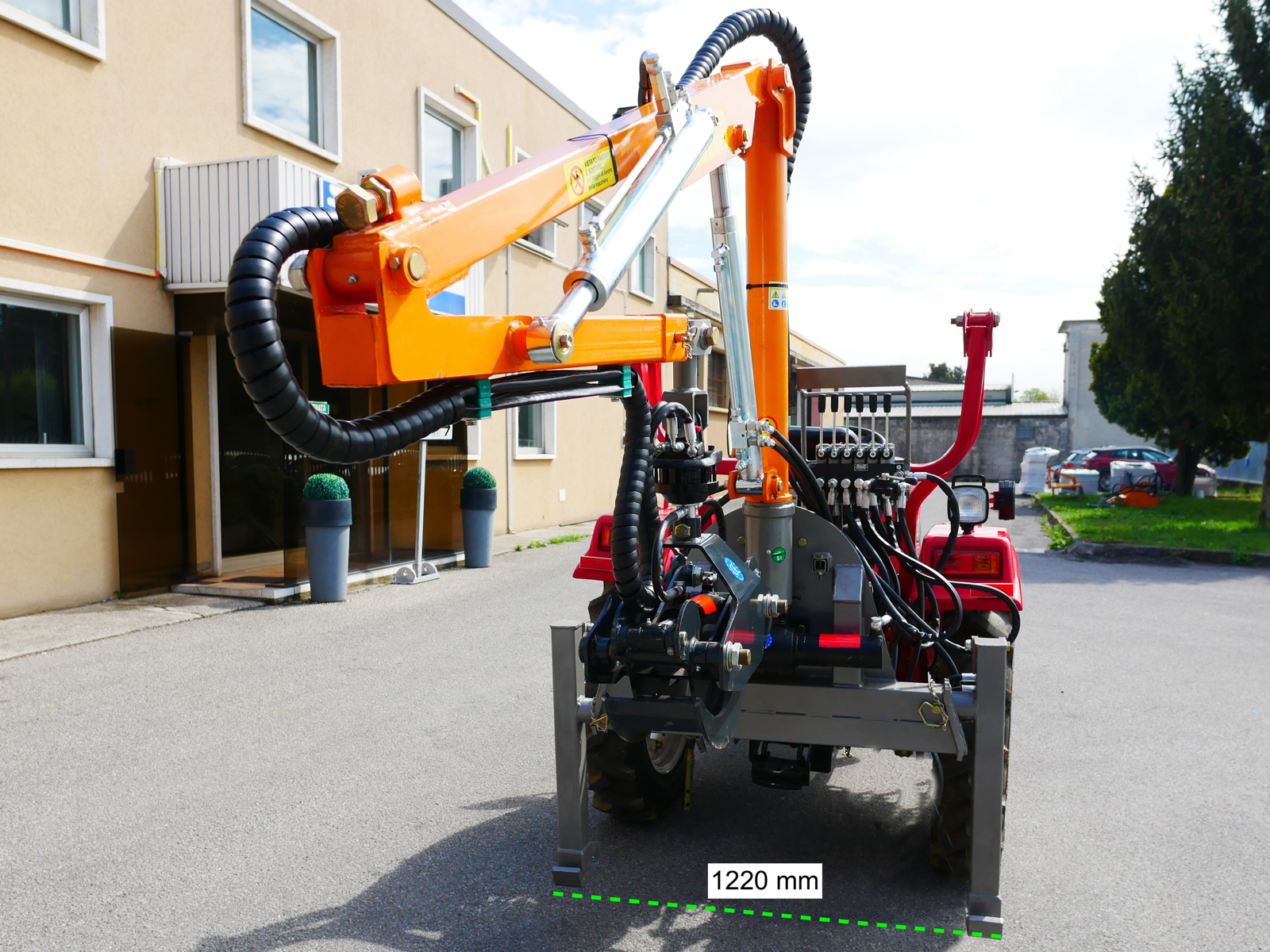

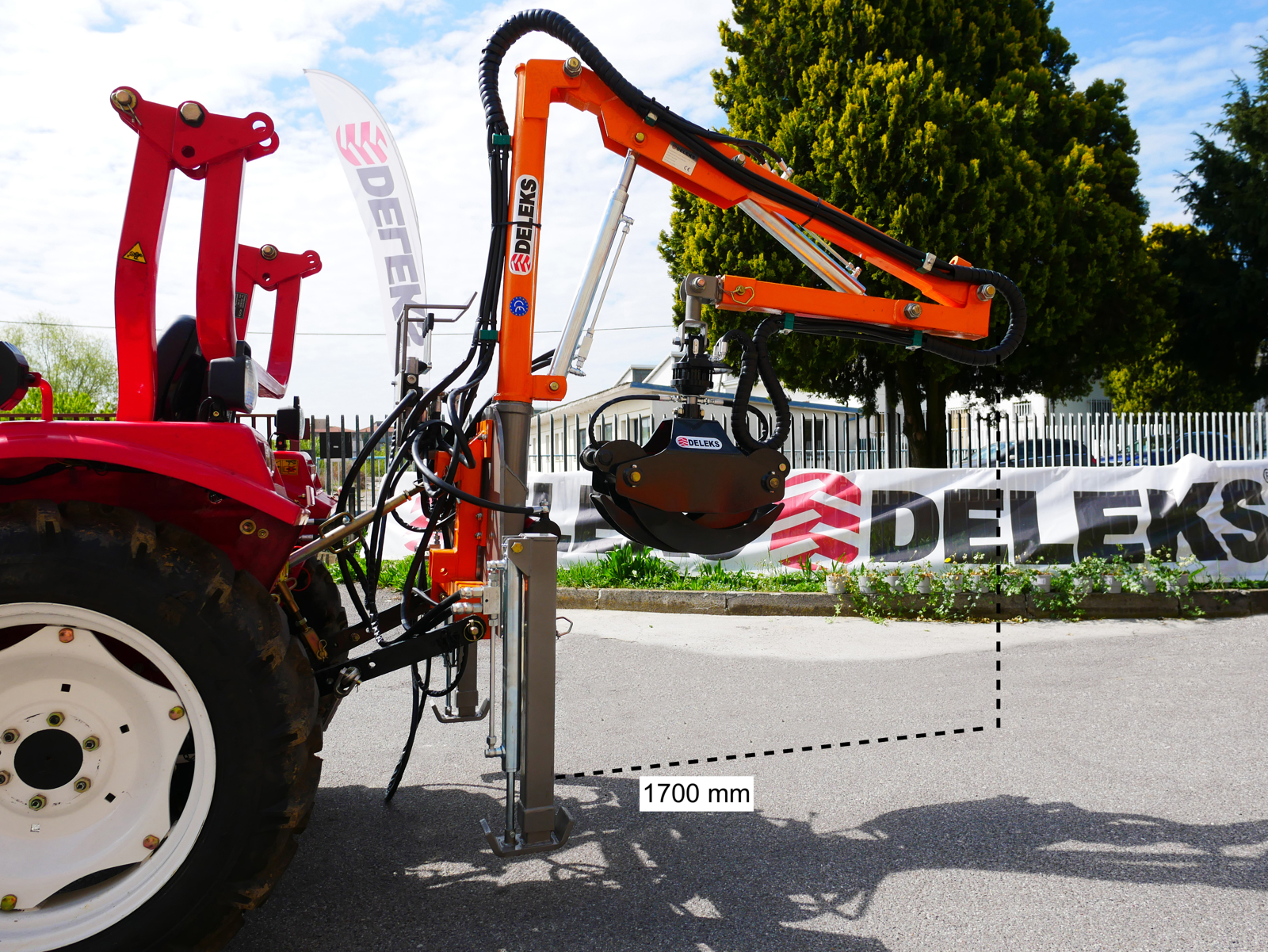

Distance between stabilizers (legs) 1200.0 / 2400.0 mm 3.94 / 7.90 ft
HP min 30 Hp 30 Hp
Standard controls CAPRONI CAPRONI
Arm Cylinders Rebos (Mantova - Italy) Rebos (Mantova - Italy)
Arms cylinders diameter 60/40.0 and 70/40.0 mm 2.36/1.58 and 2.76/1.58 in
Control Valves 4 - Made in Italy 4 - Made in Italy
Independent Stabilizers 2 2
Grapple DK-10 DK-10
Grapple: Max Opening 1055.0 mm 41.54 in
Grapple: Endless rotation 360° 360°
Grapple: Height when open 885.0 mm 34.85 in
Grapple: Width when closed 720.0 mm 28.35 in

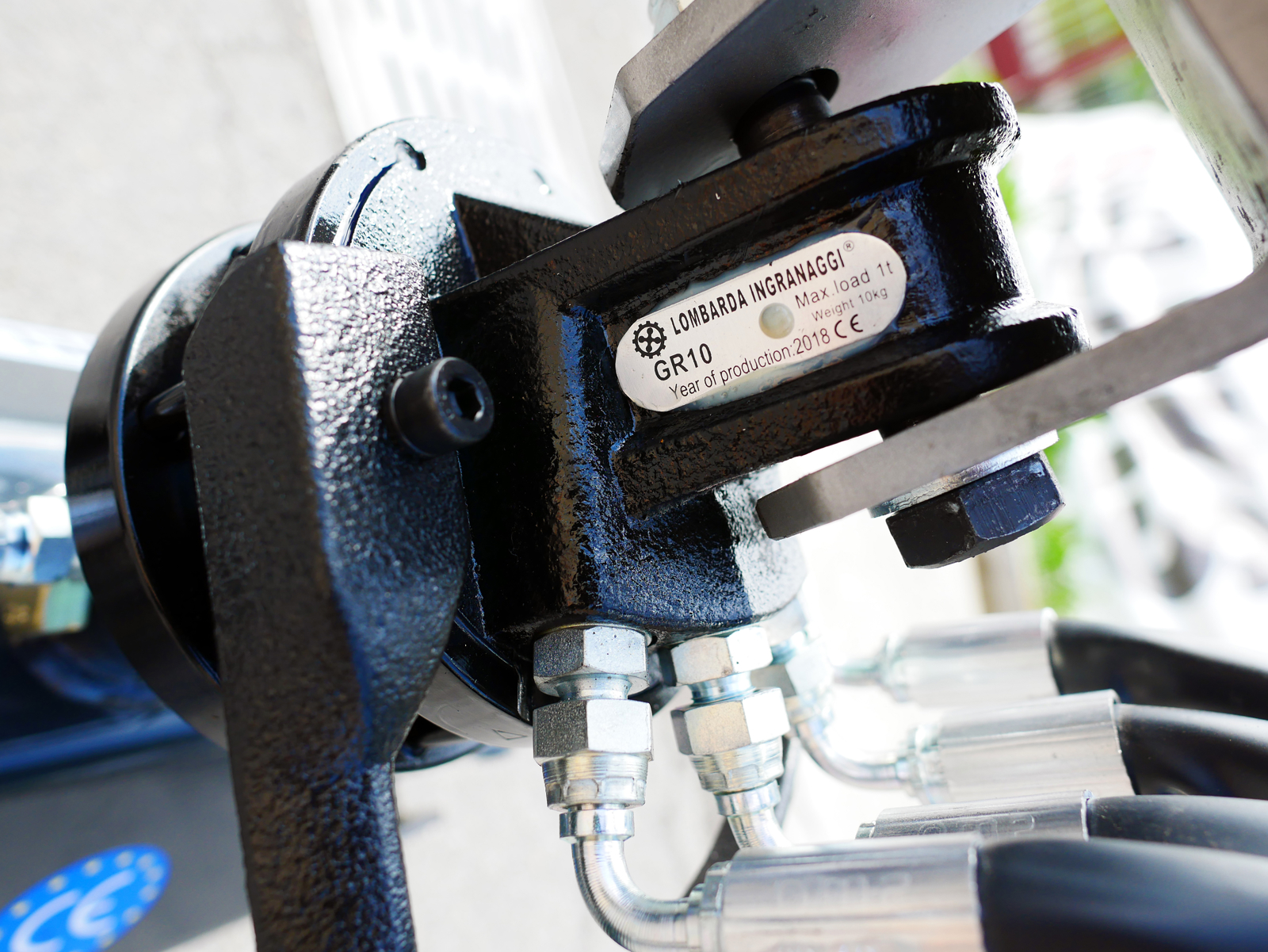

Rotator Lombarda Ingranaggi GR-10 Lombarda Ingranaggi GR-10
Grapple: Weight with rotator 63.0 kg 139.0 lb

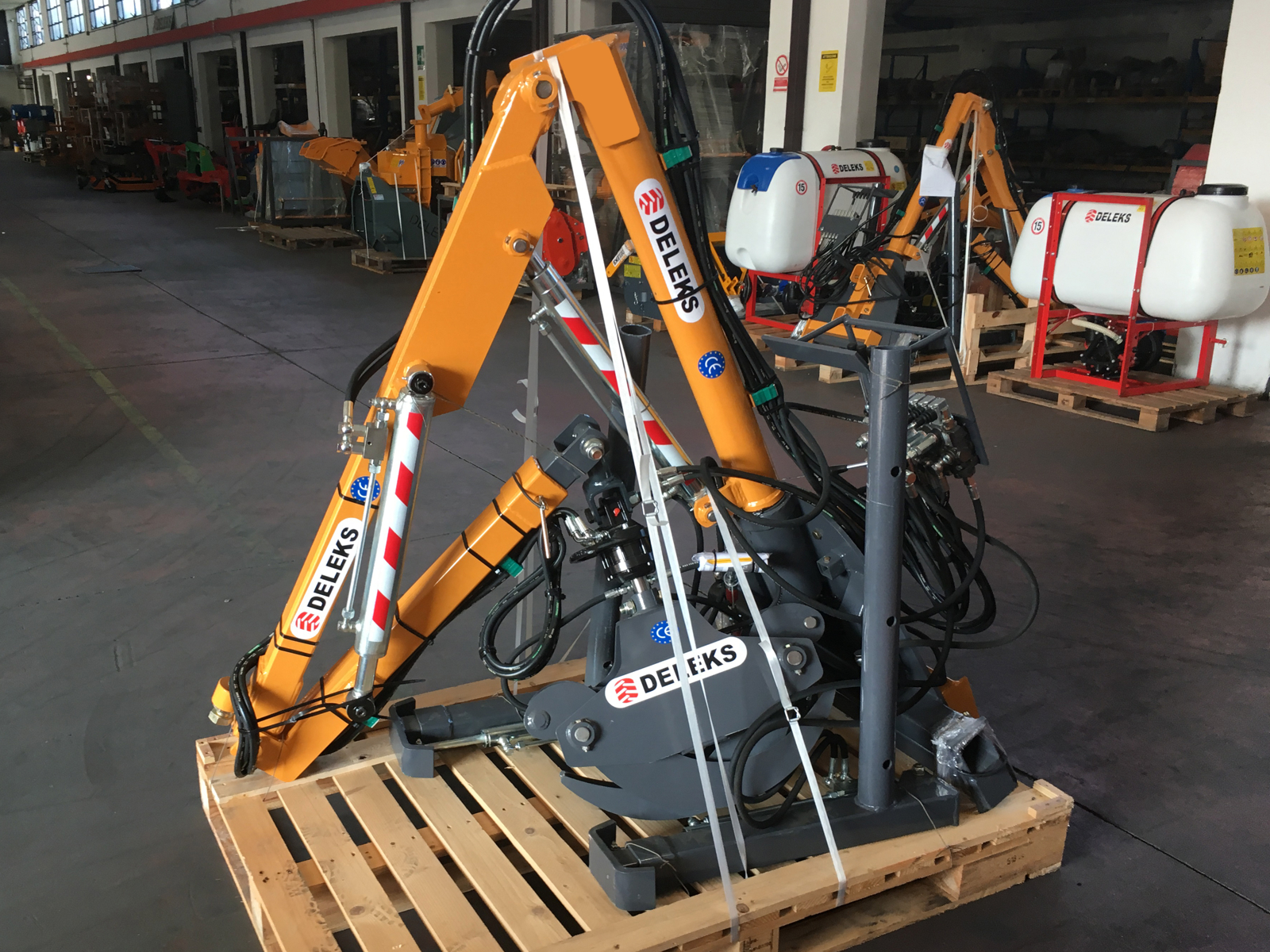

Packing sizes 1200.0*1500.0*1750.0 mm 3.94*4.92*5.75 ft
