Hydraulic Log Belt for tractor - mod. NTL
DETAILS
Hydraulic Log Belt Conveyor, 5,00m DELEKS®- Galvanized body to prevent rust.
OVERVIEW
The NTL Log belt conveyor is extremely robust and durable. It has a 5 meter ramp and converyor belt to offer a versatile solution to moving and loading timber or any other type of suitable material. To use the article are indispensable 2 hydraulic outlets of the tractor. The product is inclusive of adjusting belt tension, torque wheels and handle for moving. EC Conformity, 2 Year Warranty.
BENEFITS & FEATURES
The conveyor belt has the capacity to carry decent sized firewood logs. Although the conveyor belt width is 150 mm, it's purpose-built structure guarantees the transport of wood with a diameter of 300 mm without loosing logs or straining the machine.
Wood remains in a longitudinal position within the side rails so the logs do not roll, avoiding any risk for the operator.
Easily movable due to it's lightweight design.
Galvanized body to prevent rust.
The ramp can be folded into three pieces while in transit.

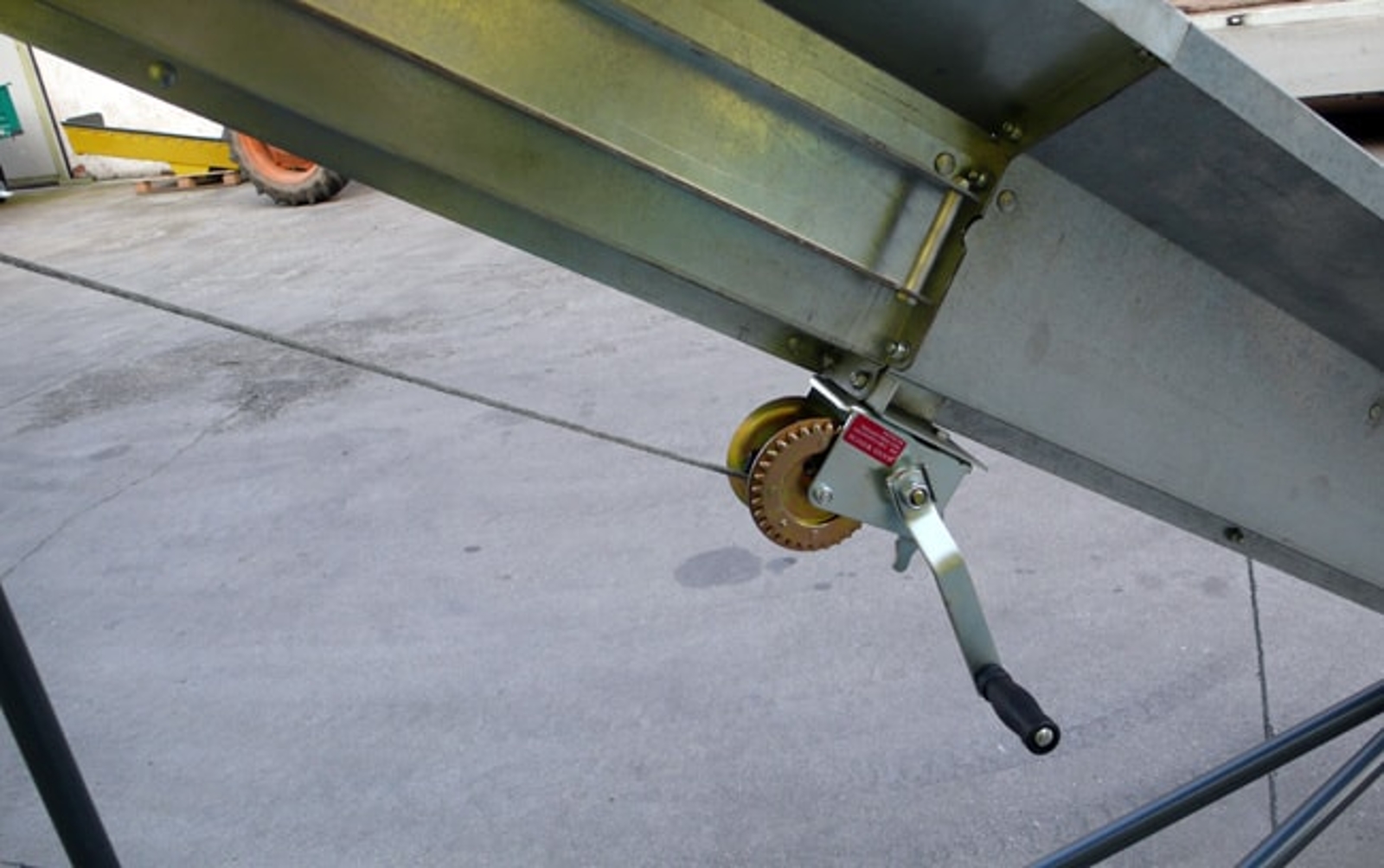

The gradient can be adjusted depending on the usage.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 150.0 kg | 330.69 Ib |
| Hydraulic Pipes (2) | 1500.0 mm / connections 1.2" AGRI, WP-400 bar | 60.0 in / connections 1.2" AGRI, WP-400 bar |
| Min./Max. Relief Pressure | 80-140 bar | 80-140 bar |
| Min./Max. Flow | 20 - 30 l/min | 20 - 30 l/min |
| Lenght | 5000.0 mm | 16.40 ft |
| Height | 3600.0 mm | 11.80 ft |
| Ramp width | 440.0 mm | 1.44 ft |
| Conveyor Belt Width | 150.0 mm | 5.90 in |
| Max ø of the logs | 300.0 mm | 11.80 in |
| Distance between dividers | 700.0 mm | 27.56 in |
| Dividers' height | 40.0 mm | 1.58 in |
| Packing sizes | 720.0*1800.0*700.0 mm | 23.60*60.0*23.0 ft |
