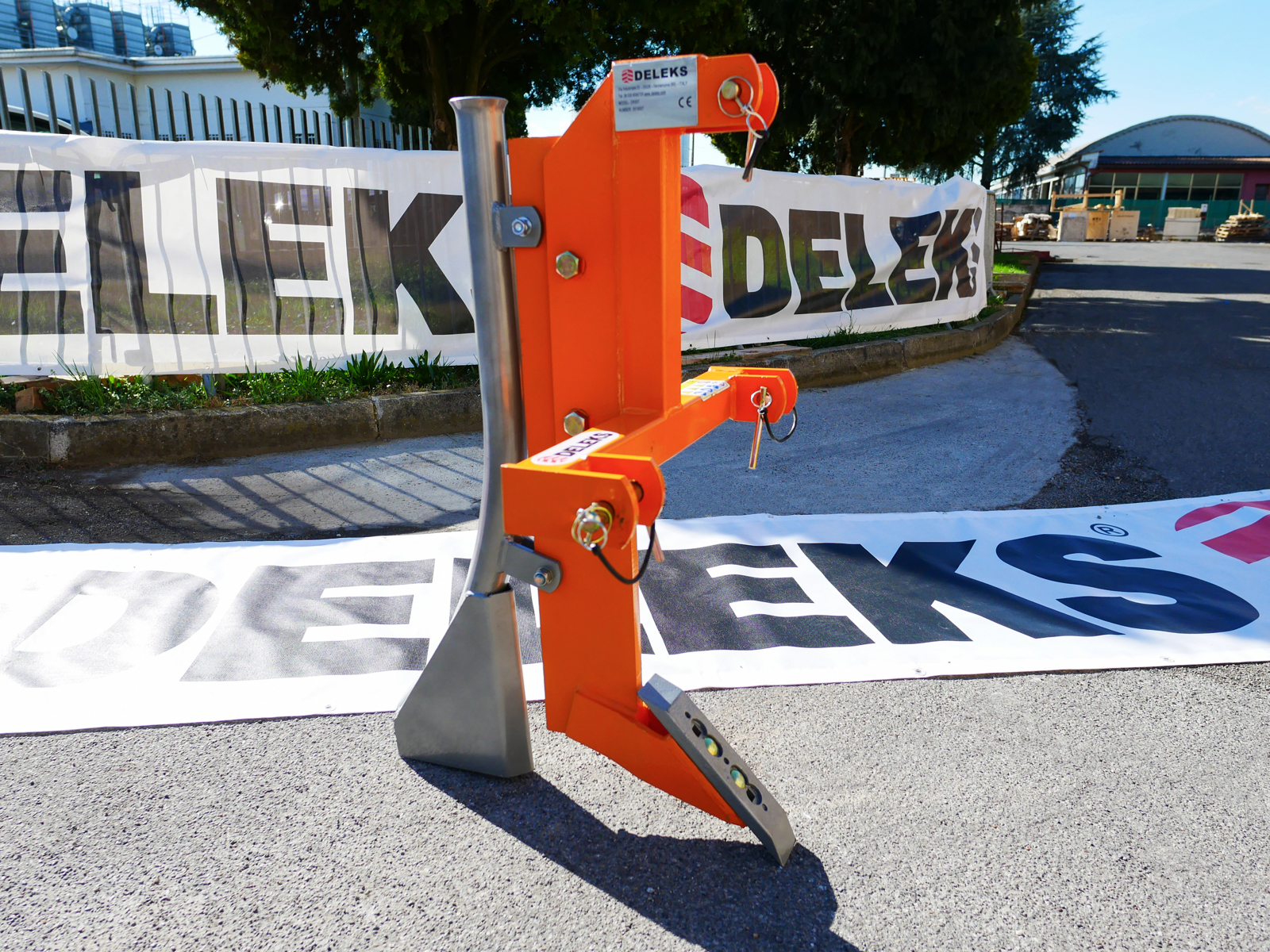

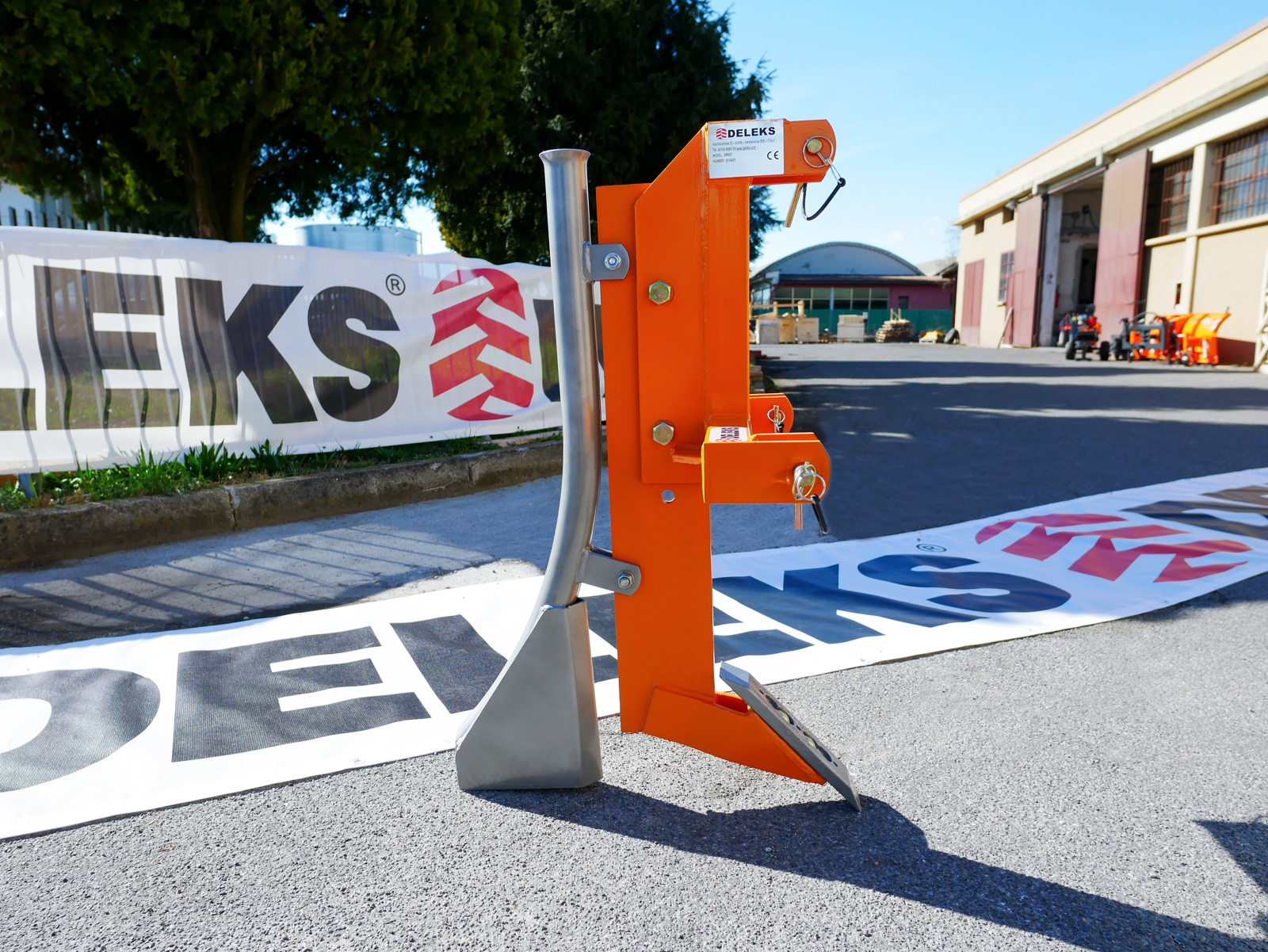

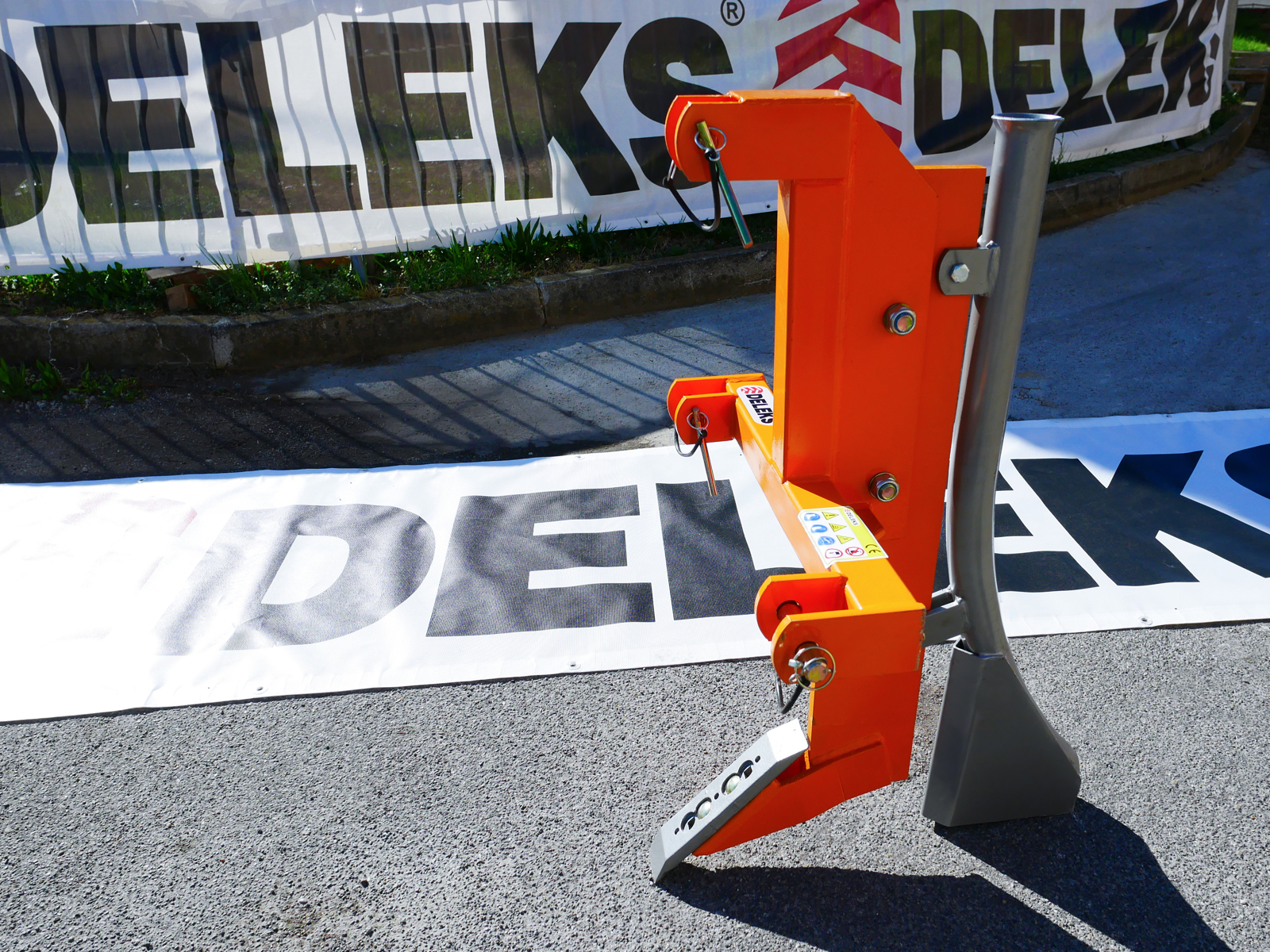

Single tyne ripper for tractors like Kubota mod. DR-30


282 reviews

Code DR30
EAN 8053470230271
View all details.
390,00VAT incl.
Free shipping

DELEKS® DR-30: Unpacking by Alberto
DELEKS® DR-30: Unpacking by Alberto

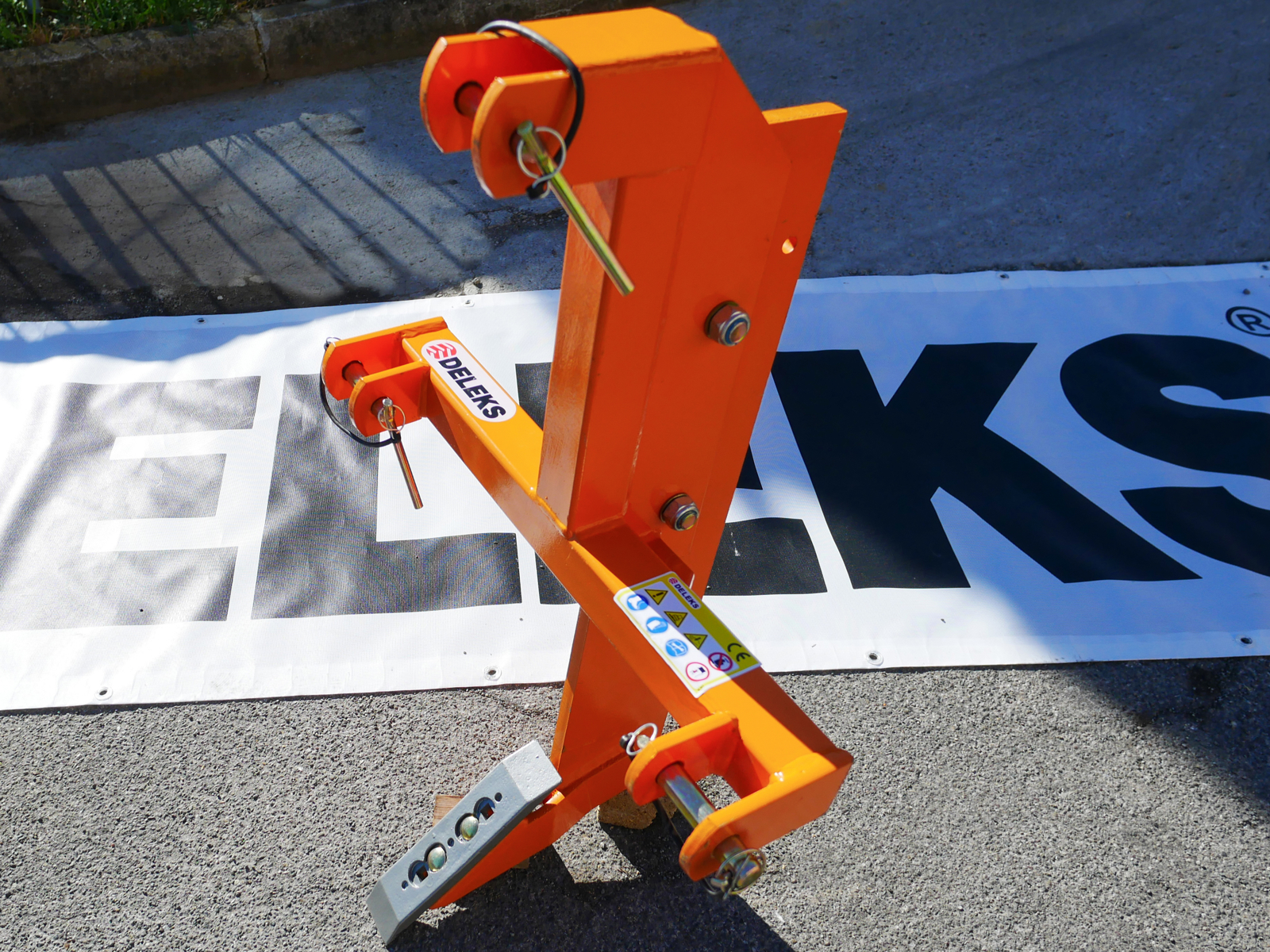

Single tine ripper for tractor like Kubota, John Deere - DELEKS® - Reversible cutting tooth that is easily replaced.



DR-30 single tine ripper can be used for preparing soil for crops and lawns or even for removing tree stumps.

It fits most common compact wheeled tractor brands:  Japanese tractors Kubota, Kioti, Iseki, Pasquali, Yanmar, Solis, Mahindra, and compact tractors like New Holland Boomer 25, John Deere, Pasquali, Ferrari etc. Universal 3 point linkage Cat.1. EC Declaration of Conformity.

Not suitable for crawler tractors.

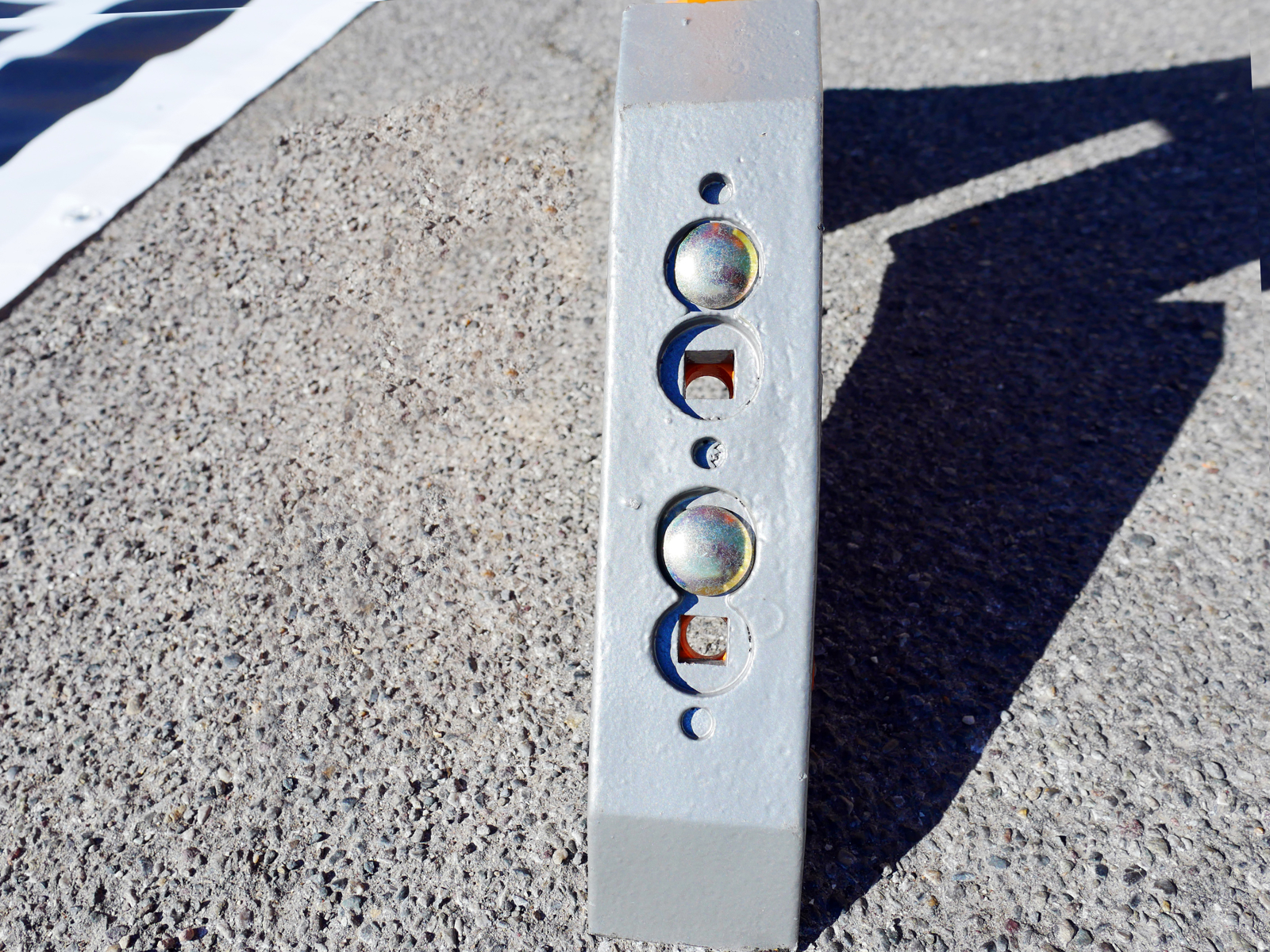

Reversible cutting tooth that is easily replaced.

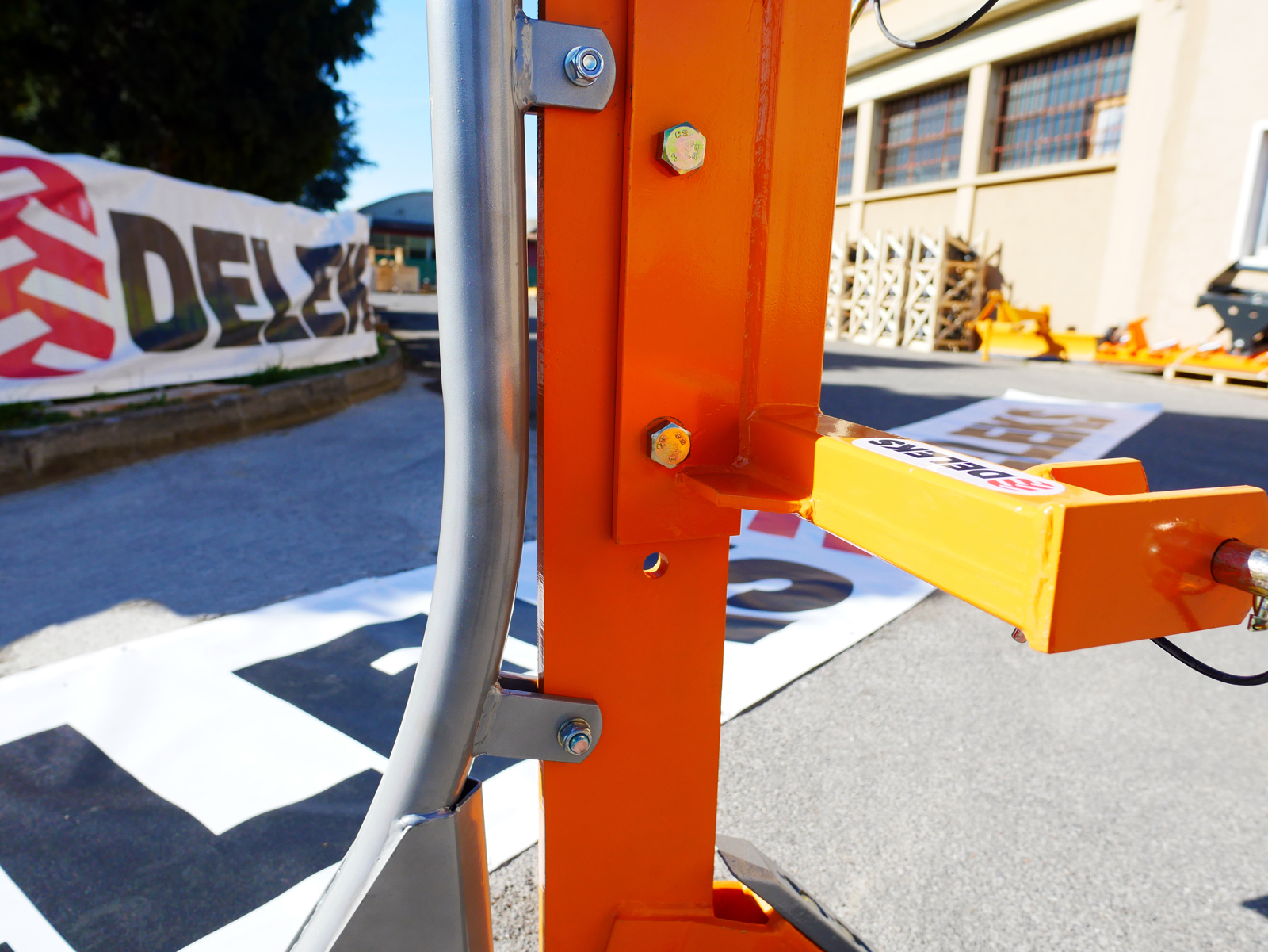

Extremely strong and height adjustable tine.

Reinforced steel framing for longer life.

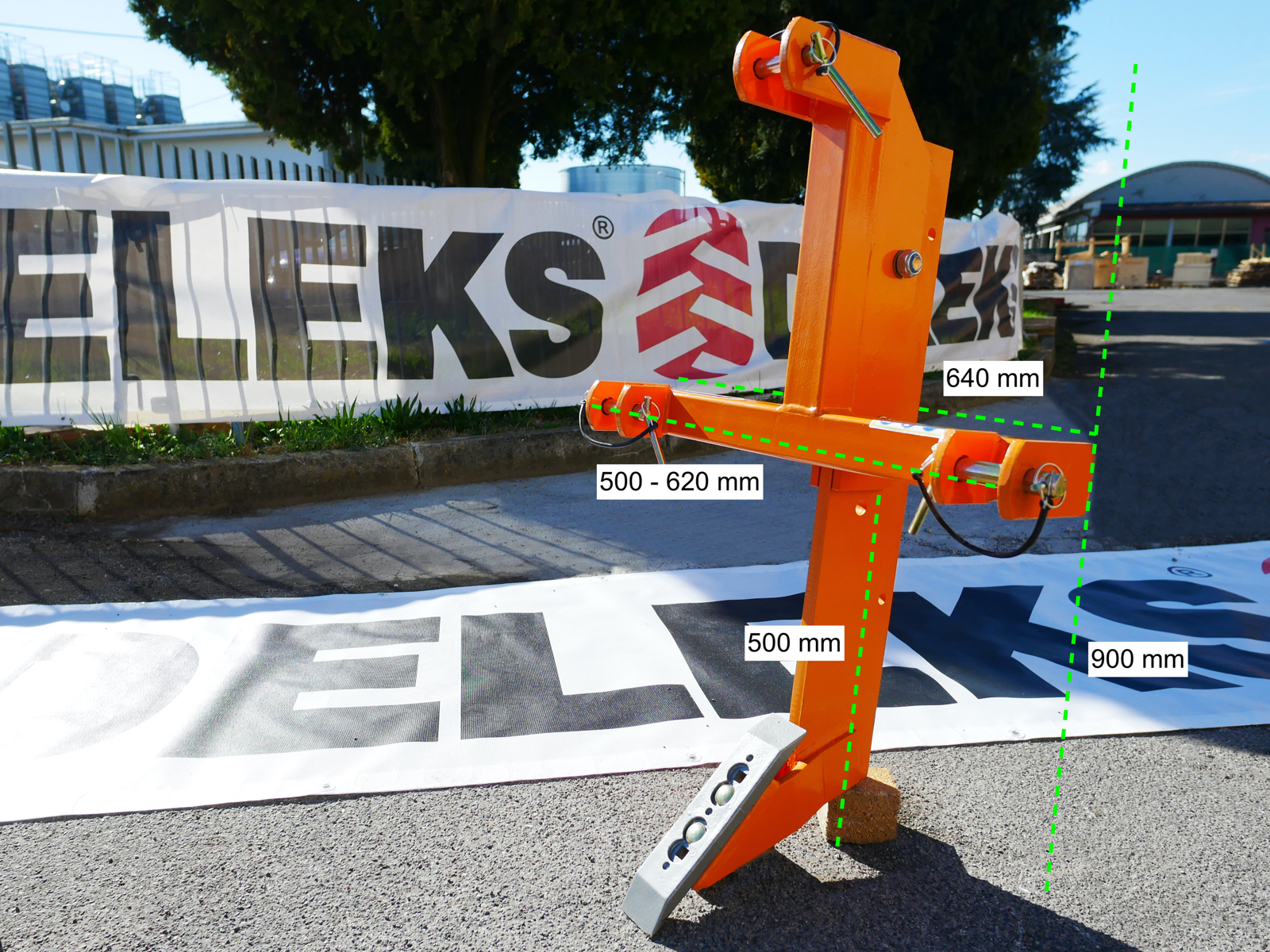

Characteristic Units metric Units US
Overall width 640.0 mm 2.10 ft
Weight 55.0 kg 121.0 lb
Overall height 900.0 - 1100.0 mm 2.95 - 3.60 ft
Tractor Power Range 12 - 45 Hp 12 - 45 Hp

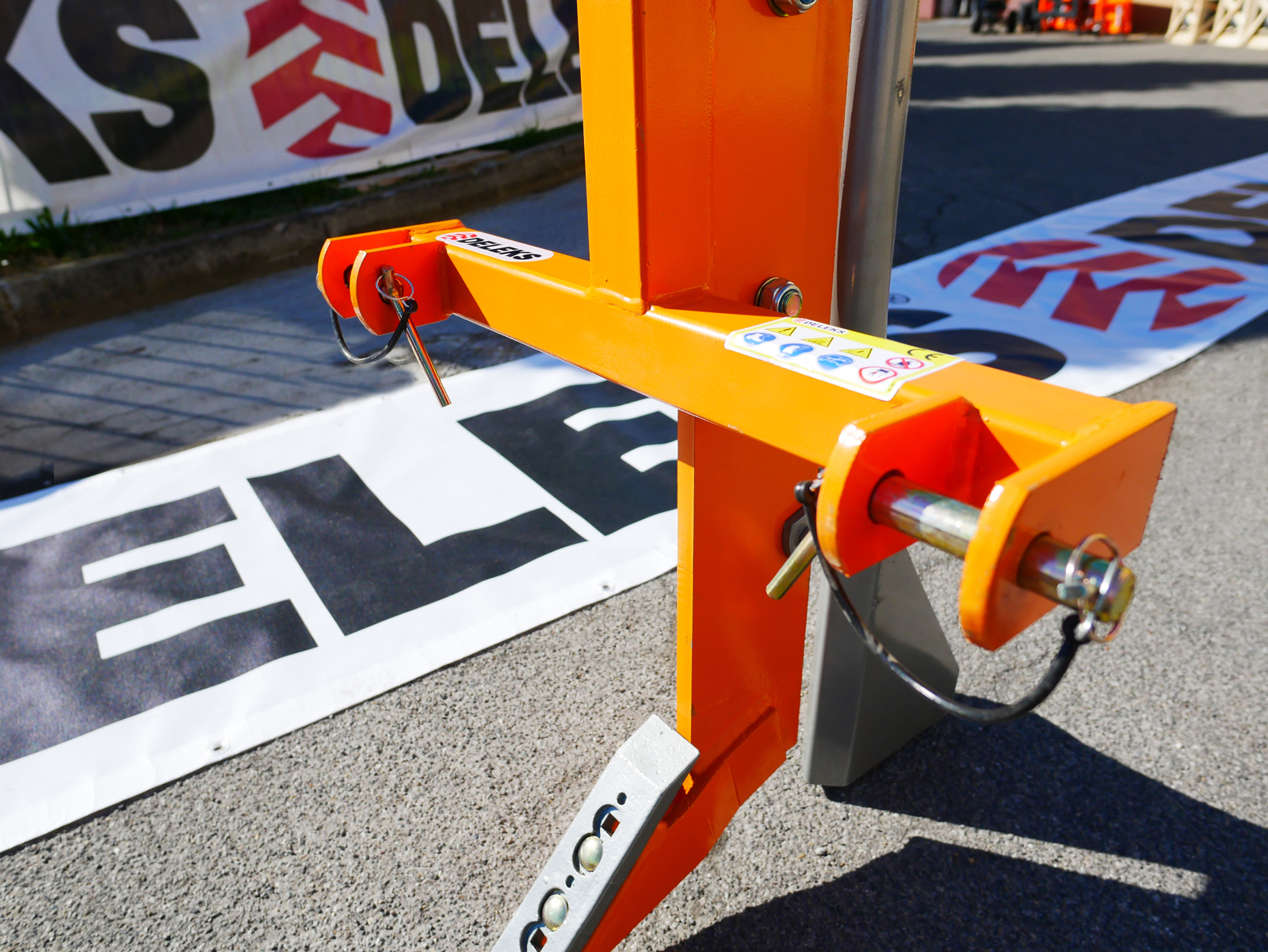

3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Spacing between the 2 lower points 500.0 - 620.0 mm 19.70 - 24.40 in
Other sizes See pictures See pictures
Thickness of the arm 20.0*150.0 mm 0.78*5.90 in
Shank width 150.0 mm 5.90 in

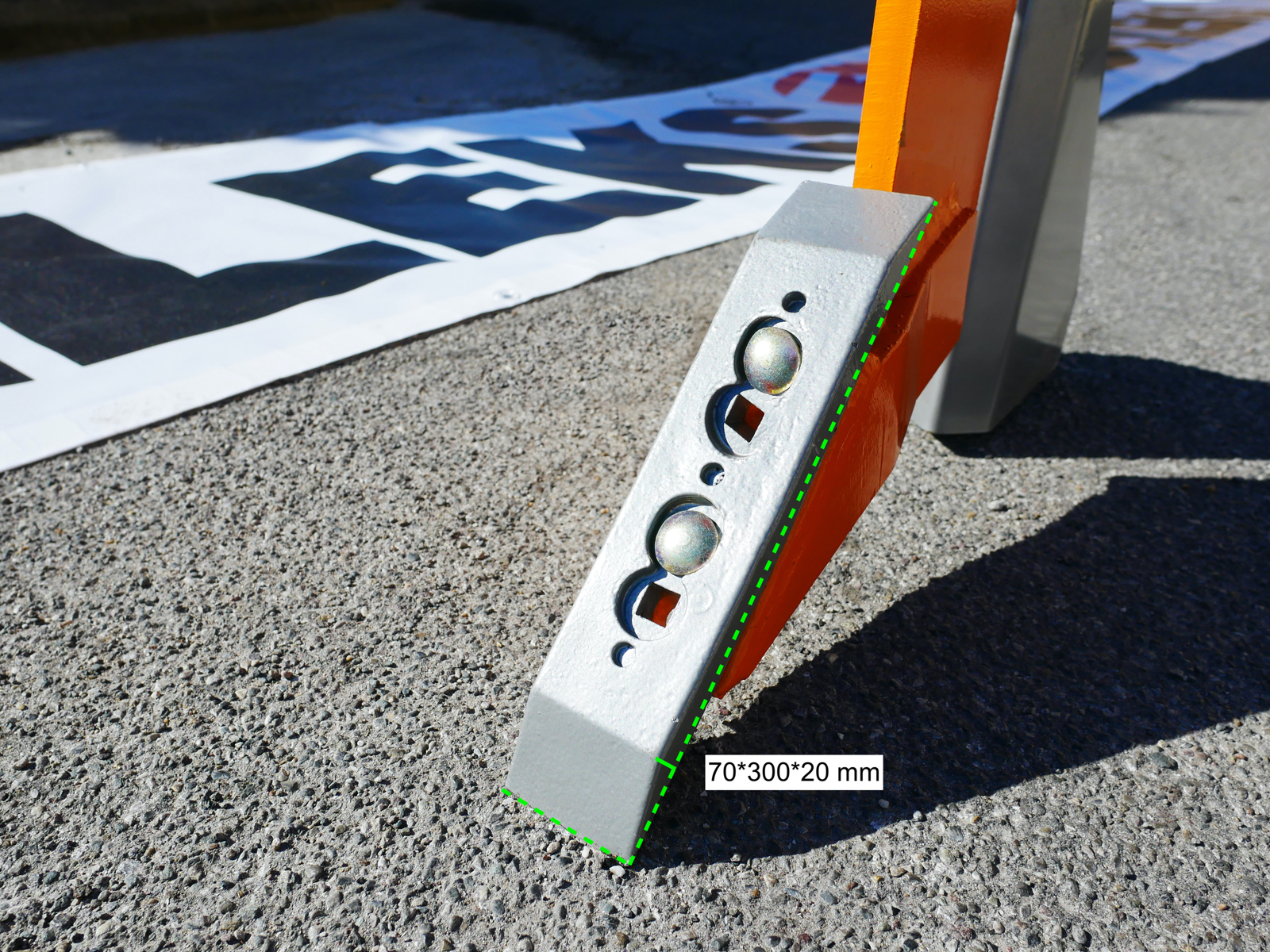

Removable blade Thickness 20.0 mm 0.78 in
Removable blade Width 70.0 mm 2.75 in
Removable blade Length 300.0 mm 11.80 in

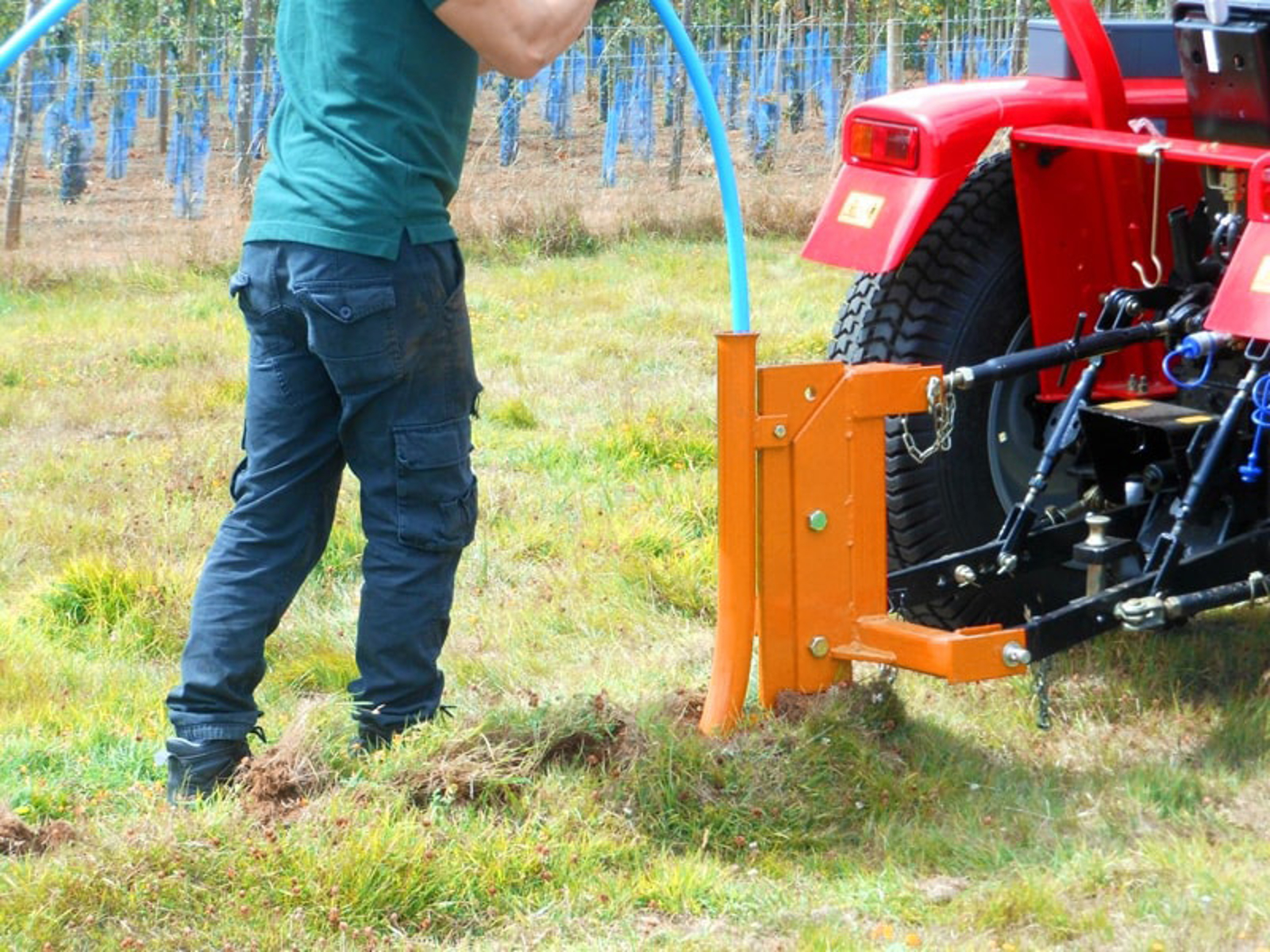

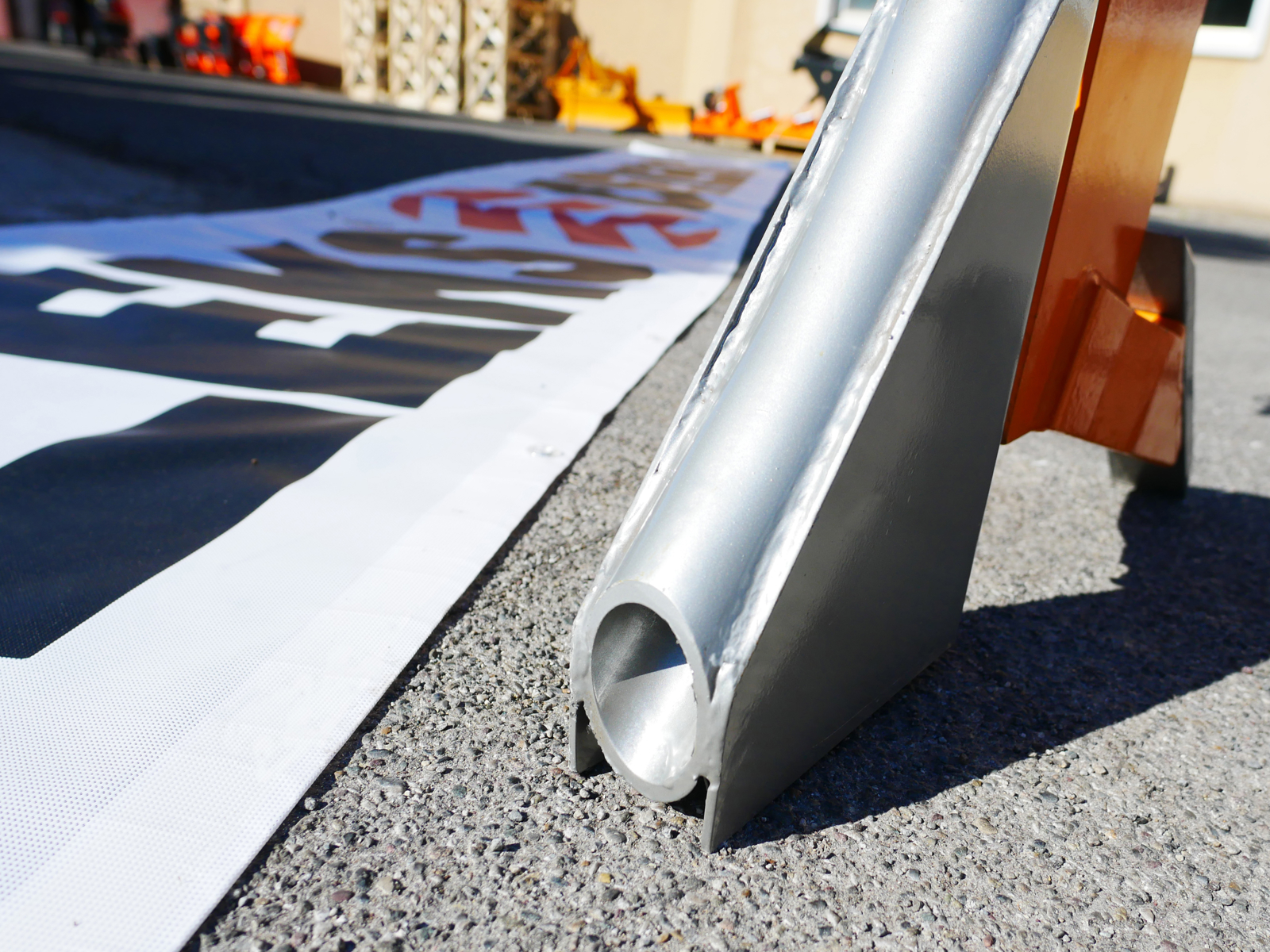

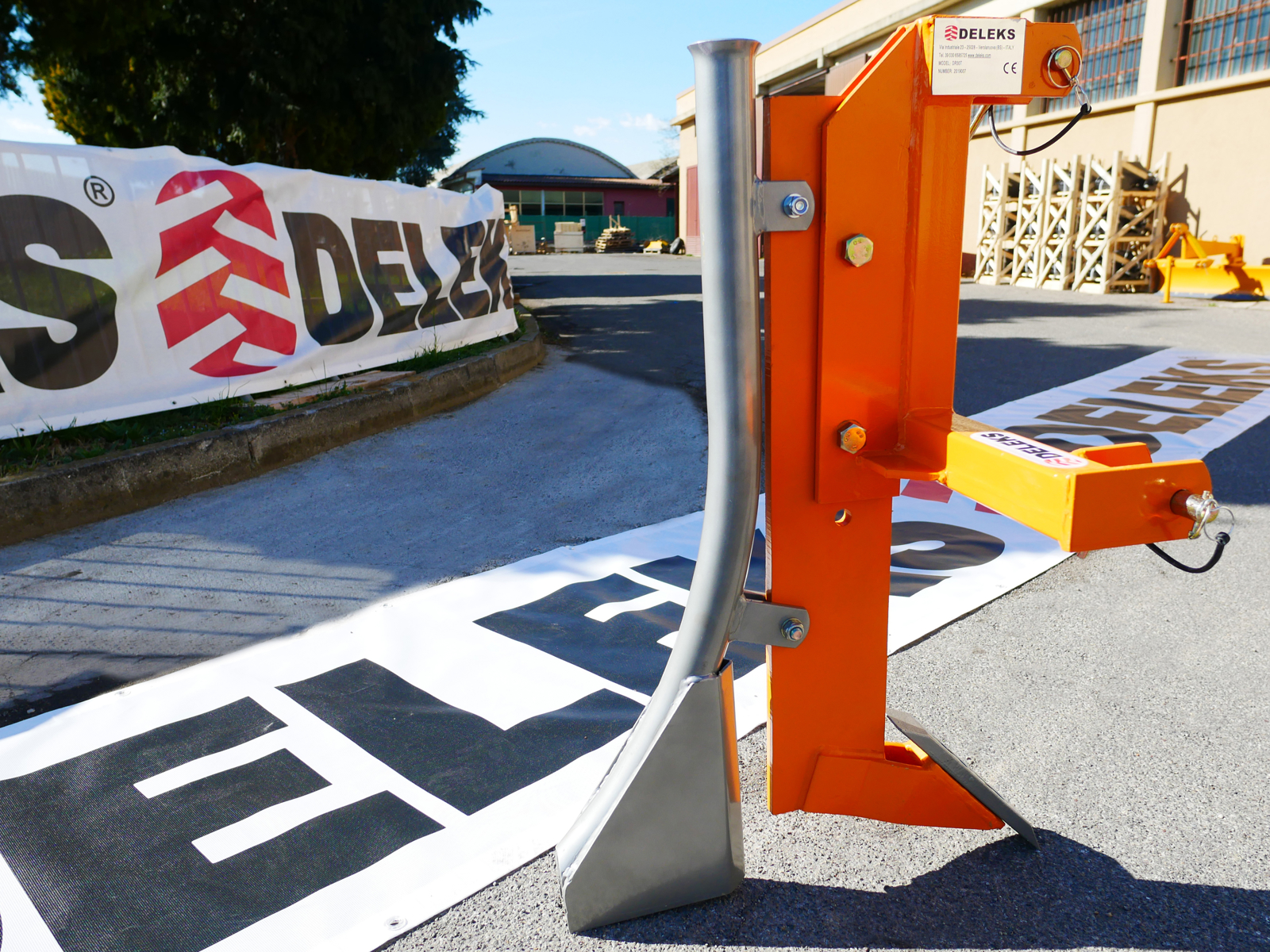

Pipe Layer: weight 10.5 kg 23.15 lb
Pipe Layer: ø 50.0 mm 1.97 in
Working Depth 500.0 mm 19.68 in
Packing sizes 950.0*700.0*500.0 mm 3.11*2.30*1.65 ft


blade dr
Blade DR
65,00VAT incl.

DR-30 / DR-60

spare pins cat 1 a
Spare pins Cat. 1 A
49,00VAT incl.

ø 19.0/22.0 mm
