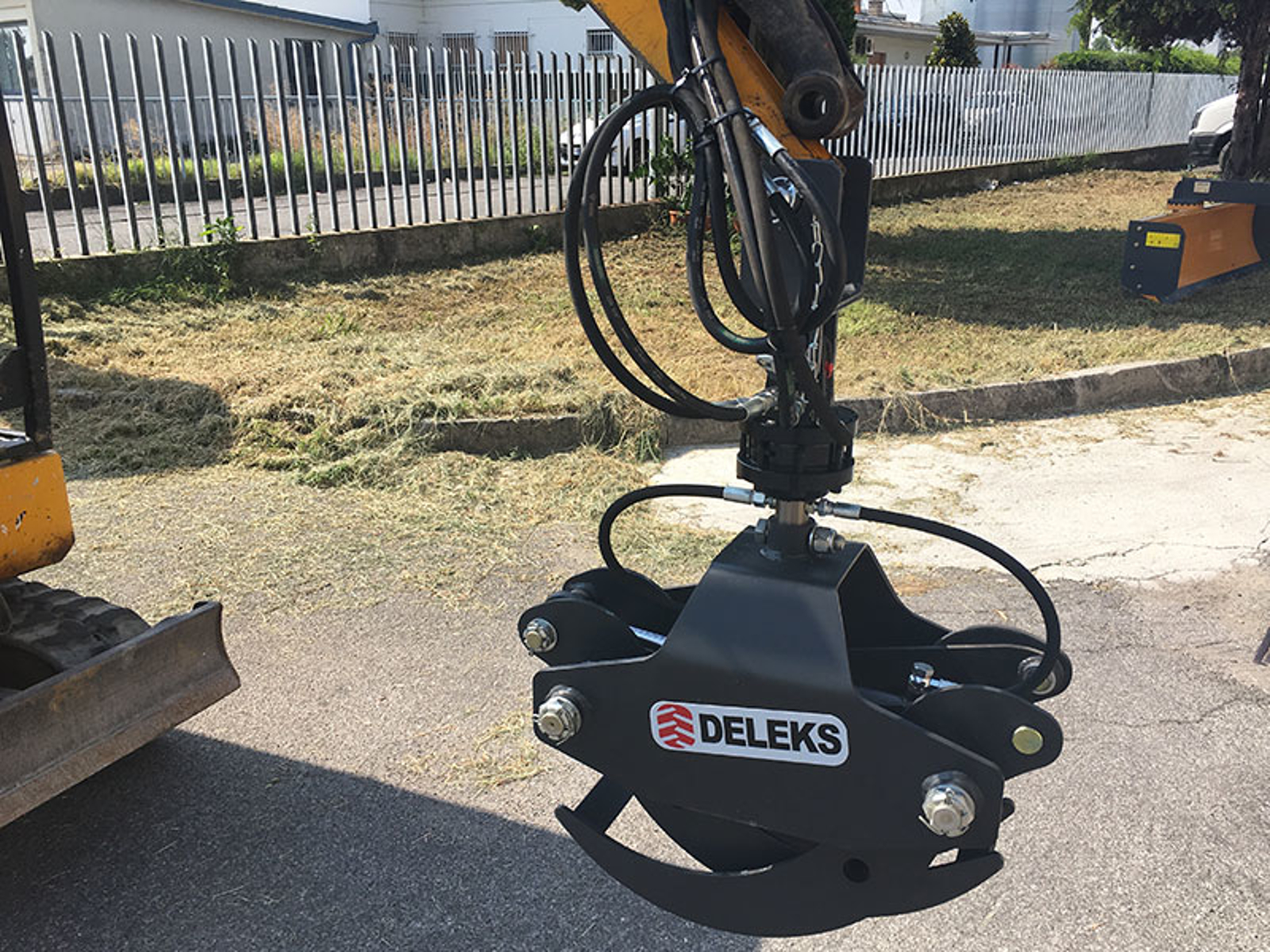

Field test
DETAILS

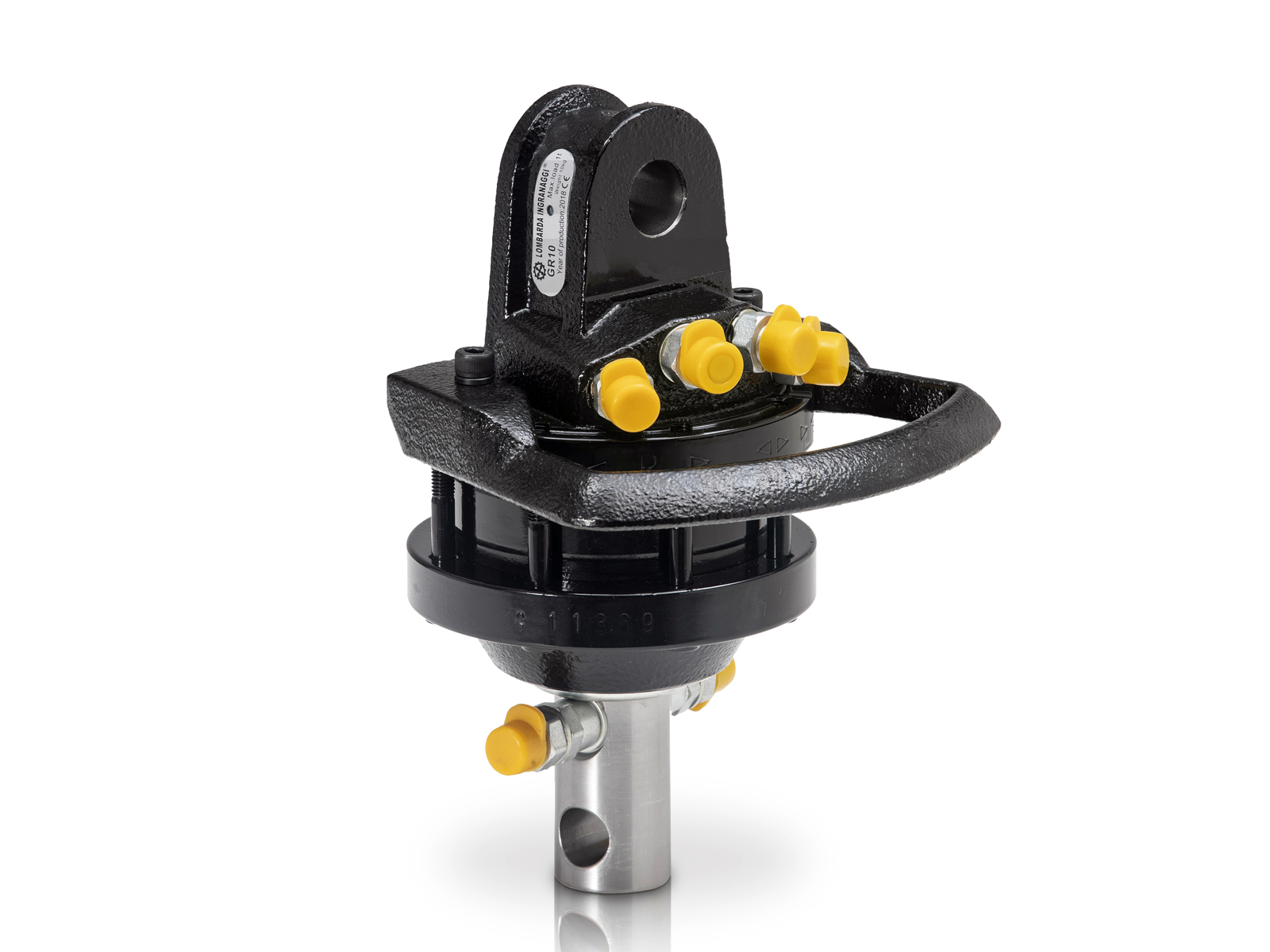

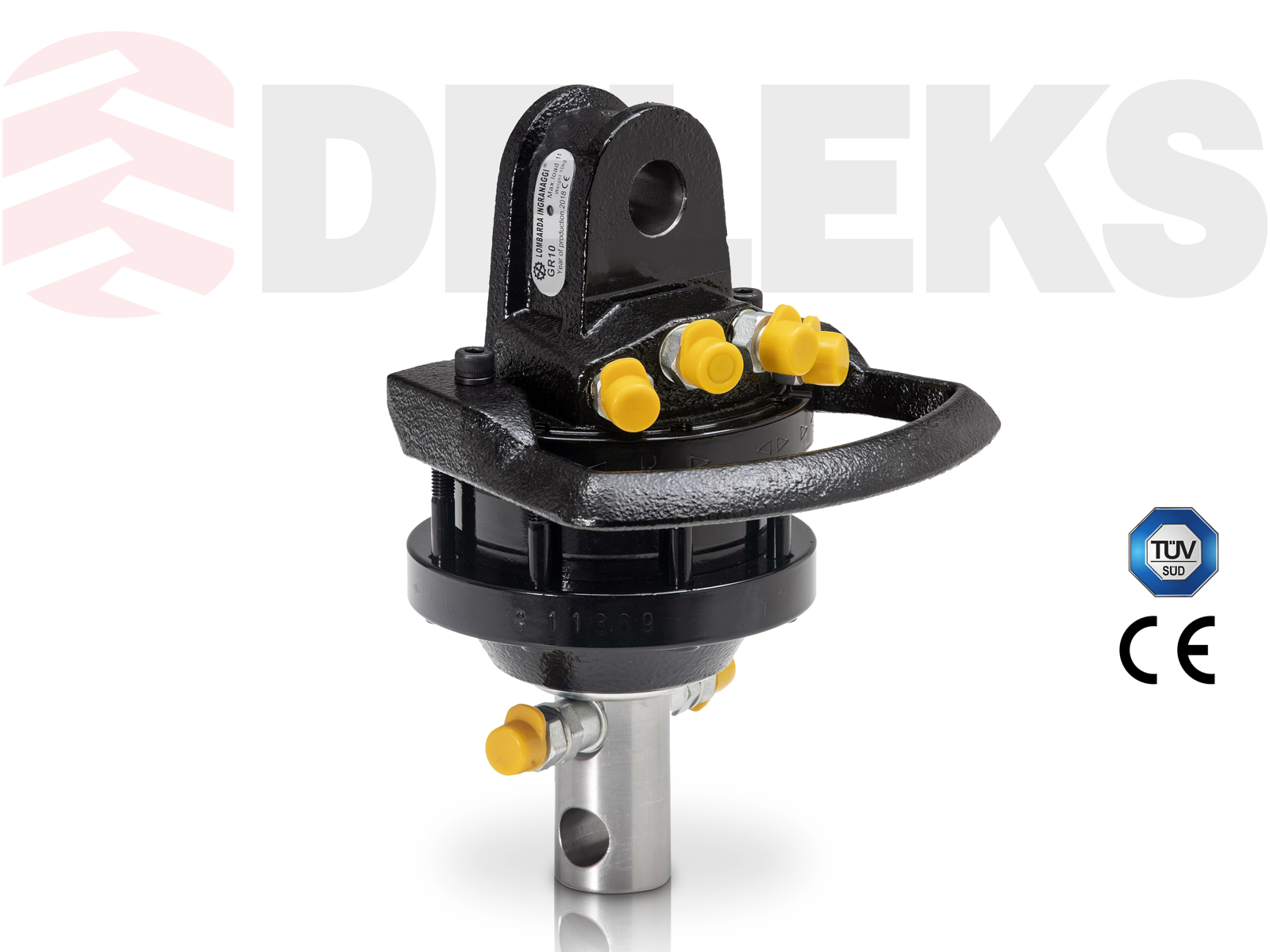

Lombarda Ingranaggi® GR10 Hydraulic Rotator 1Ton.
Lightweight cost-effective solution suitable for ATV (All Terrain, small agricultural and forestry Vehicles).
ROTATION Unlimited
MAX. AXIAL LOAD STATIC 10 kN (2250 lbf)
MAX. AXIAL LOAD DYNAMIC 5 kN (1125 lbf)
TORQUE @__MPA 350 Nm (332 lb ft)
REC. OILFLOW 10 l/min (2.6 US gallons)
WEIGHT 10 kg (22 lb)
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 10 kg | 22,0462 lb |
DETAILS
CLOSELombarda Ingranaggi® GR10 Hydraulic Rotator 1Ton.
Lightweight cost-effective solution suitable for ATV (All Terrain, small agricultural and forestry Vehicles).
ROTATION Unlimited
MAX. AXIAL LOAD STATIC 10 kN (2250 lbf)
MAX. AXIAL LOAD DYNAMIC 5 kN (1125 lbf)
TORQUE @__MPA 350 Nm (332 lb ft)
REC. OILFLOW 10 l/min (2.6 US gallons)
WEIGHT 10 kg (22 lb)
CHARACTERISTICS
CLOSE| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 10 kg | 22,0462 lb |
Optional
