Collecting mower 100 cm (39 in), two blades, for two-wheel tractor, BCS-type quick hitch
DETAILS
Front two-blade collecting mower, 100 cm (39 in), for two-wheel tractors, 86 kg (190 lb), with the male 3-tooth BCS-type quick hitch included: it fits the DELEKS® ZEUS and BCS, Ferrari, Pasquali and other two-wheel tractors with the same hitch; fine-spline (millerighe) tractors take it with the adapter. Two swivelling front wheels to follow the ground and manoeuvre, grass box for lawns, gardens and well-kept green areas. Free delivery within the EU; if it is not compatible with your two-wheel tractor, returning it is free.

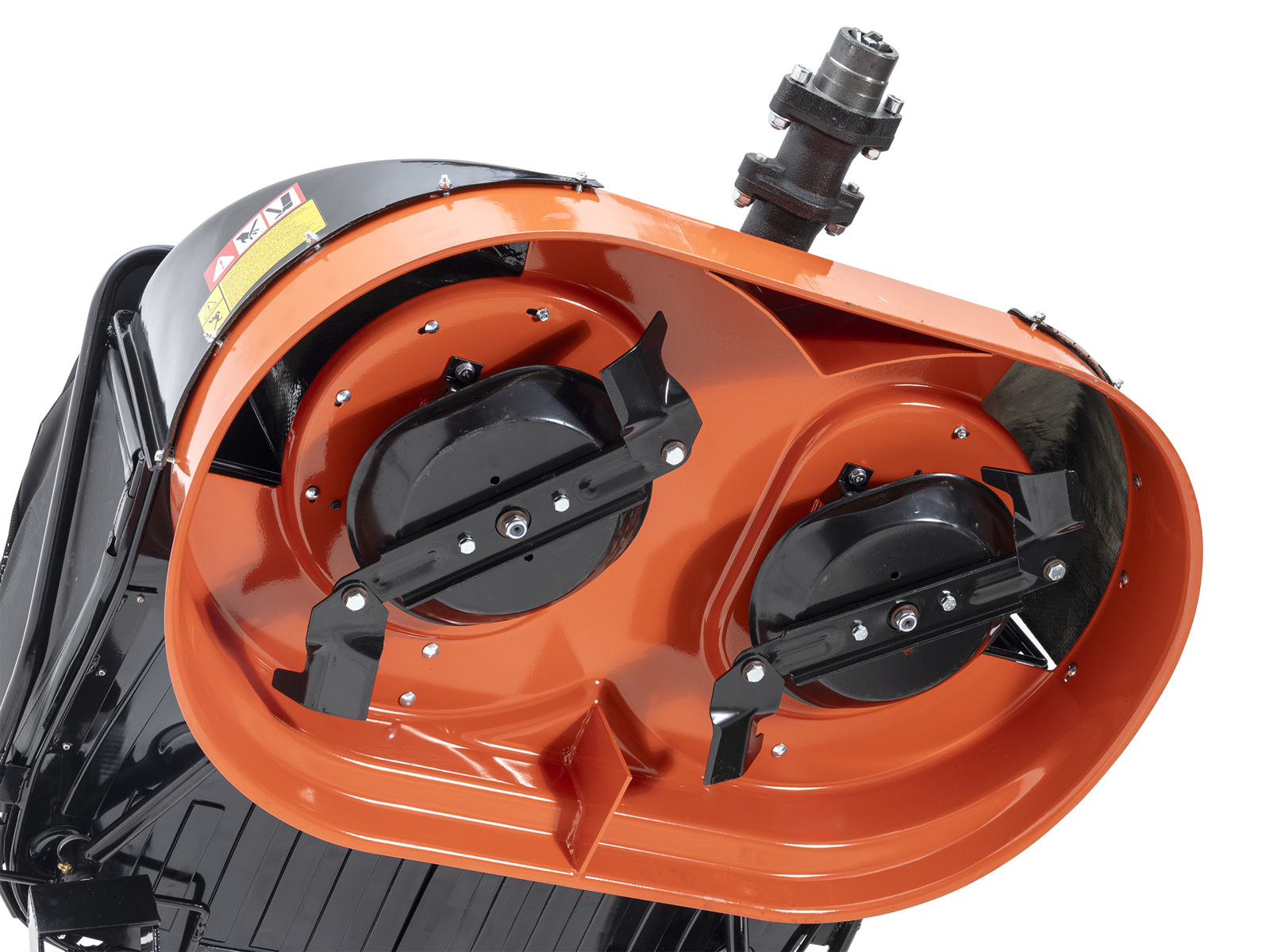

Two blades and collection
The two blades cut finely over 100 cm (39 in) and carry the grass into the box: the lawn is left clean, with no raking. For gardens, well-kept lawns and green areas where the grass cannot be left on the ground.
Swivelling wheels
The two swivelling front wheels support the deck, let it follow the ground and make manoeuvring around trees and beds easy; the cutting height is set on the wheels.

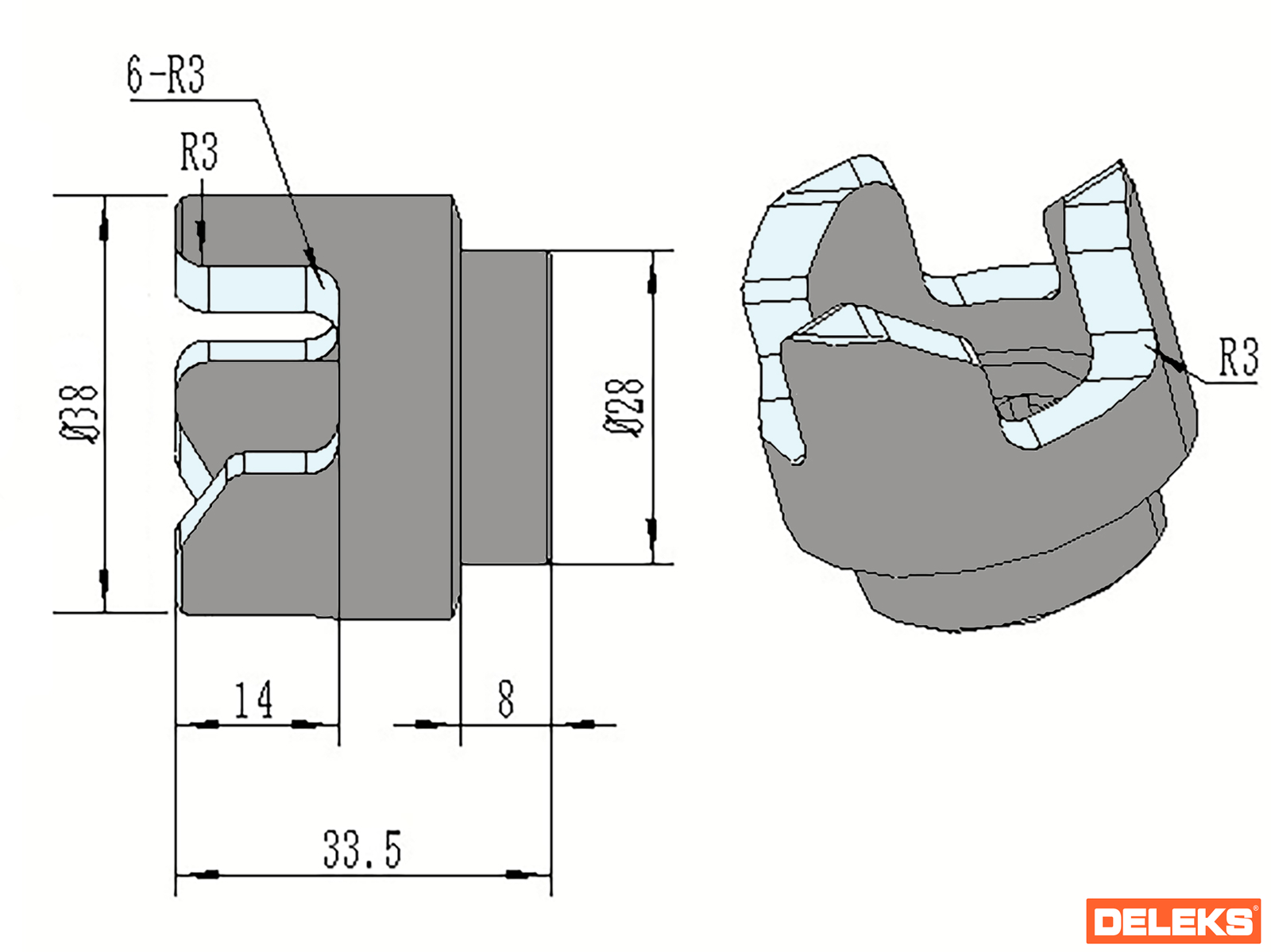

3-tooth BCS-type quick hitch, fine-spline with adapter
The male half of the 3-tooth quick hitch comes fitted as standard: on the DELEKS® ZEUS two-wheel tractor, which has the female half already installed, the attachment hooks on and off in seconds, with no tools. It is the same hitch as BCS, Ferrari and Pasquali, so it fits those tractors straight on; for fine-spline (millerighe) tractors there is the adapter. If in doubt, ask the DELEKS® team first: if the attachment does not fit, returning it is free.
Fields of application
- Well-kept lawns and gardens with collection
- Green areas of farm stays and guest houses
- Parks and drives where the grass must be removed

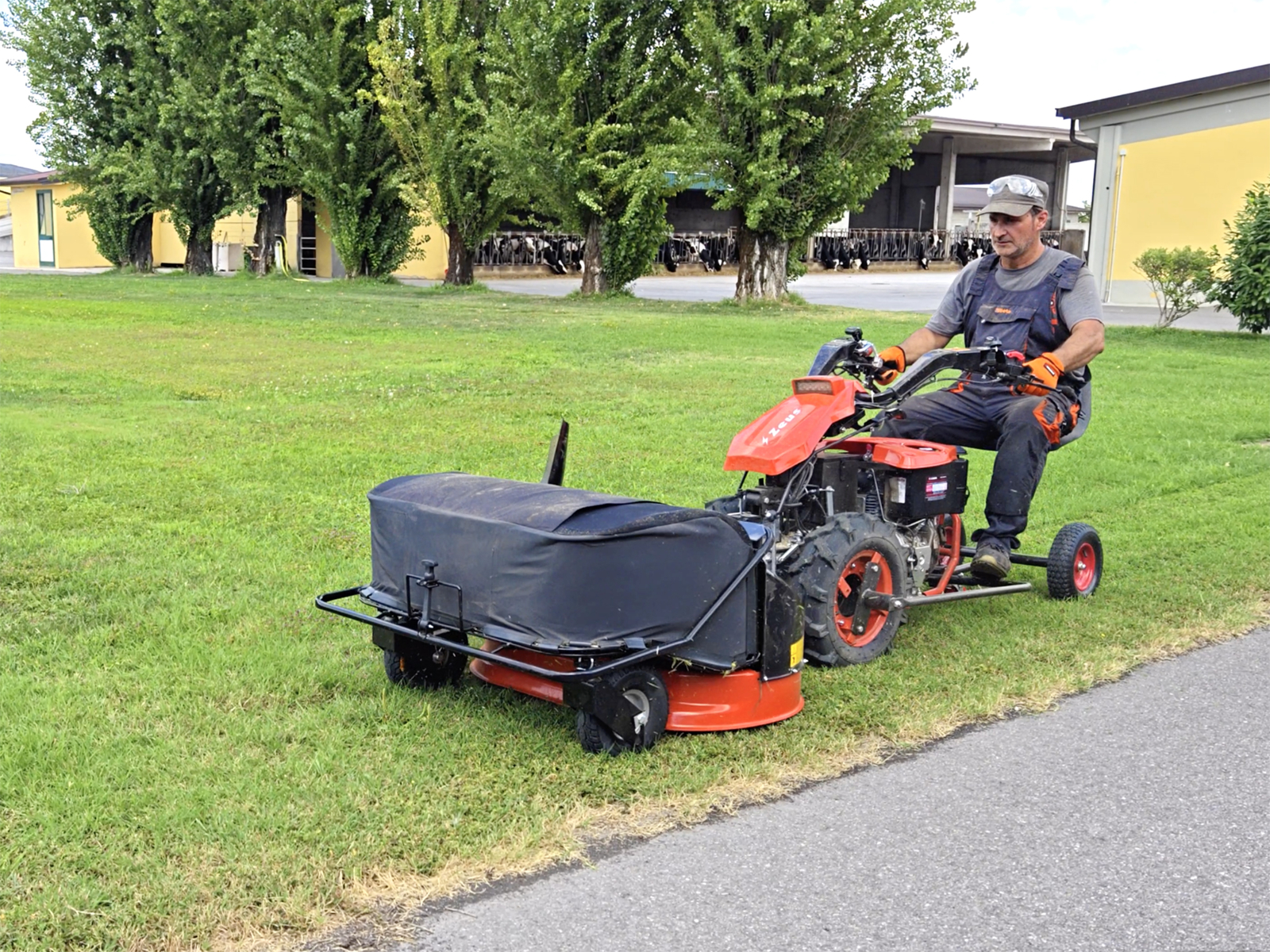

- Long mowing done seated with the sulky and the PTO extension
FAQ
Lawn mower or collecting mower?
The RM100 collecting mower gathers into the box for a tidy lawn; the LM80 lawn mower discharges to the ground and suits rural ground.
Do I need the PTO extension?
With the grass box and the sulky the PTO extension is advisable, as it moves the attachment away from the tractor.
Will it fit my BCS, Ferrari or Pasquali?
Yes, if it has the 3-tooth quick hitch; fine-spline tractors need the adapter. Ask the DELEKS® team first if in doubt: returns are free if it does not fit.
DELEKS® spare parts and service
Genuine spare parts ship from the DELEKS® warehouses in Europe: tines, blades, knives, belts, filters, control cables and the other wearing parts are normally in stock, for routine and for unscheduled maintenance. The technical service helps you find the right part from the exploded drawings, service the machine and choose the attachments that suit your work. The product comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty, free delivery within the EU and free returns on attachments that do not fit your two-wheel tractor.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 100.0 cm | 3.28 ft |
| Weight | 86.0 kg | 190.0 lb |
| Gross shipping weight | 110 kg | 243 lb |
| Package volume | 0.80 m3 | 28.3 cu ft |
