DETAILS

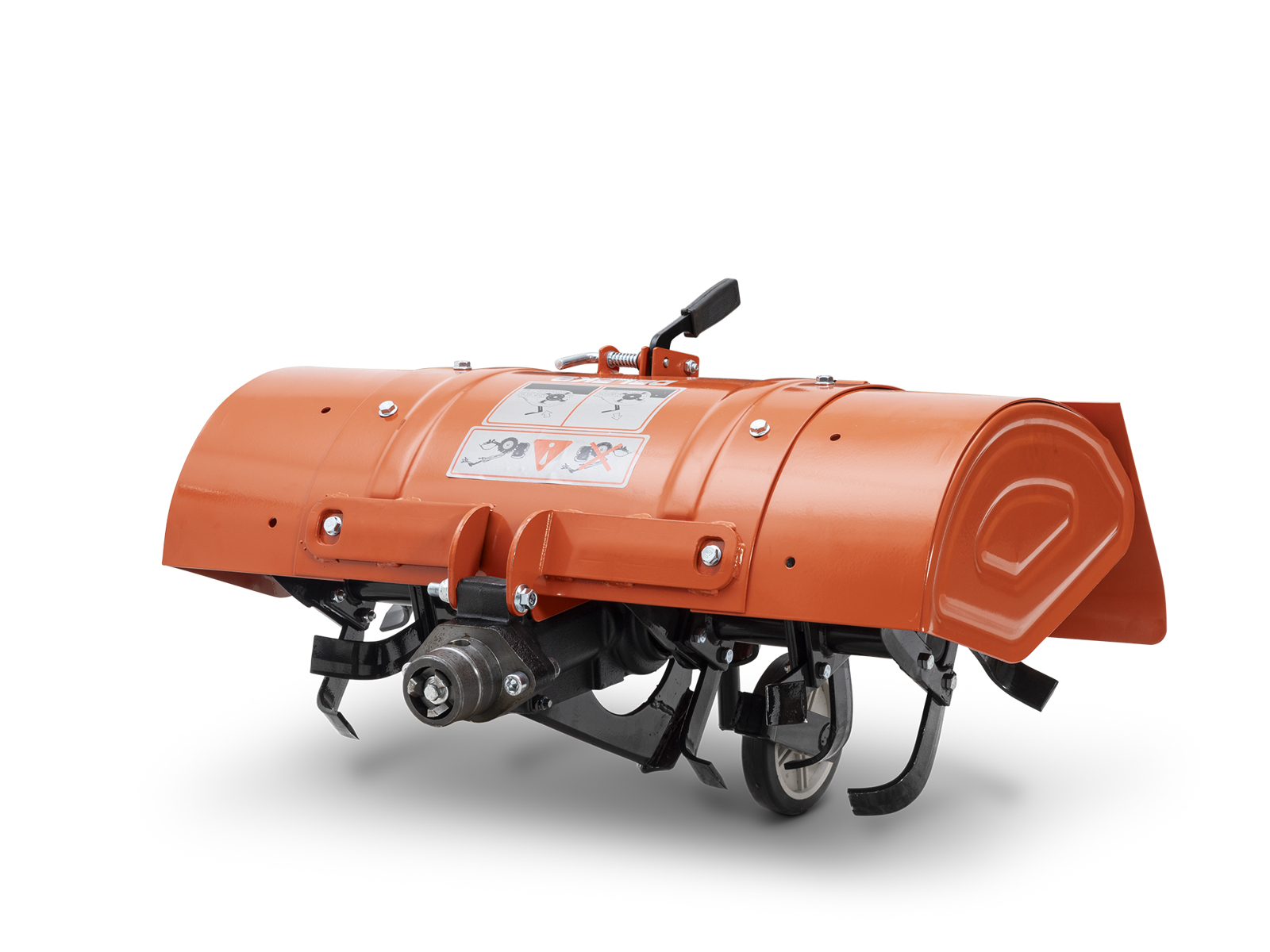

Rotavator with a 100 cm (39 in) working width for two-wheel tractors, with the male 3-tooth BCS-type quick hitch included: it fits the DELEKS® ZEUS and BCS, Ferrari, Pasquali and other two-wheel tractors with the same hitch; fine-spline (millerighe) tractors take it with the adapter. Overall width 105 cm (41 in), 50 kg (110 lb): the size for large plots and fields, with a fifth fewer passes than the 80 cm model. Free delivery within the EU; if it is not compatible with your two-wheel tractor, returning it is free.
Working the soil

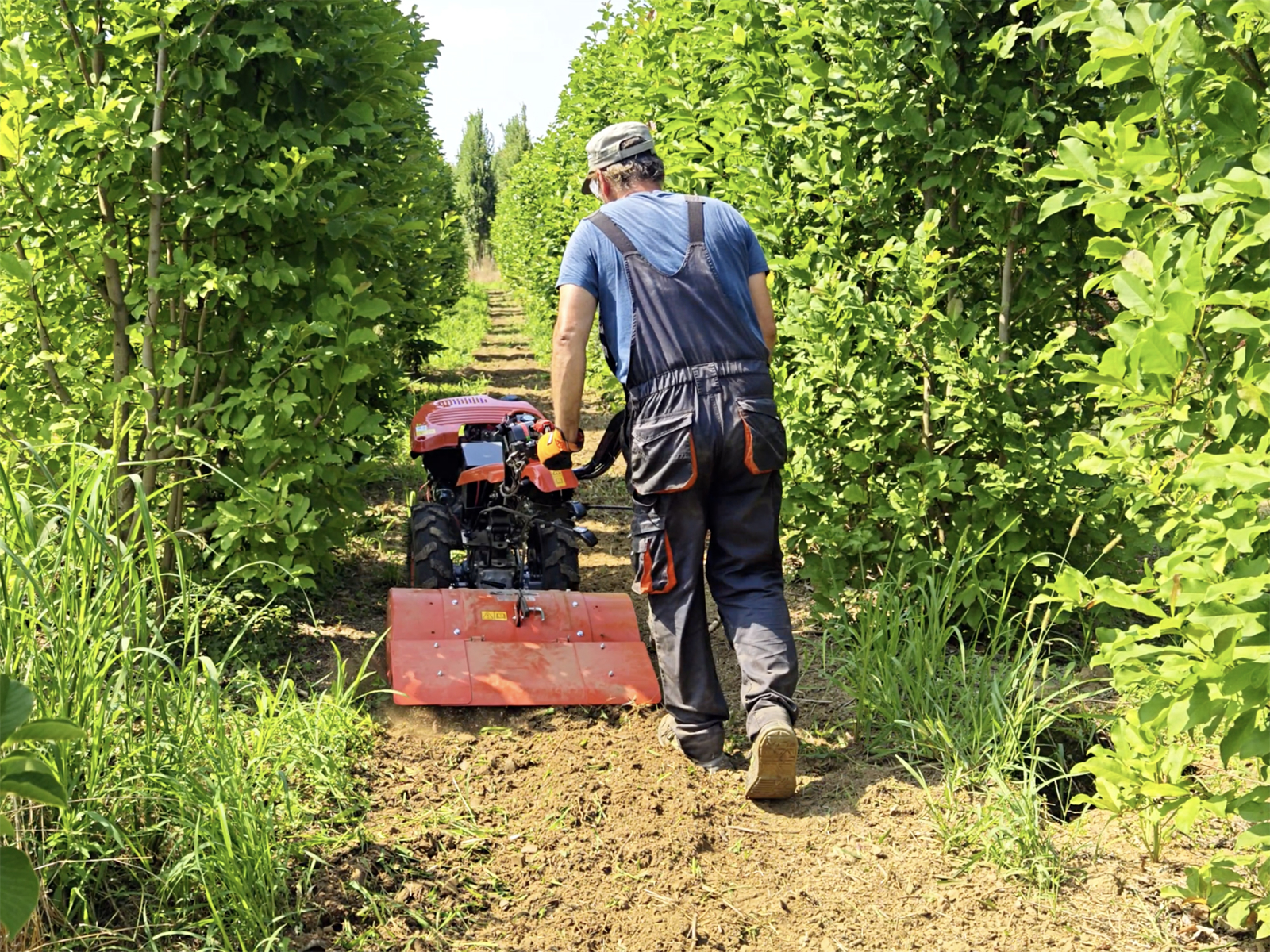

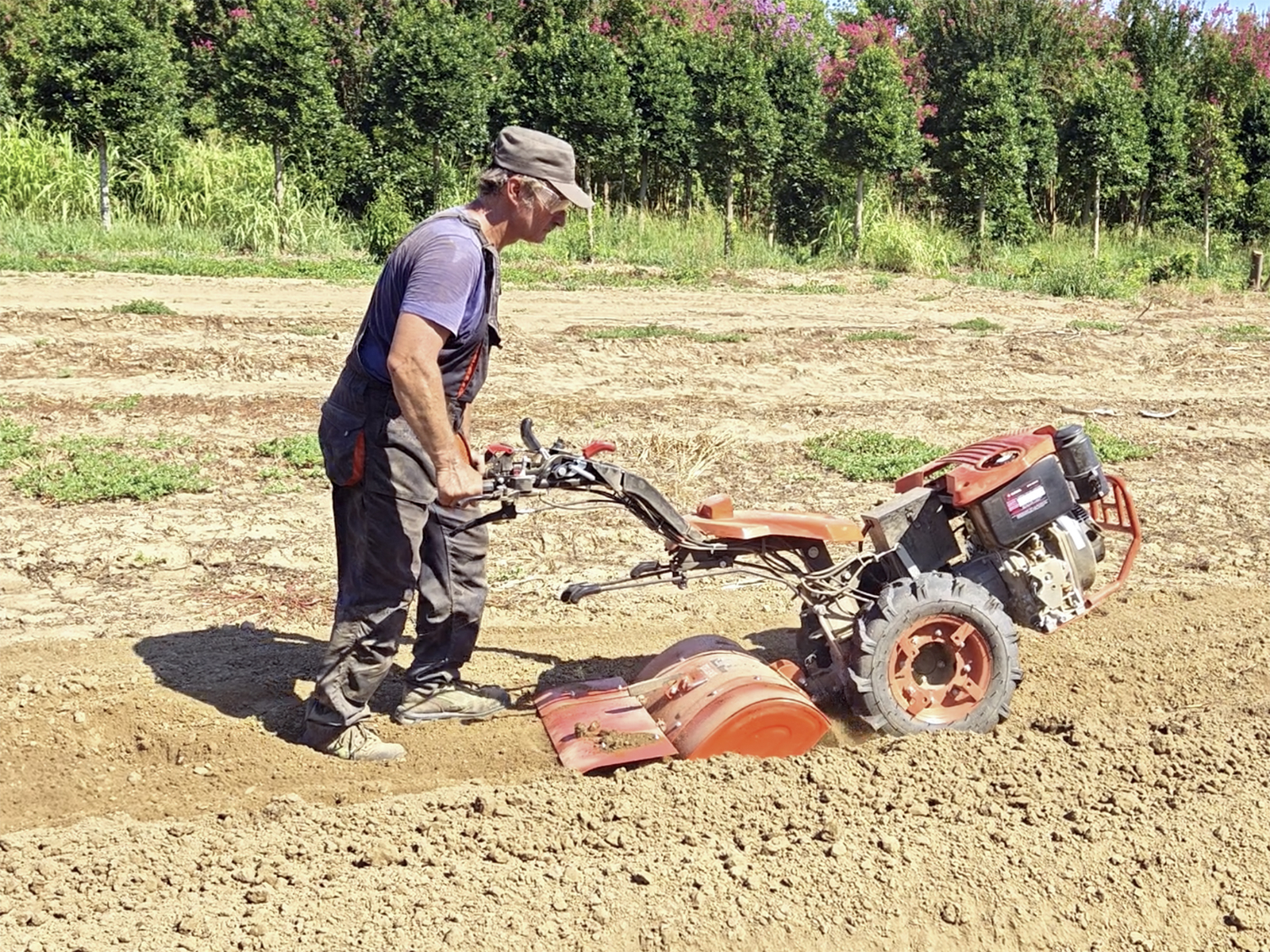

The rotavator breaks up the clods, works down the seedbed and turns in the residues of the previous crop in one pass; in autumn it mixes the soil with manure or green manure. It works behind the tractor, with the handlebars in the rear position and the PTO at 990 rpm: the operator walks beside the worked soil without treading on it. At 100 cm (39 in) it is the size for large plots and fields.
Matching the tractor

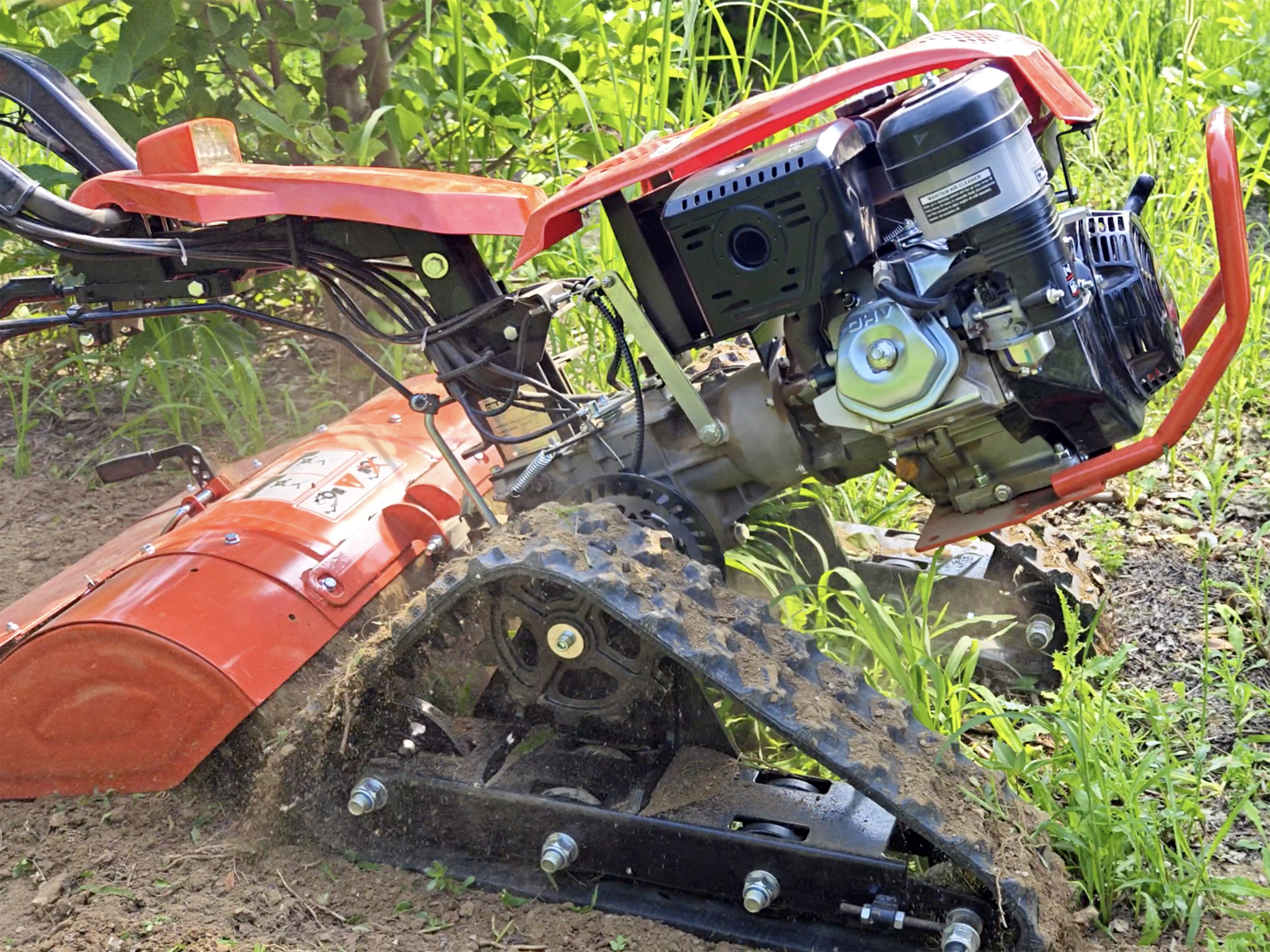

The 9 hp diesel, the most popular choice, drives it, and the 14 hp petrol has more power in reserve in hard ground; wheels on the flat, tracks where the ground is sloping or wet. At 50 kg (110 lb) two people fit it without a lifter. Replacement tines always in stock.

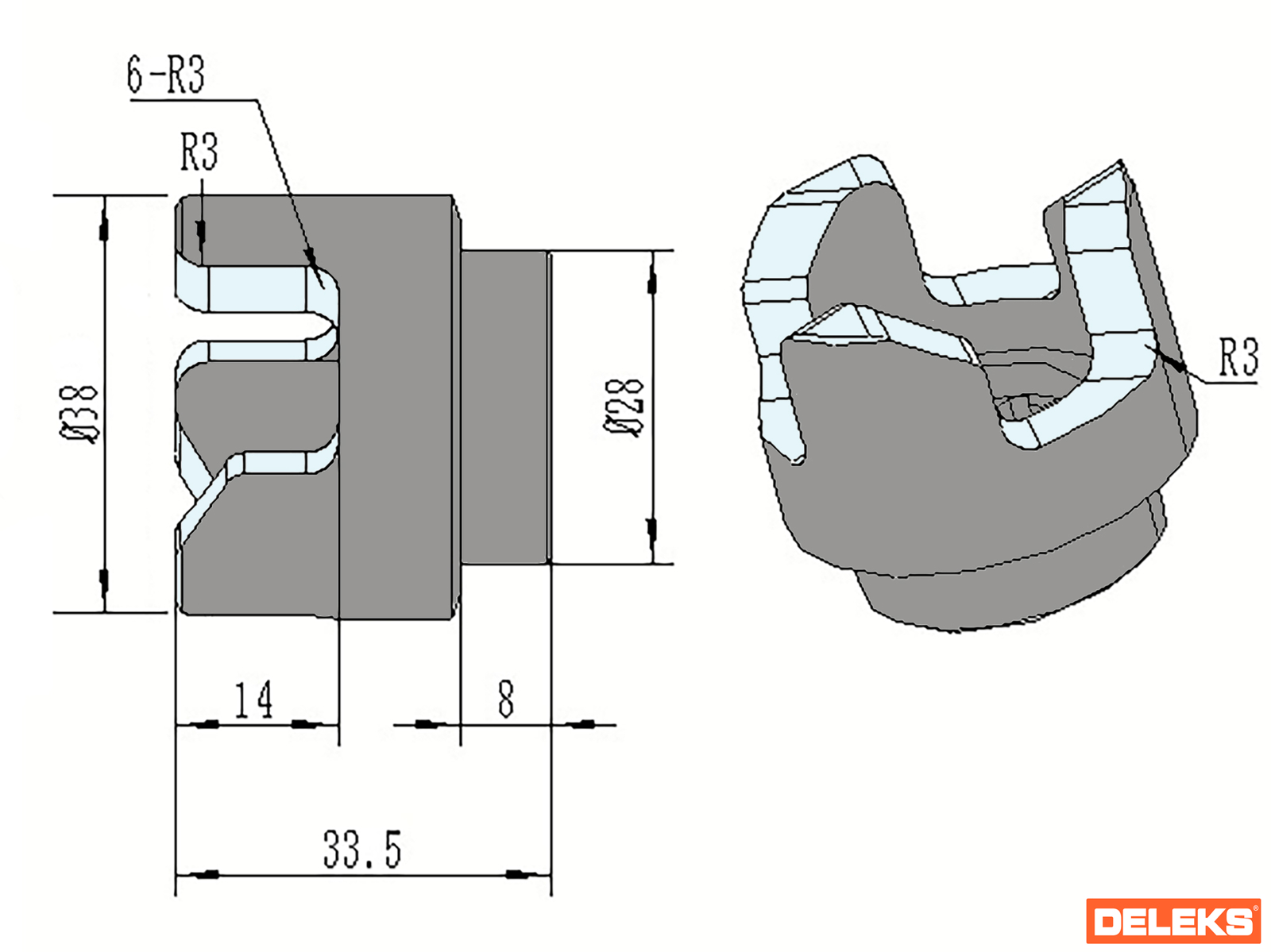

3-tooth BCS-type quick hitch, fine-spline with adapter
The male half of the 3-tooth quick hitch comes fitted as standard: on the DELEKS® ZEUS two-wheel tractor, which has the female half already installed, the attachment hooks on and off in seconds, with no tools. It is the same hitch as BCS, Ferrari and Pasquali, so it fits those tractors straight on; for fine-spline (millerighe) tractors there is the adapter. If in doubt, ask the DELEKS® team first: if the attachment does not fit, returning it is free.
Fields of application
- Large plots and fields: fine seedbed, planting out and sowing
- Turning in residues, manure and green manure
- Renewing lawns and rough ground after flail mowing
- Open fields and wide rows of vineyards and orchards
FAQ
80 cm or 100 cm rotavator?
80 cm (31 in) for plots, beds and narrow rows; 100 cm (39 in) for large plots and fields, where the width saves passes. They weigh 42 and 50 kg (93 and 110 lb).
Which two-wheel tractor do I need?
One with a 990 rpm PTO and the 3-tooth hitch: the DELEKS® ZEUS 9 hp diesel drives it in hard ground, the 14 hp petrol has more in reserve.
Will it fit my BCS, Ferrari or Pasquali?
Yes, if it has the 3-tooth quick hitch; fine-spline tractors need the adapter. Ask the DELEKS® team first if in doubt: returns are free if it does not fit.
DELEKS® spare parts and service
Genuine spare parts ship from the DELEKS® warehouses in Europe: tines, blades, knives, belts, filters, control cables and the other wearing parts are normally in stock, for routine and for unscheduled maintenance. The technical service helps you find the right part from the exploded drawings, service the machine and choose the attachments that suit your work. The product comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty, free delivery within the EU and free returns on attachments that do not fit your two-wheel tractor.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 100.0 cm | 3.28 ft |
| Overall width | 105.0 cm | 3.45 ft |
| Weight | 50.0 kg | 110.0 lb |

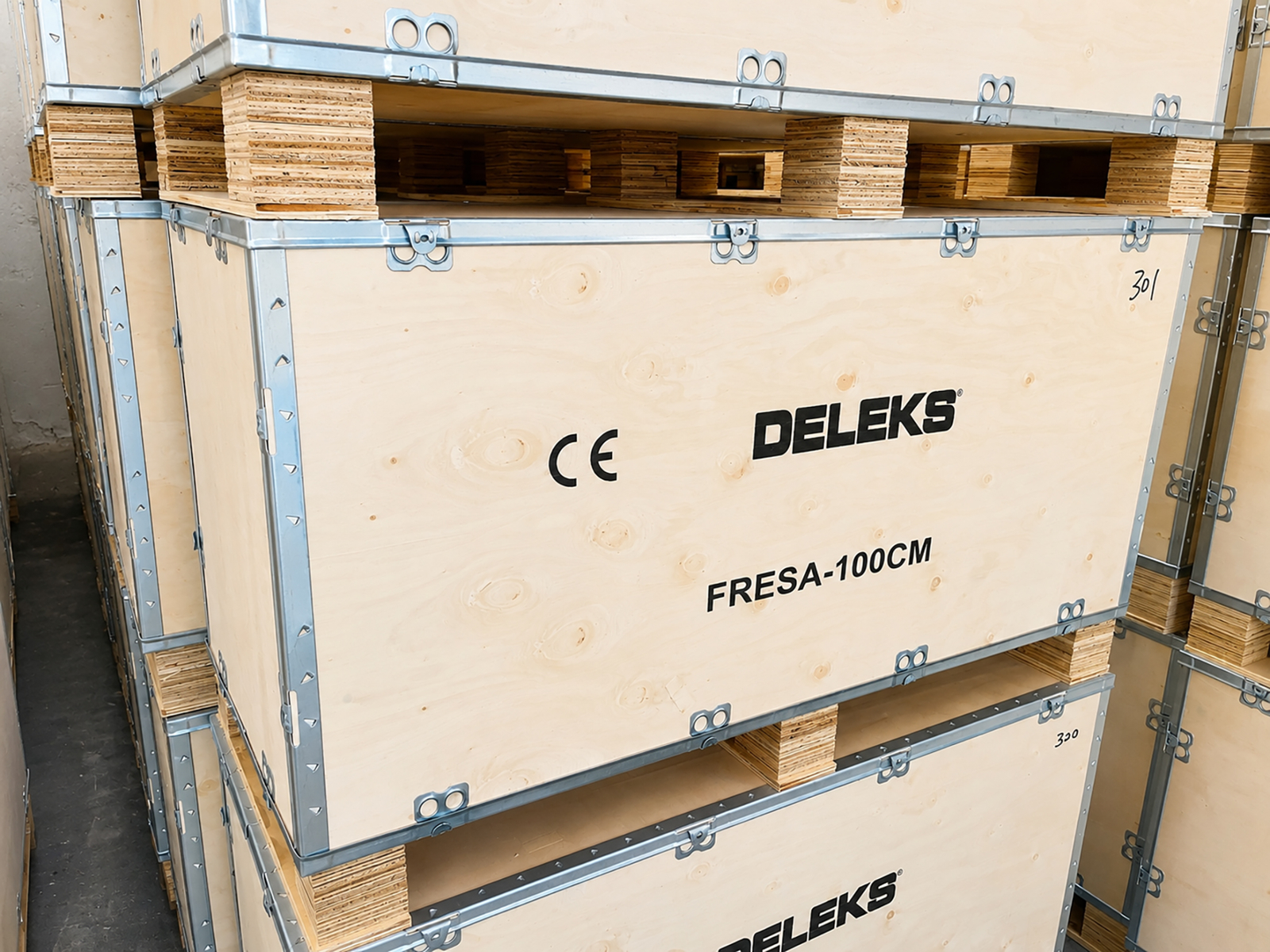

| Gross shipping weight | 62 kg | 137 lb |
| Package volume | 0.32 m3 | 11.3 cu ft |
| Packing sizes | 1060*490*620.0 mm | 3.47*1.60*2.03 ft |
