Self-propelled petrol flail mower 88 cm (34.6 in) SMART-1000, walk-behind flail mower with 66 swinging blades

Available
Code SMART1000 - EAN 8057724863260
2.490,00€VAT incl.
Free shipping
Loading...
2.490,00€VAT incl.
Free shipping
View all details.

4.6

1551 reviews

2.490,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Field test
Field test

DETAILS

Self-propelled petrol flail mower on wheels with an 88 cm (34.6 in) cut and a 13.5 hp, 420 cc Briggs & Stratton XR2100 petrol engine with electric key start: the DELEKS® SMART-1000 is a professional self-propelled flail mower for anyone with a lot of ground to clear, taking on long grass, brambles, reeds, vine prunings and branches up to 3 cm (1.2 in) thick on rough ground, in olive groves, vineyards and orchards, along verges and in undergrowth. High-inertia, electronically balanced rotor with 66 swinging blades in 22 sets of 3, twin-belt drive, mechanical gearbox with 3 forward gears and reverse, cutting height from 20 to 80 mm (0.8 to 3.1 in) set with a crank handle, battery isolator switch, adjustable handlebars and two swivelling front wheels with locks. It weighs 196 kg (432 lb), is TÜV-certified and arrives assembled and tested in a wooden crate, with a 2-year warranty and free delivery within the EU.


13.5 hp Briggs & Stratton engine with electric start

The four-stroke Briggs & Stratton XR2100 petrol engine, 420 cc and 13.5 hp, is the most powerful in the SMART range and starts on the key; the built-in battery isolator switch makes the machine safe for storage, transport and servicing. The mechanical gearbox has 3 forward gears and one reverse: pick the gear to suit the ground and how thick the growth is, and use reverse to turn at the end of a pass. The professional twin-belt drive transmits power more evenly and lasts longer than a single belt; there are 4 V-belts in all (2 SB38.5, SB1610 and 13x1145), available as a spare set.


Rotor with 66 swinging blades and an 88 cm cut

The high-inertia, electronically balanced rotor carries 66 swinging blades in 22 sets of 3, each with two curved blades and a straight centre blade: a layout that cuts more on every turn and spreads the mulched material evenly. At 88 cm (34.6 in) wide it covers 25% more ground per pass than the 70 cm models. It mulches long grass, brambles, reeds, vine prunings and light brash up to 3 cm (1.2 in) thick; the swinging blades fold back if they hit a stone or an obstacle, protecting the rotor and the drive. Cutting height is set from 20 to 80 mm (0.8 to 3.1 in) with a crank handle.


A pedestrian flail mower that drives itself: wheels, handlebars and handling

Even with an 88 cm cut the SMART-1000 is still a pedestrian flail mower: the operator walks behind the handlebars while the self-propelled machine drives itself forward. The two swivelling front wheels with locks make turning easy and hold a straight line on long runs; the handlebars adjust for height and sideways, so you can work along fences, rows and edges without walking in the cut. Sturdy frame and low centre of gravity for uneven ground. For steep slopes and wet ground there is the tracked SMART-1000-TR, with the same engine and the same rotor.


Dimensions, weight and delivery

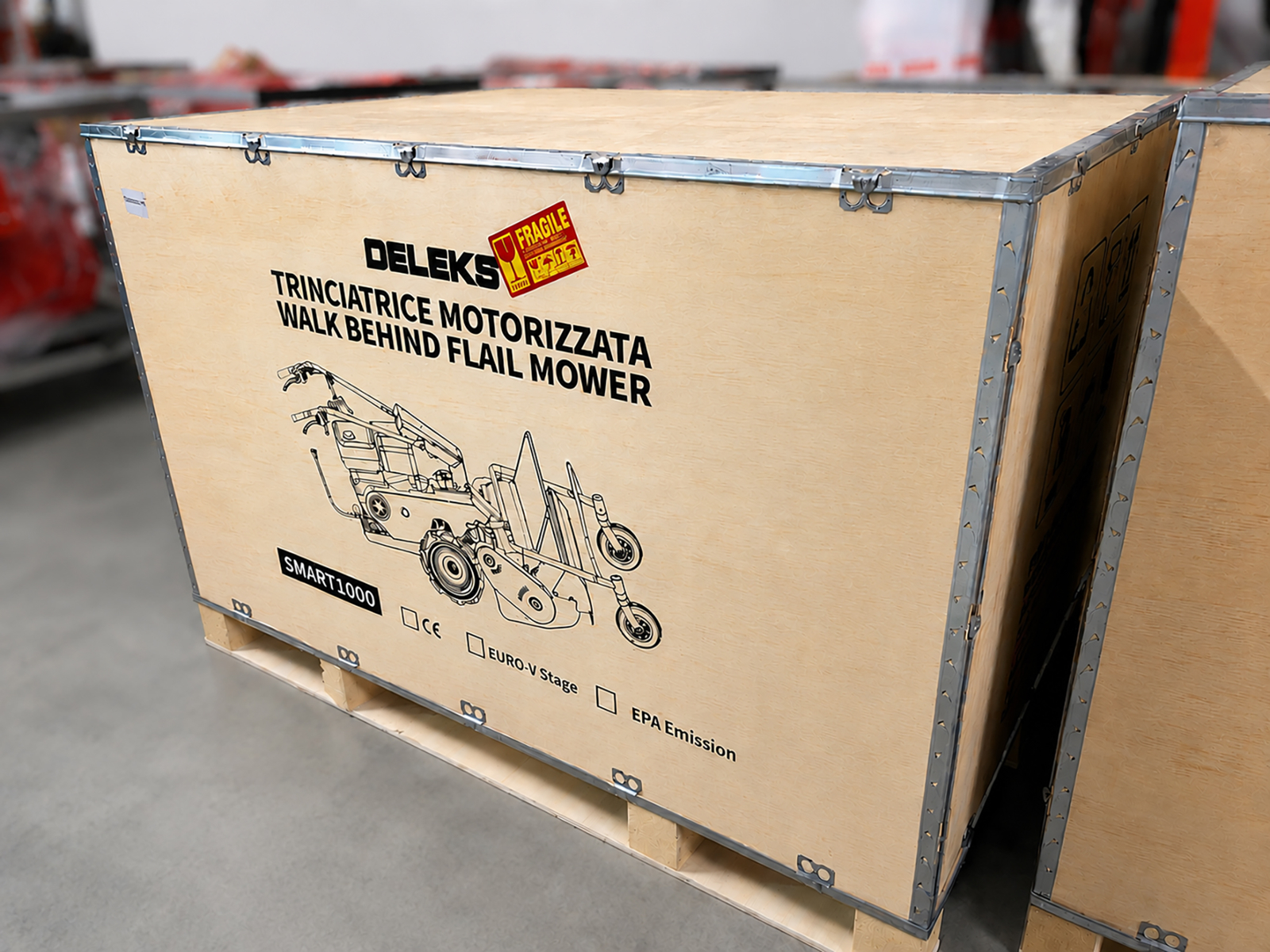

Working width 880 mm (34.6 in), overall width 1,000 mm (39.4 in), length 1,834 mm (72.2 in), height 1,097 mm (43.2 in), weight 196 kg (432 lb). It ships by express carrier in a closed, sealed wooden crate measuring 145 × 110 × 110 cm (57 × 43 × 43 in) (226 kg / 498 lb gross, 1.75 m³), with free delivery within the EU; there is a photo of the crate in the gallery. Before dispatch the DELEKS® workshop preps and tests every machine: fasteners, fluid levels and a running test, so it arrives assembled and ready to work. It is TÜV-certified and carries a 2-year warranty.


Where it works

  • Rough ground, scrub and plots that only get cut once or twice a year
  • Olive groves, vineyards and orchards: grass between the rows, vine prunings and brash up to 3 cm (1.2 in)
  • Verges, banks and ditch edges
  • Undergrowth, brambles and reeds
  • Farmland with long grass, even when wet

Options and spares

The mower arrives complete, with electric start and battery isolator switch as standard. Available as spares are the set of 66 blades (SETCOLTELLISMART1000) and the set of 4 drive belts (CINGHIE4SMART1000), both of which can be added to your order from this page; other spares are identified on the exploded diagrams with our technical team.


FAQ

How does it differ from the SMART-800?
An extra 18 cm (7 in) of cut (88 against 70), a 13.5 hp engine instead of 9 with electric start, 66 blades instead of 38 and twin-belt drive: more ground covered per hour and more power in reserve in dense grass. It weighs 40 kg (88 lb) more.

What does it cut?
Long and dry grass, brambles, reeds, weeds, vine prunings and branches up to 3 cm (1.2 in) thick, 88 cm (34.6 in) at a pass; the mulched material is left on the ground.

How does it start?
On the key: the Briggs & Stratton XR2100 engine has electric start, plus a battery isolator switch for storage and transport.

What are swinging blades?
Free-swinging blades fitted in sets of 3 (two curved, one straight) that fold back when they hit stones and obstacles, protecting the rotor and the drive; they are wearing parts and the full set is available as a spare.

Is it a walk-behind (pedestrian) flail mower?
Yes: you walk behind it and steer from the handlebars, with no tractor needed, but you don't push it. It is self-propelled, with 3 forward gears and reverse.

Does it work on slopes?
It is built for flat and uneven ground. For steep slopes, terraces and wet ground there is the tracked SMART-1000-TR, which works on gradients of up to 30° head-on and 20° across.

How do you adjust the cutting height?
With a crank handle, from 20 to 80 mm (0.8 to 3.1 in).

How is it delivered?
In a closed wooden crate by express carrier, fully assembled and tested by the DELEKS® workshop; the CE declaration of conformity, invoice and operator's manual come with the machine.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blade sets, drive belts, rotor bearings and the other parts of the machine are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help arranging any service work. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric Units US
Working width 880.0 mm 2.86 ft
Overall width 1000.0 mm 3.28 ft
Min / Max cutting height 20.0 - 80.0 mm 0.8 - 3.15 in
Weight 196.0 kg 432.0 lb
Overall height 1097.0 mm 3.60 ft
Maximum cutting diameter 30.0 mm 1.2 in
Overall length 1834.0 mm 6.02 ft
Transmission: Drive method V-Belts V-Belts
Transmission: V-Belts quantity 4 4
Transmission: V-Belts size 2*SB38.5 + SB1610 + 13X1145 2*SB38.5 + SB1610 + 13X1145
Rotor: balancing Electronic Electronic
Engine Briggs&Stratton 13.5Hp, 420cc Briggs&Stratton 13.5Hp, 420cc
Number of Blades 66 66
Gross shipping weight 226 kg 498 lb
Package volume 1.75 m3 61.8 cu ft
Packing sizes 1450*1100*1100 mm 4.75*3.60*3.60 ft
