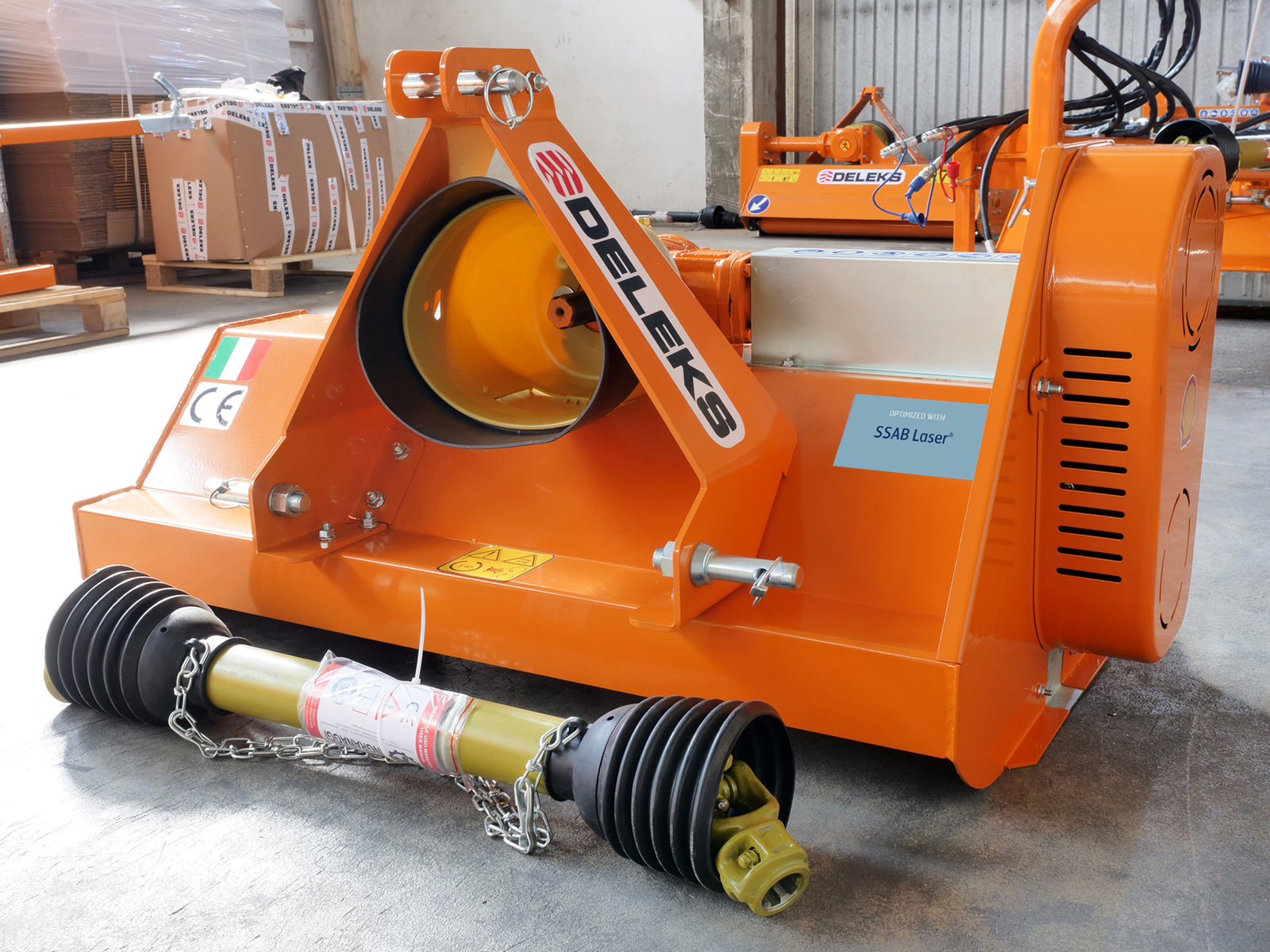

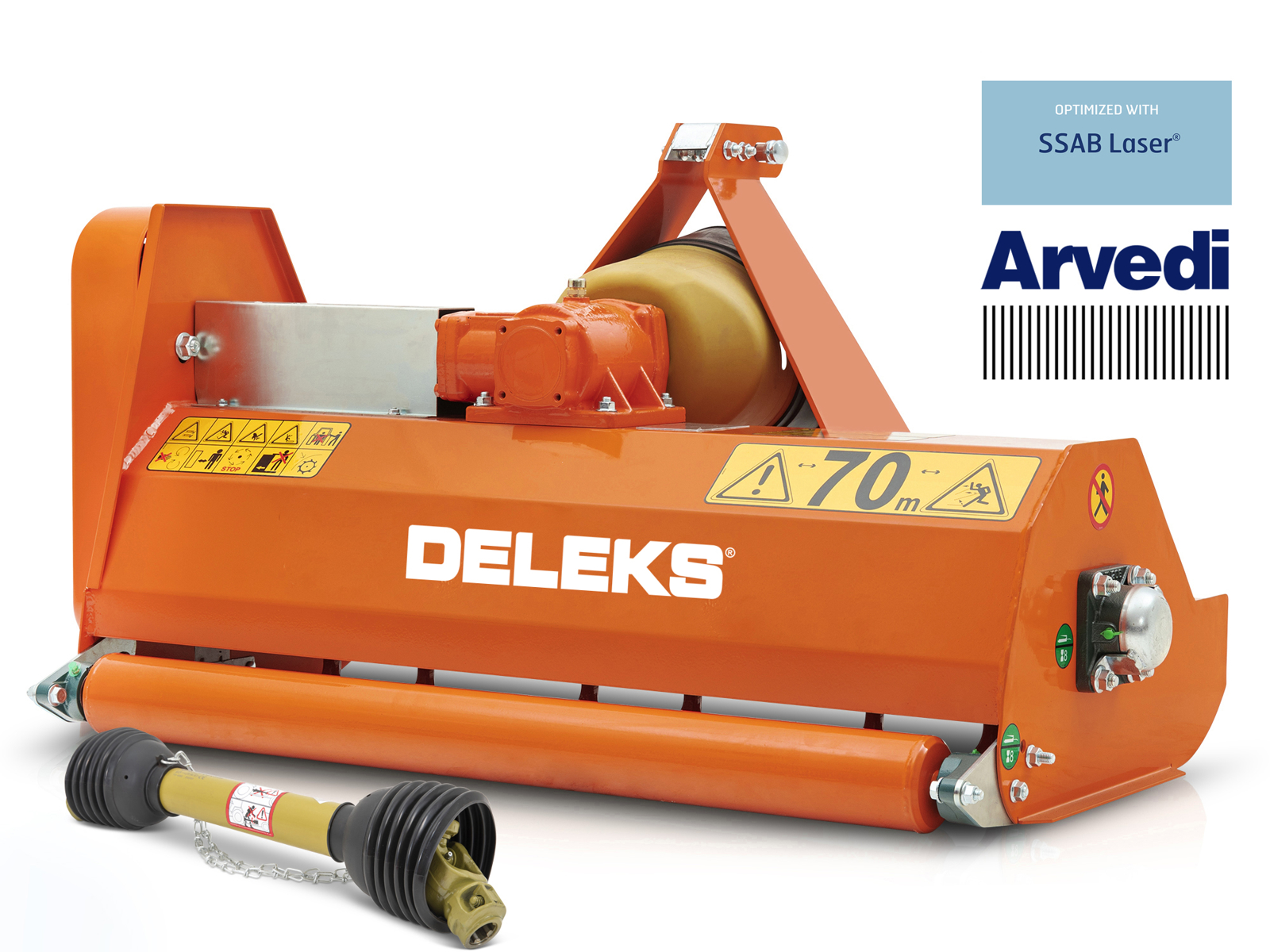

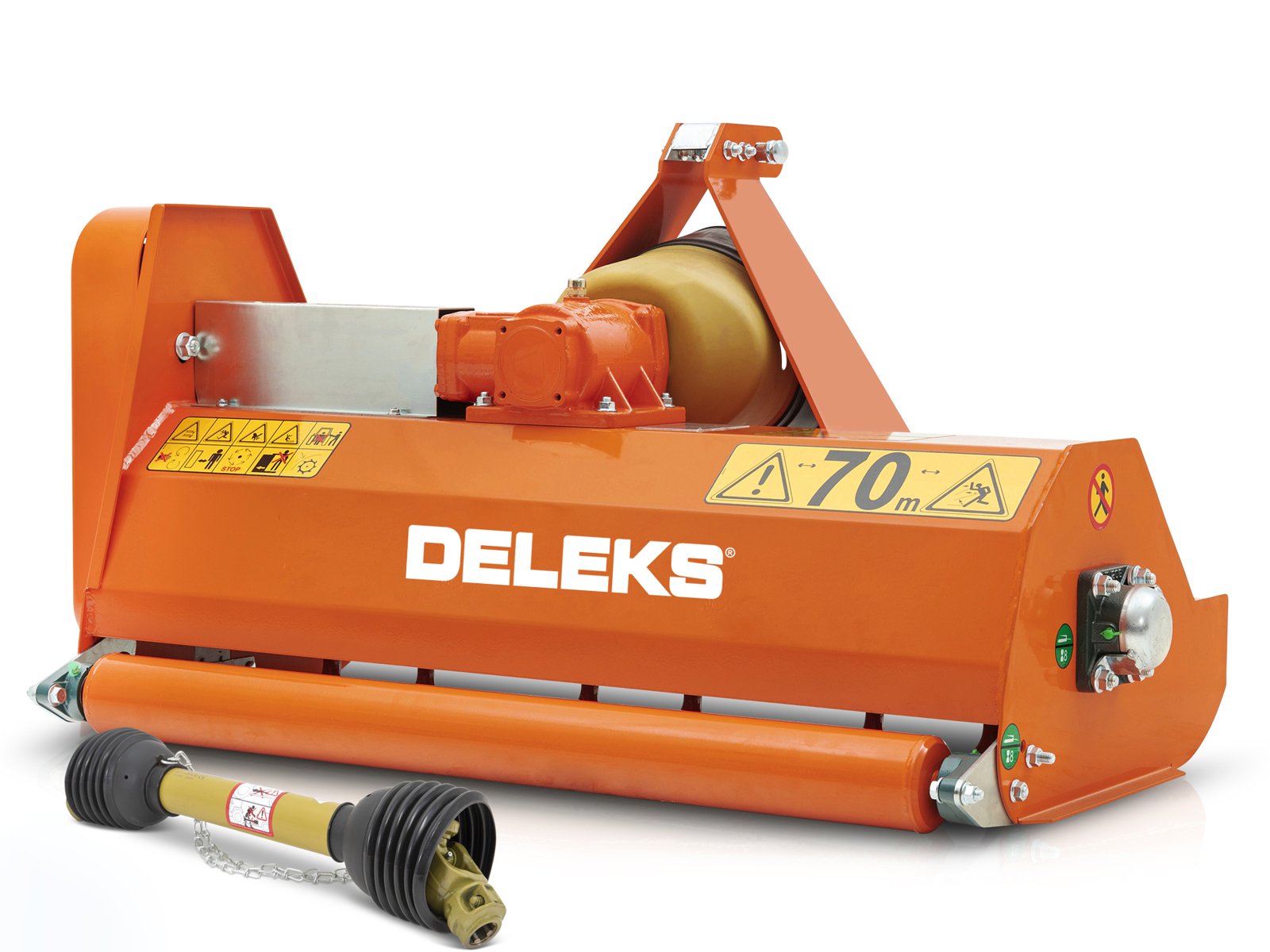

Flail Mower for compact tractors - 100cm - Japanese tractors

4.5

282 reviews

Available
Code APE100PTO
EAN 8053470234477
View all details.
TOTAL
1.150,00VAT incl.
Free shipping

VIDEO
Unpacking by Alberto
Unpacking by Alberto

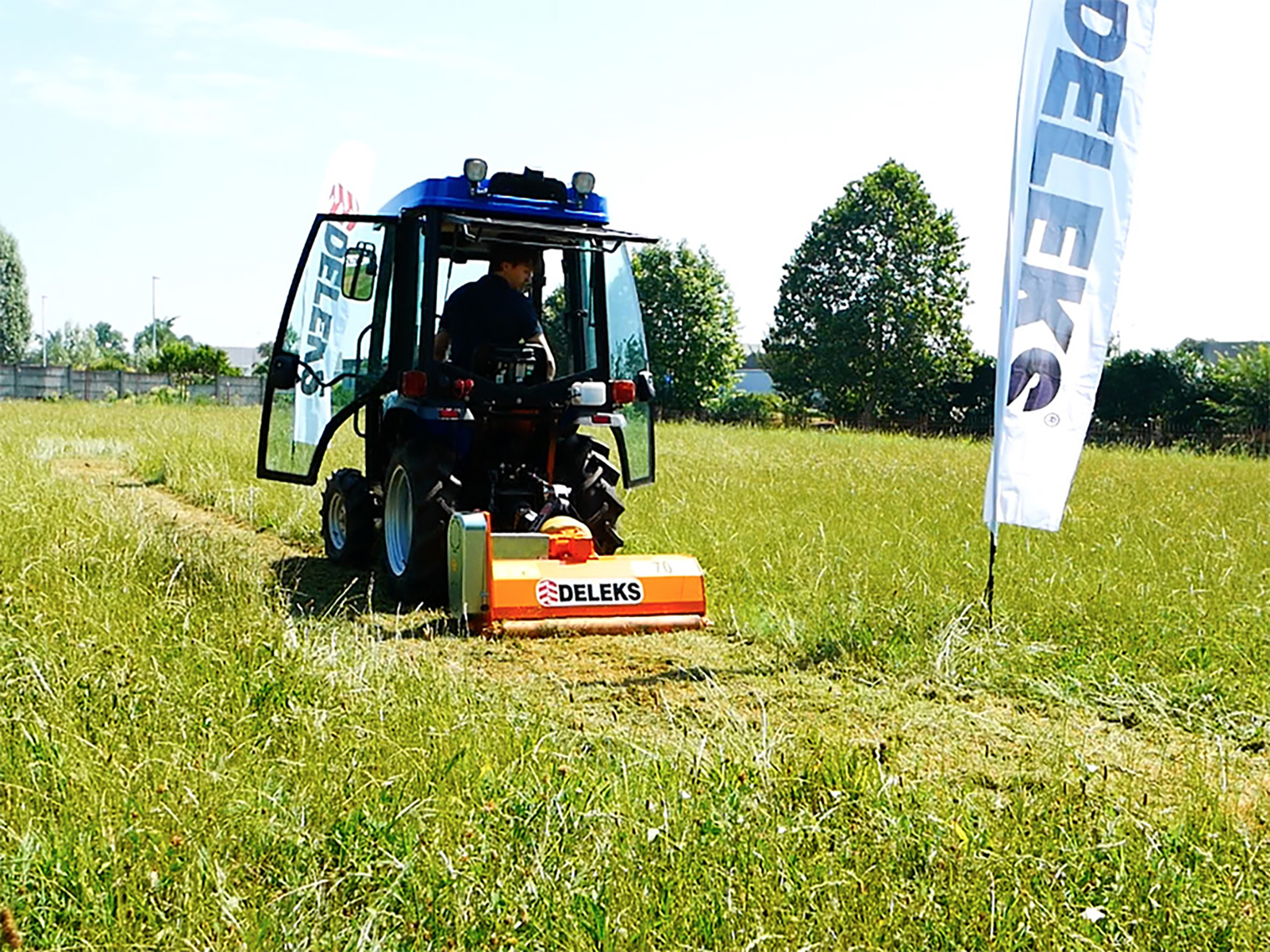

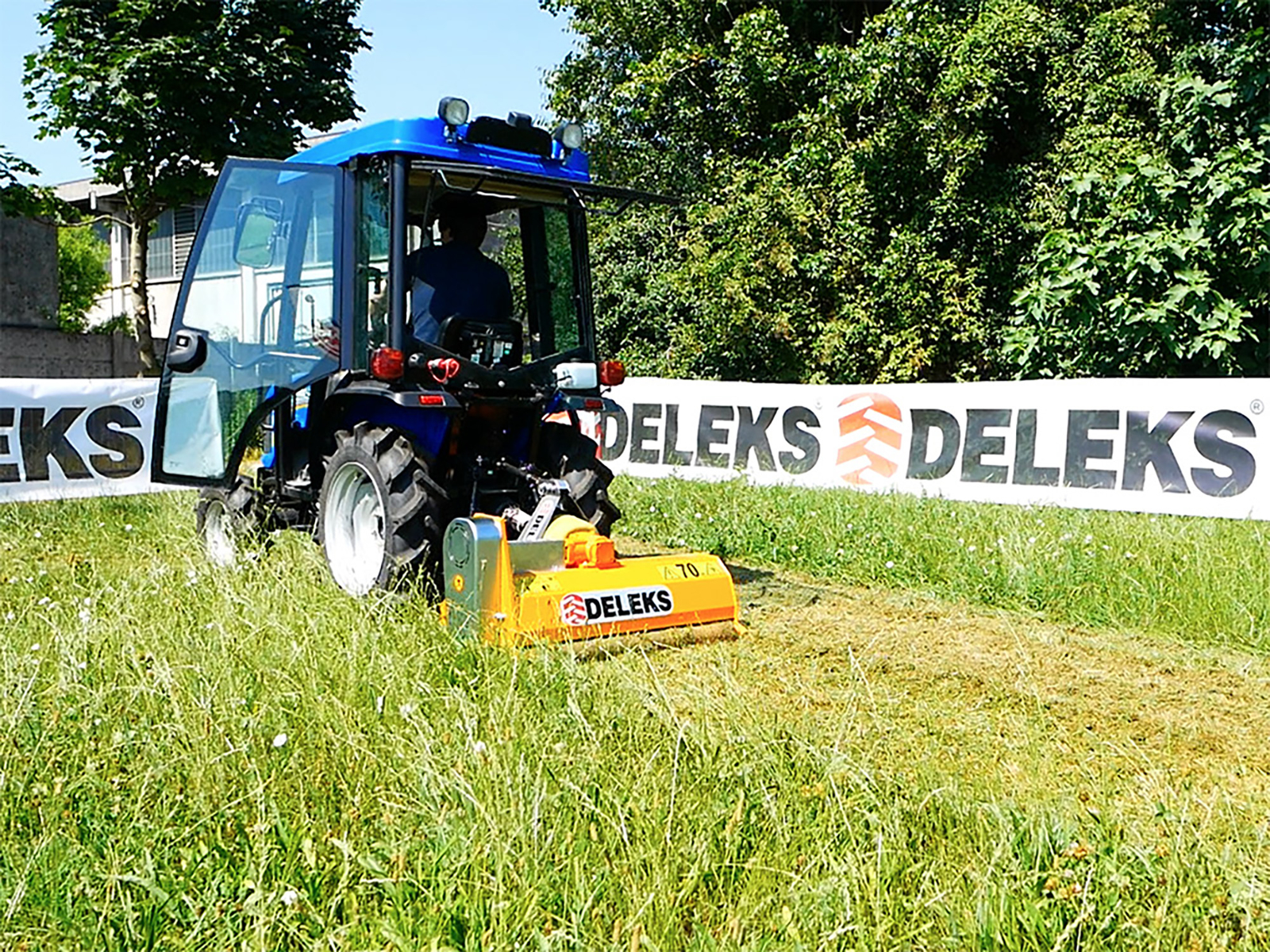

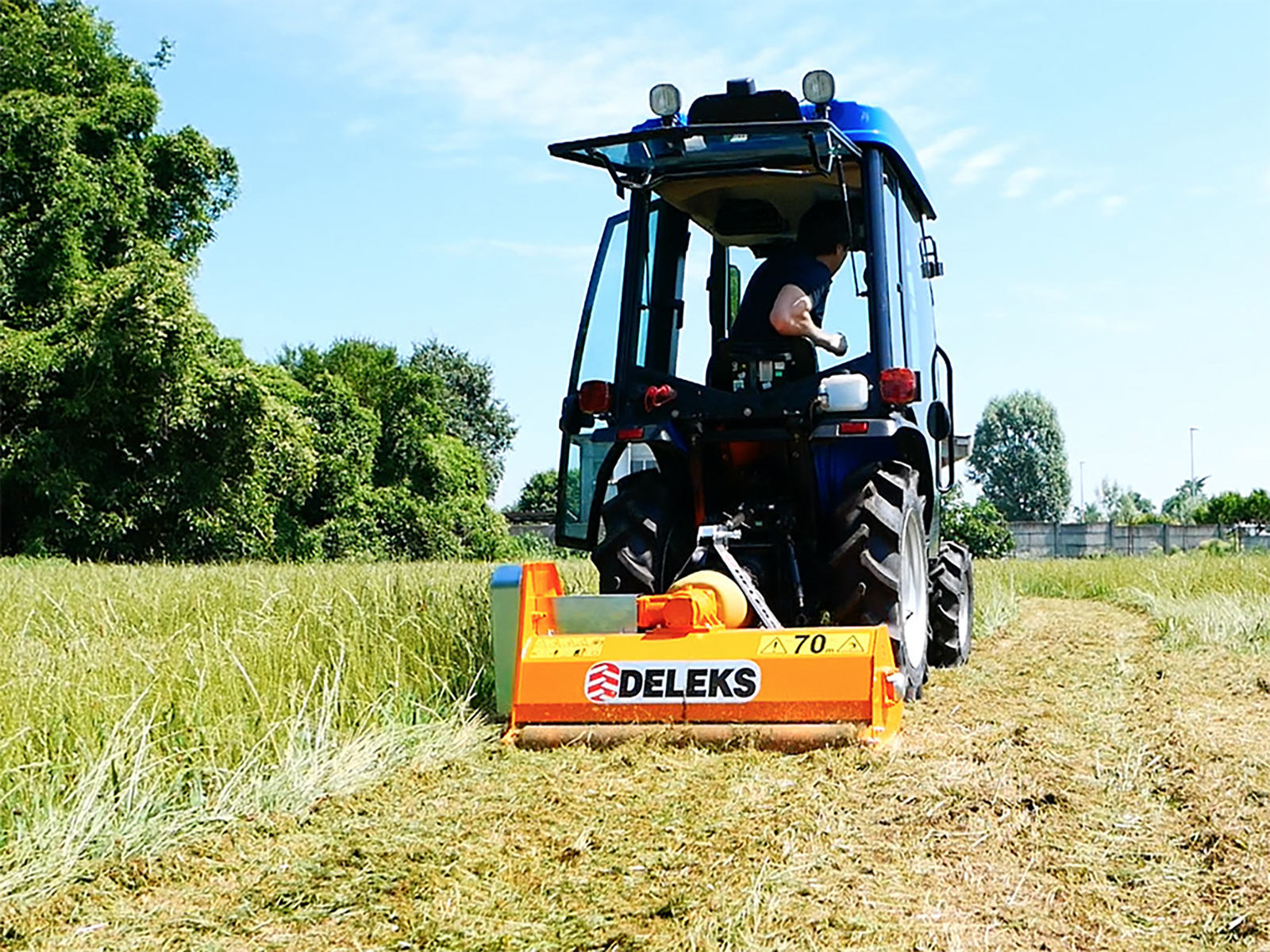

Field test
Field test
Review by Edd China (Wheeler Dealers)
Review by Edd China (Wheeler Dealers)

DETAILS

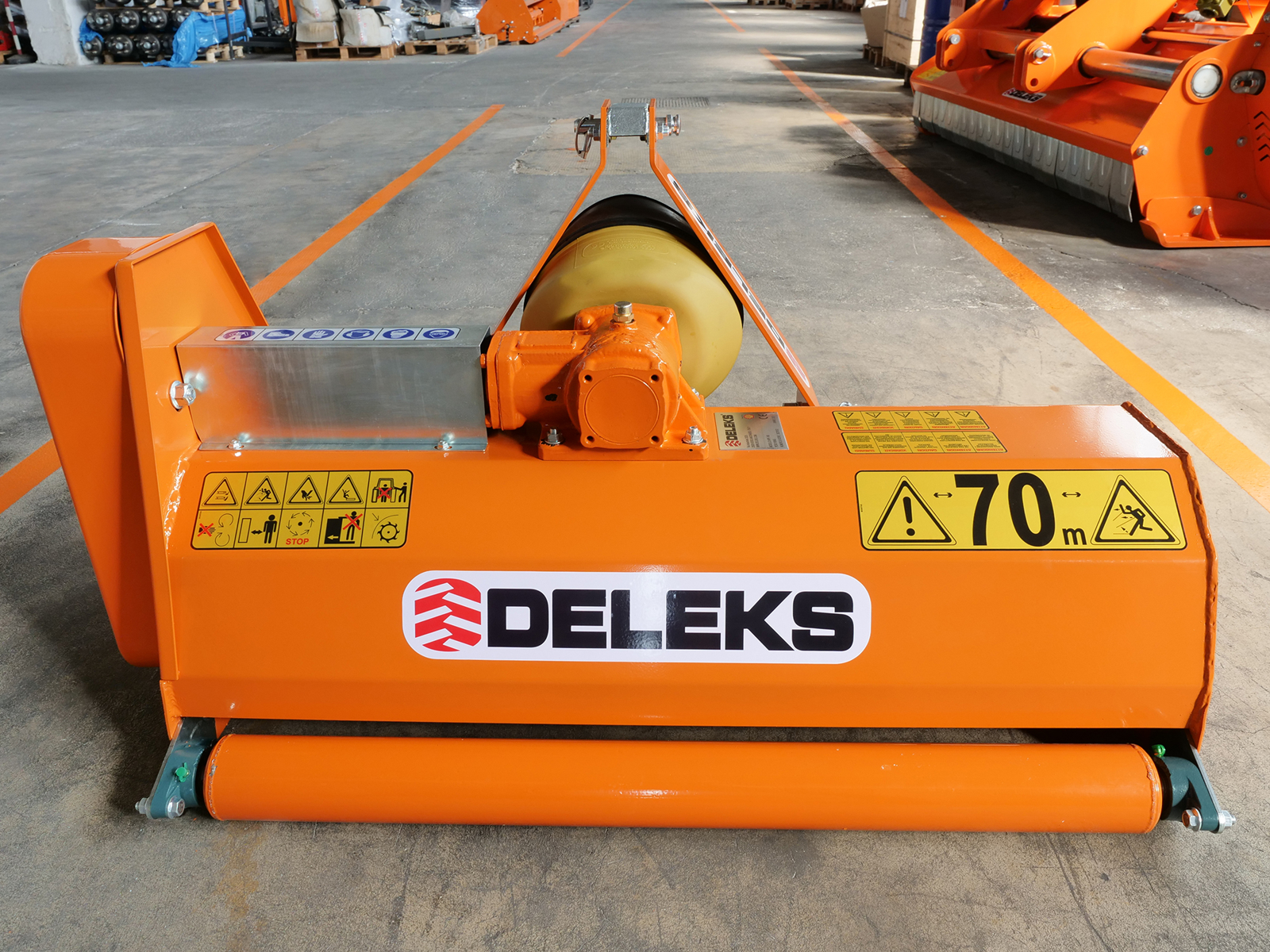

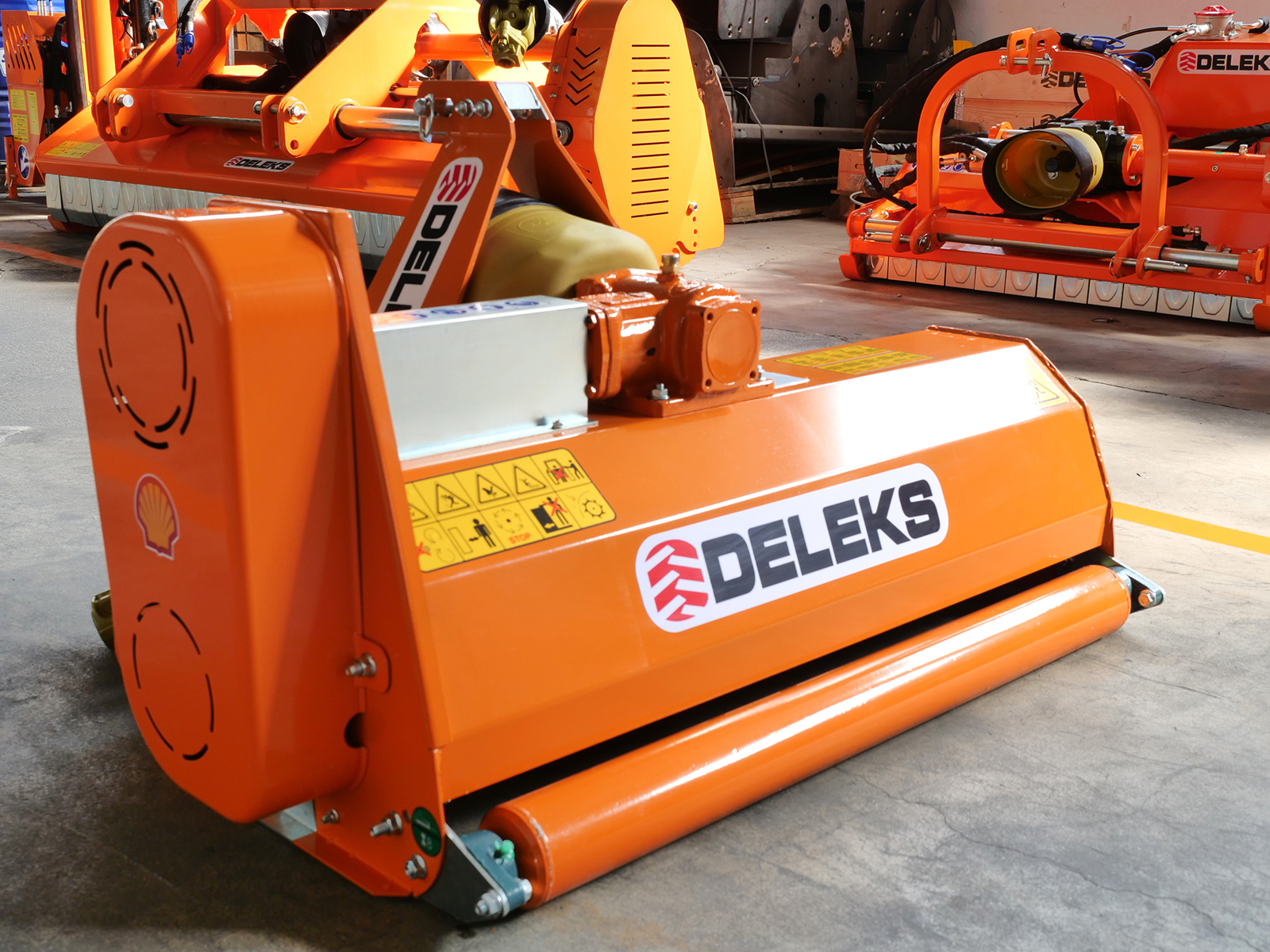

100cm working width, Electronically balanced rotor, with hammers or blades | DELEKS® APE-100 for small tractors 12-30Hp, Pto shaft included.



OVERVIEW

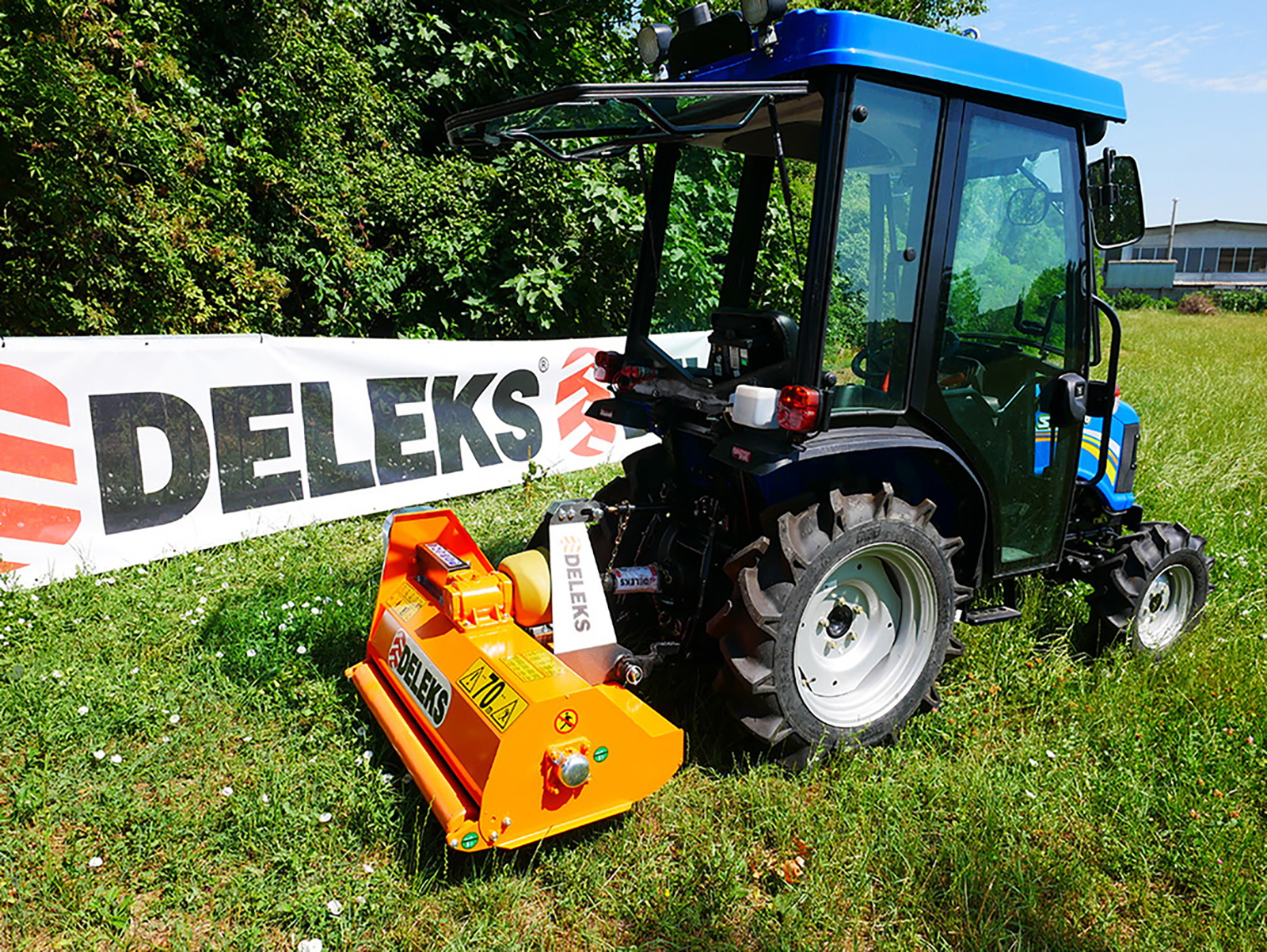

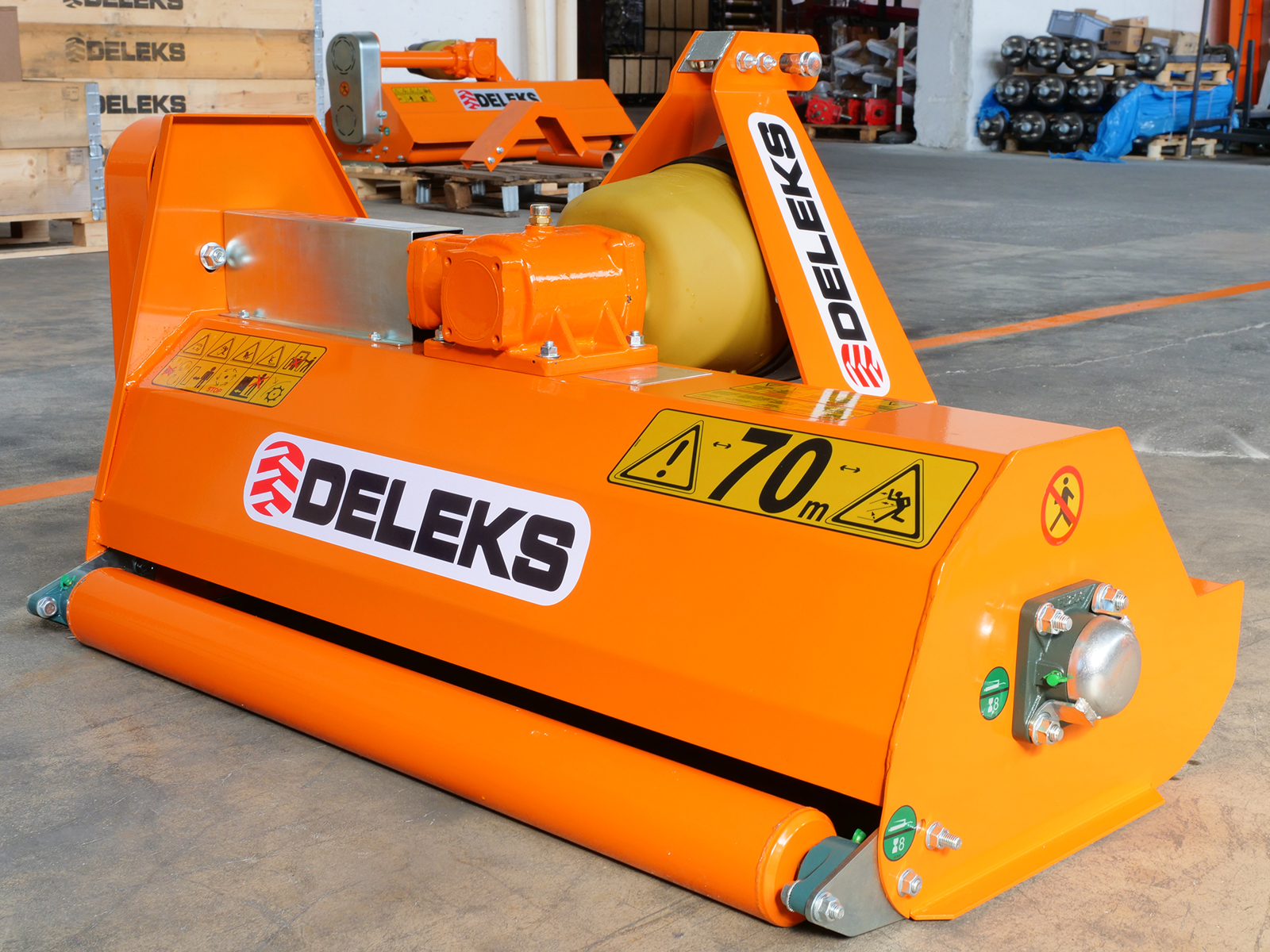

The APE-100 flail mower has been designed for low-powered tractors e.g Kubota BX-B, Iseki, Yanmar, John Deere 1-2 Series, Pasquali, etc. 12-30Hp, for garden and farm use. Heat forged hammers for grass, thicker vegetation and small twigs.

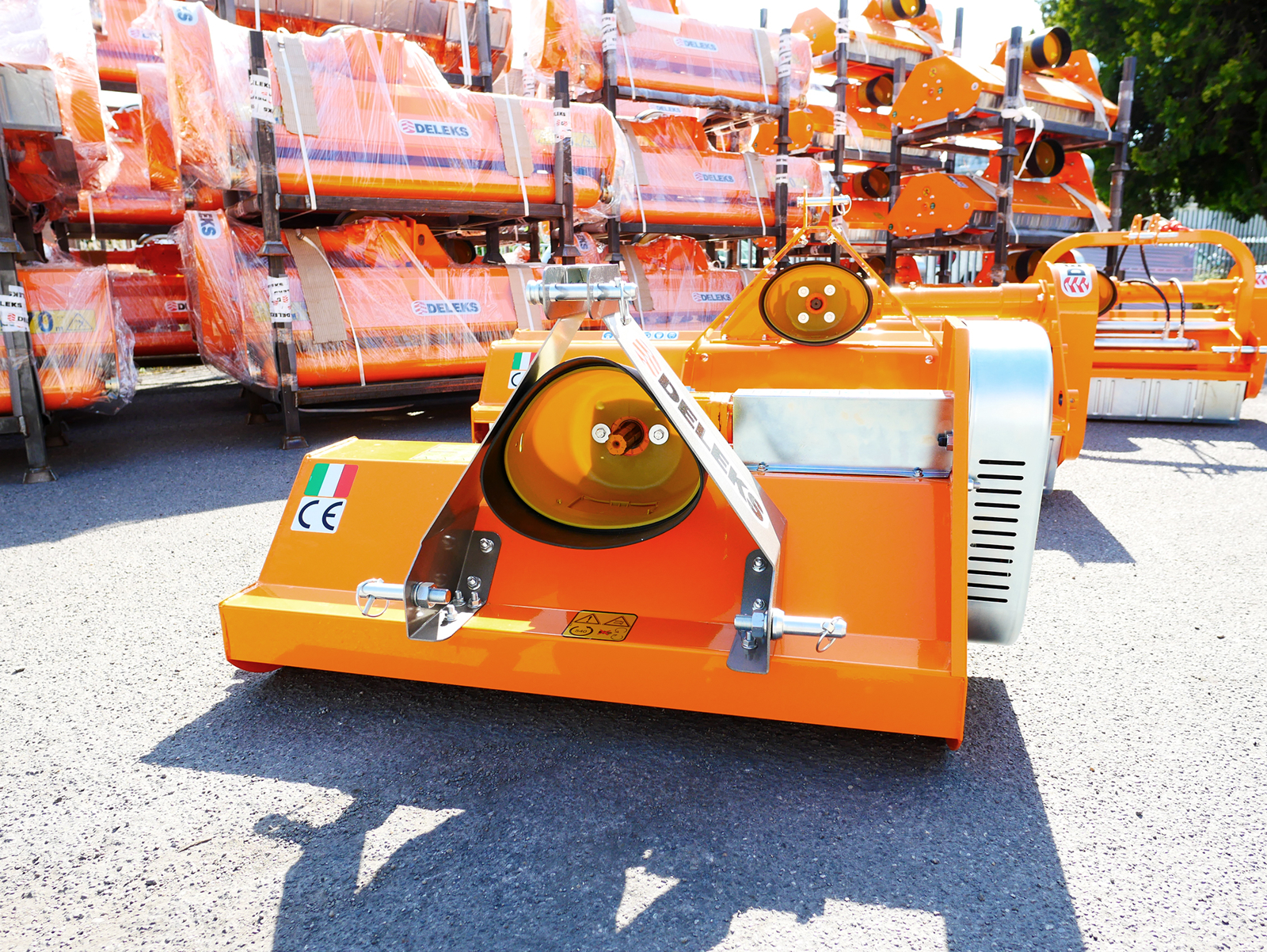

Cutting height can be easily changed via an adjustable roller. Fixed universal three point hitch Cat.1.


BENEFITS & FEATURES

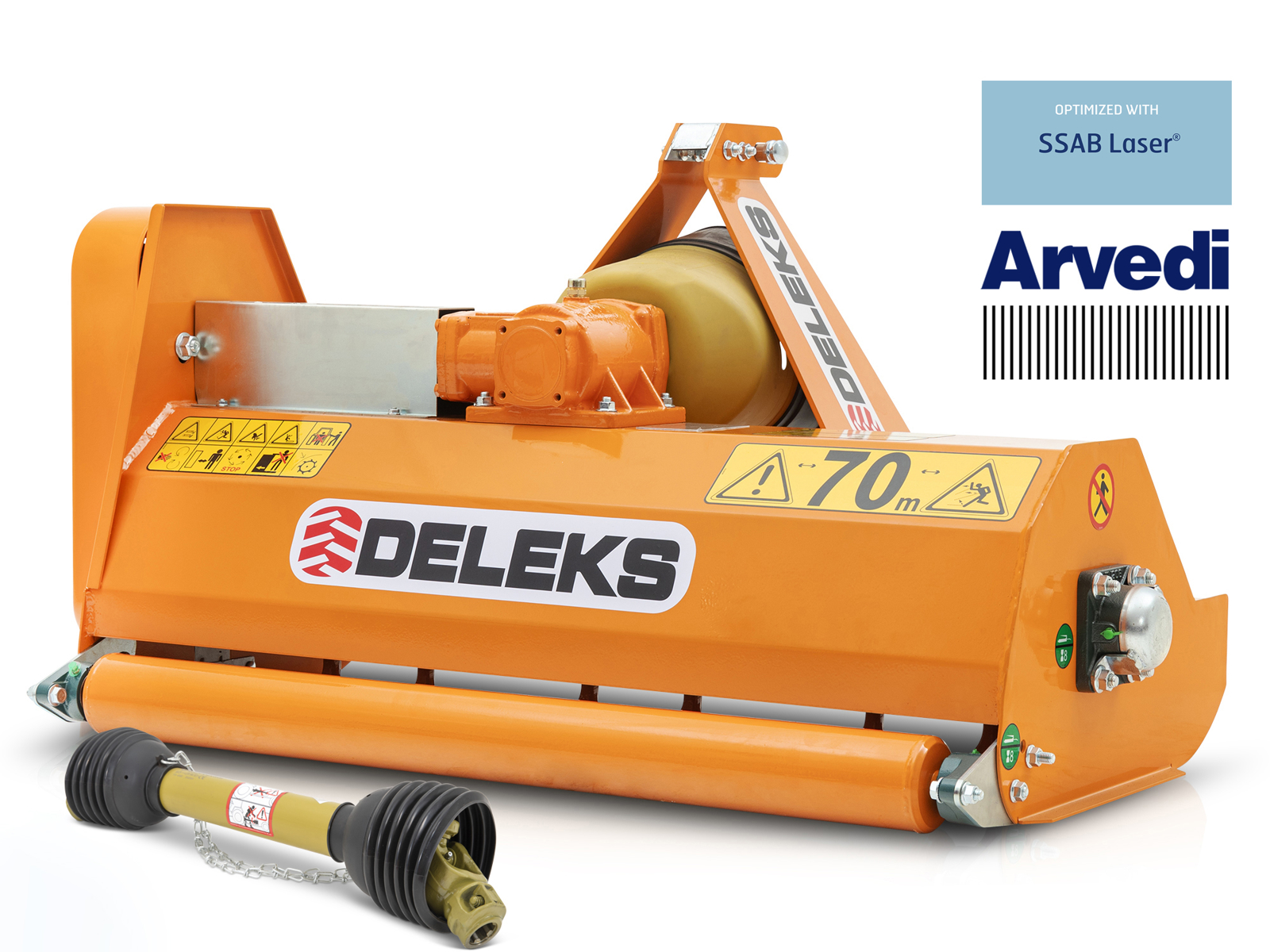

Frame entirely made with Swedish SSAB steel.

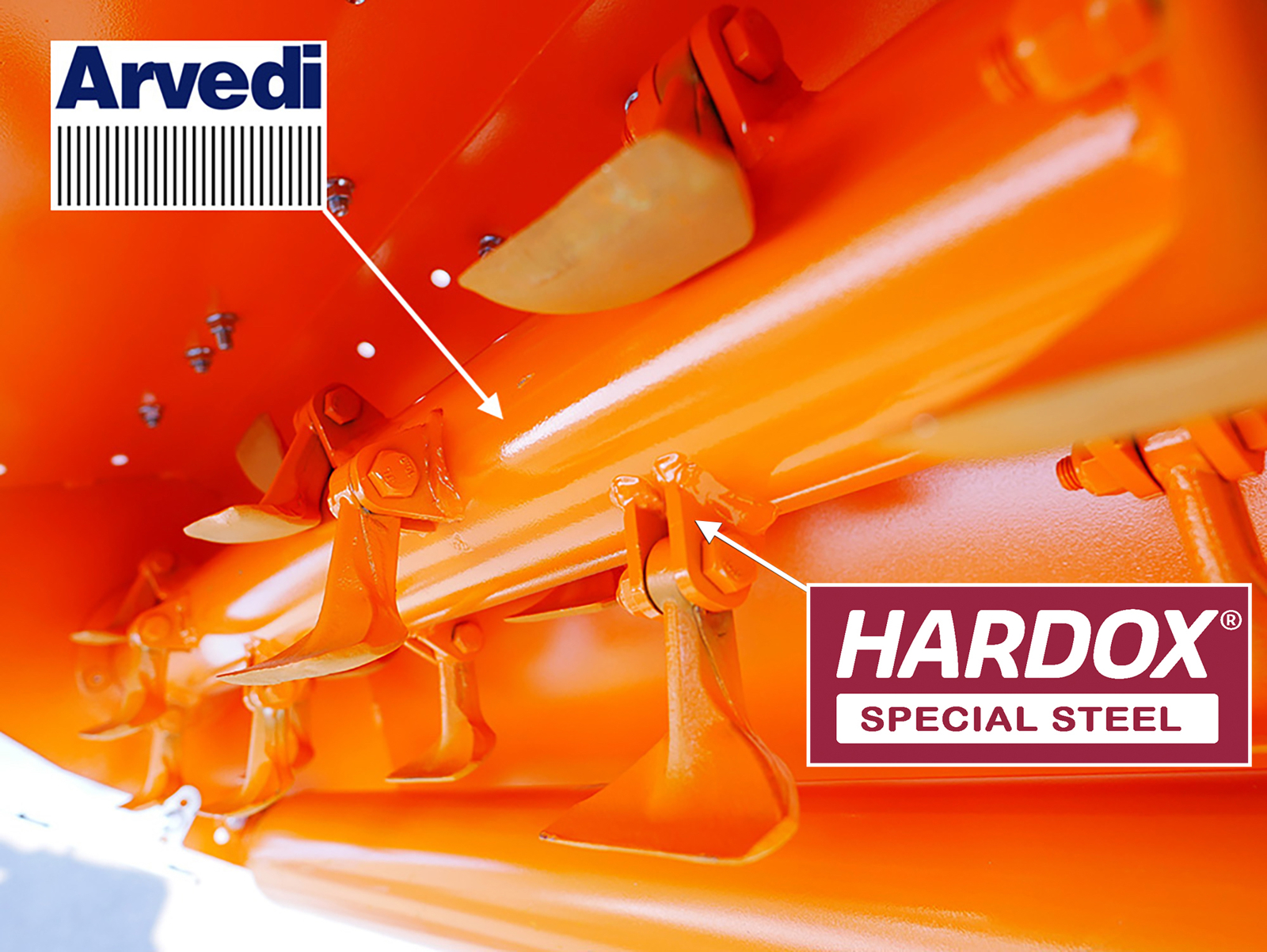

Rotor made with ARVEDI's tube, electronically balanced.

Hammers attachments HARDOX made.

Gearbox P.T.O. 540 r.p.m. Lombarda Ingranaggi Srl with free-wheel (3 Years warranty)

The lightweight design allows its use with low-powered tractors, on flat ground or on verges.

330g heat forged hammers to shred vegetation up to 2,0cm thick.

Adjustable roller unit.

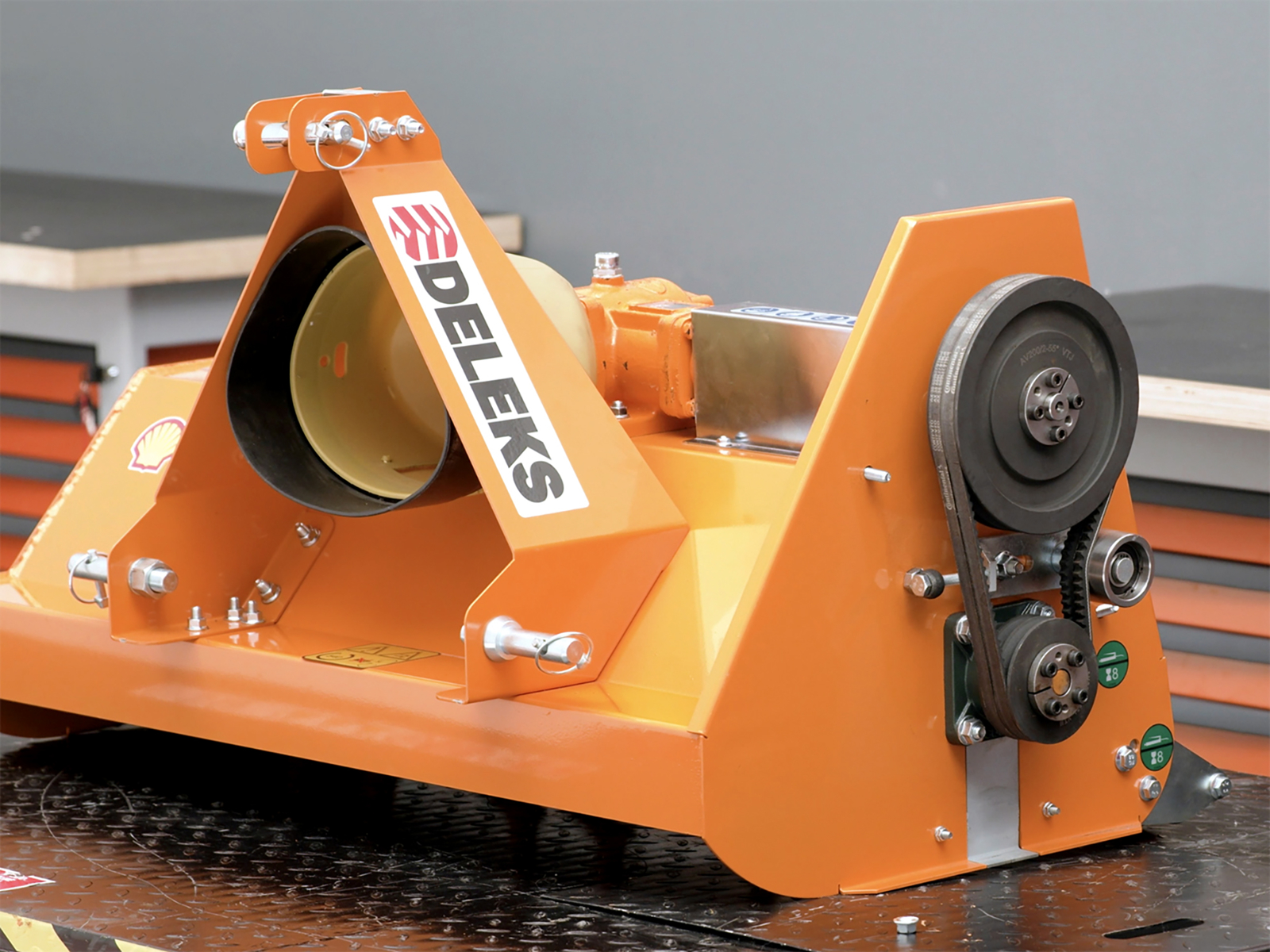

External belt tensioner.

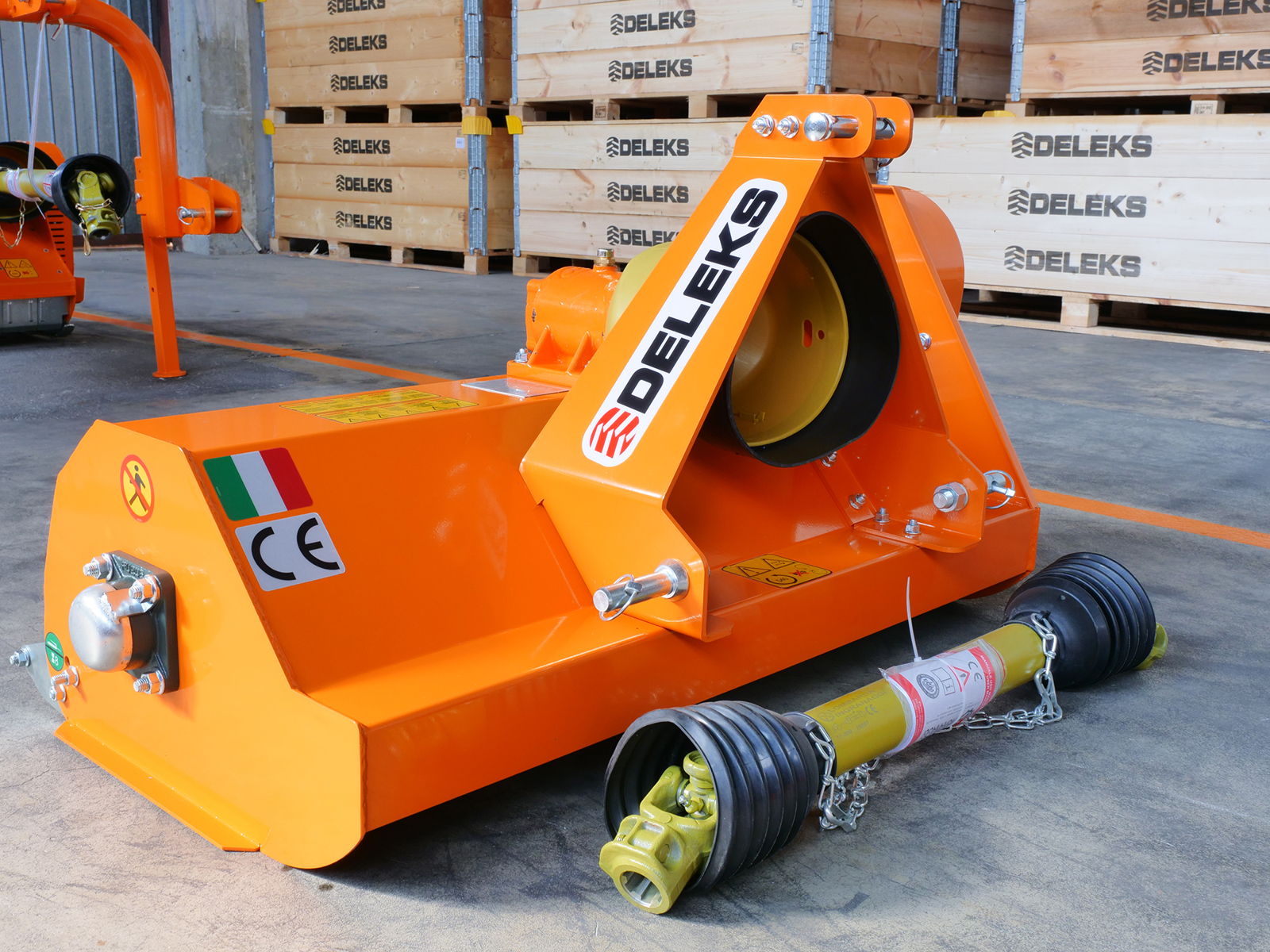

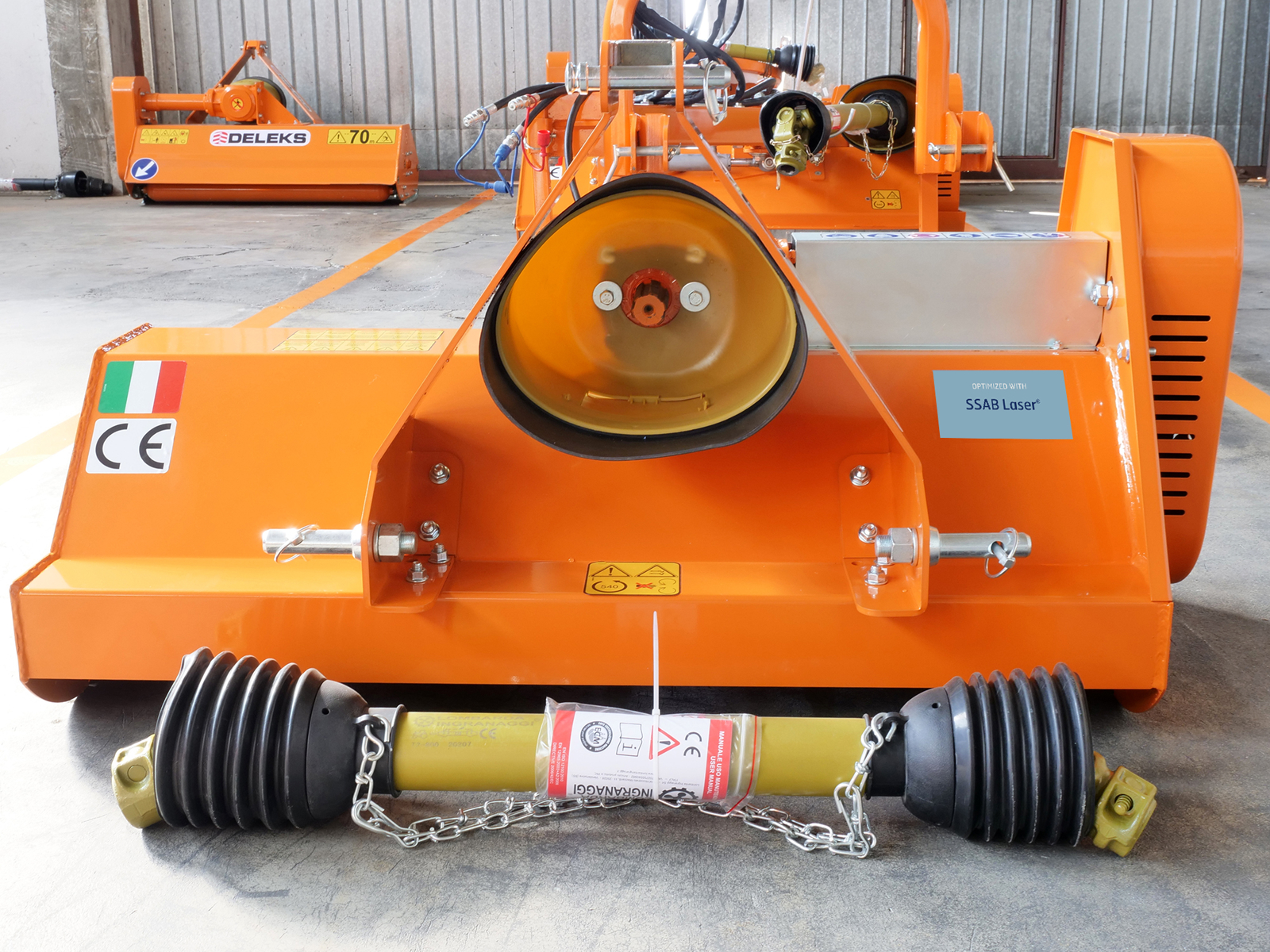

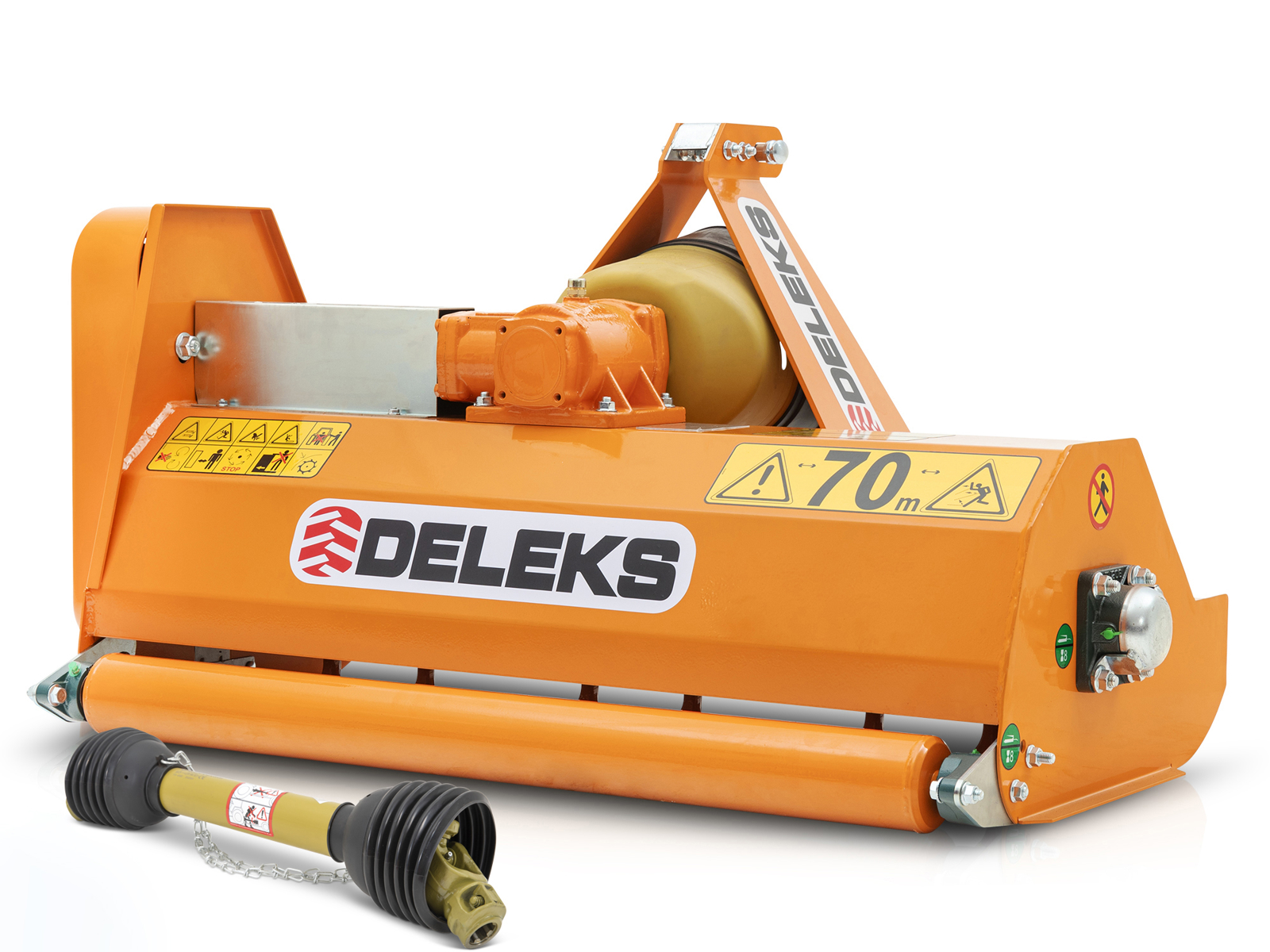

Pto Shaft CE included.



CHARACTERISTICS

Characteristic Units metric Units US
Working width 1000.0 mm 3.28 ft
Overall width 1150.0 mm 3.80 ft
Min / Max cutting height 20.0 - 35.0 mm 0.8- 1.37 in
Weight 105.0 kg 232.0 lb
Overall height 623.0 mm 2.05 ft
Tractor Power Range 12 - 30 Hp 12 - 30 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Hood height 317.0 mm 12.50 in
Spacing between the 2 lower points 380.0 - 580.0 mm 15.0 - 22.8 in
Number of Hammers 24 24
Maximum cutting diameter 10.0 - 20.0 mm 0.4 - 0.8 in
Overall length 640.0 mm 2.10 ft
Distance between pto attachment and ground 385.0 mm 15.15 in
Main hood thickness 3.0 mm 0.11 in
Sides thickness 3.0 mm 0.11 in
Transmission: Drive method V-Belts V-Belts
Transmission: Gearbox Lombarda Ingranaggi Srl (3 years warranty) Lombarda Ingranaggi Srl (3 years warranty)
Transmission: PTO 540 r/min 540 r/min
Transmission: Rotation of gearbox Right side Right side
Transmission: Free wheel
Transmission: RPM Rotor speed 3000 rpm 3000 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Transmission: Top pulley ø 185.0 mm 7.28 in
Transmission: Lower pulley ø 96.0 mm 3.77 in
Transmission: V-Belts quantity 2 2
Transmission: V-Belts size AX35 (889LI) AX35 (889LI)
Rotor: diameter 76.0 mm 3.00 in
Rotor: bearings type and size UCF206 UCF206
Rotor: balancing Electronic Electronic
Rotor: sheet thickness 8.0 mm 0.31 in
Hammers: Weight 330.0 g 11.7 oz
Hammer: øhole 11.0 mm 0.43 in
Hammer: base width 80.0 mm 3.15 in
Hammer: top width 14.0 mm 0.55
Hammer: Diagonal 75.0 mm 2.95 in
Rear roller: diameter 85.0 mm 3.35 in
Rear roller: sheet thickness 6.3 mm 0.25 in
Rear roller: bearings type and size UCFL204 UCFL204
Pto shaft CE 2x800 mm CE 2x800 mm
Hood length 525.0 mm 20.67 in

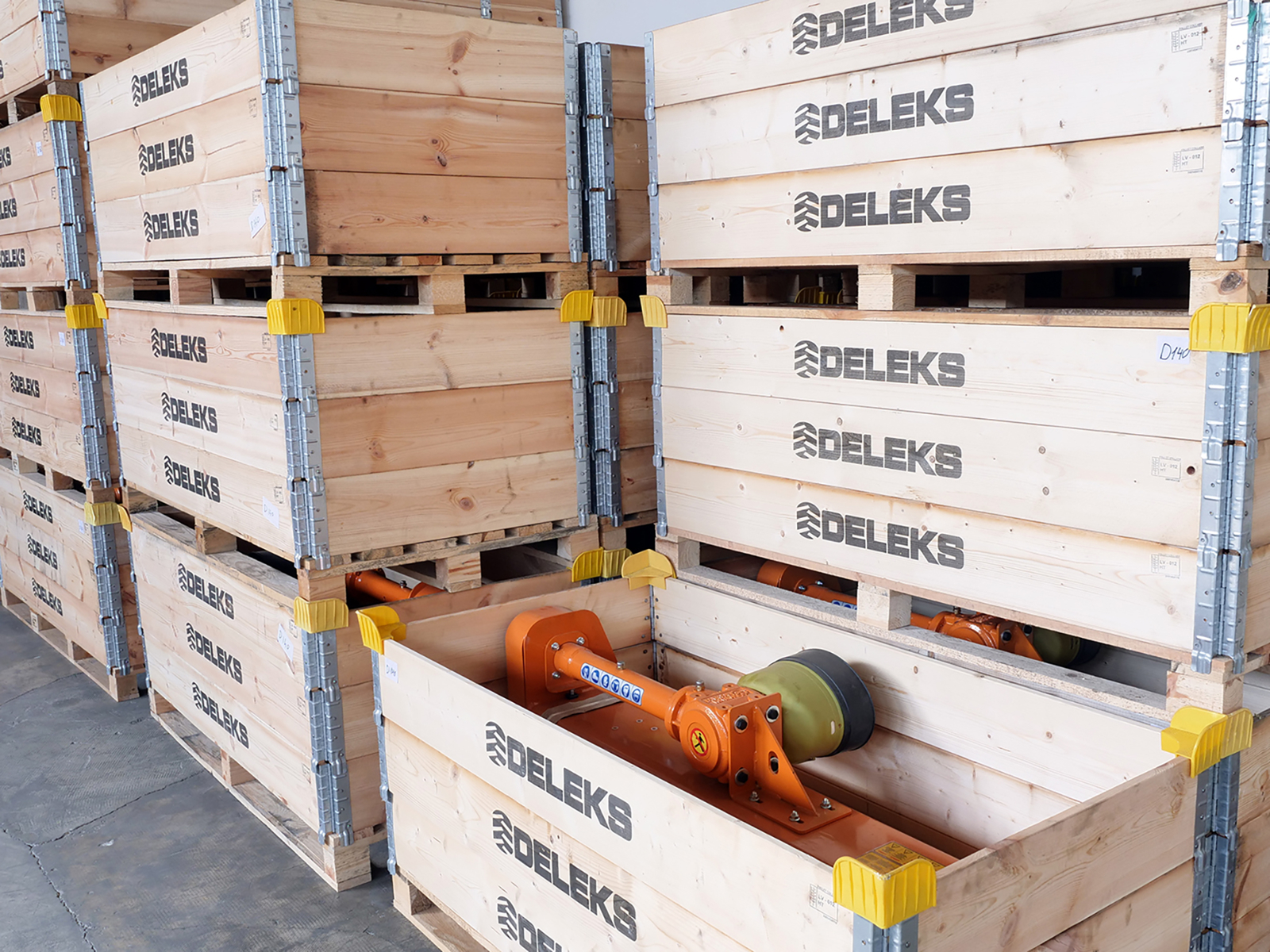

Packing sizes 1200.0*800.0*660.0 mm 3.94*2.62*2.16 ft

Certifications

SSAB Acciaio Svedese Laser 355C: Specifiche e Certificazione Download PDF
ARVEDI / TUBINDUSTRIA: Certificazione Download PDF

User's Manuals

Technical charts

Shell Spirax S2 A 80W-90: Specifiche Download PDF
Shell Gadus S2 V220AC 2: Specifiche Download PDF

Optional

10 bolts nuts l
10 Bolts + nuts L ø12mm
43,00VAT incl.
Available

APE/LINCE/VOLPE

10 hammers l 2022
10 Hammers L - ø12mm
83,00VAT incl.
Available

APE/LINCE/VOLPE (> 2022)

2 belts ape
2 belts APE
52,00VAT incl.
Available

APE

pto adapter rid1
PTO-adapter
44,00VAT incl.
Available


spare pins cat 1 b
Spare pins cat. 1-B
49,00VAT incl.
Available

ø 19.0/22.0 mm
