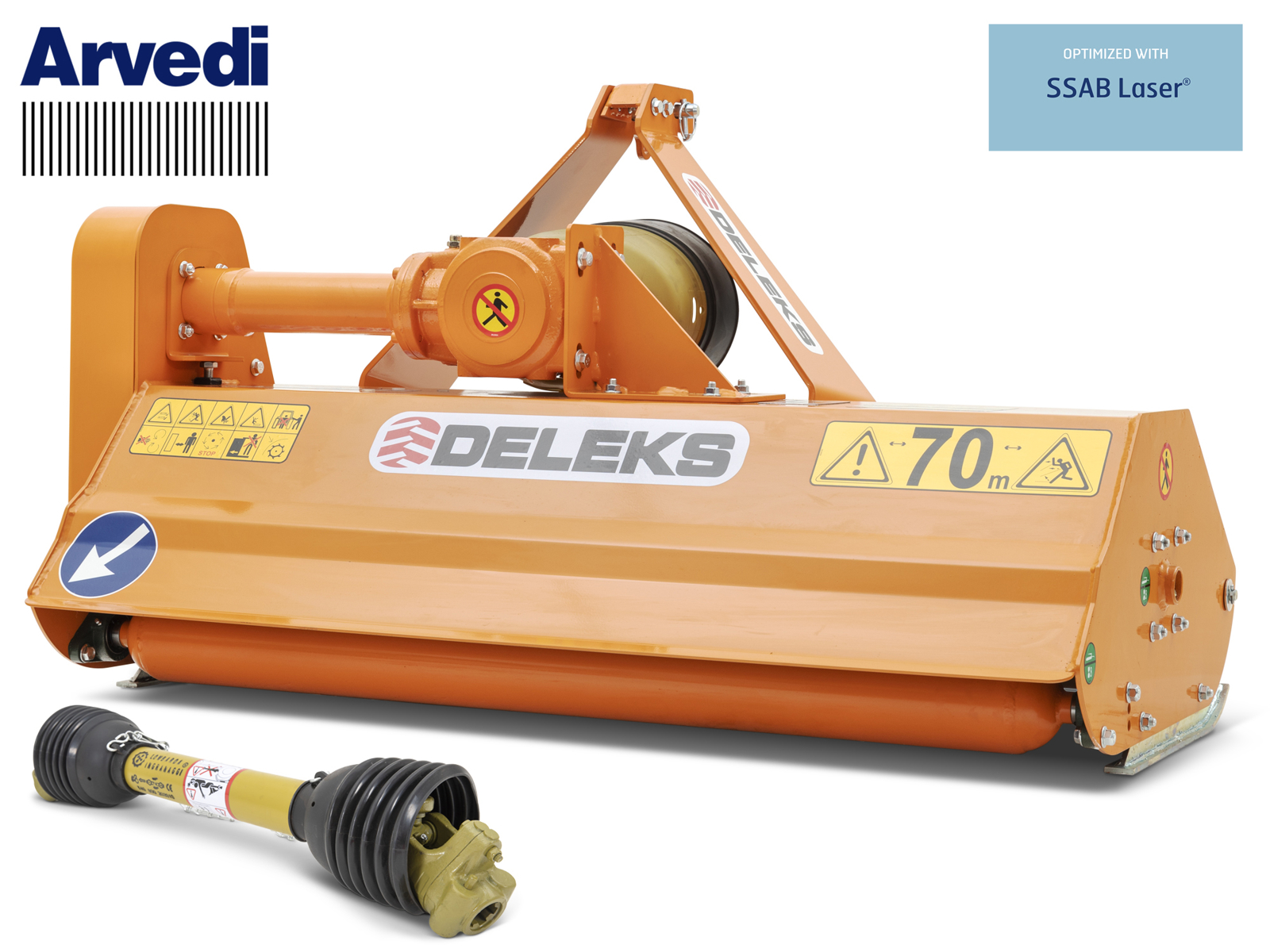

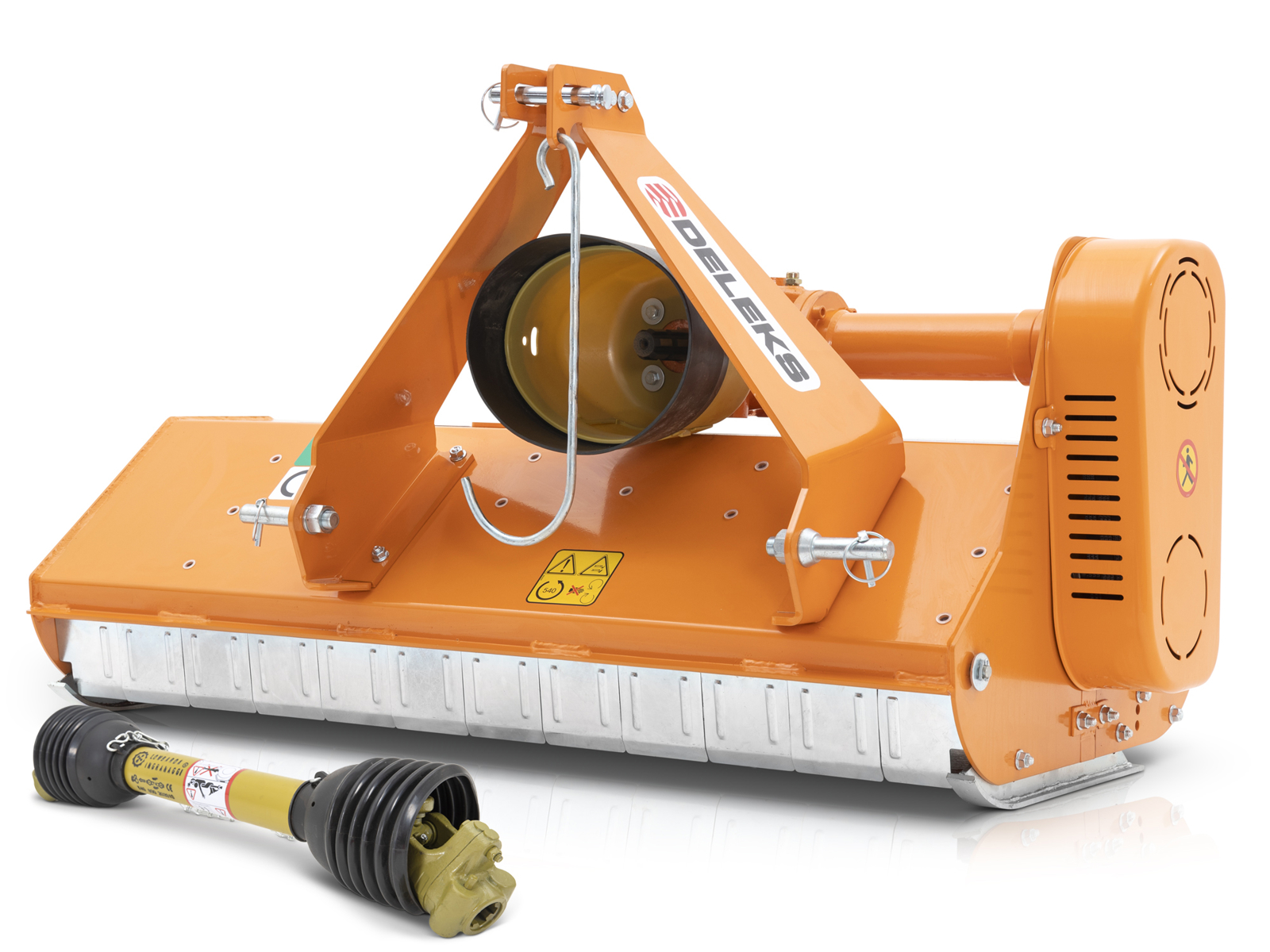

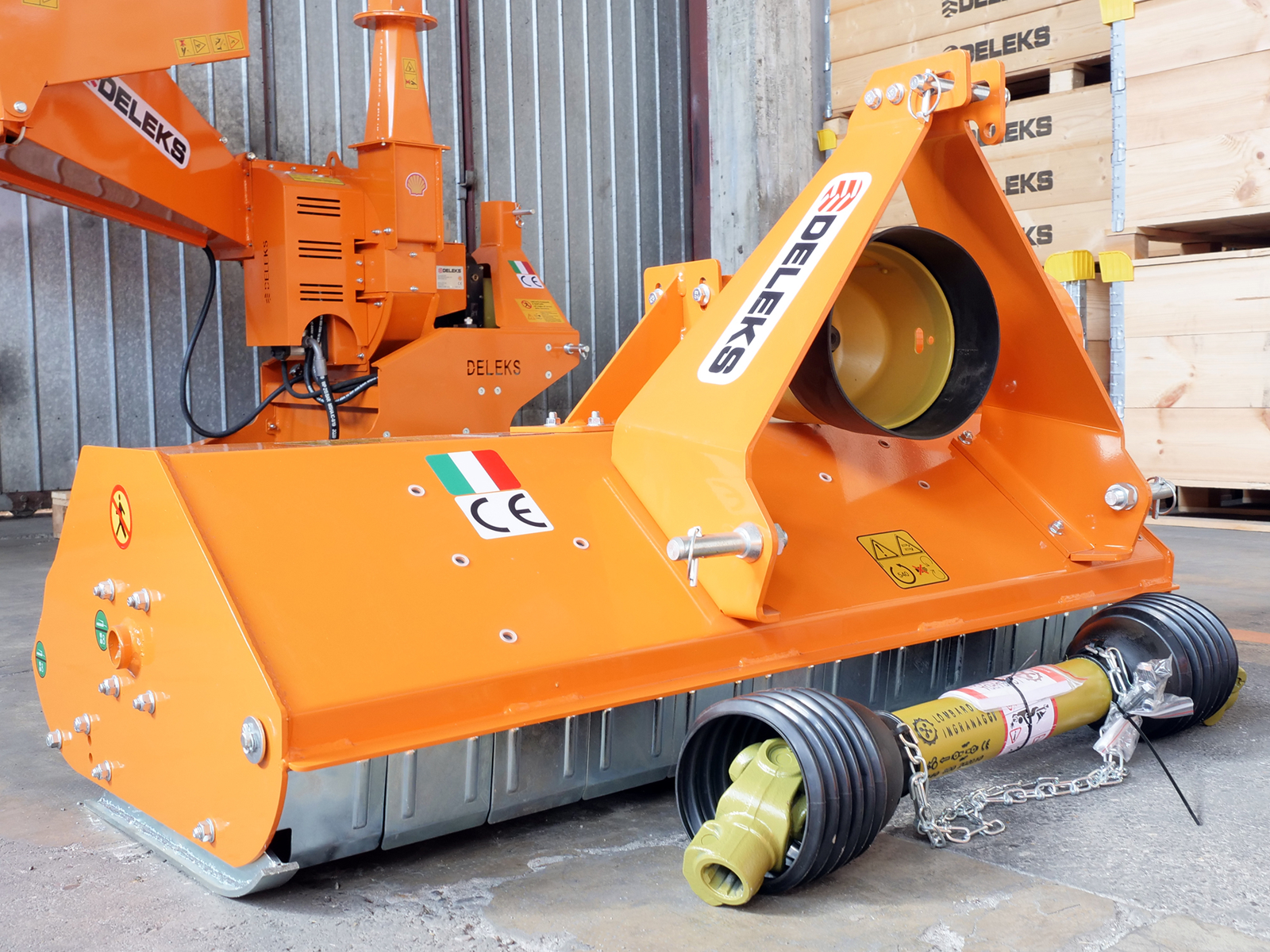

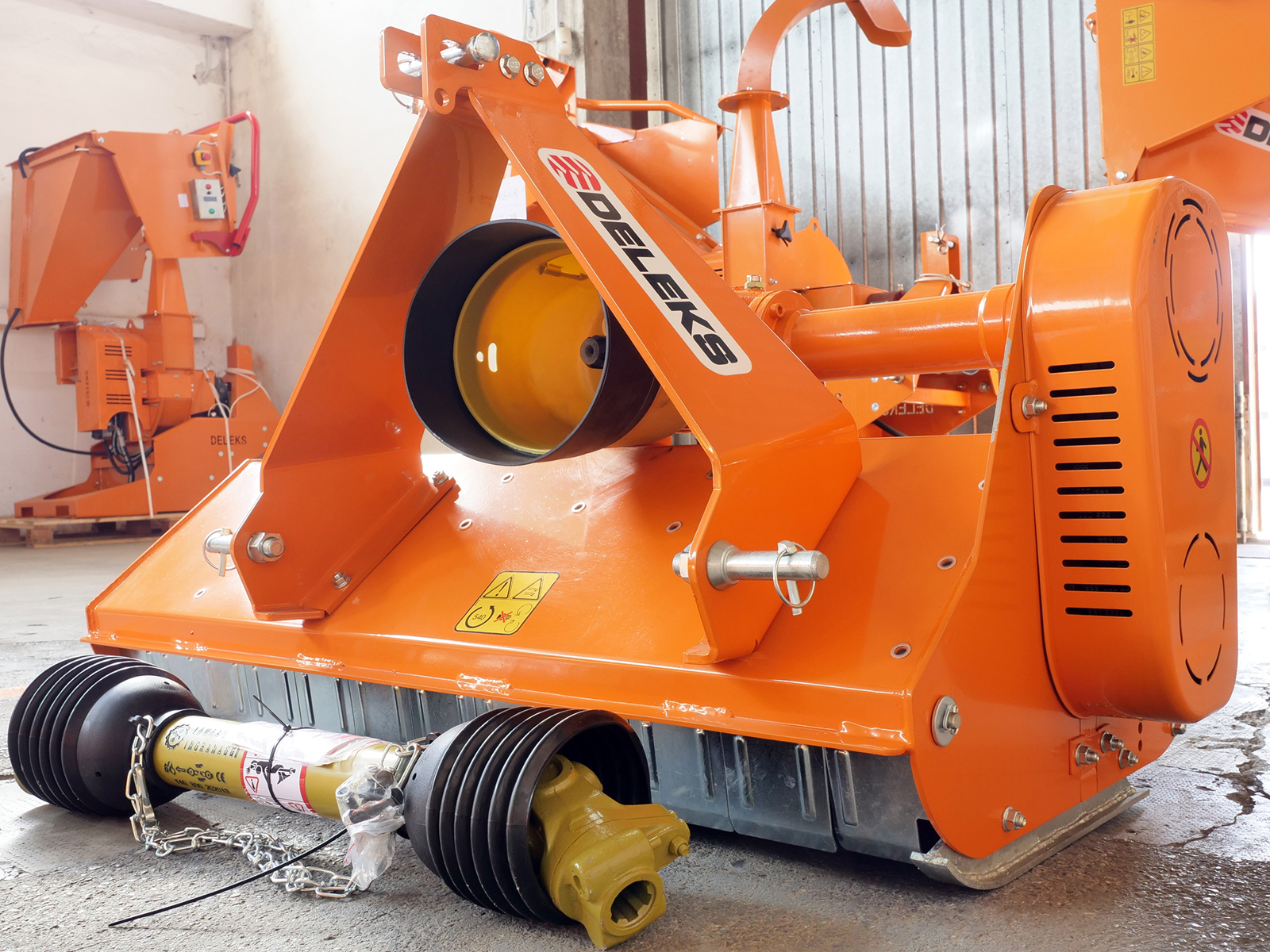

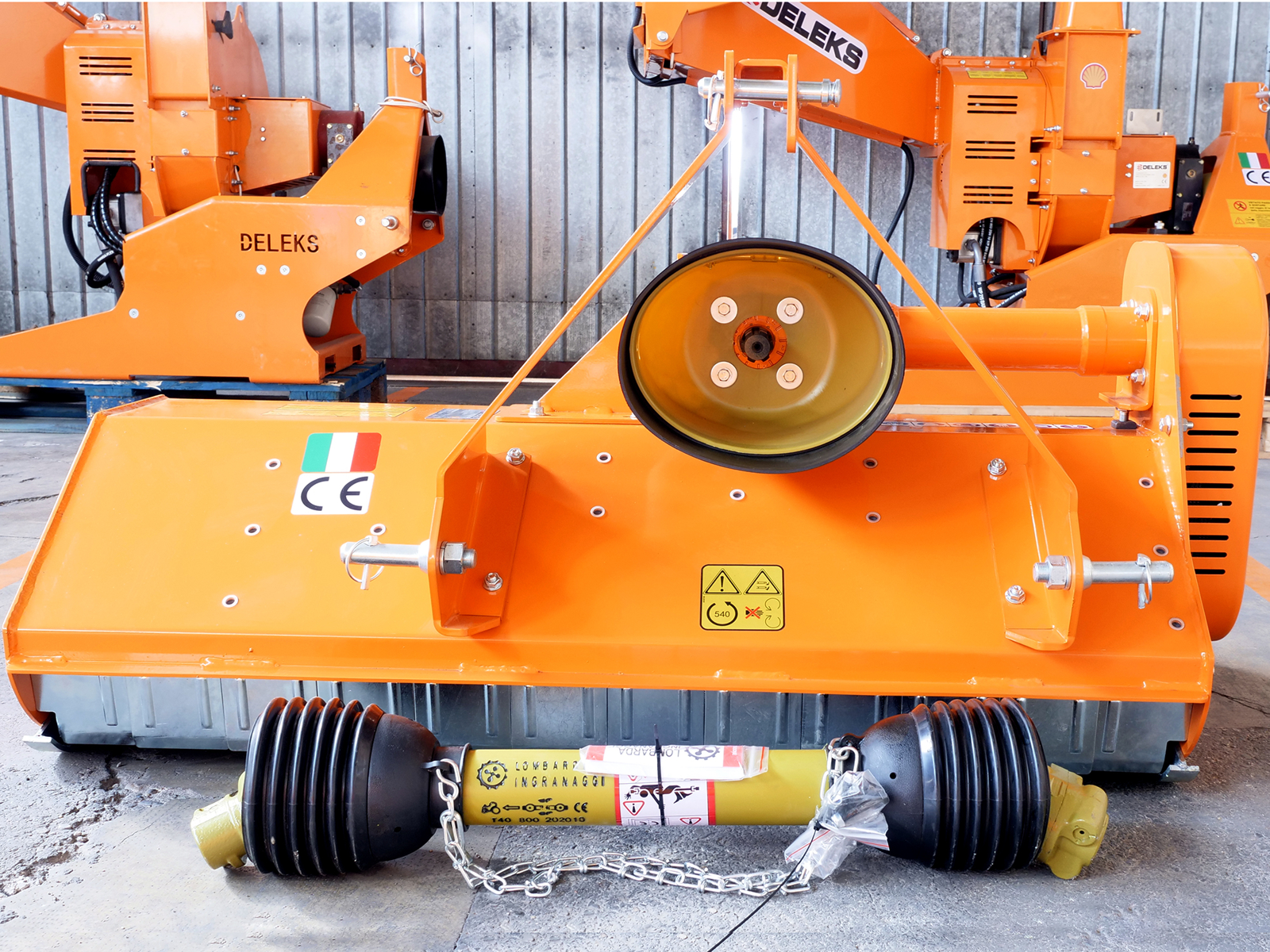

Mulcher for compact tractors 20-40hp, Mower, Shredder with hammers | DELEKS® LINCE-140 - Pto shaft CE included.

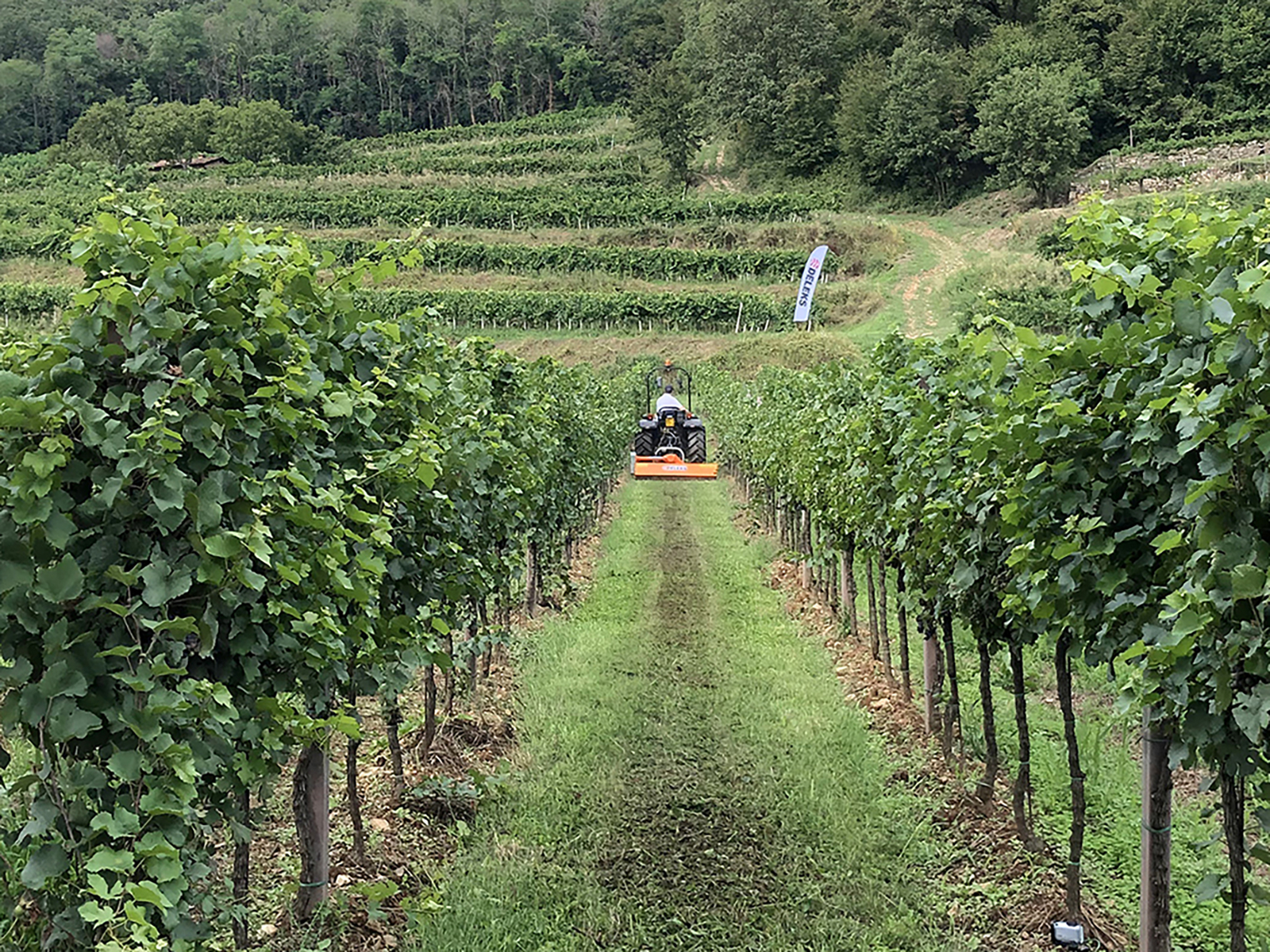

The LINCE-140 mulcher has been designed for 20-40Hp tractors e.g Kubota, John Deere 2-3, New Holland Boomer 25-35, Pasquali, Ferrari, Branson, for garden and farm use. Heat forged hammers for grass, thicker vegetation and small twigs. Cutting height can be easily changed via an adjustable roller and side skids. Fixed universal three point hitch Cat.1.
BENEFITS & FEATURES
Frame entirely made with Swedish SSAB steel.

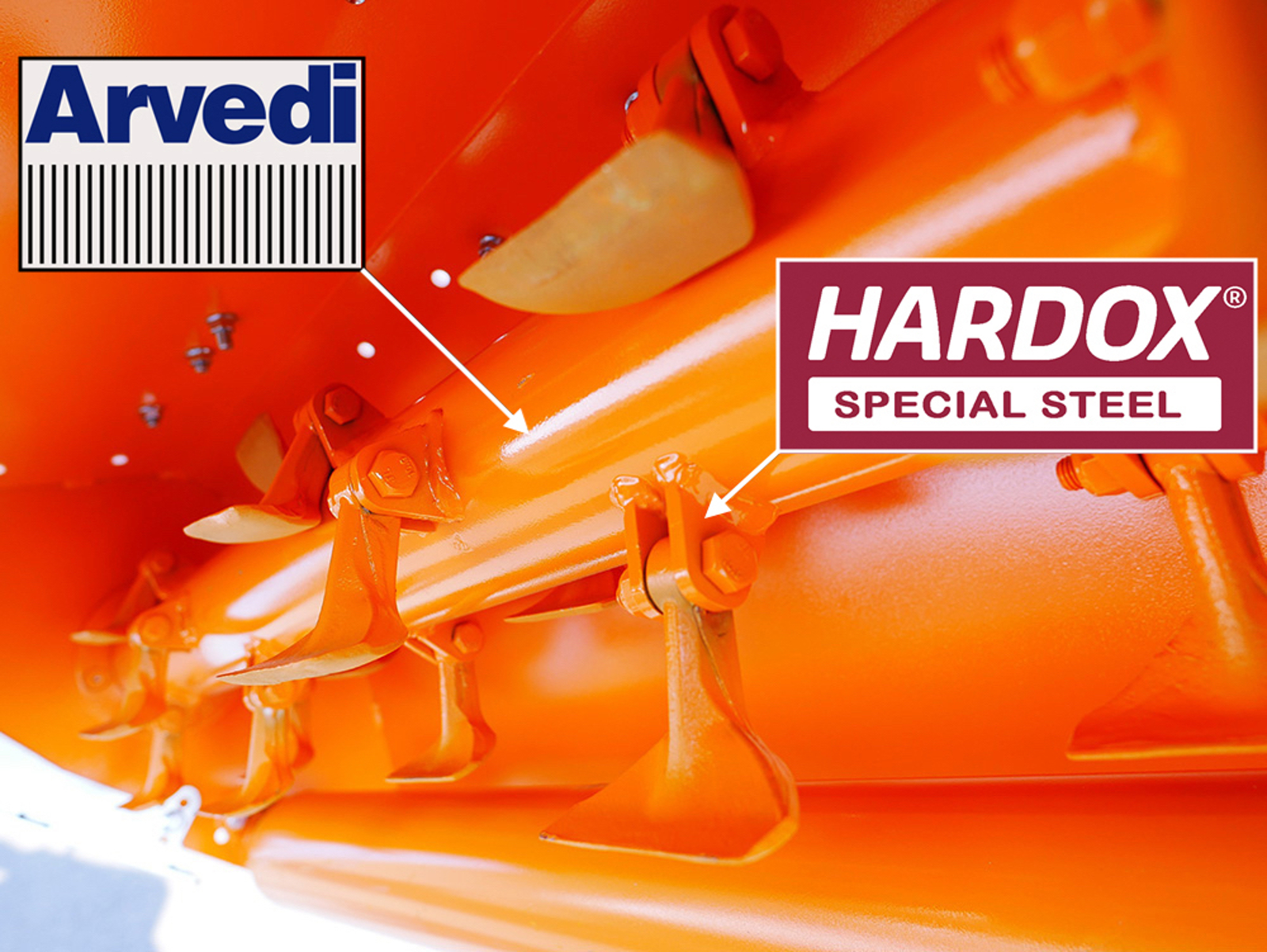

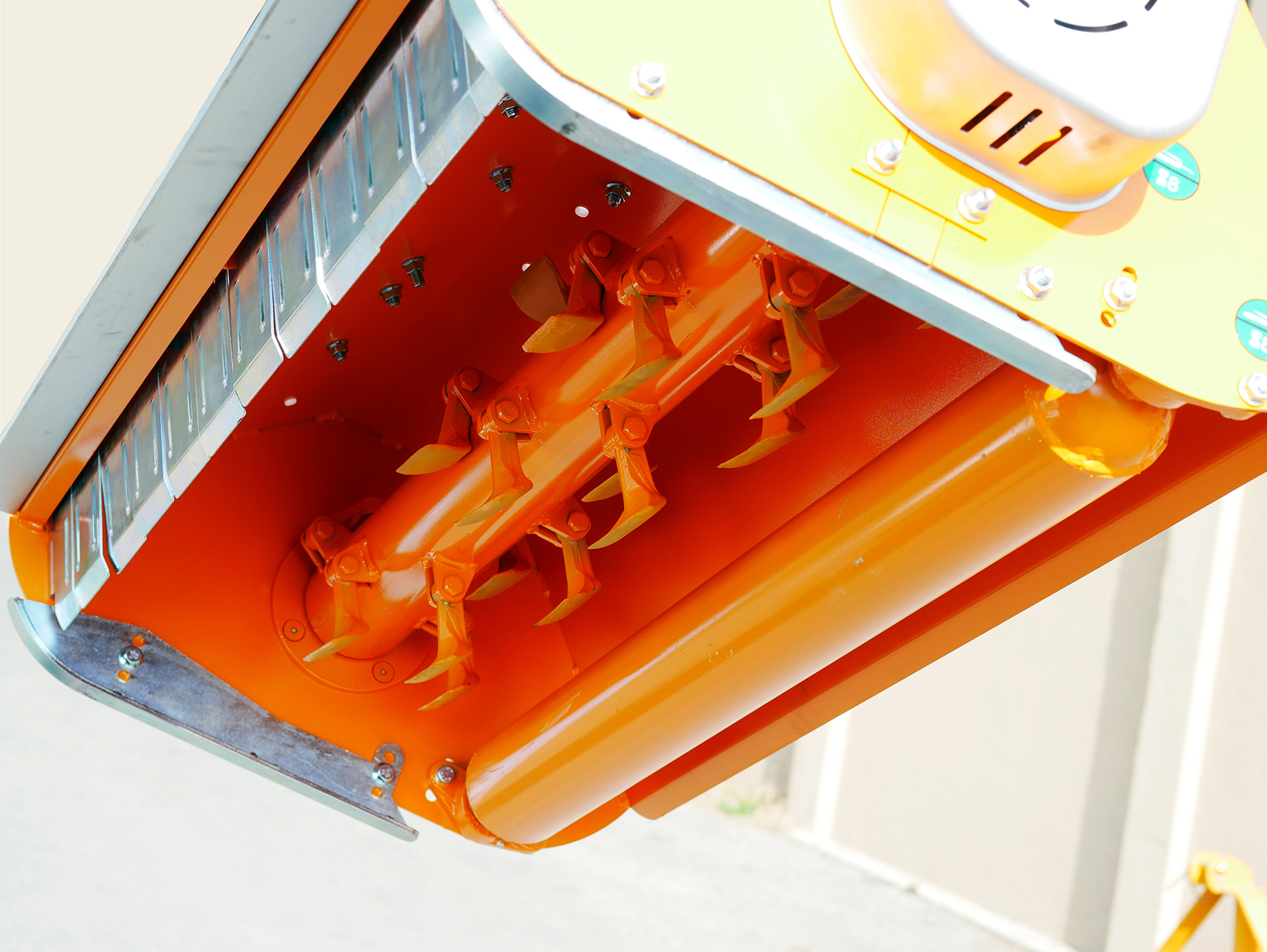

Rotor made with ARVEDI's tube, electronically balanced, 8mm thick S355 steel with hammers mounted on 6 rows instead of 4.
Hammers attachments HARDOX made.
SKF rotor bearings.

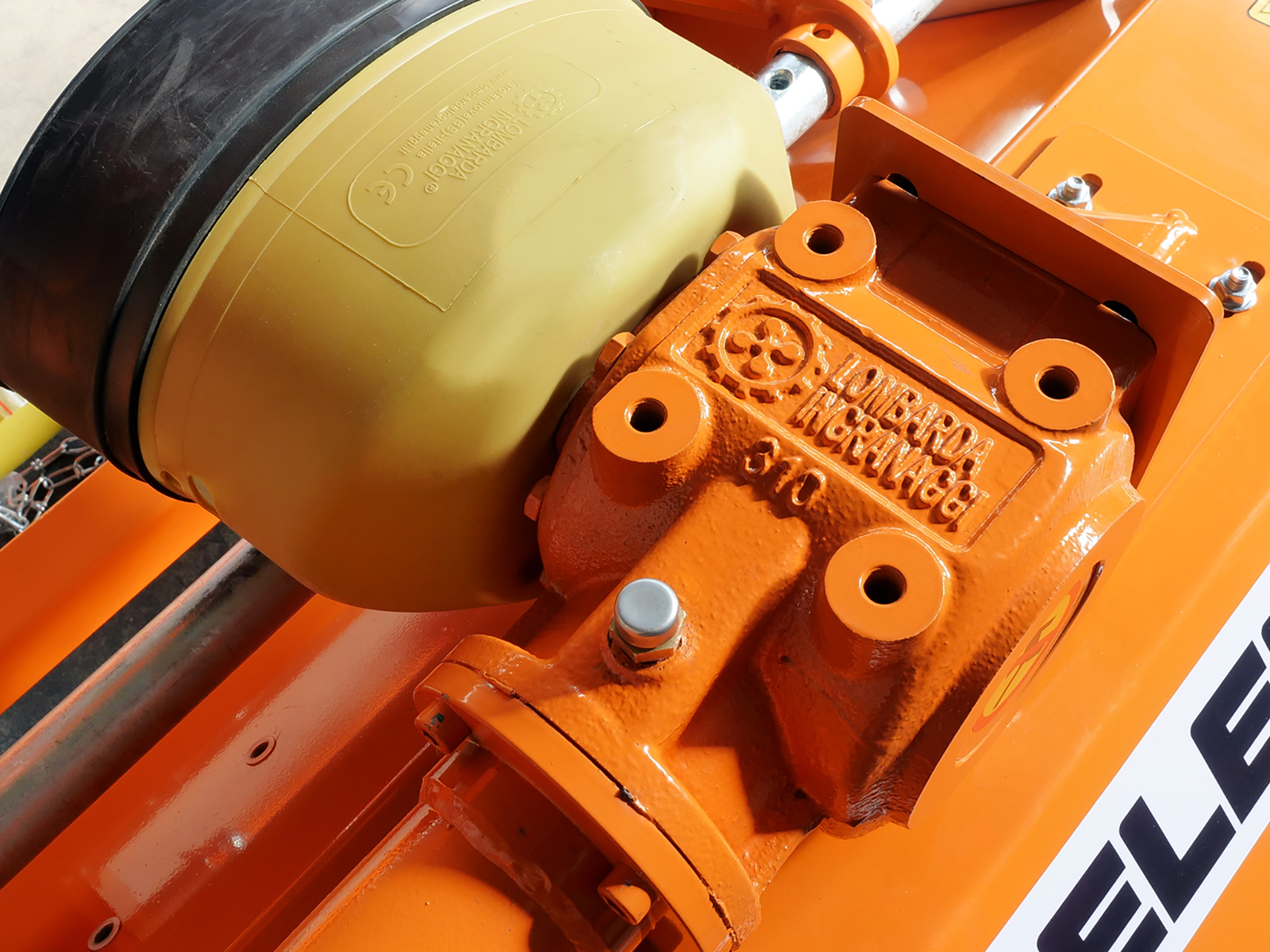

Gearbox P.T.O. 540 r.p.m. Lombarda Ingranaggi Srl with free-wheel (3 Years warranty).
The body is equipped with an internal curb which diverts the air flow towards the rotor for a mulching effect.
The internal positioning of the roller gives more efficiency and reduced execution times. The cutted grass passes over the roller without being crushed and is disposed of more quickly.
330g heat forged hammers to shred vegetation up to 2,0-3,0 cm thick.

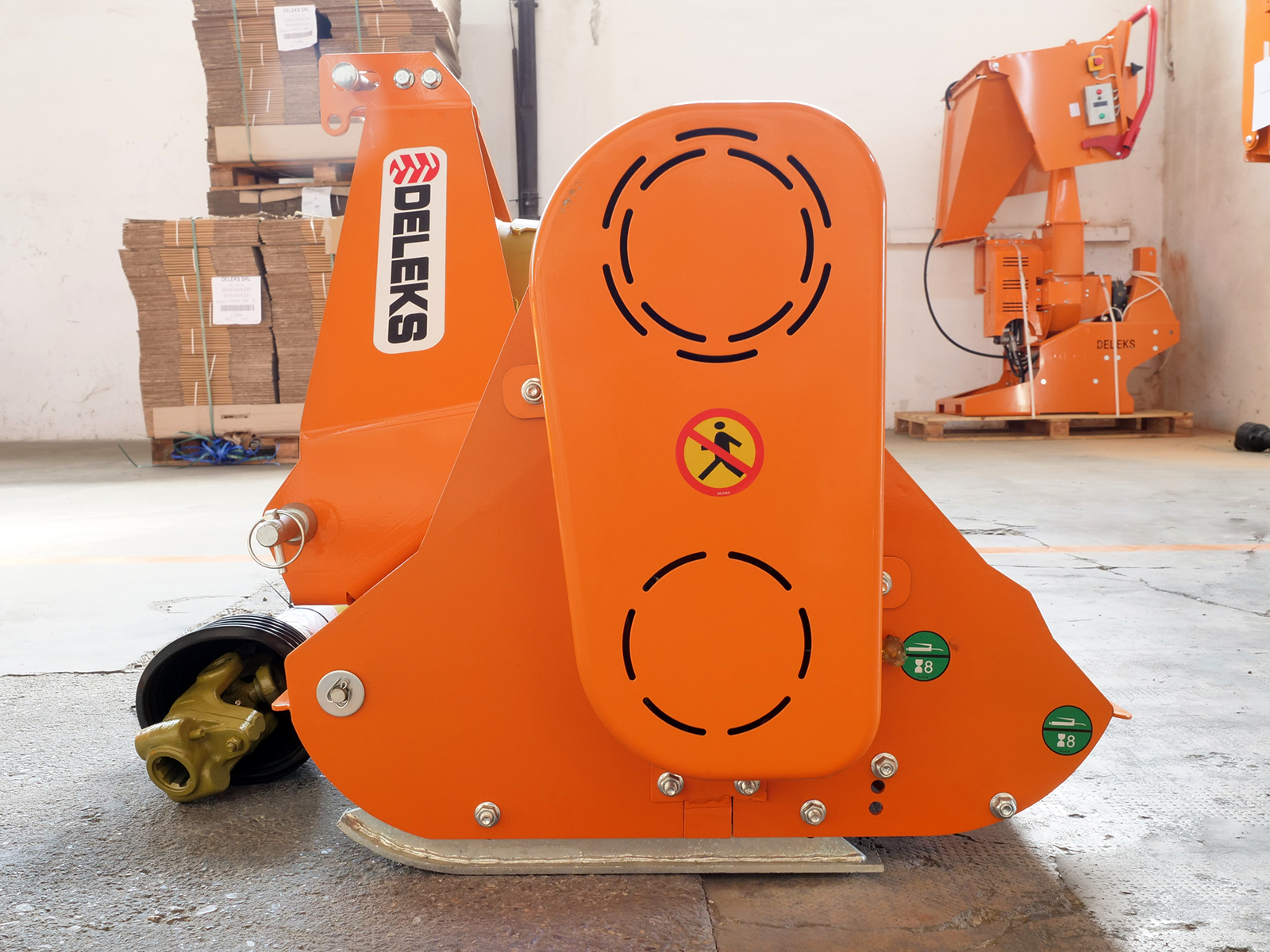

3 High resistance toothed belts, and external belt tensioner.

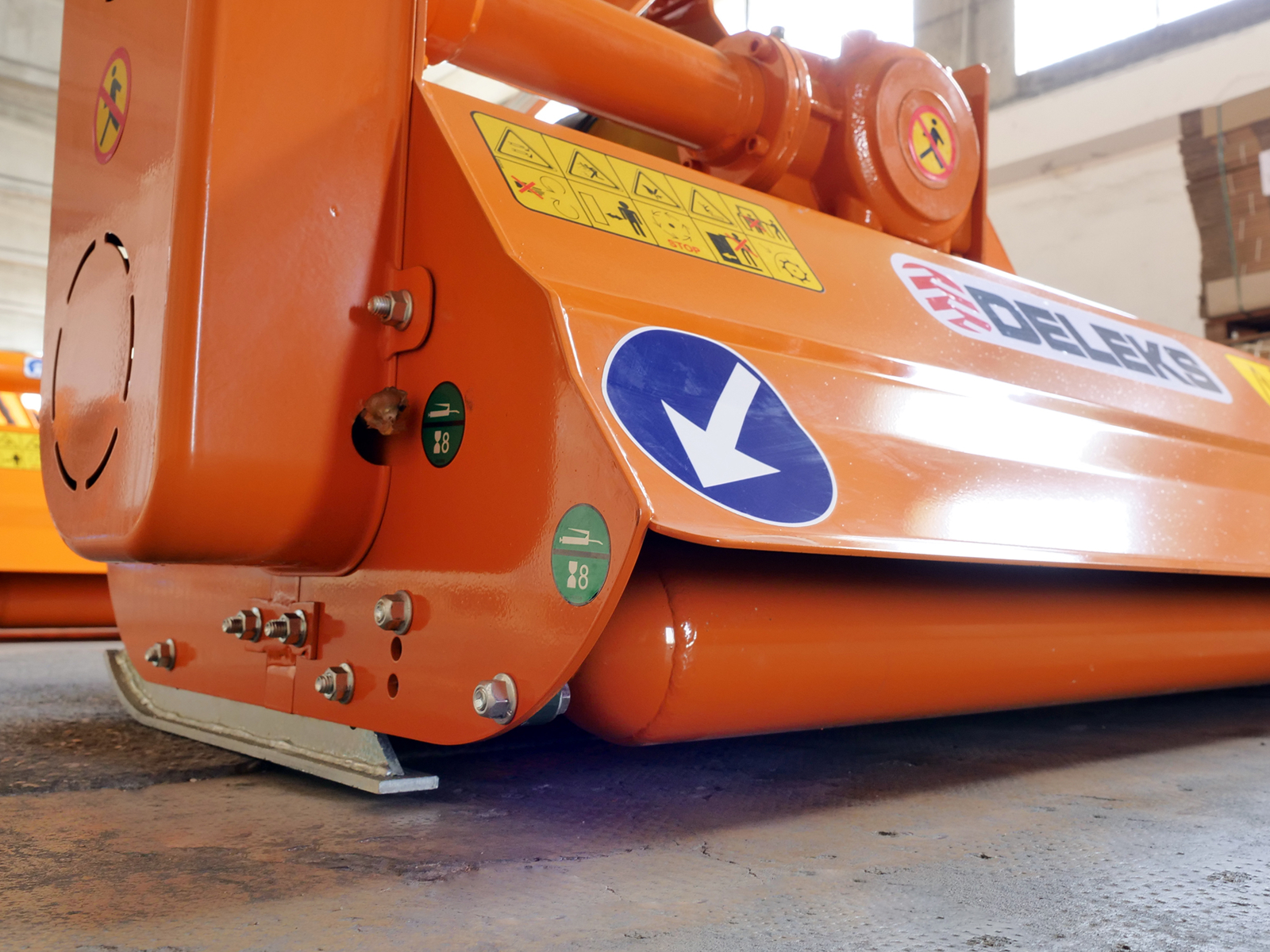

Adjustable roller unit and side skids.

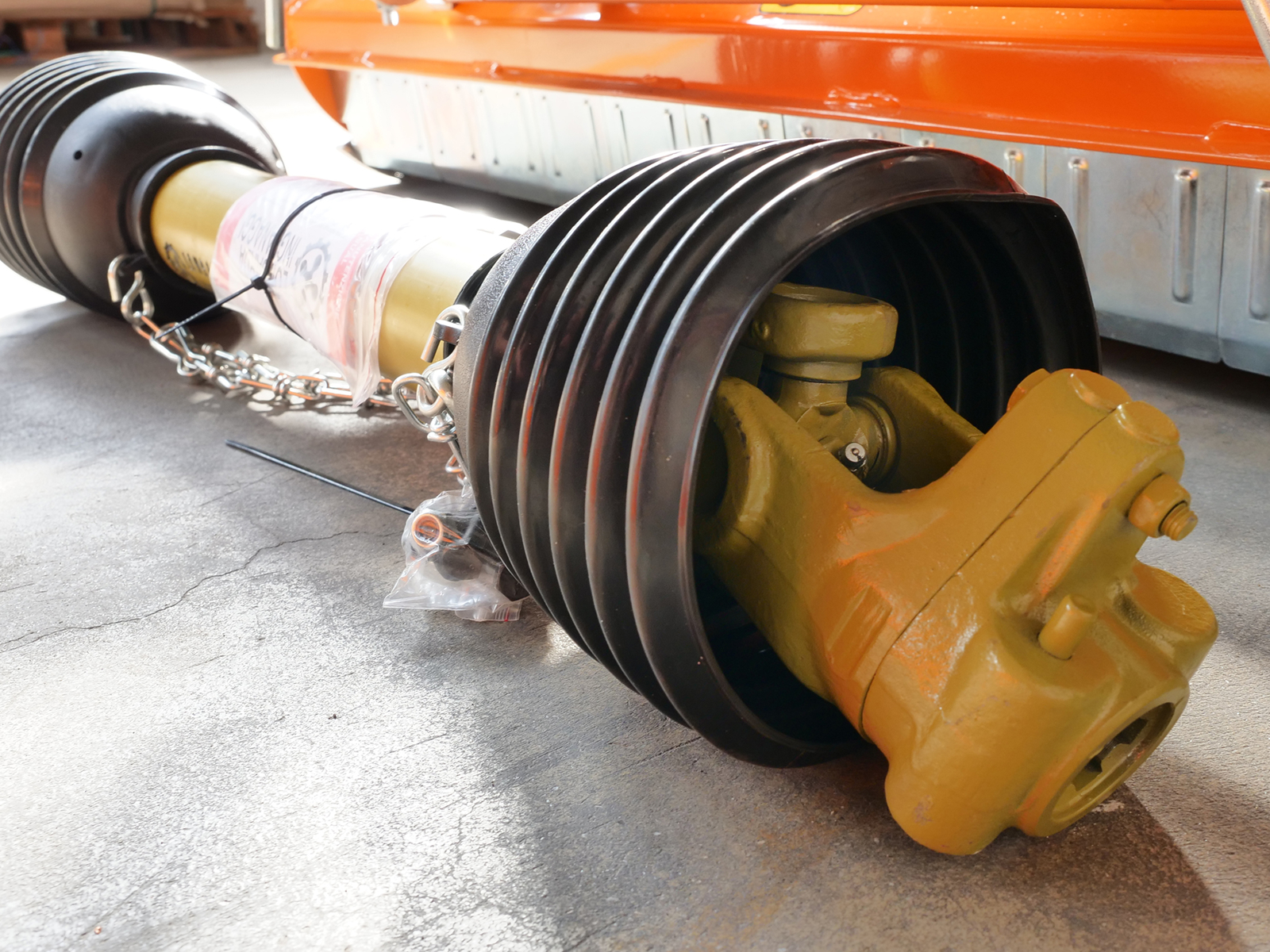

Pto shaft CE included.
Documentation supplied with this article:
Invoice or Receipt
|Characteristic||Units metric||Units US|
|Working width||1400.0 mm||4.60 ft|
|Overall width||1520.0 mm||4.98 ft|
|Min / Max cutting height||10.0 - 45.0 mm||0.4- 1.77 in|
|Weight||180.0 kg||397.0 lb|
|Overall height||750.0 mm||2.46 ft|
|Tractor Power Range||20 - 40 Hp||20 - 40 Hp|
|3 point linkage||Cat. 1 (ø 19.0-22.0mm)||Cat. 1 (ø 19.0-22.0mm)|

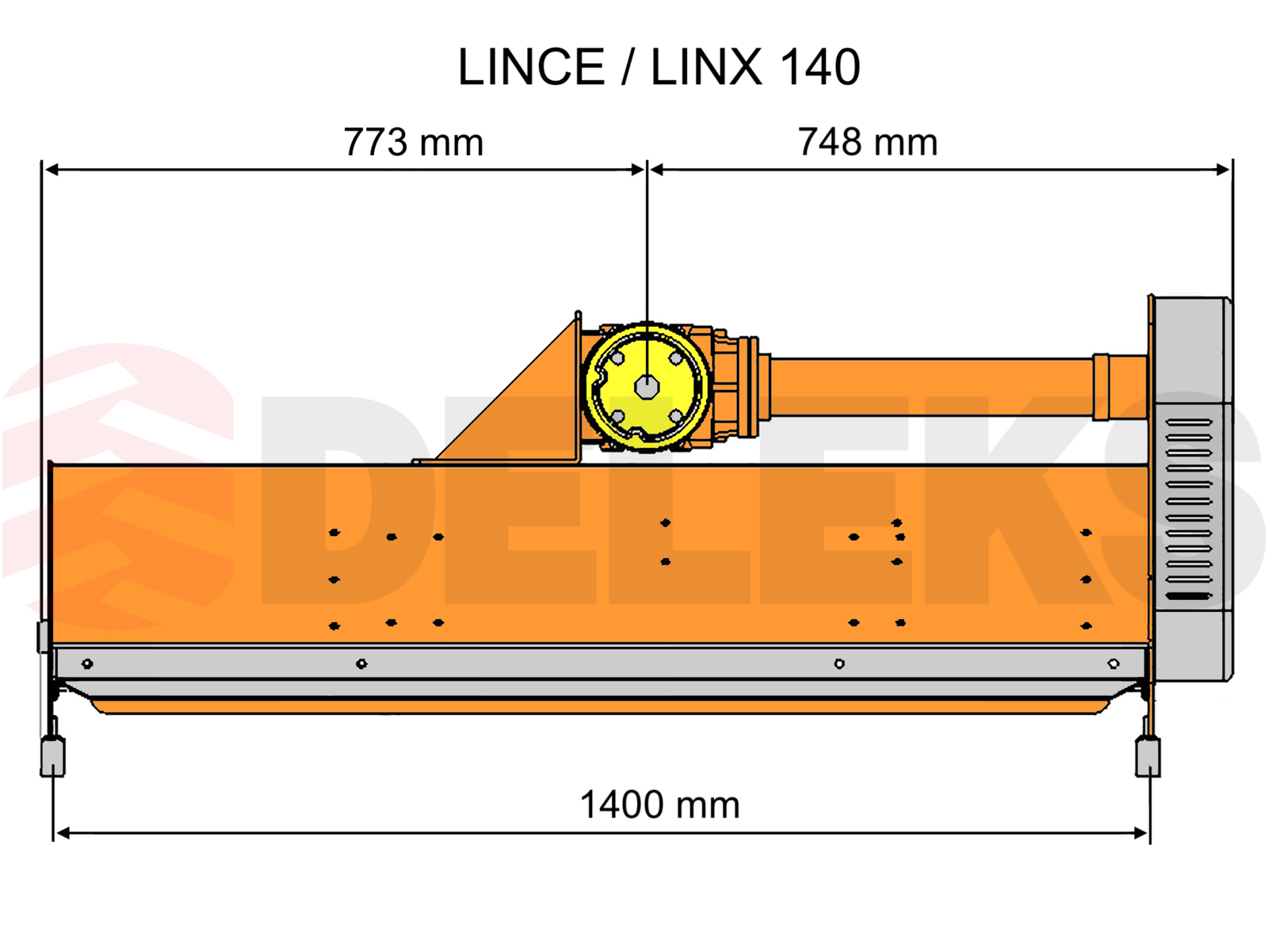

|Position of the gearbox||748.0 mm from left side / 773.0 mm from right side||2.46 ft from left side / 2.54 ft from right side|
|Hood height||358.0 mm||14.1 in|
|Spacing between the 2 lower points||470.0 - 710.0 mm||18.50 - 28.00 in|
|Number of Hammers||24||24|
|Maximum cutting diameter||20.0 - 30.0 mm||0.78 - 1.18 in|
|Overall length||730.0 mm||2.40 ft|
|Distance between pto attachment and ground||472.0 mm||18.6 in|
|Main hood thickness||3.0 mm||0.12 in|
|Sides thickness||5.0 mm||0.20 in|
|Side plates thickness||6.0 mm||0.23 in|
|Transmission: Drive method||V-Belts||V-Belts|
|Transmission: Gearbox||Lombarda Ingranaggi Srl (Italy) (3 year warranty)||Lombarda Ingranaggi Srl (Italy) (3 year warranty)|
|Transmission: PTO||540 r/min||540 r/min|
|Transmission: Rotation of gearbox||Right side||Right side|
|Transmission: Free wheel||√||√|
|Transmission: RPM Rotor speed||3150.0 rpm||3150.0 rpm|
|Transmission: Oil in the gearbox||Yes / SAE 120 - ISO 72925||Yes / SAE 120 - ISO 72925|
|Transmission: Top pulley ø||206.0 mm||8.11 in|
|Transmission: Lower pulley ø||106.0 mm||4.17 in|
|Transmission: V-Belts quantity||3||3|
|Transmission: V-Belts size||XPA 1000Li||XPA 1000Li|
|Rotor: diameter||102.0 mm||4.01 in|
|Rotor: bearings type and size||SKF UCF-207||SKF UCF-207|
|Rotor: sheet thickness||8.0 mm||0.31 in|
|Hammers: Weight||330.0 g||11.7 oz|
|Hammer: øhole||11.0 mm||0.43 in|
|Hammer: base width||80.0 mm||3.15 in|
|Hammer: top width||14.0 mm||0.55 in|
|Hammer: Diagonal||75.0 mm||2.95 in|
|Rear roller: diameter||102.0 mm||4.01 in|
|Rear roller: sheet thickness||5.0 mm||0.20 in|
|Rear roller: bearings type and size||FL205||FL205|
|Pto shaft||CE 4x800 mm||CE 4x2.60 ft|
|Hood length||665.0 mm||26.2 in|
|Packing sizes||1550.0*850.0*700.0 mm||5.10*2.80*2.30 ft|
