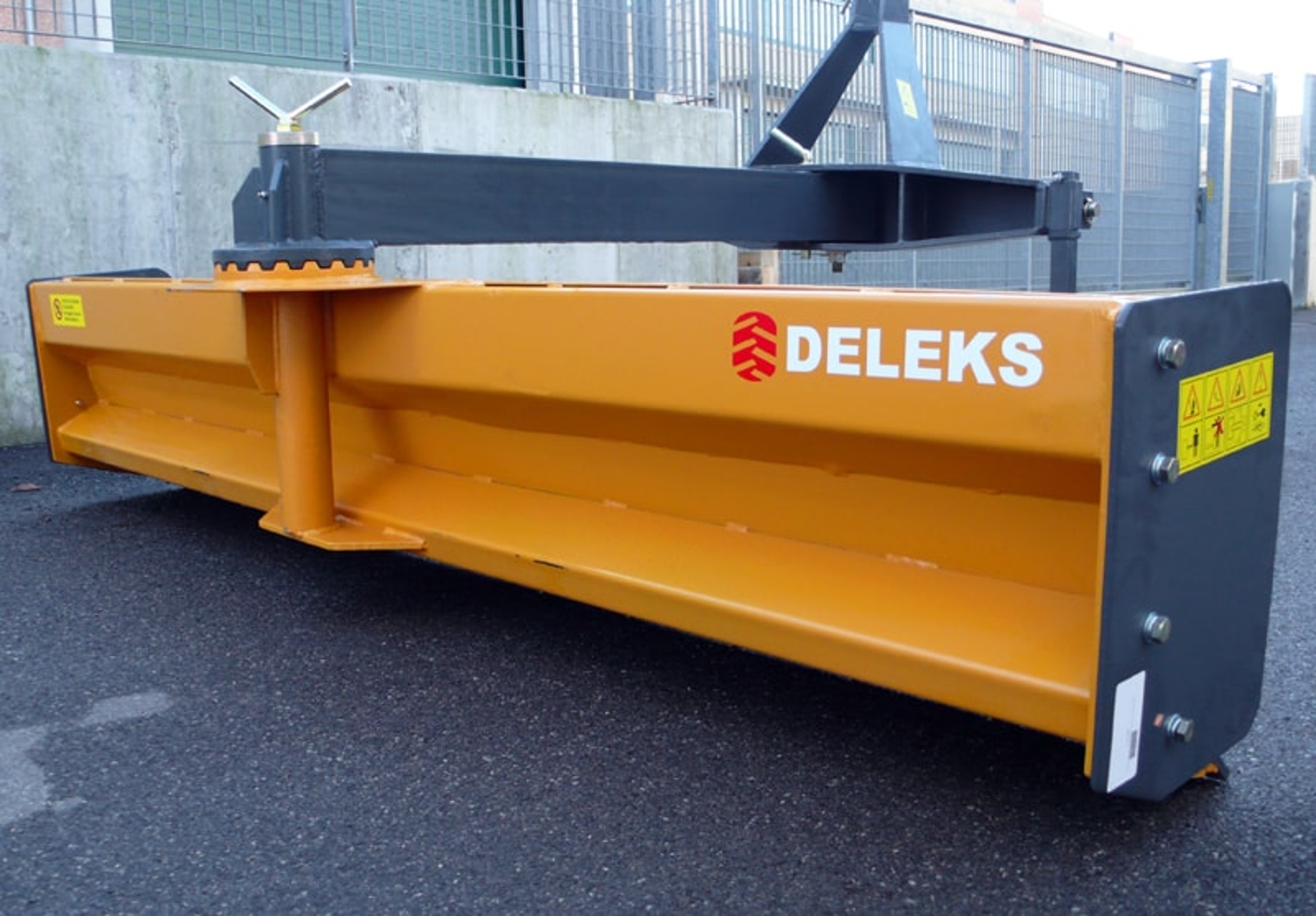

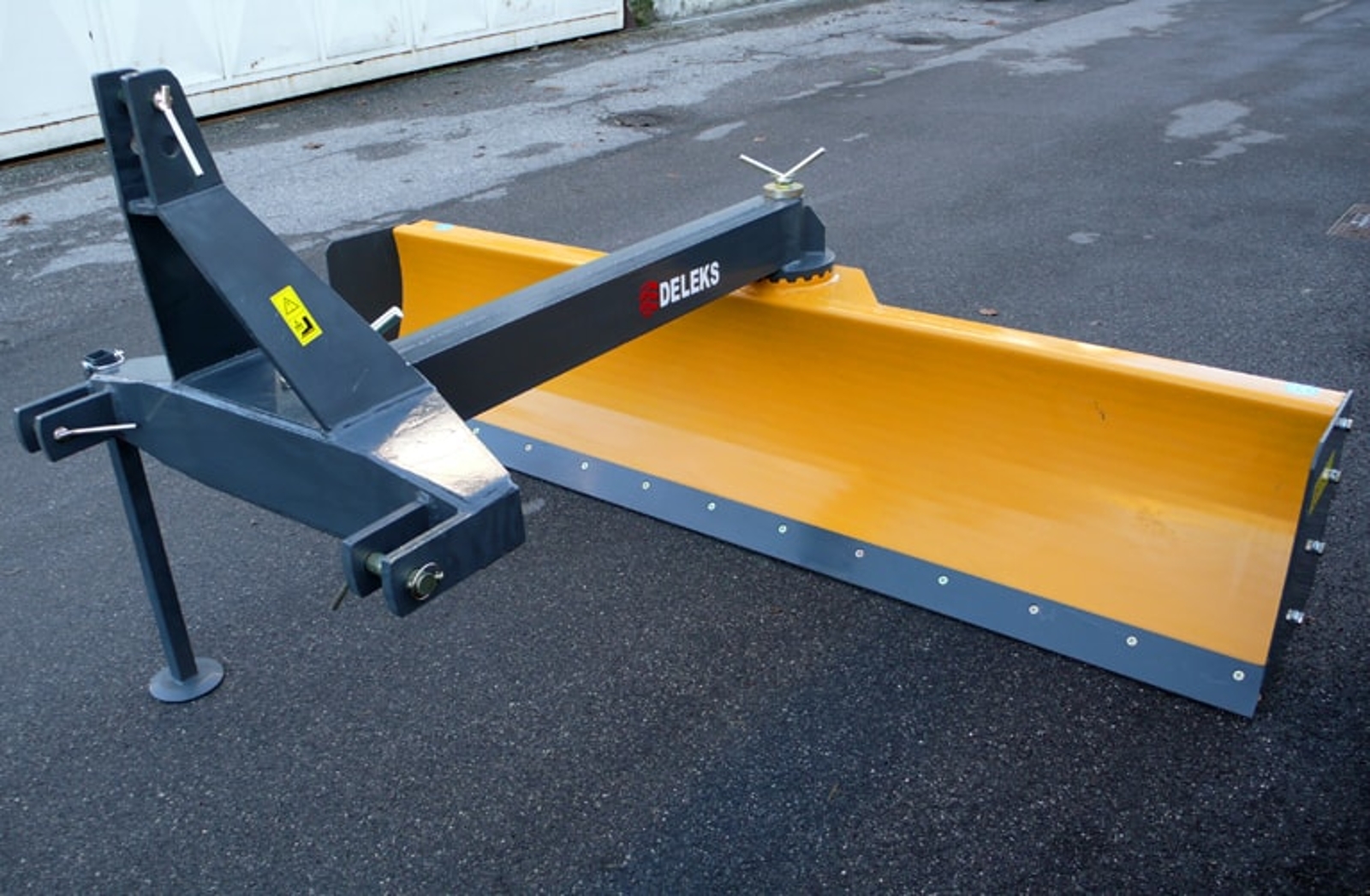

Grader Blade for tractor, DDL-225

reviews

Available
Code DDL225
EAN 8053470234583
View all details.

PAY IN 3 INSTALLMENTS

TOTAL
1.700,00VAT incl.
Free shipping

VIDEO
DELEKS® DDL: Unpacking by Alberto
DELEKS® DDL: Unpacking by Alberto

DETAILS

Grader Blade/Scraper for tractors - DELEKS®- 225cm / 360kg - Rear blade dirt and snow removal - Arm can offset from the tractor (left and right).


OVERVIEW

The DDL-225 Grader blade features a 360º rotation blade for front and rear use, making it easy to run along driveways and fence lines. Purpose built to tidy stables and clear manure inside livestock pens and in fields. This heavy-duty grader blade can be manouvredlaterally to maximise usage. Essentially adding an extra arm to the tractor. The DDL grader blade is the most cost effective way to eliminate waste and reduce clutter around the farm or park. It can also be used for dirt work, road maintenance, ditching, landscaping, snow removal, gravel, sand and more. Suitable 70-100 hp tractors e.g Ford, FIAT, New Holland T4, T5, John Deere 4-5 Series, Kubota L-M, McCormick, Goldoni, Landini Rex, CASE, Deutz-Fahr, Lamborghini Ego 55, etc. EC Conformity, 2 Year warranty.


BENEFITS & FEATURES

Structurally robust and designed for dragging and levelling heavy materials.

360º rotation blade for front and rear use.

Arm can offset from the tractor (left and right) for clearing snow or dirt from roadsides etc…

Eliminates washboarding when using for road work.

Clear pathways easily in snowy conditions to reduce downtime.

Interchangeable steel cutting edge can be changed in minutes without special tooling.


Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.





CHARACTERISTICS

Characteristic Units metric Units US
Overall width 2250.0 mm 7.38 ft
Weight 360.0 kg 790.0 lb
Overall height 1200.0 mm 47.25 in
Tractor Power Range 70-100 Hp 70-100 Hp
3 point linkage Cat. 2 Cat. 2
Spacing between the 2 lower points 790.0 - 908.0 mm 31.10 - 35.75 in
Overall length 1770.0 mm 70.00 in
Distance between the 2 lower points and ground 650.0 mm 25.60 in
Thickness of the arm 140.0*114.0 mm 5.51*4.48 in
Blade Height 550.0 mm 20.87 in
Cutting Edge Steel Steel
Cutting Edge Height 150.0 mm 5.90 in
Trip Edge Quantity 1 1
Rotation of the blade 360° 360°
Cutting Edge Width 15.0 mm 0.60 in
Spacing between the bolts of the Cutting Edge 200.0 mm 7.87 in
Sides Removable Removable
Blade orientation pin ø 70.0 mm 2.75 in
Orientation of the arm +/- 45° +/- 45°
Sides thickness 6.0 mm 0.24 in
Packing sizes 2250.0*800.0*800.0 mm 7.38*2.62*2.62 ft
