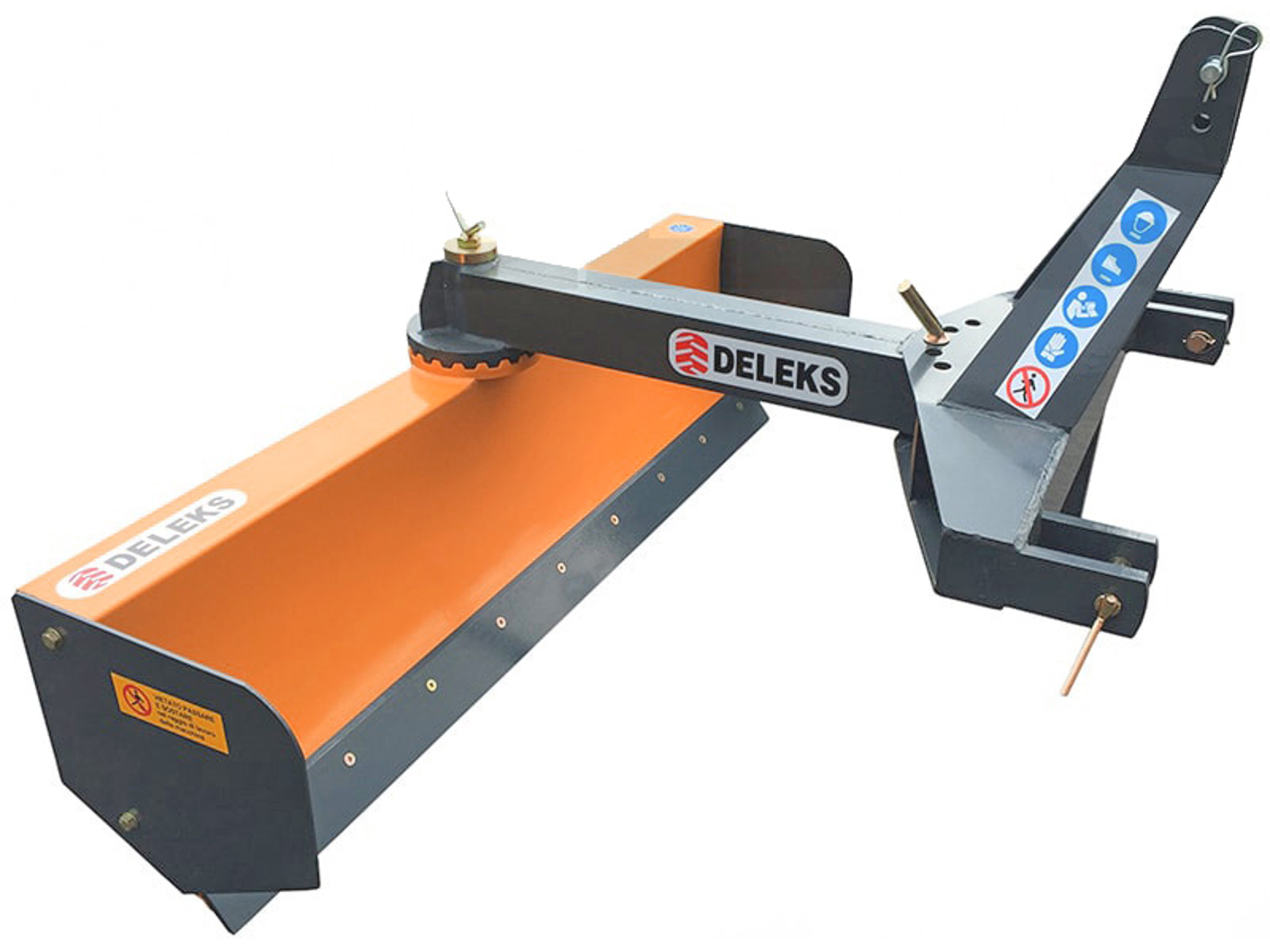

Grader Blade/Scraper for tractors - DELEKS®- 250cm / 395kg - Rear blade dirt and snow removal - Arm can offset from the tractor (left and right).
The DDL-250 Grader blade features a 360º rotation blade for front and rear use, making it easy to run along driveways and fence lines. Purpose built to tidy stables and clear manure inside livestock pens and in fields. This heavy-duty grader blade can be manouvred laterally to maximise usage. Essentially adding an extra arm to the tractor. The DDL grader blade is the most cost effective way to eliminate waste and reduce clutter around the farm or park. It can also be used for dirt work, road maintenance, ditching, landscaping, snow removal, gravel, sand and more. Suitable for 70-100 hp tractors e.g Ford, FIAT, New Holland T5, John Deere 5 Series, Kubota L-M, Massey Ferguson 3600-4700, Landini Rex, McCormick, Goldoni, CASE, Deutz-Fahr, Lamborghini R, etc. EC Conformity, 2 Year warranty.
BENEFITS & FEATURES
Structurally robust and designed for dragging and levelling heavy materials.
360º rotation blade for front and rear use.
Arm can offset from the tractor (left and right) for clearing snow or dirt from roadsides etc…
Eliminates washboarding when using for road work.
Clear pathways easily in snowy conditions to reduce downtime.
Interchangeable steel cutting edge can be changed in minutes without special tooling.
|Caracteristic||Units metric||Units US|
|Overall width||2500.0 mm||8.20 ft|
|Weight||395.0 kg||870.0 lb|
|Overall height||1200.0 mm||47.25 in|
|Tractor Power Range||70-100 Hp||70-100 Hp|
|3 point linkage||Cat. 2||Cat. 2|
|Spacing between the 2 lower points||790.0 - 908.0 mm||31.10 - 35.75 in|
|Overall length||1770.0 mm||70.00 in|
|Distance between the 2 lower points and ground||550.0 mm||21.65 in|
|Thickness of the arm||140.0*114.0 mm||5.51*4.48 in|
|Blade Height||530.0 mm||20.87 in|
|Cutting Edge Height||150.0 mm||5.90 in|
|Trip Edge Quantity||1||1|
|Rotation of the blade||360°||360°|
|Cutting Edge Width||15.0 mm||0.60 in|
|Spacing between the bolts of the Cutting Edge||200.0 mm||7.87 in|
|Blade orientation pin ø||70.0 mm||2.75 in|
|Orientation of the arm||+/- 45°||+/- 45°|
|Sides thickness||6.0 mm||0.24 in|
|Packing sizes||2500.0*800.0*800.0 mm||8.20*2.62*2.62 ft|
