Post hole digger for traktor with hydraulic system L-50H

4.4

298 reviews

Available
Code L50HPTO
EAN 8053470235238
View all details.

PAY IN 3 INSTALLMENTS

D
H
M
S
-63,50 1.270,00VAT incl.
TOTAL
1.206,50VAT incl.
Free shipping

VIDEO

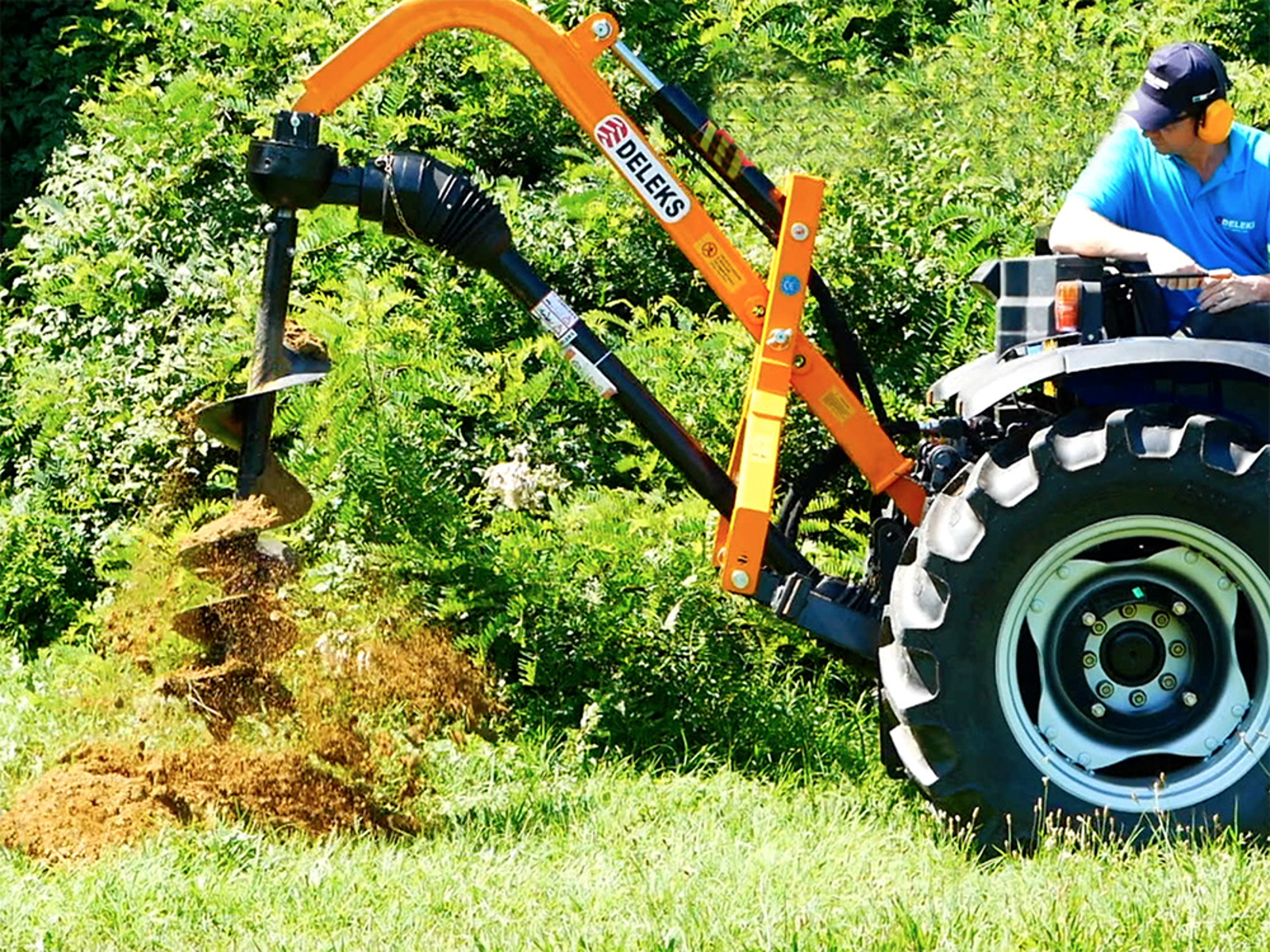

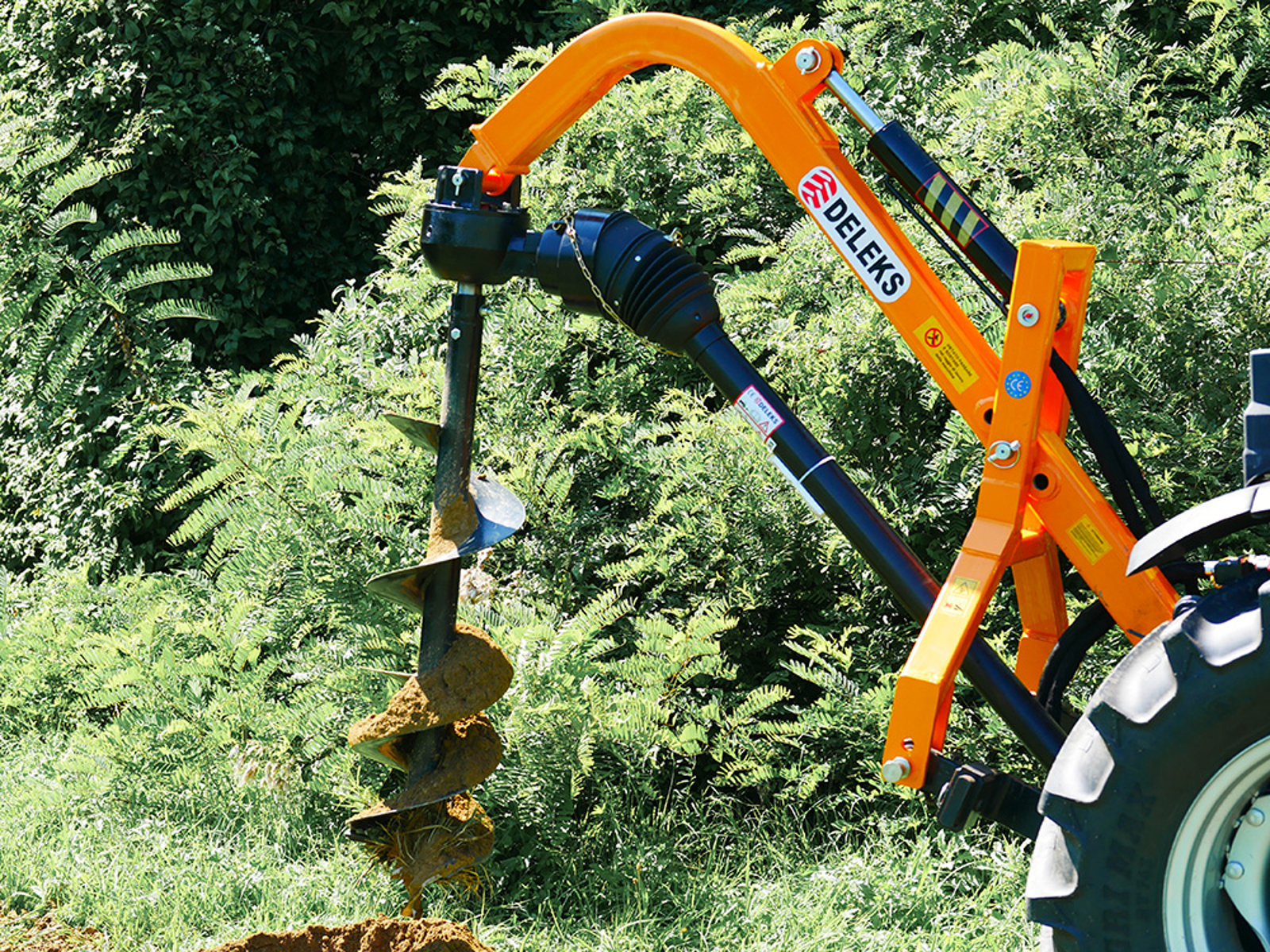

Field test
Field test

DETAILS

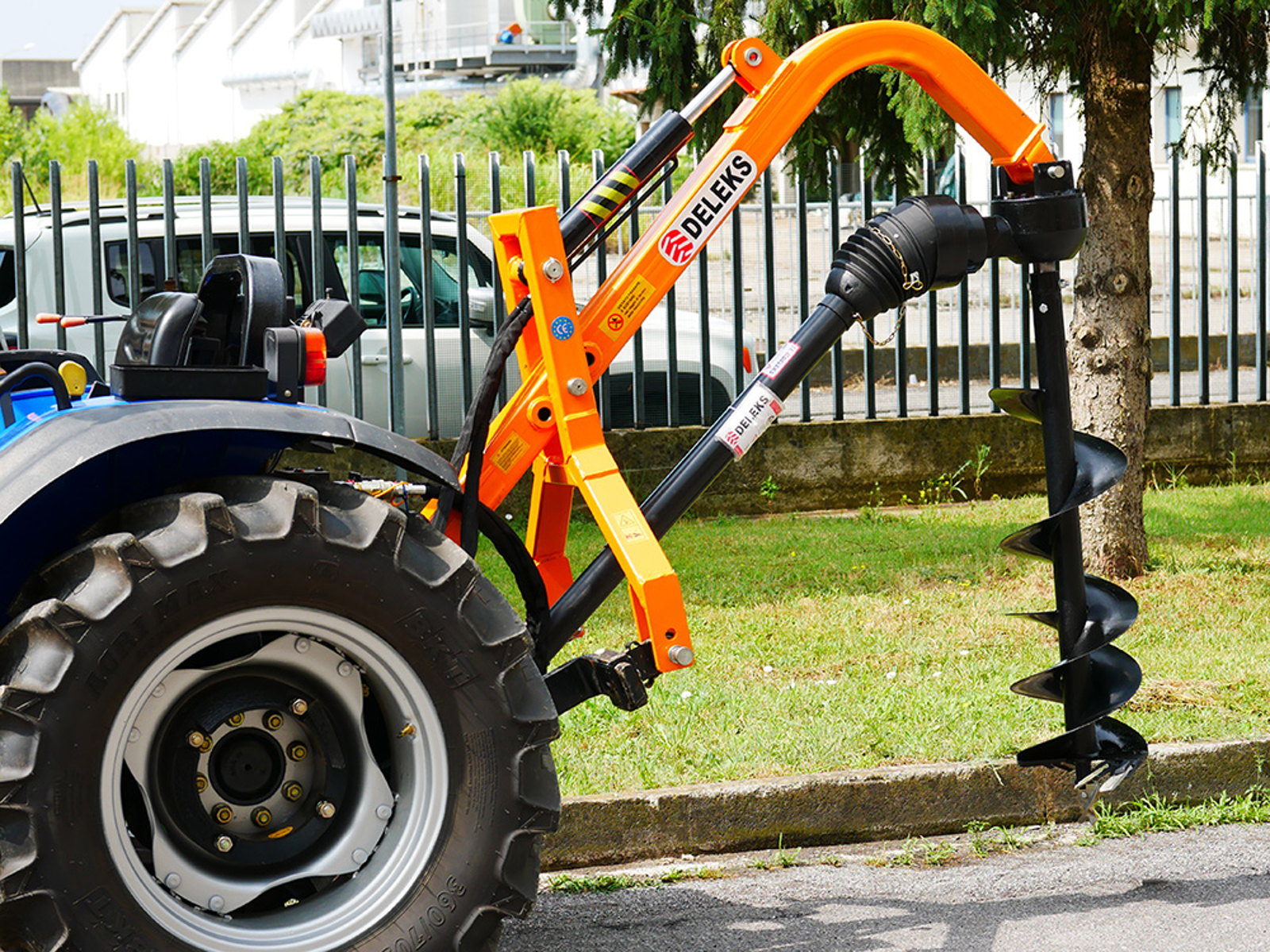

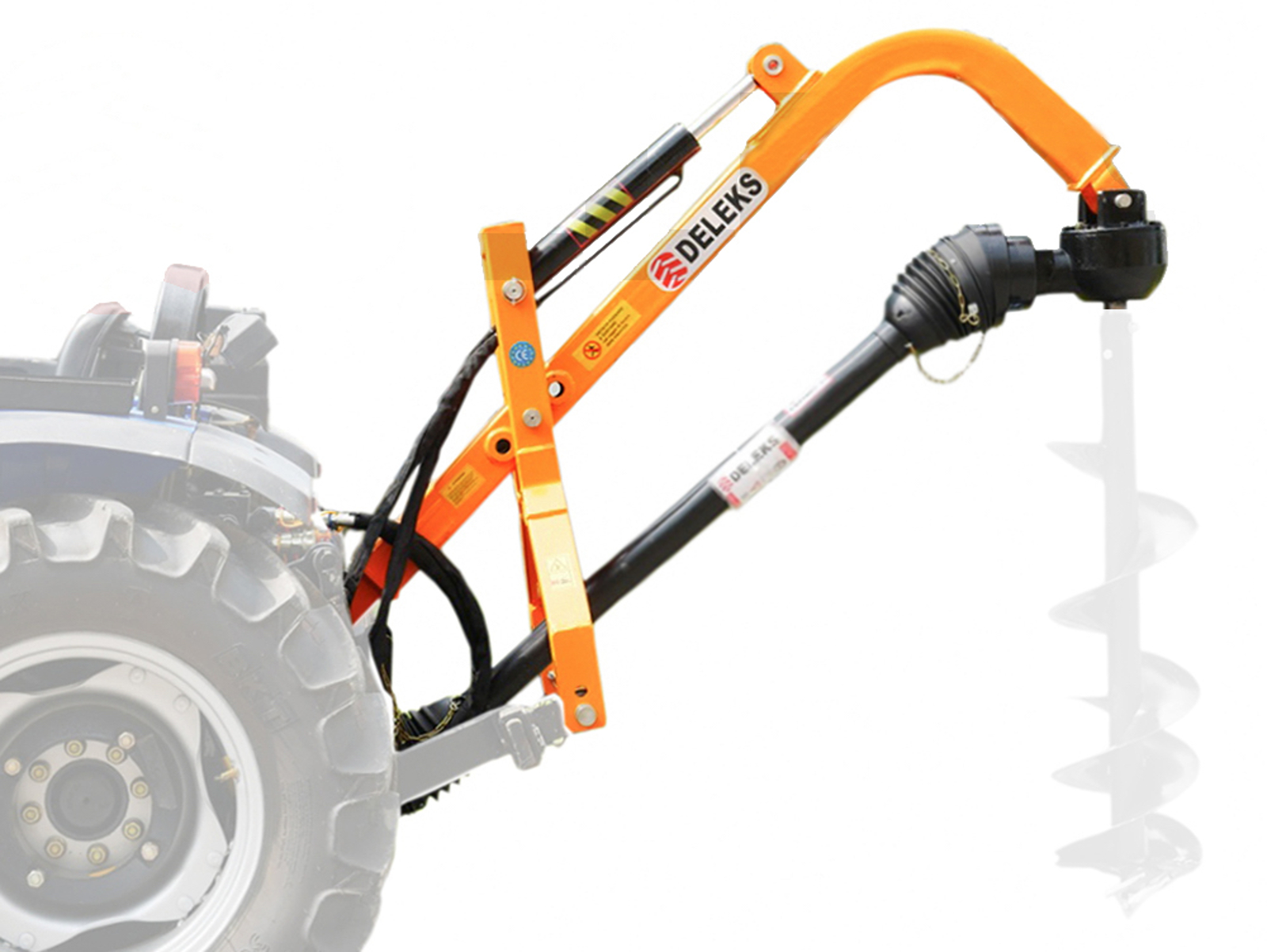

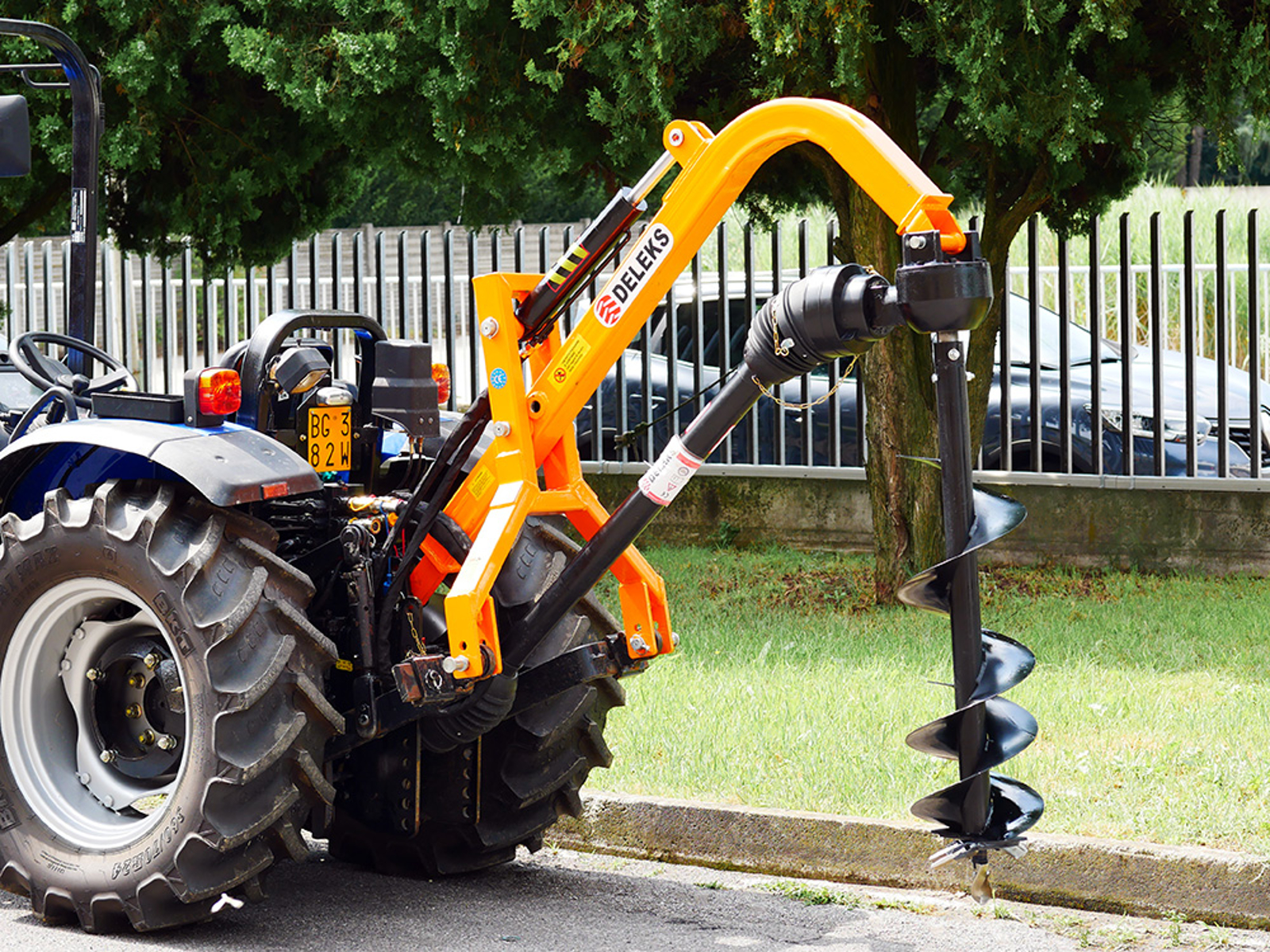

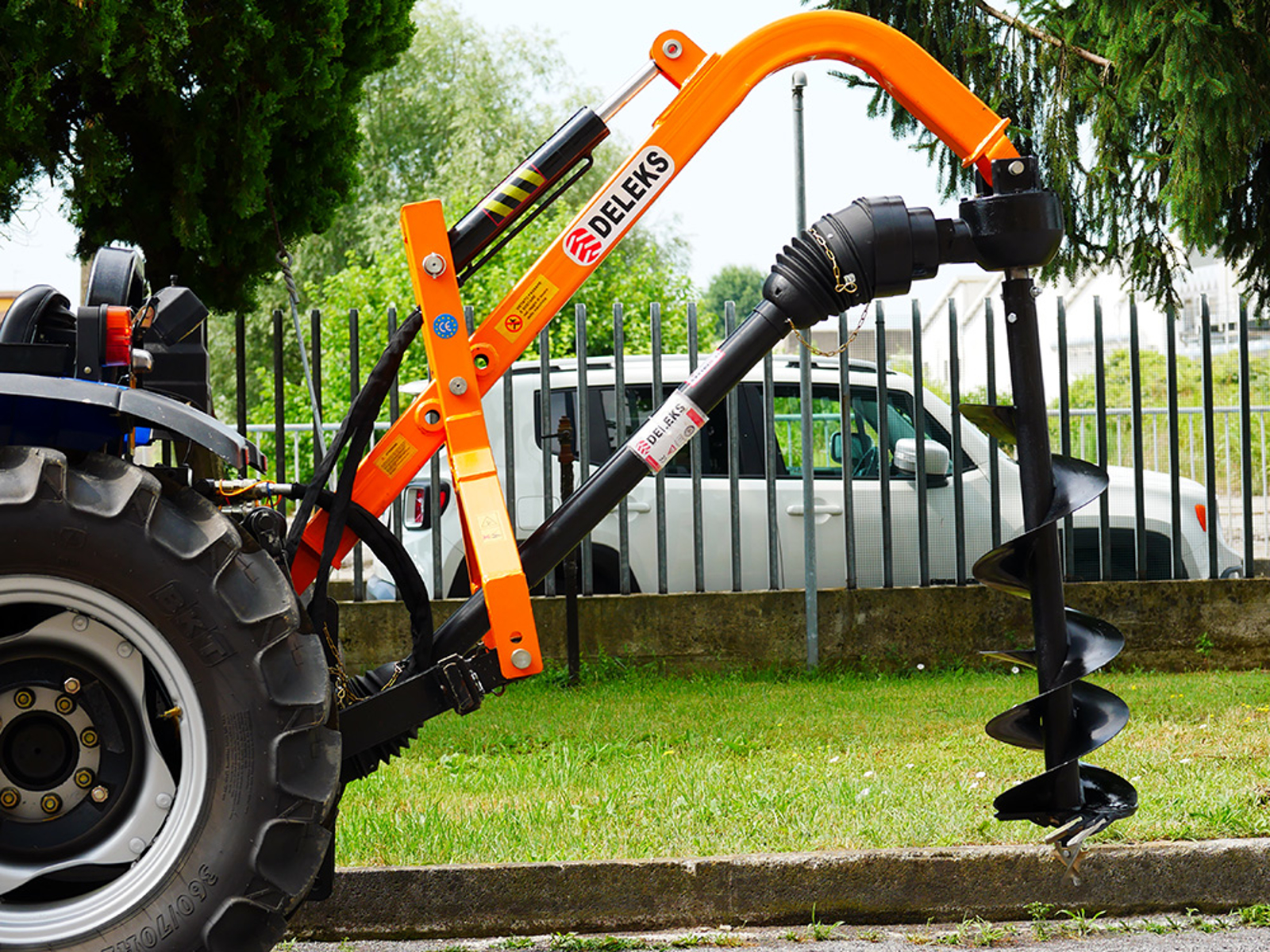

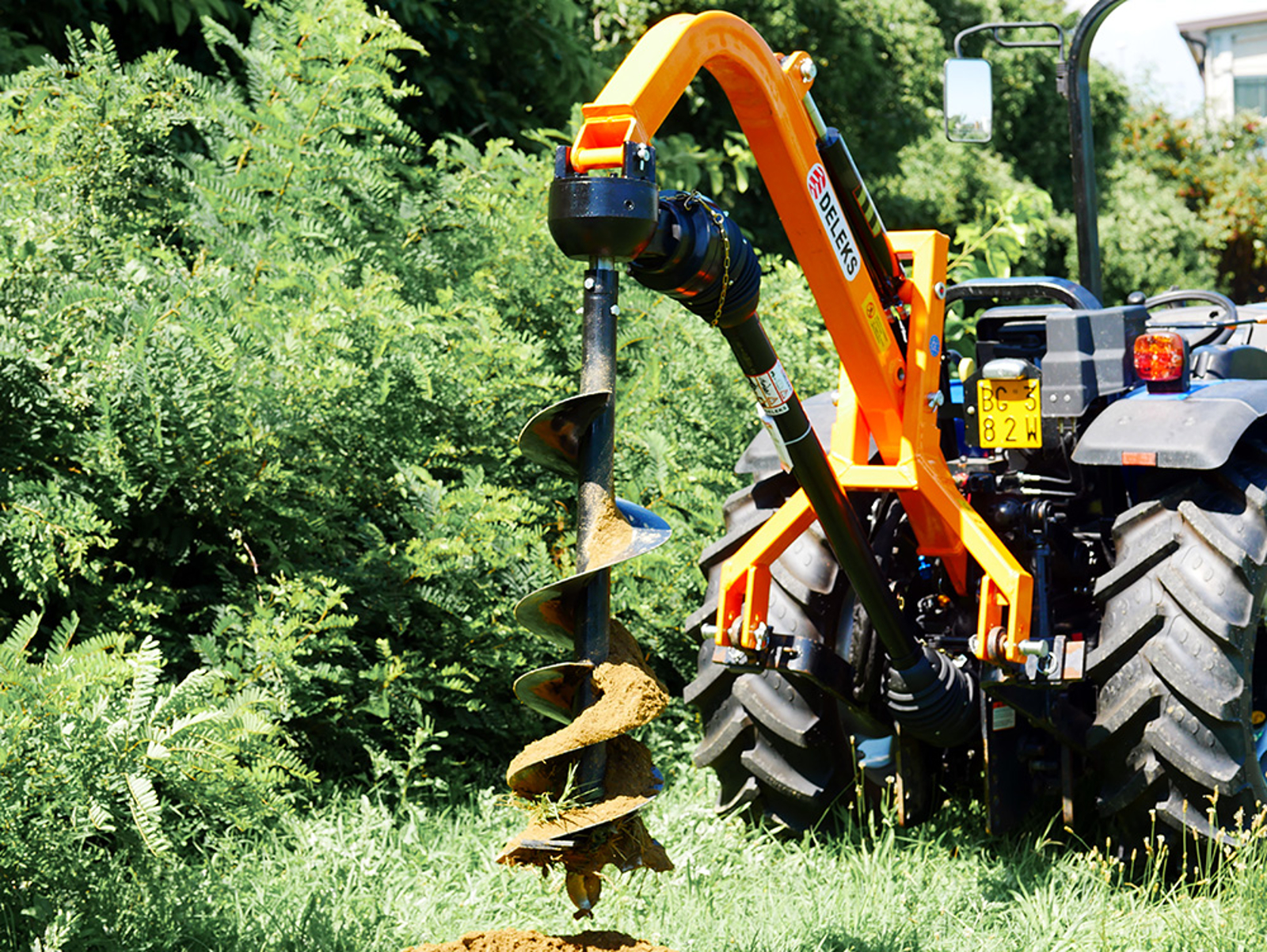

Heavy Post Hole Digger for tractors -DELEKS® - with PTO shaft and Hydraulic arm cylinder with pipes.



APPLICATION

Agricultural post hole digger with 3-point linkage, works applied to the tractors lifting arms.

To make vertical holes in the ground. Ideal for agriculture, gardening, for planting vineyards, trees, poles, fences, for digging holes on the beach at the bathing establishments.


Supplied as standard with:

Universal 3-point hitch Cat. 1-2

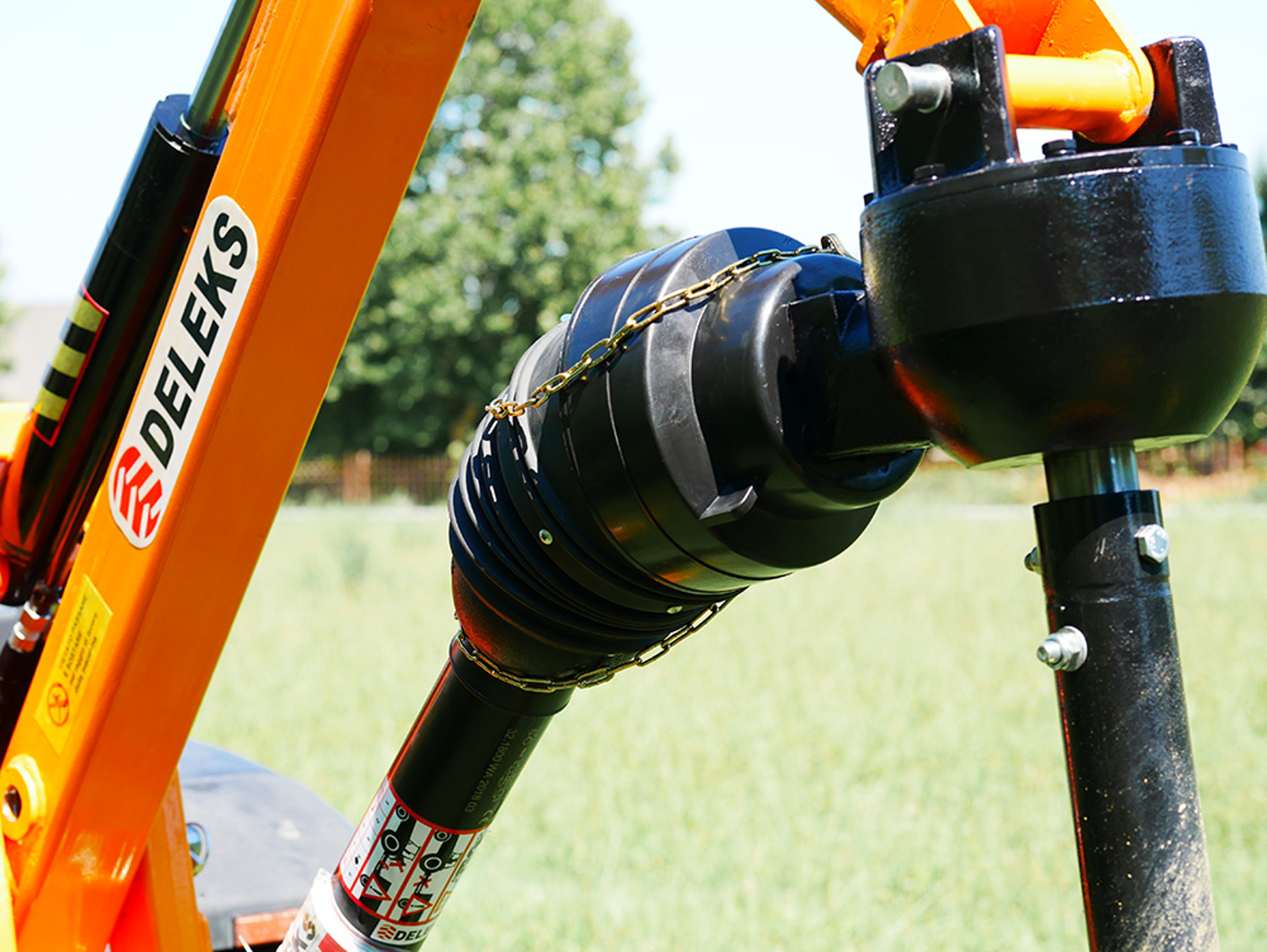

Gearbox PTO 540 r.p.m. increased

PTO shaft (CE approved)

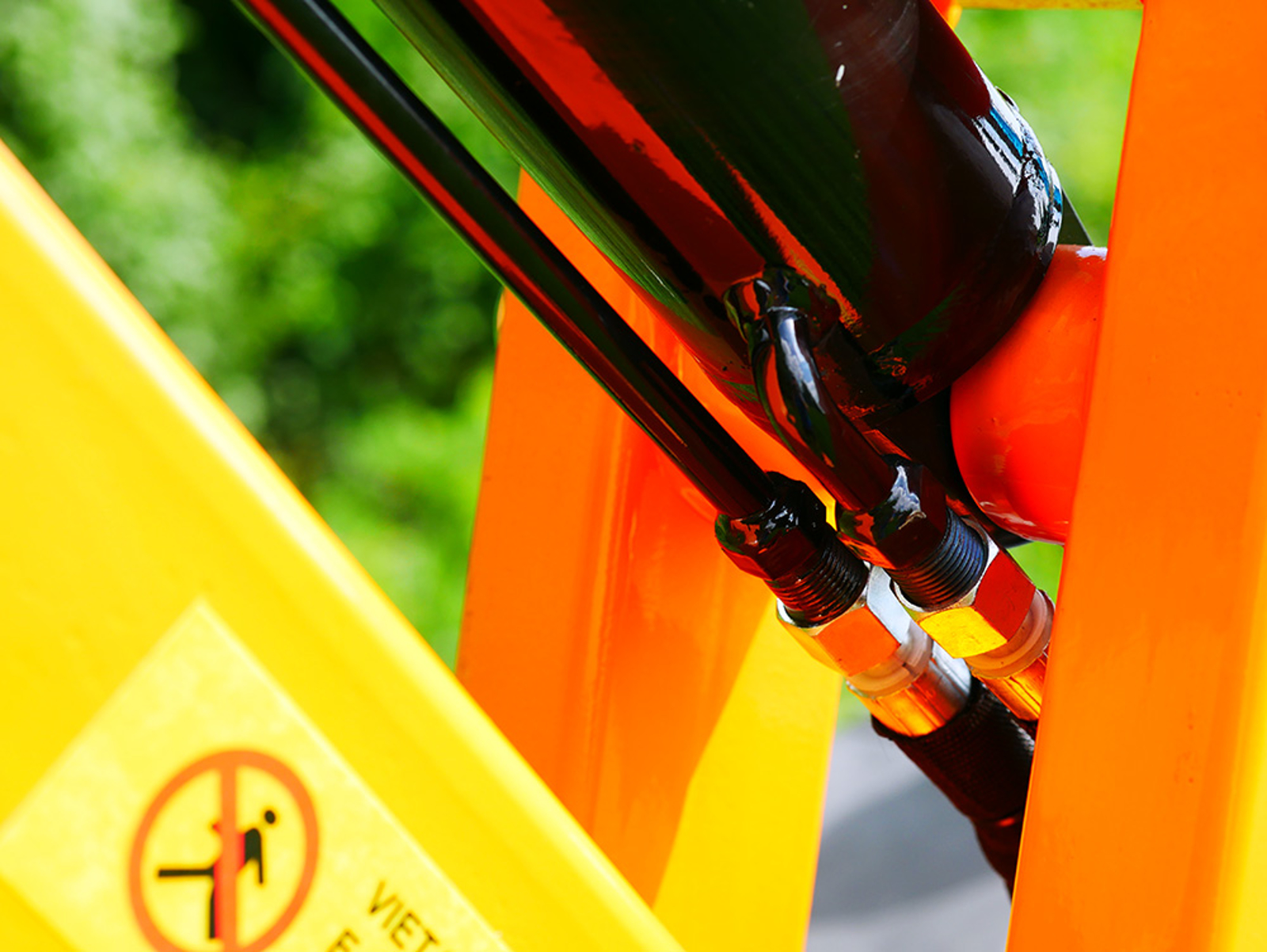

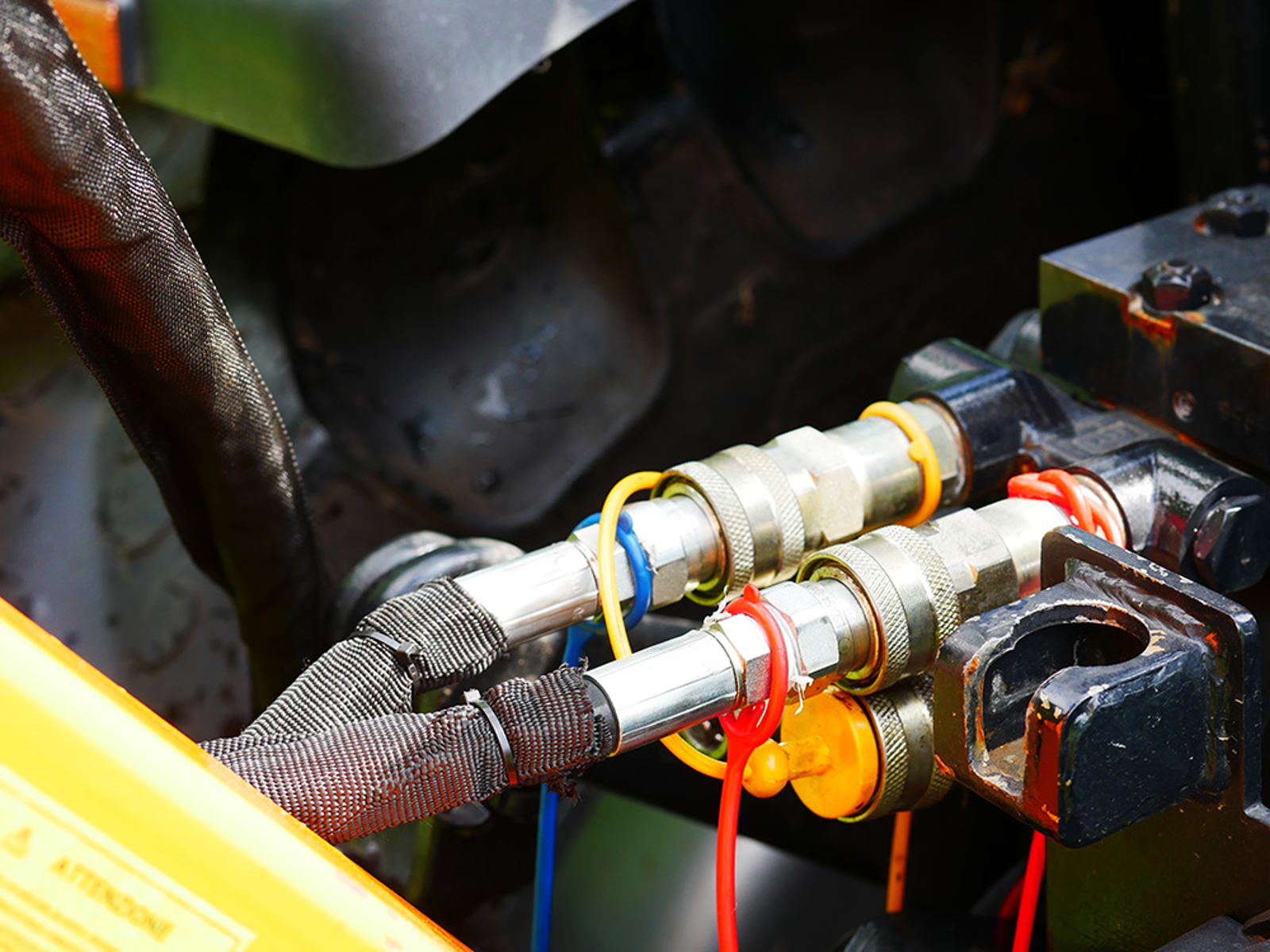

Hydraulic arm cylinder with pipes

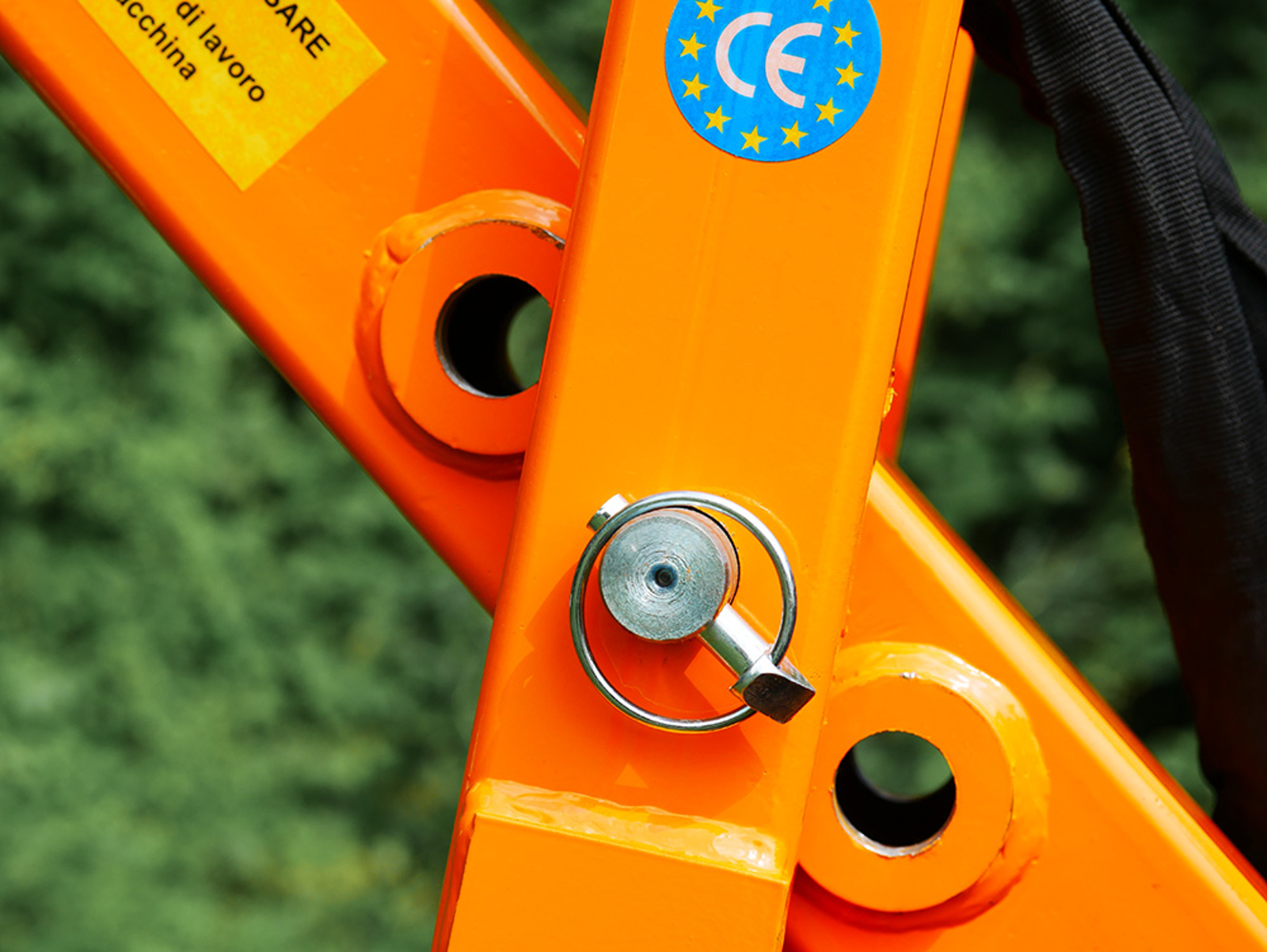

Accordingly CE accident prevention protections


Optional:

Auger: 100.0 mm

Auger: 200.0 mm

Auger: 300.0 mm




ADVANTAGES

Extremely easy to use

Interchangeable tip and knives

Inclination adjustment of the arm angle


Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual



EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).



CHARACTERISTICS

Characteristic Units metric Units US
Weight 130.0 kg 220.0 lb
3 point linkage Cat. 2 (ø 25.0-28.0mm) Cat. 2 (ø 25.0-28.0mm)
Spacing between the 2 lower points 630.0 - 740.0 mm 17.70 - 28.70 in
Arm tube thickness 5.0 mm + reinforcements 0.2 in + reinforcements
Auger speed rotation 180 r/min 180 r/min
Thickness of the arm 5.0 mm + reinforcements 0.2 in + reinforcements
Pto shaft CE 5x1300 mm CE 5x1300 mm
Reach (D) 1770.0 mm 5.80 ft
HP min 40 Hp 40 Hp
Gearbox Lombarda Ingranaggi 540 r/min (3 year warranty) Lombarda Ingranaggi 540 r/min (3 year warranty)
Rotation of gearbox Right side Right side
Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Digg Depth 1250.0 mm 4.10 ft
ø auger Optional Optional
Packing sizes 1700*800*500 mm 5.58*2.62*1.64 ft

Optional

auger ø 75mm post hole digger
Auger ø 100mm post hole digger
190,00VAT incl.
Available

L-30 / L-50 / L-50H / GRHD

auger ø 200mm post hole digger
Auger ø 200mm post hole digger
242,25VAT incl.
Available

L-30 / L-50 / L-50H / GRHD

auger ø 300mm post hole digger
Auger ø 300mm post hole digger
275,50VAT incl.
Available

L-30 / L-50 / L-50H / GRHD

pto adapter rid1
PTO-adapter
45,60VAT incl.
Available


spare blades auger ø10cm
Spare blades Auger ø10cm
51,30VAT incl.
Available

Auger ø100mm

spare blades auger ø20cm
Spare blades Auger ø20cm
51,30VAT incl.
Available

Auger ø200mm

spare blades auger ø30cm
Spare blades Auger ø30cm
73,15VAT incl.
Available

L-30 / L-50
