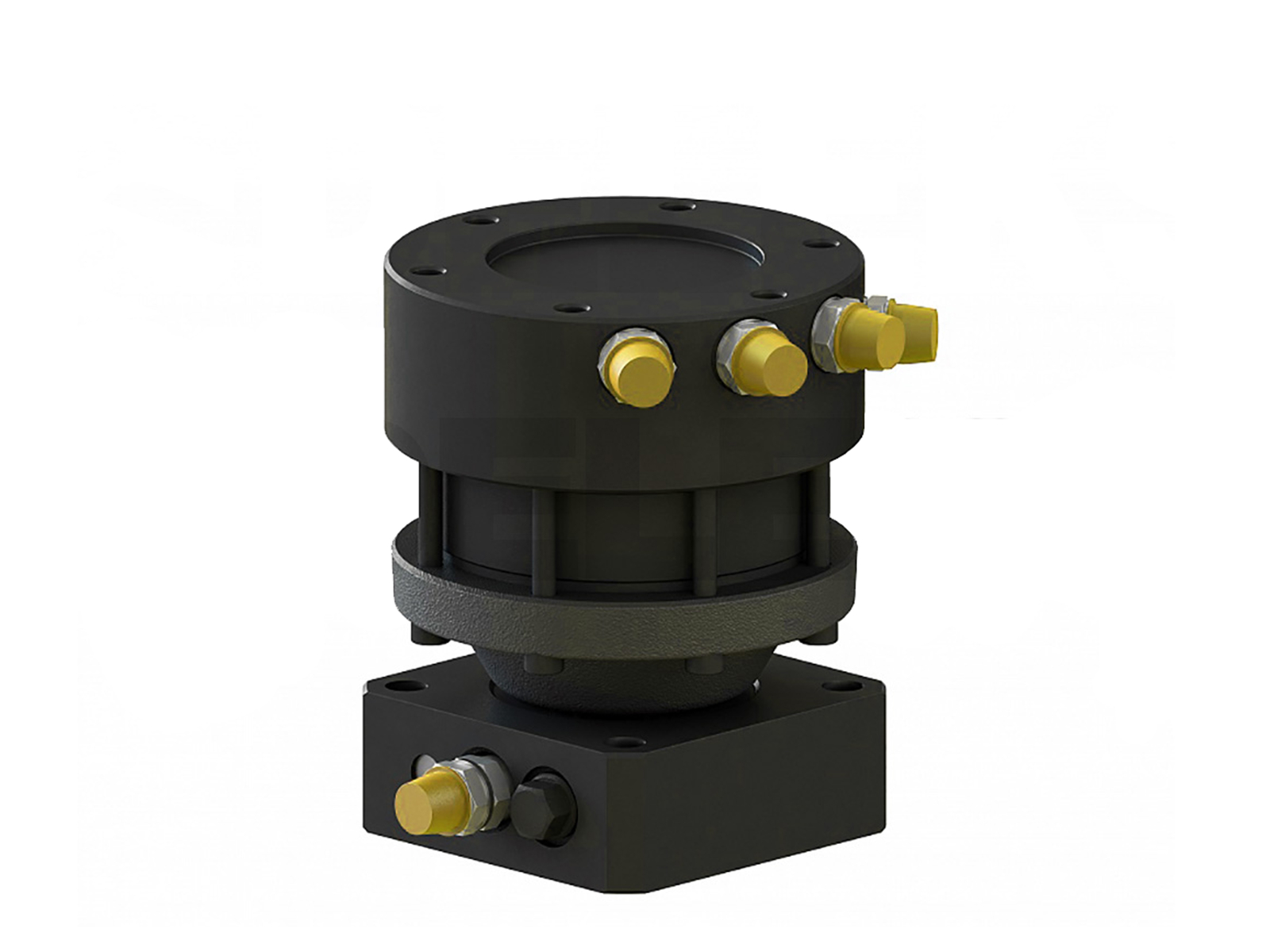

Lombarda Ingranaggi® GR-30FF Hydraulic Rotator 3Ton.
Suitable for agricultural and forestry Vehicles.
It allows to work vertically with the log-grapple.

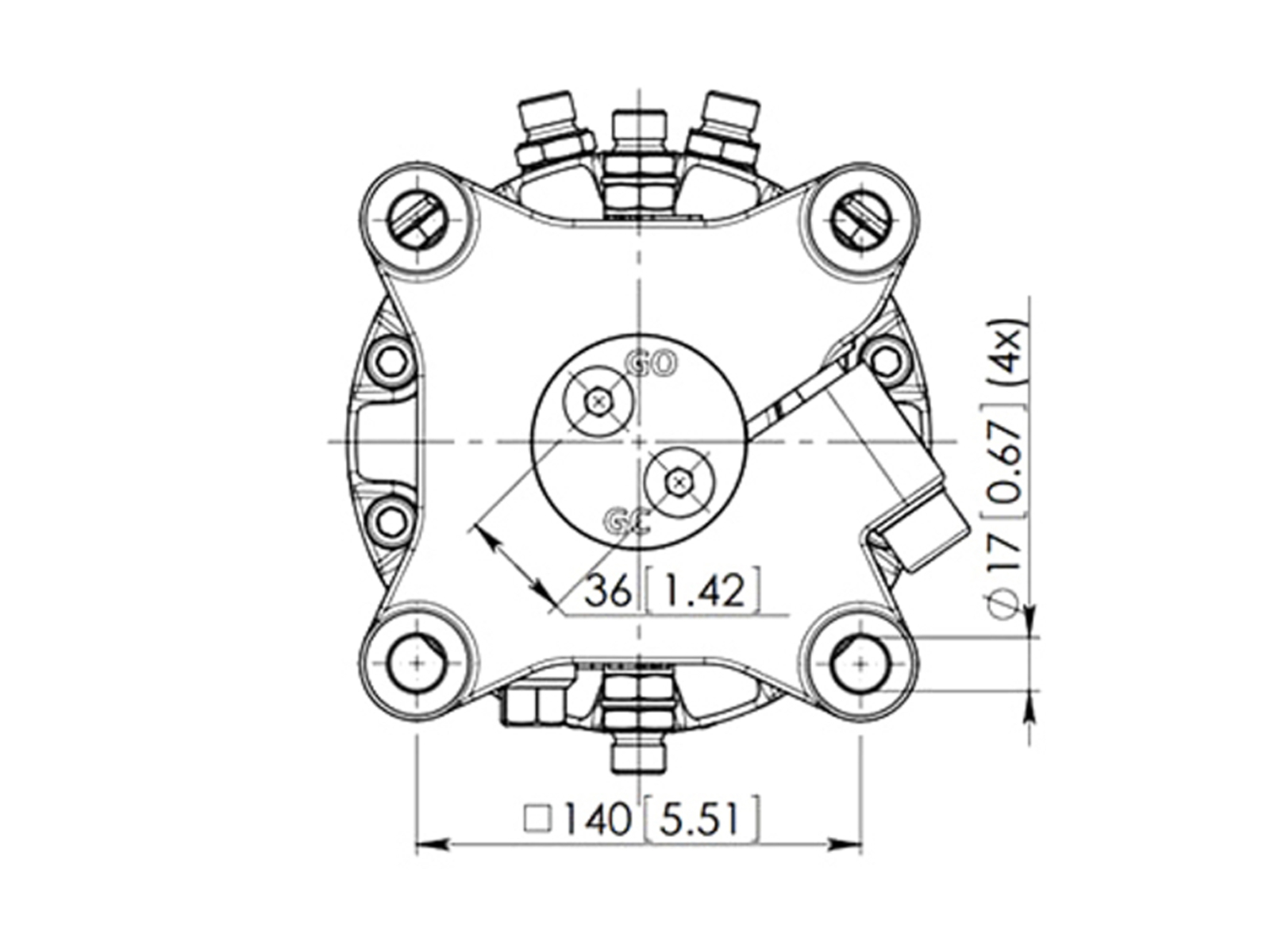

Upper connection - Flat, for quick attachments as S40
Lower connection - Fixed directly onto the grapple with bolts.
ROTATION: 360° Unlimited

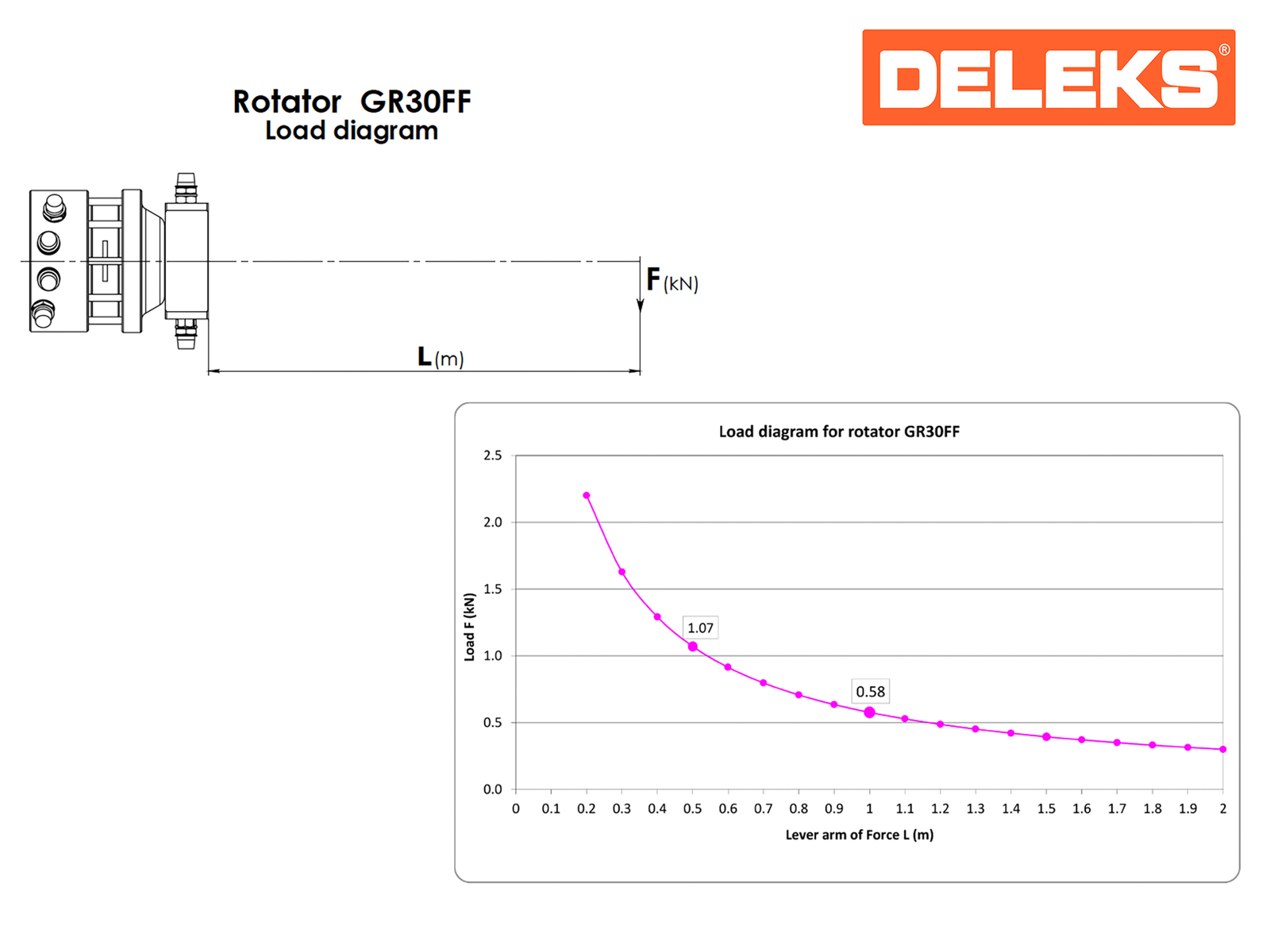

LOAD CAPACITY (STATIC): 30 kN (6745 lbf)
LOAD CAPACITY (DYNAMIC): 15 kN (3372 lbf)
TORQUE @-MPA: 1000 Nm (738 lb ft)
REC. OILFLOW: 20 l/min
WEIGHT: 20 kg
|Caracteristic||Units metric||Units US|
|Weight||20 kg||44,0924 lb|
