Hedge trimmer HR-160

Not available Notify me
CodeHR160
EAN 8053470234903
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

Hydraulic cutter bar, hedge trimmer - DELEKS® HR-160

2 years warranty

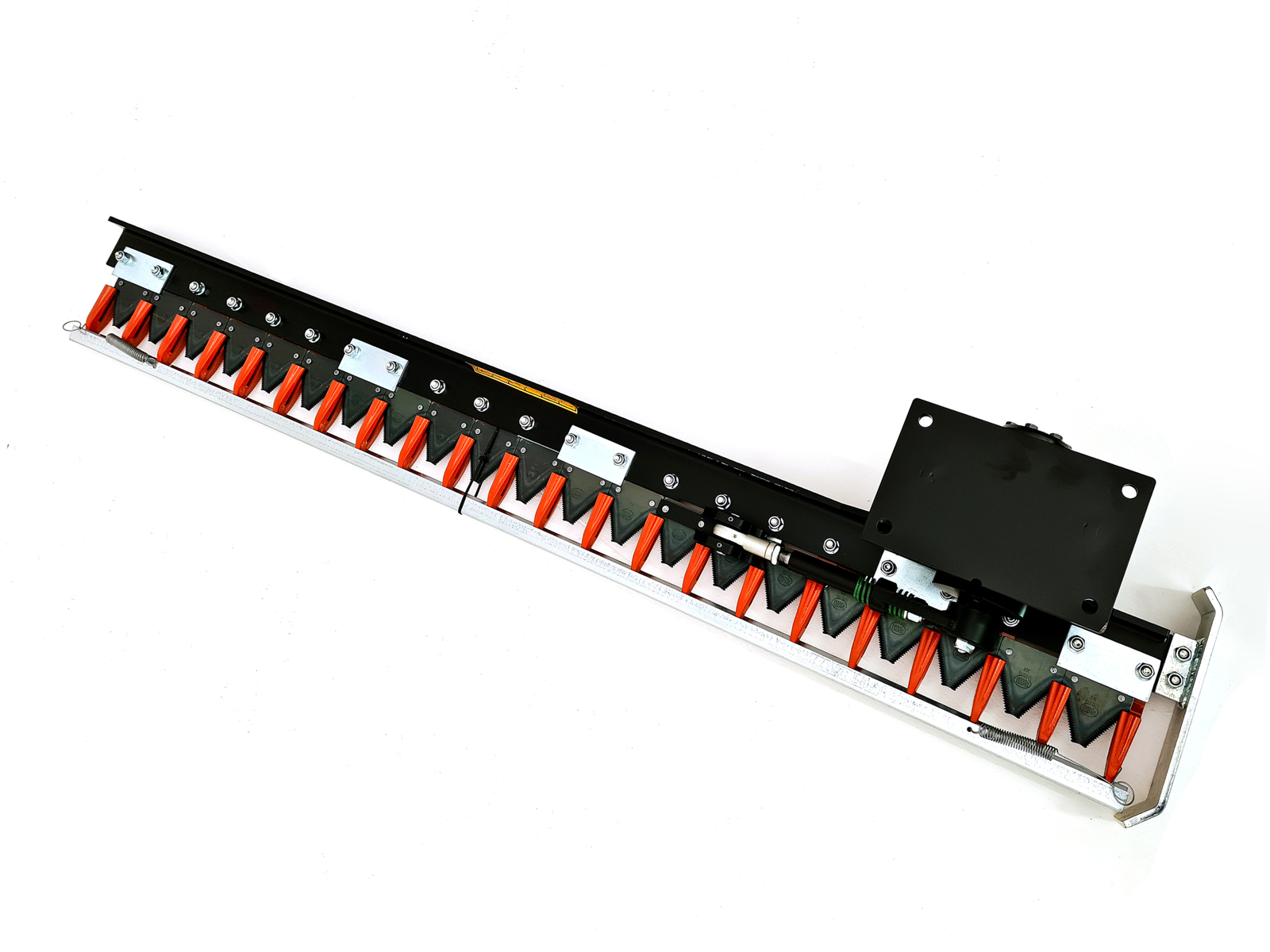

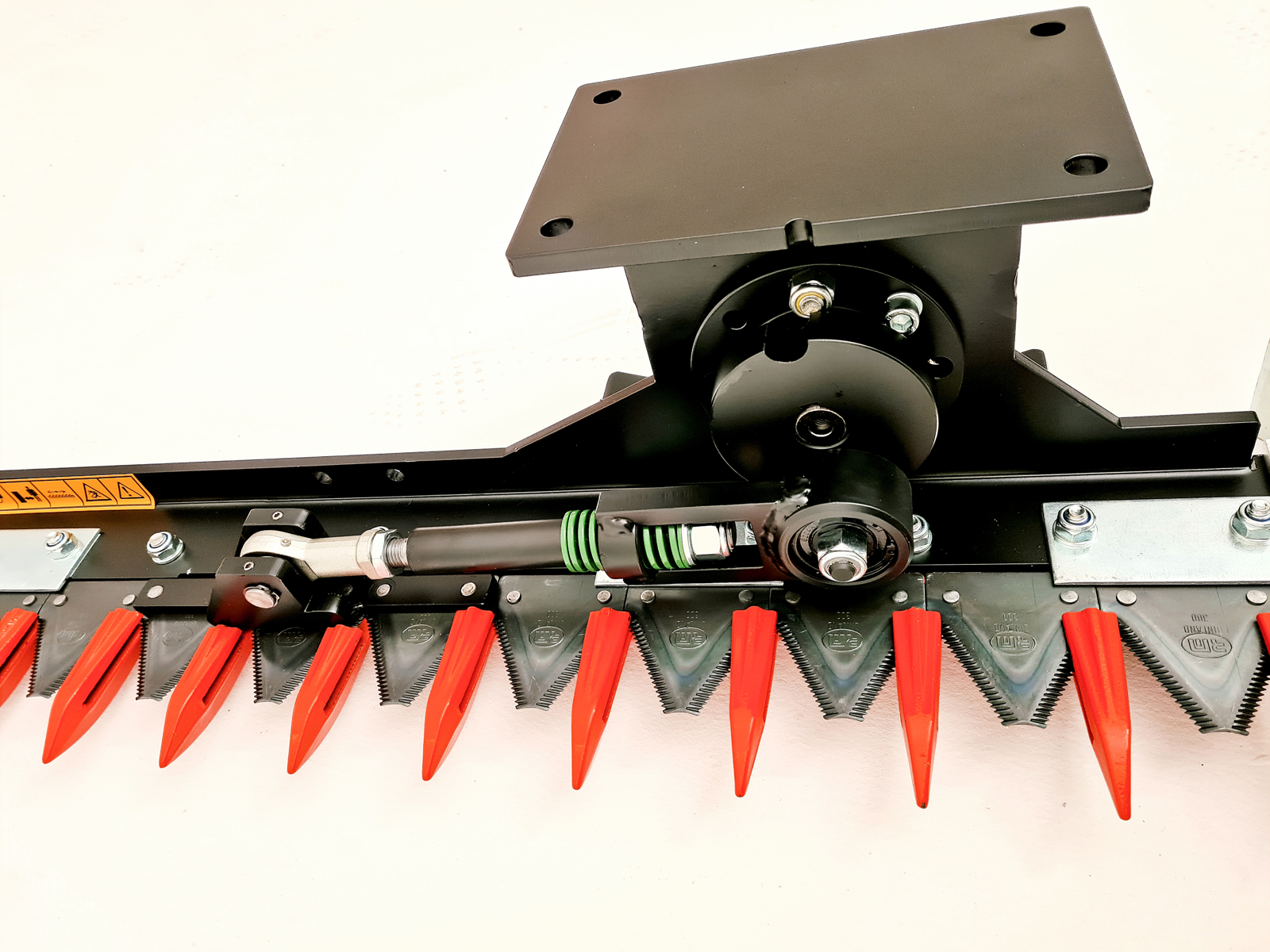

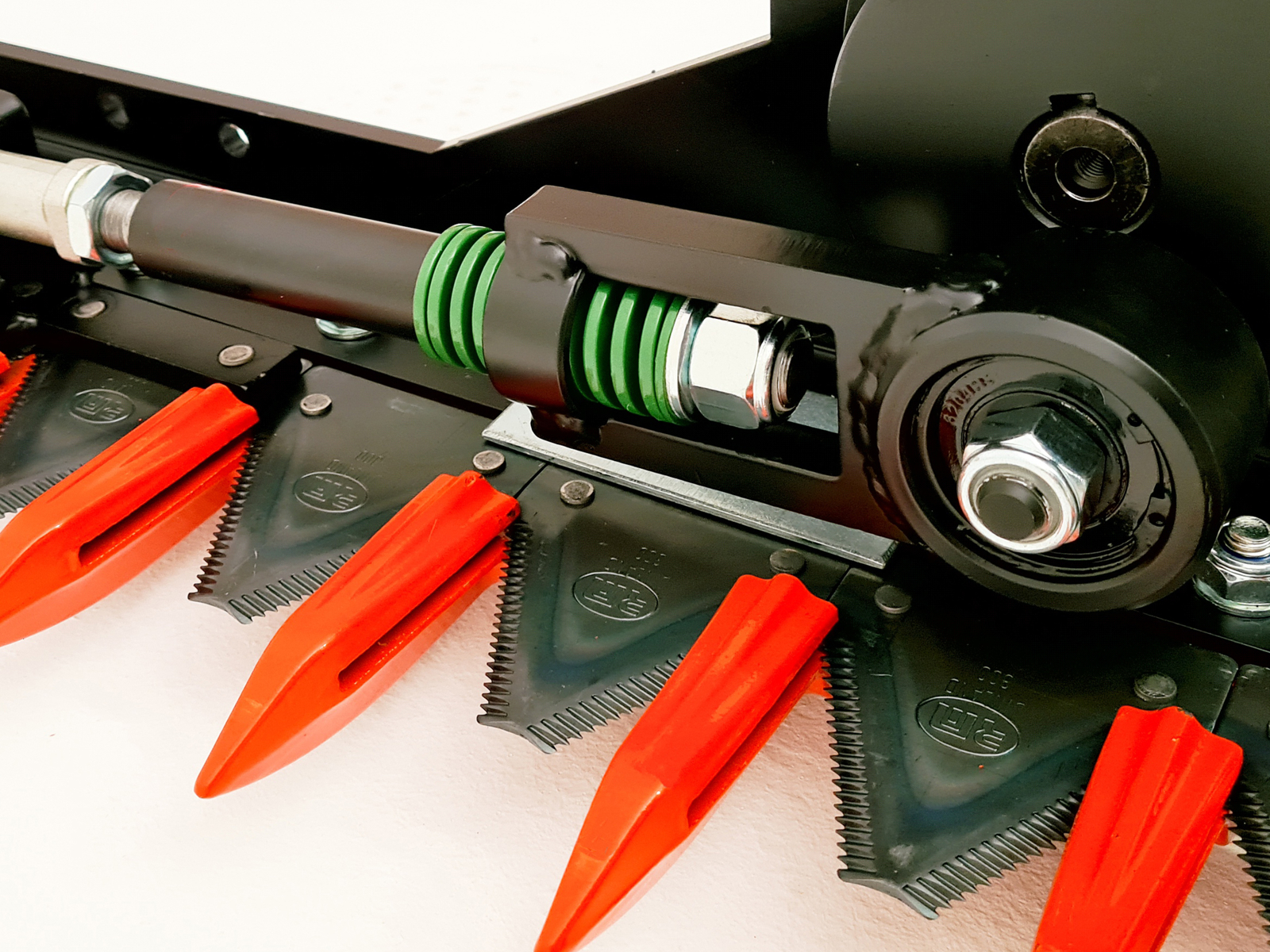

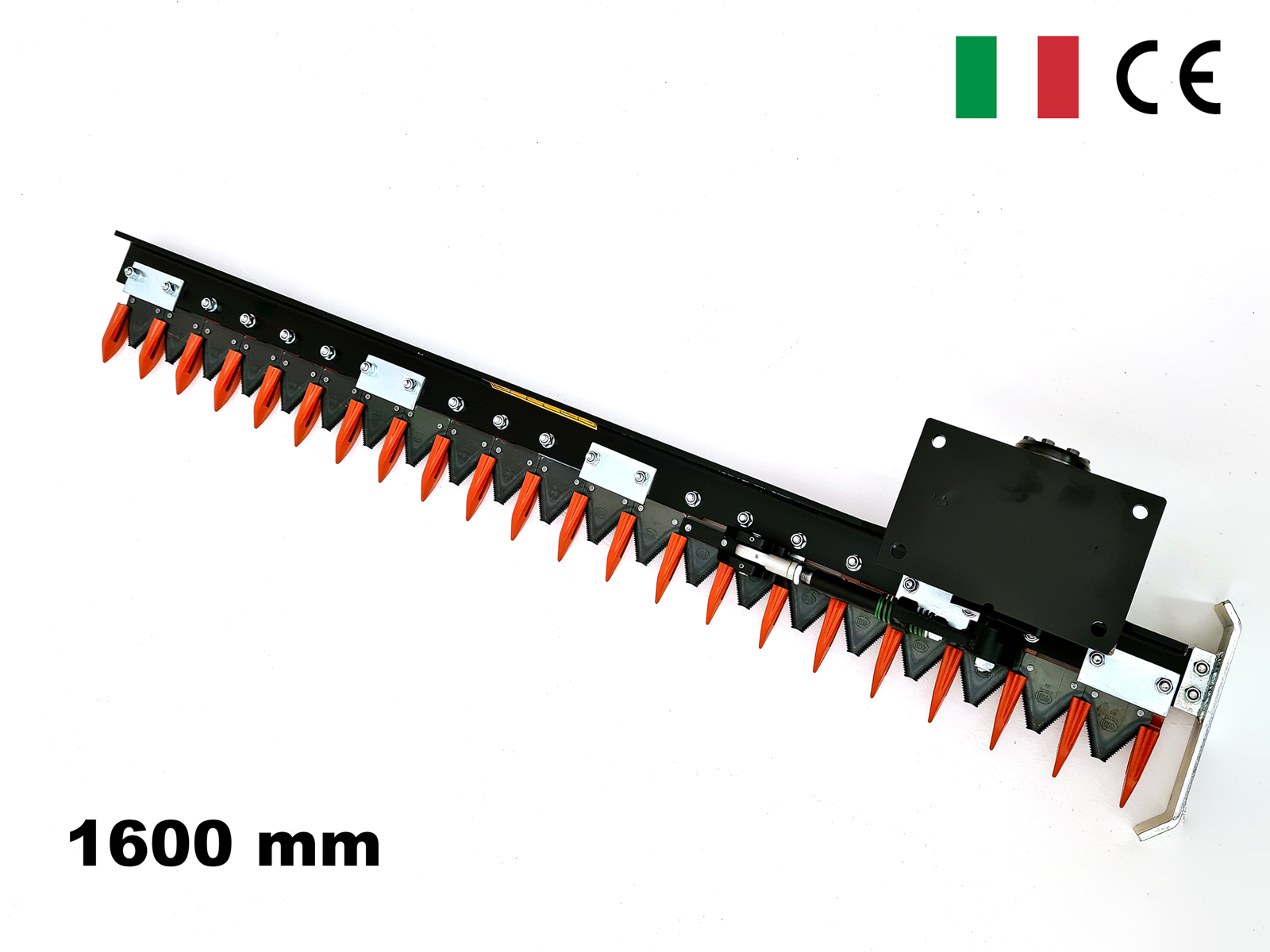

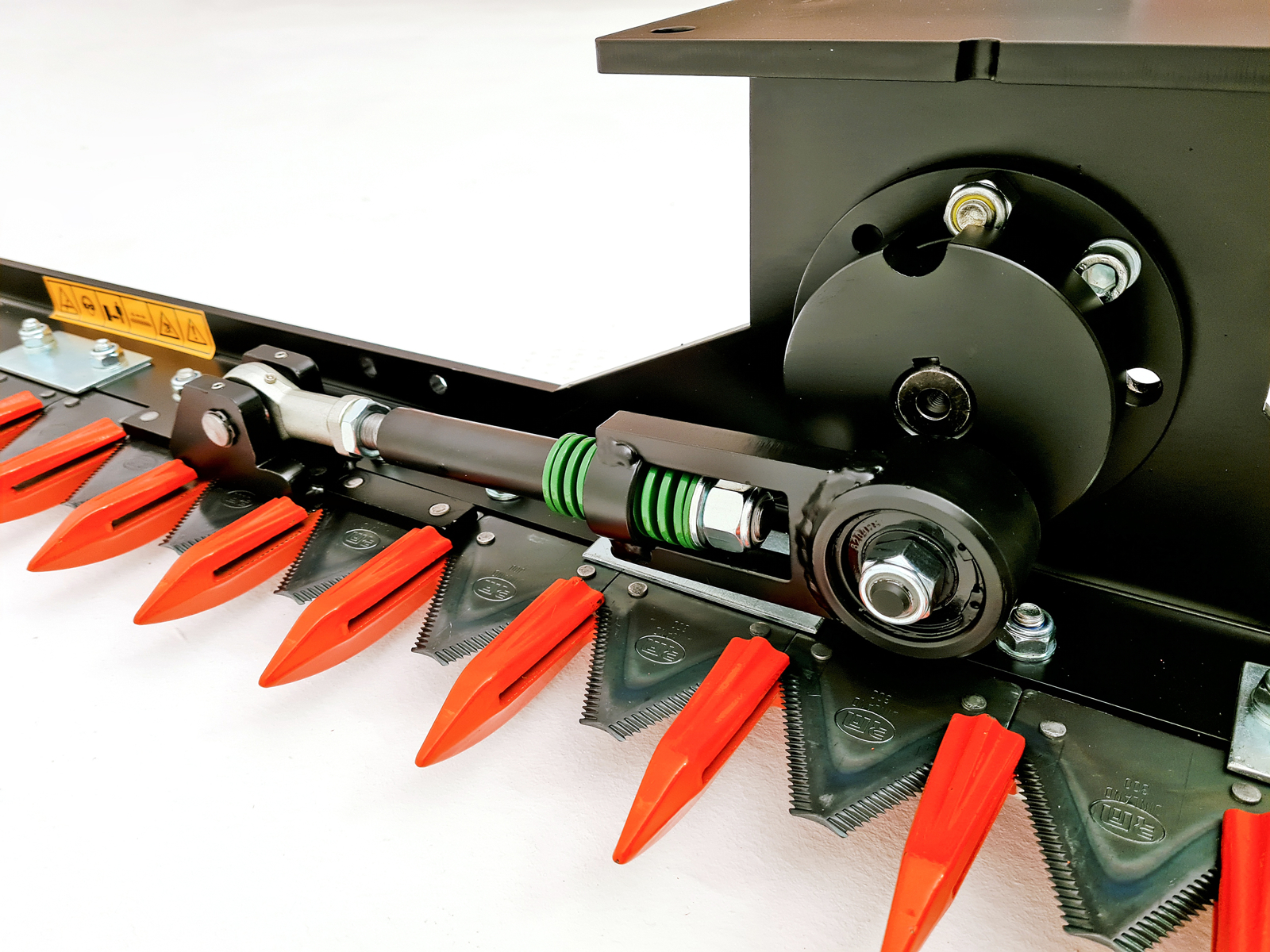

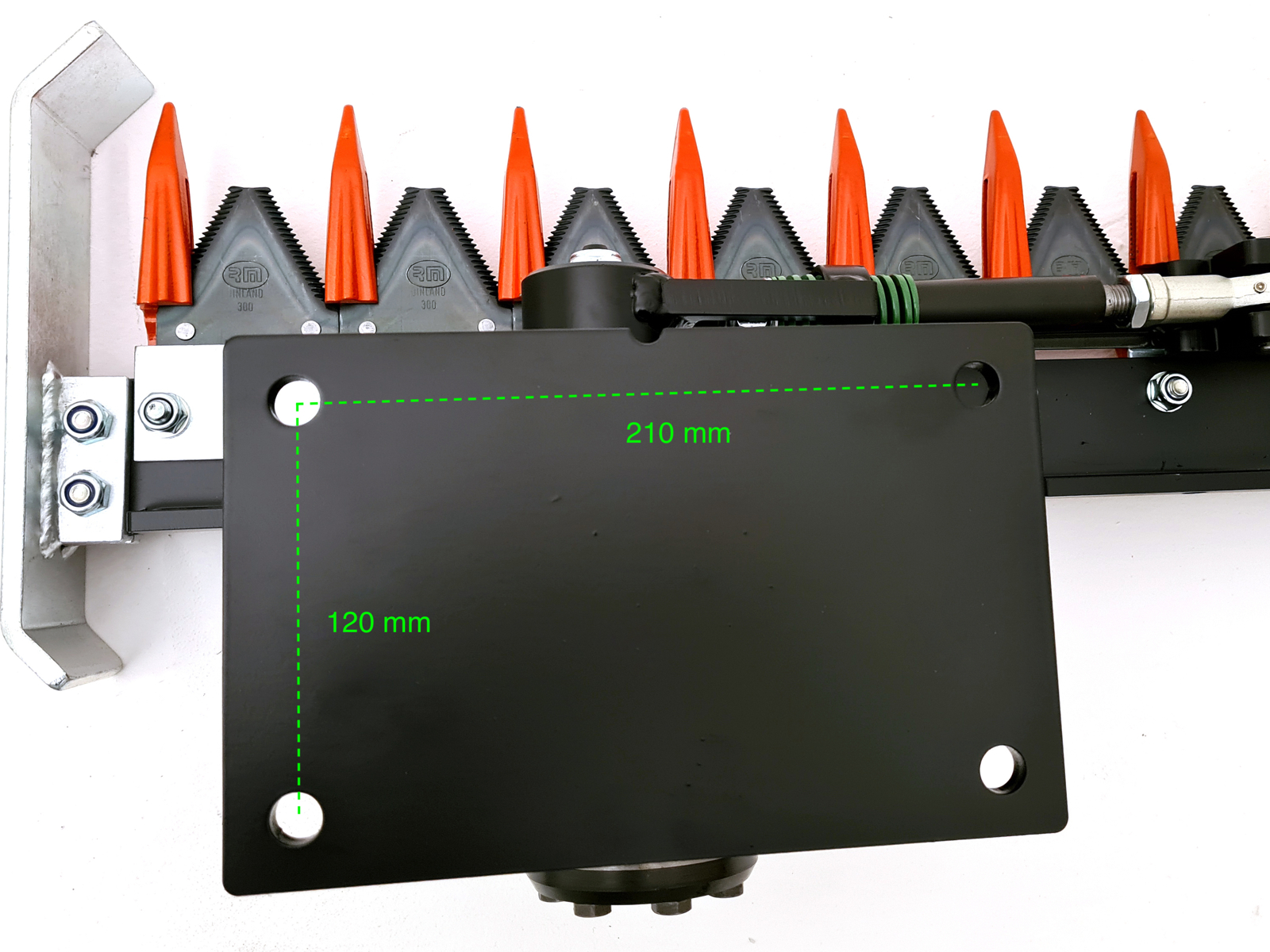

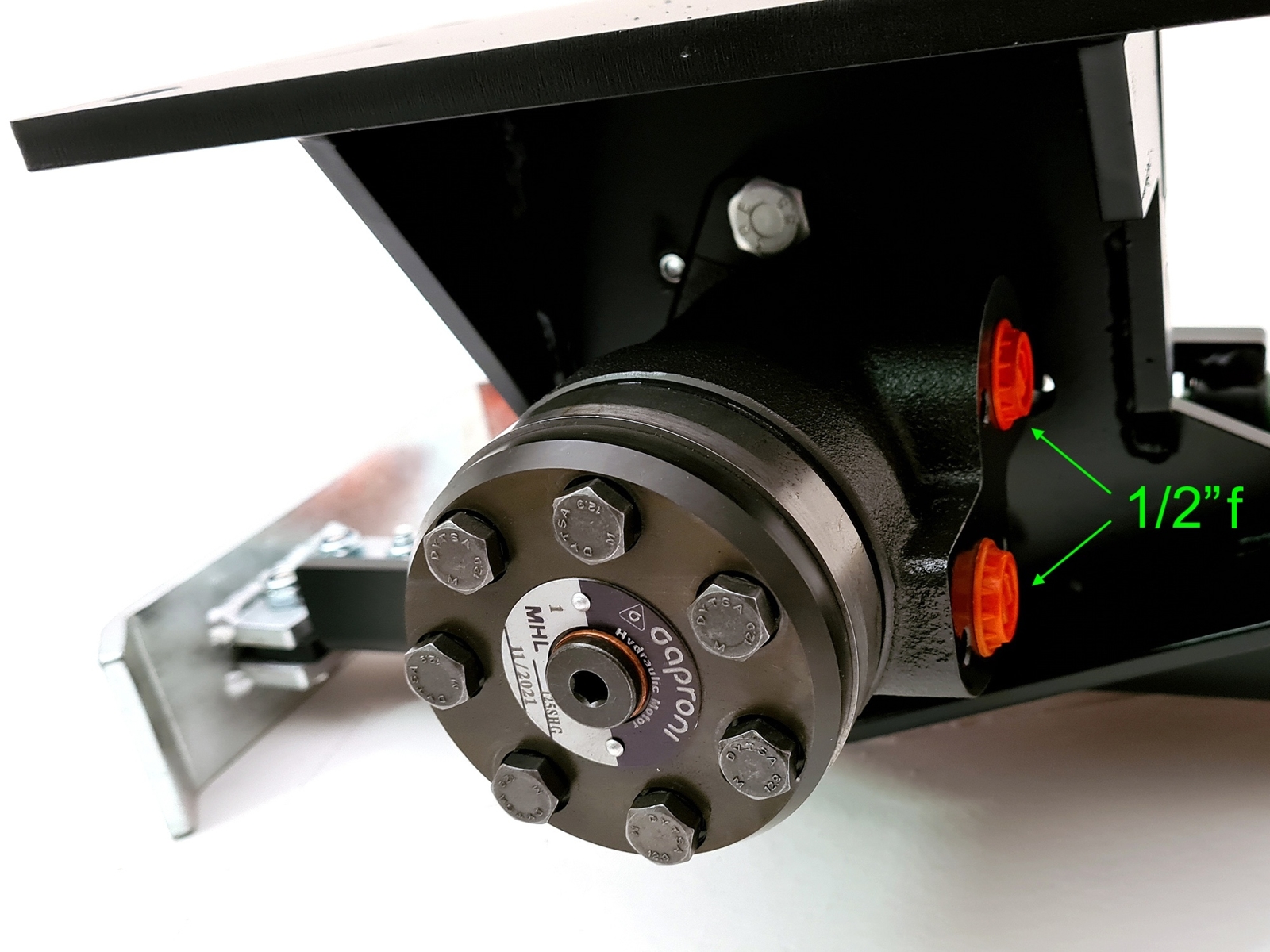

Hydraulic cutter bar DELEKS® HR is ideal for trimming hedges and branches up to about 2.5 cm in diameter. The set-up includes the hydraulic motor and the mounting plate with 4 mounting holes (measures shown in the images).

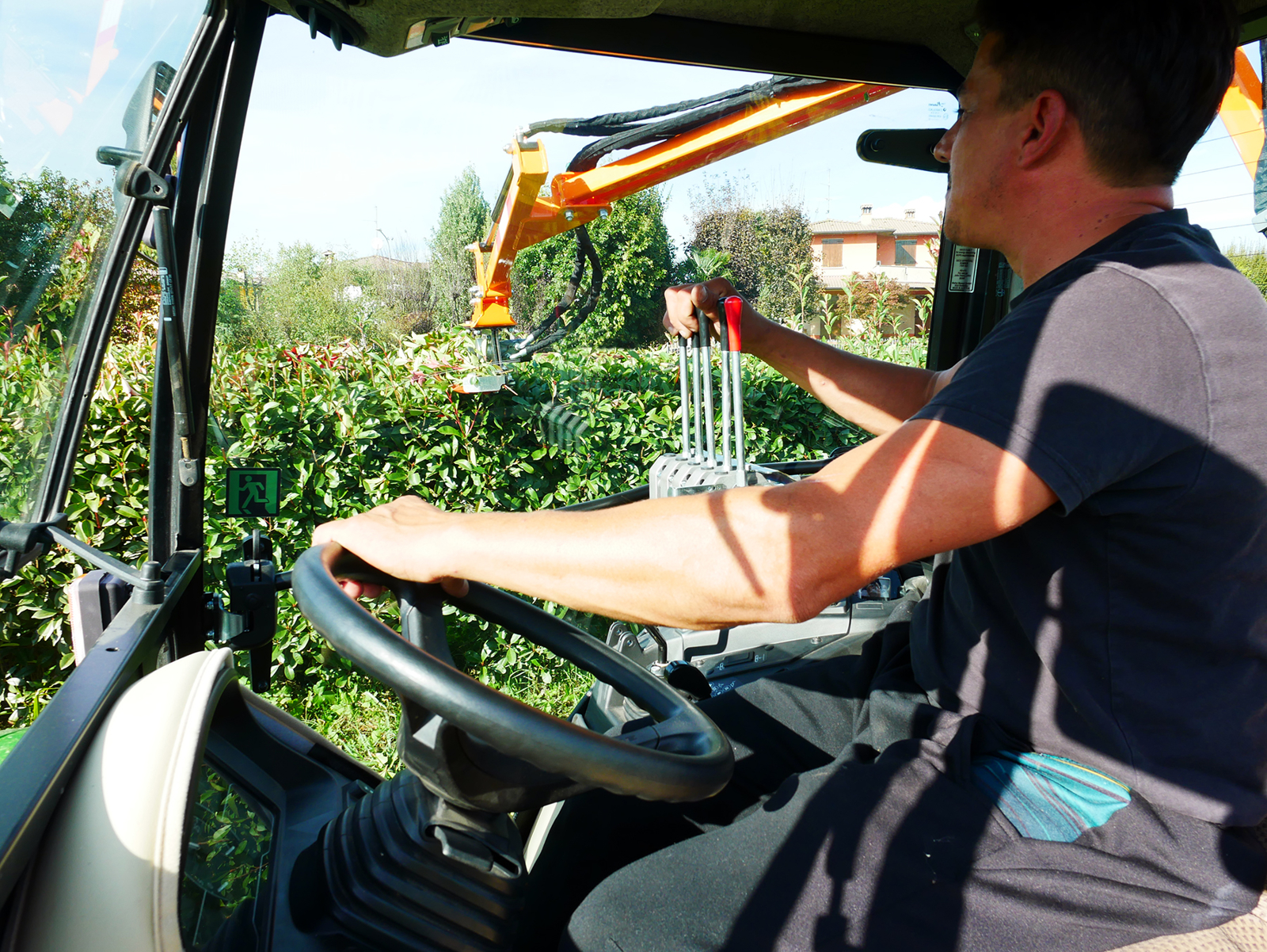

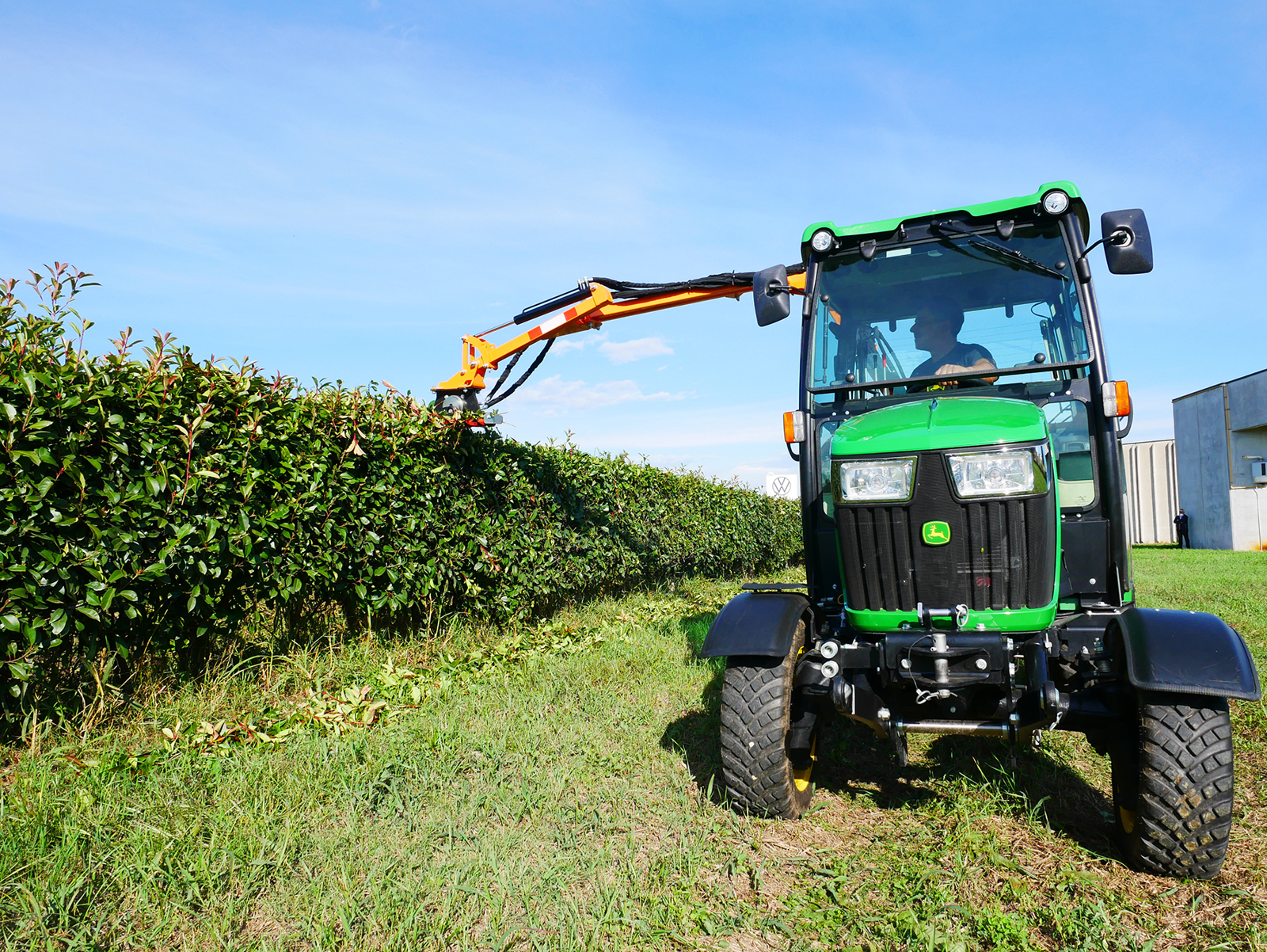

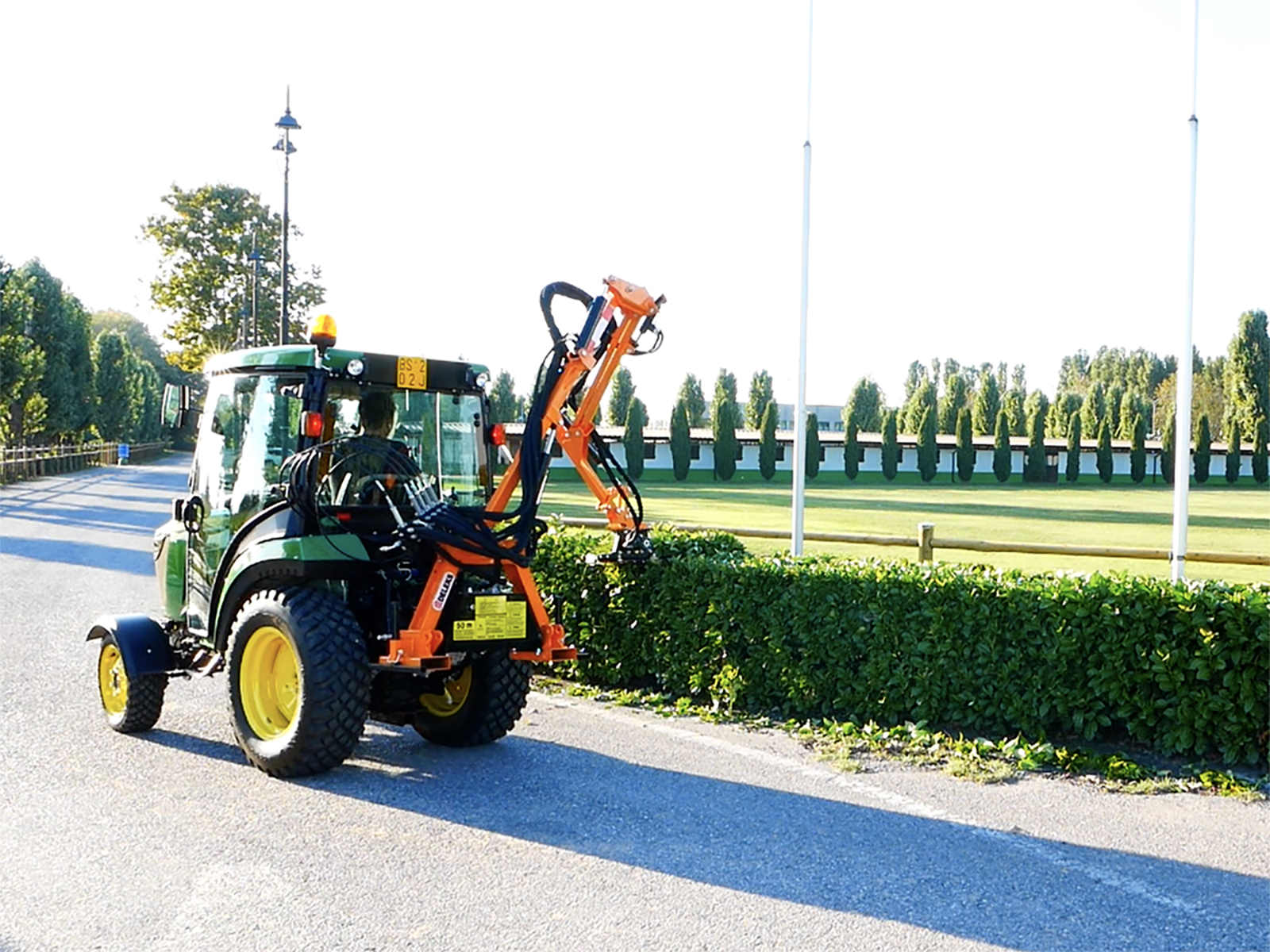

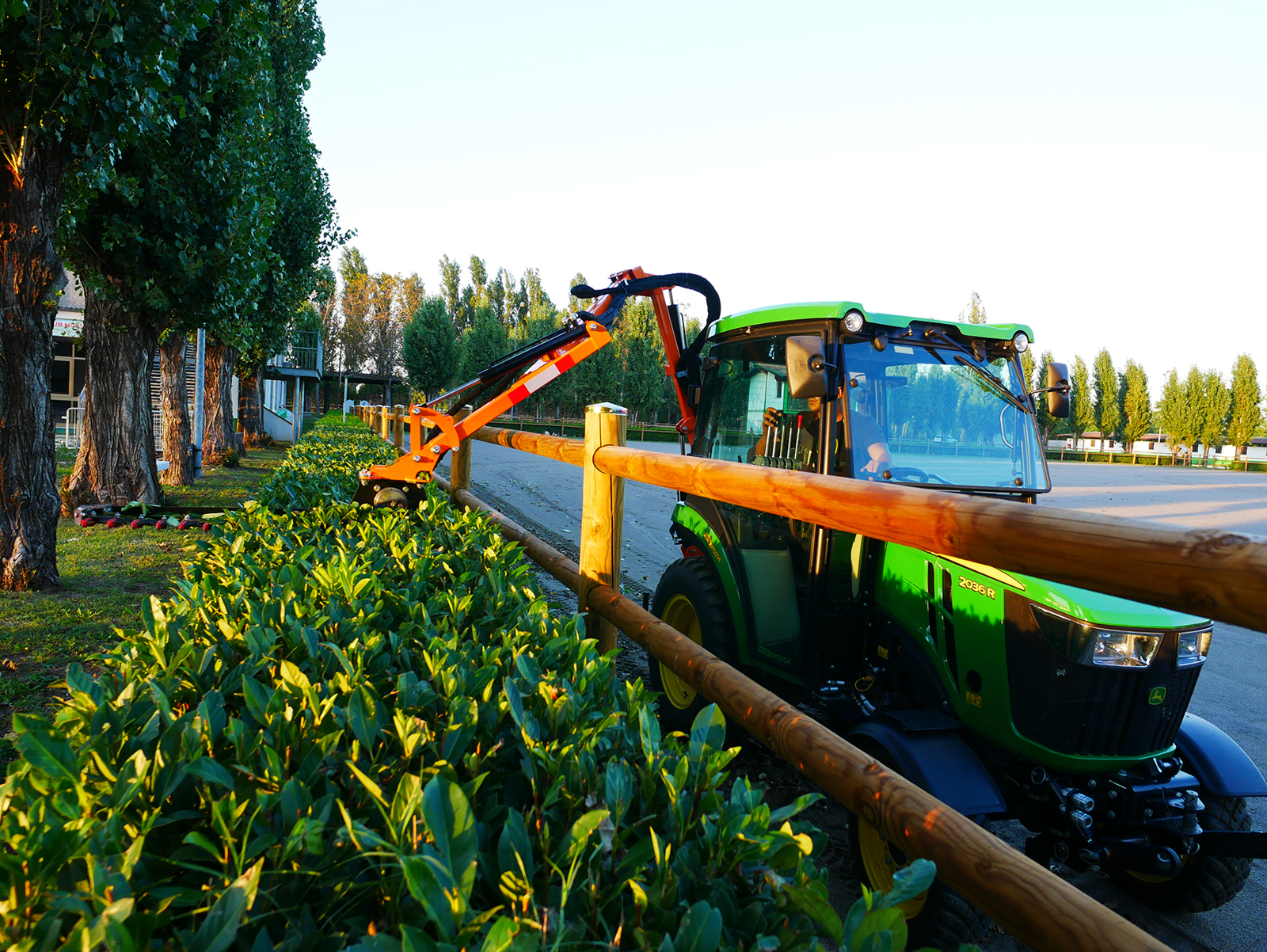

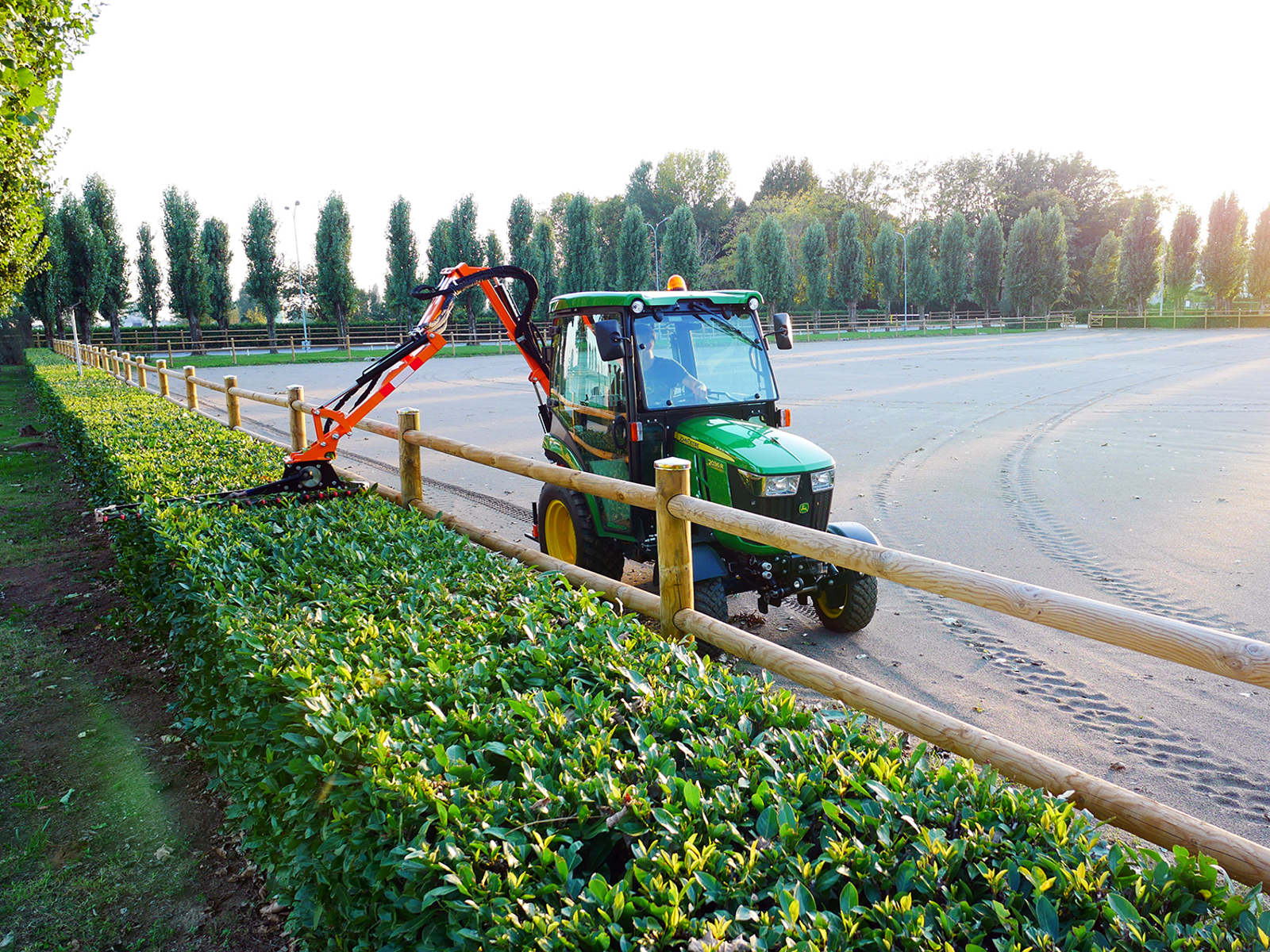

The cutter bar is controlled by the hydraulic system of the tractor / operating machine.


Requirements:

The hydraulic oil flow: min. 20 l/min.

The operating machine must be equipped with a circuit with a return oil duct (if a certain flow is exceeded, the oil is returned directly to the oil discharge line).


Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual


EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).


VIDEO

CARACTERISTICS

Caracteristic Units metric Units US
Working width 1600.0 mm 5.25 ft
Overall width 1680.0 mm 5.50 ft
Weight 62.0 kg 136.0 lb
Maximum cutting diameter 25.0 mm 1.0 in

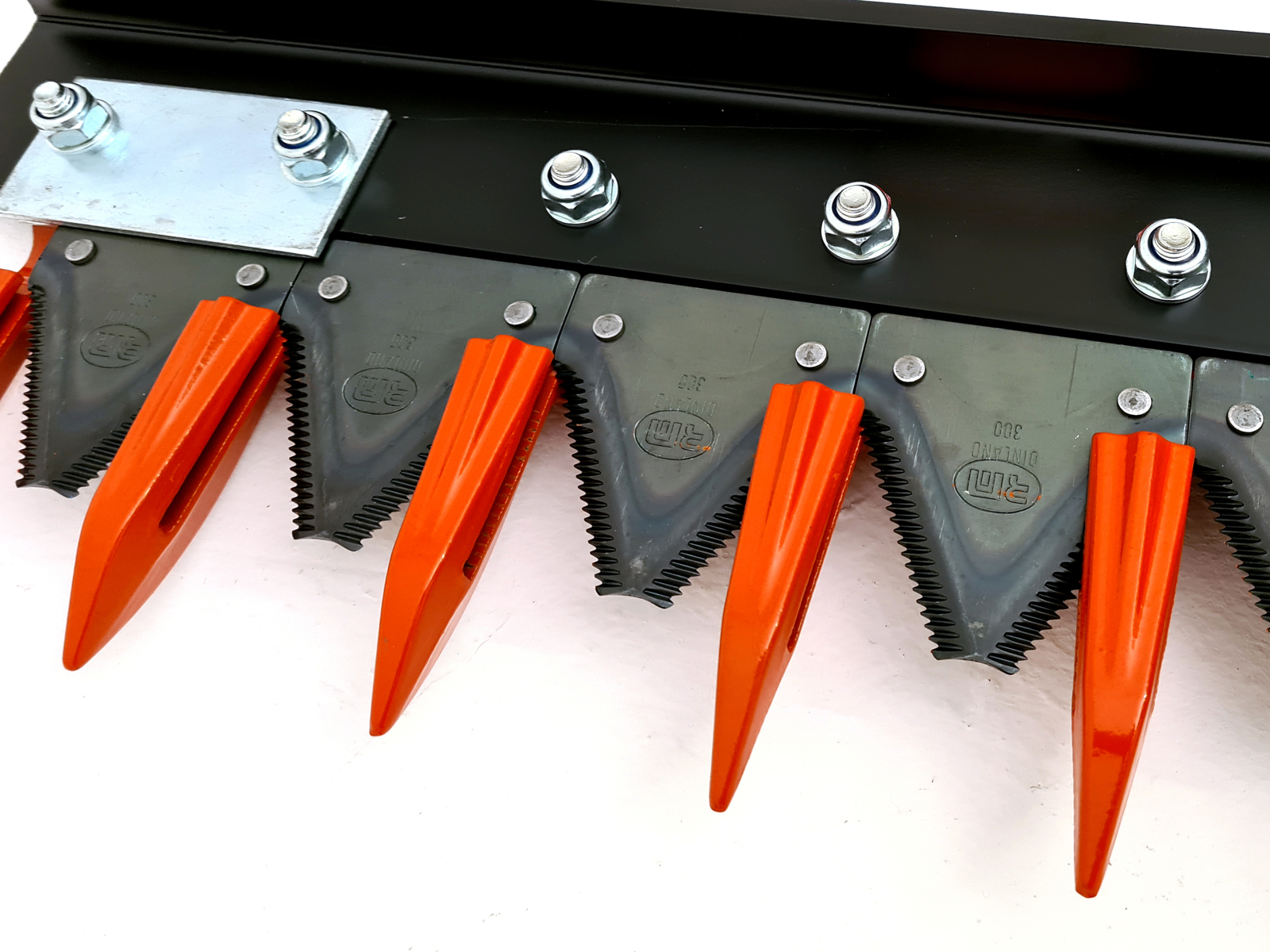

Number of Blades 21 21
Min./Max. Relief Pressure 140 - 180 bar 140 - 180 bar
Min./Max. Flow min. 20 l/min min. 20 l/min
Packing sizes 1680.0*600.0*300.0 mm 5.50*1.97*1.65 ft
