Log grapple with fixed pendulum rotator for minidiggers and forest cranes DK-16 + GR-30F

Available
CodeDK16R30F
EAN 8053470235221
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

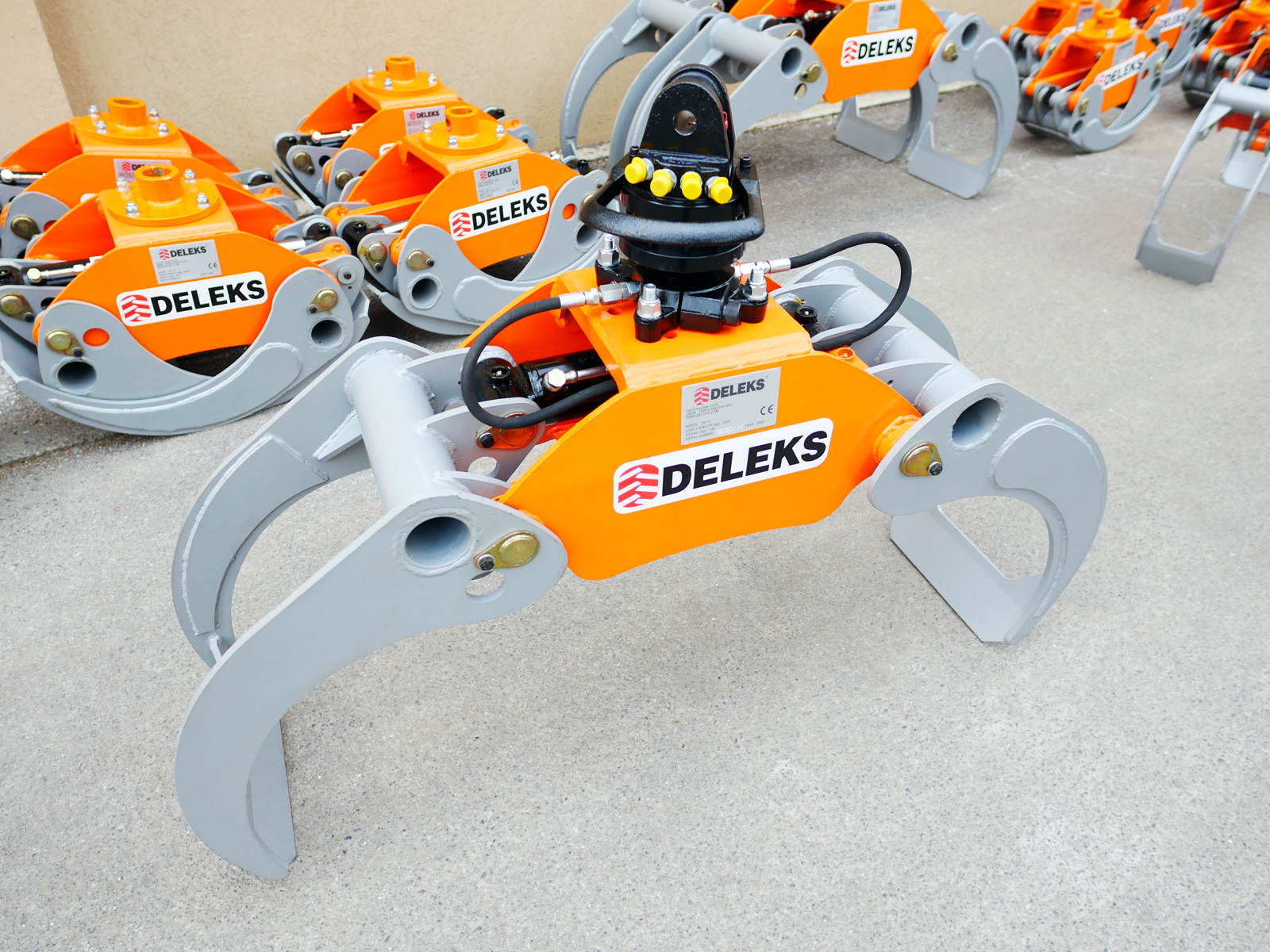

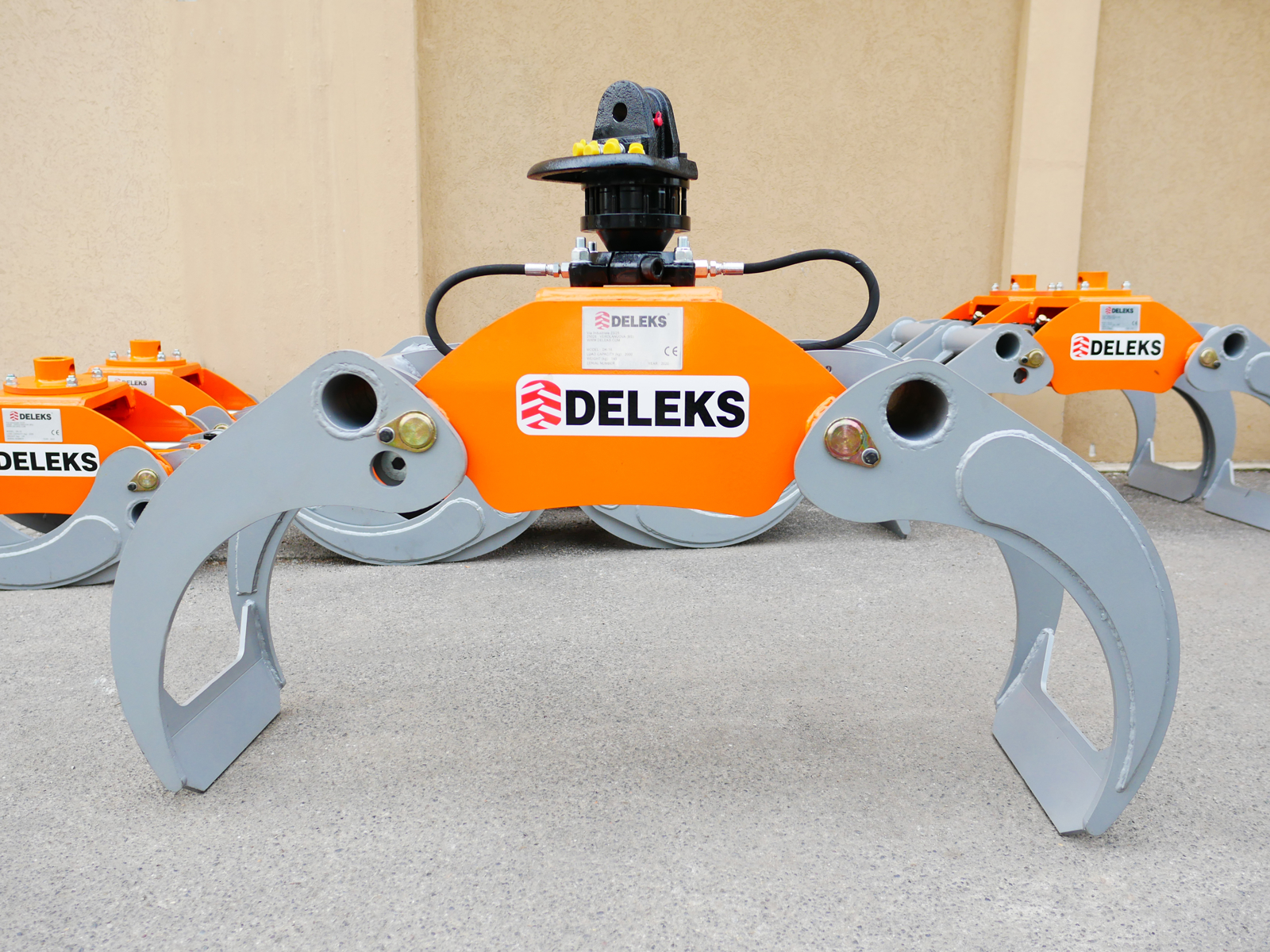

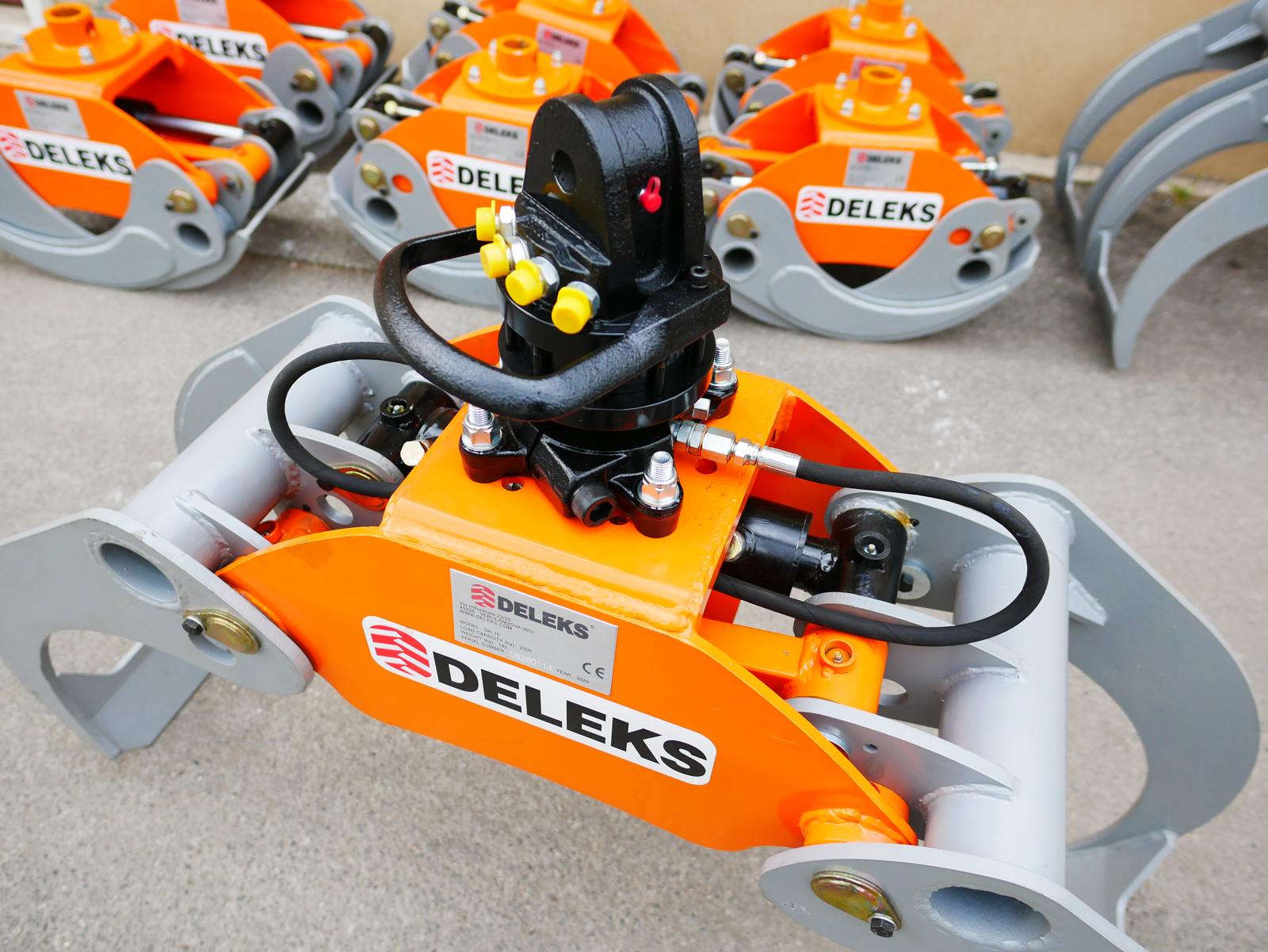

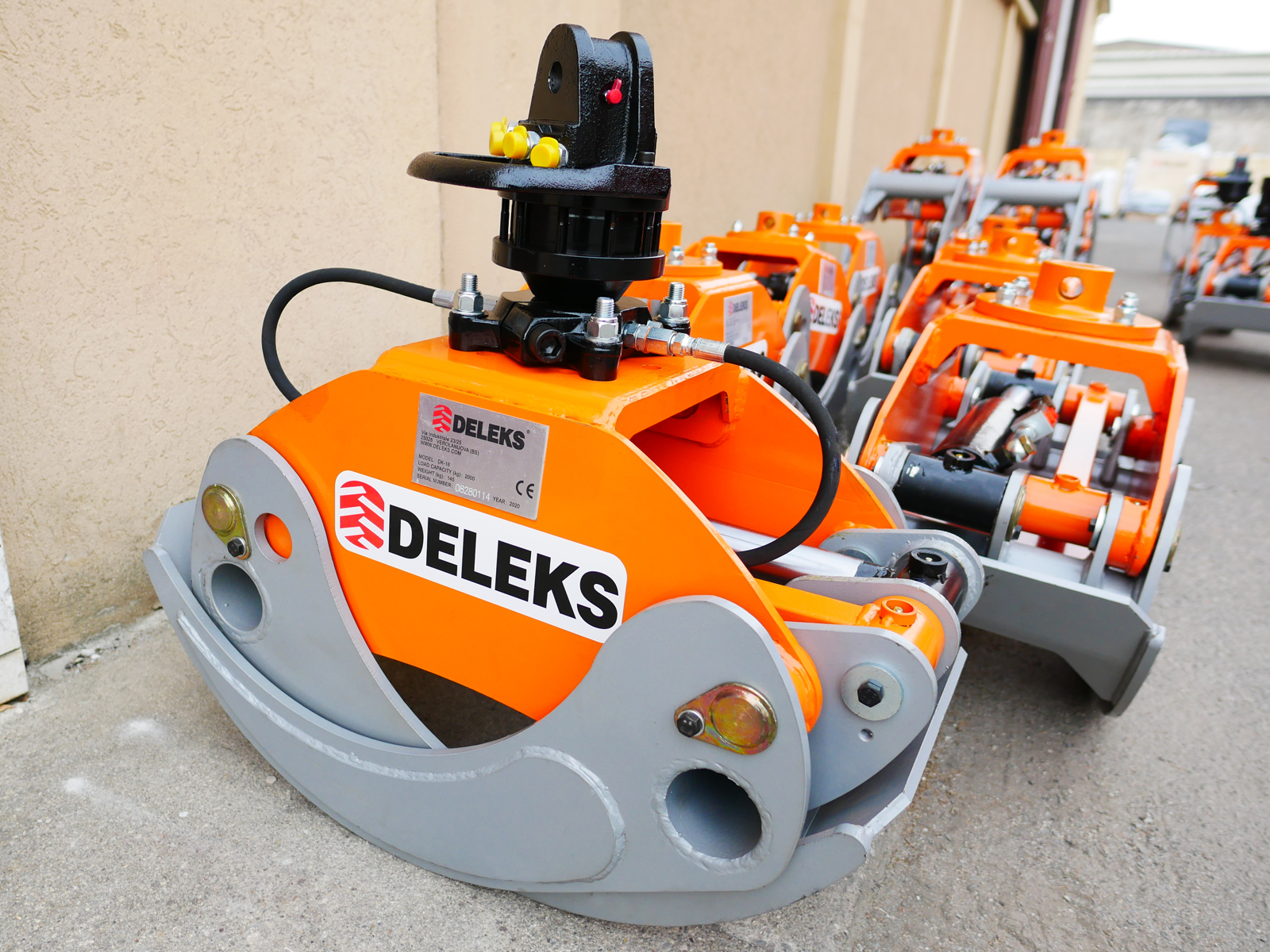

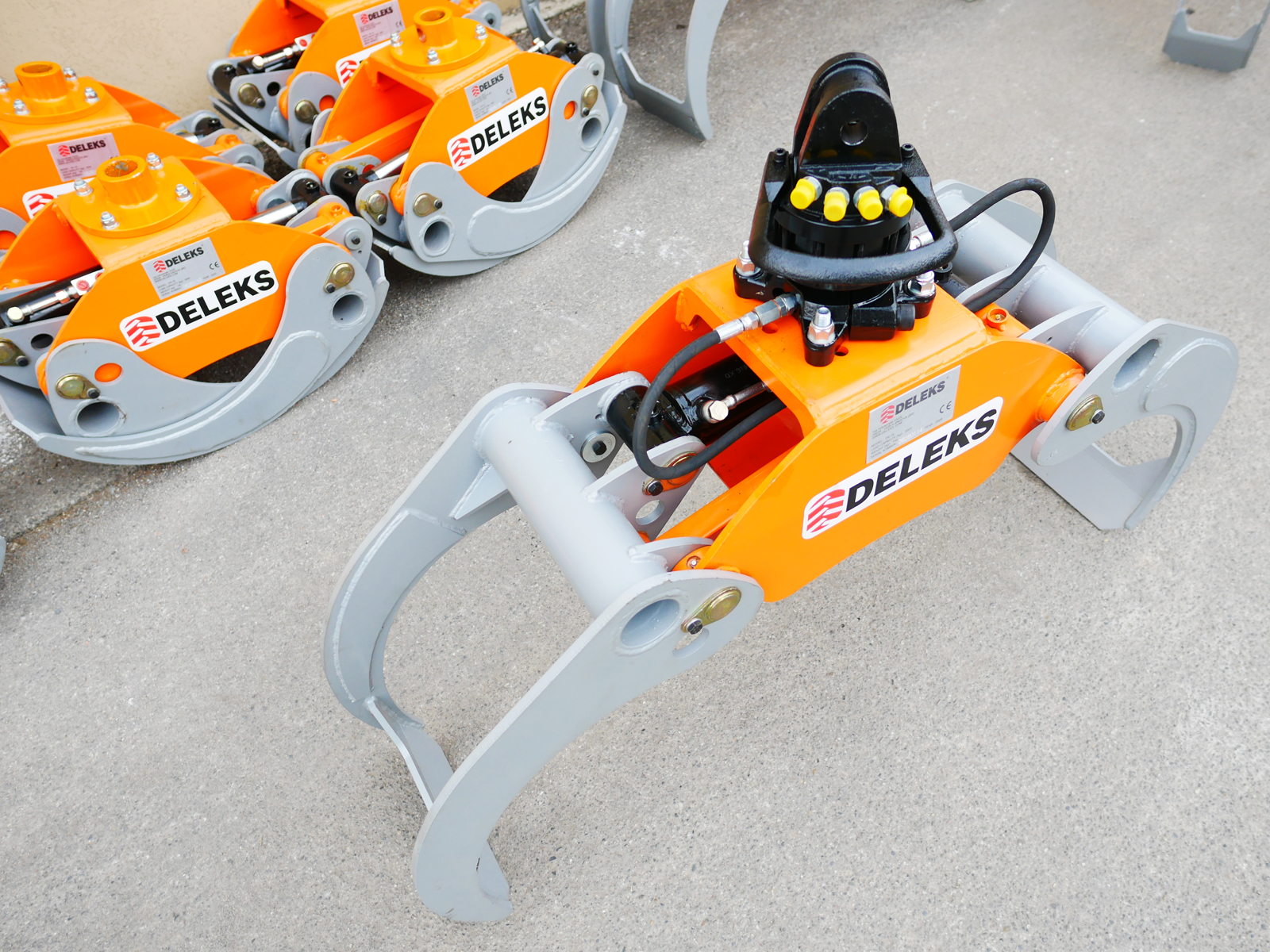

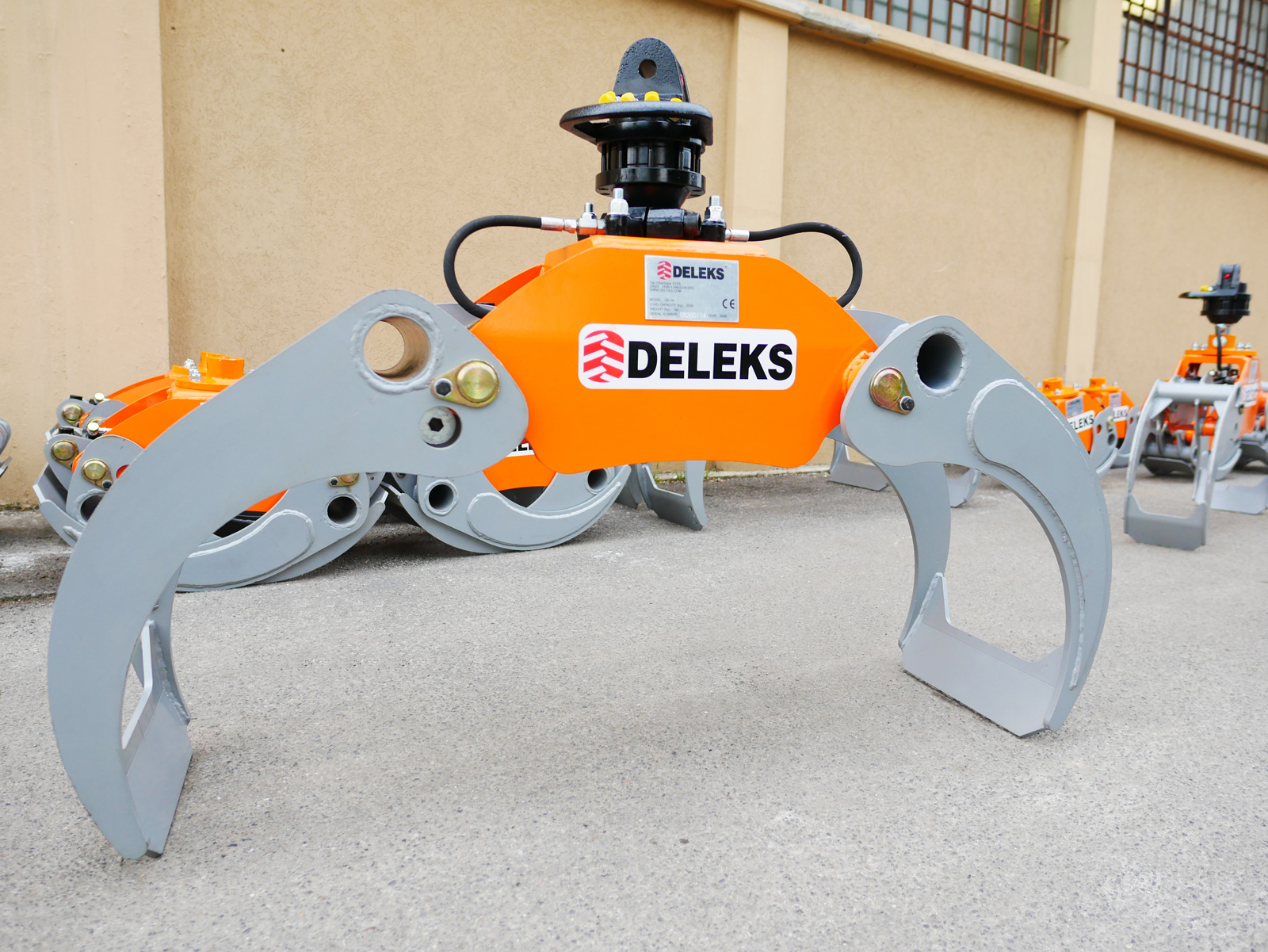

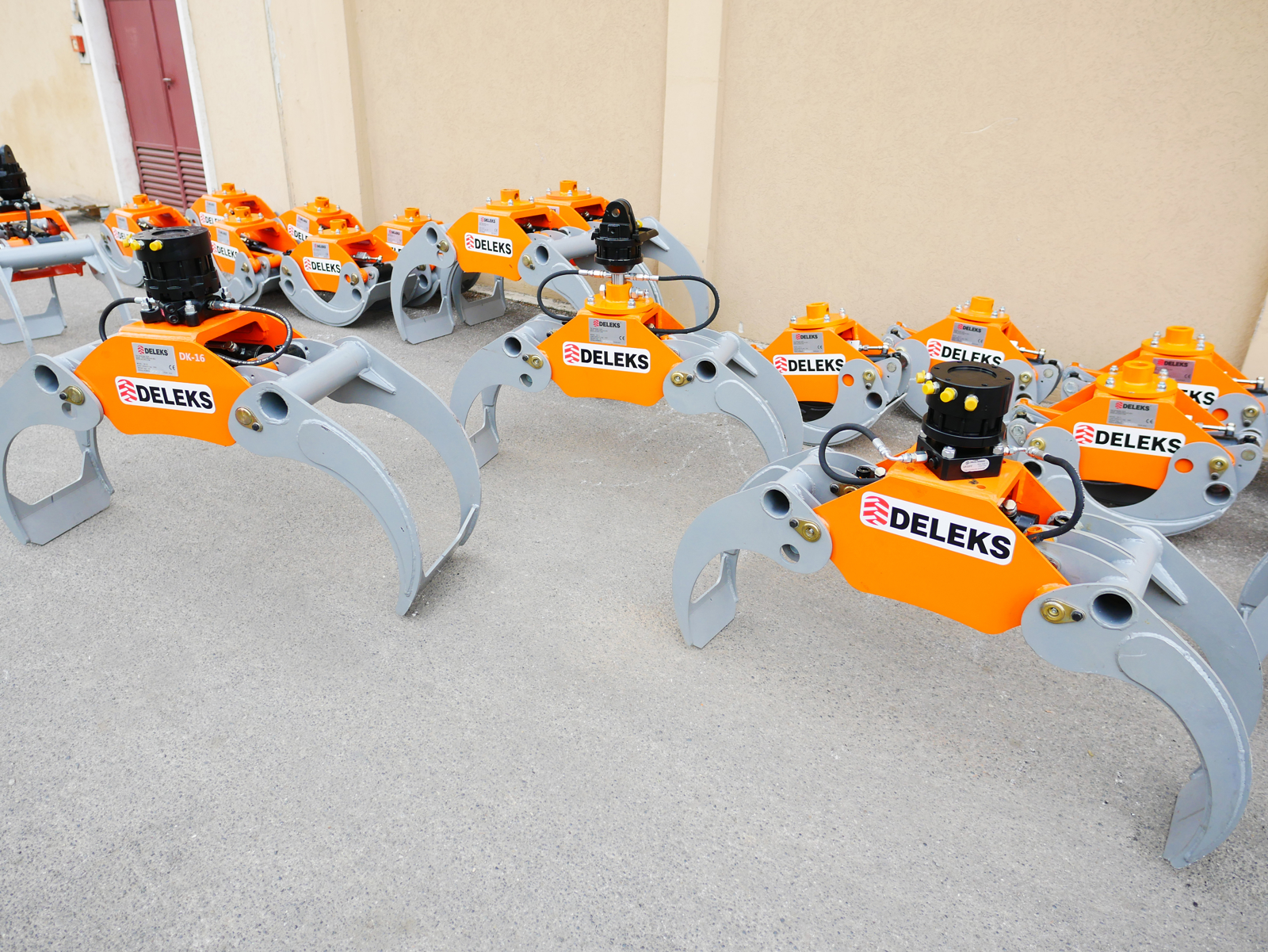

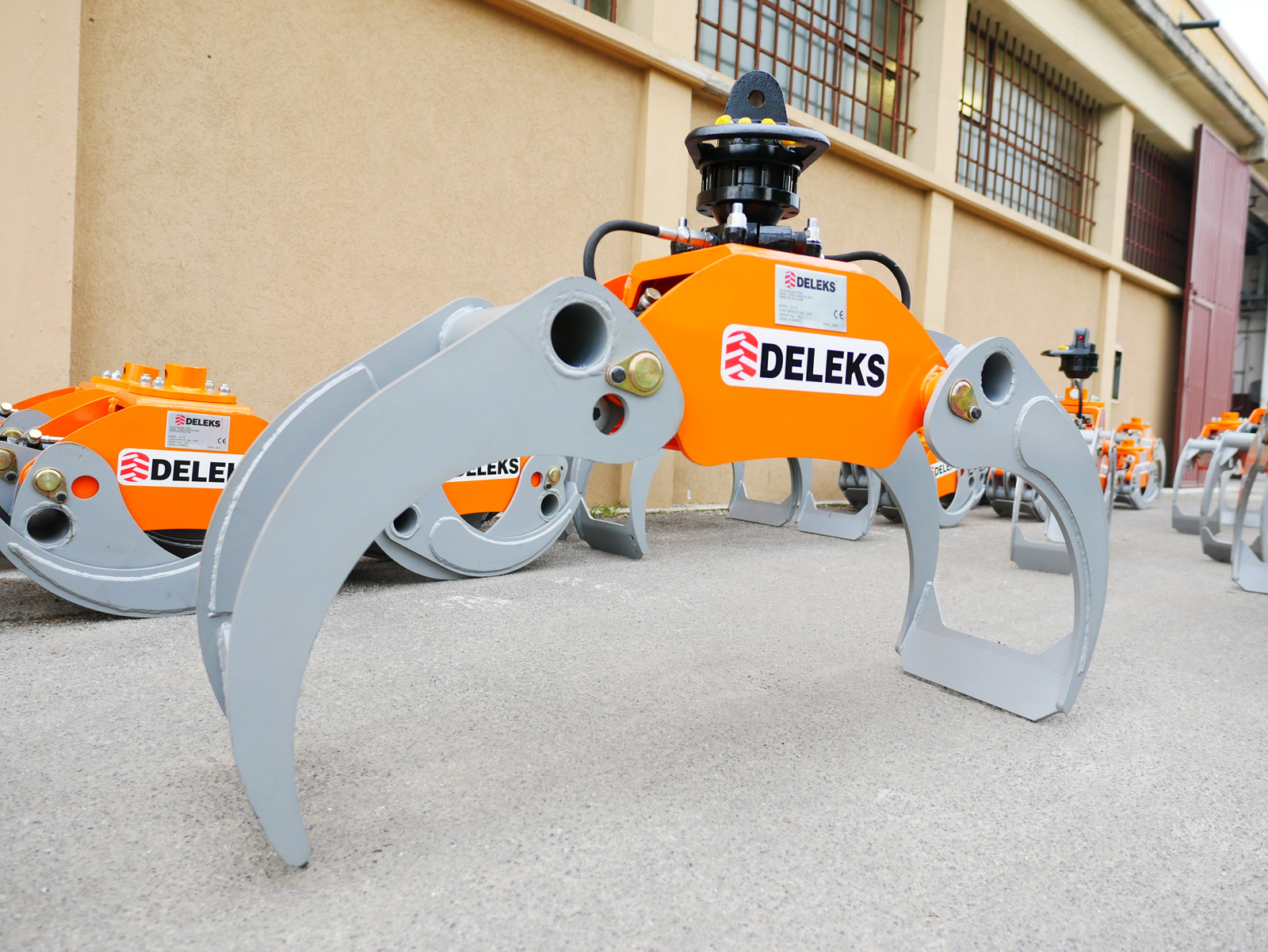

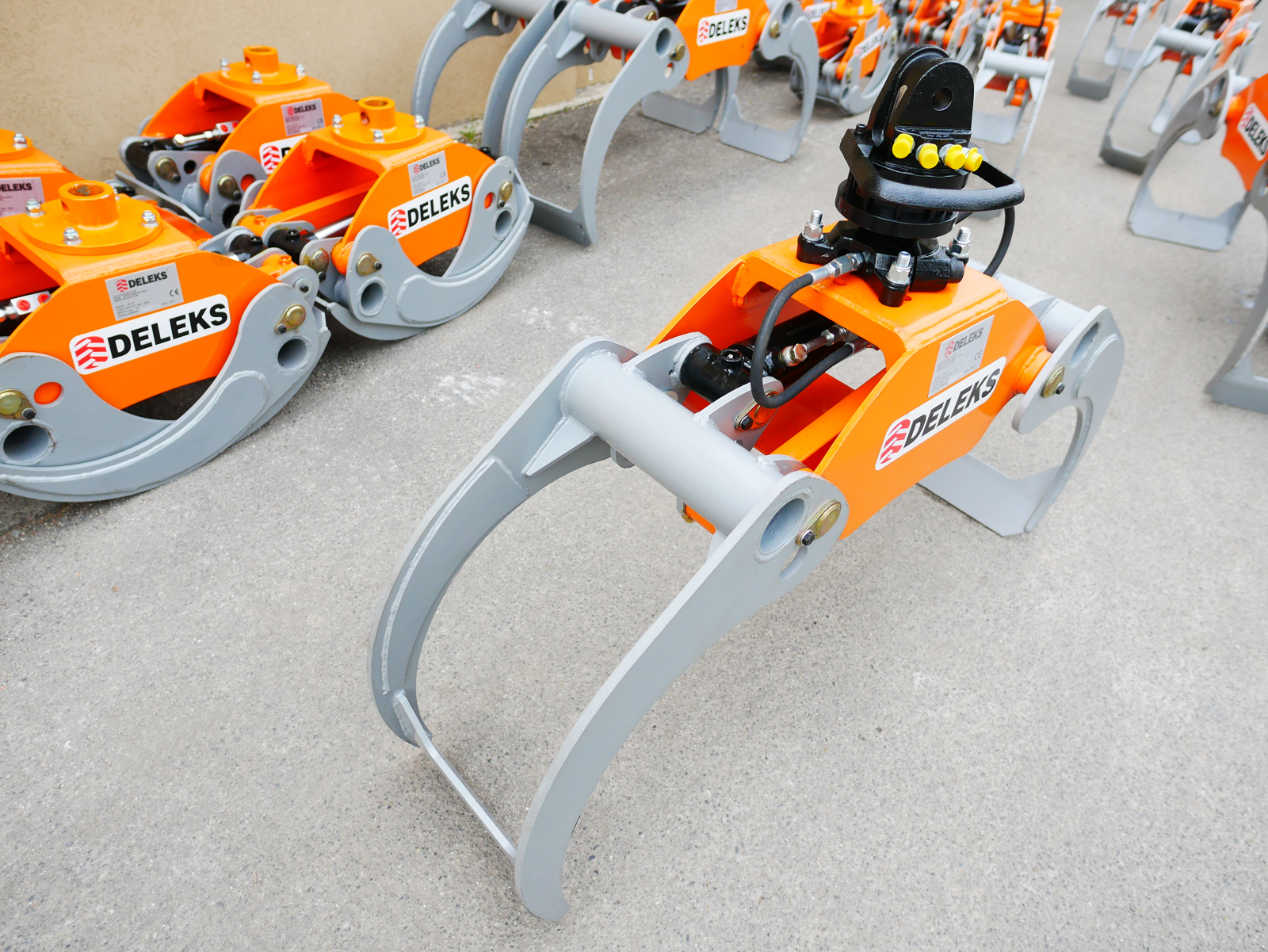

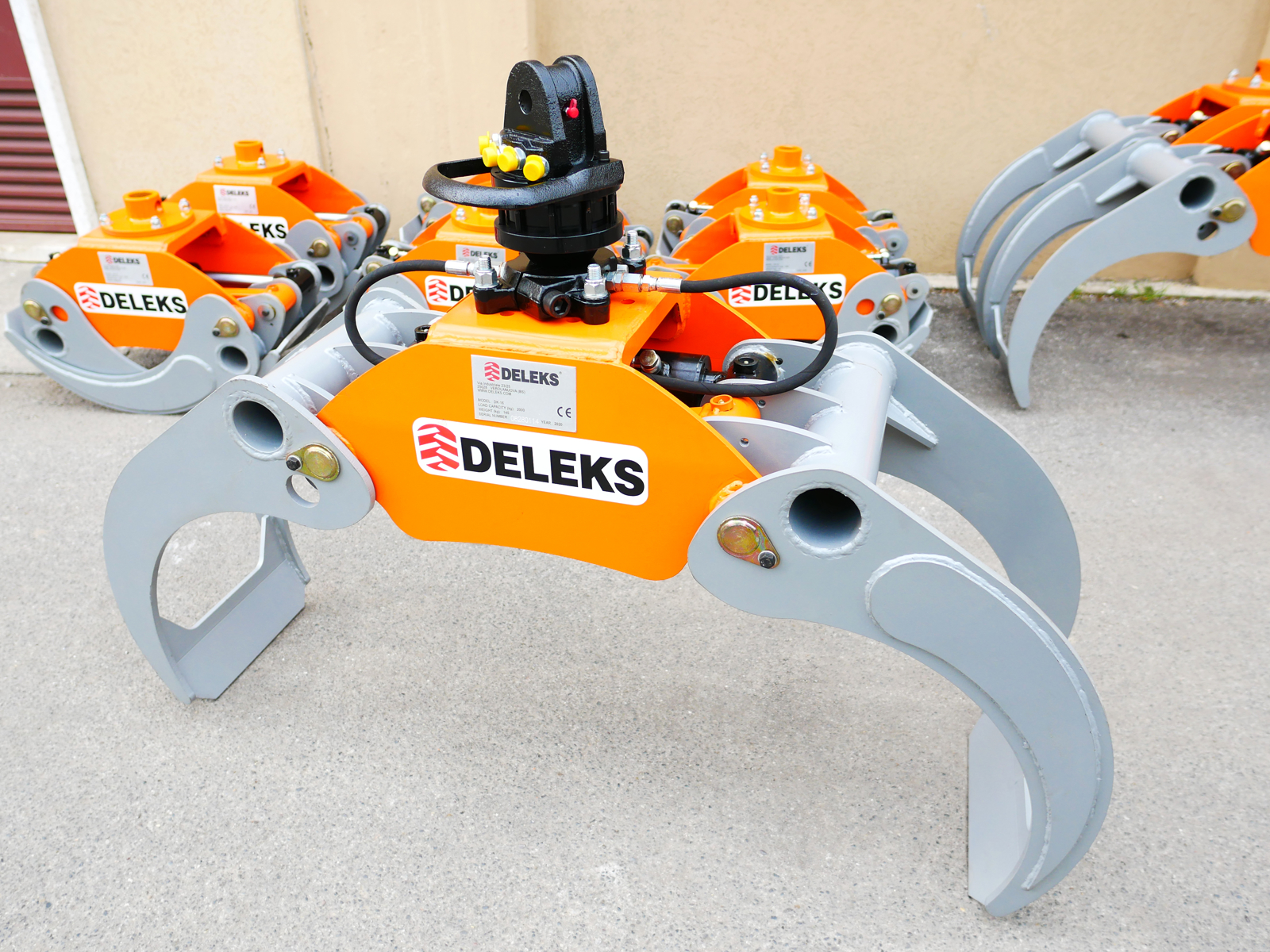

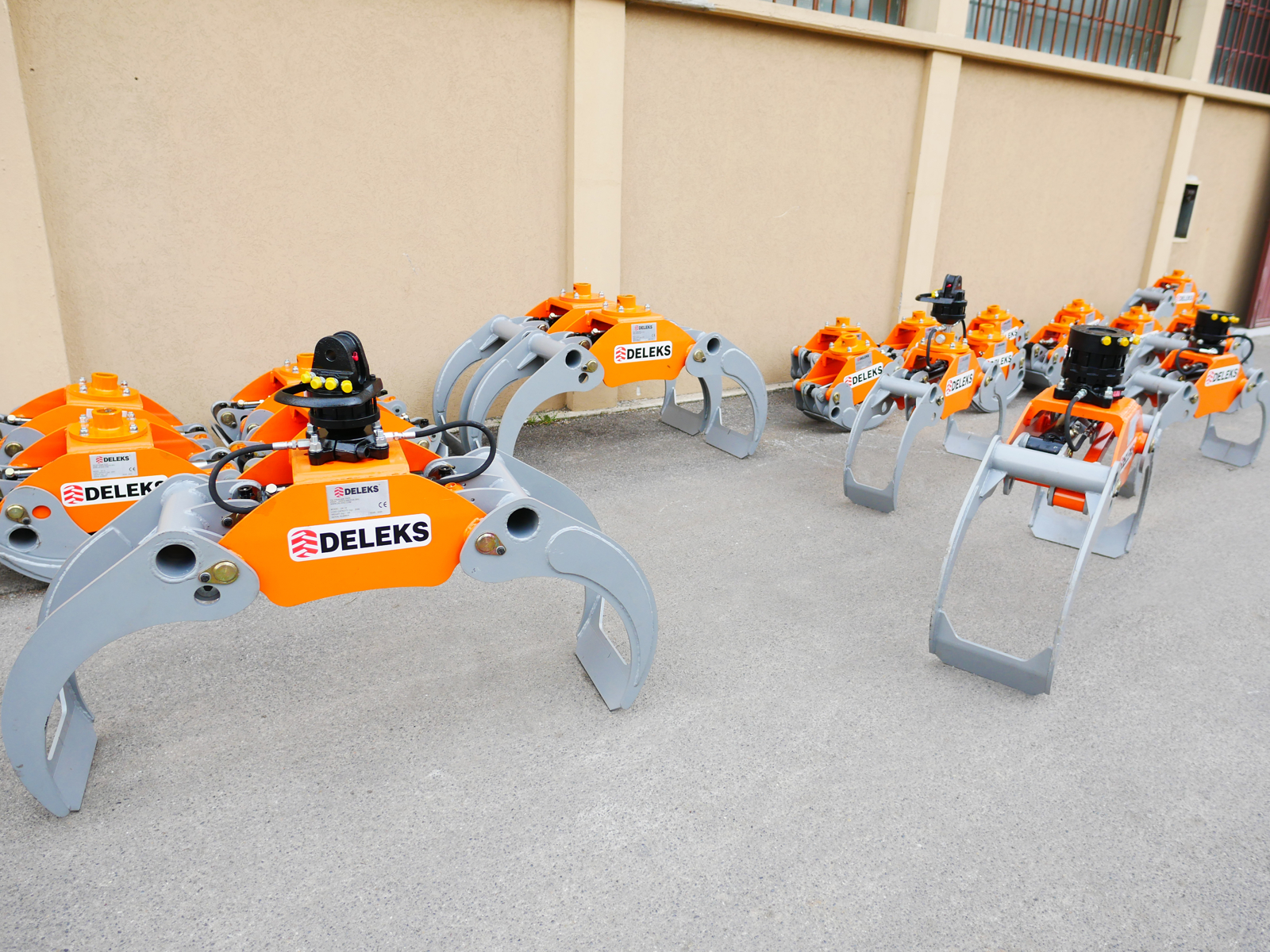

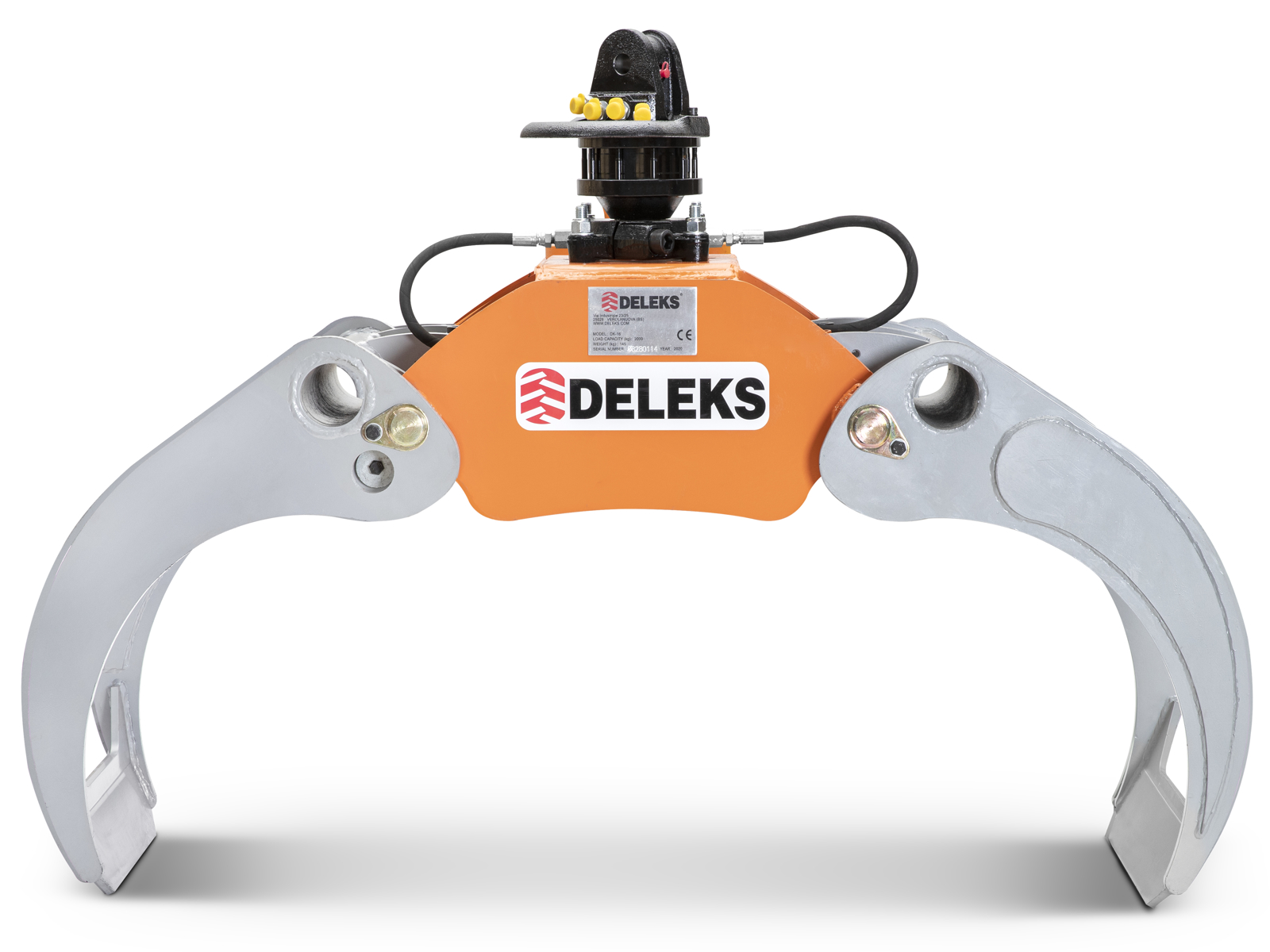

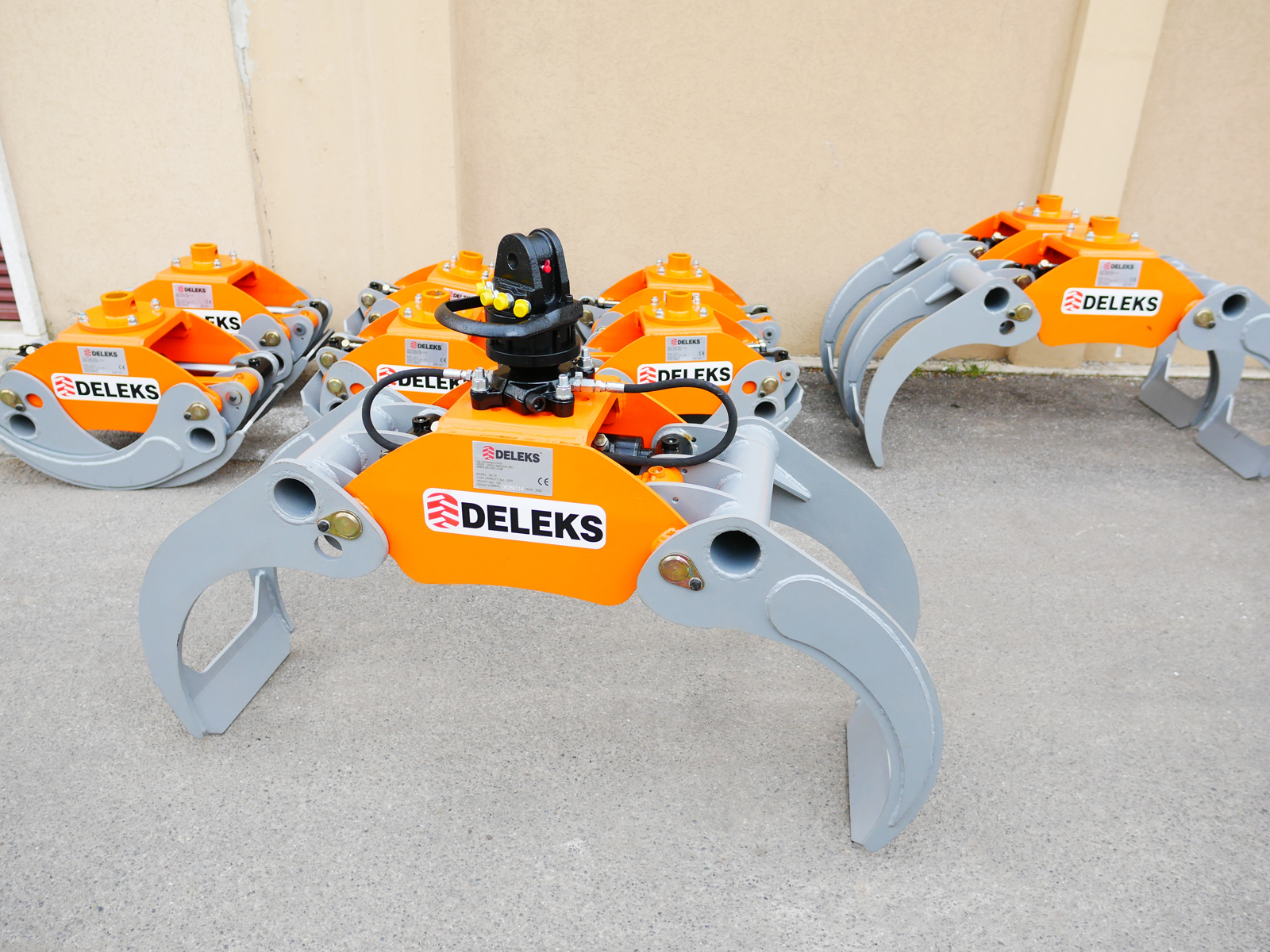

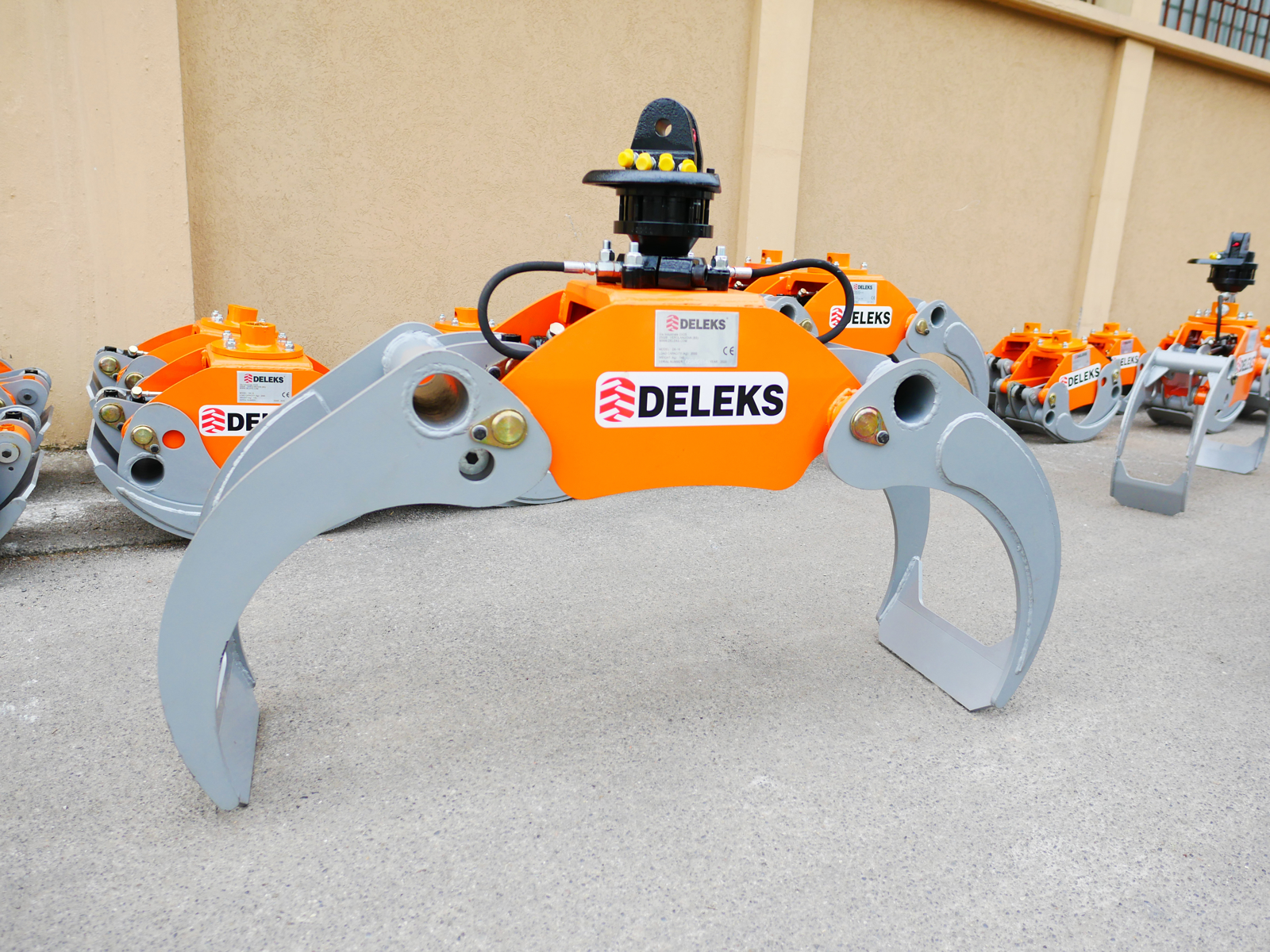

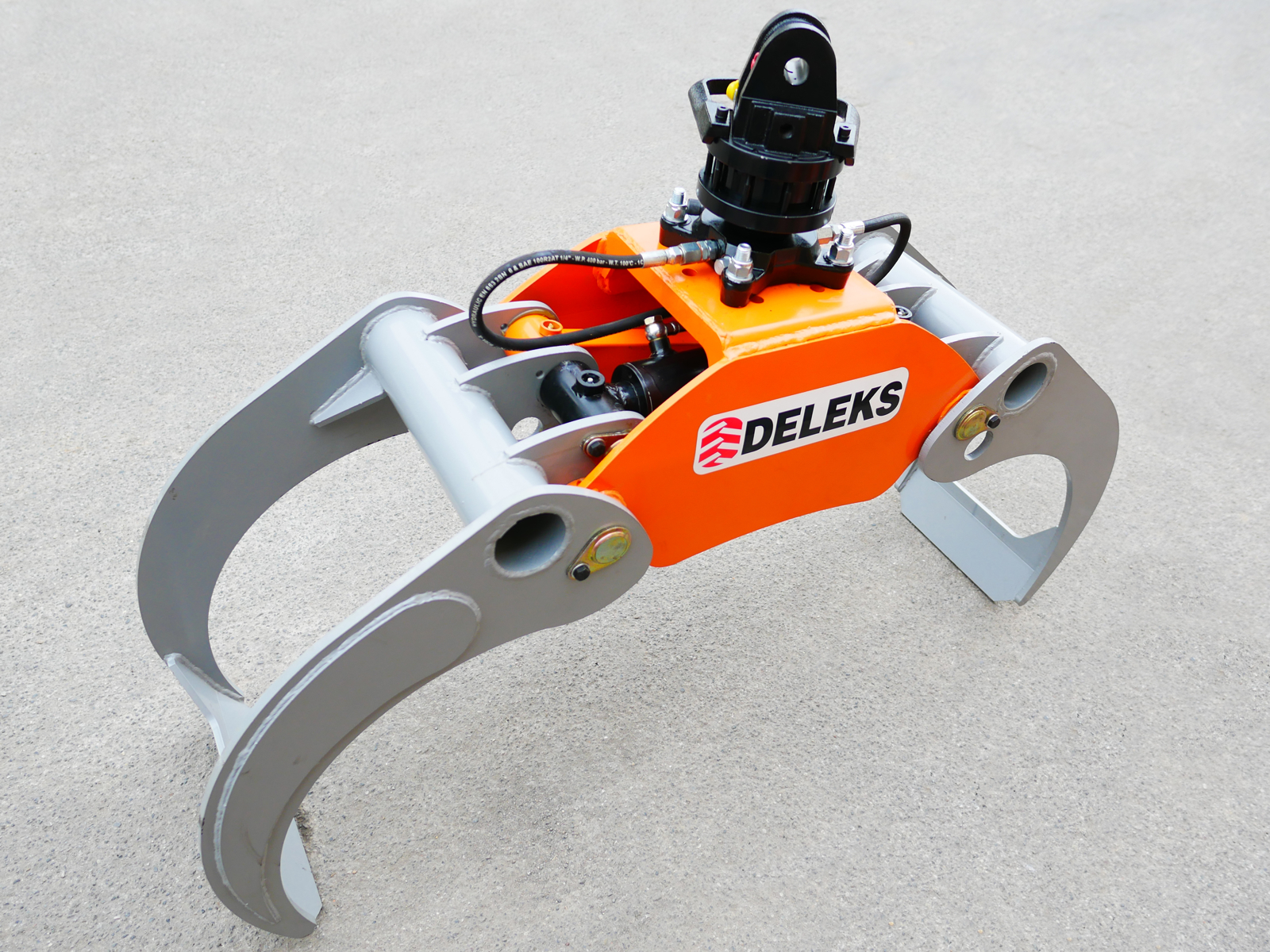

Log Grapple DELEKS® DK-16+ Lombarda Ingranaggi Rotator for Mini Diggers and Forest Cranes 4.0 – 8.0 Ton


OVERVIEW

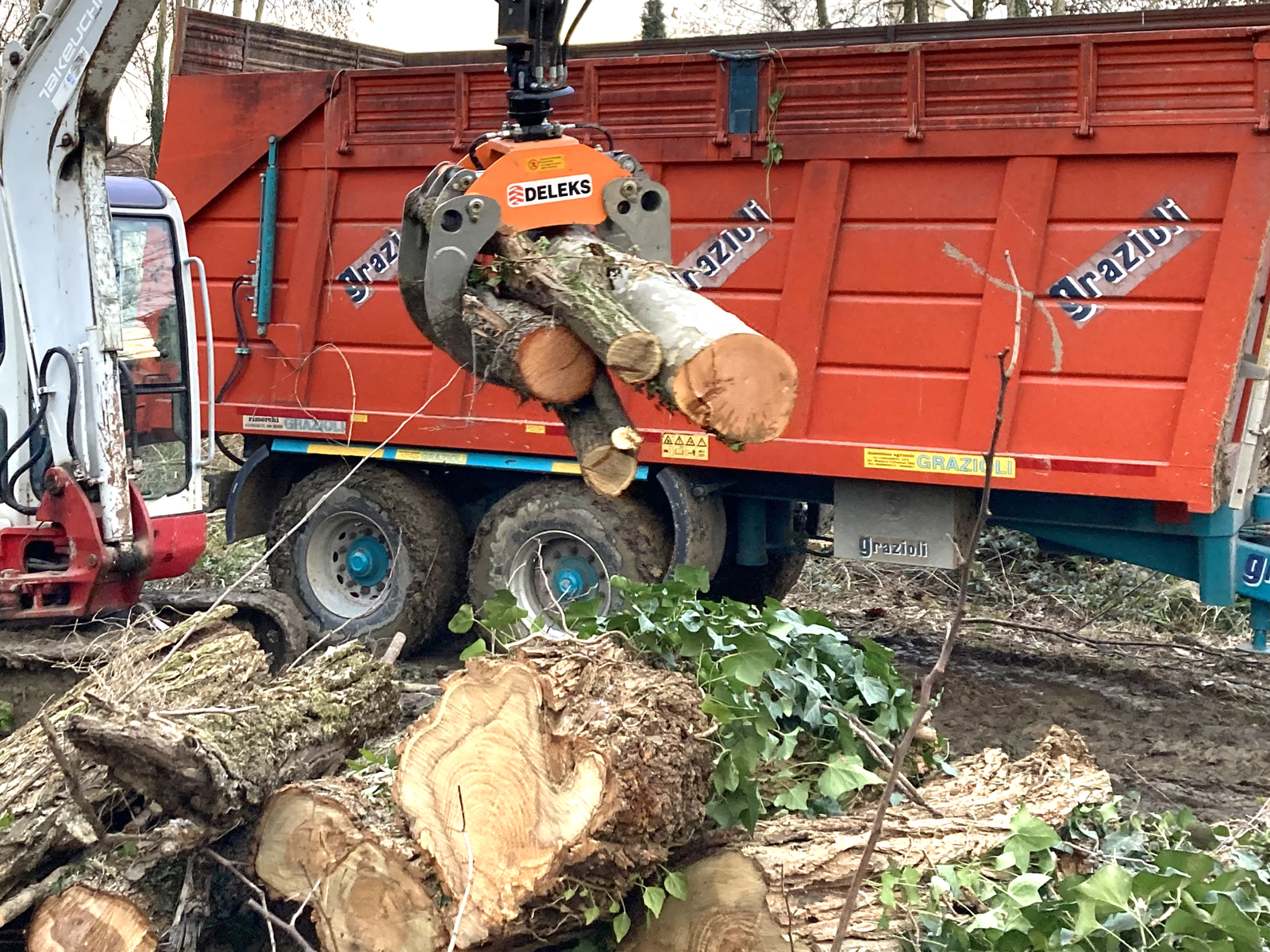

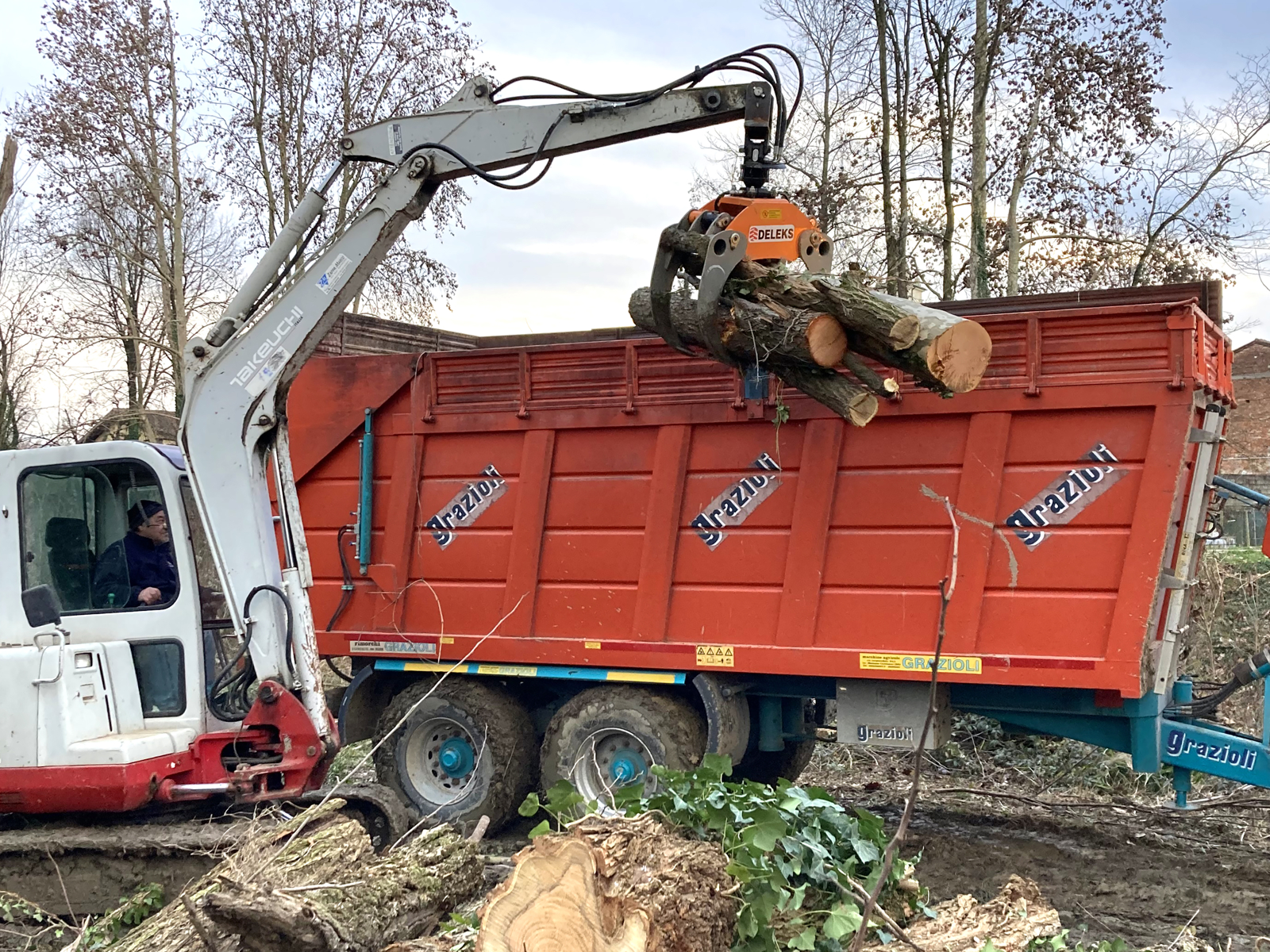

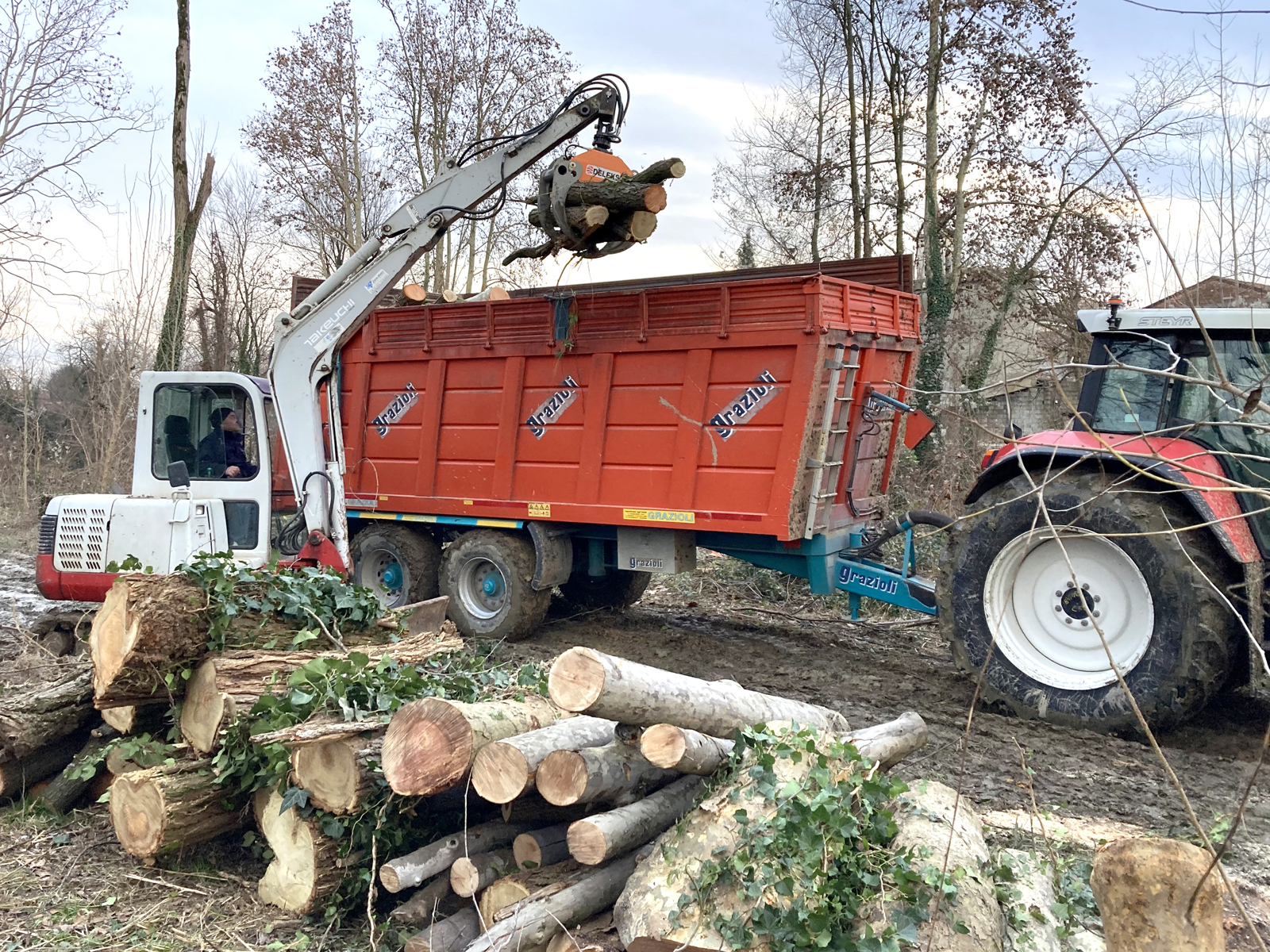

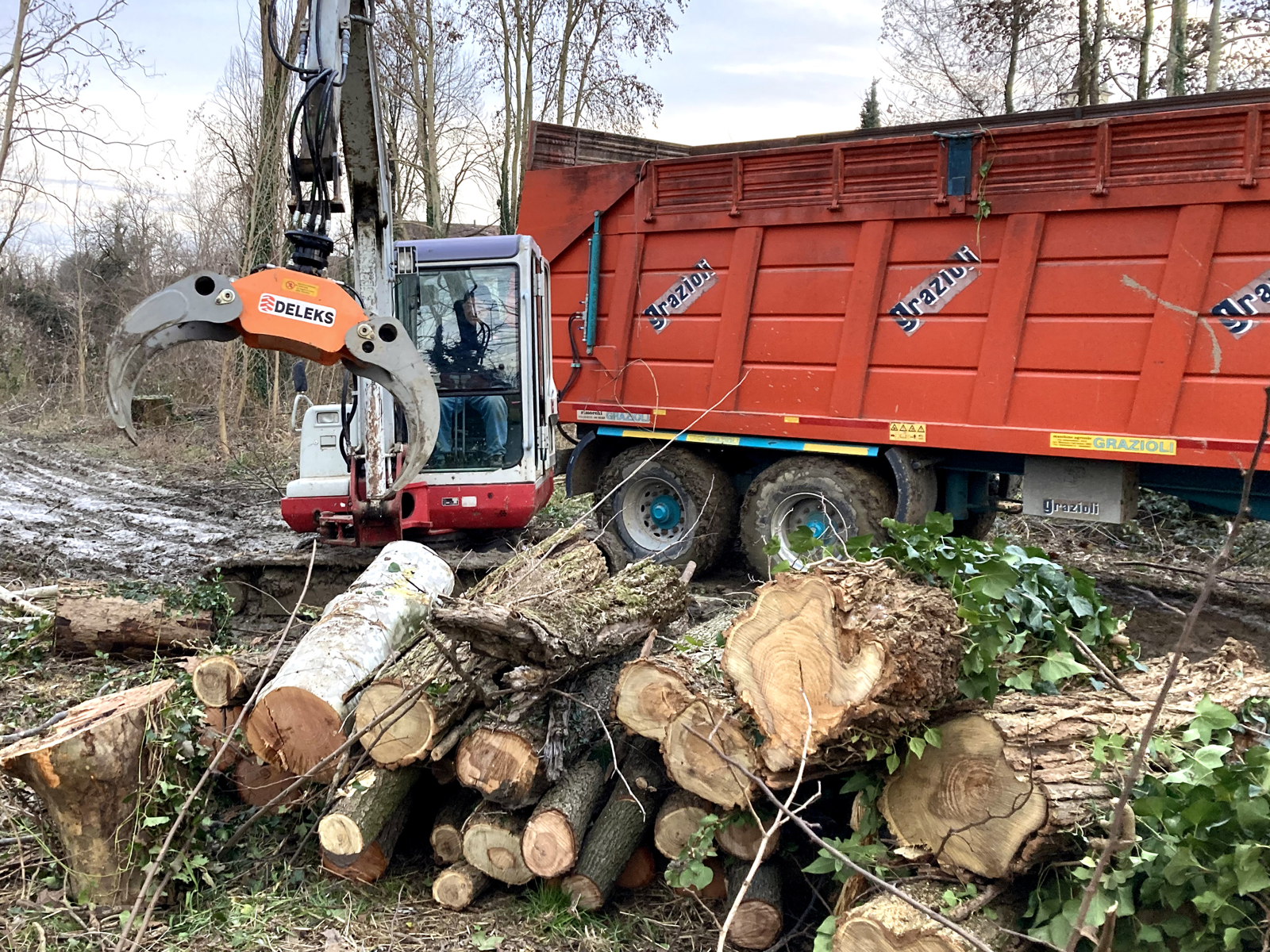

Perfect for carrying logs and timber around your farm or park.

Maximum load 2000.0 kg.

Gripping area: 0.24m2

Gripping force: 11.1KN

Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi.

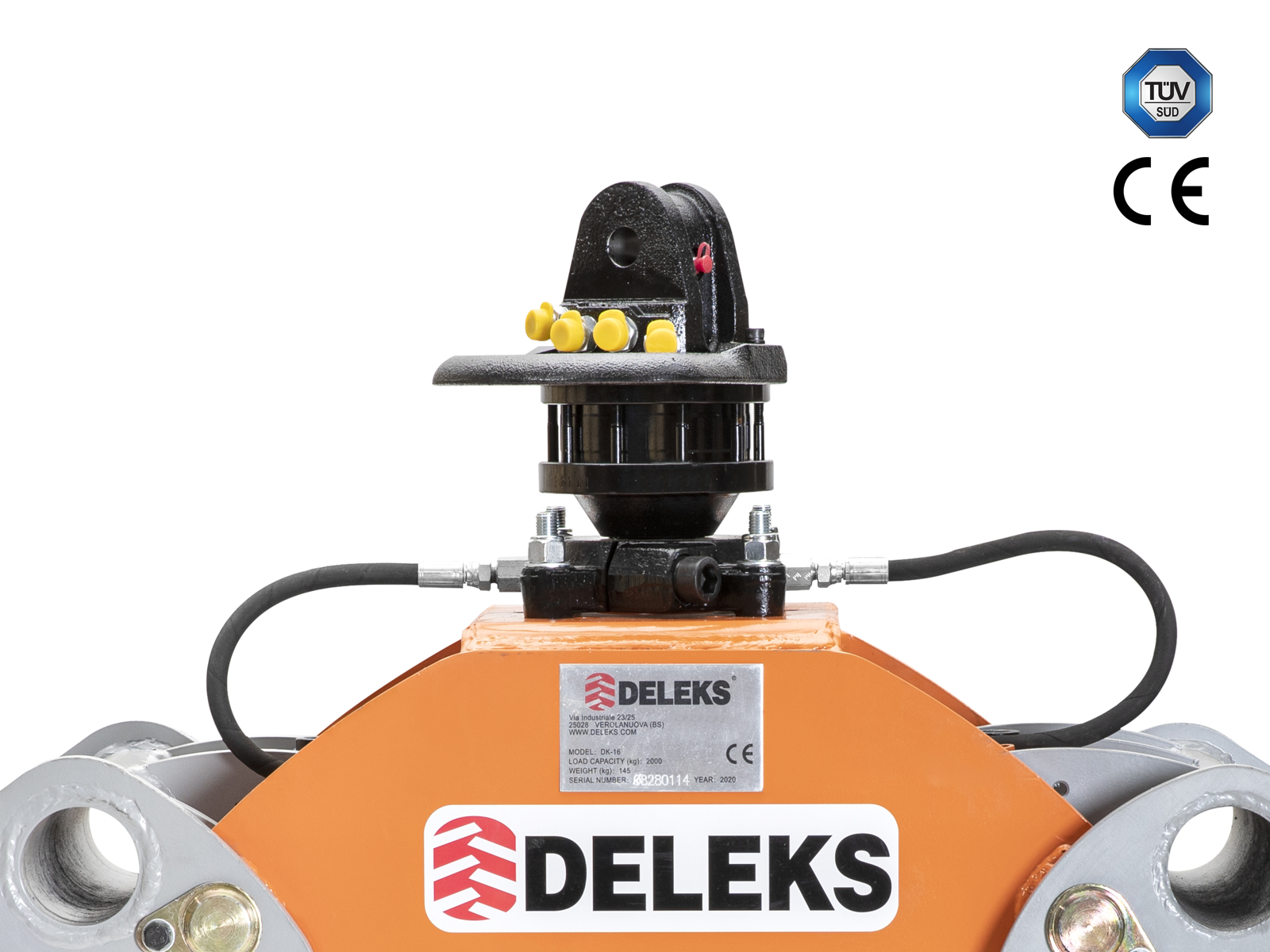

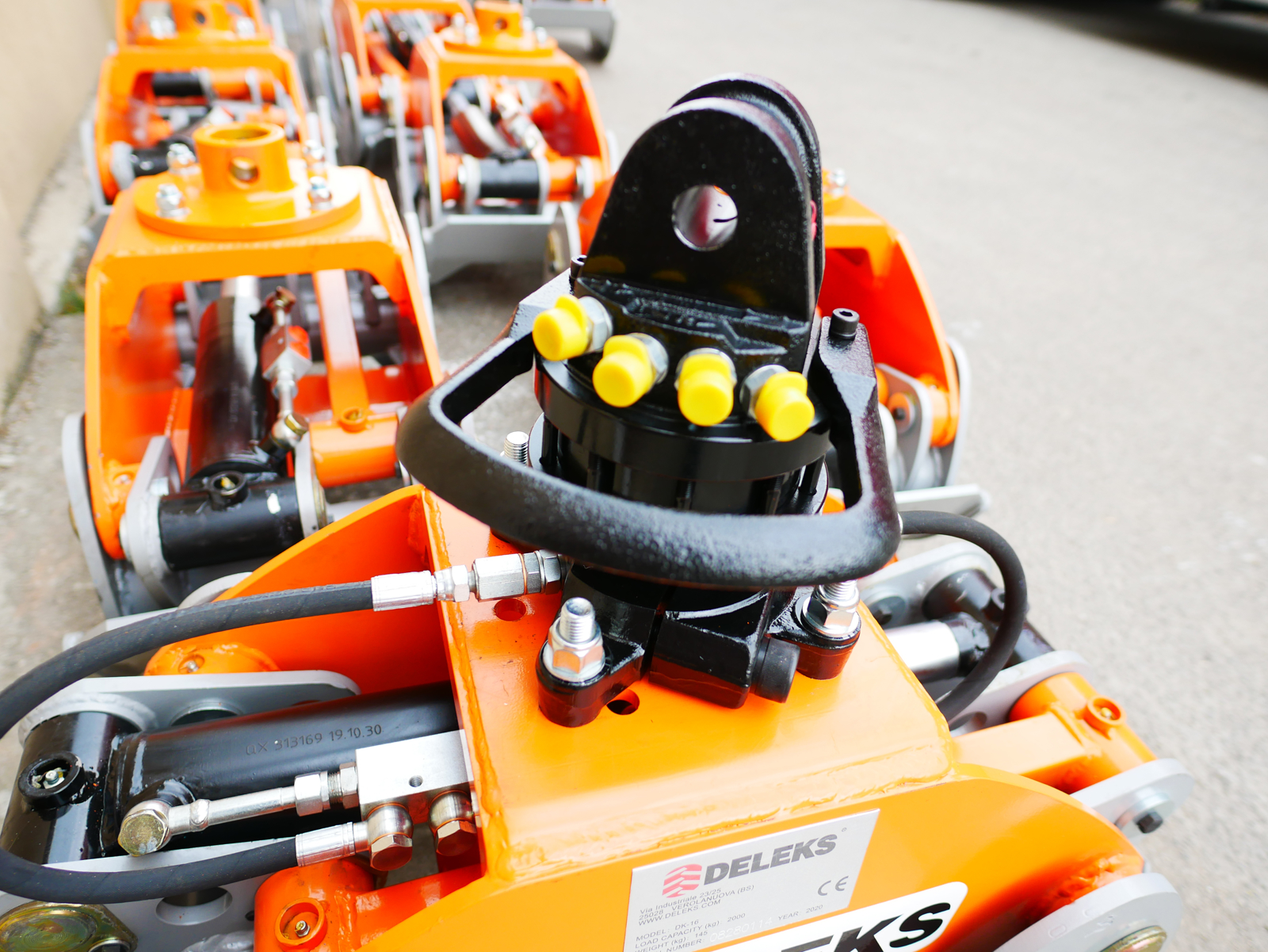

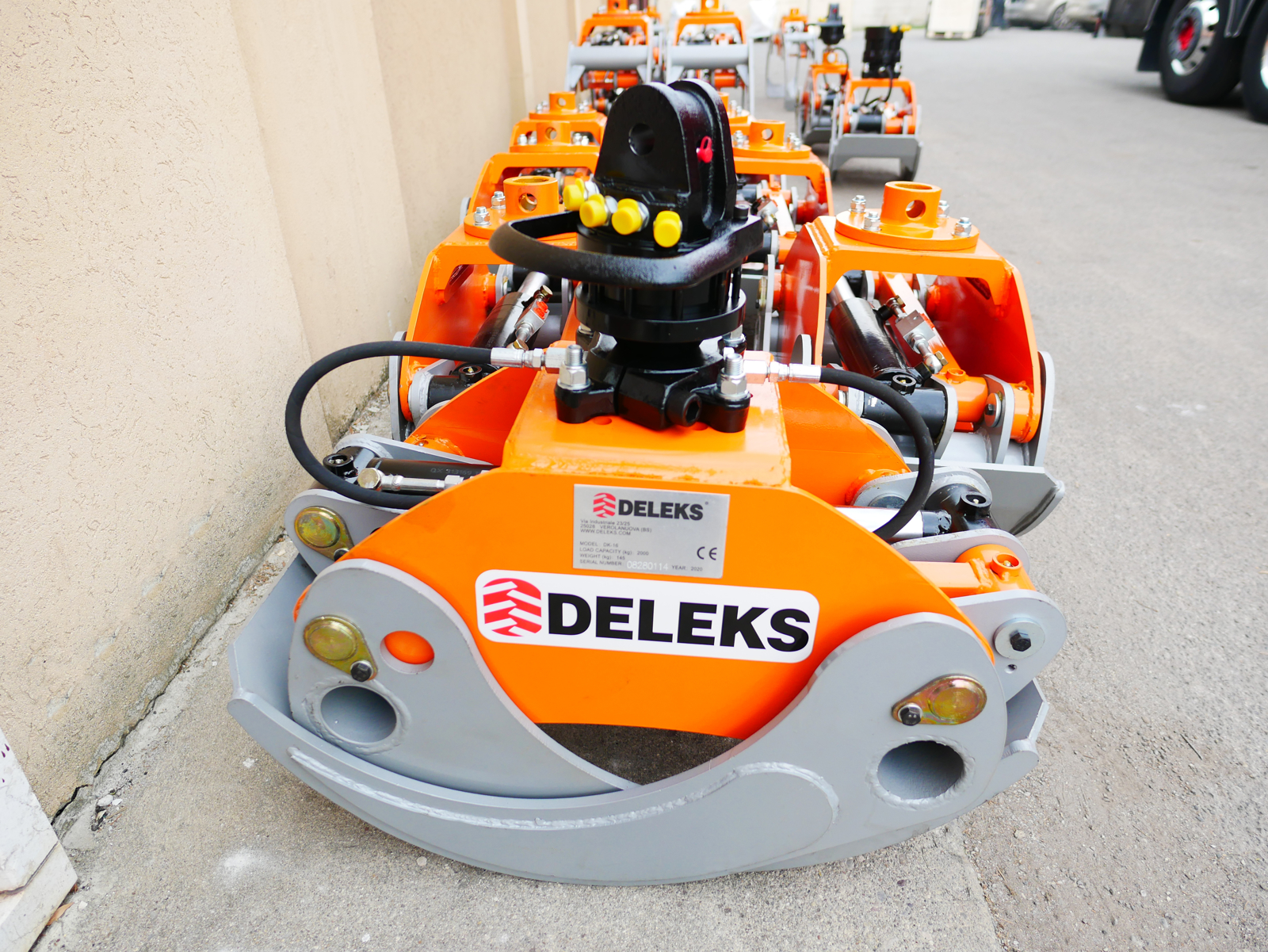

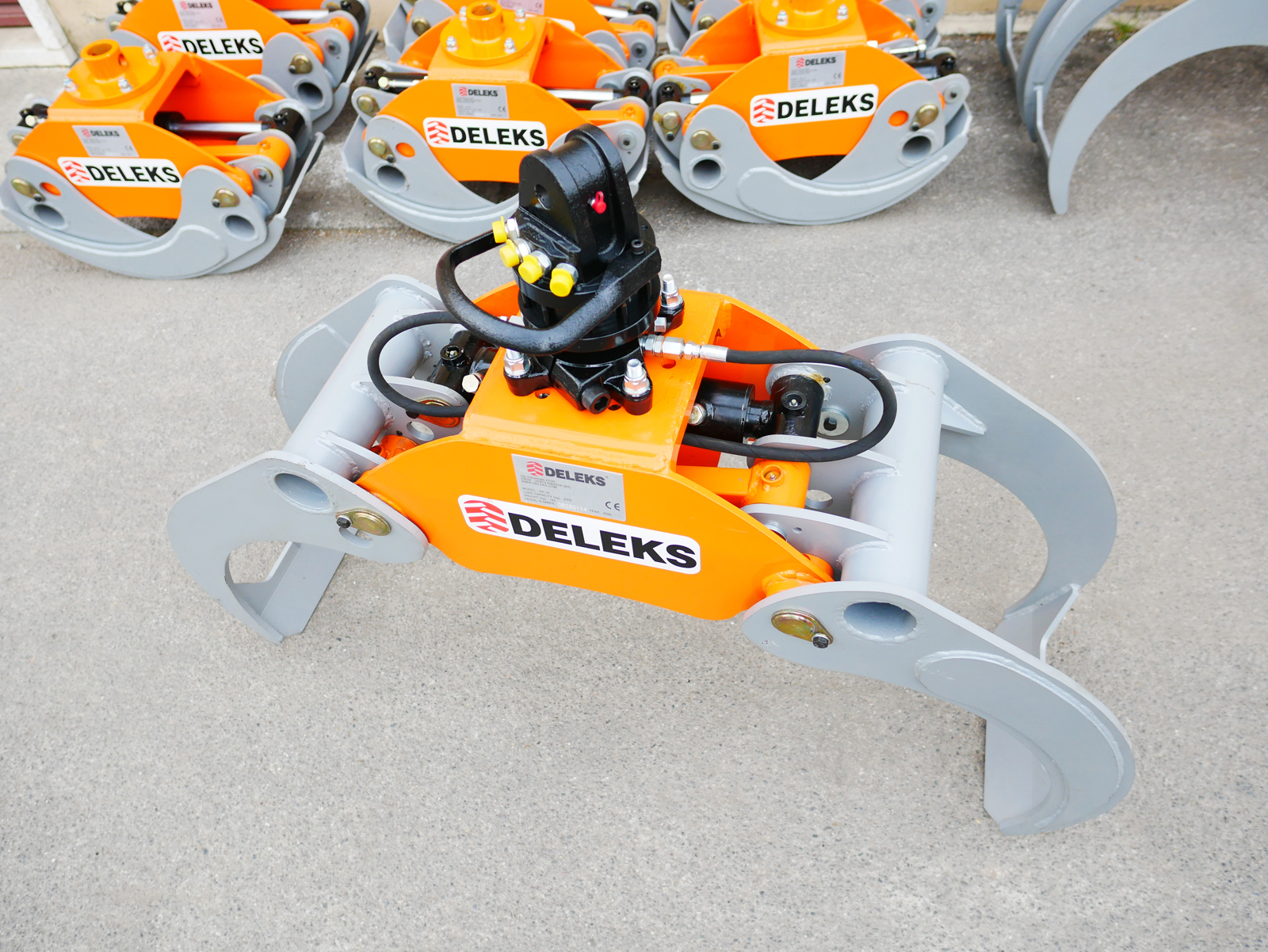

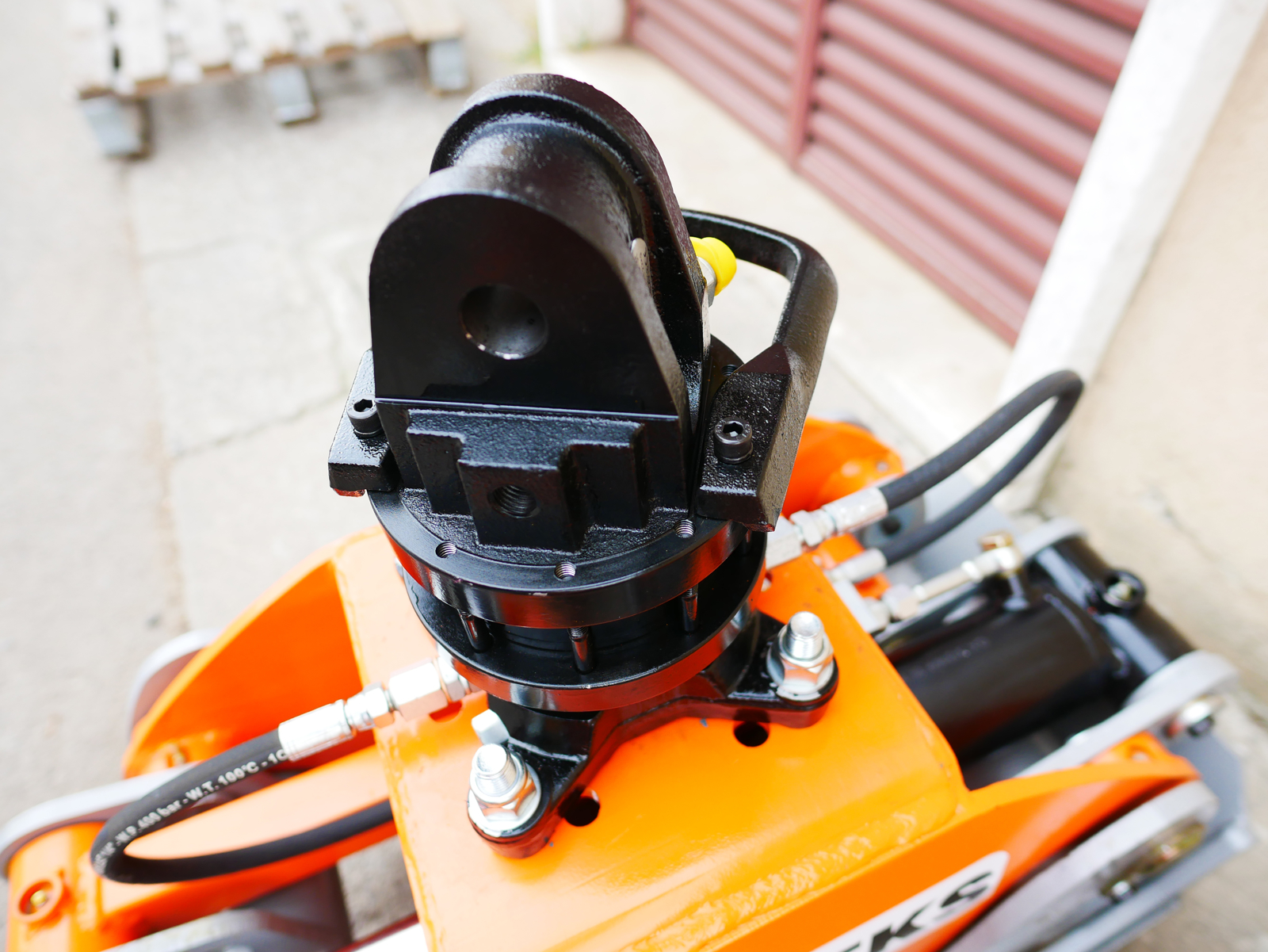

Rotator: Lombarda Ingranaggi's GR3PF rotators are powerful, reliable and robust. They are engineered to perform in heavy duty work environments with maximal efficiency and minimal unscheduled downtime as they have a loading capacity 3000kg. Grapple needs 4 hydraulic outlets to function or additionally, Rexroth Bosh electro-valve 6 ways (made in Germany), can be supplied to reduce the amount of outlets needed to two. EC Conformity, 2 Year Warranty.



BENEFITS & FEATURES

360º continuous rotation.

Shut-off valve on the hydraulic cylinder.

Solid steel bolts with bronze bushings.

Thanks to the DK16's unique design it grips timber, boulders or debris tightly.

High quality steel: code S355 (Claws: S700).

High tensile strength, reinforced grapple tines.


Optional: The Rexroth 6-ways electro-valve let the grapple work with only two outlets from the machine. By connecting the hydraulic pipes from the machine to the bucket cylinder you will get the four-way power required by the clamp rotor (rotating left and right - opening and closing). In order to function the valve must be connected i with a simple wire to a power source 12 volts, it is possible for example to connect to the horn and then use the key on the lever to select rotation or opening. Hydraulic pipes are not included.



CARACTERISTICS

Caracteristic Units metric Units US
Weight 173.0 kg 380.0 lb
Load capacity 2000.0 kg 4400.0 lb

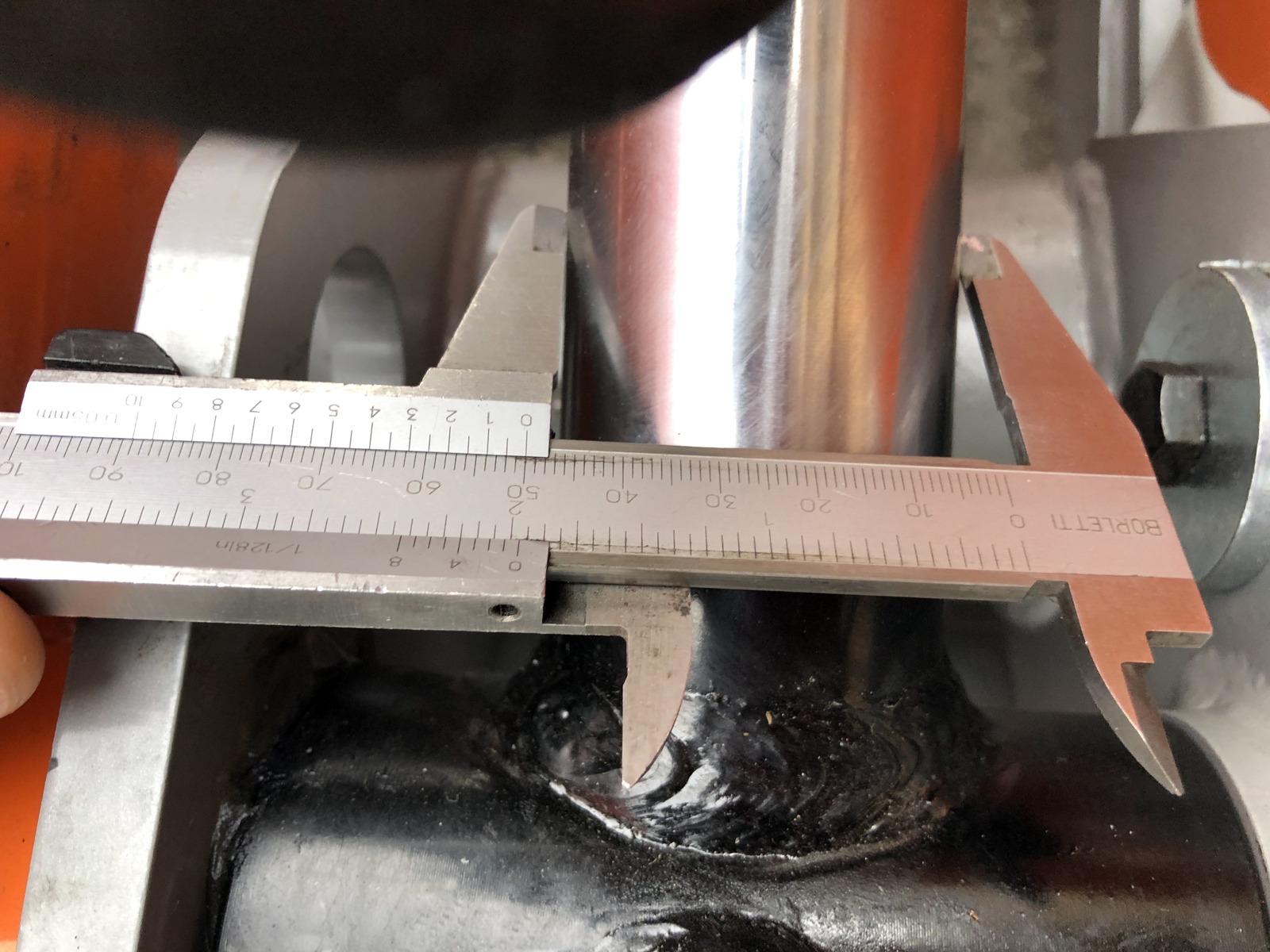

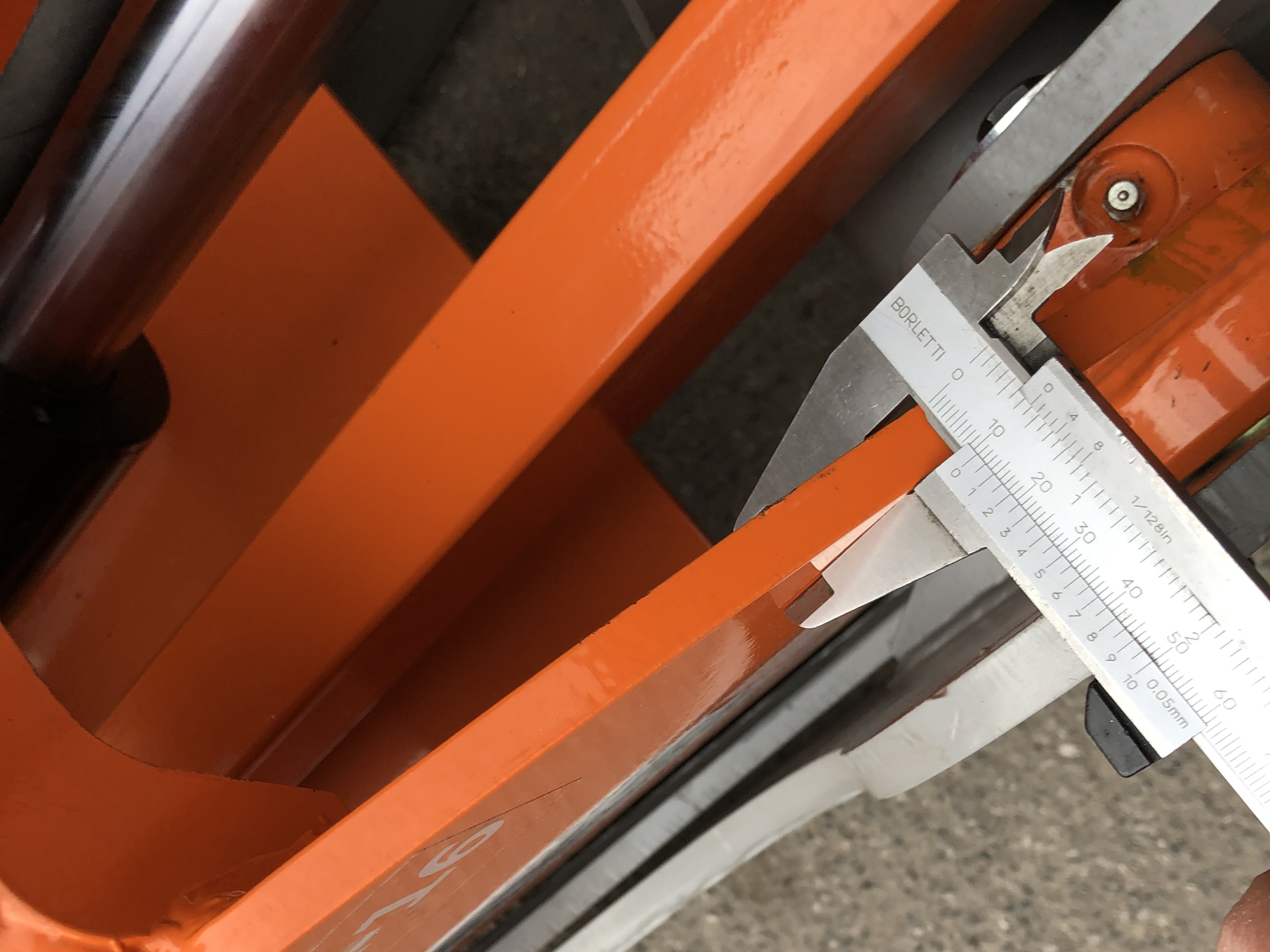

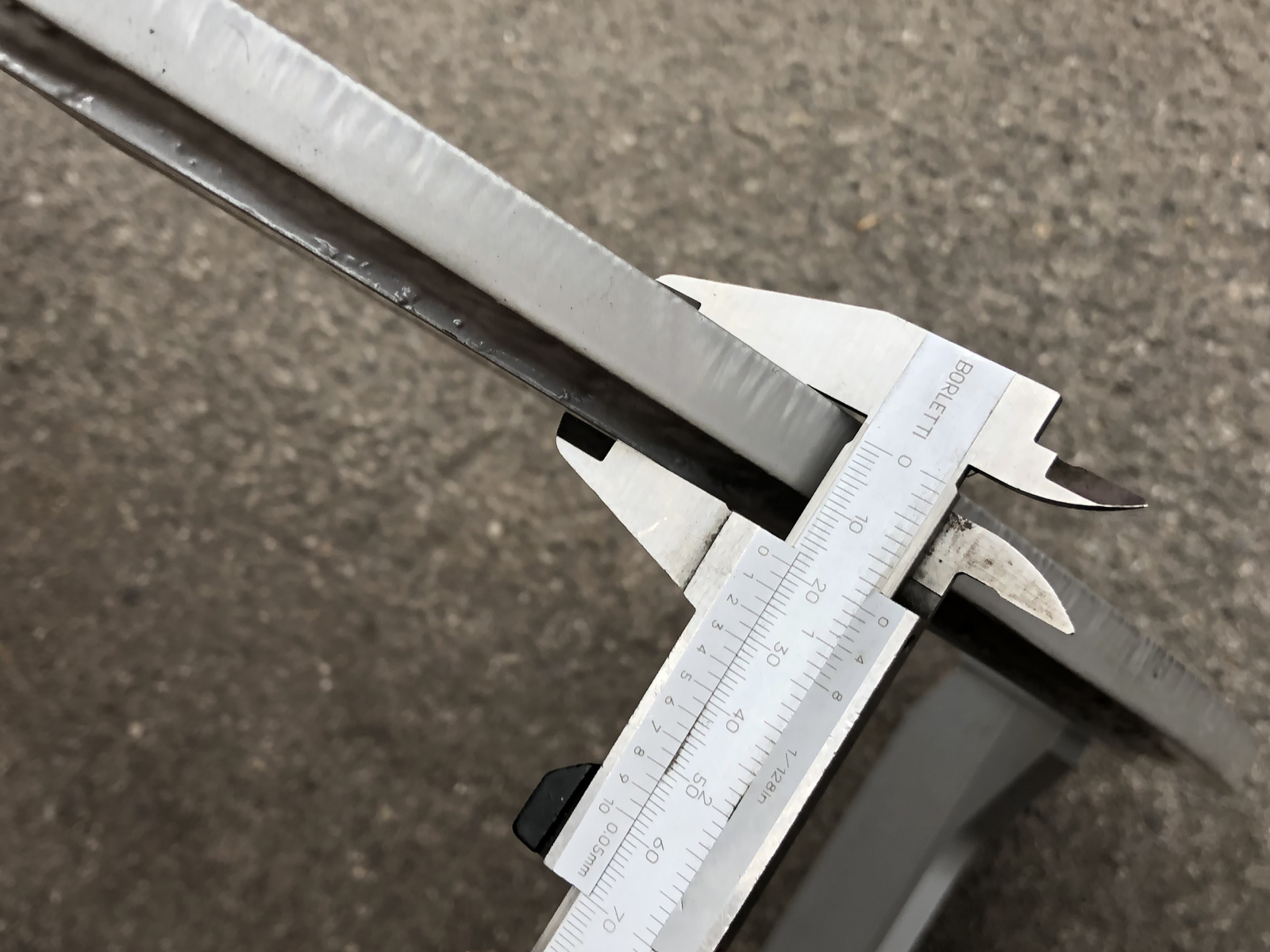

Main hood thickness 10.0 mm 0.4 in
Min./Max. Relief Pressure 120 - 150 bar 120 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min

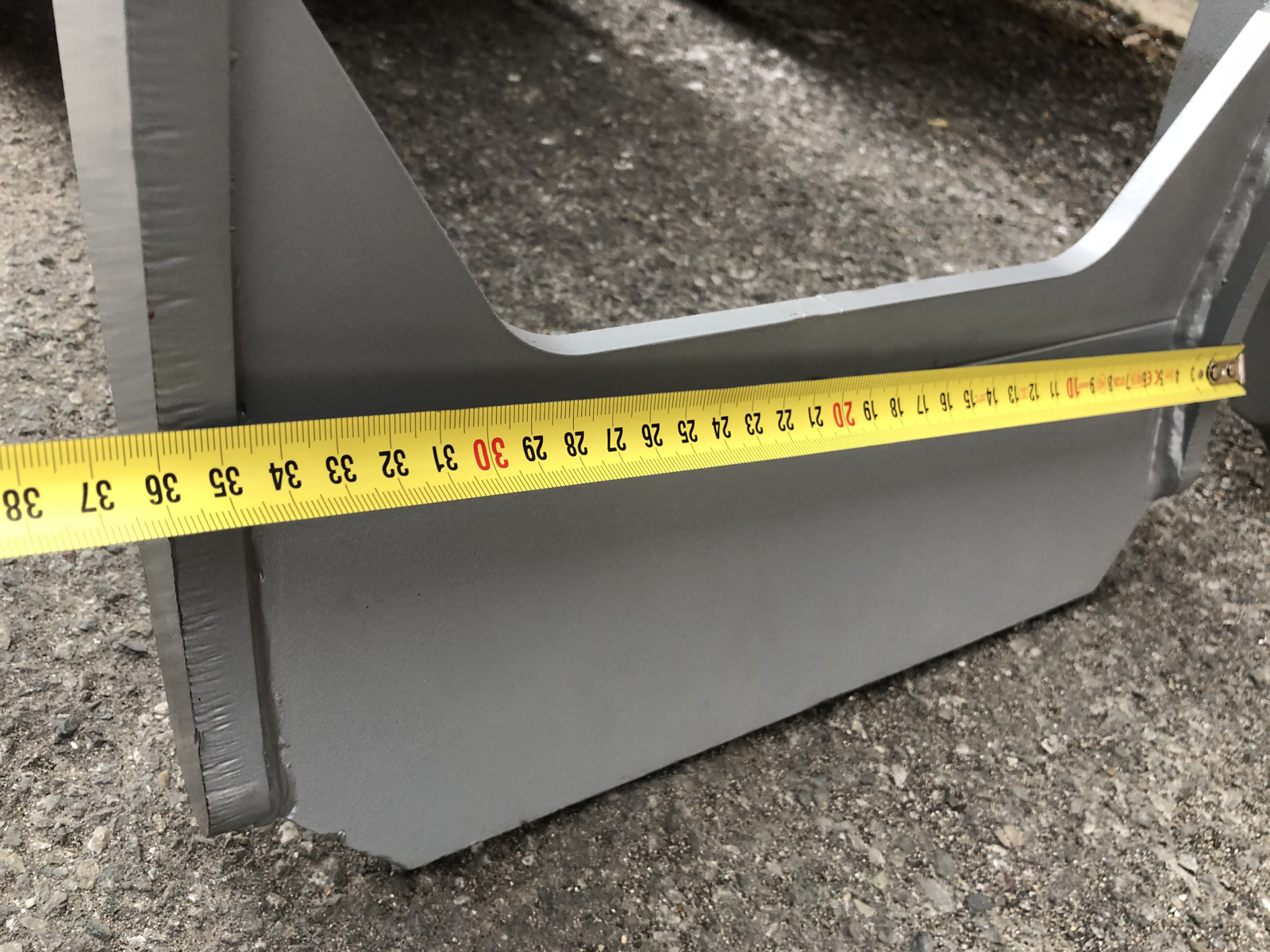

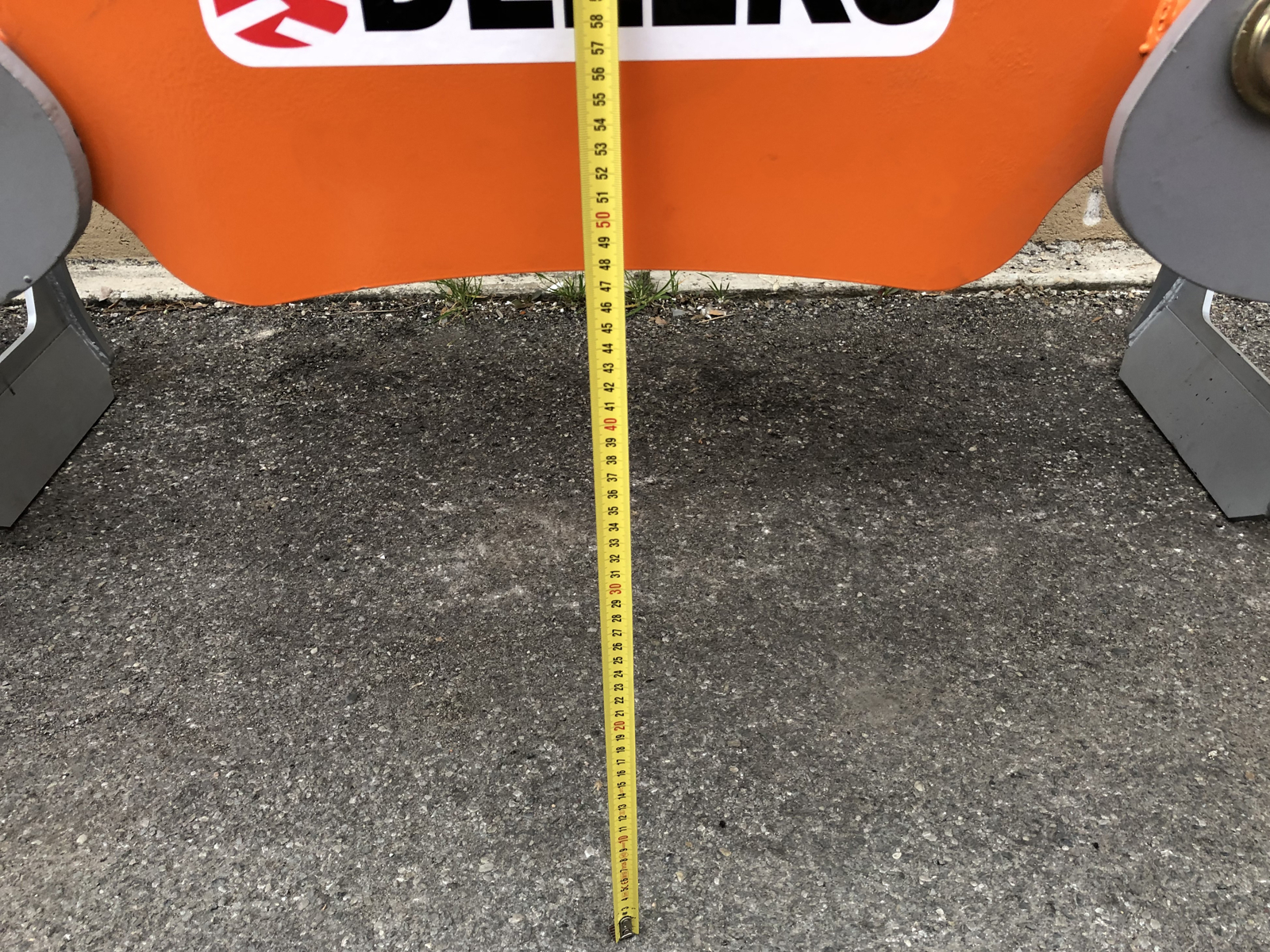

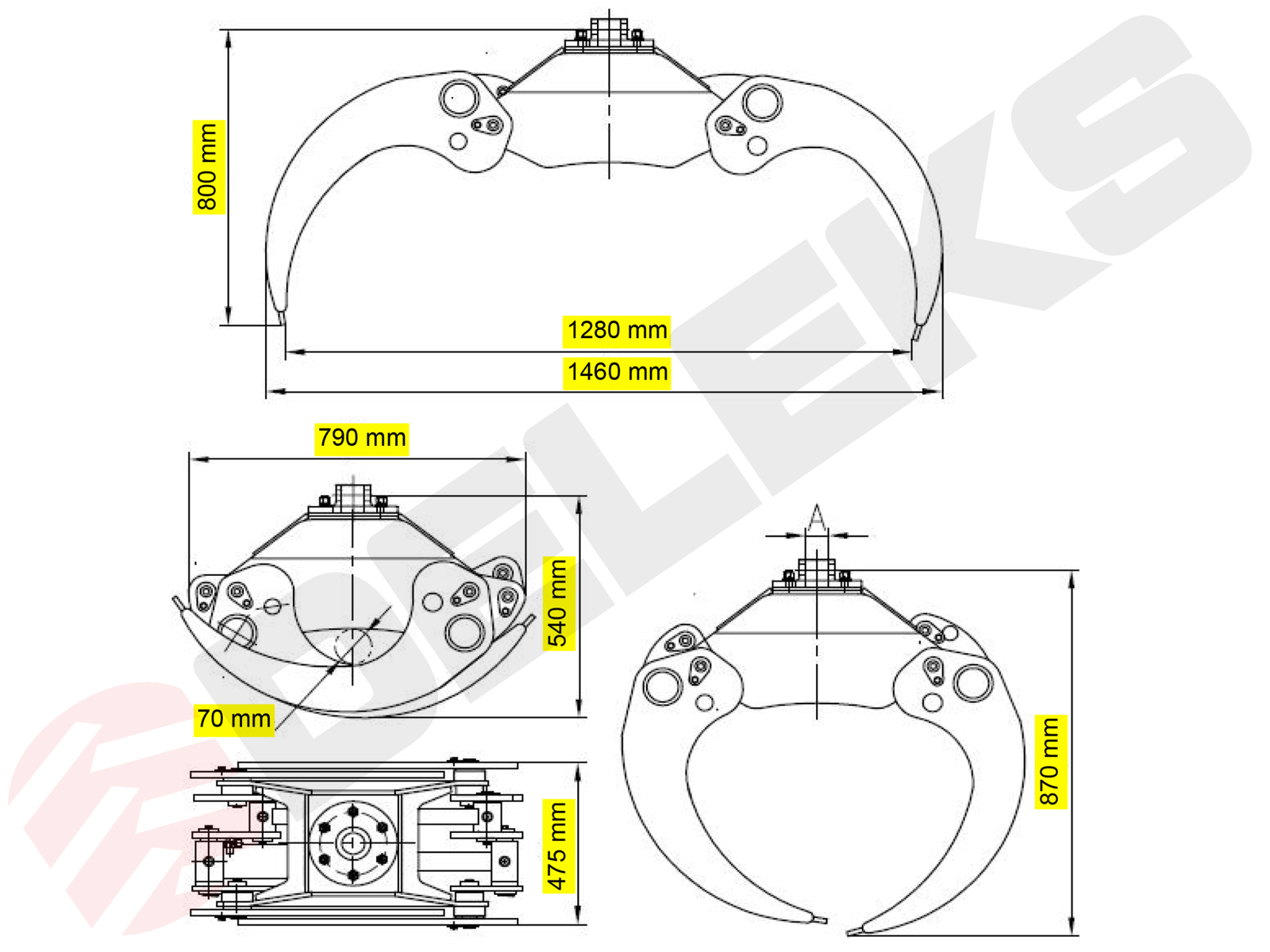

Other sizes See pictures See pictures
Hydraulic Hoses 400 bar pressure 400 bar pressure
Max Opening 1280.0 mm 4.20 ft
Height, grapple open 1040.0 mm 41.0 in
Height, grapple closed 760.0 mm 29.90 in
Width, grapple open 1460.0 mm 4.79 ft
Width, grapple closed 730.0 mm 2.4 ft
Overall depth 475.0 mm 1.56 ft
Minimum diameter of the log 40.0 mm 1.57 in

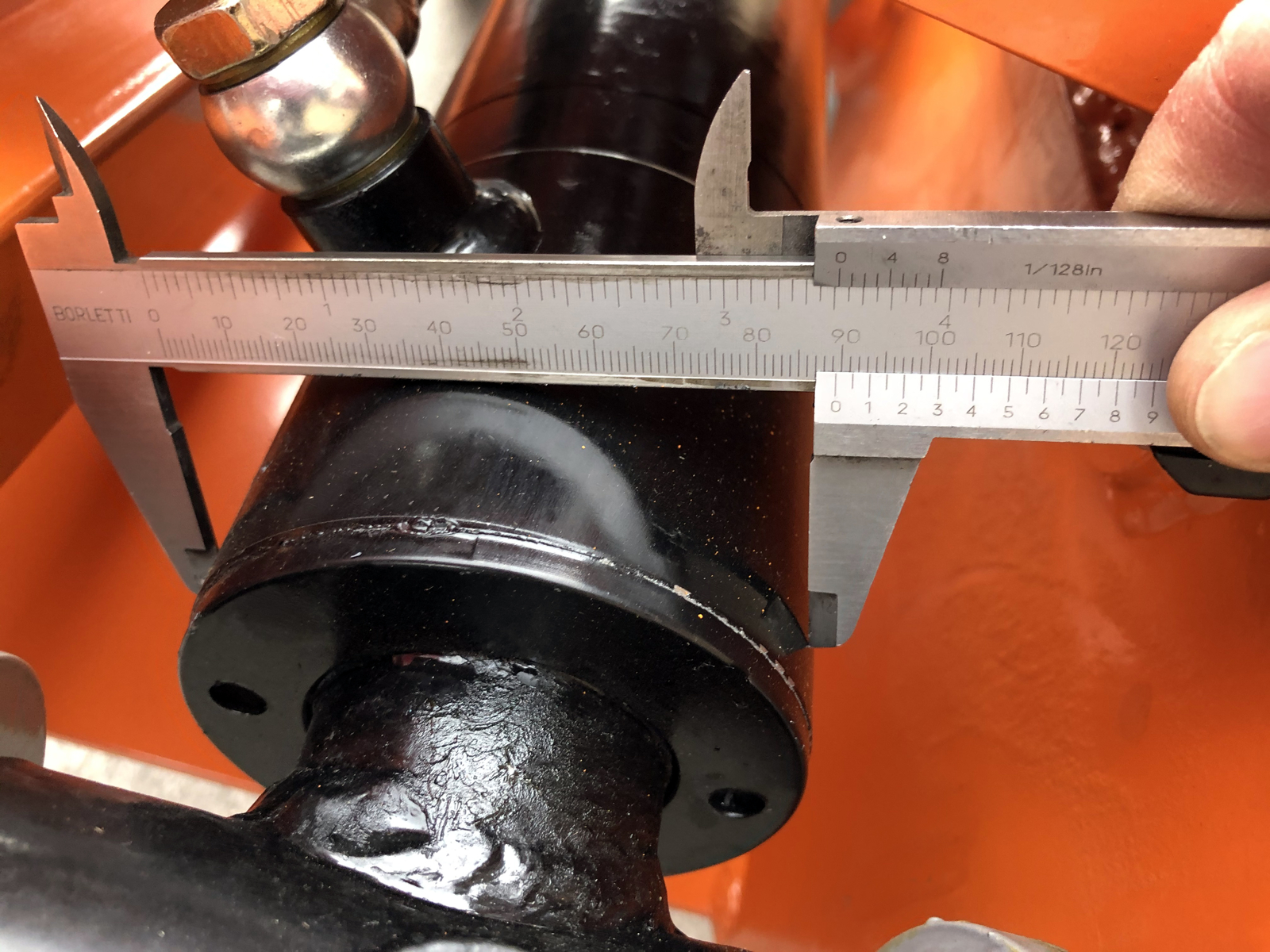

Hydraulic cilinder diameter 90.0 - 50.0 mm 3.55 - 1.97 in
Max Pressure 200 Bar 200 Bar

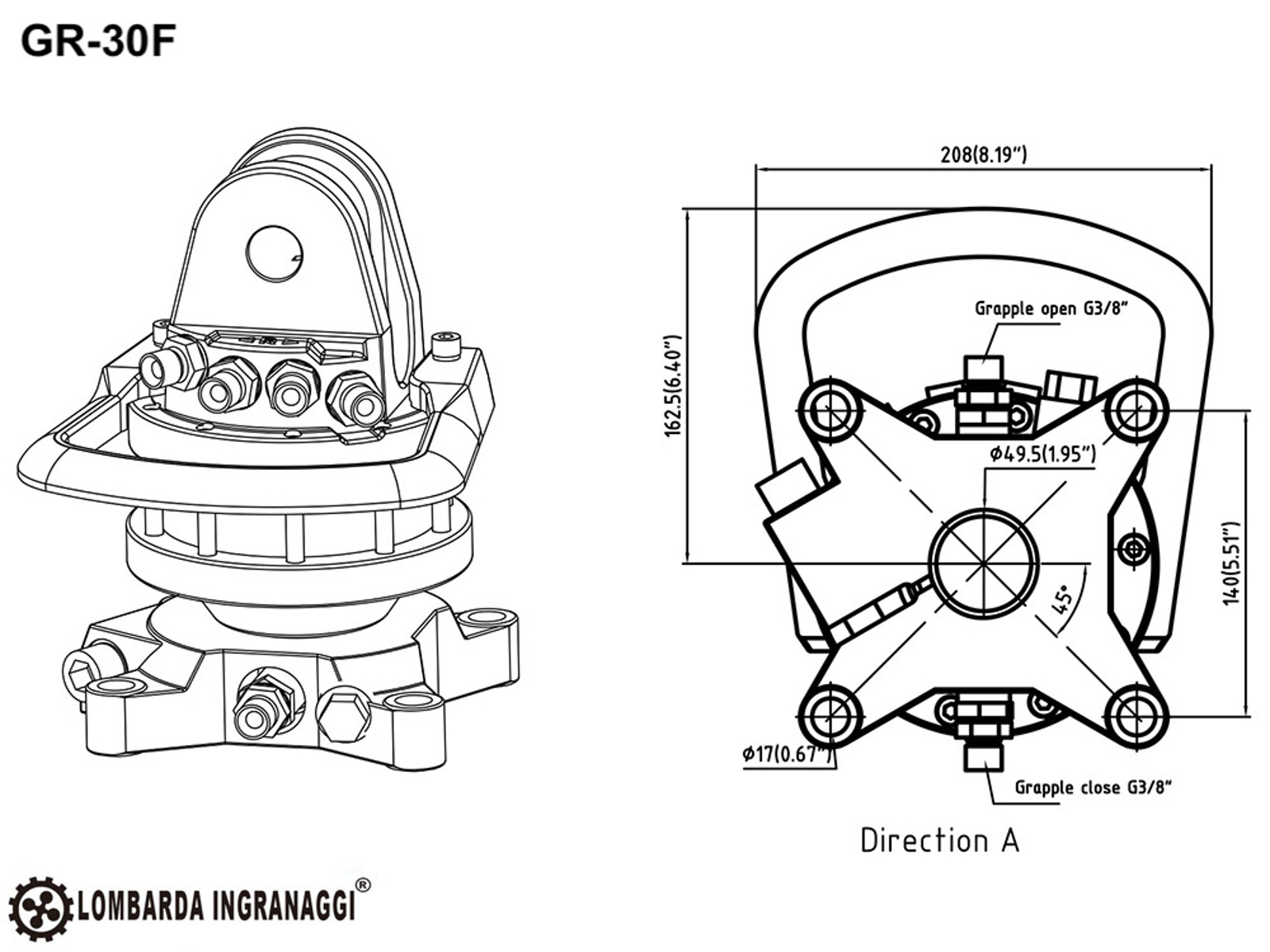

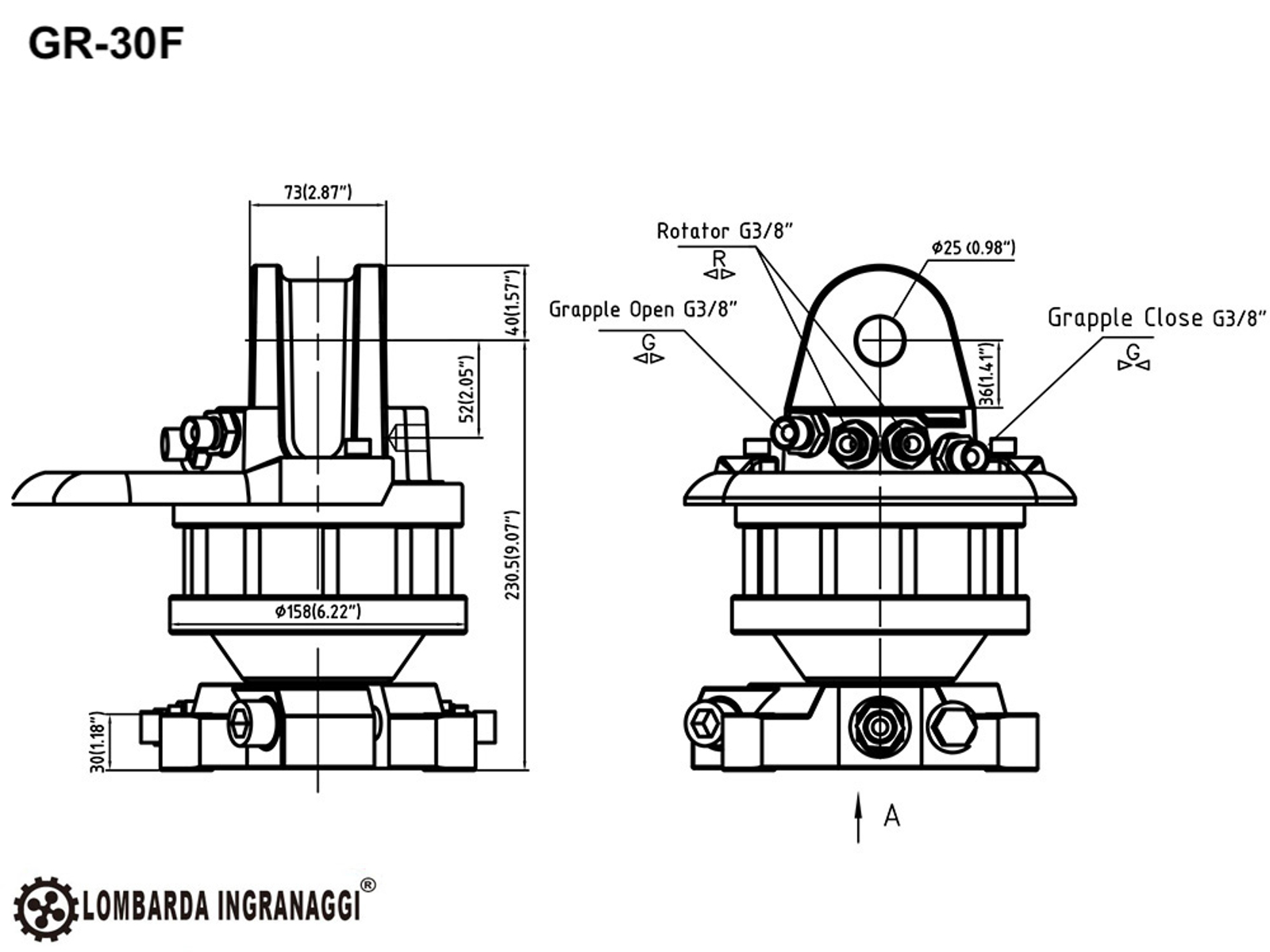

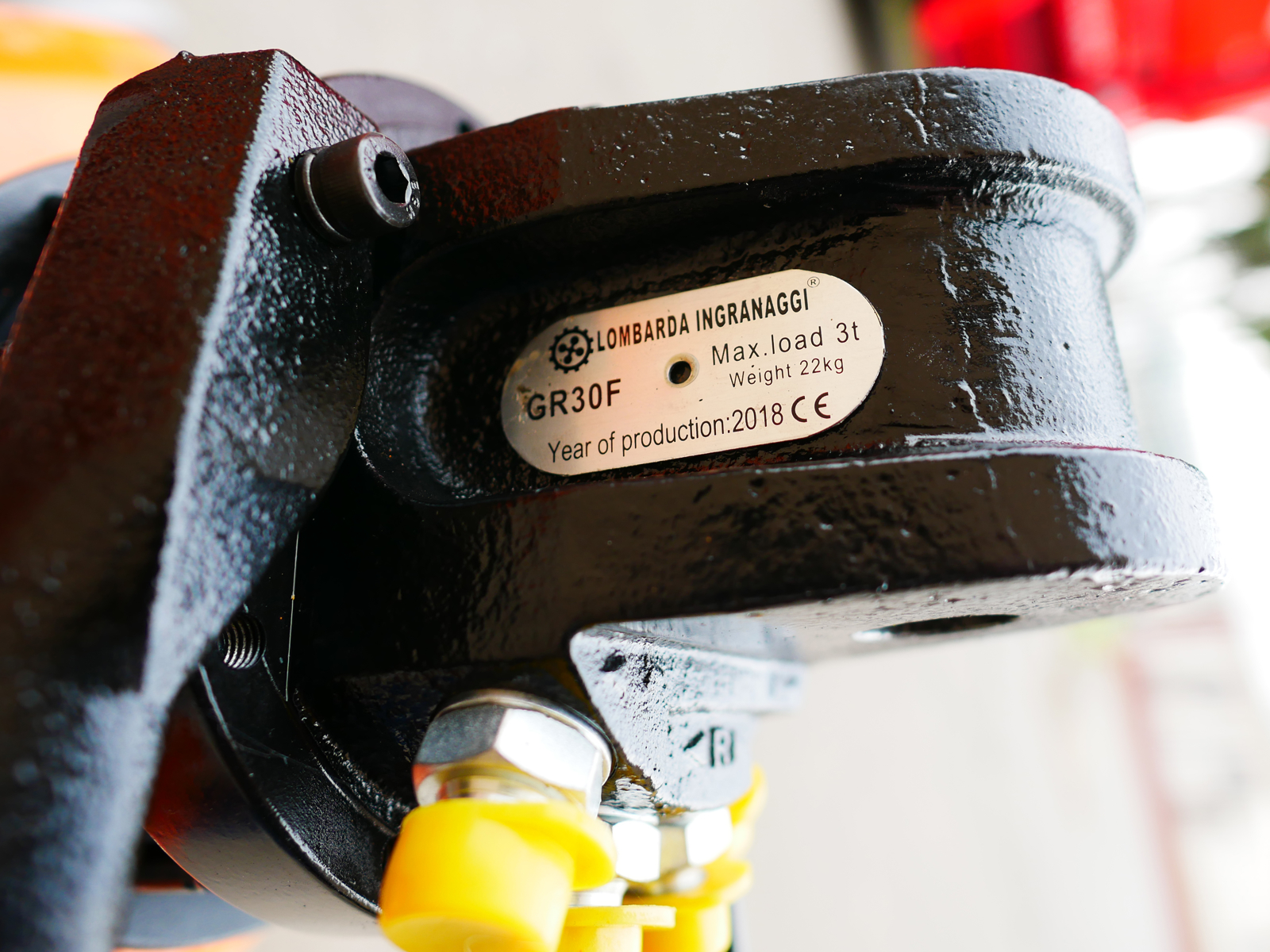

Rotator Lombarda Ingranaggi GR-30F (3,0 ton) Lombarda Ingranaggi GR-30F (3,0 ton)
Compact Excavators Range 4.0 - 8.0 ton 4.0 - 8.0 ton
Packing sizes 1200.0*800.0*500.0 mm 3.94*2.62*1.64 ft
