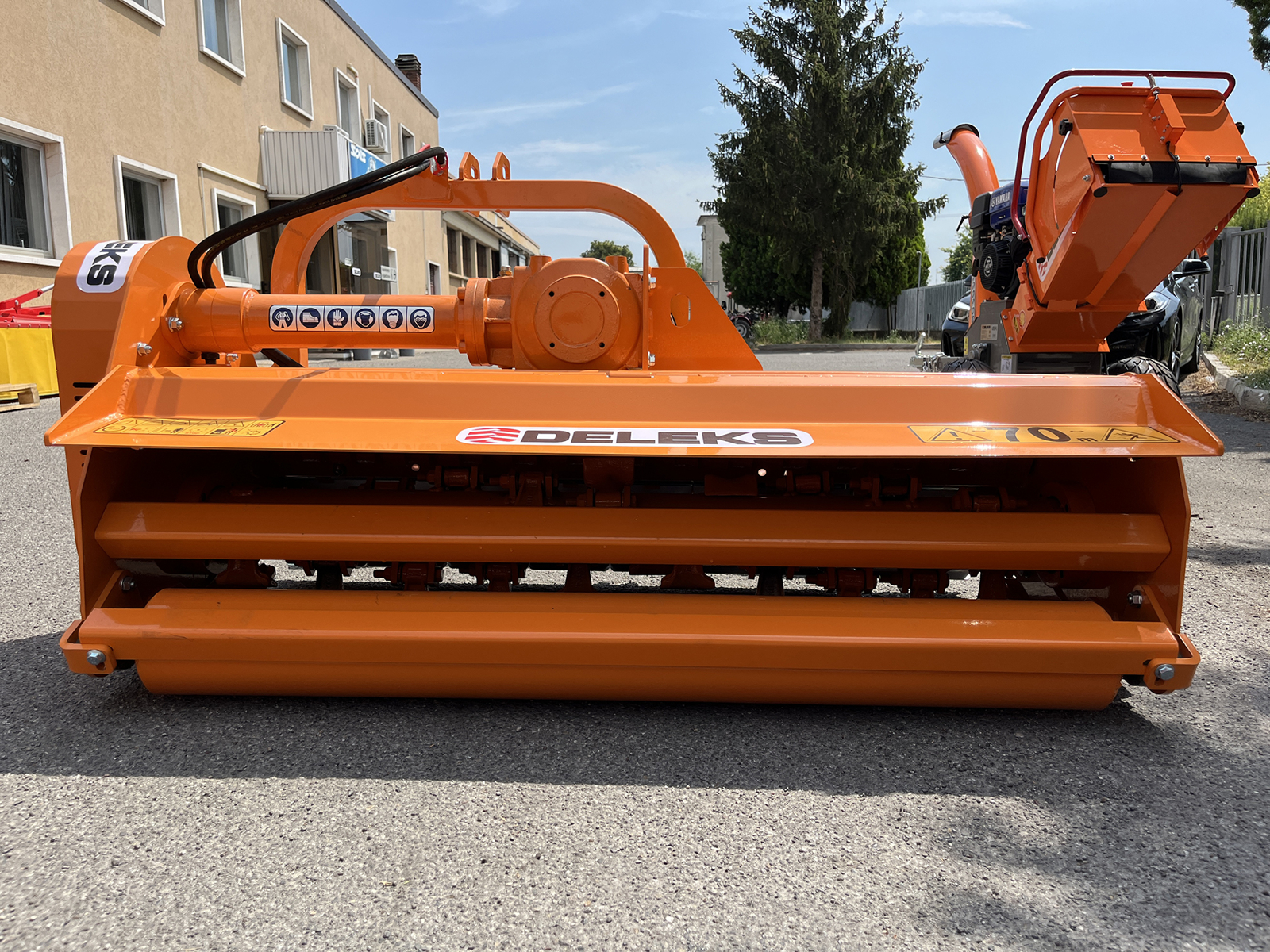

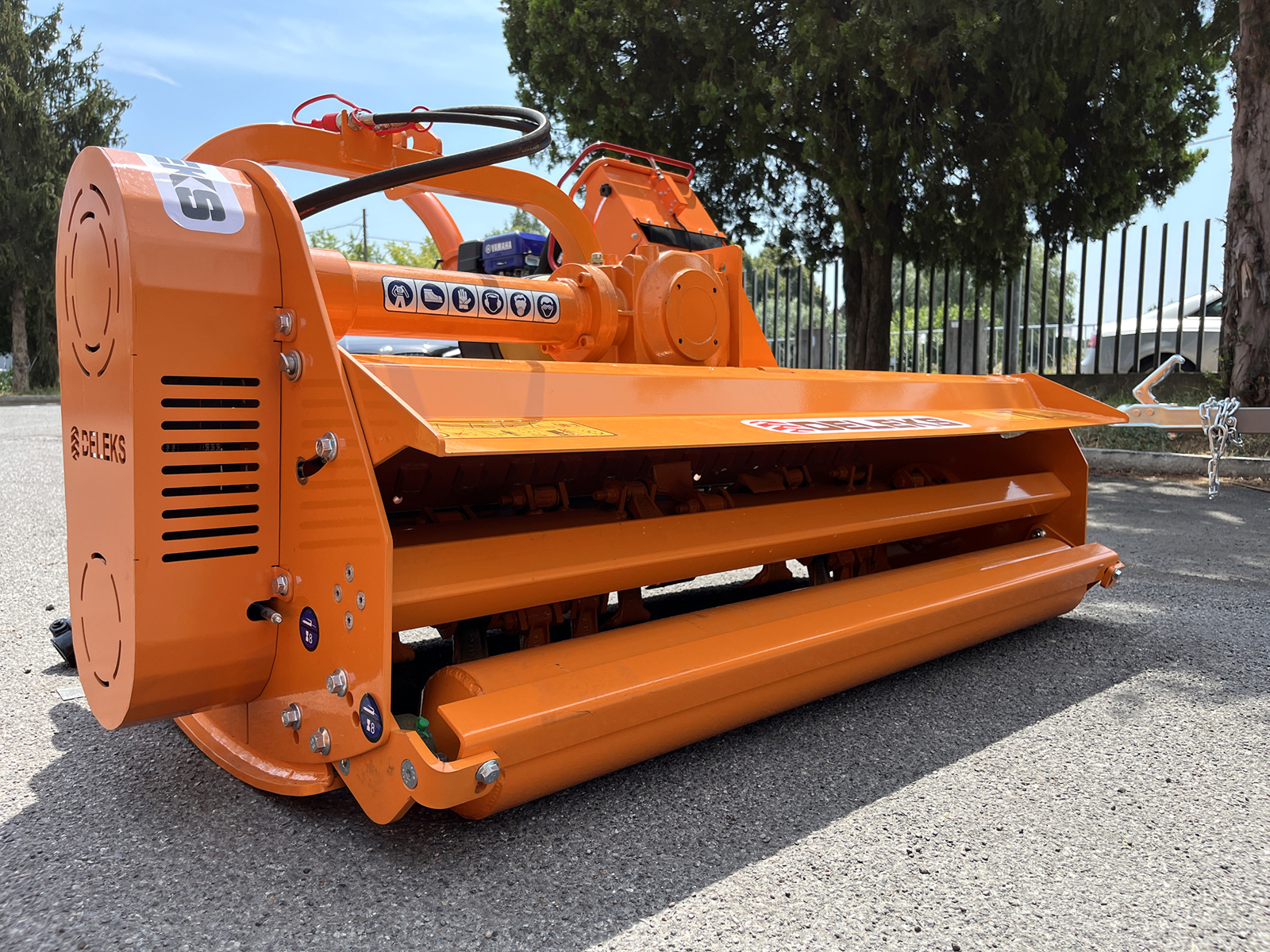

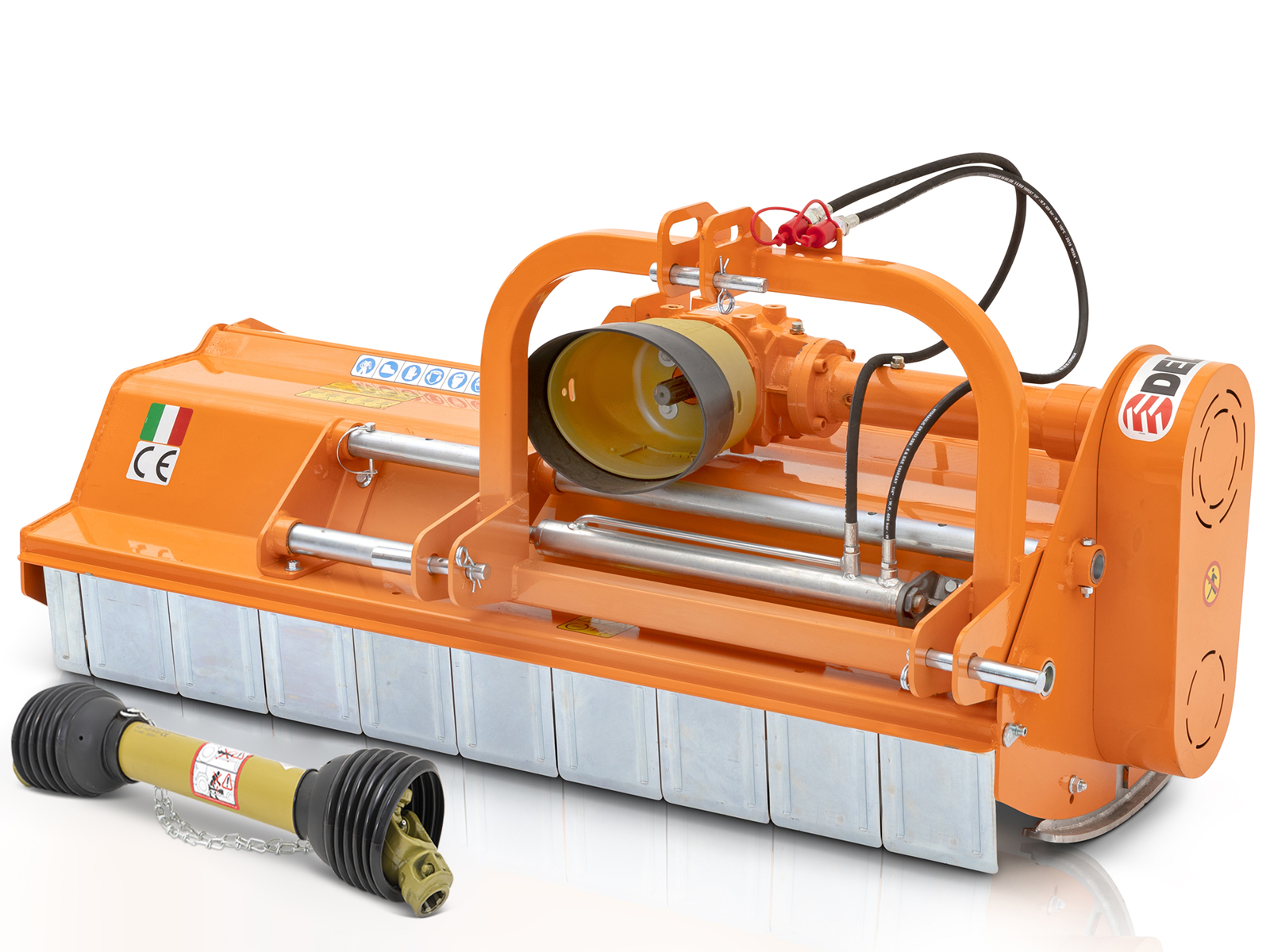

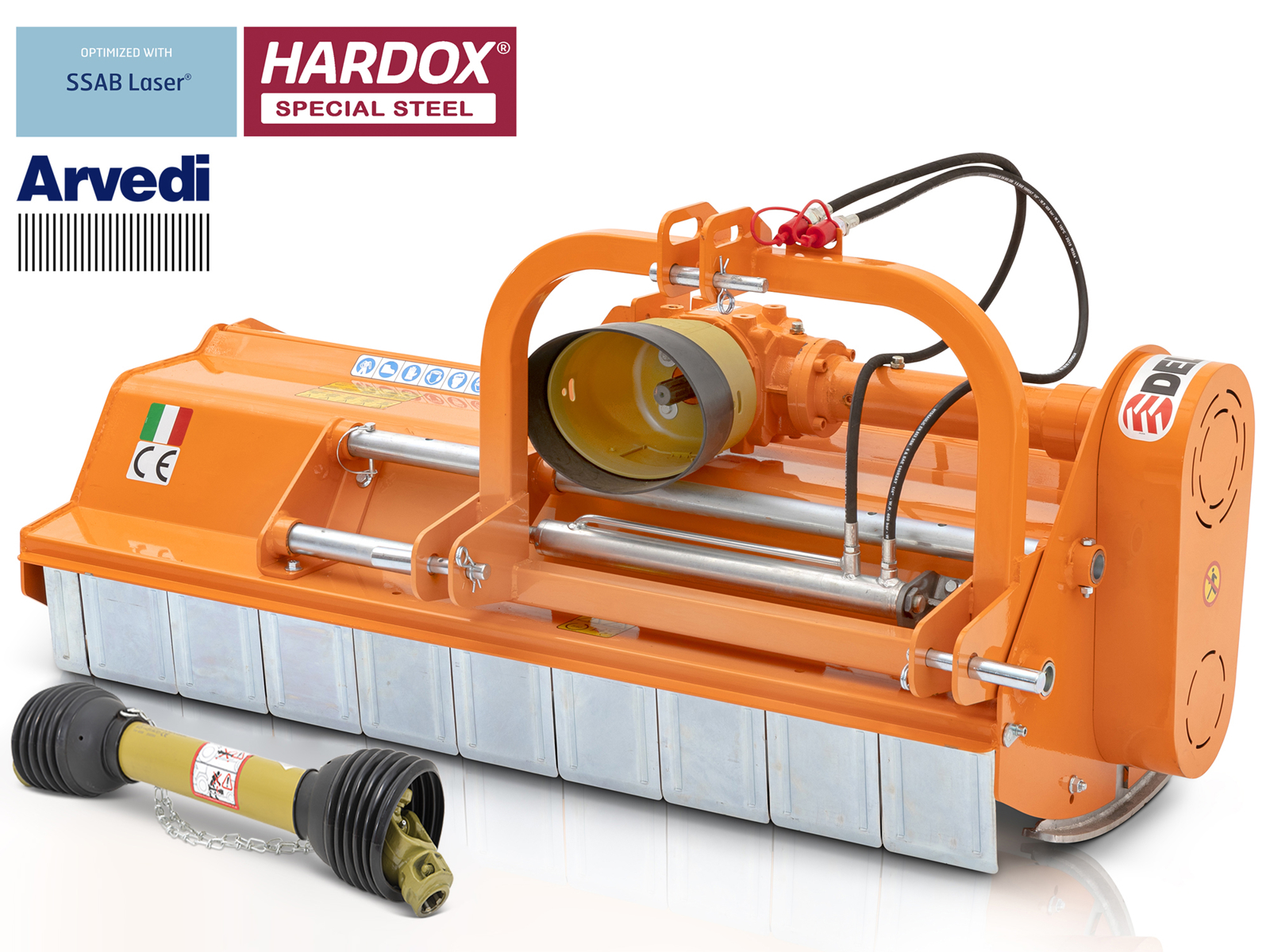

Flail mower with hydraulic sideshift for traktors mod. LEOPARD-160-SPH
EAN 8053470235481
See more details
2 YEARS WARANTY
30 DAYS FOR RETURN
5-10 DAYS OF SHIPPING
SECURE PAYMENT
DETAILS
Mulcher, Shredder for 40-90 Hp tractors, 160cm / 345kg - DELEKS® PUMA-SPH160 - 6.0mm thick double case - PTO shaft included - with hydraulic sideshift.
OVERVIEW

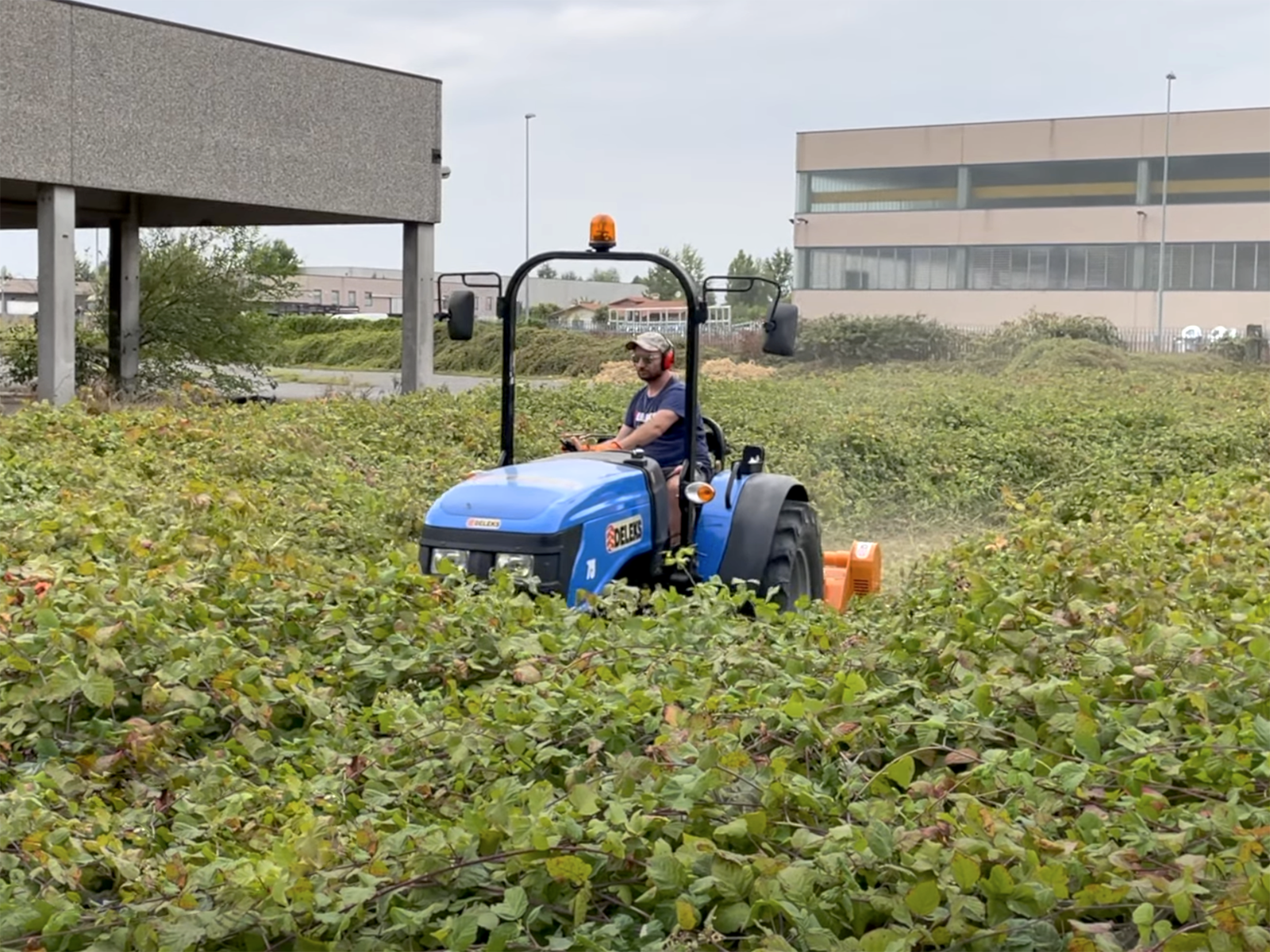

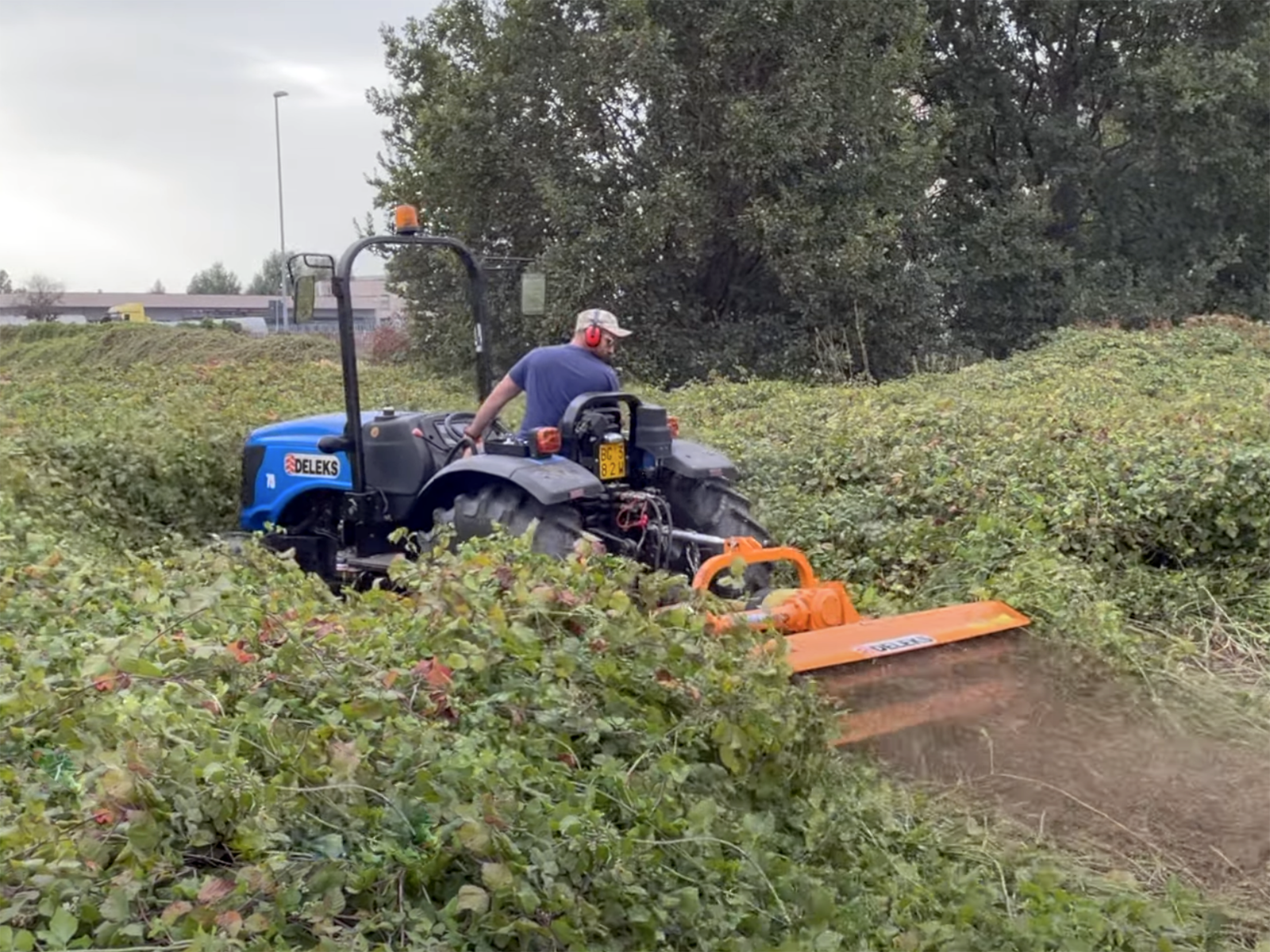

Shredder with hammers for orchard, vineyard, olive grove and uncultivated areas. Professional Flail Mower with hydraulic side shift.
Working width 160cm - Weight 345kg.
Suitable for working on grass, leaves, vineyard and olive groves, for tractors from 40 to 70 HP, like Kubota, Landini, Antonio Carraro, Same, Lamborghini...
The LEOPARD-160-SPH model is presented as a versatile shredder, suitable for cutting grass and thanks to its robust structure it is very useful for shredding prunings and pruning residues, up to 4-5 cm in diameter.
ADVANTAGES
Sturdy structure suitable for professional use: frame casing thickness: 4.0 mm, sides: 6.0 mm.
6.0 mm thick double case.
20 cm high frontal mouth, avoids crushing grass when it is high.
Closed hood, mulching effect: the plant material remains longer in the chamber and gets pulverized.
Open hood: reduces the pressure in the chamber and allows you to proceed at a higher speed.
Maximum application value on any type of residue, from the open field to the orchard.
EQUIPMENT
Universal 3-point hitch Cat. 1-2
Hydraulic displacement 310.0 mm of the 3-point hitch
PTO 540 r / min with built-in freewheel, brand Lombarda Ingranaggi
CE 6x1000 cardan shaft with shear bolt

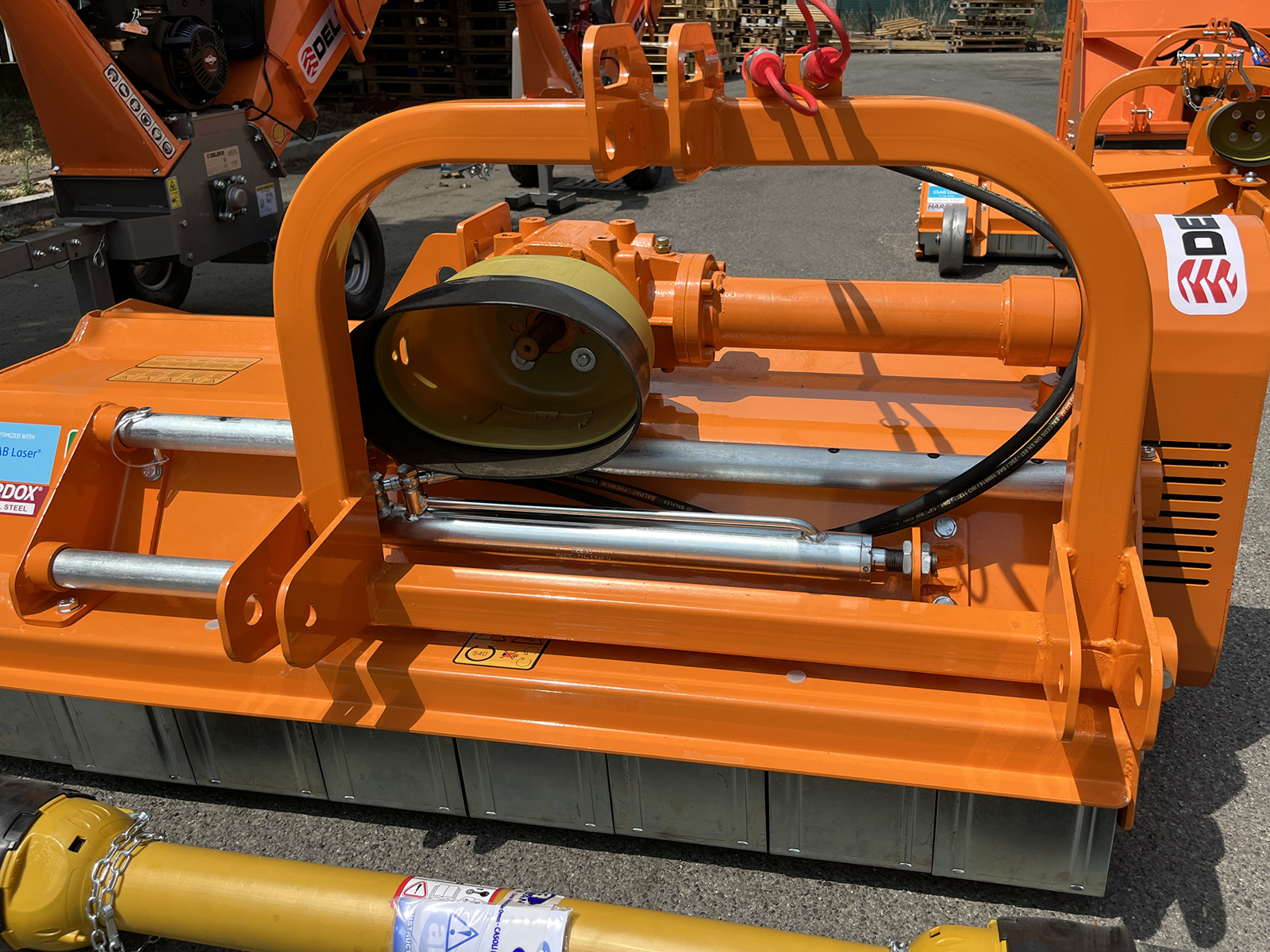

4 transmission belts
Rear hood that can be opened for maintenance
Adjustable tensioner
Electronic balanced rotor

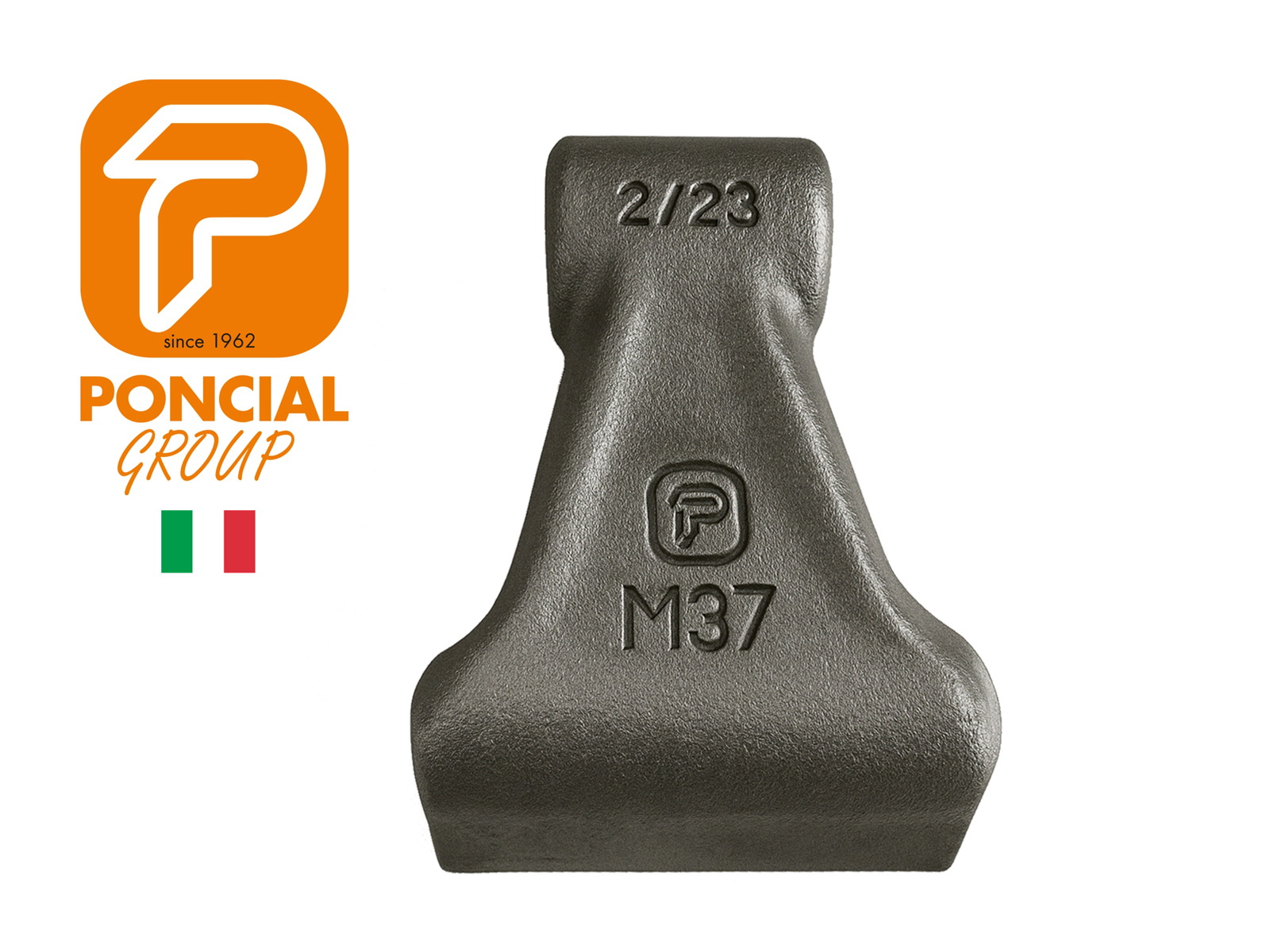

24 hammers, hot forged high strength 9cm base width
Pair of adjustable slides
Front guards
External adjustment of the belts
CE safety guard
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CARACTERISTICS

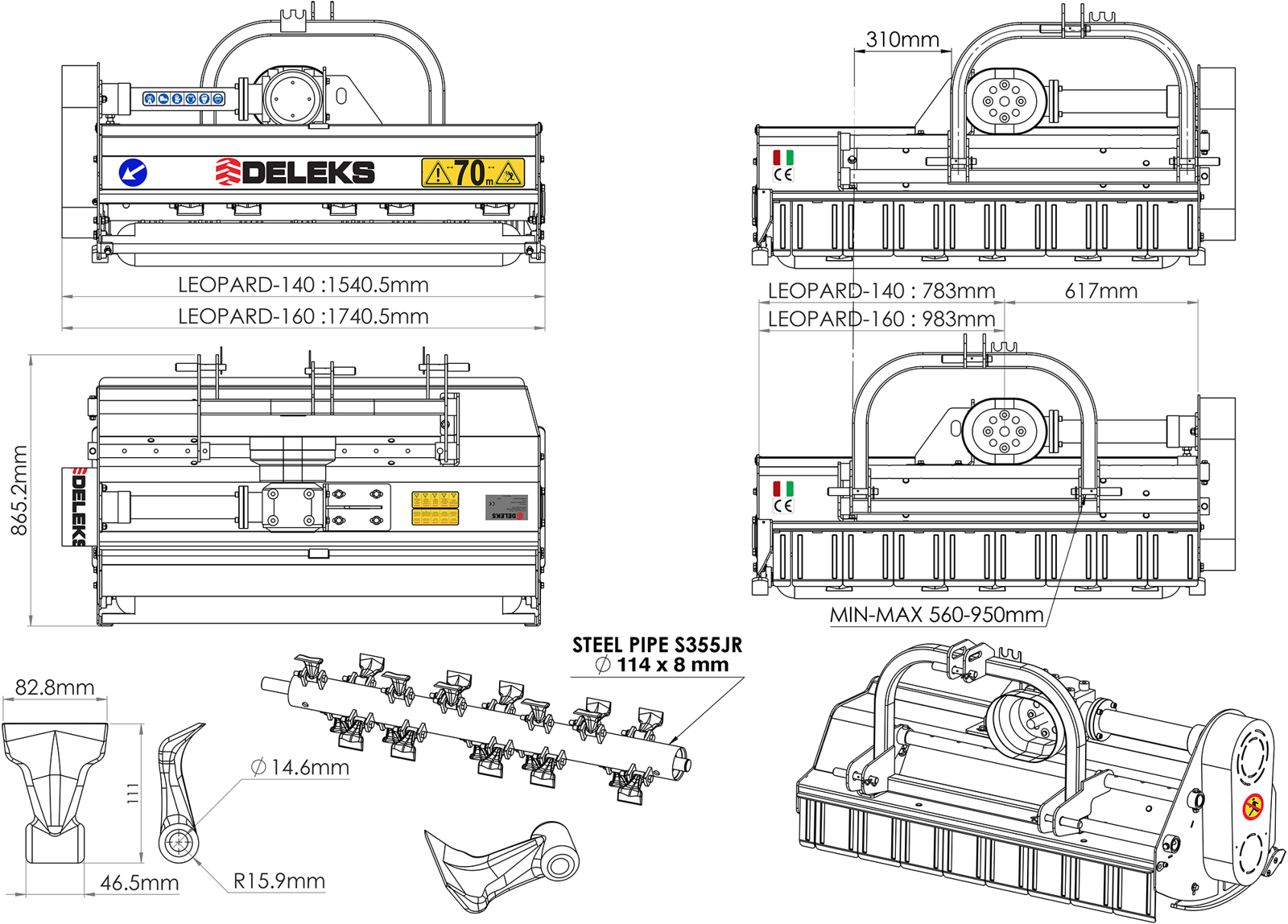

Caracteristic | Units metric | Units US |
---|---|---|
Working width | 1600.0 mm | 5.25 ft |
Overall width | 1740.5 mm | 5.71 ft |
Min / Max cutting height | 10.0 - 45.0 mm | 0.4- 1.77 in |
Weight | 345.0 kg | 760.0 lb |
Overall height | 800.0 mm | 2.60 ft |
Tractor Power Range | 40 - 70 Hp | 40 - 70 Hp |
3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Hood height | 460.00 mm | 18.10 in |
Spacing between the 2 lower points | 560.0 - 950.0 mm | 22.00 - 37.40 in |
Number of Hammers | 24 | 24 |
Maximum cutting diameter | 40.0 - 50.0 mm | 1.57 - 1.97 in |
Overall length | 865.0 mm | 2.84 ft |
Distance between pto attachment and ground | 520.0 mm | 20.5 in |
Main hood thickness | 4.0 + 6.0 mm | 0.16 + 0.23 in |
Sides thickness | 6.0 mm | 0.23 in |
Side plates thickness | 6.0 mm | 0.23 in |
Transmission: Drive method | V-Belts | V-Belts |
Transmission: Gearbox | Lombarda Ingranaggi (Italy) (3 year warranty) | Lombarda Ingranaggi (Italy) (3 year warranty) |
Transmission: PTO | 540 r/min | 540 r/min |
Transmission: Rotation of gearbox | Right side | Right side |
Transmission: Free wheel | √ | √ |
Transmission: RPM Rotor speed | 2300 rpm | 2300 rpm |
Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
Transmission: Top pulley ø | 180.0 mm | 7.08 in |
Transmission: Lower pulley ø | 130.0 mm | 5.12 in |
Transmission: V-Belts quantity | 4 | 4 |
Transmission: V-Belts size | BX43 | BX43 |
Rotor: diameter | 108.0 mm | 4.25 in |
Rotor: bearings type and size | FAG UCF208 (Made in Germany) | FAG UCF208 (Made in Germany) |
Rotor: balancing | Electronic | Electronic |
Rotor: sheet thickness | 8.0 mm | 0.31 in |
Hammers: Weight | 820.0 g | 29.0 oz |
Hammer: øhole | 15.0 mm | 0.6 in |
Hammer: base width | 82.0 mm | 3.23 in |
Hammer: top width | 45.0 mm | 1.77 in |
Hammer: Diagonal | 95.0 mm | 3.74 in |
Rear roller: diameter | 140.0 mm | 5.51 in |
Rear roller: sheet thickness | 5.0 mm | 0.2 in |
Rear roller: bearings type and size | UC205 | UC205 |
Pto shaft | CE 6x1000 mm + shear bolt | CE 6x1000 mm + shear bolt |
Effective Displacement | 310.0 mm (Hydr.) | 12.20 in (Hydr.) |

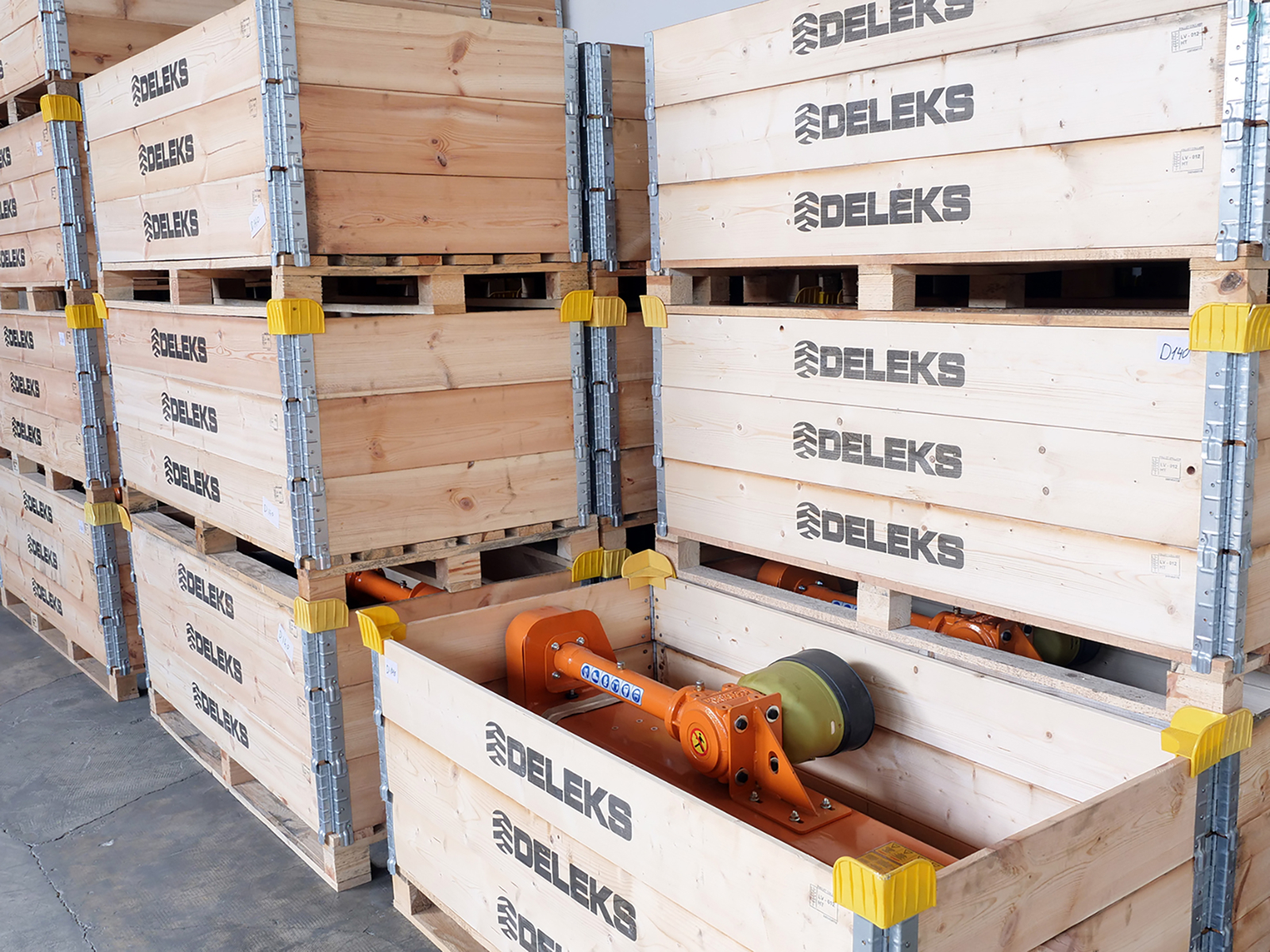

Packing sizes | 1780.0*900.0*800.0 mm | 5.84*2.95*2.62 ft |
