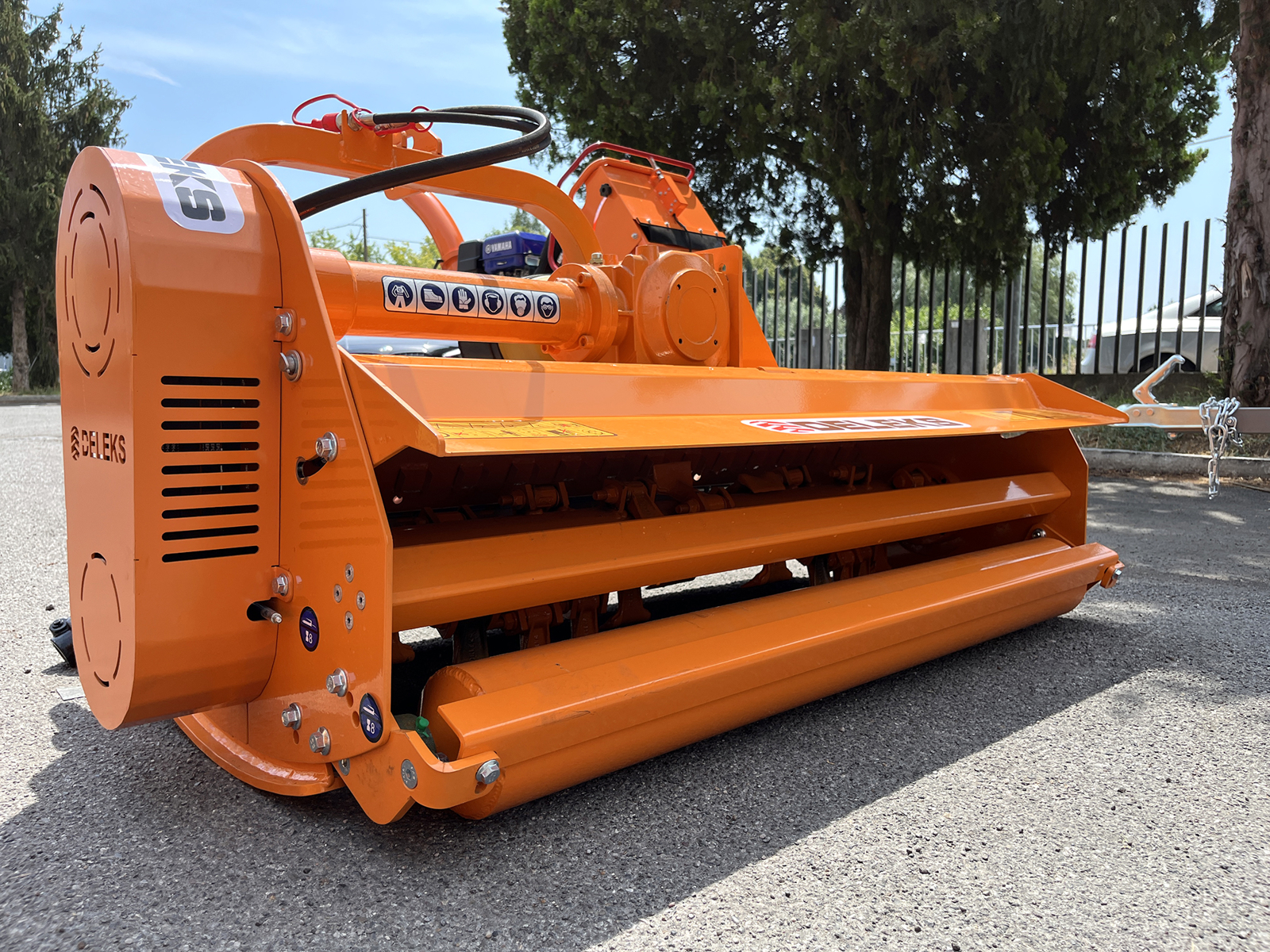

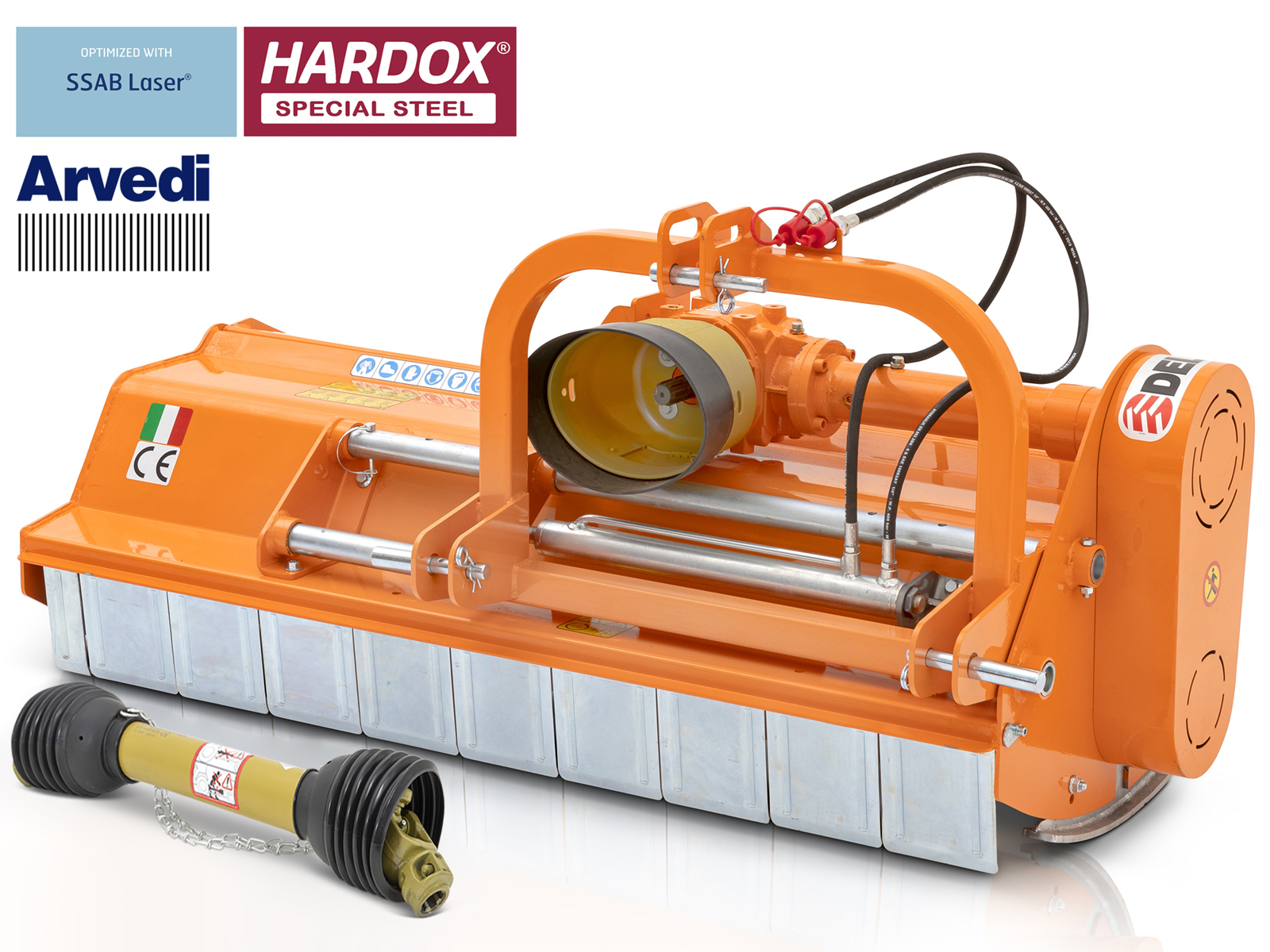

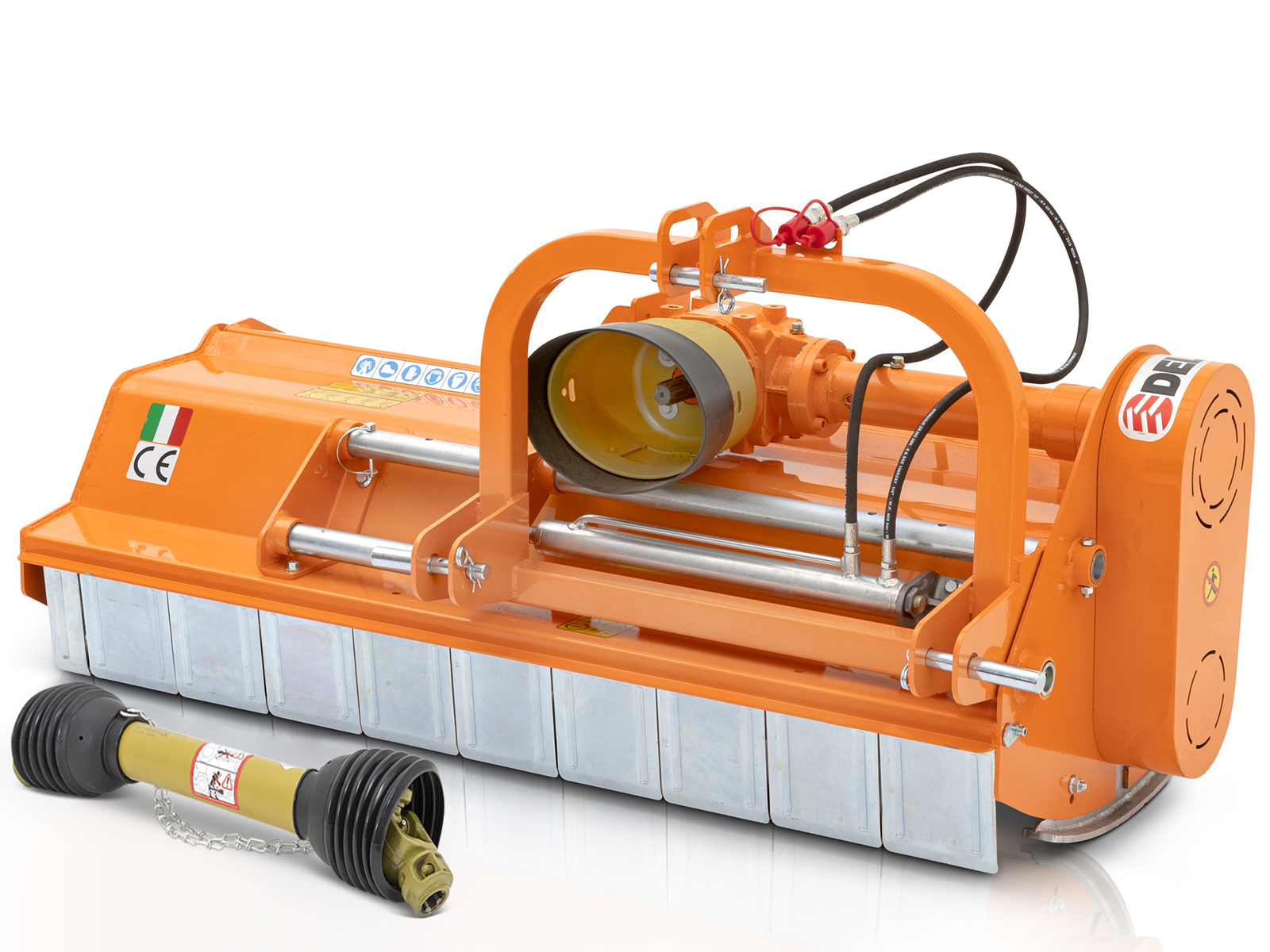

Flail mower medium heavy serie with hydraulic sideshift mod. LEOPARD-140-SPH

EAN 8053470235474
See more details

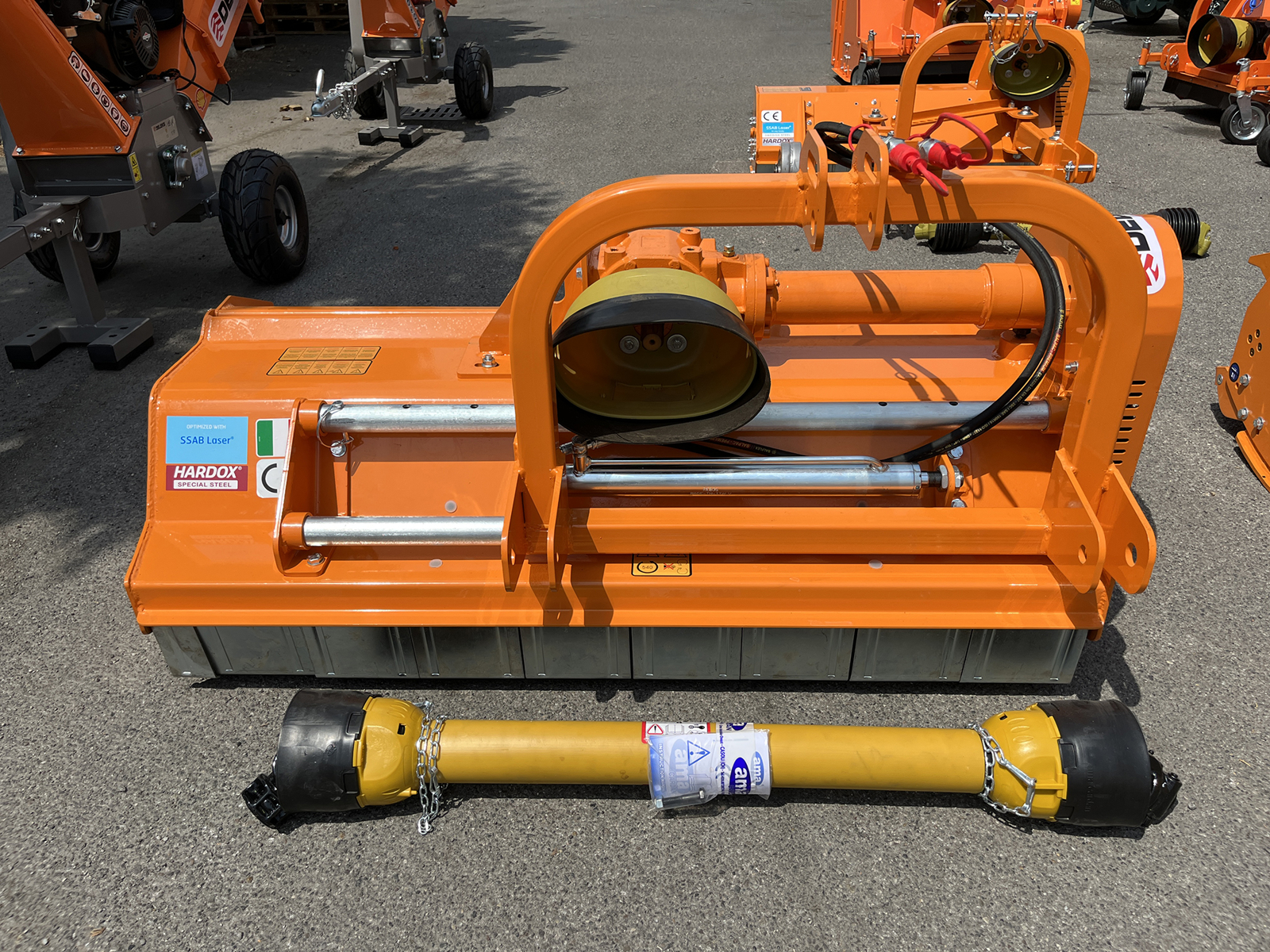

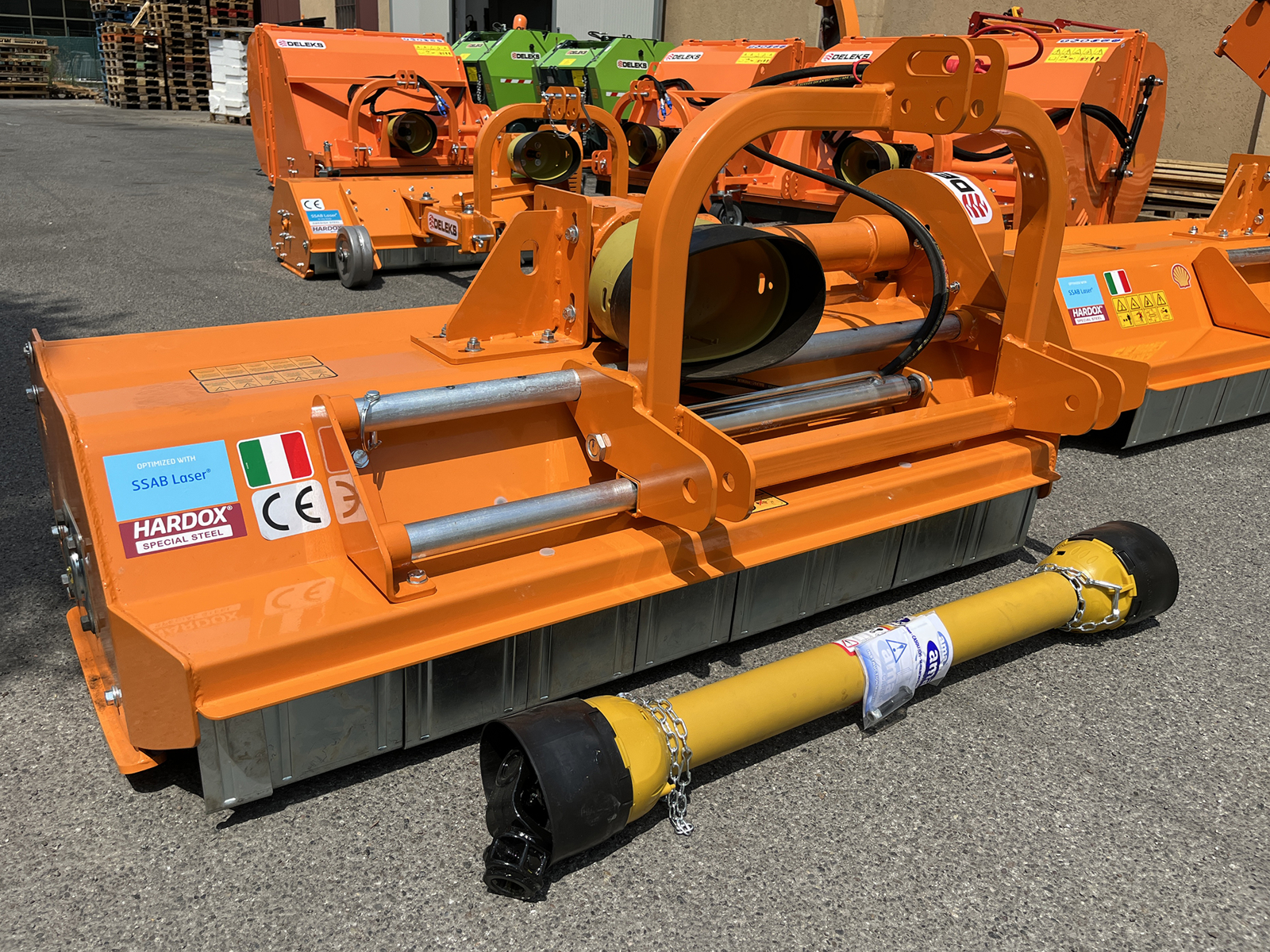

Shredder with hammers 140cm / 315kg for tractors - DELEKS® LEOPARD-140-SPH - Hydraulic displacement 310.0 mm - Pto shaft included.



Shredder with hammers for orchard, vineyard, olive grove and uncultivated areas. Professional Flail Mower with Hydraulic side shift.

Working width 140cm - Weight 315kg.

Suitable for working on grass, leaves, vineyard, for tractors from 30 to 70 HP, like John Deere, Kubota, Landini, Antonio Carraro, Same, Lamborghini...

The LEOPARD-140-SPH model is presented as a versatile shredder, suitable for cutting grass and thanks to its robust structure it is very useful for shredding prunings and pruning residues, up to 4-5 cm in diameter.

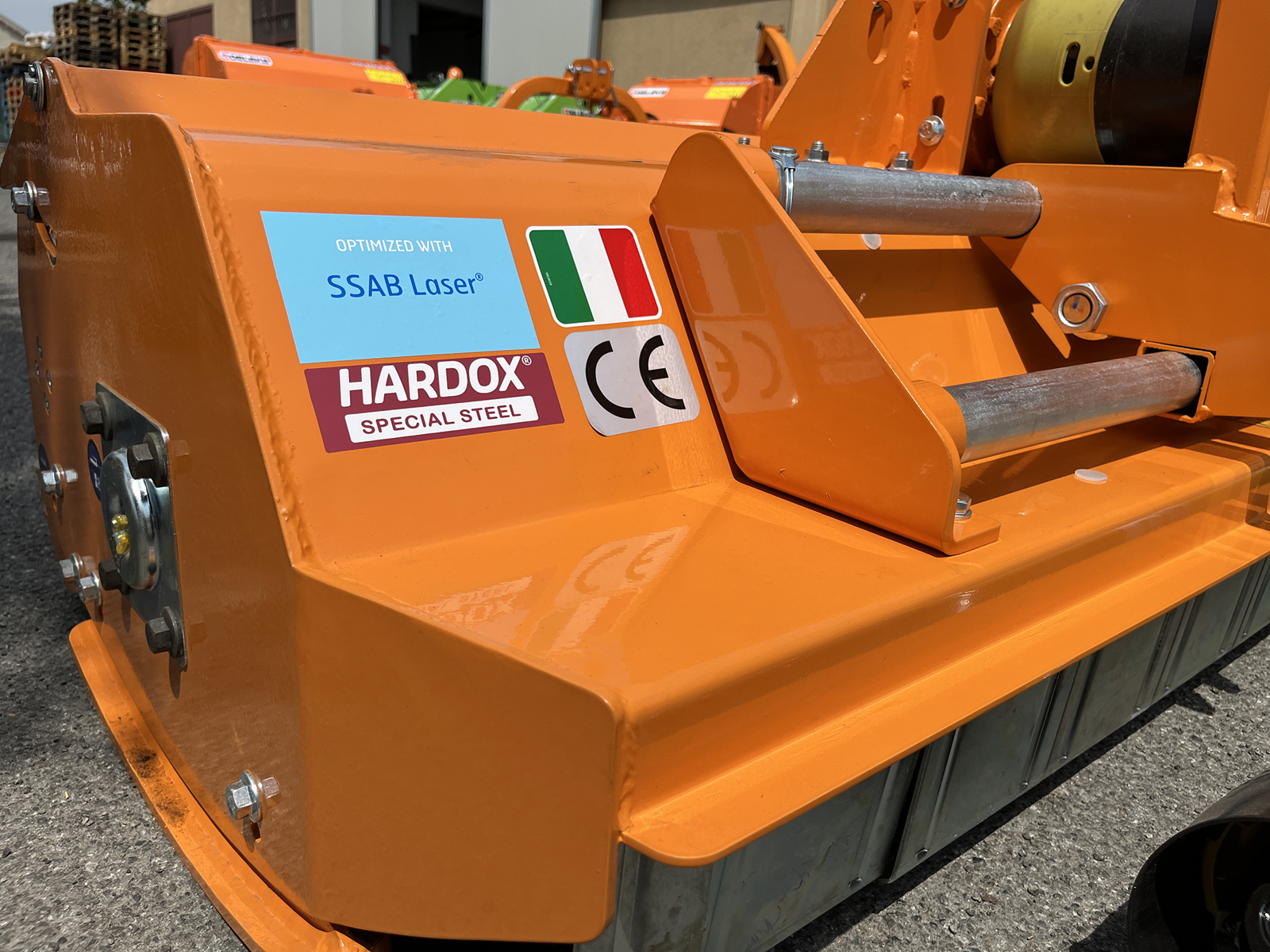

Sturdy structure suitable for professional use: frame casing thickness: 4.0 mm, sides: 6.0 mm.

6.0 mm thick double case.

20 cm high frontal mouth, avoids crushing grass when it is high.

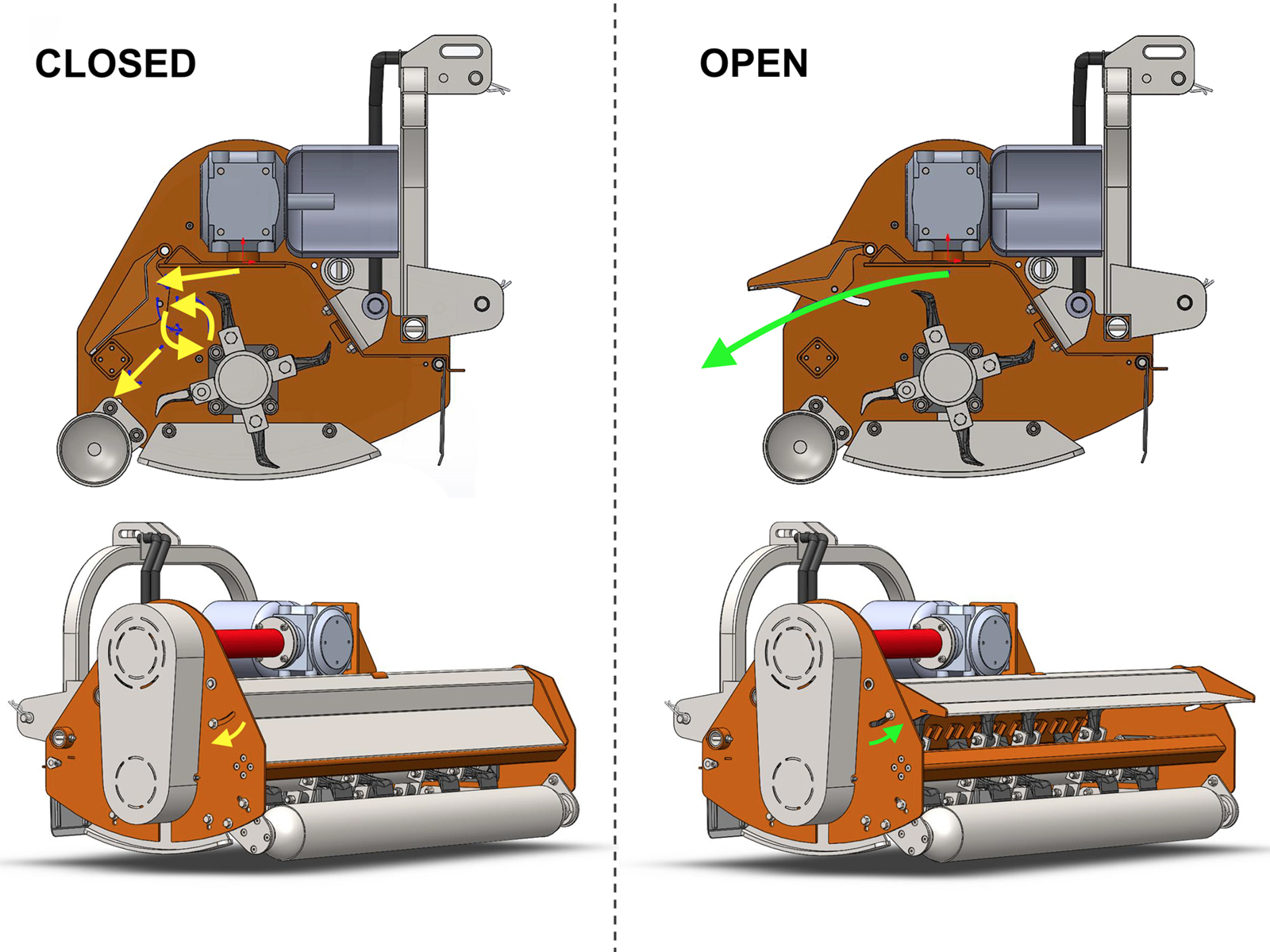

Closed hood, mulching effect: the plant material remains longer in the chamber and gets pulverized.

Open hood: reduces the pressure in the chamber and allows you to proceed at a higher speed.

Maximum application value on any type of residue, from the open field to the orchard.



Universal 3-point hitch Cat. 1-2

Hydraulic displacement 310.0 mm of the 3-point hitch

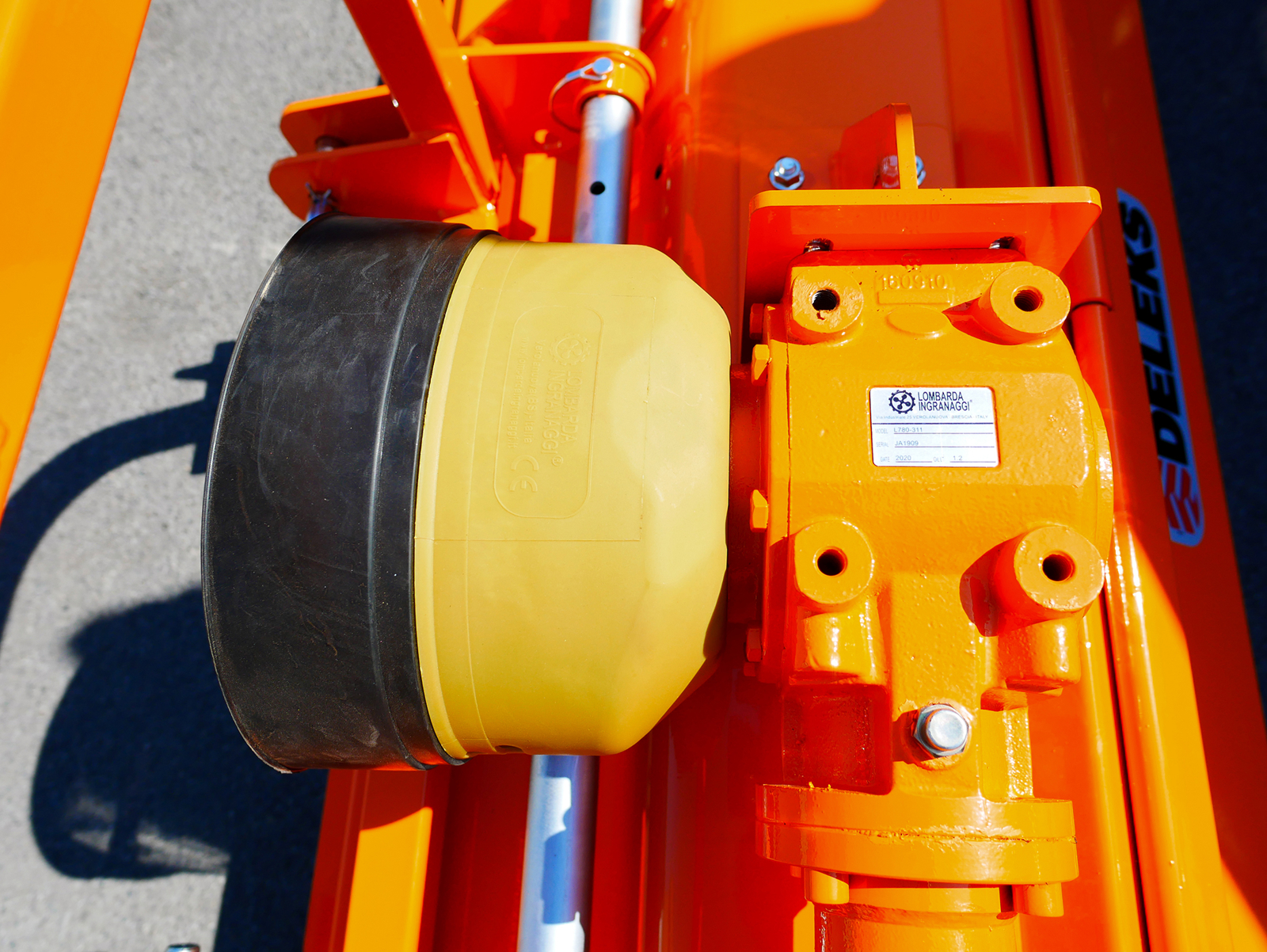

PTO 540 r / min with built-in freewheel, brand Lombarda Ingranaggi

CE 6x1000 cardan shaft with shear bolt

4 transmission belts

Rear hood that can be opened for maintenance

Adjustable tensioner

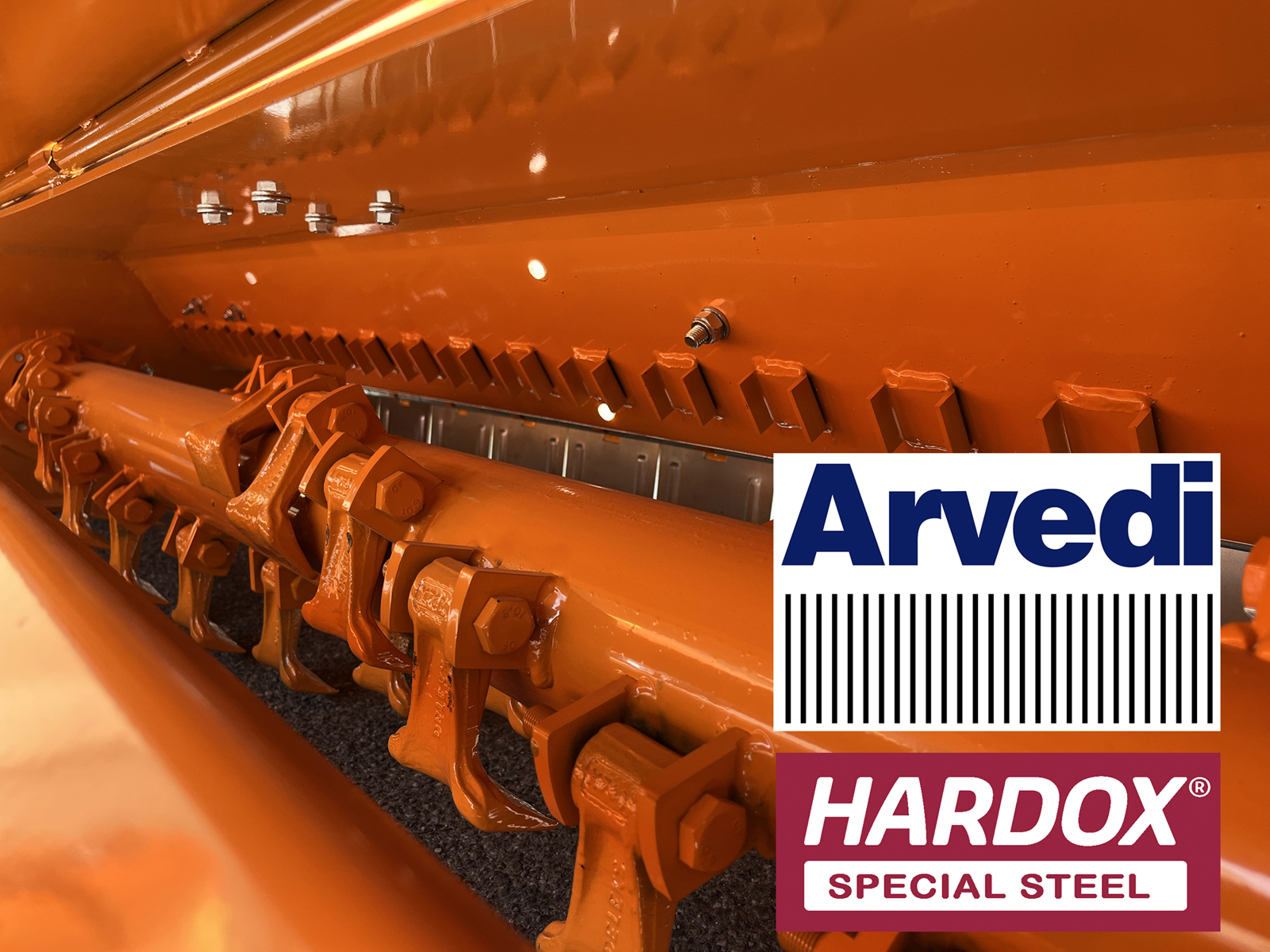

Electronic balanced rotor

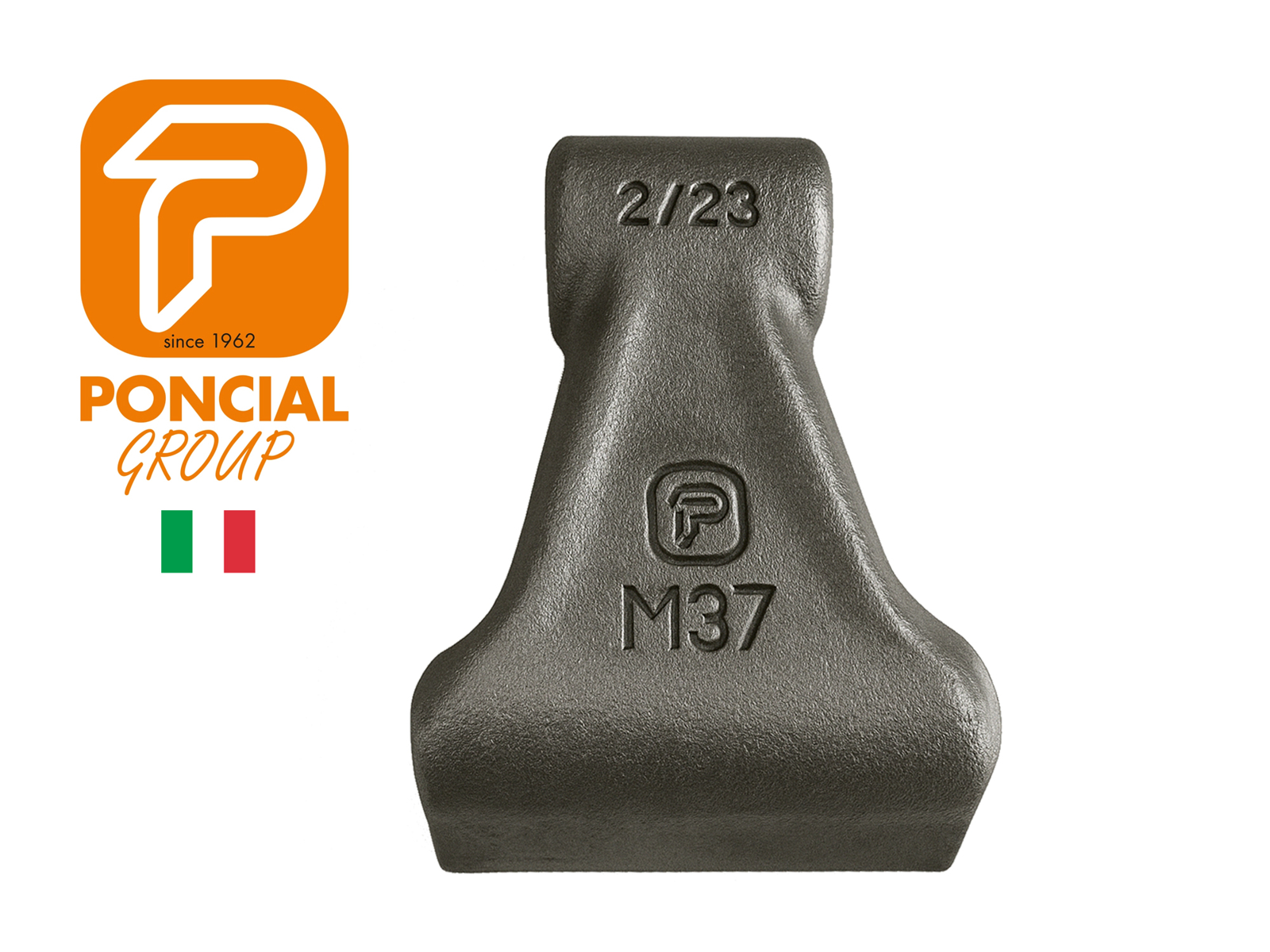

20 hammers, hot forged high strength 9cm base width

Pair of adjustable slides

Front guards

External adjustment of the belts

CE safety guard

Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual

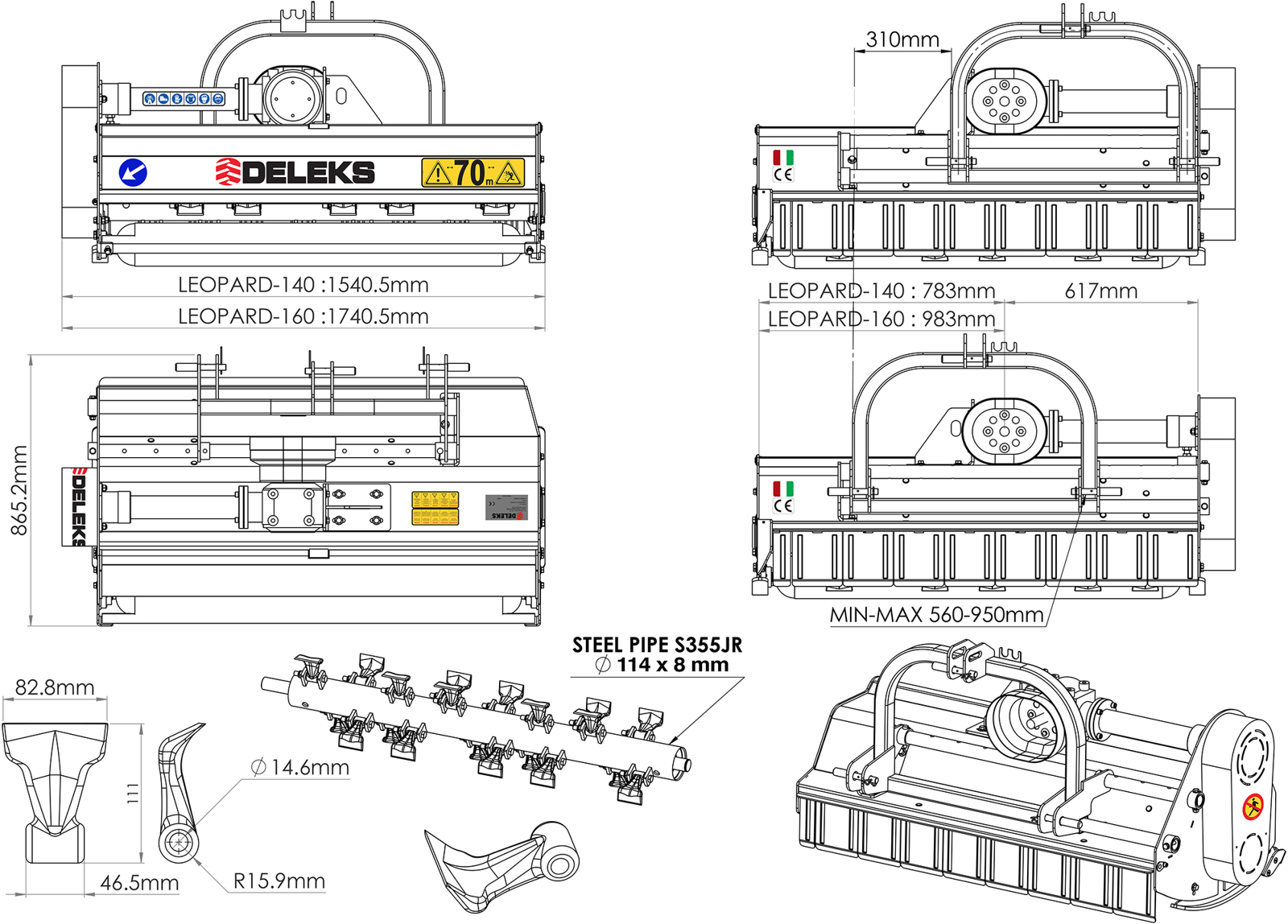

Caracteristic Units metric Units US
Working width 1400.0 mm 4.60 ft
Overall width 1540.5 mm 5.05 ft
Min / Max cutting height 10.0 - 45.0 mm 0.4- 1.77 in
Weight 315.0 kg 695.0 lb
Overall height 800.0 mm 2.60 ft
Tractor Power Range 30 - 70 Hp 30 - 70 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Hood height 460.00 mm 18.10 in
Spacing between the 2 lower points 560.0 - 950.0 mm 22.00 - 37.40 in
Number of Hammers 20 20
Maximum cutting diameter 40.0 - 50.0 mm 1.57 - 1.97 in
Overall length 865.0 mm 2.84 ft
Distance between pto attachment and ground 520.0 mm 20.5 in
Main hood thickness 4.0 + 6.0 mm 0.16 + 0.23 in
Sides thickness 6.0 mm 0.23 in
Side plates thickness 6.0 mm 0.23 in
Transmission: Drive method V-Belts V-Belts
Transmission: Gearbox Lombarda Ingranaggi (Italy) (3 year warranty) Lombarda Ingranaggi (Italy) (3 year warranty)
Transmission: PTO 540 r/min 540 r/min
Transmission: Rotation of gearbox Right side Right side
Transmission: Free wheel
Transmission: RPM Rotor speed 2300 rpm 2300 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Transmission: Top pulley ø 180.0 mm 7.08 in
Transmission: Lower pulley ø 130.0 mm 5.12 in
Transmission: V-Belts quantity 4 4
Transmission: V-Belts size BX43 BX43
Rotor: diameter 108.0 mm 4.25 in
Rotor: bearings type and size FAG UCF208 (Made in Germany) FAG UCF208 (Made in Germany)
Rotor: balancing Electronic Electronic
Rotor: sheet thickness 8.0 mm 0.31 in
Hammers: Weight 820.0 g 29.0 oz
Hammer: øhole 15.0 mm 0.6 in
Hammer: base width 82.0 mm 3.23 in
Hammer: top width 45.0 mm 1.77 in
Hammer: Diagonal 95.0 mm 3.74 in
Rear roller: diameter 140.0 mm 5.51 in
Rear roller: sheet thickness 5.0 mm 0.2 in
Rear roller: bearings type and size UC205 UC205

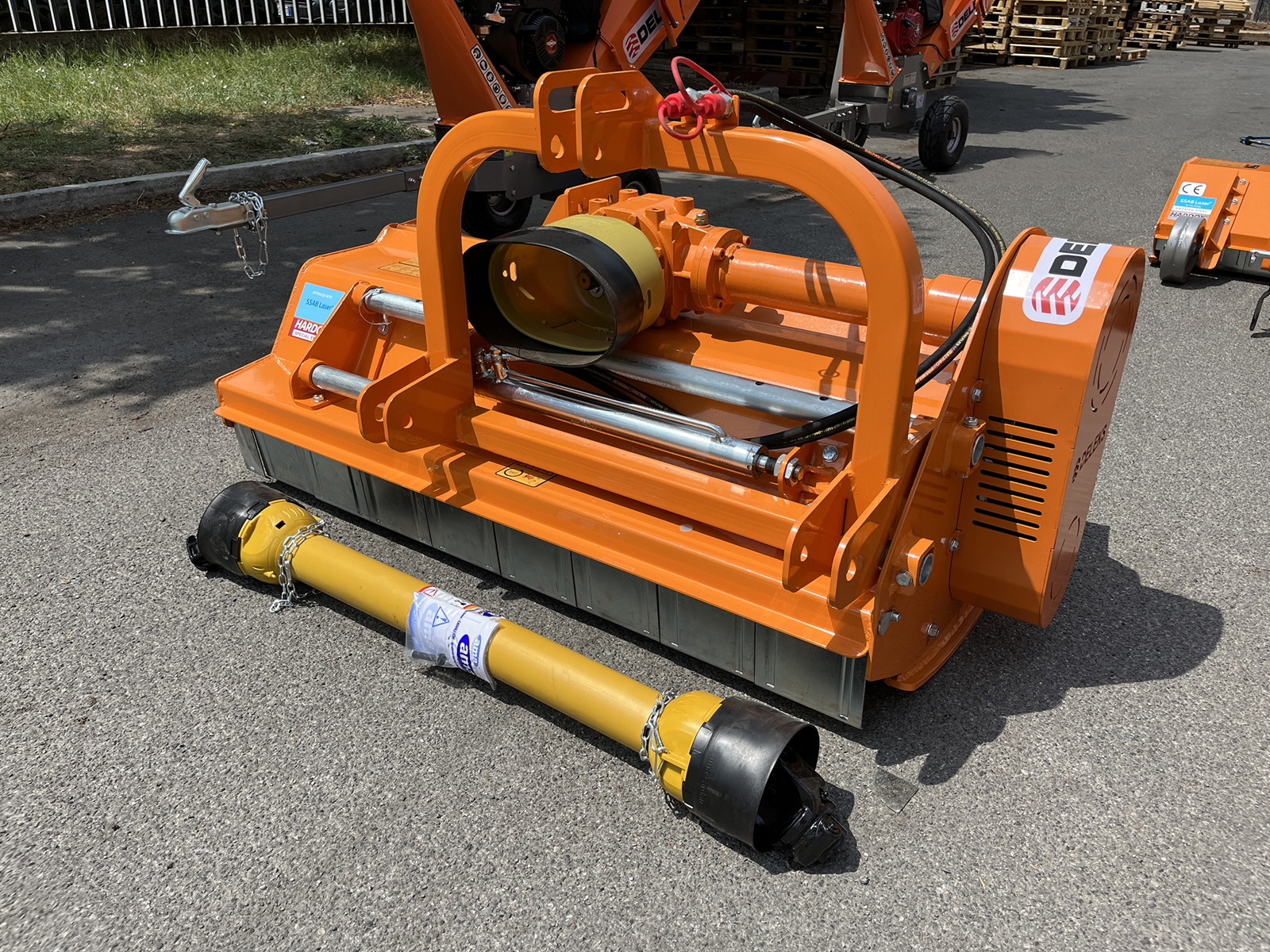

Pto shaft CE 6x1000 mm + shear bolt CE 6x1000 mm + shear bolt
Effective Displacement 310.0 mm (Hydr.) 12.20 in (Hydr.)
Packing sizes 1580.0*900.0*800.0 mm 5.18*2.95*2.62 ft
