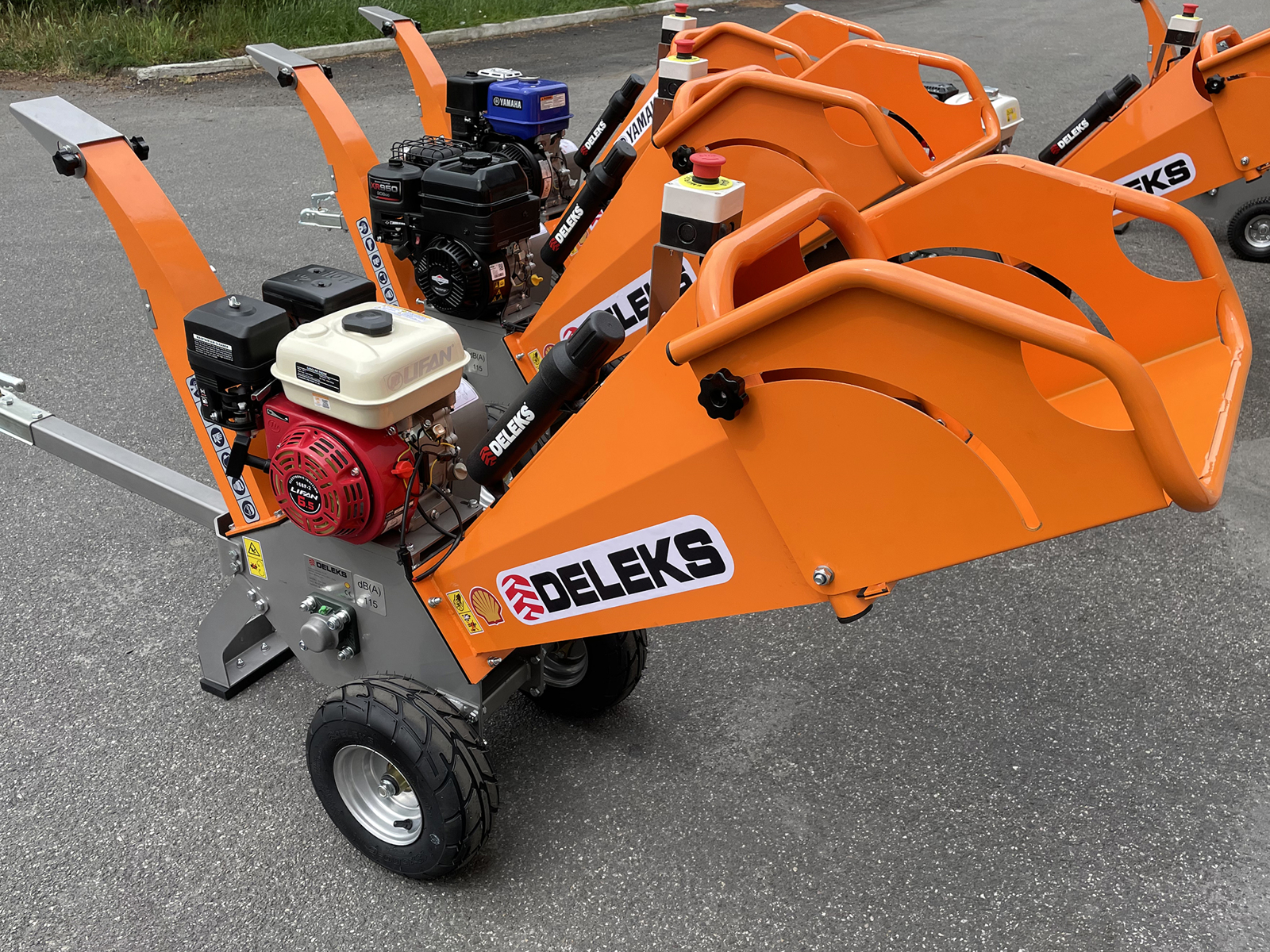

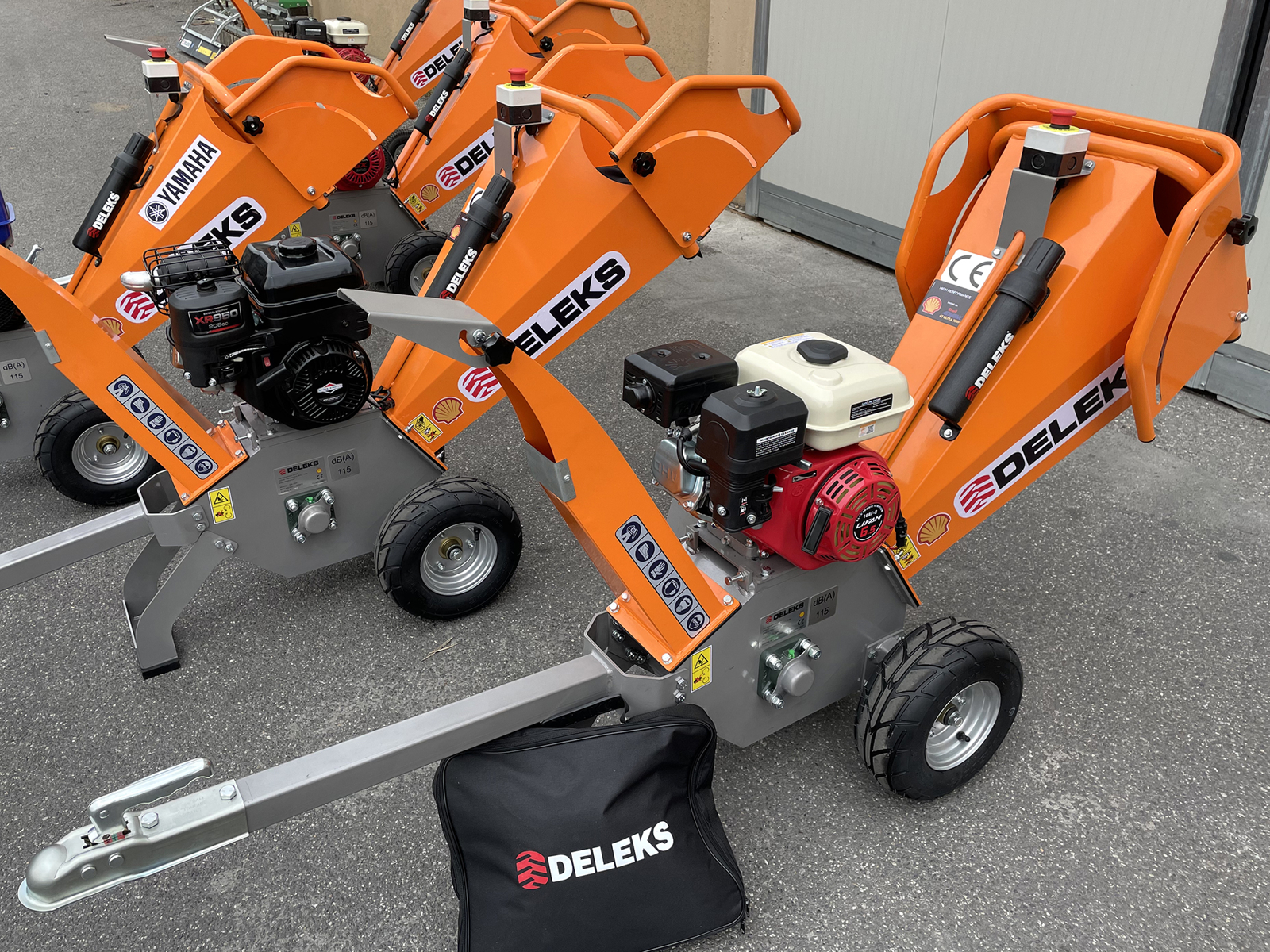

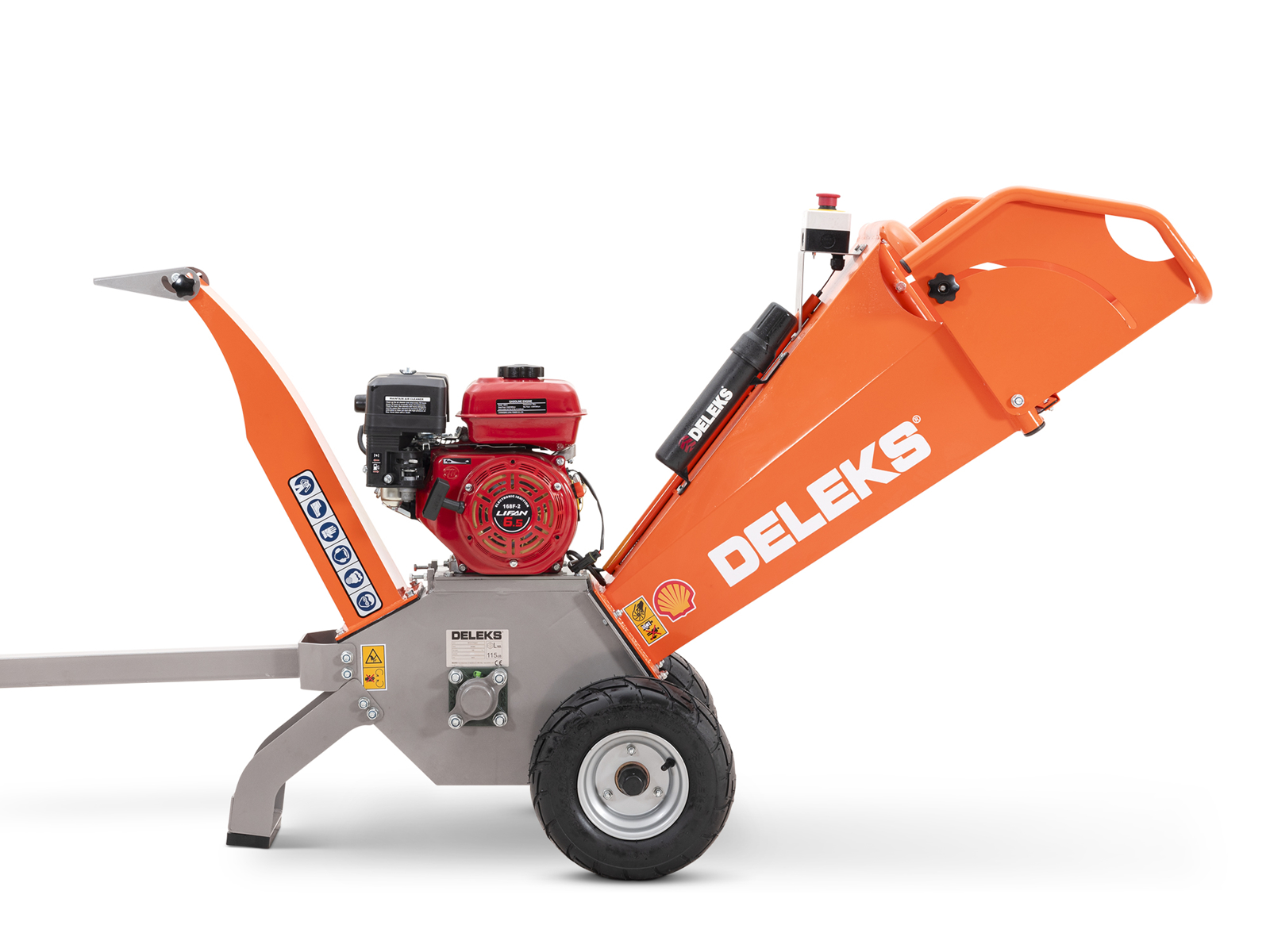

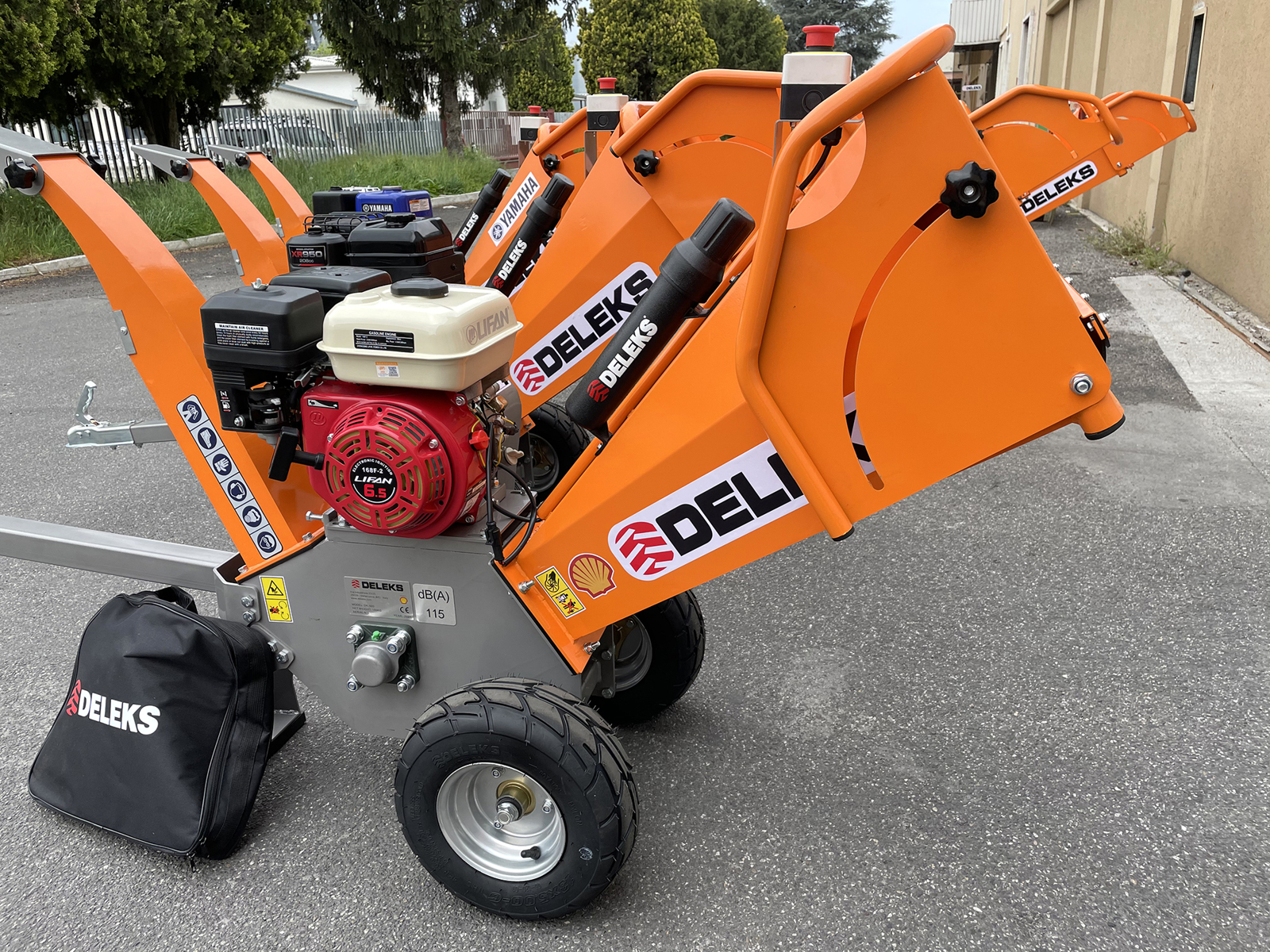

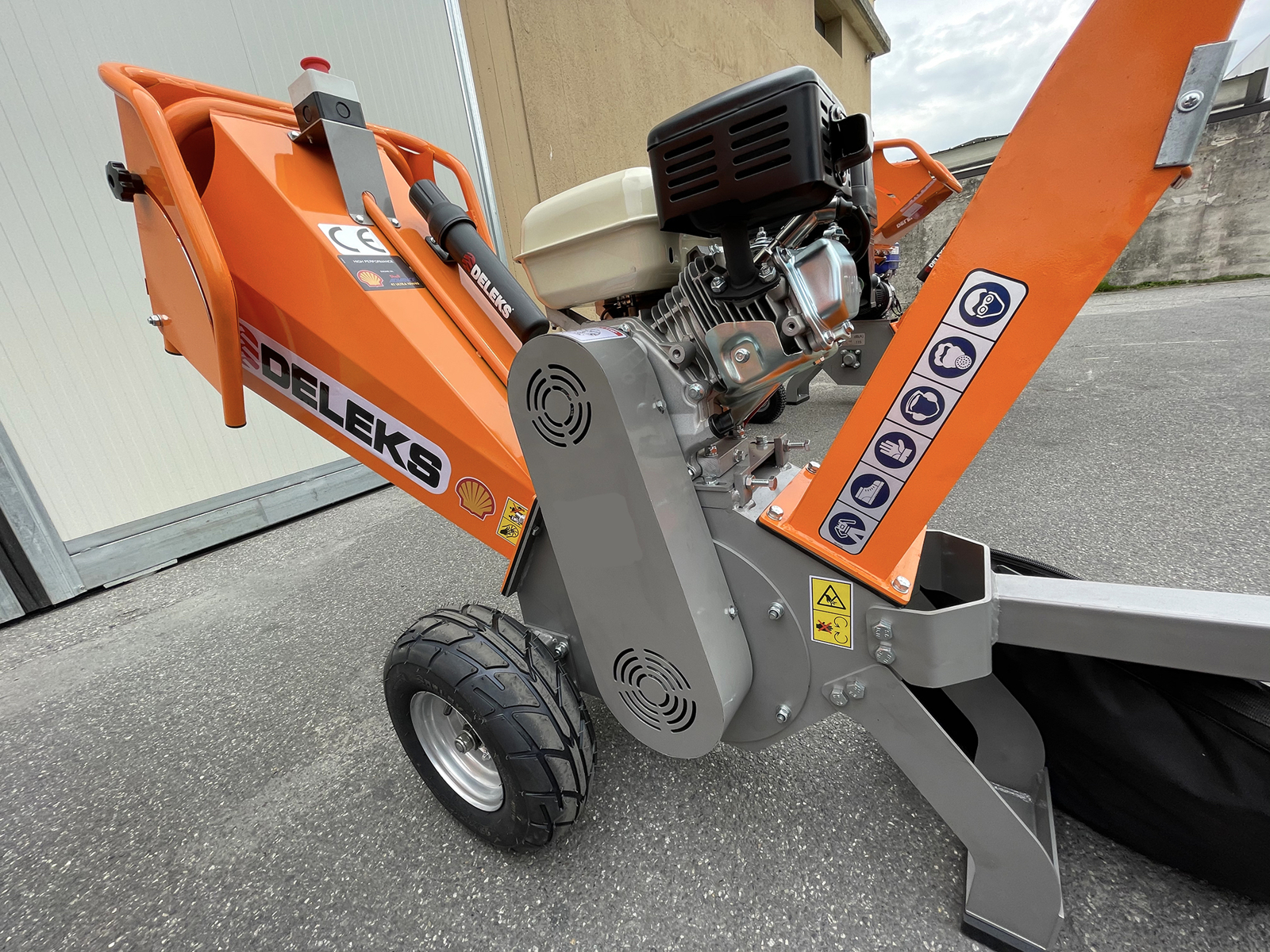

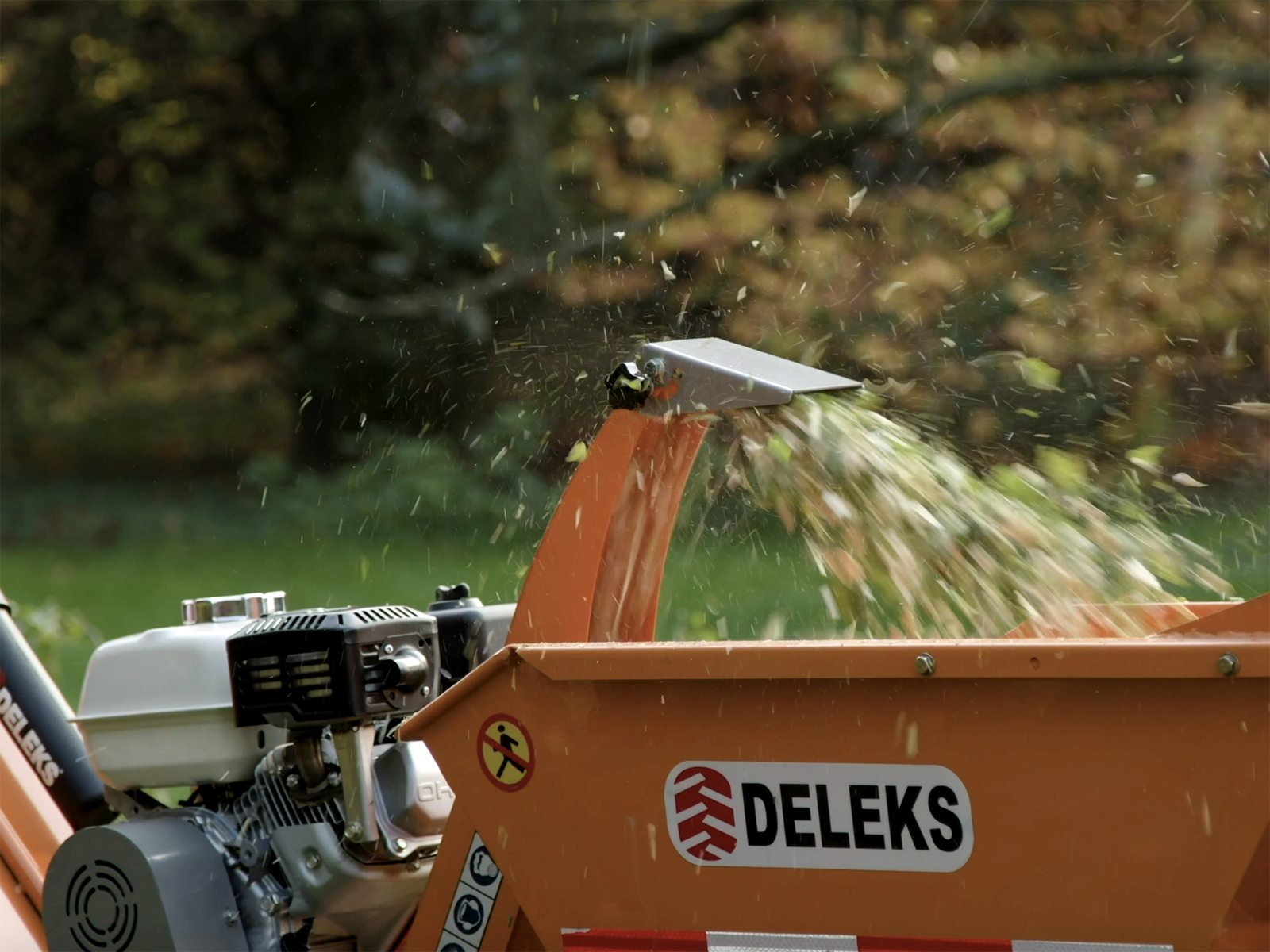

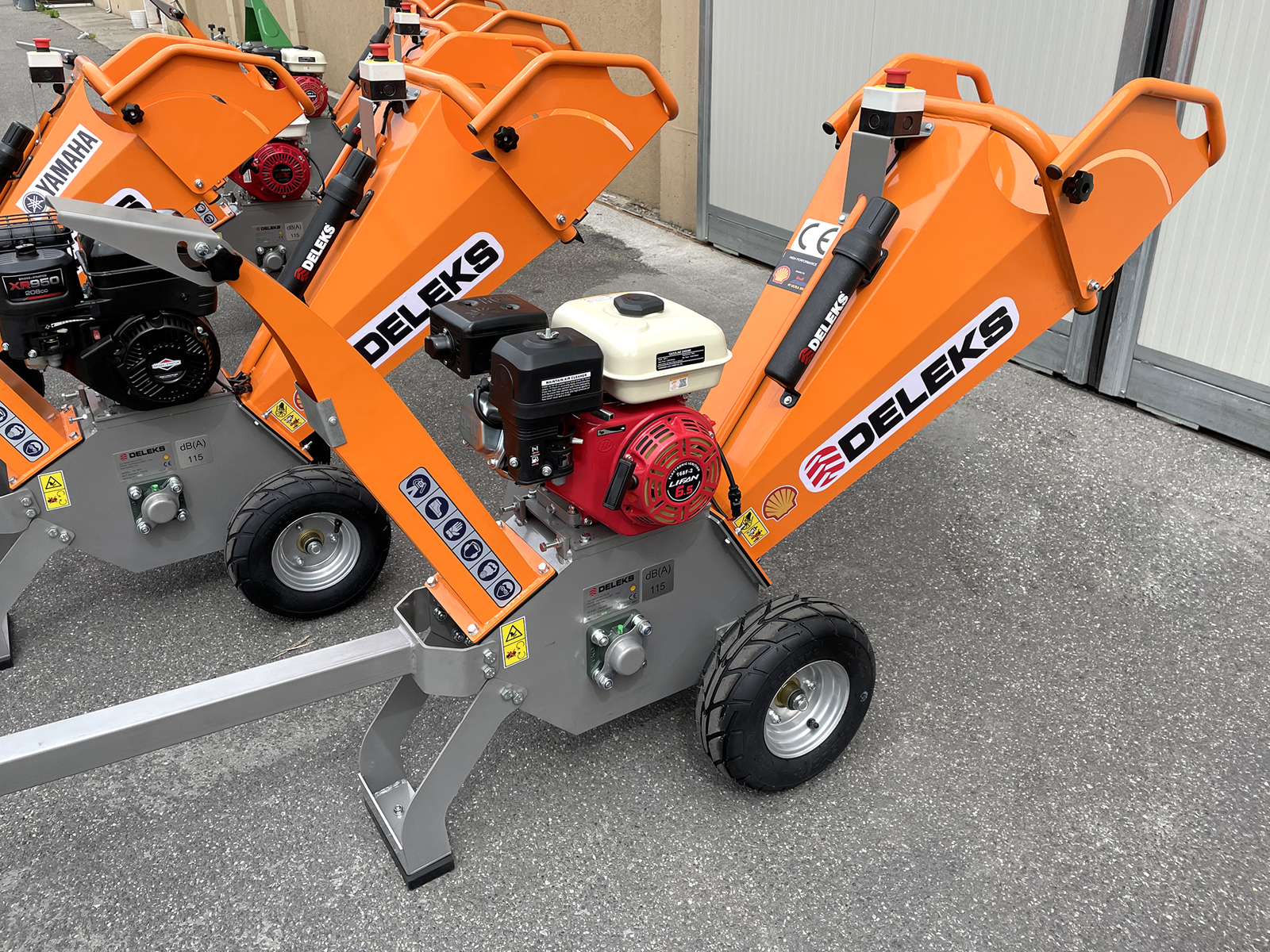

Professional Wood Chipper DELEKS DK-500-FL with 6.5 Hp engine, 4 stroke gasoline engine.
This product has a Certificate of registration in the EUROPEAN UNION INTELLECTUAL PROPERTY OFFICE
Chipping drum system shreds vegetation using 2 horizontal blades + 1 counter-fixed blade. Gasoline engine LIFAN 168F-2 - 196cc - 6.5 hp (3-Year warranty - Spare parts always available).

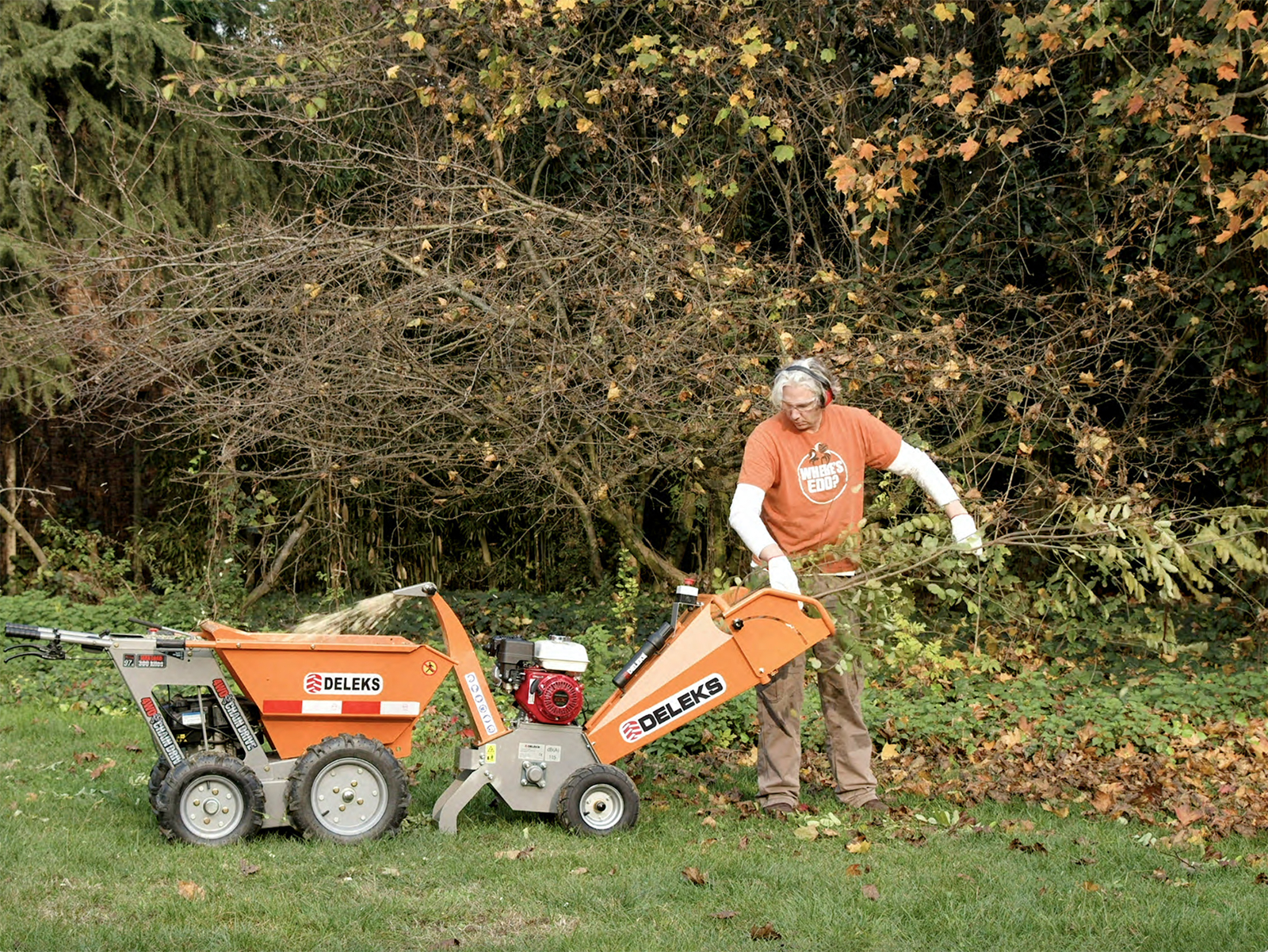

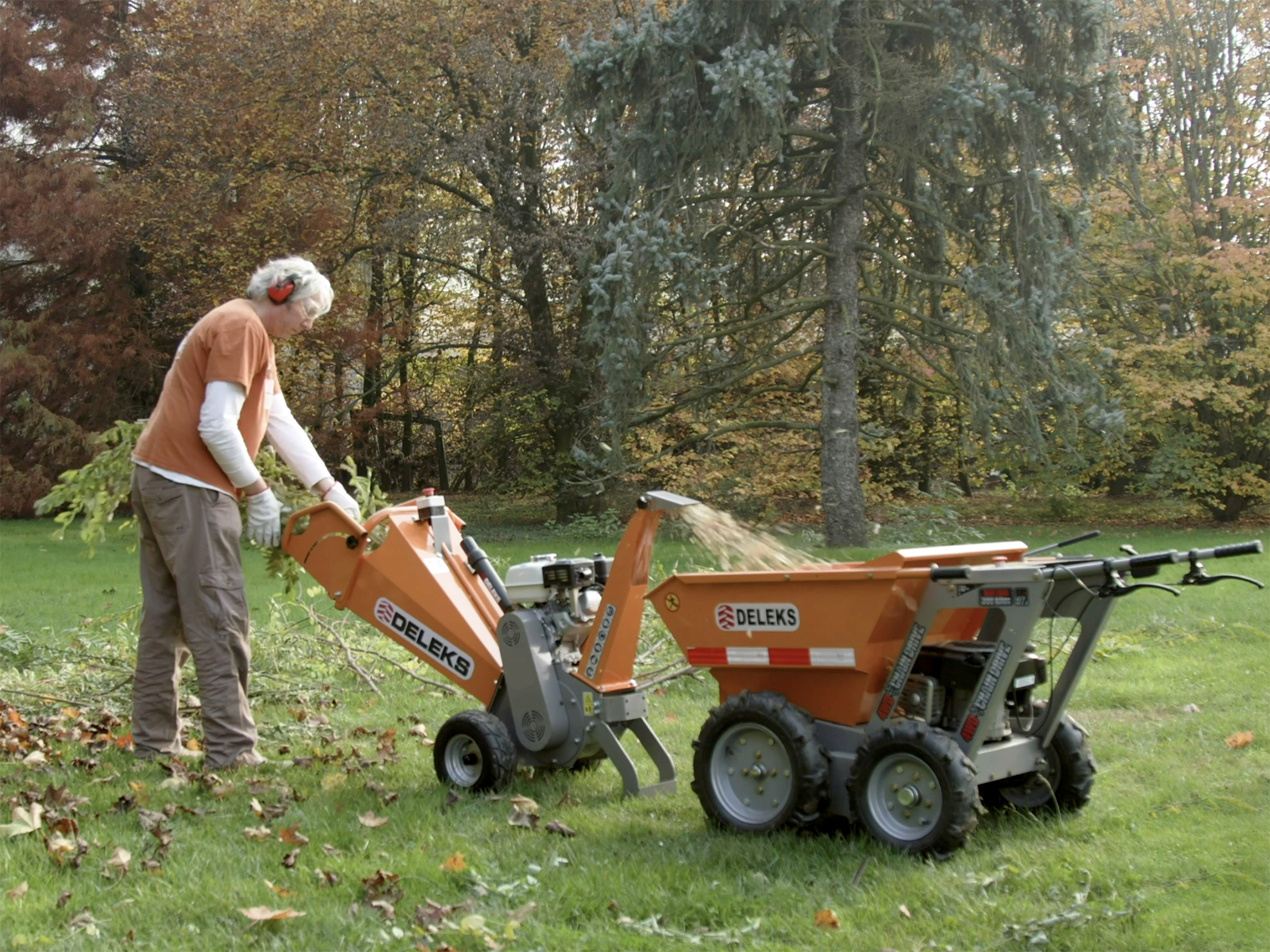

Suitable for the chipping of all types of dry and green wood, pruning residues, palm leaves, etc. Ideal for professional/contractor usage.
Maximum cutting diameter: 6-7cm
Chipper produces enough material to make pulp or pellets for industrial use.
CERTIFICATES - GUARANTEE - ASSISTANCE
TÜV SUD certification

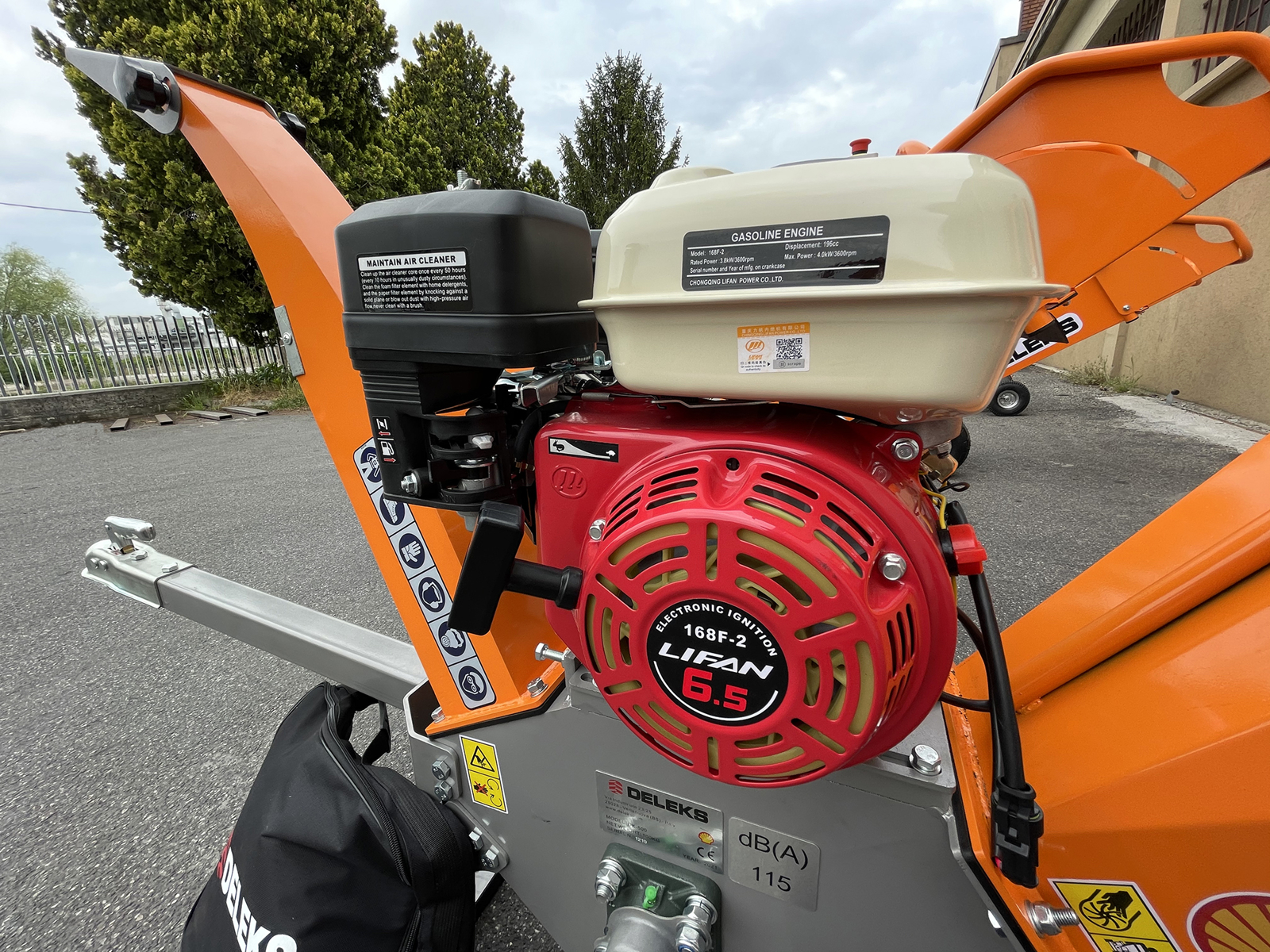

LIFAN 168F-2 petrol engine with 3-years European warranty
BENEFITS AND FEATURES
The Anti-shock clutch avoids direct motion between the motor and drum, thus facilitates the cold start and in case of jamming or introduction of foreign objects, prevents the crankshaft from damage.
Gasoline engine, air-cooled 4-stroke.

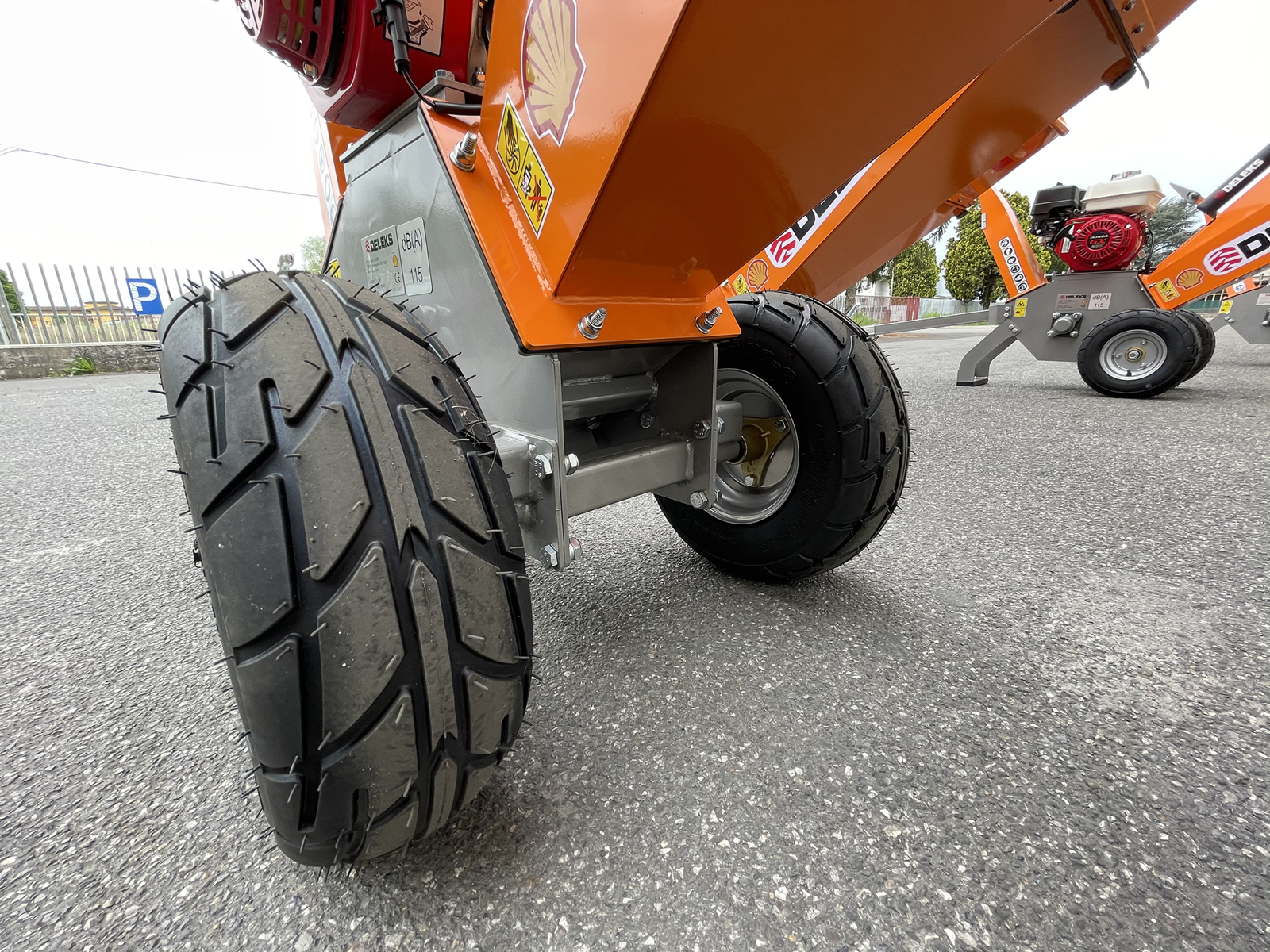

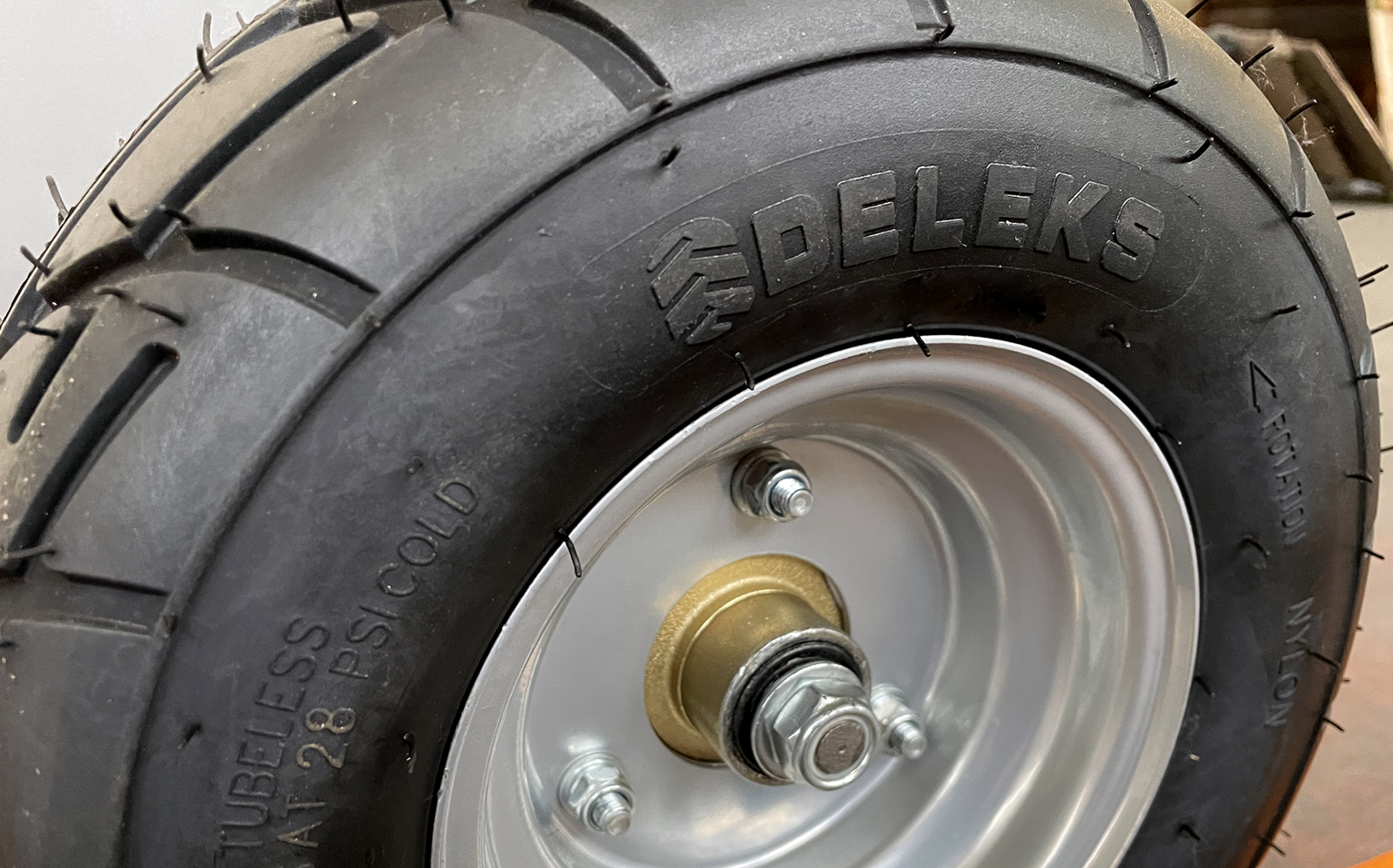

Excellent maneuverability thanks to its 2 wheels;
Solid structure and stable with a low center of gravity.
Headphones and goggles.

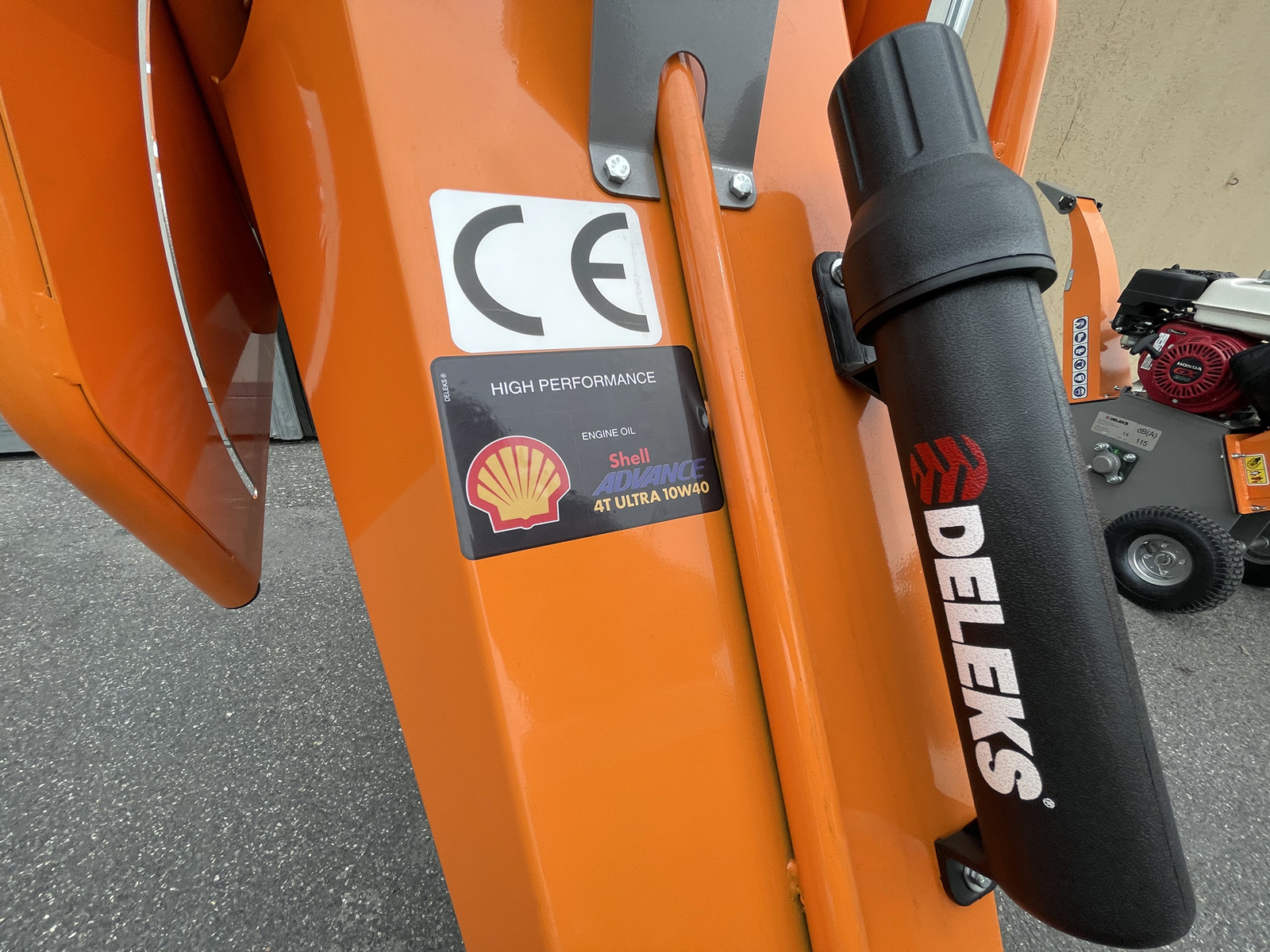

Conforms to the CE directive.

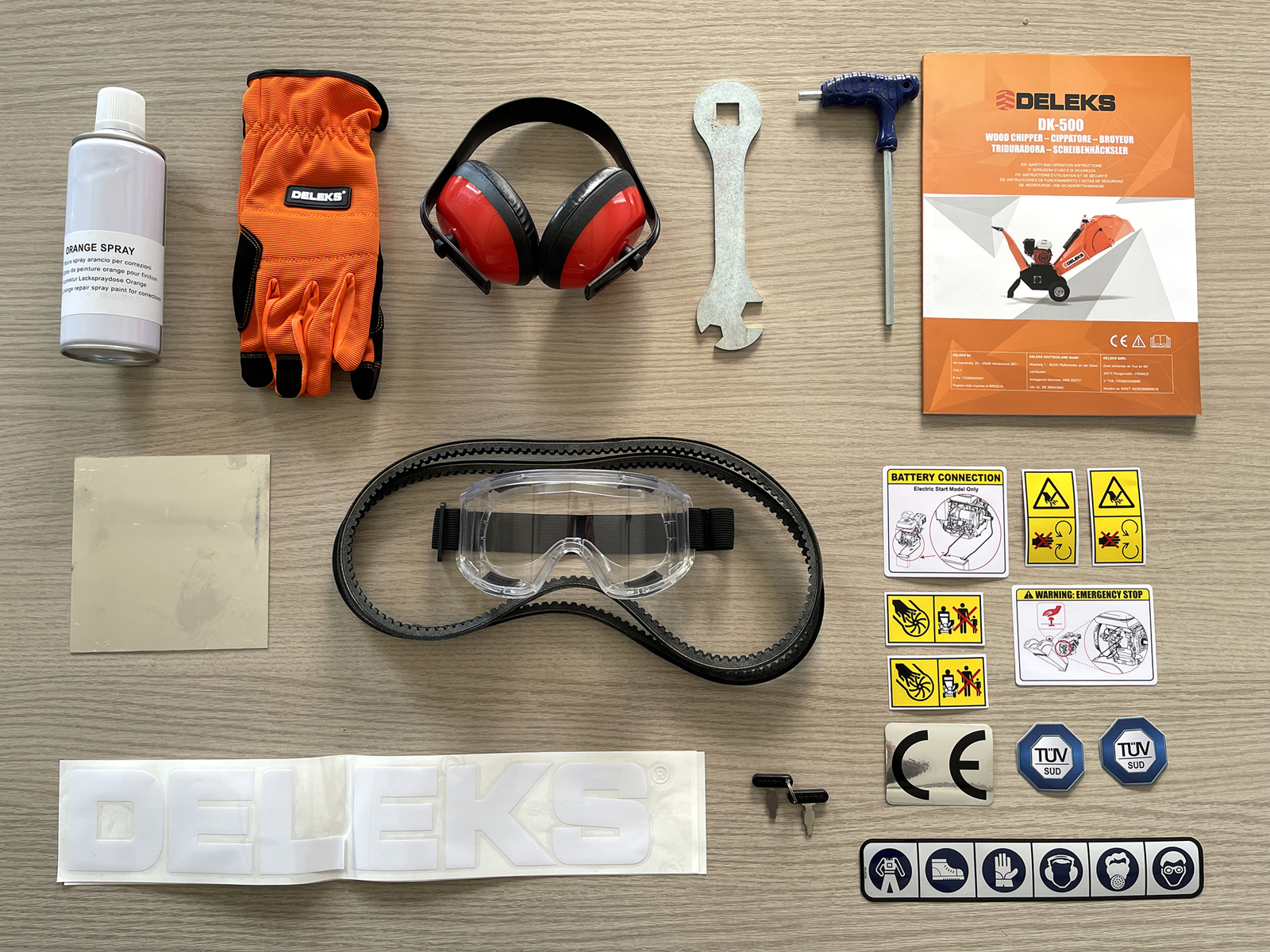

Pair of spare blades
Spare counter knife
1 kg of synthetic oil
Set of 2 replacement transmission belts
CE protection caps
CE protective glasses
Use and maintenance manual for the machine
Use and maintenance manual for the LIFAN engine
Orange Spray Paint
Complete set of replacement stickers

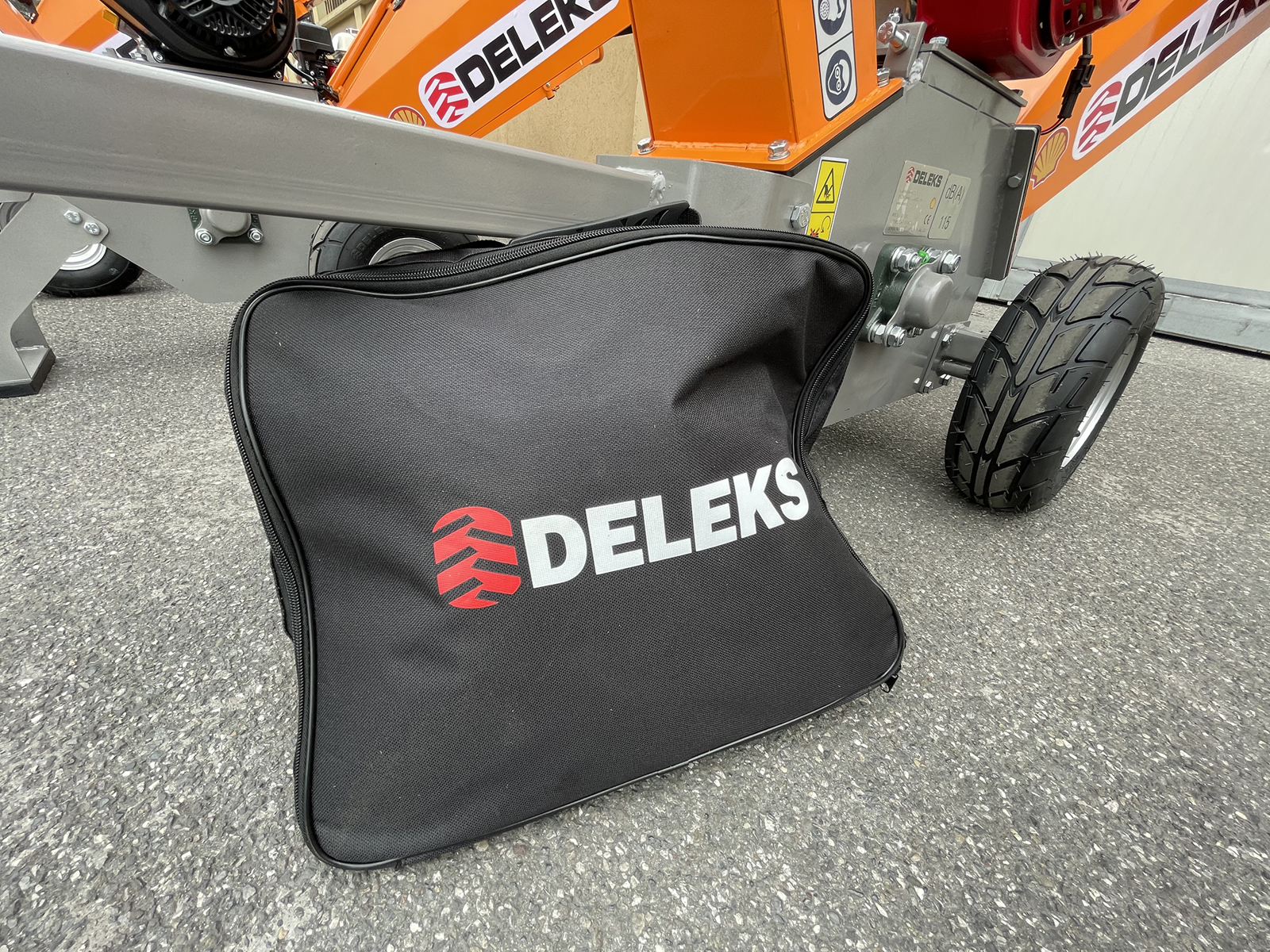

Set wrenches for maintenance
Documentation supplied with this article:
Invoice or Receipt
|Caracteristic||Units metric||Units US|

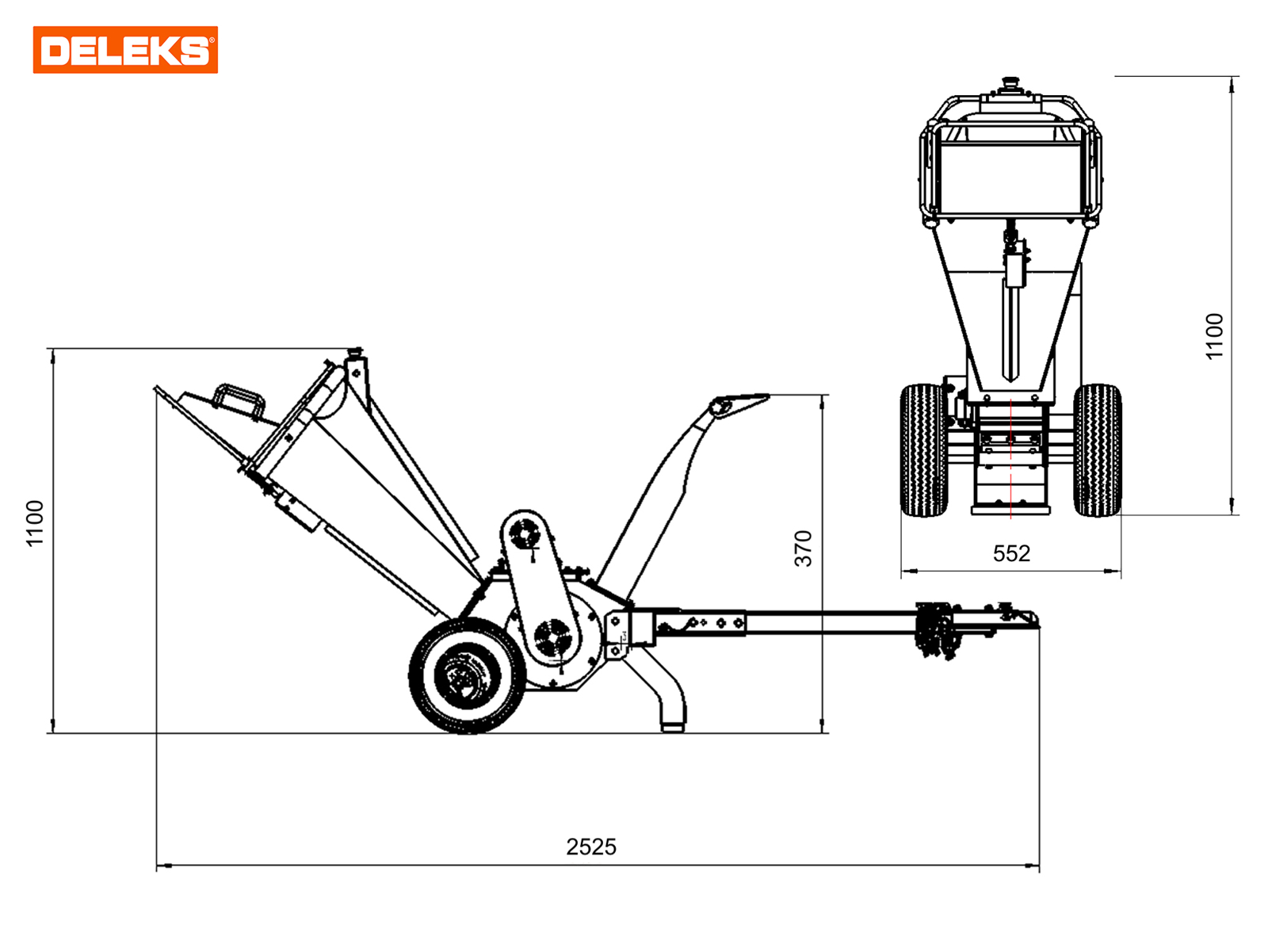

|Overall width||550.0 mm||1.80 ft|
|Weight||100.0 kg||220.0 lb|
|Overall height||1050.0 mm||3.45 ft|
|Overall length||1720.0 mm||5.65 ft|
|Blades: Weight||300.0 g||10.50 oz|

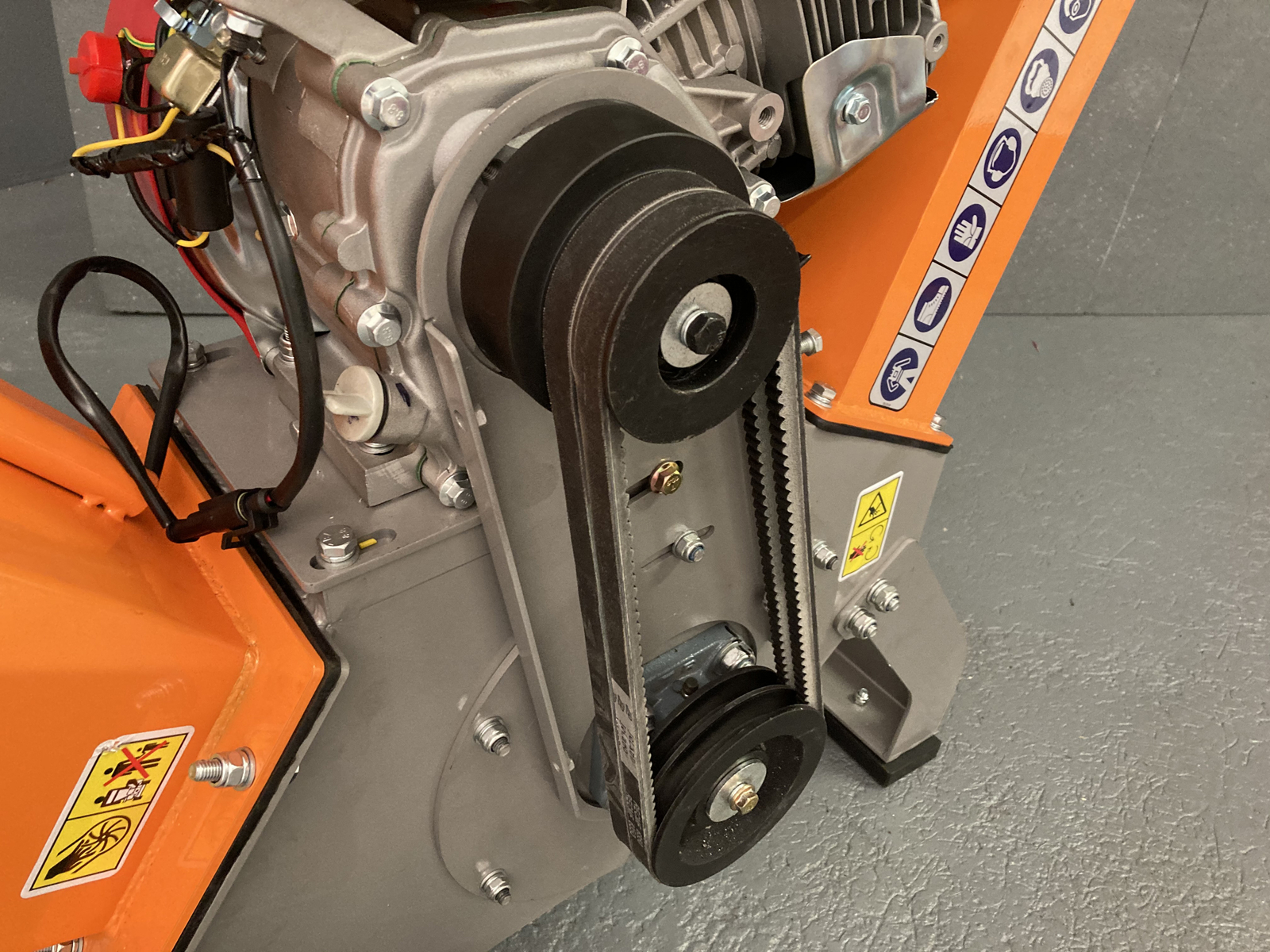

|Transmission||V Belts||V Belts|
|Working Efficiency||3 m3/h||1.0 sq ft/h|
|Cutting System||Chipping drum with 2 blades + 1 fixed blade||Chipping drum with 2 blades + 1 fixed blade|
|Chipped material size range||5.0 - 15.0 mm||0.20 - 0.60 in|

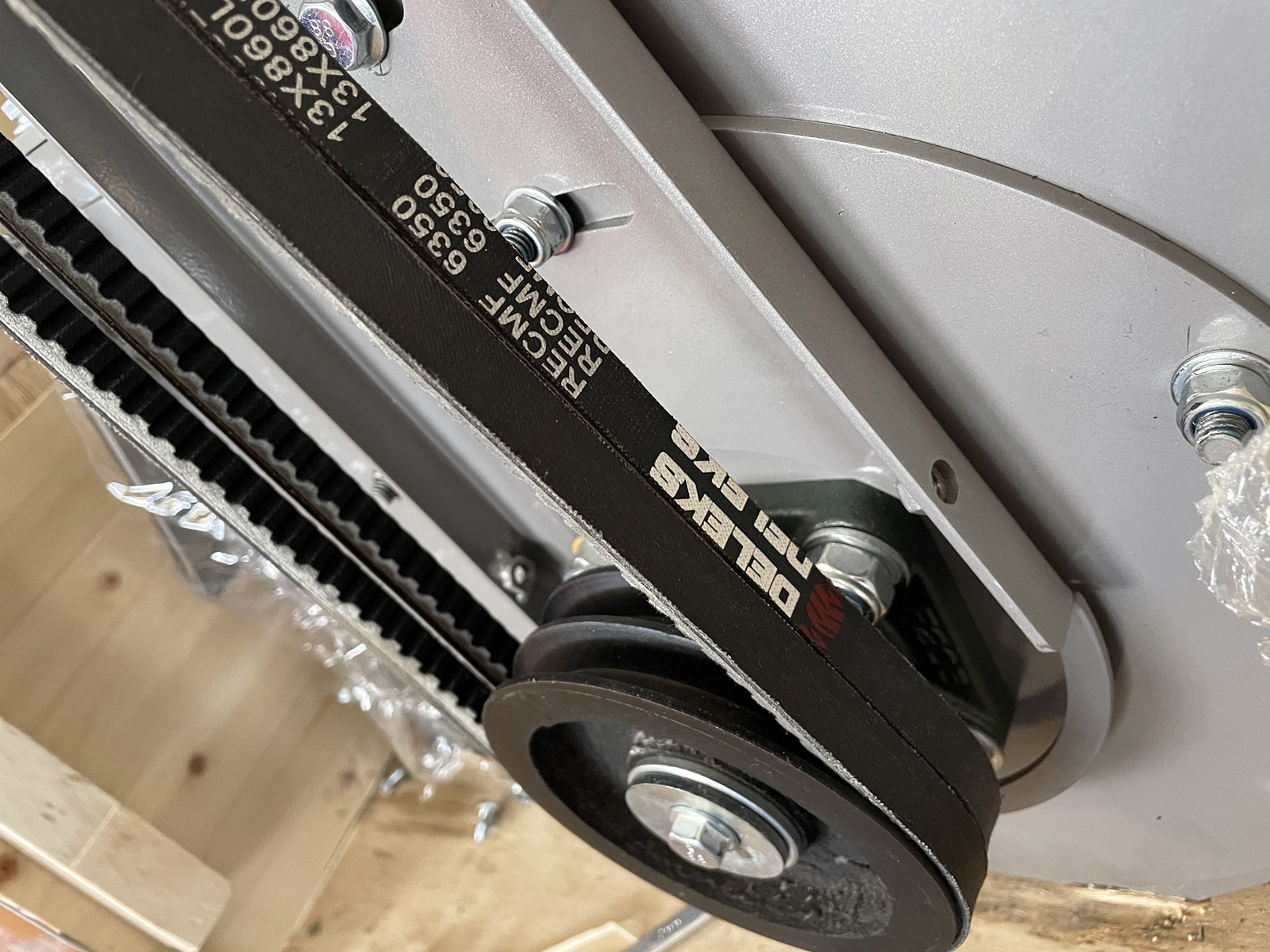

|Transmission V-Belts quantity||2||2|
|Transmission V-Belts sizes||13x860||13x860|
|Safety System||Emergency button||Emergency button|
|Blades: Sizes||150.0*55.0 mm||5.90*2.16 in|
|Outlet Tube Sizes||85.0*100.0 mm||3.35*3.94 in|
|Maximum cutting diameter||60.0 mm||2.35 in|
|Engine||6.5Hp Lifan 168F-2 196cc||6.5Hp Lifan 168F-2 196cc|
|Starter||Pull cord||Pull cord|

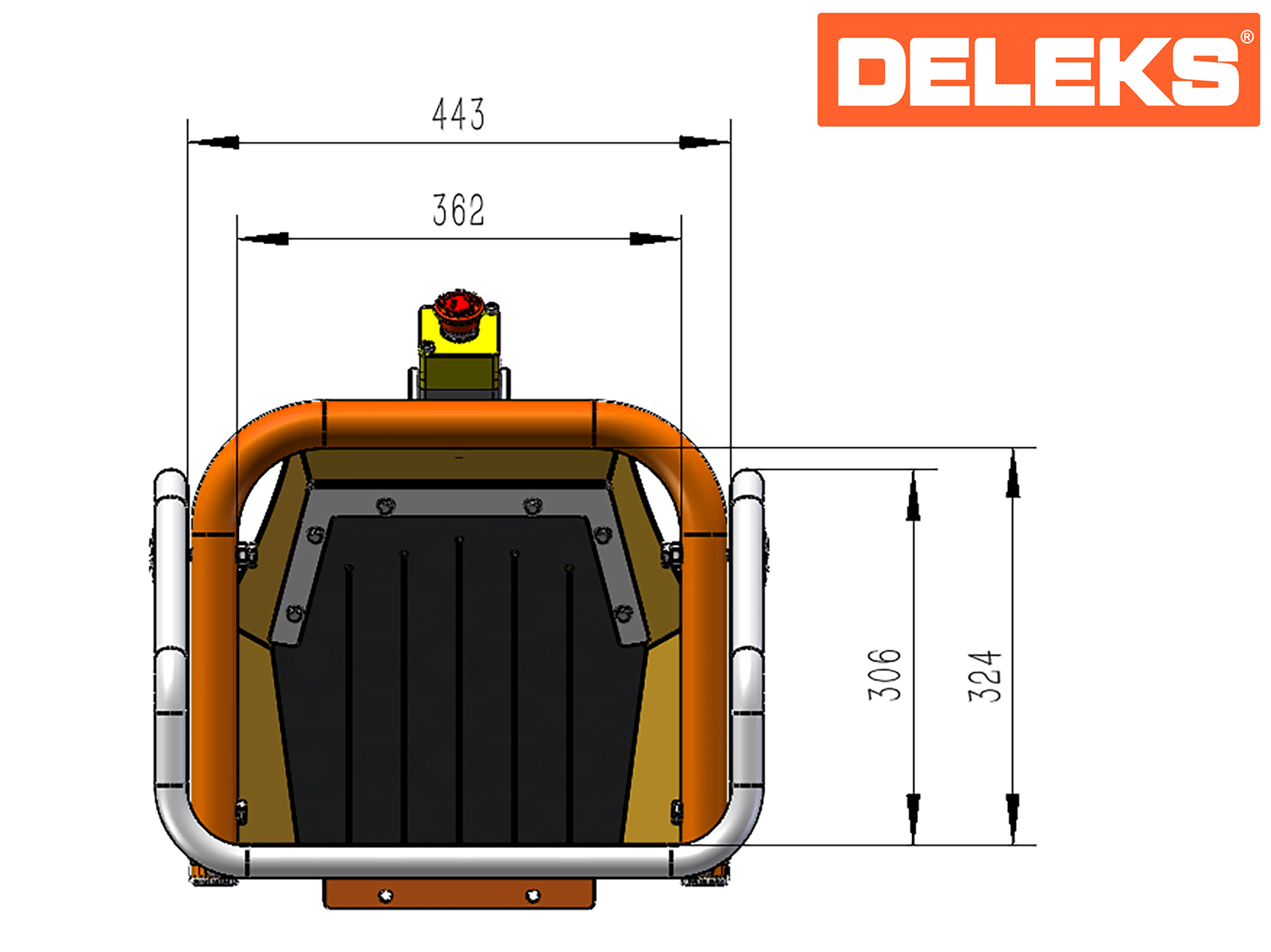

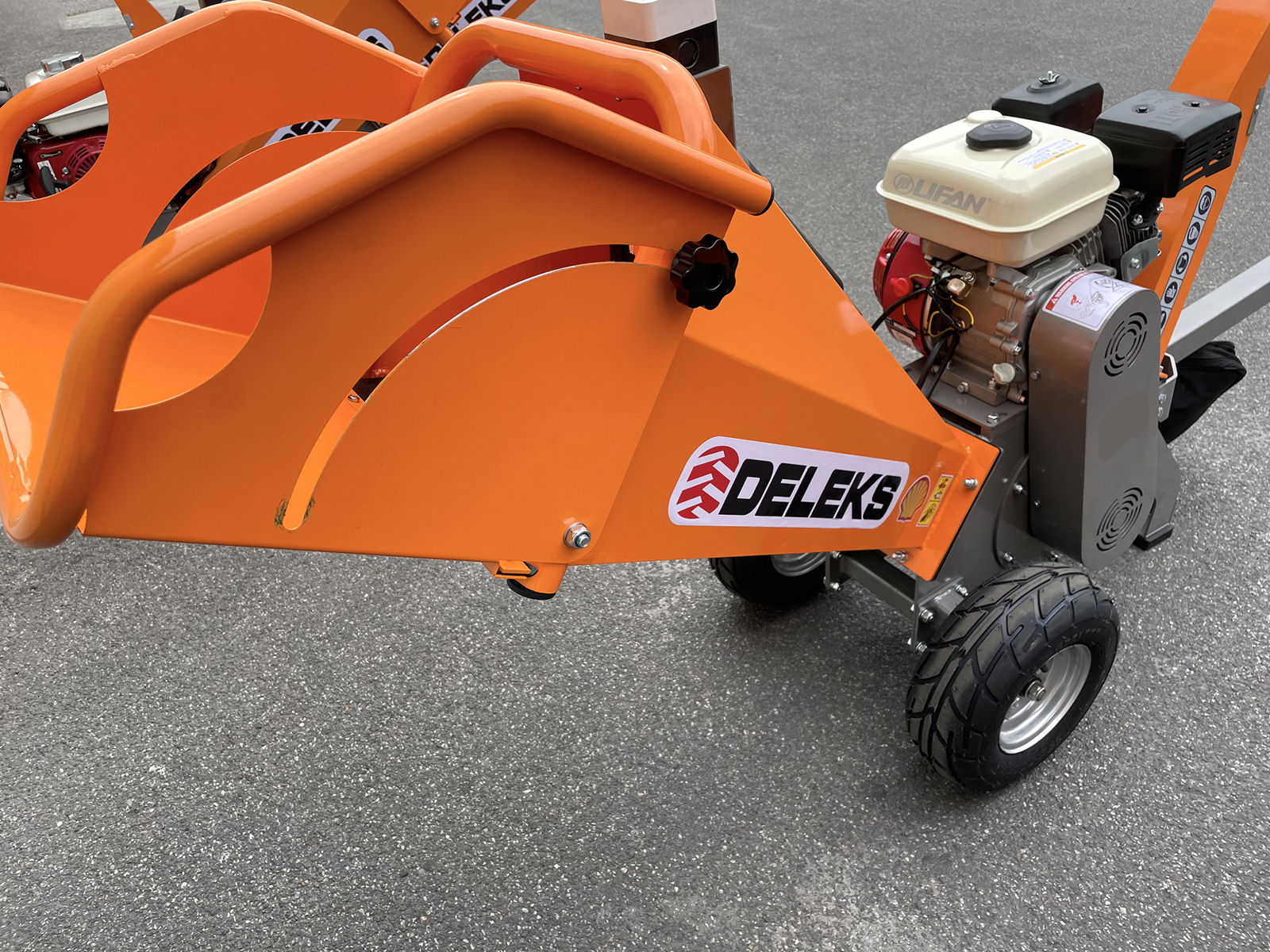

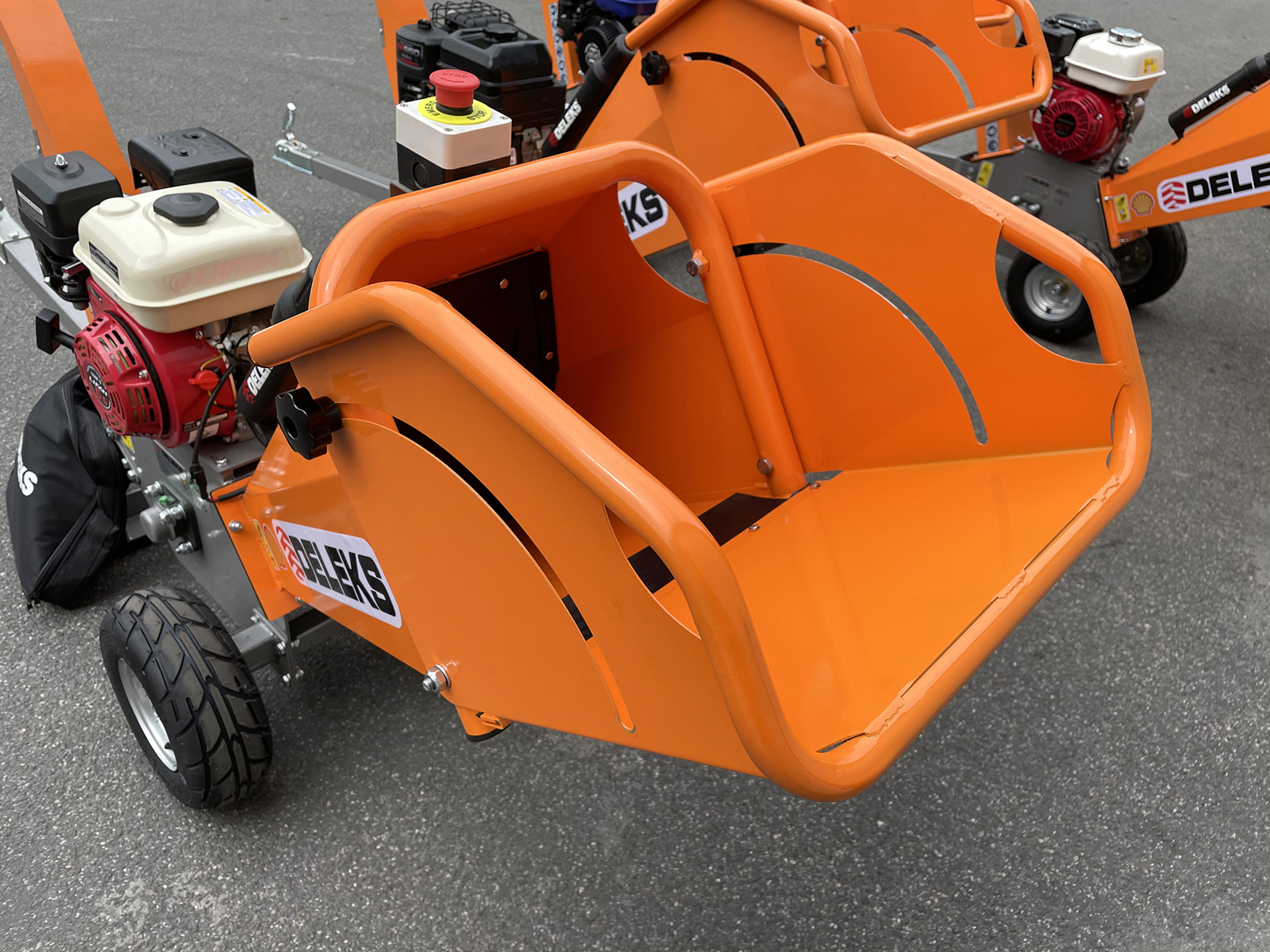

|Cutting inlet sizes||150.0*120.0 mm||5.90*4.70 in|
|Outlet hight||1050.0 mm||5.08 ft|
|Fuel consumption||0.8 l/h||0.8 l/h|
|Packing sizes||880.0*580.0*870.0 mm||2.88*1.90*2.85 ft|
