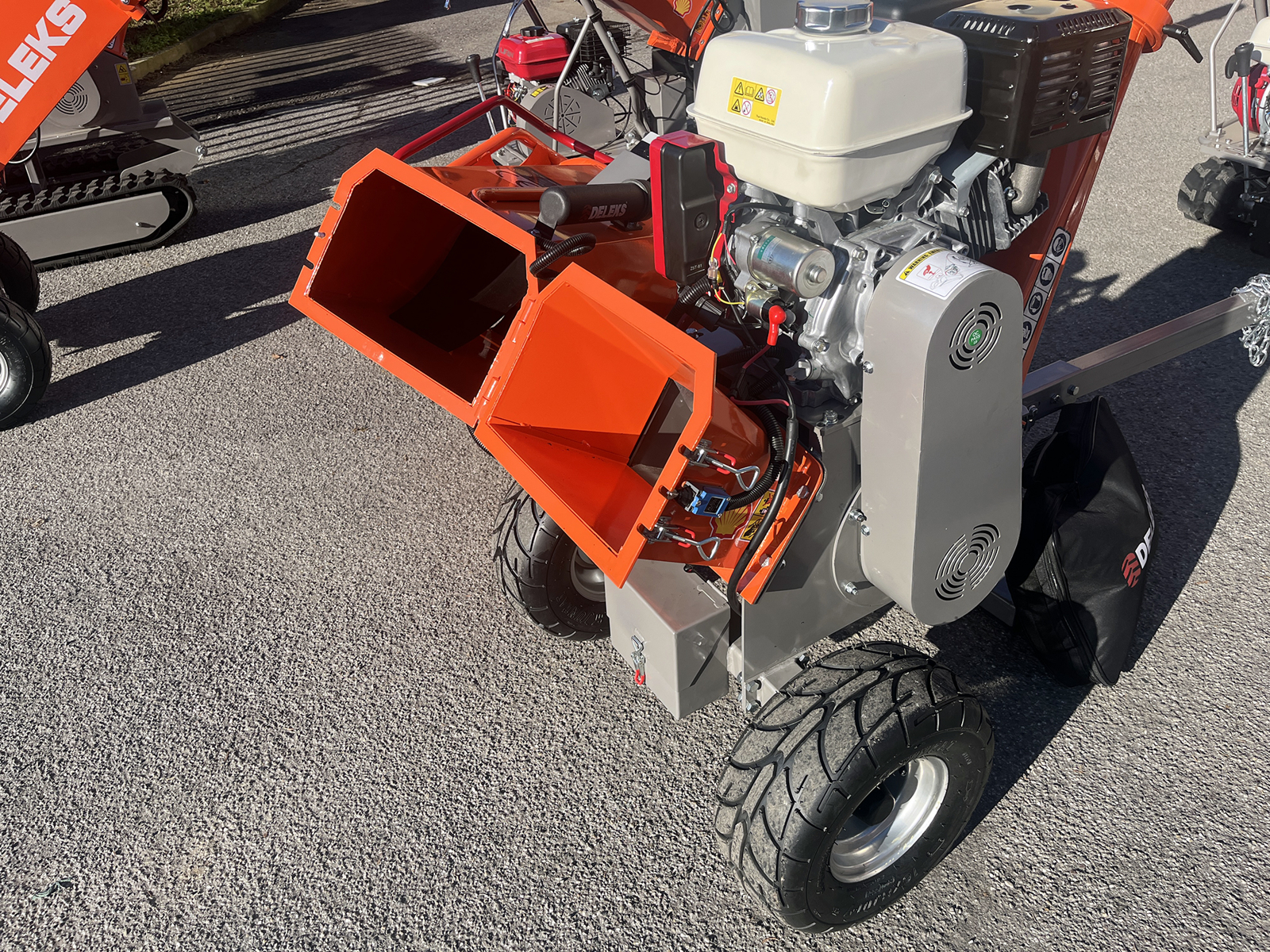

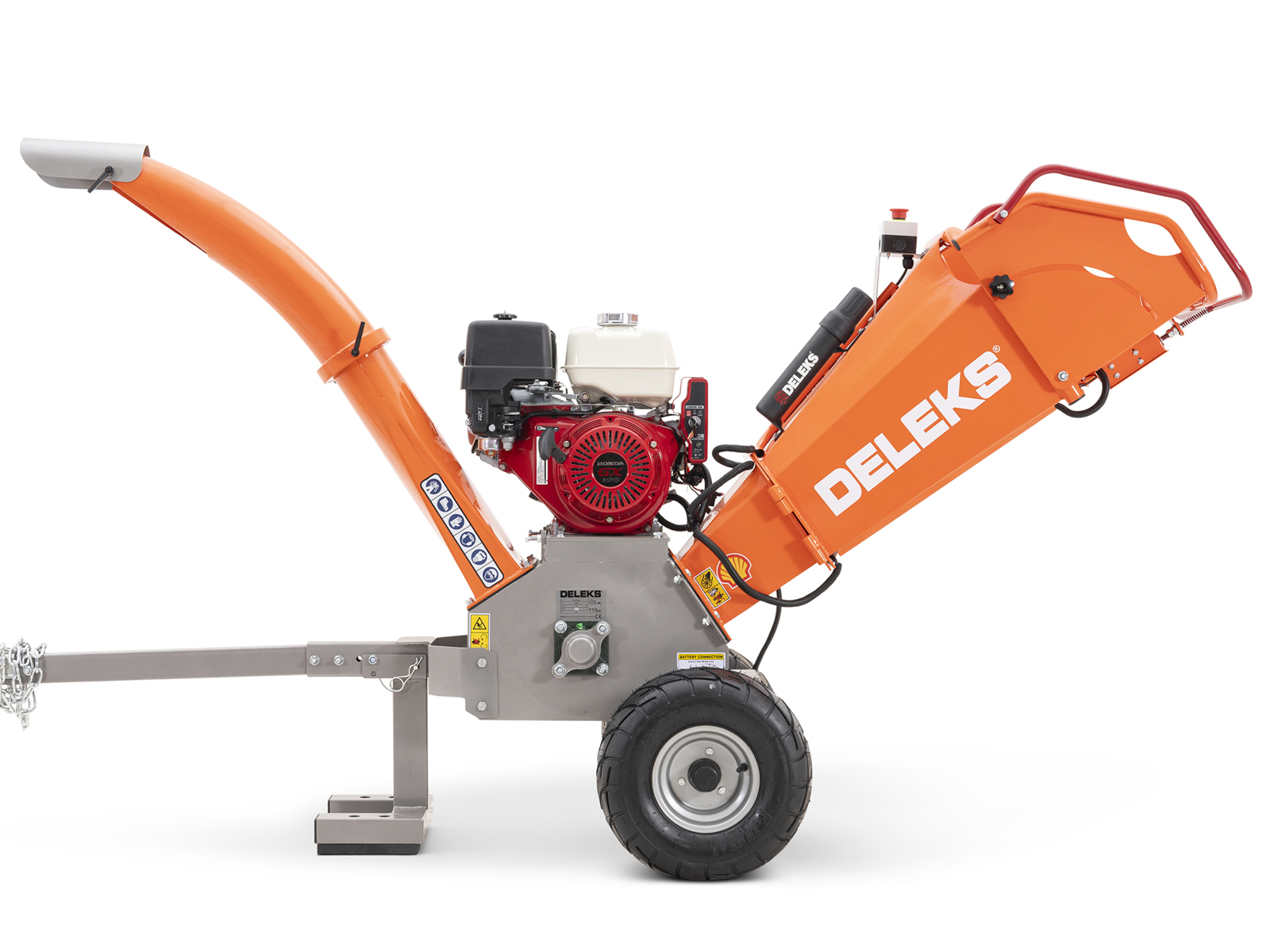

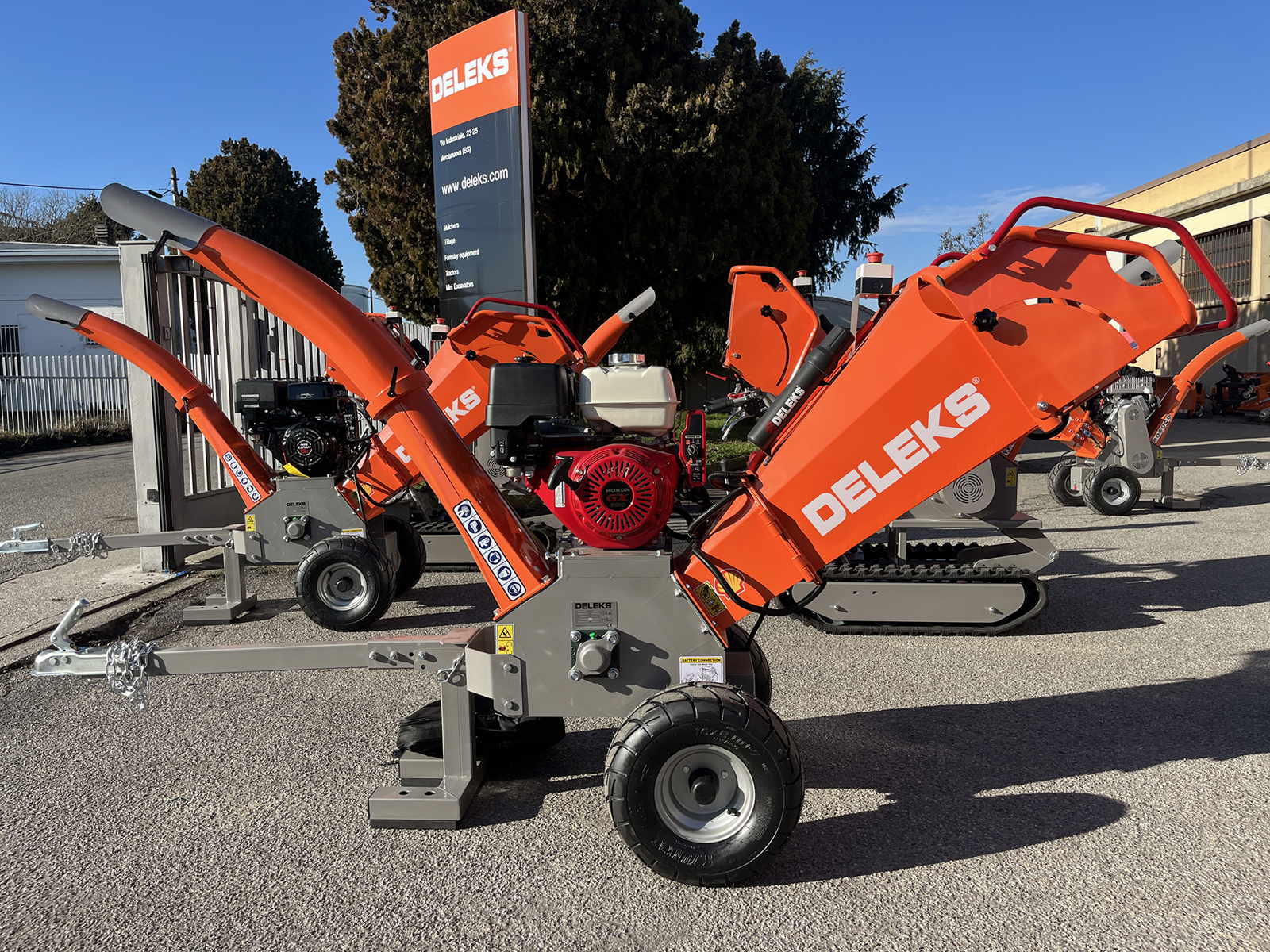

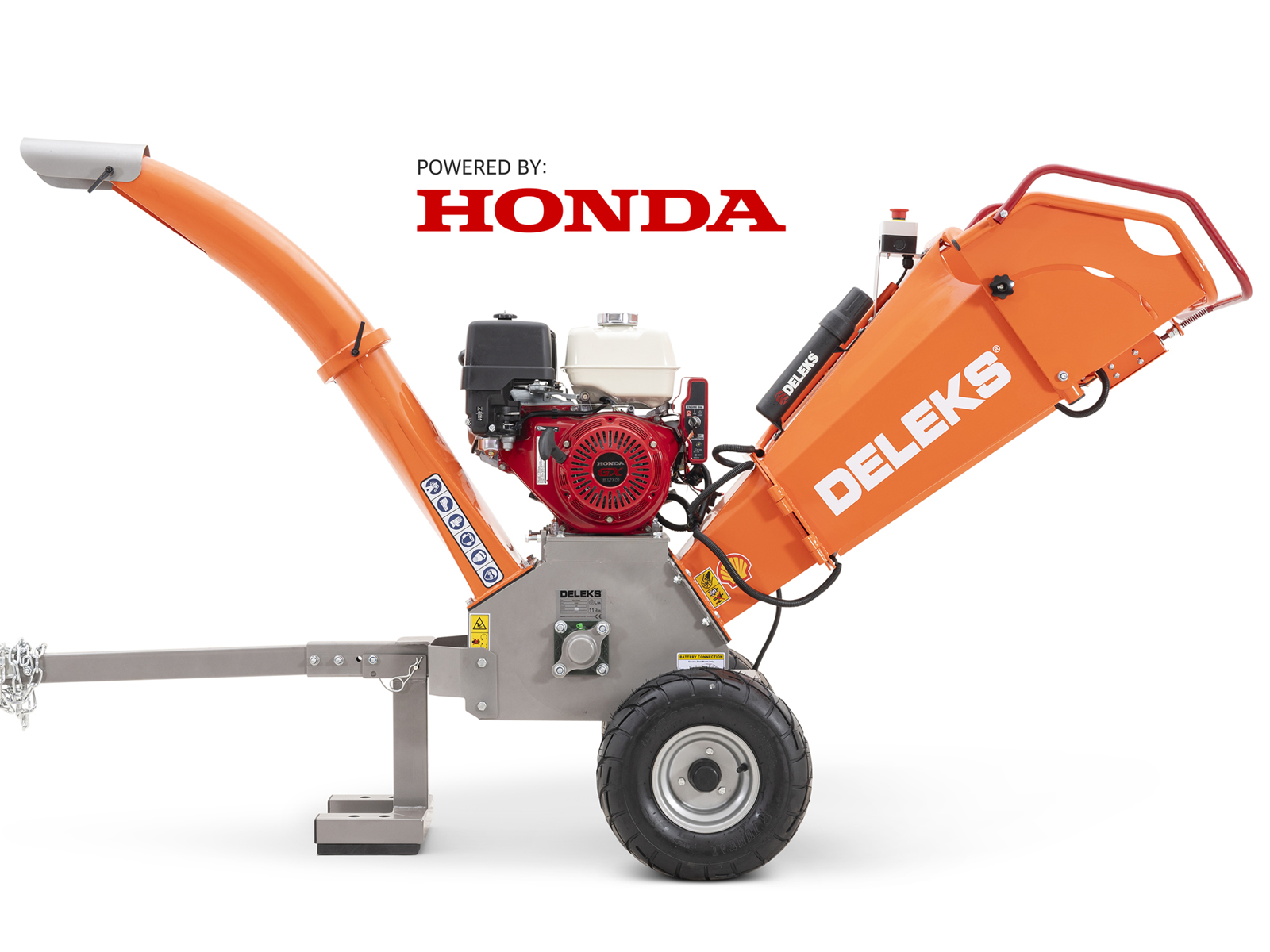

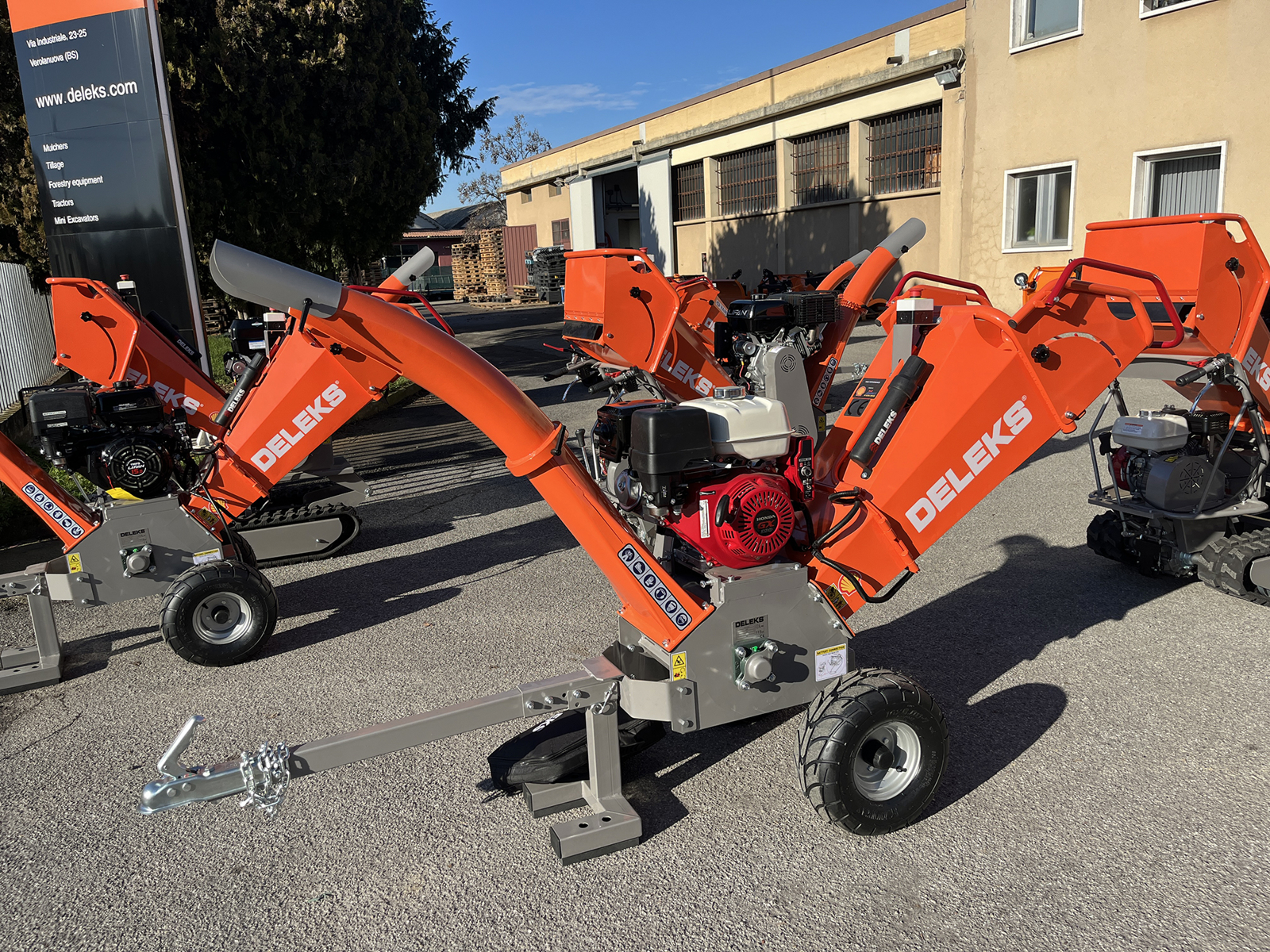

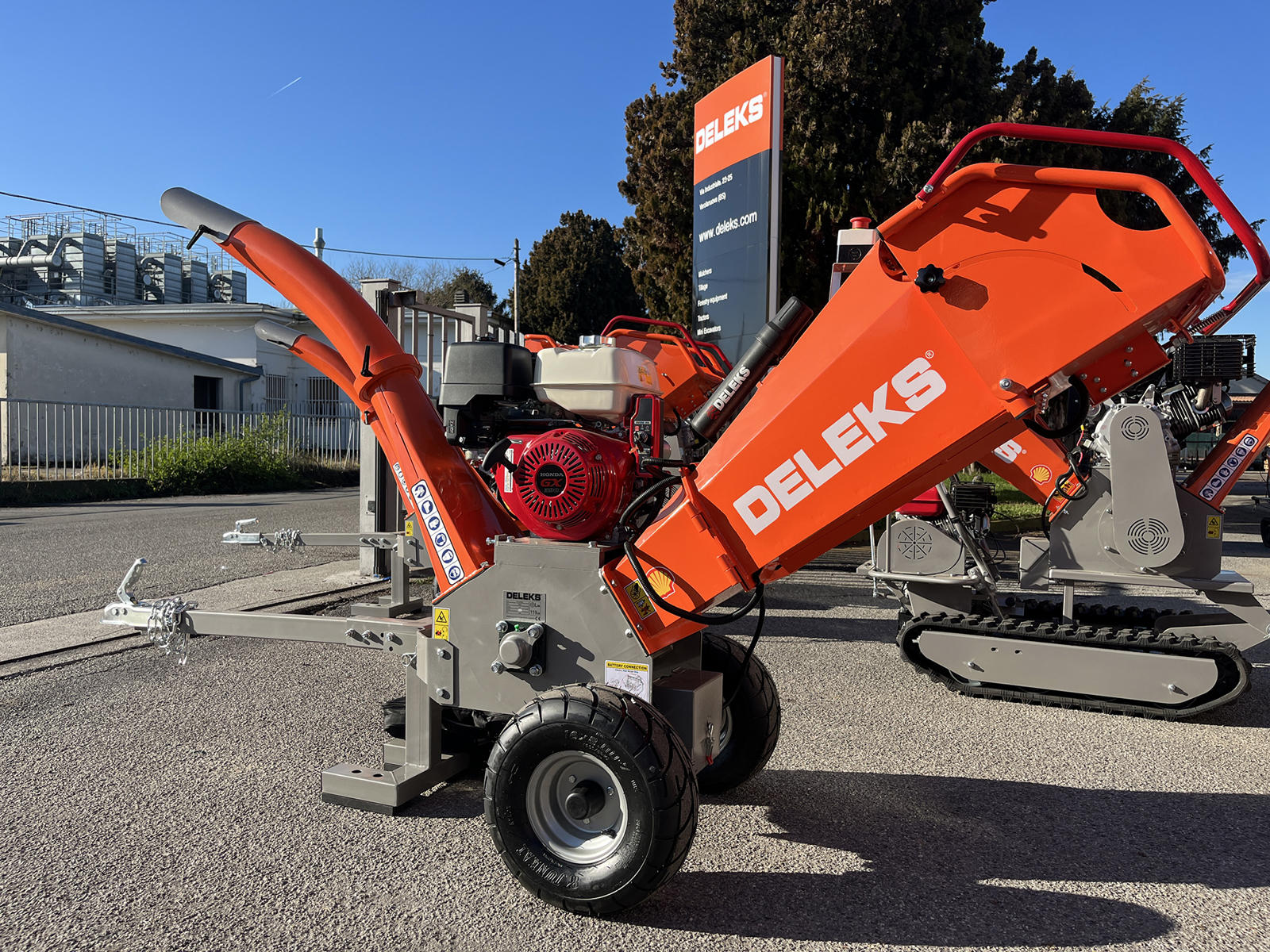

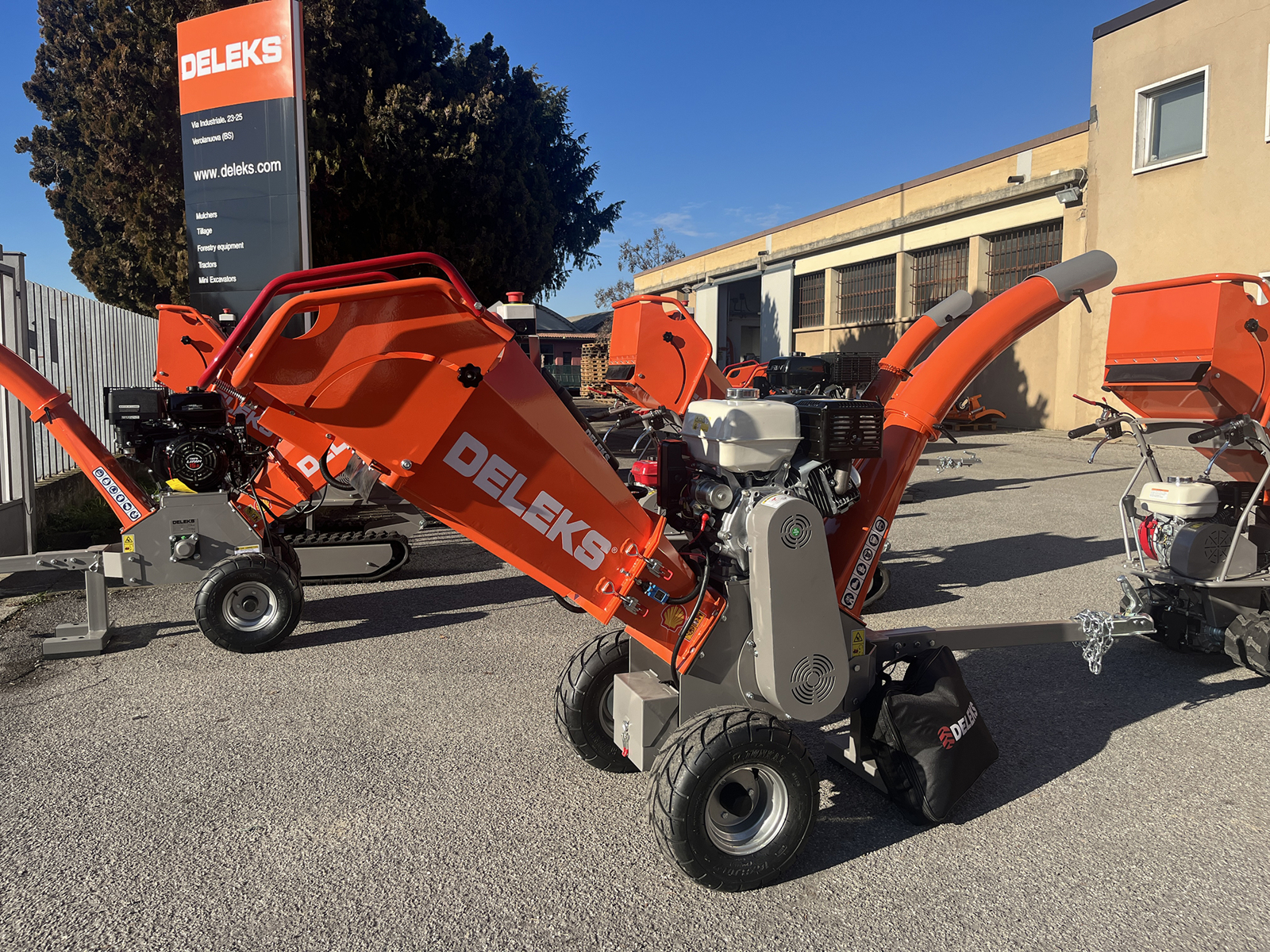

Professional DELEKS Wood Chipper with 13.5Hp, 4 stroke HONDA gasoline engine , E-Start.
This product has a Certificate of registration in the EUROPEAN UNION INTELLECTUAL PROPERTY OFFICE

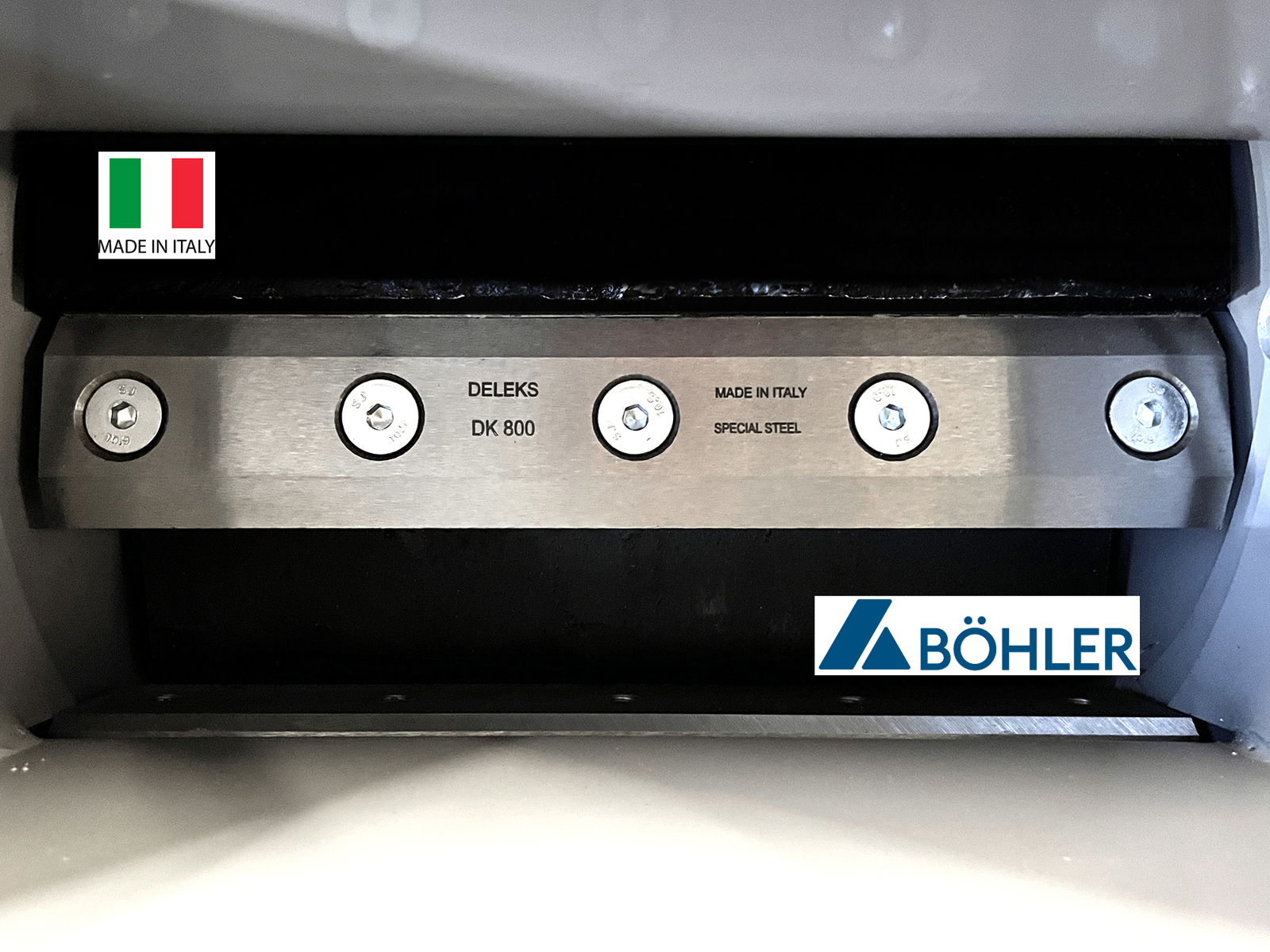

Chipping drum system shreds vegetation using 2 horizontal blades + 1 counter-fixed blade. Gasoline engine HONDA GX390 13.5 hp (3-Year warranty - Spare parts always available).
Suitable for the chipping of all types of dry and green wood, pruning residues, palm leaves, etc. Ideal for professional/contractor usage.
Maximum cutting diameter: 10cm
Chipper produces enough material to make pulp or pellets for industrial use.
Machine not suitable for shredding corn, straw, alfalfa, etc ..
CERTIFICATES - GUARANTEE - ASSISTANCE

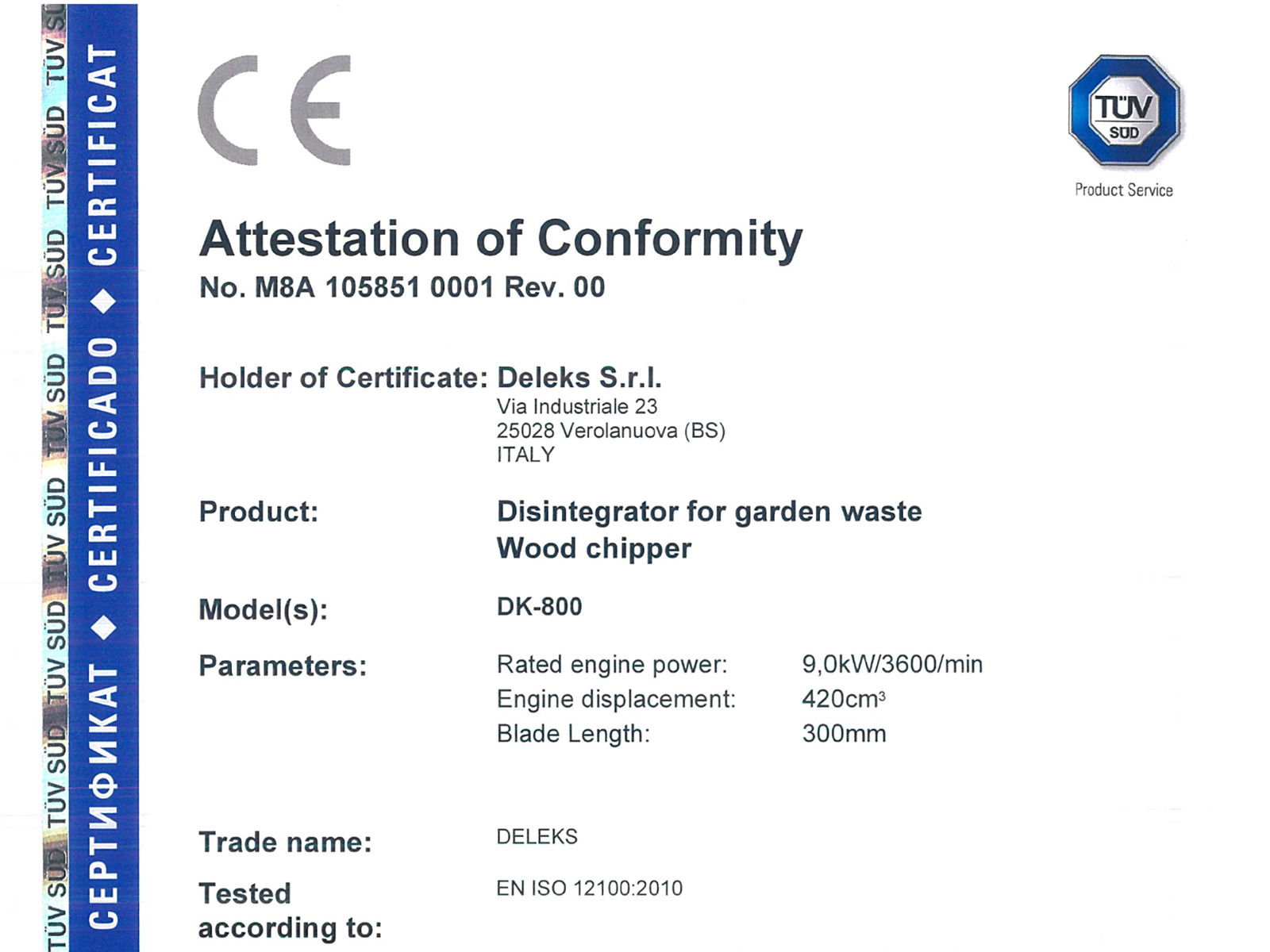

TÜV SUD certification.

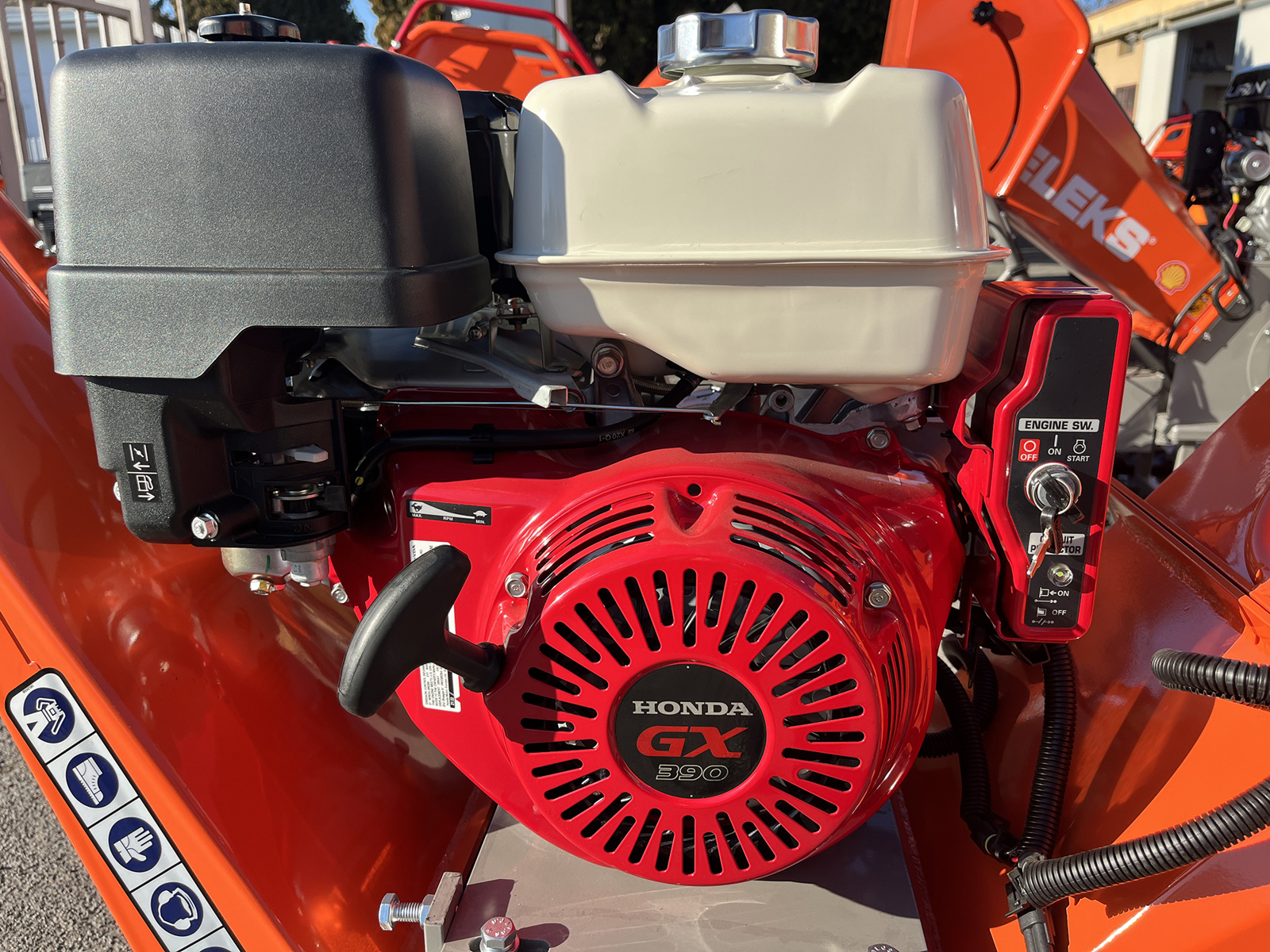

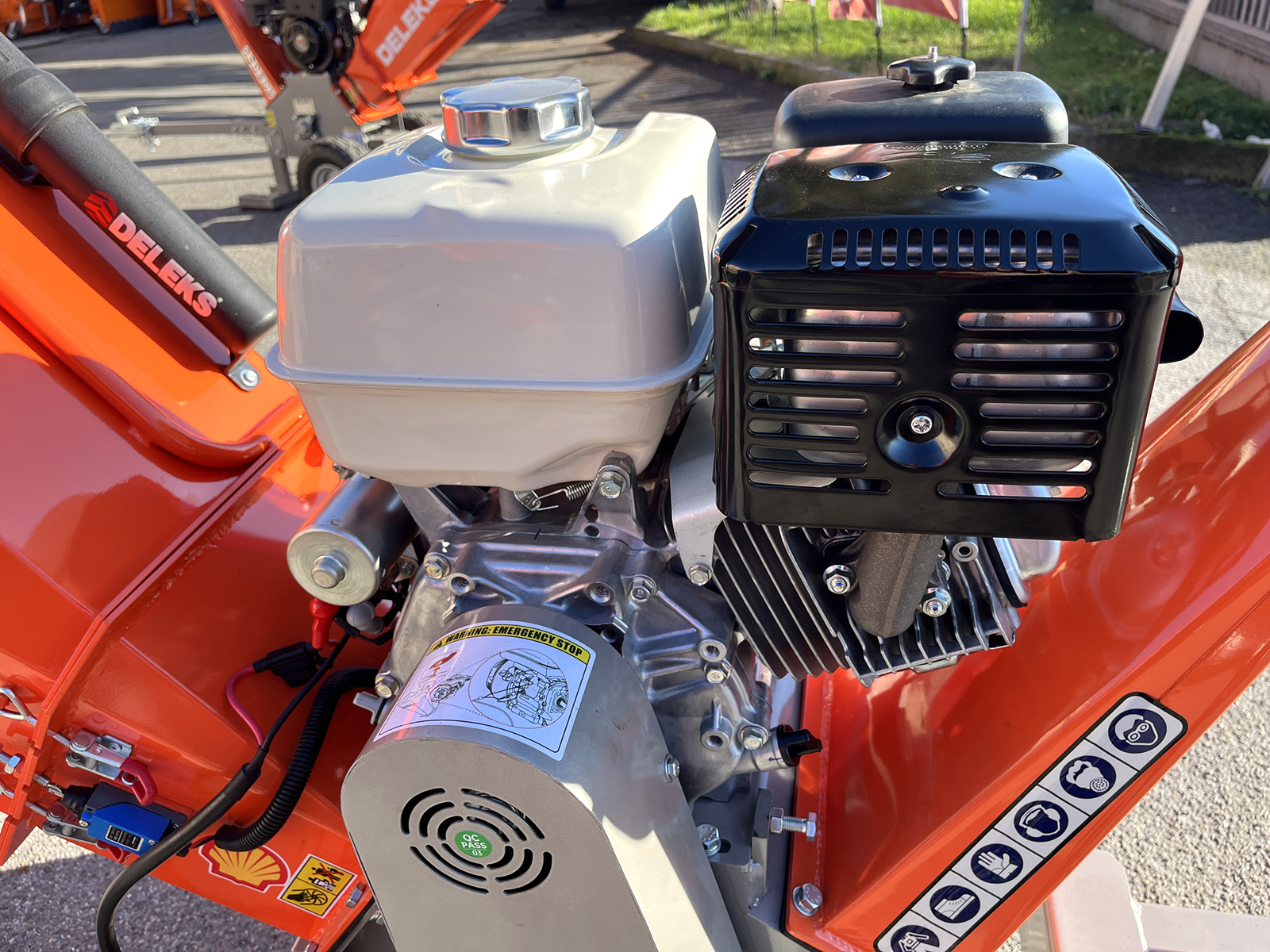

HONDA GX390 petrol engine with 3-years warranty
BENEFITS AND FEATURES

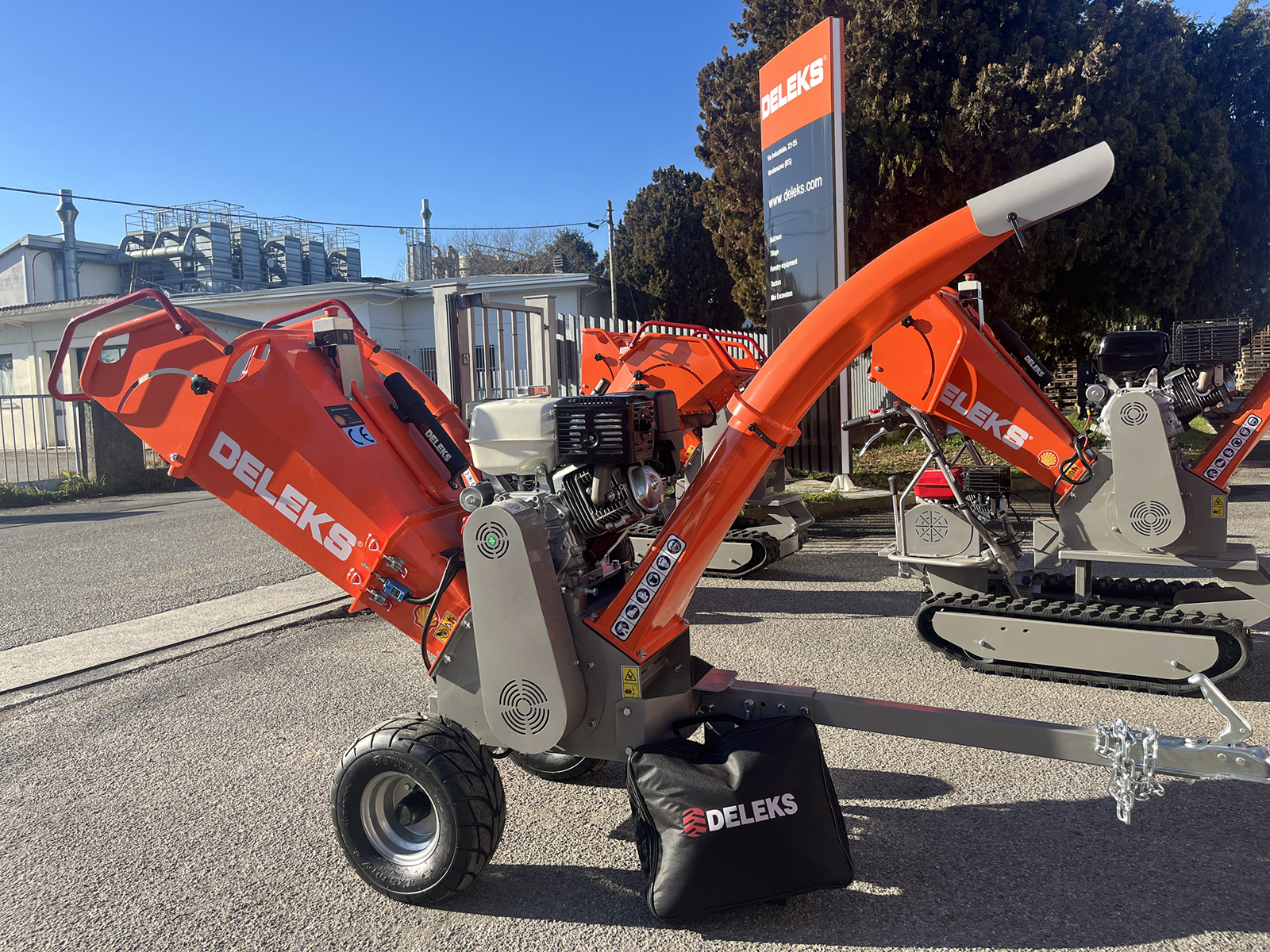

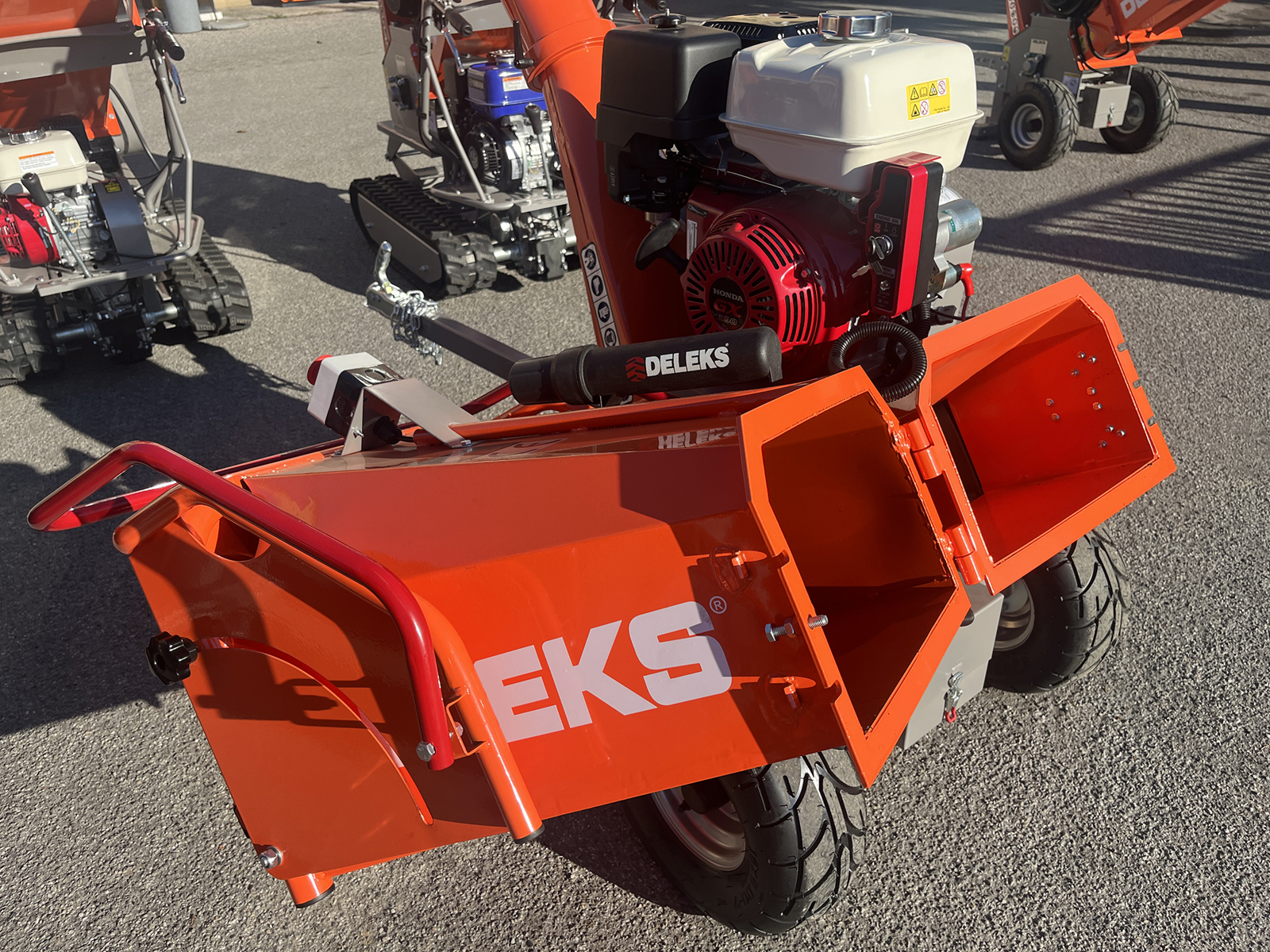

Redesigned outlet made with a thicker tubular. Its height of 160 cm allows the material to be discharged directly into compost containers or on the truck body. In a few seconds with the two butterfly levers it is possible to adjust the direction or remove it.

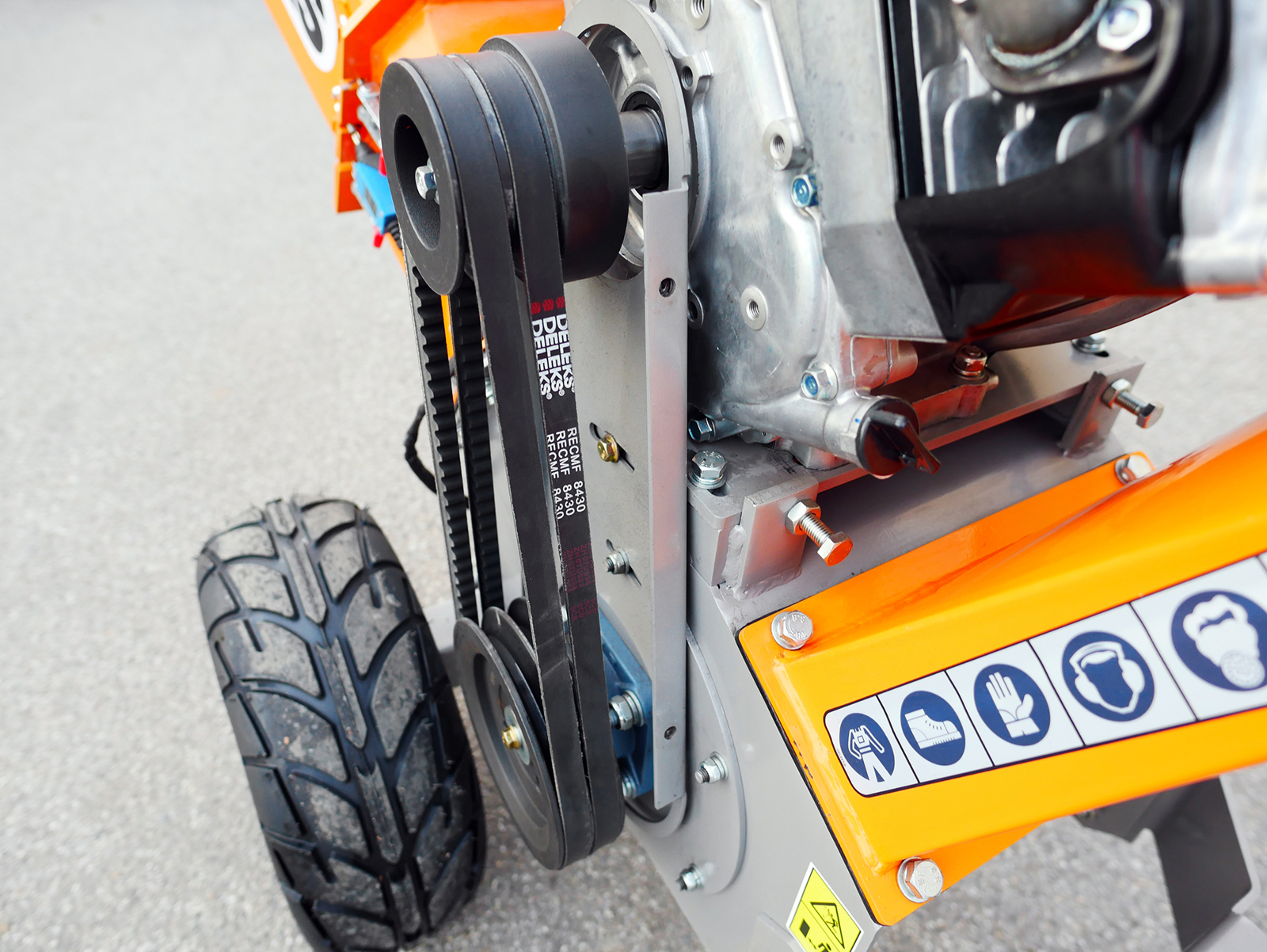

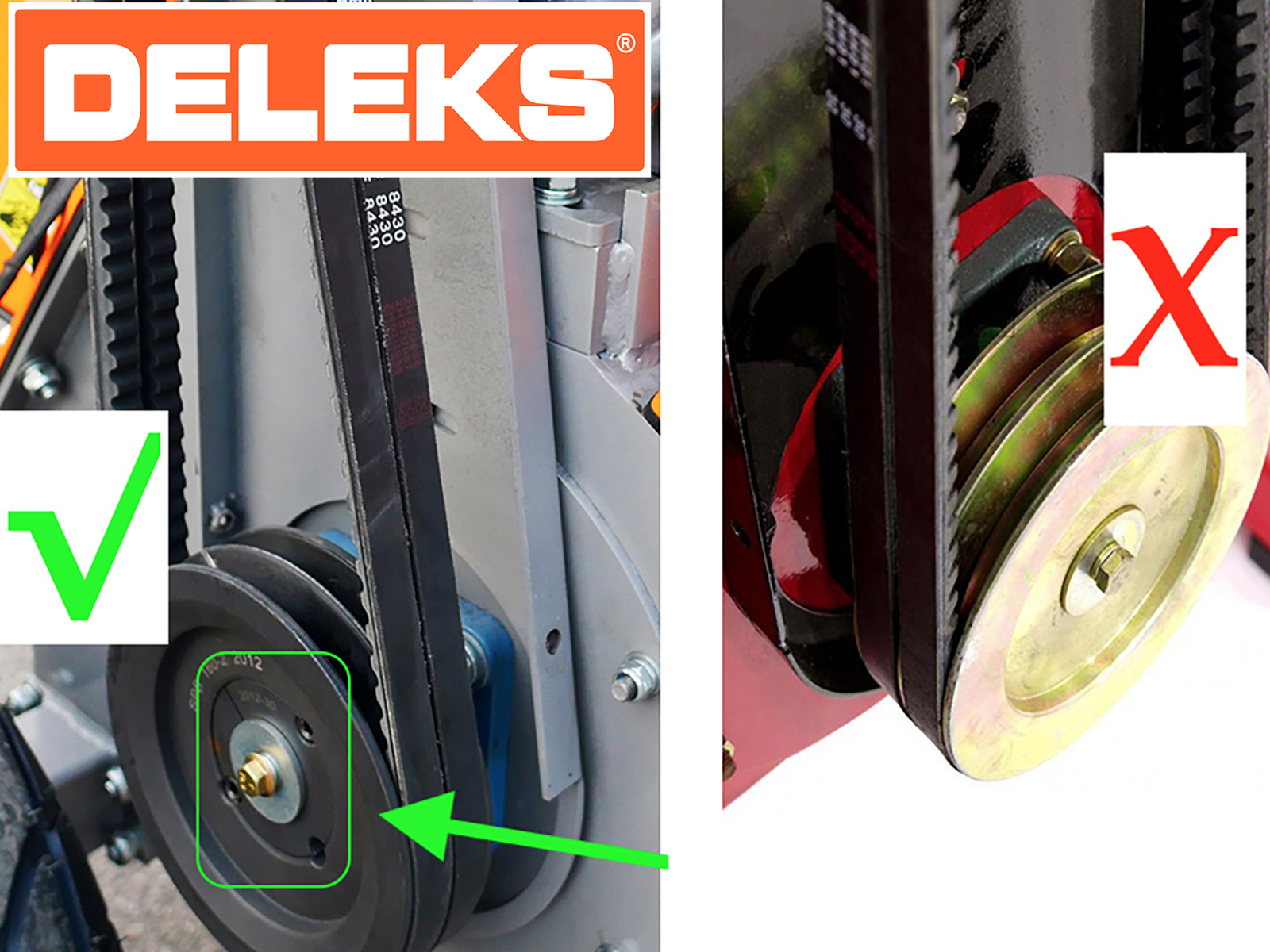

TAPER BUSHING: Unlike other brands, Deleks mounts a conical bushing between the pulley and the horizontal shaft of the drum on its chipper. This guarantees a perfect coupling between the parts of the transmission and to safeguard the life of the machine over the years, avoiding the erosion and ovalization of the transmission shaft.
The Anti-shock clutch avoids direct motion between the motor and drum, thus facilitates the cold start and in case of jamming or introduction of foreign objects, prevents the crankshaft from damage.
Gasoline engine, air-cooled 4-stroke;.

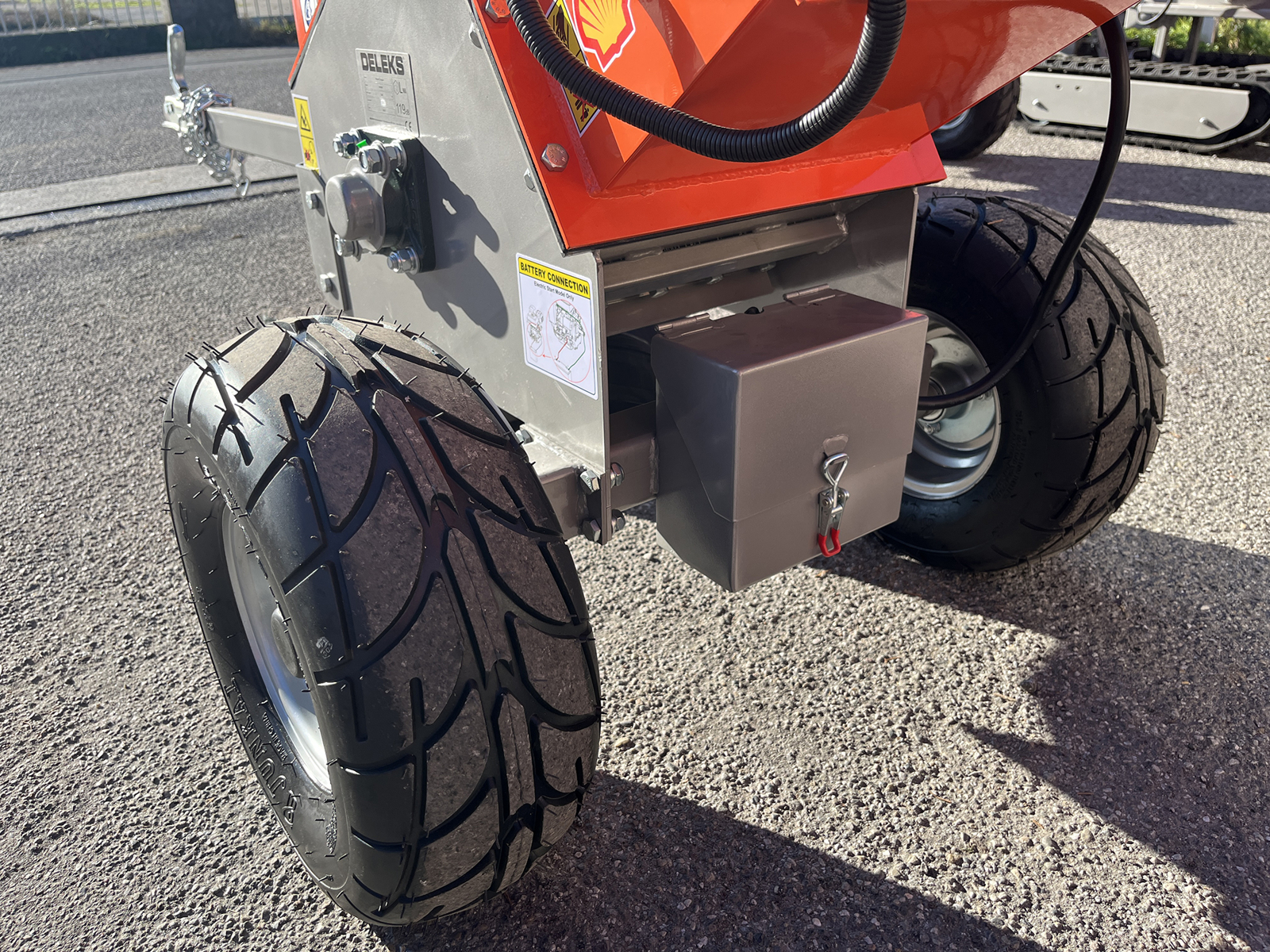

Excellent maneuverability thanks to the wheels 41cm in diameter, 16cm step;.
Solid structure (200kg) and stable with a low center of gravity.
Headphones and goggles.

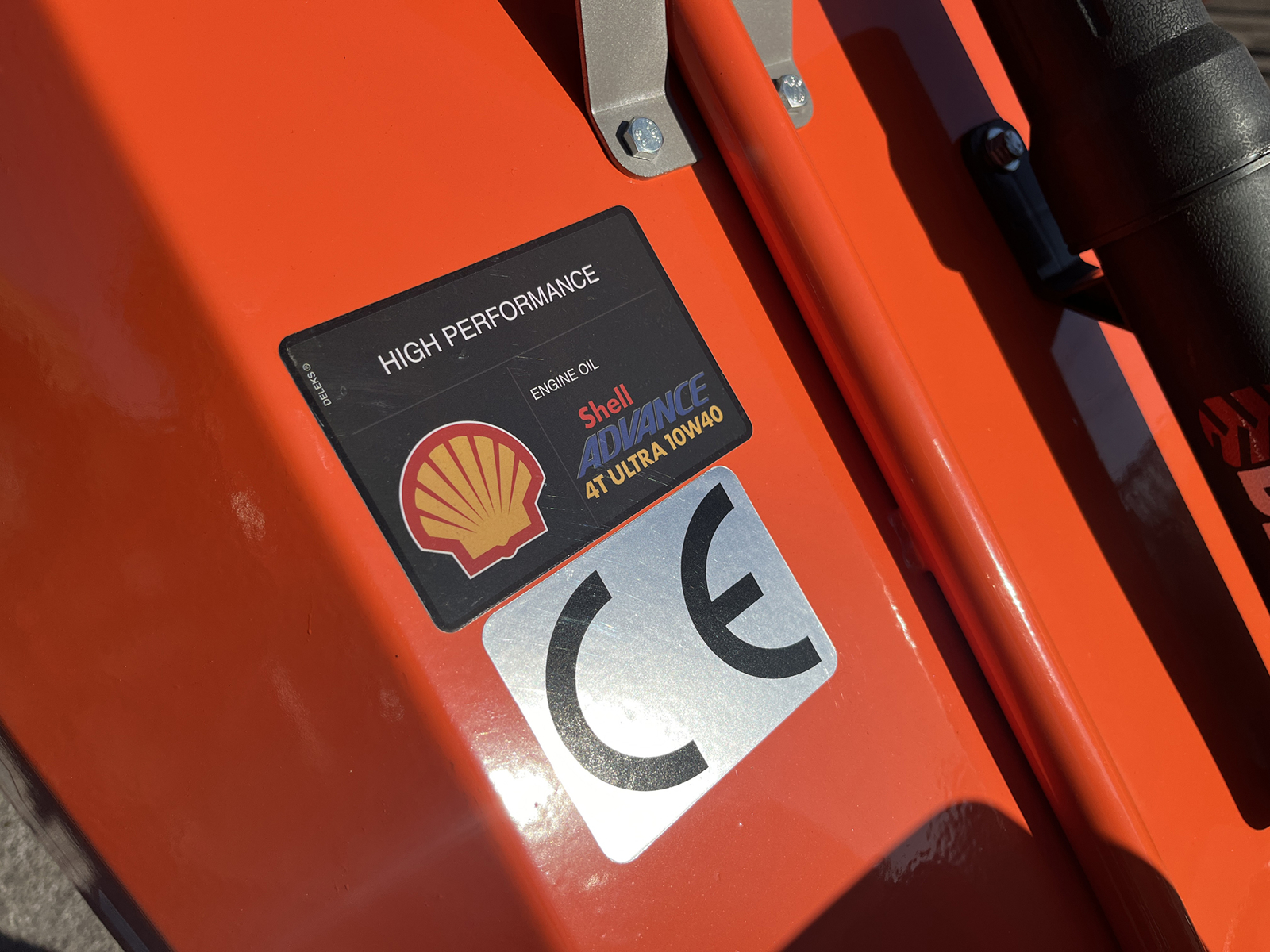

Conforms to the CE directive.

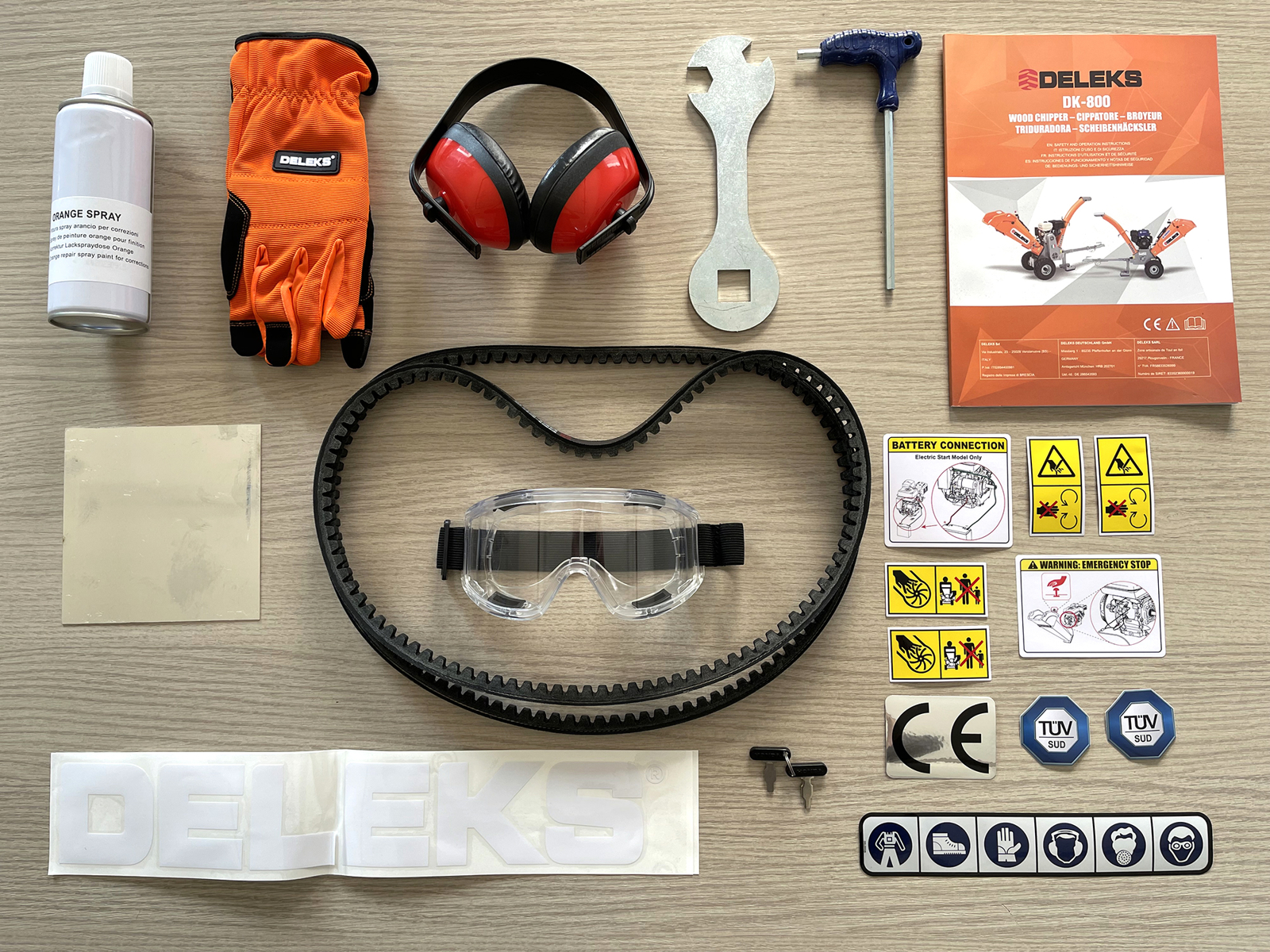

Pair of spare blades
Spare counter knife
Set of 2 replacement transmission belts
CE protection caps
CE protective glasses
Use and maintenance manual for the machine
Use and maintenance manual for the HONDA GX390 engine
Orange Spray Paint
Complete set of replacement stickers
Set wrenches for maintenance
Documentation supplied with this article:
Invoice or Receipt

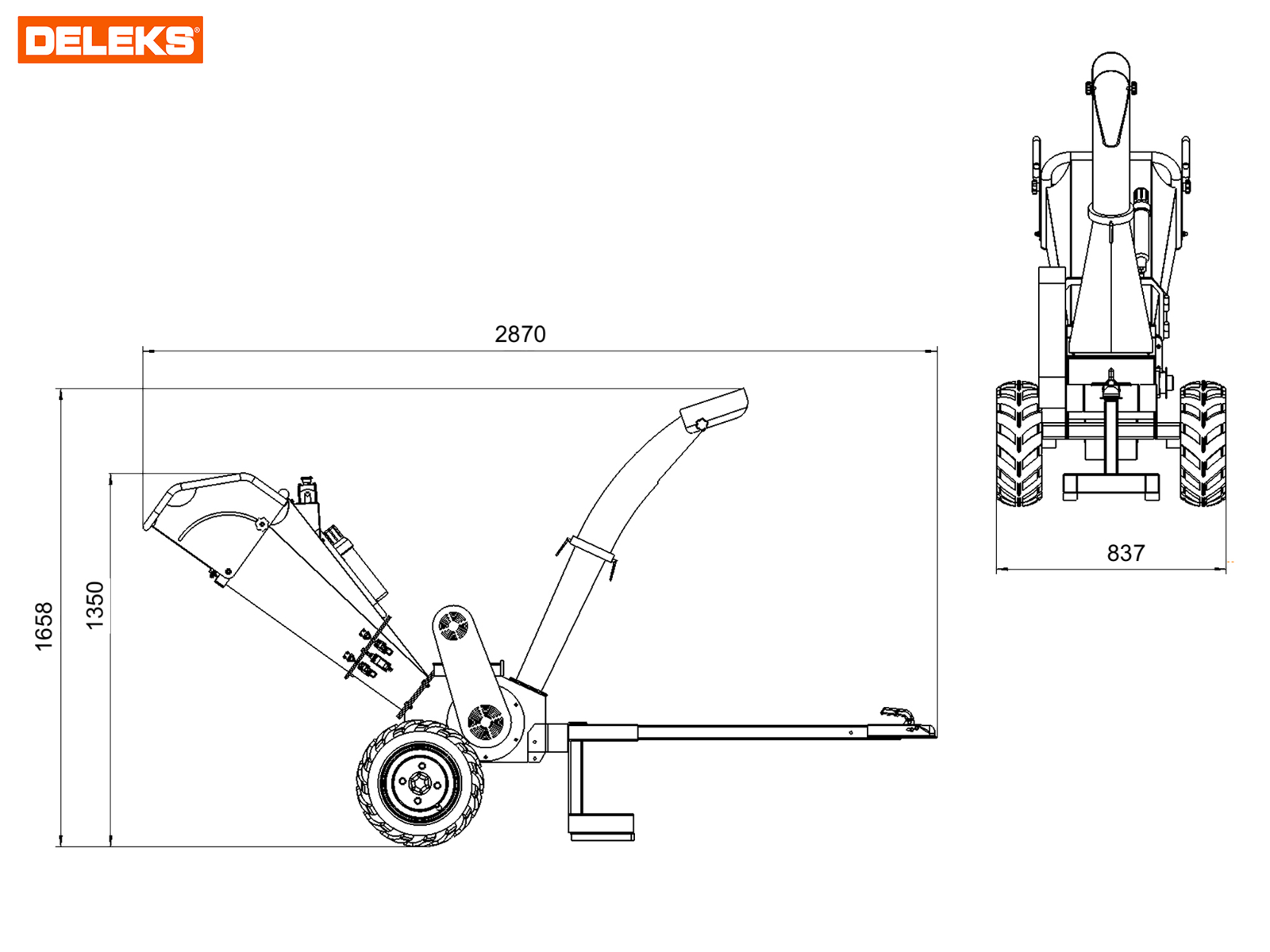

|Characteristic||Units metric||Units US|
|Overall width||800.0 mm||2.60 ft|
|Weight||200.0 kg||440.0 lb|
|Overall height||1630.0 mm||5.35 ft|
|Overall length||2240.0 mm||7.35 ft|
|Blades: Weight||600.0 g||21.16 oz|
|Transmission||V Belts||V Belts|
|Working Efficiency||6-7 m3/h||19.70-23.0 sq ft/h|
|Cutting System||Chipping drum with 2 blades + 1 fixed blade||Chipping drum with 2 blades + 1 fixed blade|
|Chipped material size range||5.0 - 15.0 mm||0.20 - 0.60 in|
|Transmission V-Belts quantity||2||2|
|Transmission V-Belts sizes||17x1041||17x1041|

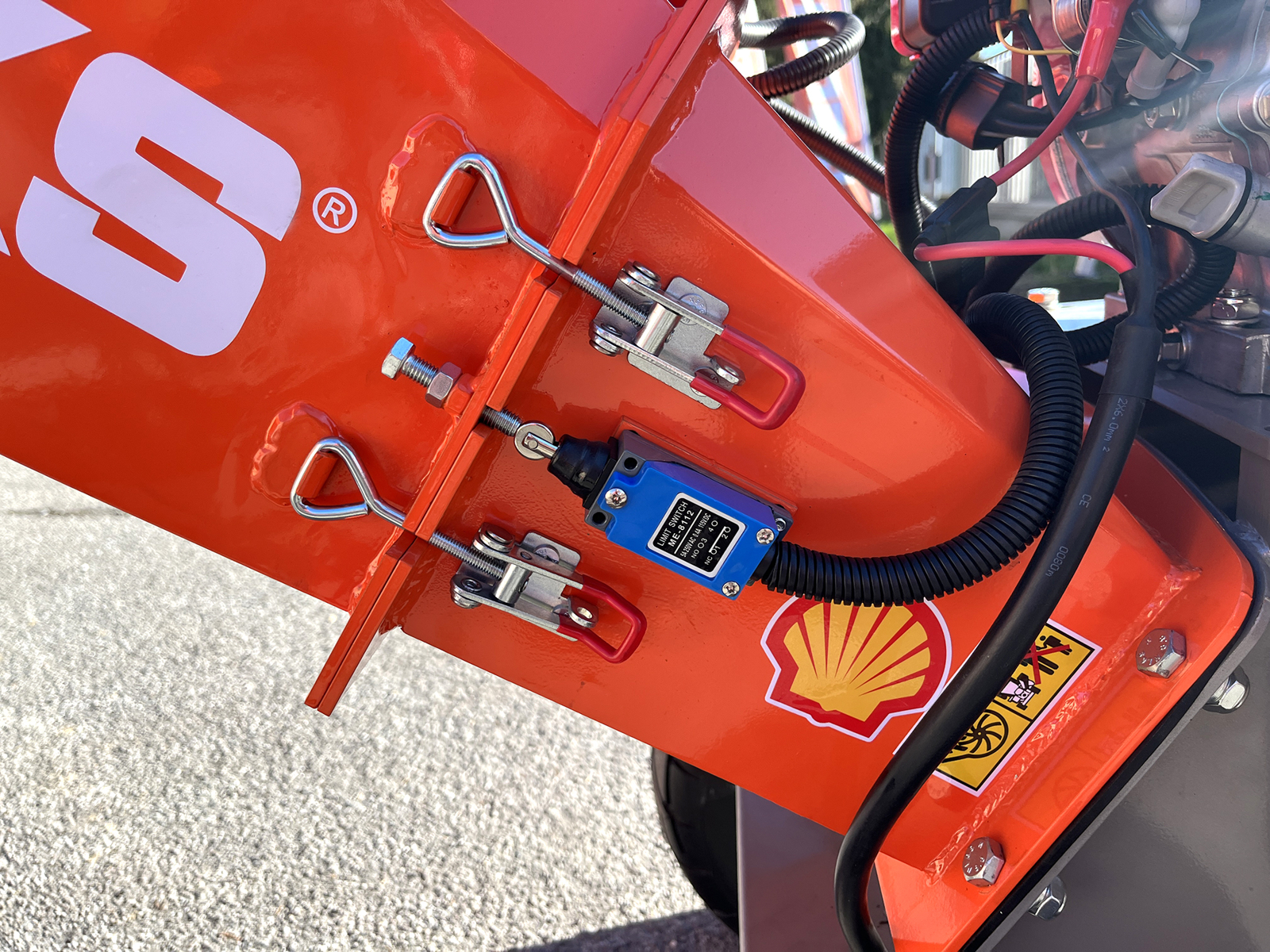

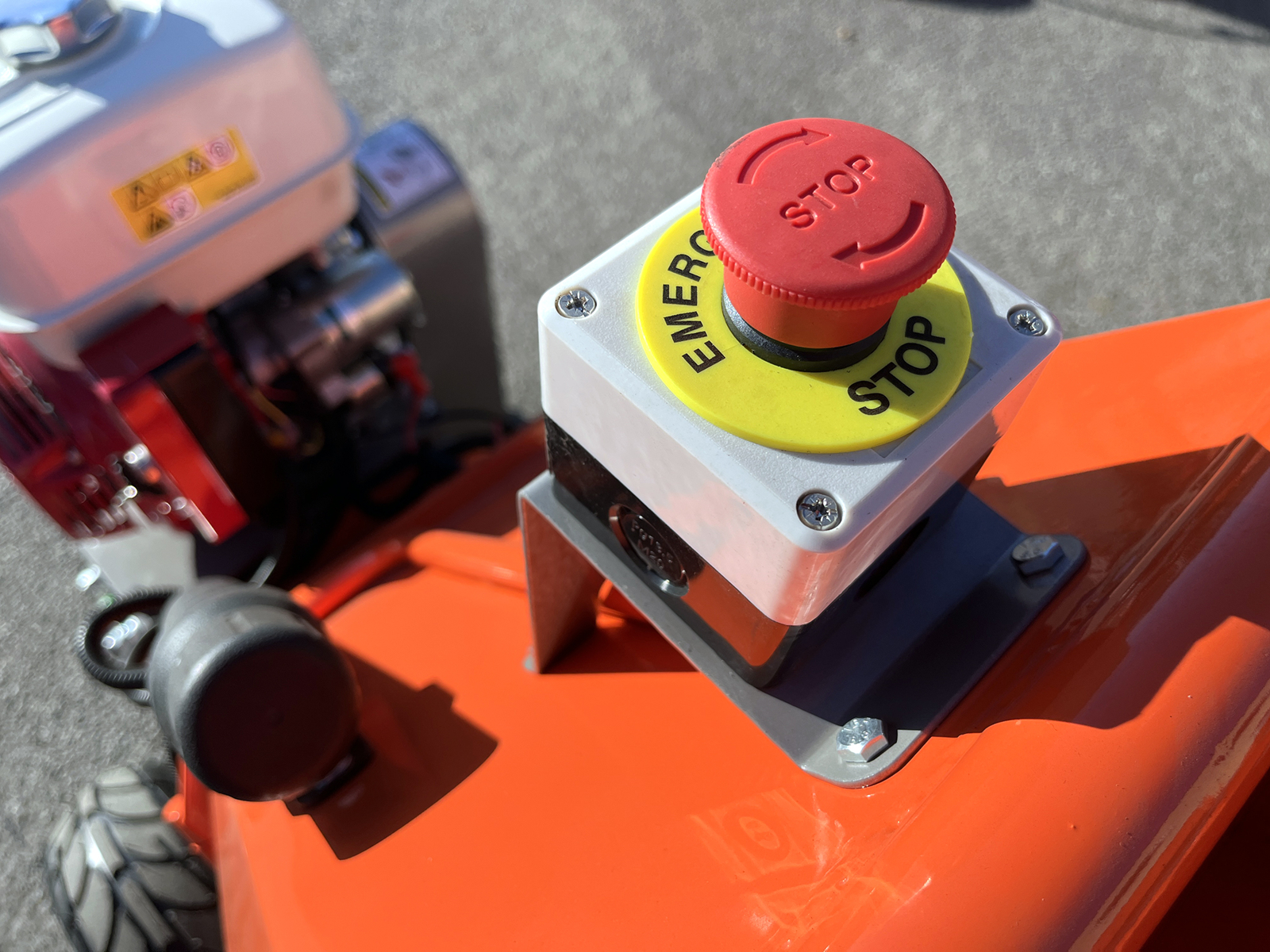

|Safety System||Emergency button||Emergency button|
|Blades: Sizes||300.0*55.0 mm||11.81*2.16 in|
|Outlet Tube Sizes||ø 130.0 mm / 360°||ø 5.12 in / 360°|
|Maximum cutting diameter||80.0 - 100.0 mm||4.00 in|
|Engine||13.5Hp HONDA GX-390||13.5Hp HONDA GX-390|

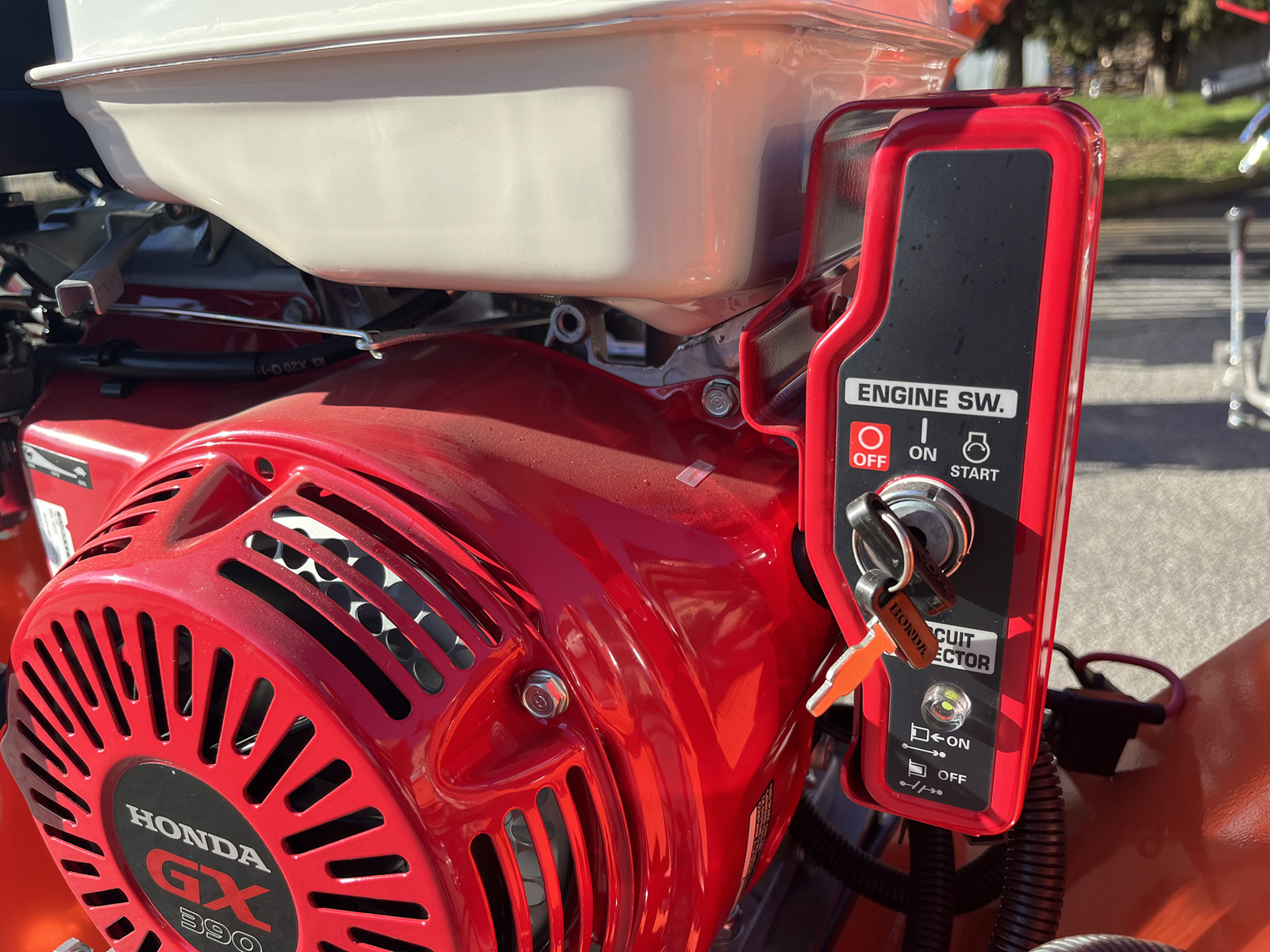

|Starter||E-start and Pull cord||E-start and Pull cord|
|Wheels: sizes||16" x 410.0 mm||16"*5.5 in|

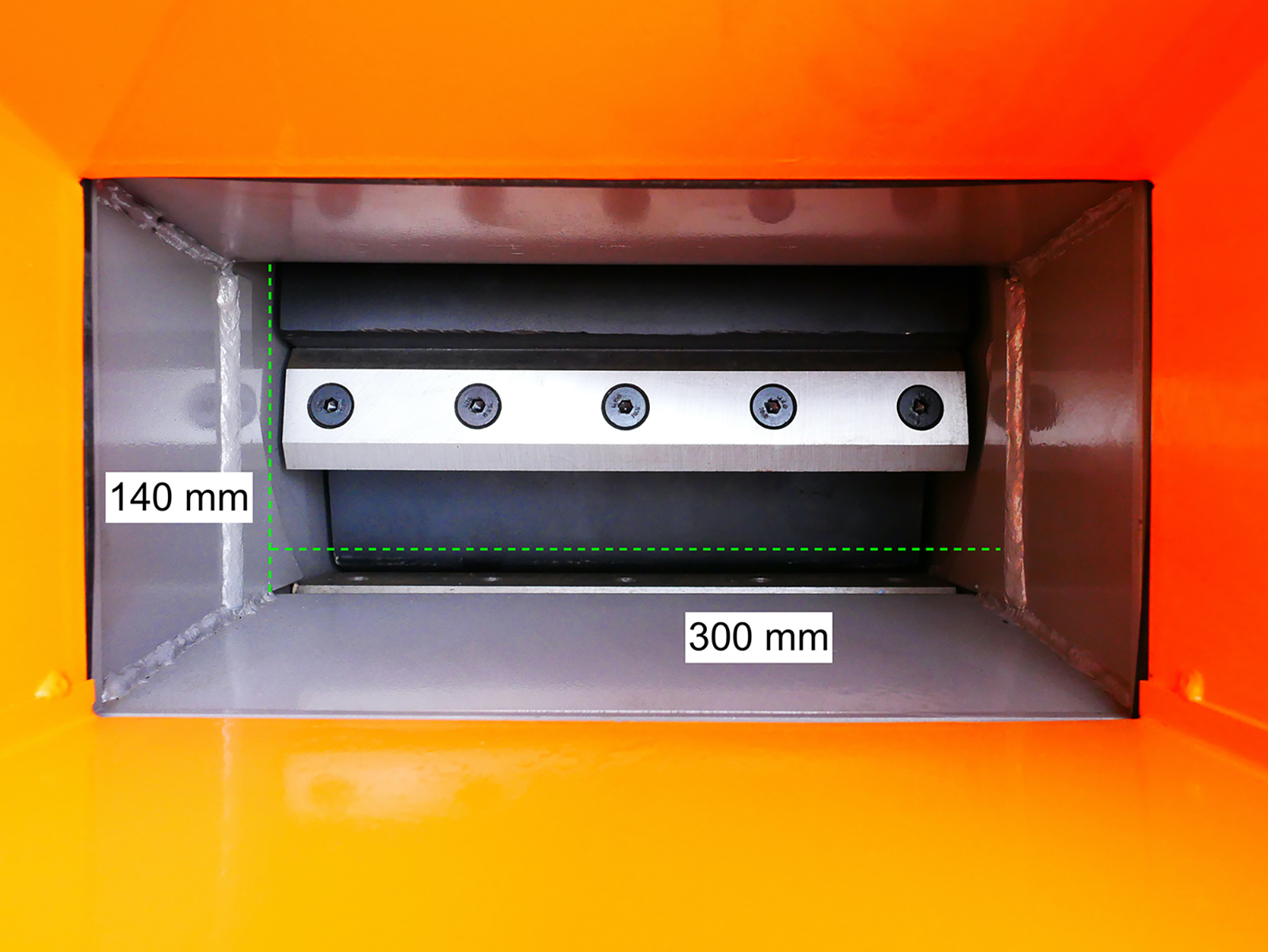

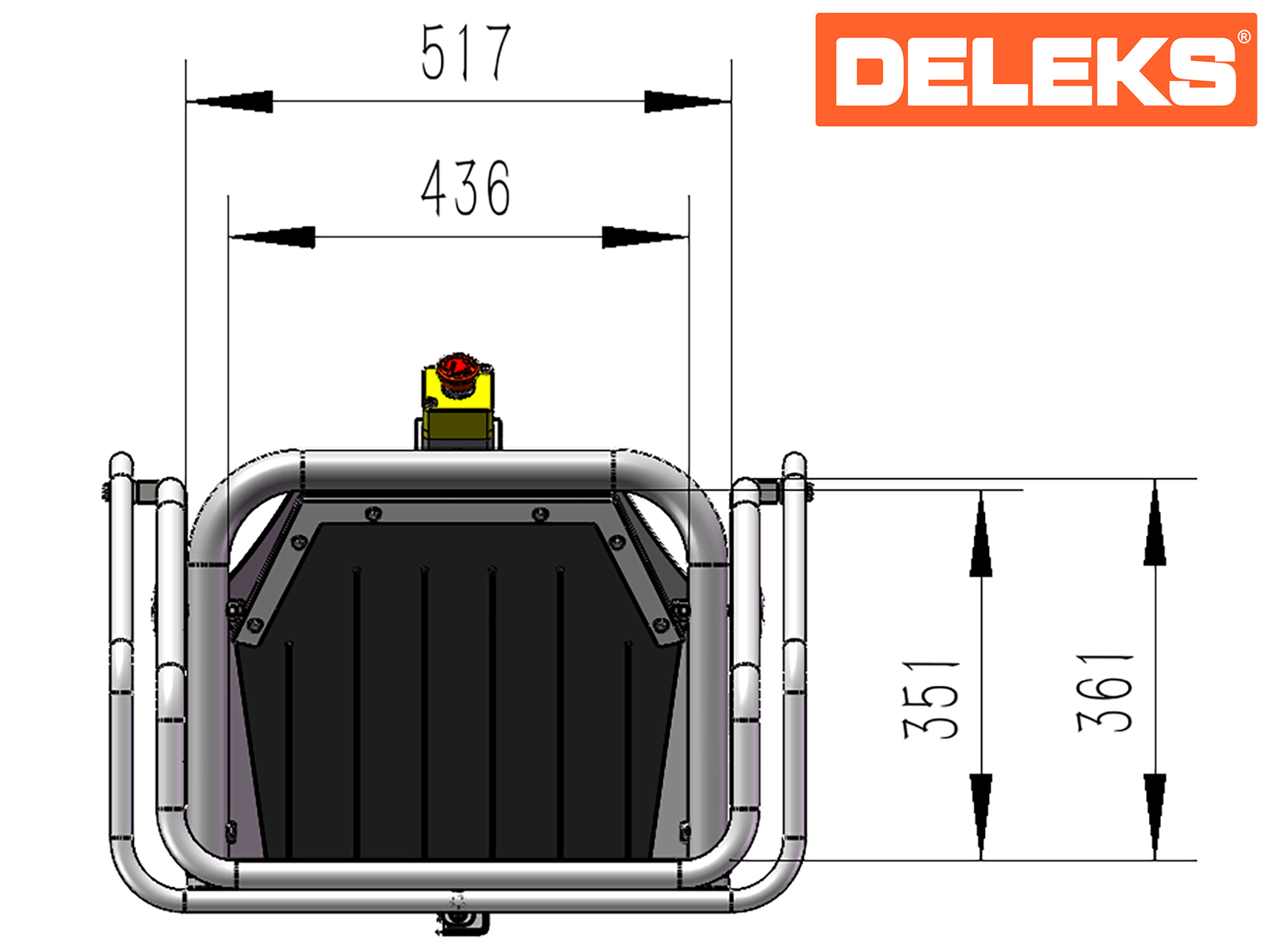

|Cutting inlet sizes||300.0*140.0 mm||11.81*5.50 in|
|Outlet hight||1600.0 mm||5.25 ft|
|Fuel consumption||1 l/h||1 l/h|
|Packing sizes||900.0*760.0*1000.0 mm||2.95*2.50*3.28 ft|
