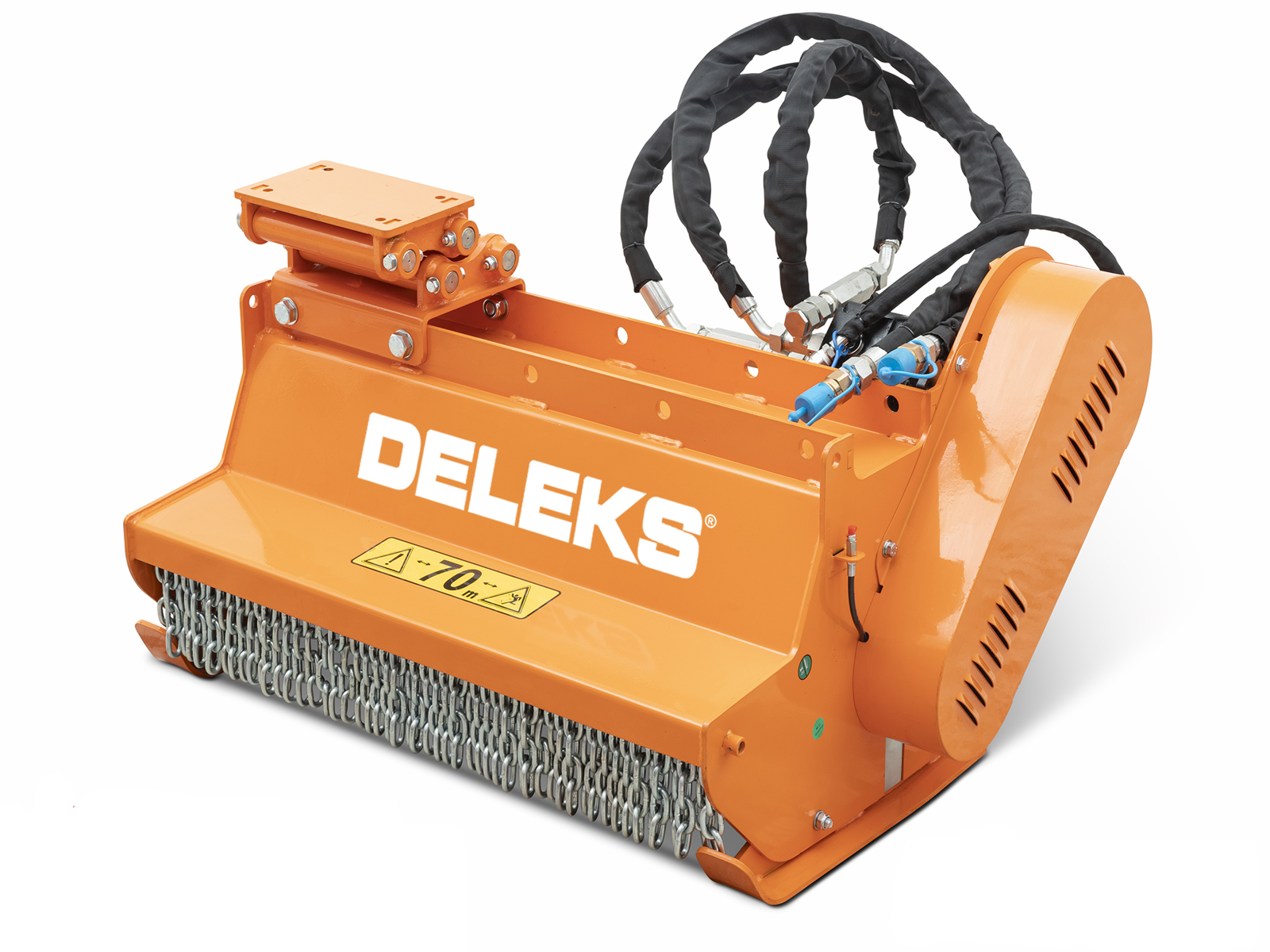

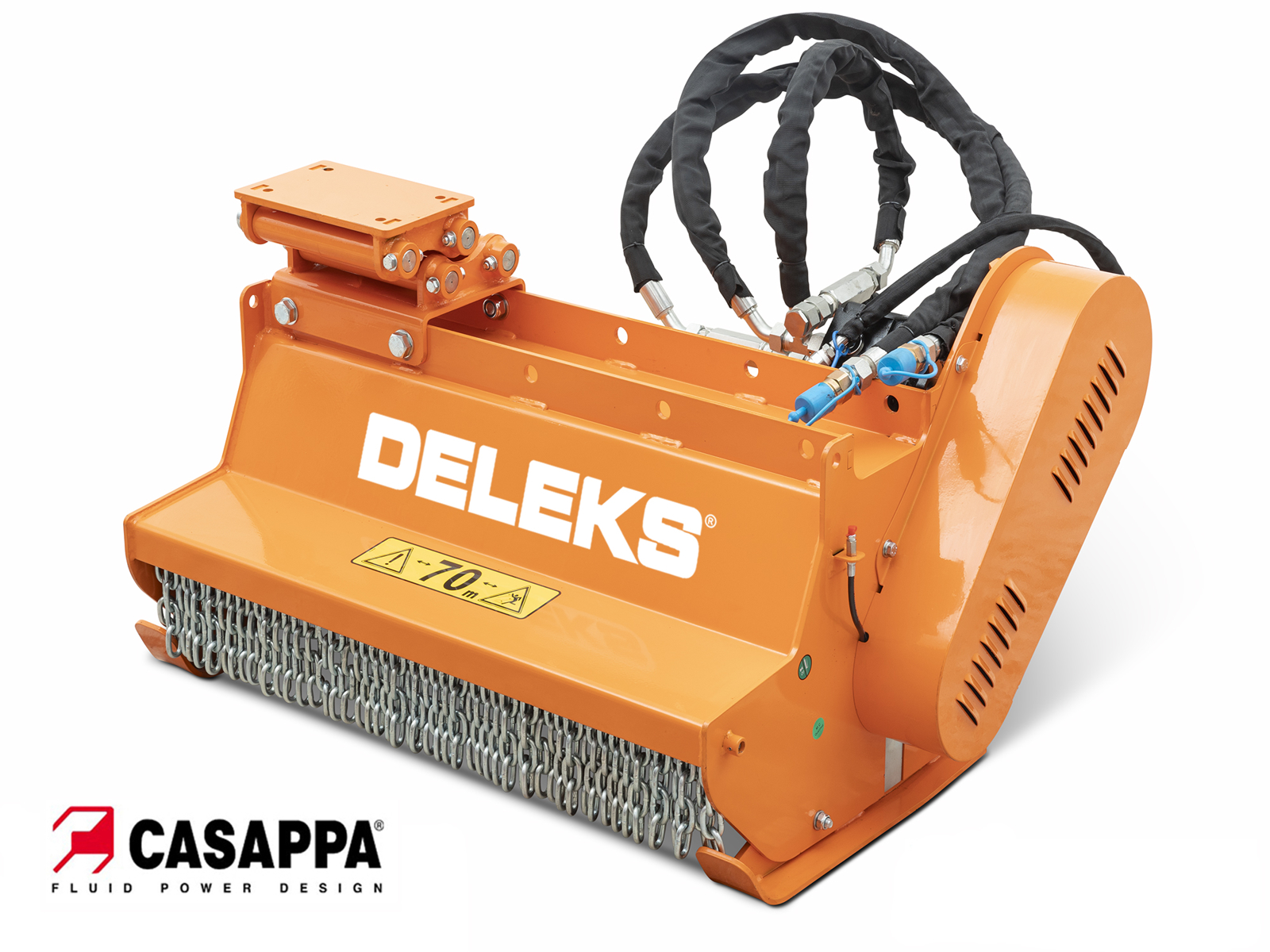

Forestry mulcher - hydraulic shredder for mini-excavators - mod. ARH-100

Not available Notify me
CodeARH100
EAN 8053470235818
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

Forestry, Bramble mulcher DELEKS® - hydraulic brush cutter for mini excavator - Hydraulic motor Made in Italy, 2 years warranty


OVERVIEW

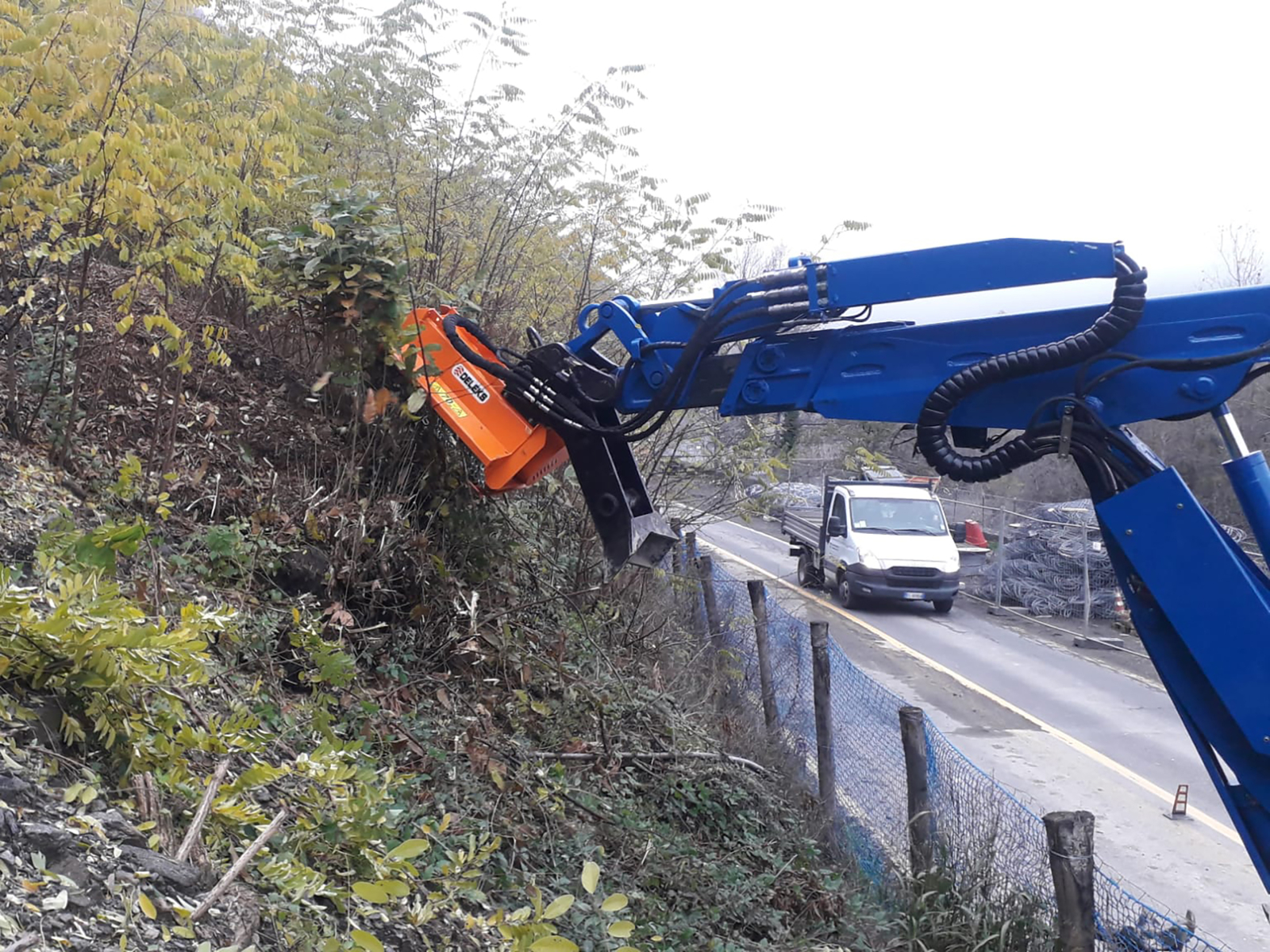

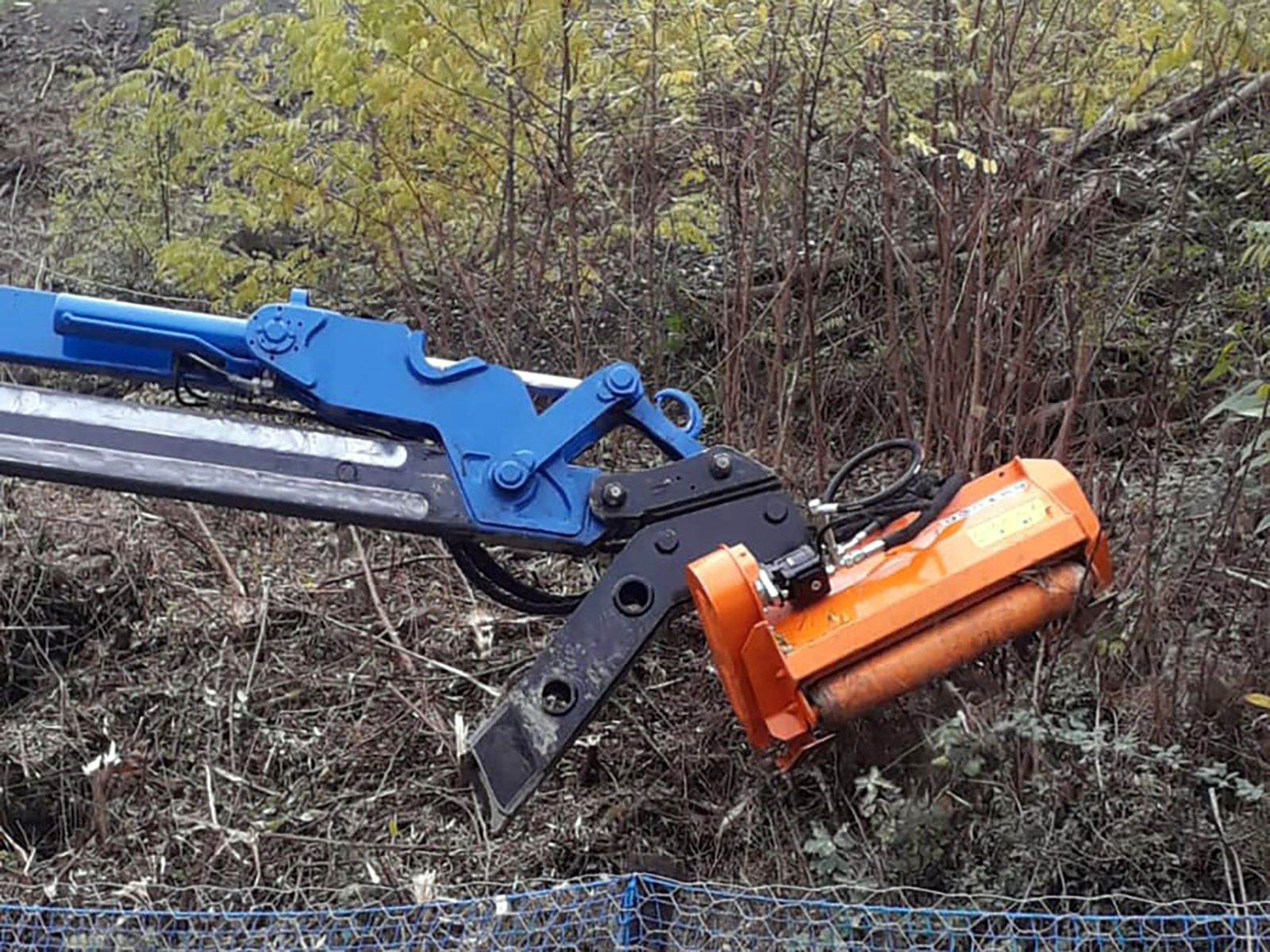

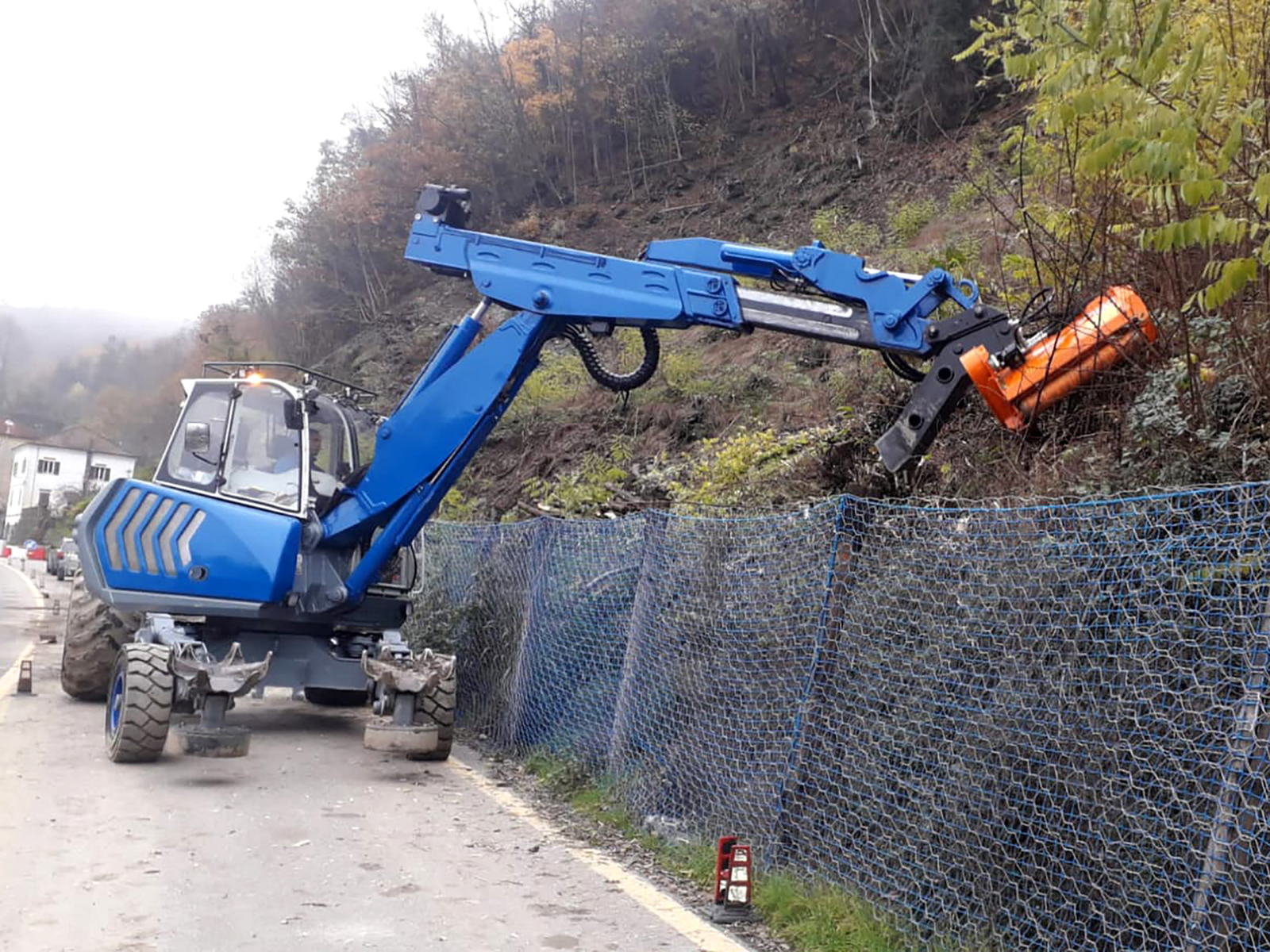

Shredder for mini excavators of 3.0 - 7.0 tons.

Hydraulic threscher, brush-cutter for brambles, bushes, ditches, banks, embankments, branches. Suitable for cutting grass, trees and shrubs up to 5cm.

Suitable for Excavator brands as Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, etc.

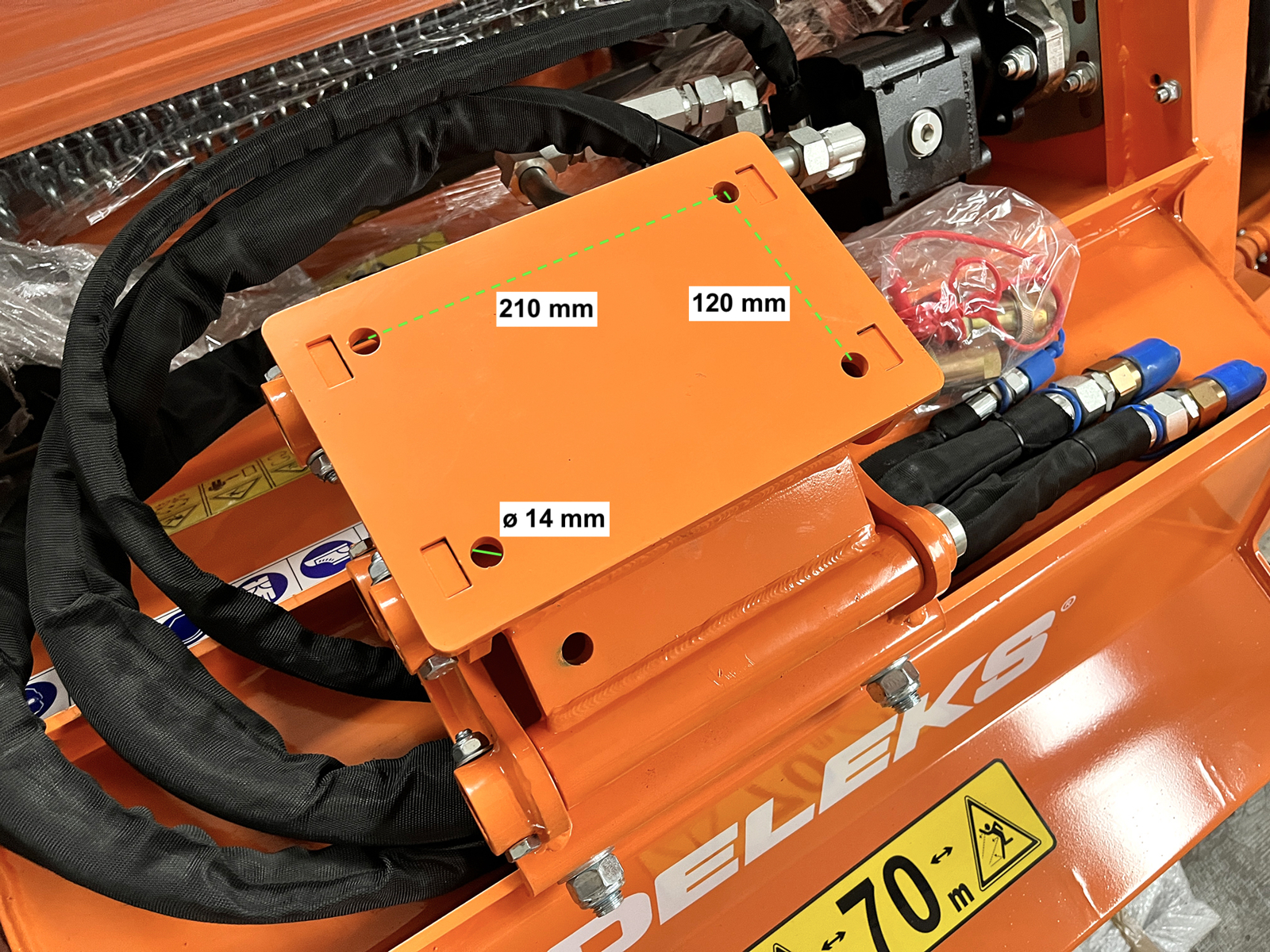

Saddle for pin attachment (see pictures).

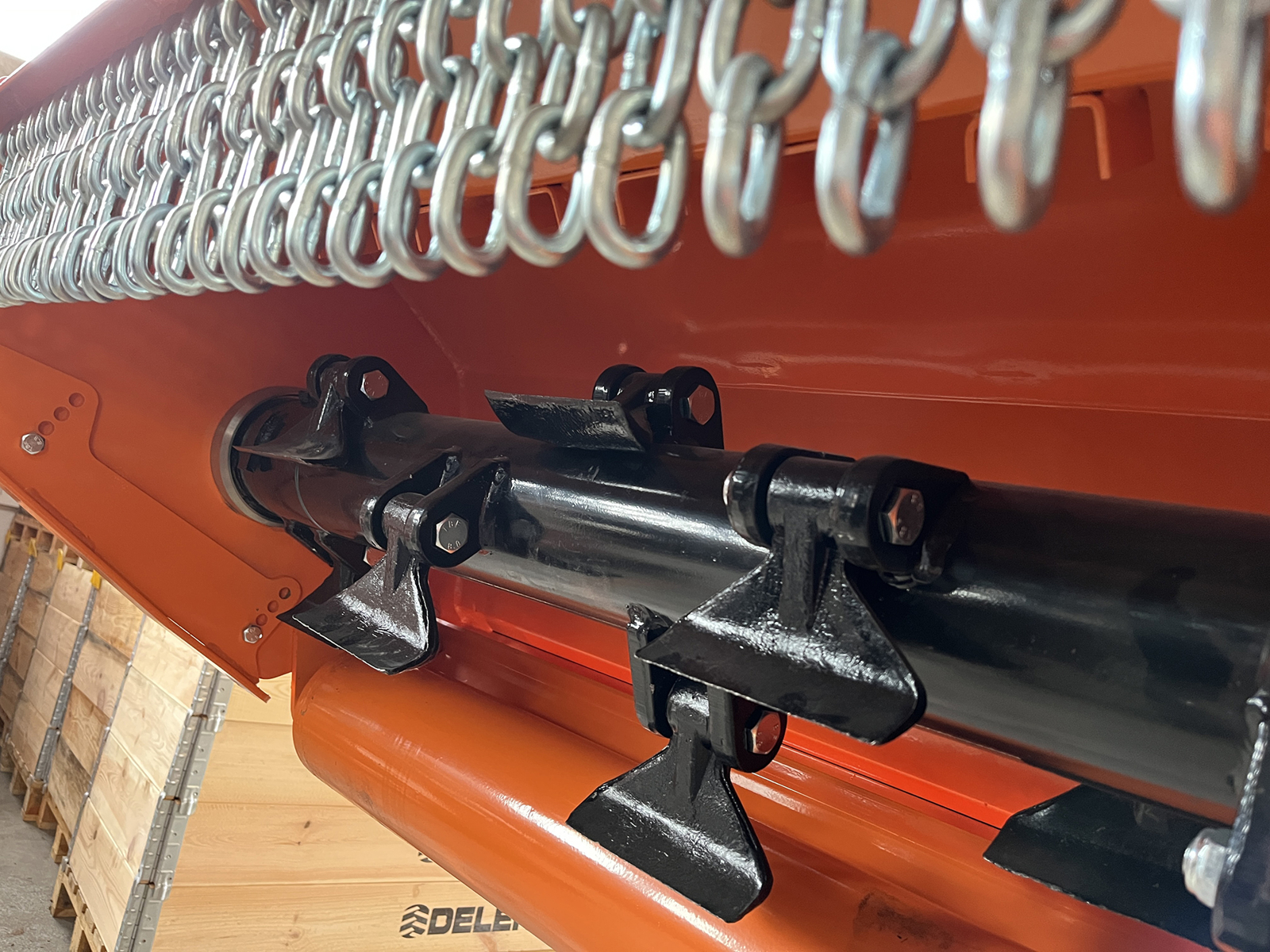

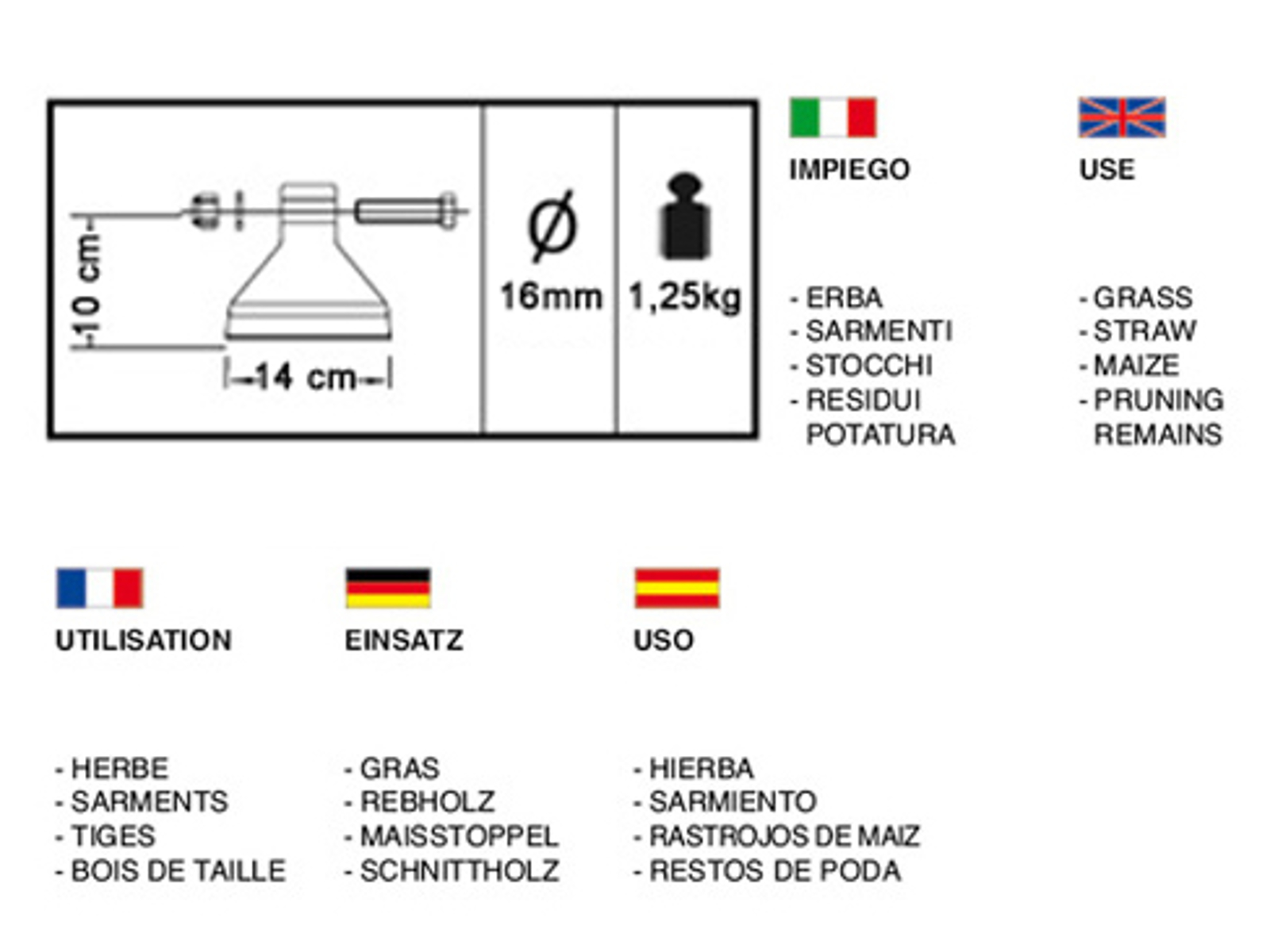

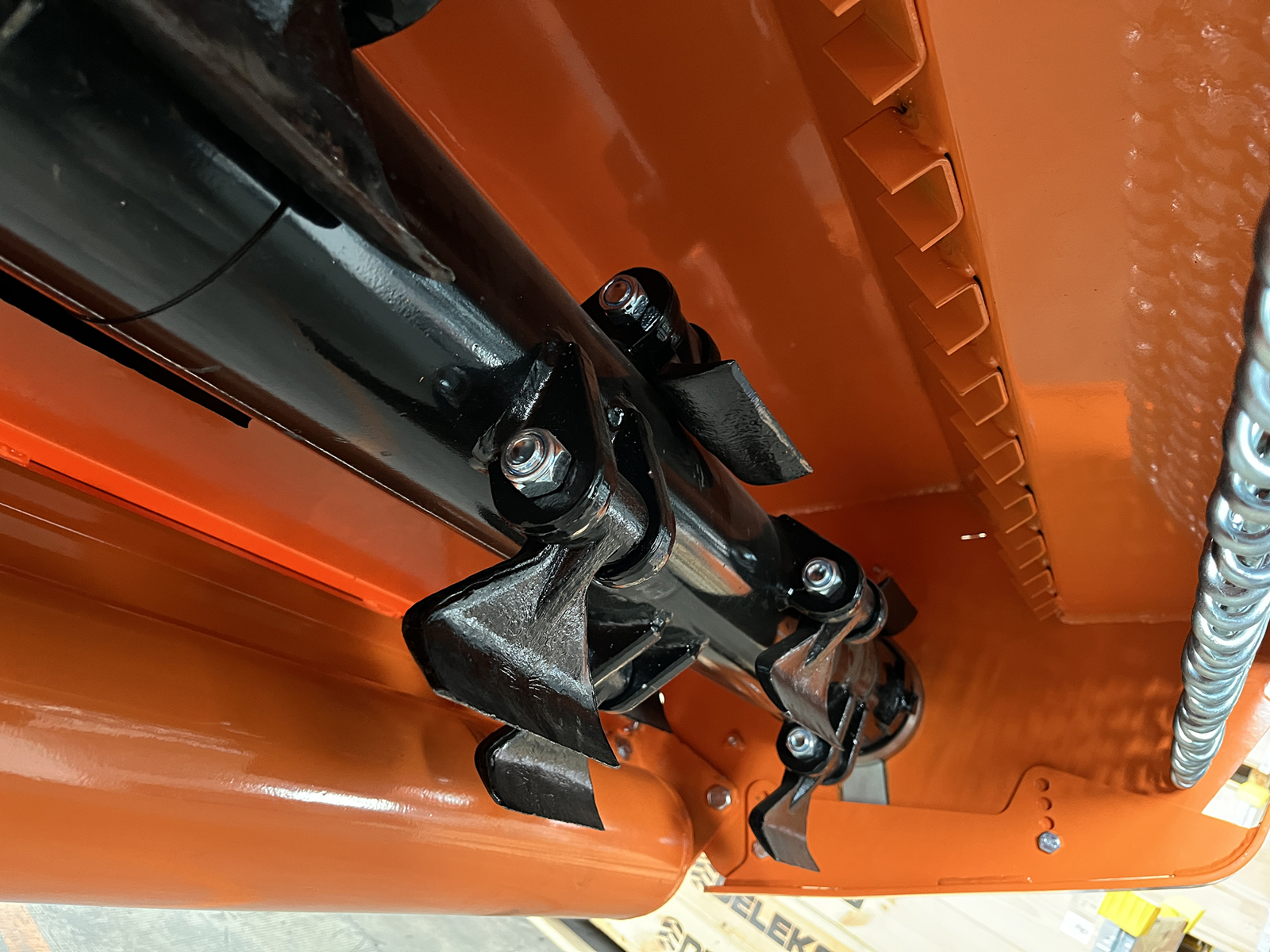

8 hammers (or knives)

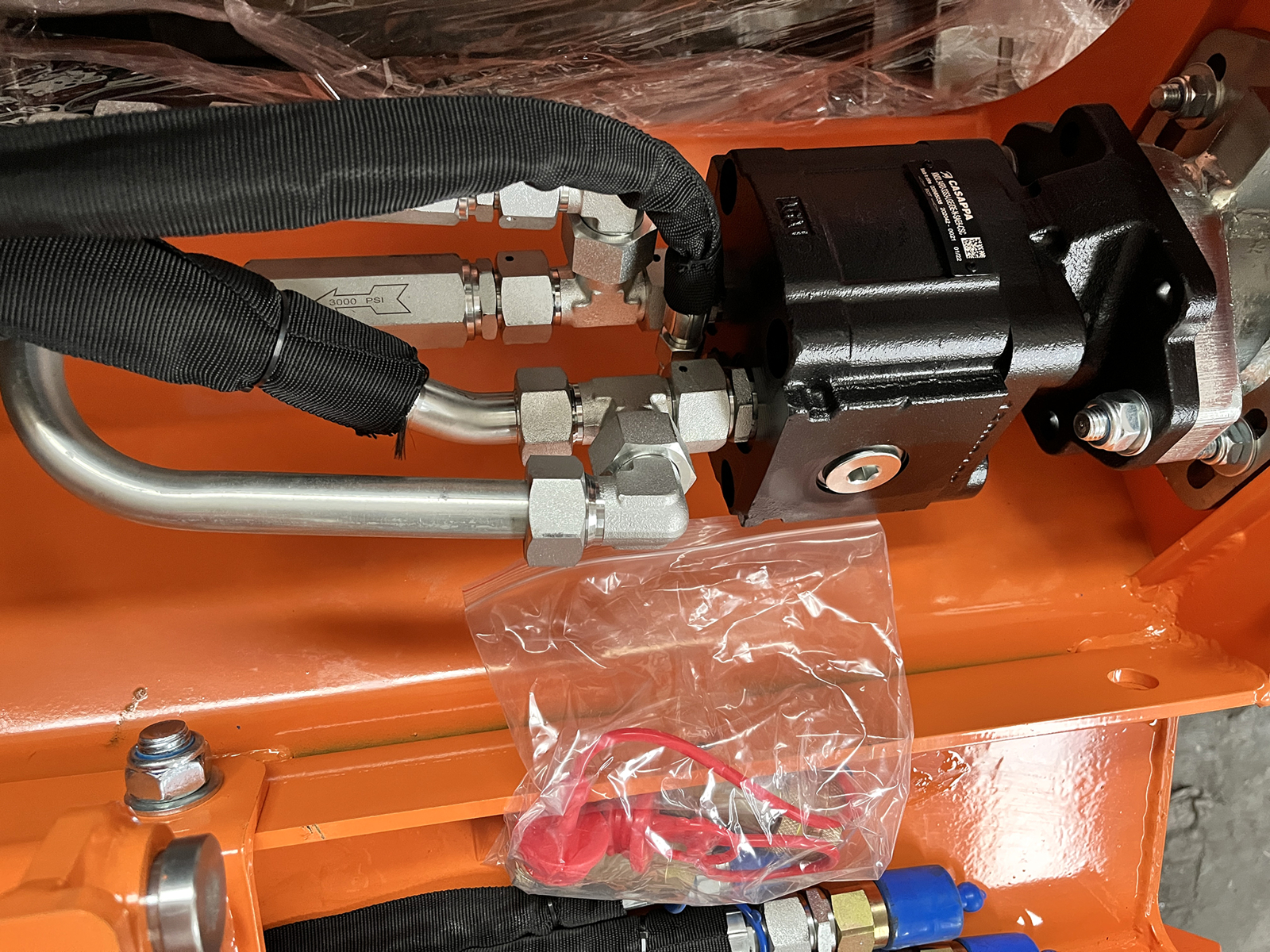

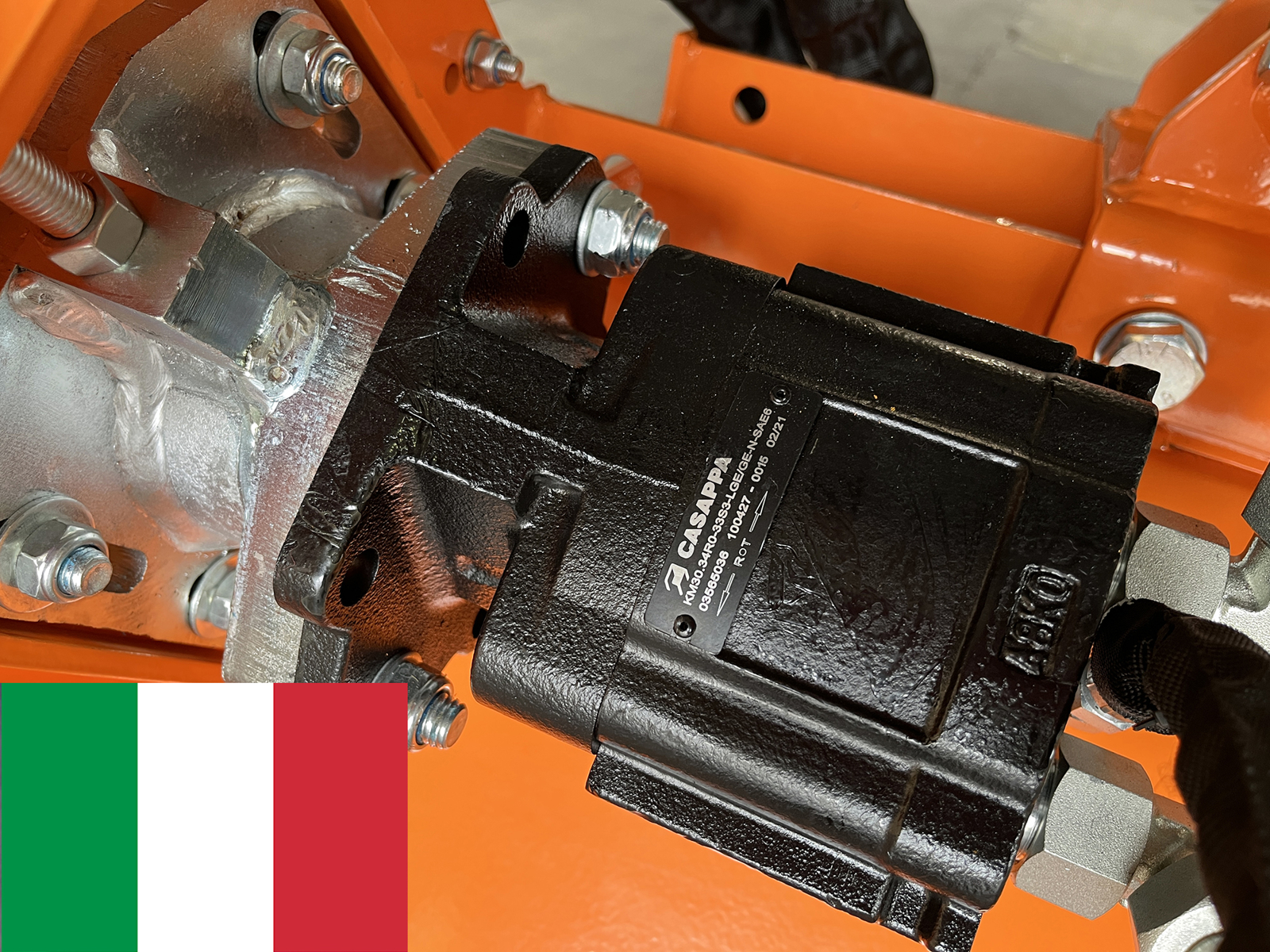

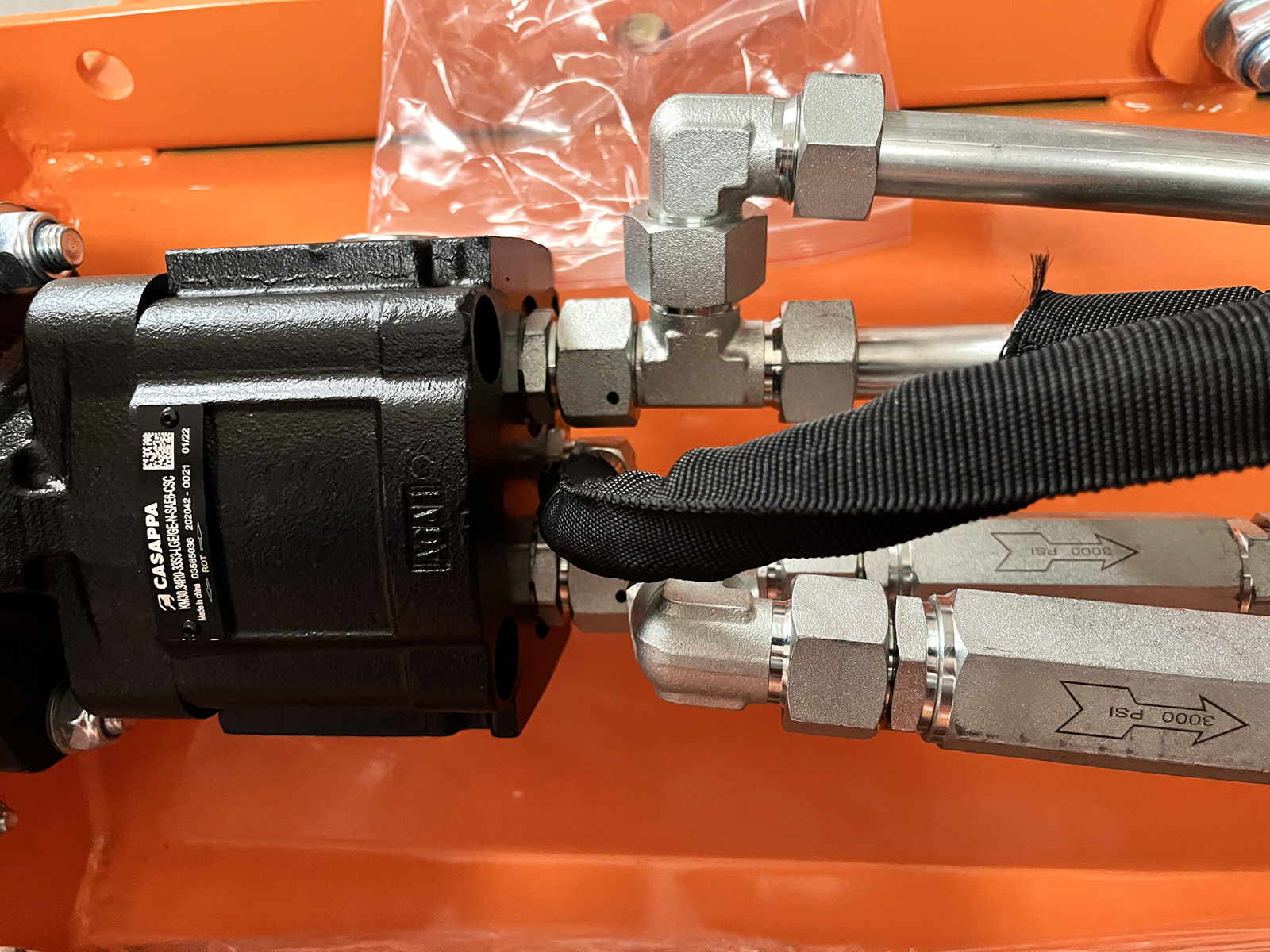

Hidraulic motor: Casappa (Made in Italy)

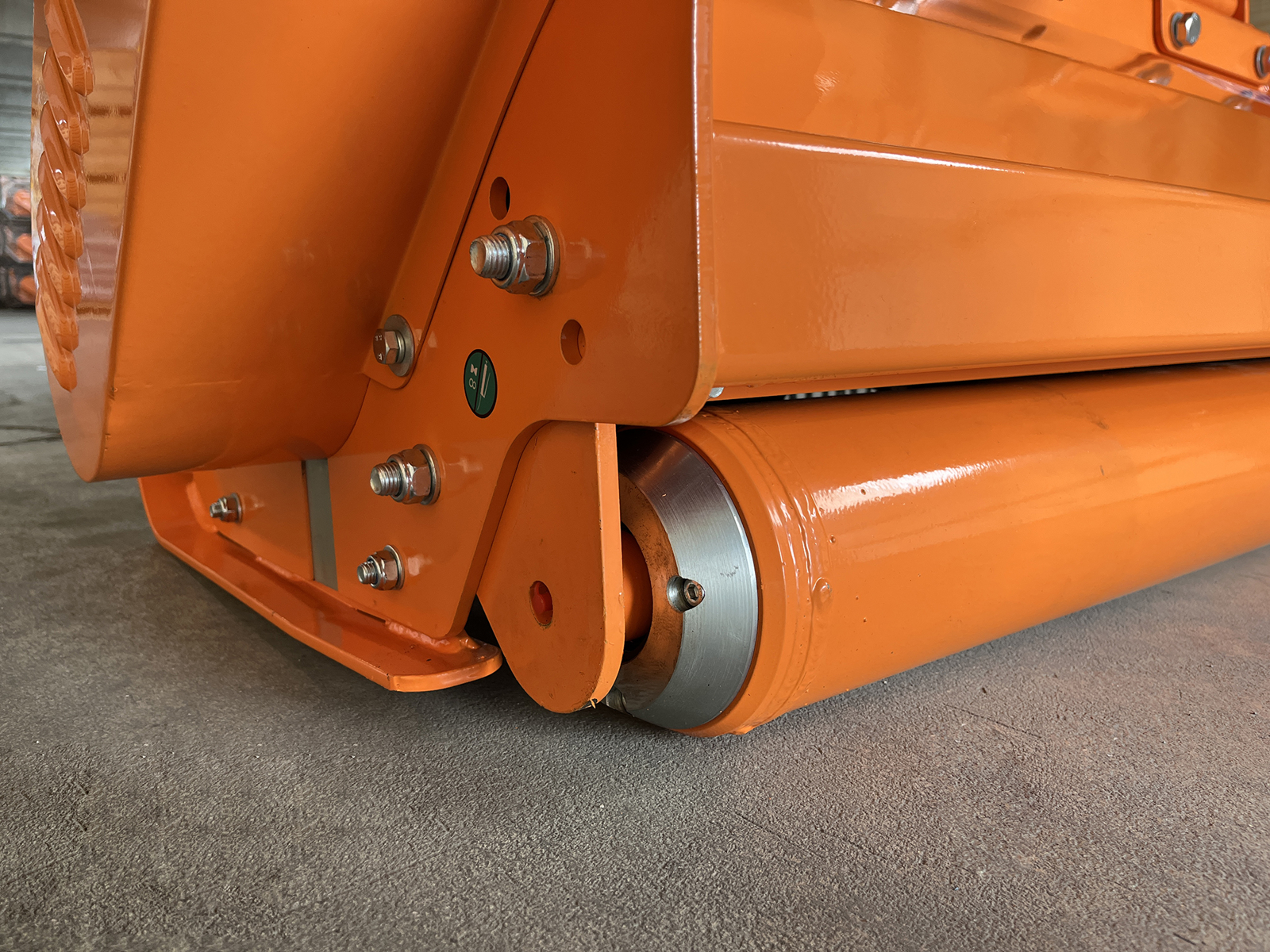

Roller and skids adjustable in height

Valve.


Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual


EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).



CARACTERISTICS

Caracteristic Units metric Units US
Working width 980.0 mm 3.22 ft
Overall width 1120.0 mm 3.67 ft
Min / Max cutting height 20.0 - 80.0 mm 0.8 - 3.15 in
Weight 290.0 kg 640.0 lb
Hood height 440.0 mm 17.30 in
Maximum cutting diameter 5.0 cm 2.0 in
Main hood thickness 4.0 mm 0.16 in
Rotor: diameter 127.0 mm 5.00 in
Rotor: bearings type and size 6308 6308
Rotor: balancing Electronic Electronic
Rotor: sheet thickness 8.0 mm 0.32 in
Rear roller: diameter 152.0 mm 6.00 in
Rear roller: sheet thickness 6.0 mm 0.24 in
Rear roller: bearings type and size 1308 1308
Min./Max. Relief Pressure 50 - 140 bar 50 - 140 bar
Min./Max. Flow 65 - 85 l/min 65 - 85 l/min
Hood length 800.0 mm 2.62 ft
Packing sizes 1200.0*930.0*800.0 mm 3.94*3.05*2.62 ft
