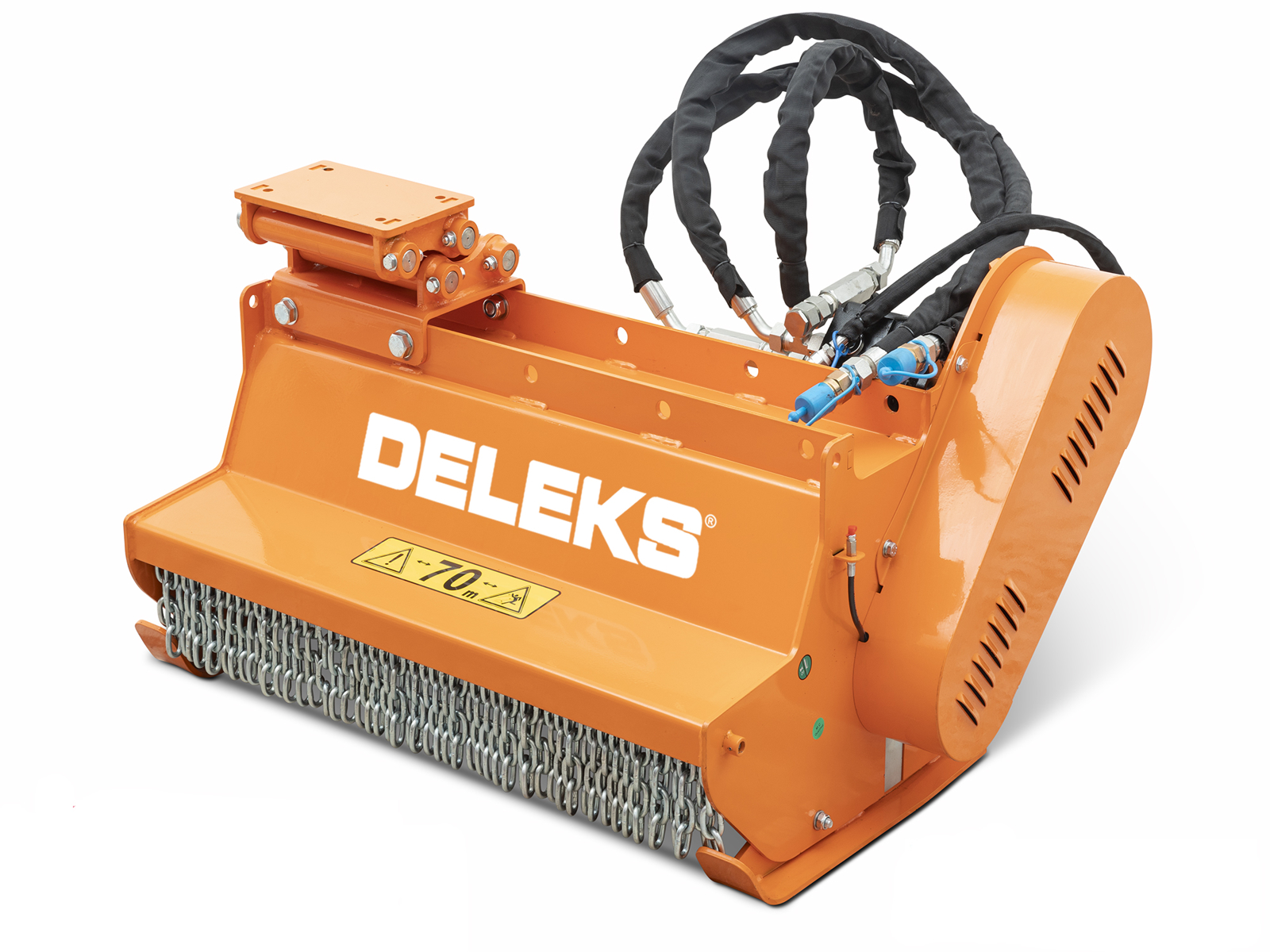

Forestry flail mower for excavators 120 cm (47 in) ARH-120, heavy-duty hydraulic hammer-flail head for 5 to 10 tonne diggers

Not available  Notify me
Code ARH120 - EAN 8053470237645
3.069,00€VAT incl.
Free shipping
Loading...
3.069,00€VAT incl.
Free shipping
View all details.
CUTTING WIDTH
80 100 120

4.6

1551 reviews

3.069,00€VAT incl.

VIDEO
Field test
Field test
Field test
Field test

DETAILS

Hydraulic forestry flail mower for excavators with a 120 cm (47 in) cut, the DELEKS® ARH-120: the heavy-duty hammer-flail head for 5 to 10 tonne diggers such as Bobcat, Takeuchi, Komatsu, Caterpillar and Hitachi. The 127 mm (5 in) rotor, electronically balanced, carries 10 hammer flails of 1,100 g (2.4 lb) and shreds grass, brambles, shrubs and stems up to 5 cm (2 in) thick along embankments, slopes and ditches and in undergrowth, where a tractor cannot reach. Casappa hydraulic motor, Made in Italy, 3-belt drive, adjustable roller and skids with a cutting height from 20 to 80 mm (0.8 to 3.1 in). It runs on 65-100 l/min of oil at 70-140 bar and weighs 320 kg (705 lb). It is TÜV-certified, carries a 2-year warranty and comes with free delivery within the EU.


Which excavators it fits

The ARH-120 is built for 5 to 10 tonne excavators and diggers with an auxiliary hydraulic line: Bobcat, Takeuchi, Komatsu, Caterpillar, Neuson, Hitachi and JCB. With a 120 cm (47 in) cut and an overall width of 138 cm (54.3 in) it weighs 320 kg (705 lb). Always check the weight of the head against the lifting capacity of the arm at full reach. The same series also includes the ARH-80 (80 cm, 270 kg) and the ARH-100 (100 cm, 290 kg): on the same excavator, a narrower head weighs less and is easier to handle with the arm fully extended. For 5 to 8 tonne excavators there is the ARM series, from 150 to 195 kg.

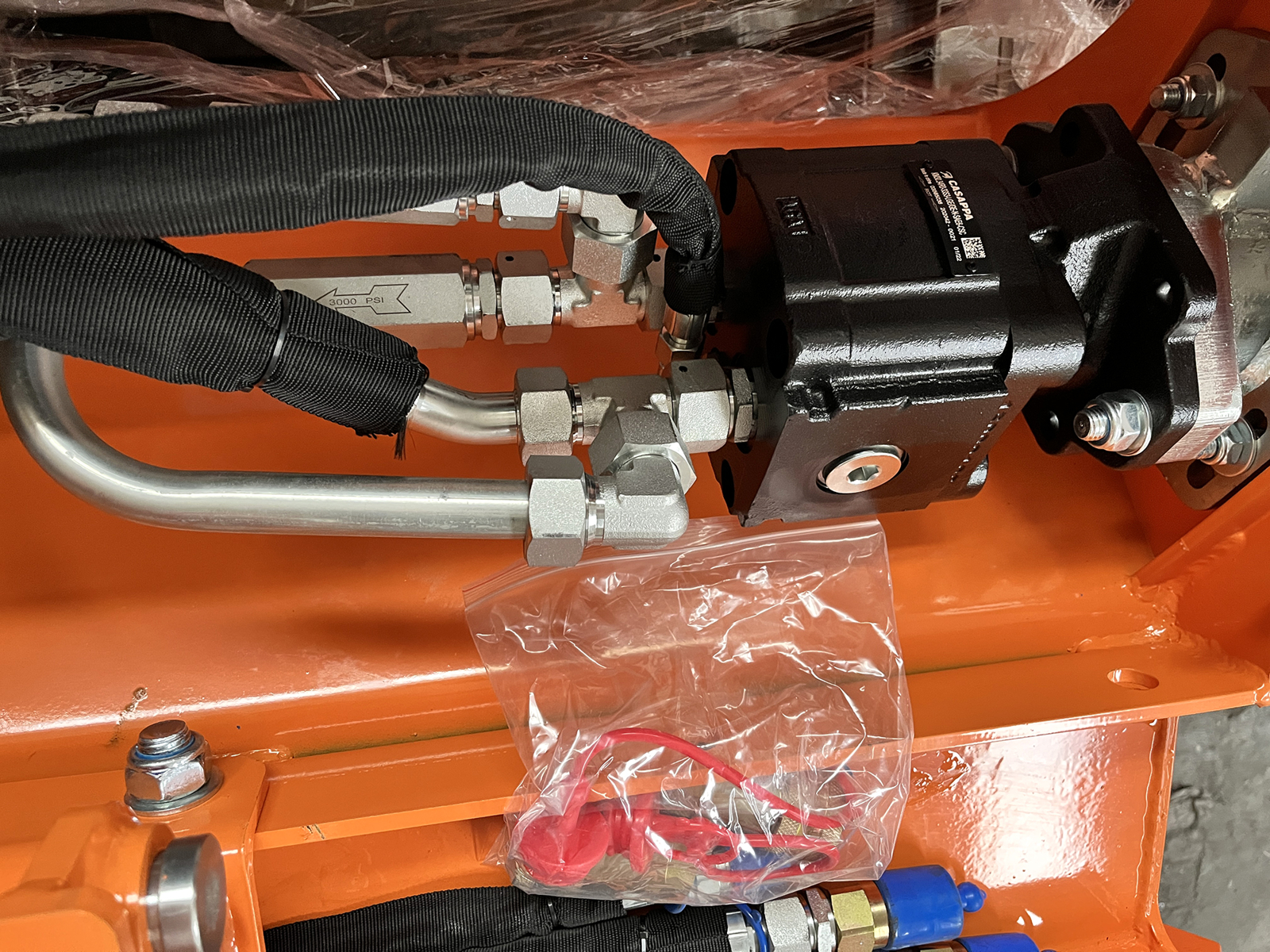

Hydraulic connection: flow and case drain

The ARH-120 runs on an oil flow of 65-100 l/min (14.3-22 UK gal/min) and a working pressure of 70 to 140 bar (1,020 to 2,030 psi). The rotor is single-direction. The Casappa hydraulic motor, Made in Italy, has a third hose for the case drain, to be connected straight back to the tank. Ideally the excavator has two pumps, one for travel and one for the auxiliary services; a hydraulic oil cooler is also advisable. Before ordering, check the flow and pressure of your auxiliary line: if in doubt, just tell us the model of your excavator.


Rotor with 10 hammer flails of 1,100 g

The rotor, 127 mm (5 in) in diameter and 8 mm thick, is electronically balanced and driven by 3 belts. It carries 10 heavy hammer flails, 1,100 g (2.4 lb) each with a 140 mm (5.5 in) base: they shred grass, brambles, shrubs, suckers and stems up to 5 cm (2 in) thick. Spares include the MAZZE10A flail kit and the CINGHIE3ARH belt set; blades (COLTELLI30TORO) are also available for the ARH-120.


Roller, skids and cutting height

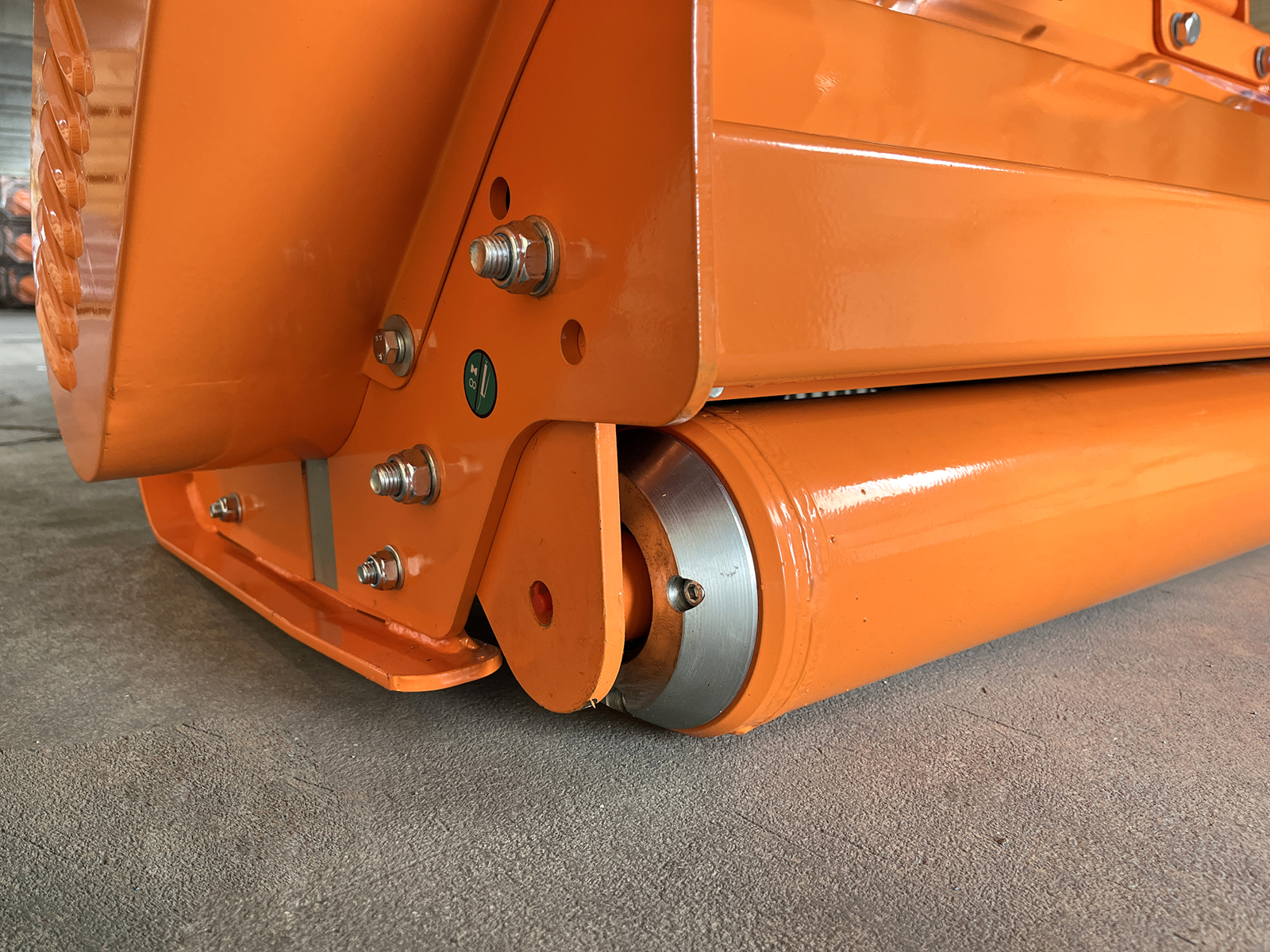

The rear roller, 152 mm (6 in) in diameter, and the skids are height-adjustable: the cutting height runs from 20 to 80 mm (0.8 to 3.1 in), low for a fine finish on grass, higher on stony or uneven ground.


Hitch for the excavator arm

The dimensions of the standard hitch are shown in the product images: check them against the arm of your excavator. For a different hitch, contact our technical team before ordering.


Dimensions, weight and delivery

Working width 1,200 mm (47.2 in), overall width 1,380 mm (54.3 in), length 800 mm (31.5 in), height 440 mm (17.3 in), weight 320 kg (705 lb); 4 mm steel frame. It ships in a package of 140 × 93 × 80 cm (55 × 37 × 31 in), 354 kg (780 lb) gross and 1.04 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.


Where it works

  • Embankments, slopes and ditches: grass, reeds and brambles where a tractor cannot reach
  • Undergrowth and overgrown land: shrubs, suckers and stems up to 5 cm (2 in) thick
  • Roadsides, tracks and boundaries: clearing with the excavator arm
  • Site clearance before excavation work: brambles and scrub
  • 5 to 10 tonne excavators and diggers with an auxiliary hydraulic line

Options and spares

From this page you can add to your order the kit of 10 hammer flails of 1,100 g (MAZZE10A), the 10 nuts and bolts (DB10A), the kit of 30 blades (COLTELLI30TORO) and the spare set of 3 belts (CINGHIE3ARH). Other spares are identified on the exploded diagrams with our technical team.


FAQ

Which excavator does the ARH-120 suit?
5 to 10 tonne excavators and diggers with an auxiliary hydraulic line delivering 65-100 l/min. The head weighs 320 kg (705 lb): check it against the lifting capacity of the arm at full reach.

Is it suitable for a 5 tonne excavator?
Yes: the ARH series covers excavators from 5 to 10 tonnes, in three widths from 80 to 120 cm.

What oil flow does it need?
65 to 100 l/min, at a working pressure of 70 to 140 bar. A hydraulic oil cooler is advisable.

Does it need a case drain line?

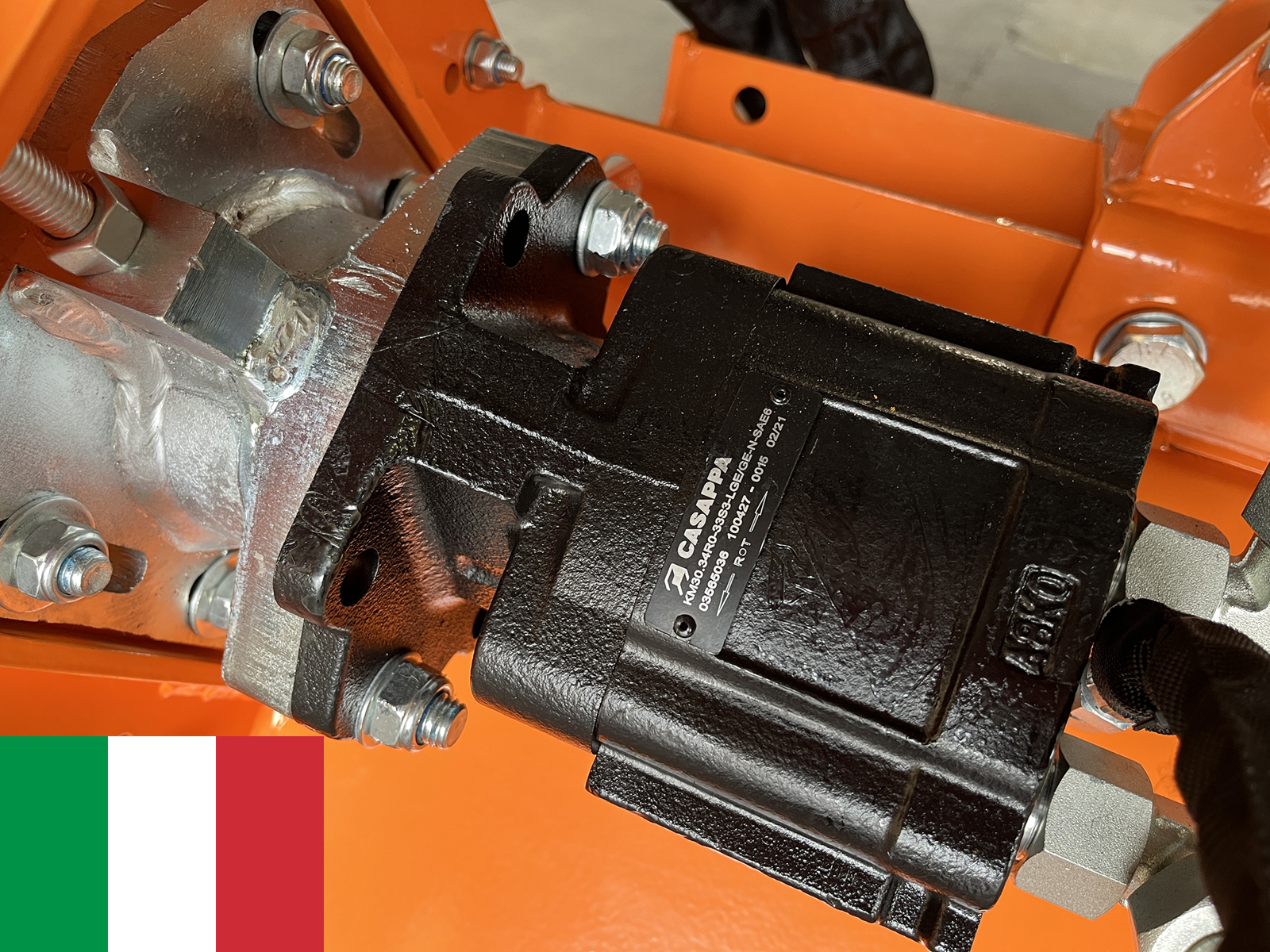

Yes: the Casappa motor has a third hose for the case drain, to be connected straight back to the tank.

What thickness of branch will it cut?
Grass, brambles, shrubs, suckers and stems up to 5 cm (2 in) thick. For thicker branches there are the hydraulic disc saw bars for excavators.

How does it differ from a forestry flail mower for tractors?
The tractor-mounted forestry flail mower, in the heavy-duty series, shreds branches up to 15 cm (5.9 in) thick off the PTO; the excavator head is hydraulic, handles up to 5 cm and works on embankments and slopes where a tractor cannot go.

How does it mount on the arm?
In place of the bucket, with the standard hitch (dimensions in the product images); the hoses connect to the auxiliary hydraulic line.

How do the ARH and ARM differ?
The ARH weighs from 270 to 320 kg, carries 1,100 g hammer flails, suits 5 to 10 tonne excavators and handles 5 cm. The ARM weighs from 150 to 195 kg, suits 5 to 8 tonne excavators and shreds up to 4 cm.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, hammer flails, fixings, bearings, roller, hydraulic motor and hoses are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the head matches your excavator's hydraulics and hitch. The head comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric Units US
Working width 1200.0 mm 3.94 ft
Overall width 1380.0 mm 4.50 ft
Min / Max cutting height 20.0 - 80.0 mm 0.8 - 3.15 in
Weight 320.0 kg 705.0 lb
Hood height 440.0 mm 17.30 in
Number of Hammers 10 10
Maximum cutting diameter 5.0 cm 2.0 in
Main hood thickness 4.0 mm 0.16 in
Rotor: diameter 127.0 mm 5.00 in
Rotor: bearings type and size 6308 6308
Rotor: balancing Electronic Electronic
Rotor: sheet thickness 8.0 mm 0.32 in
Rear roller: diameter 152.0 mm 6.00 in
Rear roller: sheet thickness 4.0 mm 0.16 in
Rear roller: bearings type and size 1308 1308
Working pressure 70 - 140 bar 70 - 140 bar
Min./Max. Flow 65 - 100 l/min 65 - 100 l/min
Hood length 800.0 mm 2.62 ft
Gross shipping weight 354 kg 780 lb
Package volume 1.04 m3 36.7 cu ft
Packing sizes 1400.0*930.0*800.0 mm 4.60*3.05*2.62 ft

Technical charts

CASAPPA - Hydraulic motor specifications (pdf)   Download PDF
