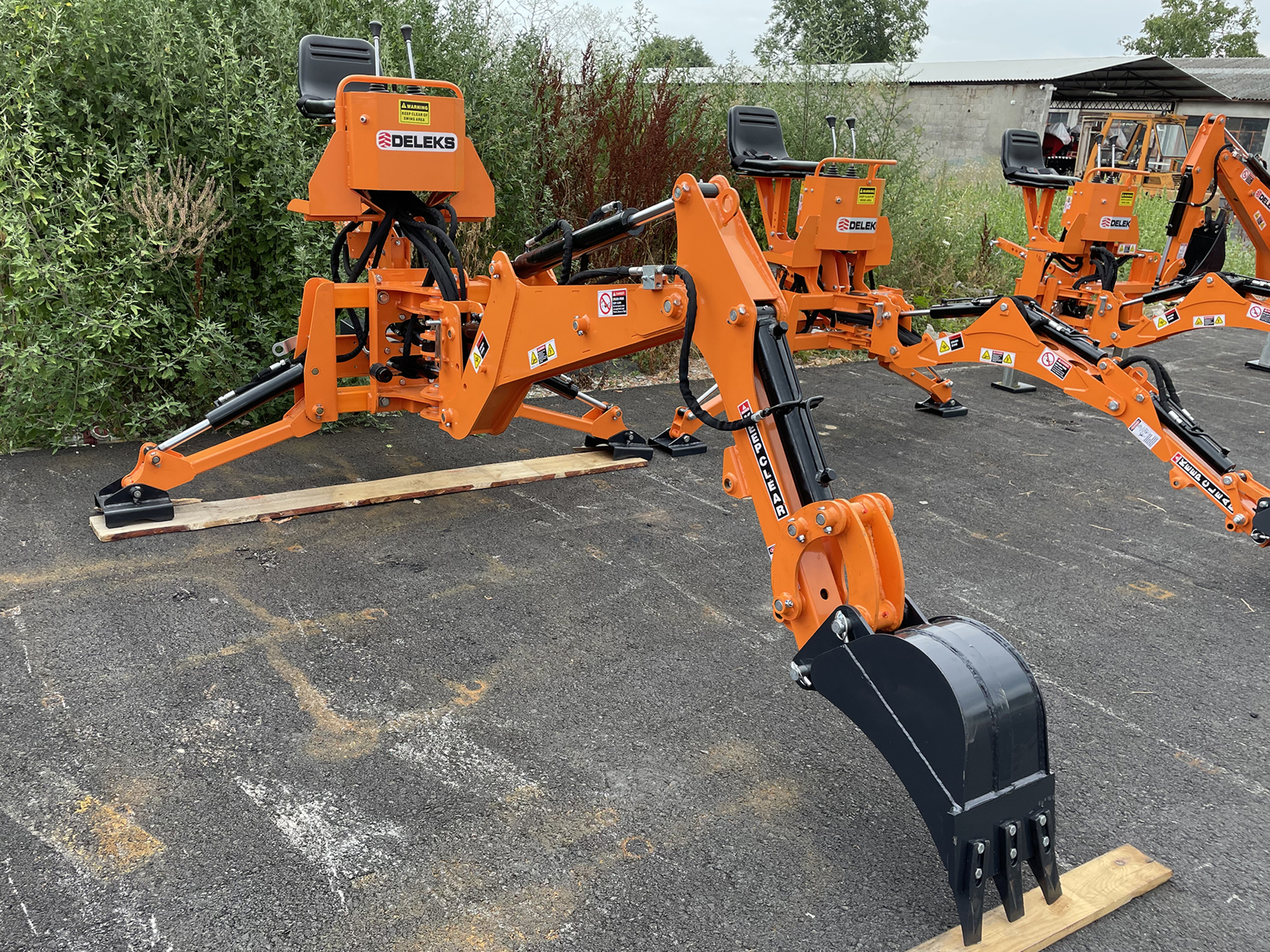

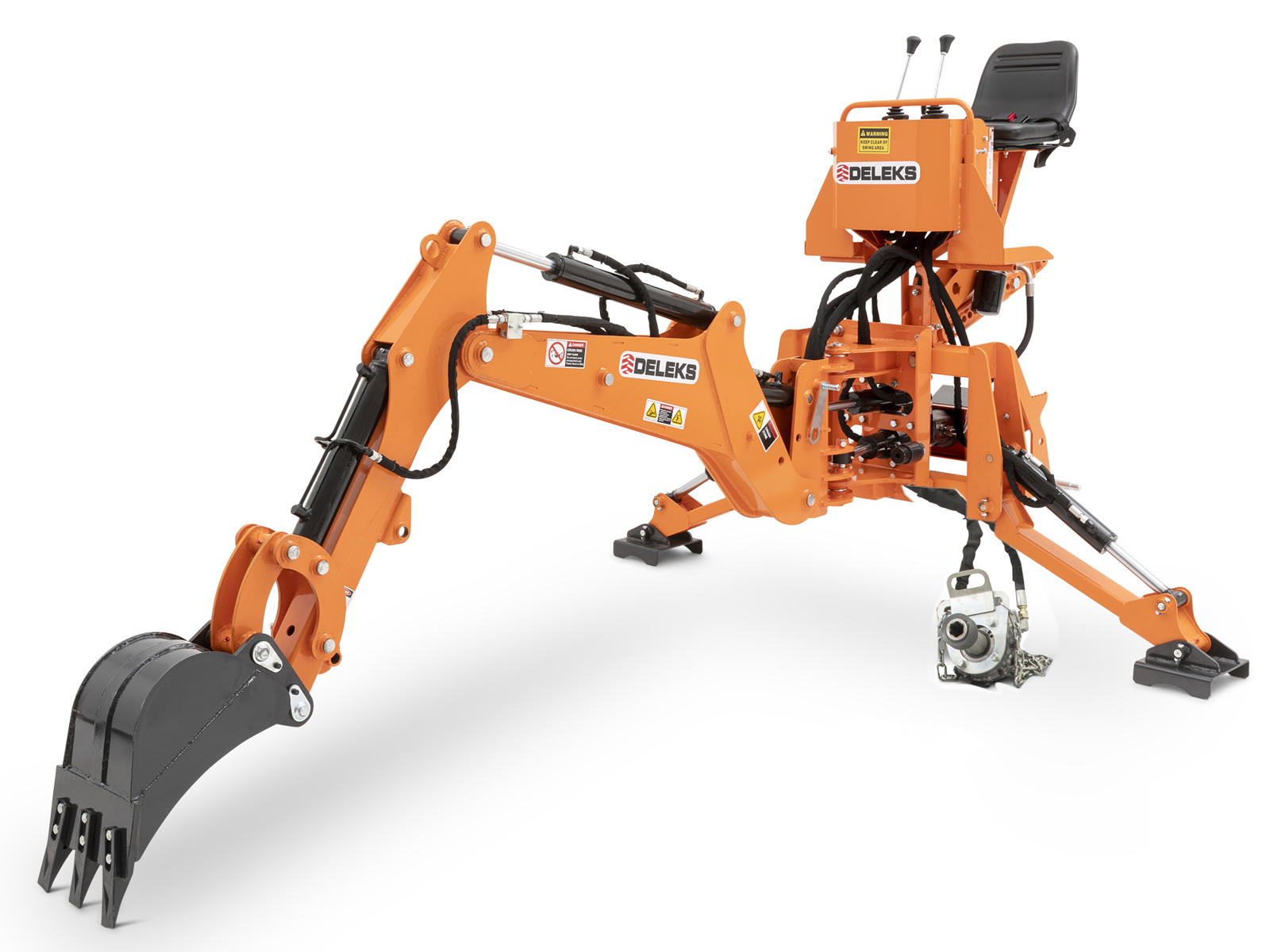

Universal backhoe with bucket for agricultural tractors
DETAILS
Mounted Backhoe for tractor - DELEKS® - 550kg - Hydrocontrol (Made in Italy) distributor.
OVERVIEW
DRS-2000 Backhoes have been designed for digging footings, basements, and drainage ditches, utility trenching, back-filling, and maintaining slopes and embankments in construction, industrial, and landscaping settings. Suitable for mounting on all types of tractors from 40 hp with 3-point linkage (Cat.1-2).
Arm digging force: 1450 kgf
Bucket digging force: 250kgf
BENEFITS & FEATURES
Hydraulic distributor: Hydrocontrol (Made in Italy).
Can be operated from the seat of the tractor, allowing for faster cycle times. Operators can dig, excavate, side-shift, and even reposition the machine and backhoe without ever leaving the seat.
Individually steerable stabilizing legs.
Simple to connect to the tractor even by a single person.
Blocking kit to prevent uncontrolled lifting of the tractor's 2 arms (UNI EN 16246 standard of January 2013 - International obligation).
High quality pins and bushings on seams guarantee longevity of use.
Hook lock for safe transport.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 550.0 Kg | 1213.0 lb |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Bucket Width | 300.0 mm | 11.80 in |
| Spacing between the 2 lower points | 530.0 - 630.0 mm | 21.0 - 24.8 in |
| Hydraulic Pipes (2) | WP-400 bar | WP-400 bar |
| Min./Max. Relief Pressure | 120 - 200 bar | 120 - 200 bar |
| Min./Max. Flow | 25 - 40 l/min | 25 - 40 l/min |
| Slewing Angle | 180° | 180° |
| HP min | 40 Hp | 40 Hp |
| Arms cylinders diameter | 75.0 - 35.0 mm | 2.95 - 1.38 in |
| Independent Stabilizers | 2 | 2 |
| Digg Depth (B) | 1950.0 mm | 6.40 ft |
| Loading Height (A) | 2420.0 mm | 7.95 ft |
| Unload Height (E) | 2500.0 mm | 7.87 ft |
| Max Height (C) | 3170.0 mm | 10.4 ft |
| Digging Width (D) | 2900.0 mm | 9.50 ft |
| Leg Spread | 1900.0 mm | 6.23 ft |
| Packing sizes | 1000.0*2250.0*1300.0 mm | 3.28*7.38*4.26 ft |
