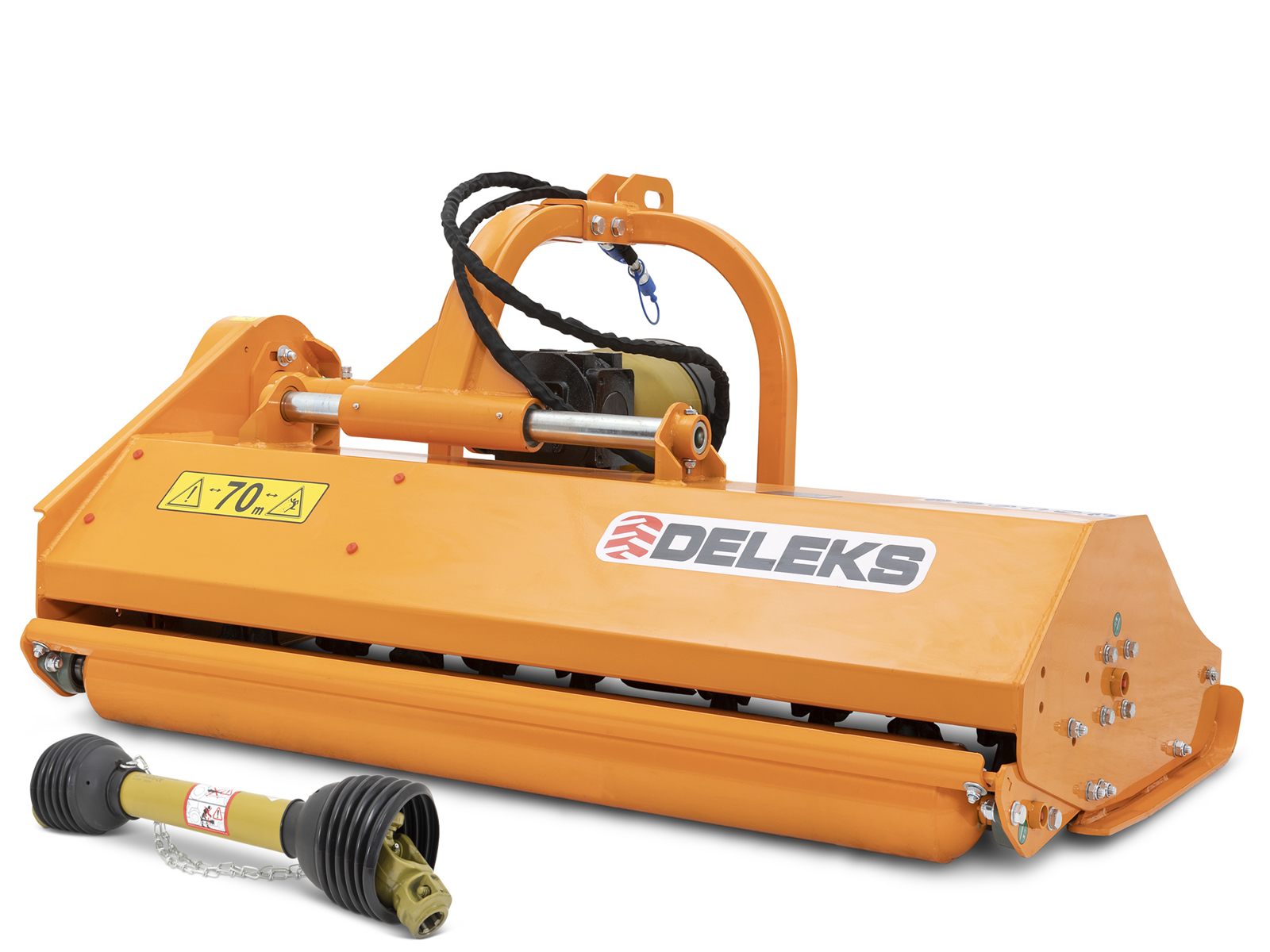

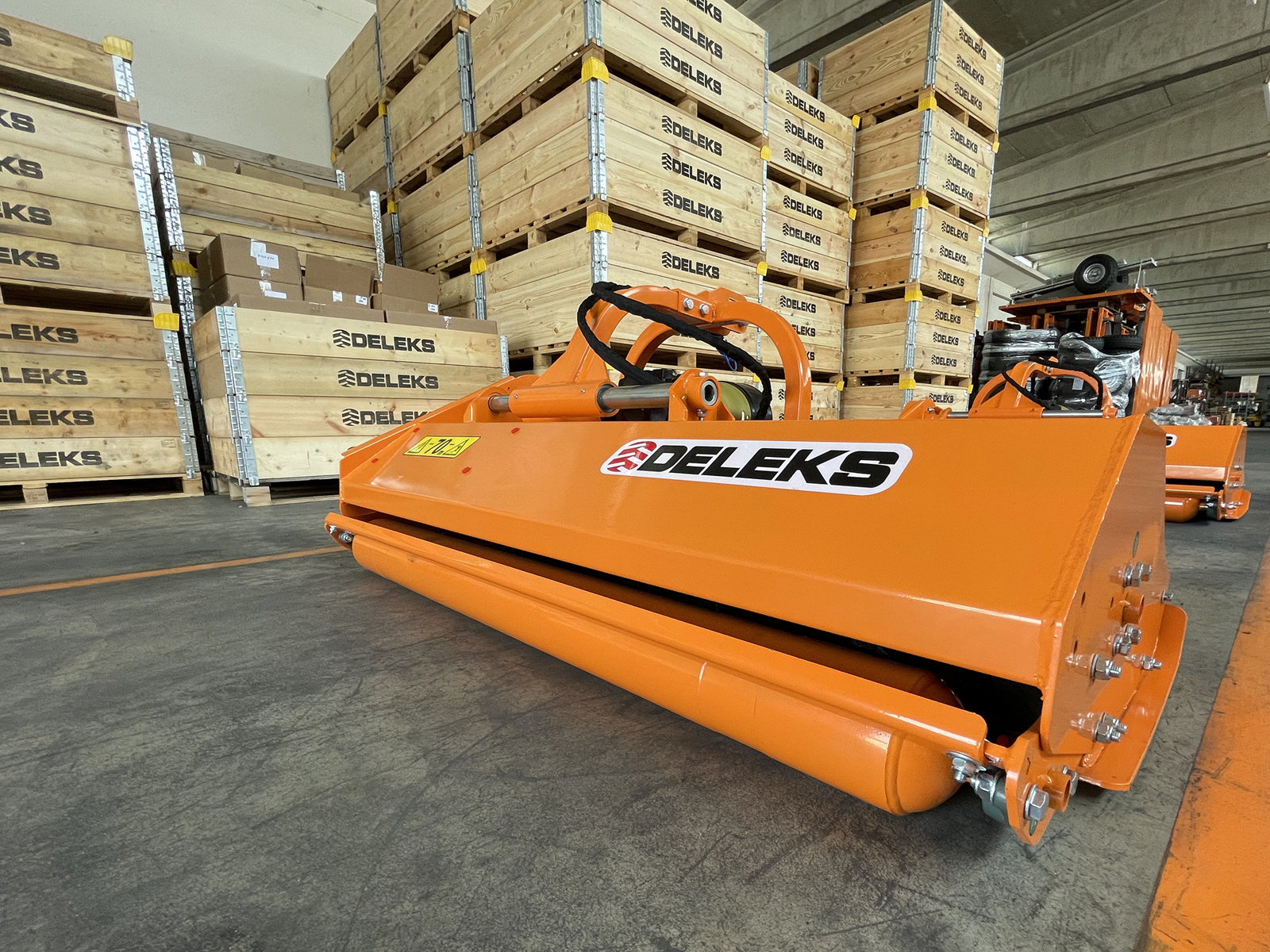

Tractor flail mower 170 cm (67 in) JAGUAR-170 with hydraulic side shift, hammer flail mulcher for 40-70 hp tractors
DETAILS

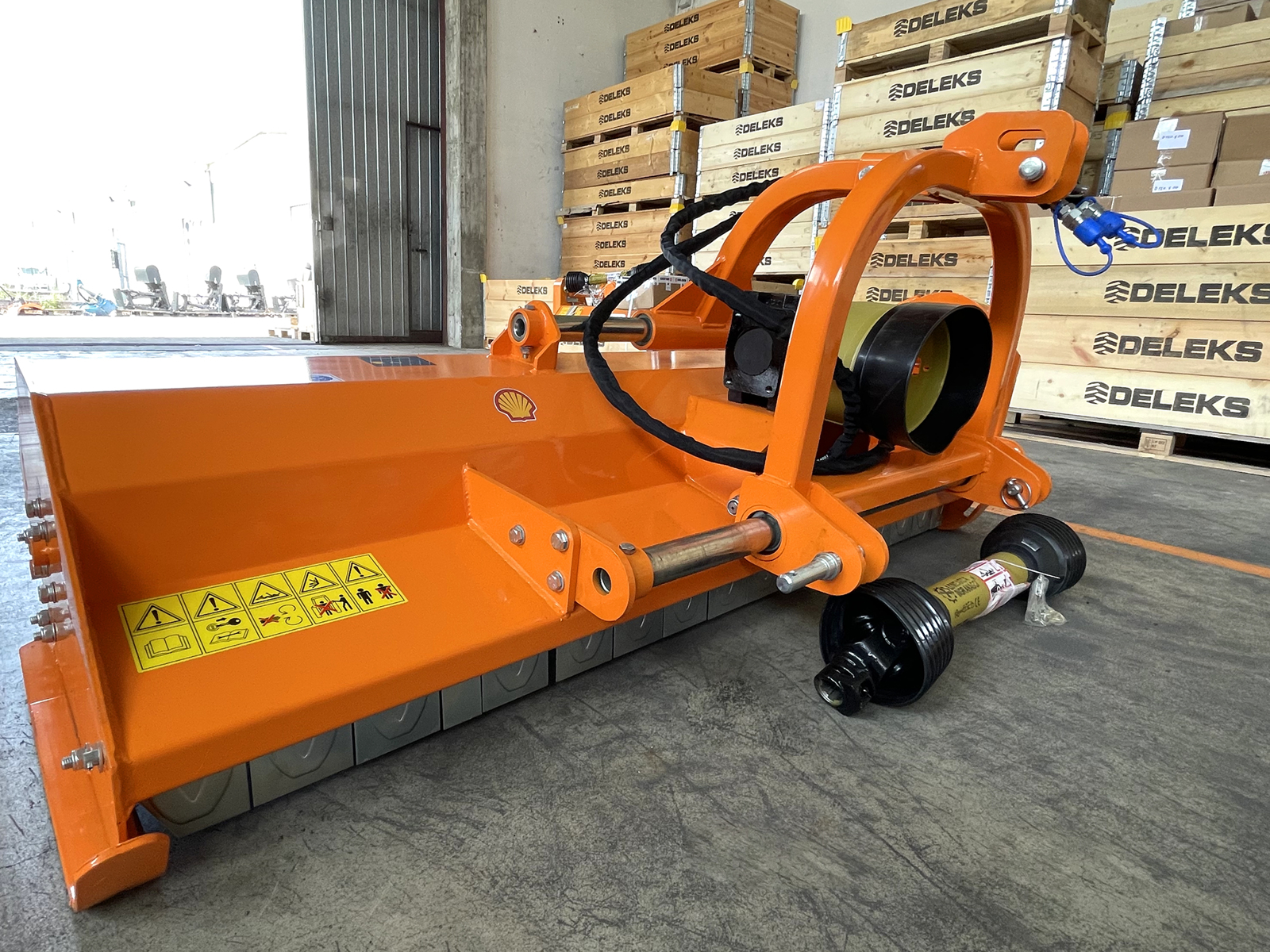

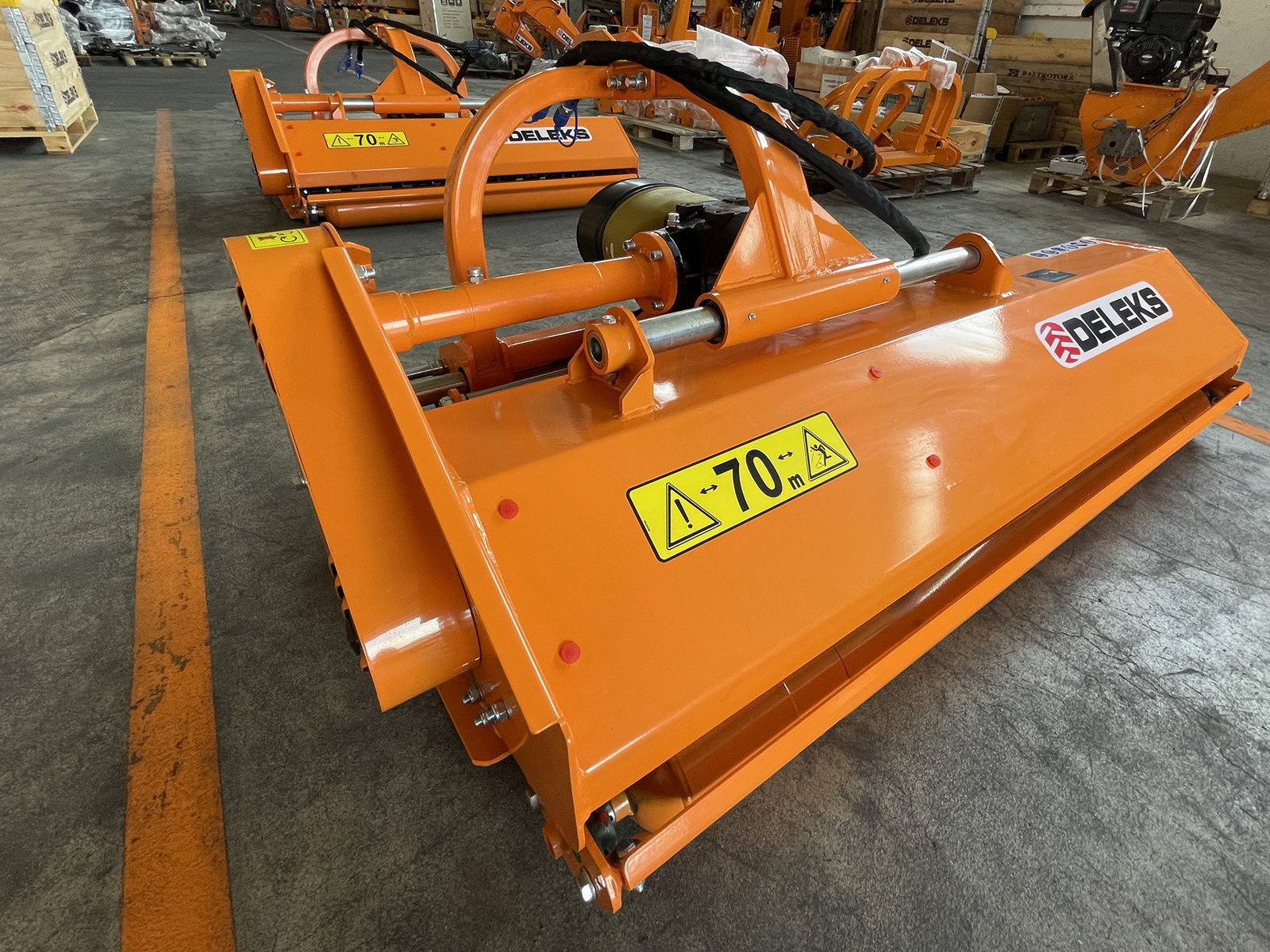

Tractor flail mower with a 165 cm (65 in) cut and hydraulic side shift as standard: the DELEKS® JAGUAR-170 is the medium-series hammer flail mulcher for tractors from 40 to 70 hp with a category 1 or 2 three-point linkage, such as New Holland, John Deere, Landini, Antonio Carraro, Kubota and Same. The reinforced hydraulic side shift, with 28 cm (11 in) of travel, is worked from the seat and takes the mower offset, under the canopy and along rows, ditches and fences. The electronically balanced rotor carries 26 hammer flails of 820 g (1.8 lb) and pulverises grass, leaves, brambles, vine and olive prunings and branches up to 4-5 cm (1.6-2 in) thick; the oversized rear roller and the side skids set the cutting height from 5 to 55 mm (0.2 to 2.2 in). DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 3-belt drive, 350 kg (772 lb). TÜV-certified, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.

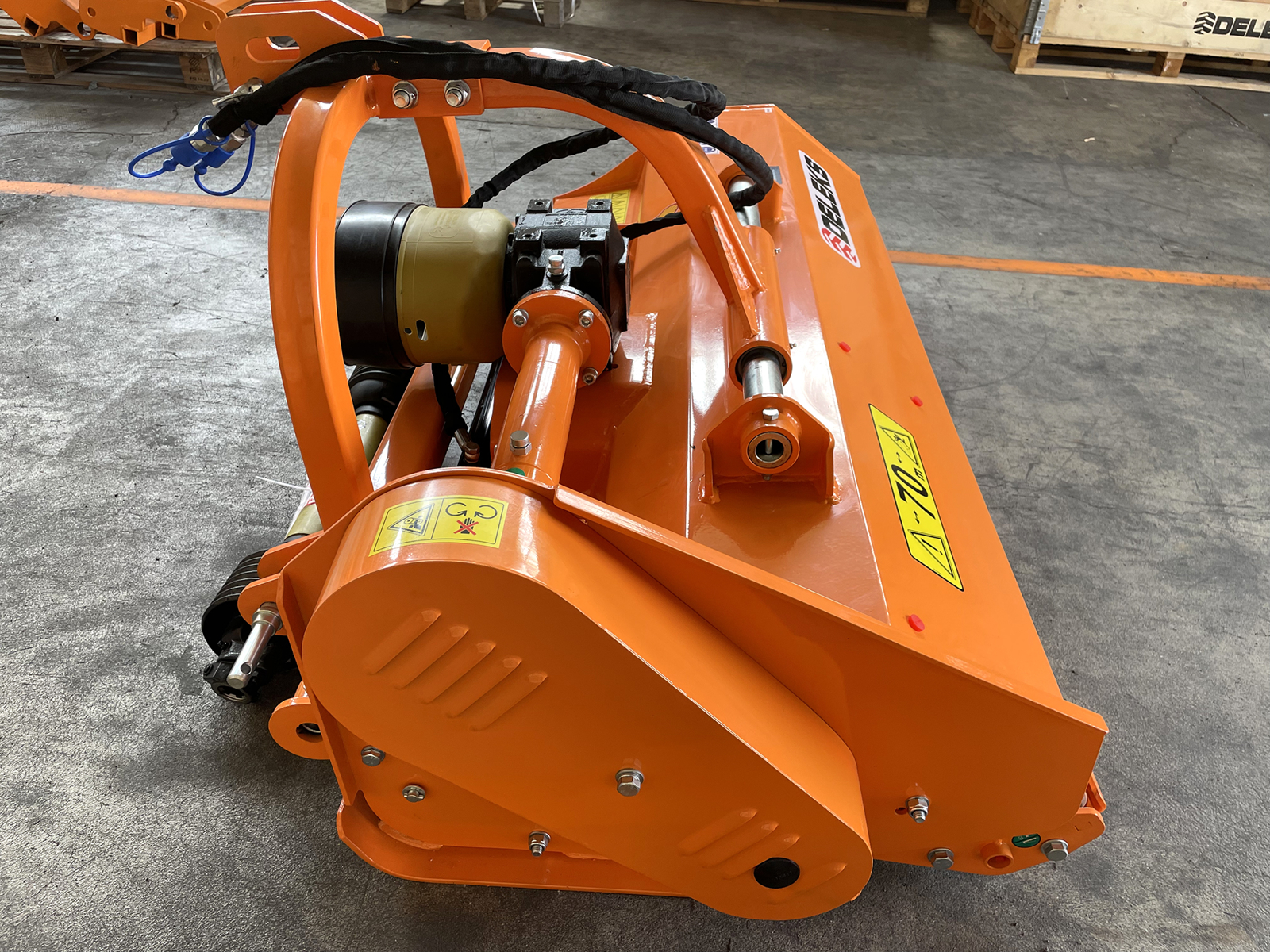

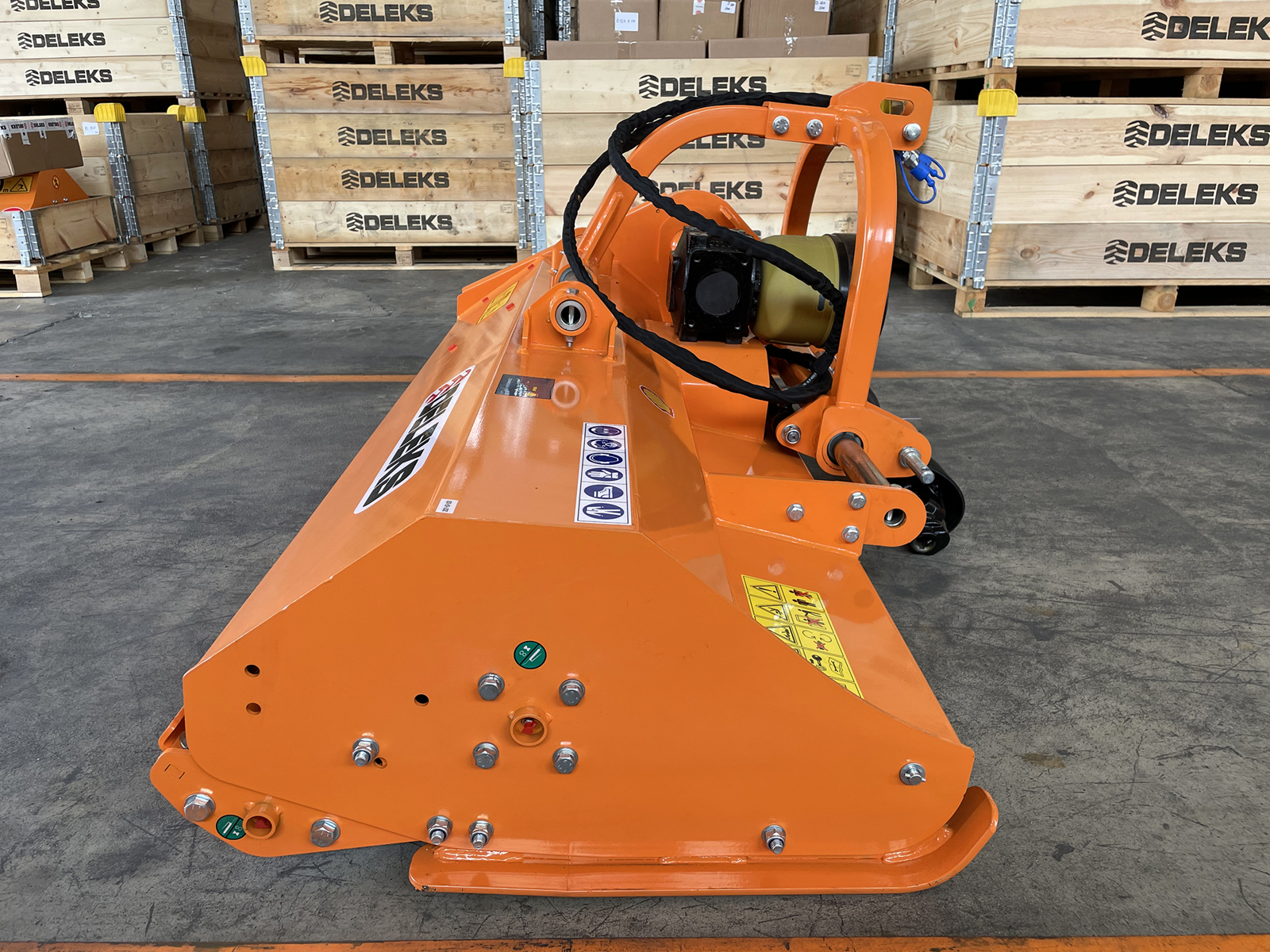

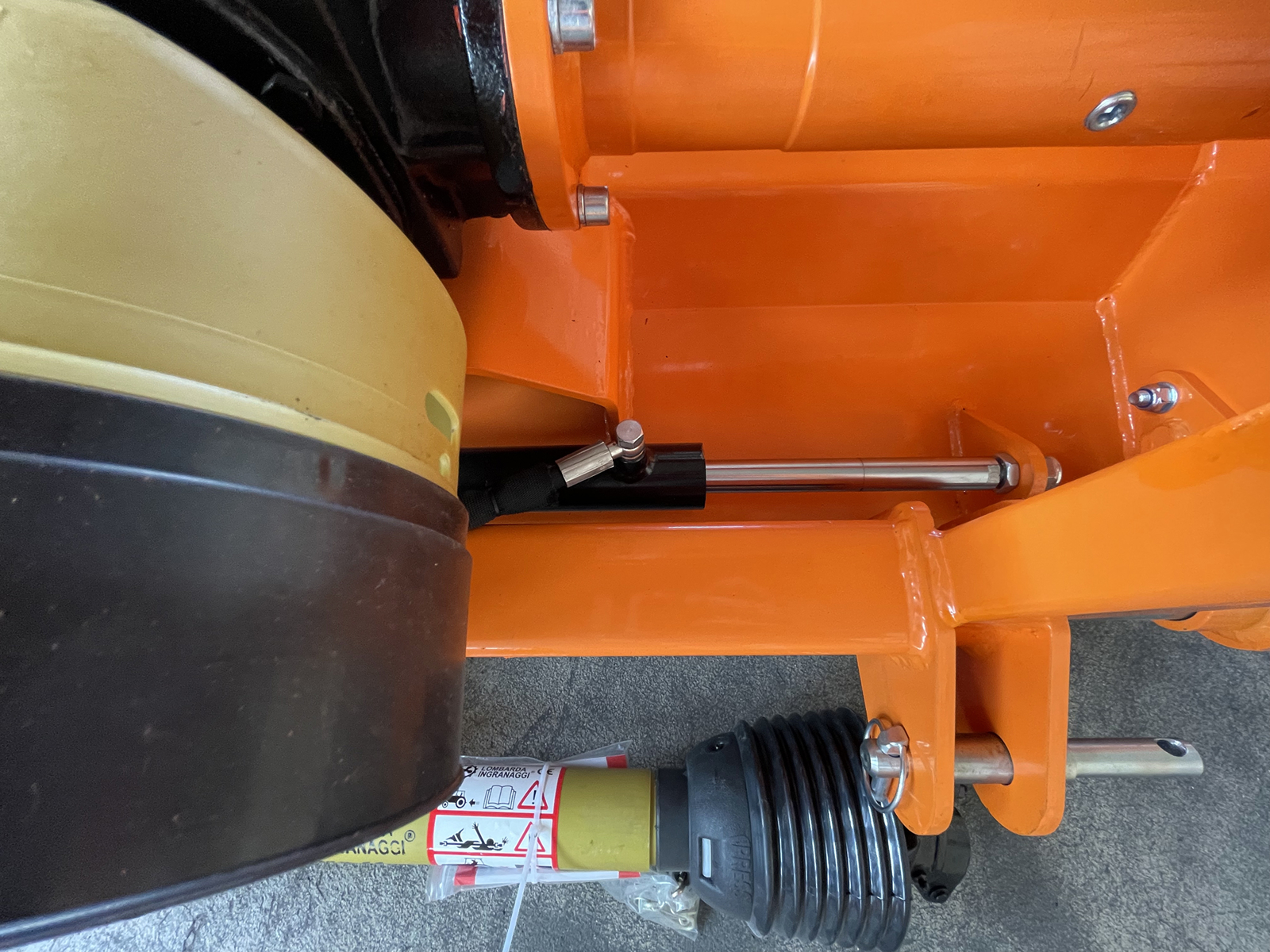

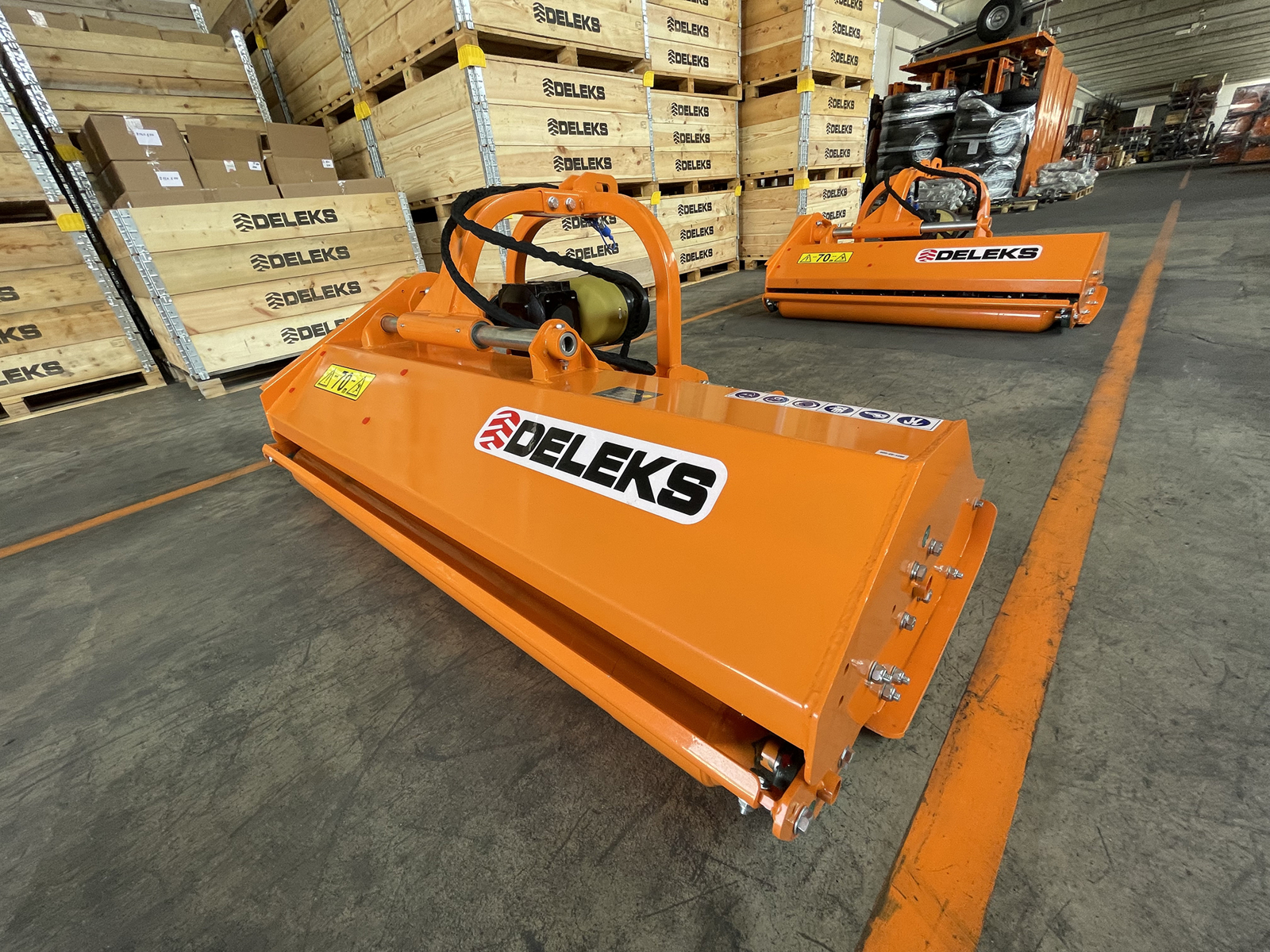

Hydraulic side shift of 28 cm (11 in), as standard
The reinforced hydraulic side shift is standard, with 28 cm (11 in) of travel: you work it from the seat with the tractor's spool valve, even on the move. It lets you work offset: bring the mower in to the row and away from posts and stumps, mow under the canopy, along fences and ditches and on field edges, keeping the tractor's wheels away from the edge. It arrives fitted, with the pair of hoses and standard ½ in agricultural quick-release couplings; the tractor needs a pair of rear hydraulic outlets (one double-acting spool valve).
Which tractors it fits
The JAGUAR-170 cuts 165 cm (65 in) with an overall width of 180 cm (71 in) and is built for tractors from 40 to 70 hp with a 540 rpm PTO and a universal category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 620 to 920 mm): New Holland, John Deere, Landini Mistral, Antonio Carraro Tigrone, Kubota, Same Solaris, Solis and equivalent tractors. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks. With the hydraulic side shift you can still put it wherever it is needed.

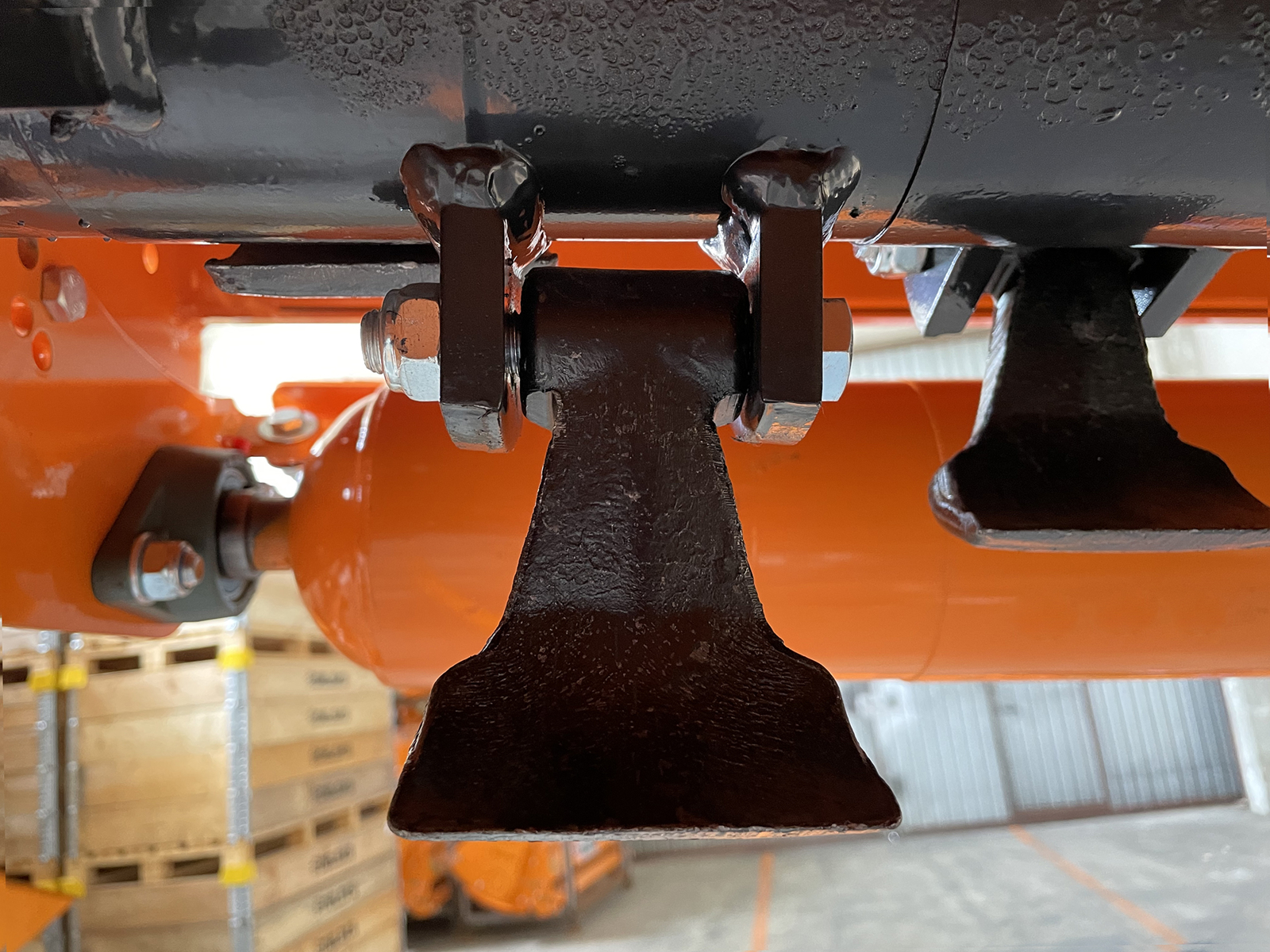

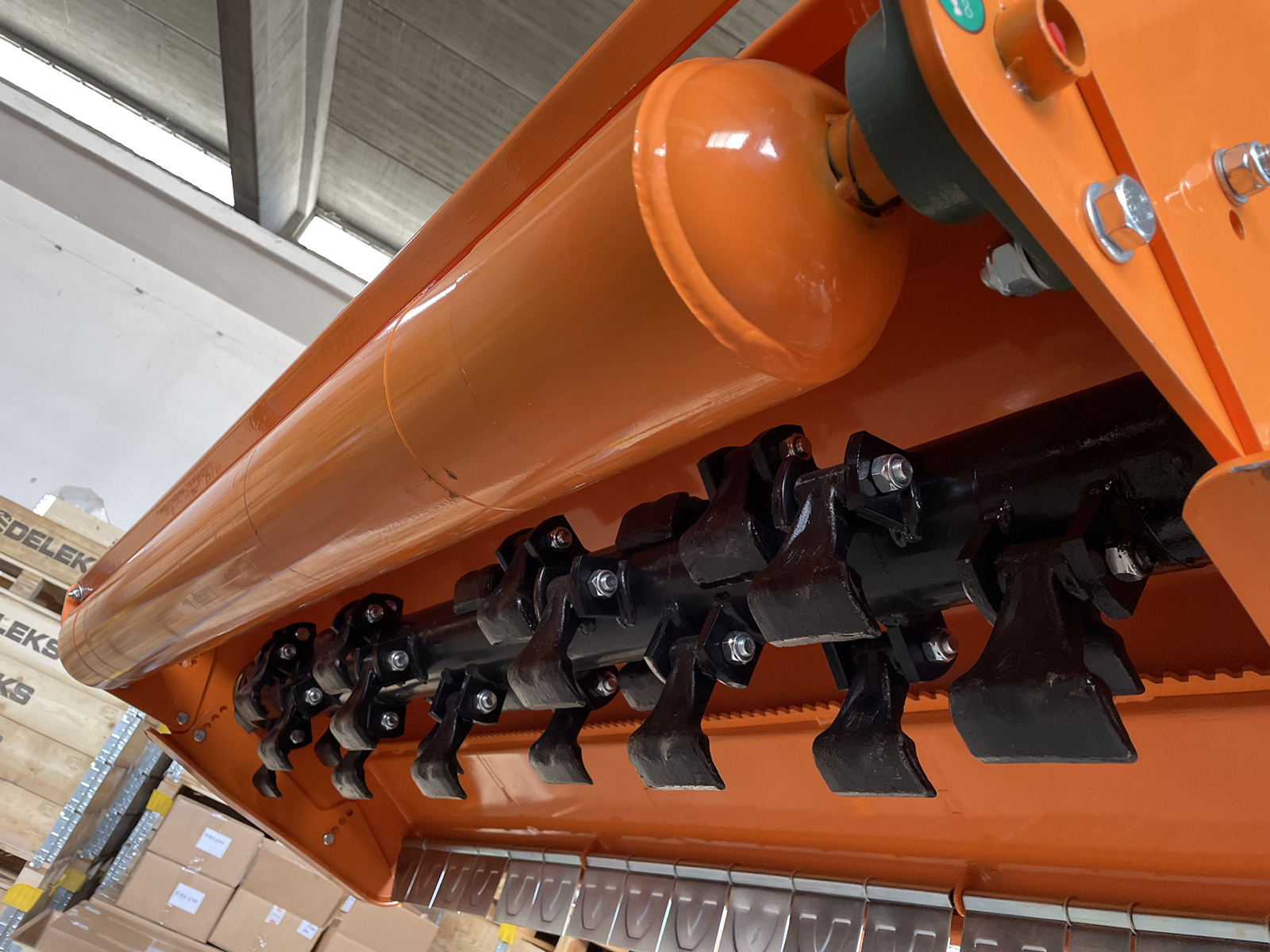

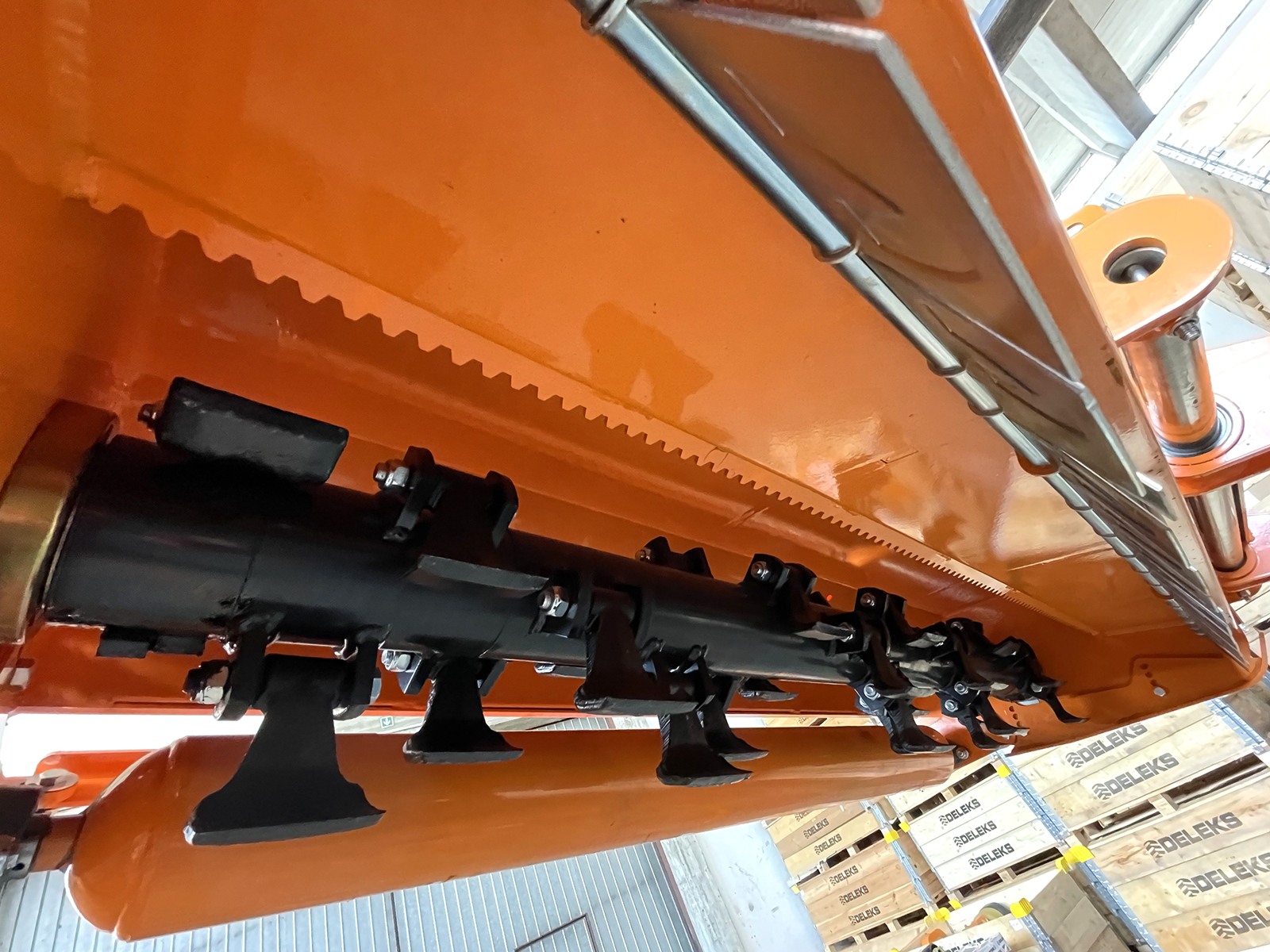

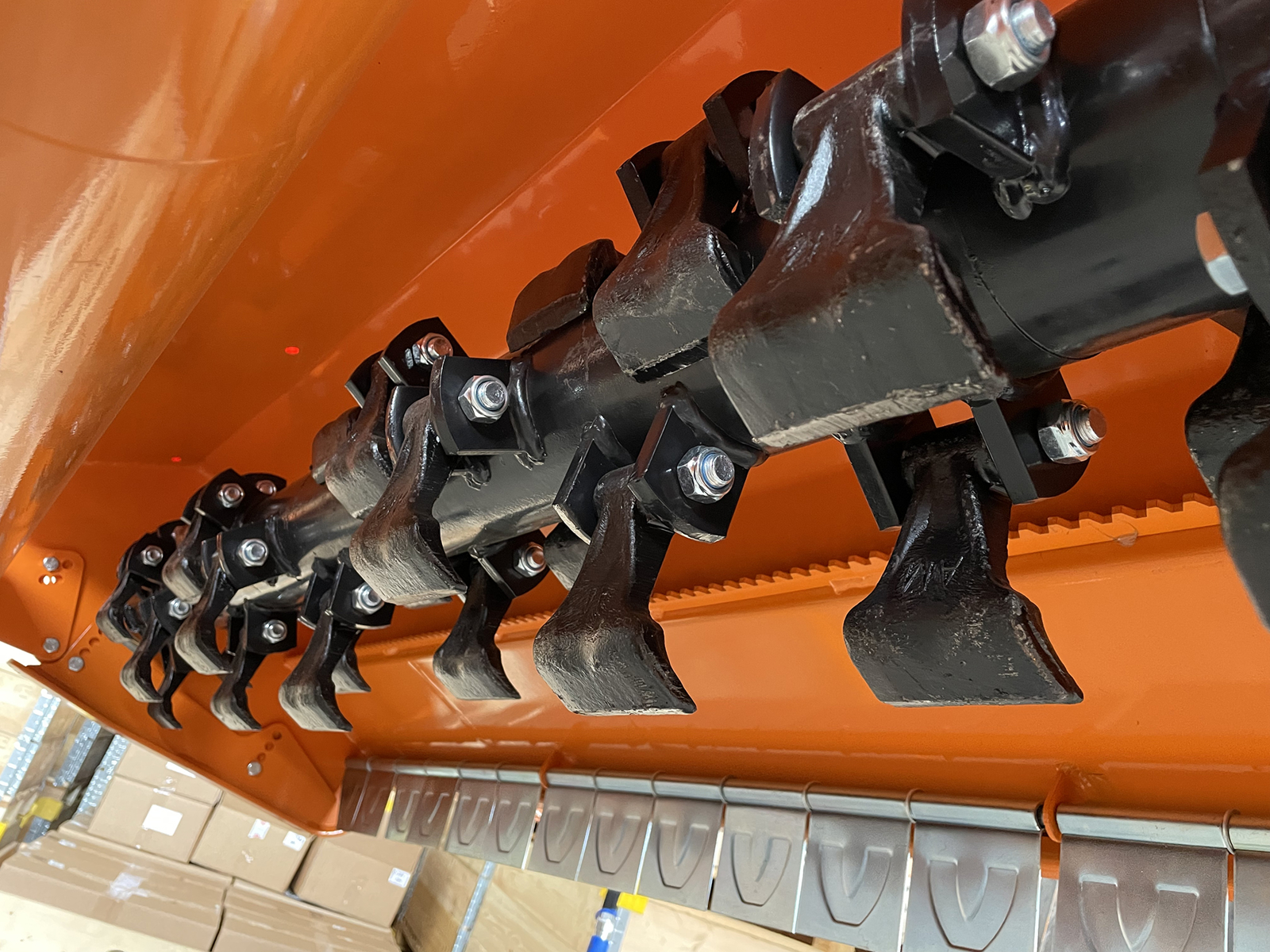

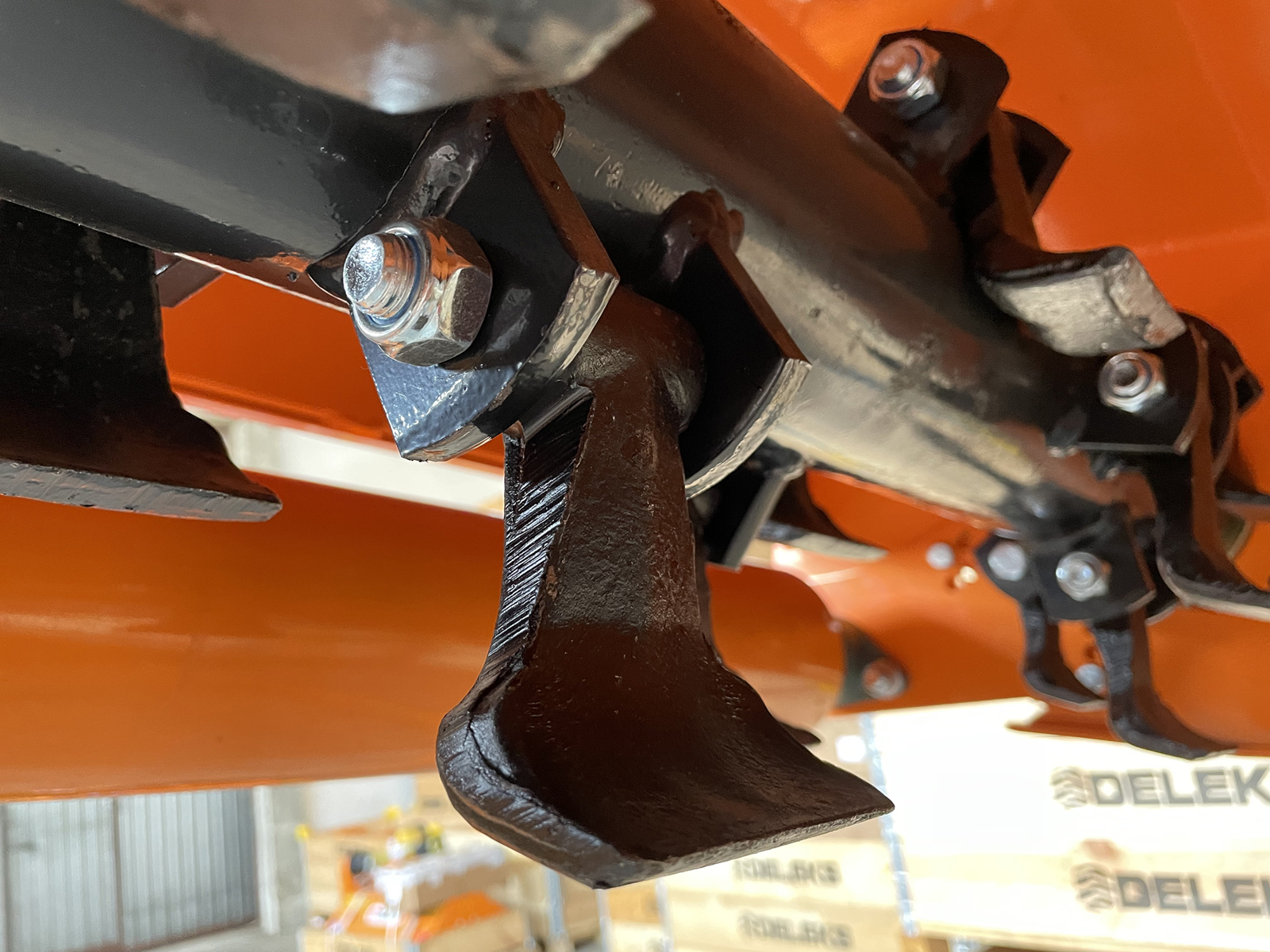

Rotor with 26 hammer flails of 820 g (1.8 lb)
The rotor, 108 mm (4.3 in) in diameter with an 8 mm (5/16 in) tube wall, is electronically balanced and spins at 2,295 rpm. The 26 hammer flails of 820 g (1.8 lb) are thick and heavy: they pulverise grass, leaves, brambles, vine and olive prunings and branches up to 4-5 cm (1.6-2 in) thick. The kit of 30 blades (COLTELLI30T) is available as an option, as an alternative to the hammer flails.

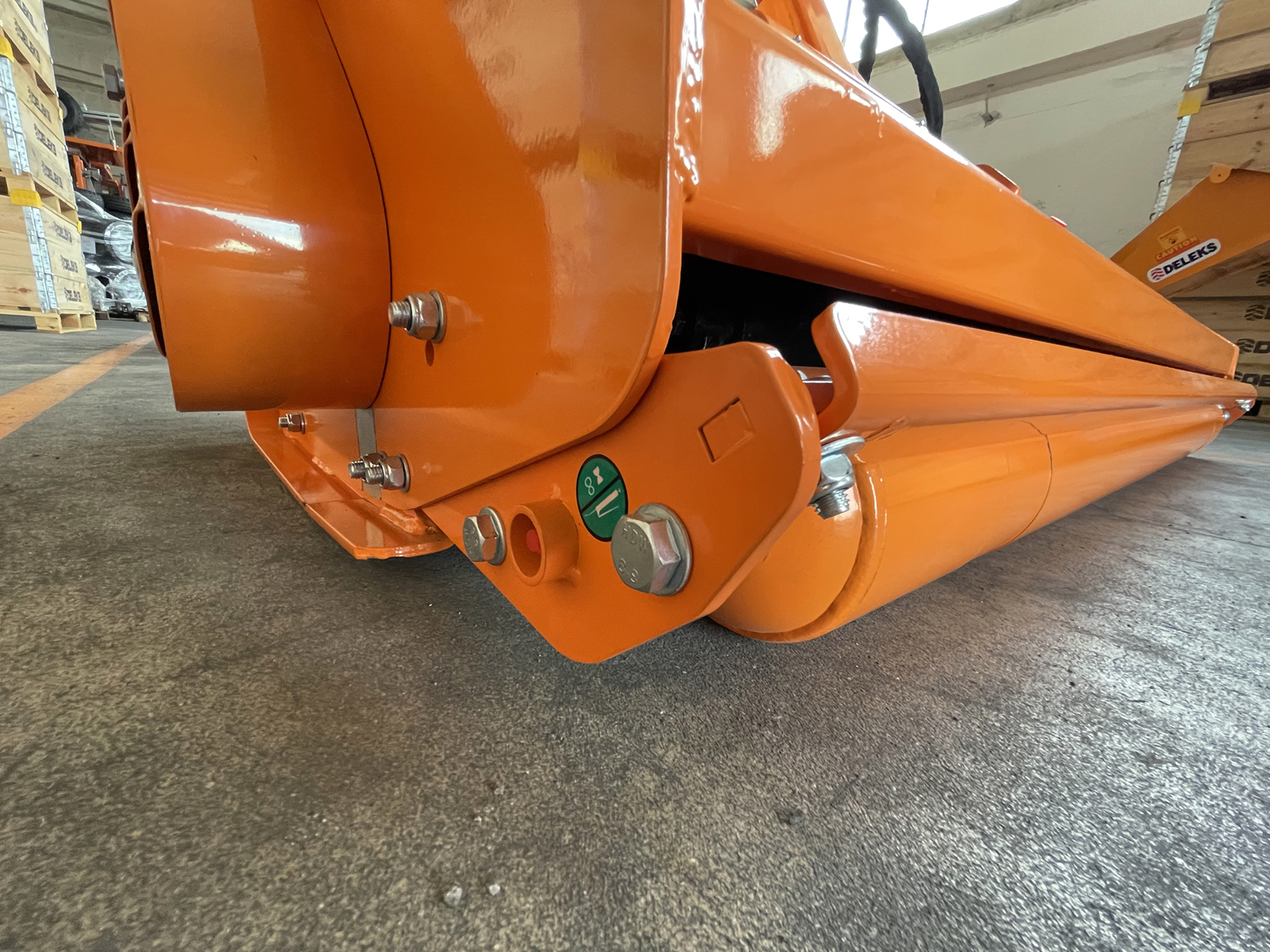

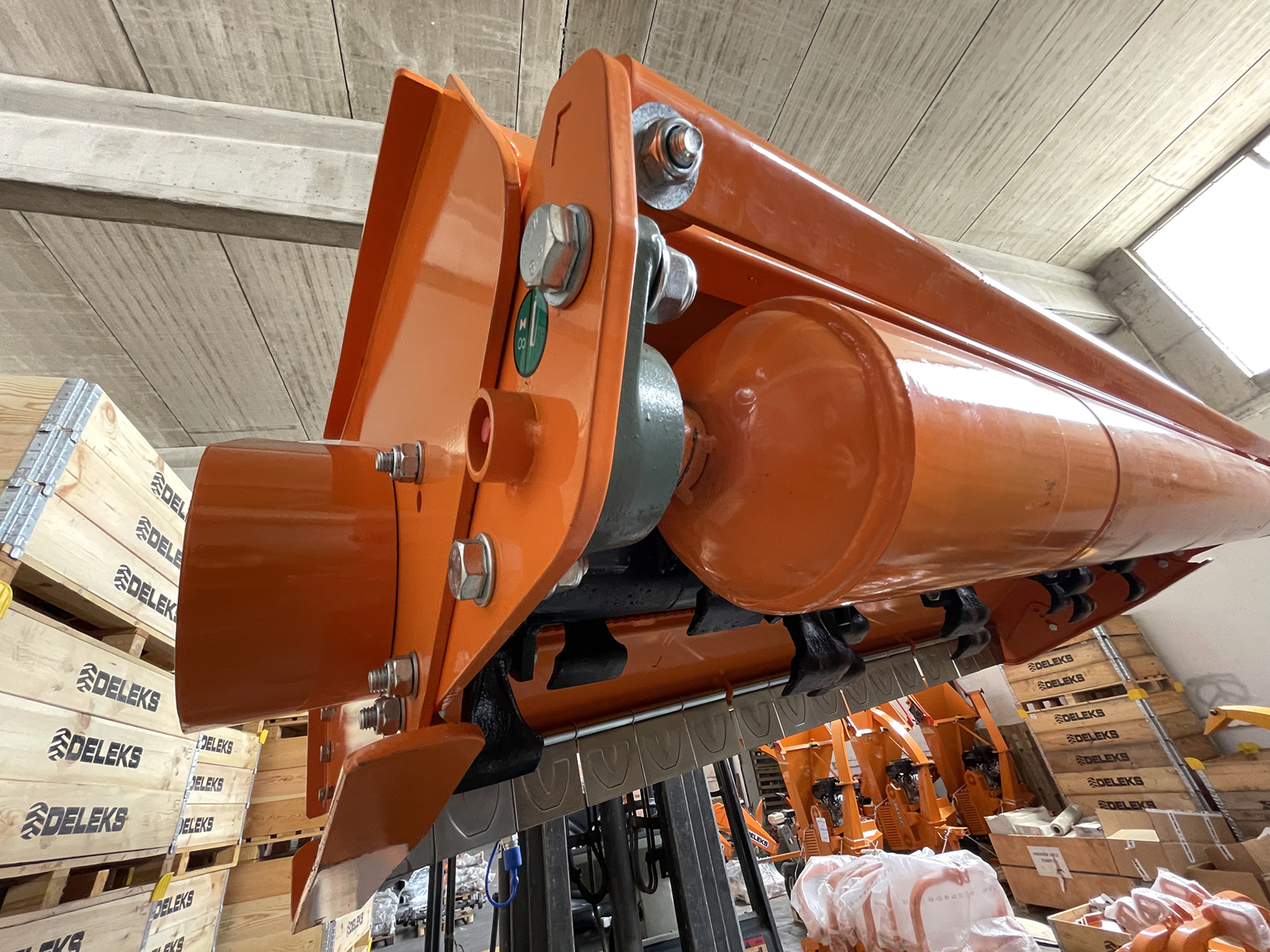

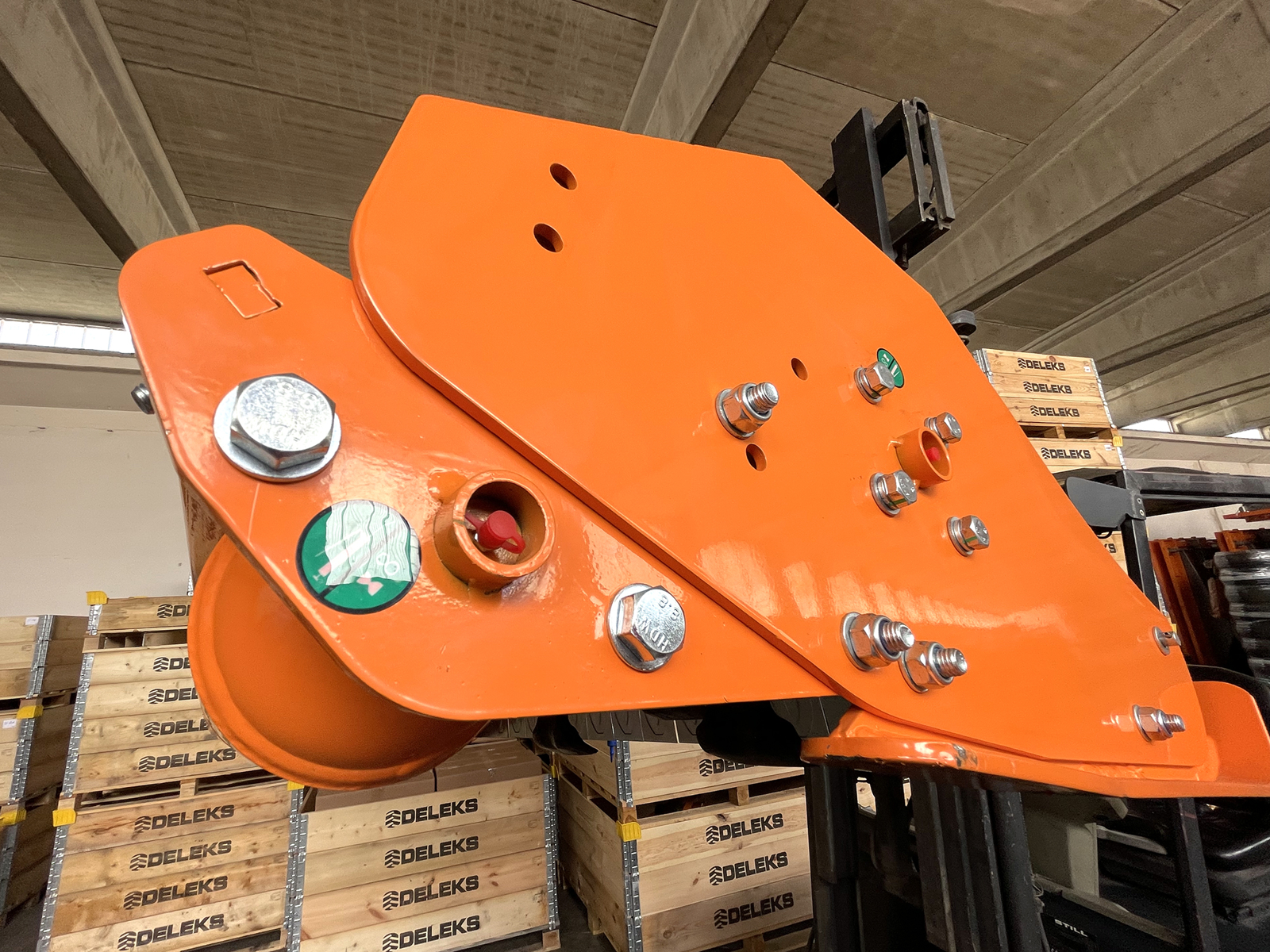

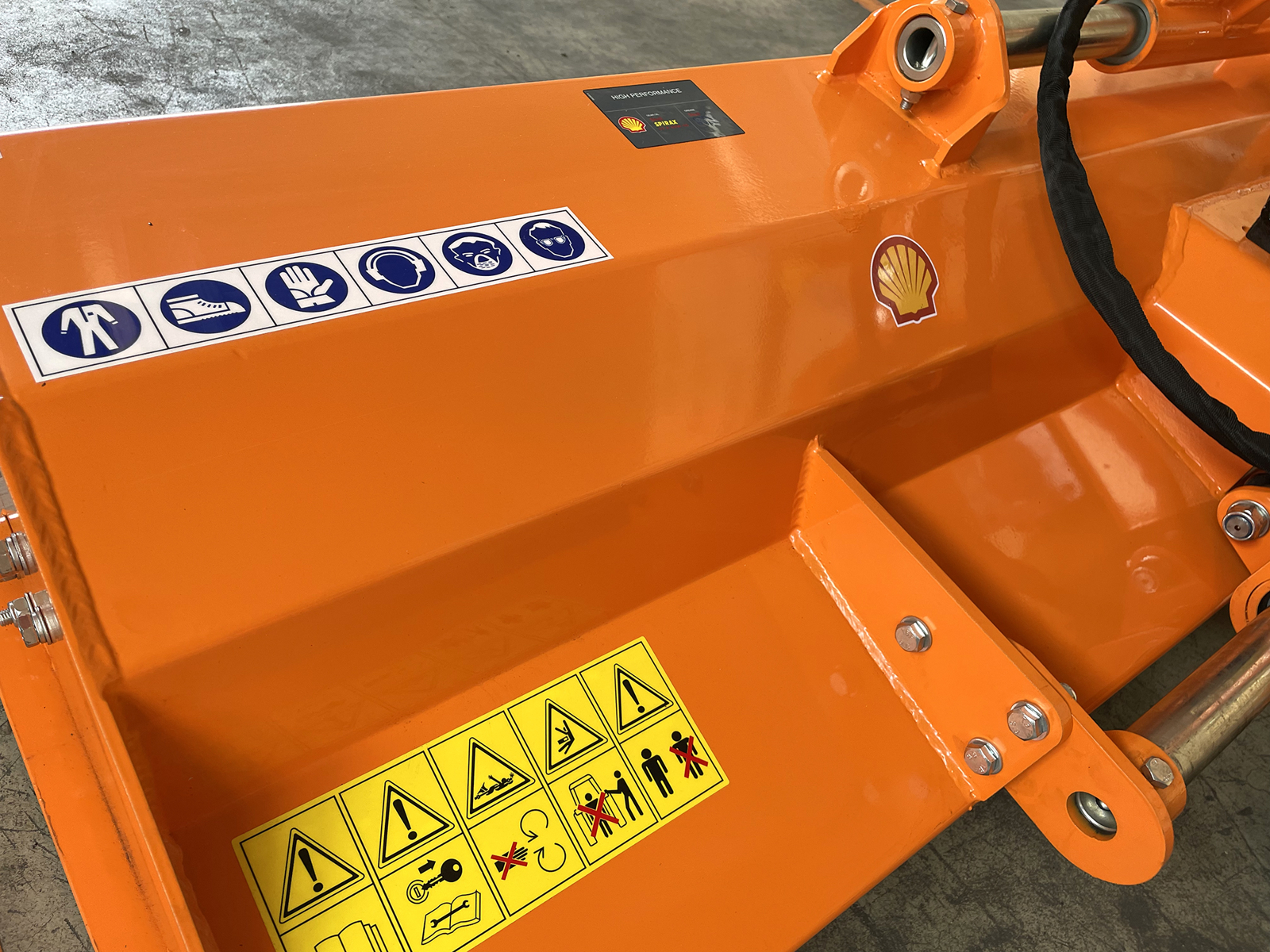

Frame, oversized roller and cutting height

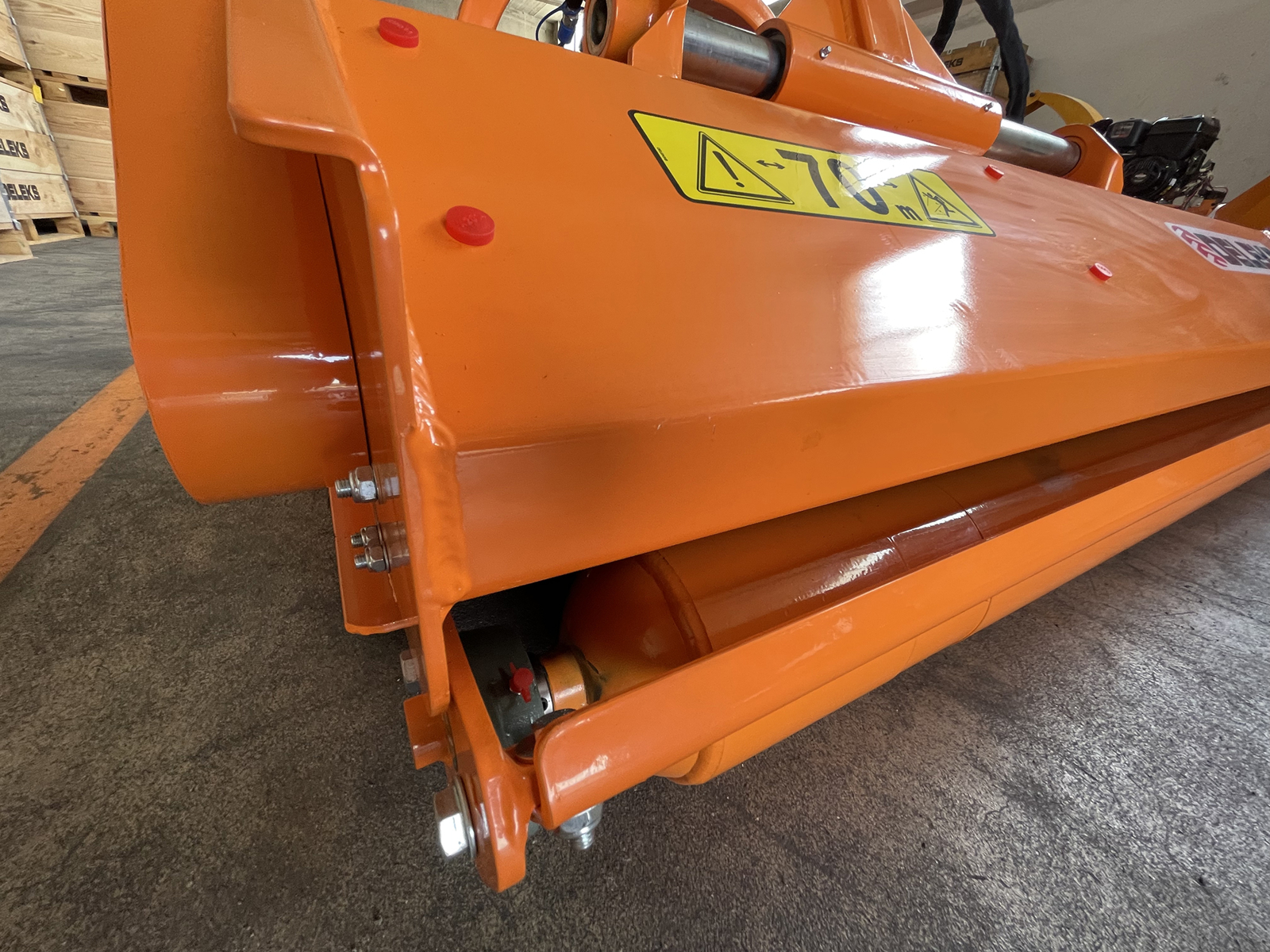

The frame is 5 mm thick, with 6 mm side plates and side skids. Cutting height is set from 5 to 55 mm (0.2 to 2.2 in) with the oversized 140 mm (5.5 in) rear roller and the side skids: low on grass, higher on stony or uneven ground.

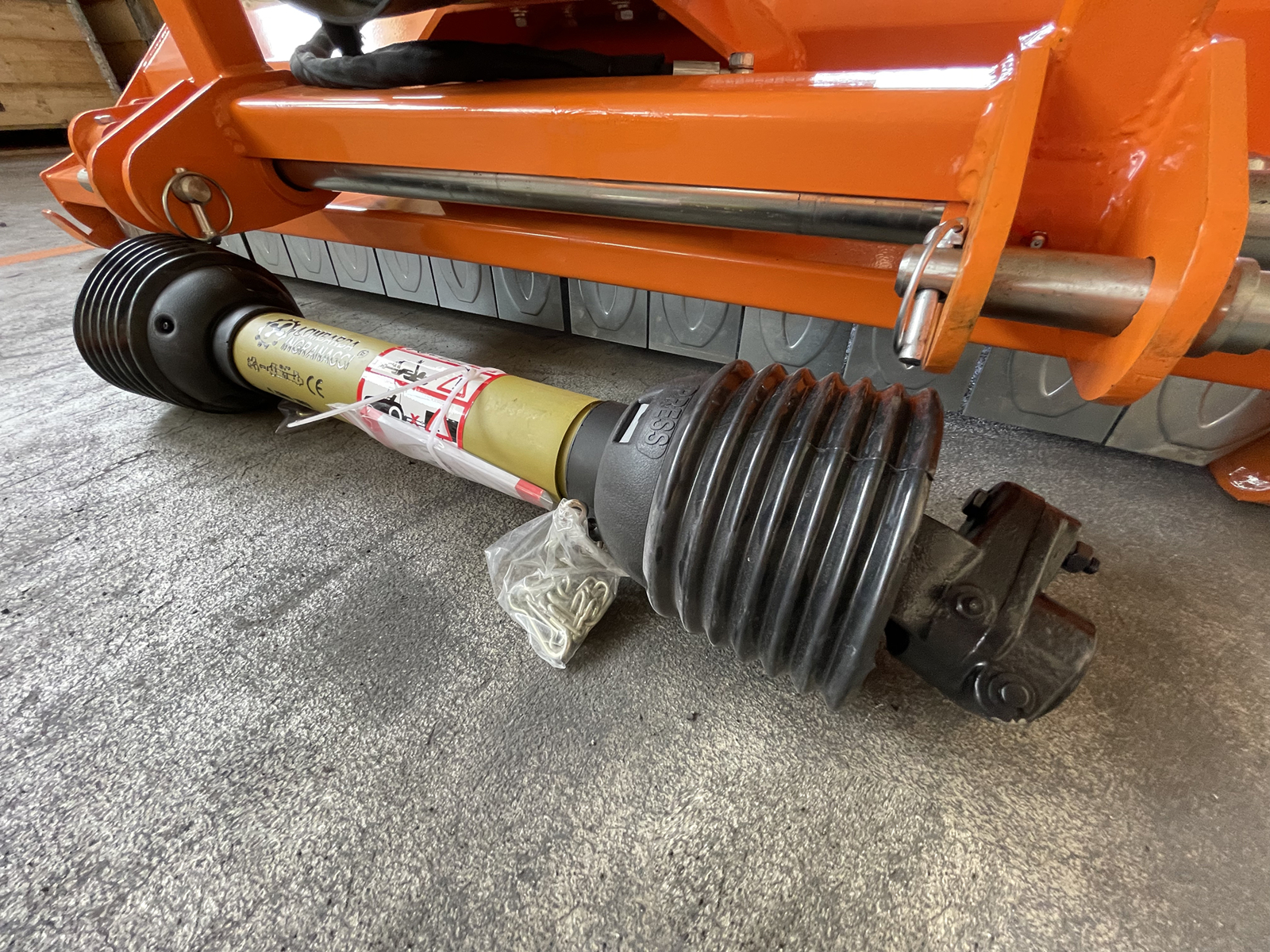

Gearbox with freewheel, 3 belts and PTO shaft

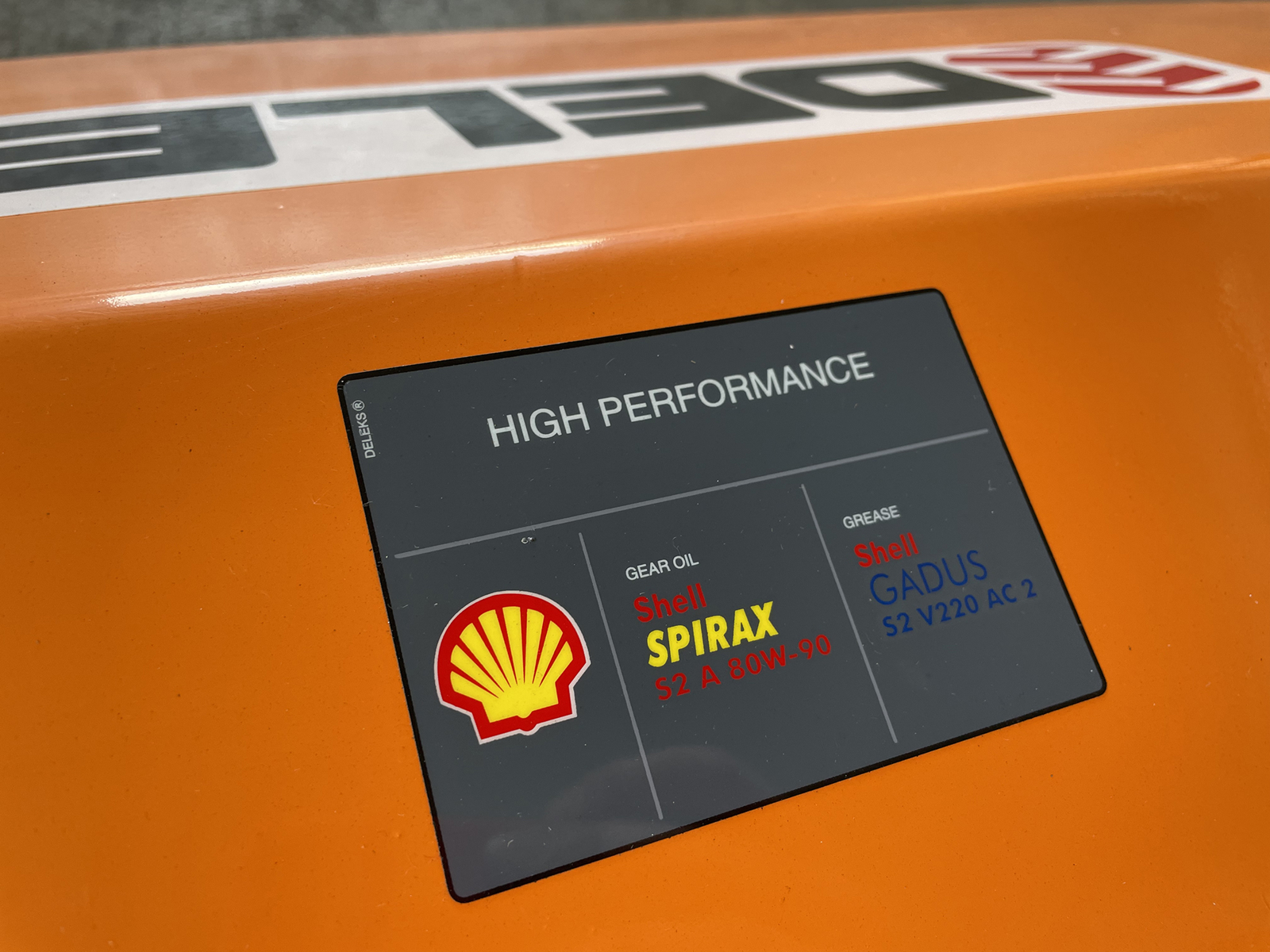

The DELEKS® gearbox for a 540 rpm PTO has a freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 3 V-belts; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.
Inter-row disc, as an option
The options for the JAGUAR-170 include the TÜV-certified DISC-603 hydraulic inter-row disc: it bolts to the side of the mower and cuts the grass round trunks and posts and under the row, where the flail mower cannot reach; when it touches the plant it swings back on a spring and then returns to position. It has three hydraulic hoses, with case drain, and works with an oil flow of up to 30 l/min.
Dimensions, weight and delivery

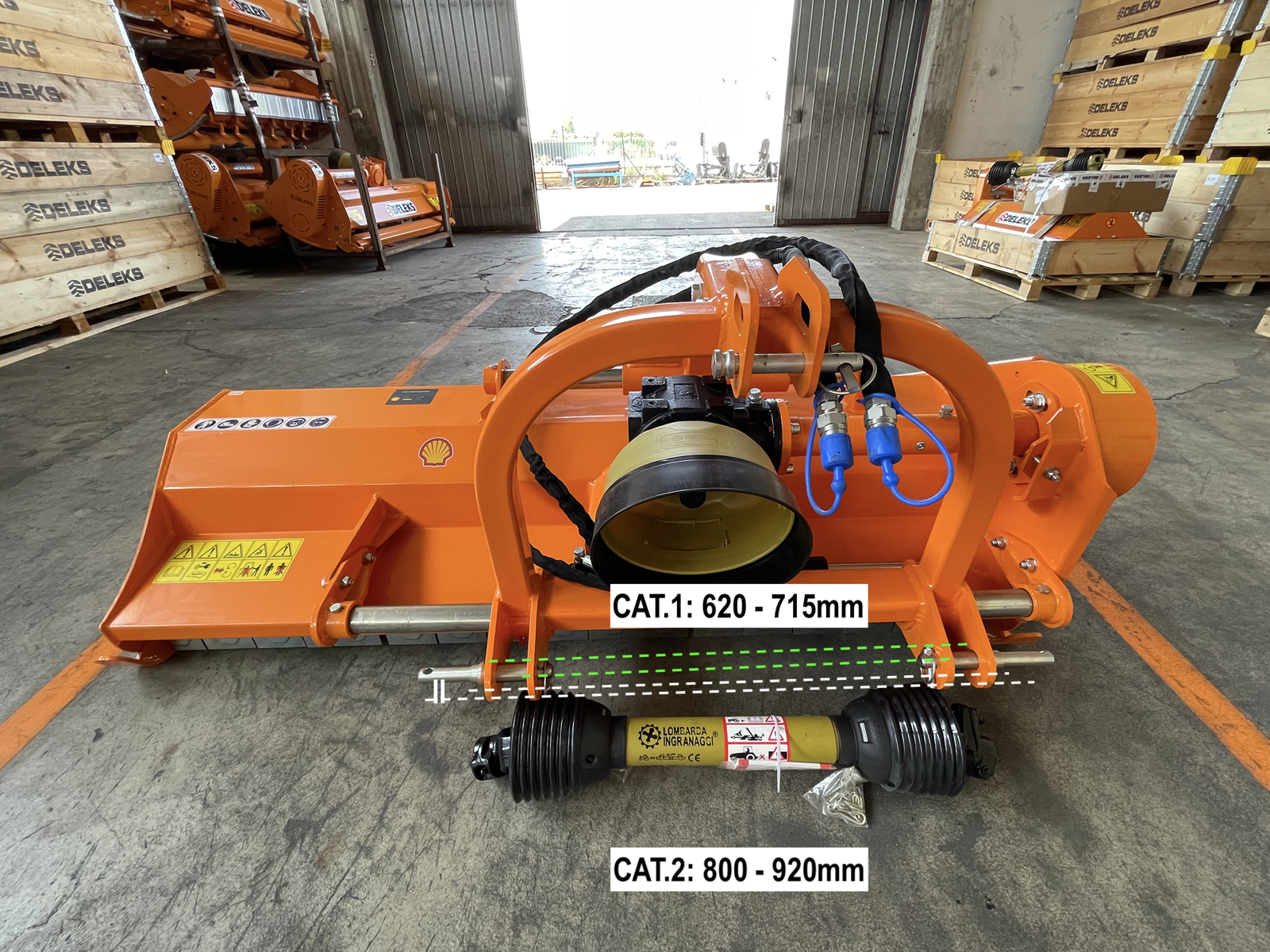

Working width 1,650 mm (65.0 in), overall width 1,800 mm (70.9 in), length 1,000 mm (39.4 in), height 830 mm (32.7 in), weight 350 kg (772 lb). It ships in packaging measuring 185 × 100 × 70 cm (73 × 39 × 28 in), 392 kg (864 lb) gross, 1.30 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.
Where it works
- Vineyards, orchards and olive groves: grass between the rows and under the canopy, prunings up to 4-5 cm (1.6-2 in)
- Rows, fence lines and ditches: the mower moves in and out from the seat
- Rough ground, field margins and headlands: long grass, brambles and reeds
- Grassland and large amenity areas: topping without collection
- With the inter-row disc (option): grass round the trunks and under the row
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T), the spare set of 3 belts (CINGHIE3INT), the universal PTO adapter (RID1), the DISC-603 hydraulic inter-row disc (code DISC603) and the spare pair of blades for the disc (COLTELLIDISC60). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the JAGUAR-170 need?
From 40 to 70 hp, with a 540 rpm PTO and a category 1 or 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 350 kg (772 lb).
How does the hydraulic side shift work?
A hydraulic ram moves the mower up to 28 cm (11 in) sideways; you work it from the seat with a double-acting spool valve on the tractor, even on the move. Hoses and ½ in quick-release couplings are standard. It is standard on every JAGUAR.
What size branches will it shred?
Vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick, as well as grass, leaves and brambles. For branches up to 8 cm (3.1 in) there is the heavy series.
Hammer flails or blades?
It comes with 26 hammer flails of 820 g (1.8 lb), suited to grass, brambles and prunings. The kit of 30 blades (COLTELLI30T) is available as an option.
Can the inter-row disc be fitted?
Yes: the DISC-603 hydraulic inter-row disc is among the options. On the tractor it needs a pair of hydraulic outlets and a connection for the third hose, the case drain, on top of the outlets used for the side shift.
How do you set the cutting height?
From 5 to 55 mm (0.2 to 2.2 in), with the oversized rear roller and the side skids.
Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, with shear bolt.
How does it differ from the LINCIONE-SPH?
The LINCIONE-SPH is Made in Italy, with an SSAB steel frame, a 115 mm (4.5 in) rotor and 4 belts, and shifts 31 cm (12 in). The JAGUAR is TÜV-certified, has the oversized 140 mm (5.5 in) roller, cuts from 5 mm (0.2 in) high and has the inter-row disc among its options.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1650.0 mm |
| Overall width | 1800.0 mm |
| Min / Max cutting height | 5.0 - 55.0 mm |
| Weight | 350.0 kg |
| Overall height | 830.0 mm |
| Tractor Power Range | 40 - 70 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Hood height | 370.0 mm |
| Spacing between the 2 lower points | 620.0 - 920.0 mm |
| Number of Hammers | 26 |
| Maximum cutting diameter | 40.0 - 50.0 mm |
| Overall length | 1000.0 mm |
| Distance between pto attachment and ground | 400.0 mm |
| Main hood thickness | 5.0 mm |
| Sides thickness | 6.0 mm |
| Side plates thickness | 6.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | DELEKS 540 r/min - 3 years warranty |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2295 rpm |
| Transmission: Oil in the gearbox | Yes / Shell Spirax S2 A 80W-90 |
| Transmission: Top pulley ø | 170.0 mm |
| Transmission: Lower pulley ø | 120.0 mm |
| Transmission: V-Belts quantity | 3 |
| Transmission: V-Belts size | 17x1092 |
| Rotor: diameter | 108.0 mm |
| Rotor: bearings type and size | UC207 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 820.0 g |
| Hammer: øhole | 15.0 mm |
| Hammer: base width | 82.0 mm |
| Hammer: top width | 45.0 mm |
| Hammer: Diagonal | 95.0 mm |
| Rear roller: diameter | 140.0 mm |
| Rear roller: sheet thickness | 4.0 mm |
| Rear roller: bearings type and size | UC205 |
| Pto shaft | CE 4x800 mm + shear bolt |
| Hood length | 750.0 mm |
| Effective Displacement | 280.0 mm (Hydraulic) |
| Gross shipping weight | 392 kg |
| Package volume | 1.30 m3 |
| Packing sizes | 1850.0*1000.0*700.0 mm |
DETAILS
CLOSETractor flail mower with a 165 cm (65 in) cut and hydraulic side shift as standard: the DELEKS® JAGUAR-170 is the medium-series hammer flail mulcher for tractors from 40 to 70 hp with a category 1 or 2 three-point linkage, such as New Holland, John Deere, Landini, Antonio Carraro, Kubota and Same. The reinforced hydraulic side shift, with 28 cm (11 in) of travel, is worked from the seat and takes the mower offset, under the canopy and along rows, ditches and fences. The electronically balanced rotor carries 26 hammer flails of 820 g (1.8 lb) and pulverises grass, leaves, brambles, vine and olive prunings and branches up to 4-5 cm (1.6-2 in) thick; the oversized rear roller and the side skids set the cutting height from 5 to 55 mm (0.2 to 2.2 in). DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 3-belt drive, 350 kg (772 lb). TÜV-certified, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.
Hydraulic side shift of 28 cm (11 in), as standard
The reinforced hydraulic side shift is standard, with 28 cm (11 in) of travel: you work it from the seat with the tractor's spool valve, even on the move. It lets you work offset: bring the mower in to the row and away from posts and stumps, mow under the canopy, along fences and ditches and on field edges, keeping the tractor's wheels away from the edge. It arrives fitted, with the pair of hoses and standard ½ in agricultural quick-release couplings; the tractor needs a pair of rear hydraulic outlets (one double-acting spool valve).
Which tractors it fits
The JAGUAR-170 cuts 165 cm (65 in) with an overall width of 180 cm (71 in) and is built for tractors from 40 to 70 hp with a 540 rpm PTO and a universal category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 620 to 920 mm): New Holland, John Deere, Landini Mistral, Antonio Carraro Tigrone, Kubota, Same Solaris, Solis and equivalent tractors. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks. With the hydraulic side shift you can still put it wherever it is needed.
Rotor with 26 hammer flails of 820 g (1.8 lb)
The rotor, 108 mm (4.3 in) in diameter with an 8 mm (5/16 in) tube wall, is electronically balanced and spins at 2,295 rpm. The 26 hammer flails of 820 g (1.8 lb) are thick and heavy: they pulverise grass, leaves, brambles, vine and olive prunings and branches up to 4-5 cm (1.6-2 in) thick. The kit of 30 blades (COLTELLI30T) is available as an option, as an alternative to the hammer flails.
Frame, oversized roller and cutting height
The frame is 5 mm thick, with 6 mm side plates and side skids. Cutting height is set from 5 to 55 mm (0.2 to 2.2 in) with the oversized 140 mm (5.5 in) rear roller and the side skids: low on grass, higher on stony or uneven ground.
Gearbox with freewheel, 3 belts and PTO shaft
The DELEKS® gearbox for a 540 rpm PTO has a freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 3 V-belts; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.
Inter-row disc, as an option
The options for the JAGUAR-170 include the TÜV-certified DISC-603 hydraulic inter-row disc: it bolts to the side of the mower and cuts the grass round trunks and posts and under the row, where the flail mower cannot reach; when it touches the plant it swings back on a spring and then returns to position. It has three hydraulic hoses, with case drain, and works with an oil flow of up to 30 l/min.
Dimensions, weight and delivery
Working width 1,650 mm (65.0 in), overall width 1,800 mm (70.9 in), length 1,000 mm (39.4 in), height 830 mm (32.7 in), weight 350 kg (772 lb). It ships in packaging measuring 185 × 100 × 70 cm (73 × 39 × 28 in), 392 kg (864 lb) gross, 1.30 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.
Where it works
- Vineyards, orchards and olive groves: grass between the rows and under the canopy, prunings up to 4-5 cm (1.6-2 in)
- Rows, fence lines and ditches: the mower moves in and out from the seat
- Rough ground, field margins and headlands: long grass, brambles and reeds
- Grassland and large amenity areas: topping without collection
- With the inter-row disc (option): grass round the trunks and under the row
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T), the spare set of 3 belts (CINGHIE3INT), the universal PTO adapter (RID1), the DISC-603 hydraulic inter-row disc (code DISC603) and the spare pair of blades for the disc (COLTELLIDISC60). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the JAGUAR-170 need?
From 40 to 70 hp, with a 540 rpm PTO and a category 1 or 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 350 kg (772 lb).
How does the hydraulic side shift work?
A hydraulic ram moves the mower up to 28 cm (11 in) sideways; you work it from the seat with a double-acting spool valve on the tractor, even on the move. Hoses and ½ in quick-release couplings are standard. It is standard on every JAGUAR.
What size branches will it shred?
Vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick, as well as grass, leaves and brambles. For branches up to 8 cm (3.1 in) there is the heavy series.
Hammer flails or blades?
It comes with 26 hammer flails of 820 g (1.8 lb), suited to grass, brambles and prunings. The kit of 30 blades (COLTELLI30T) is available as an option.
Can the inter-row disc be fitted?
Yes: the DISC-603 hydraulic inter-row disc is among the options. On the tractor it needs a pair of hydraulic outlets and a connection for the third hose, the case drain, on top of the outlets used for the side shift.
How do you set the cutting height?
From 5 to 55 mm (0.2 to 2.2 in), with the oversized rear roller and the side skids.
Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, with shear bolt.
How does it differ from the LINCIONE-SPH?
The LINCIONE-SPH is Made in Italy, with an SSAB steel frame, a 115 mm (4.5 in) rotor and 4 belts, and shifts 31 cm (12 in). The JAGUAR is TÜV-certified, has the oversized 140 mm (5.5 in) roller, cuts from 5 mm (0.2 in) high and has the inter-row disc among its options.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Working width | 1650.0 mm |
| Overall width | 1800.0 mm |
| Min / Max cutting height | 5.0 - 55.0 mm |
| Weight | 350.0 kg |
| Overall height | 830.0 mm |
| Tractor Power Range | 40 - 70 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Hood height | 370.0 mm |
| Spacing between the 2 lower points | 620.0 - 920.0 mm |
| Number of Hammers | 26 |
| Maximum cutting diameter | 40.0 - 50.0 mm |
| Overall length | 1000.0 mm |
| Distance between pto attachment and ground | 400.0 mm |
| Main hood thickness | 5.0 mm |
| Sides thickness | 6.0 mm |
| Side plates thickness | 6.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | DELEKS 540 r/min - 3 years warranty |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2295 rpm |
| Transmission: Oil in the gearbox | Yes / Shell Spirax S2 A 80W-90 |
| Transmission: Top pulley ø | 170.0 mm |
| Transmission: Lower pulley ø | 120.0 mm |
| Transmission: V-Belts quantity | 3 |
| Transmission: V-Belts size | 17x1092 |
| Rotor: diameter | 108.0 mm |
| Rotor: bearings type and size | UC207 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 820.0 g |
| Hammer: øhole | 15.0 mm |
| Hammer: base width | 82.0 mm |
| Hammer: top width | 45.0 mm |
| Hammer: Diagonal | 95.0 mm |
| Rear roller: diameter | 140.0 mm |
| Rear roller: sheet thickness | 4.0 mm |
| Rear roller: bearings type and size | UC205 |
| Pto shaft | CE 4x800 mm + shear bolt |
| Hood length | 750.0 mm |
| Effective Displacement | 280.0 mm (Hydraulic) |
| Gross shipping weight | 392 kg |
| Package volume | 1.30 m3 |
| Packing sizes | 1850.0*1000.0*700.0 mm |
