Tractor flail mower 150 cm (59 in) JAGUAR-150 with hydraulic side shift, hammer flail mulcher for 30-60 hp tractors

Available
Code JAGUAR150PTO - EAN 8053470236518
1.990,00€VAT incl.
or 3 installments of 663,33 €
Free shipping
Loading...
1.990,00€VAT incl.
or 3 installments of 663,33 €
Free shipping
View all details.
CUTTING WIDTH
130 150 170

reviews

1.990,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Field test
Field test
Field test
Field test

DETAILS

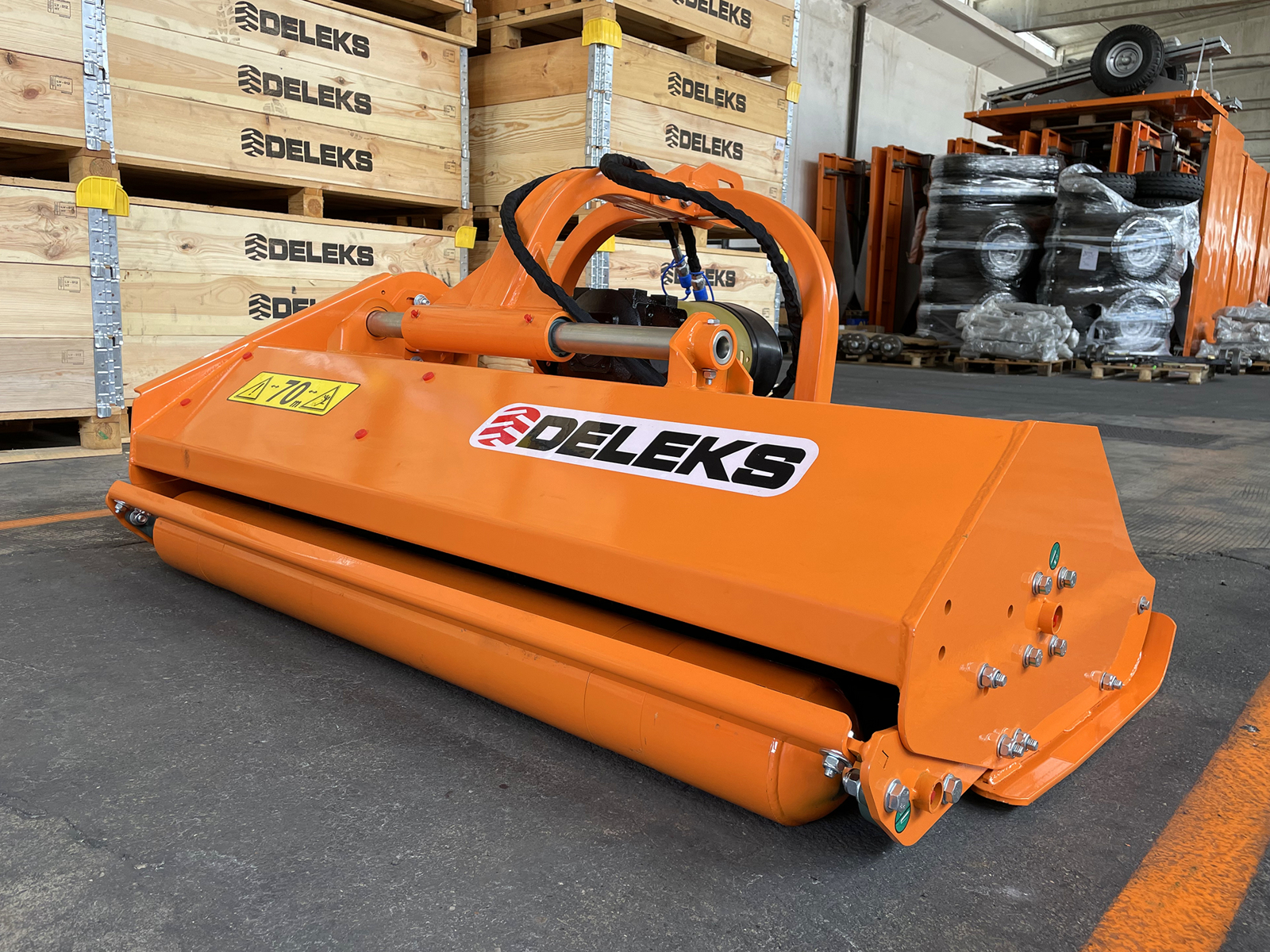

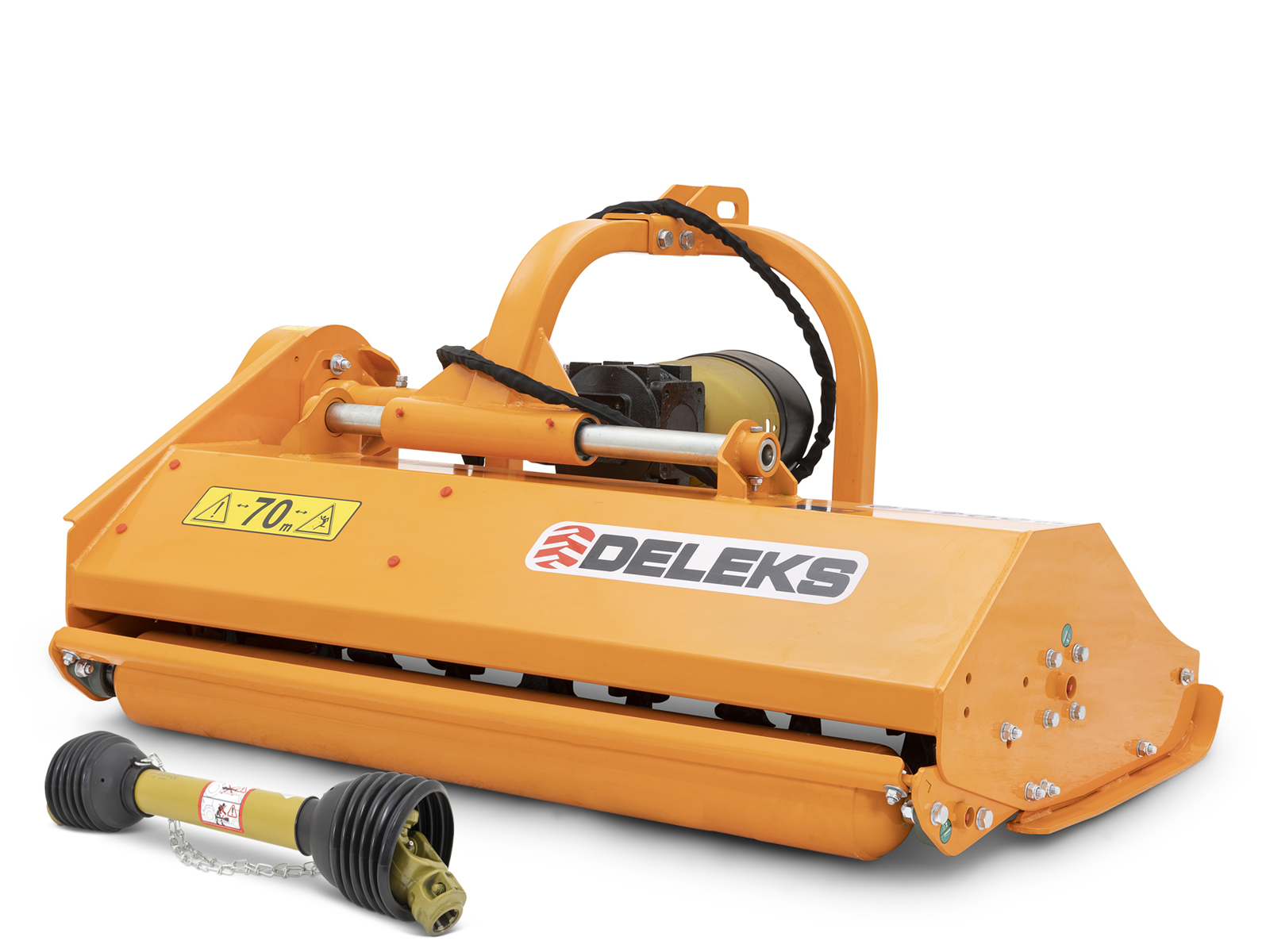

Tractor flail mower with a 147 cm (58 in) cut and hydraulic side shift as standard: the DELEKS® JAGUAR-150 is the medium-series hammer flail mulcher for tractors from 30 to 60 hp with a category 1 or 2 three-point linkage, such as New Holland, John Deere, Landini, Antonio Carraro, Kubota and Same. The reinforced hydraulic side shift, with 28 cm (11 in) of travel, is worked from the seat and takes the mower offset, under the canopy and along rows, ditches and fences. The electronically balanced rotor carries 22 hammer flails of 820 g (1.8 lb) and pulverises grass, leaves, brambles, vine and olive prunings and branches up to 4-5 cm (1.6-2 in) thick; the oversized rear roller and the side skids set the cutting height from 5 to 55 mm (0.2 to 2.2 in). DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 3-belt drive, 330 kg (728 lb). TÜV-certified, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.

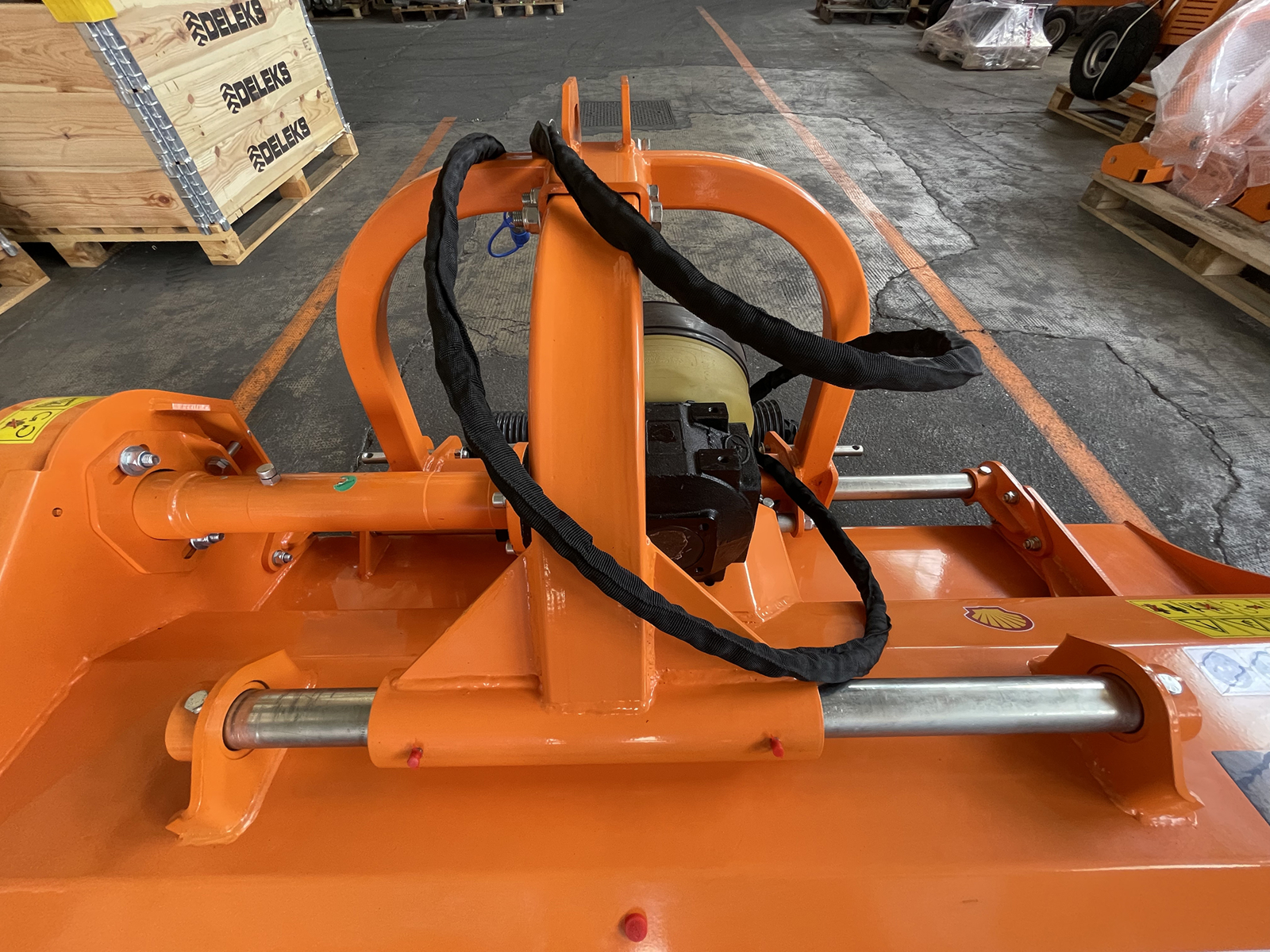

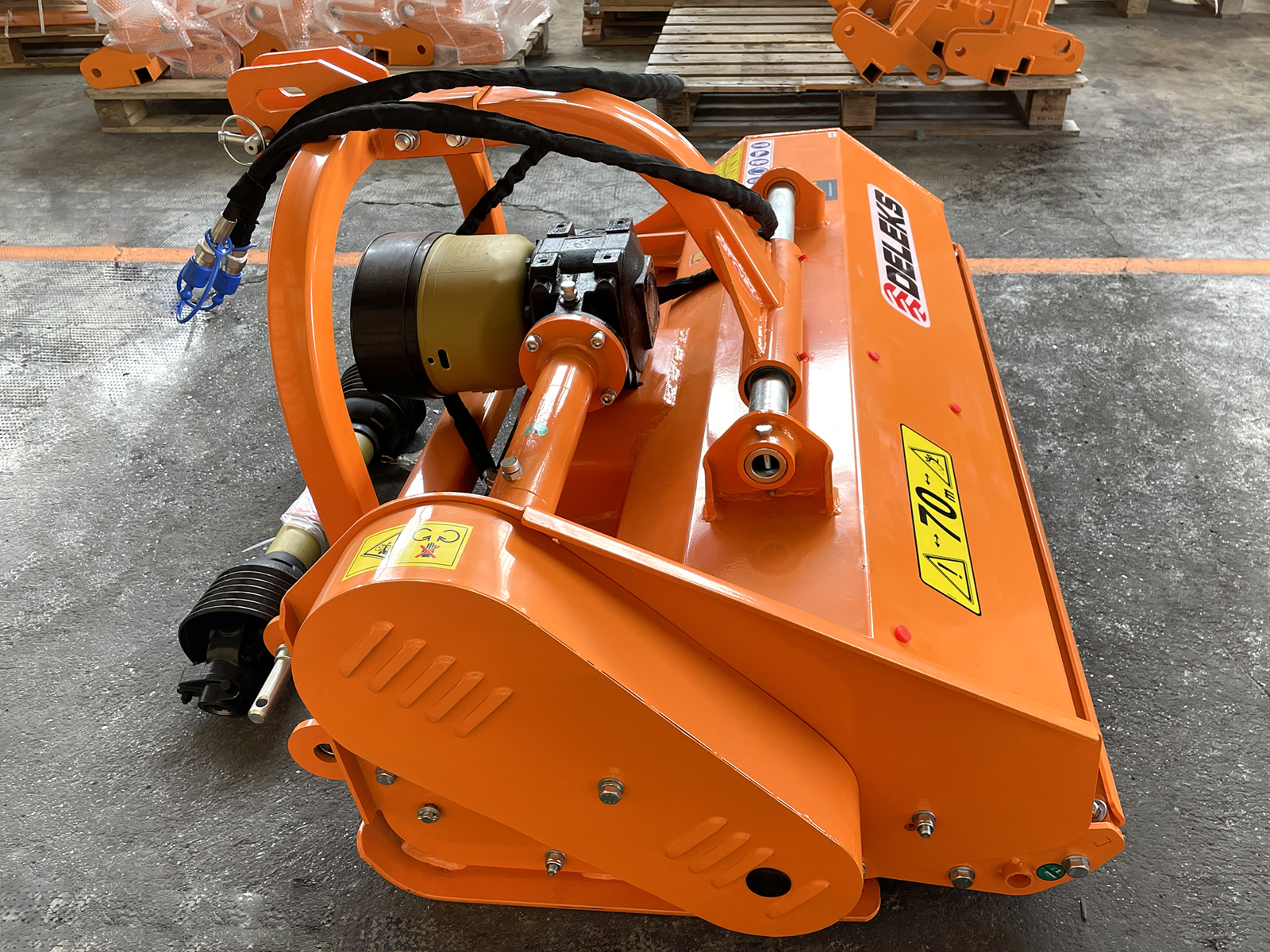

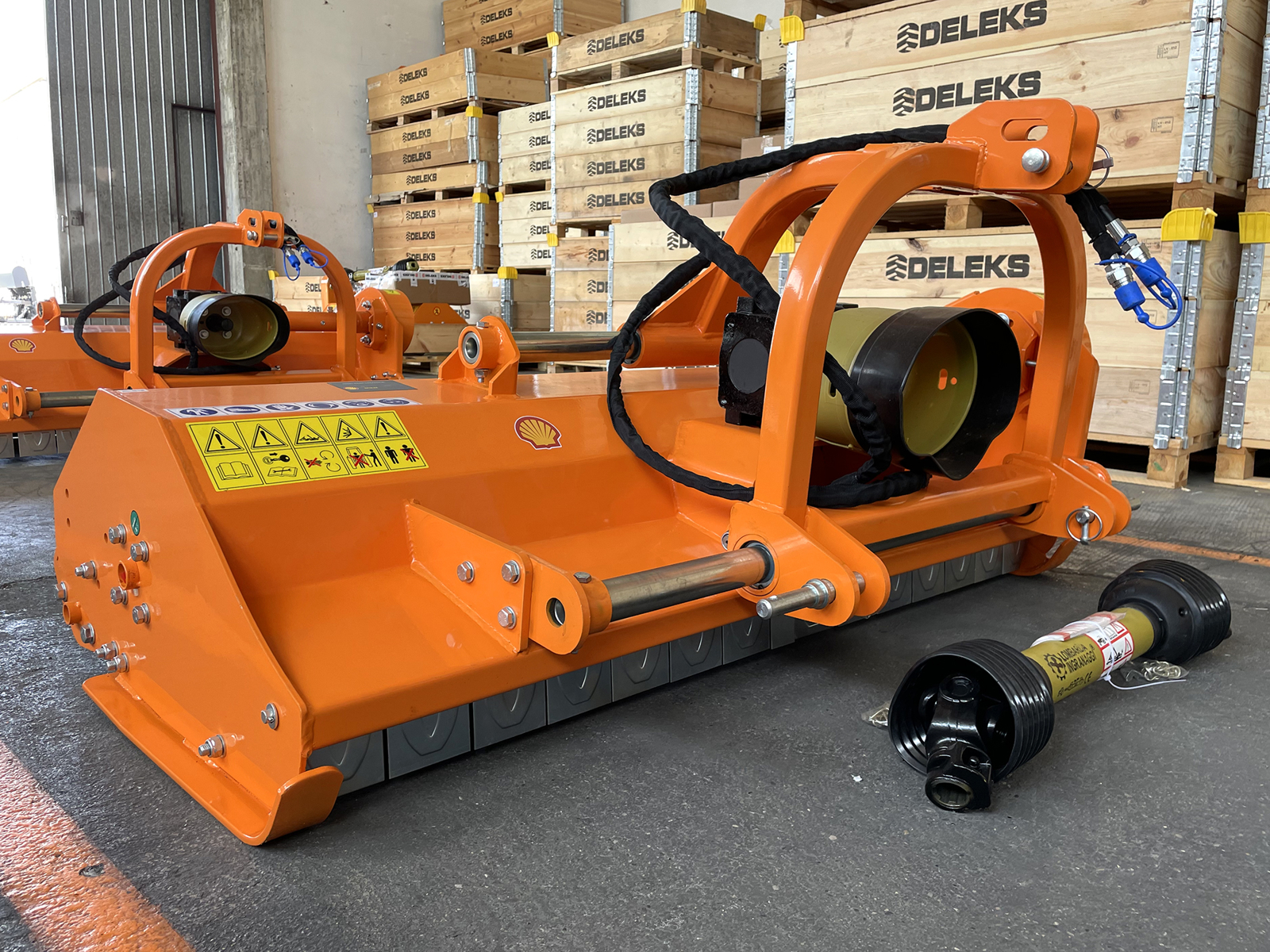

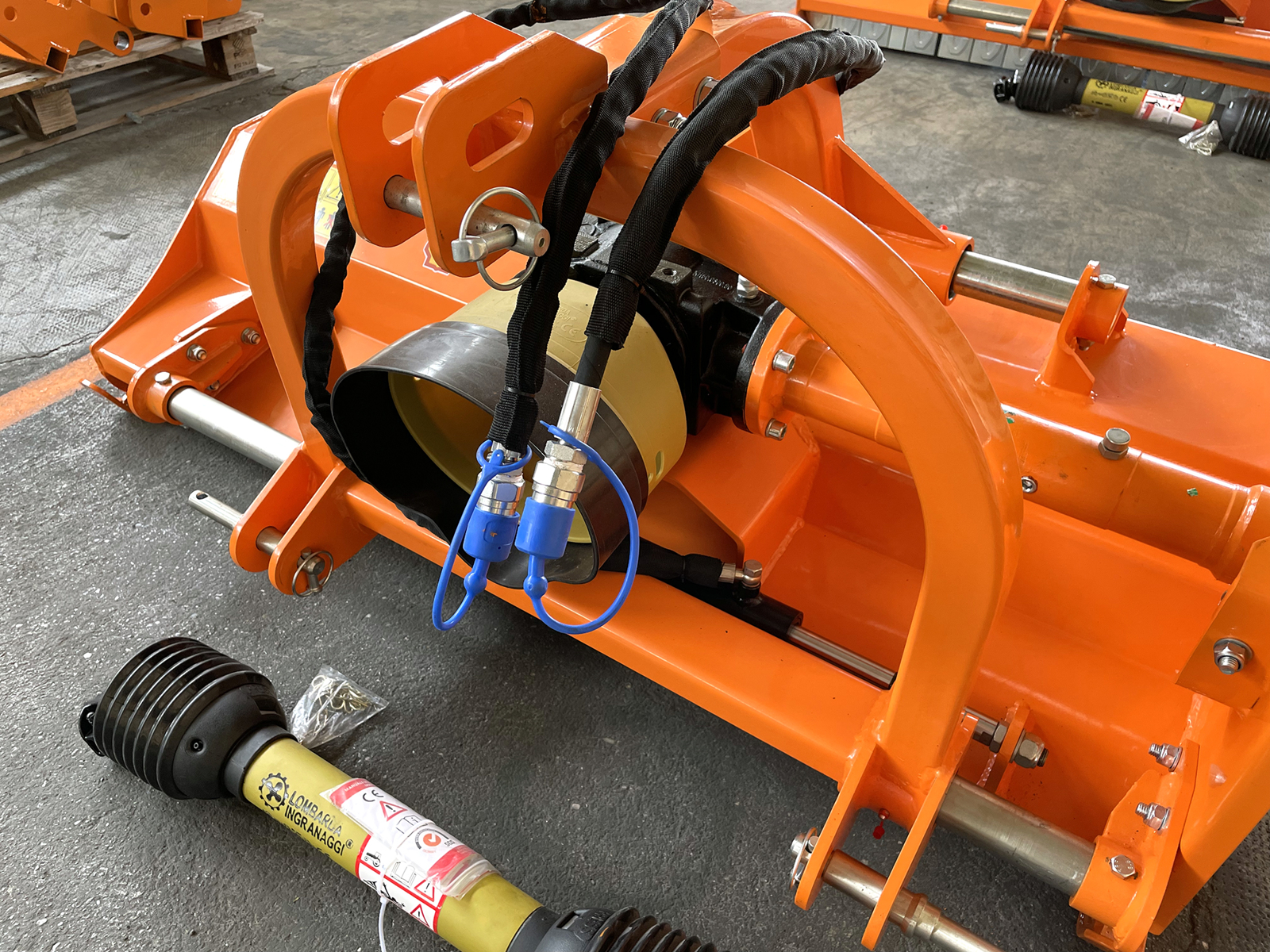

Hydraulic side shift of 28 cm (11 in), as standard

The reinforced hydraulic side shift is standard, with 28 cm (11 in) of travel: you work it from the seat with the tractor's spool valve, even on the move. It lets you work offset: bring the mower in to the row and away from posts and stumps, mow under the canopy, along fences and ditches and on field edges, keeping the tractor's wheels away from the edge. It arrives fitted, with the pair of hoses and standard ½ in agricultural quick-release couplings; the tractor needs a pair of rear hydraulic outlets (one double-acting spool valve).


Which tractors it fits

The JAGUAR-150 cuts 147 cm (58 in) with an overall width of 160 cm (63 in) and is built for tractors from 30 to 60 hp with a 540 rpm PTO and a universal category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 620 to 920 mm): New Holland, John Deere, Landini Mistral, Antonio Carraro Tigrone, Kubota, Same Solaris, Solis and equivalent tractors. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks. With the hydraulic side shift you can still put it wherever it is needed.

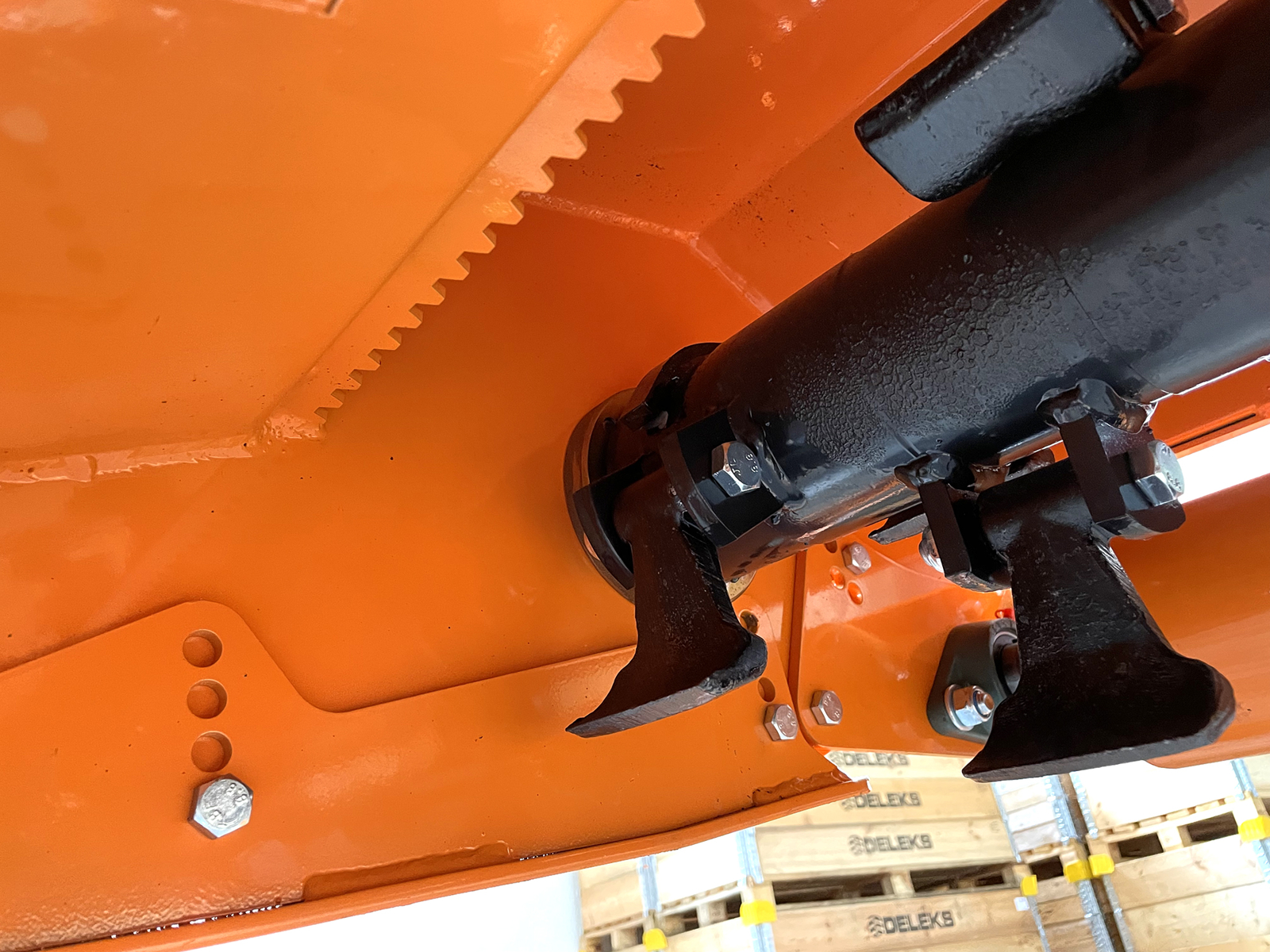

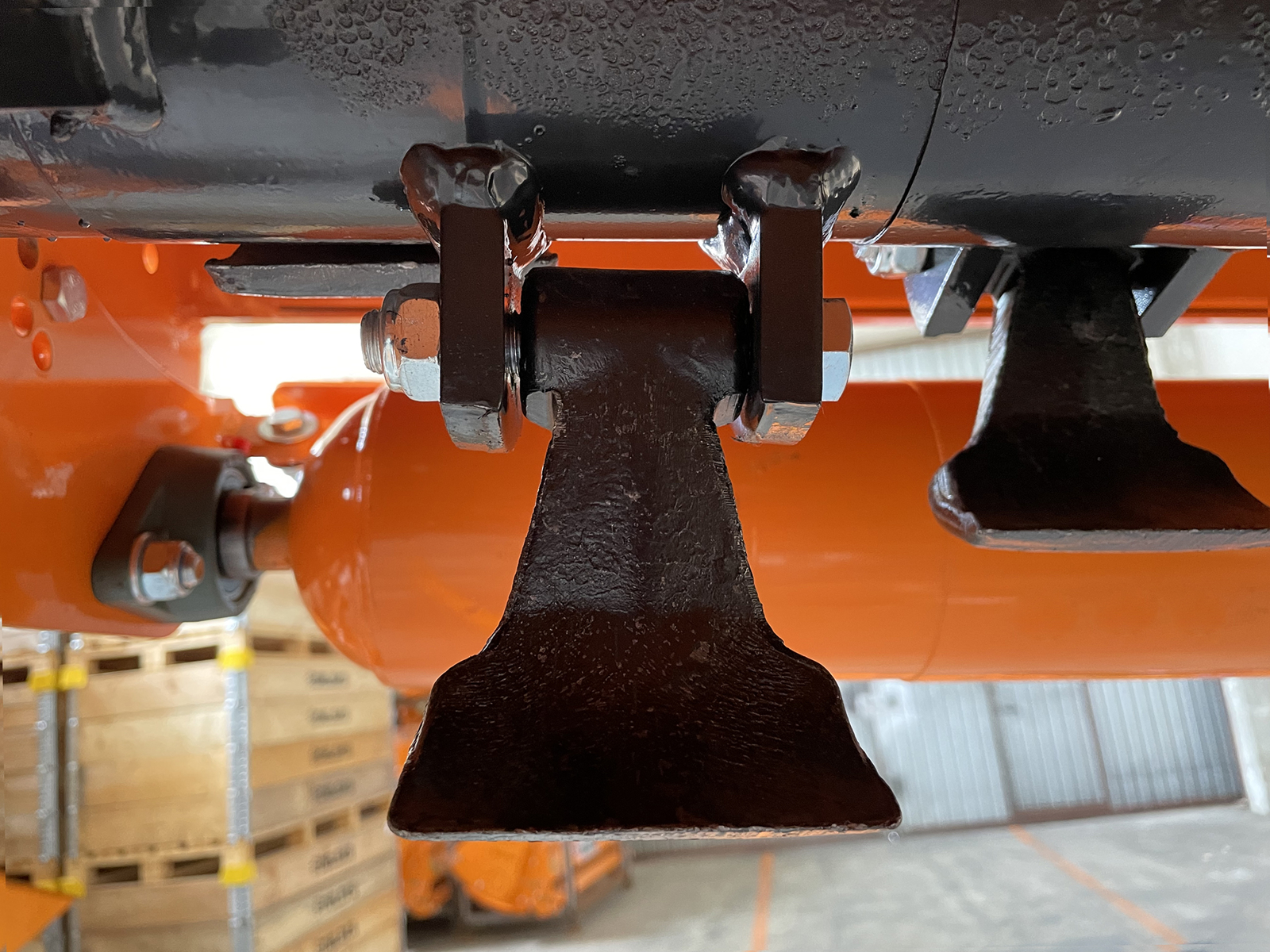

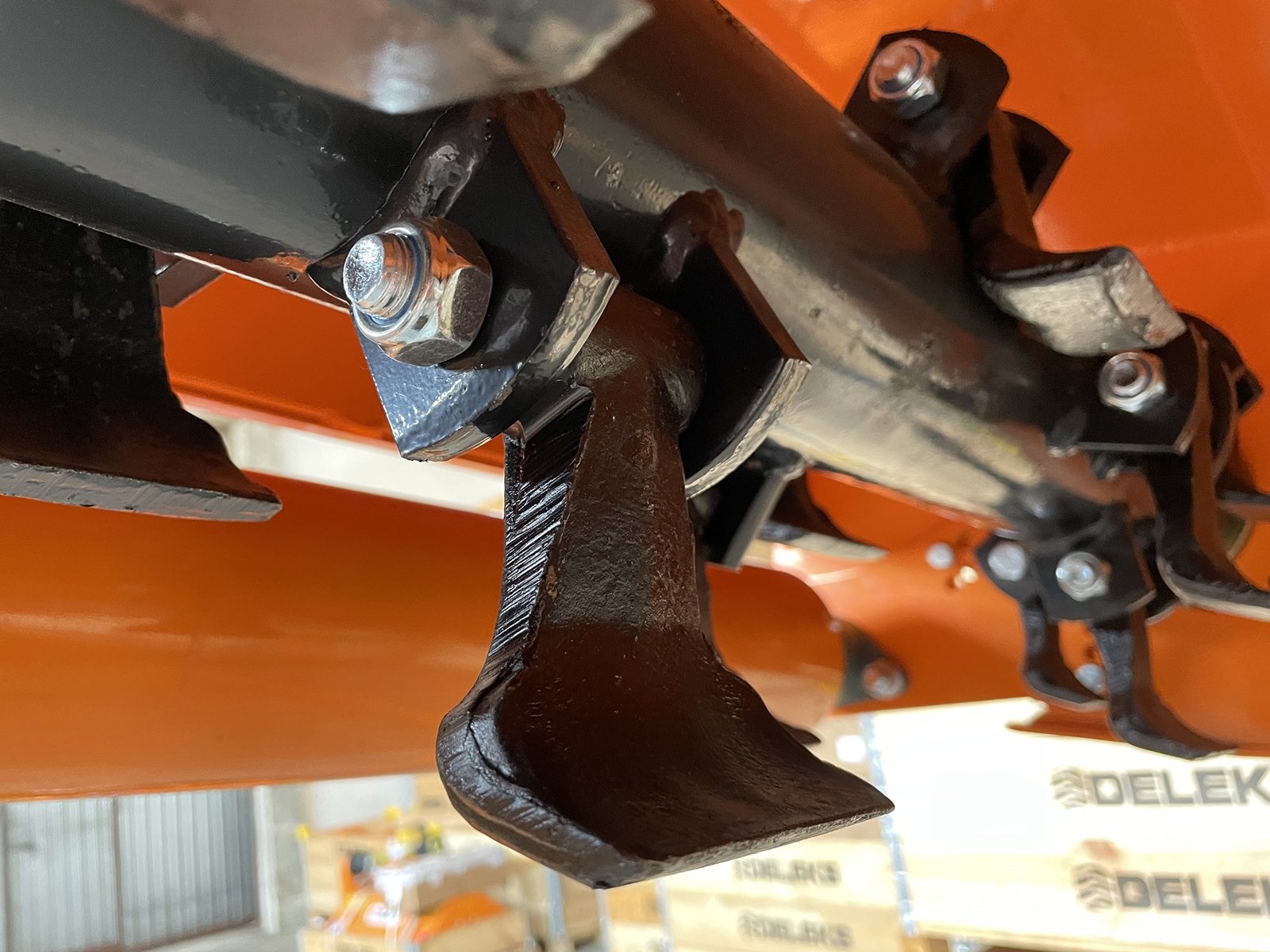

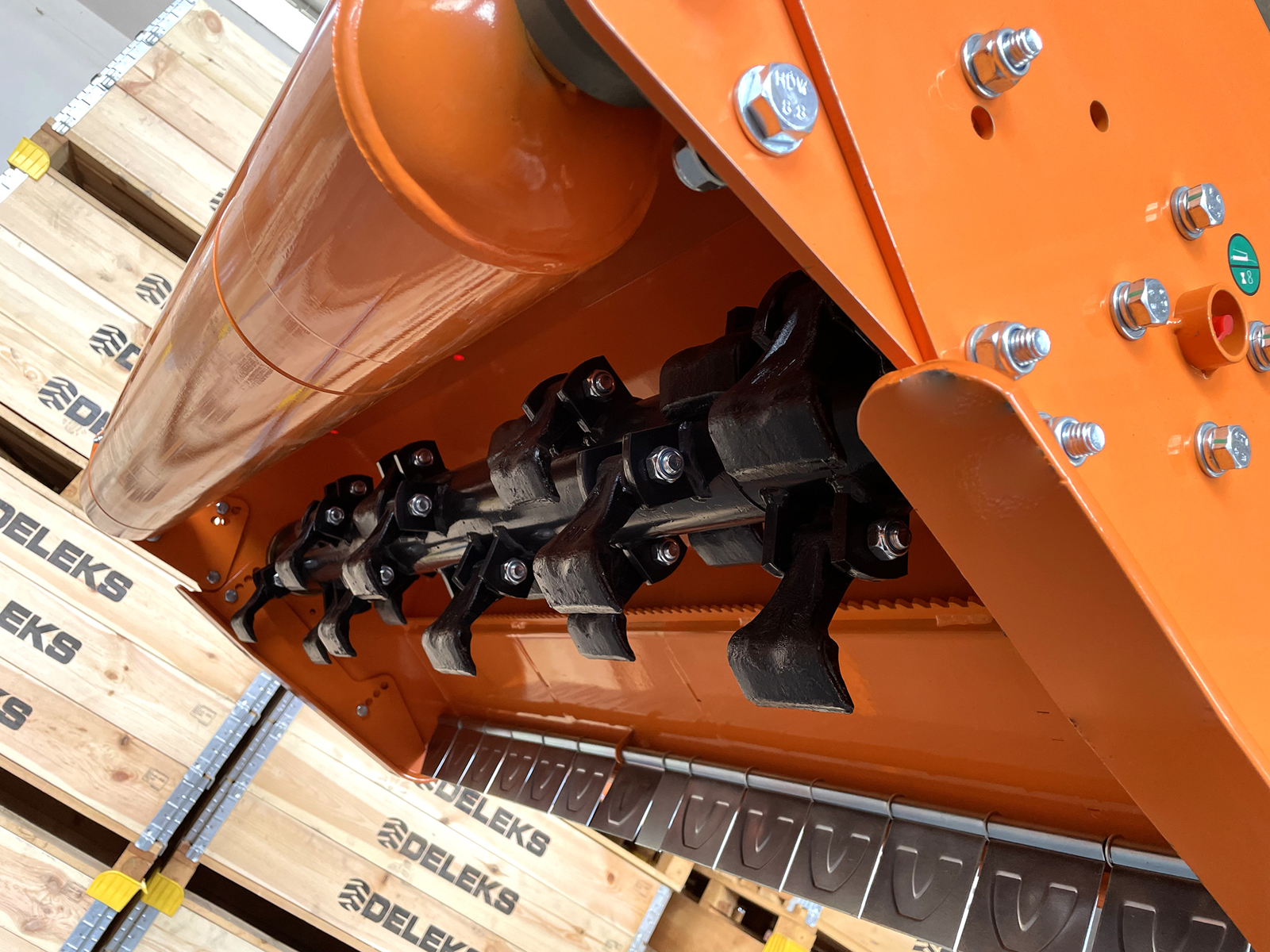

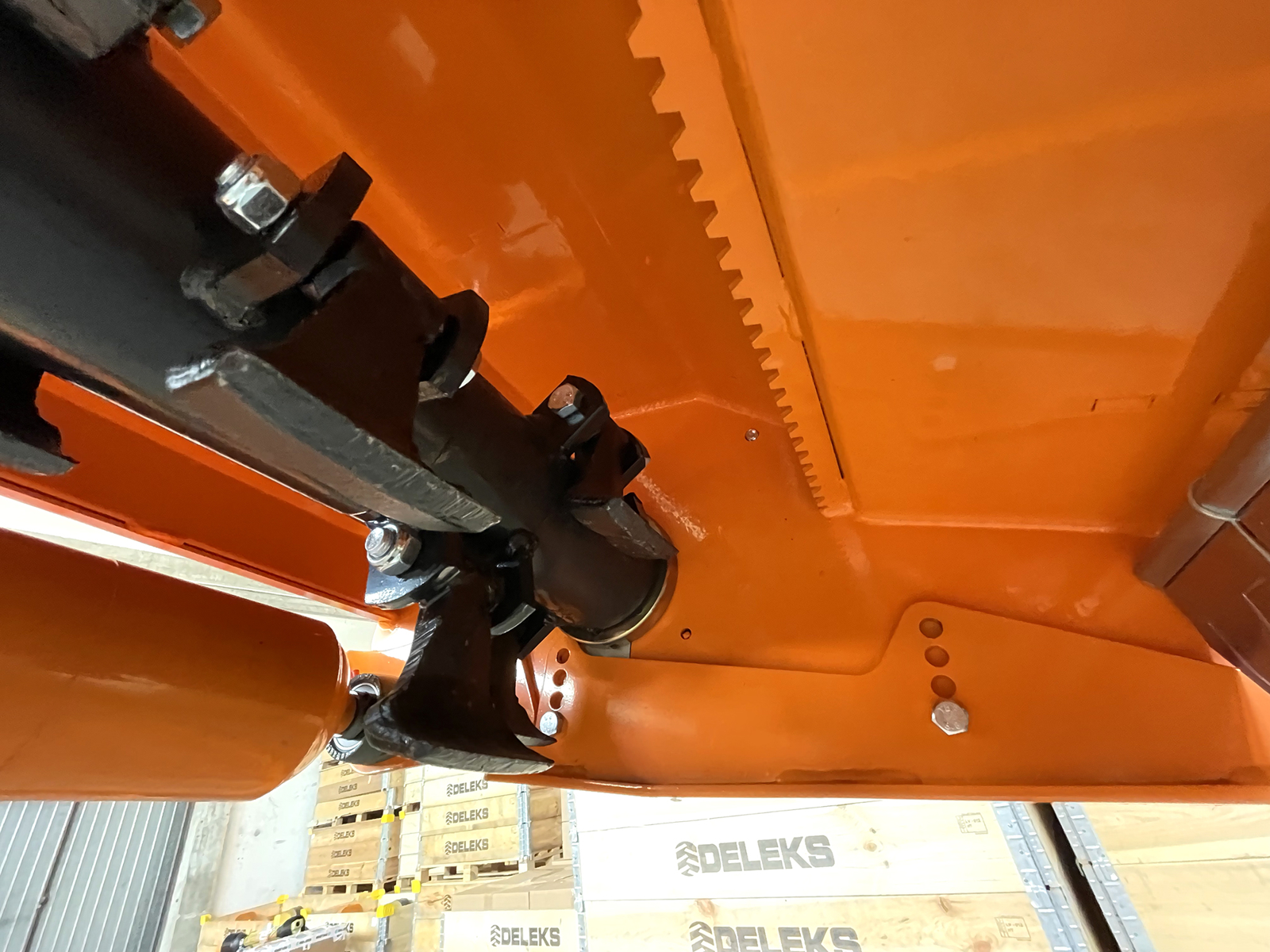

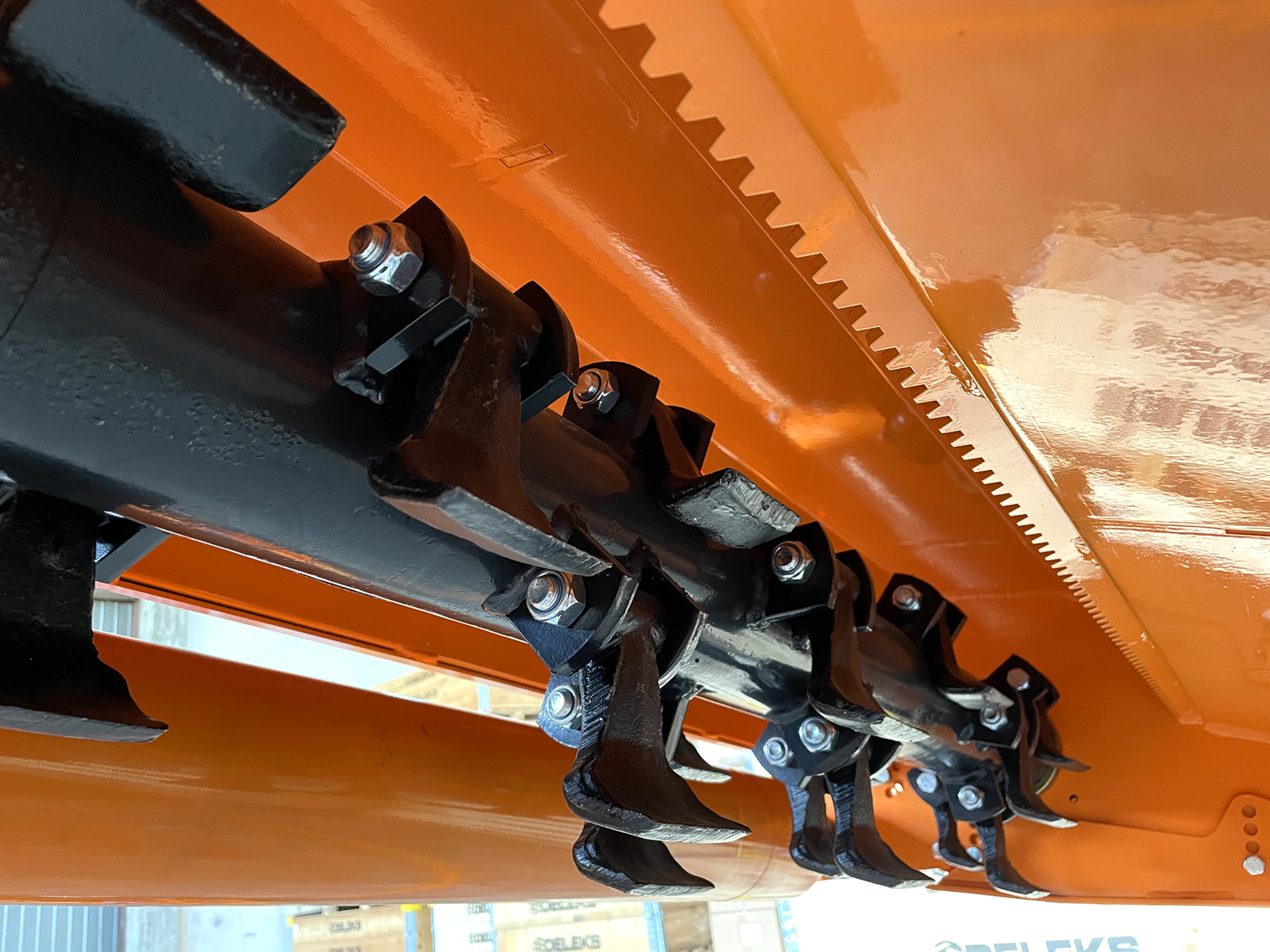

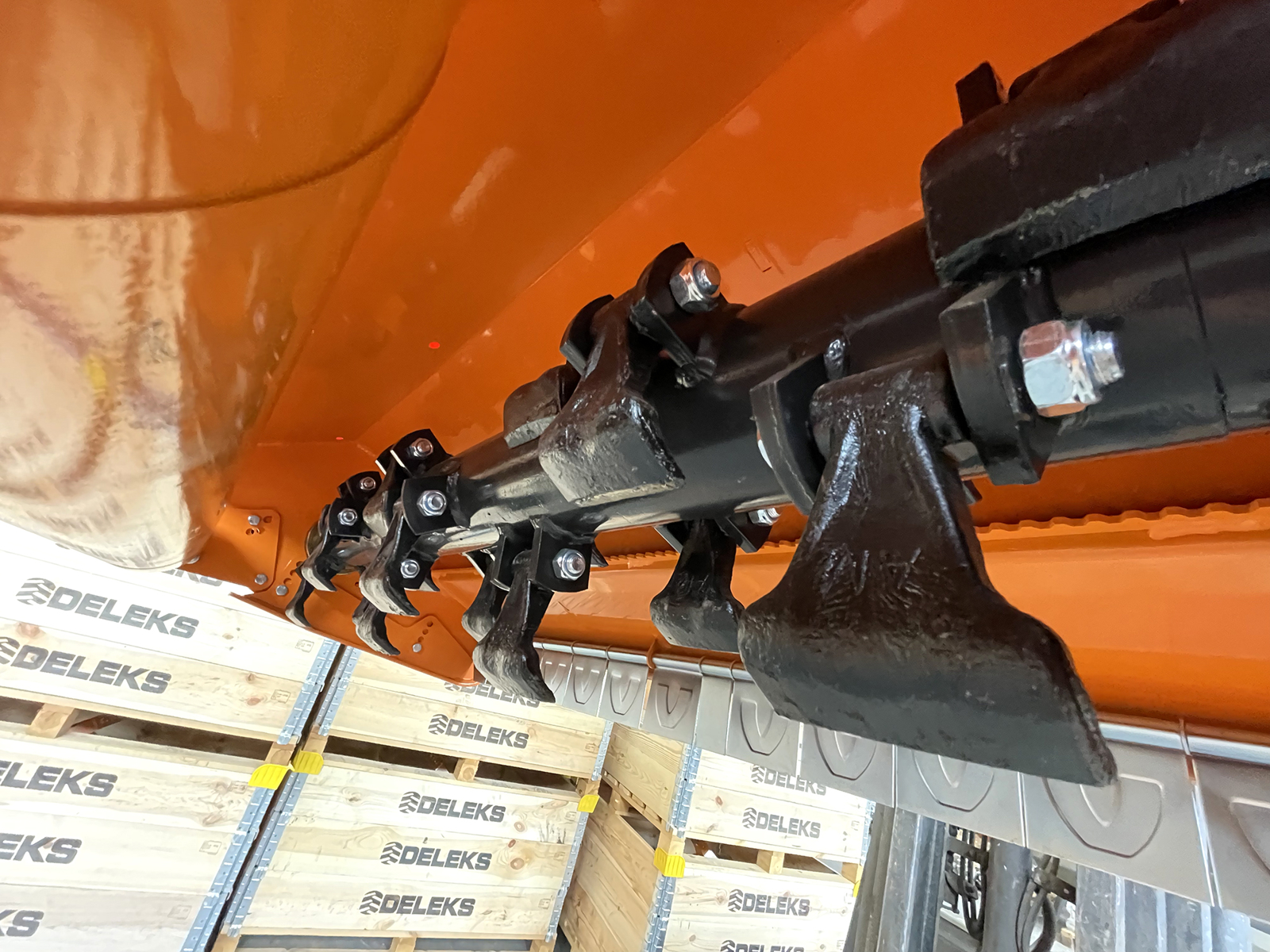

Rotor with 22 hammer flails of 820 g (1.8 lb)

The rotor, 108 mm (4.3 in) in diameter with an 8 mm (5/16 in) tube wall, is electronically balanced and spins at 2,295 rpm. The 22 hammer flails of 820 g (1.8 lb) are thick and heavy: they pulverise grass, leaves, brambles, vine and olive prunings and branches up to 4-5 cm (1.6-2 in) thick. The kit of 30 blades (COLTELLI30T) is available as an option, as an alternative to the hammer flails.

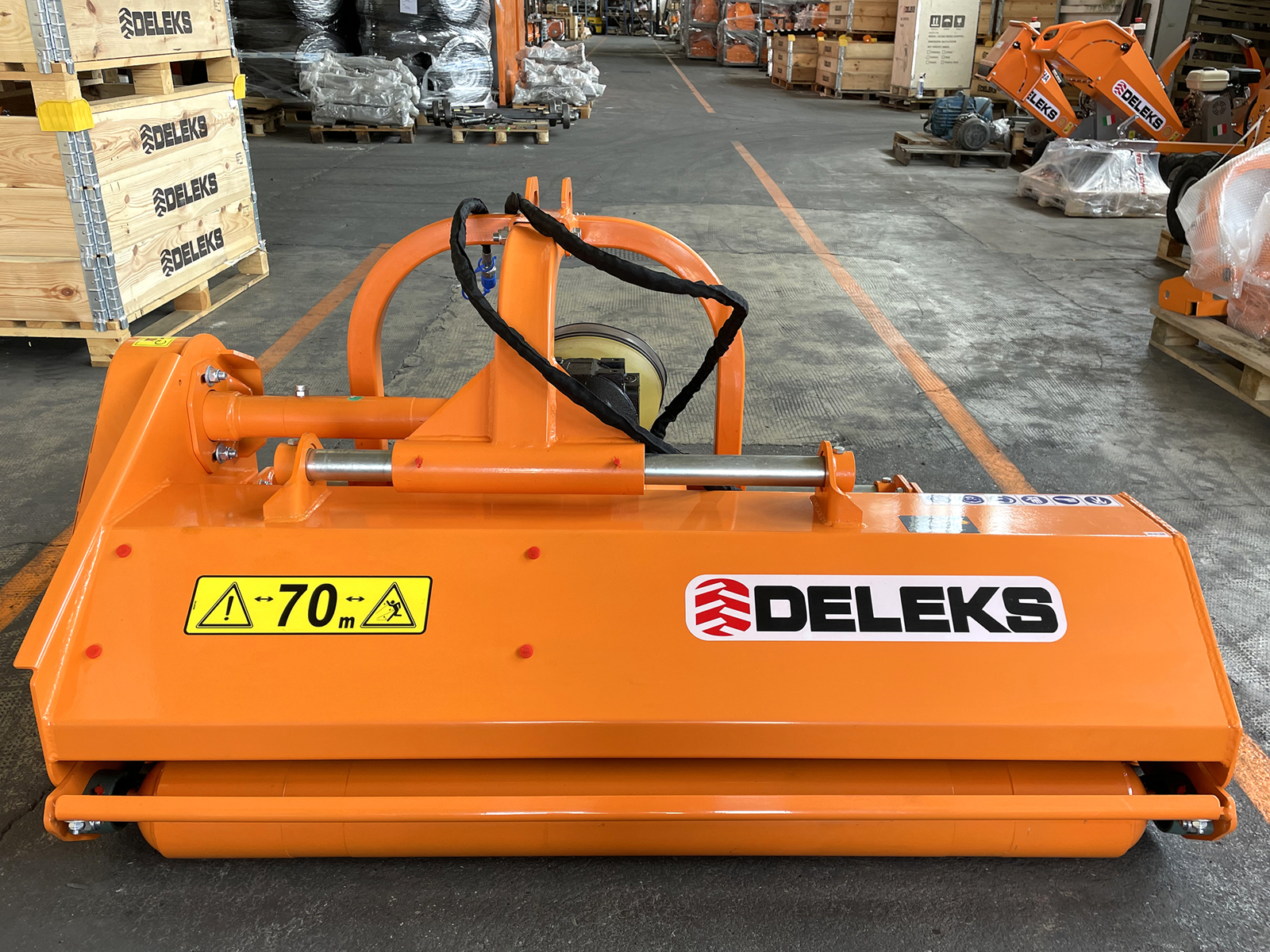

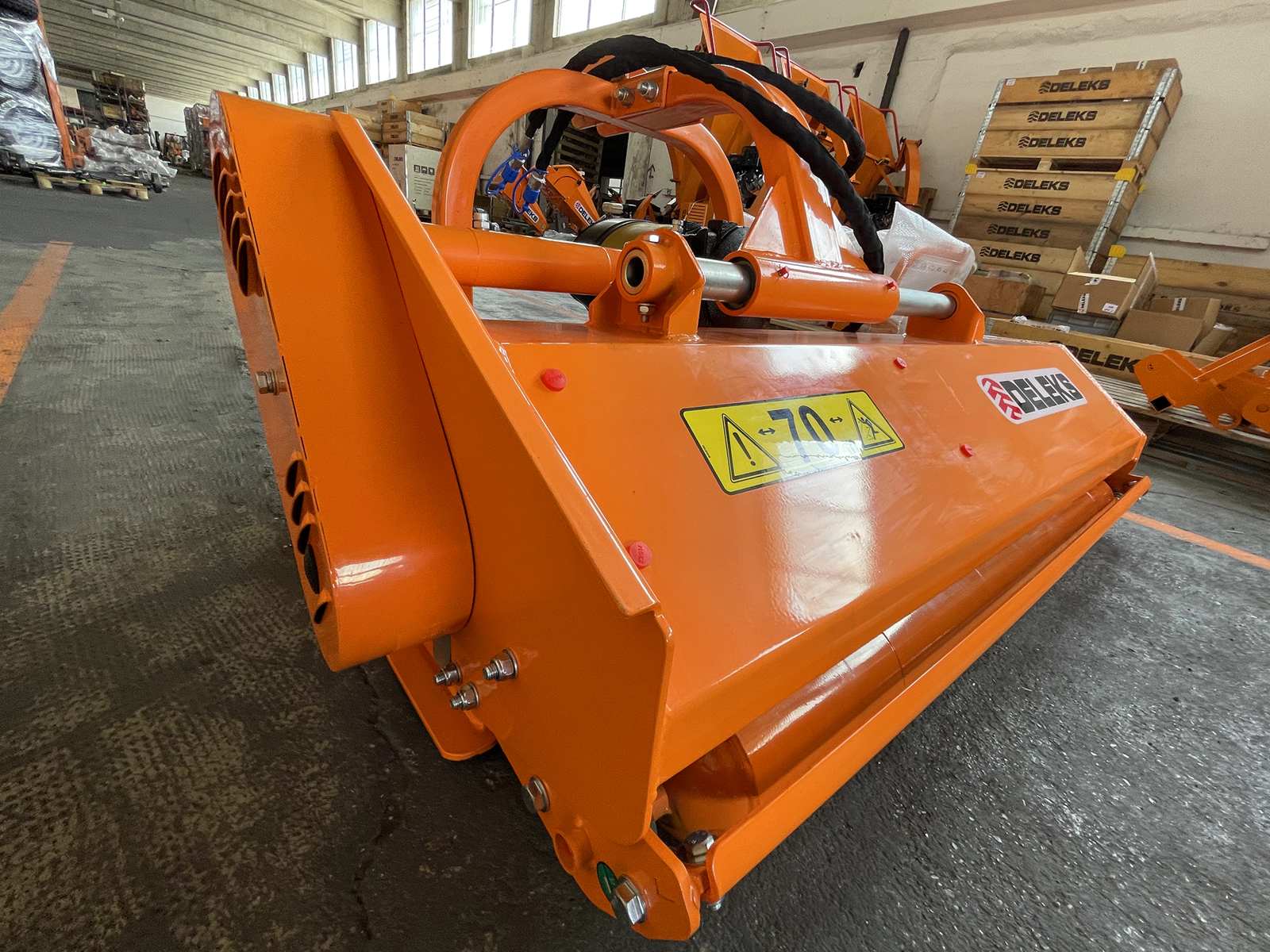

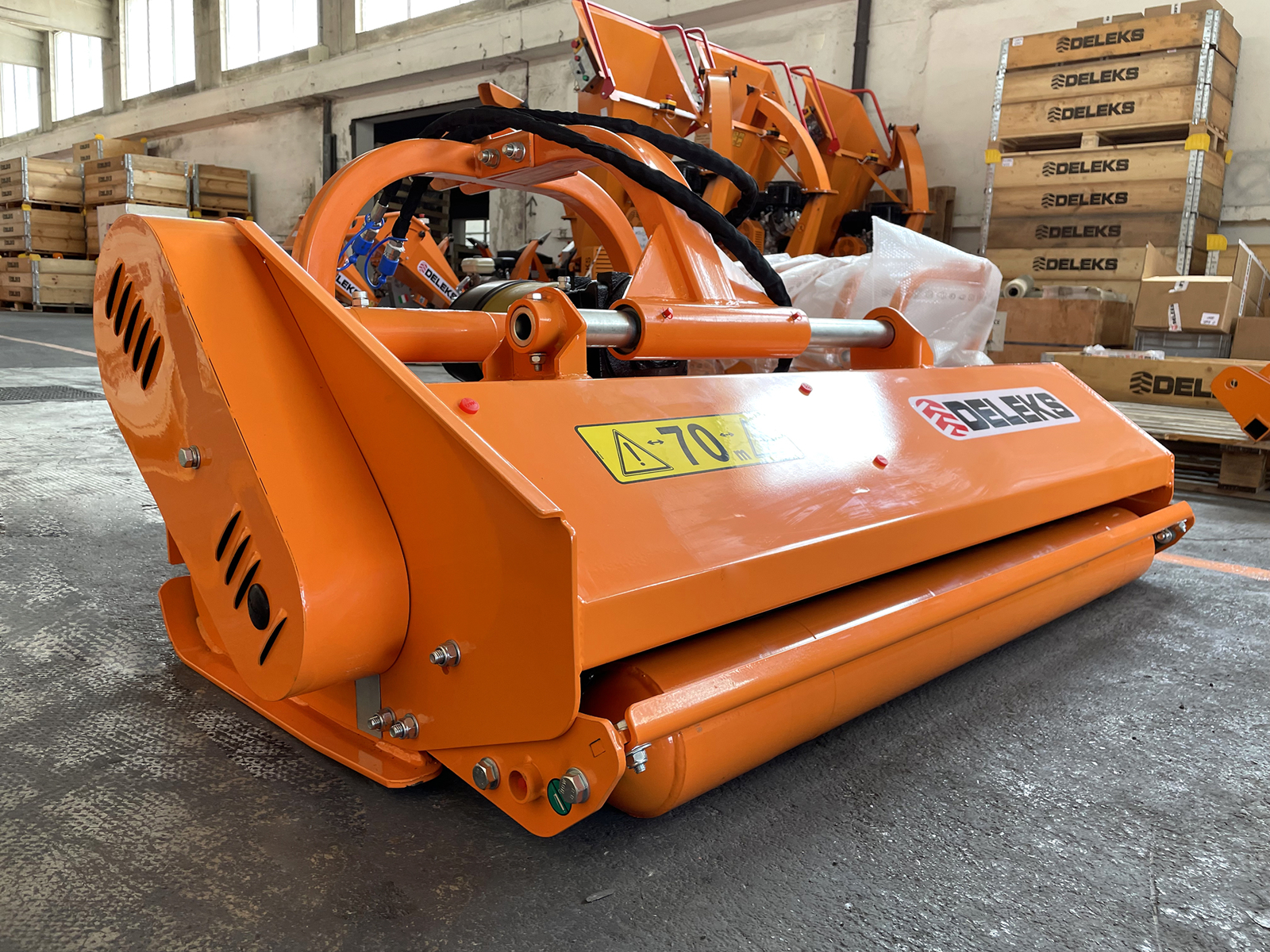

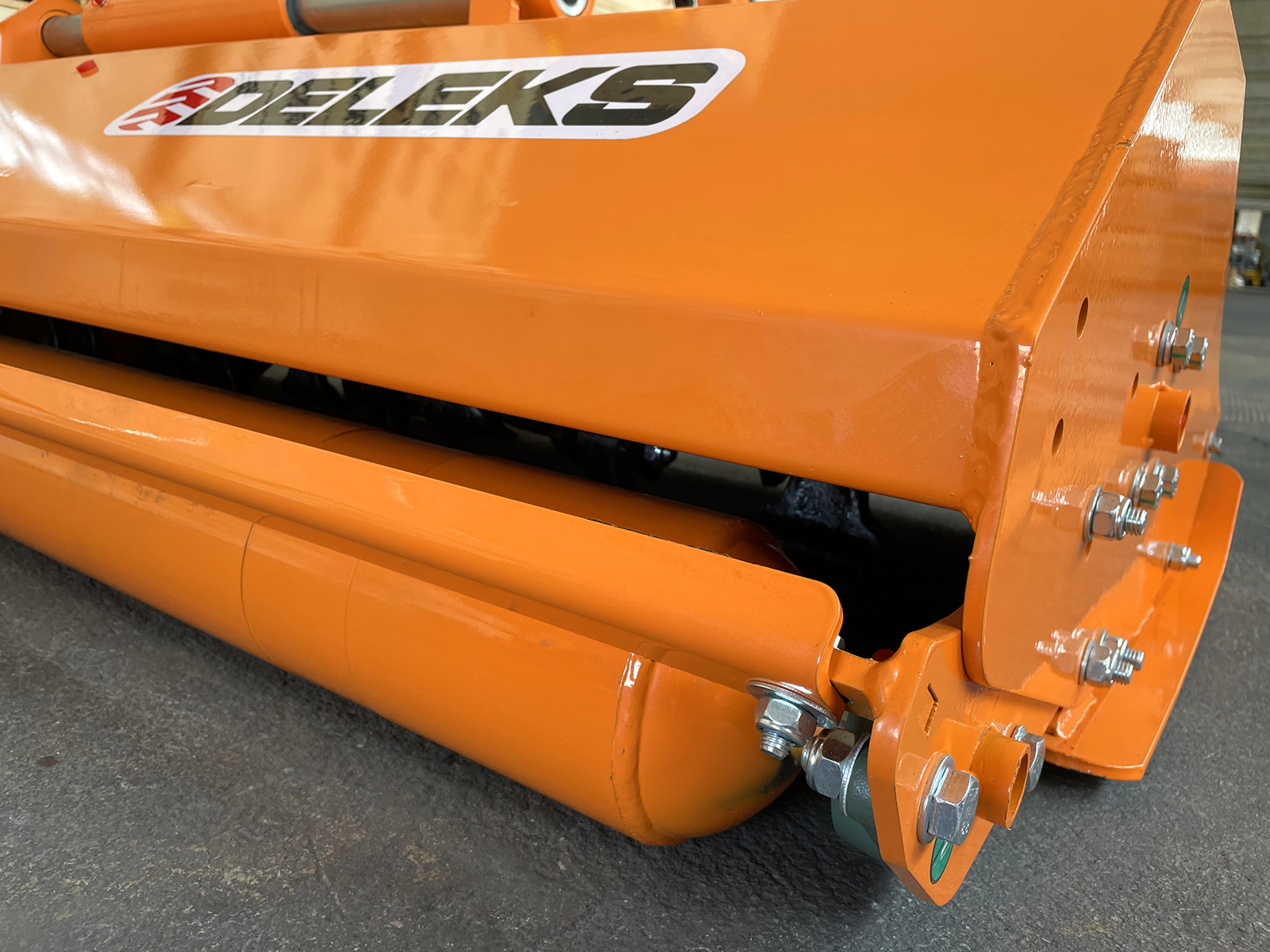

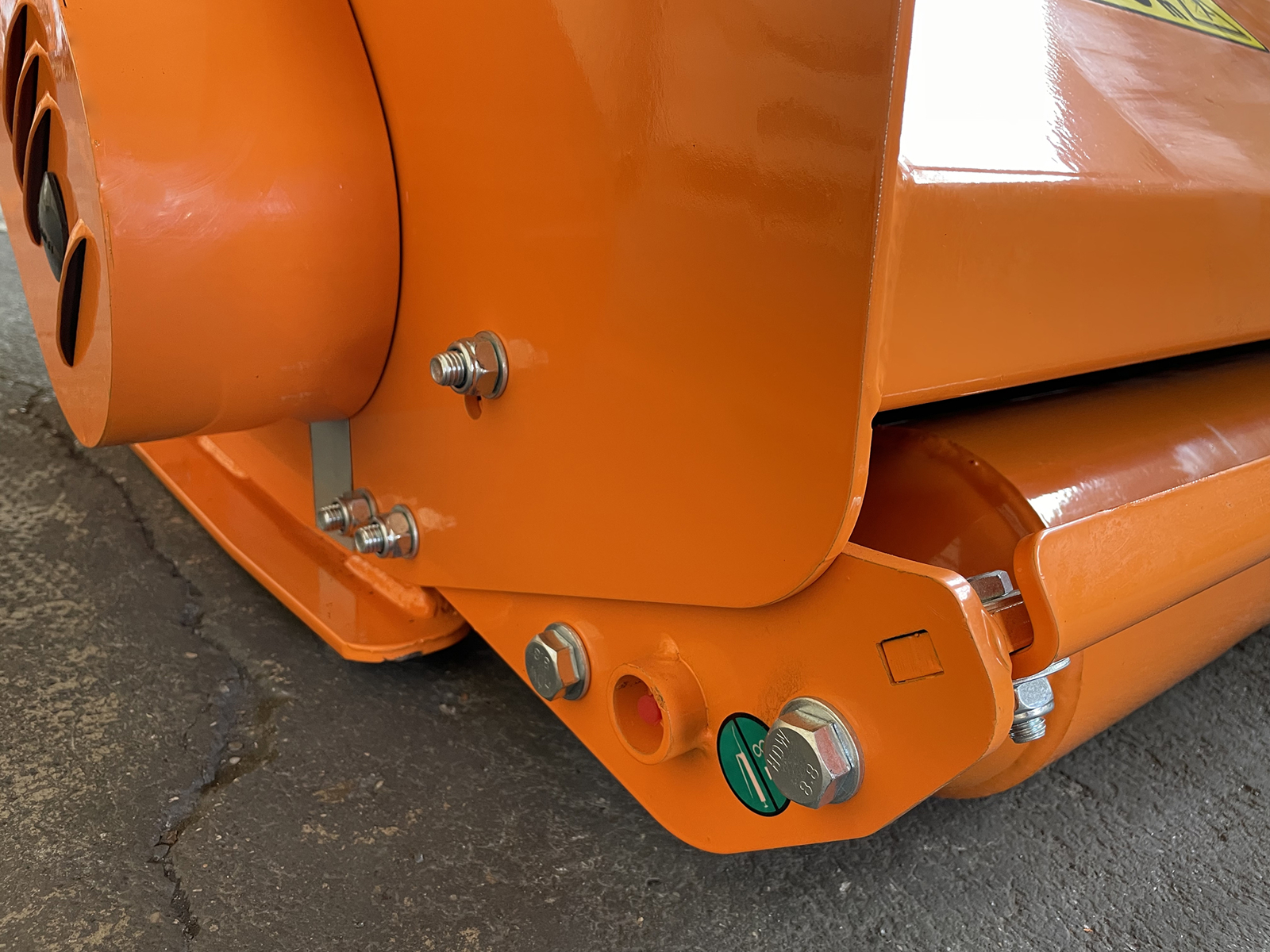

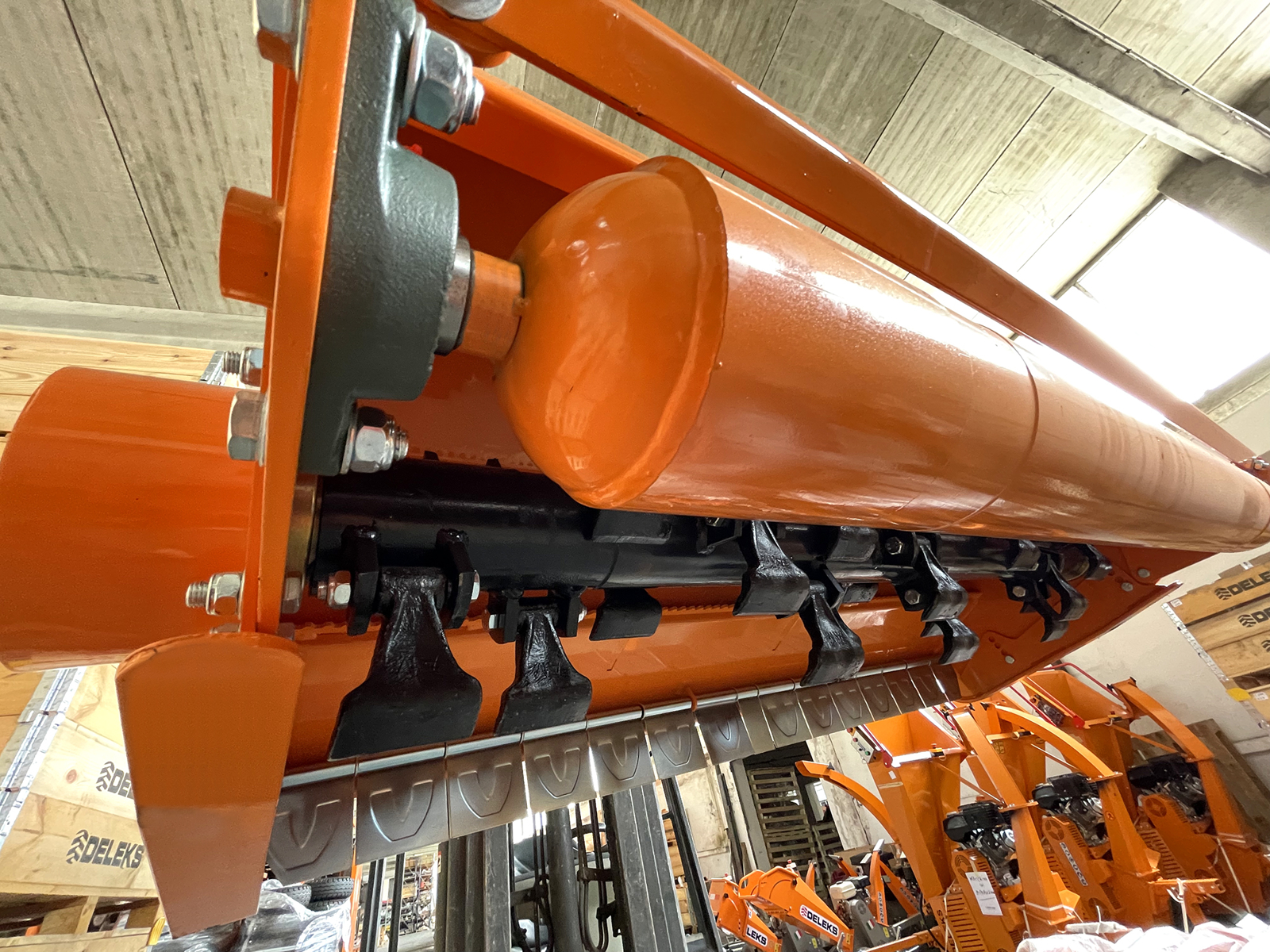

Frame, oversized roller and cutting height

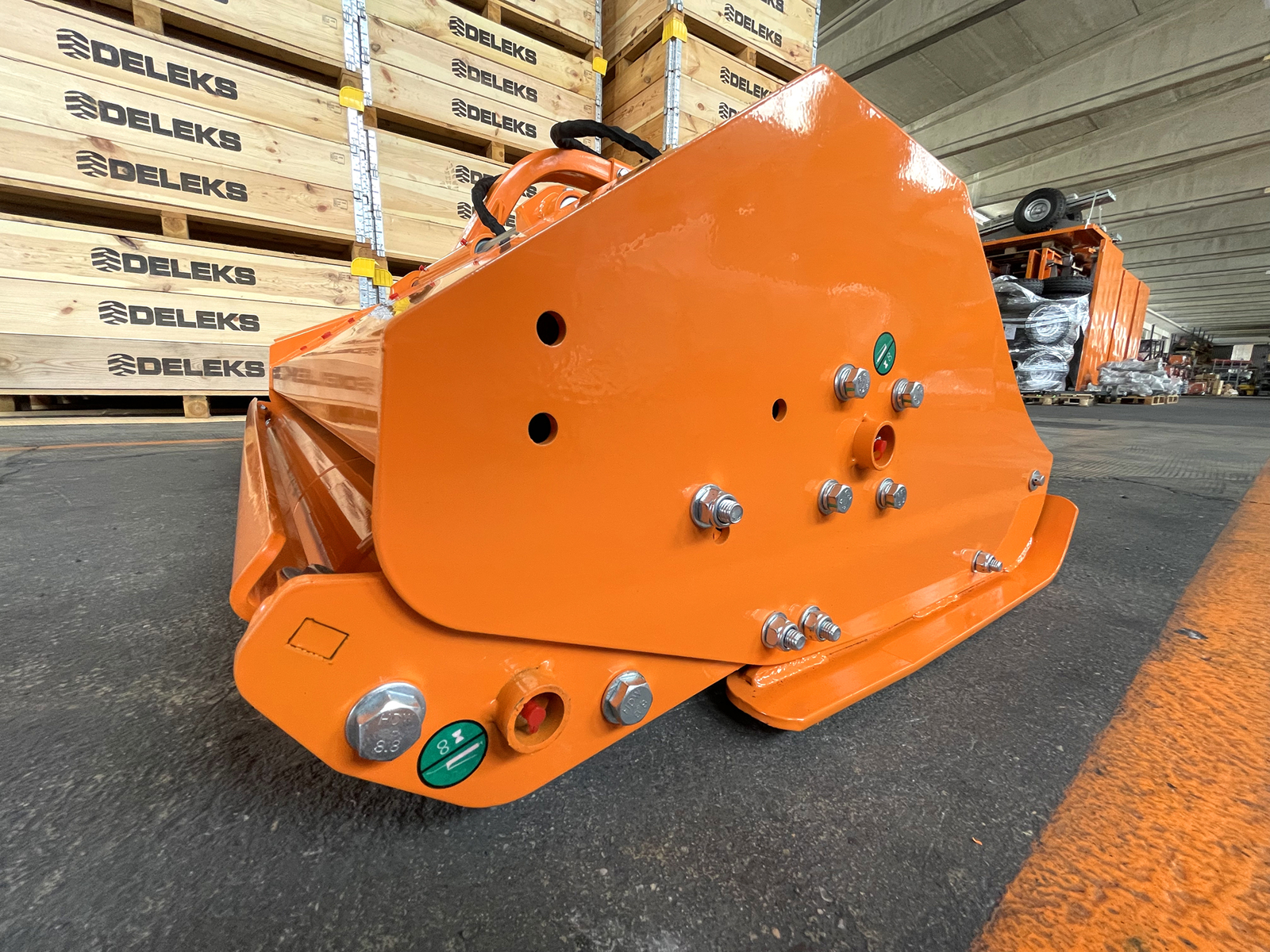

The frame is 5 mm thick, with 6 mm side plates and side skids. Cutting height is set from 5 to 55 mm (0.2 to 2.2 in) with the oversized 140 mm (5.5 in) rear roller and the side skids: low on grass, higher on stony or uneven ground.

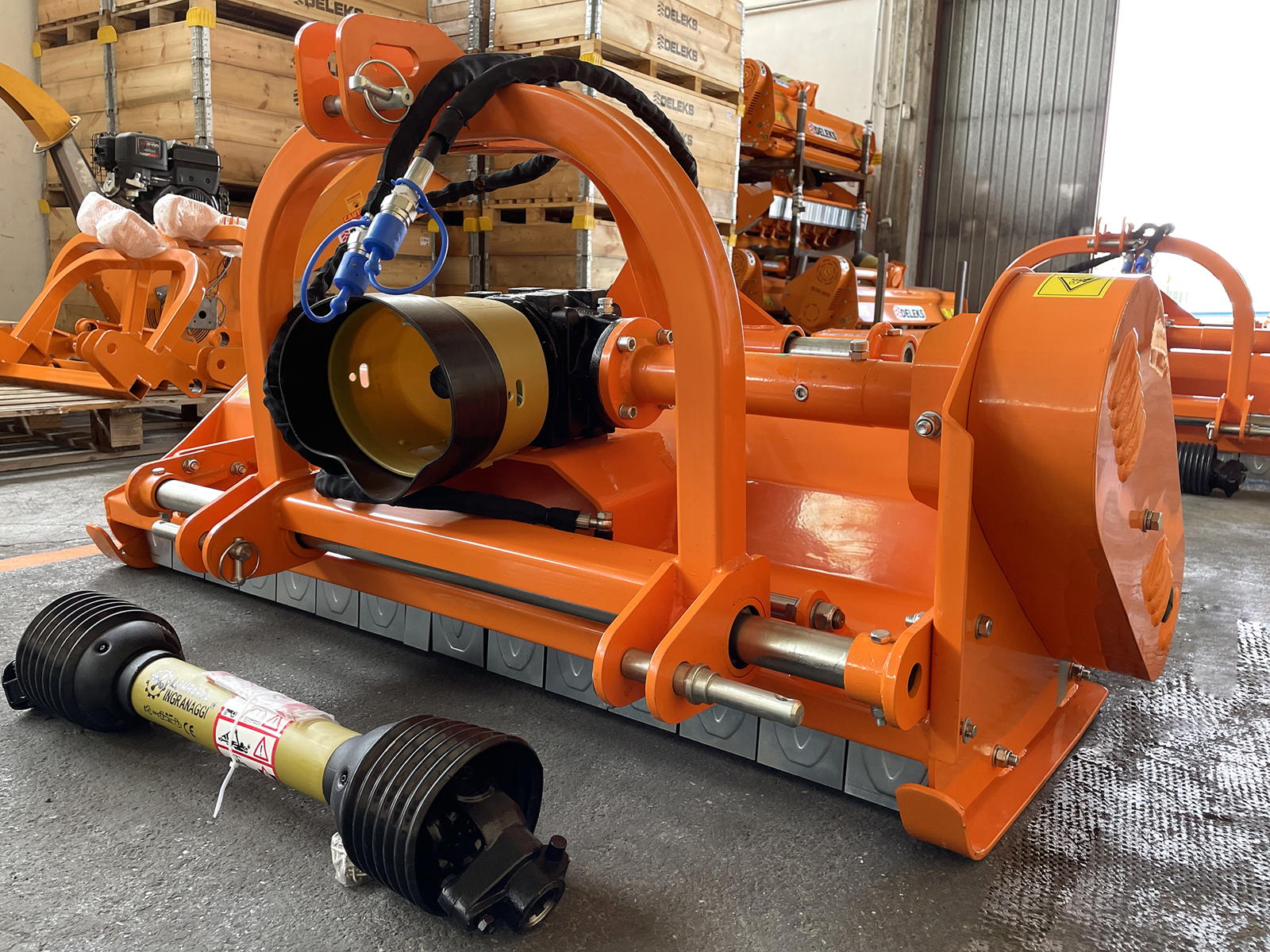

Gearbox with freewheel, 3 belts and PTO shaft

The DELEKS® gearbox for a 540 rpm PTO has a freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 3 V-belts; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.


Inter-row disc, as an option

The options for the JAGUAR-150 include the TÜV-certified DISC-603 hydraulic inter-row disc: it bolts to the side of the mower and cuts the grass round trunks and posts and under the row, where the flail mower cannot reach; when it touches the plant it swings back on a spring and then returns to position. It has three hydraulic hoses, with case drain, and works with an oil flow of up to 30 l/min.


Dimensions, weight and delivery

Working width 1,470 mm (57.9 in), overall width 1,600 mm (63.0 in), length 1,000 mm (39.4 in), height 830 mm (32.7 in), weight 330 kg (728 lb). It ships in packaging measuring 165 × 100 × 70 cm (65 × 39 × 28 in), 366 kg (807 lb) gross, 1.16 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.


Where it works

  • Vineyards, orchards and olive groves: grass between the rows and under the canopy, prunings up to 4-5 cm (1.6-2 in)
  • Rows, fence lines and ditches: the mower moves in and out from the seat
  • Rough ground, field margins and headlands: long grass, brambles and reeds
  • Grassland and large amenity areas: topping without collection
  • With the inter-row disc (option): grass round the trunks and under the row

Options and spares

From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T), the spare set of 3 belts (CINGHIE3INT), the universal PTO adapter (RID1), the DISC-603 hydraulic inter-row disc (code DISC603) and the spare pair of blades for the disc (COLTELLIDISC60). Other spares are identified on the exploded diagrams with our technical team.


FAQ

What size tractor does the JAGUAR-150 need?
From 30 to 60 hp, with a 540 rpm PTO and a category 1 or 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 330 kg (728 lb).

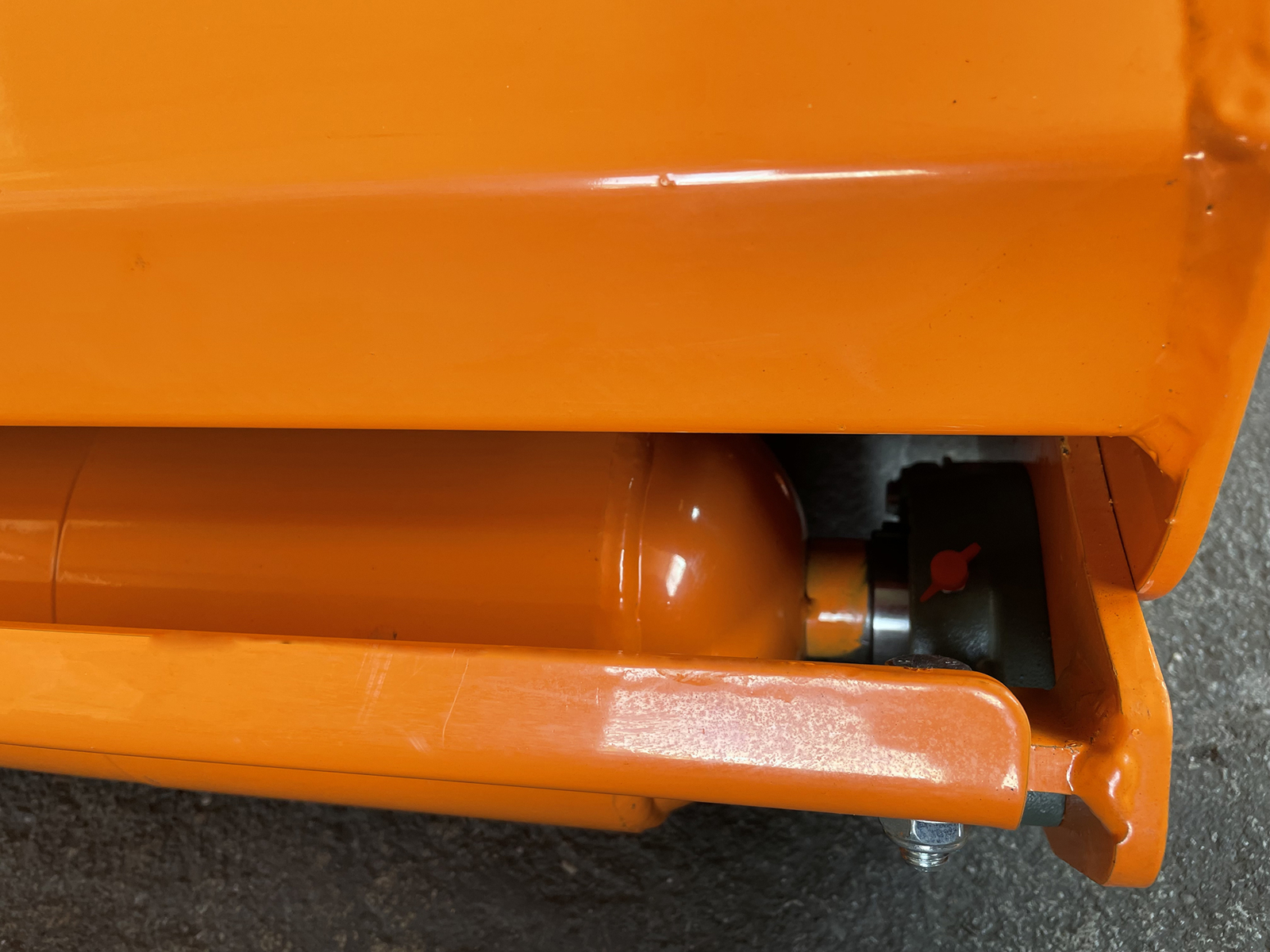

How does the hydraulic side shift work?
A hydraulic ram moves the mower up to 28 cm (11 in) sideways; you work it from the seat with a double-acting spool valve on the tractor, even on the move. Hoses and ½ in quick-release couplings are standard. It is standard on every JAGUAR.

What size branches will it shred?
Vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick, as well as grass, leaves and brambles. For branches up to 8 cm (3.1 in) there is the heavy series.

Hammer flails or blades?
It comes with 22 hammer flails of 820 g (1.8 lb), suited to grass, brambles and prunings. The kit of 30 blades (COLTELLI30T) is available as an option.

Can the inter-row disc be fitted?
Yes: the DISC-603 hydraulic inter-row disc is among the options. On the tractor it needs a pair of hydraulic outlets and a connection for the third hose, the case drain, on top of the outlets used for the side shift.

How do you set the cutting height?
From 5 to 55 mm (0.2 to 2.2 in), with the oversized rear roller and the side skids.

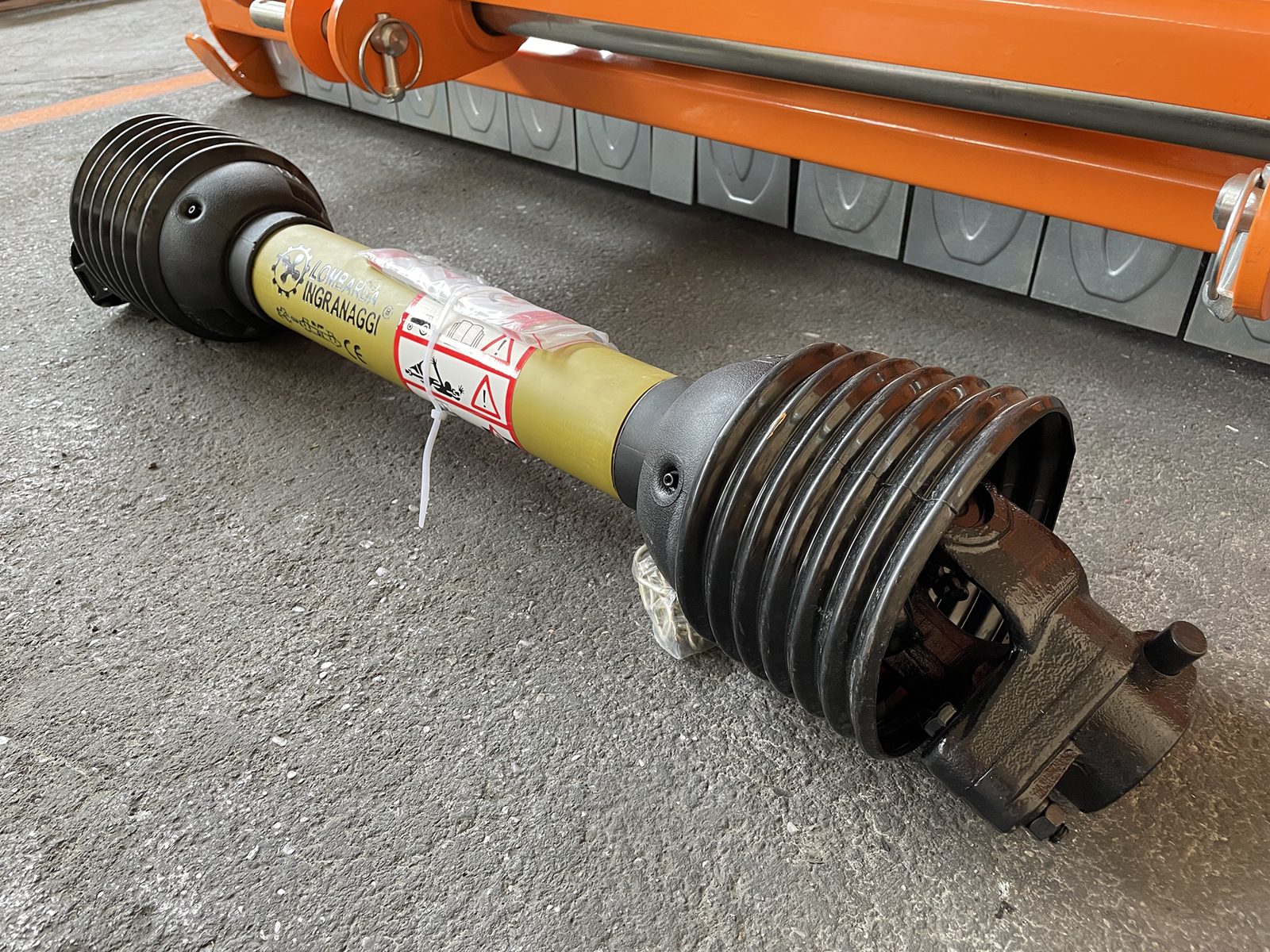

Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, with shear bolt.

How does it differ from the LINCIONE-SPH?
The LINCIONE-SPH is Made in Italy, with an SSAB steel frame, a 115 mm (4.5 in) rotor and 4 belts, and shifts 31 cm (12 in). The JAGUAR is TÜV-certified, has the oversized 140 mm (5.5 in) roller, cuts from 5 mm (0.2 in) high and has the inter-row disc among its options.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1470.0 mm
Overall width 1600.0 mm
Min / Max cutting height 5.0 - 55.0 mm
Weight 330.0 kg
Overall height 830.0 mm
Tractor Power Range 30 - 60 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Hood height 370.0 mm

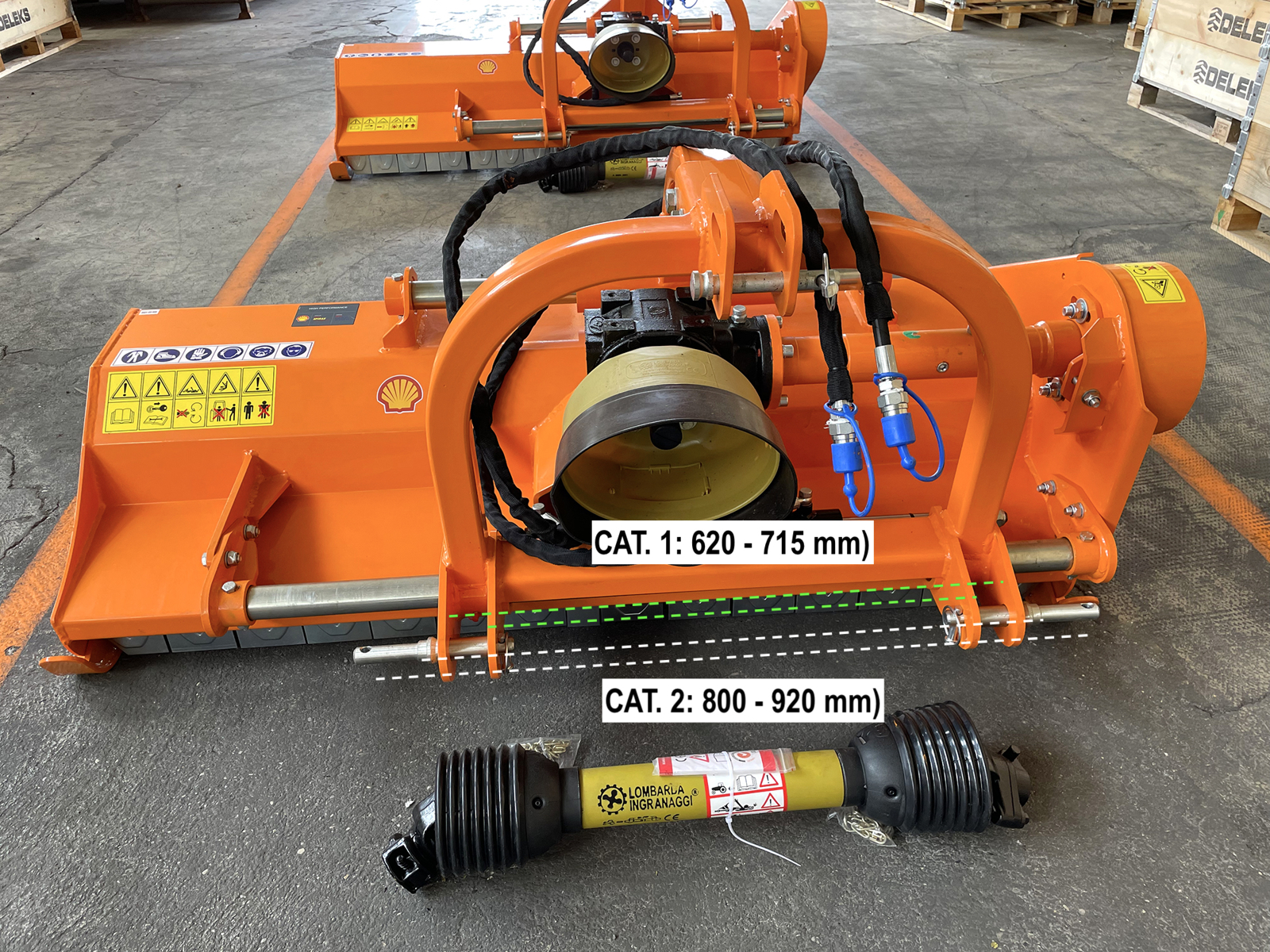

Spacing between the 2 lower points 620.0 - 920.0 mm
Number of Hammers 22
Maximum cutting diameter 40.0 - 50.0 mm
Overall length 1000.0 mm
Distance between pto attachment and ground 400.0 mm
Main hood thickness 5.0 mm
Sides thickness 6.0 mm
Side plates thickness 6.0 mm
Transmission: Drive method V-Belts
Transmission: Gearbox DELEKS 540 r/min - 3 years warranty
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Free wheel √
Transmission: RPM Rotor speed 2295 rpm
Transmission: Oil in the gearbox Yes / Shell Spirax S2 A 80W-90
Transmission: Top pulley ø 170.0 mm
Transmission: Lower pulley ø 120.0 mm
Transmission: V-Belts quantity 3
Transmission: V-Belts size 17x1092
Rotor: diameter 108.0 mm
Rotor: bearings type and size UC207
Rotor: balancing Electronic
Rotor: sheet thickness 8.0 mm
Hammers: Weight 820.0 g
Hammer: øhole 15.0 mm
Hammer: base width 82.0 mm
Hammer: top width 45.0 mm
Hammer: Diagonal 95.0 mm

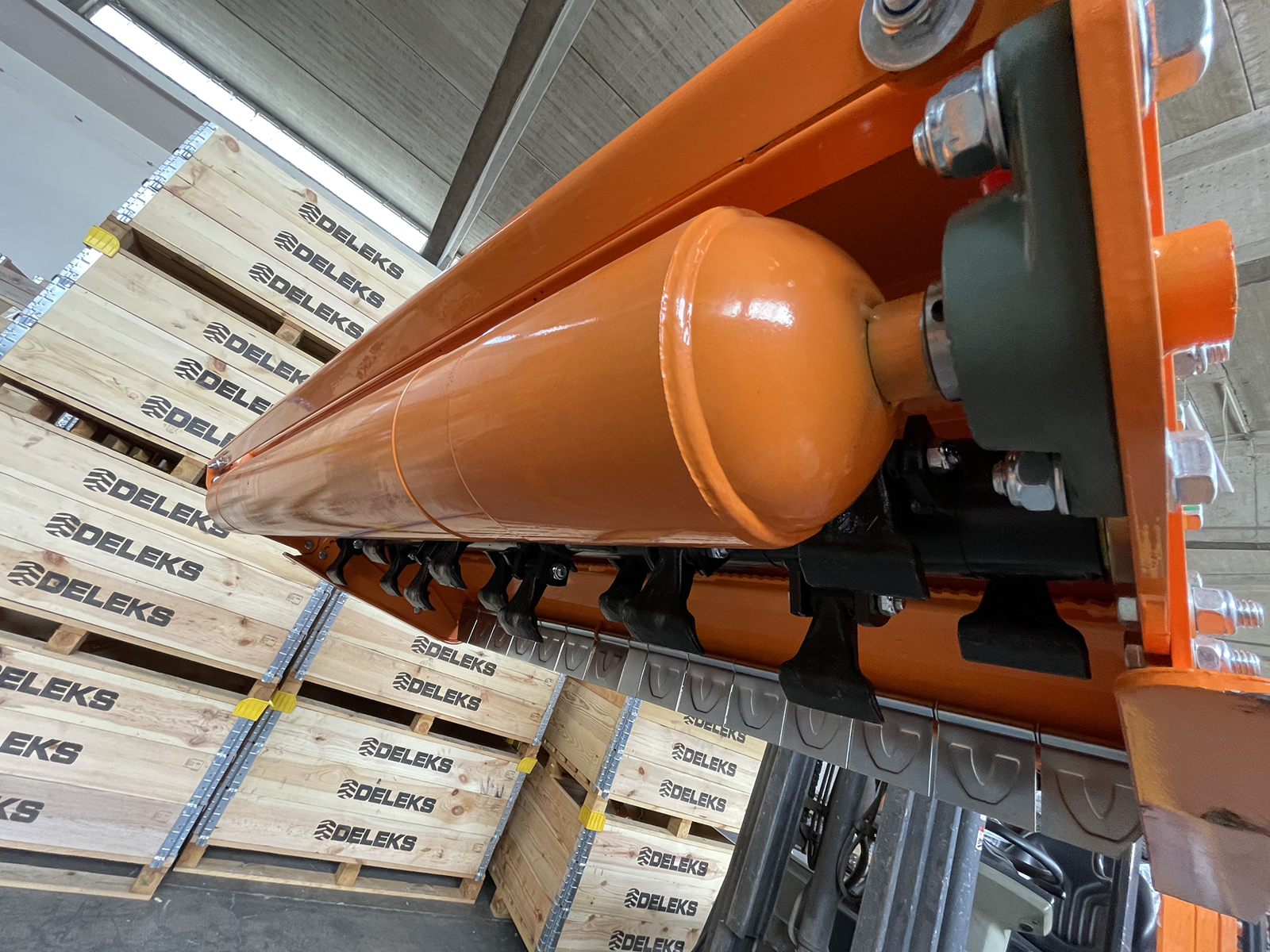

Rear roller: diameter 140.0 mm
Rear roller: sheet thickness 4.0 mm
Rear roller: bearings type and size UC205
Pto shaft CE 4x800 mm + shear bolt
Hood length 750.0 mm
Effective Displacement 280.0 mm (Hydraulic)
Gross shipping weight 366 kg
Package volume 1.16 m3
Packing sizes 1650.0*1000.0*700.0 mm
