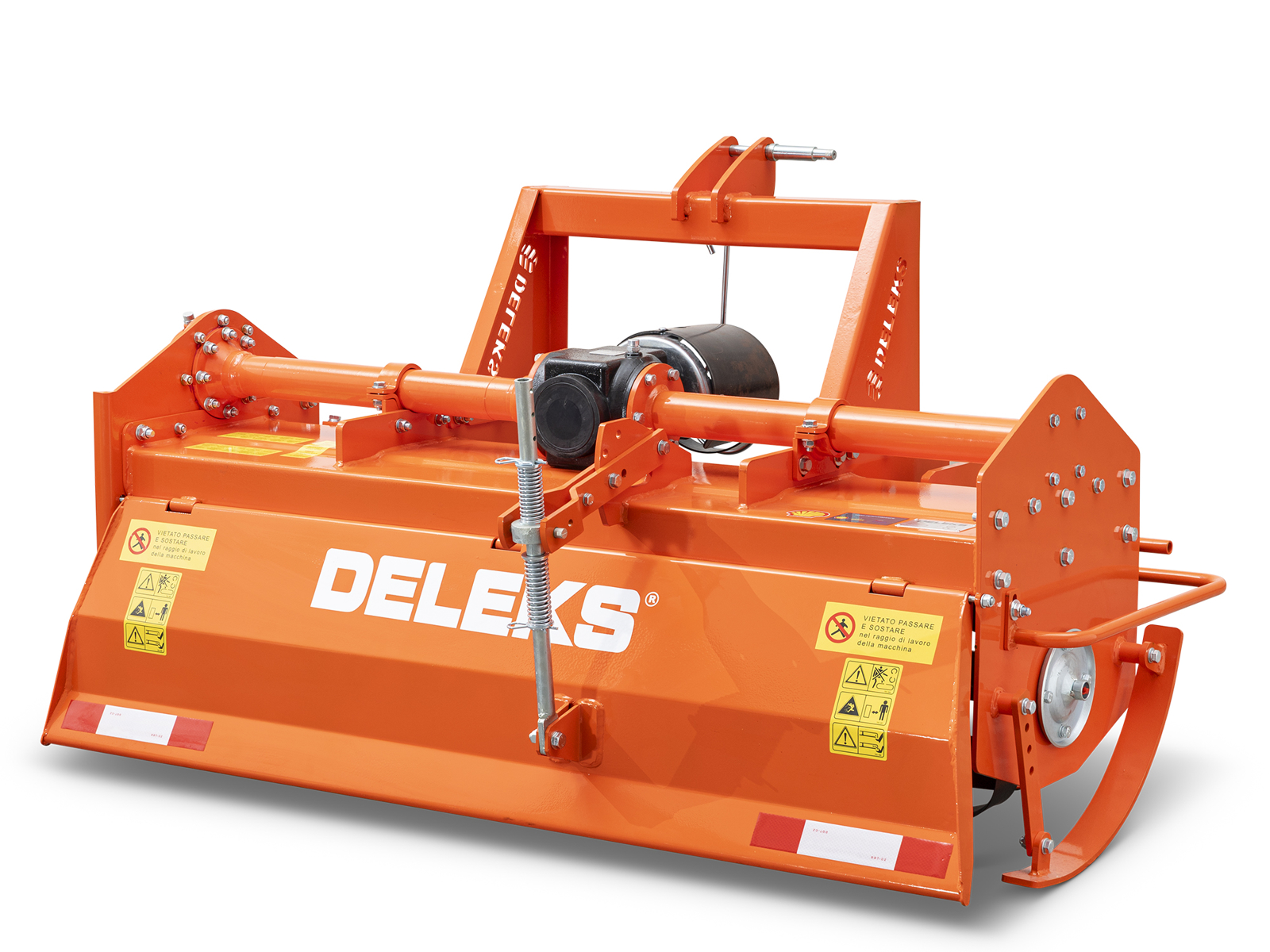

Heavy-duty rotavator for tractors 150 cm (58 in) DFH-150, heavy series 35-60 hp, Cat. 1-2 linkage
DETAILS

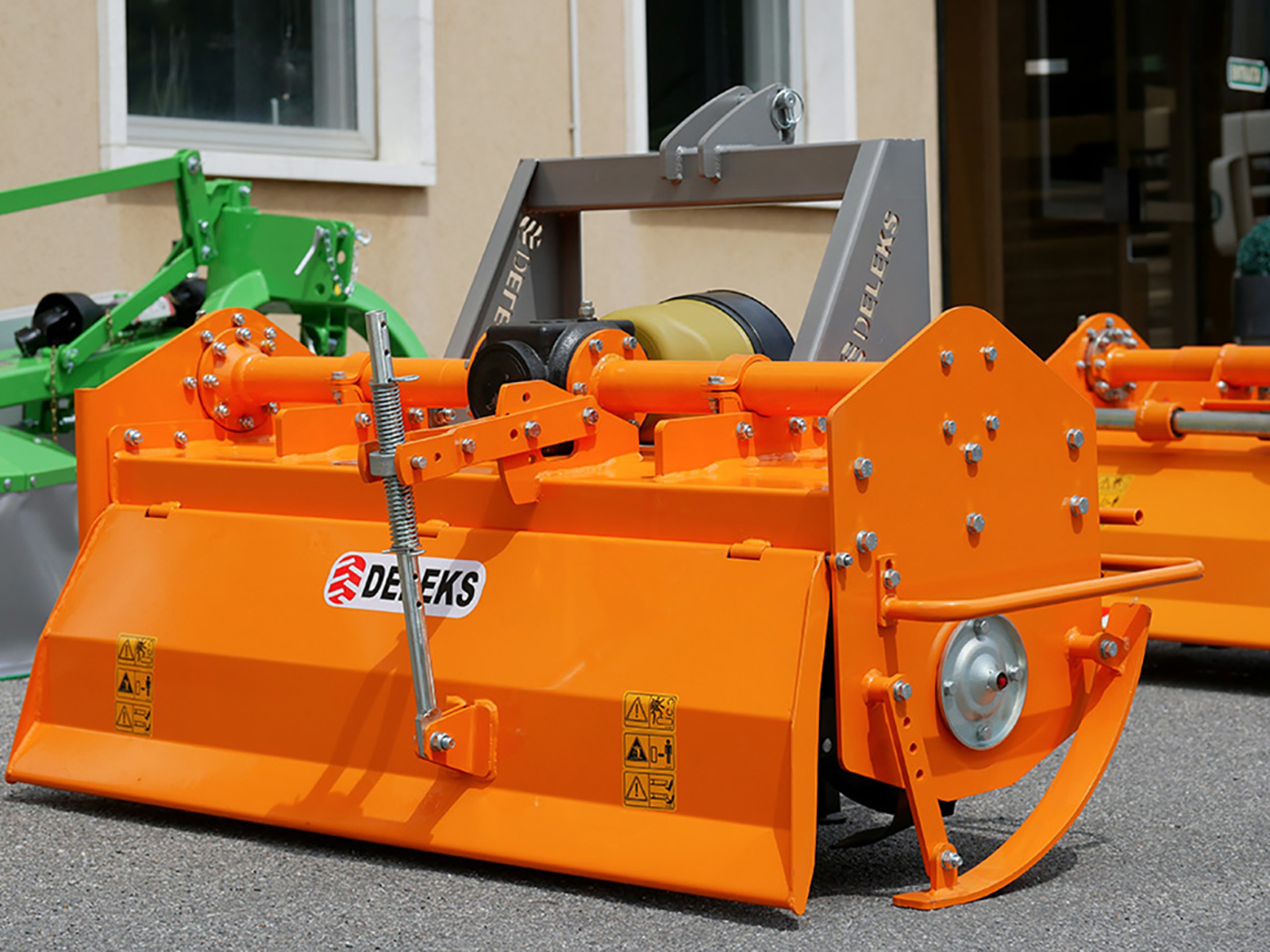

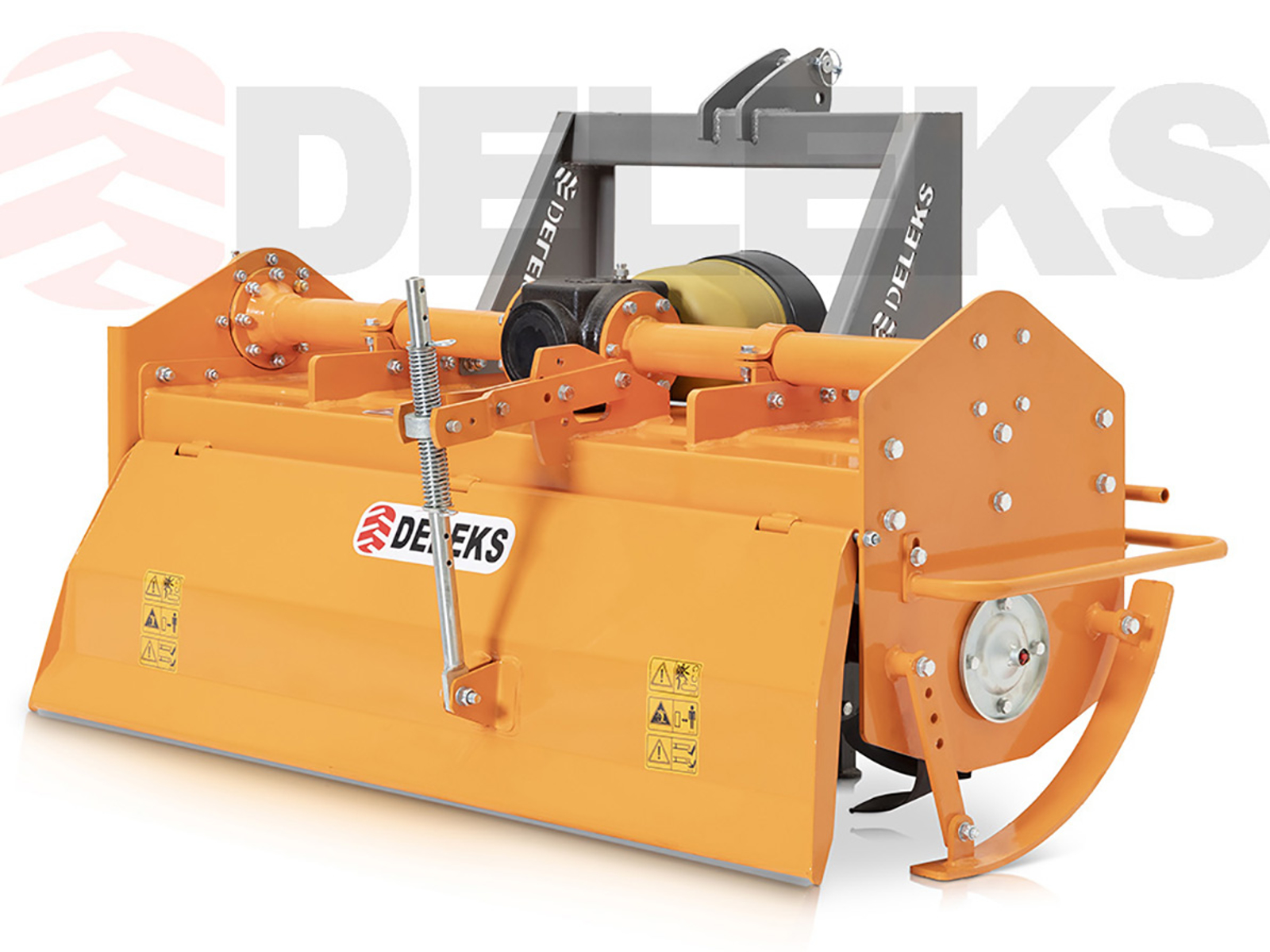

Heavy-duty rotavator for tractors with 150 cm (58.9 in) working width, from the DELEKS® heavy series: the rotary tiller for 35–60 hp orchard and field tractors with a Cat. 1 and 2 three-point linkage, such as New Holland T3F and T4F, John Deere 3 and 4 series, Landini, Kubota L, Same, Deutz-Fahr, Solis and most other 35–60 hp tractors. 352 kg (776 lb) frame with 8 mm side plates, side gear drive, DELEKS® 540 rpm gearbox with a three-year warranty, 42 forged helical tines on 8 flanges and an adjustable rear bonnet. It works 16 to 20 cm (6.3–7.9 in) deep with the rotor at 210 rpm and comes complete with its CE PTO shaft with clutch; free delivery within the EU.

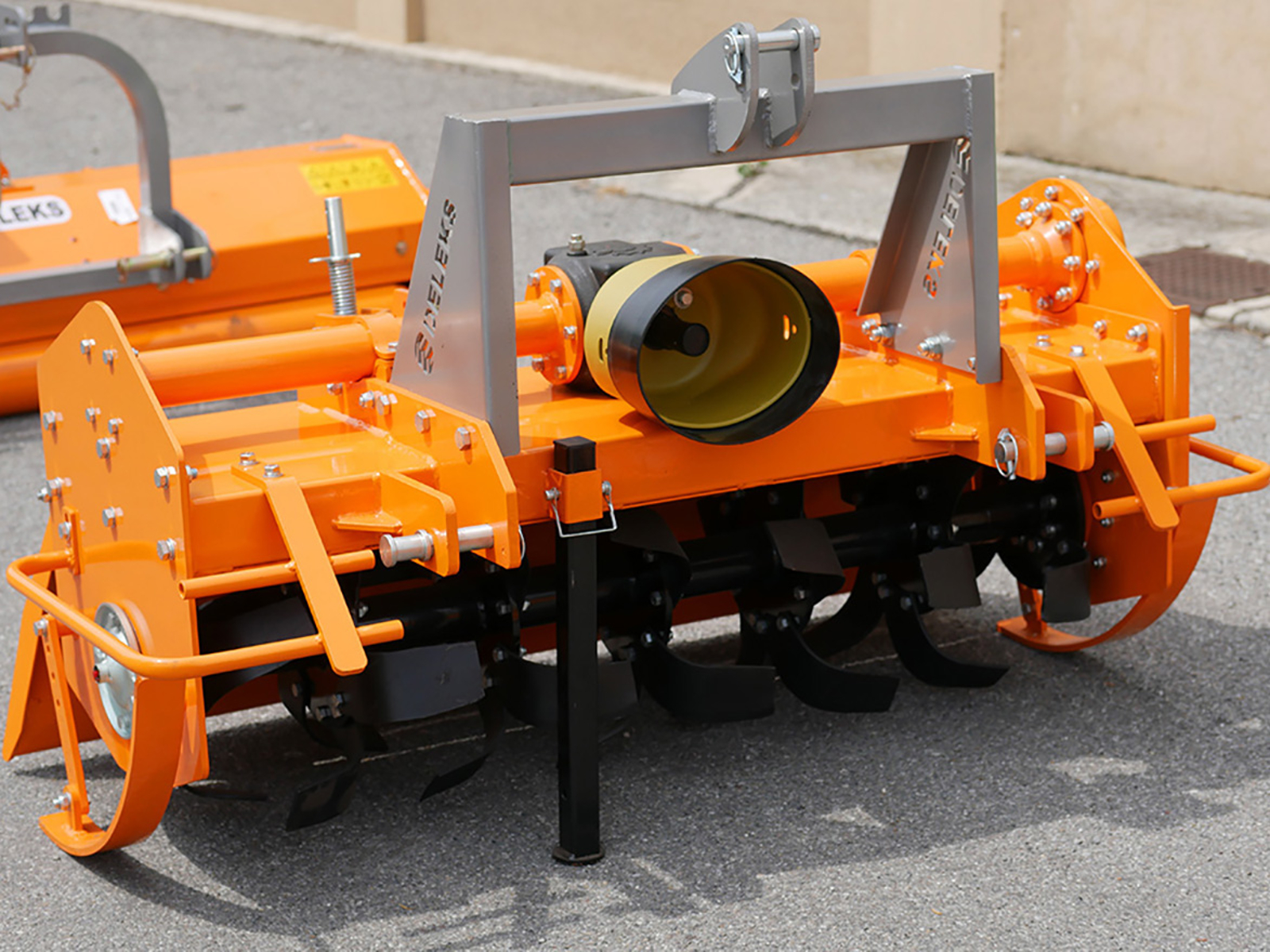

Which tractors it suits
The DFH-150 is the most compact rotavator of the heavy series: 150 cm (58.9 in) of working width and 170 cm (66.9 in) overall, the right size behind orchard tractors and 35–60 hp compacts, with 352 kg (776 lb) that their lift handles without trouble and that keeps the tines at depth without bouncing in the field. The three-point linkage is fixed, with the gearbox in the centre, and is Cat. 1 and 2 (ø 19–22 mm and ø 25–28 mm pins, lower-link spacing adjustable from 745 to 870 mm / 29.3–34.3 in); the PTO must run at 540 rpm. For working right up to the row or under the canopy, the same range has the DFHIDR-150 and DFHIDR-180 heavy rotavators with hydraulic side shift.

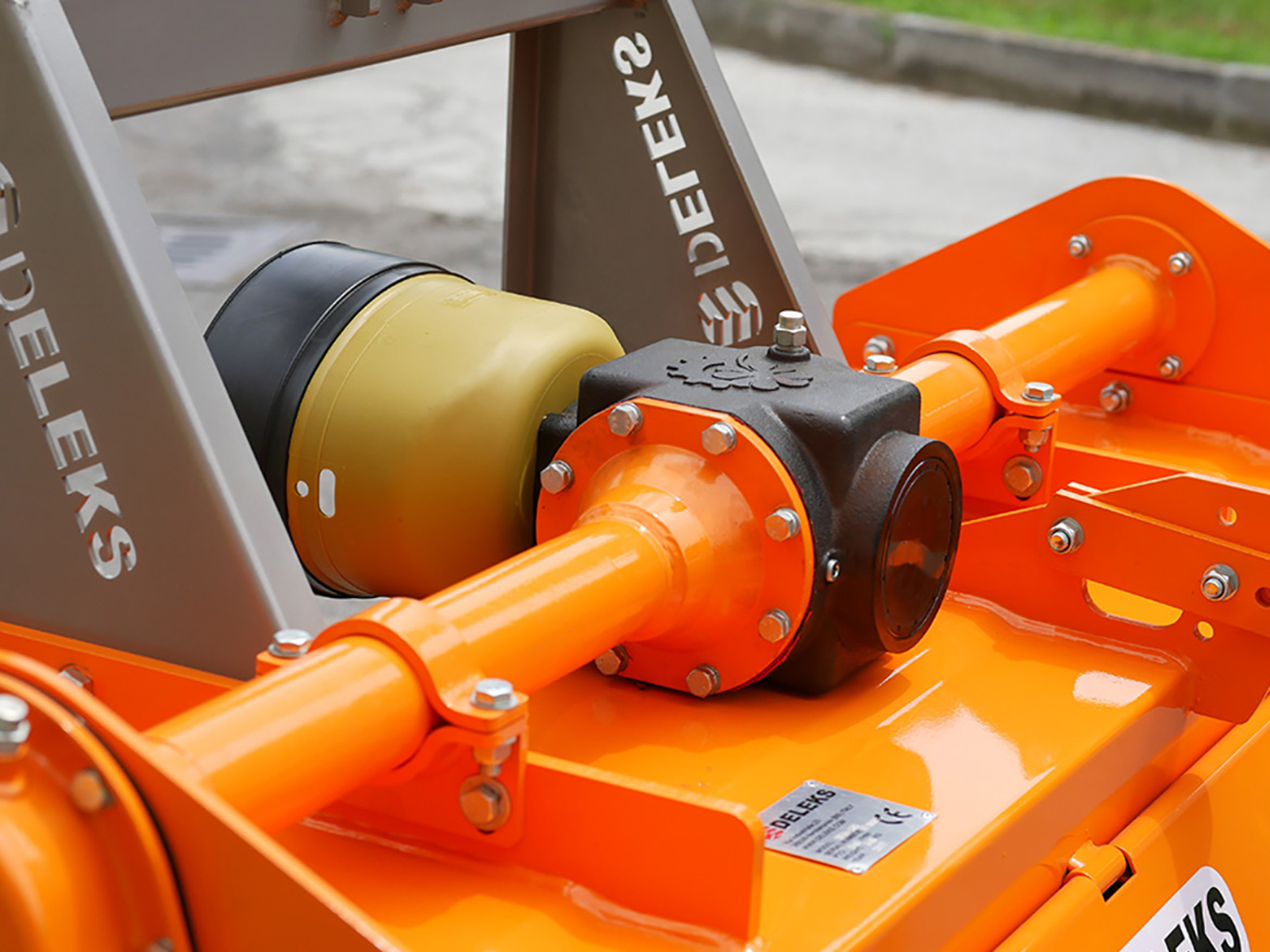

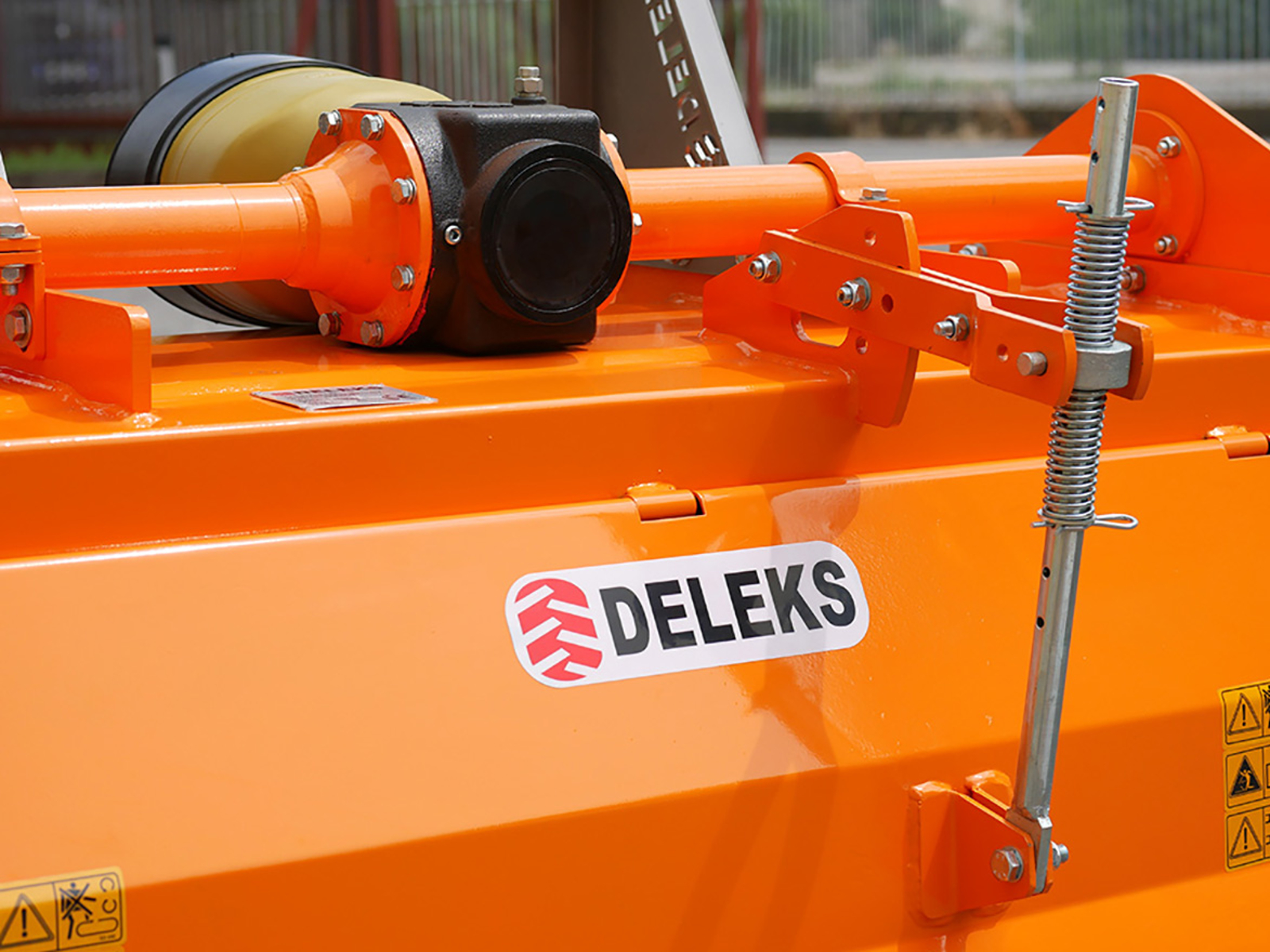

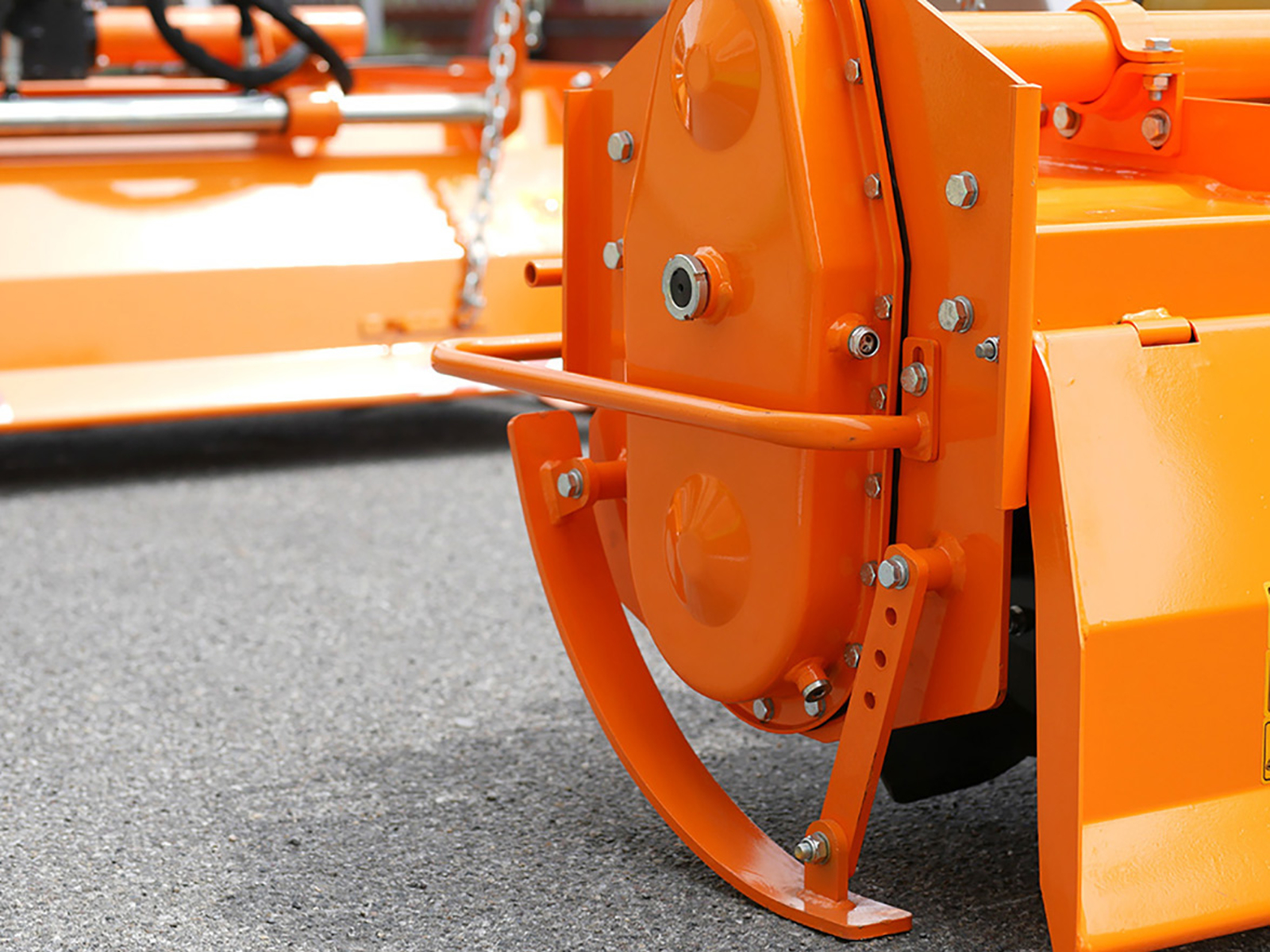

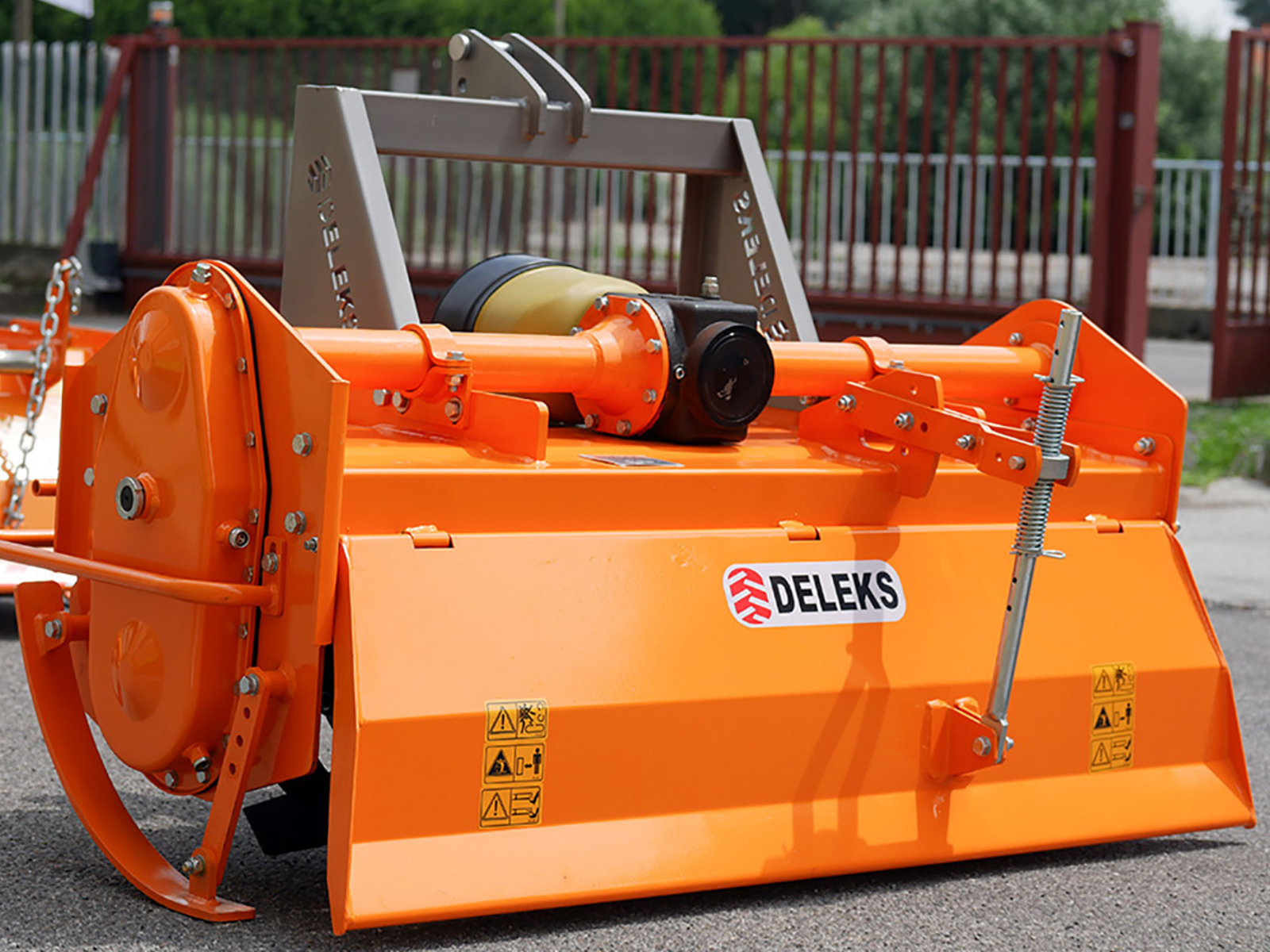

Gear drive and 540 rpm gearbox
The DELEKS® 540 rpm gearbox, with its cast-iron housing, carries a three-year warranty and arrives filled with SAE 120 oil; a side gear drive, with no chain, takes the power from the gearbox to the rotor and is built for long hours and heavy ground. The rotor turns at 210 rpm, slower than on light rotavators: it puts more torque into every tine and cuts finer. The CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is included: the clutch protects rotavator and tractor when a tine meets a stone or a root, and is set to suit the tractor and the ground following the manual.

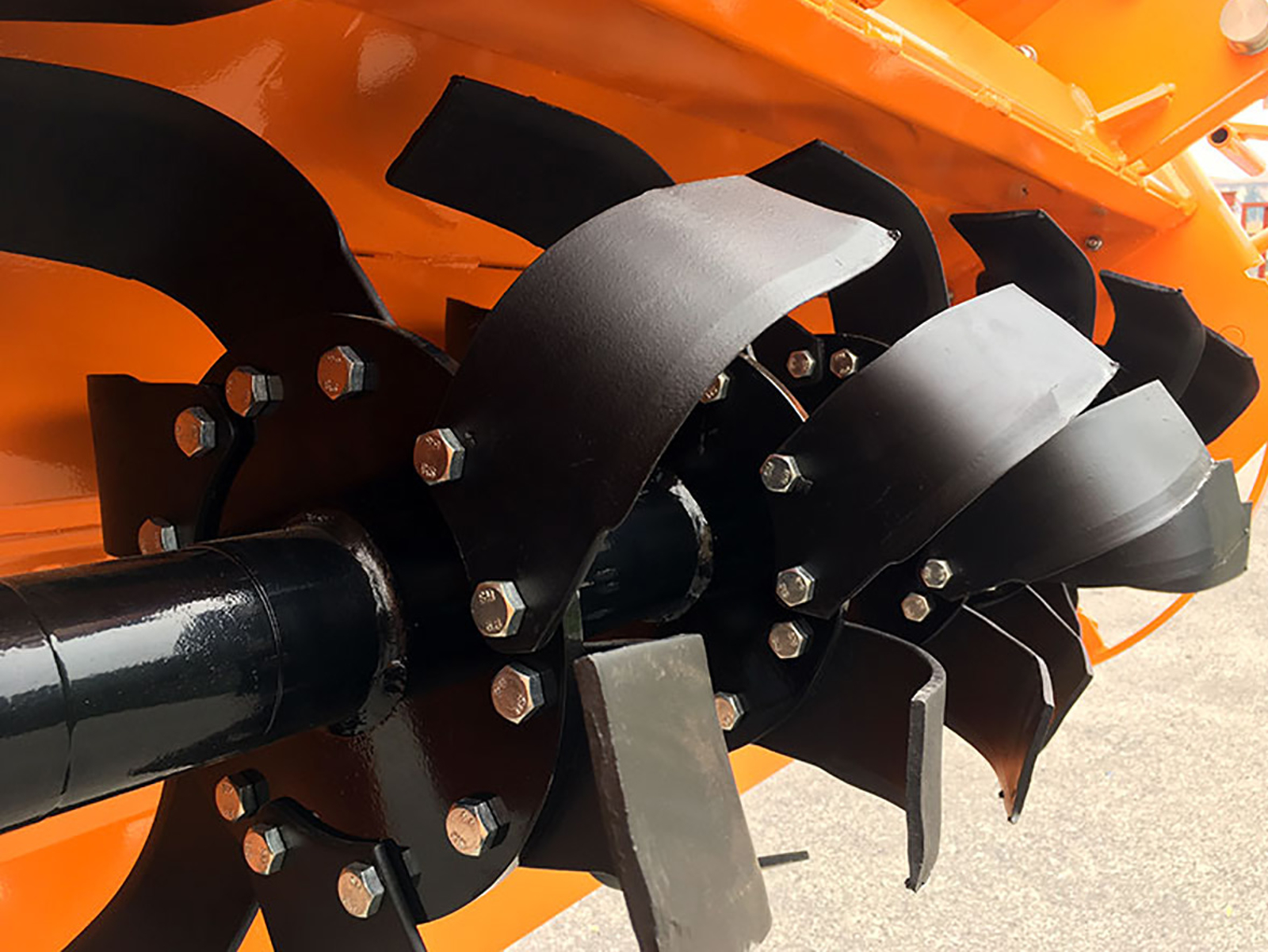

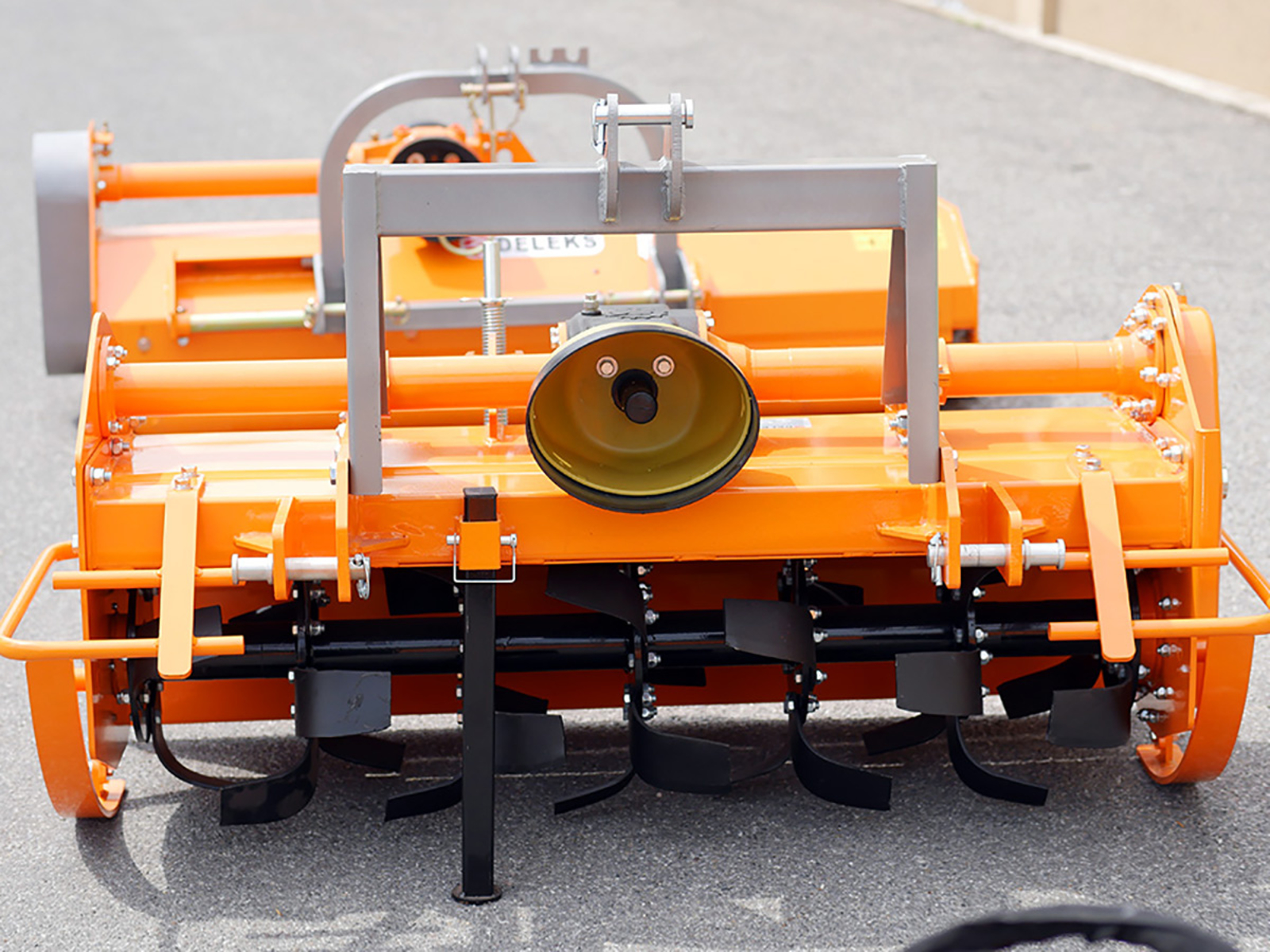

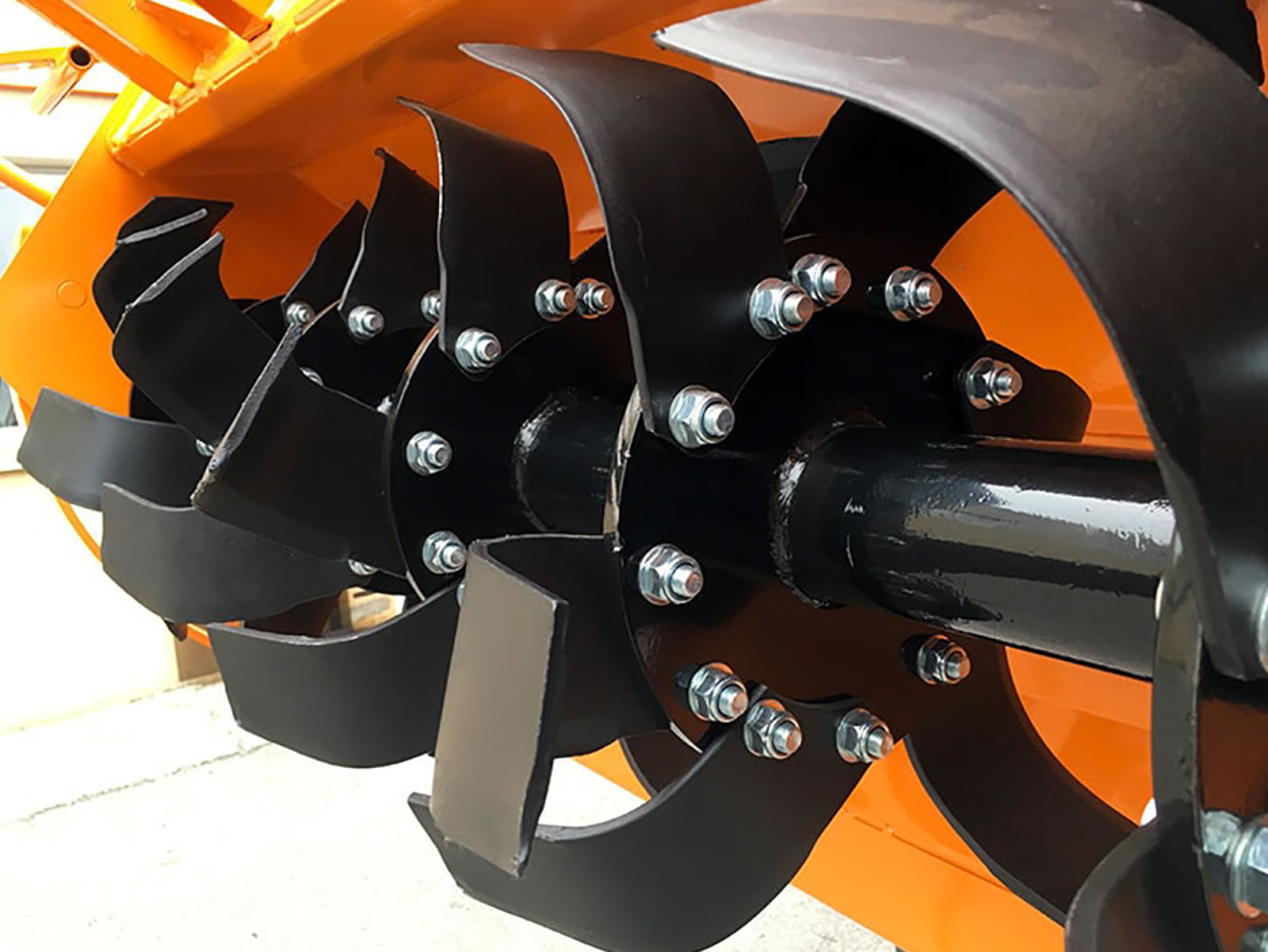

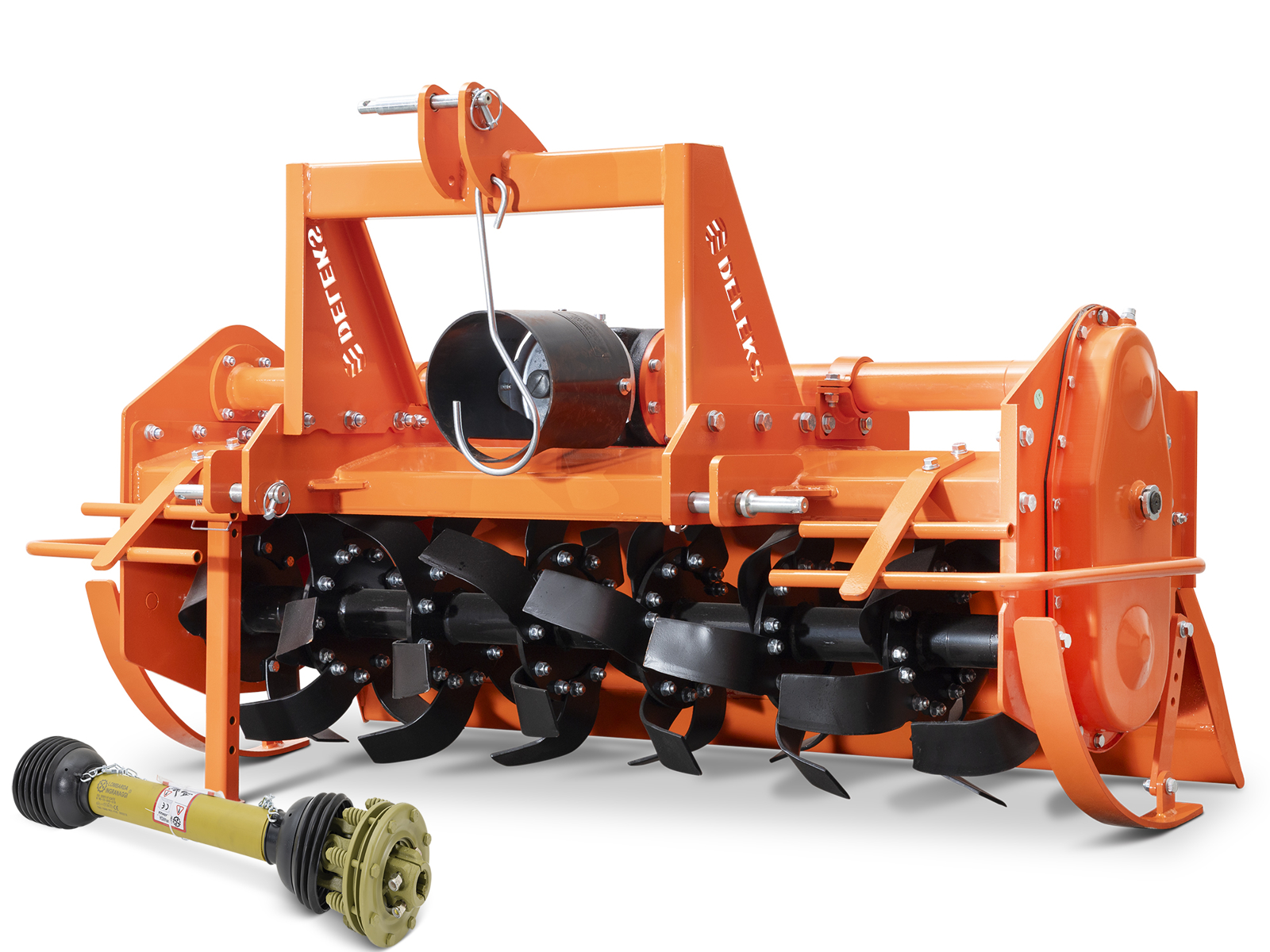

Rotor and forged helical tines
The rotor measures 480 mm (18.9 in) across with the tines fitted, on a 76 mm shaft with 6306 and 6309 bearings and 8 mm side plates. The 42 forged helical tines on 8 flanges (6 per flange, 3 on the two outer flanges; 180 × 83 mm, 6 mm thick, 250 mm curve, 810 g each) enter the soil progressively, with less vibration and a finer cut than straight tines; they are held by two bolts each (ø 13 mm holes, 55 mm centres) and are changed one at a time, with the same spare for every DFH rotavator. Working depth 160 to 200 mm (6.3–7.9 in), set with the side skids.

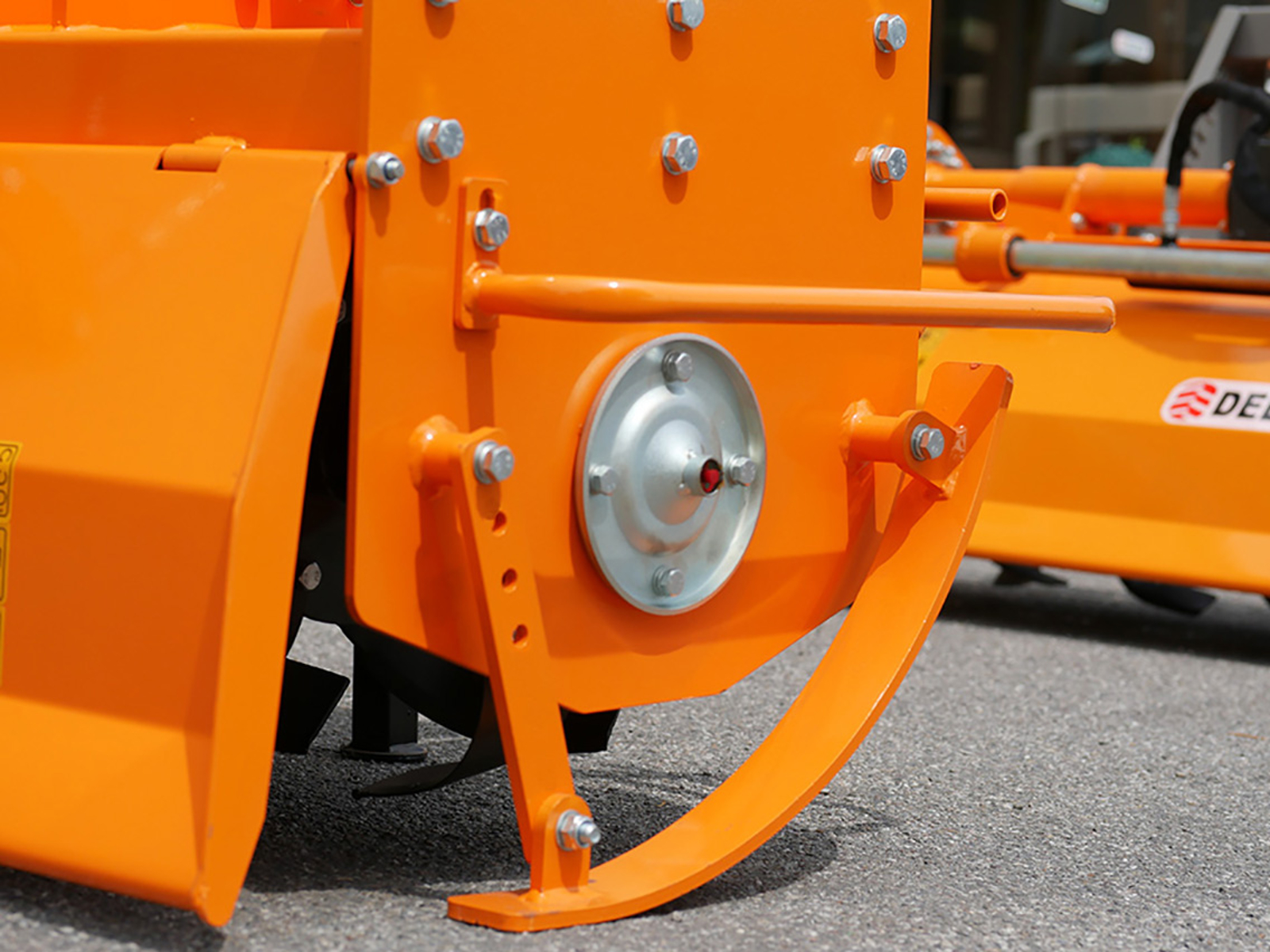

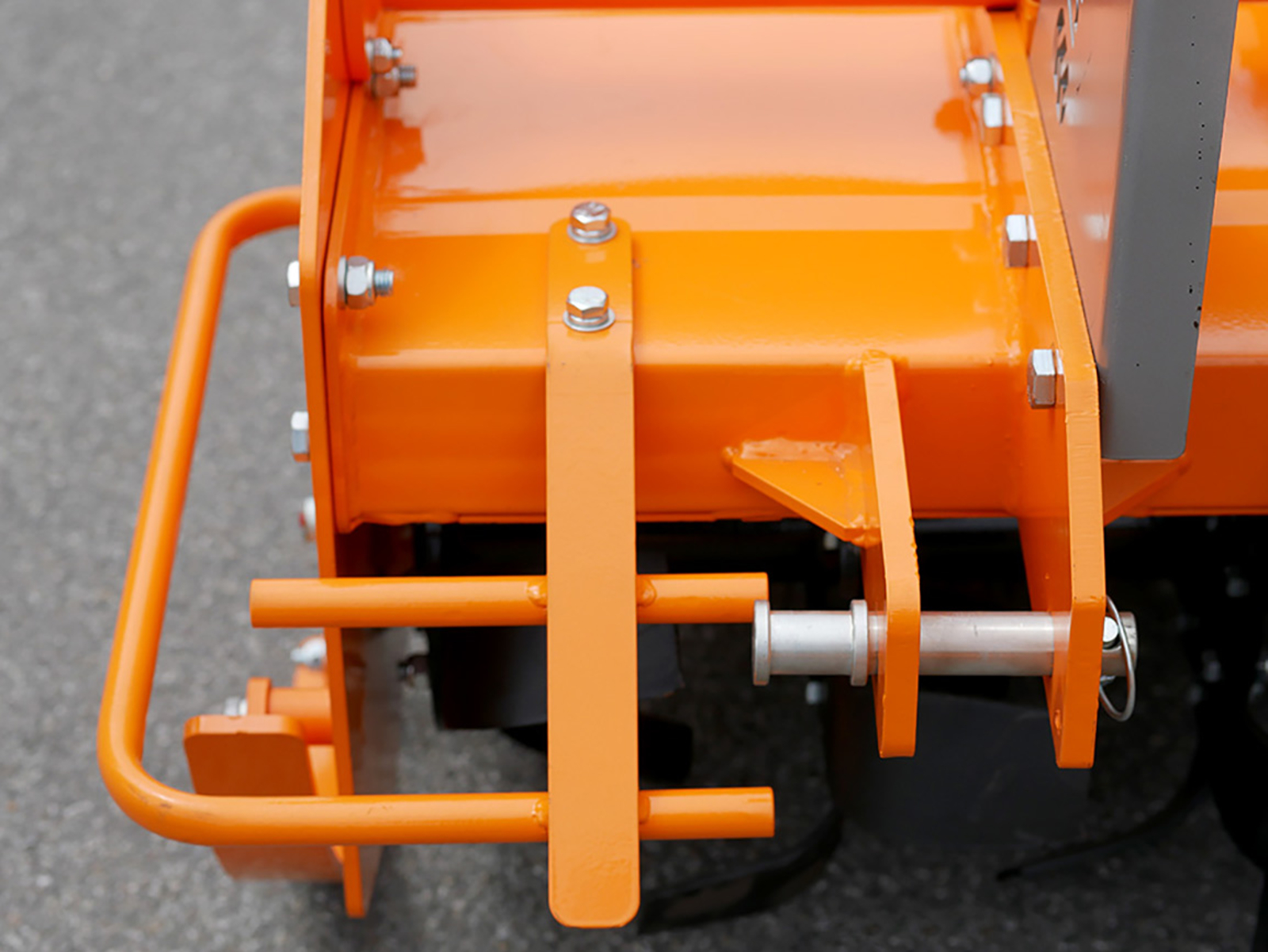

Adjustable bonnet and work on heavy ground
The rear bonnet adjusts in height: closed it holds the soil longer between the tines and refines the seedbed, open it lets large clods and crop residues out. With 352 kg (776 lb) and the slow rotor the rotavator stays at depth even on clay and on hard late-summer ground, where light rotavators bounce; on very stony ground a stone burier is the better choice.
Dimensions, weight and delivery
Working width 1495 mm (58.9 in), overall width 1700 mm (66.9 in), length 720 mm, height 1030 mm, weight 352 kg (776 lb); the gearbox sits 590 mm off the ground. It ships on a pallet of 80 × 173 × 82 cm (31 × 68 × 32 in), 422 kg (930 lb) gross, with free delivery within the EU; you will need a forklift or the tractor's lift to unload it. The machine complies with the EC Machinery Directive, is TÜV Austria certified and comes with a two-year warranty.

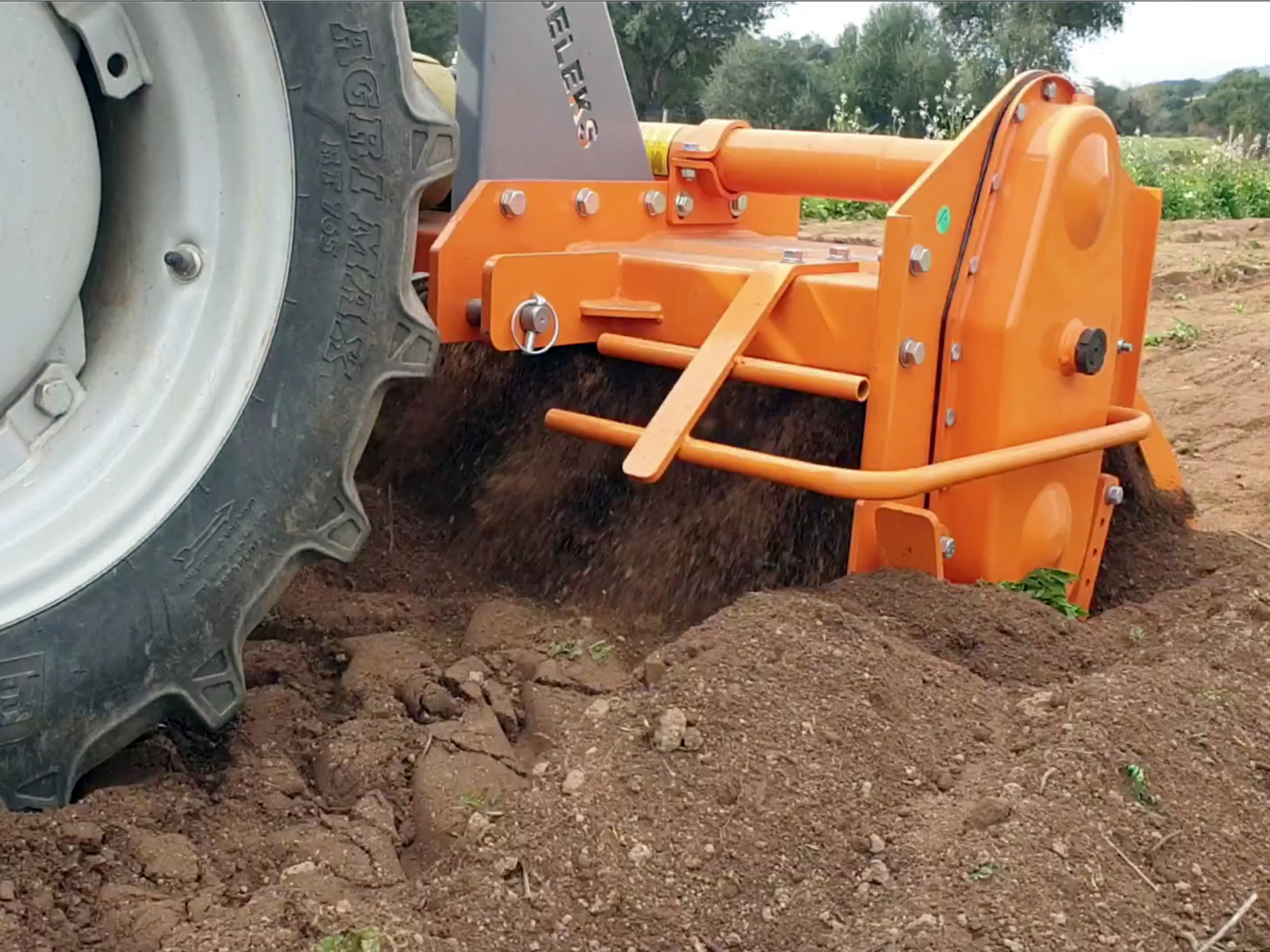

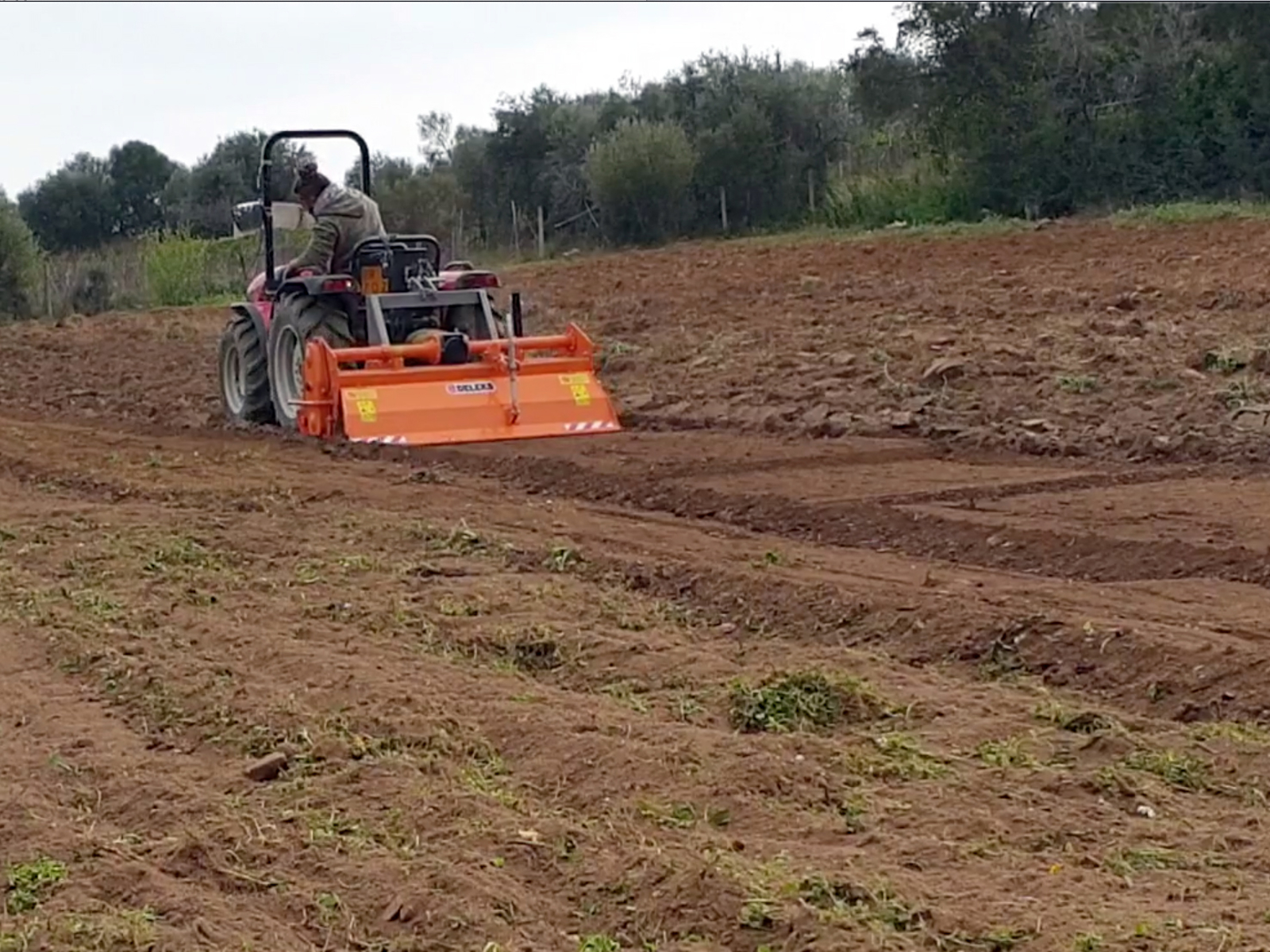

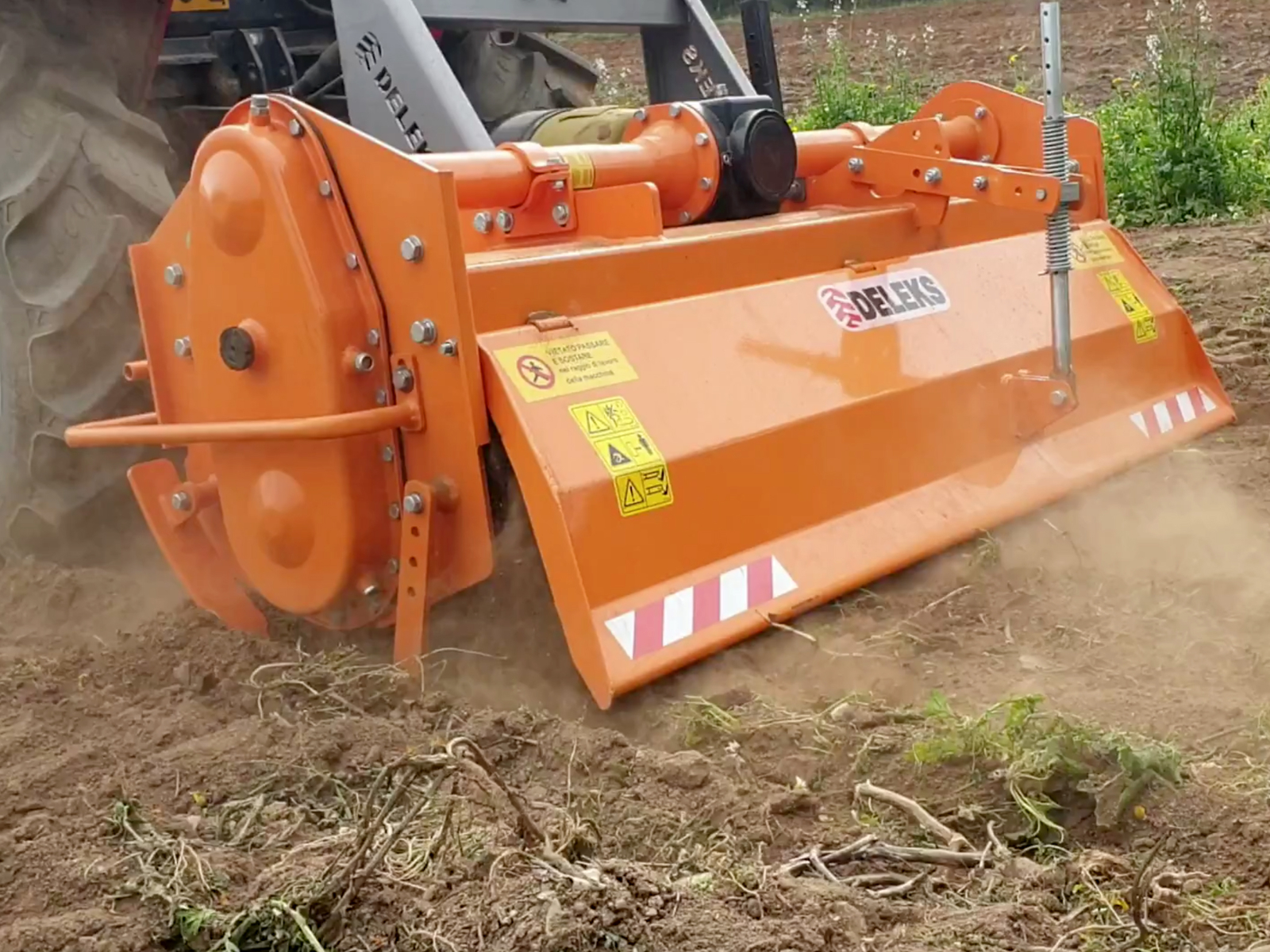

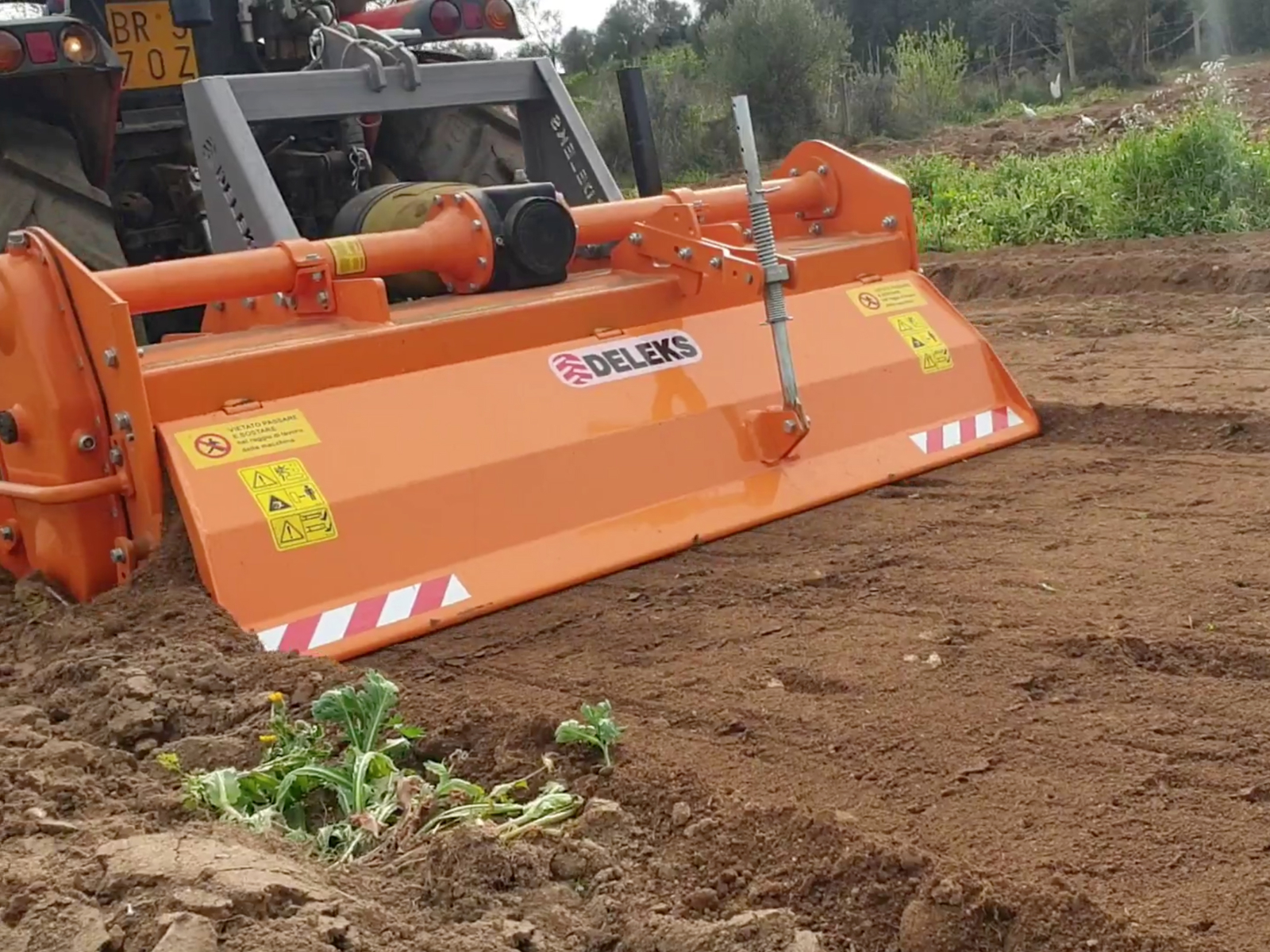

Where it works
- Vineyards and orchards: the alleyway worked in one pass with an orchard tractor, the implement centred behind the wheels
- Market gardens and open field: seedbeds and planting beds, working in fertiliser, green manure and crop residues
- Clay and hard ground, worked several times a year
- Wide polytunnels and glasshouses: tilthing the soil before planting
Options and spares

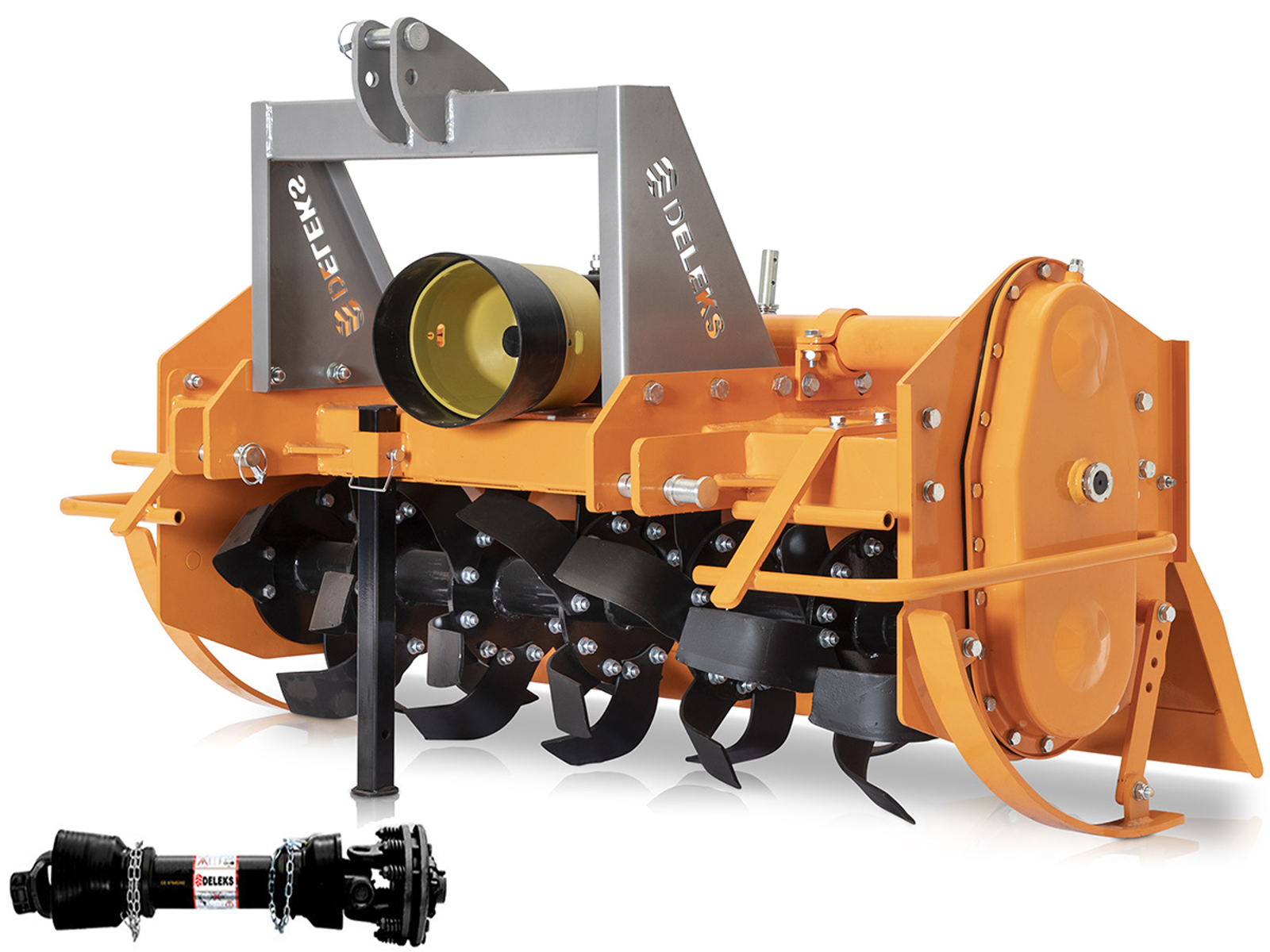

On this page you will also find the set of 10 DFH helical tines, tine nuts and bolts, the 680 or 730 mm mechanical top link, the PTO reduction adaptor and spare PTO shafts and clutches: order them with the rotavator or later on.
FAQ
How much power does a 150 cm rotavator need?
The DFH-150 works from 35 to 60 hp at the 540 rpm PTO. With 35–40 hp you move slowly on heavy ground; from 45 hp up you work at normal speed even at full depth. Under 35 hp the lighter medium-series DFM-150 is the better choice.
What is the difference between the heavy series and the medium series?
Frame and drive sized for continuous work: 352 kg instead of 232, 8 mm side plates, gear drive instead of chain, six helical tines per flange instead of four, working depth up to 20 cm instead of 16 and tractors up to 60 hp.
Is the PTO shaft included? How is the clutch set?
Yes: the CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is standard. The clutch is set to suit the tractor and the ground following the manual: too tight it does not protect the drive, too loose it slips and overheats.
What maintenance does it need?
At the start of the season check the gearbox oil level (SAE 120), tine wear and bolt tightness; before each use grease the points shown in the manual and check the PTO clutch. Worn tines are replaced with the set of 10.
Can it be shifted sideways?
No: the DFH-150 has a fixed linkage with the gearbox in the centre and works centred behind the tractor. To work right up to the row there are the DFHIDR-150 and DFHIDR-180 heavy rotavators with hydraulic side shift.
DELEKS® spares and support
Genuine spares ship from the DELEKS® warehouses in Europe: tines, gears, pins, bearings, PTO shafts, clutches and the other wearing parts are normally in stock, for routine servicing and for repairs. The technical team helps you pick the right part from the exploded drawings, service the machine and choose the rotavator and the accessories that suit your tractor. The rotavator comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1495.0 mm | 4.90 ft |
| Overall width | 1700.0 mm | 5.57 ft |
| Weight | 352.0 kg | 776.0 lb |
| Overall height | 1030.0 mm | 3.38 ft |
| Tractor Power Range | 35 - 60 Hp | 35 - 60 Hp |
| 3 point linkage | Cat. 1/2 ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1/2 ø 19.0-22.0mm / 25.0-28.0mm) |
| Position of the gearbox | Central | Central |
| Spacing between the 2 lower points | 745.0 - 870.0 mm | 29.35 - 34.25 in |
| Overall length | 720.0 mm | 2.36 ft |
| Distance between pto attachment and ground | 590.0 mm | 23.23 in |
| Transmission: Drive method | Gears | Gears |
| Transmission: Gearbox | DELEKS 540 r/min (3 year warranty) | DELEKS 540 r/min (3 year warranty) |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: RPM Rotor speed | 210 rpm | 210 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Rotor: diameter | 76.0 mm | 3.0 in |
| Rotor: bearings type and size | "GB276-6306(R) GB276-6309(L)" | "GB276-6306(R) GB276-6309(L)" |
| Rotor: sheet thickness | 8.0 mm | 0.31 in |
| Working Depth Range | 160.0-200.0 mm | 6.30 - 7.87 in |
| Pto shaft | CE 6x1000 mm + twin-disc friction clutch Ø180 mm | CE 6x1000 mm (39.4 in) + twin-disc friction clutch Ø180 mm (7.1 in) |
| Rotor: diameter with blades | 480.0 mm | 18.90 in |
| Rotor: flanges | 8 | 8 |
| Number of Blades per flange | 6 | 6 |
| Blades: quantity | 42 | 42 |
| Blades: height/width | 180.0 / 83.0 mm | 7.08 / 3.26 in |
| Blades: curve length | 250.0 mm | 9.84 in |
| Blades: distance between holes | 55.0 mm | 2.16 in |
| Blades: diameter of the holes | 13.0 mm | 0.51 in |
| Blades: thickness | 6.0 mm | 0.24 in |
| Blades: weight | 810.0 g | 28.57 oz |
| Gross shipping weight | 422 kg | 930 lb |
| Package volume | 1.13 m3 | 39.9 cu ft |
| Packing sizes | 800.0*1730.0*820.0 mm | 2.62*5.67*2.70 ft |
