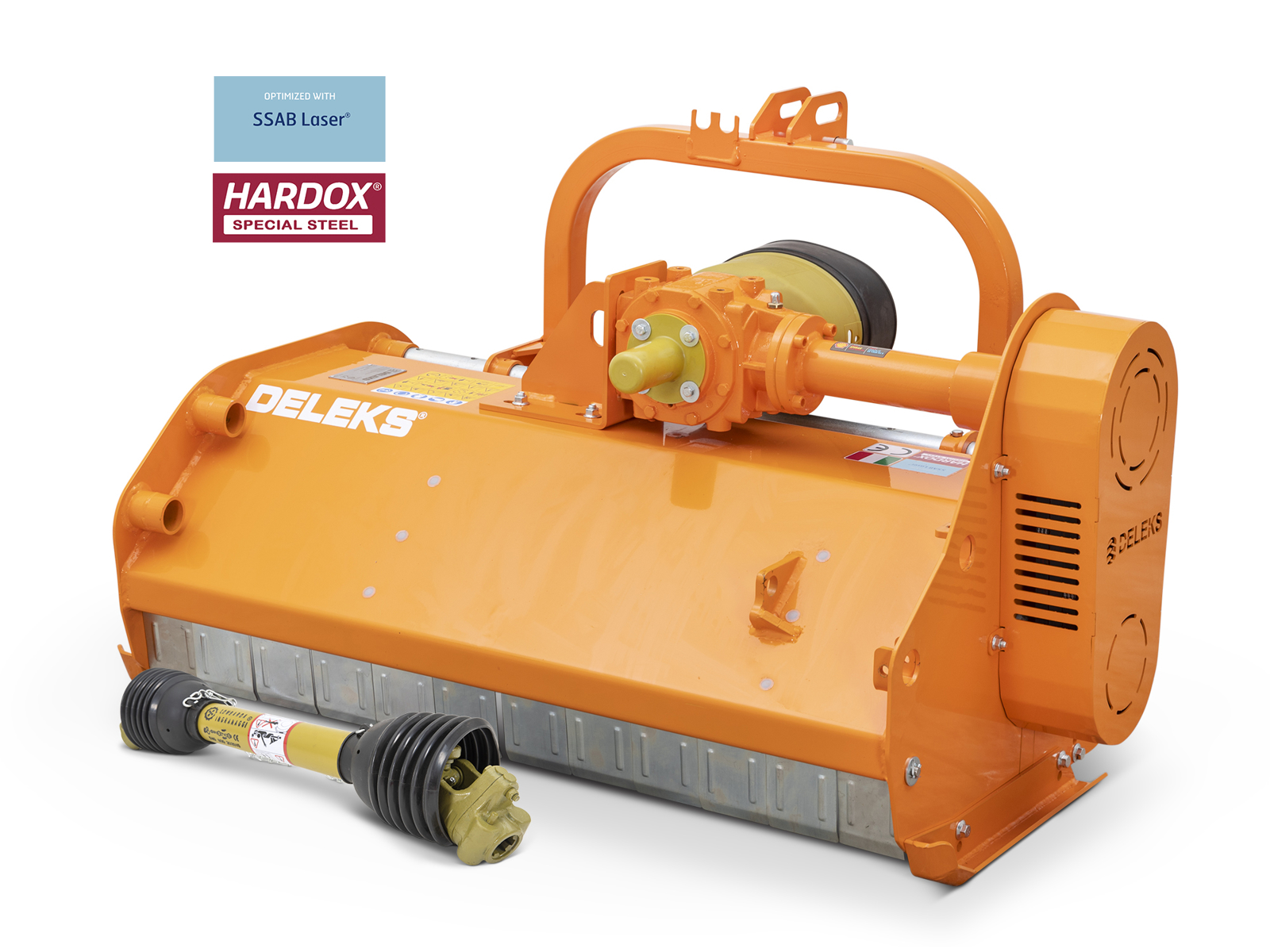

Reversible flail mower 120 cm (47 in) LINCIONE-120-SP-REV, front and rear hammer flail mulcher with manual side shift for 30-60 hp tractors

Available
Code LINCIONE120SPREVPTO - EAN 8053470238666
2.390,00€VAT incl.
Free shipping
Loading...
2.390,00€VAT incl.
 REQUEST INFORMATION

DETAILS

Reversible flail mower for tractors with a 120 cm (47 in) cut and 31 cm (12 in) of manual side shift, from the DELEKS® medium series: the LINCIONE-120-SP-REV is the hammer flail mulcher with a double-shaft gearbox that mounts in front of the tractor or behind it, for reverse-drive tractors, tractors with a front linkage and conventional tractors from 30 to 60 hp. The electronically balanced rotor carries 16 forged hammer flails of 820 g (1.8 lb) and shreds grass, leaves, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick; the specially shaped hood gives a fine mulch and stops the mower clogging. DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 4-belt drive, SSAB steel frame, 300 kg (661 lb). Made in Italy, built by DELEKS, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.


Front or rear: how it mounts

The LINCIONE-120-SP-REV runs in front of the tractor or behind it: on reverse-drive tractors, on the front linkage or, like a conventional flail mower, on the rear linkage. There is a single headstock: the three-point A-frame and the two tubular bars unbolt and refit on the other side of the mower, to switch between rear and front use. That way the machine does not carry the weight of a second headstock and suits lower-powered tractors; the fixed double headstock is found on the reversible mowers of the heavy-duty series. It fits equal-wheel reverse-drive tractors of every make with a category 1 or 2 three-point linkage, such as Antonio Carraro, BCS, Ferrari, Pasquali, Goldoni and Valpadana. Mounting on the front linkage requires a front PTO. It works on the flat and on slopes.


Manual side shift of 31 cm (12 in)

The headstock of the LINCIONE-120-SP-REV slides sideways: the mower moves up to 31 cm (12 in) to one side of the tractor, so you can work offset. The side shift is mechanical and is set by hand with the machine stopped, before you start: centred for open ground, offset to mow under the canopy, tight to a row or along a ditch without bringing the tractor's wheels close to the edge. If you need to change position on the move, the LINCIONE-120-SPH-REV has hydraulic side shift as standard.


Which tractors it fits

The LINCIONE-120-SP-REV cuts 120 cm (47 in) with an overall width of 134 cm (53 in) and is built for tractors from 30 to 60 hp with a 540 rpm PTO and a universal category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 560 to 950 mm): Antonio Carraro, Goldoni, Kubota, Landini, Same, Lamborghini, Solis and equivalent tractors. It is the narrowest in the series: the size for tight rows in vineyards and orchards. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks.

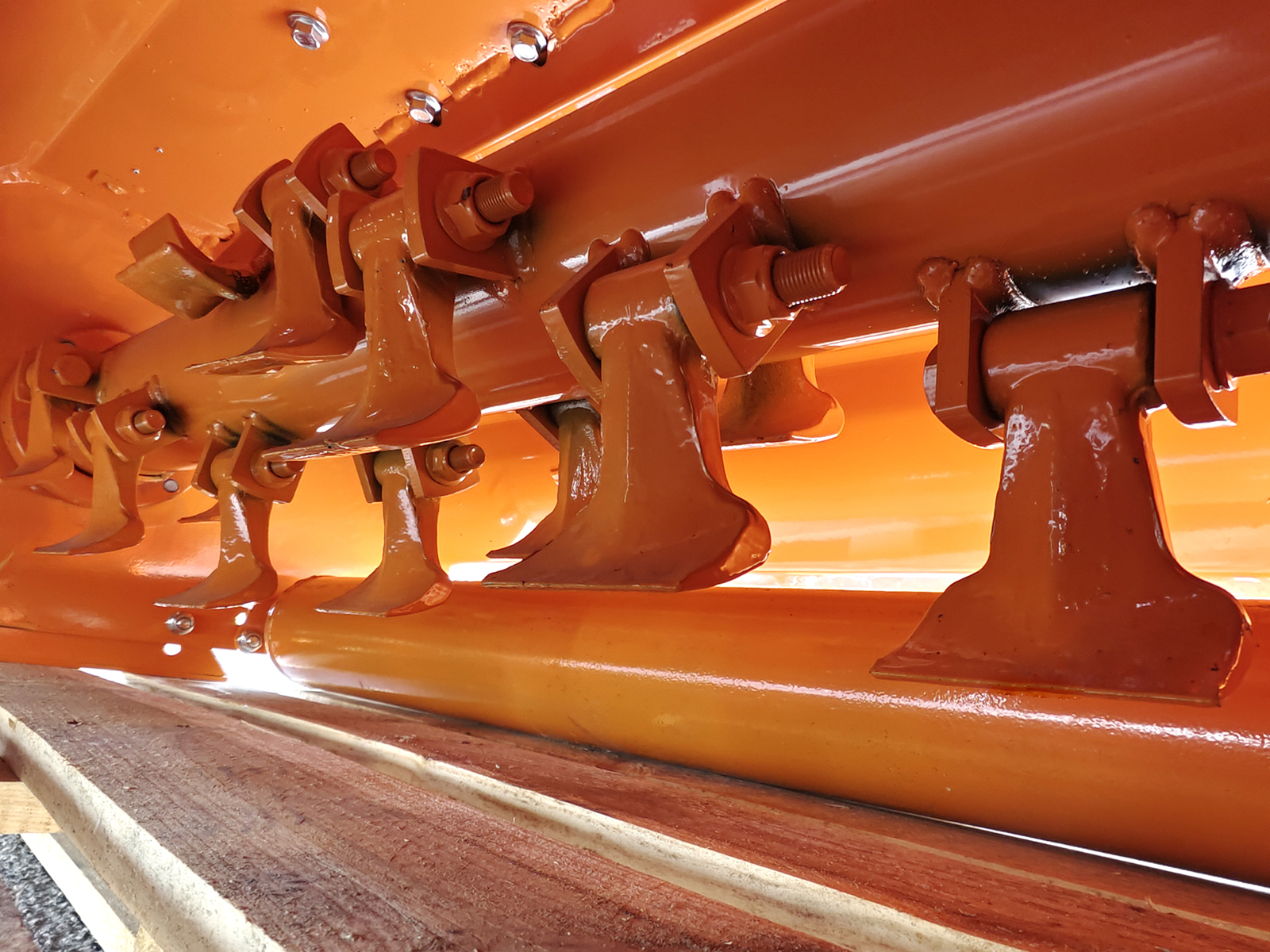

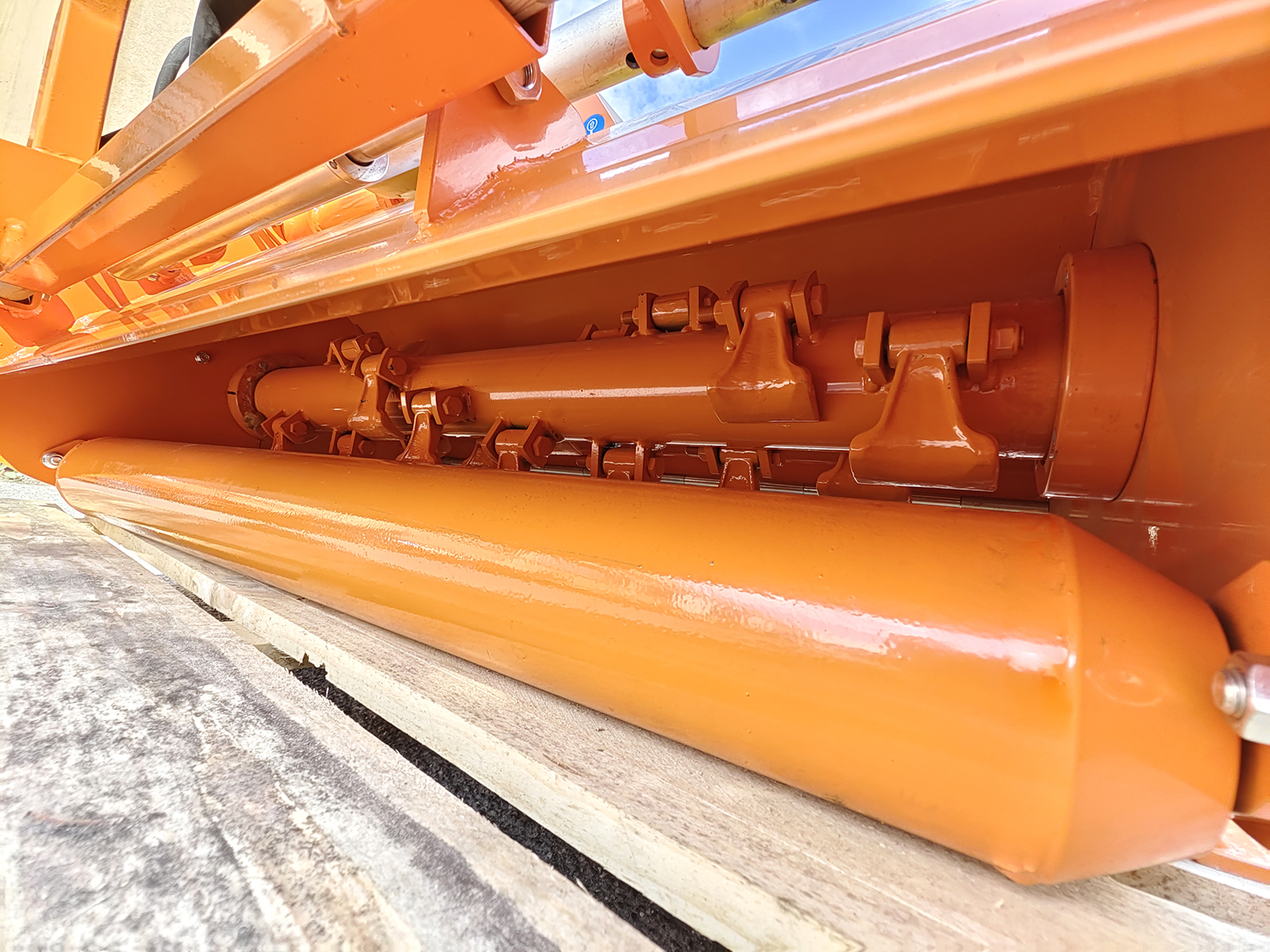

Rotor with 16 forged hammer flails of 820 g (1.8 lb)

The rotor is built from ARVEDI S355 steel tube, 8 mm (5/16 in) thick and 115 mm (4.5 in) in diameter, electronically balanced, and spins at 2,300 rpm on self-aligning SKF bearings. The 16 forged Poncial flails, Made in Italy, weigh 820 g (1.8 lb) each and sit in 2 helical rows on brackets in HARDOX wear-resistant steel: they pulverise grass, leaves, brambles, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick. The kit of 30 blades (COLTELLI30T) is available as an option, as an alternative to the hammer flails.

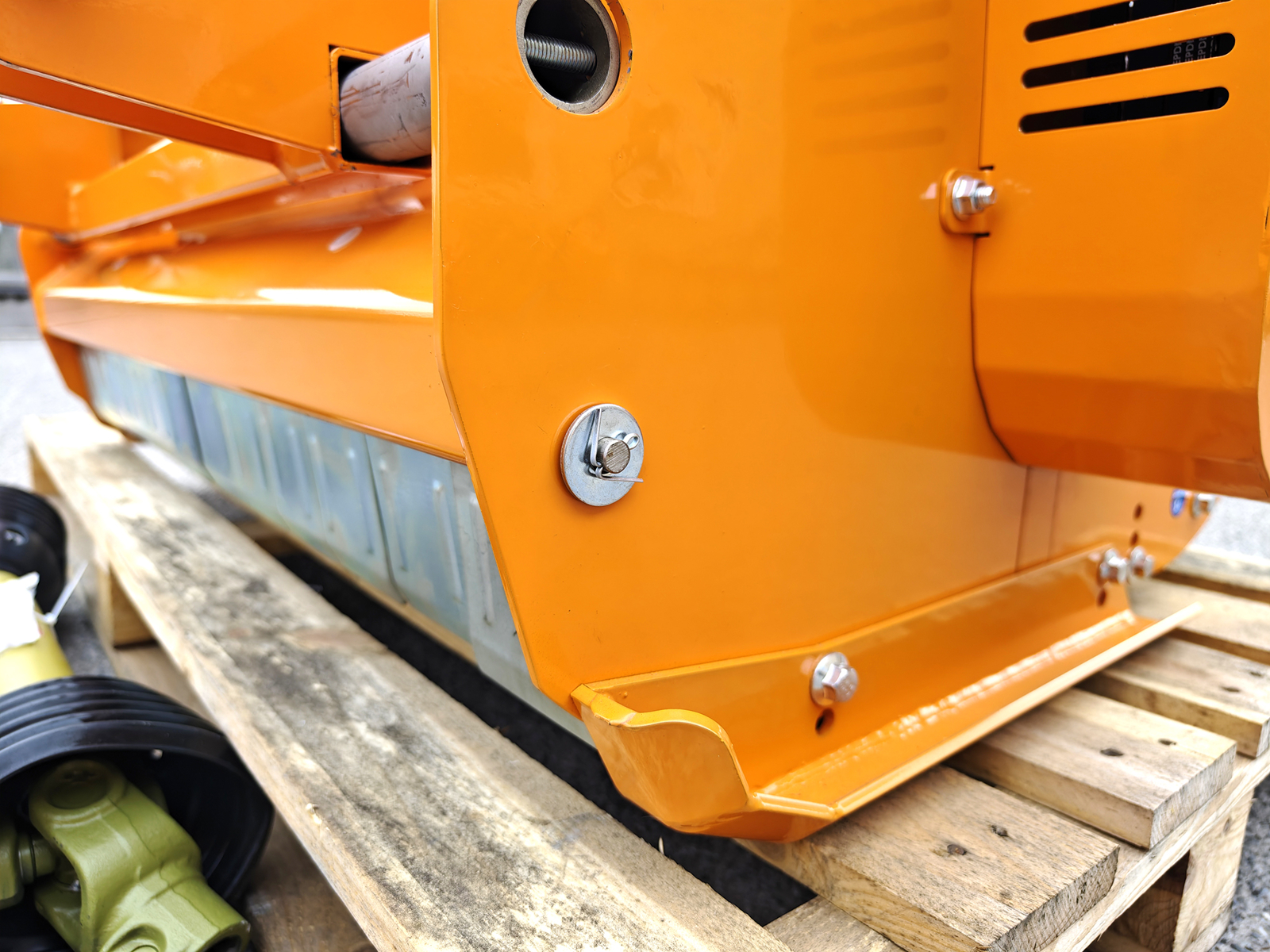

Mulching hood, roller and skids

The hood of the LINCIONE-120-SP-REV is specially shaped to give a fine mulch and stop the mower clogging. Cutting height is set from 38 to 60 mm (1.5 to 2.4 in) with the 121 mm (4.8 in) roller, which runs on SKF bearings, and the 6 mm side skids. The skids have a double bend, so the mower does not dig in when it moves sideways.

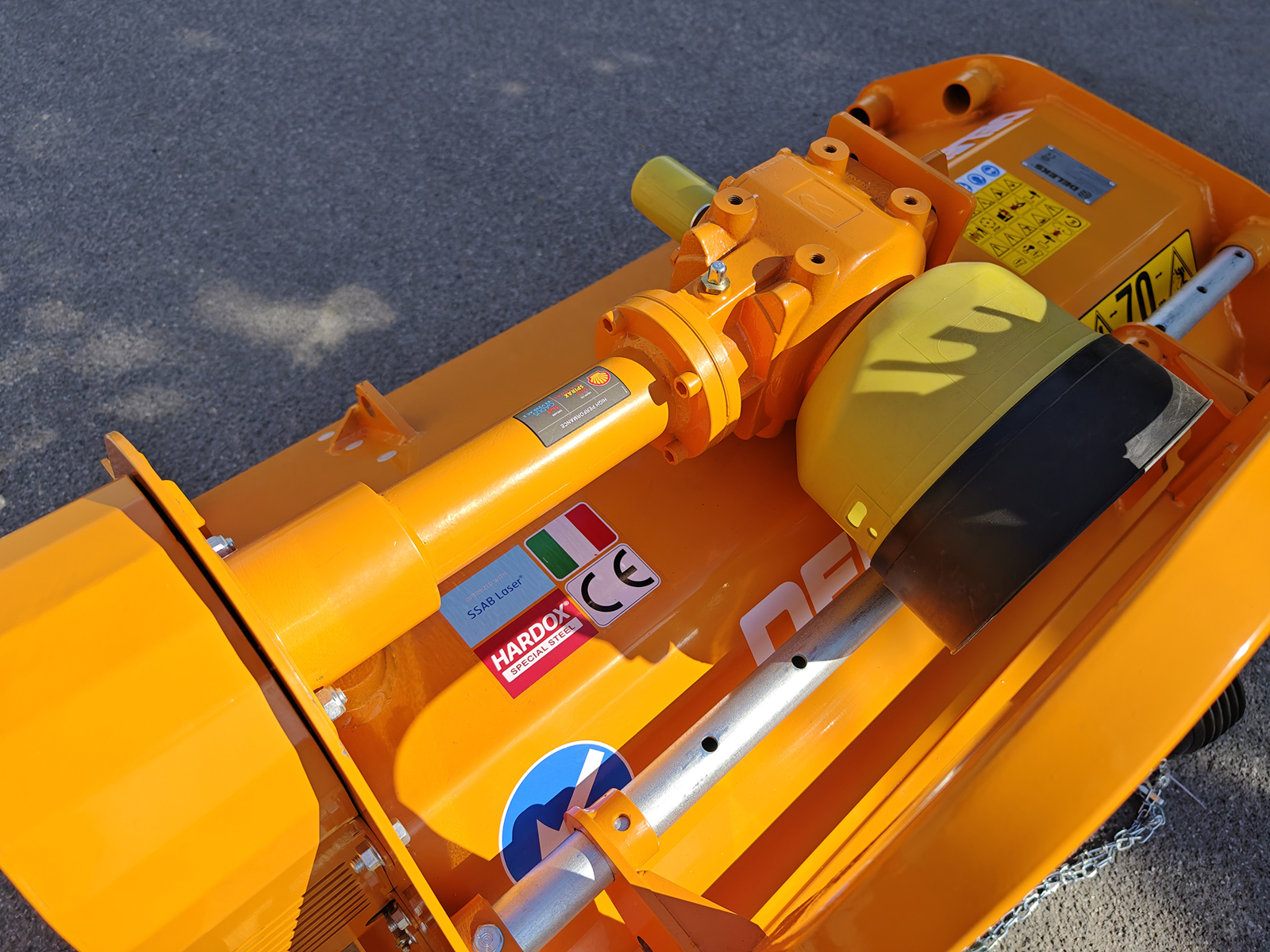

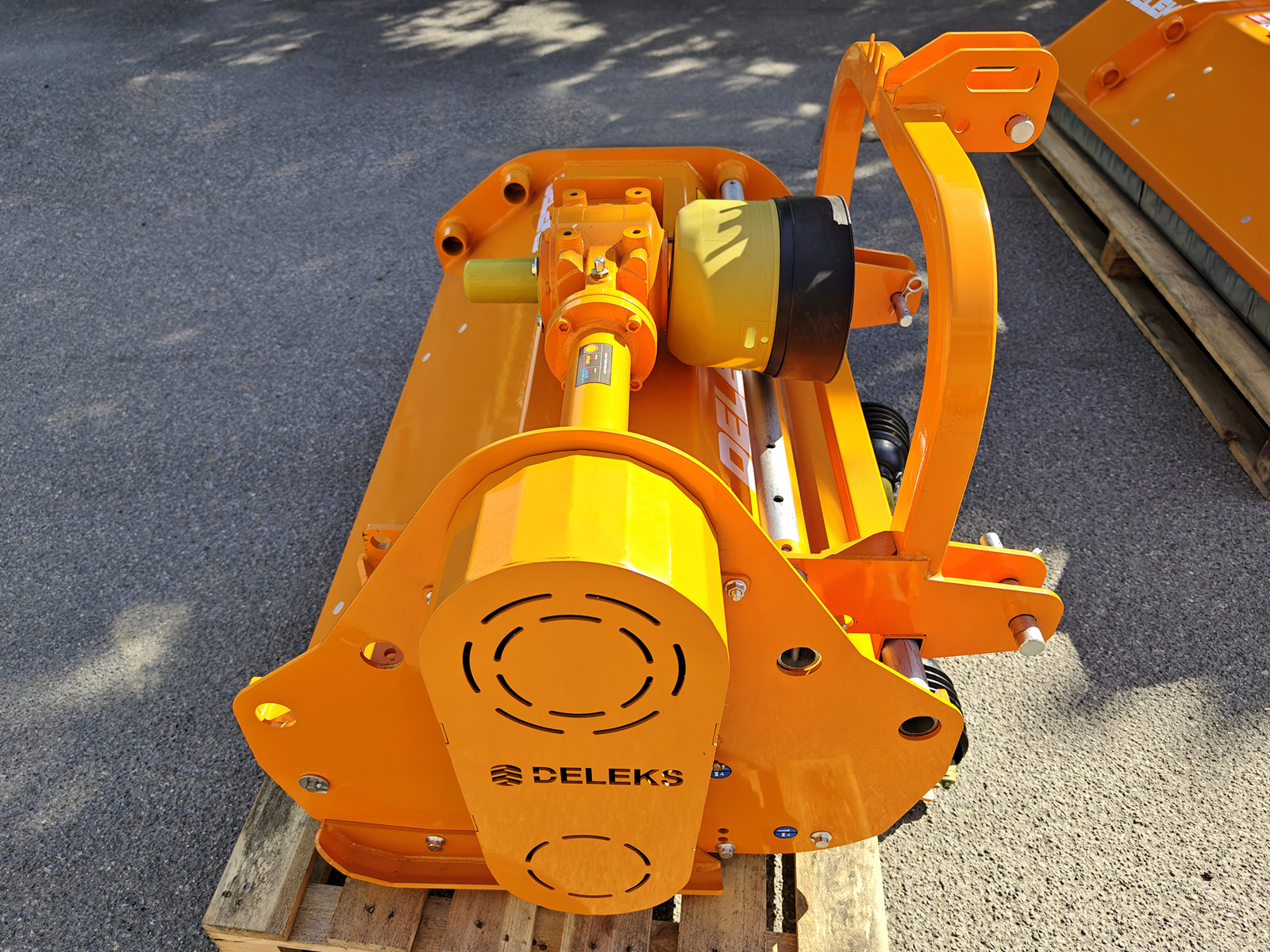

Double-shaft gearbox, 4 belts and PTO shaft

The gearbox, Made in Italy, has a double shaft, 540 + 540 rpm, with a built-in freewheel and a 3-year warranty: that is why the LINCIONE-120-SP-REV works both front and rear. With the freewheel, when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. For tractors with a 1,000 rpm PTO the 1,000 rpm gearbox is available as an option (SOSTMOLT1000). The recommended gearbox oil is Shell Spirax S2 A 80W-90. Drive reaches the rotor through 4 BX43 V-belts; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.


SSAB steel frame, Made in Italy

The frame is made entirely from Swedish SSAB steel, 5 mm thick with 6 mm side plates; the flail brackets are HARDOX and the rotor bearings are SKF. The LINCIONE-120-SP-REV is Made in Italy, built by DELEKS. For this product the sheet steel is bought in Italy and worked at a production plant in the European Union.


Dimensions, weight and delivery

Working width 1,200 mm (47.2 in), overall width 1,340.5 mm (52.8 in), length 930 mm (36.6 in), height 1,130 mm (44.5 in), weight 300 kg (661 lb). It ships in packaging measuring 138 × 90 × 80 cm (54 × 35 × 31 in), 339 kg (747 lb) gross, 0.99 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.


Where it works

  • Reverse-drive tractors and front linkages: mowing out front, with the machine always in view
  • Vineyards, orchards and olive groves: grass between the rows and under the canopy, prunings up to 4-5 cm (1.6-2 in)
  • Rough ground: long grass and brambles, shredded before the tractor's wheels run over them
  • Field edges, ditches and fence lines: working offset, with the tractor kept away from the edge
  • Conventional rear mounting, on the flat and on slopes, with tractors from 30 to 60 hp

Options and spares

From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T), the spare set of 4 belts (CINGHIE4LEOPARD), spare pins for the category 1-2 three-point linkage (3PERNI12), the universal PTO adapter (RID1) and the gearbox for a 1,000 rpm PTO in place of the 540 rpm one (SOSTMOLT1000). Other spares are identified on the exploded diagrams with our technical team.


FAQ

Can it be mounted in front of the tractor?
Yes: the double-shaft gearbox, 540 + 540 rpm, lets you run it out front, on the front linkage or on a reverse-drive tractor, or at the rear like a conventional flail mower. The headstock unbolts and refits on the other side of the mower.

Does it suit a 1,000 rpm PTO?
As standard the gearbox is 540 rpm; the 1,000 rpm gearbox (SOSTMOLT1000) can be ordered as an option.

How far does the LINCIONE-120-SP-REV shift?
31 cm (12 in) to the side, adjusted by hand with the machine stopped: you set the position before starting work.

Manual or hydraulic side shift?
Manual is enough when you work for long spells in the same position, for example along a ditch or in an orchard with regular spacing. The hydraulic side shift on the LINCIONE-SPH-REV is worked from the seat while you mow: useful between rows and for steering round posts and obstacles.

What size tractor does the LINCIONE-120-SP-REV need?
From 30 to 60 hp, with a 540 rpm PTO and a category 1 or 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 300 kg (661 lb).

What size branches will it shred?
Vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick, as well as grass, leaves and brambles. For branches up to 8 cm (3.1 in) there is the heavy series.

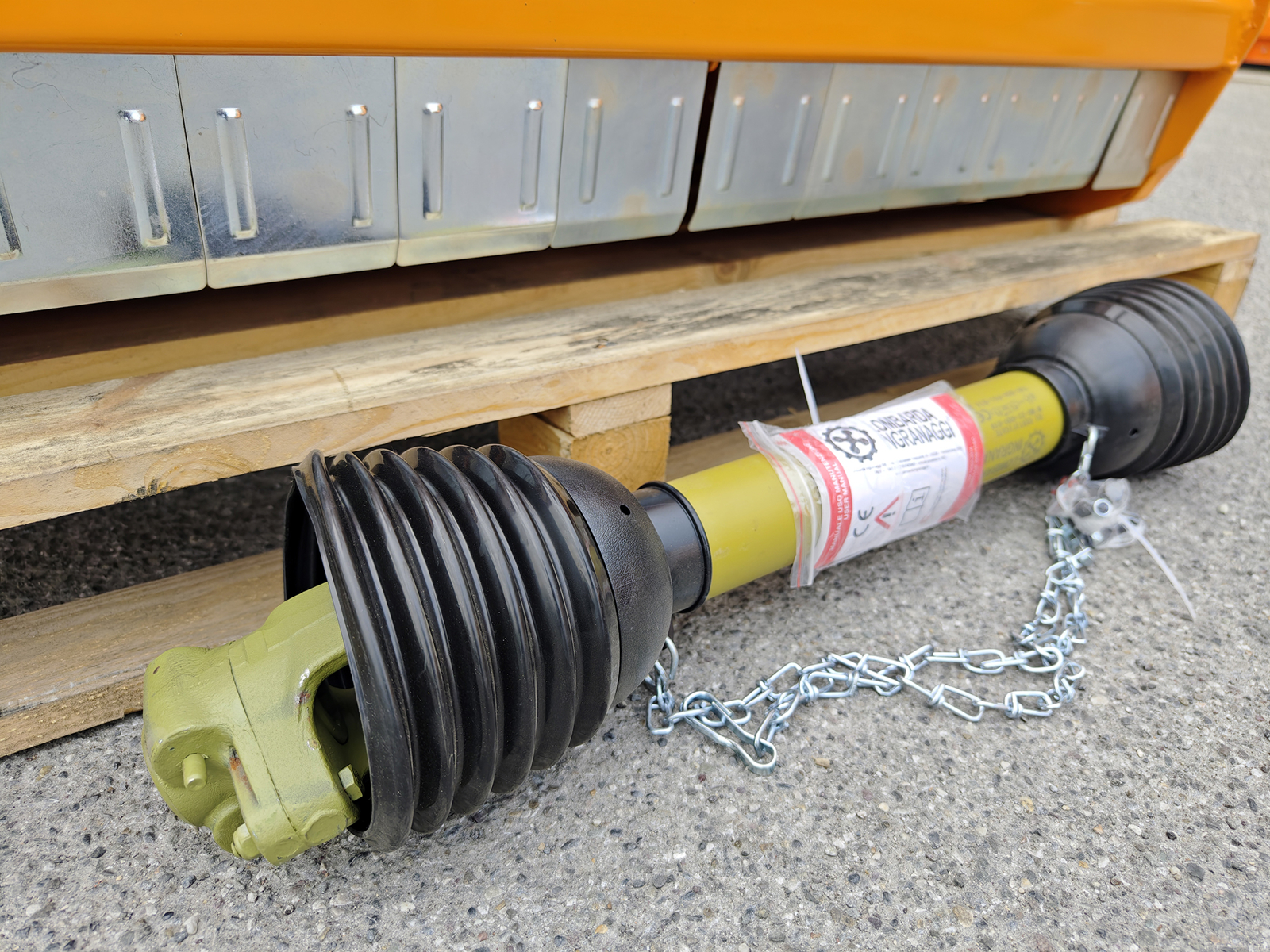

Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt.

How does it differ from the LINCIONE-120-SP?
Rotor, flails, hood and side shift are the same. The LINCIONE-120-SP-REV has the double-shaft gearbox and a headstock that fits on either side, so it also works out front; the LINCIONE-120-SP is the version for rear mounting only.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1200.0 mm
Overall width 1340.5 mm
Min / Max cutting height 38.0 - 60.0 mm
Weight 300.0 kg
Overall height 1130.0 mm
Tractor Power Range 30 - 60 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Hood height 460.00 mm
Spacing between the 2 lower points 560.0 - 950.0 mm
Number of Hammers 16
Maximum cutting diameter 40.0 - 50.0 mm
Overall length 930.0 mm
Distance between pto attachment and ground 540.0 mm
Main hood thickness 5.0 + 6.0 mm
Sides thickness 6.0 mm
Side plates thickness 6.0 mm
Transmission: Drive method V-Belts
Transmission: Gearbox REBOS (Italy) (3 year warranty)
Transmission: PTO 540 + 540 r/min
Transmission: Rotation of gearbox clockwise / anti-clockwise
Transmission: Free wheel √
Transmission: RPM Rotor speed 2300 rpm
Transmission: Oil in the gearbox Yes / Shell Spirax S2 A 80W-90
Transmission: Top pulley ø 180.0 mm
Transmission: Lower pulley ø 130.0 mm
Transmission: V-Belts quantity 4
Transmission: V-Belts size BX43
Rotor: diameter 115.0 mm
Rotor: bearings type and size SKF 2208-TVH
Rotor: balancing Electronic
Rotor: sheet thickness 8.0 mm
Hammers: Weight 820.0 g
Hammer: øhole 15.0 mm
Hammer: base width 82.0 mm
Hammer: top width 45.0 mm
Hammer: Diagonal 95.0 mm
Rear roller: diameter 121.0 mm
Rear roller: sheet thickness 5.0 mm
Rear roller: bearings type and size SKF 6207
Pto shaft CE 6x1000 mm + shear bolt
Effective Displacement 310.0 mm
Gross shipping weight 339 kg
Package volume 0.99 m3
Packing sizes 1380.0*900.0*800.0 mm

Certifications

ARVEDI / TUBINDUSTRIA: Certification   Download PDF
SSAB Laser 355MC   Download PDF
Hardox   Download PDF

Technical charts

Shell Spirax S2 A 80W-90: Specifications   Download PDF
