Screw log splitter for mini excavator - with reducer
DETAILS

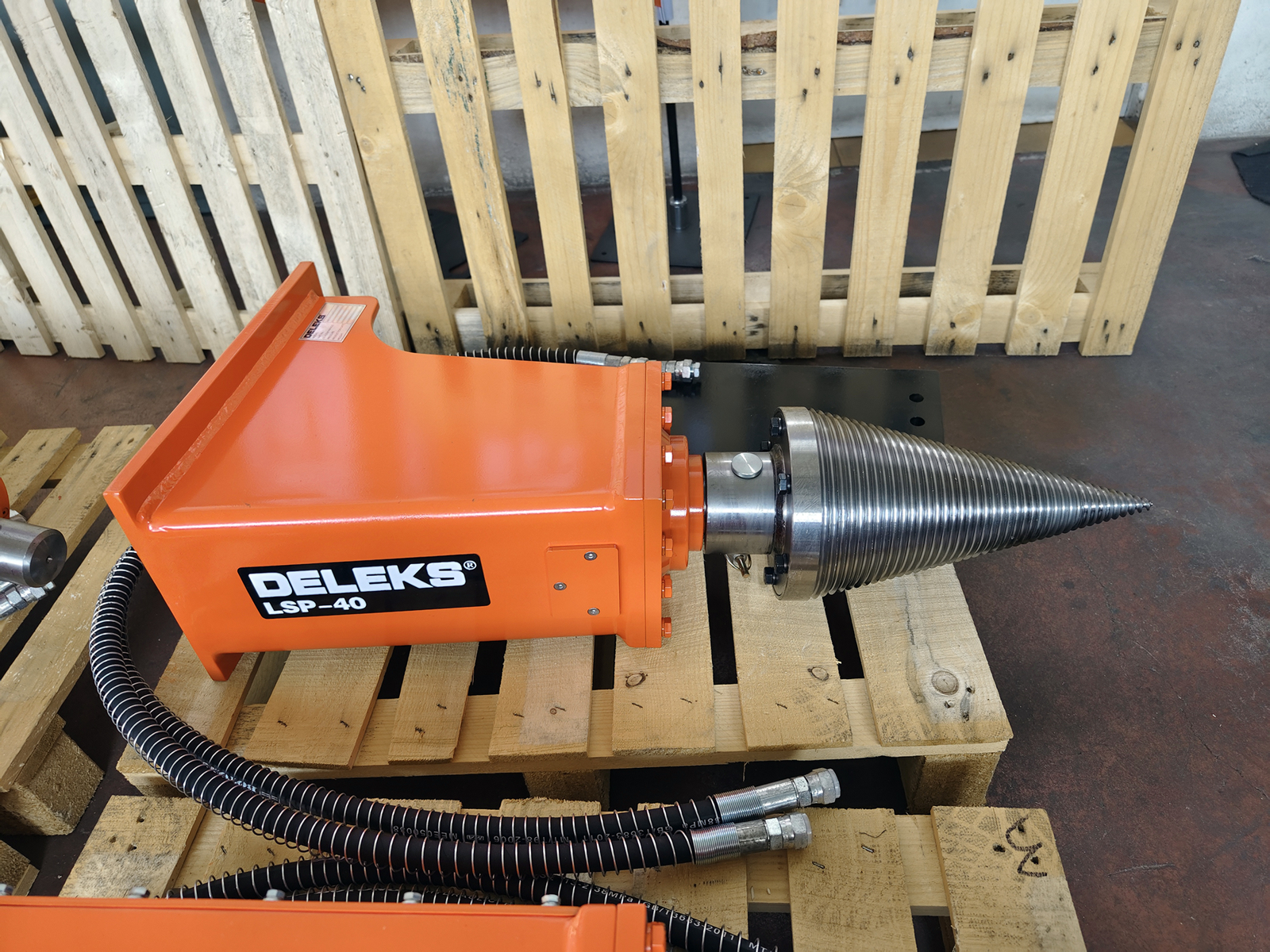

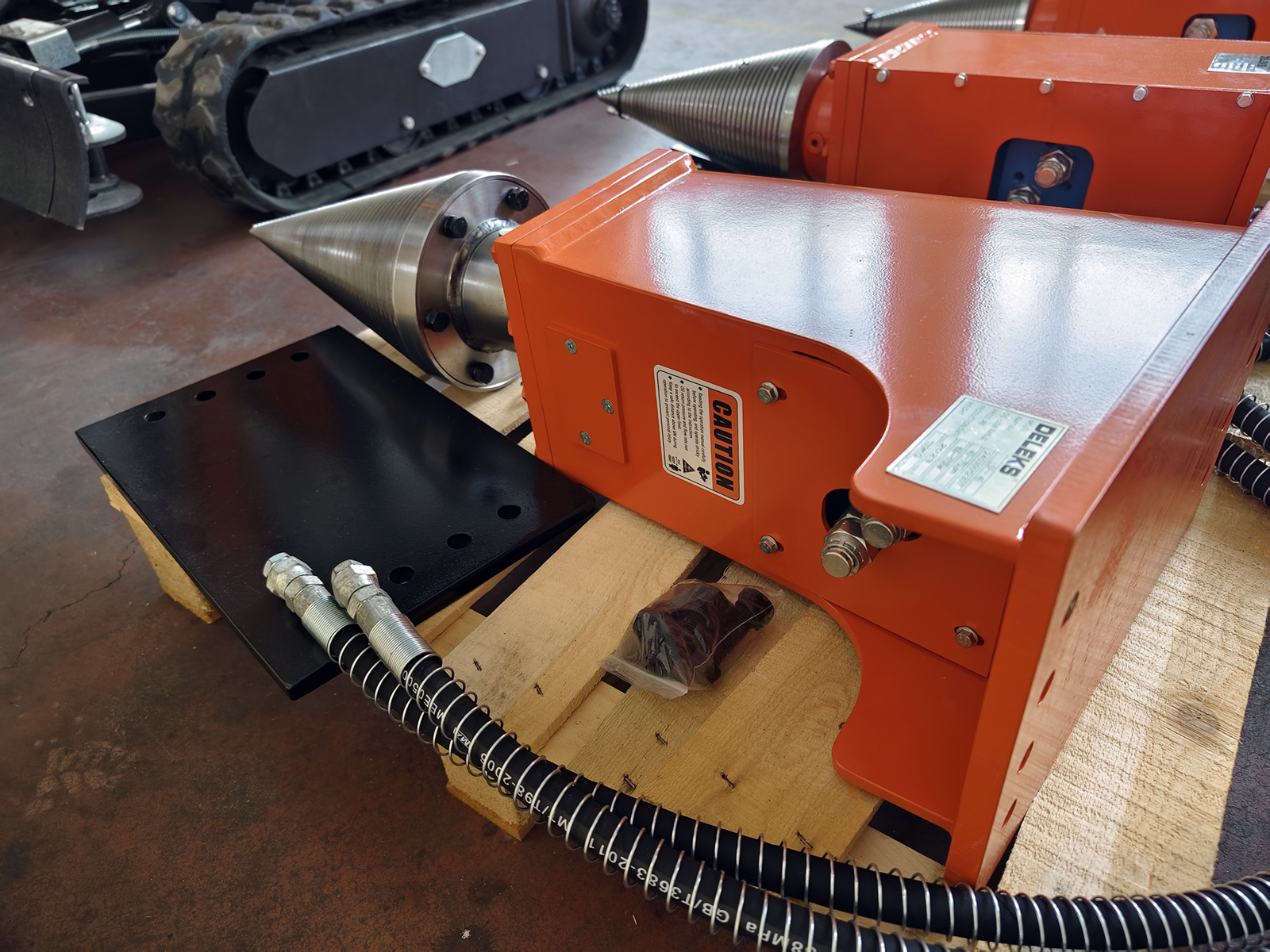

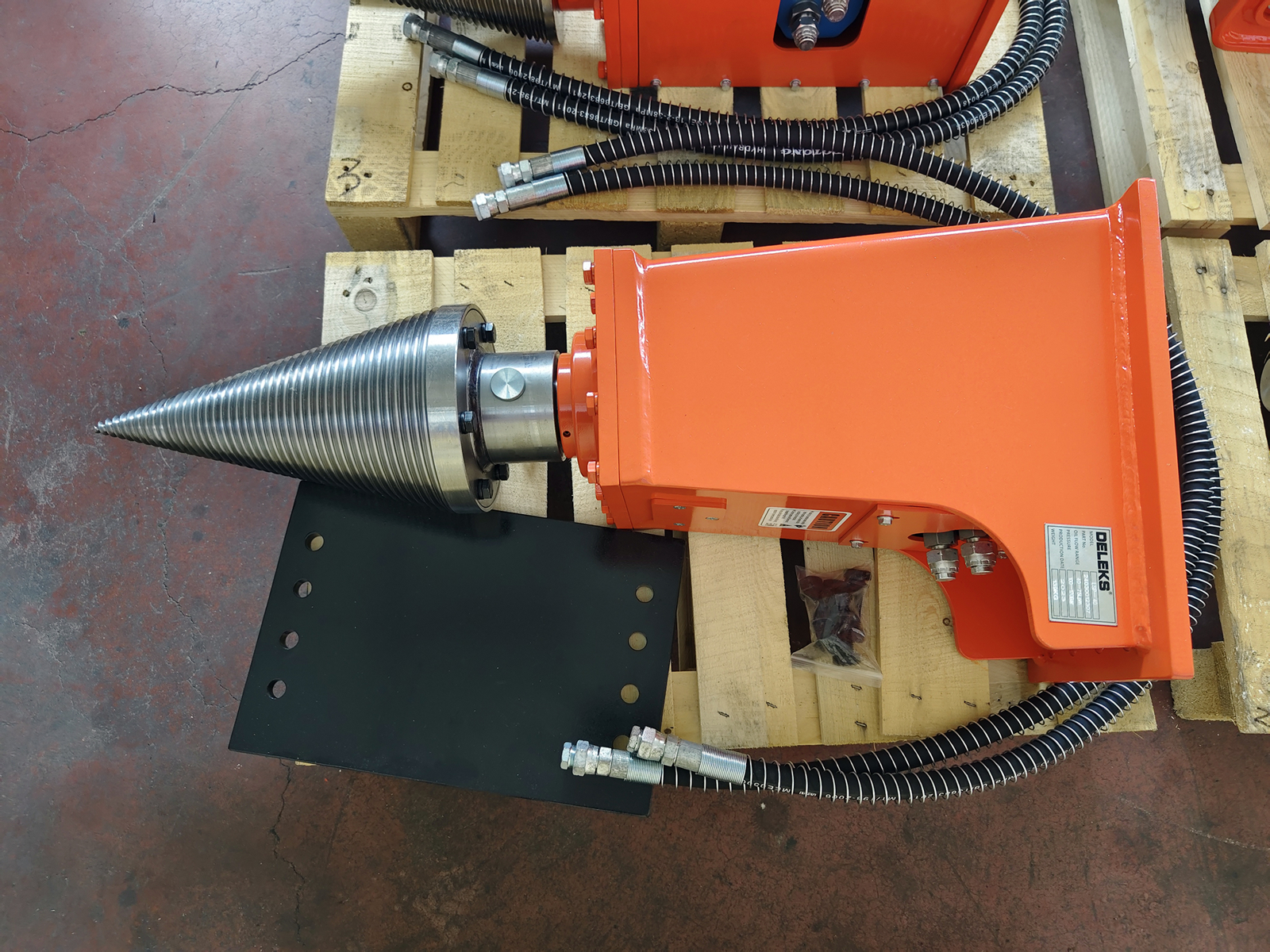

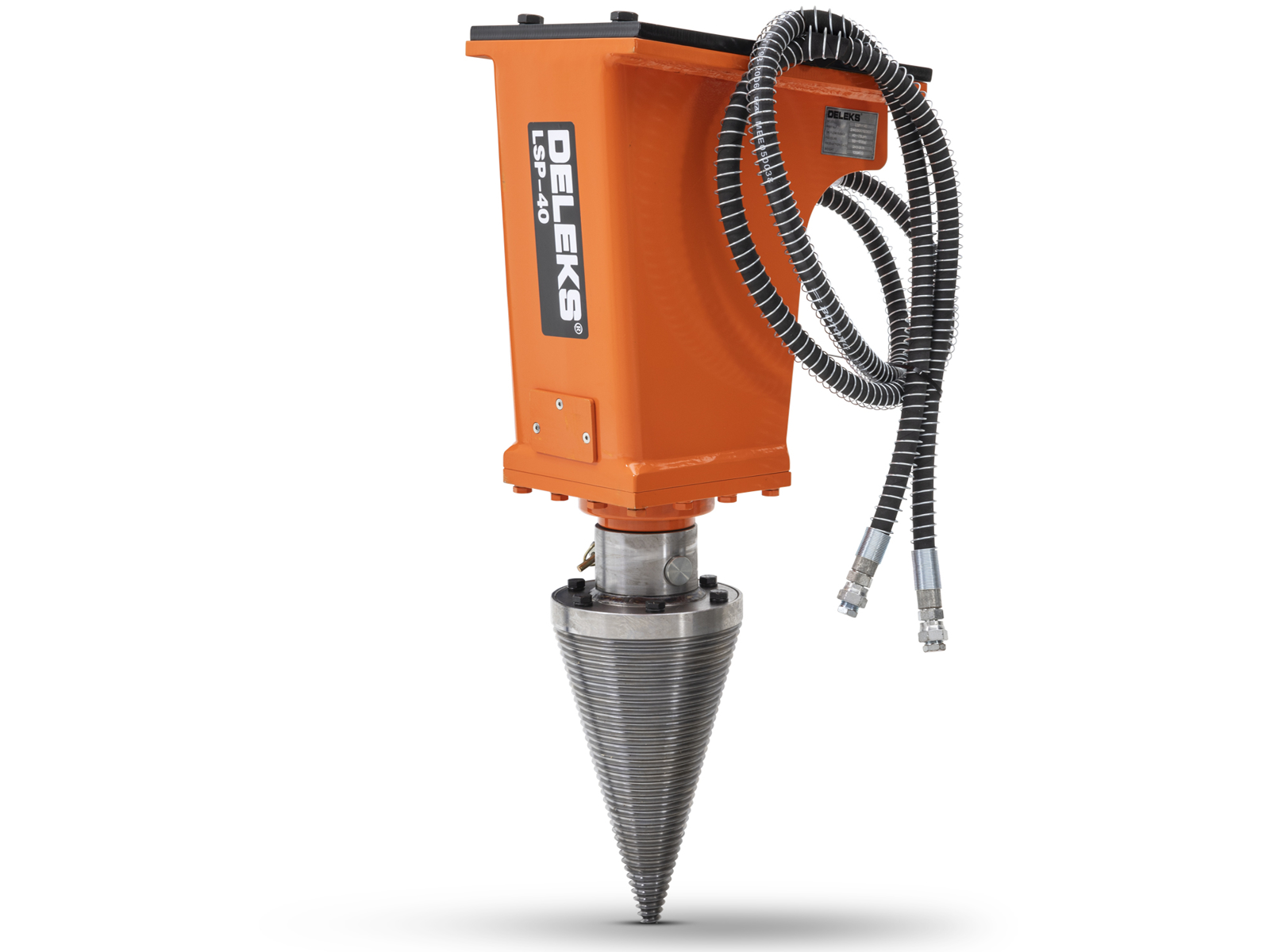

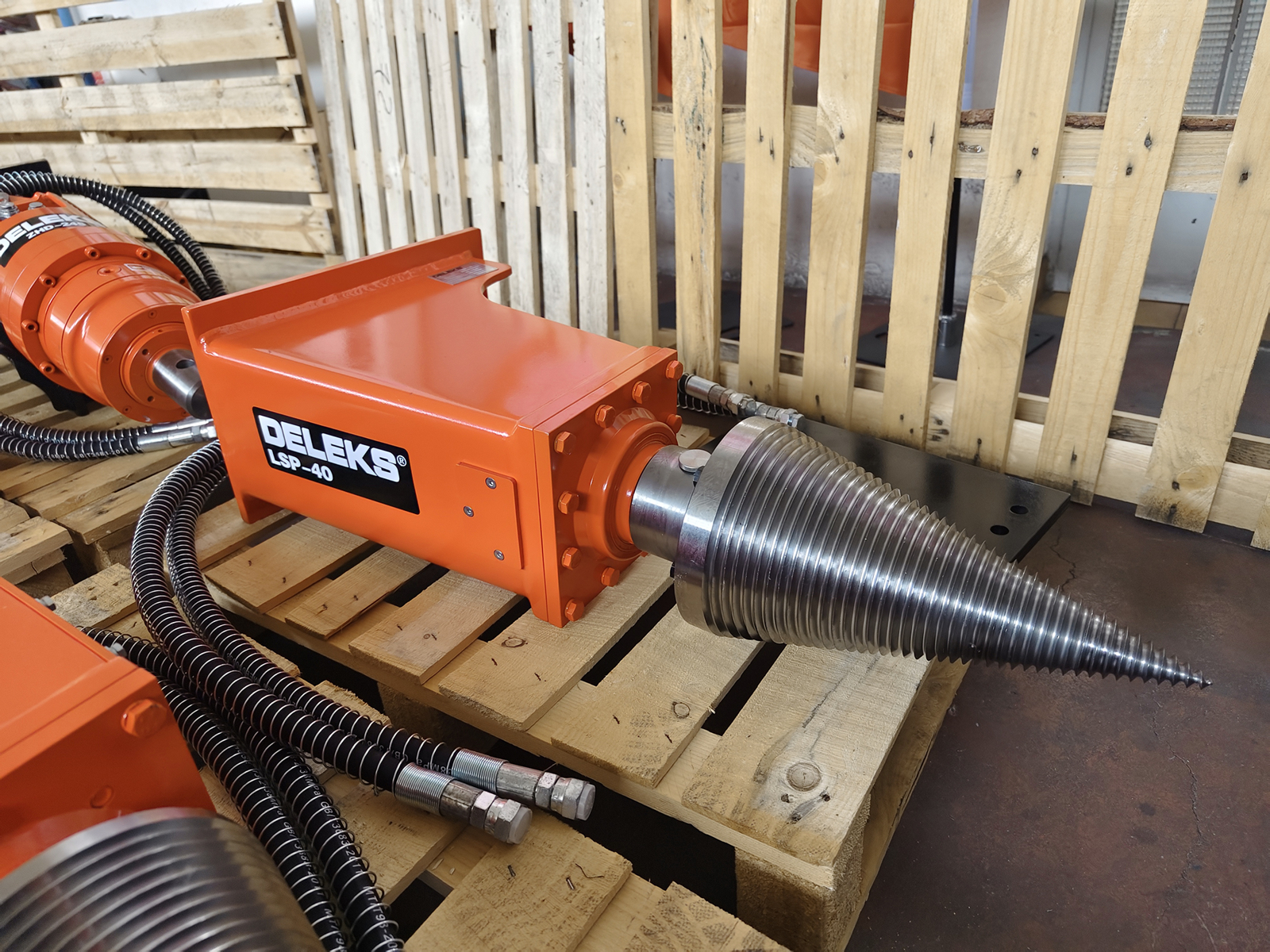

DELEKS® LSP-40 hydraulic log splitter for 3.0-6.0 ton miniexcavators| cone splitter, Log and Stump Screw | Excavator Attachment
MAIN APPLICATIONS
Load, unload and split with one Machine!
Designed to fit excavators and skid steers, the DELEKS® LSP-40 Log and Stump Screw is a practical solution for material size reduction in smaller yards.
Splits logs of any length
Splits large diameter logs in few seconds

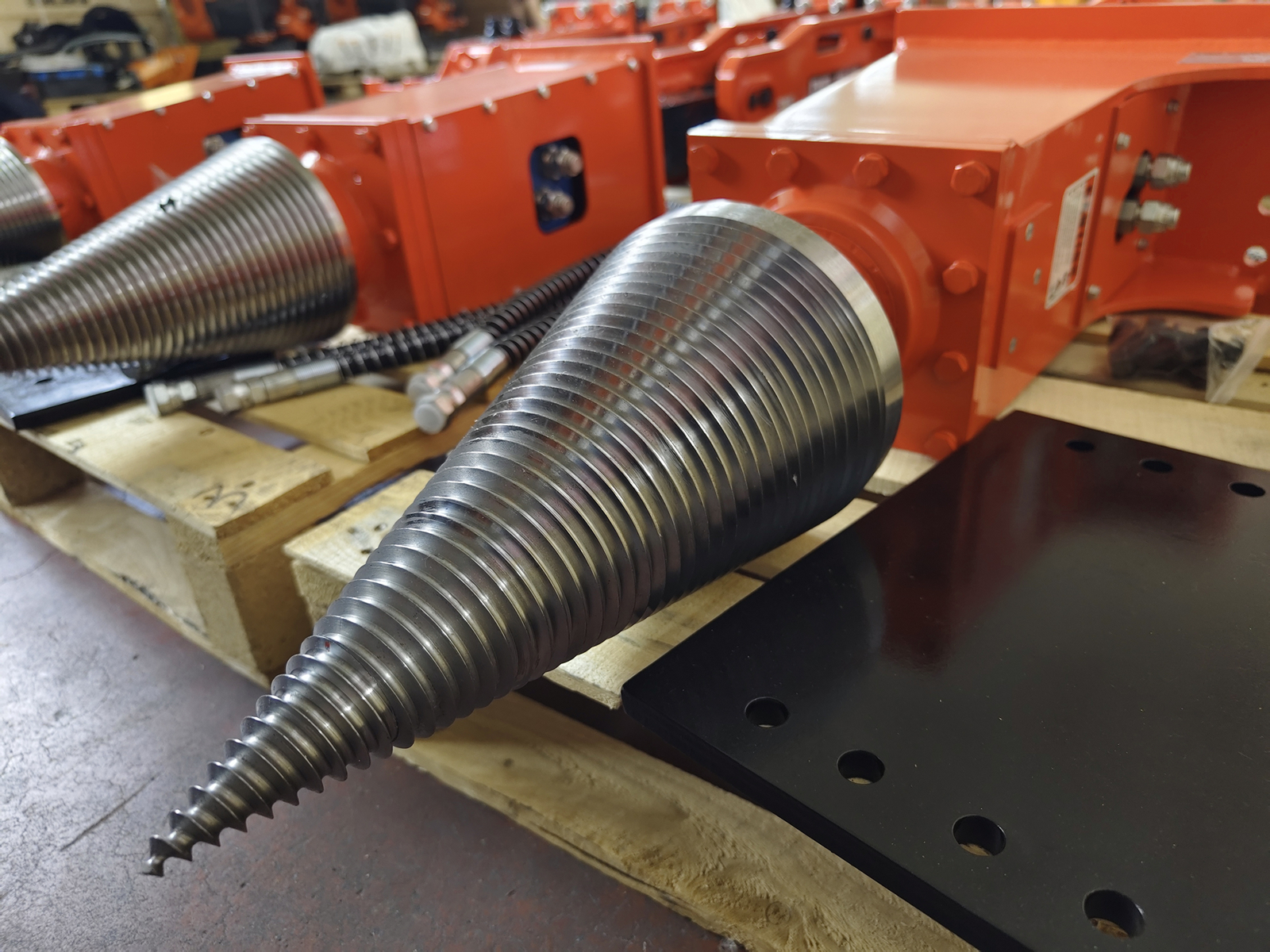

Steel conical screw log splitter

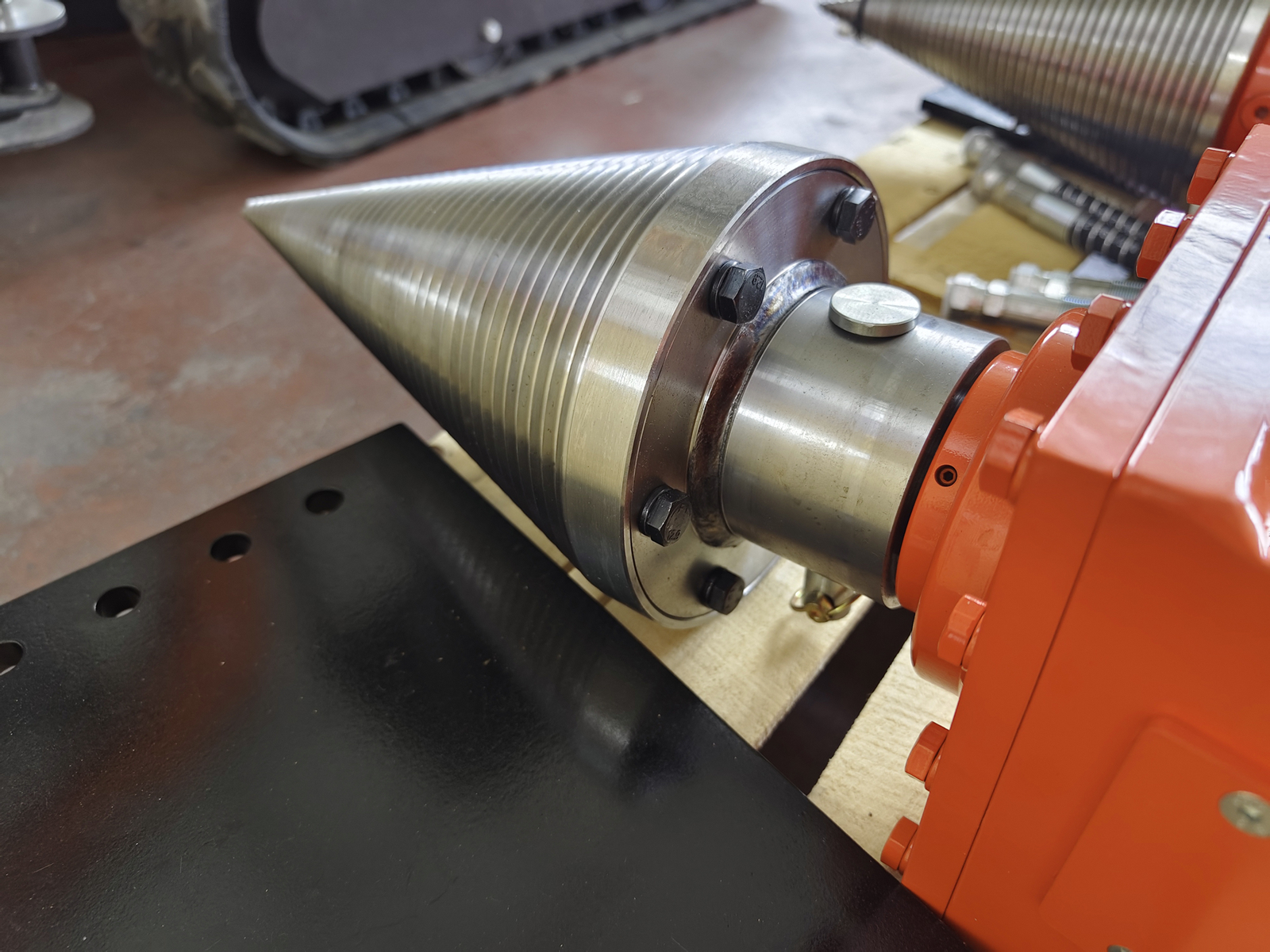

Tempered interchangeable tip
Vertical and horizontal drilling

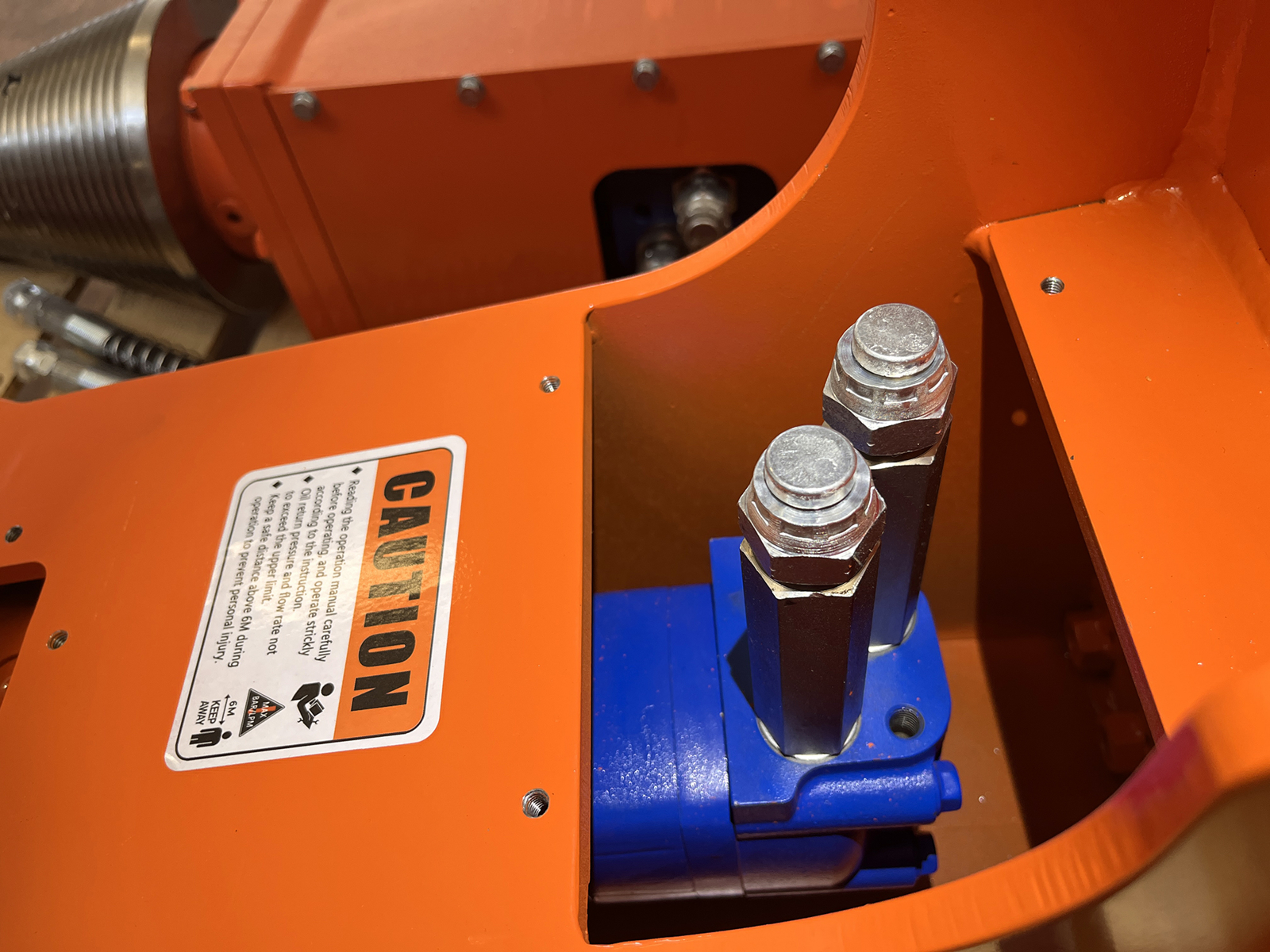

Planetary gear motor 195cc with high torque movement
Screwing with only a few turns, the logs can be lifted, moved and stored in the desired position.
Max Torque (Nm) 3760
Working Pressure (Bar): 100-170
Speed Range (r/min): 35-98
Cone Size(mm): Φ200X400
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 128.0 kg | 282.0 lb |
| Min./Max. Flow | 40-75 l/min | 40-75 l/min |
| Compact Excavators Range | 3.0-6.0 ton | 3.0-6.0 ton |
| Hydraulic quick couplers | G 1/2" | G 1/2" |
| Packing sizes | 950.0*32.0*410.0 mm | 3.12*1.05*1.35 ft |
DETAILS
CLOSEDELEKS® LSP-40 hydraulic log splitter for 3.0-6.0 ton miniexcavators| cone splitter, Log and Stump Screw | Excavator Attachment
MAIN APPLICATIONS
Load, unload and split with one Machine!
Designed to fit excavators and skid steers, the DELEKS® LSP-40 Log and Stump Screw is a practical solution for material size reduction in smaller yards.
Splits logs of any length
Splits large diameter logs in few seconds
Steel conical screw log splitter
Tempered interchangeable tip
Vertical and horizontal drilling
Planetary gear motor 195cc with high torque movement
Screwing with only a few turns, the logs can be lifted, moved and stored in the desired position.
Max Torque (Nm) 3760
Working Pressure (Bar): 100-170
Speed Range (r/min): 35-98
Cone Size(mm): Φ200X400
CHARACTERISTICS
CLOSE| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 128.0 kg | 282.0 lb |
| Min./Max. Flow | 40-75 l/min | 40-75 l/min |
| Compact Excavators Range | 3.0-6.0 ton | 3.0-6.0 ton |
| Hydraulic quick couplers | G 1/2" | G 1/2" |
| Packing sizes | 950.0*32.0*410.0 mm | 3.12*1.05*1.35 ft |
