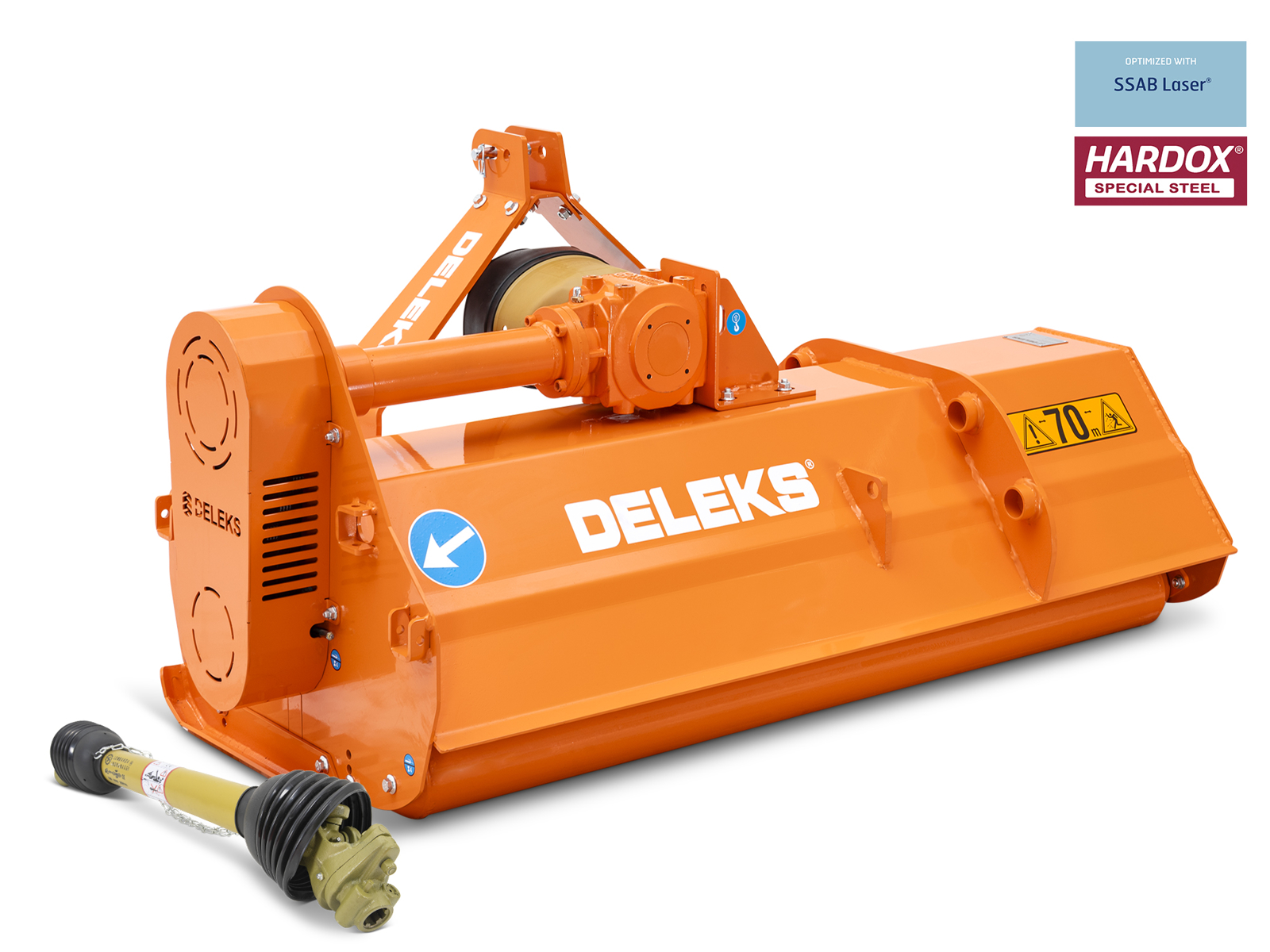

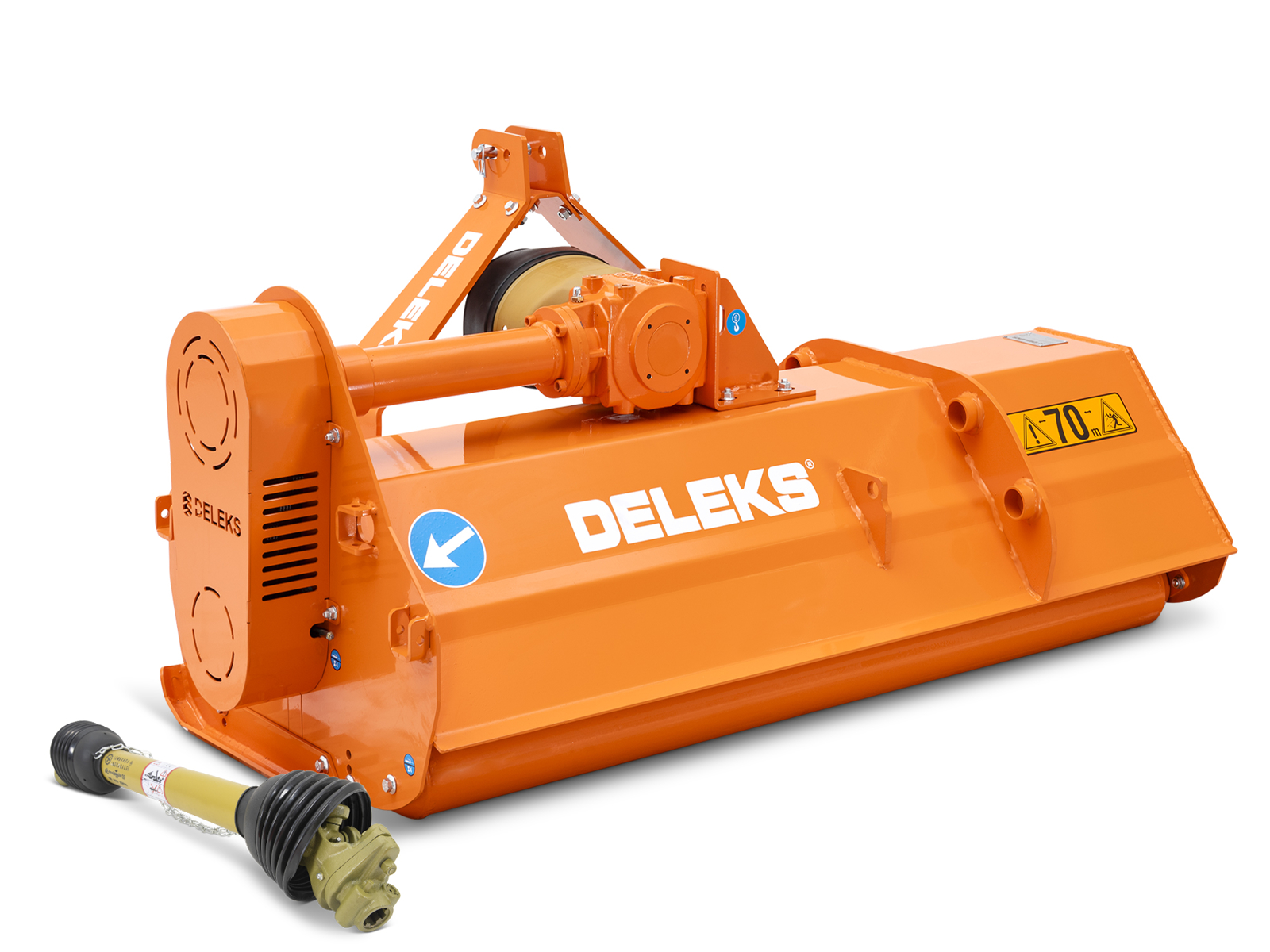

Flail mulcher for tractors 160 cm (63 in) LINCIONE-160, medium-duty hammer flail mower for orchard and vineyard tractors from 40 to 60 hp
DETAILS
Hammer flail mulcher for tractors with a 160 cm (63 in) cut, from the DELEKS® medium series: the LINCIONE-160 is the fixed-headstock mower for orchard and vineyard tractors from 40 to 60 hp, such as Antonio Carraro, Goldoni, Kubota, Landini and Same. The electronically balanced rotor carries 24 forged hammer flails of 820 g (1.8 lb) and shreds grass, leaves, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick; the specially shaped hood gives a fine mulch and stops the mower clogging. DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 4-belt drive, SSAB steel frame, 325 kg (717 lb). Made in Italy, built by DELEKS, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.
Which tractors it fits
The LINCIONE-160 cuts 160 cm (63 in) with an overall width of 174 cm (69 in) and is built for tractors from 40 to 60 hp with a 540 rpm PTO and a universal category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 590 to 800 mm): Antonio Carraro, Goldoni, Kubota, Landini, Same, Lamborghini, Solis and equivalent tractors. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks.

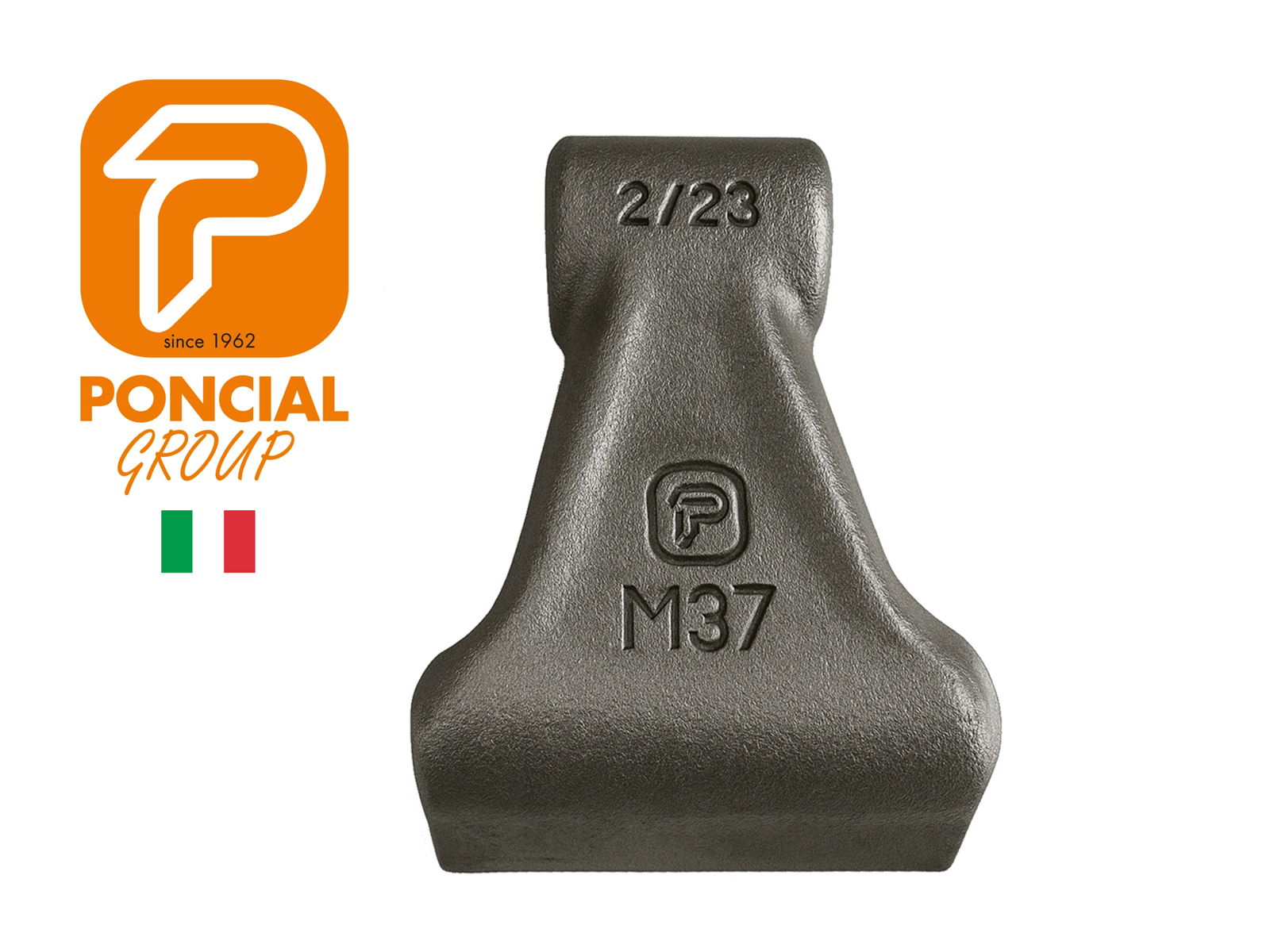

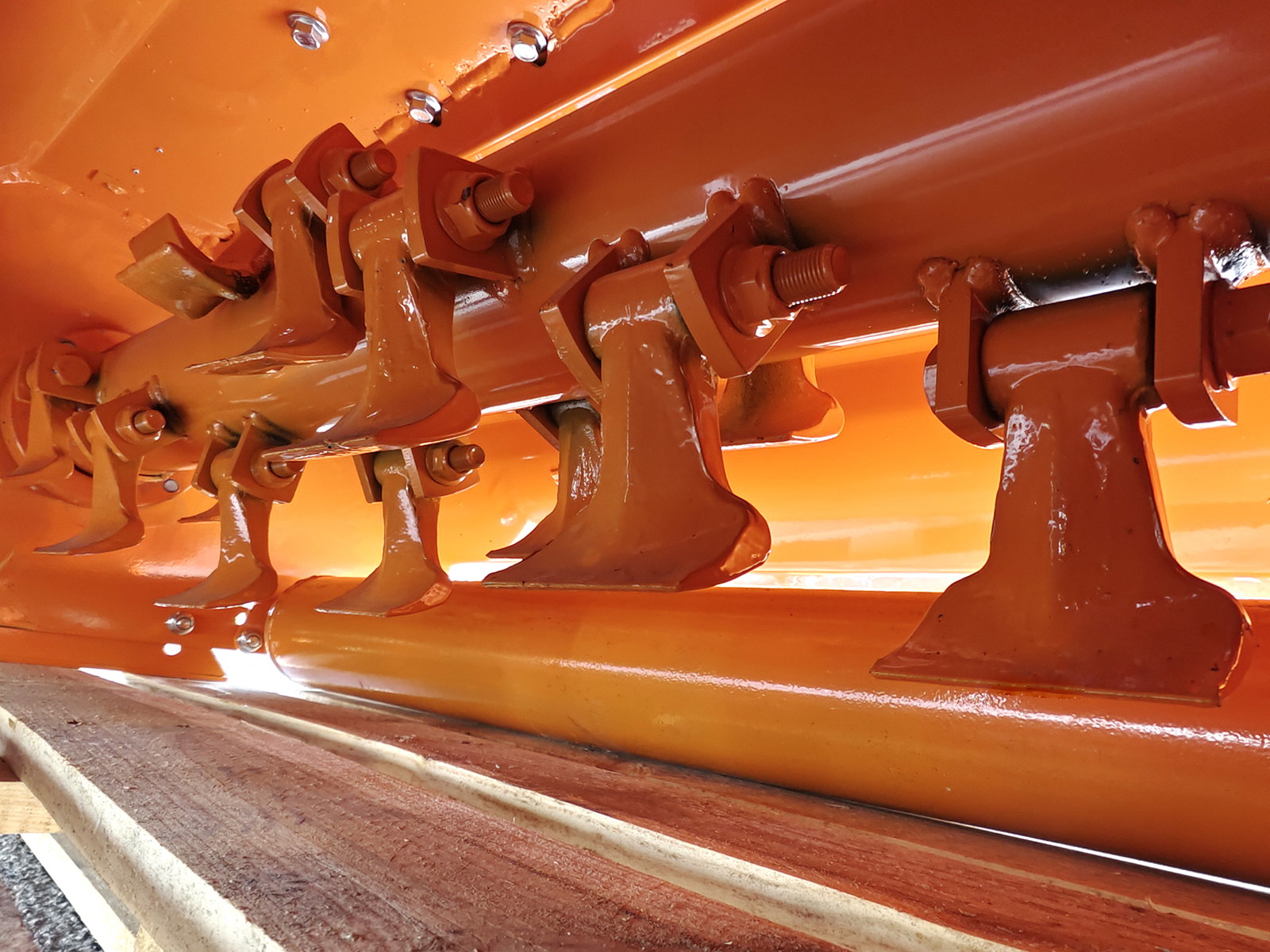

Rotor with 24 forged hammer flails of 820 g (1.8 lb)
The rotor is built from ARVEDI S355 steel tube, 8 mm (5/16 in) thick and 115 mm (4.5 in) in diameter, electronically balanced, and spins at 2,300 rpm on self-aligning SKF bearings. The 24 forged Poncial flails, Made in Italy, weigh 820 g (1.8 lb) each and sit in 2 helical rows on brackets in HARDOX wear-resistant steel: they pulverise grass, leaves, brambles, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick. The kit of 30 blades (COLTELLI30T) is available as an option, as an alternative to the hammer flails.

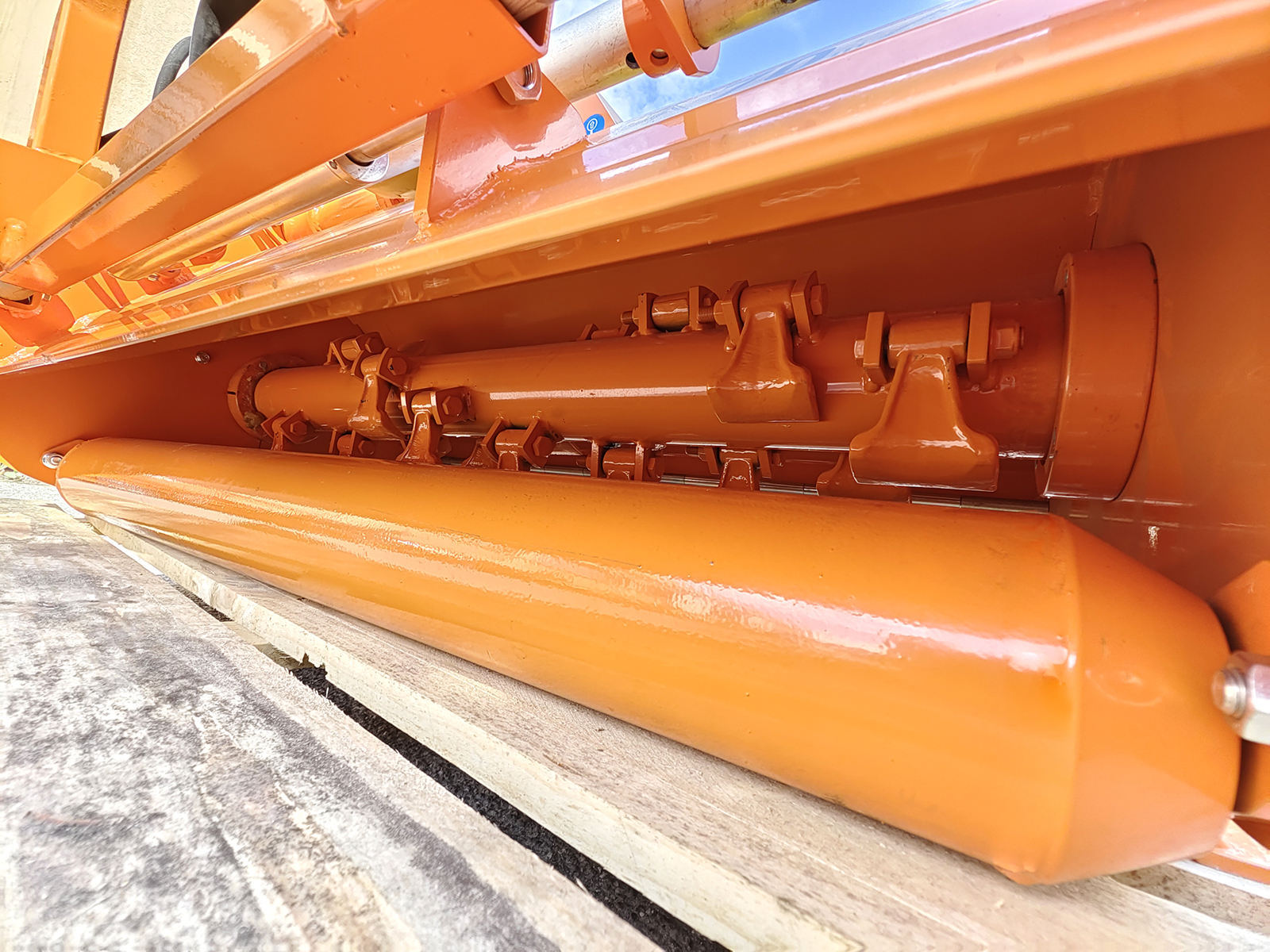

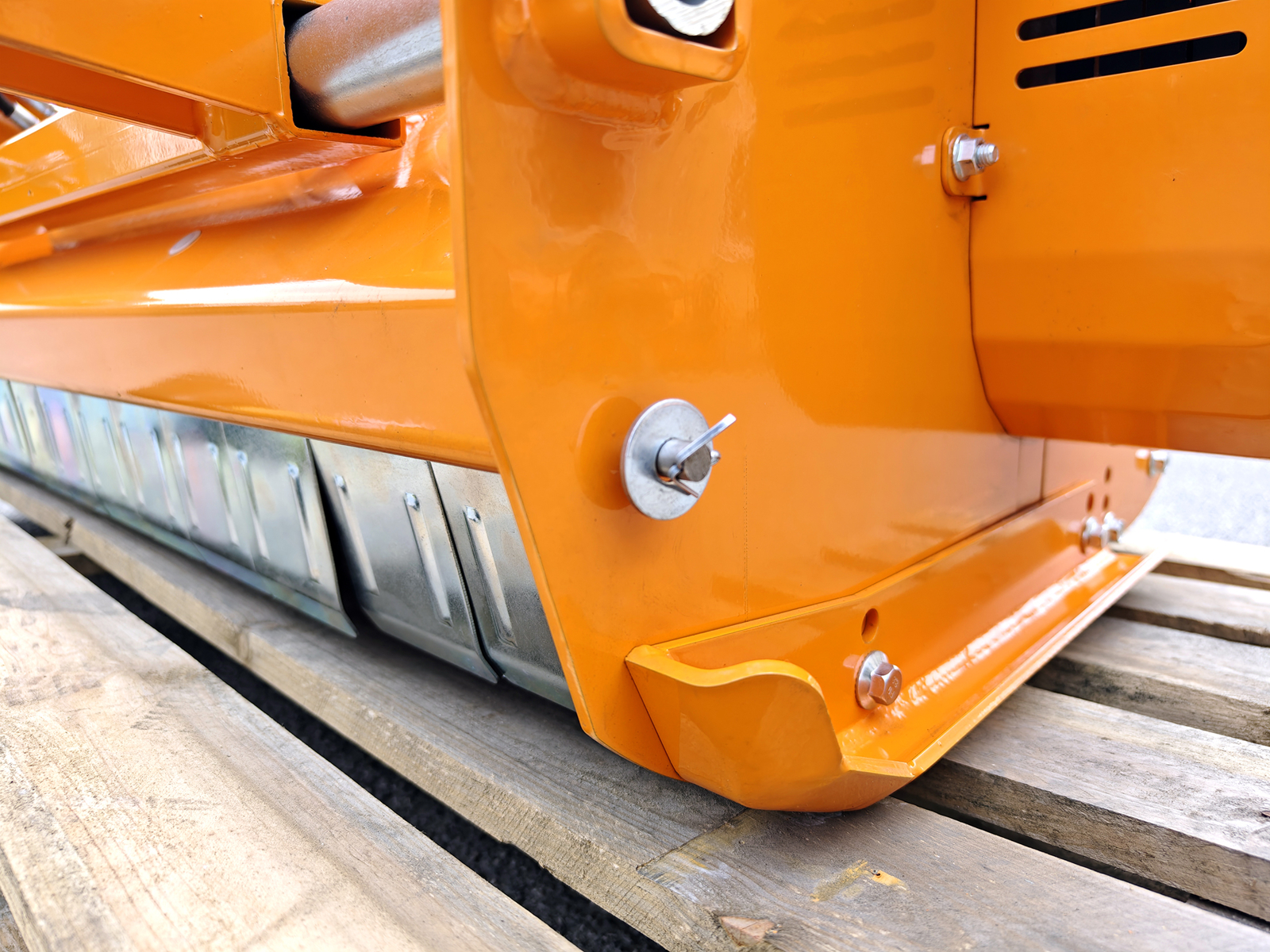

Mulching hood, roller and skids

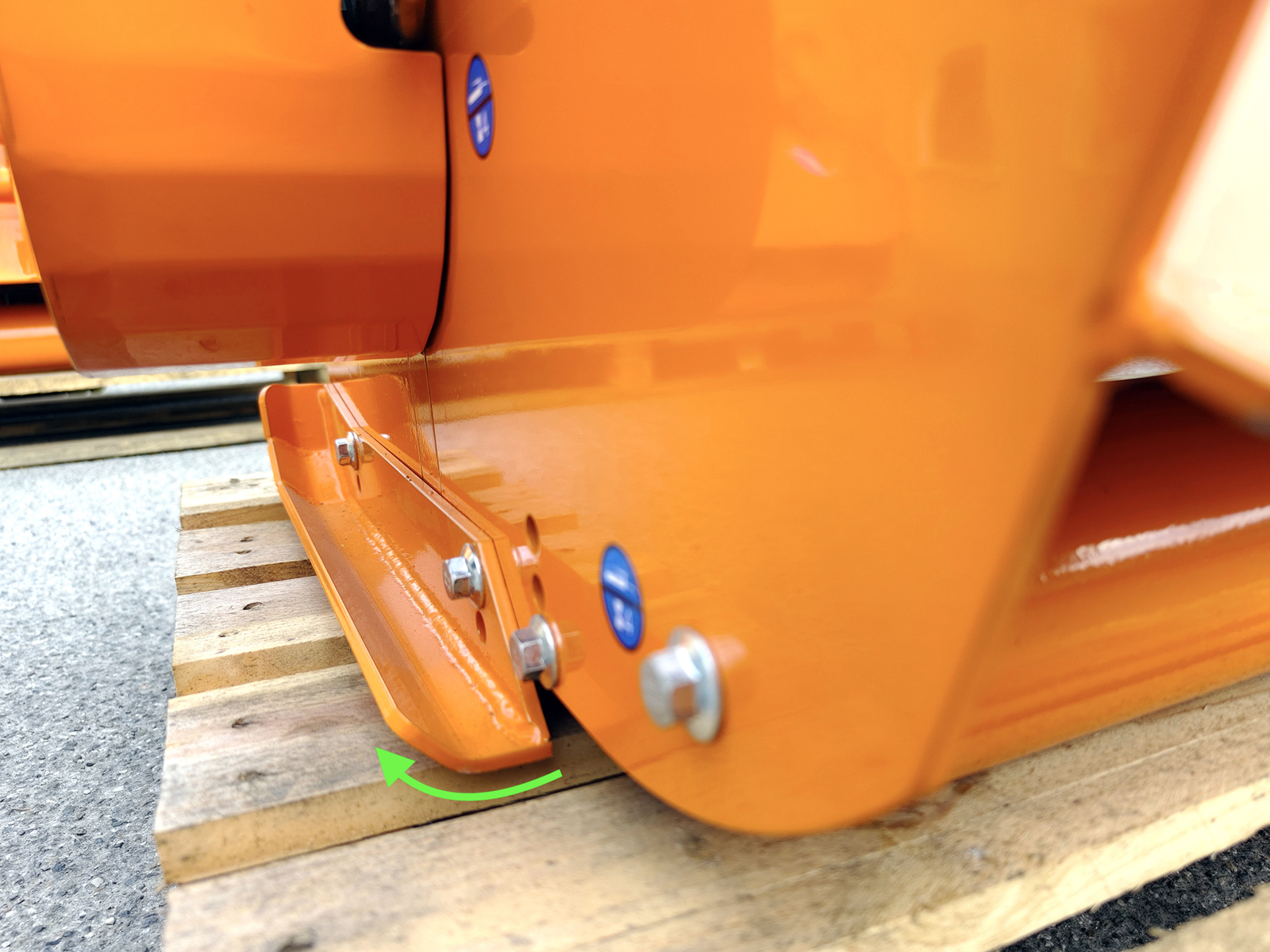

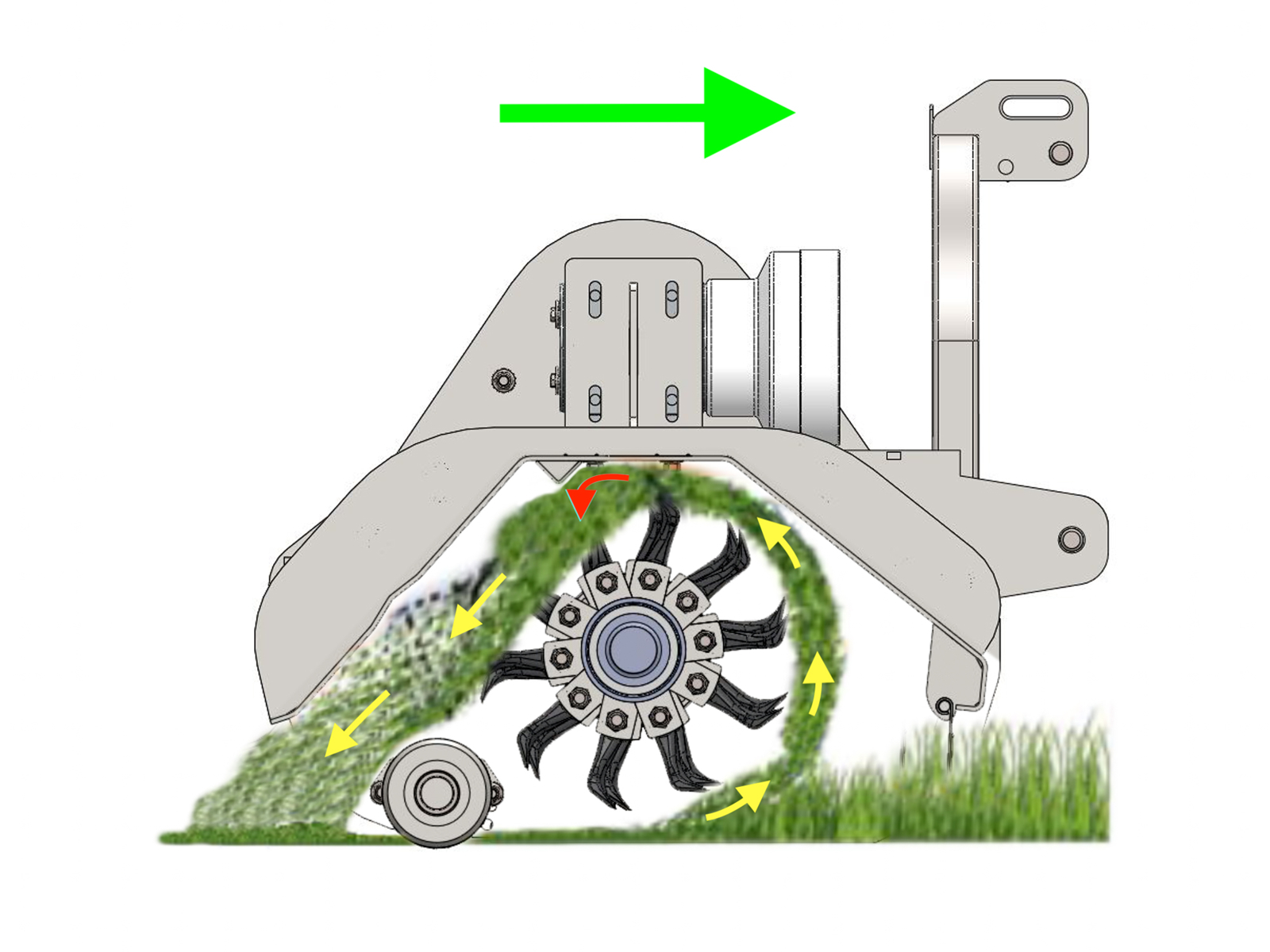

The hood of the LINCIONE-160 is specially shaped to give a fine mulch and stop the mower clogging. Cutting height is set from 38 to 60 mm (1.5 to 2.4 in) with the 121 mm (4.8 in) rear roller, which runs on SKF bearings, and the 6 mm side skids. The skids have a double bend, so the mower does not dig in when it moves sideways.
Gearbox with freewheel, 4 belts and PTO shaft
The DELEKS® gearbox for a 540 rpm PTO is uprated, with a built-in freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 BX43 V-belts; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.
SSAB steel frame, Made in Italy
The frame is made entirely from Swedish SSAB steel, 5 mm thick with 6 mm side plates; the flail brackets are HARDOX and the rotor bearings are SKF. The LINCIONE-160 is Made in Italy, built by DELEKS. For this product the sheet steel is bought in Italy and worked at a production plant in the European Union.
Dimensions, weight and delivery
Working width 1,600 mm (63.0 in), overall width 1,740.5 mm (68.5 in), length 930 mm (36.6 in), height 1,130 mm (44.5 in), weight 325 kg (717 lb). It ships in packaging measuring 178 × 90 × 80 cm (70 × 35 × 31 in), 382 kg (842 lb) gross, 1.28 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.
Where it works
- Vineyards, orchards and olive groves: grass between the rows, vine prunings and other prunings up to 4-5 cm (1.6-2 in)
- Rough ground, field margins and headlands: long grass, brambles and reeds
- Grassland and large amenity areas: topping with a mulching effect, no collection
- Open fields: stubble and crop residues
- Farms running orchard and vineyard tractors from 40 to 60 hp
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T), the spare set of 4 belts (CINGHIE4LEOPARD), spare pins for the category 1-2 three-point linkage (3PERNI12) and the universal PTO adapter (RID1). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the LINCIONE-160 need?
From 40 to 60 hp, with a 540 rpm PTO and a category 1 or 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 325 kg (717 lb).
What size branches will it shred?
Vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick, as well as grass, leaves and brambles. For branches up to 8 cm (3.1 in) there is the heavy series.
Hammer flails or blades?
It comes with 24 forged hammer flails of 820 g (1.8 lb), suited to grass, brambles and prunings. The kit of 30 blades (COLTELLI30T) is available as an option.
Does it work offset to one side?
No: the LINCIONE-160 has a fixed headstock and works centred behind the tractor. To work under the canopy and along ditches and fences there are the LINCIONE-160-SP, with 31 cm (12 in) of manual side shift, and the LINCIONE-160-SPH, with hydraulic side shift.
How do you set the cutting height?
From 38 to 60 mm (1.5 to 2.4 in), with the rear roller and the side skids.

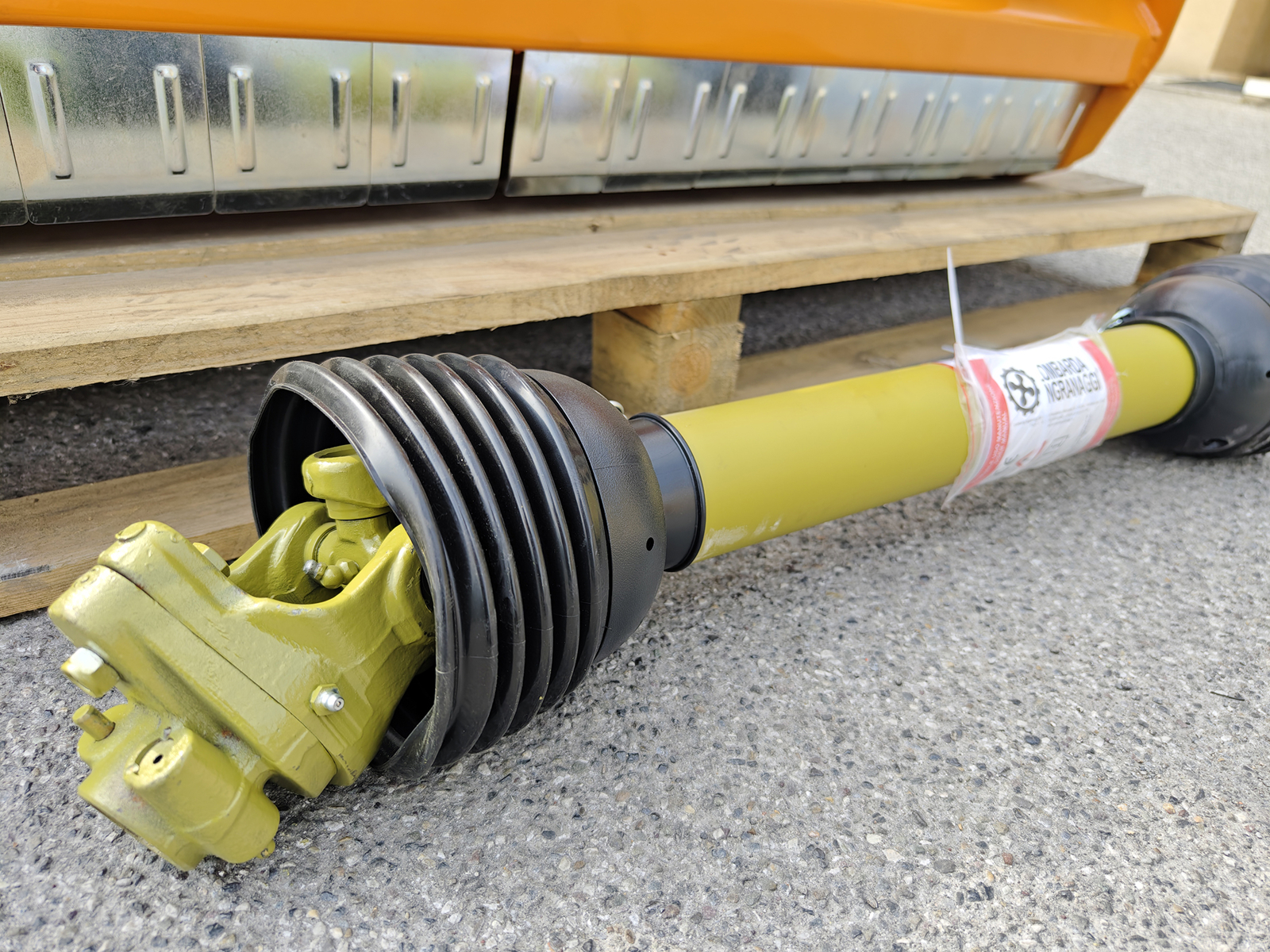

Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt.
How does it differ from the LEOPARD?
Rotor, flails and drive are the same. The LEOPARD has a double HARDOX skin, an opening rear hood and a 20 cm (8 in) high front opening for long grass, and starts at 140 cm (55 in); the LINCIONE has a hood shaped for mulching and starts at 120 cm (47 in).
How does it differ from the light series?
The light-series flail mowers have 330 g (11.6 oz) flails and shred up to 3 cm (1.2 in); the LINCIONE-160 has 820 g (1.8 lb) flails, shreds up to 4-5 cm (1.6-2 in) and is built for those who shred prunings for many hours a year.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1600.0 mm |
| Overall width | 1740.5 mm |
| Min / Max cutting height | 38.0 - 60.0 mm |
| Weight | 325.0 kg |
| Overall height | 1130.0 mm |
| Tractor Power Range | 40 - 60 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Hood height | 460.00 mm |
| Spacing between the 2 lower points | 590.0 - 800.0 mm |
| Number of Hammers | 24 |
| Maximum cutting diameter | 40.0 - 50.0 mm |
| Overall length | 930.0 mm |
| Distance between pto attachment and ground | 540.0 mm |
| Main hood thickness | 5.0 + 6.0 mm |
| Sides thickness | 6.0 mm |
| Side plates thickness | 6.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | DELEKS (Italy) (3 year warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2300 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 180.0 mm |
| Transmission: Lower pulley ø | 130.0 mm |
| Transmission: V-Belts quantity | 4 |
| Transmission: V-Belts size | BX43 |
| Rotor: diameter | 115.0 mm |
| Rotor: bearings type and size | SKF 2208-TVH |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 820.0 g |
| Hammer: øhole | 15.0 mm |
| Hammer: base width | 82.0 mm |
| Hammer: top width | 45.0 mm |
| Hammer: Diagonal | 95.0 mm |
| Rear roller: diameter | 121.0 mm |
| Rear roller: sheet thickness | 5.0 mm |
| Rear roller: bearings type and size | SKF 6207 |
| Pto shaft | CE 6x1000 mm + shear bolt |
| Gross shipping weight | 382 kg |
| Package volume | 1.28 m3 |
| Packing sizes | 1780.0*900.0*800.0 mm |
