Pallet forks for agricultural tractors D-700

Not available Notify me
CodeD700
EAN 8053470230097
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

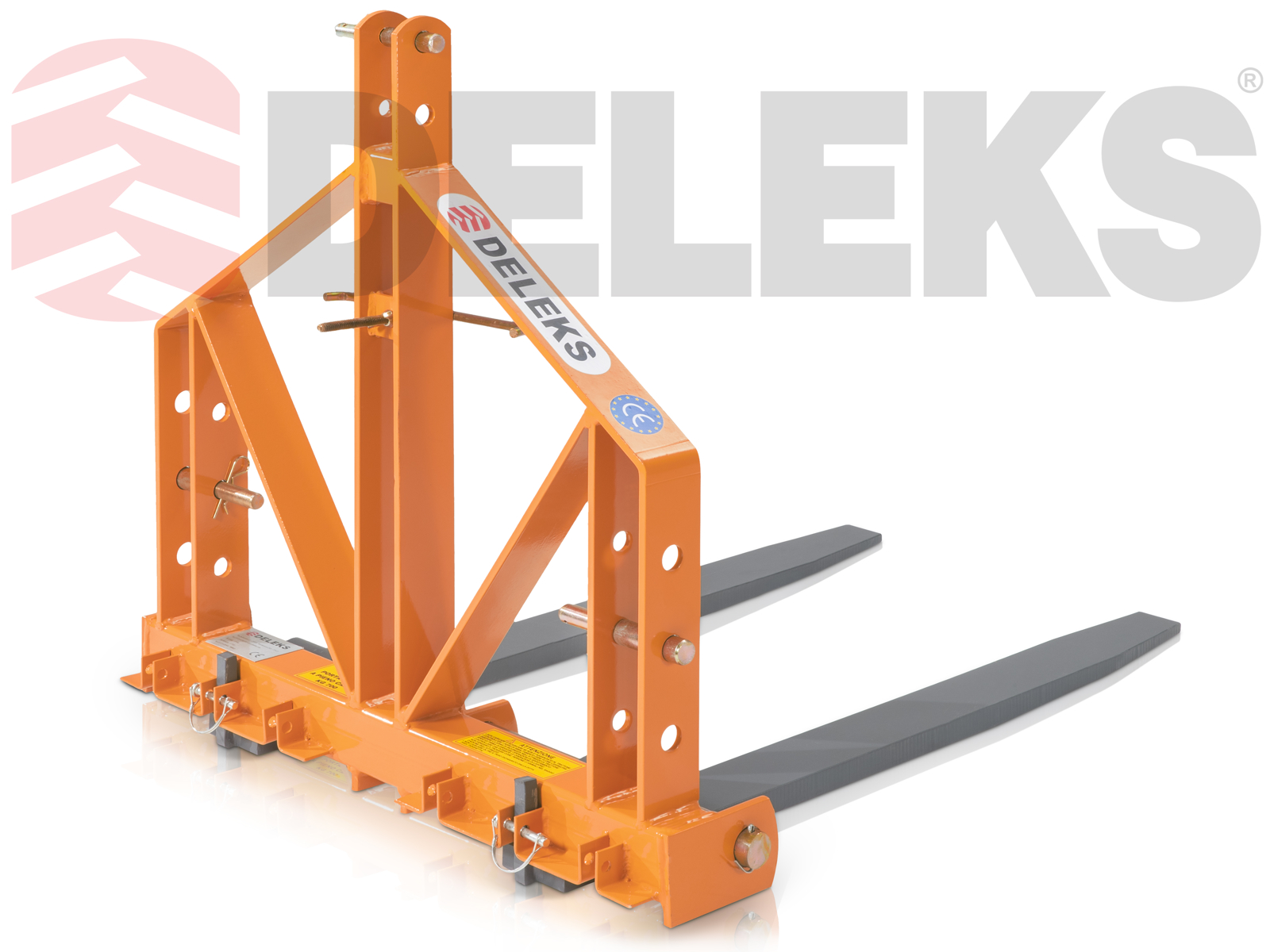

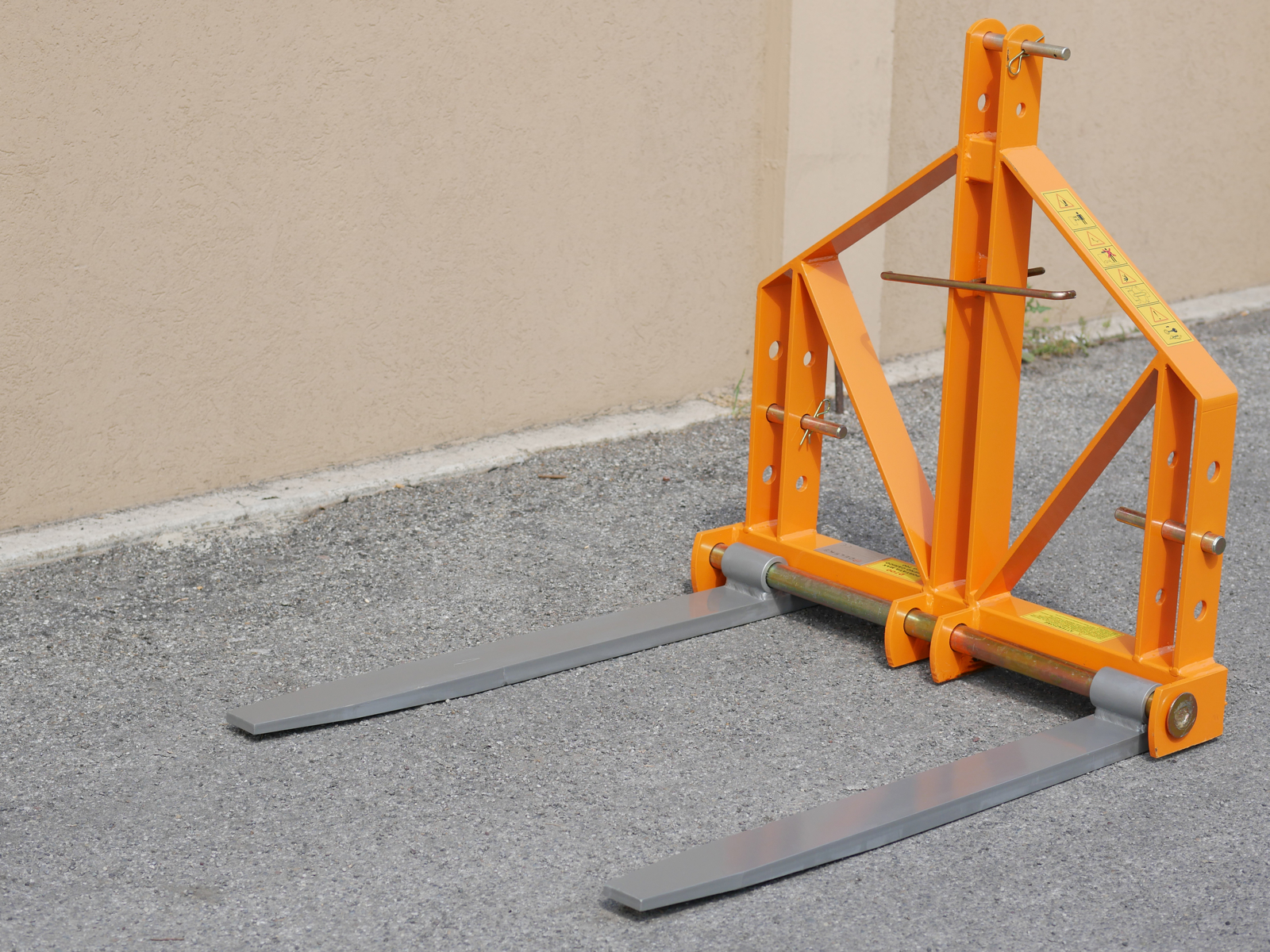

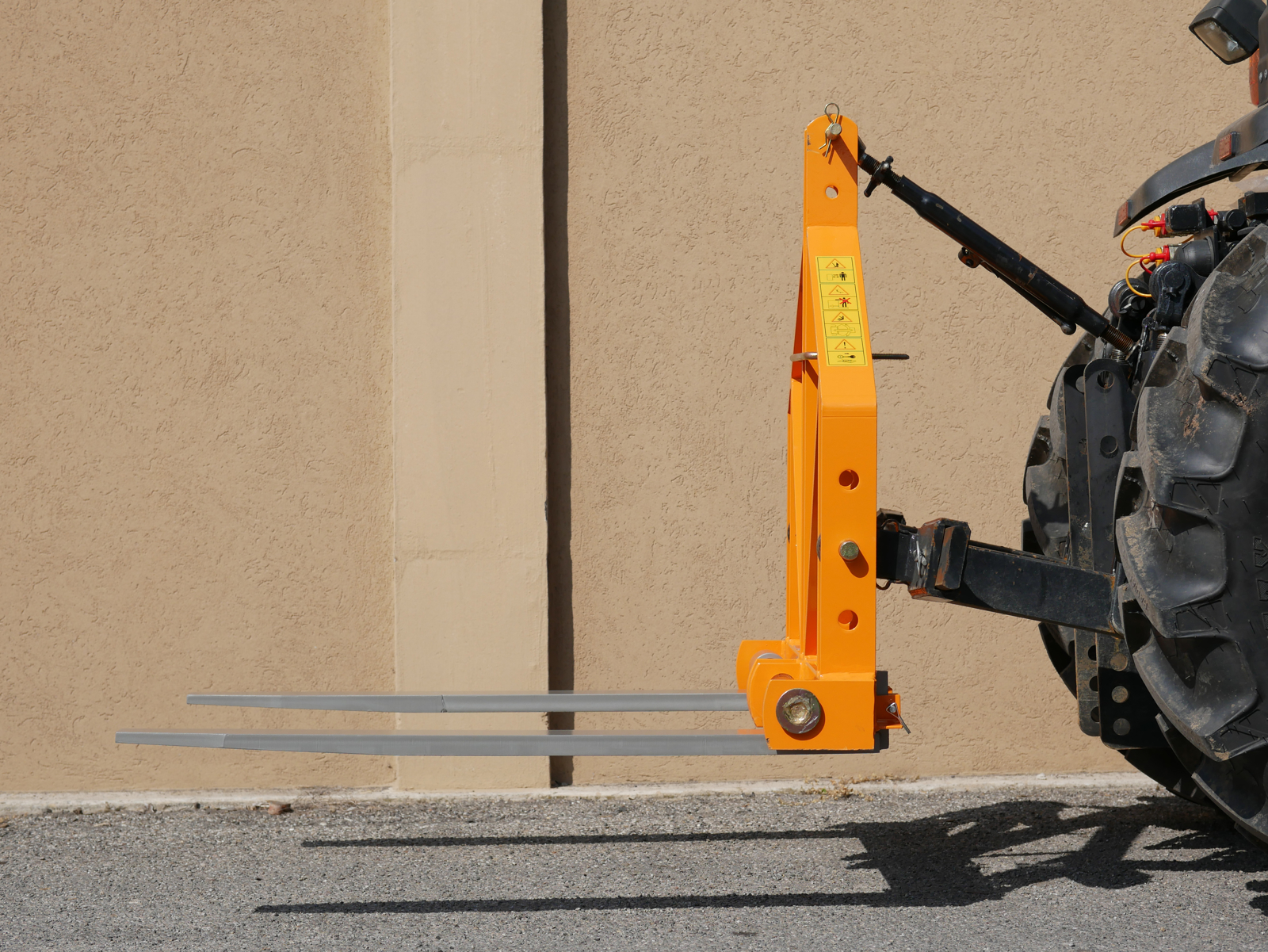

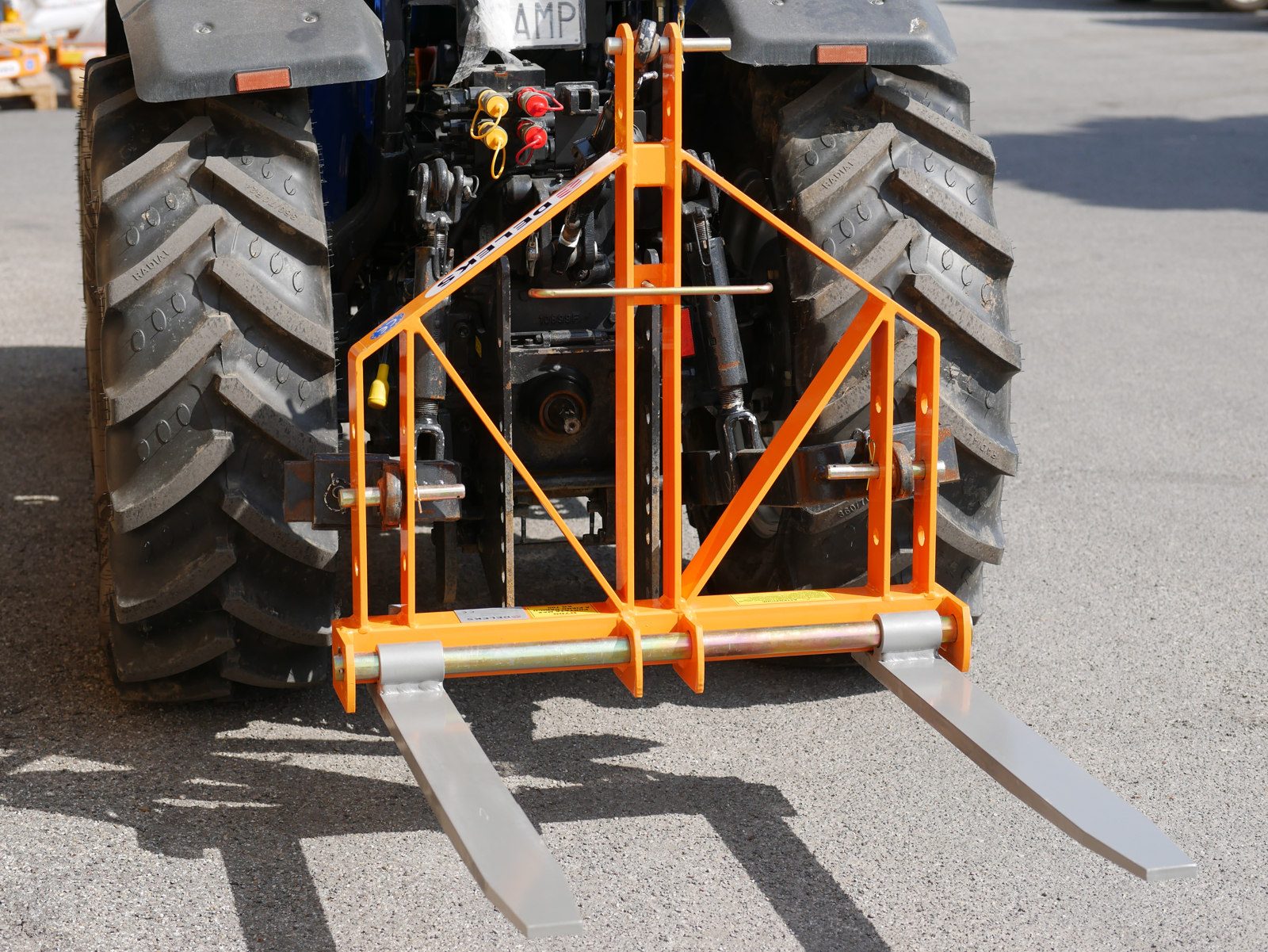

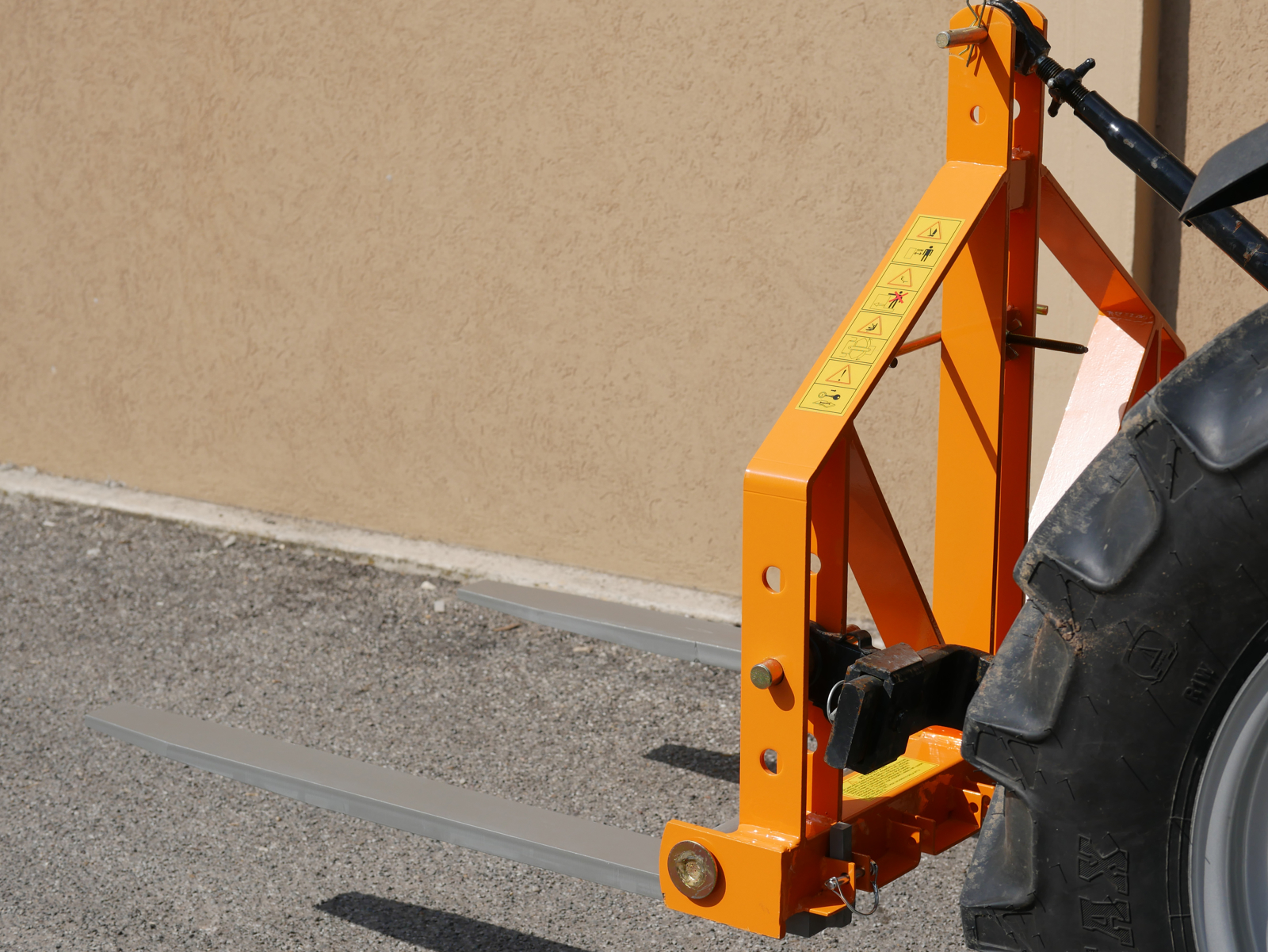

Pallet Forks DELEKS® for tractors John Deere, New Holland - load capacity 700kg


OVERVIEW

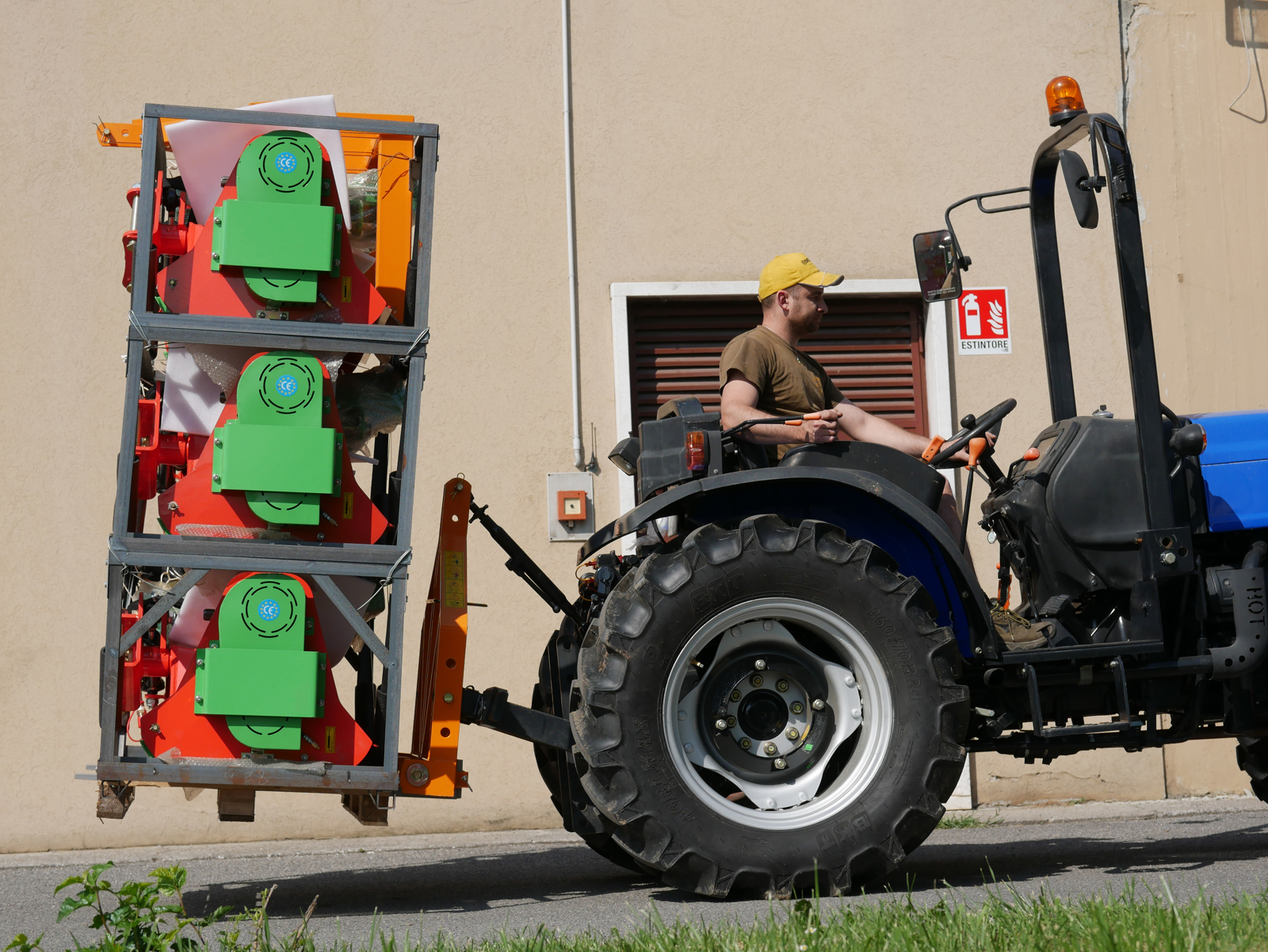

The D-700 Pallet Forks with a loading capacity of 700kg, making it ideal for use on farms and ranches, construction sites, nurseries, campuses, theme parks, and for warehouse work. Universal forks for pallet lifting. Designed to fit most medium size tractors e.g New Holland T3030, T4F, John Deere 4-5 Series, Landini Mistral, Lamborghini Ego 45-55, McCormick, Kubota L, Same Solaris, CASE, Deutz-Fahr, etc. EC Conformity, 2 Year warranty.



BENEFITS & FEATURES

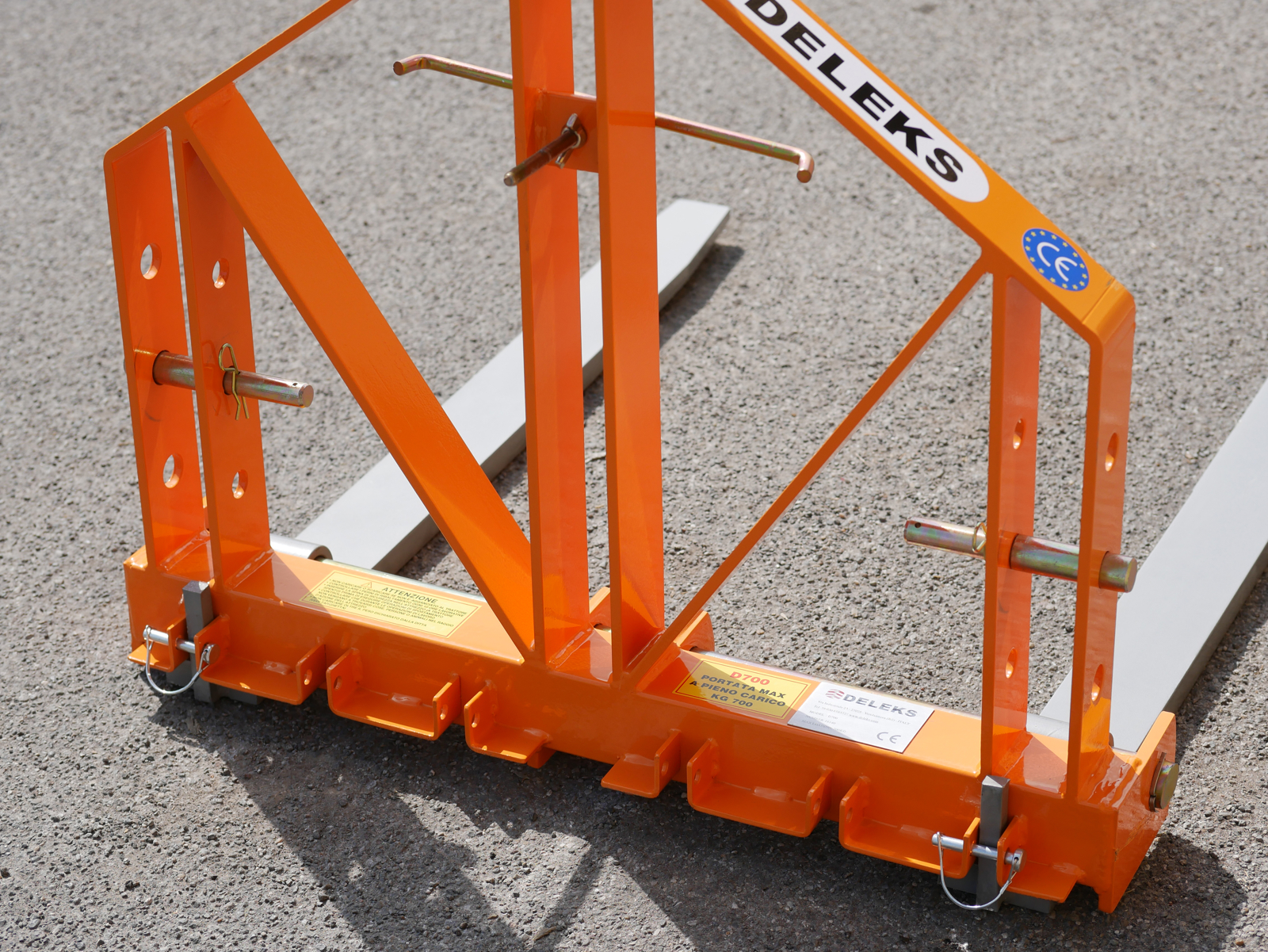

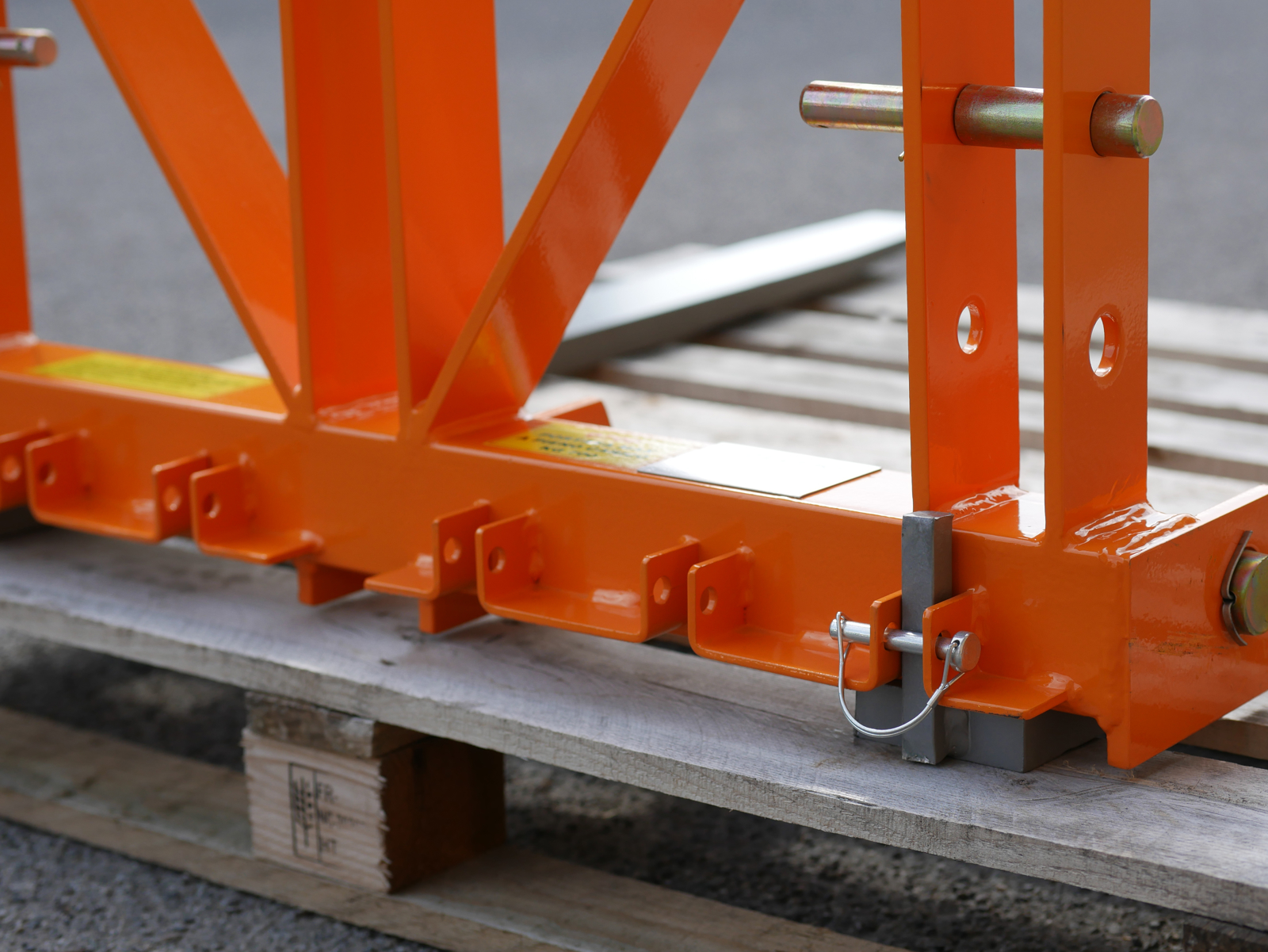

DELEKS® carriage design allows fork tines to be easily re-spaced or changed and locked into place.

Solid steel forks provide a sturdy base while lifting.

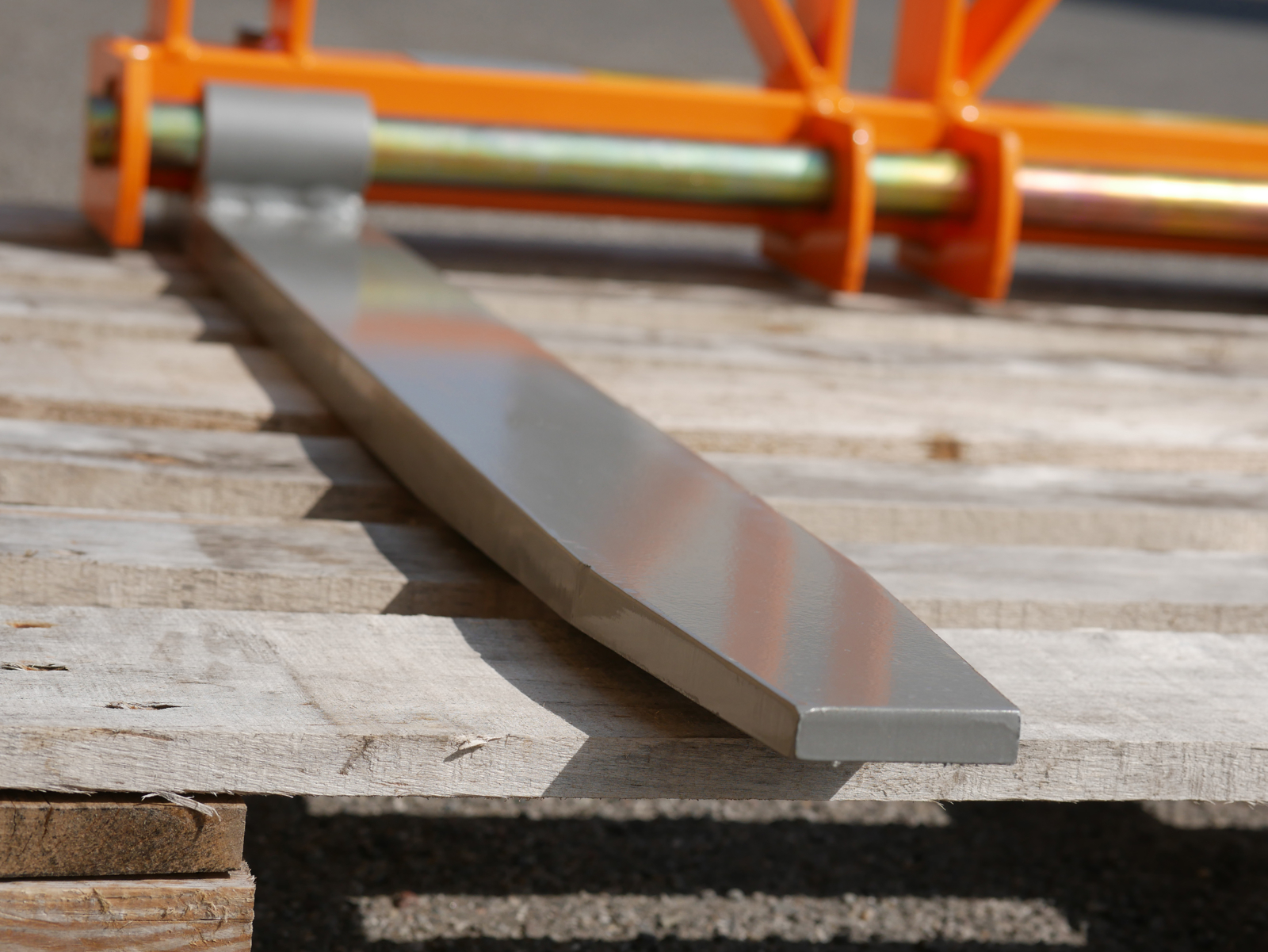

The forks are thinner towards the tip to allow for easy loading.

Loading capacity of 700kg.

The weight of the load is distributed over three points so it will not cause stress failures.

Forks can be folded away during transit when not in use.



CARACTERISTICS

Caracteristic Units metric Units US
Overall width 950.0 mm 3.12 ft
Weight 107.0 kg 238.0 lb
Overall height 980.0 mm (open) 38.60 in (open)
Tractor Power Range 25 - 90 Hp 25 - 90 Hp

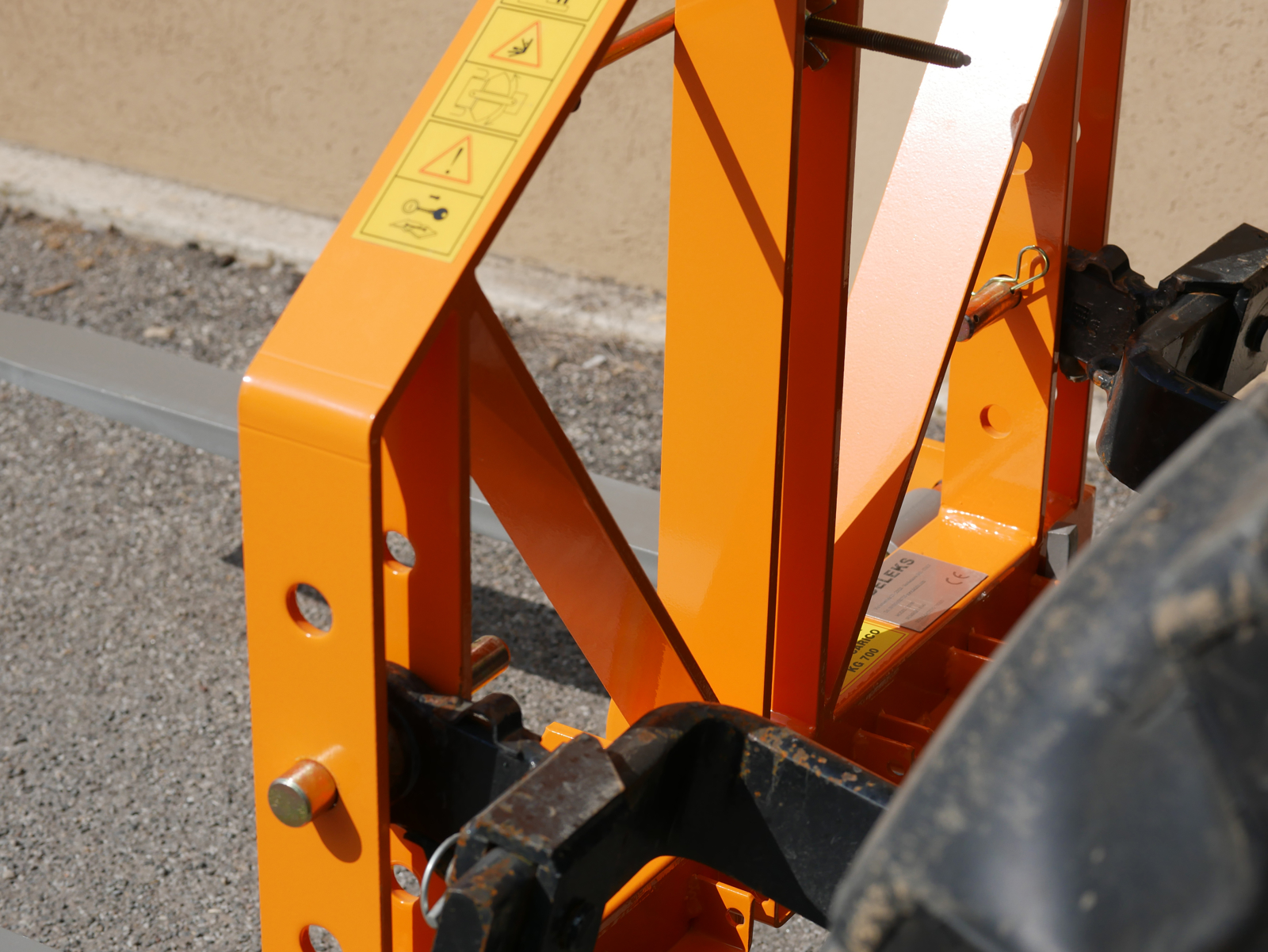

3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Load capacity 700.0 kg 1544.0 lb
3 point linkage Thickness 10.0 mm 0.40 in
Spacing between the 2 lower points 580.0 / 840.0 mm 22.84 / 33.07 in
Usable Fork Tine Length 950.0 mm 37.40 in
Fork Tine Length 1120.0 mm 44.10 in
Fork Tine Height 30.0 mm 1.18 in
Fork Tine Width (single tine) 100.0 - 67.0 mm 3.75 - 2.64 in
Fork Tine Thickness 30.0 - 14.0 mm 1.20 - 0.55 in
Fork Tine Weight 24.0 kg 53.0 lb

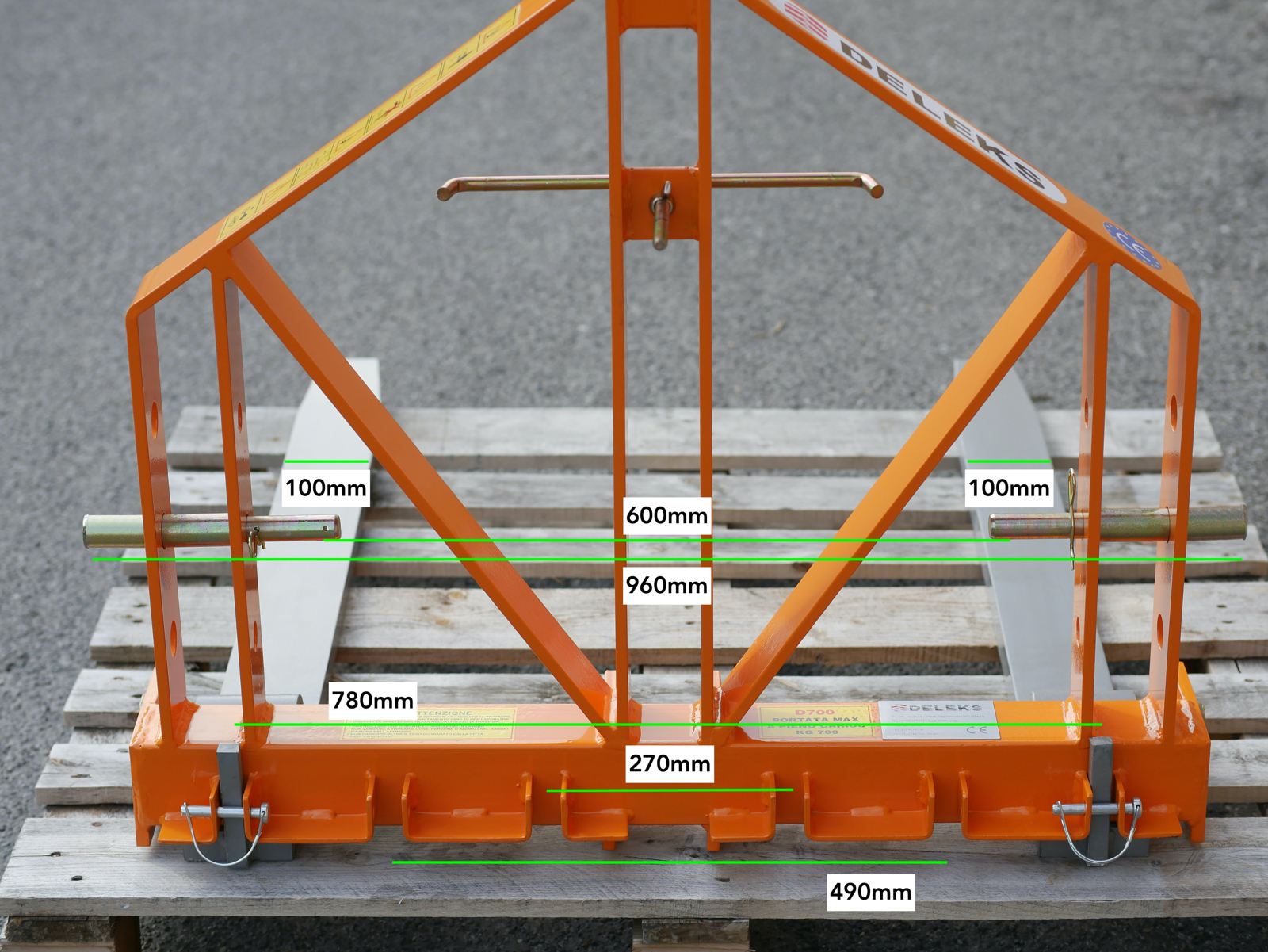

Fork Tine Spacing (min-max) 270.0 / 780.0 mm 7.48 / 26.18 in
Positions of the forks 3 + 3 3 + 3

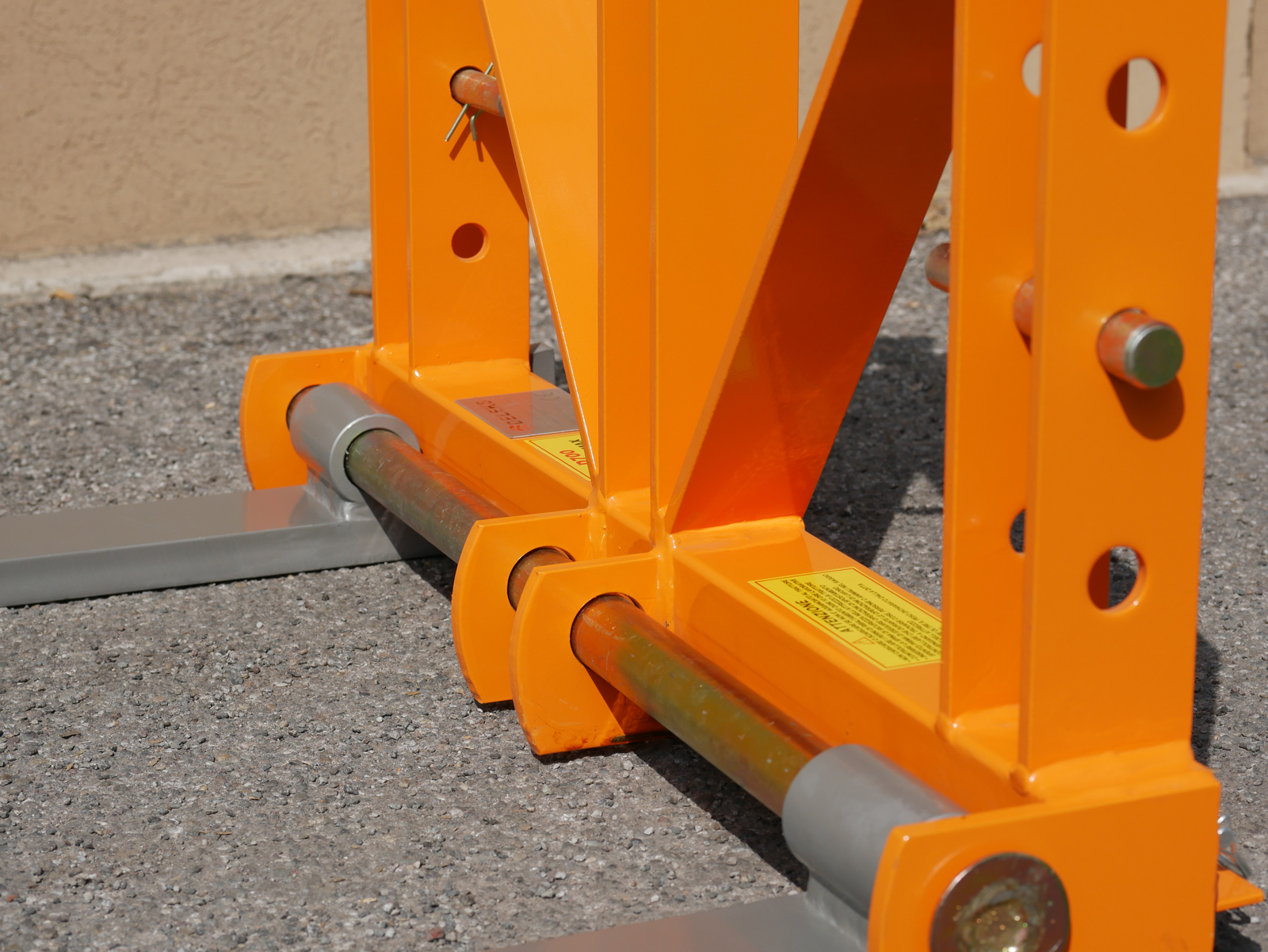

Diameter of the horizontal tube 40.0 mm 1.58 in
Distance between the 2 lower points and ground 185.0 / 285.0 / 385.0 mm 7.28 / 11.22 / 15.15 in
Overall Length (open and closed) 1130.0 / 225.0 mm 44.50 / 8.86 in
Packing sizes 1200.0*950.0*300.0 mm 47.25*37.40*11.80 in
