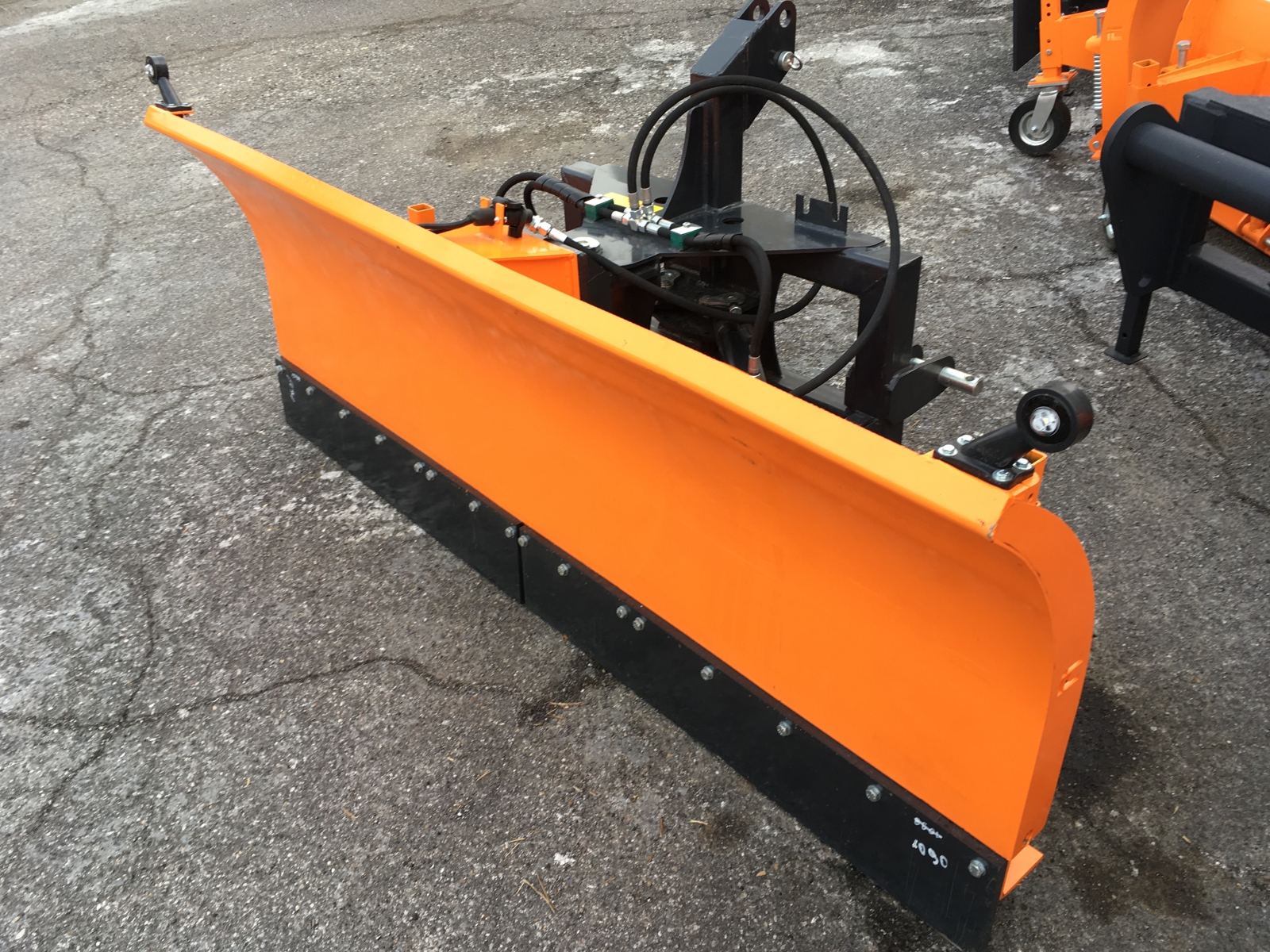

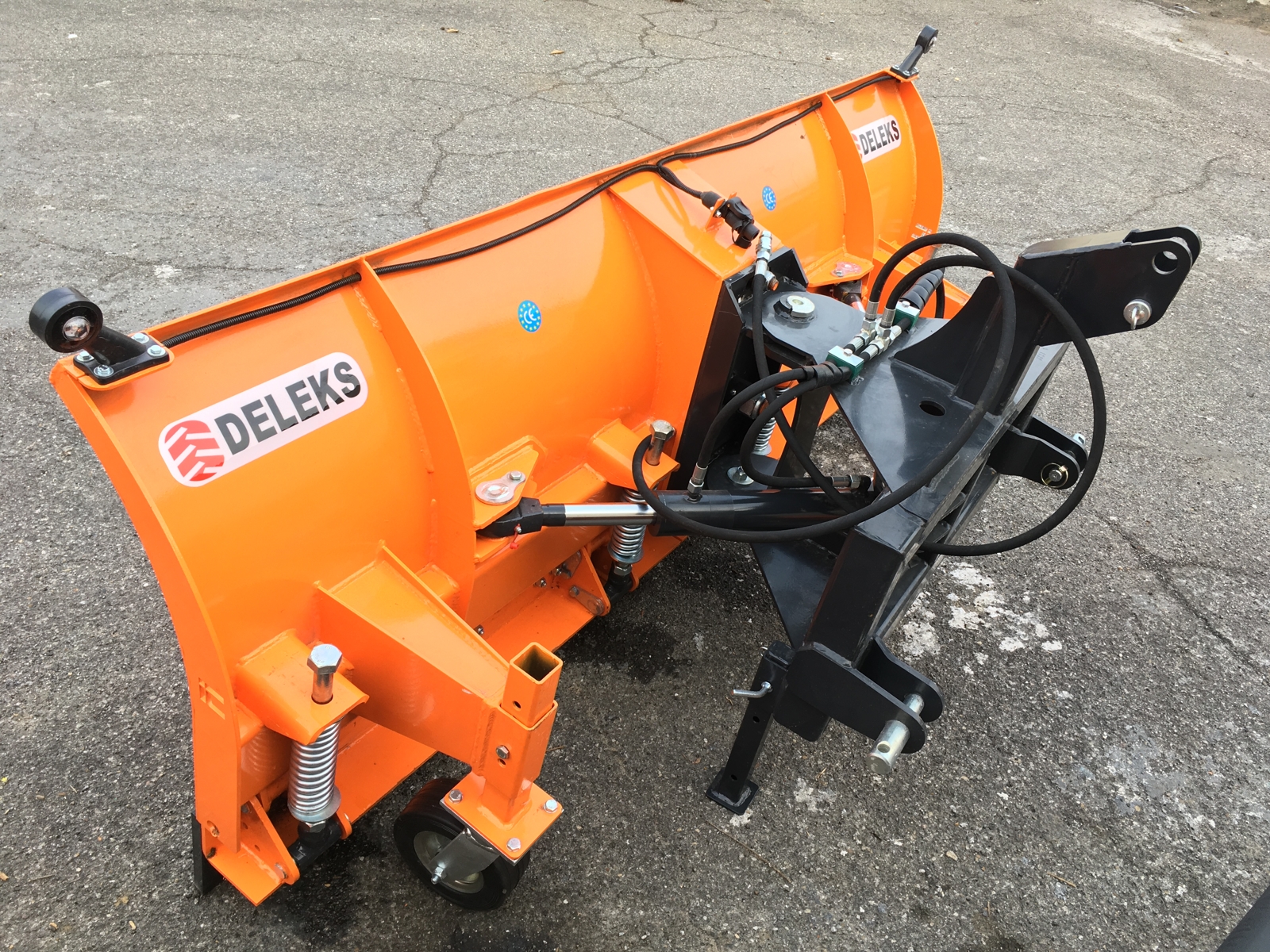

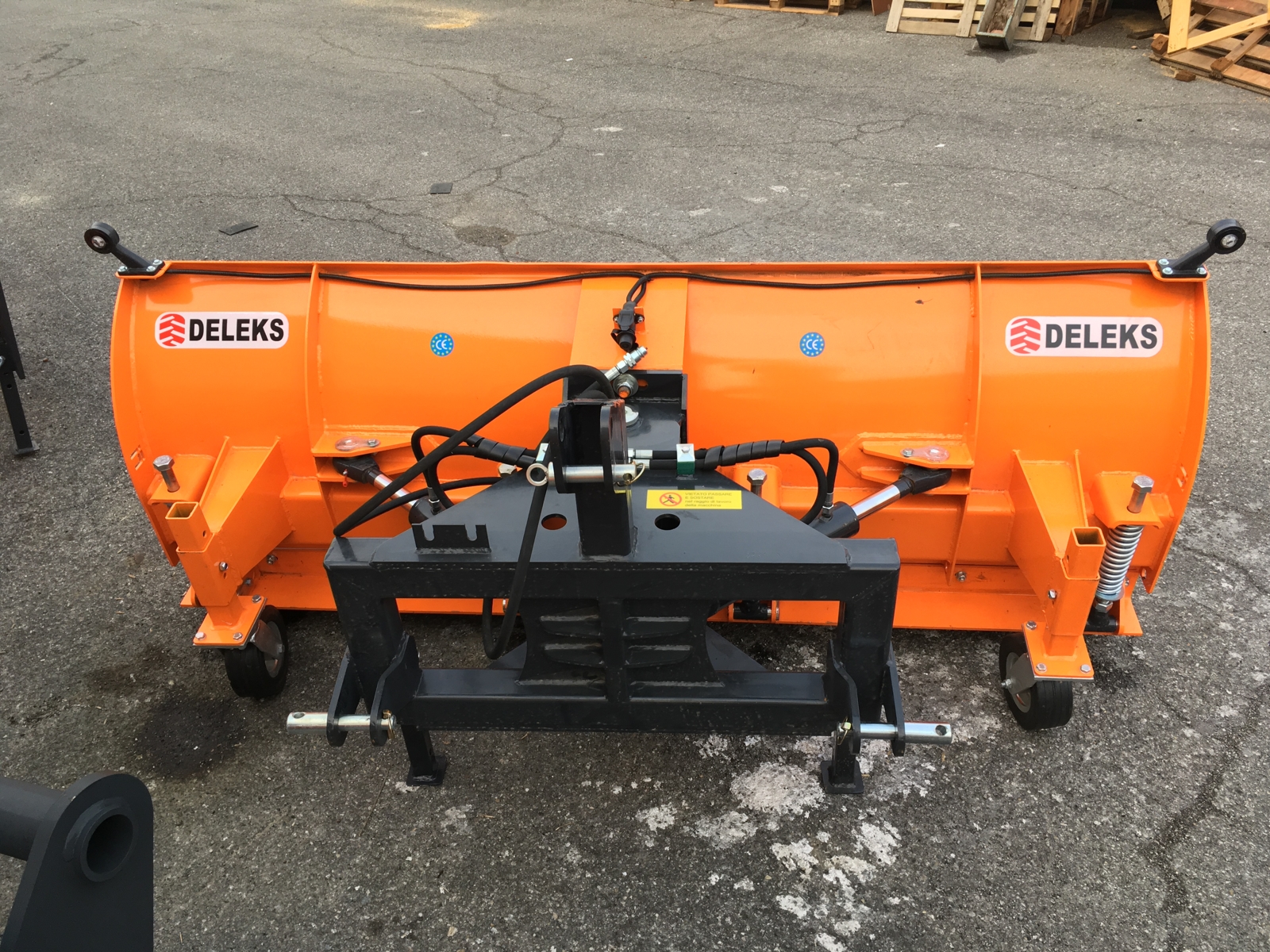

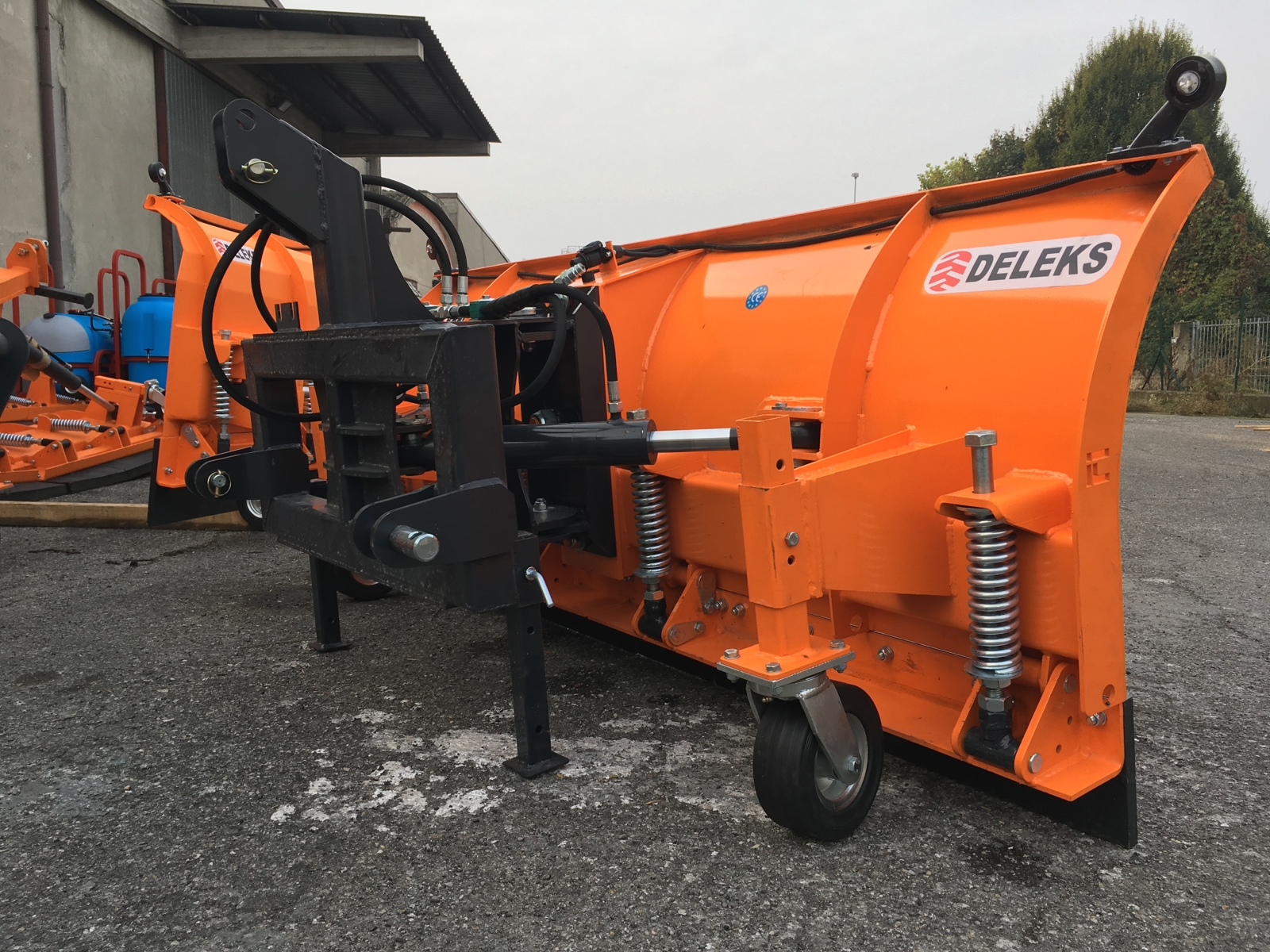

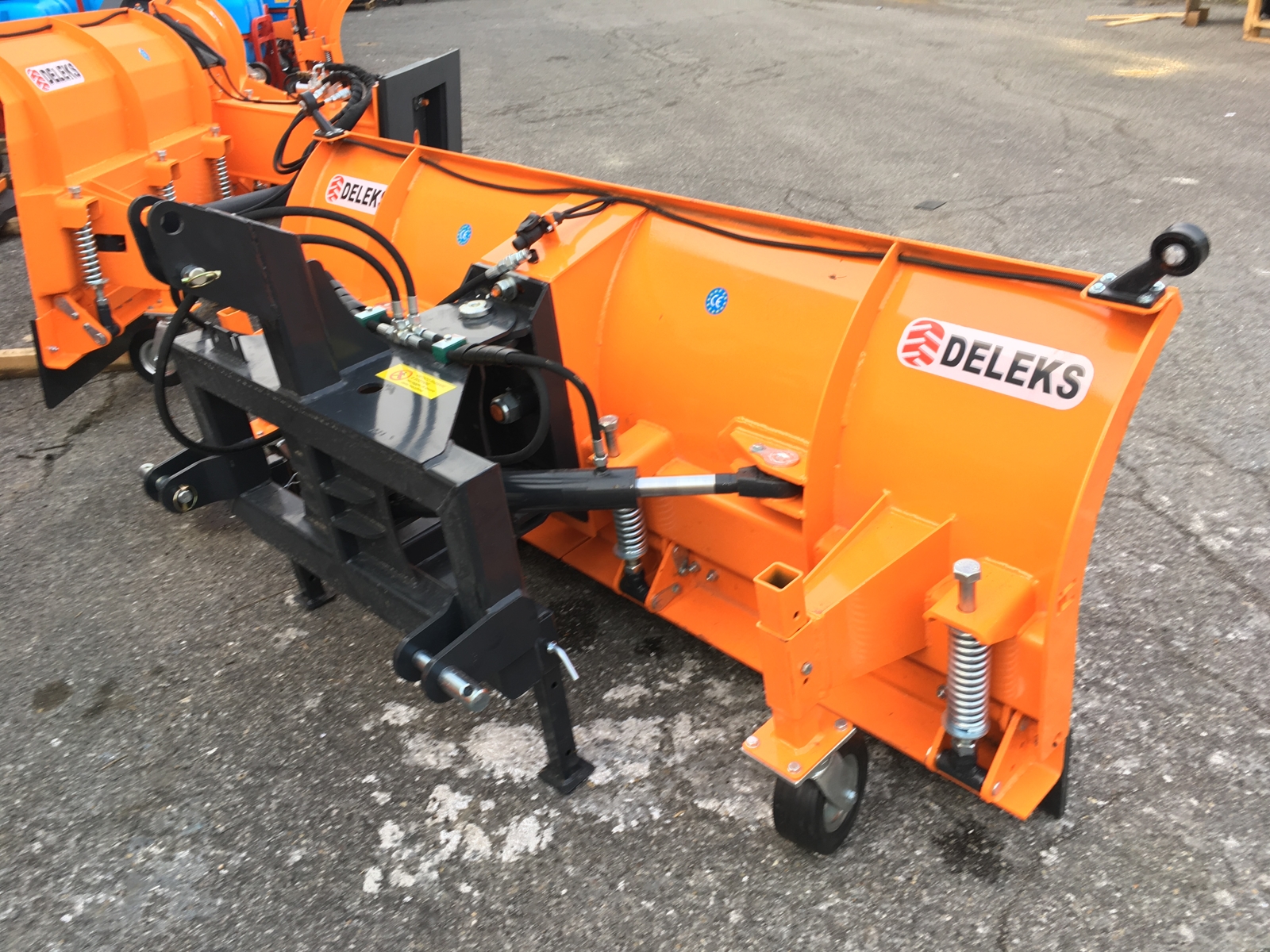

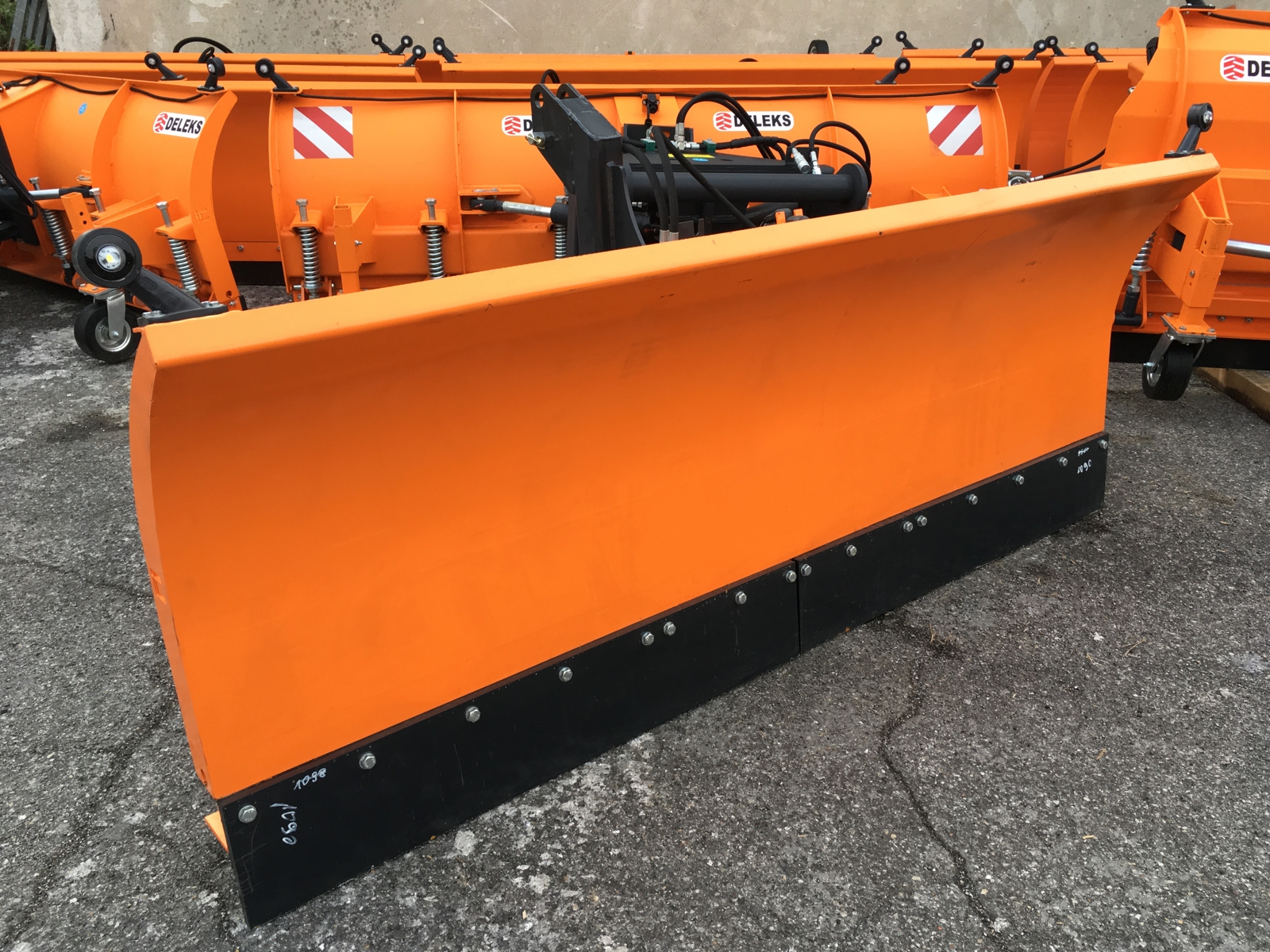

Three point linkage snowplow for tractor 220cm / 400kg - DELEKS® - Snow blade for frontal use


OVERVIEW

SSH-04 2.2-C Heavy-duty snowplow has been designed for larger tractors with 3-point hitch of Cat. 2-3, with power range from 70 to 120hp with rear or front linkage. Compatible with all tractors as Landini Power, M Kubota, Massey Ferguson, John Deere 5 Series, Same Explorer, Fiat, Case, Claas, Deutz-Fahr.

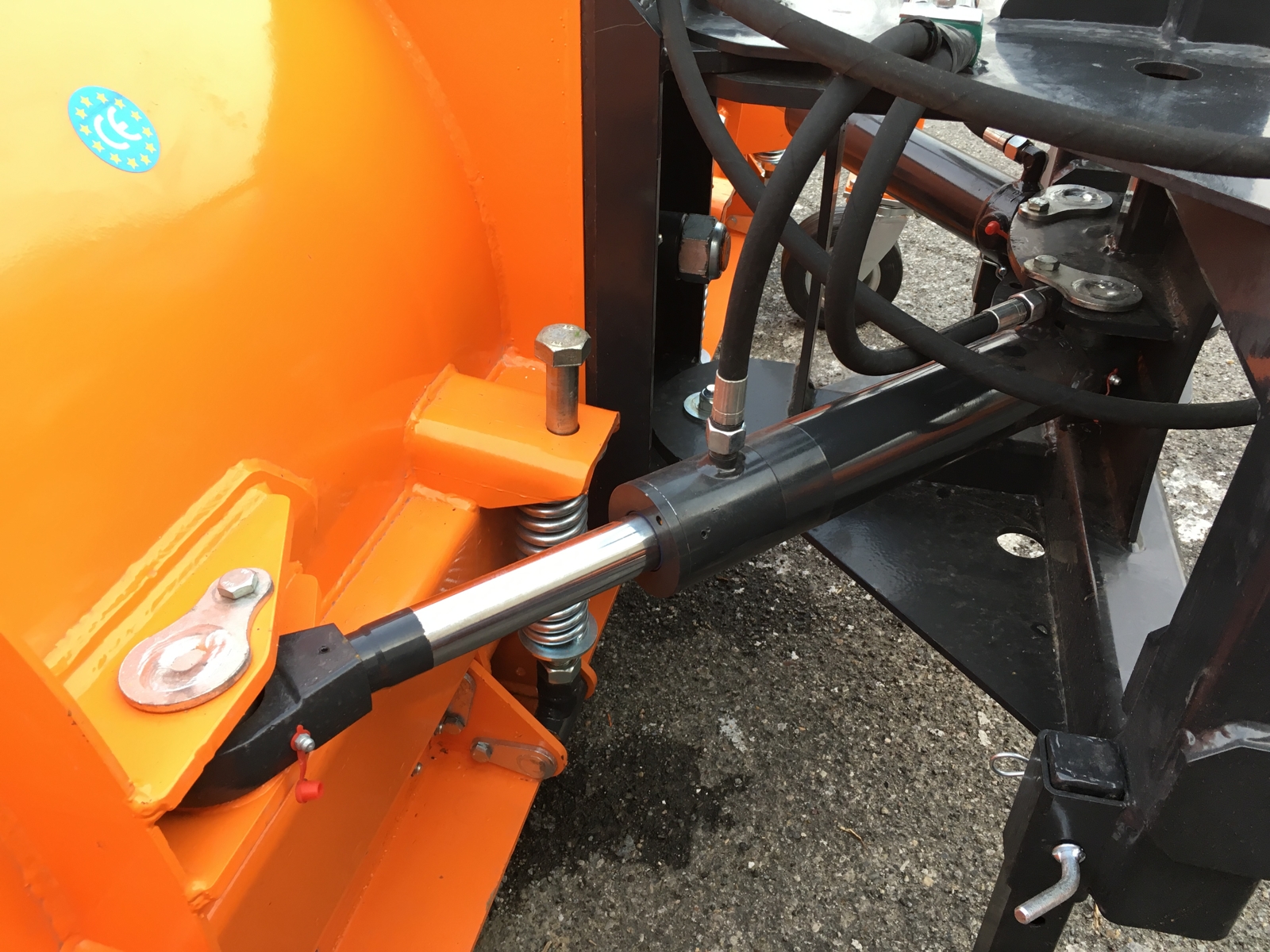

Angling of the plow is done hydraulically using two hydraulic cylinders and two hydraulic pipes 1.6m in length. Supplied with 2 support wheels and marker lights. Conforms to the EC Machinery Directive. 2 years Warranty.



BENEFITS AND FEATURES

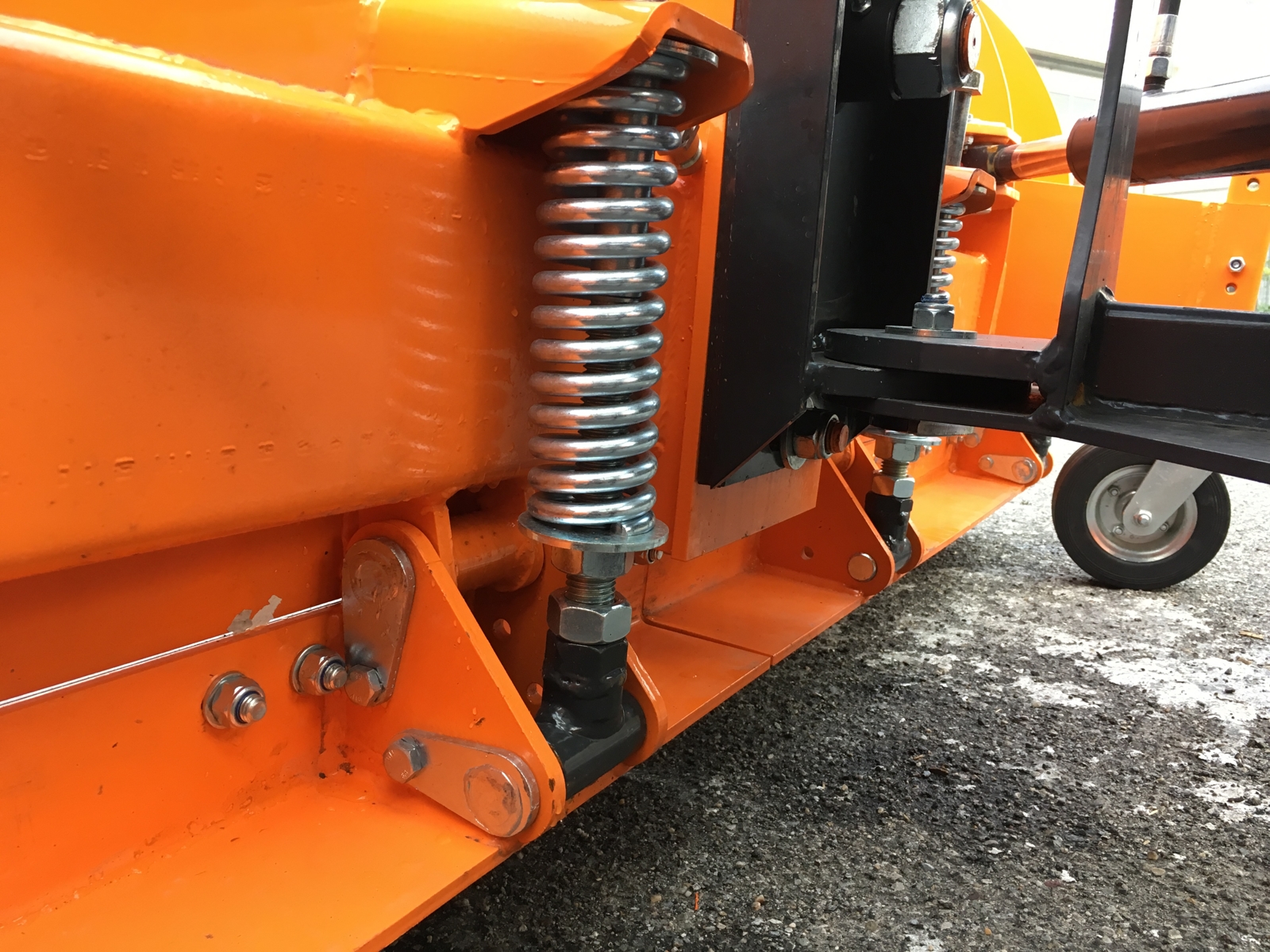

Shockproof system with 4 shock absorbing springs to operate in maximum safety.

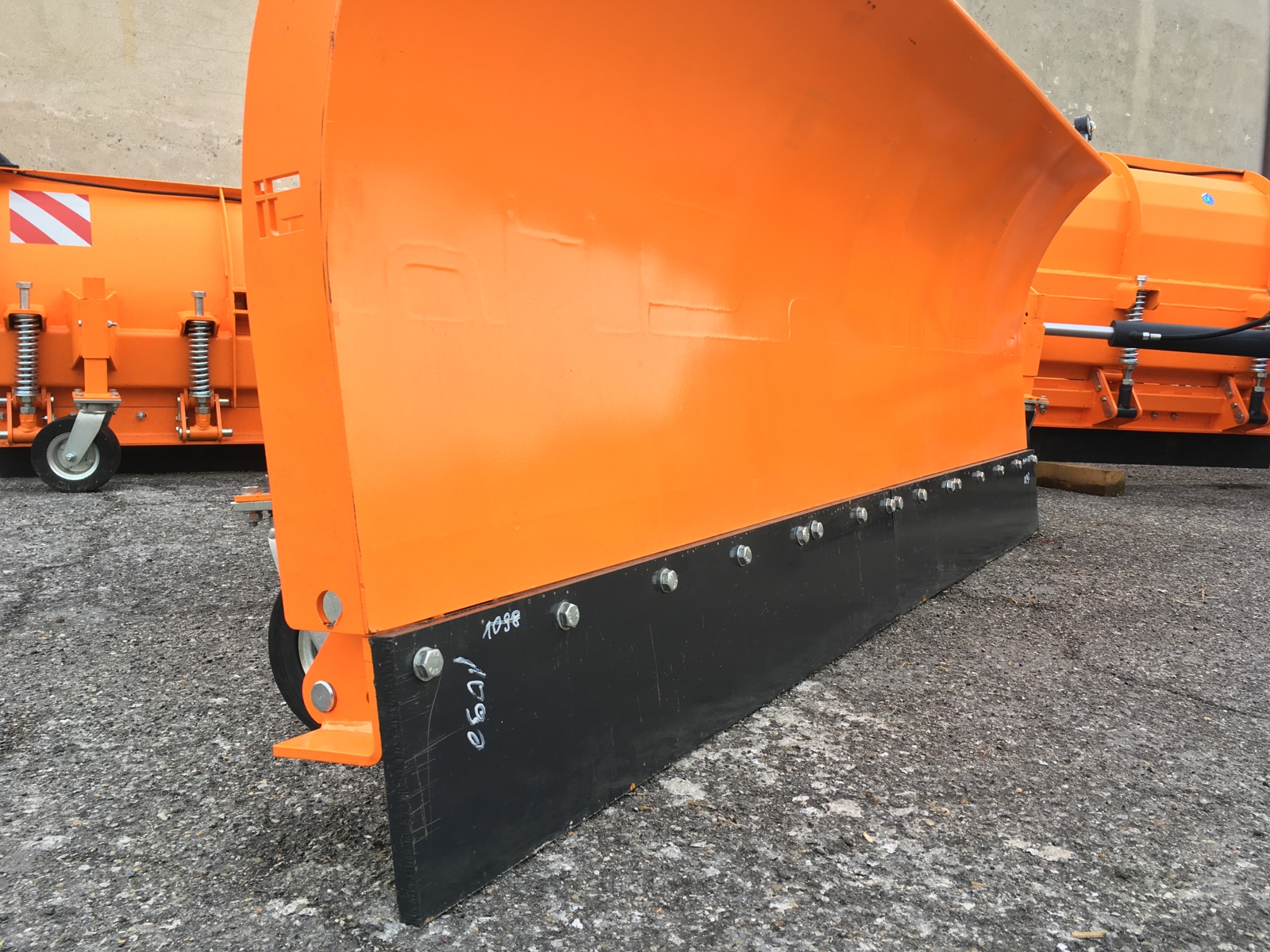

2 independent steel or rubber scraping elements.

Extreme ease of assembly and use.

Support wheels allow the blade height to be adjusted.

The 3-point hitch is removable and replaceable with EURO linkage for tractor front-end loaders, or Telescopic loaders linkage e.g. MERLO, MANITOU, JCB, or Flat plate for after-sale customization.

Perfect adherence to the road surface and homologated for road use.



CHARACTERISTICS

Characteristic Units metric Units US
Weight 400.0 kg 880.0 lb
Overall height 880.0 mm 2.90 ft
Tractor Power Range 70 - 120 Hp 70 - 120 Hp
Overall Length 900.0 mm 2.95 ft
Spacing between the 2 lower points 800.0-1040.0 mm 31.50 - 40.95 in
Distance between the 2 lower points and ground 300.0 mm 11.80 in
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface 3 point linkage cat. 2-3 3 point linkage cat. 2-3
Angling (left/right) 25° 25°
Float +/- 4° +/- 4°
Blade Height 880.0 mm 2.90 ft
Side edge thickness 7.0 mm 0.28 in
Shock absorbers 4 4
Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 200.0mm / 250.0mm 7.87 in / 9.85 in
Cutting Edge Thickness 20.0mm / 55.0mm 0.79 in / 2.16 in
Trip Edge Quantity 2 2
Distance betweens the bolts of the Trip Edge 175.0 mm 6.90 in
Lights √ √
Removable Skid Shoes Wheels Wheels
Working width (angled) 2000.0 mm 6.56 ft

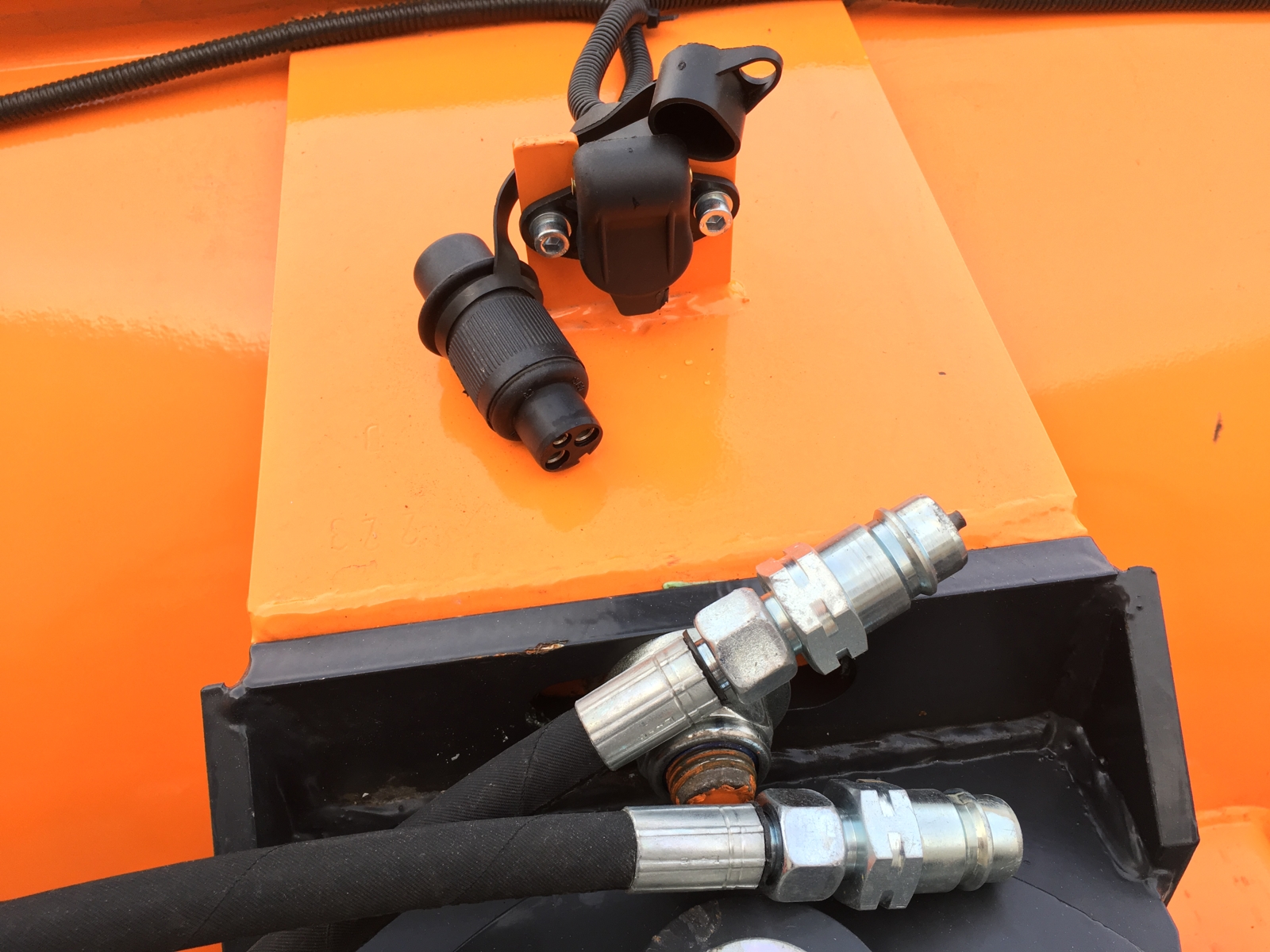

Hydraulic Hoses 2 x 1600.0 mm / connections 1.2" AGRI, WP 400 bar 2 x 1600.0 mm / connections 1.2" AGRI, WP 400 bar
Overall width 2200.0 mm 7.22 ft
Main frame thickness 4.0 mm 0.15 in
Hydraulic cylinder/s ø 73.0/36.0 mm 2.87/1.41 in
Packing sizes 2200*1000*1000mm 7.22*3.28*3.28 ft
