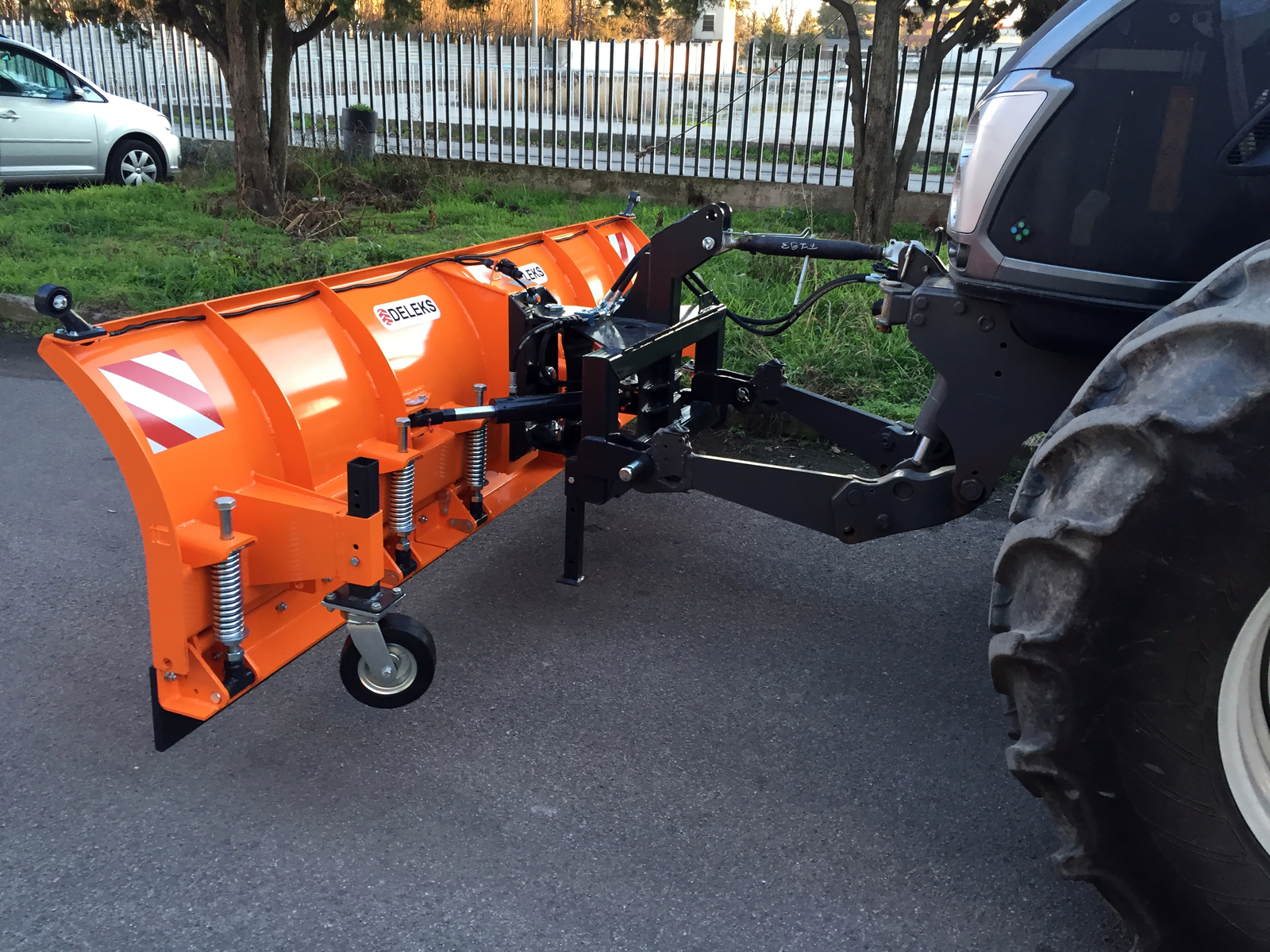

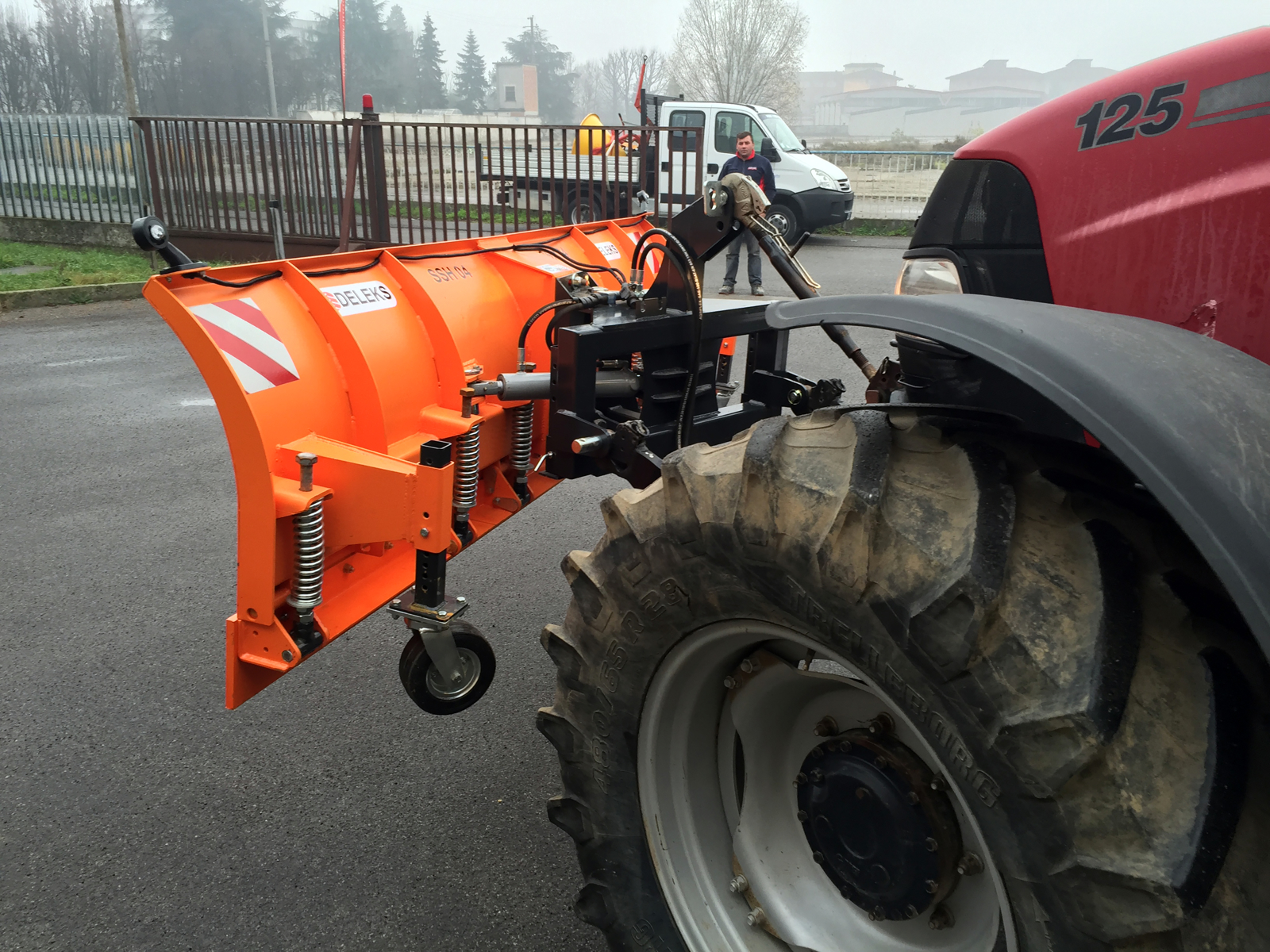

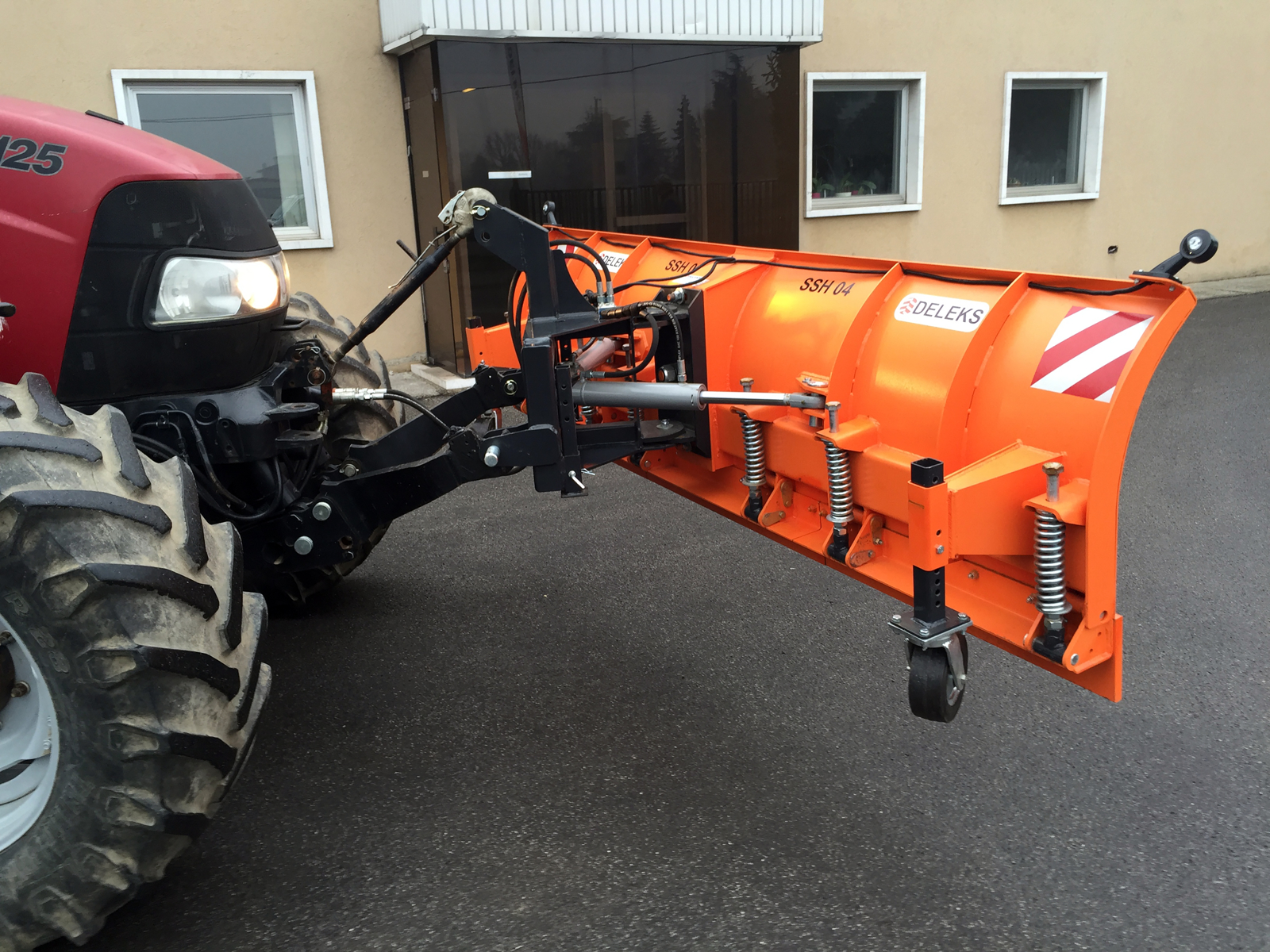

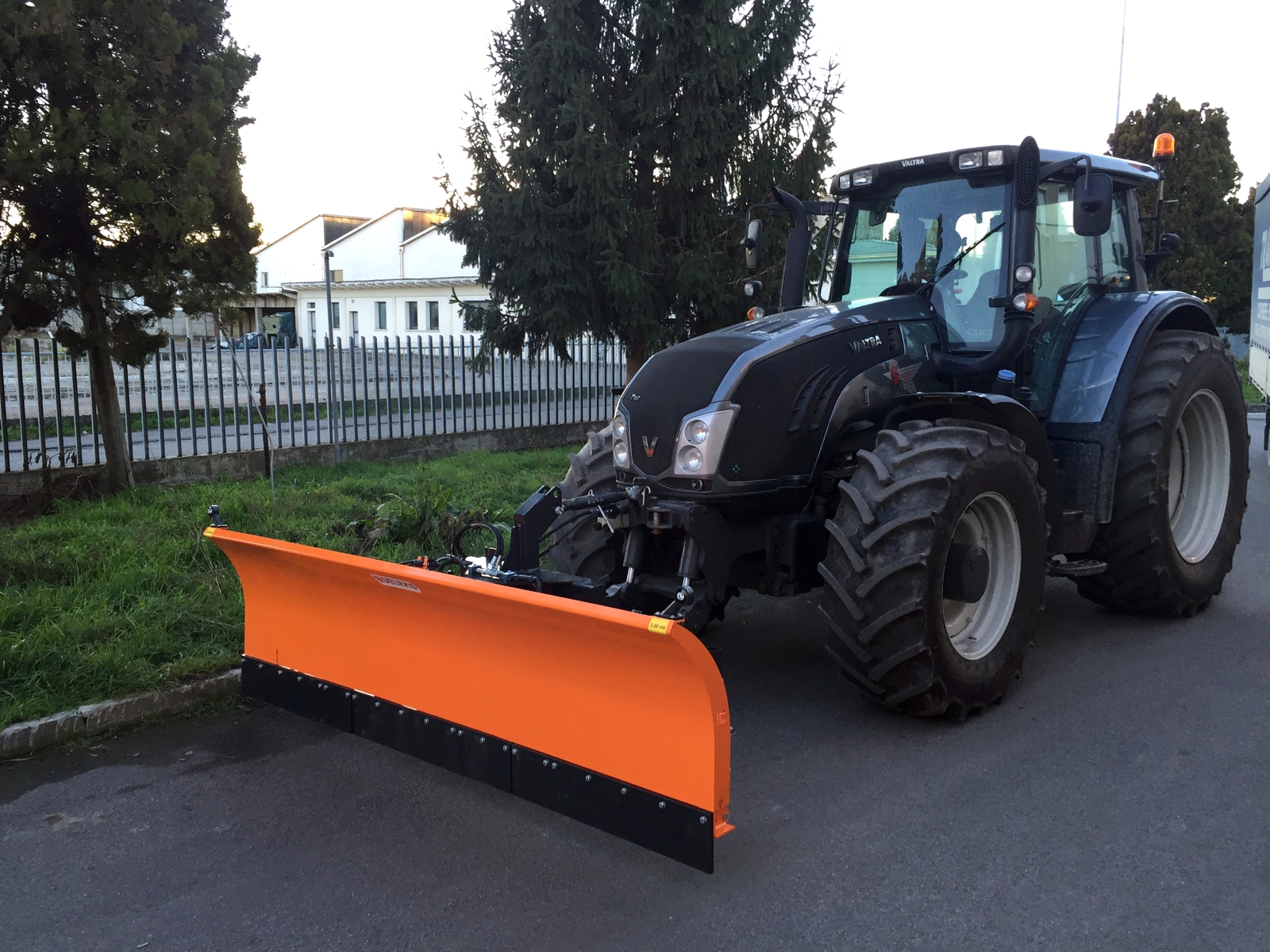

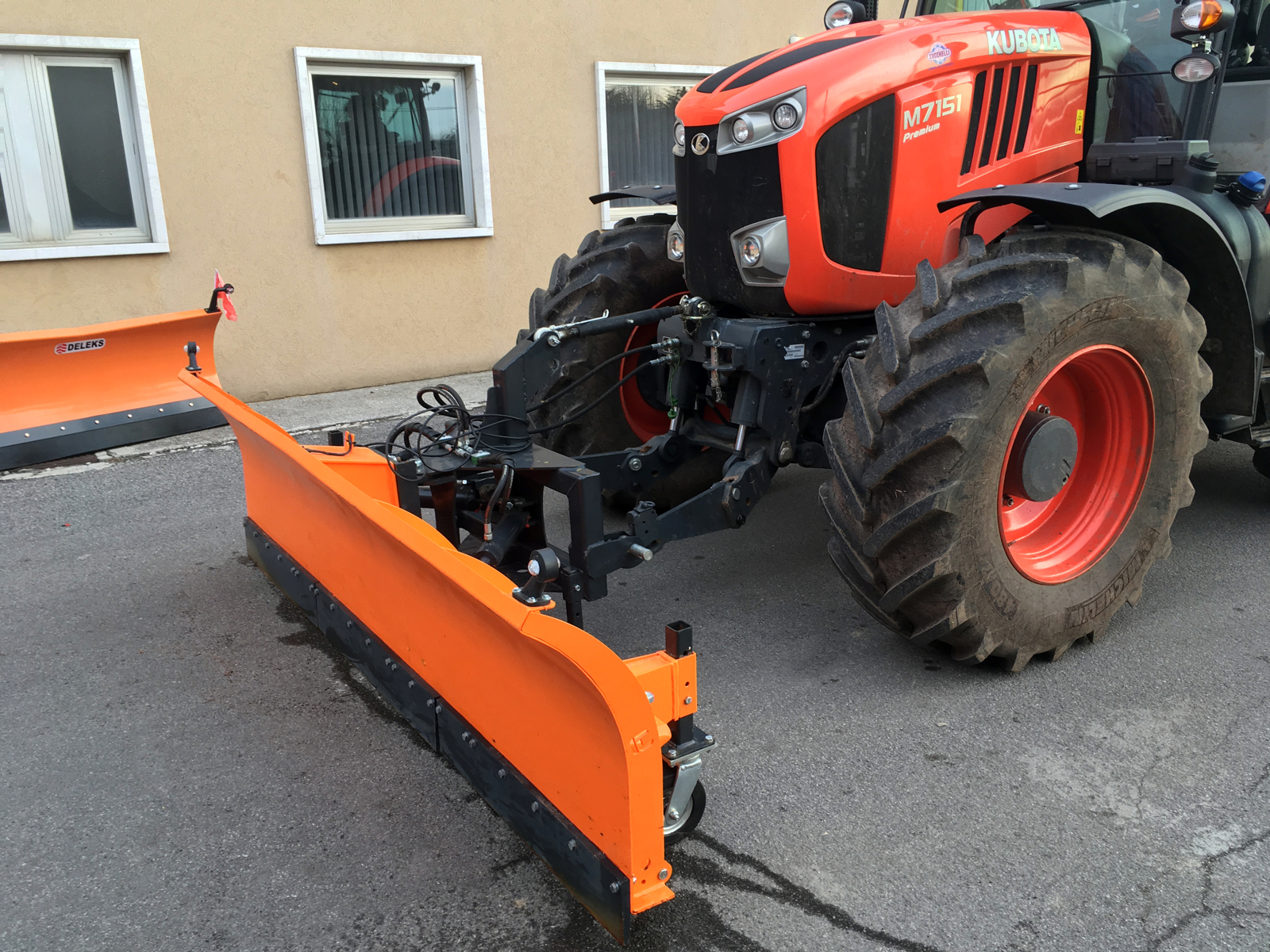

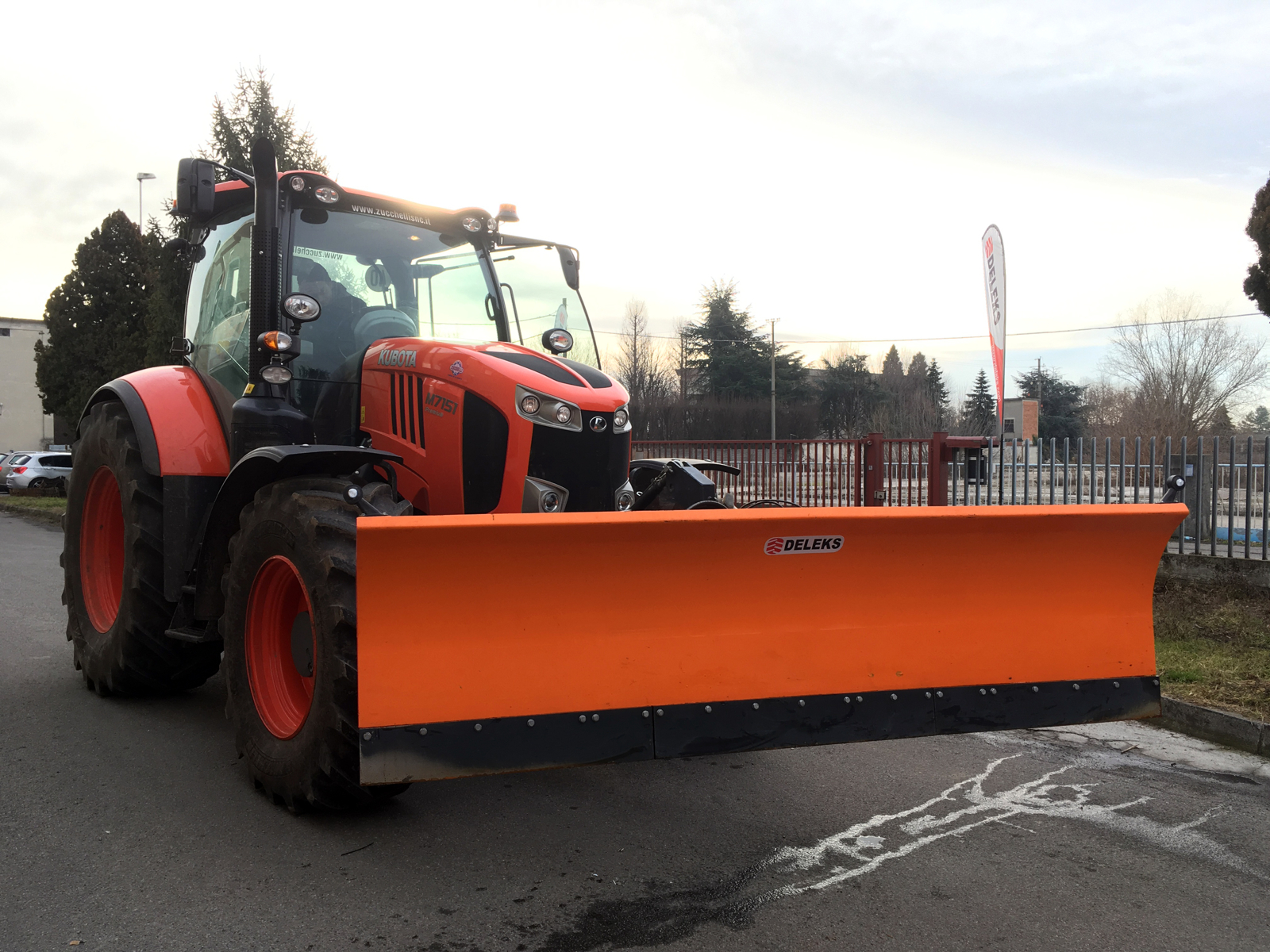

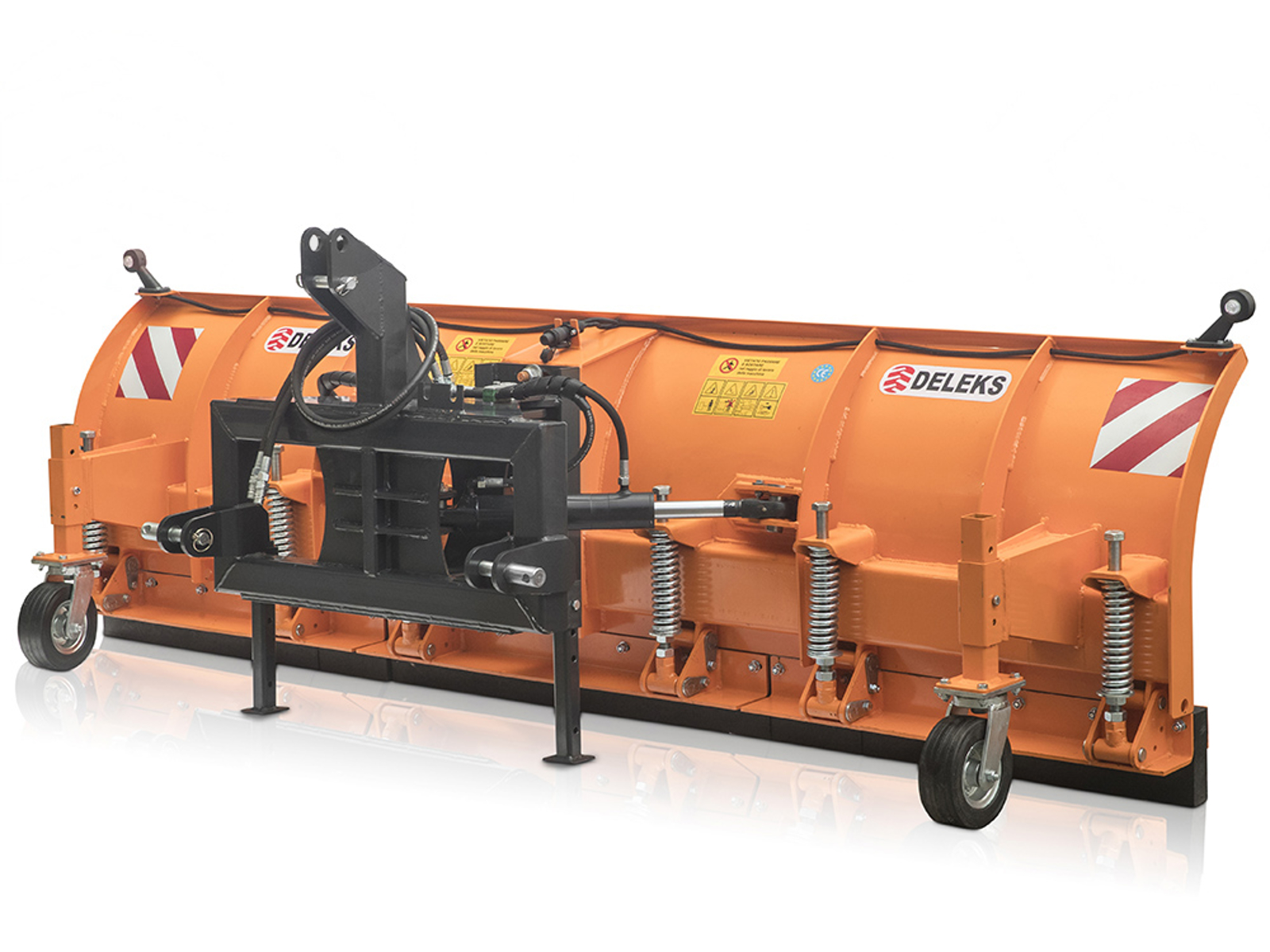

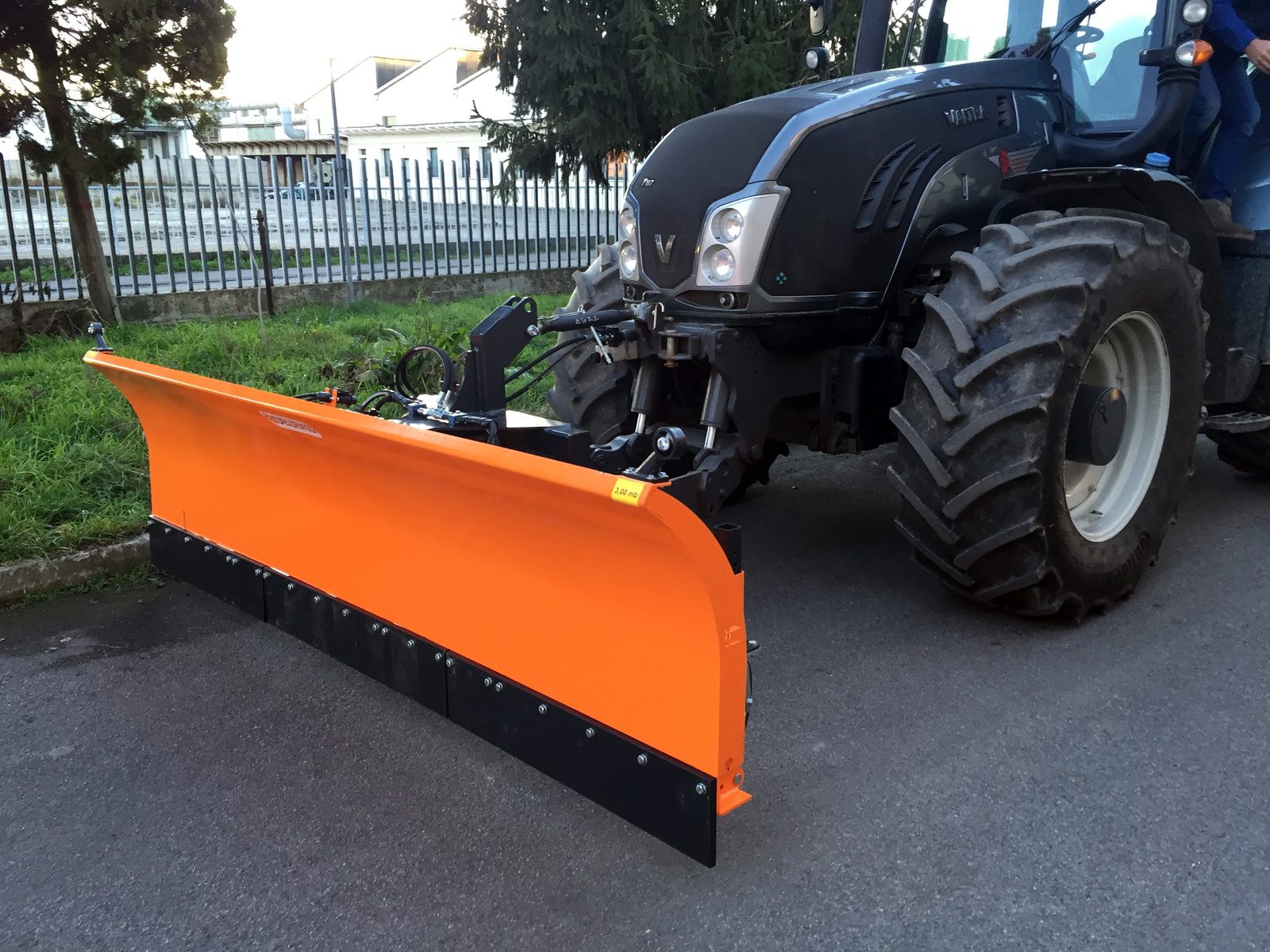

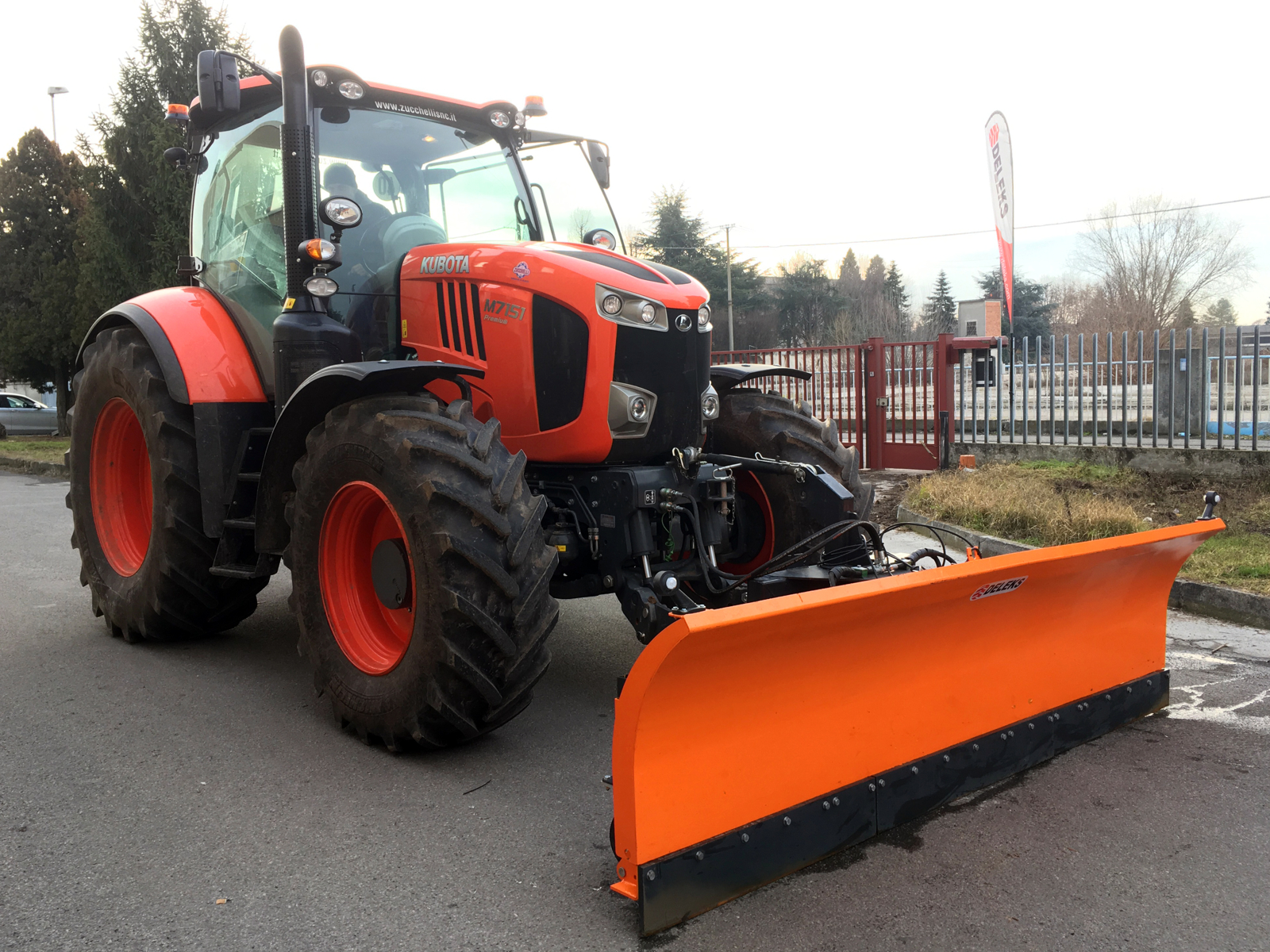

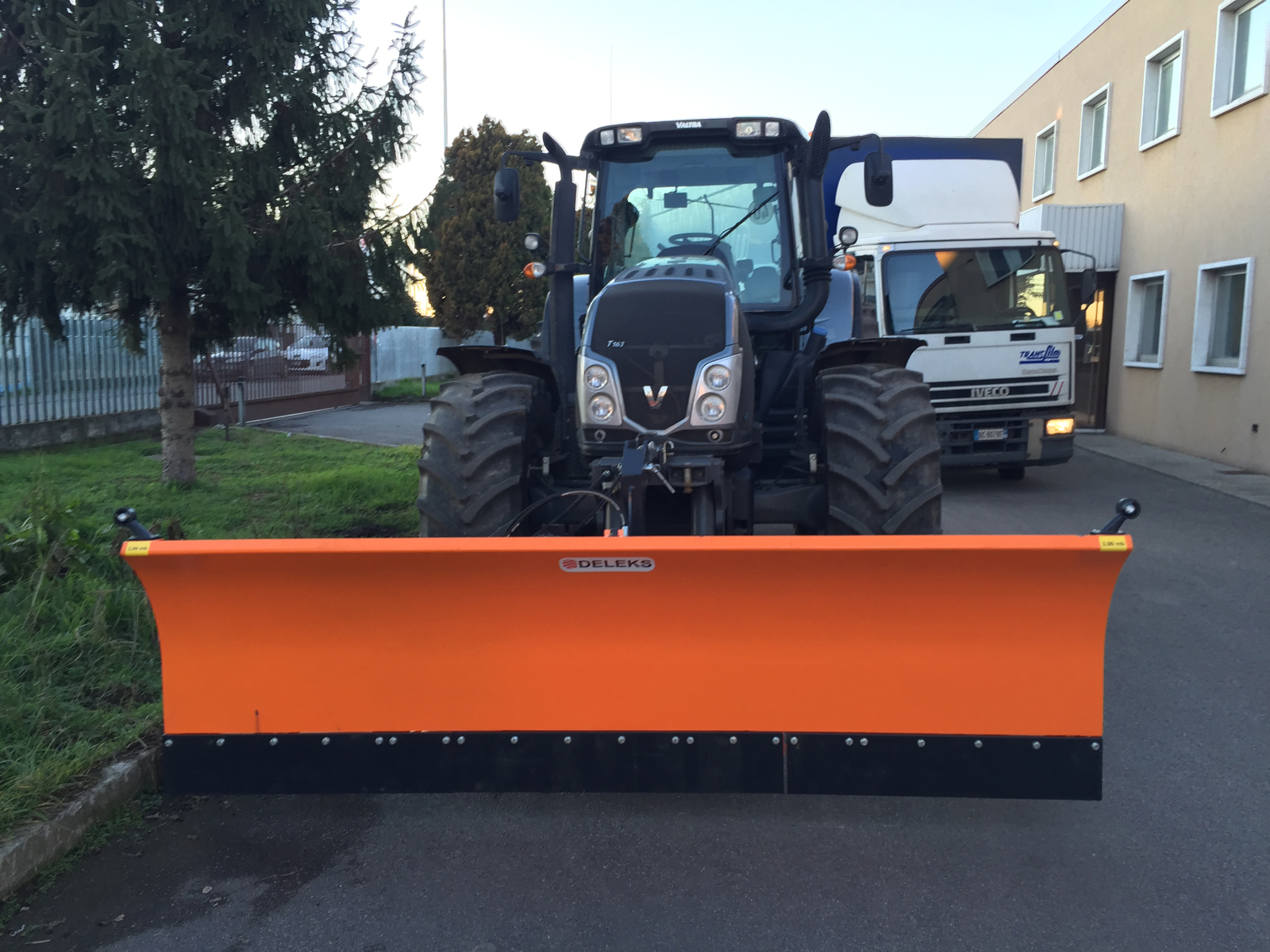

Three point linkage snowplow for tractor 260cm / 460kg - DELEKS® - Snow blade for frontal use

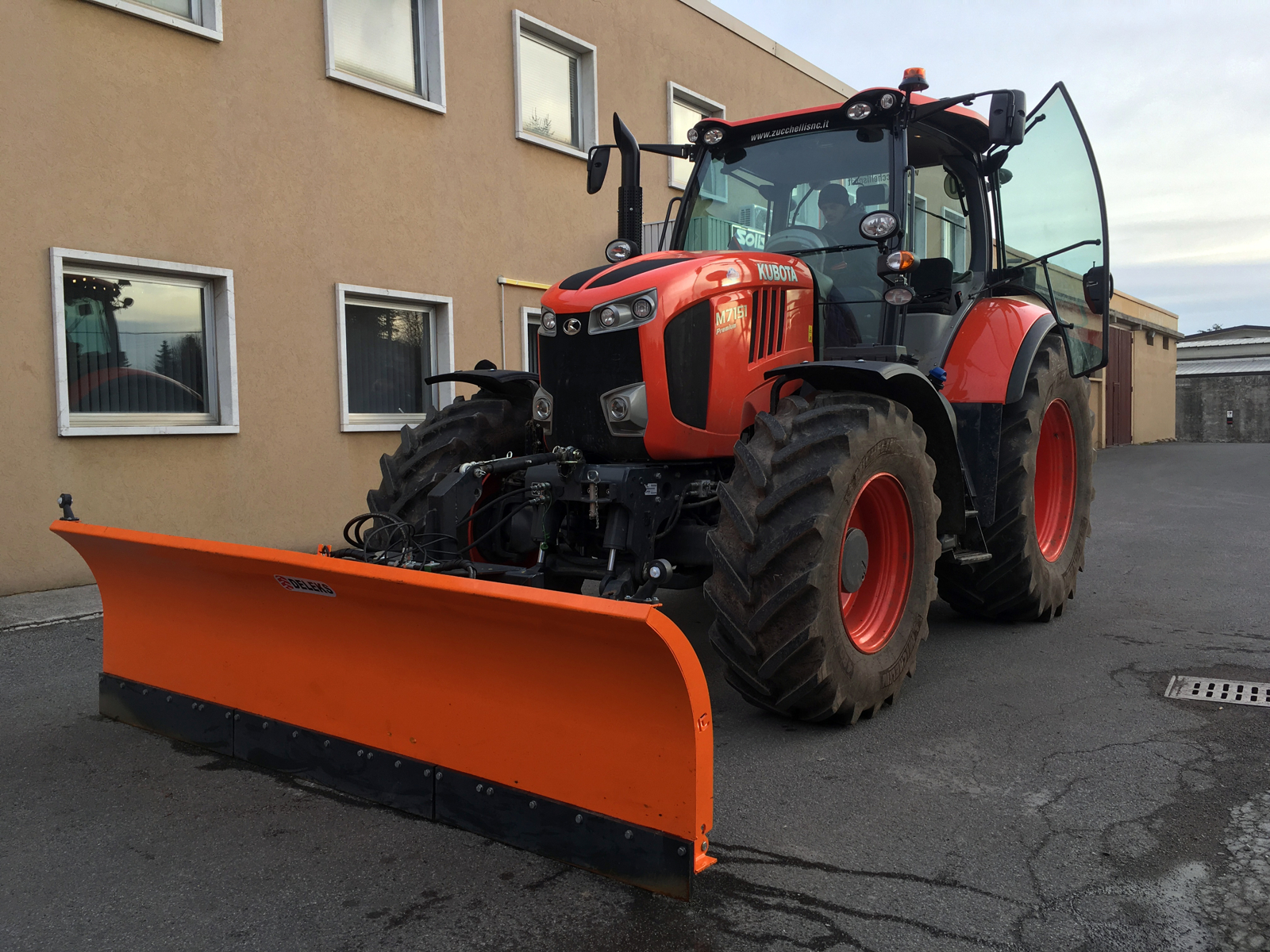

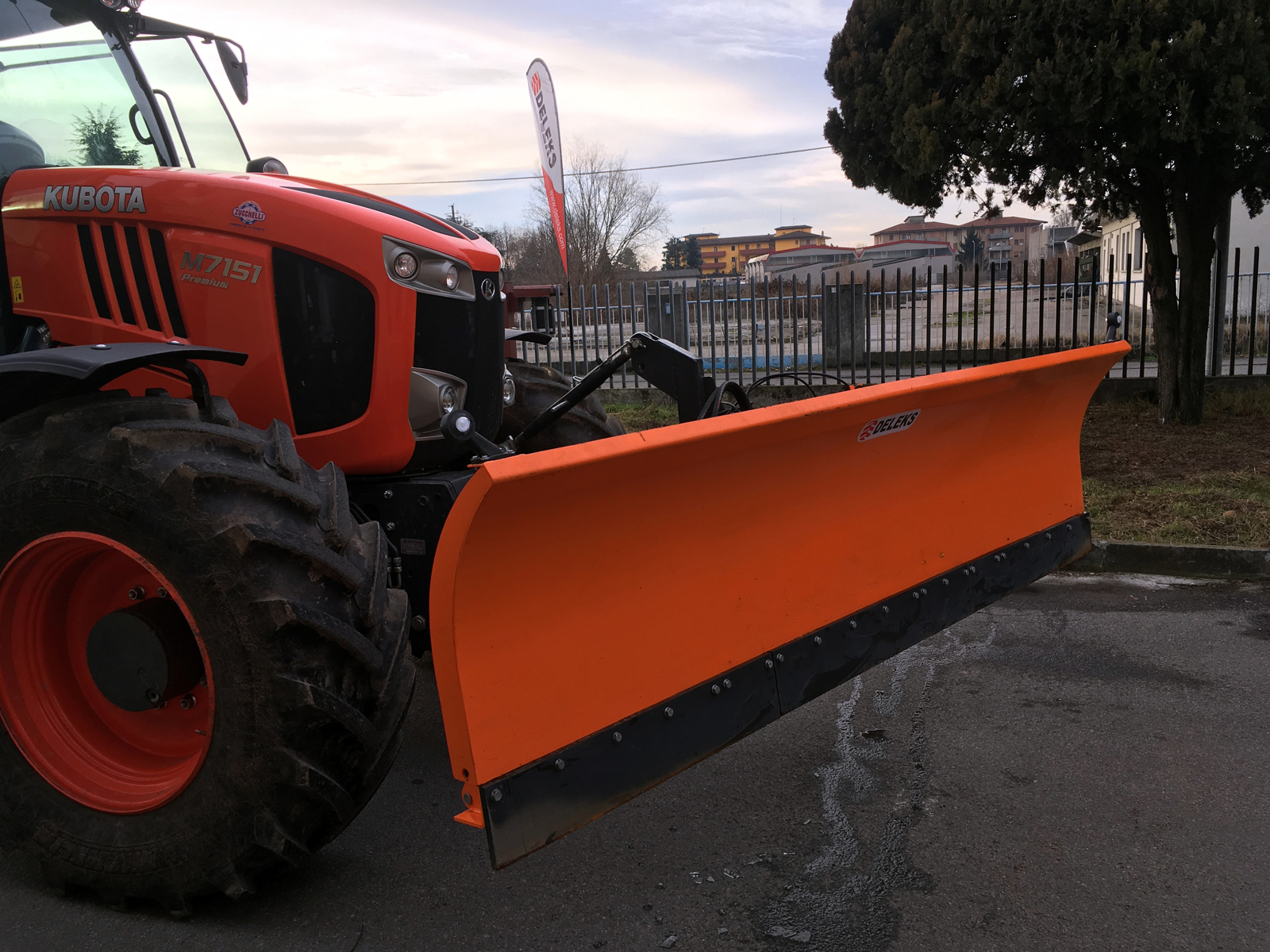

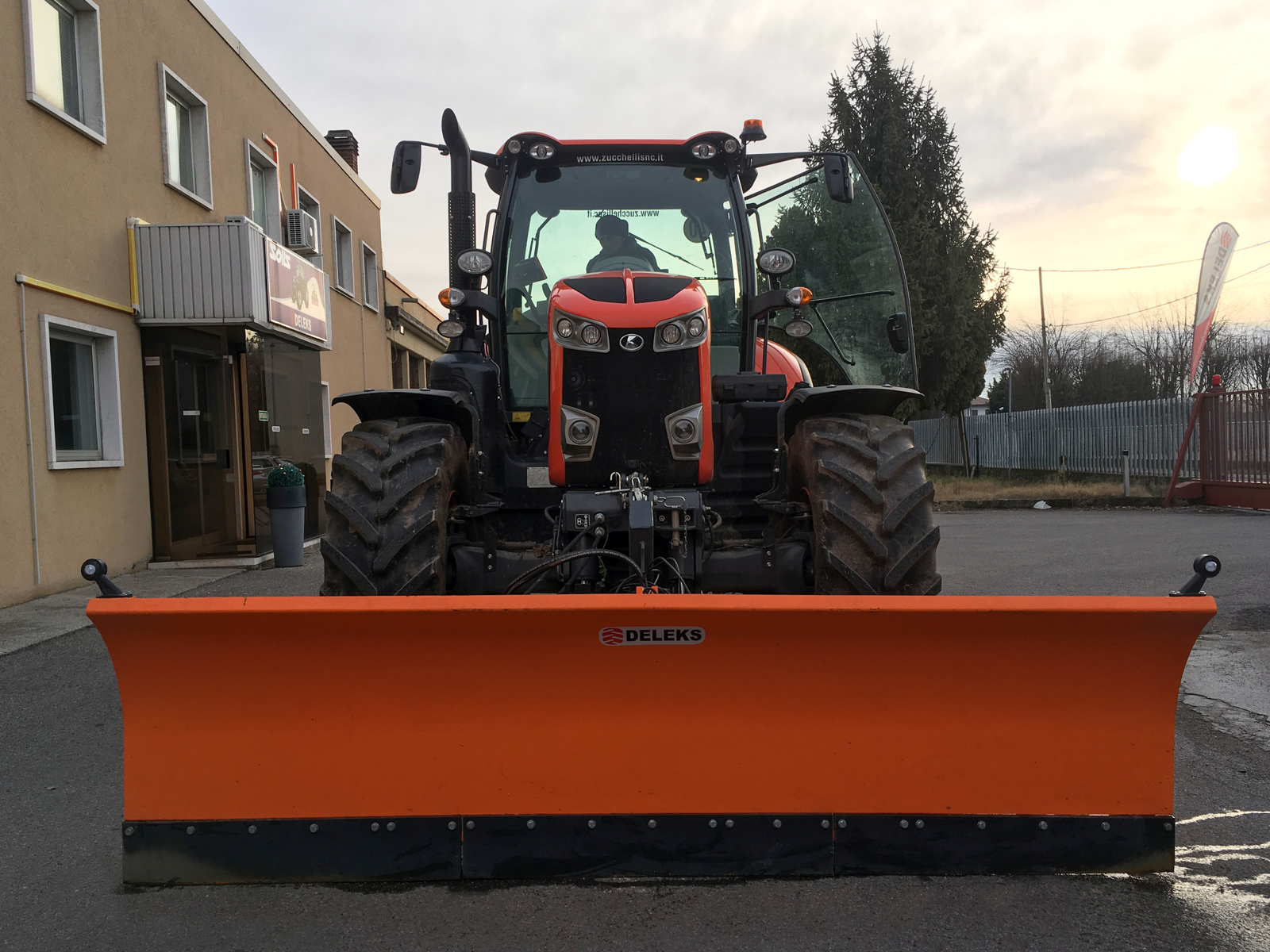

SSH-04 2.6-C Heavy-duty snowplow has been designed for larger tractors with 3-point hitch of Cat. 2-3, with power range from 90 to 130hp with rear or front linkage. Compatible with all tractors as Landini Power, M Kubota, Massey Ferguson, John Deere 5 Series, Same Explorer, Fiat, Case, Claas, Deutz-Fahr.
Angling of the plow is done hydraulically using two hydraulic cylinders and two hydraulic pipes 1.6m in length. Supplied with 2 support wheels and marker lights. Conforms to the EC Machinery Directive. 2 years Warranty.
BENEFITS AND FEATURES

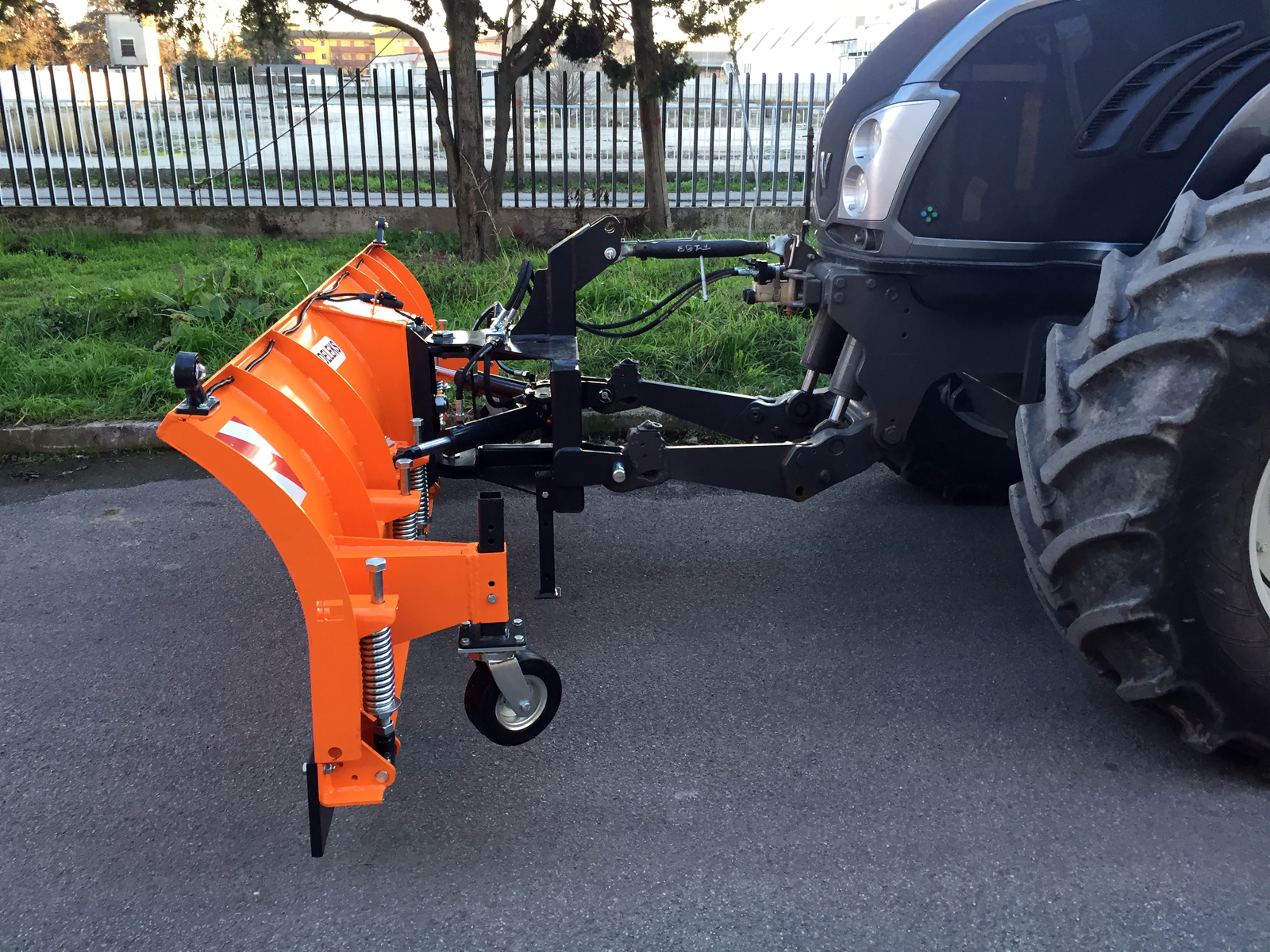

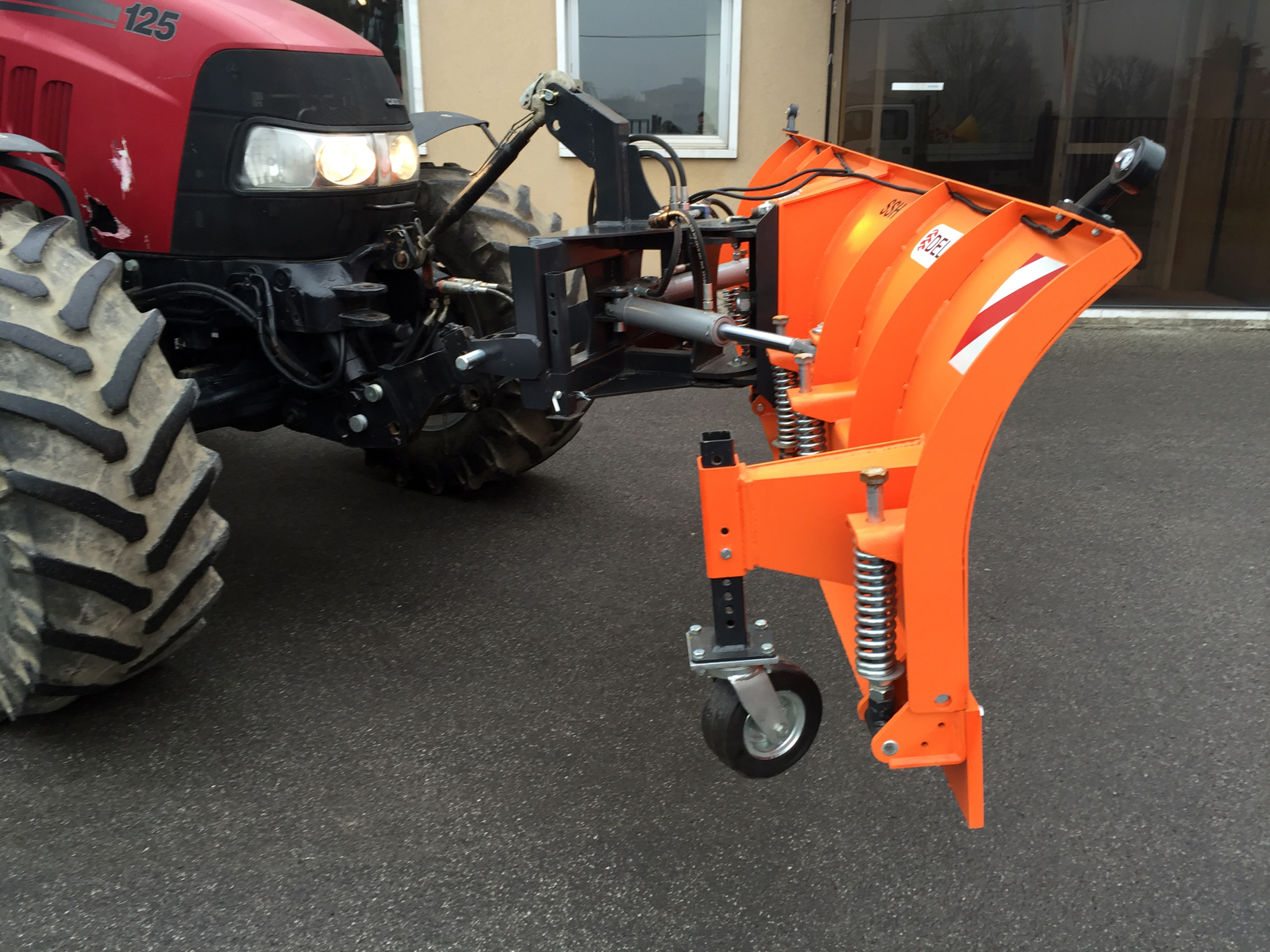

Shockproof system with 6 shock absorbing springs to operate in maximum safety.
3 independent steel or rubber scraping elements.
Extreme ease of assembly and use.

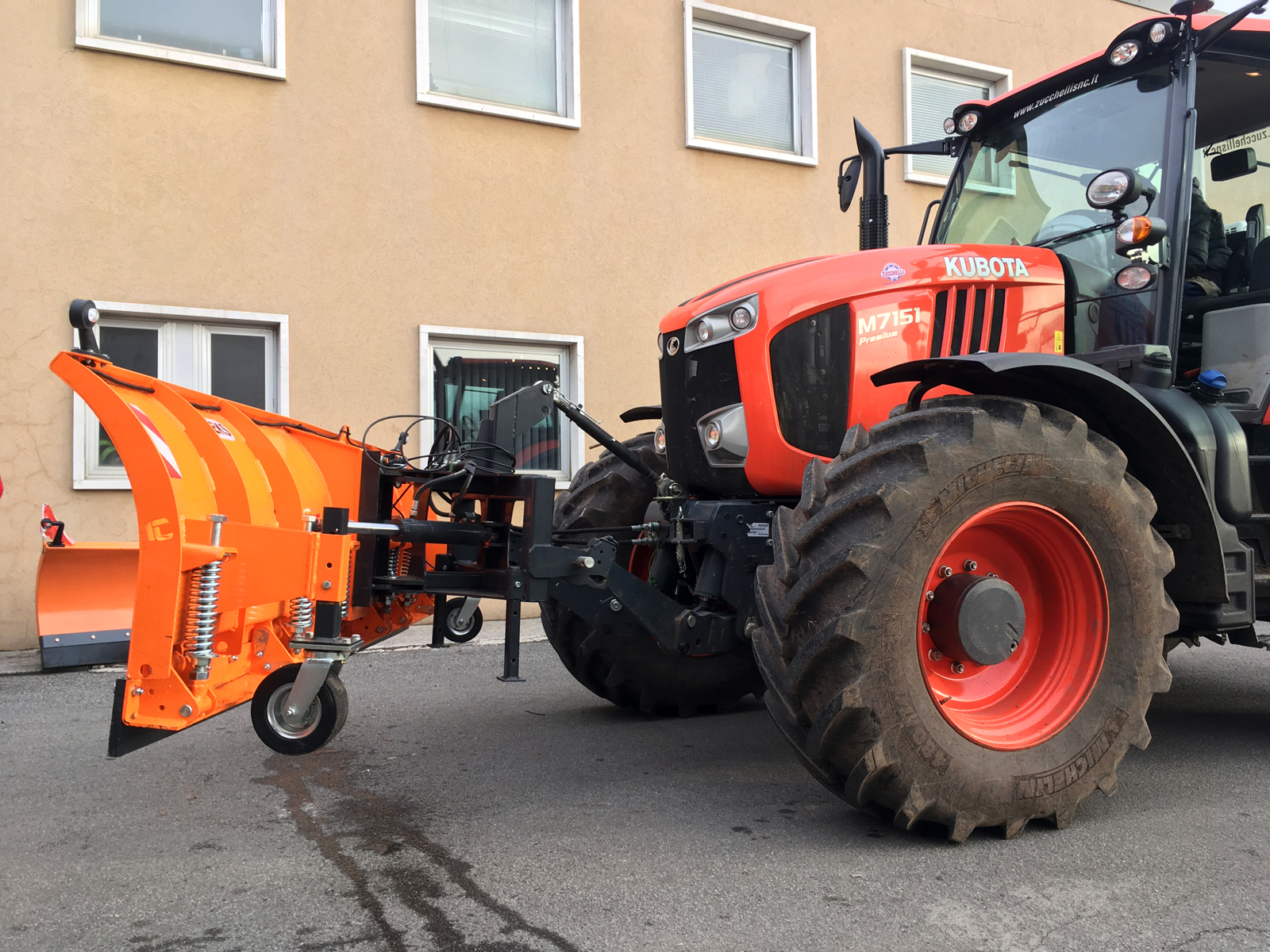

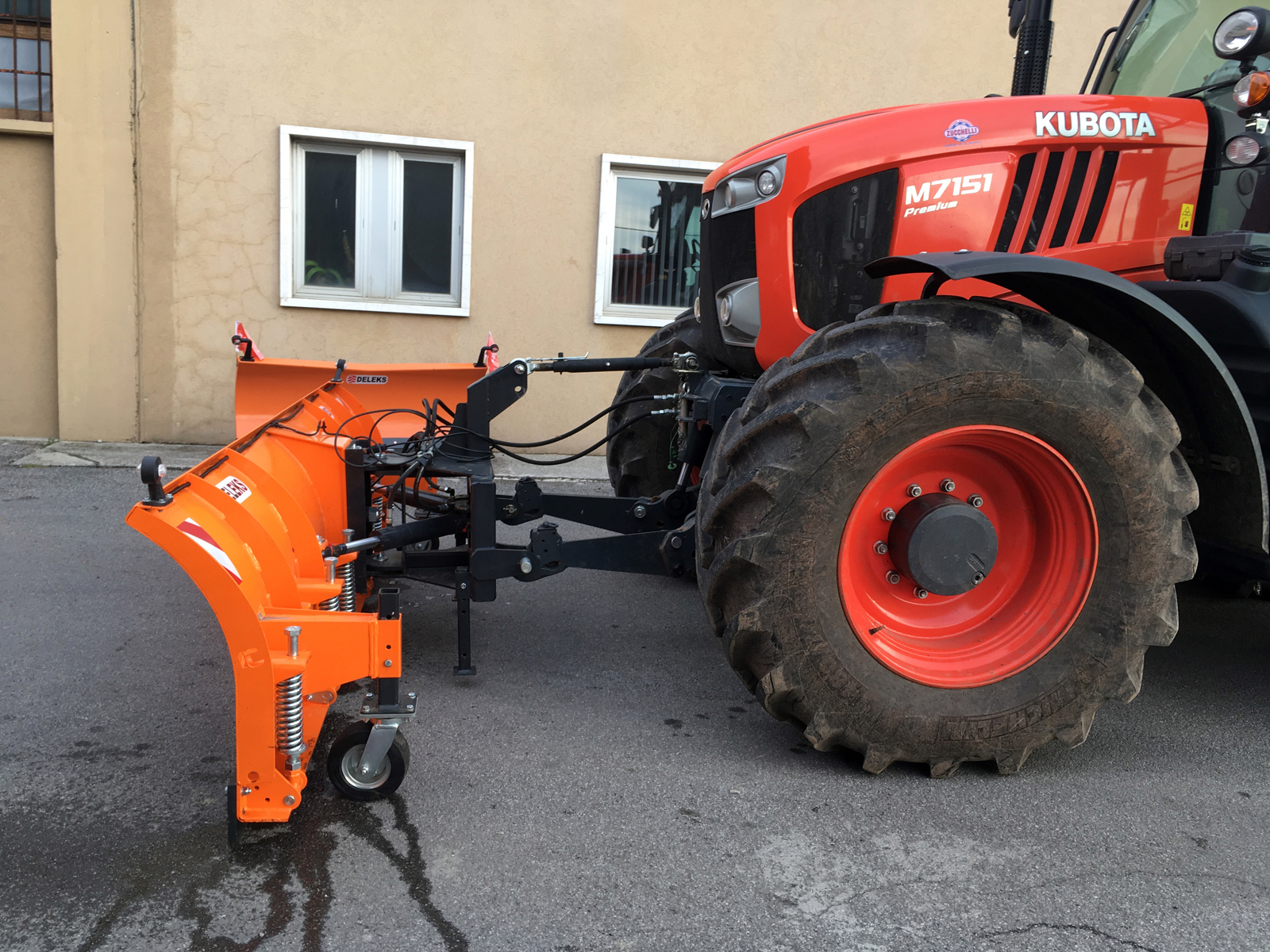

Support wheels allow the blade height to be adjusted.
The 3-point hitch is removable and replaceable with EURO linkage for tractor front-end loaders, or Telescopic loaders linkage e.g. MERLO, MANITOU, JCB, or Flat plate for after-sale customization.
Perfect adherence to the road surface and homologated for road use.
|Characteristic||Units metric||Units US|
|Weight||460.0 kg||1015.0 lb|
|Overall height||880.0 mm||2.90 ft|
|Tractor Power Range||90 - 130 Hp||90 - 130 Hp|
|Overall Length||900.0 mm||2.95 ft|
|Spacing between the 2 lower points||800.0-1040.0 mm||31.50 - 40.95 in|
|Distance between the 2 lower points and ground||300.0 mm||11.80 in|
|Min./Max. Relief Pressure||110 - 150 bar||110 - 150 bar|
|Min./Max. Flow||18 - 22 l/min||18 - 22 l/min|
|Interface||3 point linkage cat. 2-3||3 point linkage cat. 2-3|
|Float||+/- 4°||+/- 4°|
|Blade Height||880.0 mm||2.90 ft|
|Side edge thickness||7.0 mm||0.28 in|
|Cutting Edge||Steel or Rubber||Steel or Rubber|
|Cutting Edge Height||200.0mm / 250.0mm||7.87 in / 9.85 in|
|Cutting Edge Thickness||20.0mm / 55.0mm||0.79 in / 2.16 in|
|Trip Edge Quantity||3||3|
|Distance betweens the bolts of the Trip Edge||175.0 mm||6.90 in|
|Removable Skid Shoes||Wheels||Wheels|
|Working width (angled)||2400.0 mm||7.87 ft|
|Hydraulic Hoses||2 x 1600.0 mm / connections 1.2" AGRI, WP 400 bar||2 x 5.25 ft / connections 1.2" AGRI, WP 400 bar|
|Overall width||2600.0 mm||8.53 ft|
|Main frame thickness||4.0 mm||0.15 in|
|Hydraulic cylinder/s ø||73.0/36.0 mm||2.87/1.41 in|
|Packing sizes||2600*1000*1000 мм||8.53*3.28*3.28 ft|
