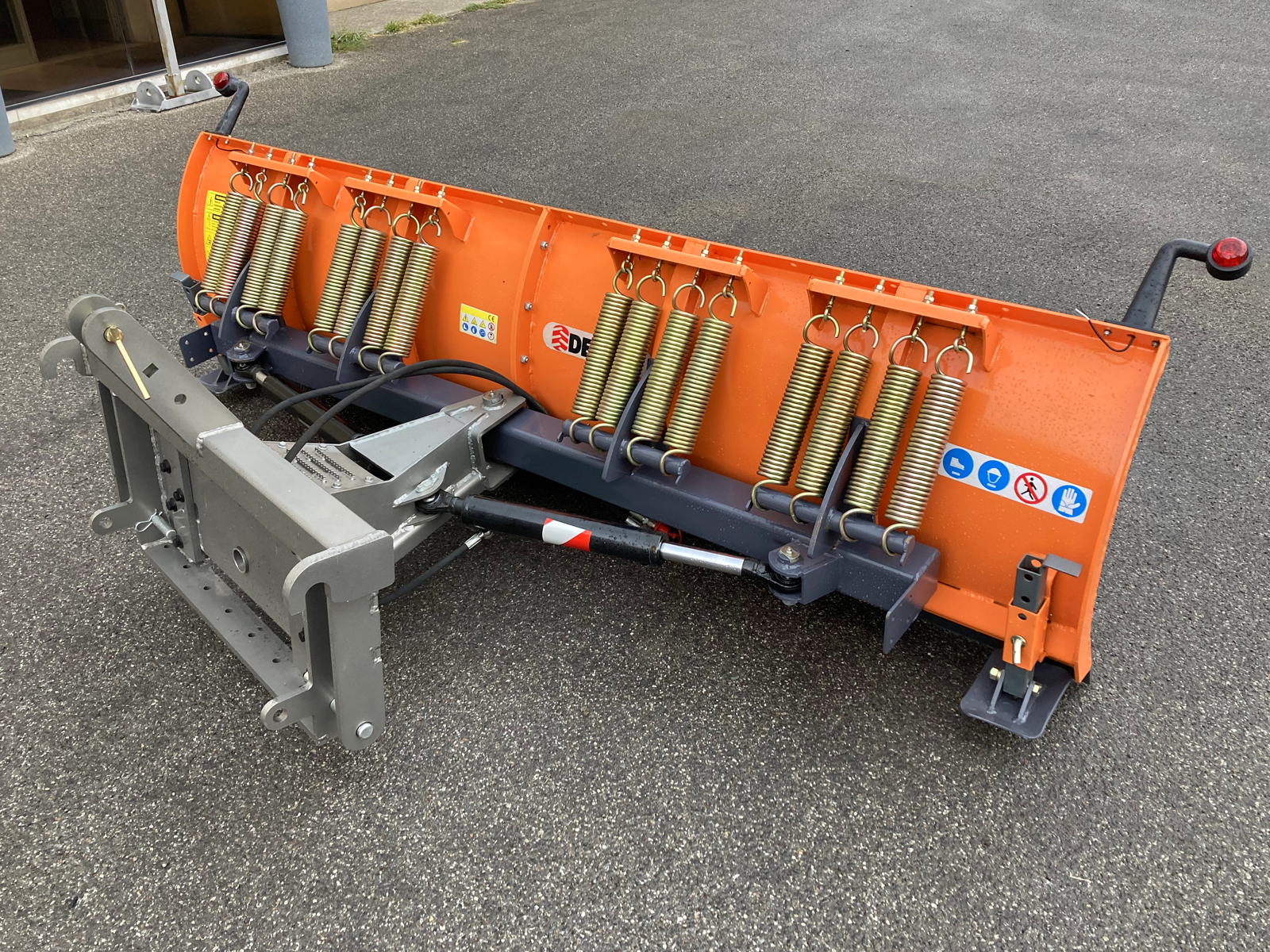

Snowplow for tractor front-end loaders, LN-250-E

Available
CodeLN250E
EAN 8053470231551
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

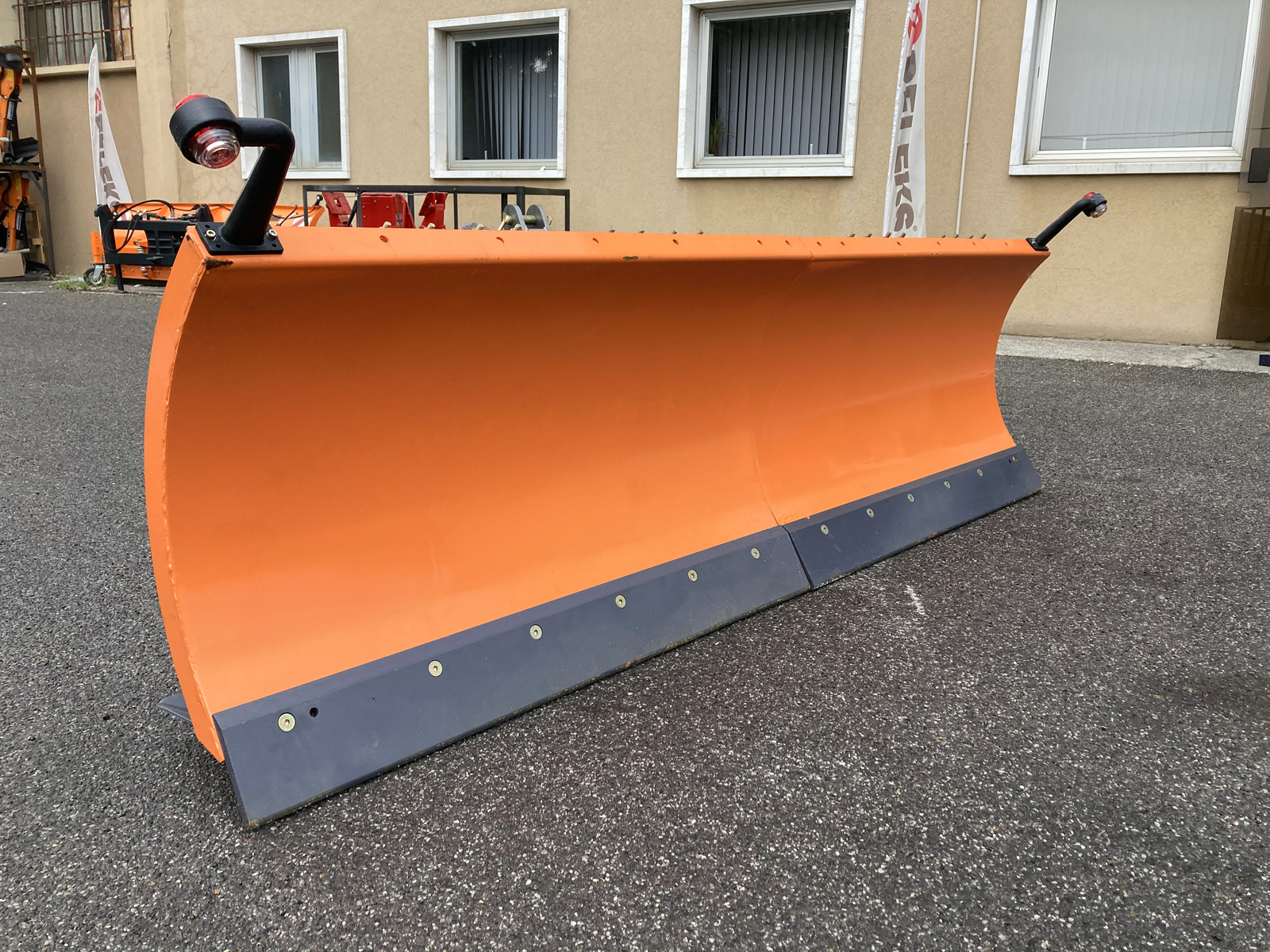

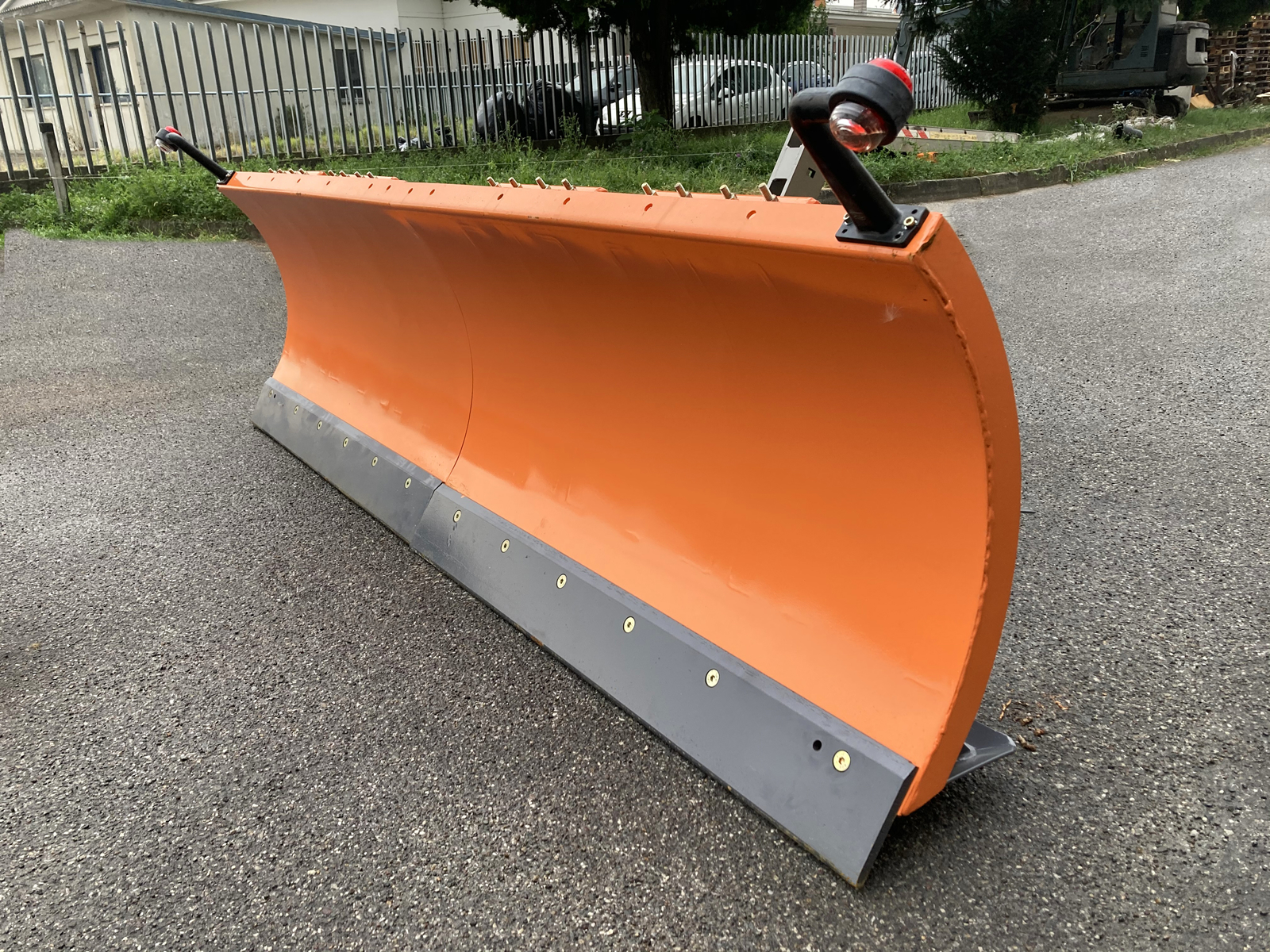

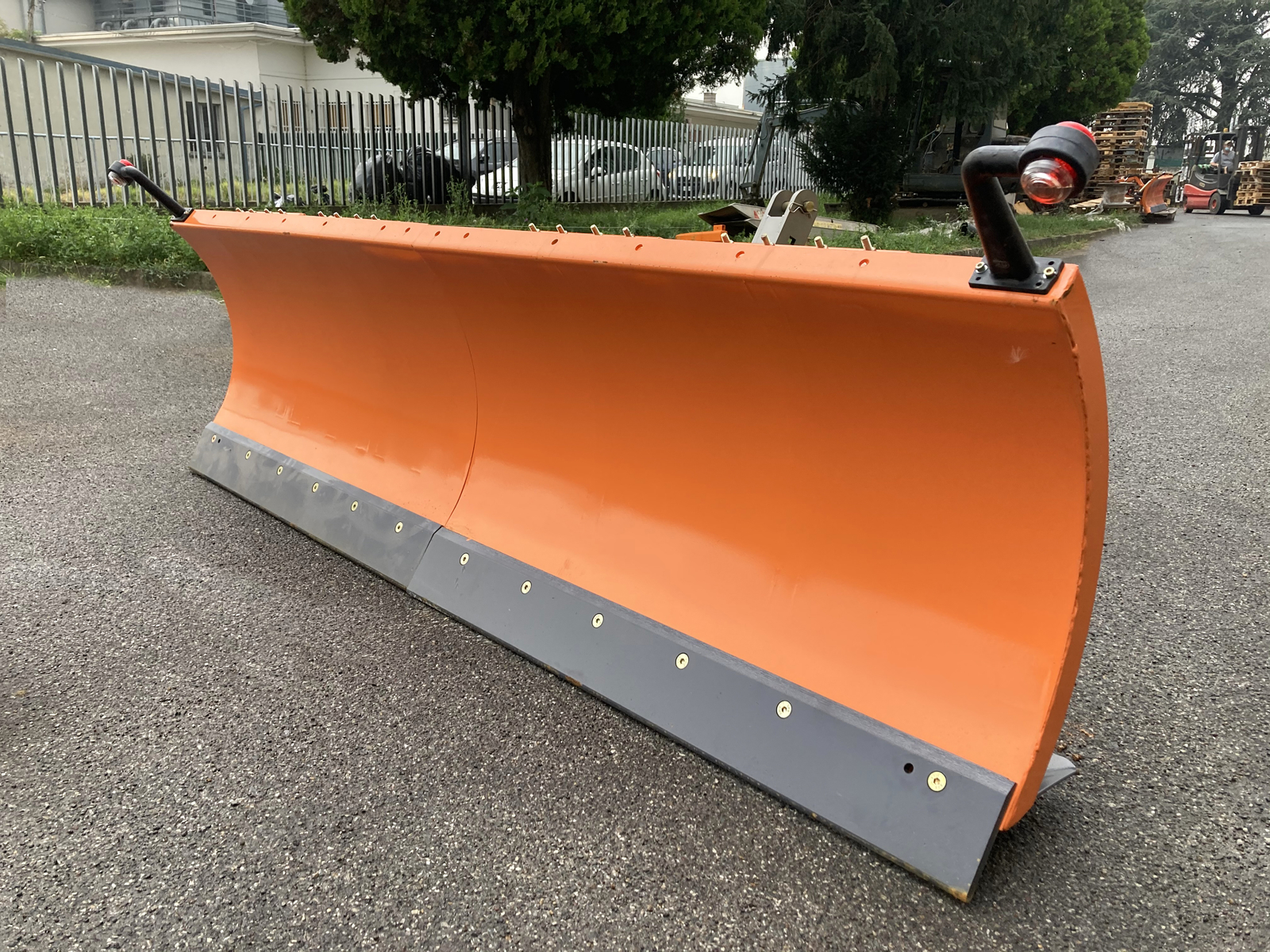

Snowblade 250cm for tractor front-end loaders, DELEKS® snow plough with Euro attachment - Homologated for road use.


OVERVIEW

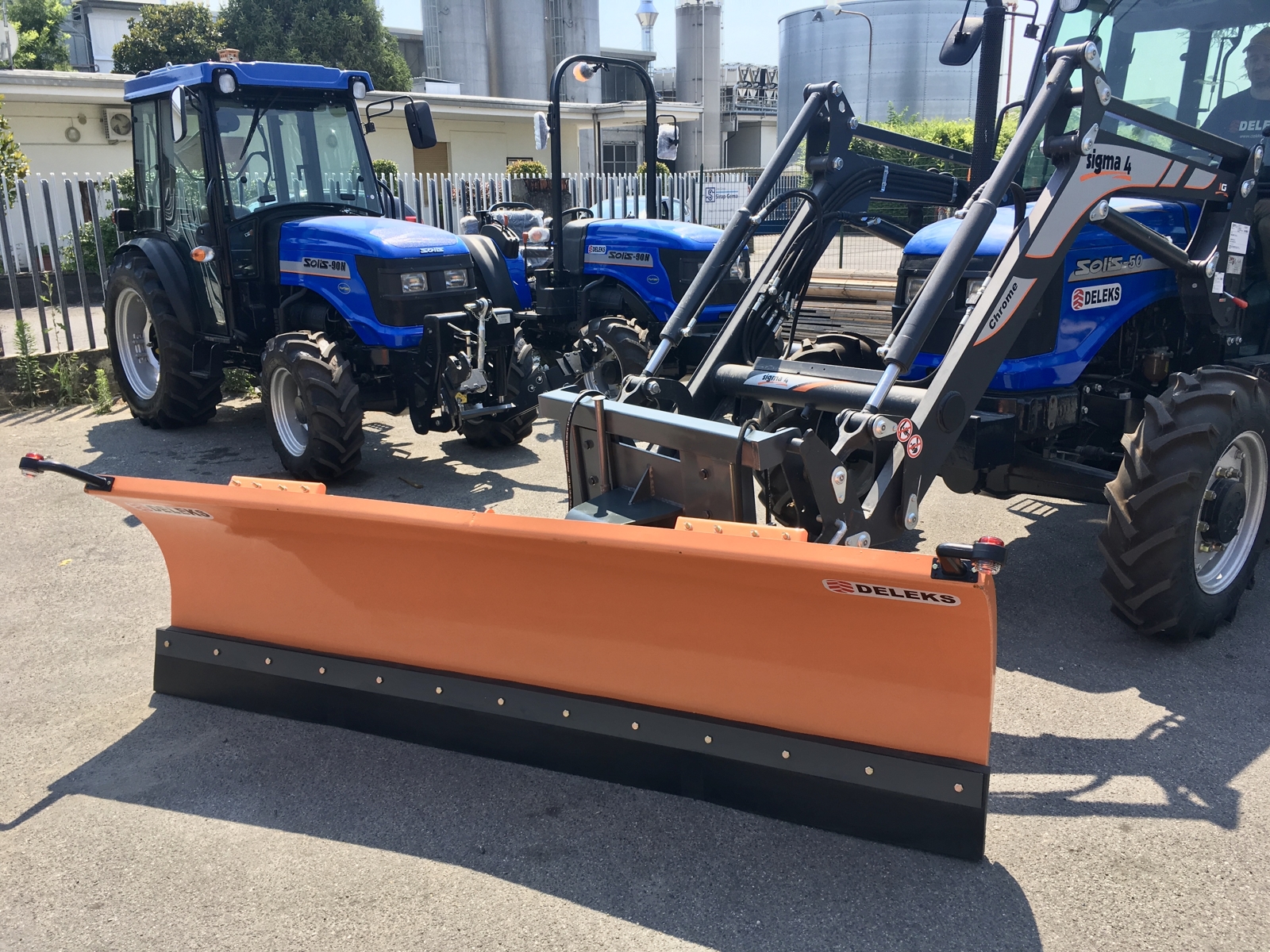

LN-250-E Snowplow has been designed for tractors front-end loaders, from 60 to 80hp. Angling of the plow is done hydraulically. We supply 1.5m pipes that connect to the tractor. Supplied with skid shoes and marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.



BENEFITS AND FEATURES

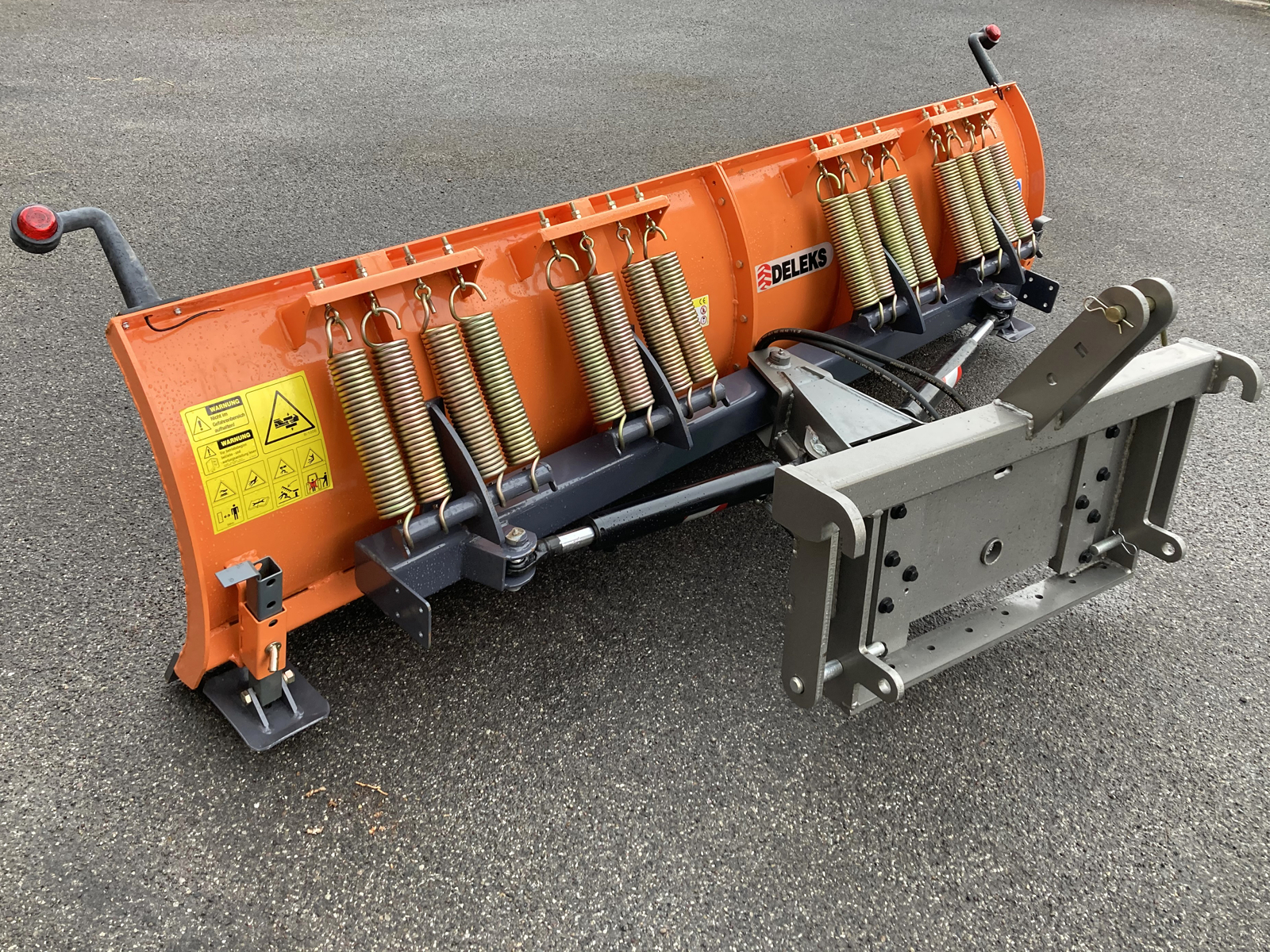

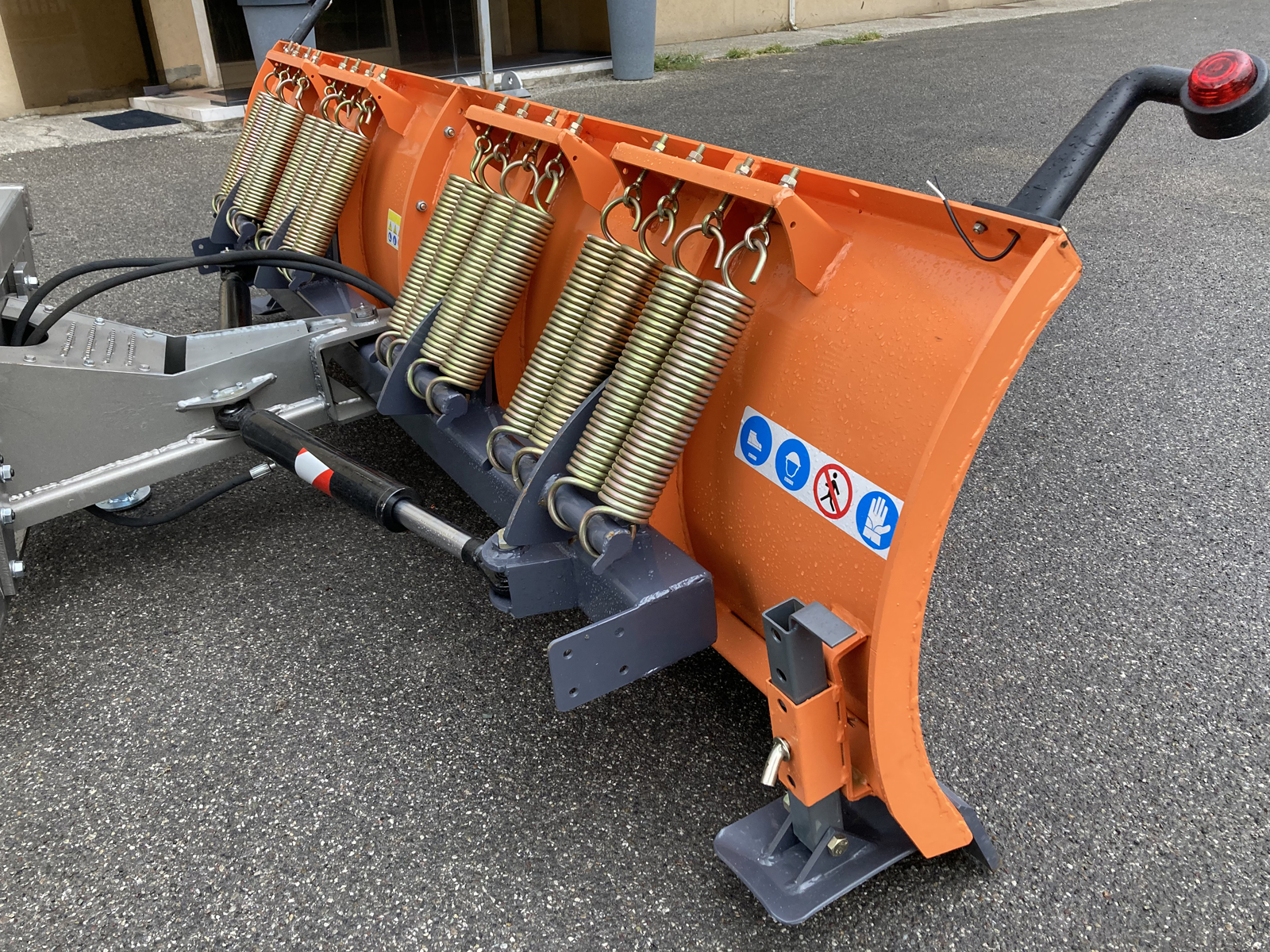

Shockproof system with 8 shock absorbing springs to operate in maximum safety.

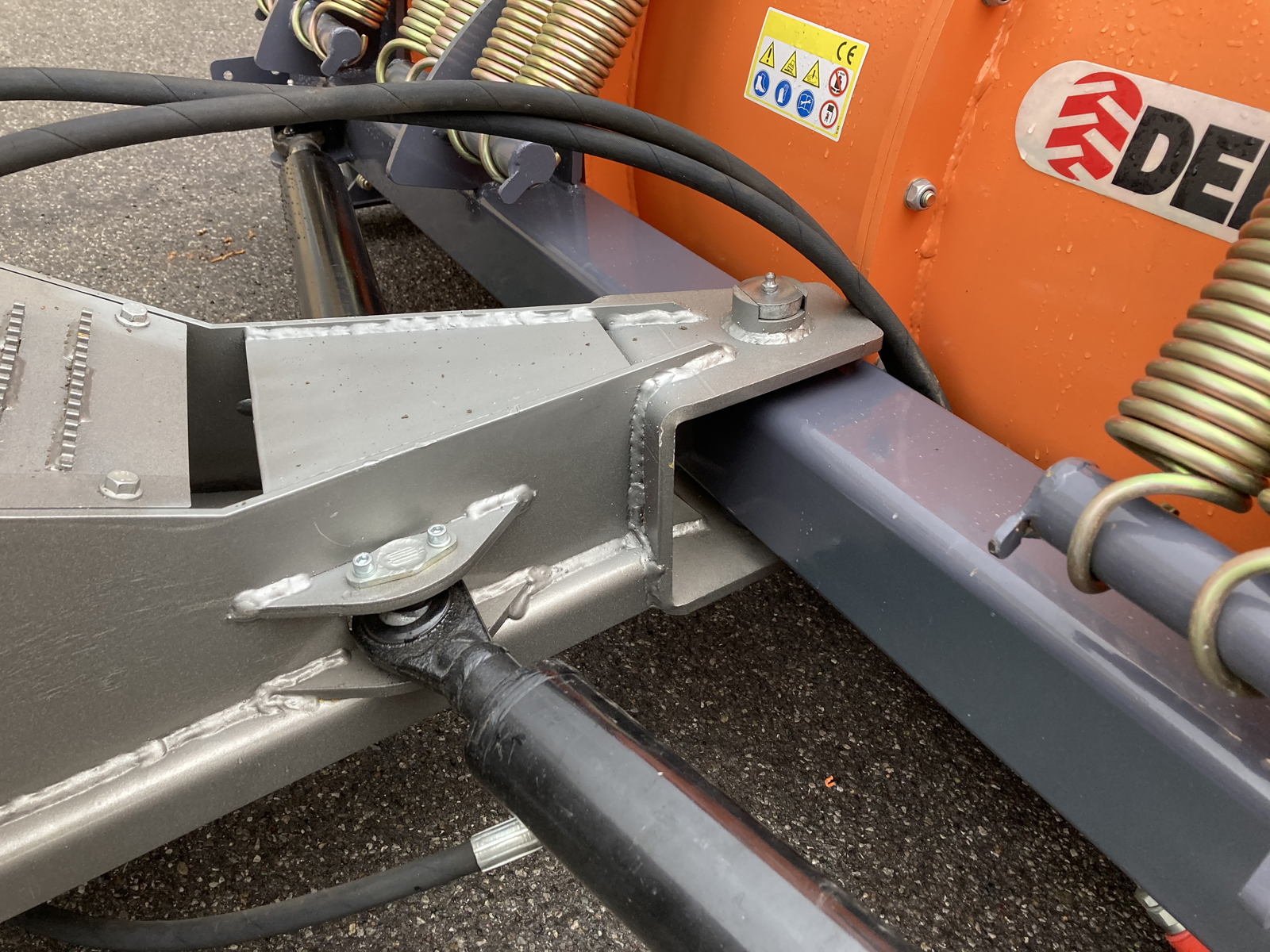

Hydraulic system consists of two pistons brand Made in Italy for the right orientation / left.

Perfect adherence to the road surface and homologated for road use.

Extreme ease of assembly and use.

Adjustable torque slides, make work easier, reducing the pressure on the cutting edge, especially on rough surfaces such as gravel parking lots.

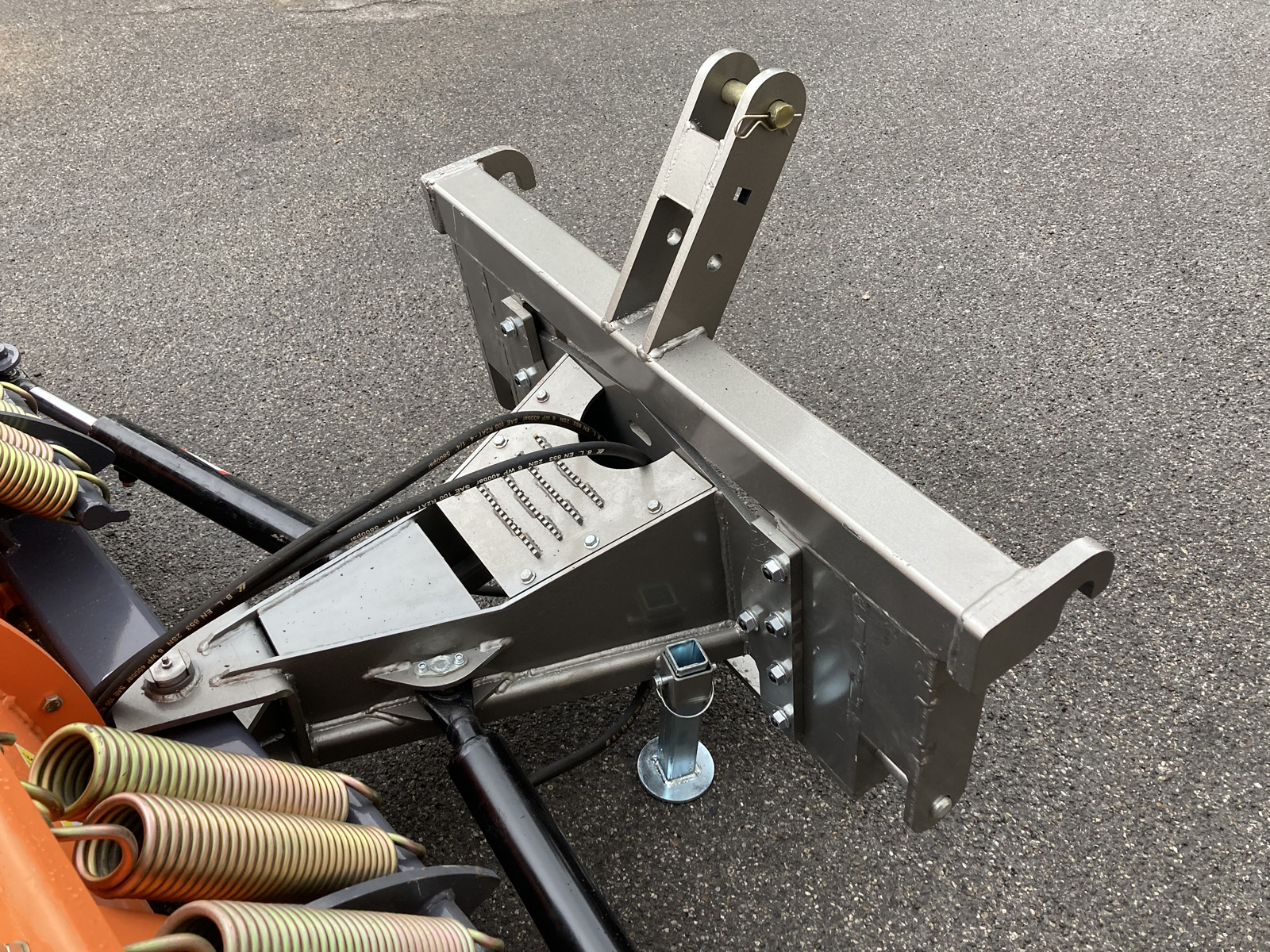

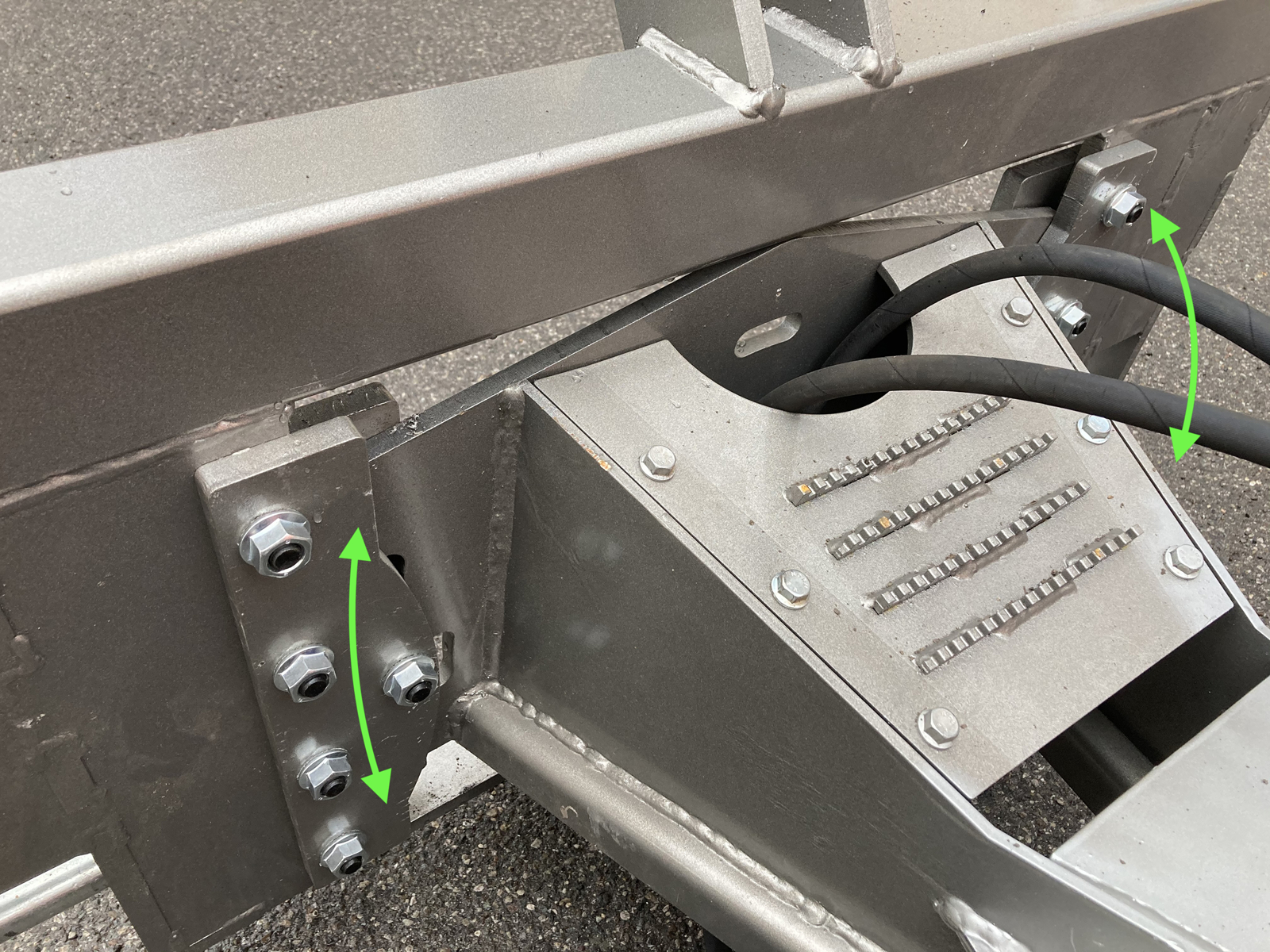

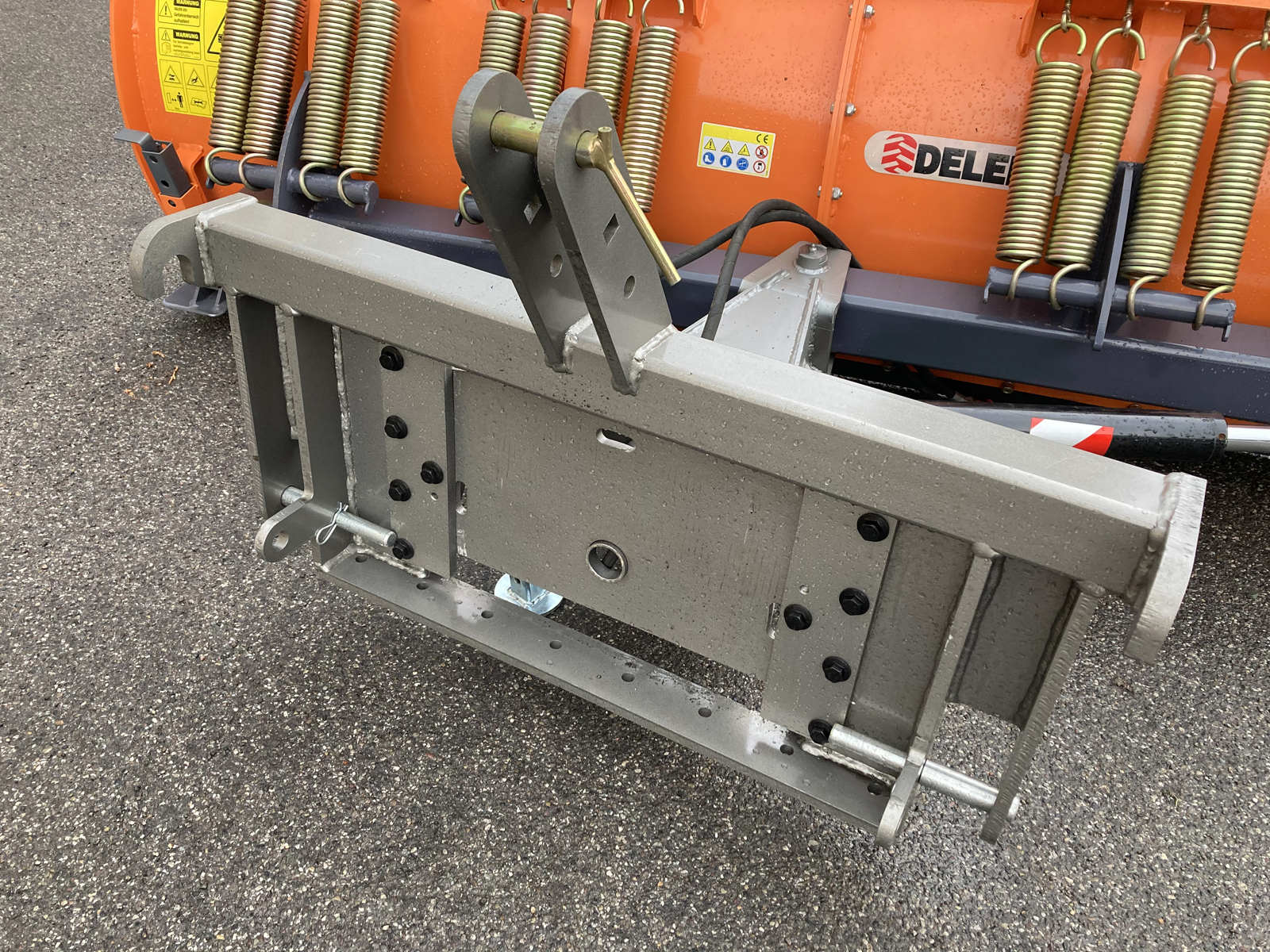

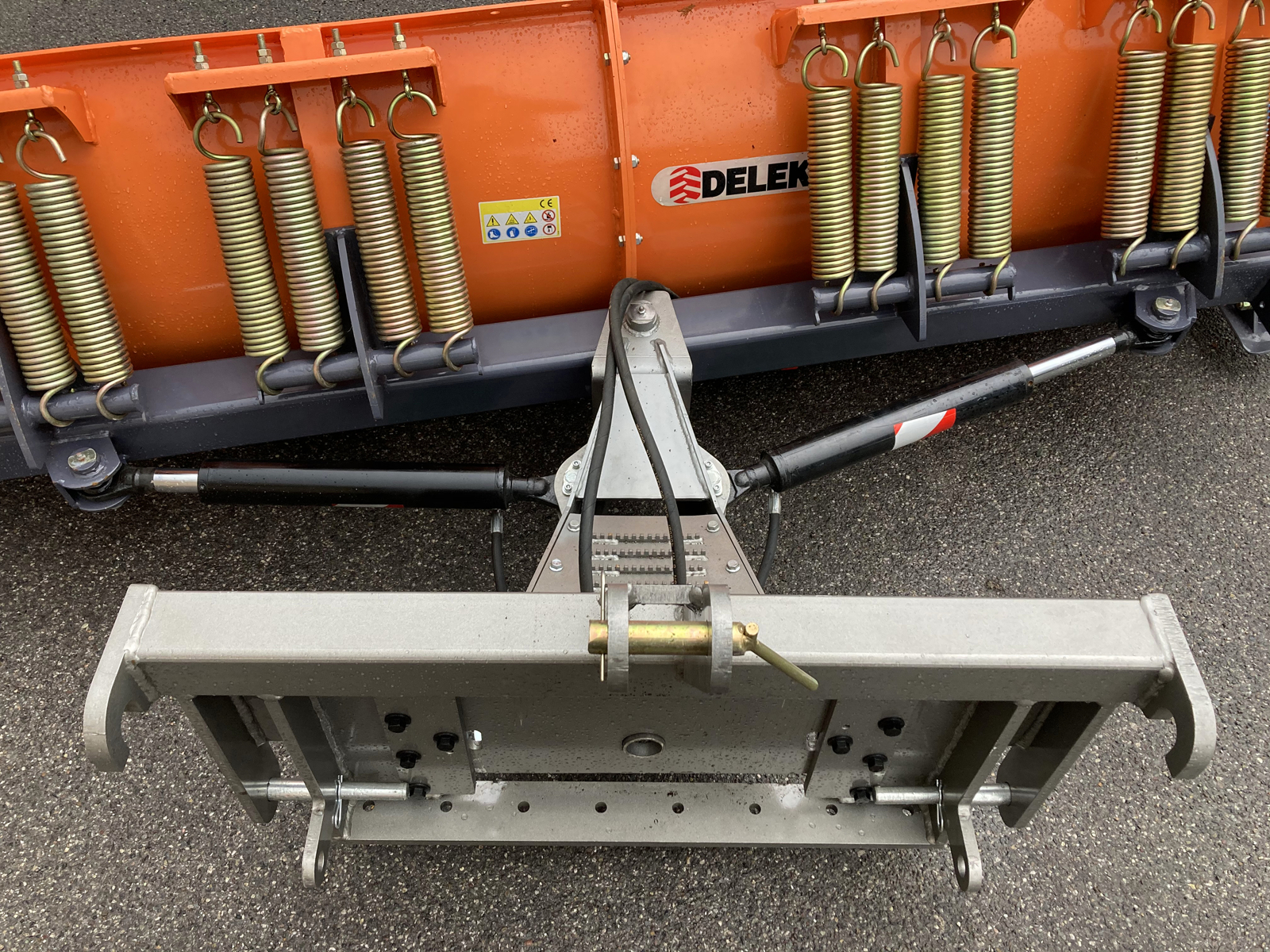

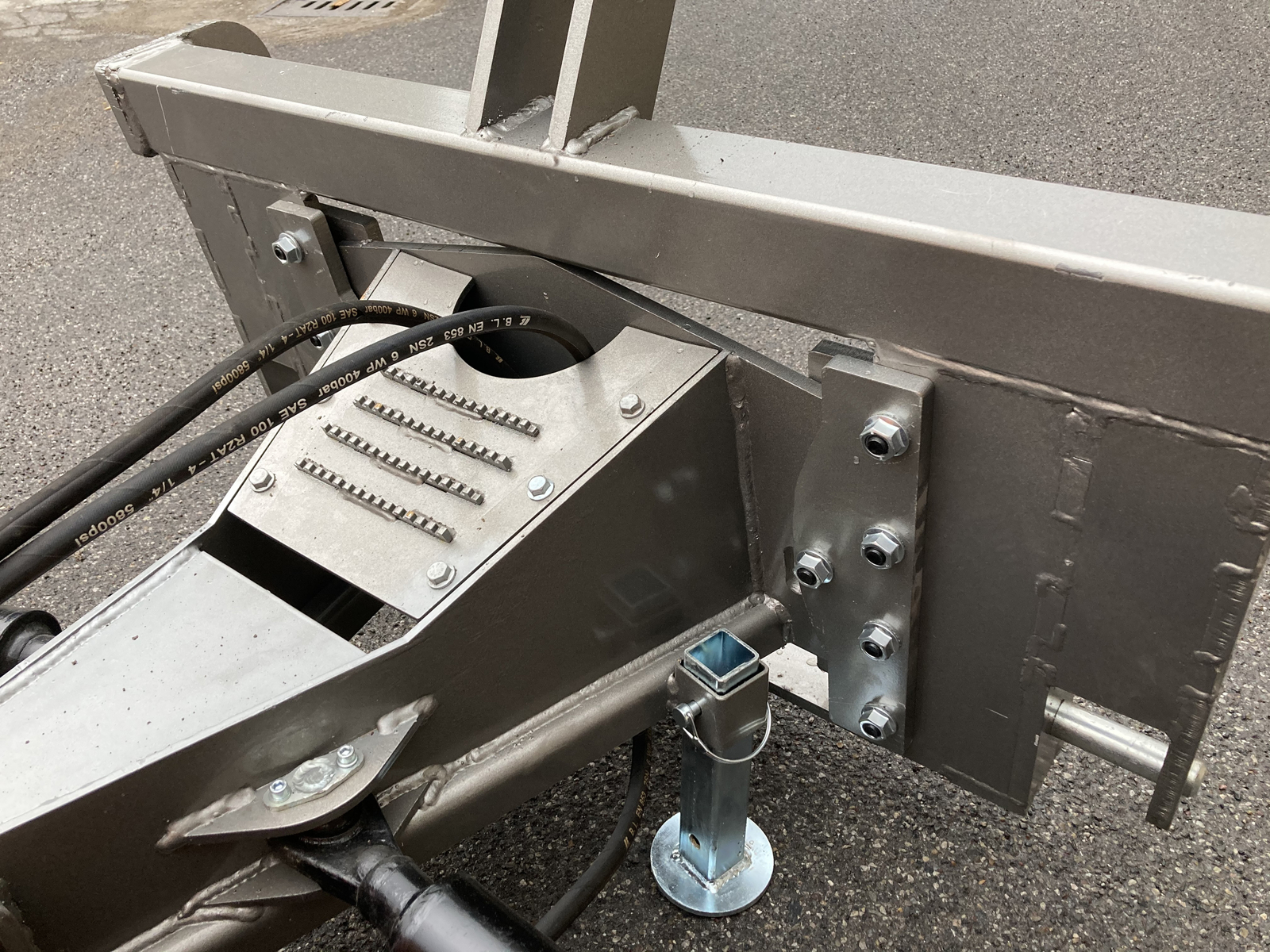

The EURO linkage is removable and replaceable with fitting plate, 3-point hitch, or Skid steer loaders.



Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual



CARACTERISTICS

Caracteristic Units metric Units US
Weight 342.0 kg 754.0 lb
Overall height 700.0 mm 2.30 ft
Tractor Power Range 60 - 80 Hp 60 - 80 Hp
Overall Length 950.0 mm 3.11 ft
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface EURO EURO
Angling (left/right) 27° 27°
Float +/- 4° +/- 4°
Blade Height 700.0 mm 2.30 ft
Side edge thickness 8.0 mm 0.32 in
Shock absorbers 8 8

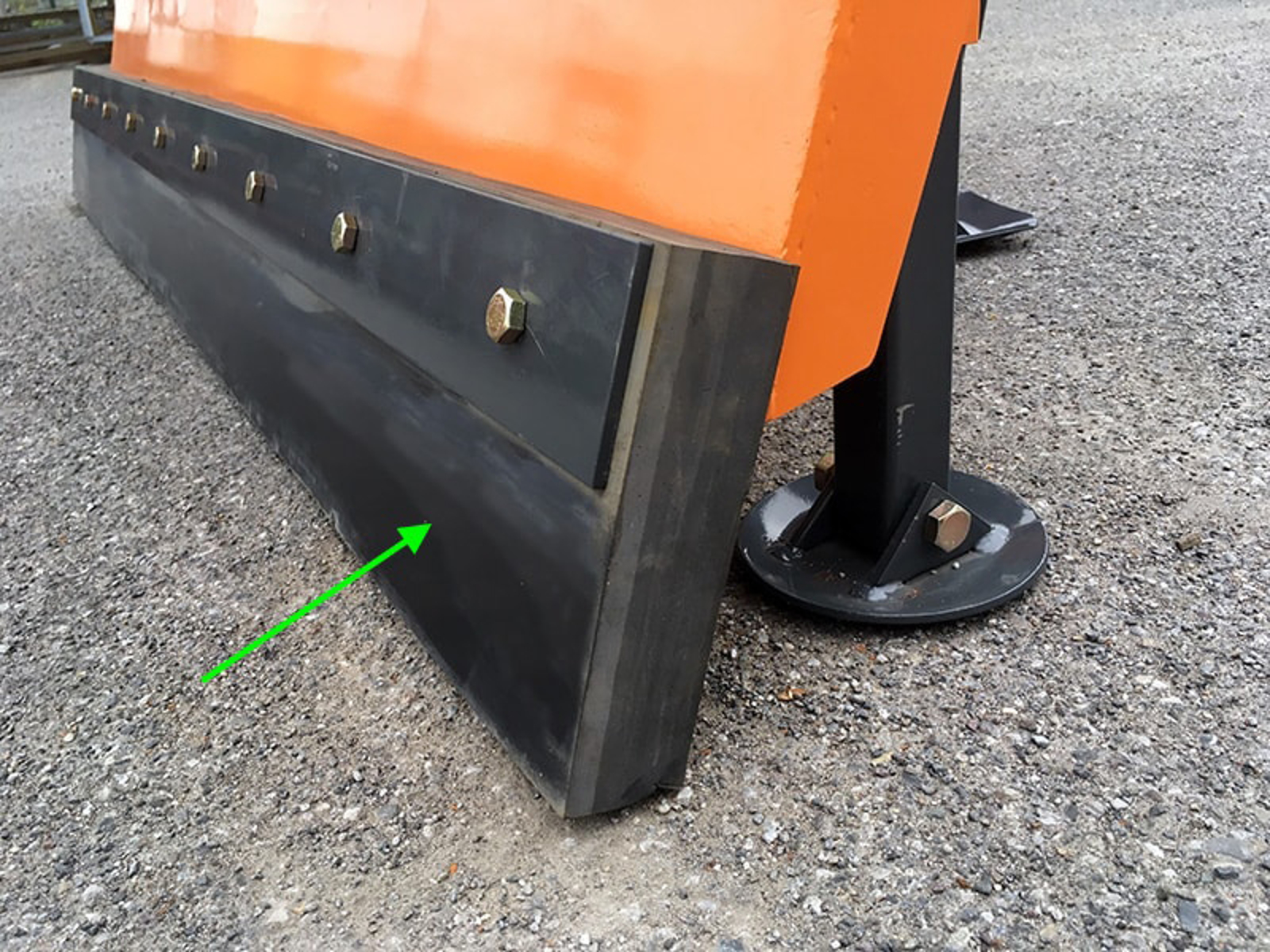

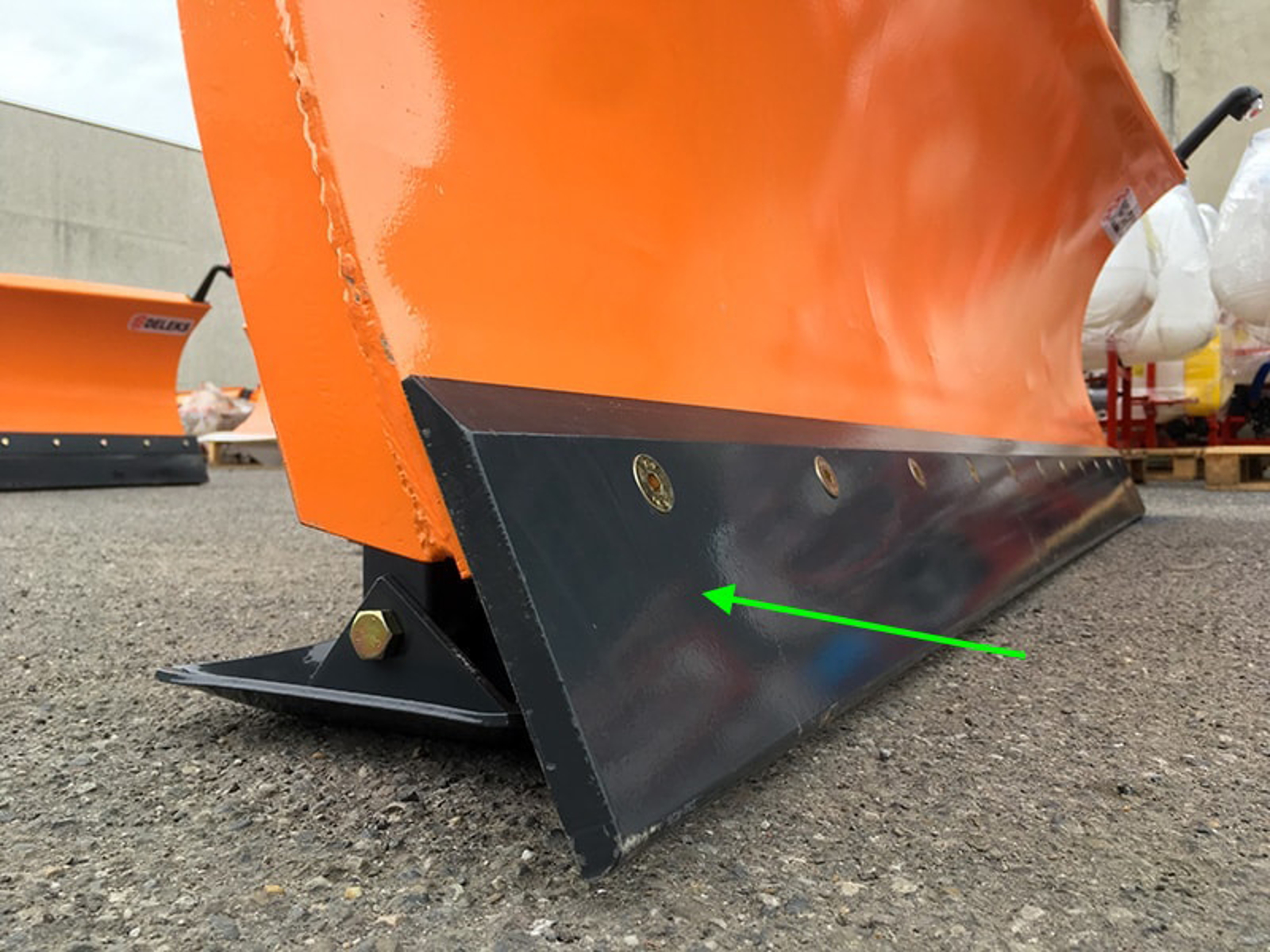

Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 150.0 mm 5.90 in
Cutting Edge Thickness 16.0 mm 0.63 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights
Removable Skid Shoes

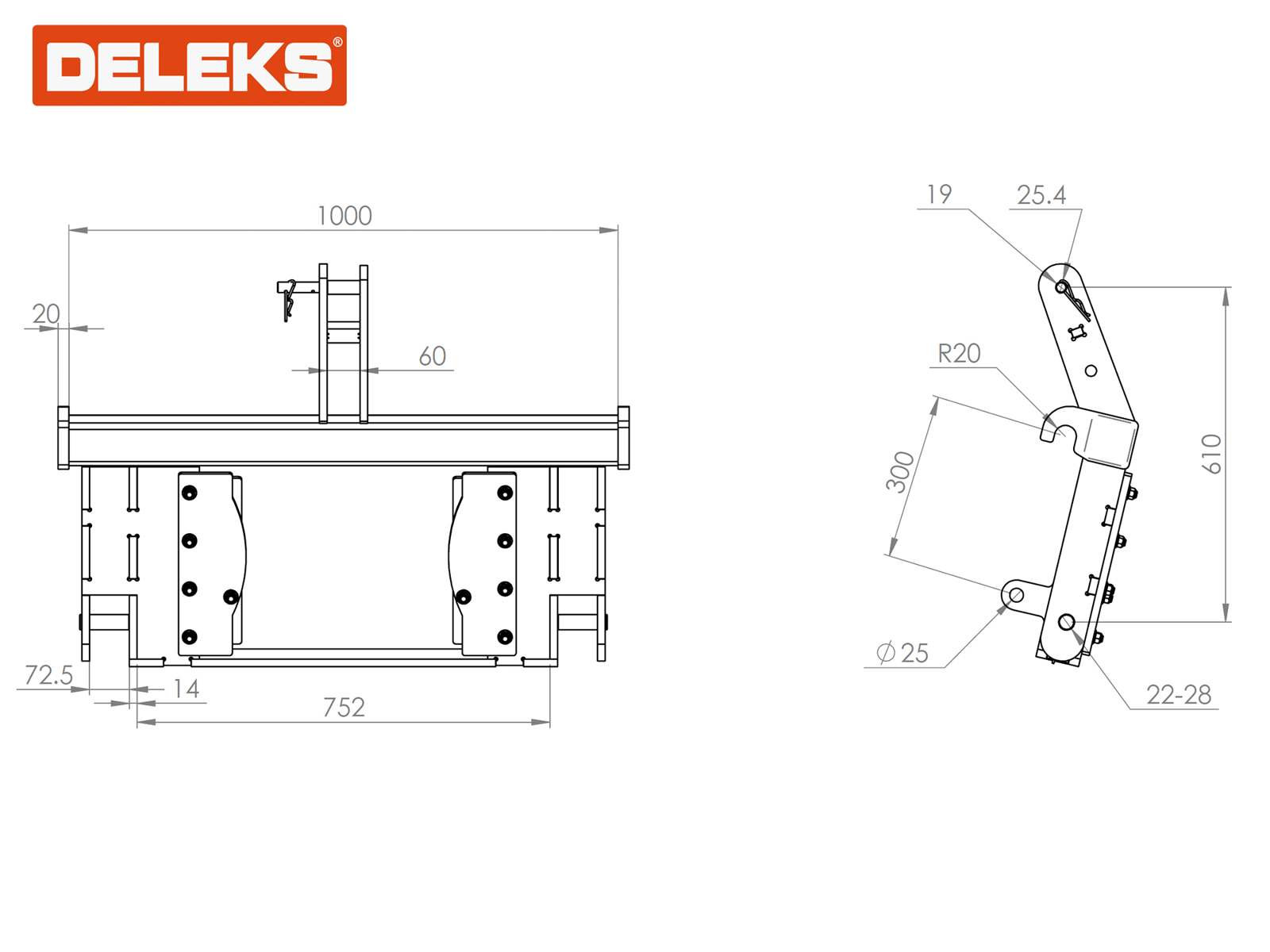

Universal attachment sizes See pictures See pictures
Working width (angled) 2231.0 mm 7.32 ft
Hydraulic Hoses 2 x 1500.0 mm / connections 1.2" AGRI, WP 400 bar 2 x 4.92 ft/ connections 1.2", WP 400 bar
Overall width 2505.0 mm 8.22 ft
Main frame thickness 5.0 mm 0.2 in
Hydraulic cylinder/s ø 60.0/30.0 mm 2.36/1.18 in
Packing sizes 2505.0*800.0*830.0 mm 8.22*2.62*2.95 ft
