Snowplough for tractor front-end loaders, LNV-200-E

4.5

295 reviews

Available
Code LNV200EG
EAN 8053470231575
View all details.
D
H
M
S
-293,00 2.930,00VAT incl.
TOTAL
2.637,00VAT incl.
Free shipping

DETAILS

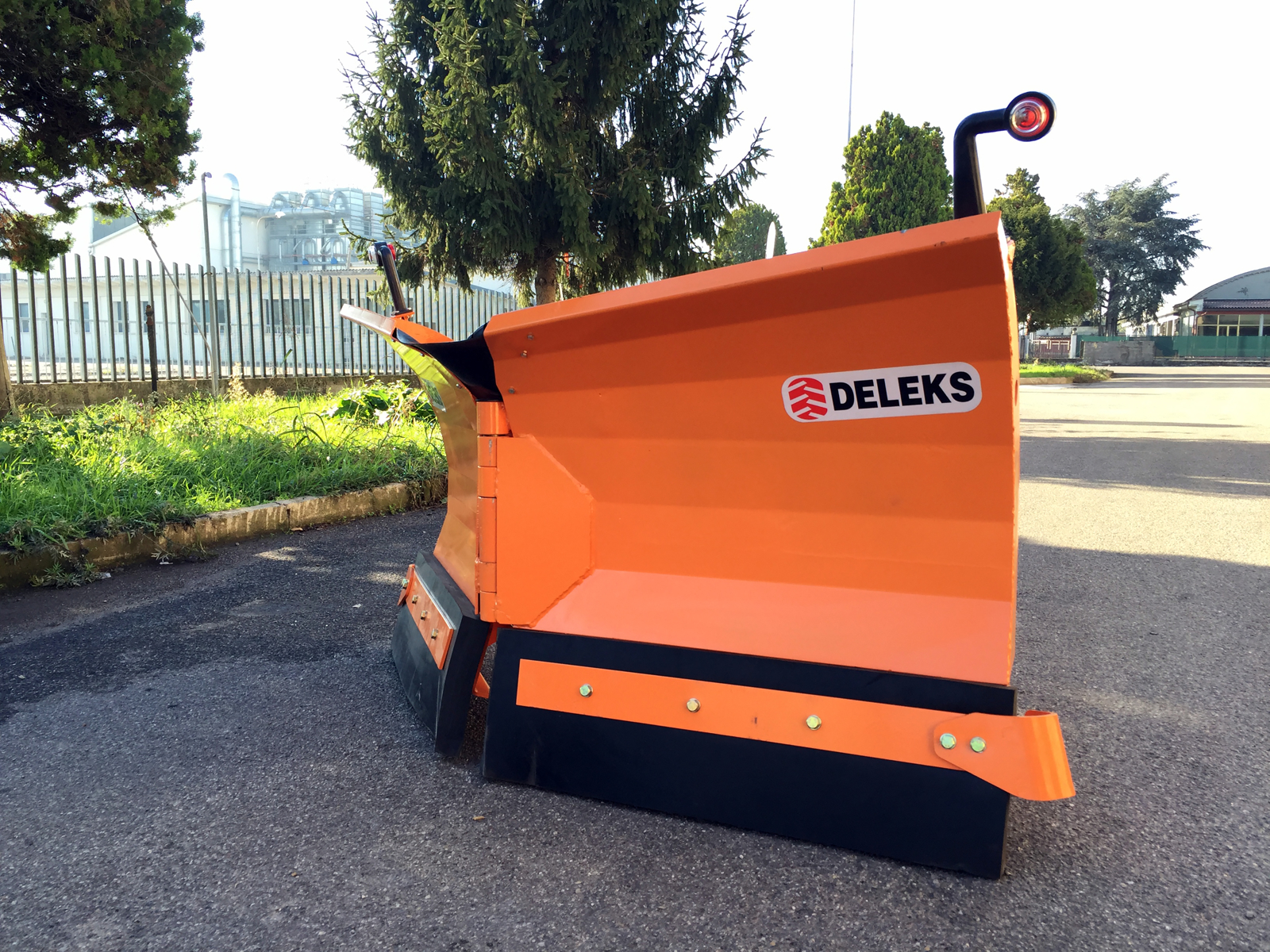

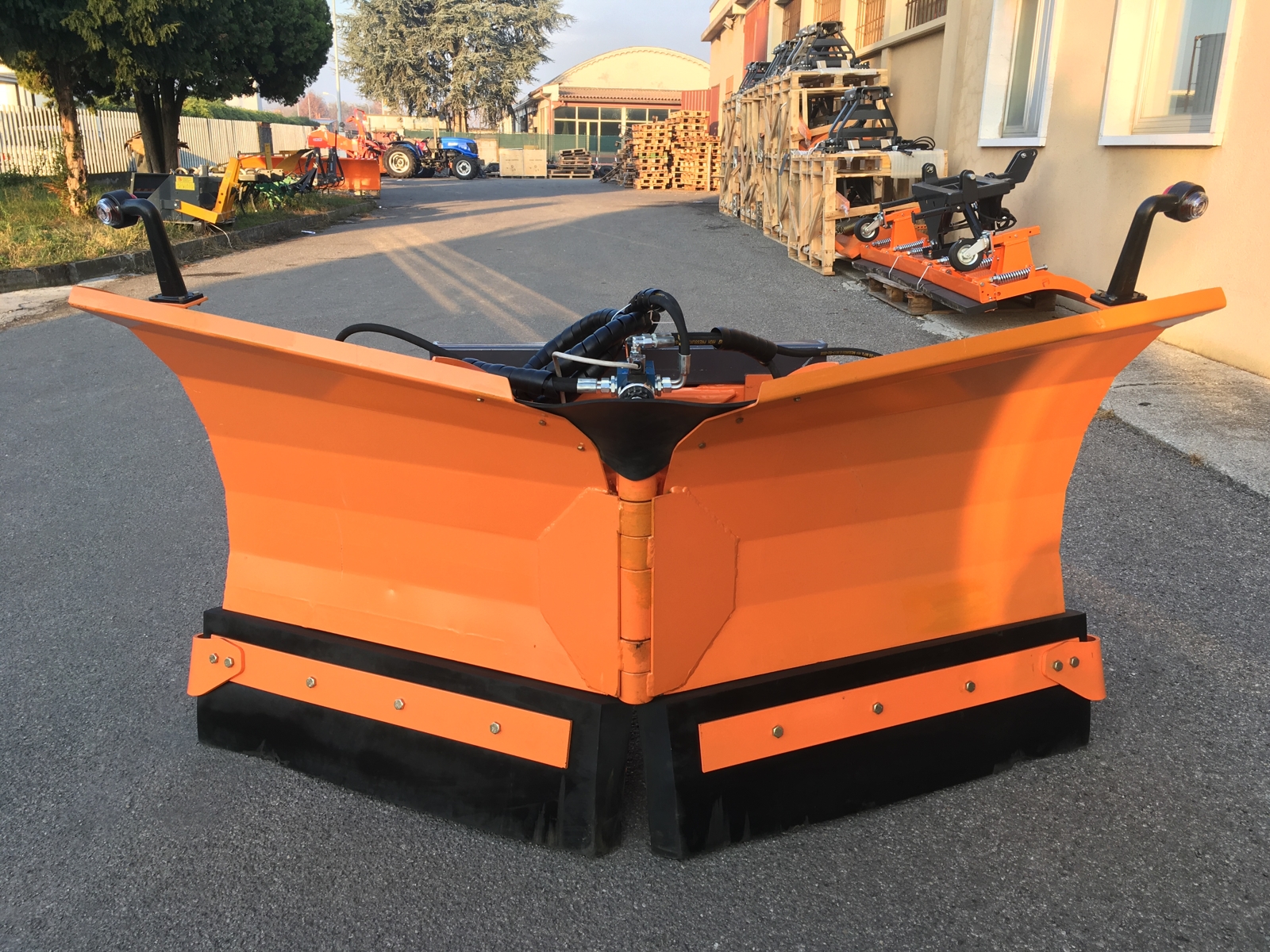

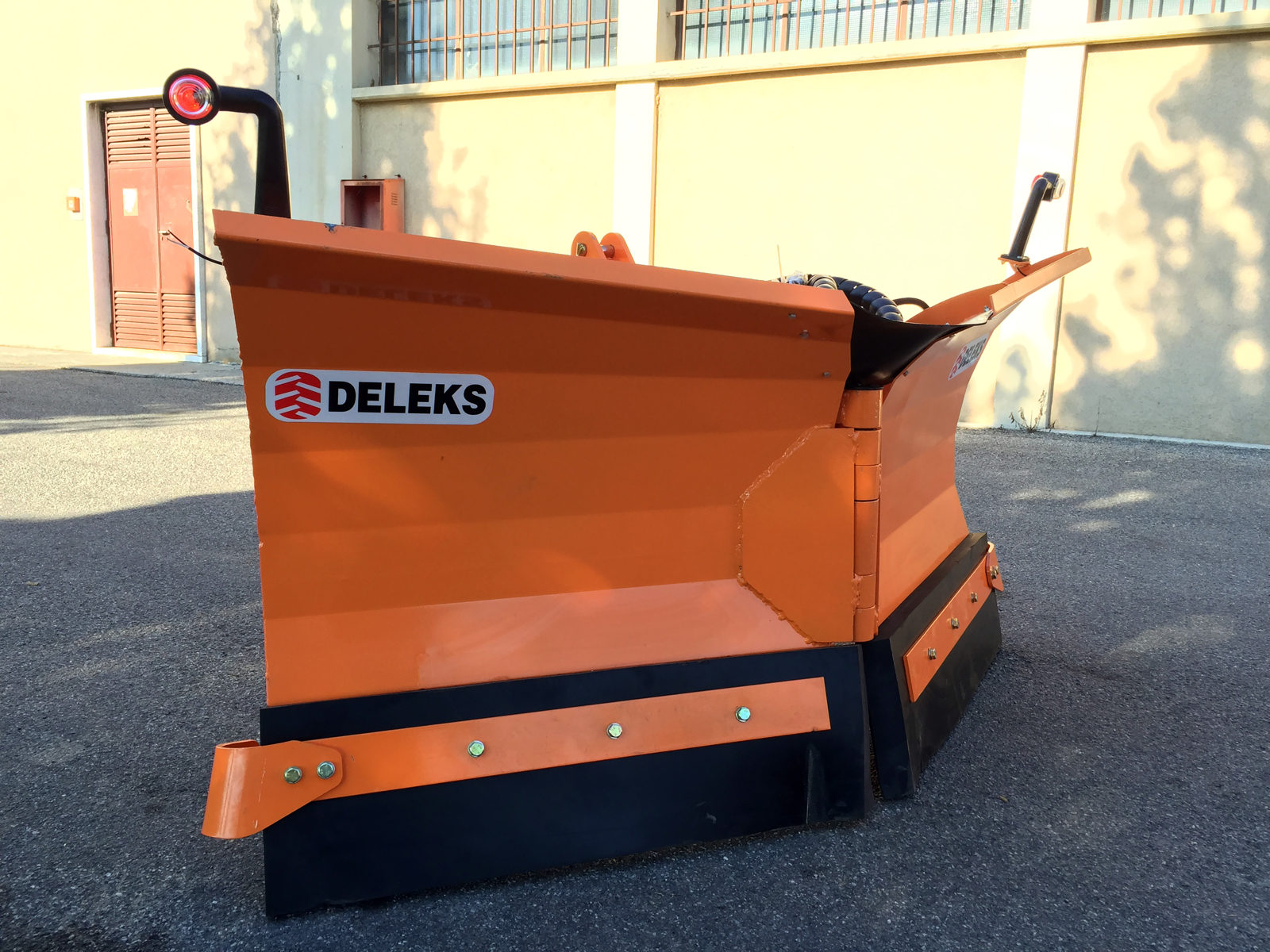

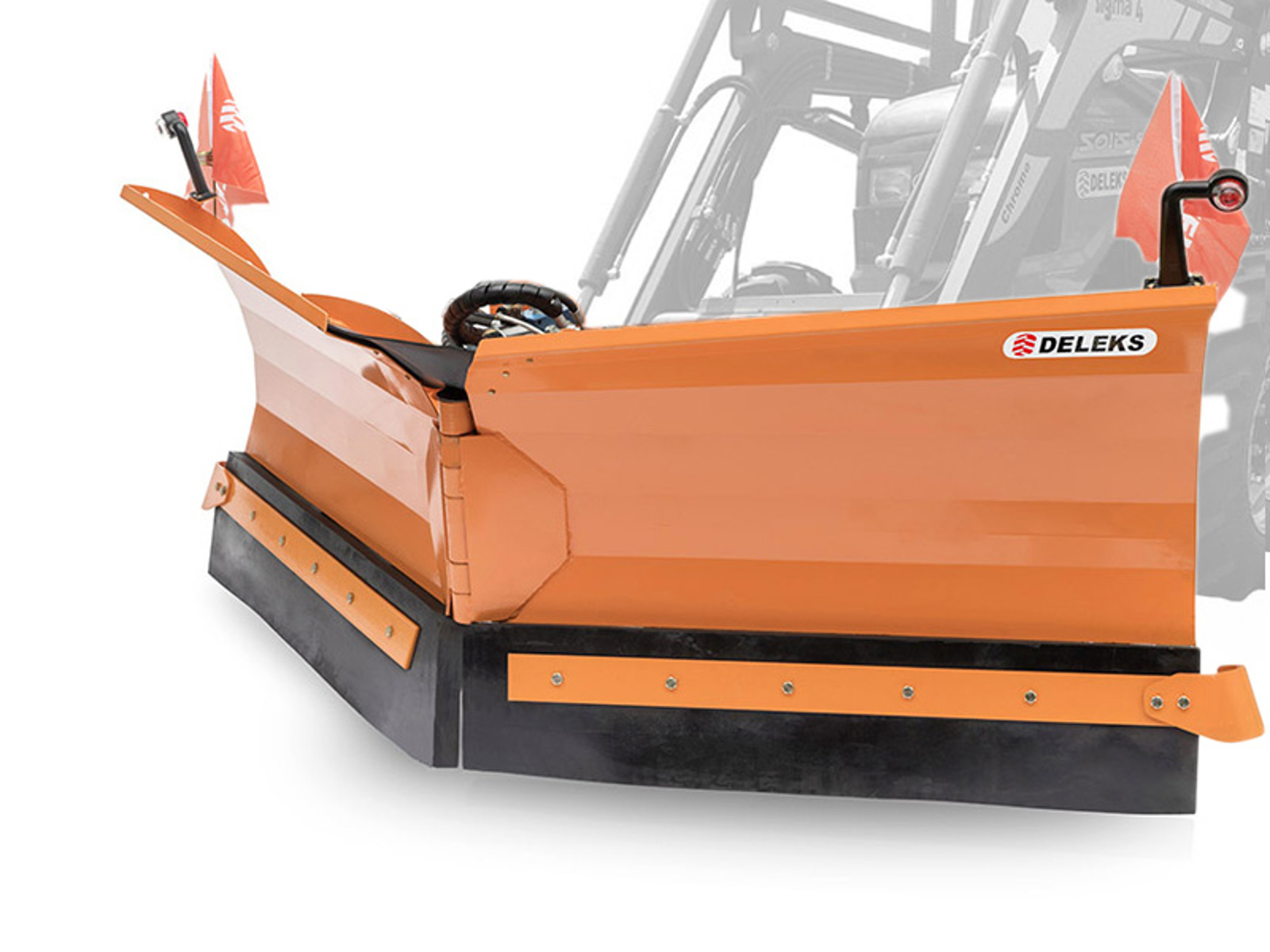

Snowplow 200cm for tractor front-end loaders - DELEKS® - Snow blade with EURO attachment - 2 independent plowing elements.




OVERVIEW

The LNV-200-E ‘V’ Snowplow has been designed for tractors front-end loaders, from 35 to 70hp tractors. Universal EURO attachment.

Angling of the plow is done hydraulically using two pistons, a 6-way solenoid valve and two hydraulic pipes (2.0m).

The plow has a replaceable rubber blade, spring swivel mount which makes the plow resistant to impact of obstacles. Supplied with marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.



BENEFITS AND FEATURES

Hydraulically controlled plowshares allow for four different working positions (open, closed, left and right).

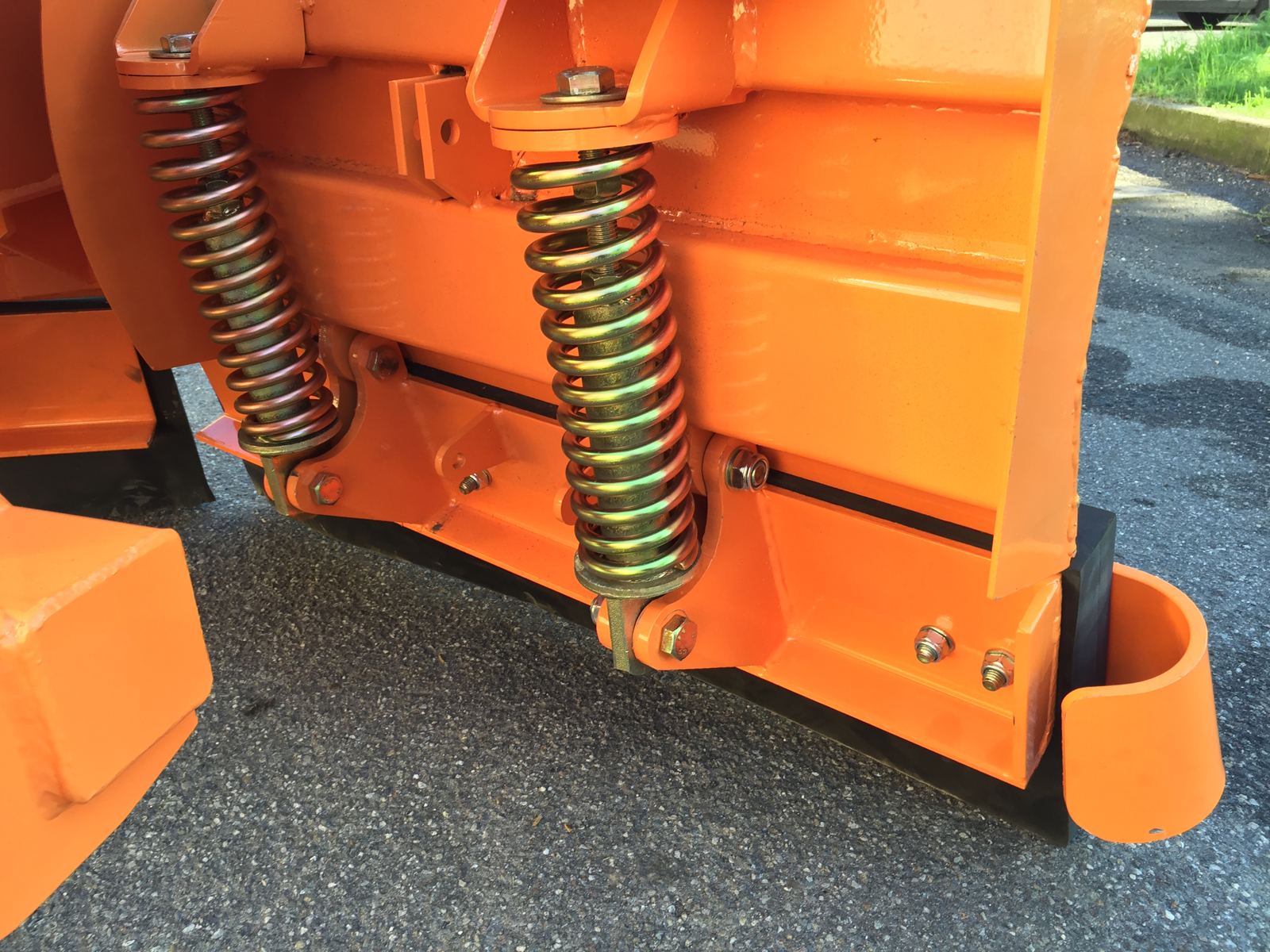

Anti-shock system with 4 shock absorbing springs to overcome obstacles safety.

2 independent plowing elements.

Lateral oscillation system which allows a perfect adherence to the road surface.

Extremely easy installation and usage.

The EURO attachment is removable and replaceable with a 3-point hitch, or Skid steer attachment.

Perfect adherence to the road surface and homologated for road use.



CHARACTERISTICS

Characteristic Units metric Units US
Weight 345.0 kg 727.5 lb
Overall height 1020.0 mm 3.35 ft
Tractor Power Range 35 - 70 Hp 35 - 70 Hp
Overall Length 870.0 mm 2.85 ft
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface EURO EURO
Angling (left/right) 30° 30°
Float +/- 6° +/- 6°
Blade Height 920.0 mm 3.00 ft
Side edge thickness 5.0 mm 0.20 in
Shock absorbers 4 4
Cutting Edge Rubber Rubber
Cutting Edge Height 265.0 mm 10.43 in
Cutting Edge Thickness 50.0 mm 1.97 in
Trip Edge Quantity 2 2
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights
Removable Skid Shoes x x
Universal attachment sizes See pictures See pictures
Working width (angled) 1900.0 mm 6.23 ft
Hydraulic Hoses 2 x 2000.0 mm / connections 1.2" AGRI, WP 400 bar 2 x 6.56 ft / connections 1.2" AGRI, WP 400 bar
Overall width 2020.0 mm 6.60 ft
Main frame thickness 4.0 mm + reinforces 0.15 in + reinforces
Hydraulic cylinder/s ø 60.0/30.0 mm 2.36/1.18 in
Packing sizes 2050.0*1000.0*800.0 mm 6.73*3.28*2.62 ft

Technical charts

Optional

2 hydr pipes 4 00m fast connection set
2 Hydr. pipes 4,00m + Fast connection Set
165,00VAT incl.
Available

4,00m - Quick Release Coupling 1/2"

Fast connection set.

2 springs snowblade lnv
2 springs snowblade LNV
103,00VAT incl.
Available

LNV

couple marker lights ln
Couple marker lights LN
52,00VAT incl.
Available

LN 175/250

spare rubber blade lnv 200
Spare rubber blade LNV-200
275,00VAT incl.
Available

LNV-200
