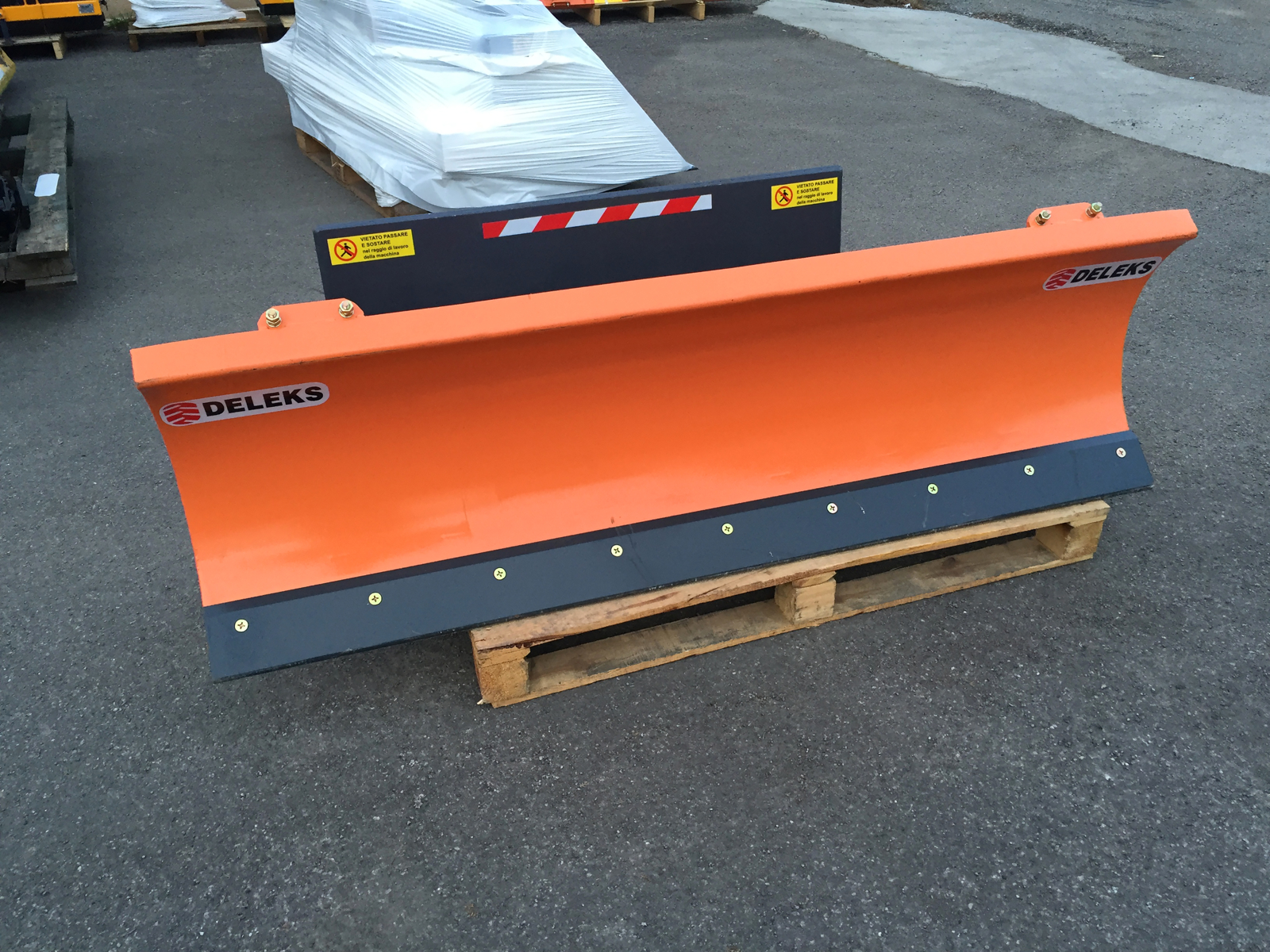

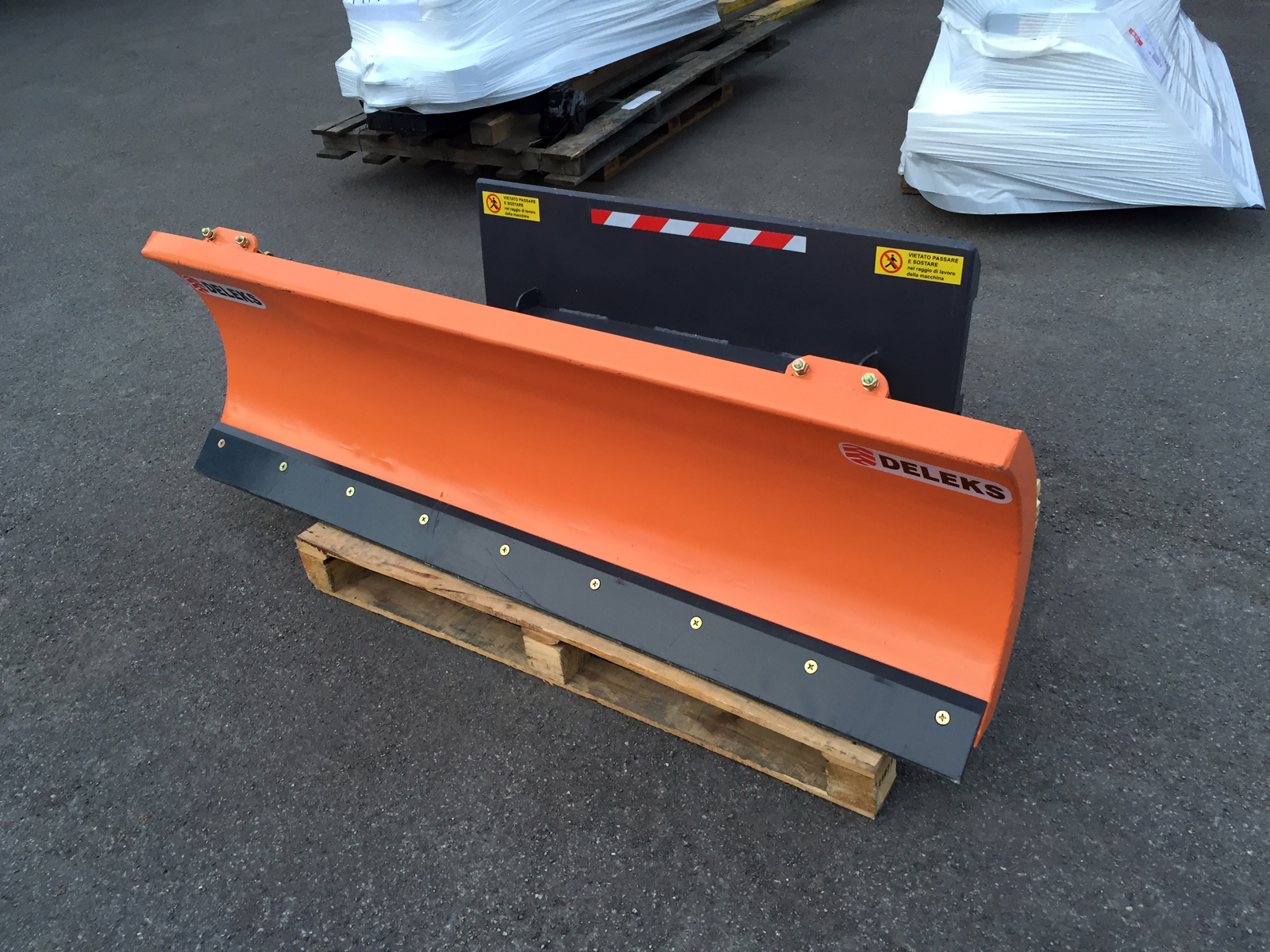

Light snow plow for skid steer loaders, LNS-190-M


192 reviews

Code LNS190M
EAN 8053470231667
View all details.
1.520,00VAT incl.
Free shipping

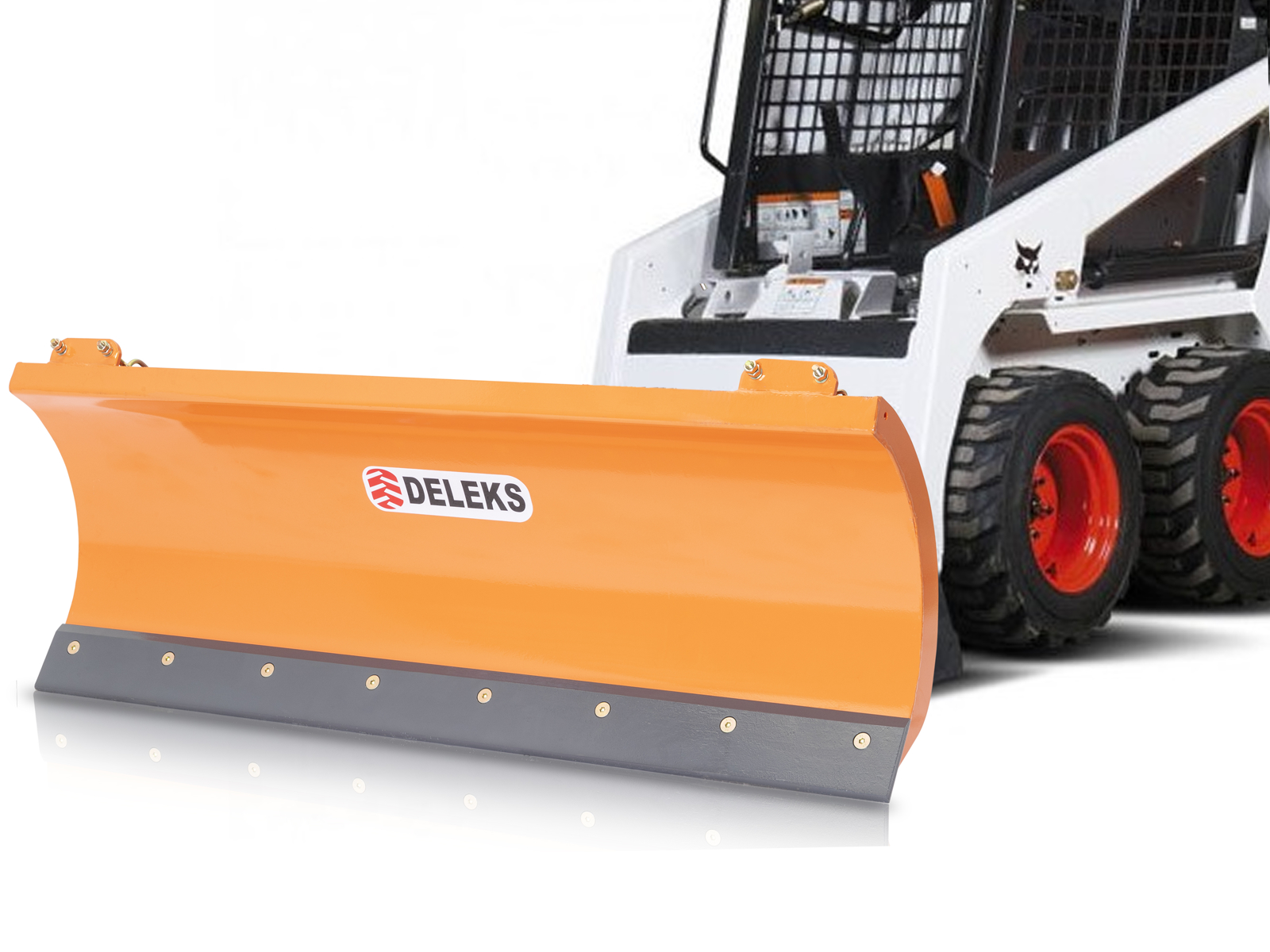

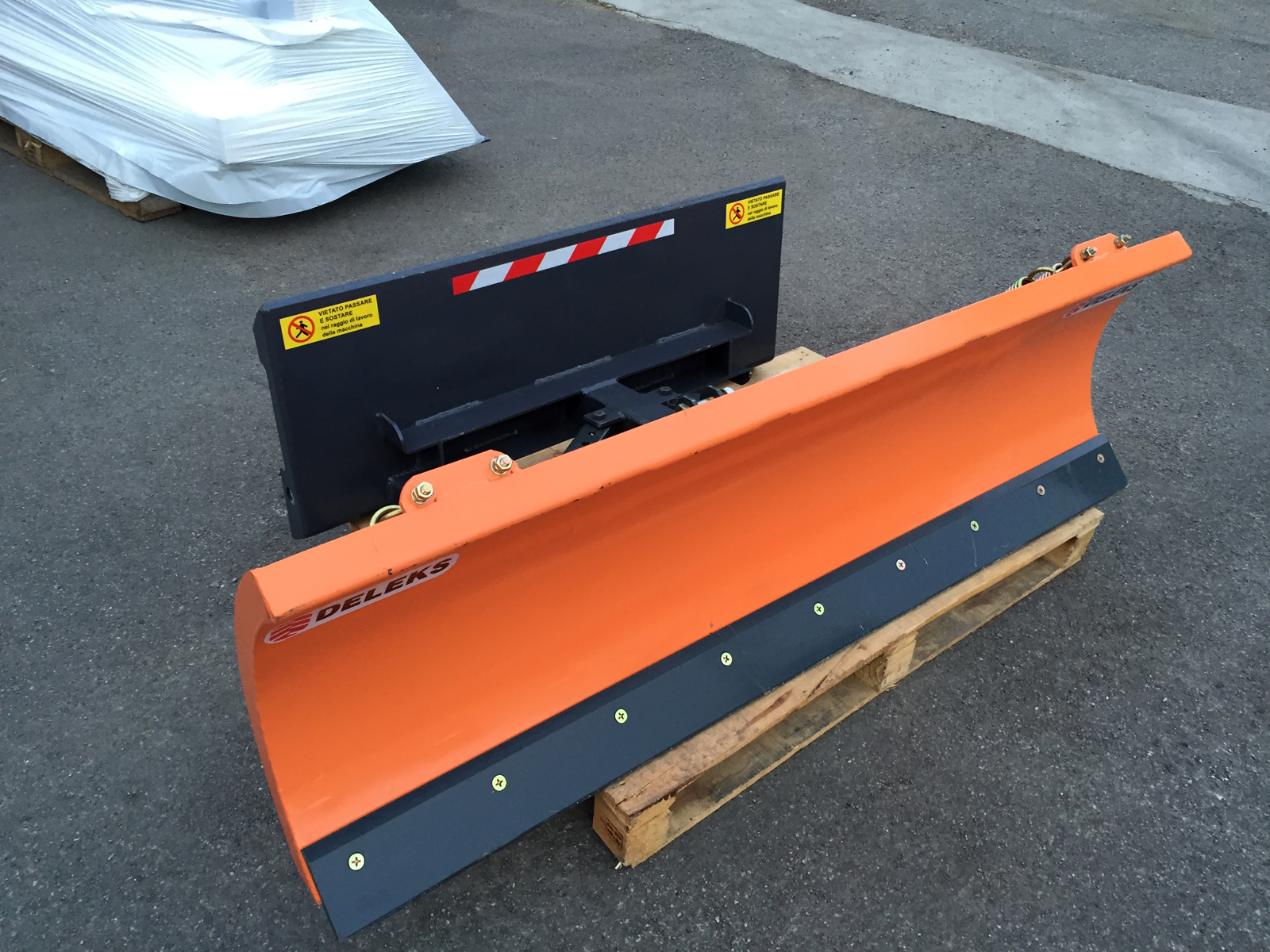

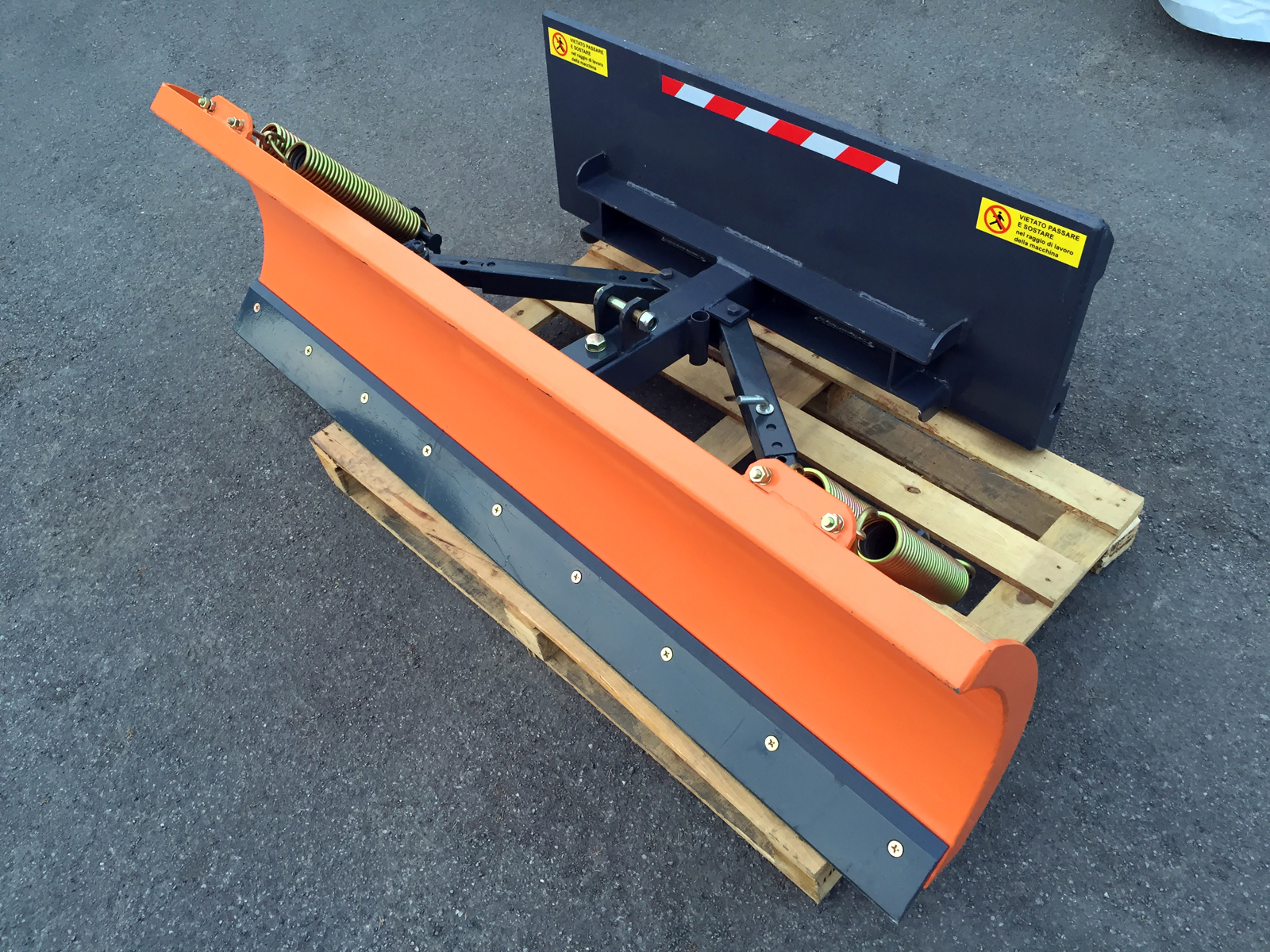

Light snow plow 190cm for up to 1.8 ton skid steer loaders - DELEKS® - Homologated for road use.


DELEKS® lightweight, agile snowplow for skid steer loaders up to 18q.li. Compatible with all common brands e.g Bobcat, JCB, Caterpillar, Case, etc. Conforms to the EC Machinery Directive. 2 years guarantee.

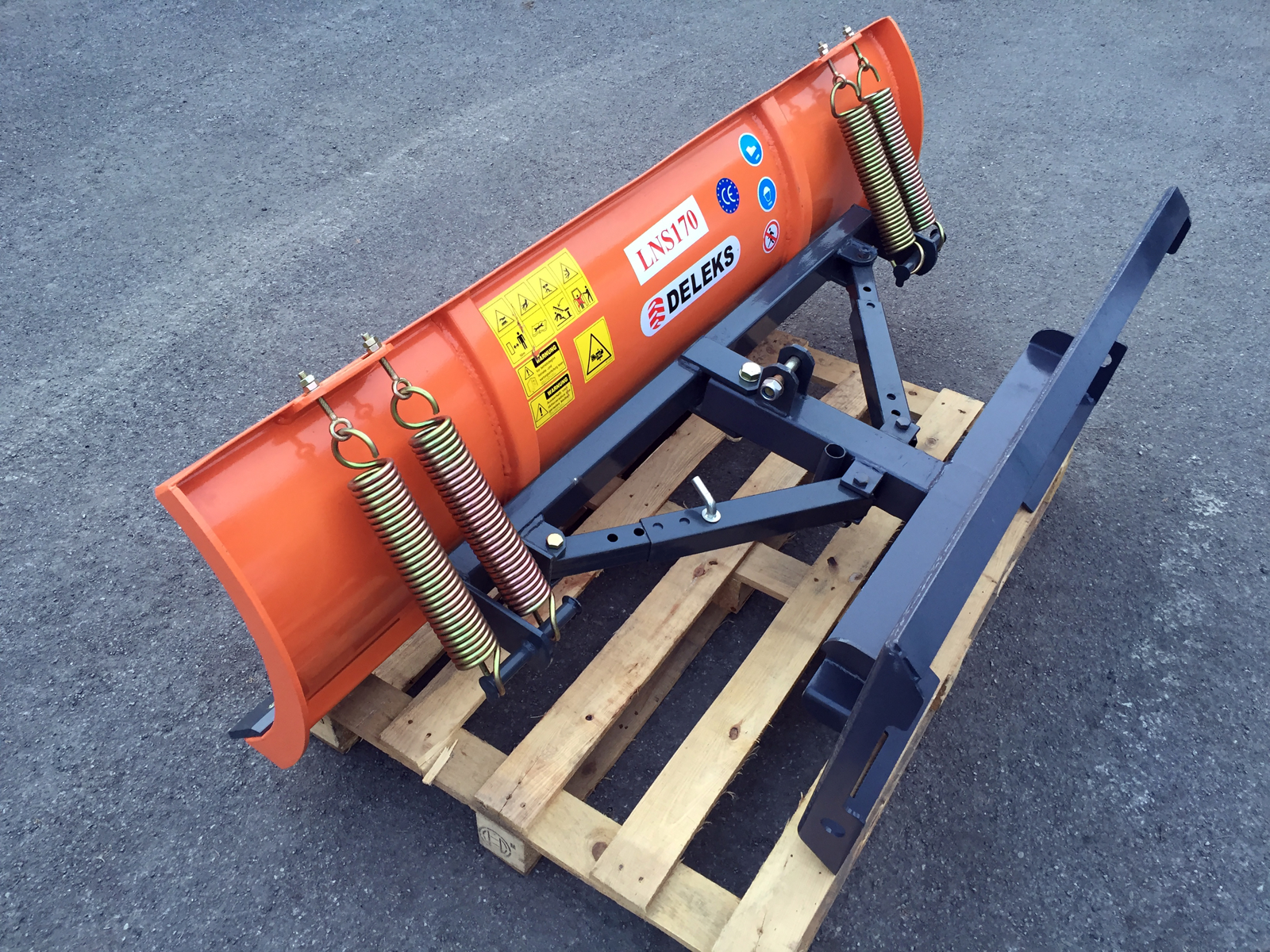

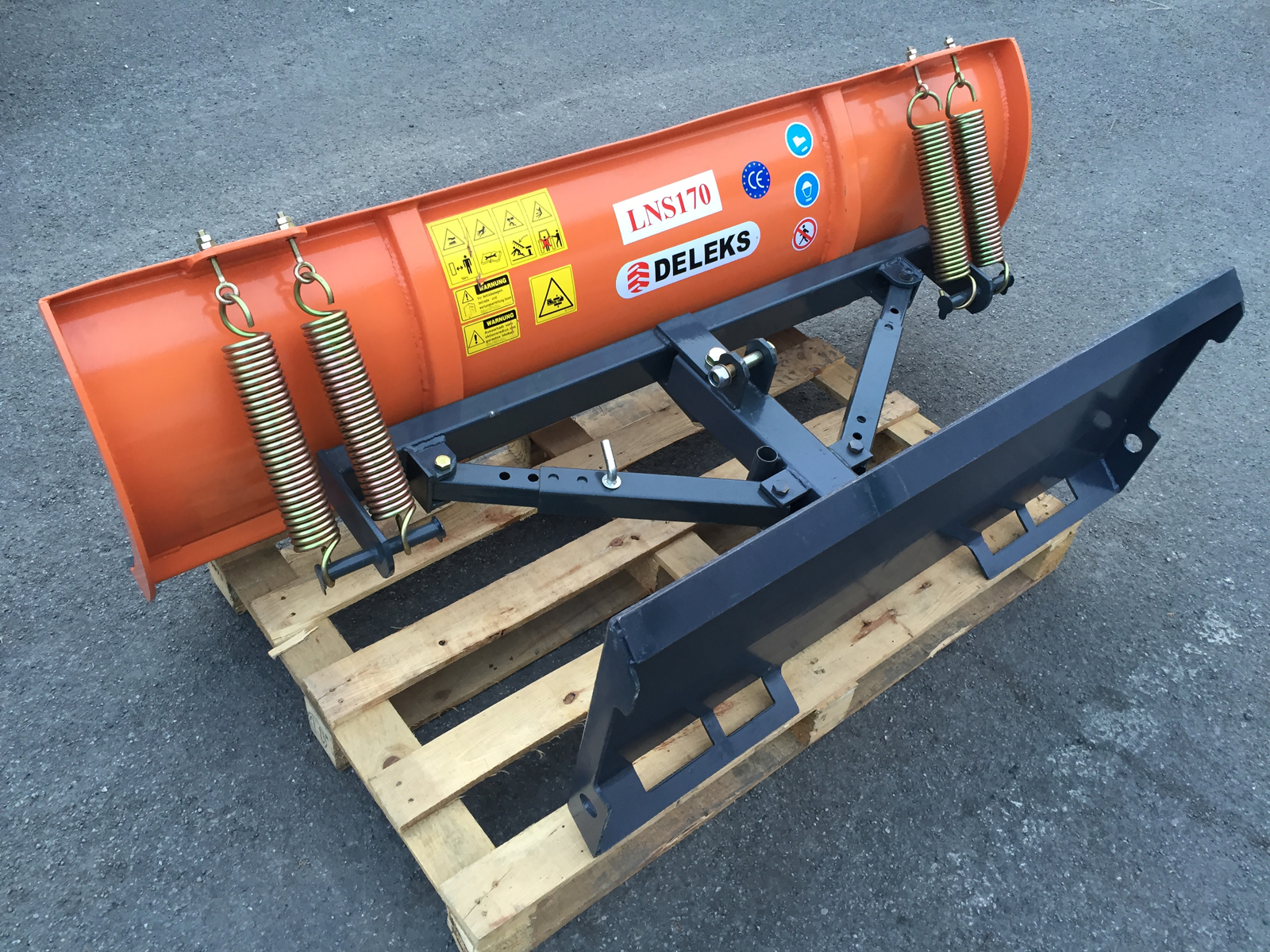

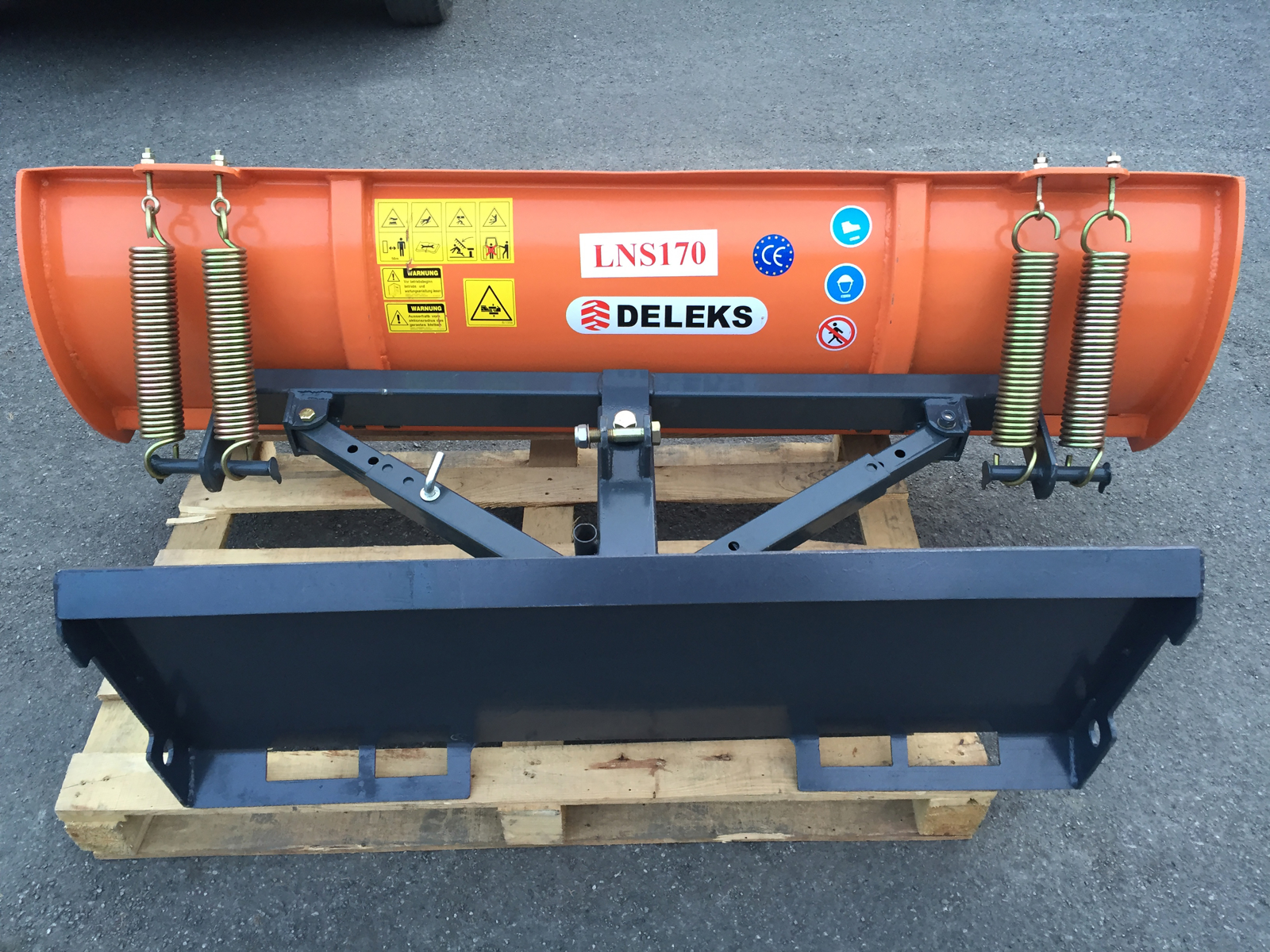

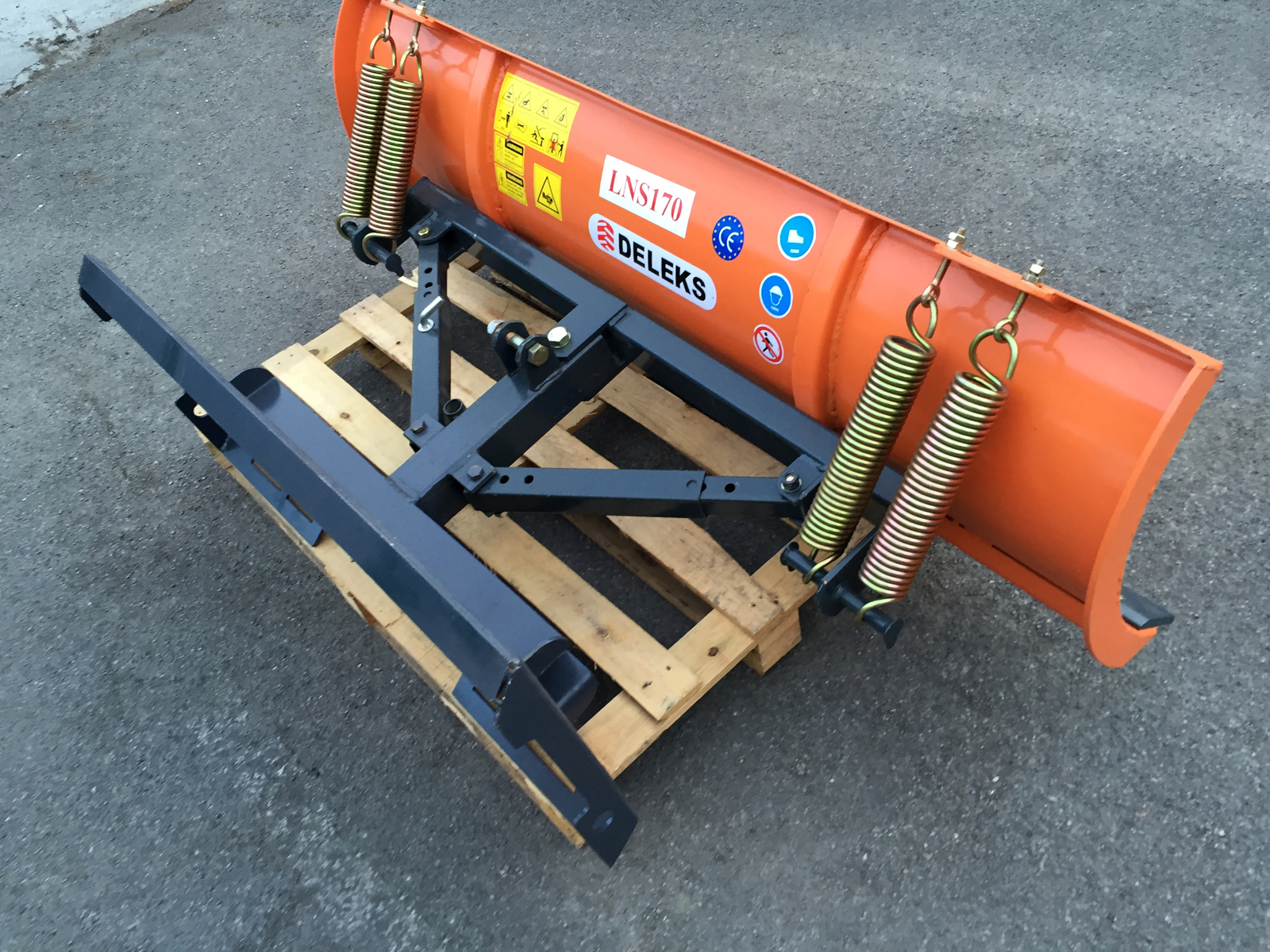

Anti-shock system with 4 shock absorbing springs to operate in maximum safety.

Extreme ease of assembly and use.

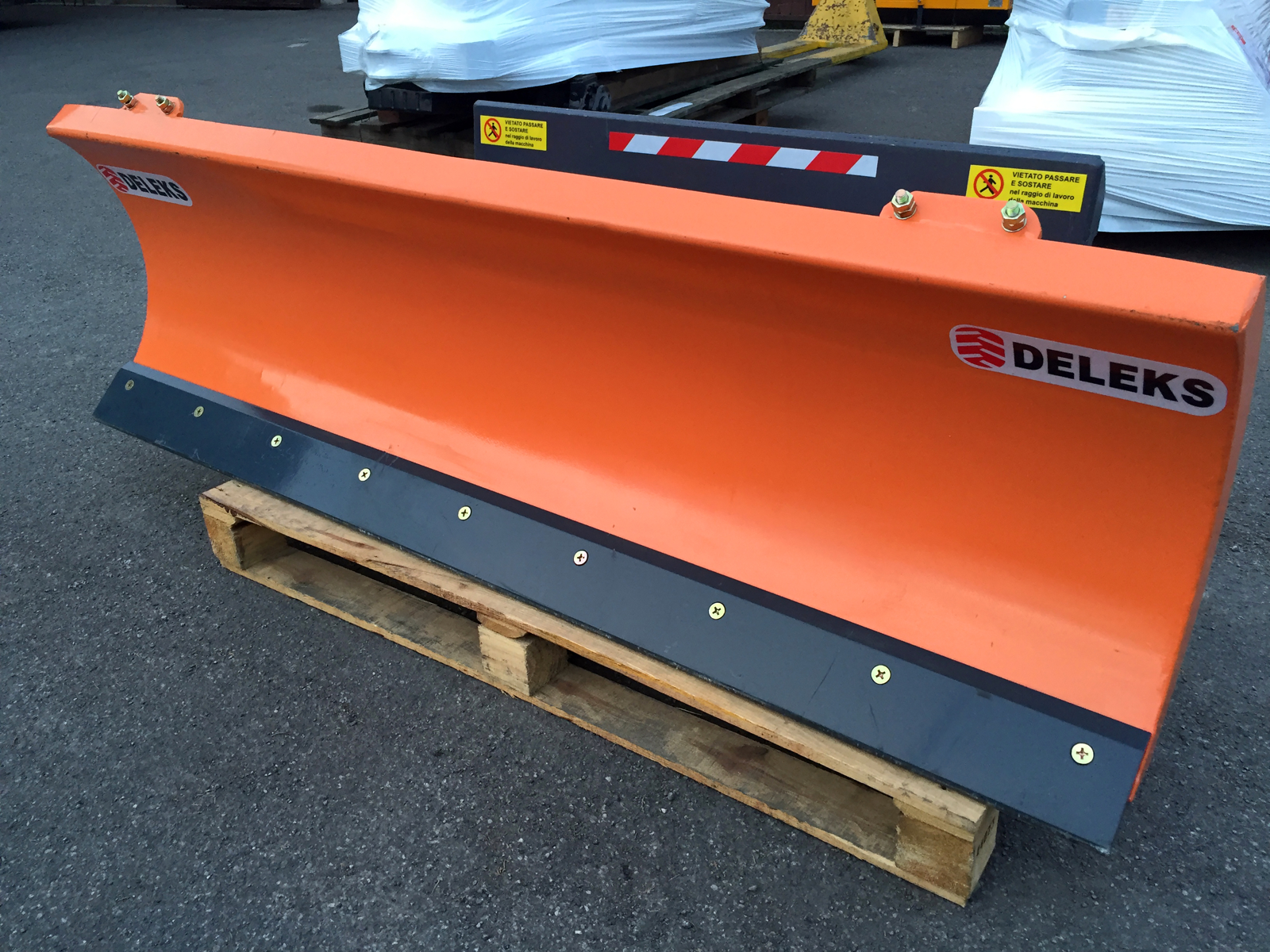

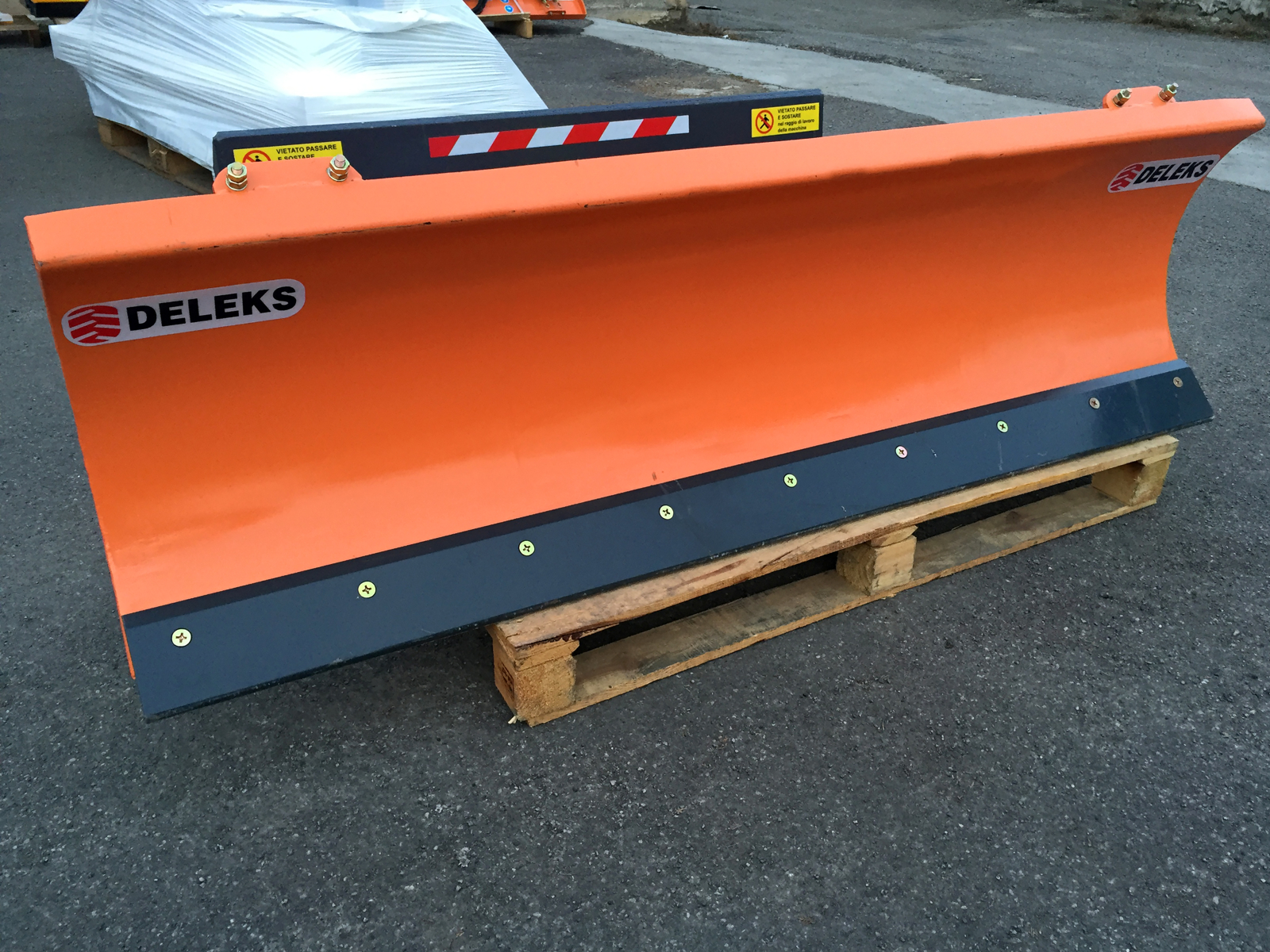

Sharp replaceable steel blade. On request we customize the plow with a softer rubber blade.

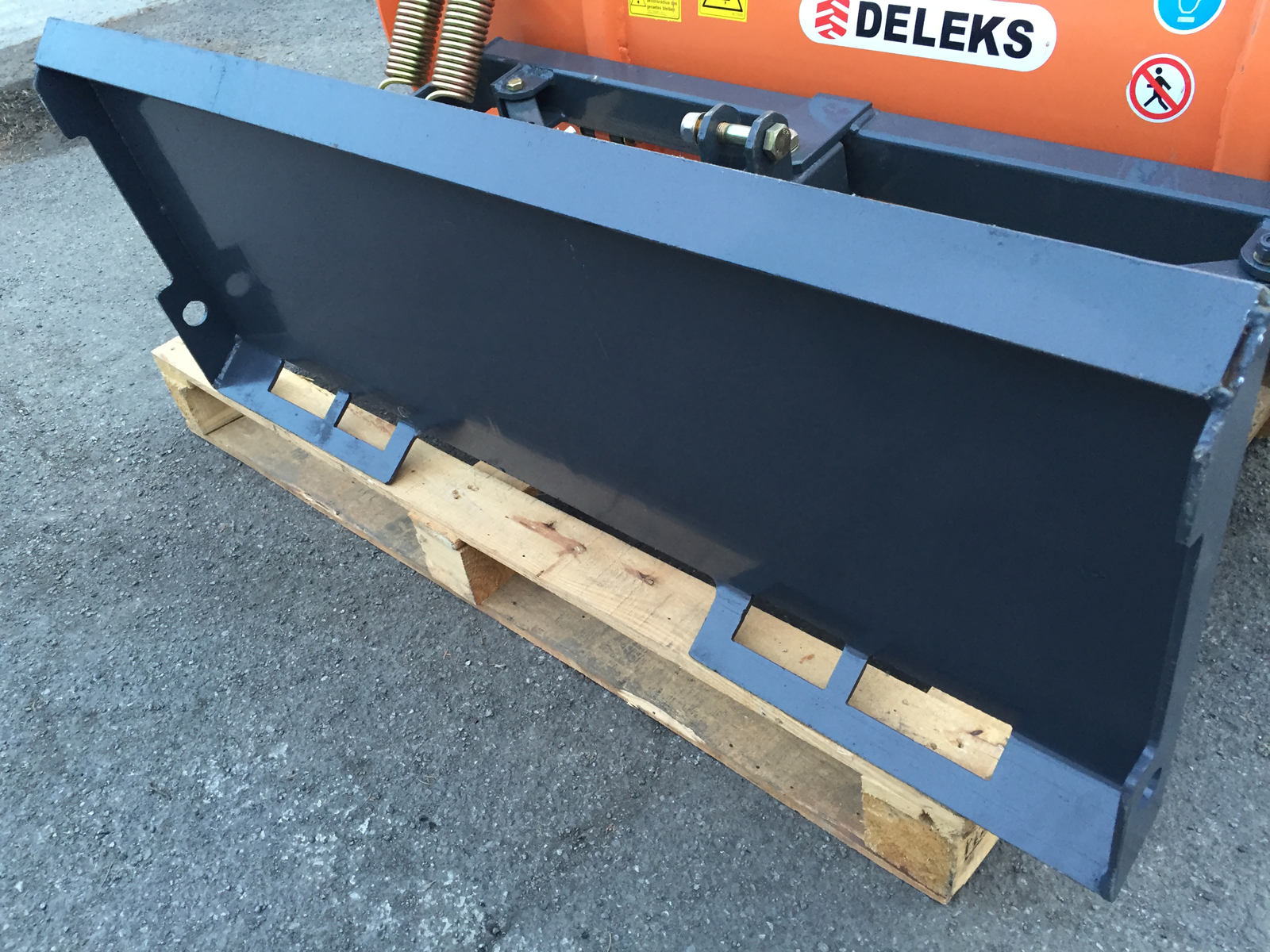

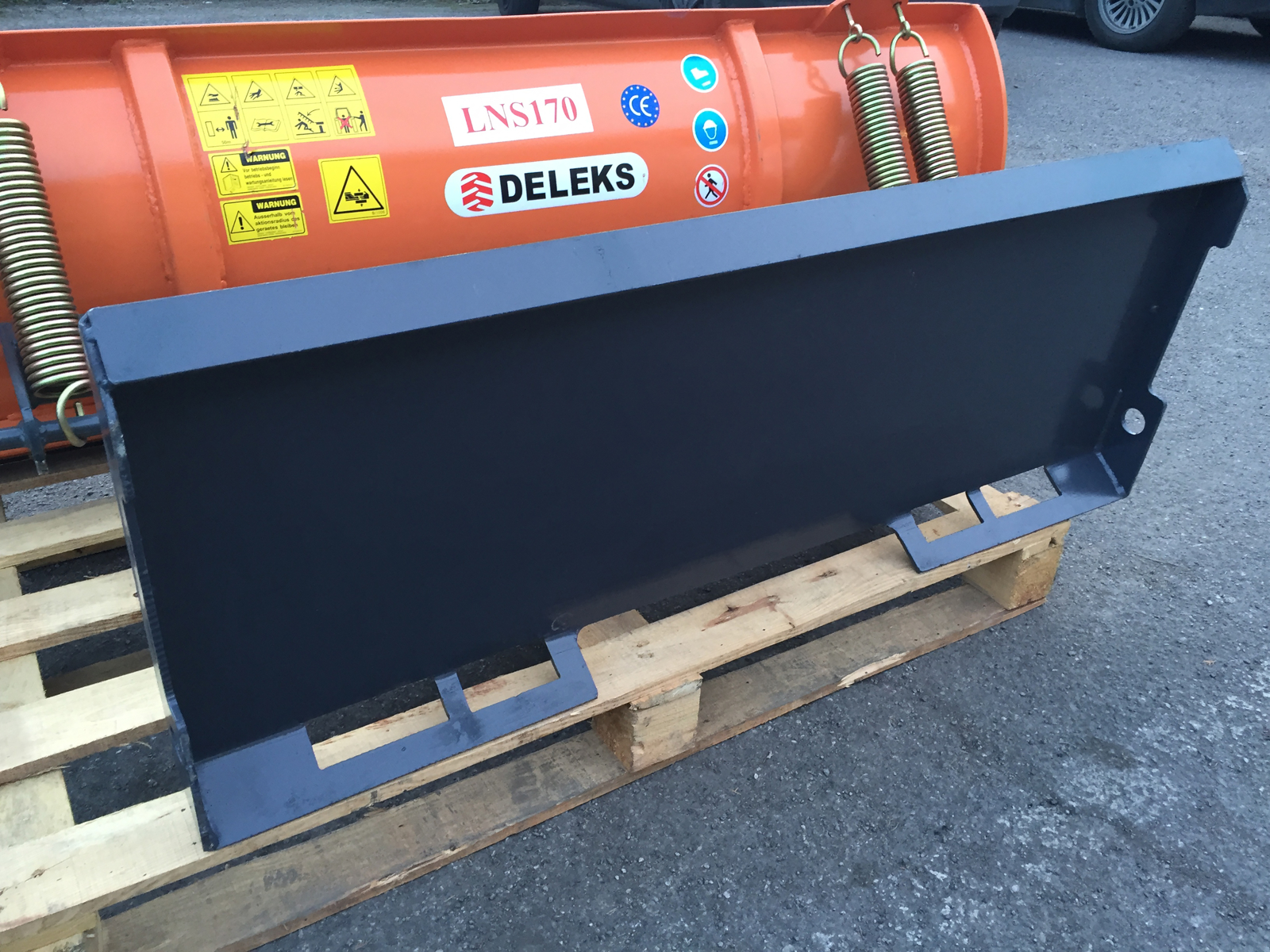

The fitting plate is removable and replaceable meaning it can be used on tractors or other attachments.

Homologated for road use.



Characteristic Units metric Units US
Weight 157.0 kg 346.0 lb
Overall height 525.0 mm 1.72 ft
Overall Length 760.0 mm 2.50 ft
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface Universal for Skid Steer Loaders Universal for Skid Steer Loaders
Angling (left/right) 28° 28°
Float +/- 2° +/- 2°
Blade Height 525.0 mm 1.72 ft
Side edge thickness 8.0 mm 0.31 in
Shock absorbers 4 4
Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 120.0 mm 4.72 in
Cutting Edge Thickness 14.0 mm 0.55 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights x x
Removable Skid Shoes x x

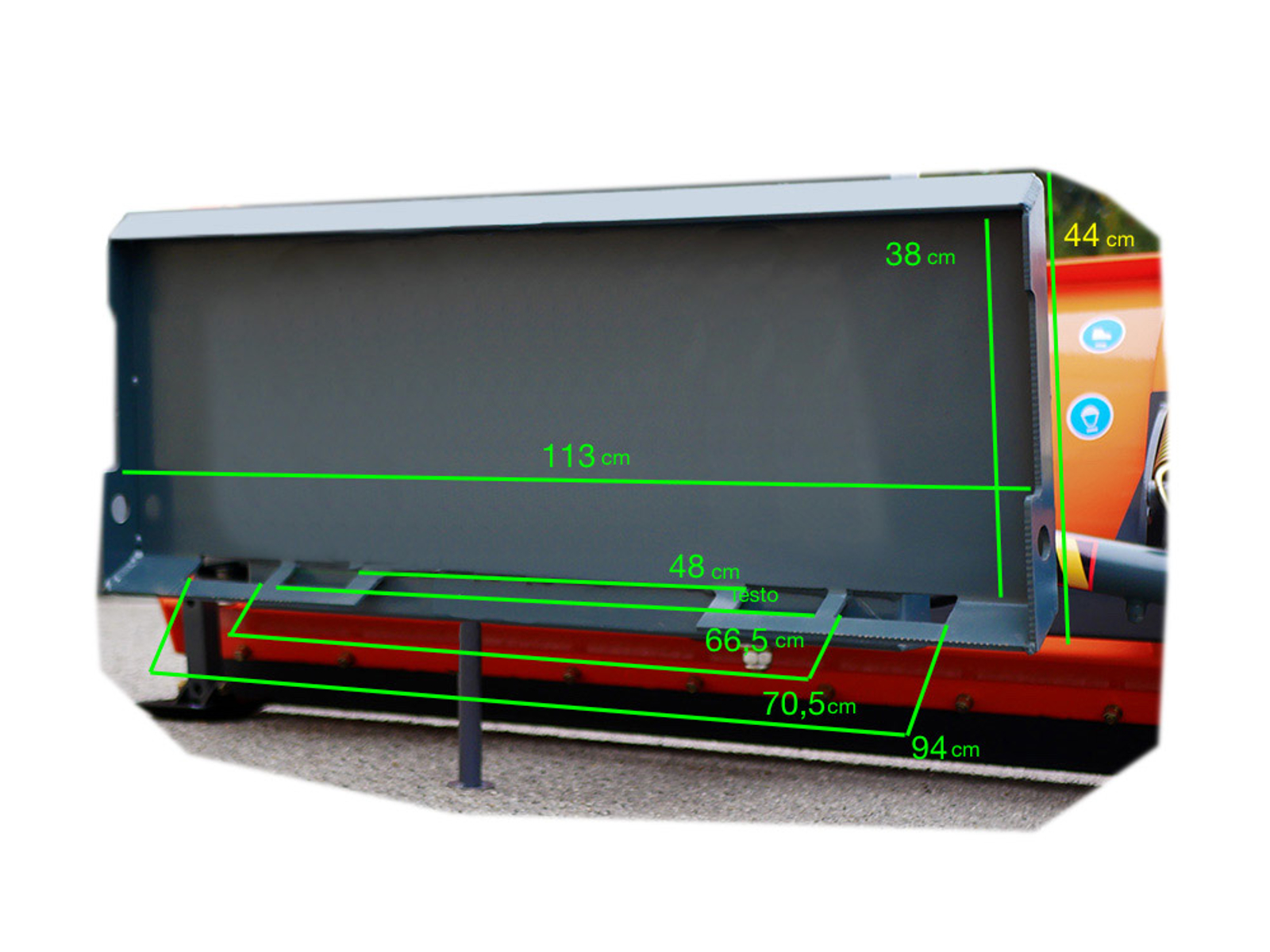

Universal attachment sizes See pictures See pictures
Working width (angled) 1705.0 mm 5.60 ft
Suitable on Skid Steer L. 1.8 t max Skid Steer L. 1.8 t max
Hydraulic Hoses (Optional) 2 x 1500.0 mm / WP 400 bar (Optional) 2 x 4.92 ft/ WP 400 bar
Overall width 1916.0 mm 6.28 ft
Main frame thickness 4.0 mm 0.15 in

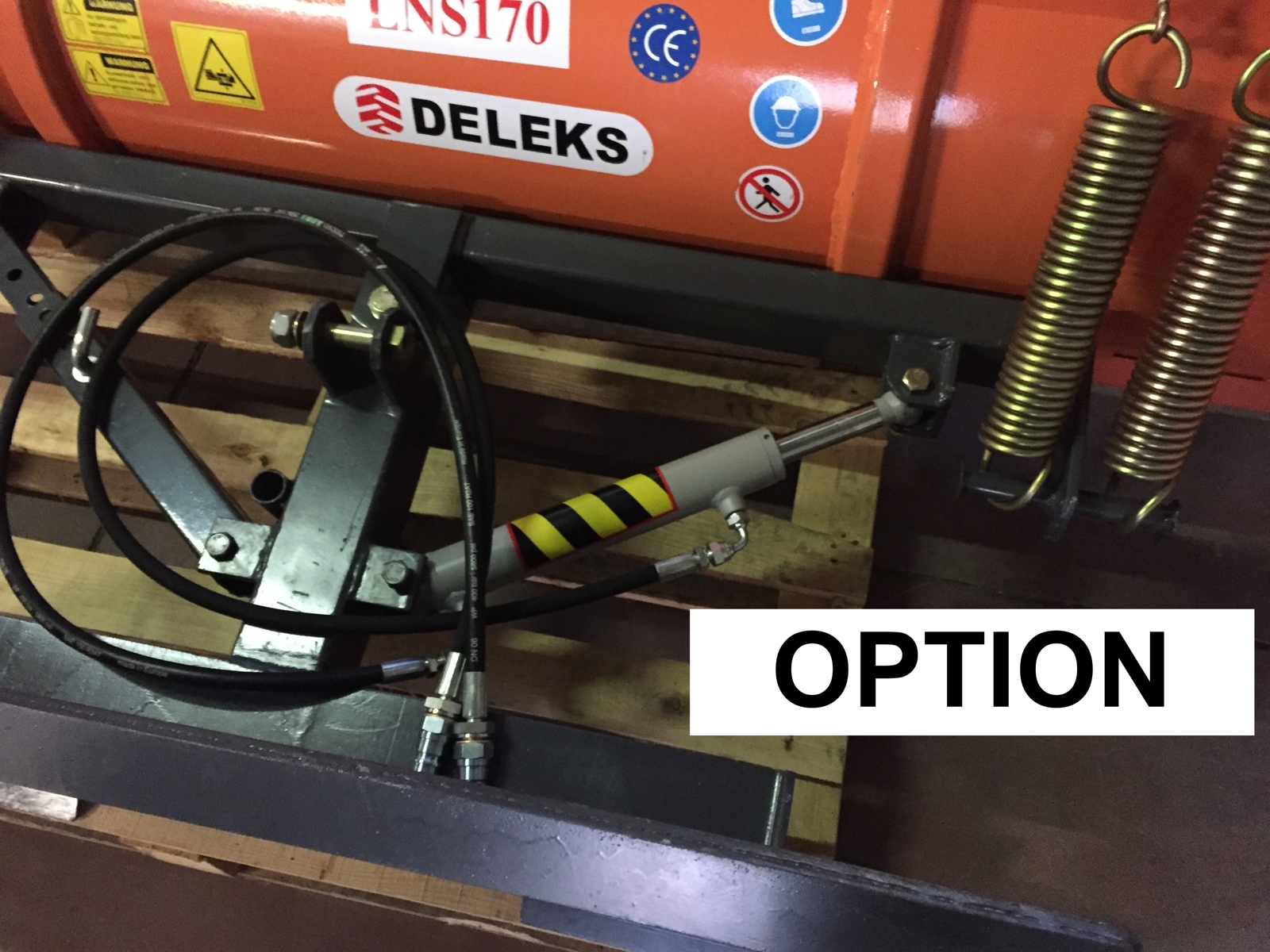

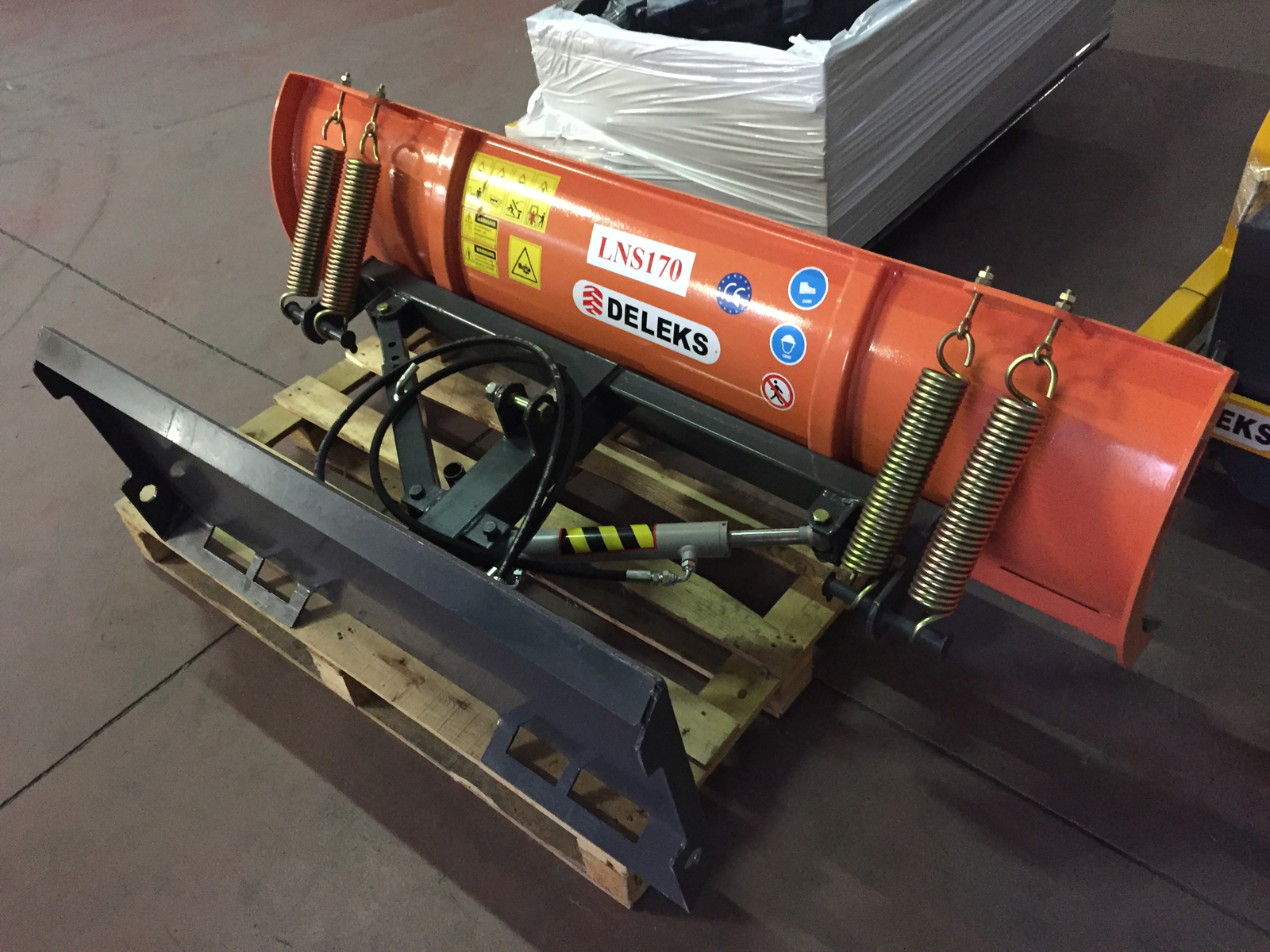

Hydraulic cylinder/s ø (Optional) 50.0 / 25.0 mm (optional) 1.96 / 1.0 in
Packing sizes 1916.0*800.0*800.0 mm 6.28*2.62*2.62 ft


2 springs snowblade ln lns lnk
2 springs snowblade LN-LNS-LNK
100,00VAT incl.


hydr orientation lns c lns m
Hydr. orientation LNS-C, LNS-M
160,00VAT incl.


spare rubber blade 190 cm
Spare rubber blade 190 cm
190,00VAT incl.


spare steel blade 190 cm
Spare steel blade 190 cm
193,00VAT incl.
