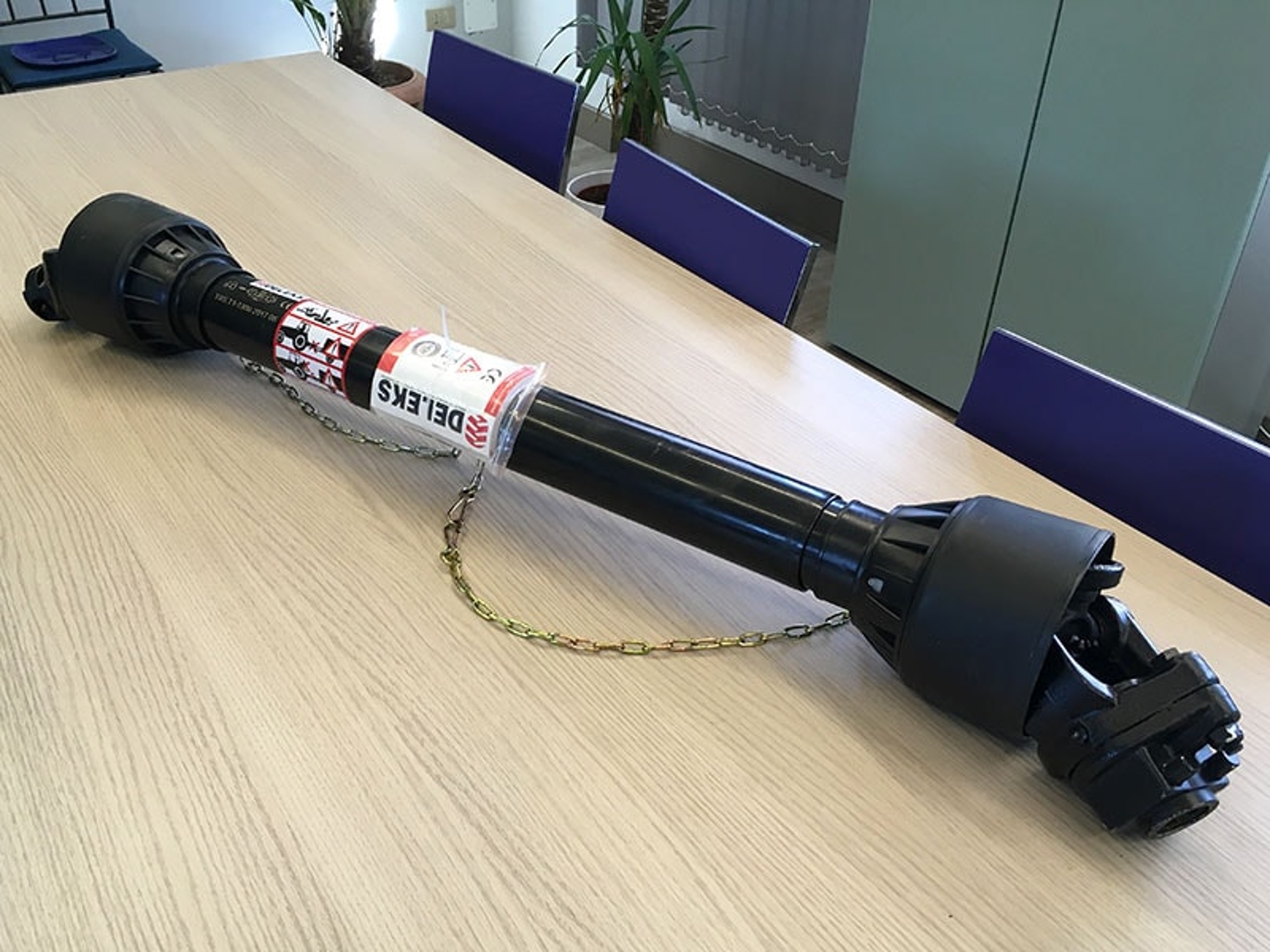

Cardan shaft CAT-8 1300 + Bolt


199 reviews

Code 8X1300B
EAN 8053470232152
View all details.
284,00VAT incl.
Free shipping

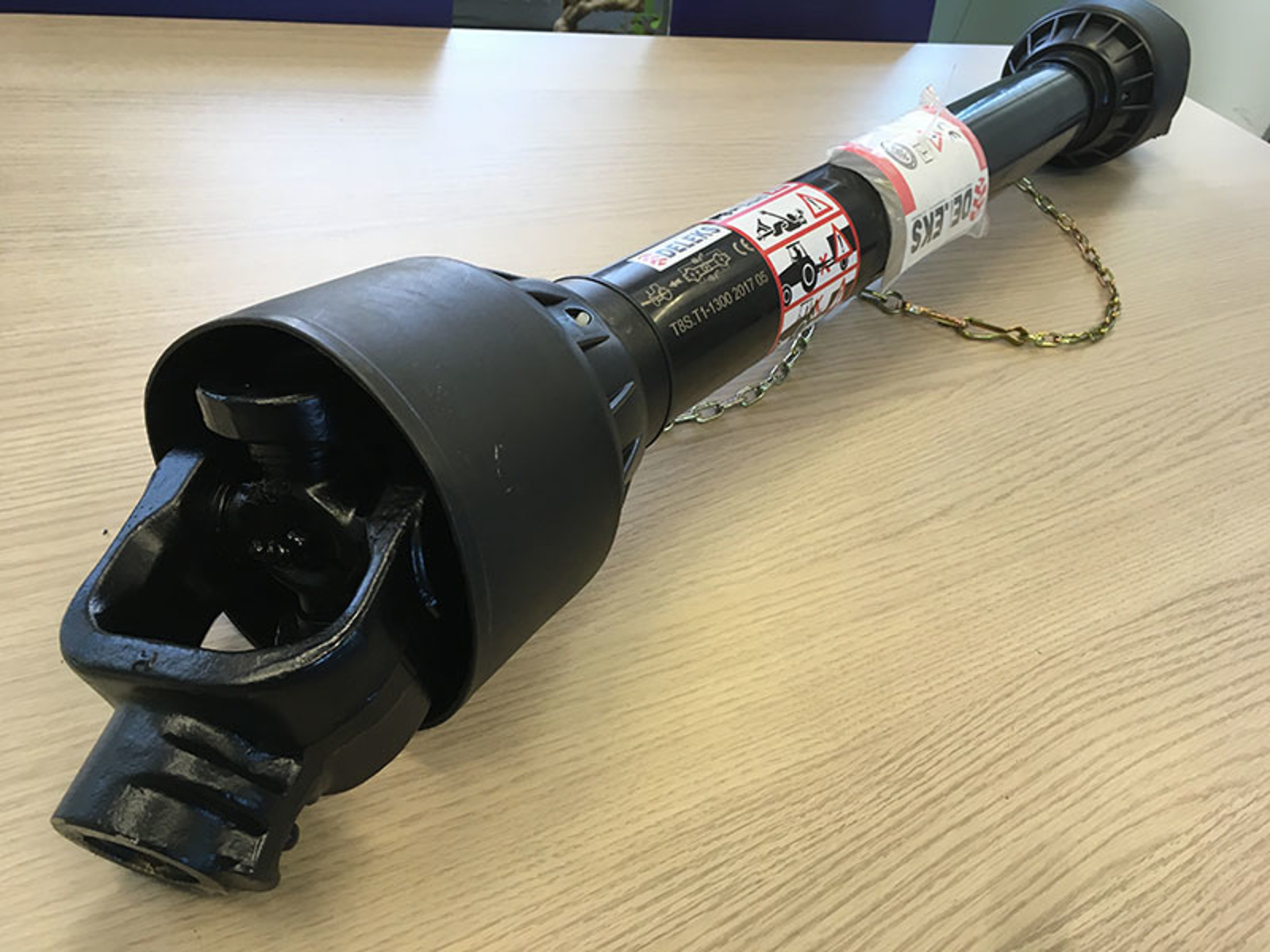

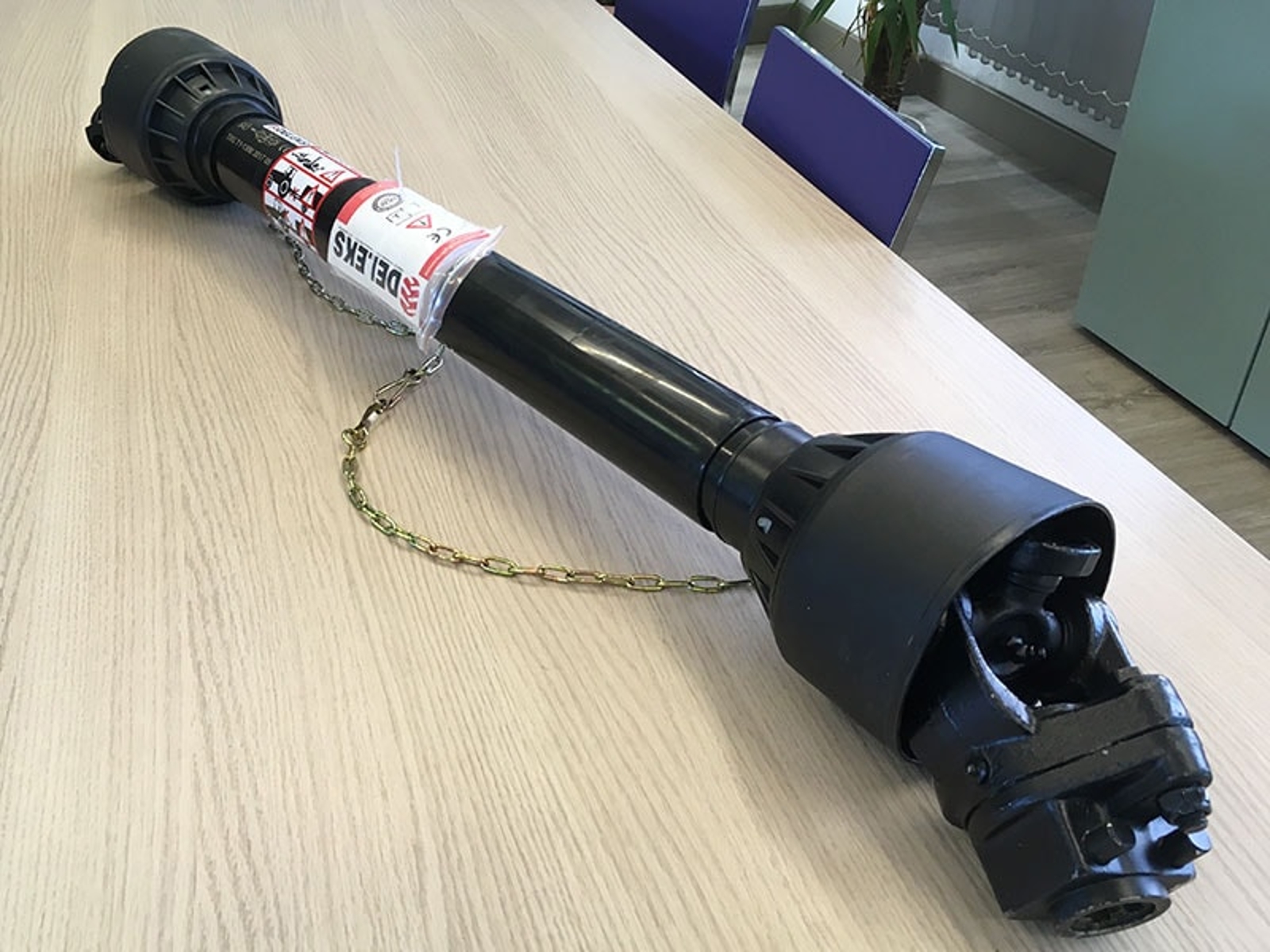

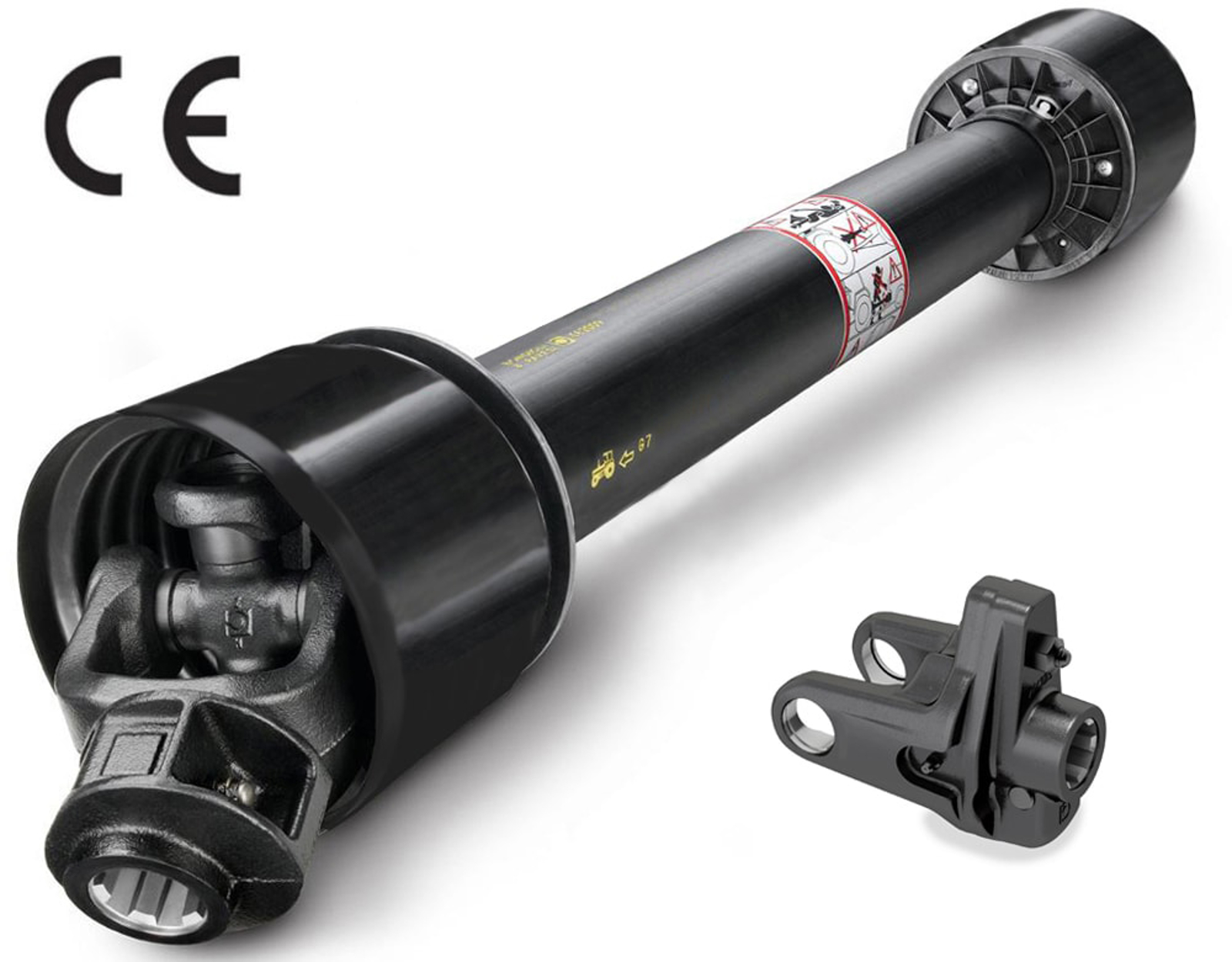

Pto Shaft for tractor.

Dim. 8

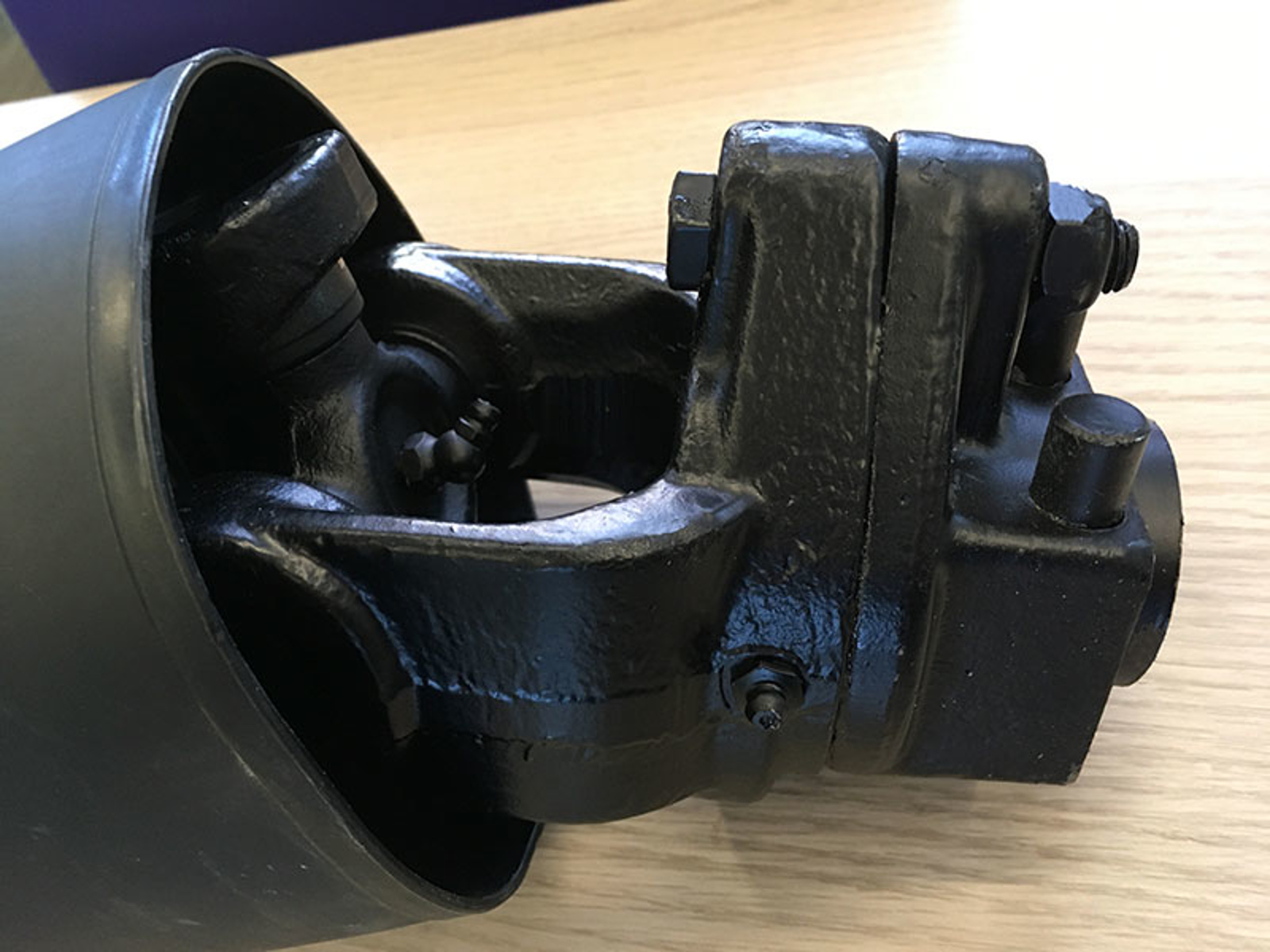

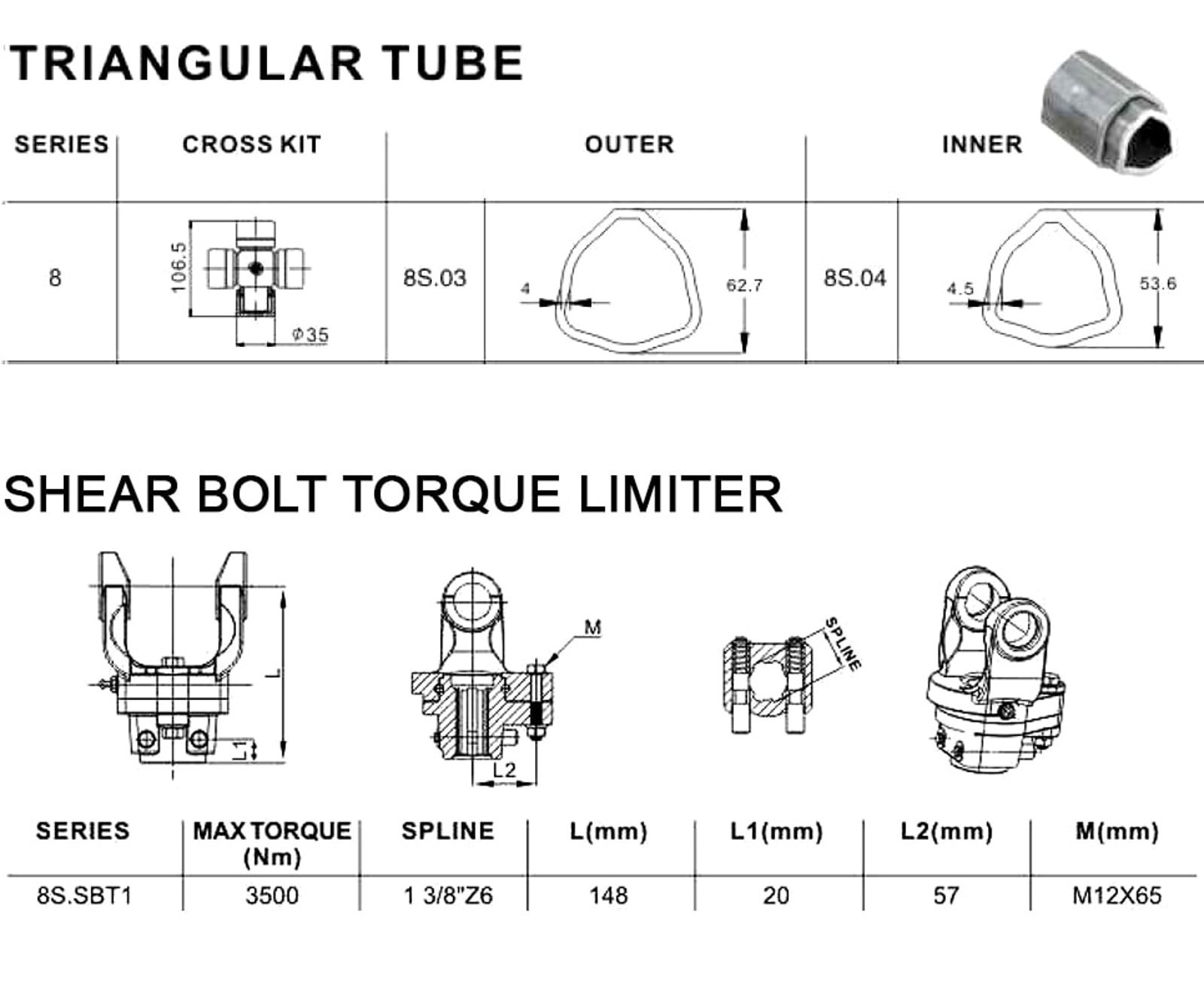

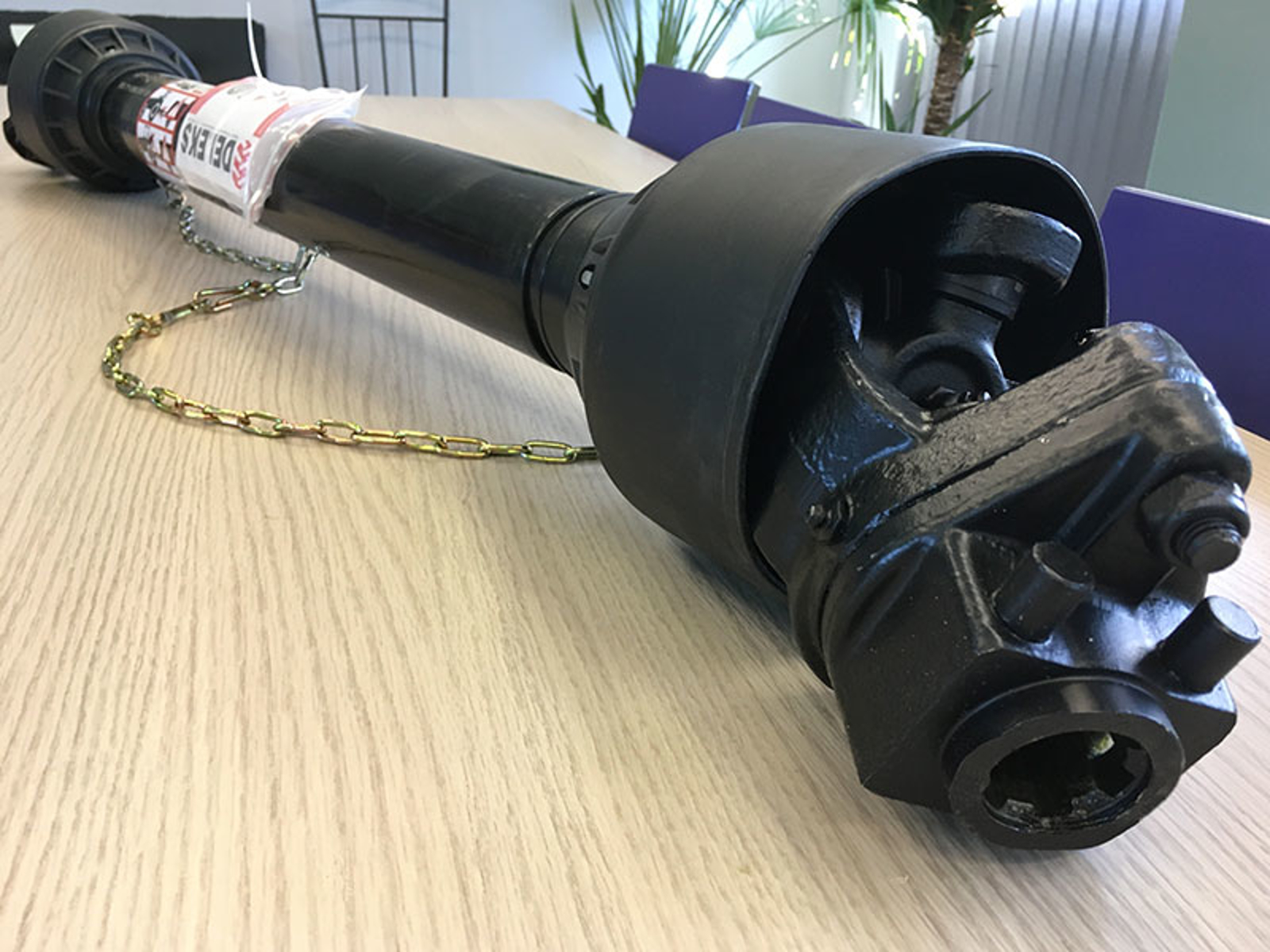

With Shear Bolt Torque Limiter:

This device prevents overloading by means of a shear bolt of specified size. When the bolt shears off, the hub and yoke assembly is kept together by a ball bearing ring which allows the two parts to rotate independent of each other. It is mounted on the implement side.

Min. Length: 1300.0 mm

Cross Kit: ø35.0*106.5

Transmission power at 540 r/min: 95HP (70Kw)

Transmission power at 1000 r/min: 150HP (110Kw)

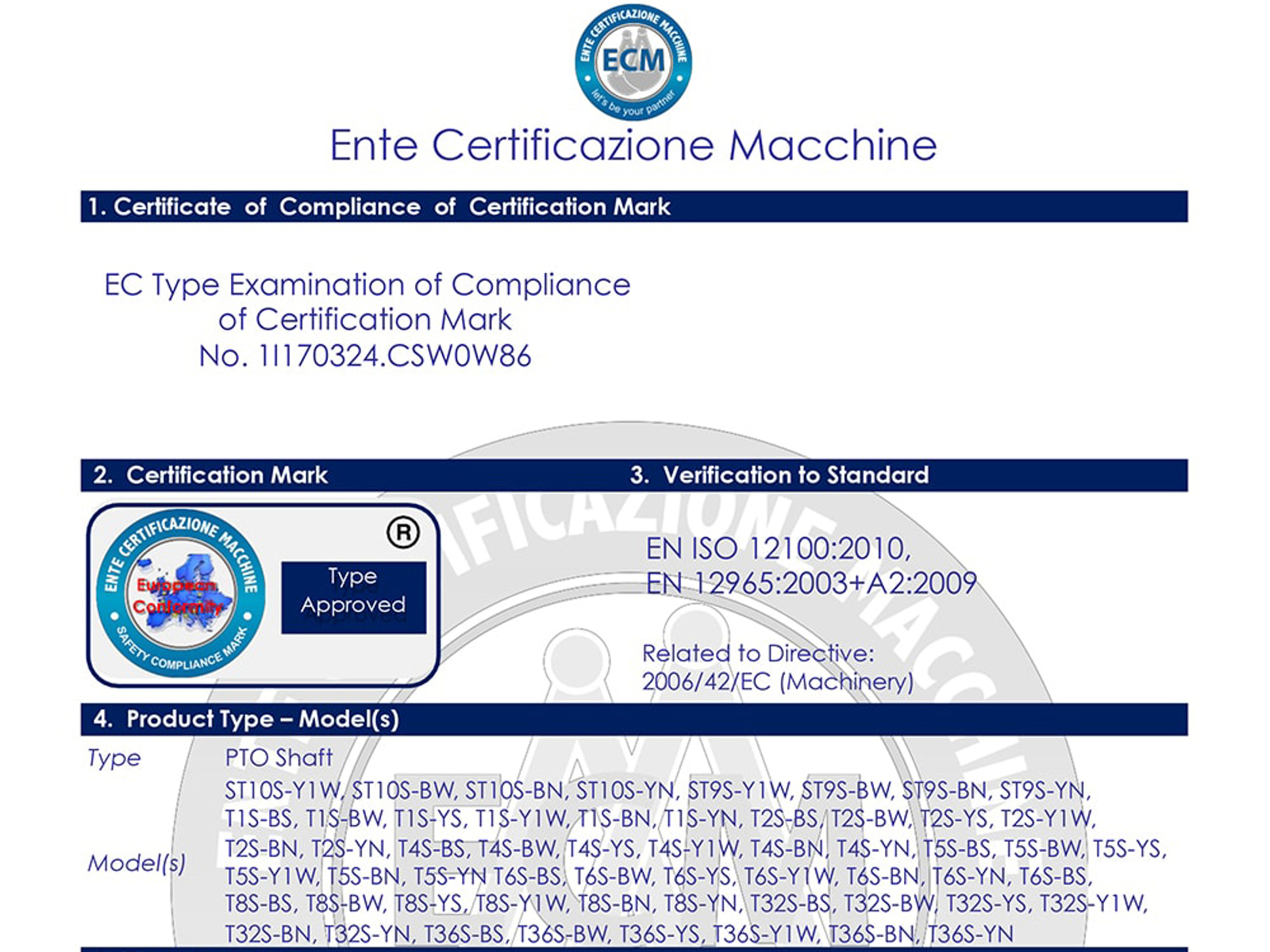

Certification Mark by ECM Ente Certificazione Macchine  (Modena - Italy)

User Manual

2 Years warranty

Beware of sellers offering driveshafts without certification.


Characteristic Units metric Units US
Weight 22 kg 48,50164 lb
