DETAILS

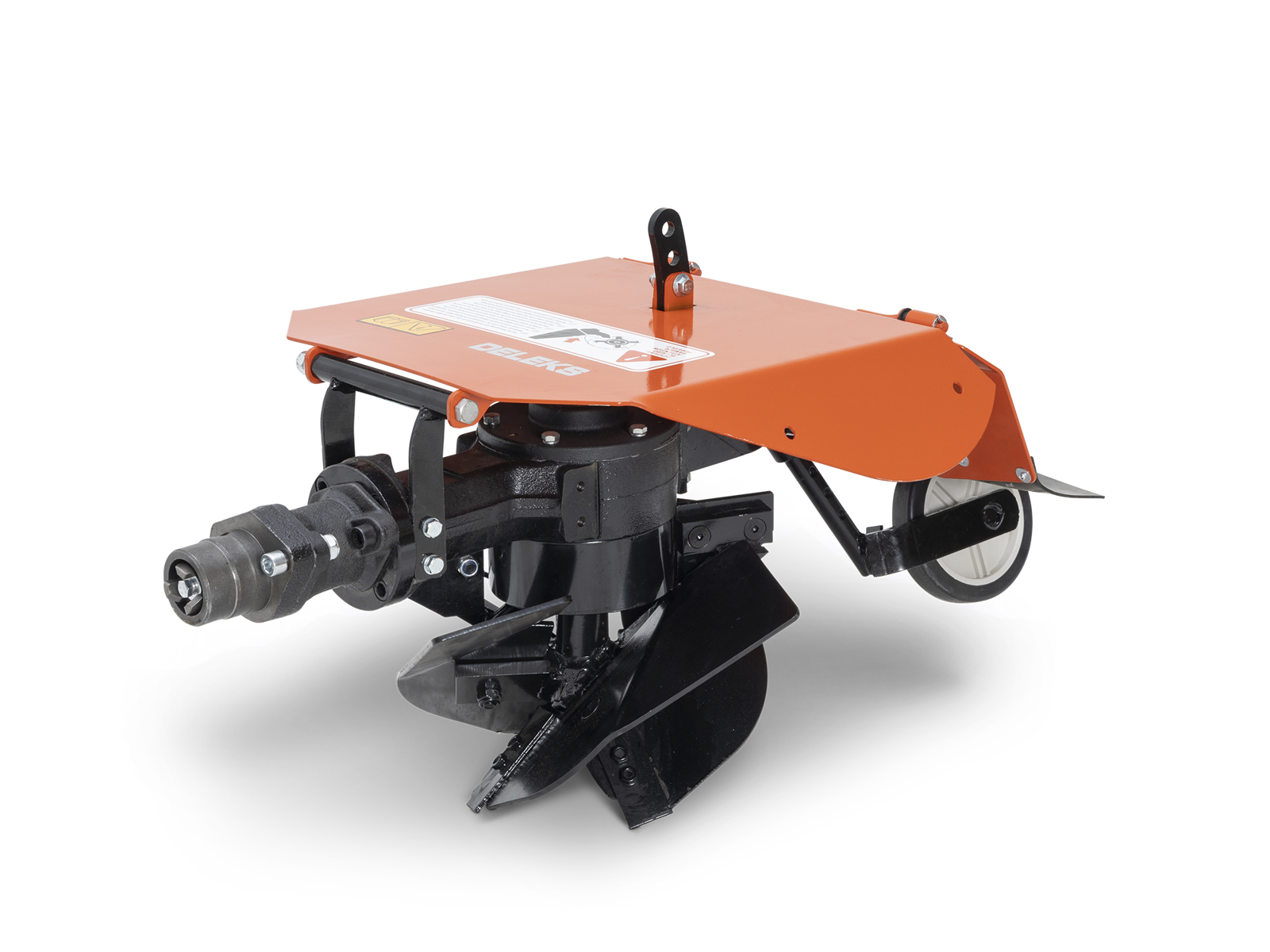

PTO-driven rotary plough for two-wheel tractors, with the male 3-tooth BCS-type quick hitch included: it fits the DELEKS® ZEUS and BCS, Ferrari, Pasquali and other two-wheel tractors with the same hitch; fine-spline (millerighe) tractors take it with the adapter. It opens a 25 cm (10 in) furrow down to 30 cm (12 in) and weighs 45 kg (99 lb): it ploughs with the rotor, not with weight alone, so it works hard ground too. Free delivery within the EU; if it is not compatible with your two-wheel tractor, returning it is free.
Ploughing with the rotor, even in hard ground
Unlike a trailed plough, which bites into the ground only with the weight of the tractor, the rotary plough is driven by the PTO: the rotor cuts and turns the slice of soil and the machine moves on without spinning. Depth adjustable down to 30 cm (12 in), 25 cm (10 in) furrow; for vineyards, plots and small fields where a three-point plough cannot get in.
Single or double reversible
The single (45 kg / 99 lb) turns the soil to one side: you work in adjoining furrows as with a classic plough. The double (68 kg / 150 lb) has two opposed mouldboards: at the end of the furrow you switch mouldboard and come back turning to the same side, like a reversible plough, so the field stays level with no ridges.

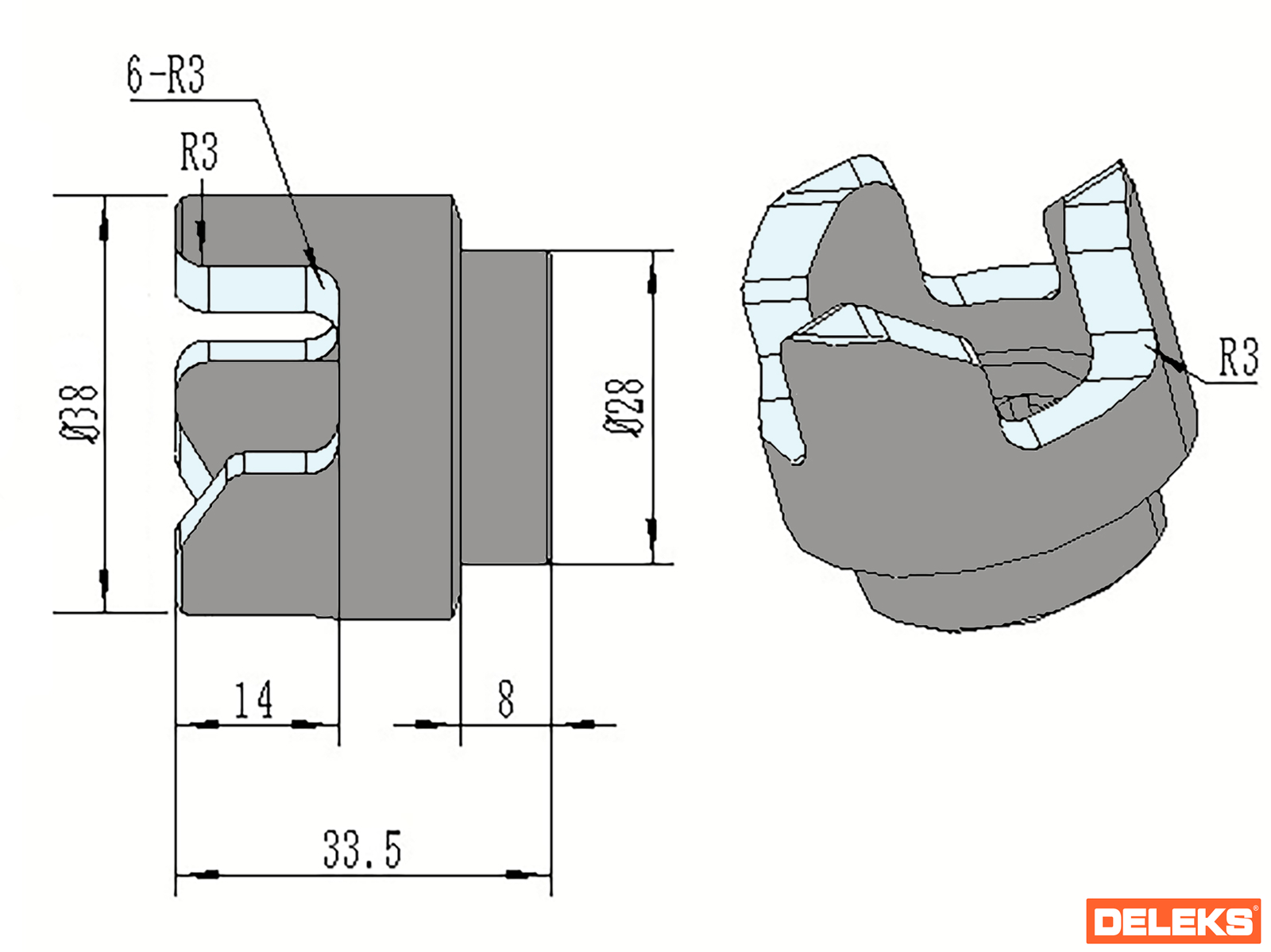

3-tooth BCS-type quick hitch, fine-spline with adapter
The male half of the 3-tooth quick hitch comes fitted as standard: on the DELEKS® ZEUS two-wheel tractor, which has the female half already installed, the attachment hooks on and off in seconds, with no tools. It is the same hitch as BCS, Ferrari and Pasquali, so it fits those tractors straight on; for fine-spline (millerighe) tractors there is the adapter. If in doubt, ask the DELEKS® team first: if the attachment does not fit, returning it is free.
Fields of application
- Plots and small fields: autumn and spring ploughing
- Vineyards and orchards: working the row and earthing away
- Hard or rough ground being brought back into cultivation
- Opening furrows for potatoes and row vegetables
FAQ
Rotary or trailed plough?
The rotary plough is PTO-driven and bites into hard ground without the tractor spinning; the trailed plough (single or reversible) costs less and suits worked or light ground.
Single or double?
The double always turns to the same side and leaves the field level; the single is lighter and cheaper, for ploughing in adjoining furrows.
Will it fit my BCS, Ferrari or Pasquali?
Yes, if it has the 3-tooth quick hitch; fine-spline tractors need the adapter. Ask the DELEKS® team first if in doubt: returns are free if it does not fit.
DELEKS® spare parts and service
Genuine spare parts ship from the DELEKS® warehouses in Europe: tines, blades, knives, belts, filters, control cables and the other wearing parts are normally in stock, for routine and for unscheduled maintenance. The technical service helps you find the right part from the exploded drawings, service the machine and choose the attachments that suit your work. The product comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty, free delivery within the EU and free returns on attachments that do not fit your two-wheel tractor.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 25.0 cm | 10.0 in |
| Overall width | 54.0 cm | 21.0 in |
| Weight | 45.0 kg | 100.0 lb |
| Working Depth Range | 30.0 cm | 12.0 in |
| Gross shipping weight | 59 kg | 130 lb |
| Package volume | 0.22 m3 | 7.8 cu ft |
| Packing sizes | 720*600*500.0 mm | 28.35*23.62*19.69 in |
