DETAILS

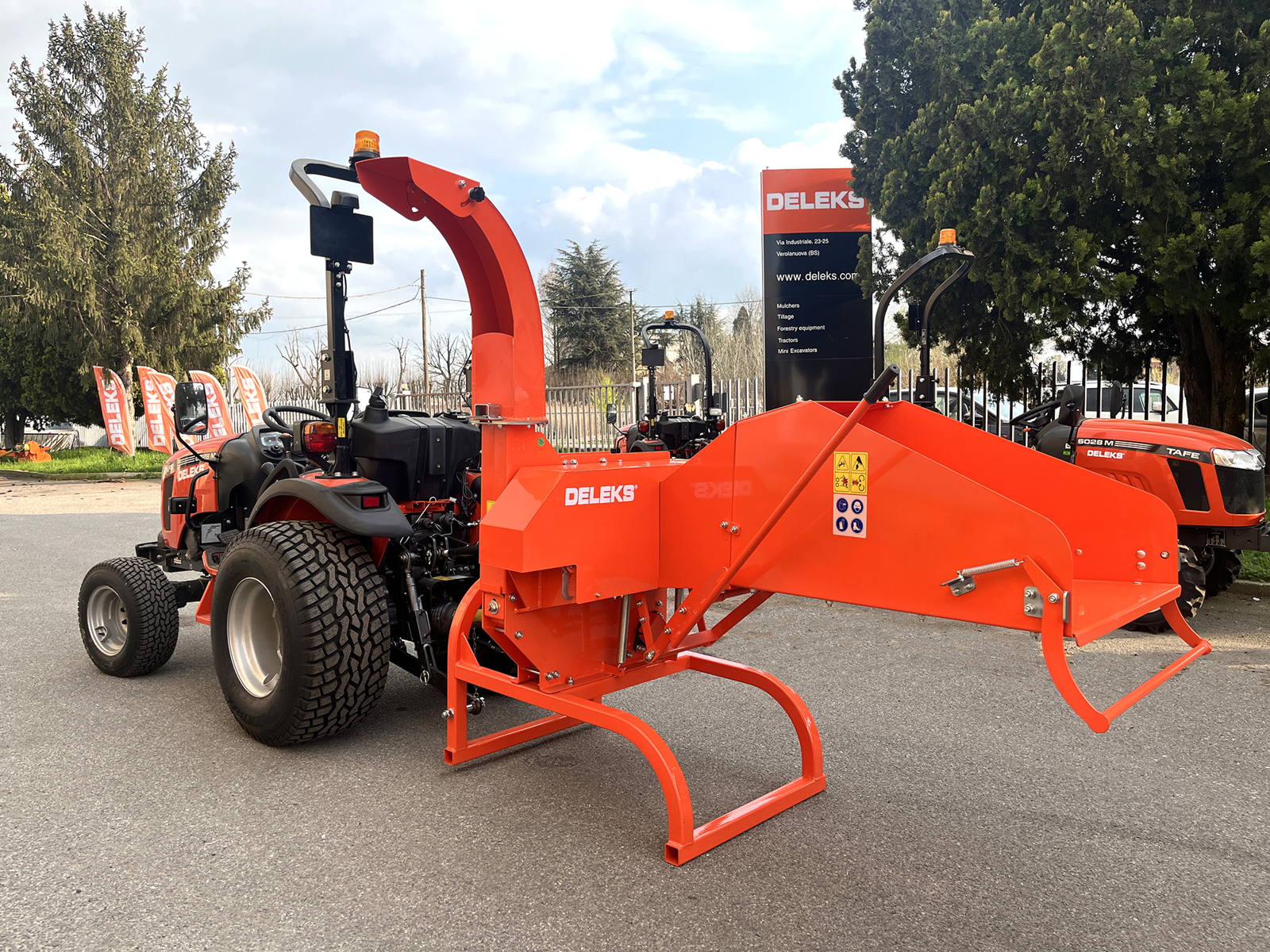

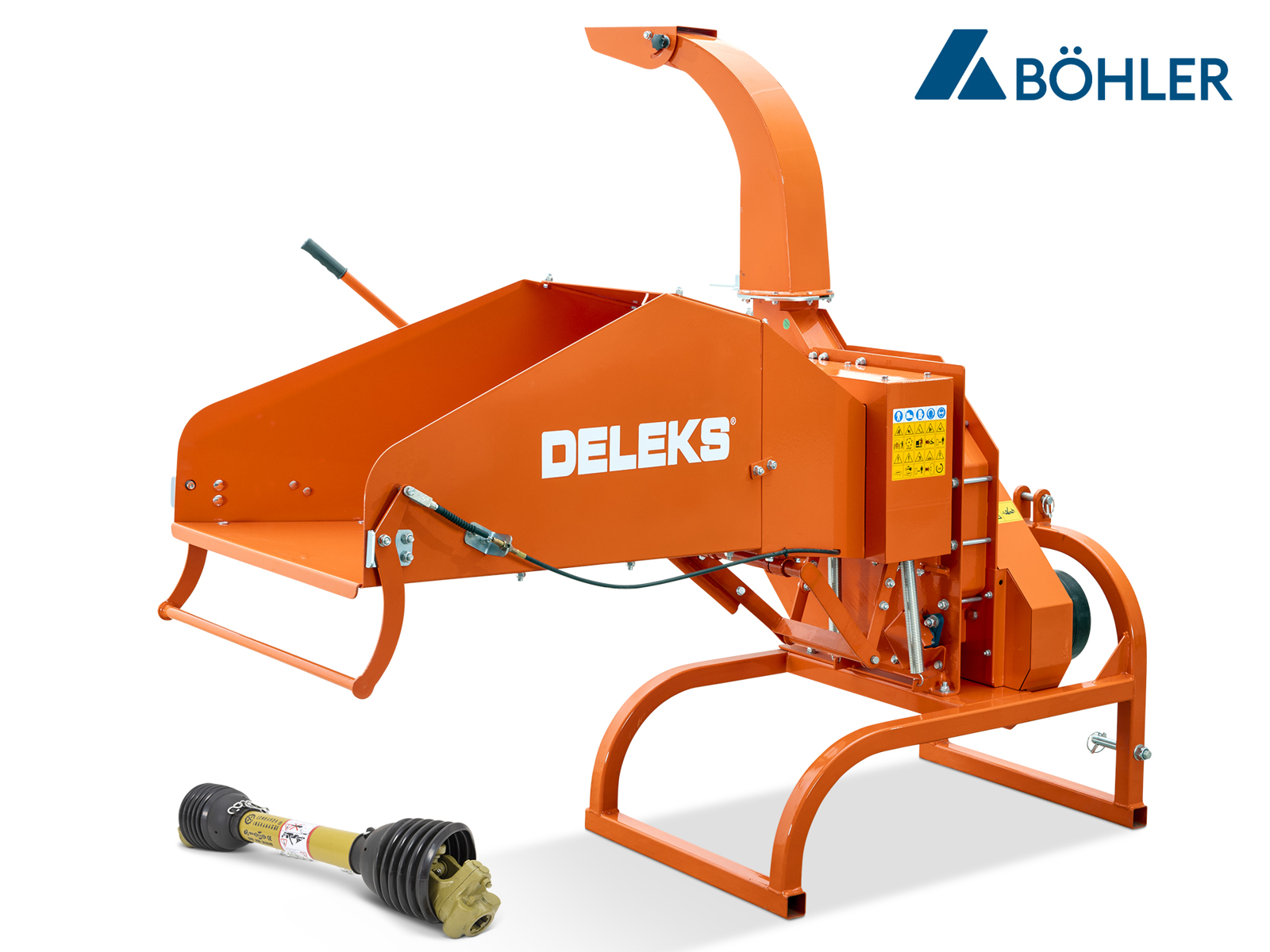

Pto driven wood chipper for 20-60 Hp tractors - DELEKS® DK-1200SE - Drive roller - 2 knives made of special K300 BÖHLER®- Pto shaft with shear bolt included.
OVERVIEW

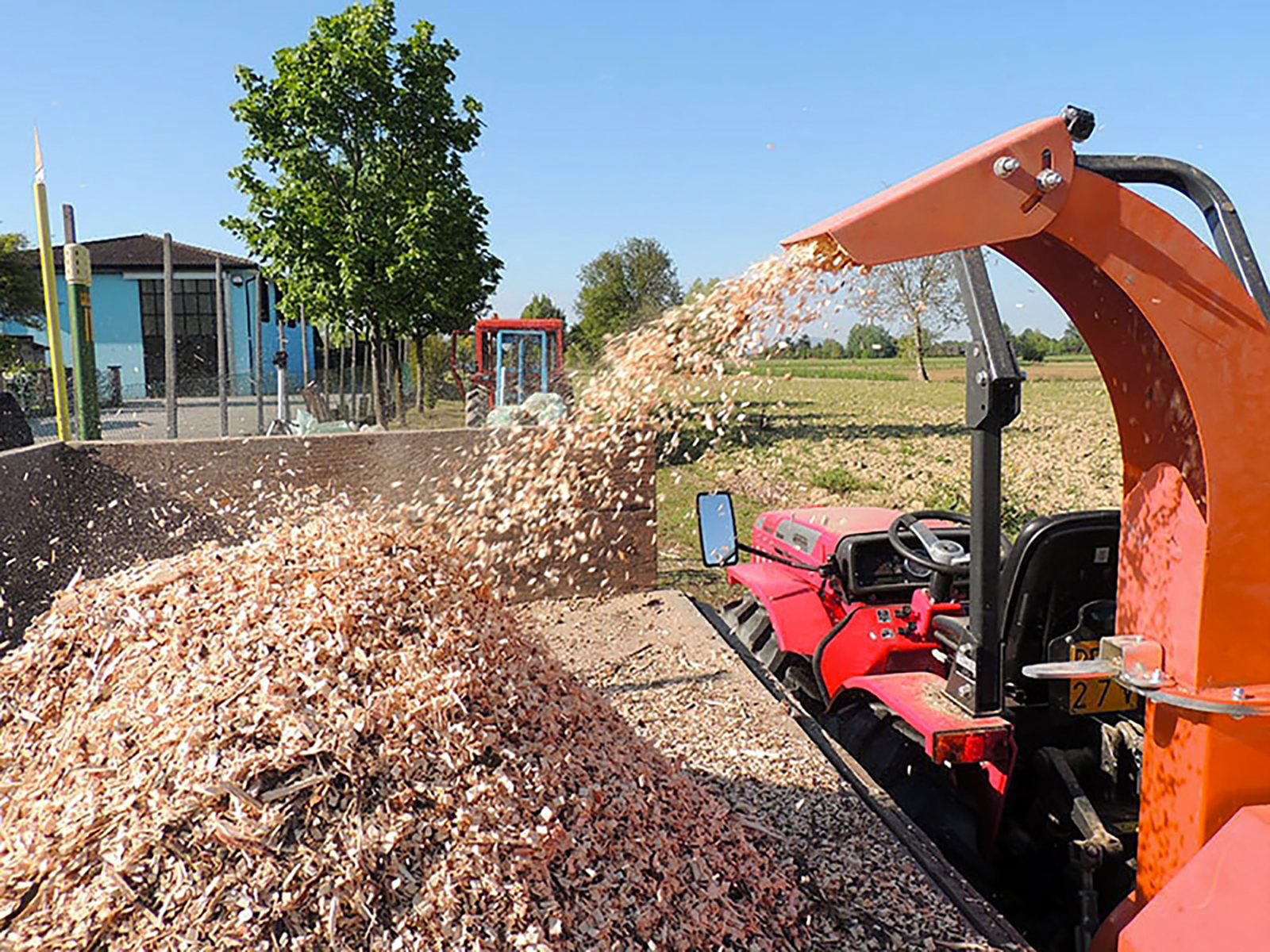

PTO driven, disc-operated DK-1200SE woodchipper has been designed to shred a wide variety of dry and green wood up to a maximum diameter of 10cm. It produces a wood chips measuring approximately 1/2cm, which ensures optimal combustion when used in wood chip boilers/furnaces. The DK-1200SE is powered by the tractor's PTO shaft. The transmission to the feed roller is belt driven, allowing a constant input speed. Compatible with all brands of Cat. 1 tractors with 3 point linkage for example Kubota B, Fiat, McCormick, Iseki, Ford, New Holland Boomer 25-35, Massey Ferguson, John Deere, etc. Conforming to the EC Machinery Directive. Supplied with a 2 year parts warranty.
BENEFITS AND FEATURES

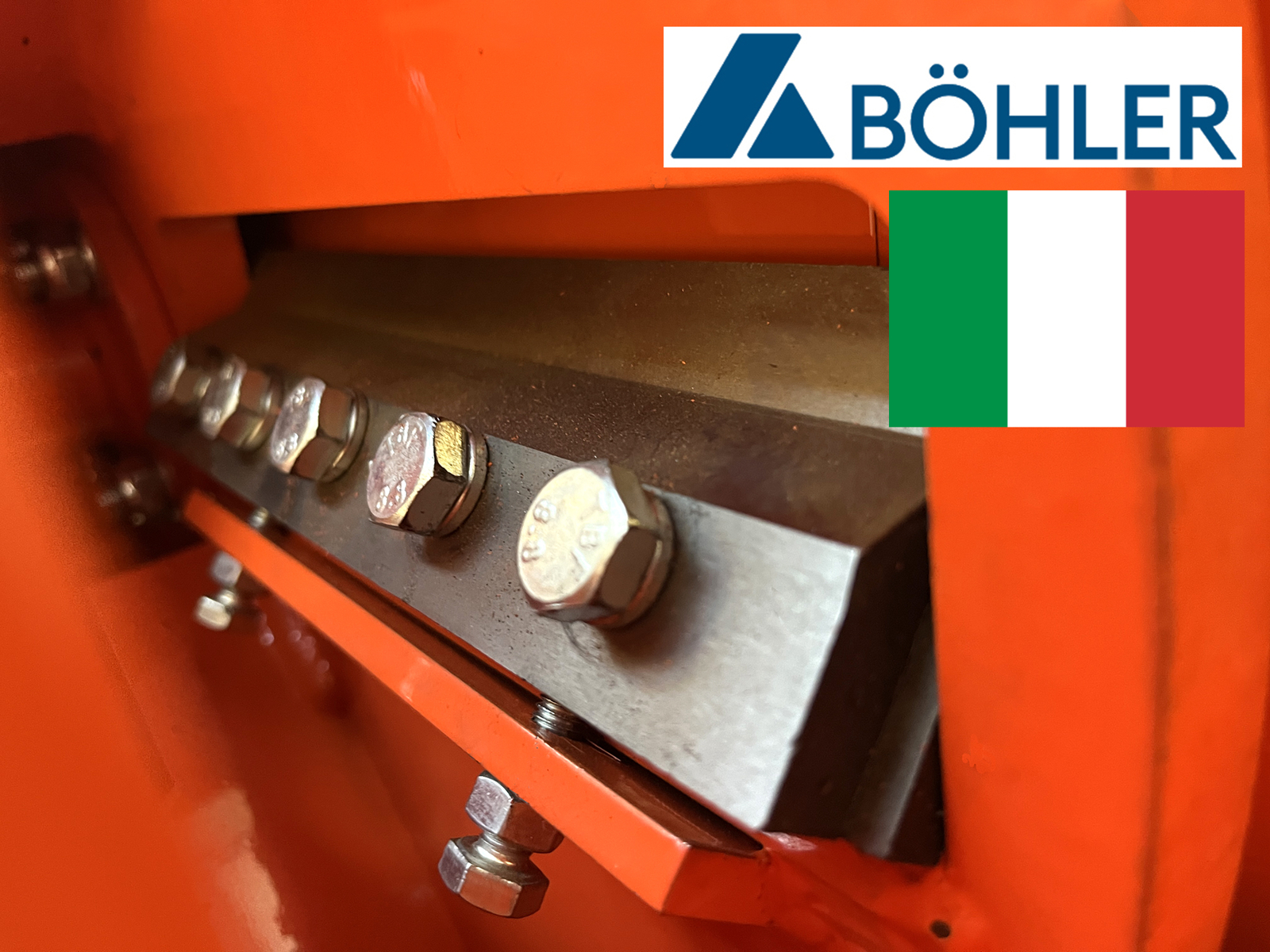

Heavy steel disc with 2 high-strength counter-blades made in Italy of special K300 BÖHLER® high resistance material.
Drive roller to facilitate and speed up the operation.
Open-able hood for maintenance and change of blades.
Output chute can be positioned 180° .
High strength belts Handle Lock immediate transmission.
Pto shaft with shearbolt included.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS

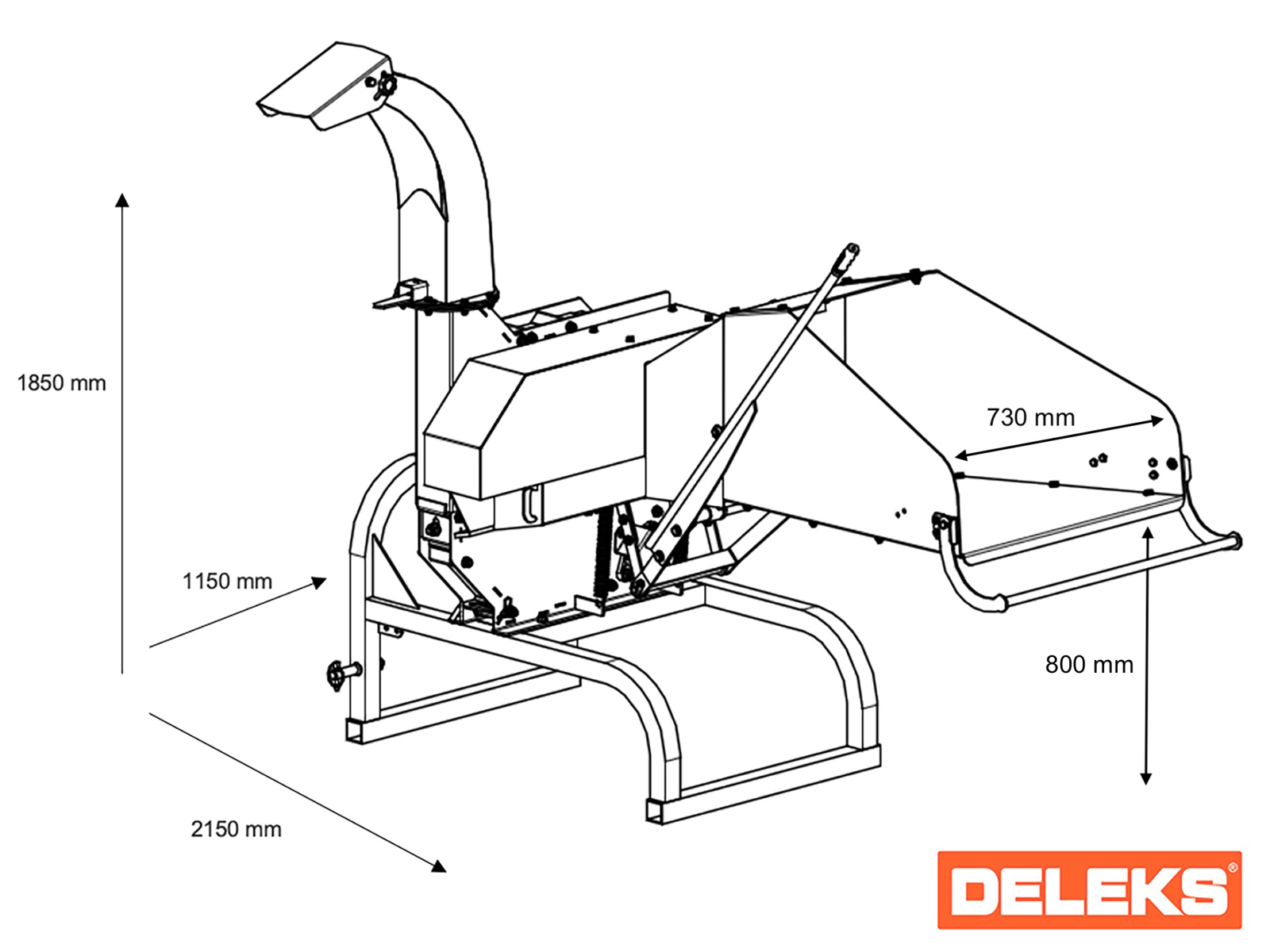

| Characteristic | Units metric | Units US |
|---|---|---|
| Overall width | 1150.0 mm | 3.77 ft |
| Weight | 337.0 kg | 743.0 lb |
| Overall height | 1850.0 mm | 6.05 ft |
| Tractor Power Range | 20 - 60 Hp | 20 - 60 Hp |

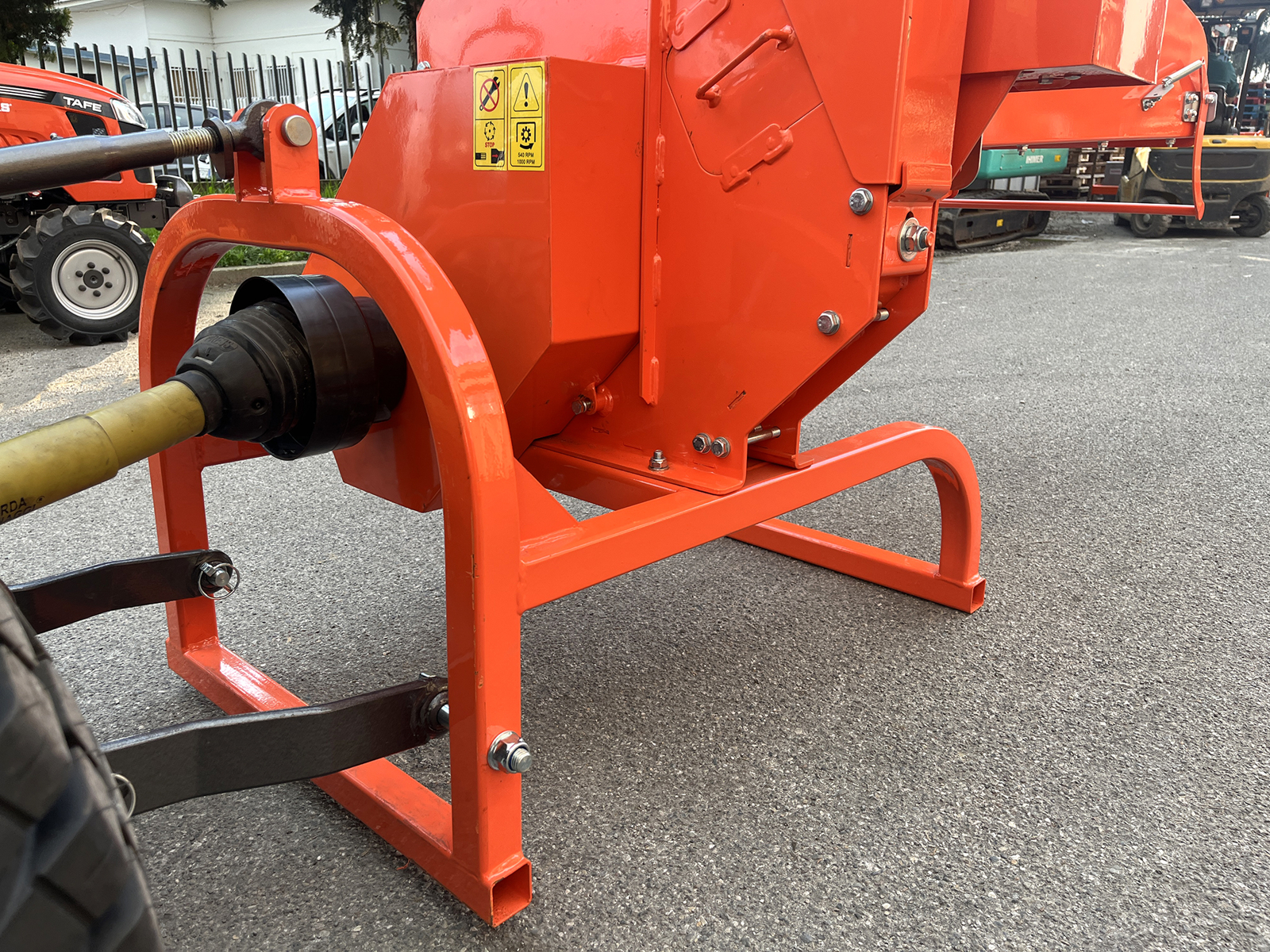

| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 490.0 - 820.0 mm | 19.30 - 32.30 in |
| Overall length | 2150.0 mm | 7.05 ft |
| Blades: Weight | 680.0 g | 24.0 oz |
| Transmission | V-Belts | V-Belts |
| Distance between pto attachment and base | 470.0 mm | 18.50 in |
| Pto shaft | CE 4x800 mm + shear bolt | CE 4x800 mm + shear bolt |
| Working Efficiency | 8-9 m3/h | 25-30 sq ft/h |
| Cutting System | Disc with 2 blades + 1 fixed blade | Disc with 2 blades + 1 fixed blade |
| Chipped material size range | 5.0 - 15.0 mm | 0.2 - 0.6 in |
| PTO Turning Speed | 540 r/min | 540 r/min |

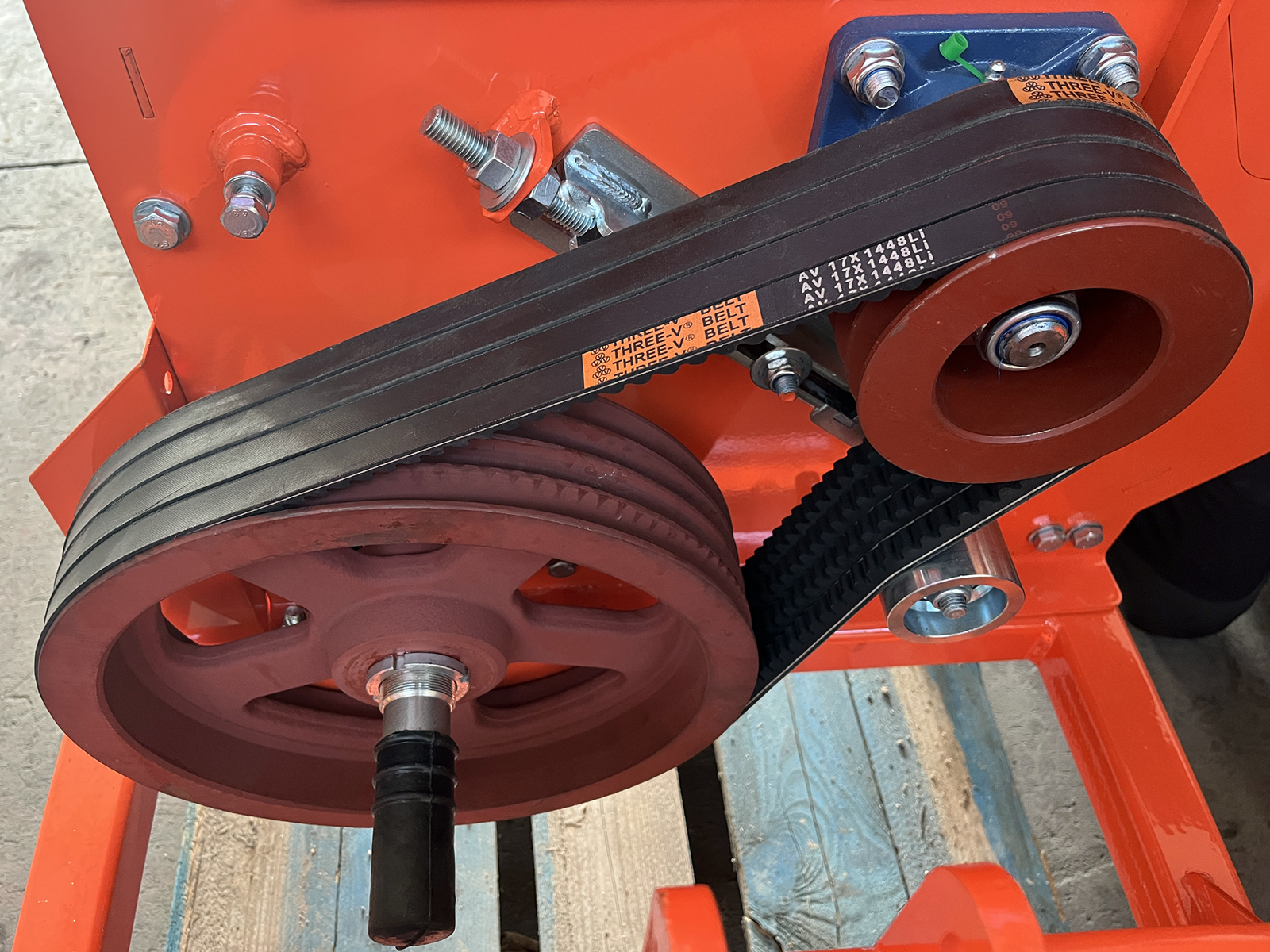

| Transmission V-Belts quantity | 4 | 4 |
| Transmission V-Belts sizes | 17x1448 | 17x1448 |
| Safety System | Stop and Start lever | Stop and Start lever |
| Blades: Sizes | 230.0*55.0*10.0 mm | 9.05*2.17*0.40 in |
| Roller: quantity | 1 | 1 |

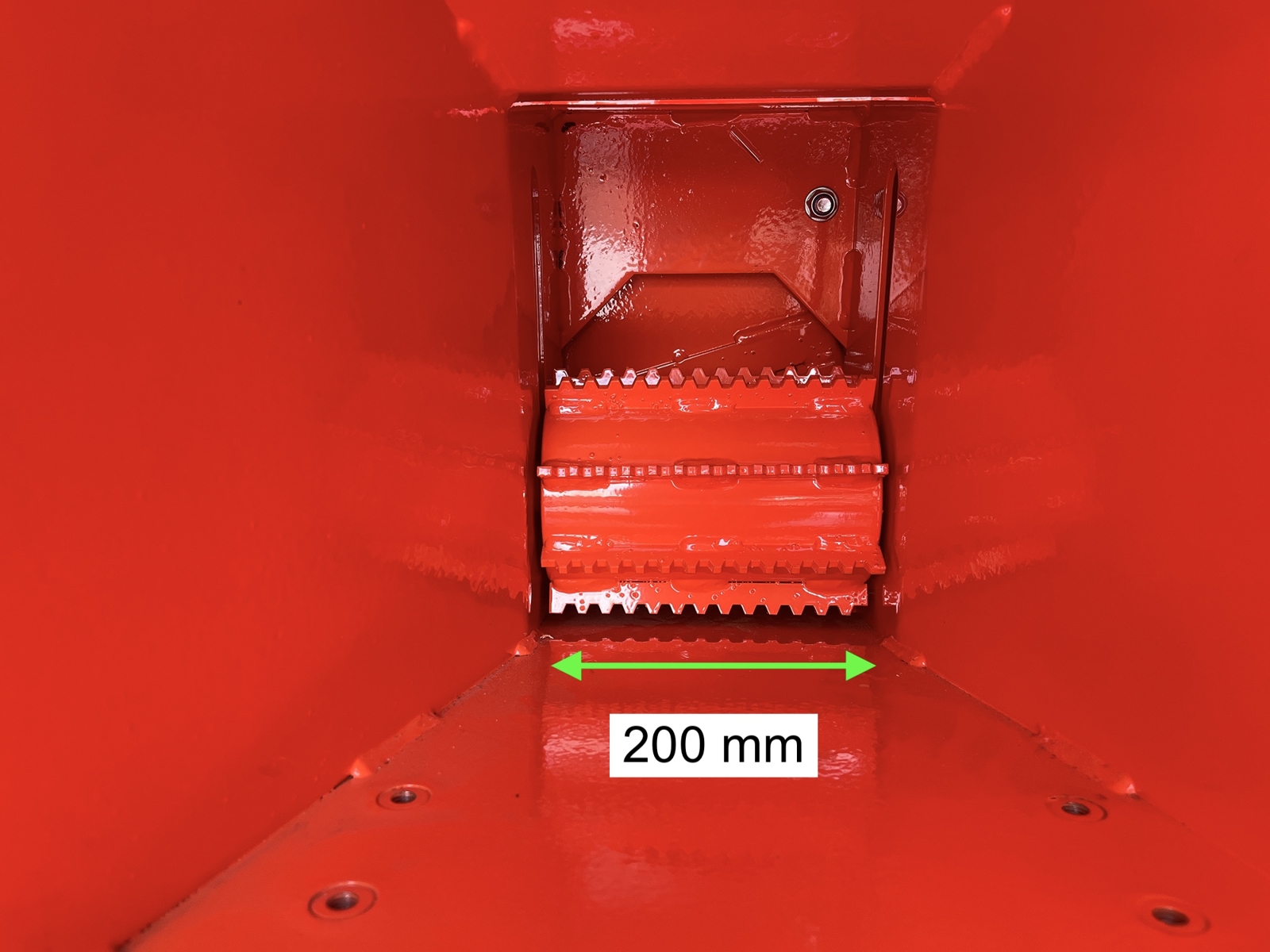

| Roller: width | 200.0 mm | 7.87 in |

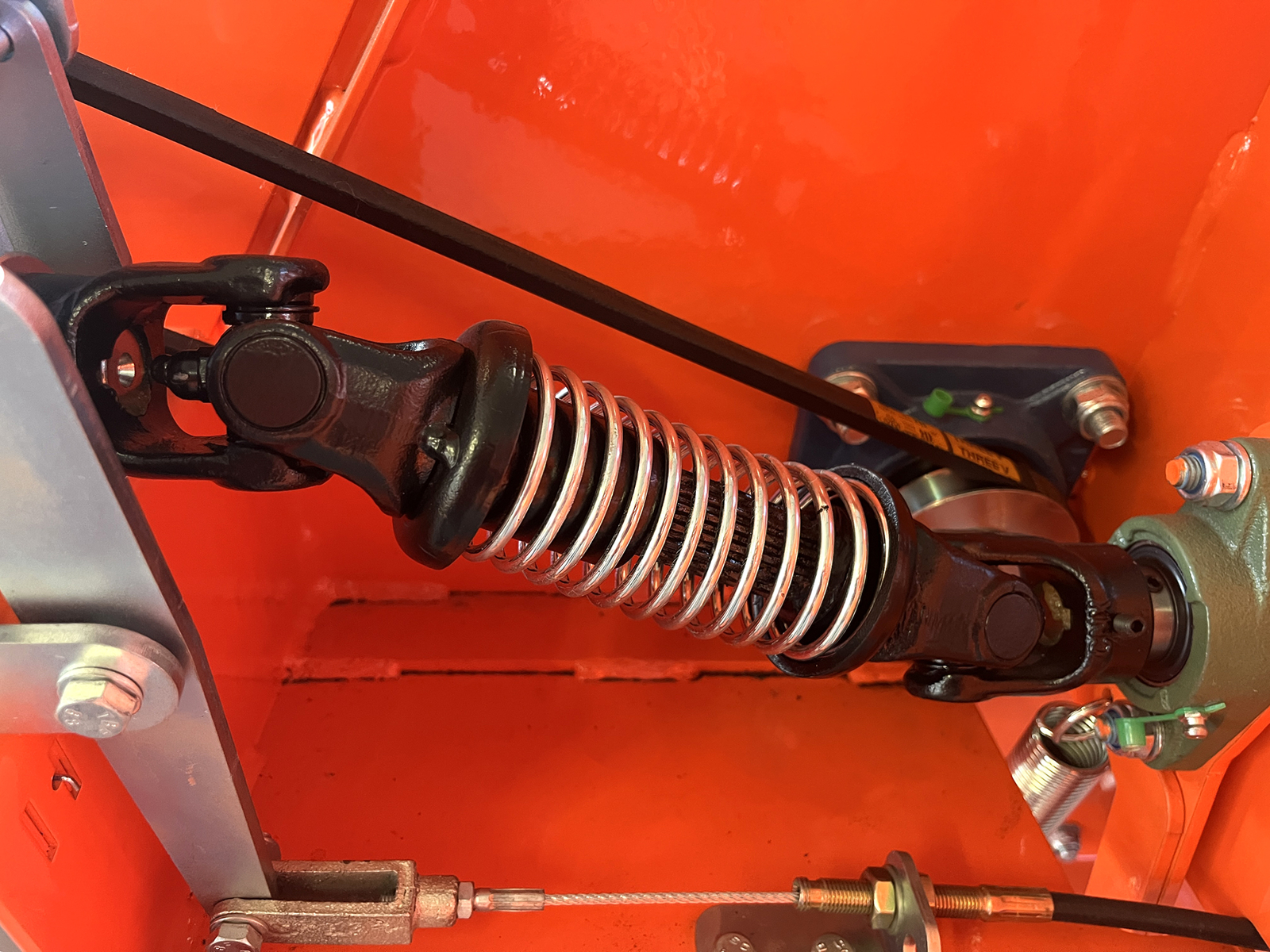

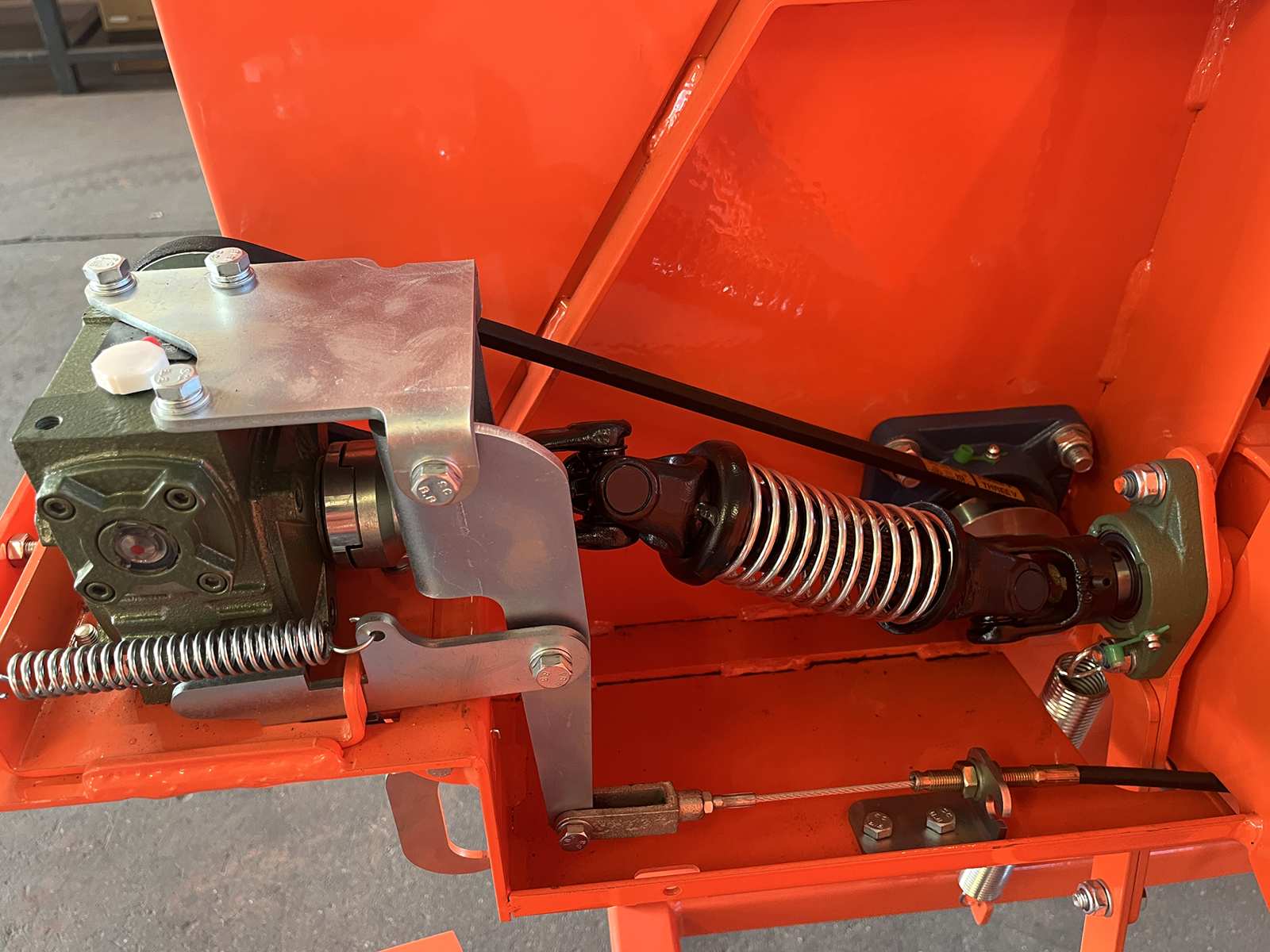

| Roller: drive system | Mechanical, 1 V-Belt | Mechanical, 1 V-Belt |
| Roller: V-Belt Size | 13x991 | 13x991 |
| Operational working height | 810.0 mm | 31.90 in |
| Feed Tray Working Width | 670.0 mm | 26.38 in |
| Outlet Tube Sizes | 150.0*155.0 mm / 180° | 5.90*610.0 in / 180° |
| Maximum cutting diameter | 80.0 - 100.0 mm | 3.15 - 3.94 in |
| Roller: sheet thickness | 4.0 mm | 0.16 in |
| Roller: diameter | 150.0 mm | 5.90 in |
| Outlet hight | 1800.0 mm | 5.90 ft |
| Packing sizes | 1200.0*1100.0*1200.0 mm | 3.94*3.60*3.94 ft |
