Drum Bio Wood Chipper for tractor - DK-1300
EAN 8053470234538
See more details
2 YEARS WARANTY
30 DAYS FOR RETURN
5-10 DAYS OF SHIPPING
SECURE PAYMENT
DETAILS

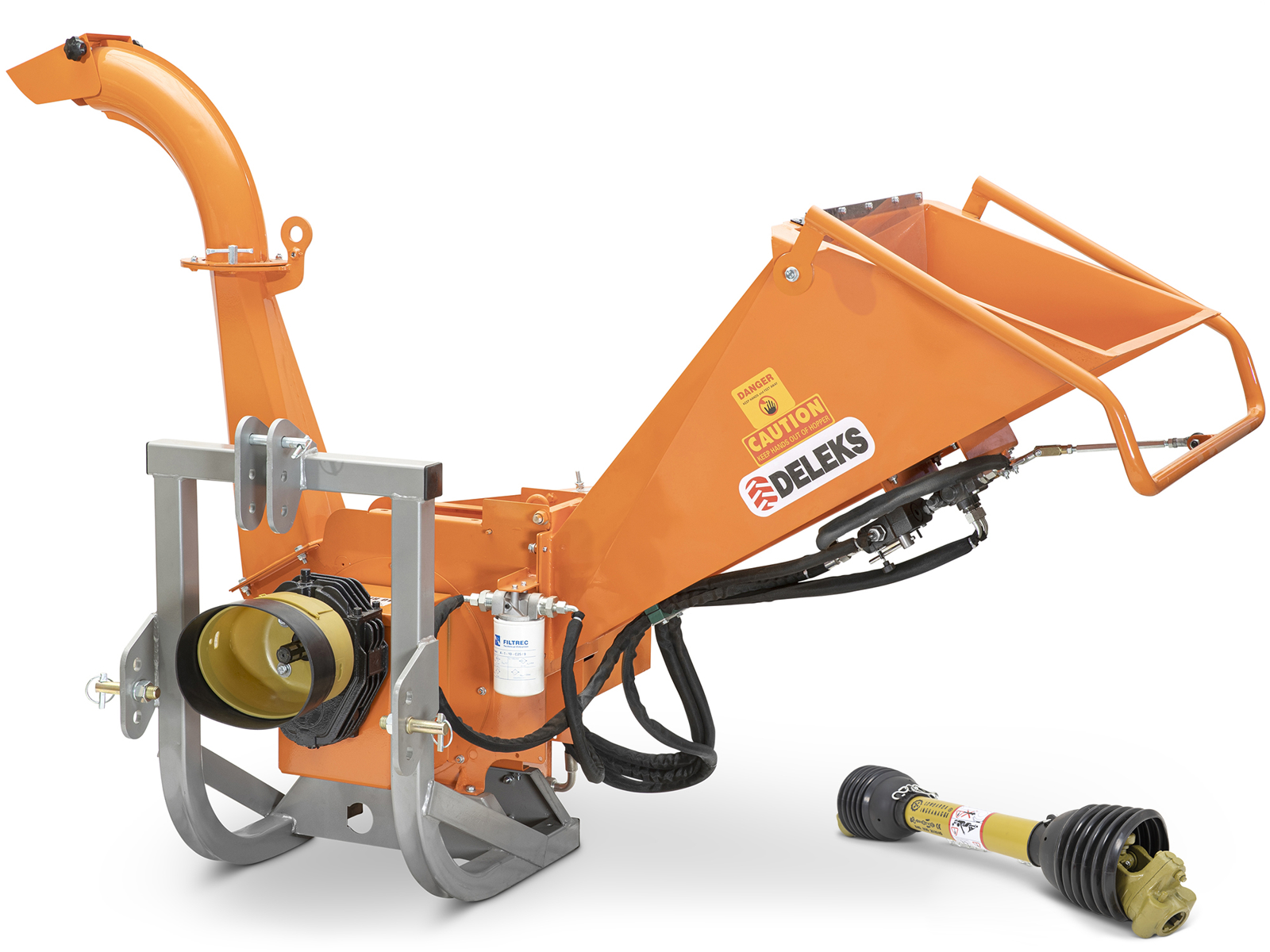

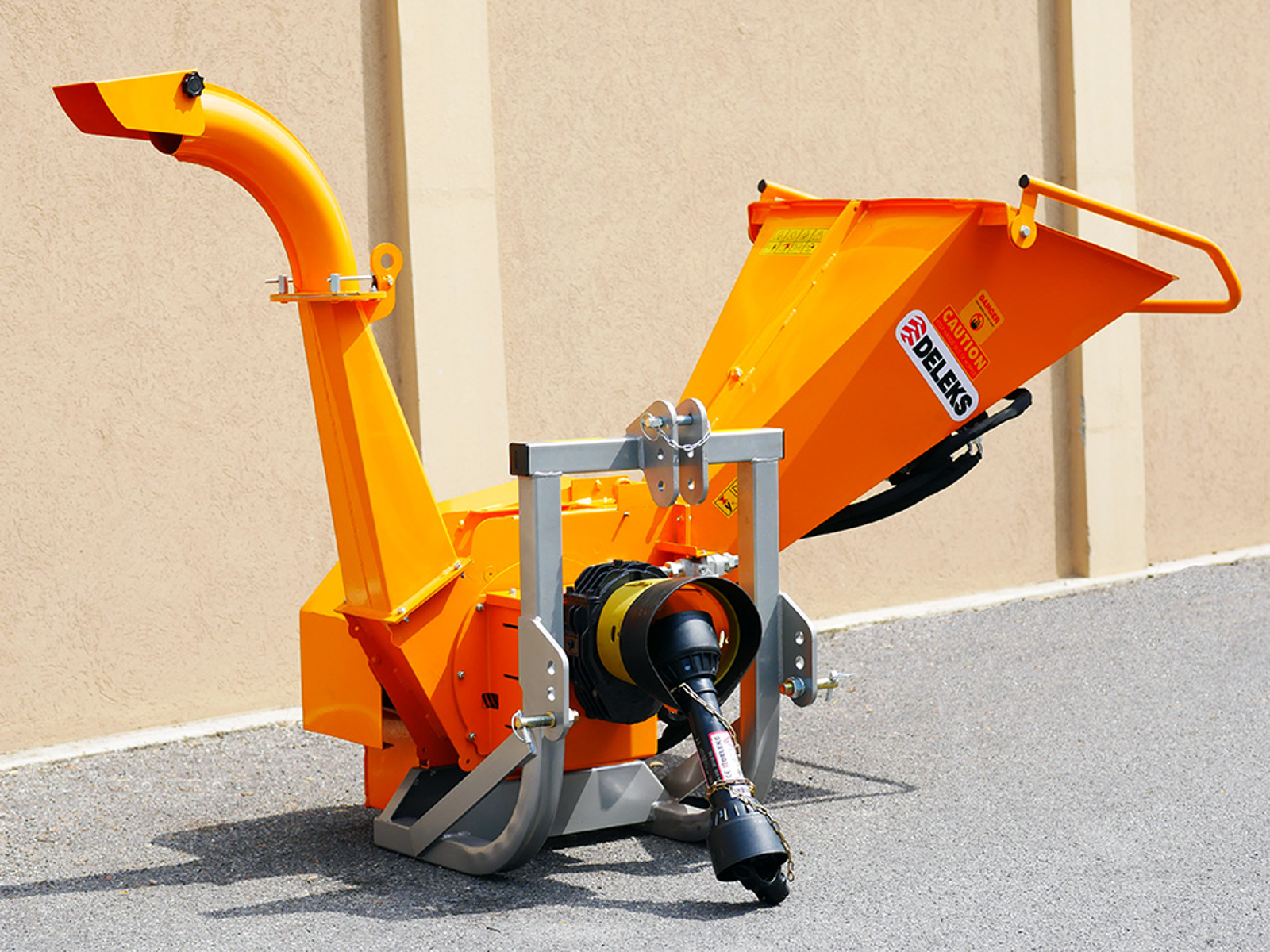

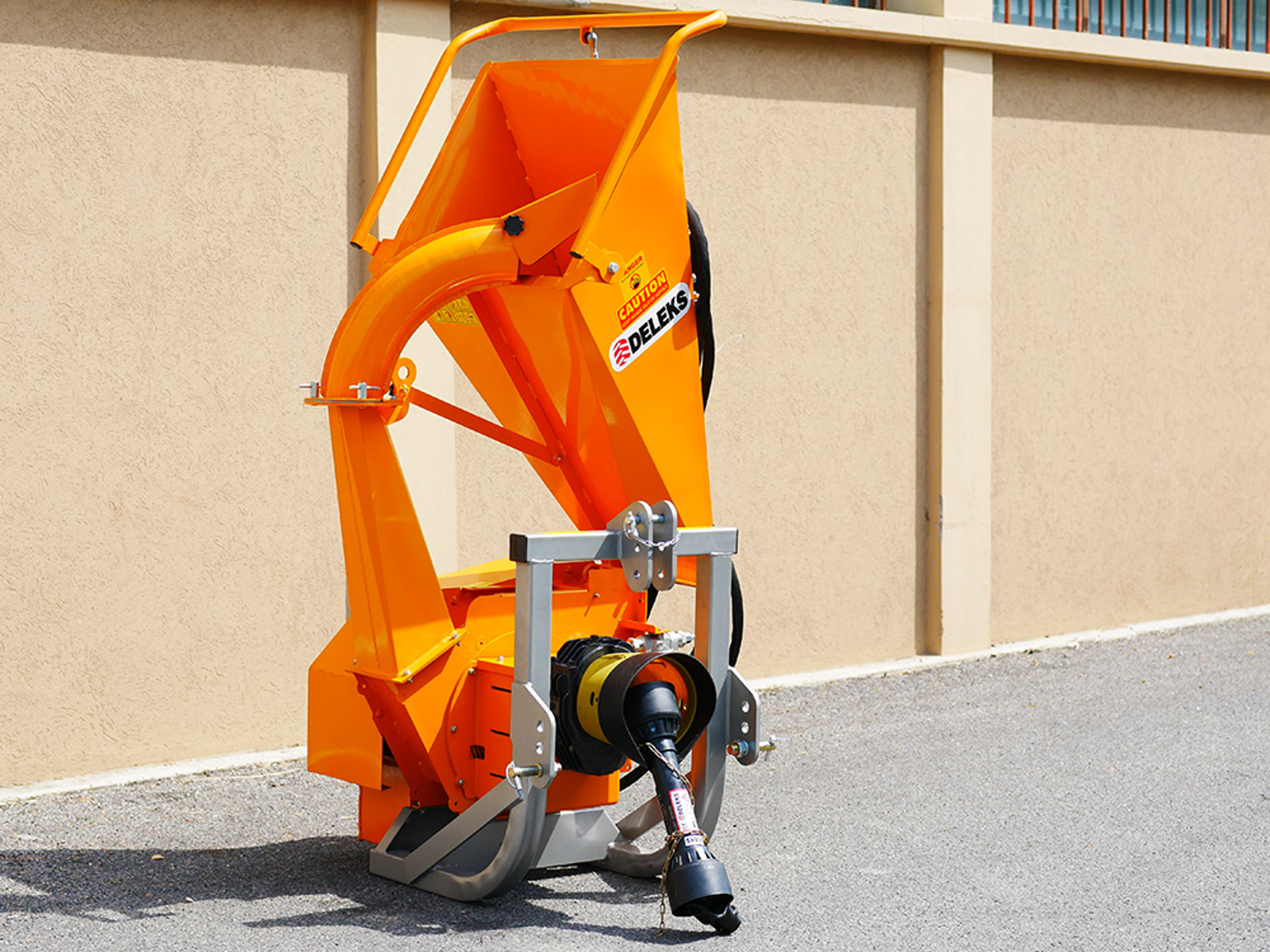

Bio-drum chipper DELEKS® with hydraulic feed roller and autonomous oil supply for tractor mounting - Pto shaft included.
APPLICATION
DK-1300 Organic drum shredder, particularly suitable for shredding hedges and bushes of all kinds and dry and green wood up to a diameter of maximum 10 cm.
Regular wood chips are produced, which enable excellent combustion for wood chip heating systems or are suitable for composting.
The DK-1300 organic shredder is run by the tractor's PTO.

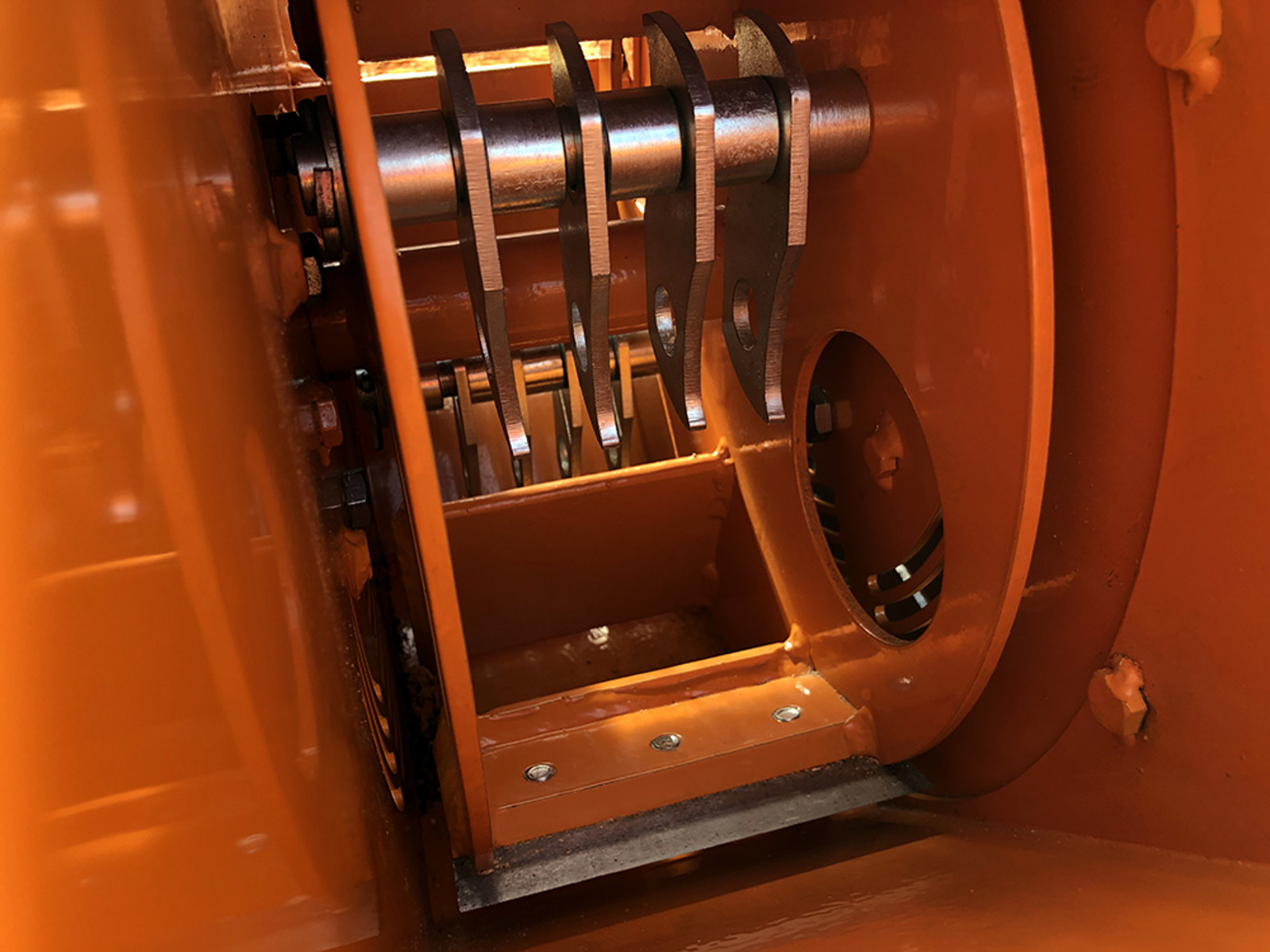

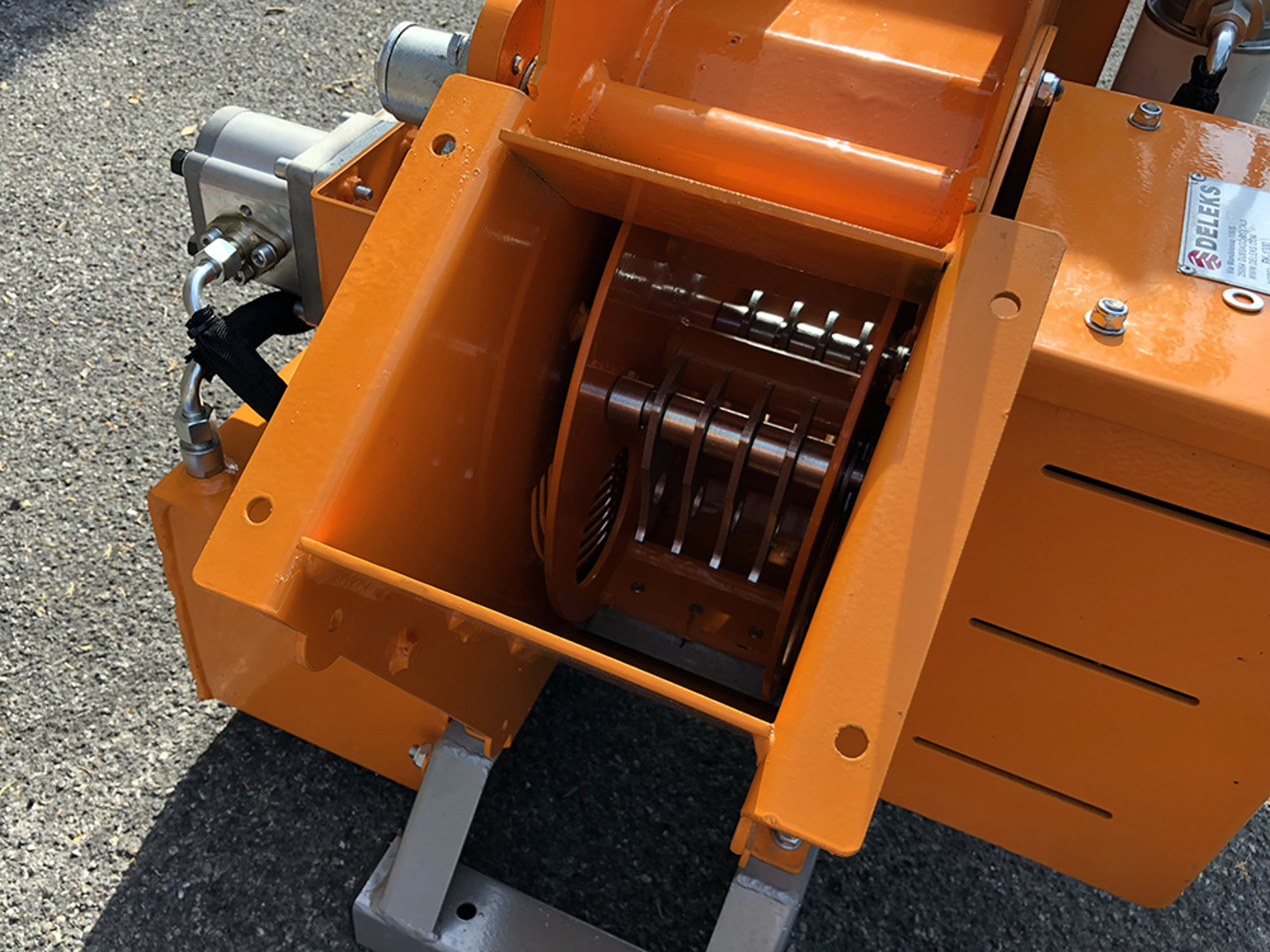

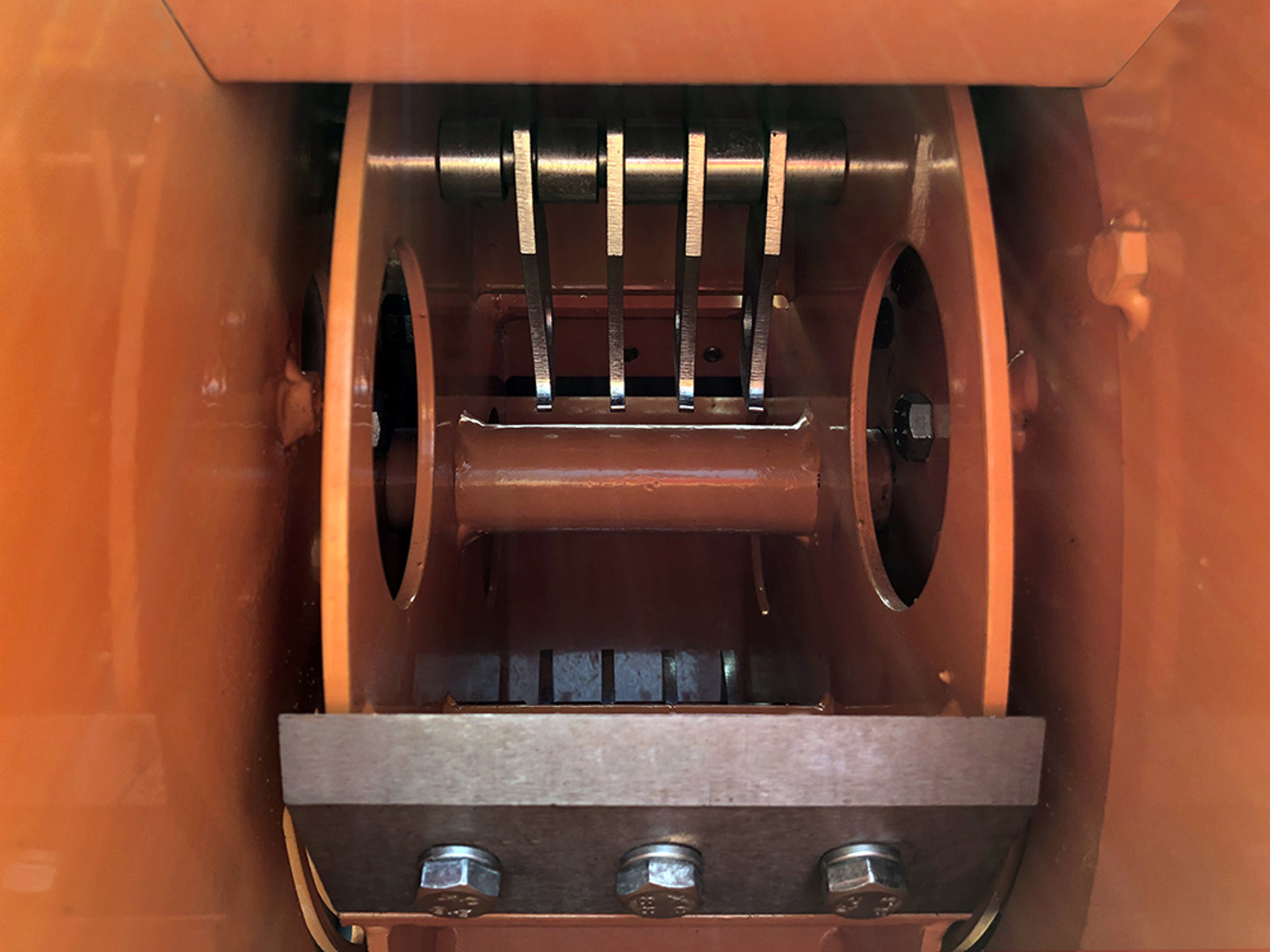

Double function: The inner drum is equipped with 2 interchangeable blades and 2 rows of 4 hammers and combines the characteristics of a wood shredder with those of an organic shredder (shredding leaves and foliage).

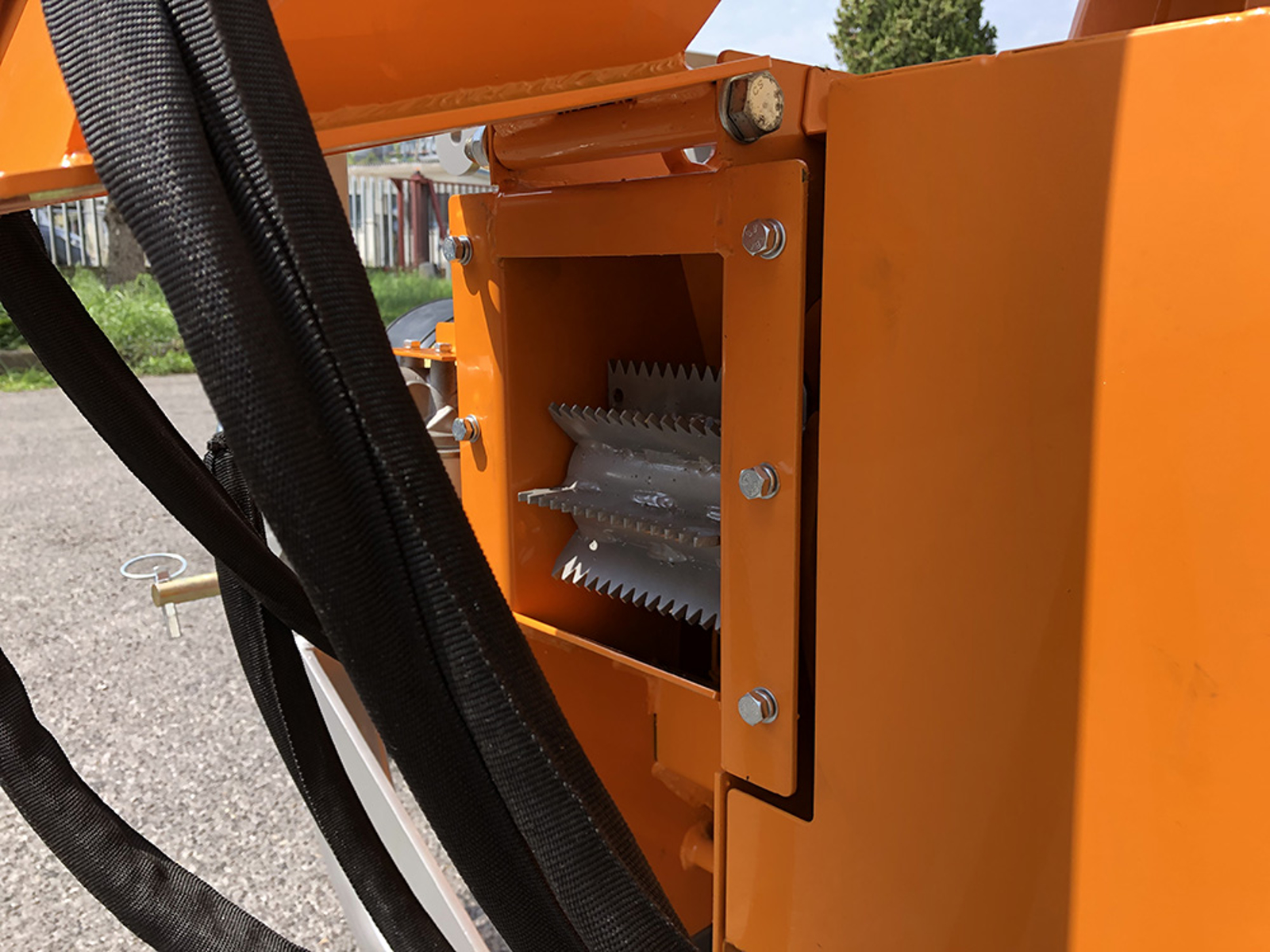

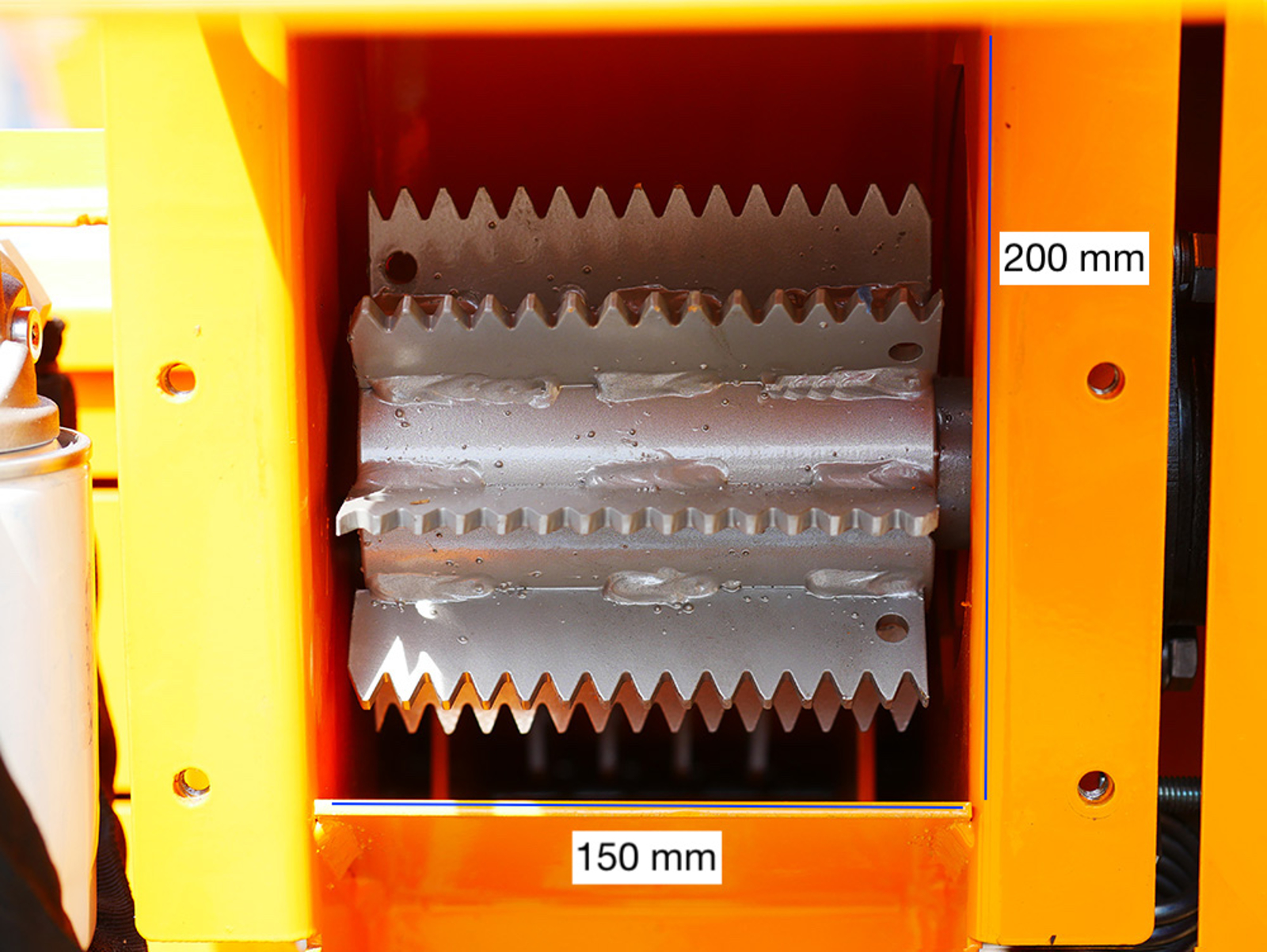

The feed roller has a hydraulically driven drum with adjustable speed.
The infeed roller is controlled by the control bar, which allows rotation in both directions or stop.

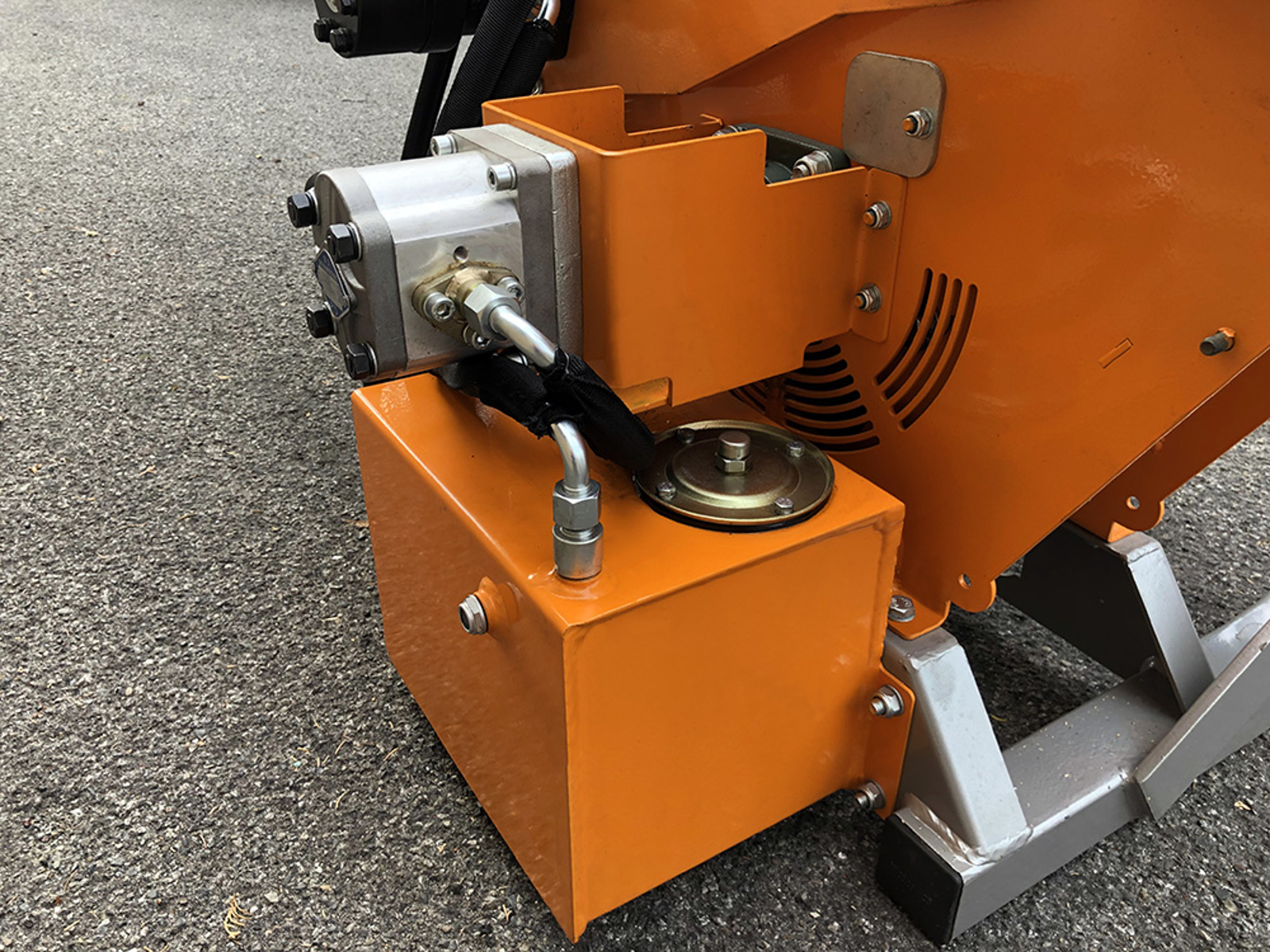

The DK-1300's own hydraulic system is independent. It has its own oil tank and does not need to be connected to the tractor.

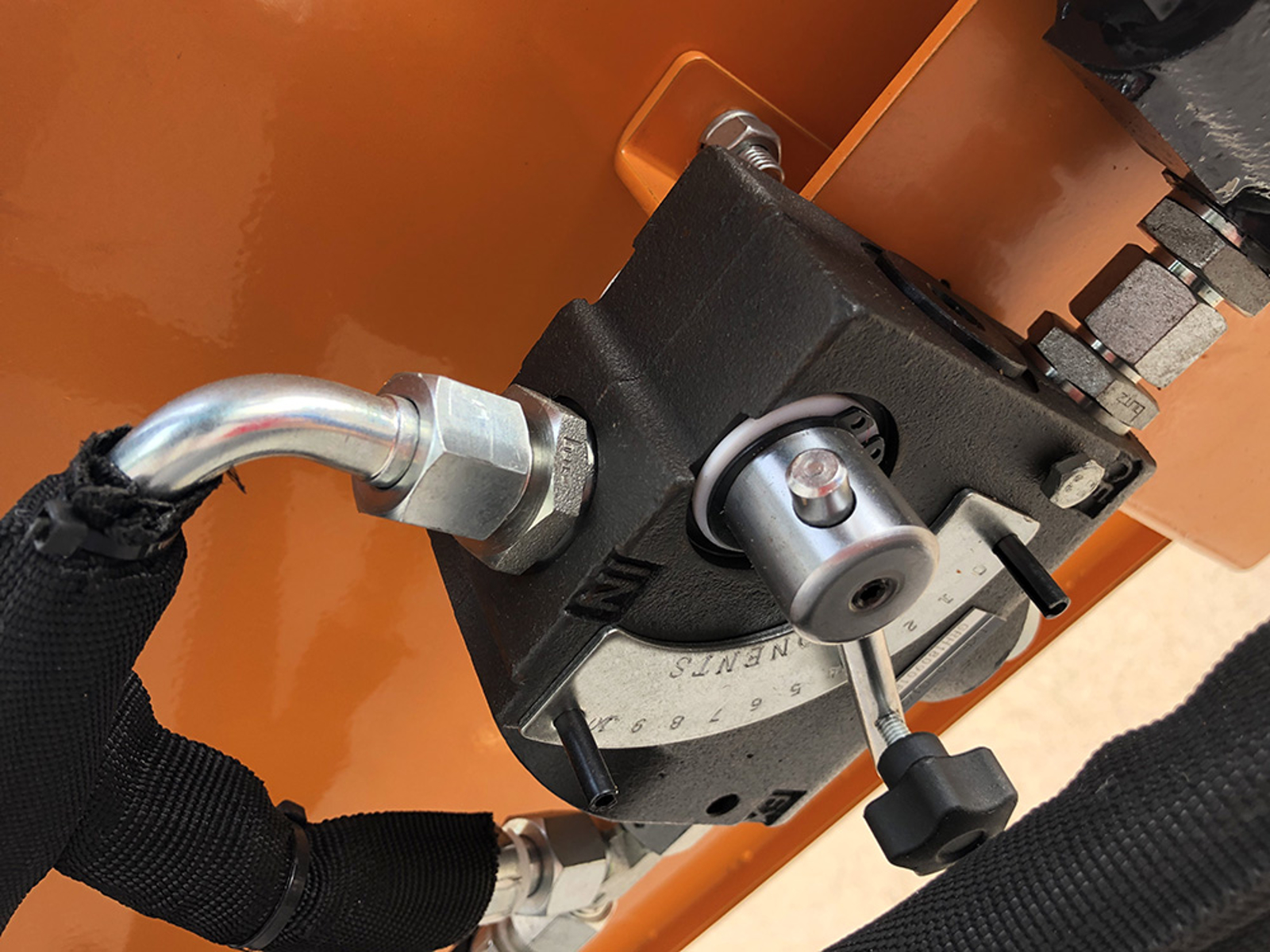

It is also equipped with a manually adjustable control unit to regulate the speed of the feed roller. You can adjust the exact speed for harder or thicker wood and for softer wood steplessly as well as influence the size of the wood chips.
Compatible with all tractor brands with 3-point linkage Cat. 1 (Cat. 2 on request) Type Kubota, Carraro,
Goldoni, New Holland, Landini, Pasquali, Valpadana, etc. It complies with the EC Machinery Directive.
2 years warranty. Suitable for tractors with PTO at 540 rpm.
ADVANTAGES
1 feed roller to facilitate and accelerate the work.
Autonomous hydraulic system.
Wood chipper and bio chipper: internal drum with 2 knives + 2 rows of 4 hammers.
Control device for adjusting the speed of the feed roller.
Easy access to internal chamber for maintenance and blade/hammer replacement.
360° adjustable ejector.
Control bar for easy change of direction and stop.

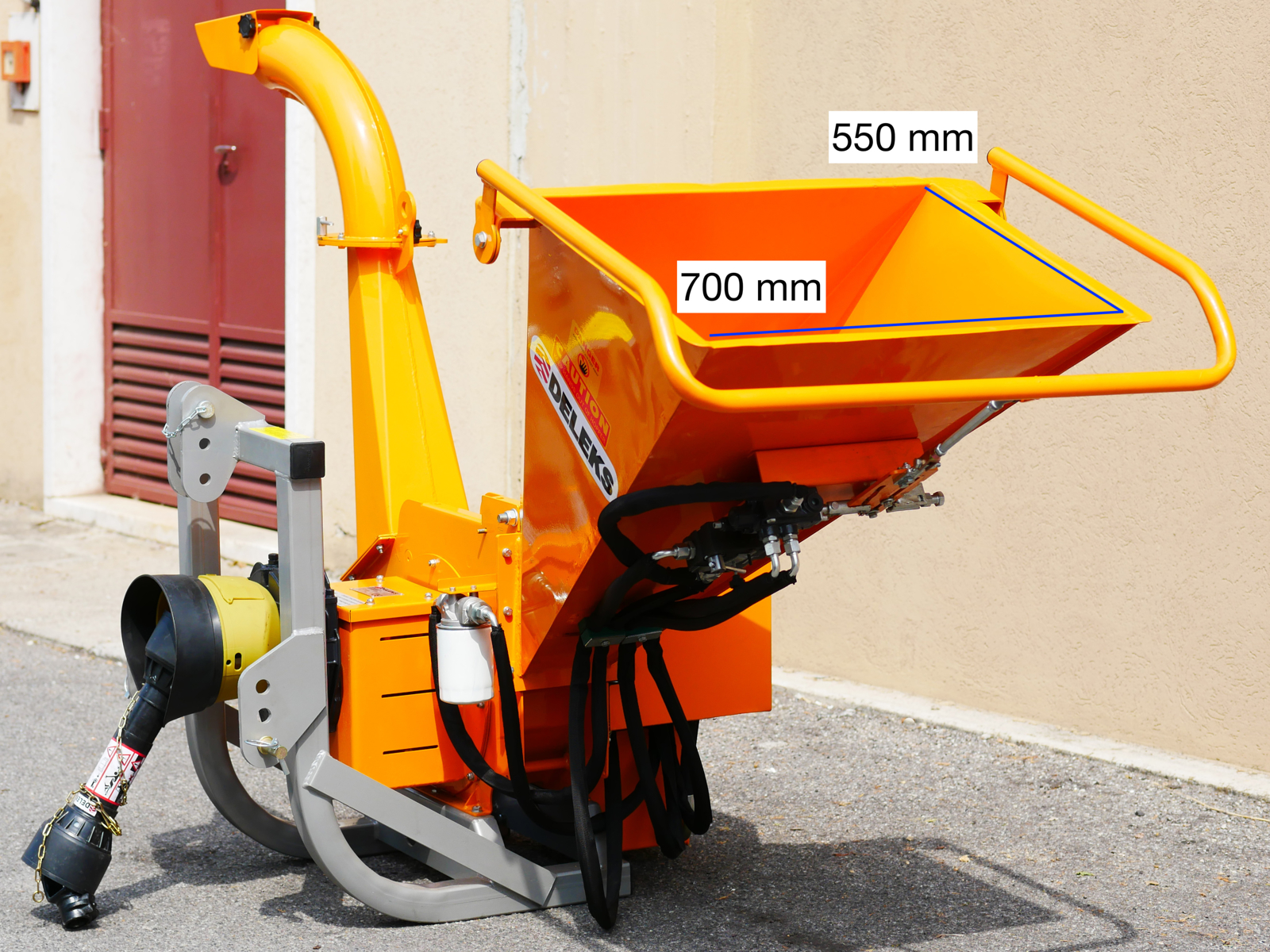

Closable hopper (with 6 screws) for a footprint of only 1150 mm for road transport.
Documentation supplied with the article:
EC Declaration of Conformity
Invoice
Operating and maintenance instructions
CARACTERISTICS
Caracteristic | Units metric | Units US |
---|---|---|
Weight | 225.0 kg | 500.0 lb |
Tractor Power Range | 18 - 50 Hp | 18 - 50 Hp |
3 point linkage | Cat. 1 (ø 19.0-22.0mm) | Cat. 1 (ø 19.0-22.0mm) |
Transmission | Hydraulic system | Hydraulic system |

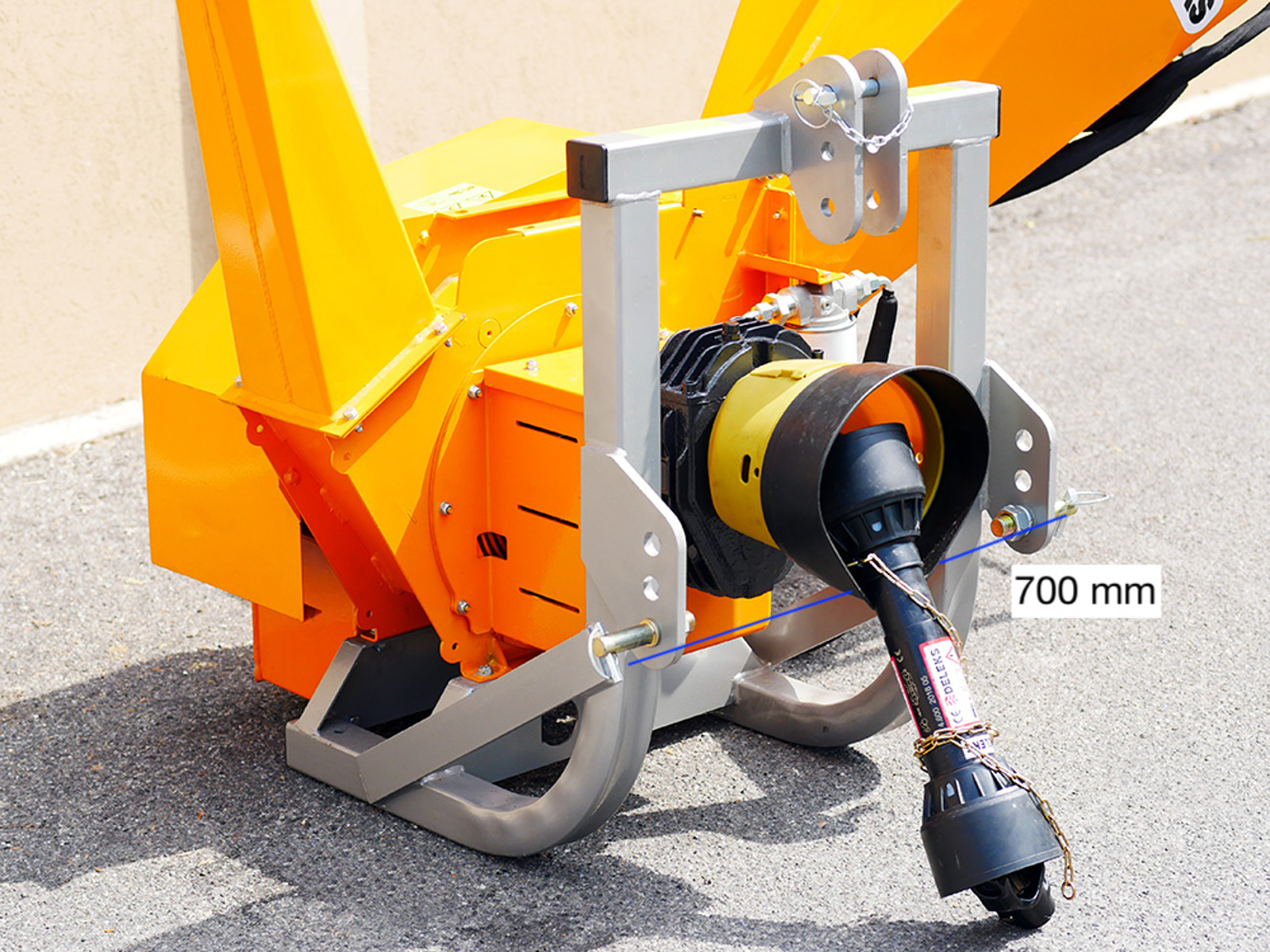

Distance between pto attachment and base | 500.0 mm | 19.70 in |
Pto shaft | CE 4x800 mm + shear bolt | CE 4x 2.60 ft + shear bolt |
Working Efficiency | 8-9 m3/h | 25-30 sq ft/h |
Cutting System | Drum with 2 blades + 8 hammers + 1 fixed blade | Drum with 2 blades + 8 hammers + 1 fixed blade |
Chipped material size range | 5.0 - 10.0 mm | 0.2 - 0.4 in |
PTO Turning Speed | 1000 r/min | 1000 r/min |
Transmission V-Belts quantity | x | x |
Safety System | Stop and Start lever | Stop and Start lever |
Roller: quantity | 1 | 1 |
Roller: width | 150.0 mm | 5.90 in |
Roller: drive system | Hydrauilc, no Belts | Hydrauilc, no Belts |
Outlet Tube Sizes | 360° | 360° |
Maximum cutting diameter | 80.0 - 100.0 mm | 3.15 - 3.94 in |

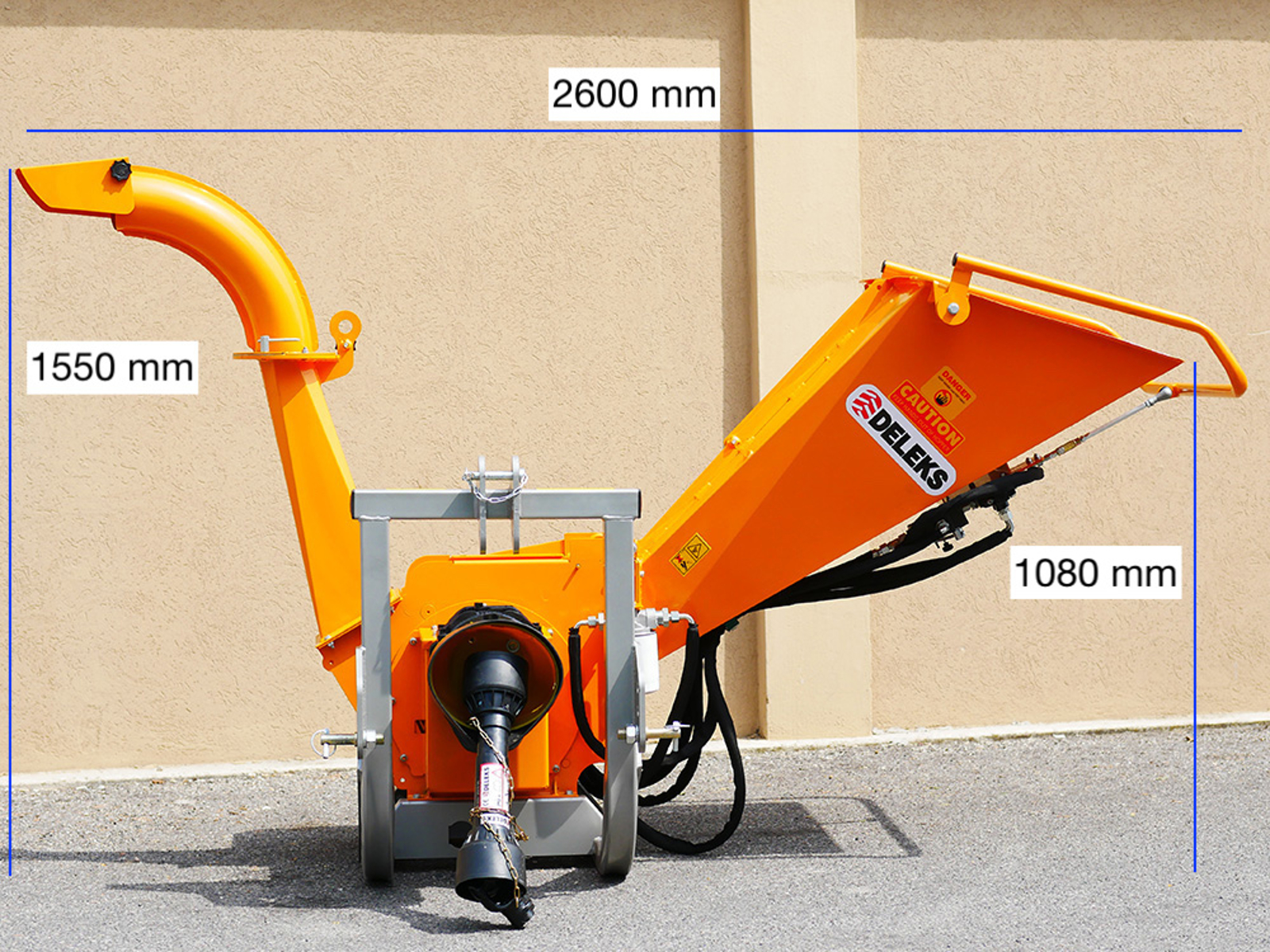

Outlet hight | 1550.0 mm | 5.0 ft |
Packing sizes | 1250.0*110.0*2200.0 mm | 3.61*3.22*5.58 ft |
