Hydraulic cutter bar, hedge trimmer - DELEKS® HR-130

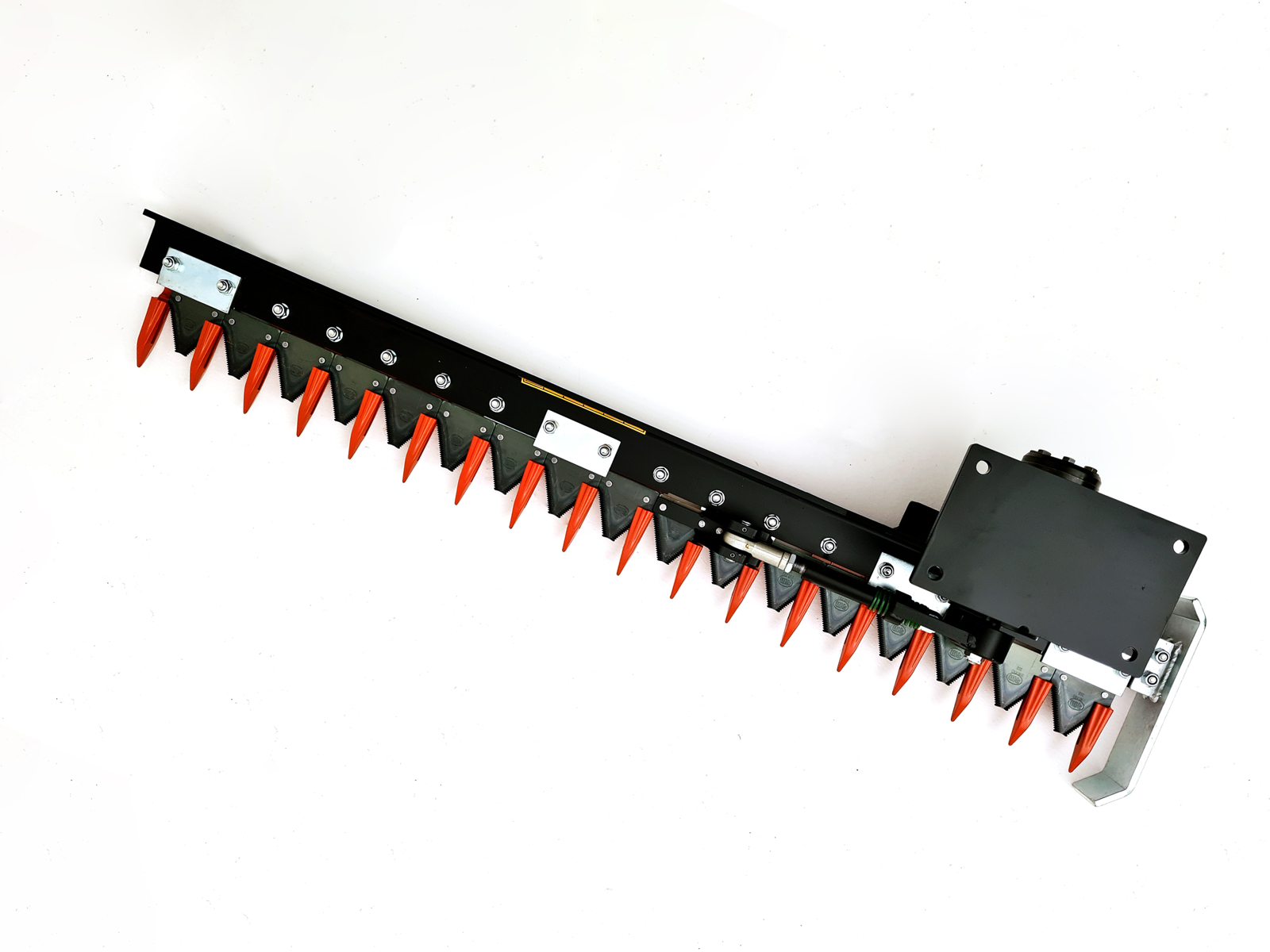

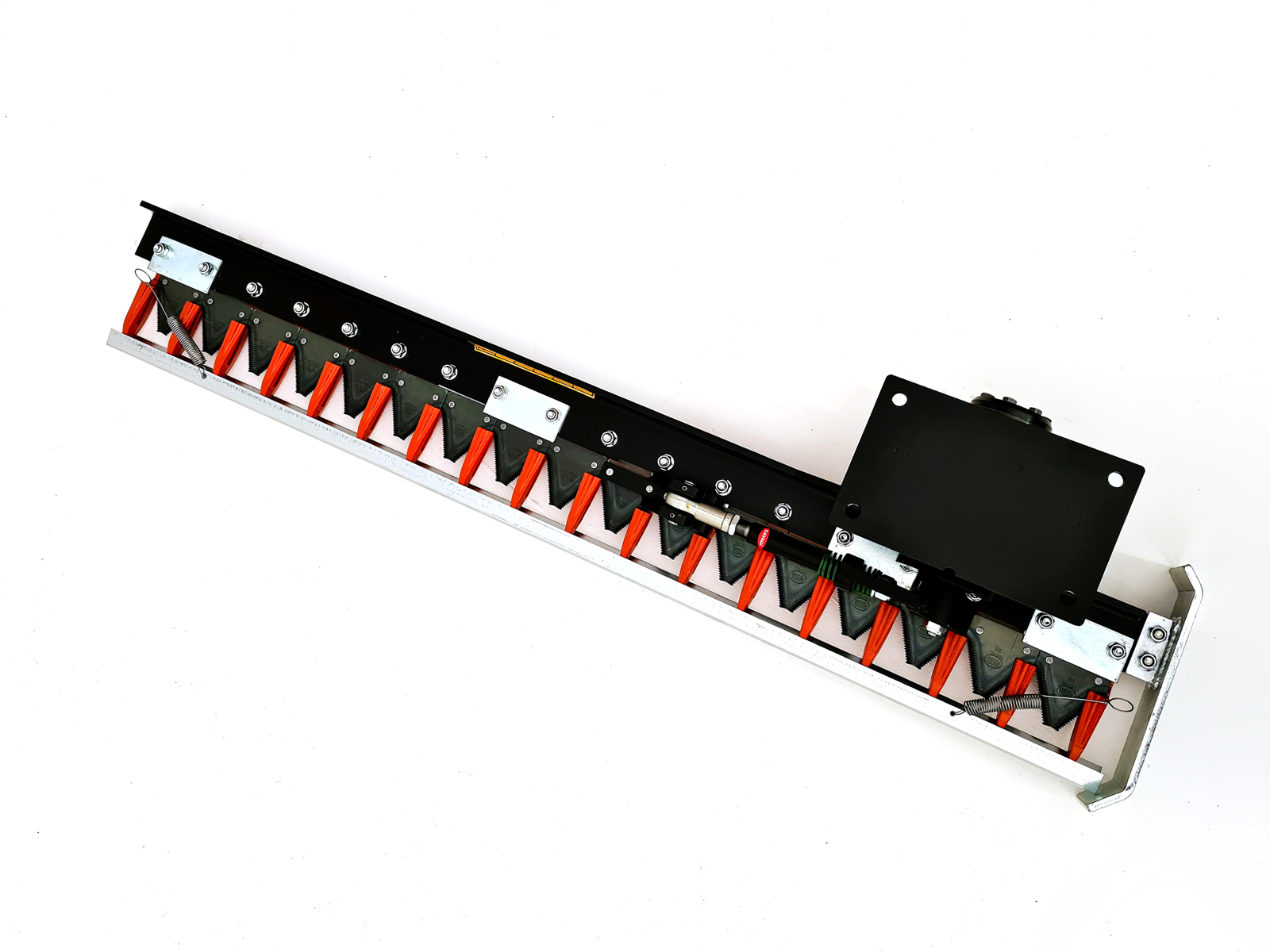

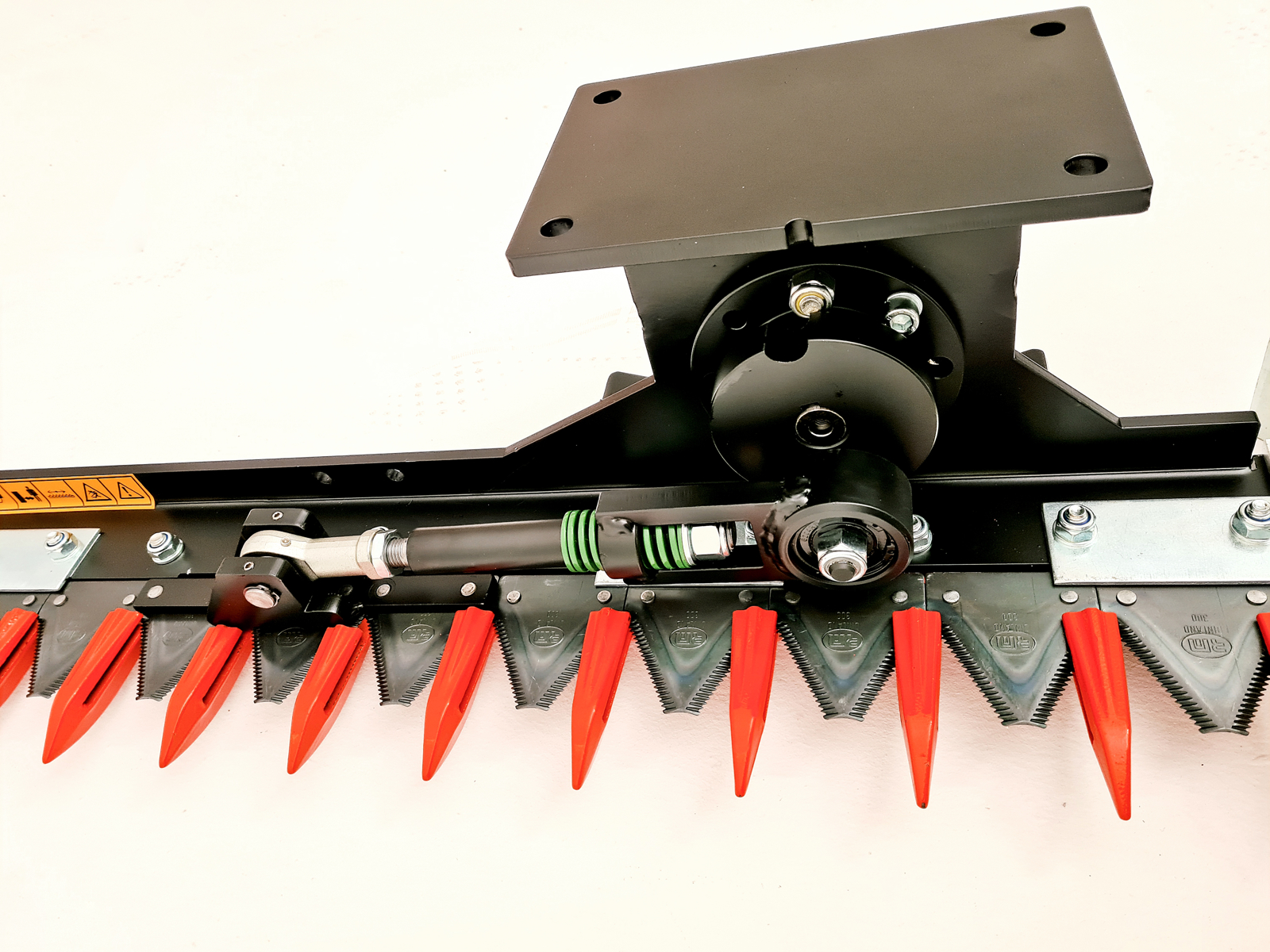

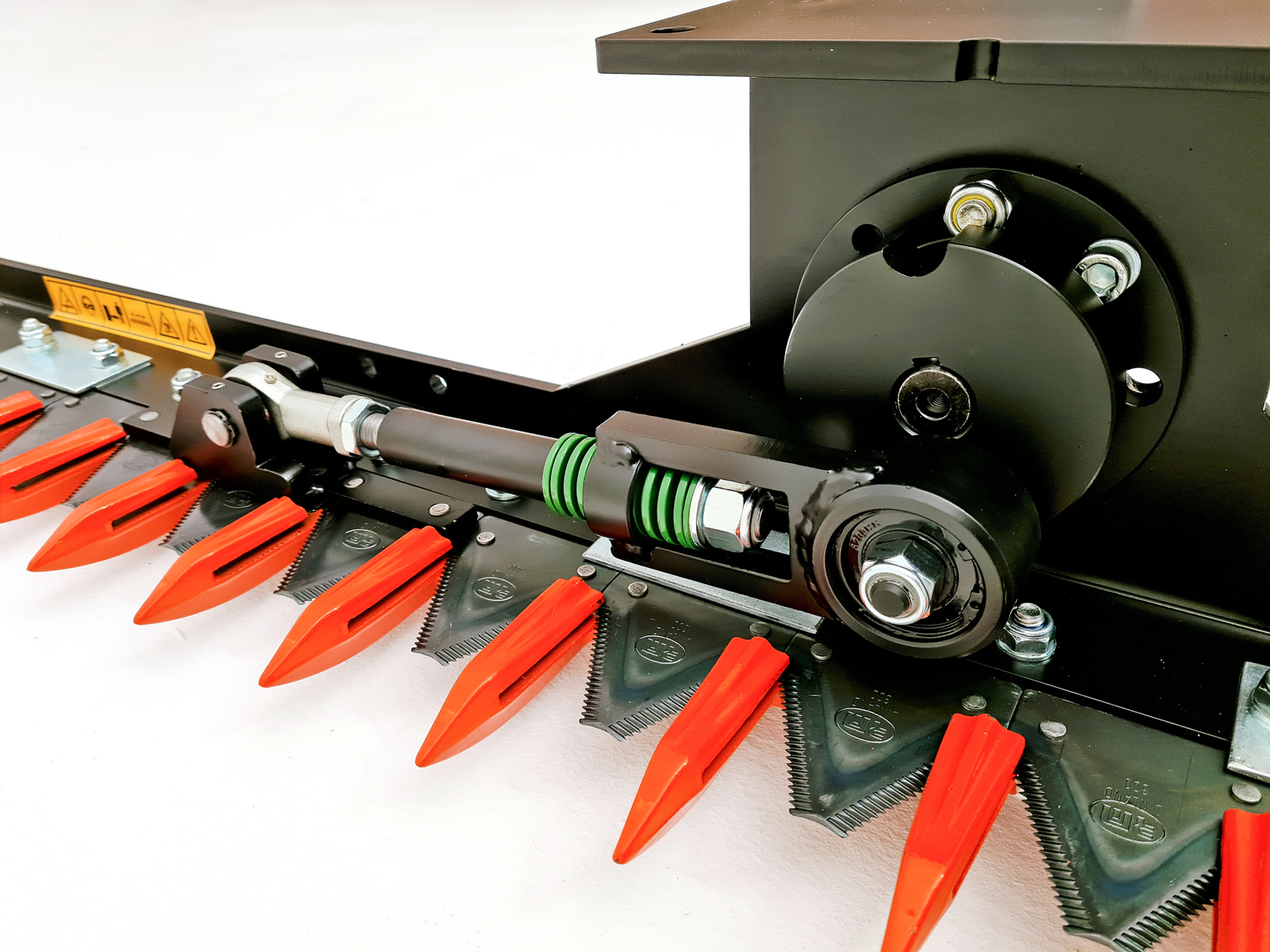

Hydraulic cutter bar DELEKS® HR is ideal for trimming hedges and branches up to about 2.5 cm in diameter. The set-up includes the hydraulic motor and the mounting plate with 4 mounting holes (measures shown in the images).

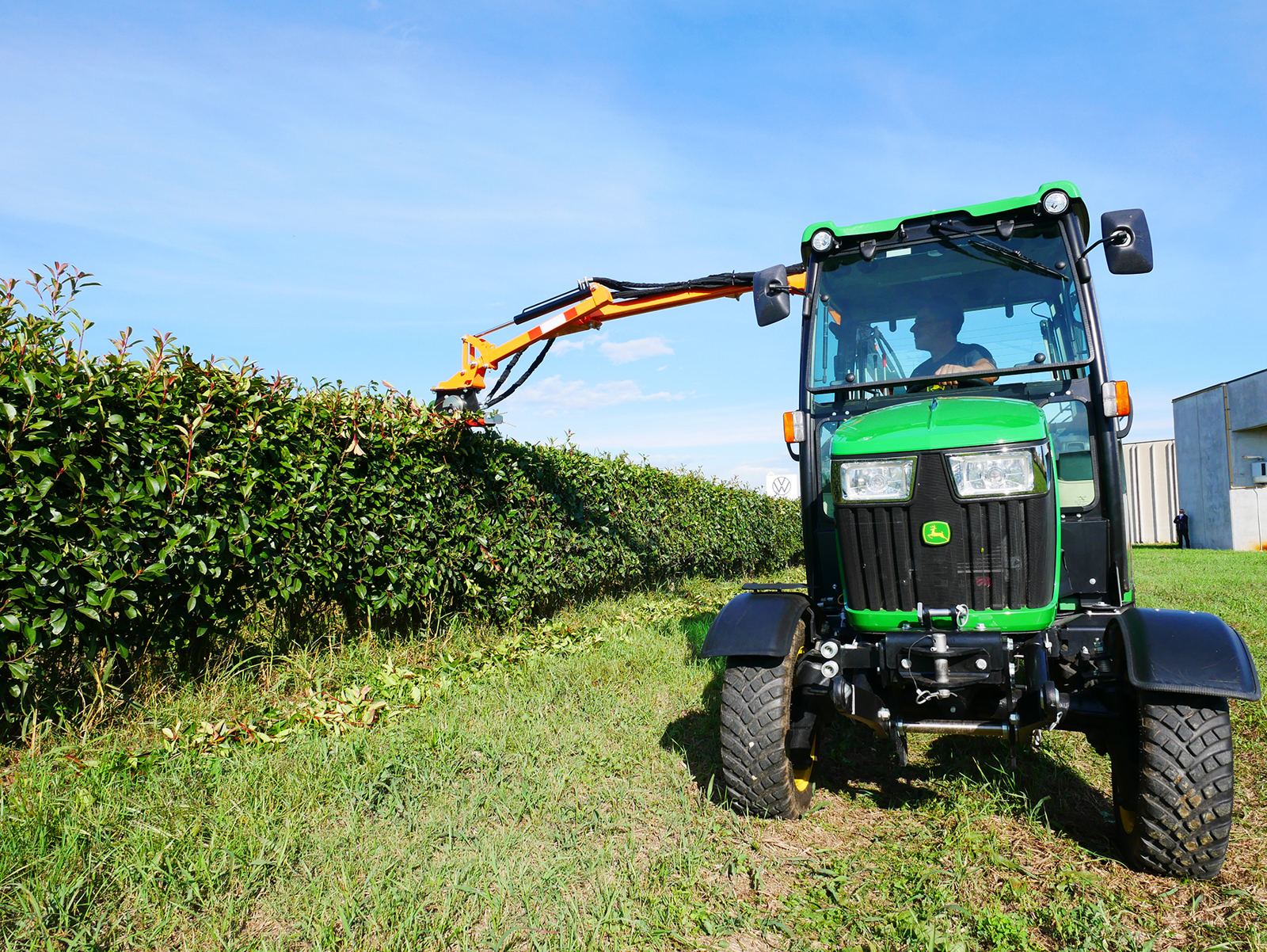

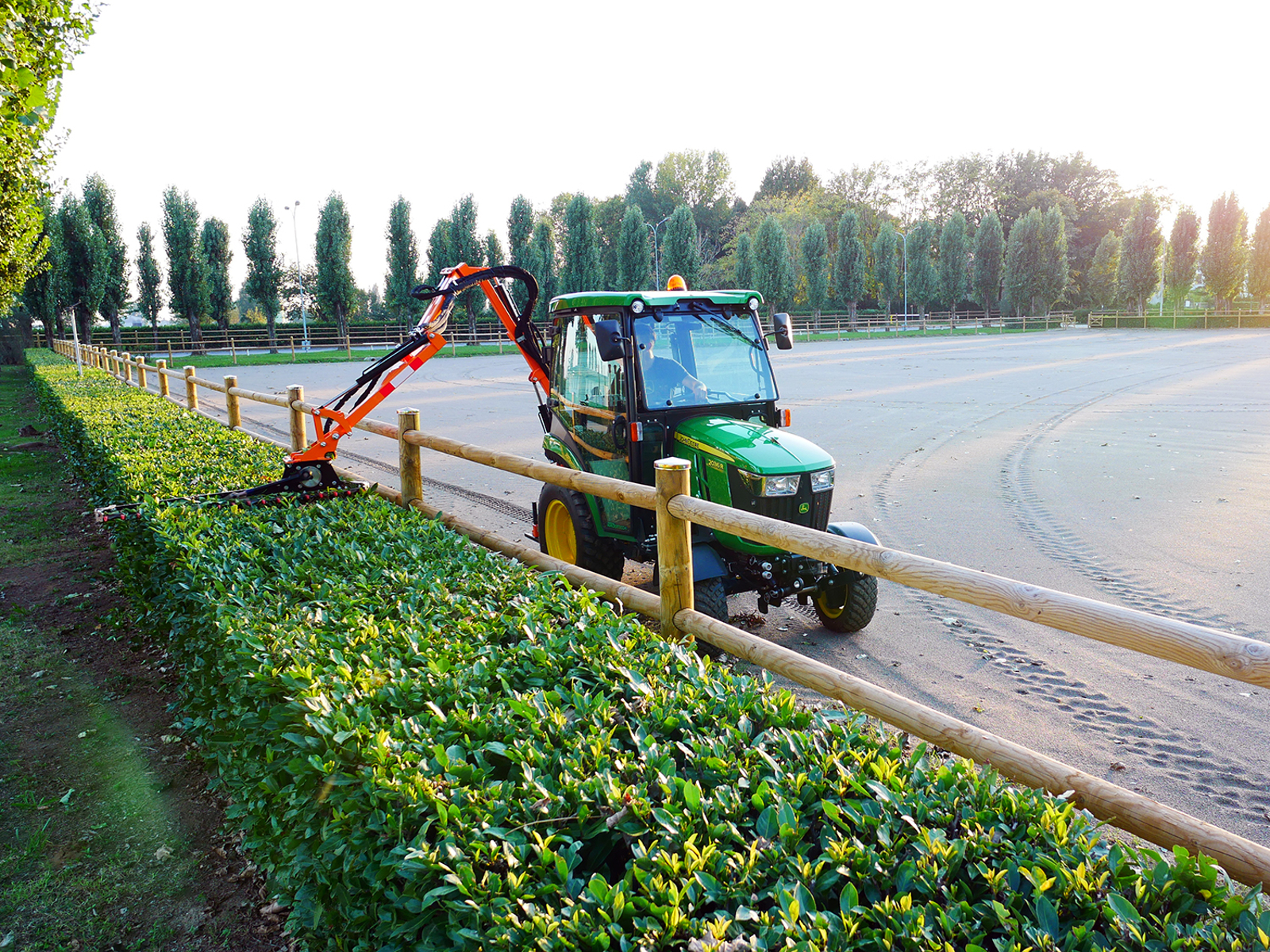

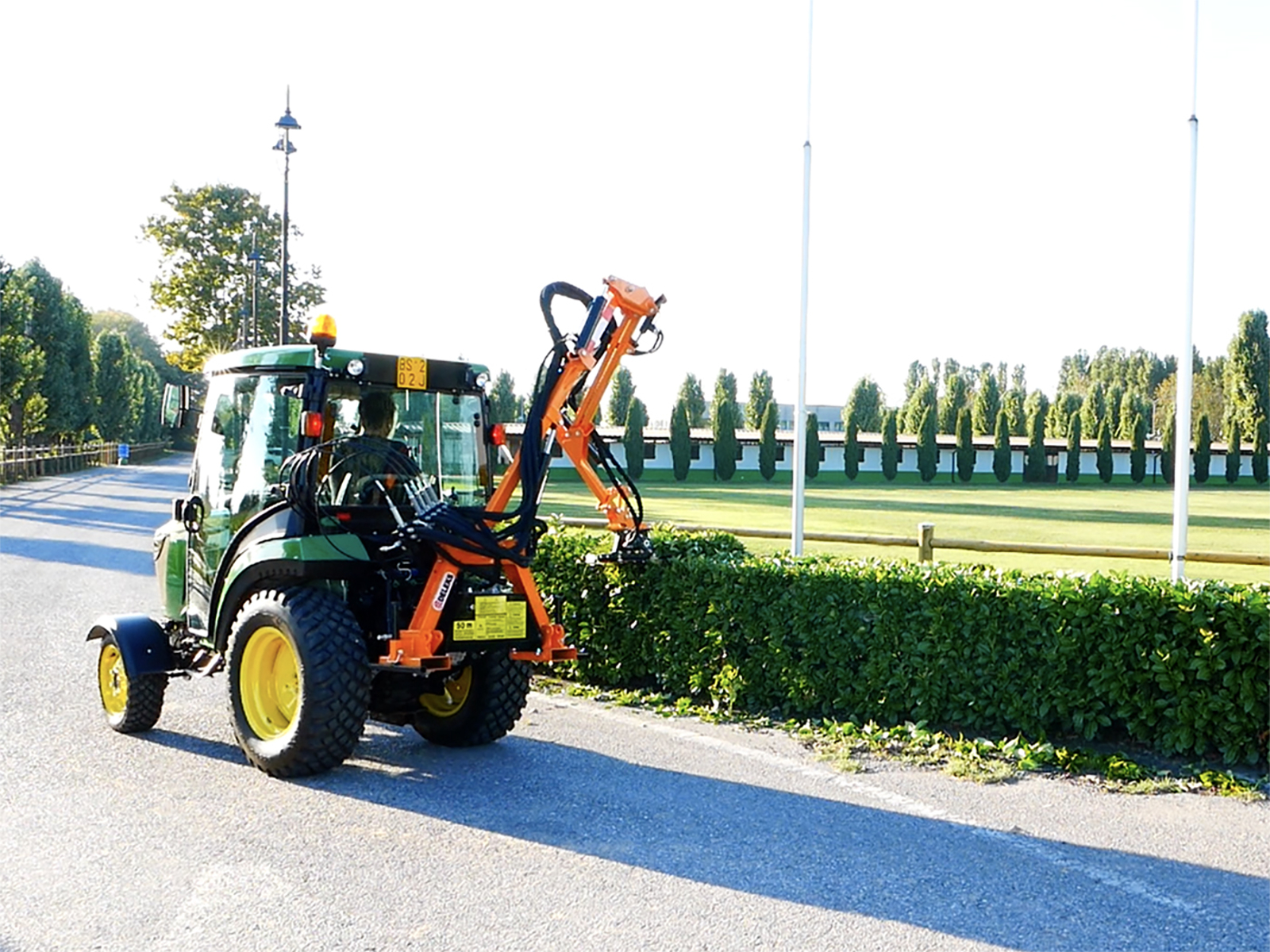

The cutter bar is controlled by the hydraulic system of the tractor / operating machine.
2 years warranty
The hydraulic oil flow: min. 20 l/min.
The operating machine must be equipped with a circuit with a return oil duct (if a certain flow is exceeded, the oil is returned directly to the oil discharge line).
Documentation supplied with this article:
Invoice or Receipt
EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).
|Caracteristic||Units metric||Units US|
|Working width||1300.0 mm||4.25 ft|
|Overall width||1380.0 mm||4.50 ft|
|Weight||58.0 kg||128.0 lb|
|Maximum cutting diameter||25.0 mm||1.0 in|
|Number of Blades||17||17|
|Min./Max. Relief Pressure||140 - 180 bar||140 - 180 bar|
|Min./Max. Flow||min. 20 l/min||min. 20 l/min|
|Packing sizes||1380.0*600.0*300.0 mm||4.50*1.97*1.65 ft|
